SEC-12

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

1.

ECM
Gasoline engine E16
Diesel engine E60

2.

IPDM E/R
E10, E11, E13, E14

3.

Park/neutral position switch
F21

4.

Inside key antenna (rear seat)
B45

5.

Inside key antenna (center console)
M61

6.

Combination meter (buzzer)
(behind the combination meter)
M34

7.

Security indicator lamp
M34

8.

Key warning lamp
M34

9.

NATS antenna amp.
M26

10.

BCM
M65, M66, M67

A.

Engine room (LH)

B.

CVT unit

C.

View with luggage floor spacer (LH)
removed

D.

View with console rear finisher re-
moved

E.

Built in combination meter

F.

View with steering column cover re-
moved

G.

Over the glove box

12.

Inside Key antenna (instrument cen-
ter)
M70

13. Stop lamp switch

Gasoline engine M/T models: E114
Except gasoline engine M/T models:
E115

14.

Steering lock unit
M28

15.

Ignition knob switch, key switch and
key lock solenoid (key switch)
M25

16. Ignition knob switch, key switch and

key lock solenoid (ignition knob
switch)
M25

17.

Ignition knob switch, key switch
and key lock solenoid (key lock so-
lenoid)
M25

18.

Intelligent Key unit
M40

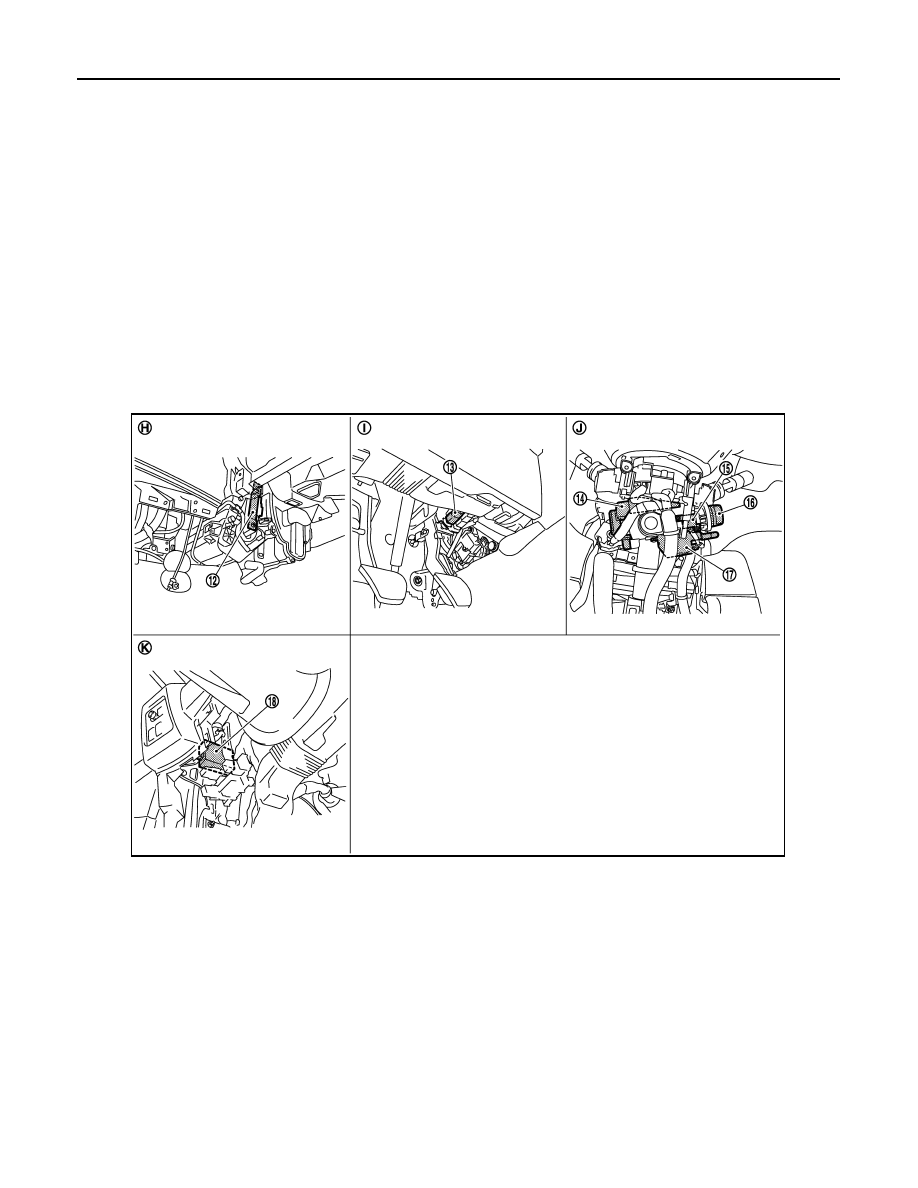

H.

View with instrument lower cover RH
removed

I.

Remove lower instrument panel
(driver side)

J.

View with steering column cover re-
moved

K.

Remove lower instrument panel
(driver side)

JMKIA0435ZZ

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-13

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Component Description

INFOID:0000000000944528

Component Reference

Intelligent Key unit

SEC-42

BCM

BCS-7

ECM

HR16 (WITH EURO-OBD):

EC-34

HR16 (WITHOUT EURO-OBD):

EC-373

MR20 (WITH EURO-OBD):

EC-650

MR20 (WITHOUT EURO-OBD):

EC-994

K9K:

EC-1277

Combination meter

MWI-4

Steering lock unit

SEC-31

Ignition knob switch, key switch and key lock solenoid

SEC-50

Inside key antenna

DLK-116

Stop lamp switch

SEC-52

Security indicator

SEC-58

SEC-14

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

NATS (NISSAN ANTI-THEFT SYSTEM)

NATS (NISSAN ANTI-THEFT SYSTEM)

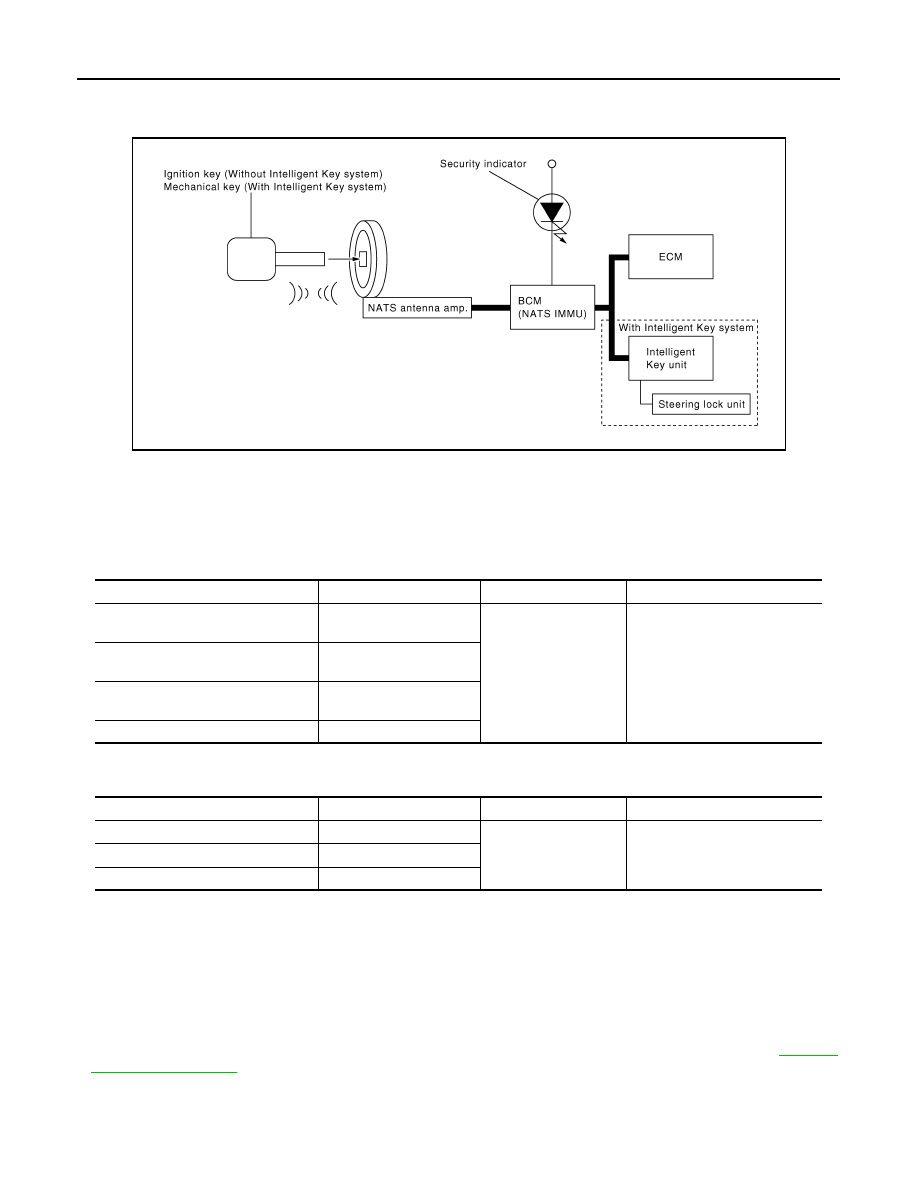

System Diagram

INFOID:0000000000944529

System Description

INFOID:0000000000944530

INPUT/OUTPUT SIGNAL CHART

Intelligent Key Unit

BCM

SYSTEM DESCRIPTION

NATS (Nissan Anti-Theft System) has the following immobilizer functions:
• Engine immobilizer shows high anti-theft performance to prevent engine from starting by other than the

owner.

• Only a key with key ID registered in BCM and ECM can start engine, and shows high anti-theft performance

to prevent key from being copied or stolen.

• Security indicator always flashes with mechanical key removed condition (key switch: OFF) and ignition

knob released condition on LOCK position (ignition knob switch: OFF).

• Therefore, NATS warns outsiders that the vehicle is equipped with the anti-theft system. Refer to

SEC-19,

"System Description"

.

• If system detects malfunction, security indicator illuminates when ignition switch is turned to ON position.
• If the owner requires, ignition key ID or mechanical key ID can be registered for up to 5 keys.
• During trouble diagnosis or when the following parts have been replaced, and if mechanical key is added,

registration* is required.

PIIA6948E

Switch/Input signal

Input signal to BCM

BCM function

Actuator/Output signal

Ignition knob switch

Ignition knob
(push/release)

NATS

• Steering lock unit

Key switch

Mechanical key
(Insert/remove)

Steering lock unit

Steering
(lock/unlock)

ECM

Engine status signal

Switch/Input signal

Input signal to BCM

BCM function

Actuator/Output signal

NATS antenna amp.

Key ID

NATS

• Security indicator lamp
• Starter request

Audio unit

Audio unit ID

ECM

Engine status signal

NATS (NISSAN ANTI-THEFT SYSTEM)

SEC-15

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

*1

: All keys kept by the owner of the vehicle should be registered with mechanical key.

- ECM
- BCM
- Mechanical key
- ABS actuator control unit
- EPS control unit
- IPDM E/R
- Combination meter
• NATS trouble diagnosis, system initialization and additional registration of other mechanical key IDs must be

carried out using CONSULT-III hardware and SECURITY CARD.
When NATS initialization has been completed, the ID of the inserted mechanical key or mechanical key IDs
can be carried out.

• Possible symptom of NATS malfunction is “Engine cannot start”. In J10, the engine can be started with the

Intelligent Key system and NATS. Identify the possible causes according to “Work Flow”, Refer to

SEC-5,

"Work Flow"

.

• If ECM other than Genuine NISSAN is installed, the engine cannot be started. For ECM replacement proce-

dure, refer to

SEC-8, "ECM RE-COMMUNICATING FUNCTION : Description"

.

PRECAUTIONS FOR KEY REGISTRATION

• The key registration is a procedure that erases the current NATS ID once, and then re-registers a new ID.

Therefore the registered Intelligent Key is necessary for this procedure. Before starting the registration oper-
ation collect all registered Intelligent Keys from the customer.

• The NATS ID registration is the procedure that registers the ID stored into the transponder (integrated in

mechanical key) to BCM.
The Intelligent Key ID registration is the procedure that registers the ID to Intelligent Key unit.

• When performing the Intelligent Key system registration only, the engine cannot be started by inserting the

key into the key cylinder. When performing the NATS registration only, the engine cannot be started by using
the mechanical key.

SECURITY INDICATOR

• Always flashes with ignition knob released (ignition knob switch: OFF) condition on ignition knob LOCK posi-

tion.

• Always flashes with ignition knob released (ignition knob switch: OFF) condition on mechanical key removed

position.

MAINTENANCE INFORMATION

CAUTION:

It is necessary to perform NATS ID registration when replacing any of the following part.
If it's not (or fail to do so), the electrical system may not operate properly.
*: New one means a virgin control unit that has never been energized on-board.
• ABS actuator control unit
• EPS control unit
• IPDM E/R
• ECM
• Combination meter

Component Parts Location

INFOID:0000000001090900
