DOOR CHECK LINK : Removal and Installation

INFOID:0000000001098762

REMOVAL

1.

Remove the rear door finisher. Refer to

INT-10, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Remove the rear door sealing screen.

3.

Remove the mounting bolts of the check link on the vehicle.

4.

Remove the door check link cover, and then remove the door check link mounting bolts.

5.

Remove the door check link.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check front door open/close operation after installation.

1.

Door check link

2.

Door hinge (upper)

3.

Door hinge (lower)

4.

Bumper rubber

5.

Rear door panel

6.

Door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0180ZZ

PIIB6543E

DLK-852

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

BACK DOOR

BACK DOOR

BACK DOOR ASSEMBLY

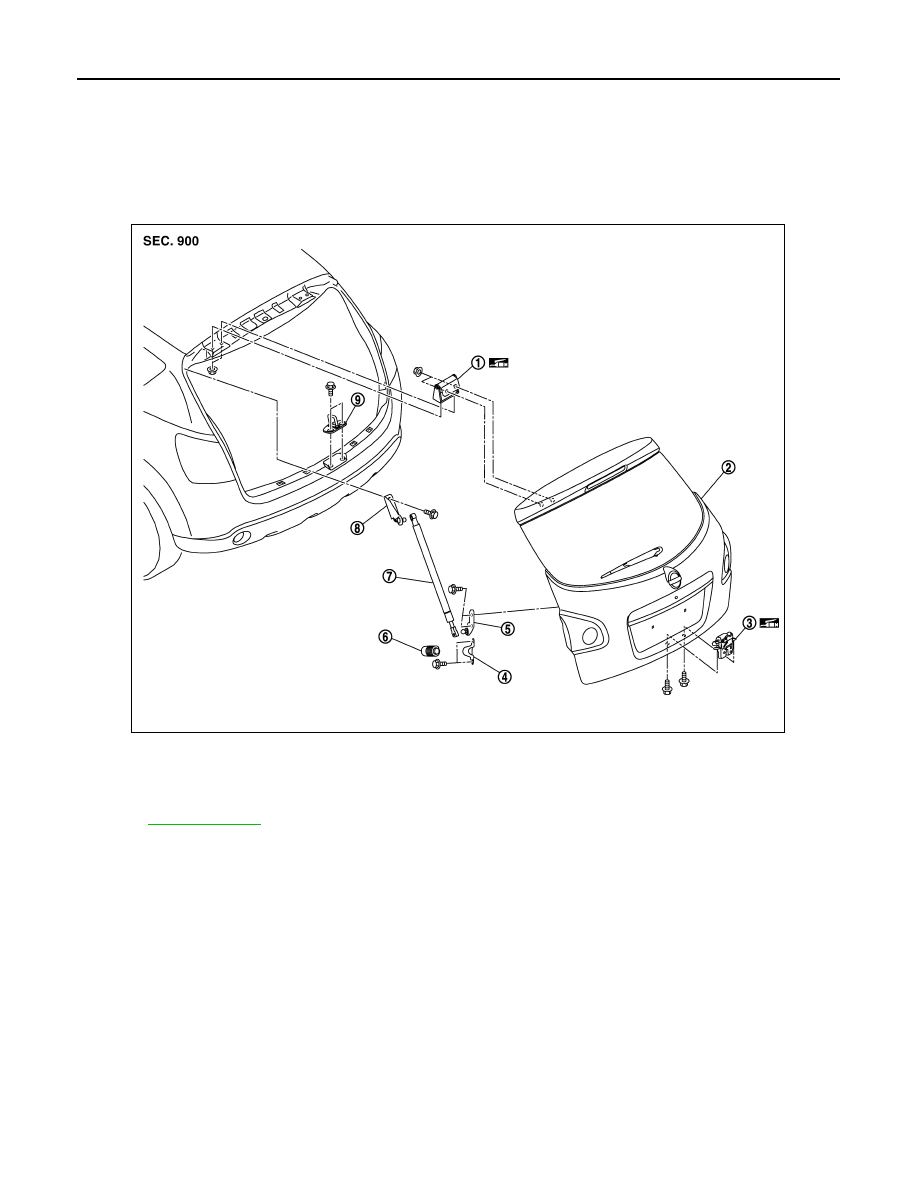

BACK DOOR ASSEMBLY : Exploded View

INFOID:0000000001098767

REMOVAL

ADJUSTMENT

1.

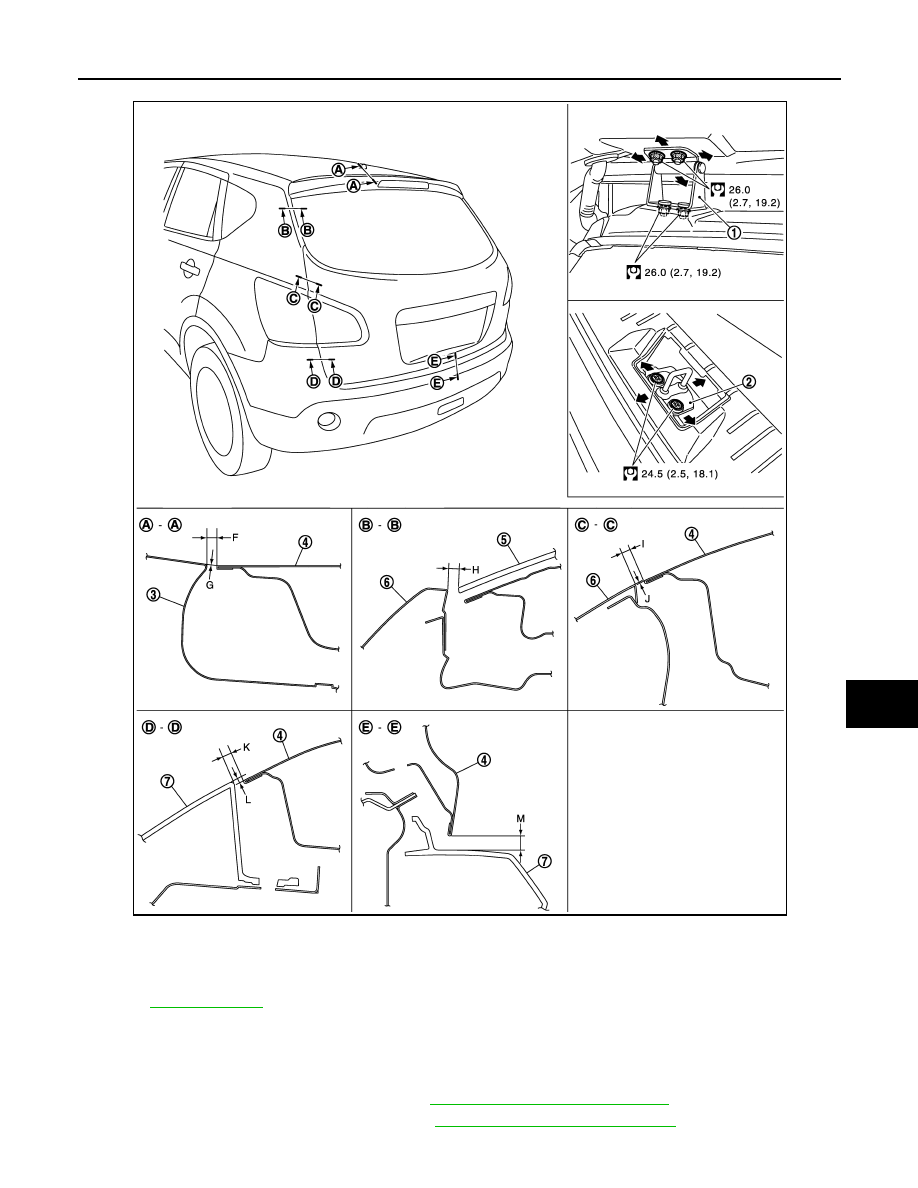

Back door hinge

2.

Back door assembly

3.

Back door lock assembly

4.

Bumper rubber bracket

5.

Back door stay bracket (lower)

6.

Bumper rubber

7.

Back door stay

8.

Back door stay bracket (upper)

9.

Back door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0186ZZ

BACK DOOR

DLK-853

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000001098768

REMOVAL

1.

Remove the back door finisher inner. Refer to

INT-26, "Removal and Installation"

.

2.

Remove the back door window glass. Refer to

GW-17, "Removal and Installation"

.

NOTE:

1.

Back door hinge

2.

Back door striker

3.

Roof panel

4.

Back door outer

5.

Back door glass

6.

Body side outer

7.

Rear bumper fascia

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0194ZZ

DLK-854

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

BACK DOOR

It is necessary to remove back door window glass in order to remove harness, because harness connec-
tor interferes with back door window glass pin.

3.

Disconnect the connectors in the back door, and then remove the grommet, and pull out hte harness.

4.

Remove the parcel shelf. Refer to

INT-24, "Removal and Installation"

.

5.

Remove the high-mounted stop lamp. Refer to

EXL-183, "Removal and Installation"

.

6.

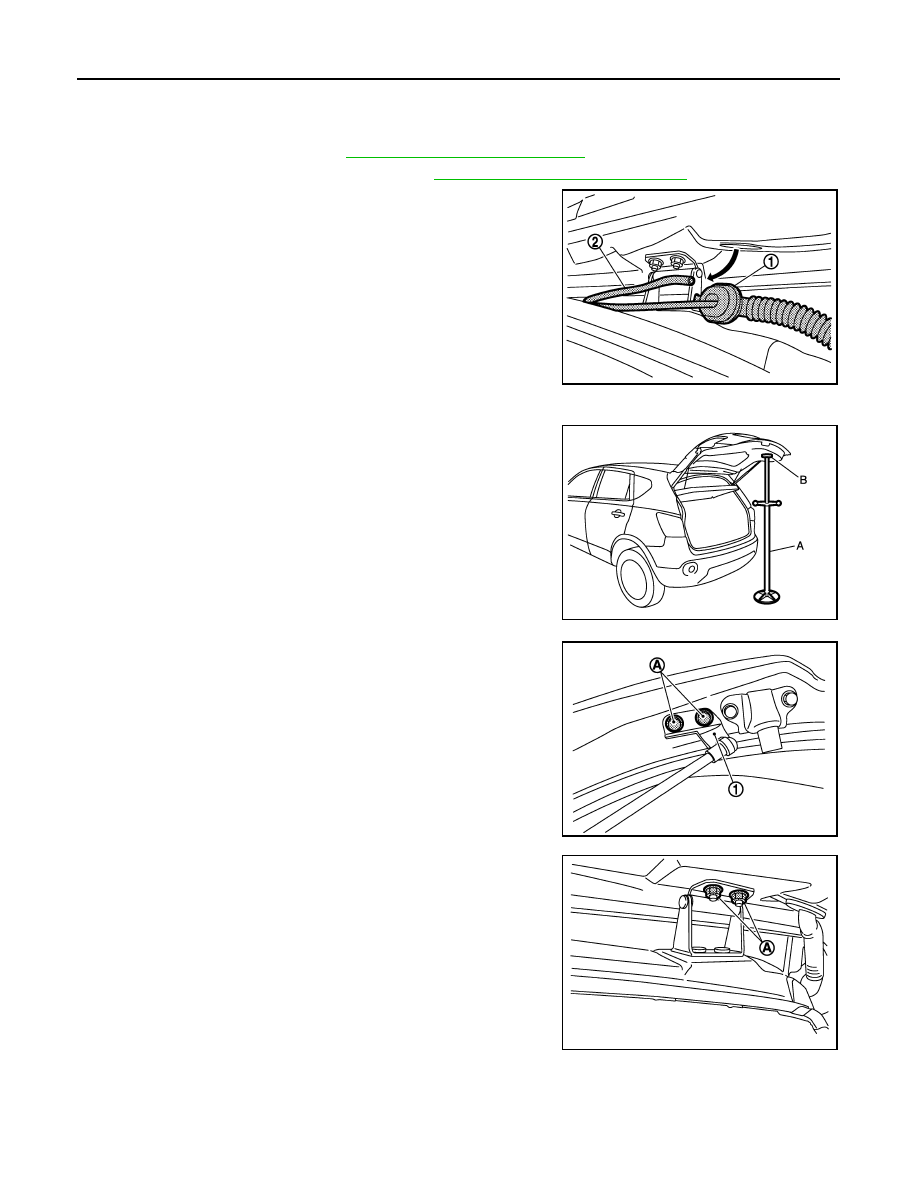

Remove the grommet (1), and then pull out the washer tube (2) .

7.

Pull the harness out of the back door.

8.

Support the back door lock with the proper material to prevent it
from falling.

9.

Remove the back door stay bracket mounting bolts (A) on the
back door.

10. Remove the back door hinge mounting nuts (A) on the back

door and remove the back door assembly.

CAUTION:

Perform work with 2 workers, because of its heavy weight.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Perform work with 2 workers, because of its heavy weight.

JMKIA0190ZZ

A

: Jack

B

: Shop cloth

JMKIA0191ZZ

JMKIA0192ZZ

JMKIA0193ZZ
