REAR DOOR

DLK-847

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

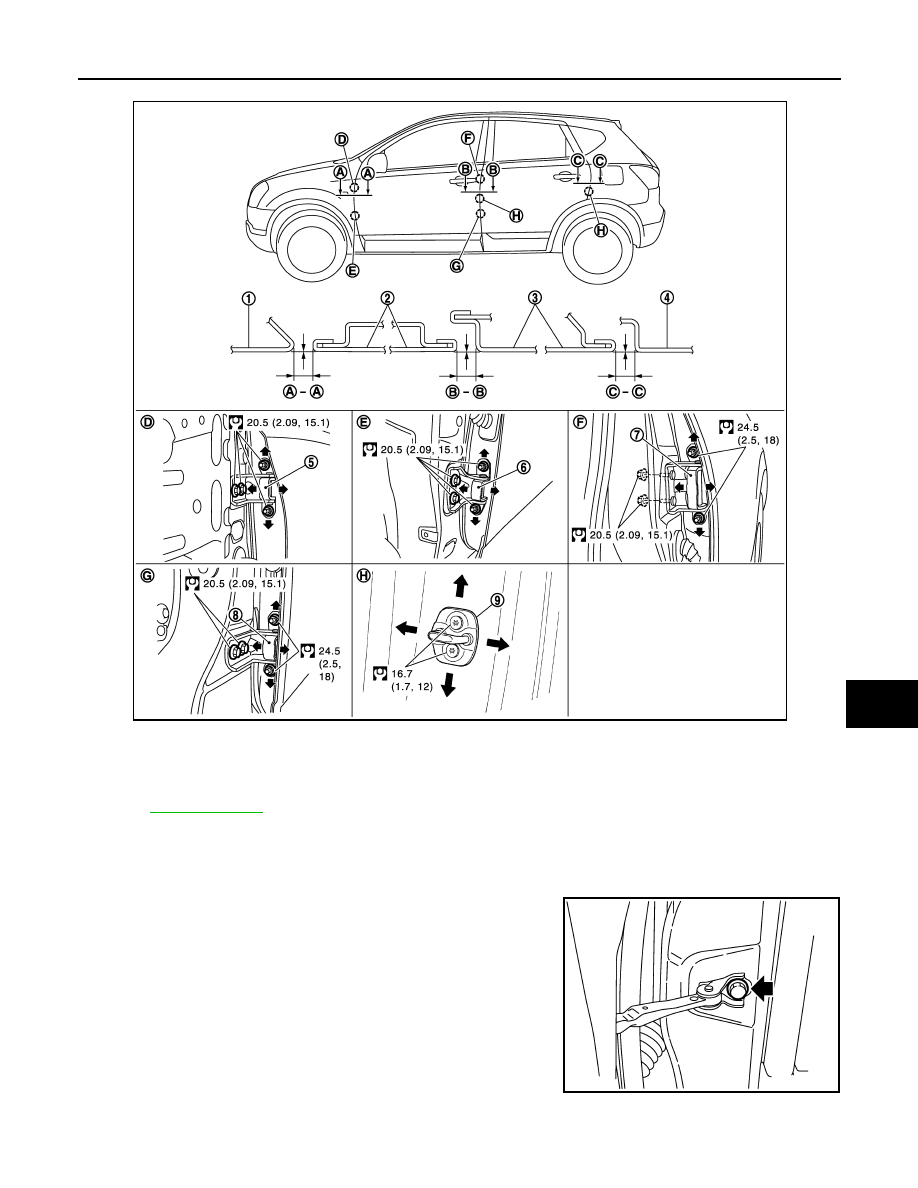

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000001098740

REMOVAL

1.

Remove the mounting bolts of the door check link on the vehicle.

2.

Remove the rear door harness grommet, and then pull out the door harness from the vehicle.

1.

Front fender

2.

Front door outer

3.

Rear door outer

4.

Rear fender

5.

Front door hinge (upper)

6.

Front door hinge (lower)

7.

Rear door hinge (upper)

8.

Rear door hinge (lower)

9.

Striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0195GB

PIIB6543E

DLK-848

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

REAR DOOR

3.

Disconnect the rear door harness connector.

4.

Remove the door hinge mounting nuts (door side), and then remove the rear door assembly.

CAUTION:

• When removing and installing the front door assembly, support the door with a jack and cloth to

protect the door and body.

• Perform work with 2 workers, because of it’s heavy weight.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When removing and installing the rear door assembly, perform the fitting adjustment. Refer to

DLK-

848, "DOOR ASSEMBLY : Adjustment"

.

• After installation, apply touch-up paint (the body color) onto the head of the door hinge mounting

nuts.

• Check the door hinge rotating part for poor lubrication. If necessary, apply body grease.
• Check the rear door open/close operation after installation.
• Check the rear door lock/unlock operation after installation.

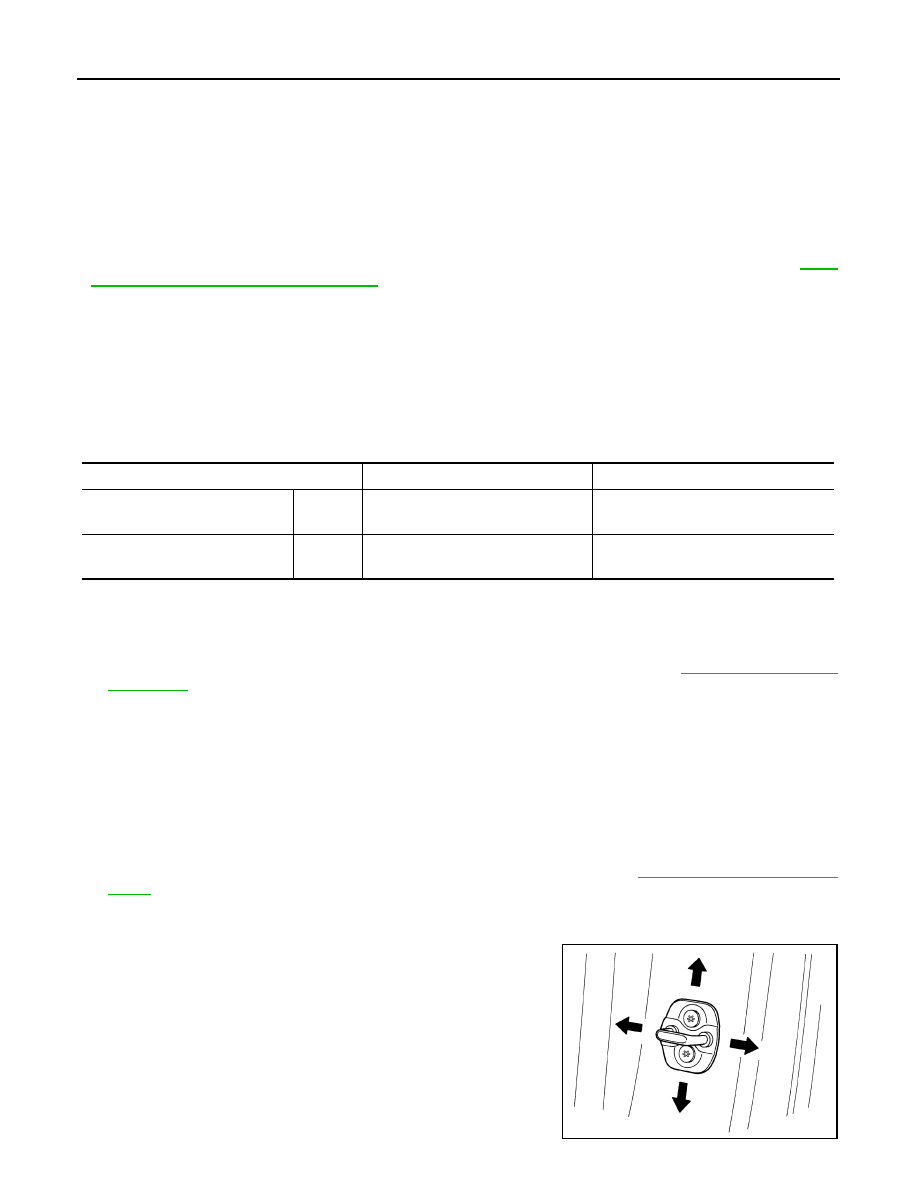

DOOR ASSEMBLY : Adjustment

INFOID:0000000001098742

CLEARANCE, SURFACE HEIGHT AND SURFACE MISMATCH ADJUSTMENT

1.

Check the clearance and surface height and surface mismatch between the rear door and each part visu-
ally and by touching. (Fitting standard dimension in the table below shall be satisfied.)

2.

In case any parts are out of specification, adjust them according to the procedures shown below.

3.

Remove the center pillar upper garnish and center pillar lower garnish. Refer to

INT-14, "Removal and

Installation"

.

4.

Loosen the door hinge mounting nuts on door side.

5.

Adjust the surface height and surface mismatch of the rear door according to the fitting standard dimen-
sion.

6.

Temporarily tighten the hinge mounting nuts on door side.

7.

Loosen the door hinge mounting nuts and bolts on body side.

8.

Raise the rear door at rear end to adjust clearance of the rear door according to the fitting standard dimen-
sion.

9.

After adjustment tighten bolts and nuts to the specified torque.

10. Install the center pillar upper garnish and center pillar lower garnish. Refer to

INT-14, "Removal and Instal-

lation"

.

DOOR STRIKER ADJUSTMENT

Adjust the door striker so that it becomes parallel with the lock inser-
tion direction.

Portion

Clearance

Surface height

Front door – Rear door

B – B

3.5 – 5.0 mm

(0.138 – 0.197 in)

- 1.5 – 0.5 mm

(- 0.059 – 0.020 in)

Rear door – Rear fender

C – C

3.5 – 5.0 mm

(0.138 – 0.197 in)

- 1.5 – 0.5 mm

(- 0.059 – 0.020 in)

PIIB2804J

REAR DOOR

DLK-849

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

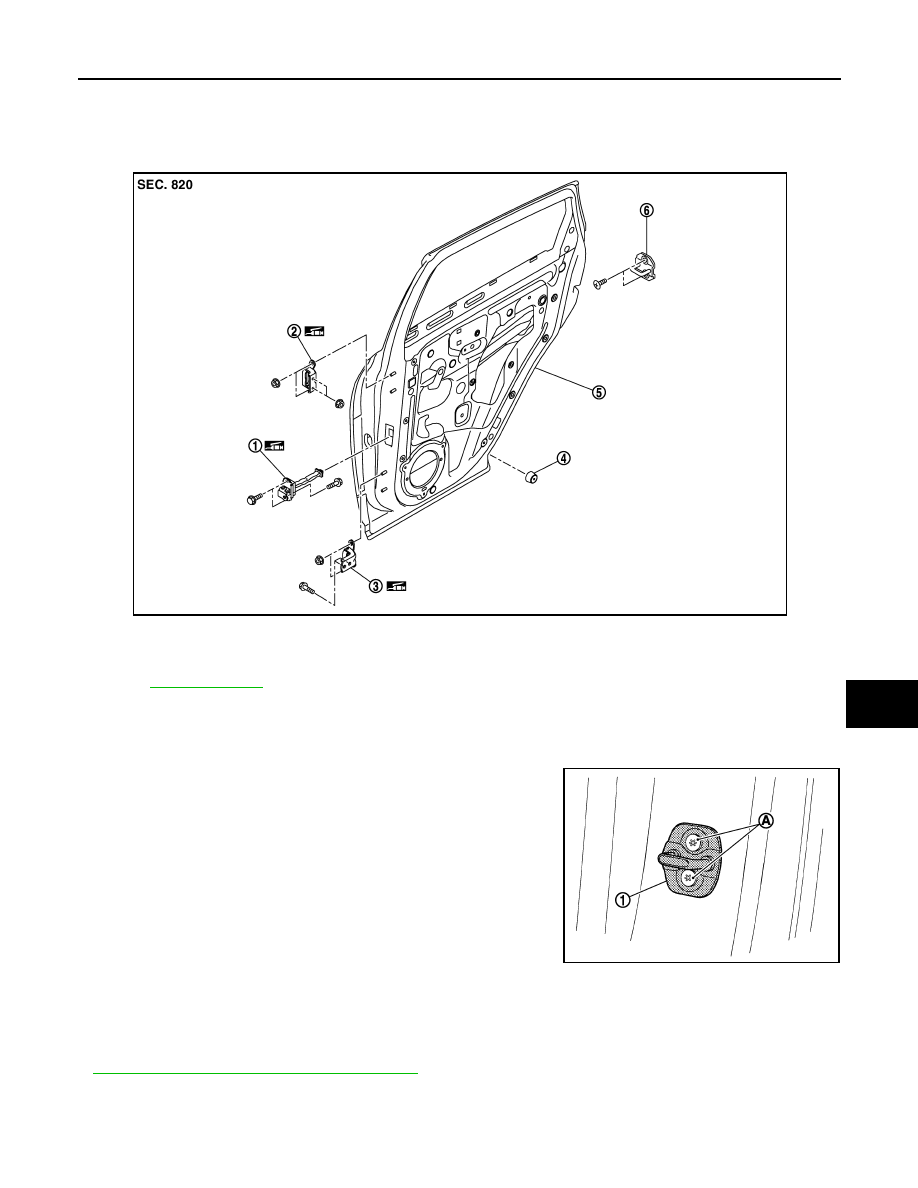

DOOR STRIKER

DOOR STRIKER : Exploded View

INFOID:0000000001098751

DOOR STRIKER : Removal and Installation

INFOID:0000000001098752

REMOVAL

Remove the mounting bolts (A), and then remove the door striker
(1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check the rear door open/close operation after installation.
• When removing and installing the door striker, be sure to perform the fitting adjustment. Refer to

DLK-848, "DOOR ASSEMBLY : Adjustment"

.

DOOR HINGE

DOOR HINGE : Exploded View

INFOID:0000000001098755

1.

Door check link

2.

Door hinge (upper)

3.

Door hinge (lower)

4.

Bumper rubber

5.

Rear door panel

6.

Door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0180ZZ

JMKIA0439ZZ

DLK-850

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

REAR DOOR

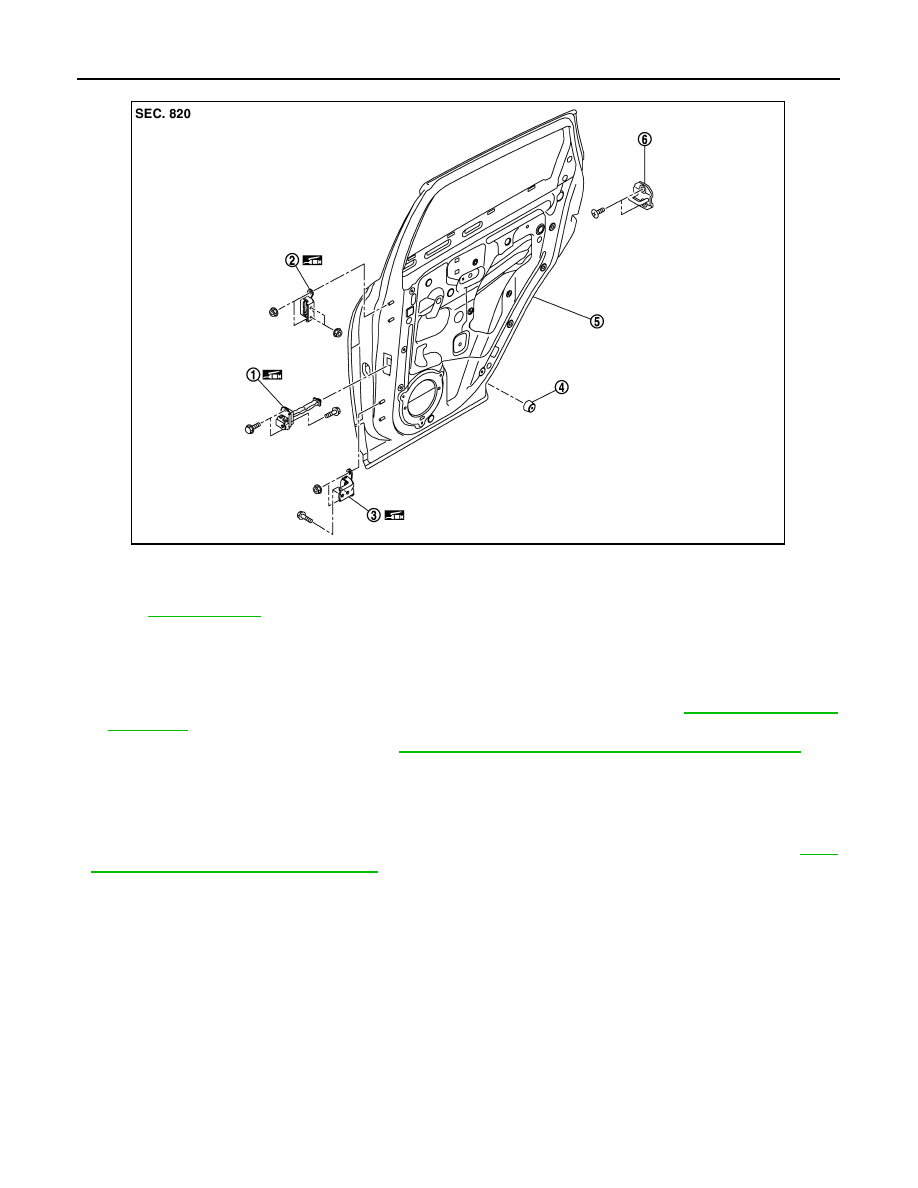

DOOR HINGE : Removal and Installation

INFOID:0000000001098758

REMOVAL

1.

Remove the center pillar lower garnish and the center pillar upper garnish. Refer to

INT-14, "Removal and

Installation"

.

2.

Remove the rear door assembly. Refer to

DLK-242, "DOOR ASSEMBLY : Removal and Installation"

.

3.

Remove the rear door hinge mounting bolts and nuts (body side), and then remove the door hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When removing and installing the rear door assembly, perform the fitting adjustment. Refer to

DLK-

848, "DOOR ASSEMBLY : Adjustment"

.

• Check the door hinge rotating part for poor lubrication. If necessary, apply body grease.
• After installing, apply the touch-up paint (the body color) onto the head of the hinge mounting nuts.
• Check the rear door open/close operation after installation.

DOOR CHECK LINK

DOOR CHECK LINK : Exploded View

INFOID:0000000001098760

1.

Door check link

2.

Door hinge (upper)

3.

Door hinge (lower)

4.

Bumper rubber

5.

Rear door panel

6.

Door striker

Refer to

GI-4, "Components"

 for symbols in the figure.
