DOOR STRIKER

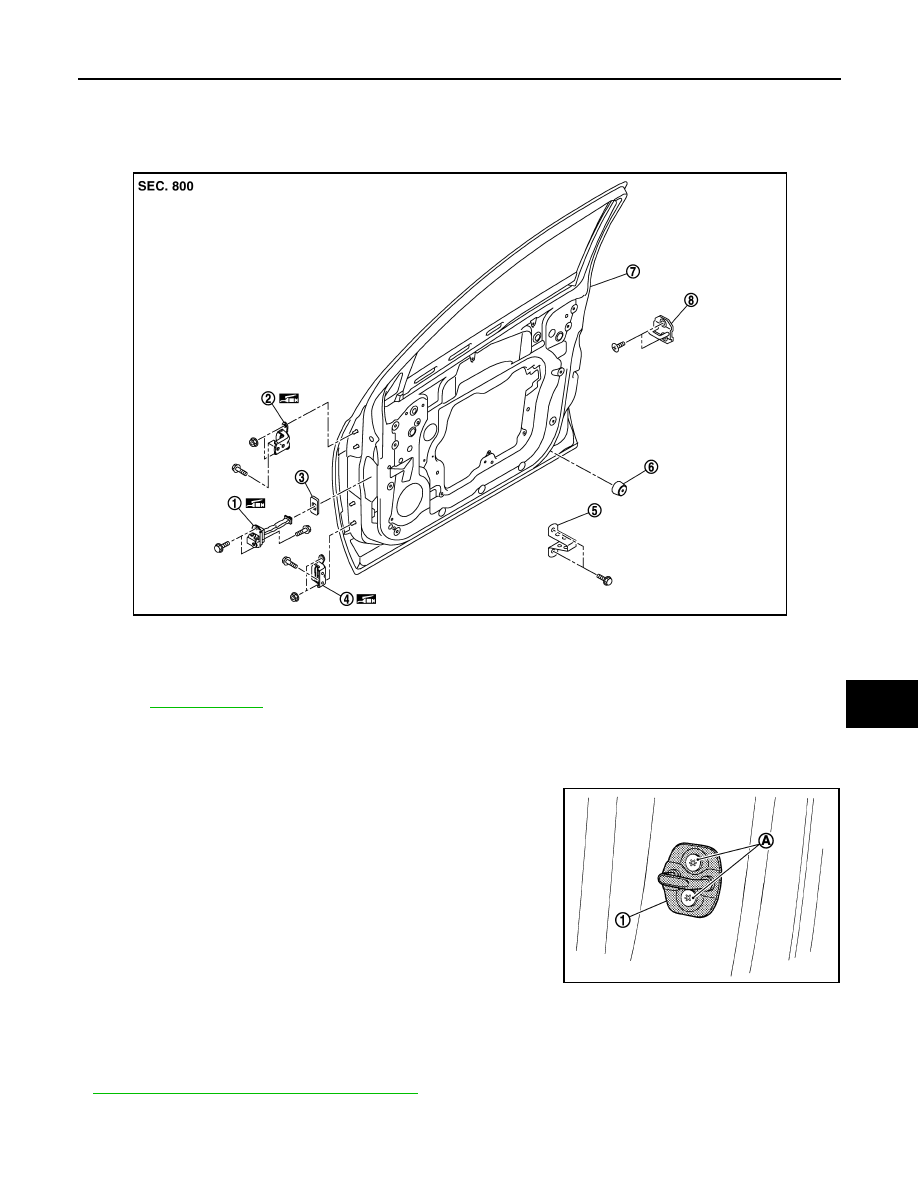

DOOR STRIKER : Exploded View

INFOID:0000000001098726

DOOR STRIKER : Removal and Installation

INFOID:0000000001098727

REMOVAL

Remove the mounting bolts (A), and then remove the door striker
(1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check the front door open/close operation after installation.
• When removing and installing the door striker, be sure to perform the fitting adjustment. Refer to

DLK-842, "DOOR ASSEMBLY : Adjustment"

.

DOOR HINGE

1.

Door check link

2.

Door hinge (upper)

3.

Door check link cover

4.

Door hinge (lower)

5.

Bracket

6.

Bumper rubber

7.

Front door panel

8.

Door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0179ZZ

JMKIA0439ZZ

DLK-844

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

FRONT DOOR

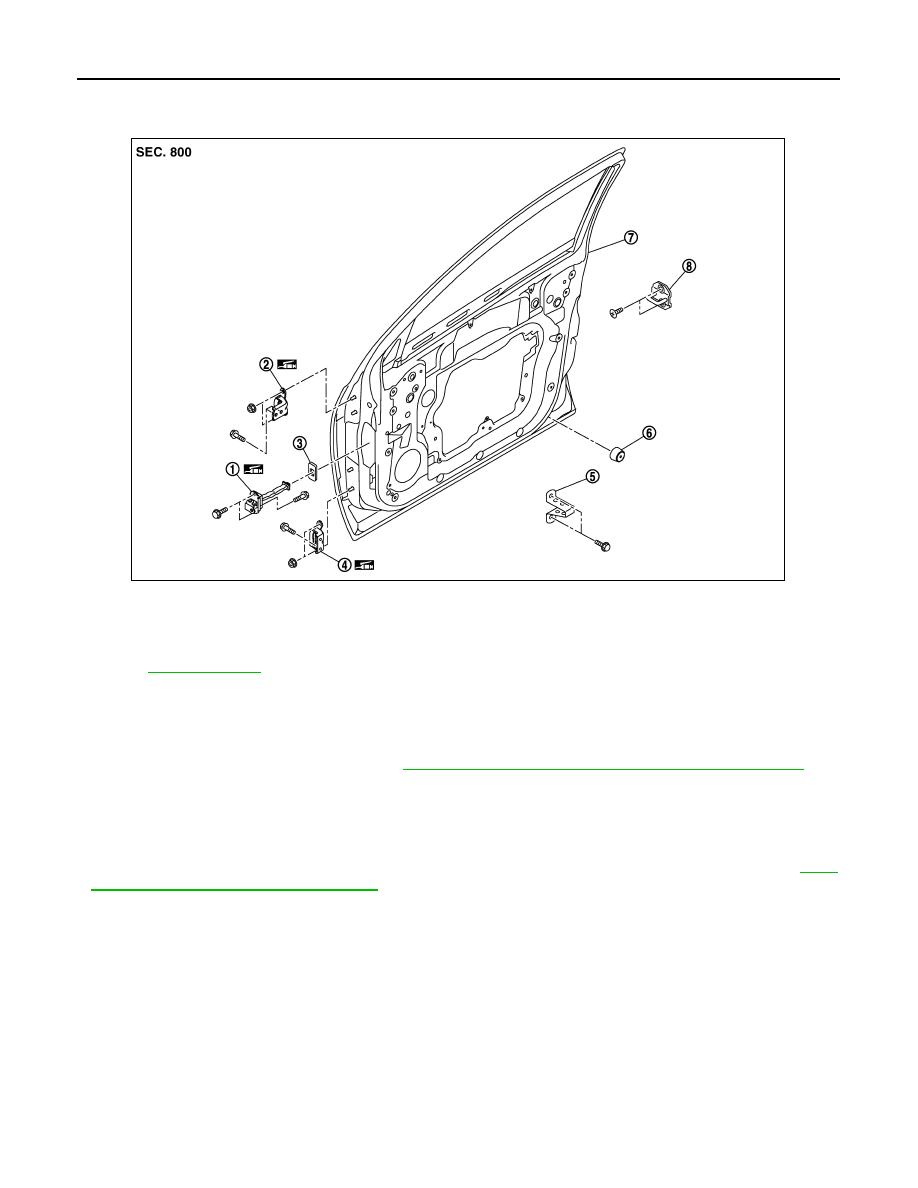

DOOR HINGE : Exploded View

INFOID:0000000001098730

DOOR HINGE : Removal and Installation

INFOID:0000000001098732

REMOVAL

1.

Remove the front door assembly. Refer to

DLK-841, "DOOR ASSEMBLY : Removal and Installation"

.

2.

Remove the door hinge mounting bolts, and then remove the front door hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When removing and installing the front door assembly, perform the fitting adjustment. Refer to

DLK-

842, "DOOR ASSEMBLY : Adjustment"

.

• After installation, apply touch-up paint (the body color) onto the head of the door hinge mounting

nuts.

• Check the door hinge rotating part for poor lubrication. If necessary, apply body grease.
• Check the front door open/close operation after installation.

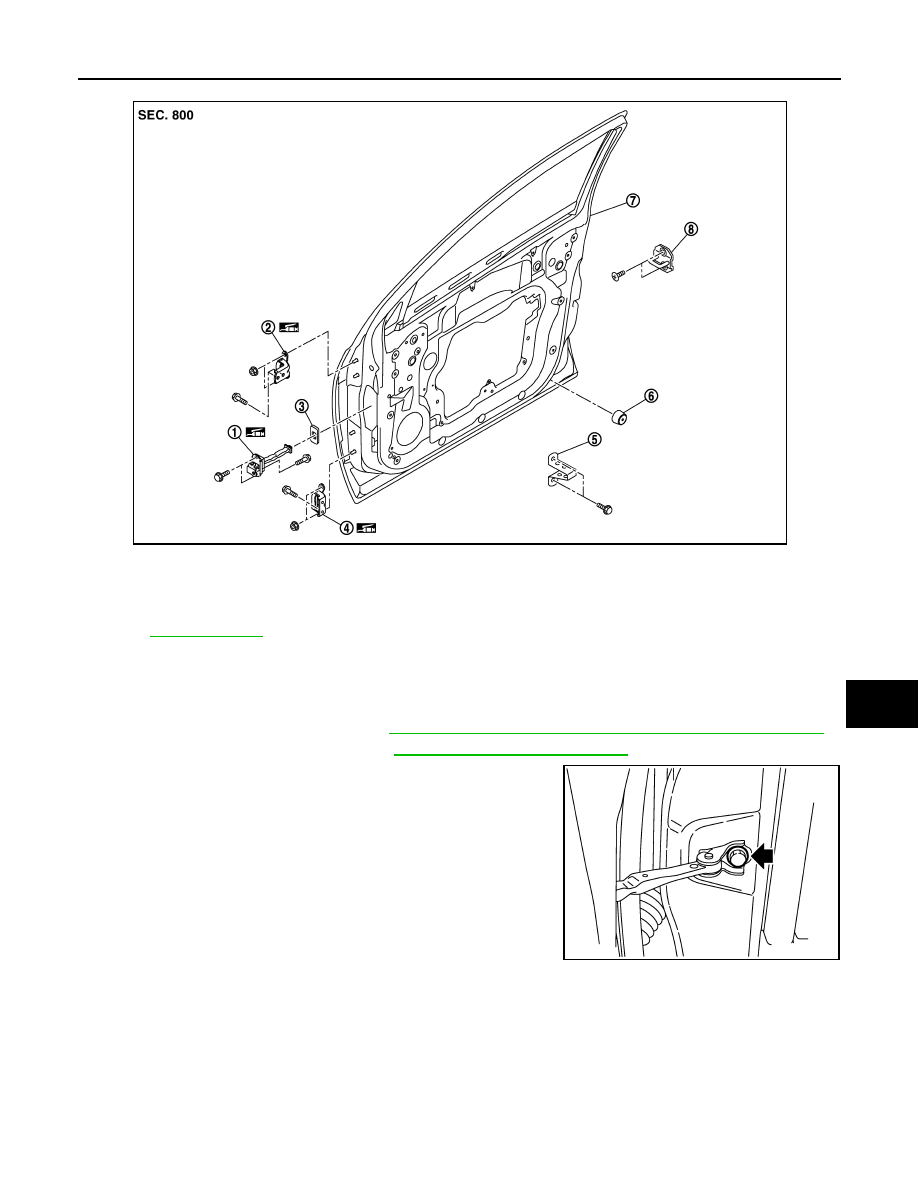

DOOR CHECK LINK

DOOR CHECK LINK : Exploded View

INFOID:0000000001098735

1.

Door check link

2.

Door hinge (upper)

3.

Door check link cover

4.

Door hinge (lower)

5.

Bracket

6.

Bumper rubber

7.

Front door panel

8.

Door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0179ZZ

FRONT DOOR

DLK-845

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR CHECK LINK : Removal and Installation

INFOID:0000000001098737

REMOVAL

1.

Remove the front door finisher. Refer to

INT-10, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Remove the front door speaker. Refer to

AV-34, "Removal and Installation"

.

3.

Remove the mounting bolts of the door check link on the vehicle.

4.

Remove the door check link cover, and then remove the door check link mounting bolts.

5.

Remove the door check link.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check the front door open/close operation after installation.

1.

Door check link

2.

Door hinge (upper)

3.

Door check link cover

4.

Door hinge (lower)

5.

Bracket

6.

Bumper rubber

7.

Front door panel

8.

Door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0179ZZ

PIIB6543E

DLK-846

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

REAR DOOR

REAR DOOR

DOOR ASSEMBLY

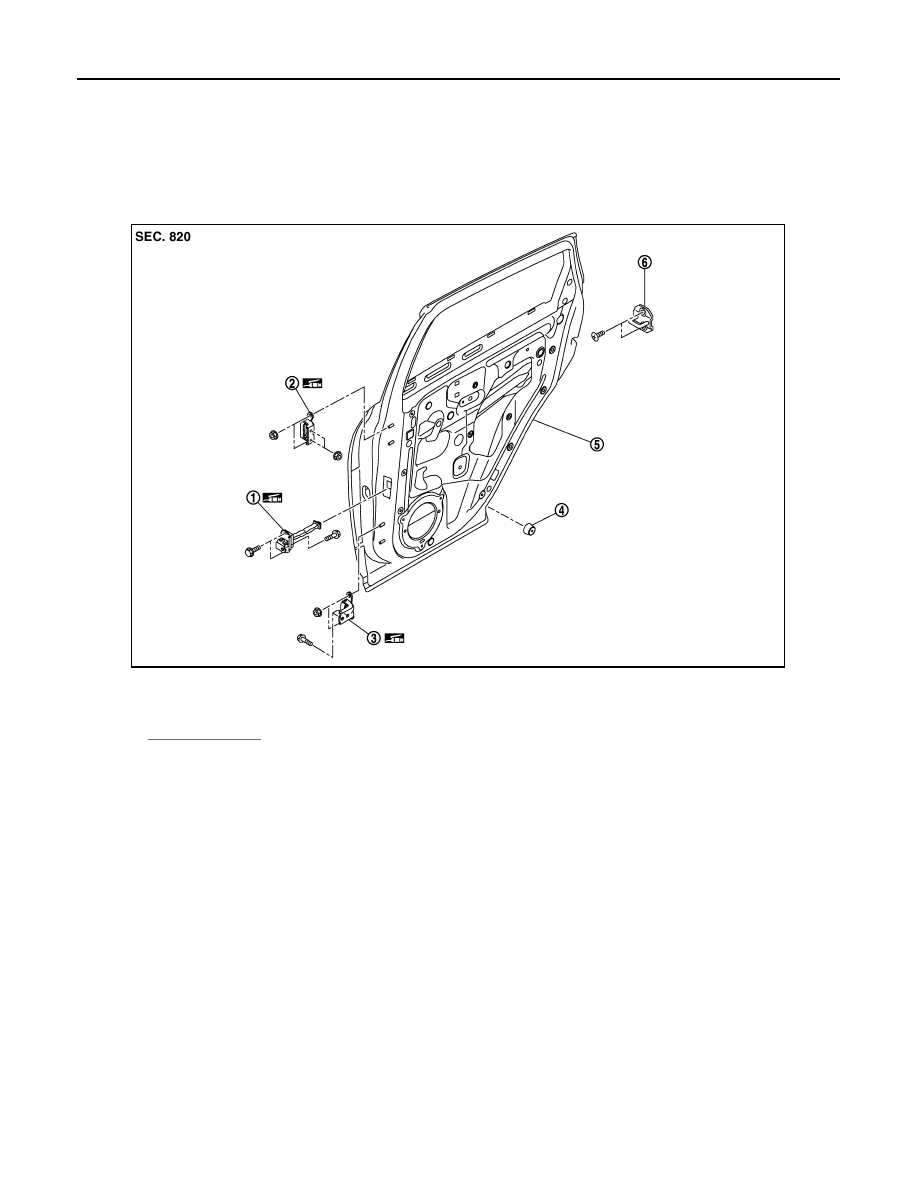

DOOR ASSEMBLY : Exploded View

INFOID:0000000001098739

REMOVAL

ADJUSTMENT

1.

Door check link

2.

Door hinge (upper)

3.

Door hinge (lower)

4.

Bumper rubber

5.

Rear door panel

6.

Door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0180ZZ
