Nissan Qashqai (2007-2010). Manual - part 1189

RADIATOR CORE SUPPORT

DLK-835

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

RADIATOR CORE SUPPORT

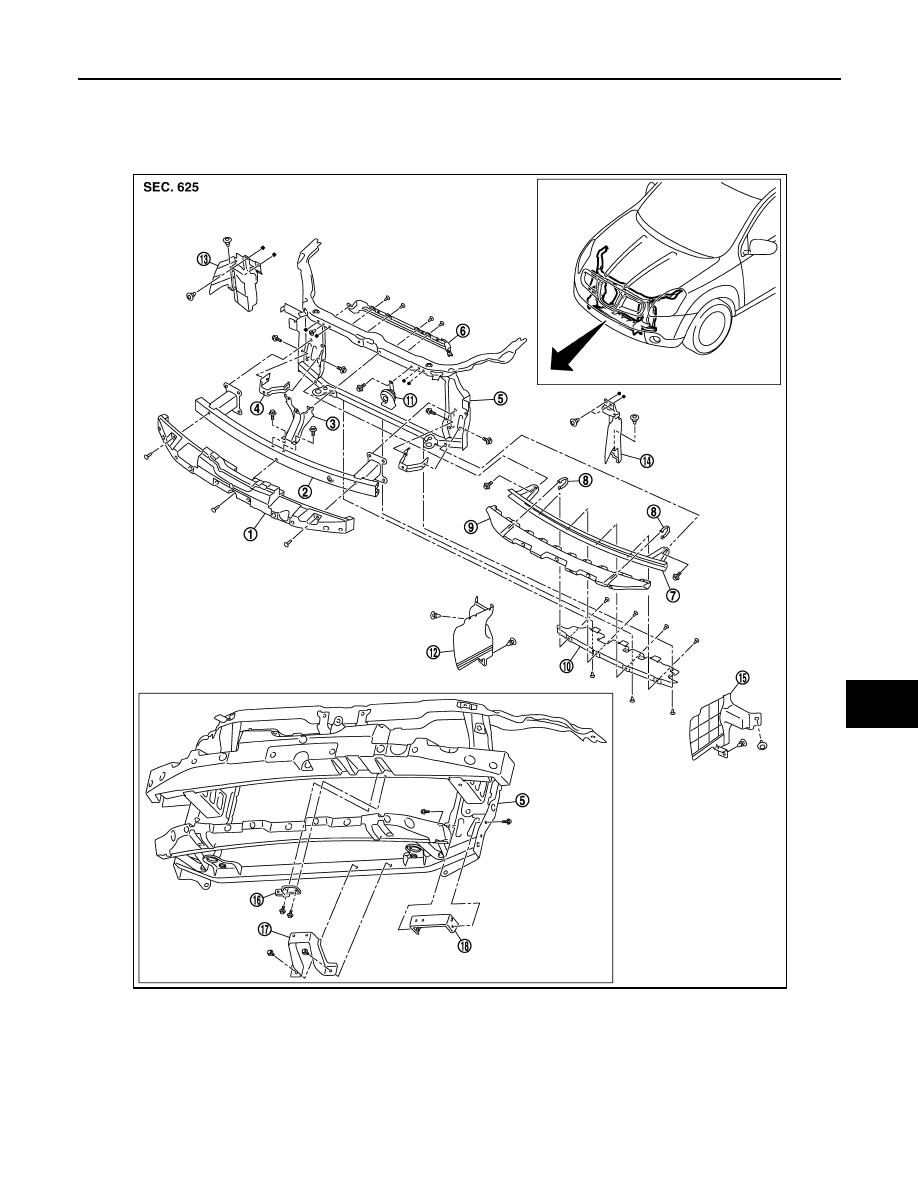

Exploded View

INFOID:0000000001098717

1.

Energy absorber

2.

Bumper reinforcement

3.

Hood lock support stay

4.

Intercooler bracket
(with K9K engine models)

5.

Radiator core support assembly

6.

Upper air dam

7.

Apron bracket assembly

8.

Fastener

9.

Energy absorber lower

10. Front air guide lower

11.

Horn assembly

12. Front air guide side lower RH

13. Front air guide side RH

14. Front air guide side LH

15. Front air guide side lower LH

16. Oil cooler bracket upper

17. Oil cooler bracket lower

18. Oil cooler bracket side

JMKIA0172ZZ

DLK-836

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

RADIATOR CORE SUPPORT

Removal and Installation

INFOID:0000000001098718

REMOVAL

1.

Remove the front fillet molding. Refer to

EXT-23, "Removal and Installation"

.

2.

Remove the front bumper fascia and the energy absorber. Refer to

EXT-11, "Removal and Installation"

.

3.

Remove the energy absorber (upper and lower). Refer to

EXT-11, "Removal and Installation"

.

4.

Remove the air cleaner duct. Refer to

EM-27, "Removal and Installation"

.

5.

Remove the front combination lamp (LH/RH). Refer to

EXL-171, "Removal and Installation"

.

6.

Remove the bumper reinforcement. Refer to

EXT-11, "Removal and Installation"

.

7.

Disconnect the hood lock control cable clamp, and then remove the hood lock assembly. Refer to

DLK-

833, "HOOD LOCK CONTROL : Removal and Installation"

.

8.

Remove the air guide mounting clips, and then remove the air guide (LH/RH).

9.

Remove the hood lock stay mounting bolts, and then remove the hood lock stay.

10. Remove the hood switch (with theft warning systems). Refer to SEC-

SEC-156, "Removal and Installa-

tion"

.

11. Remove the crush zone sensor. Refer to

SR-14, "Removal and Installation"

.

12. Remove the horn. Refer to

HRN-5, "Removal and Installation"

.

13. Remove the ambient sensor. Refer to

VTL-22, "Removal and Installation"

.

14. Remove the radiator mounting bracket (LH/RH). Refer to

CO-13, "Removal and Installation"

.

15. Remove the Intelligent Key warning buzzer (with Intelligent Key systems). Refer to

DLK-277, "Removal

and Installation"

.

16. Remove the charge air cooler assembly (with K9K engine models). Refer to

EM-266, "Removal and

Installation"

.

17. Remove the A/T fluid cooler assembly and the A/T fluid cooler bracket (with A/T models only). Refer to

TM-348, "FLUID COOLER : Removal and Installation"

.

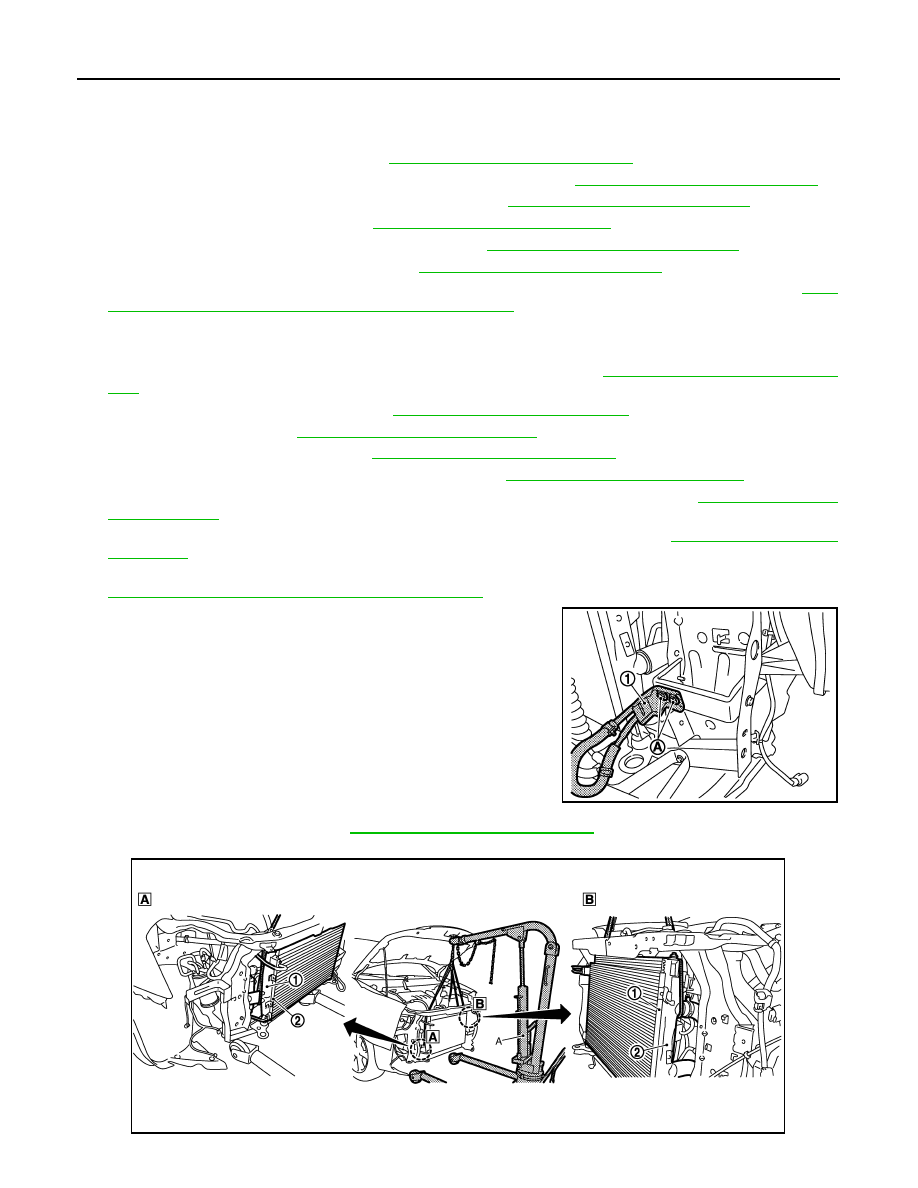

18. Remove the A/T fluid cooler pipe bracket (1) mounting bolts (A)

(with A/T models only).

19. Remove the washer tank. Refer to

WW-99, "Removal and Installation"

.

20. Use the baby crane (A) or another piece of equipment to suspend the radiator (1) and condenser (2).

JMKIA0173ZZ

JMKIA0174ZZ

RADIATOR CORE SUPPORT

DLK-837

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

21. Remove the radiator core support assembly mounting bolts, and draw out the radiator core support

assembly to the front of the vehicle.

22. Remove the radiator core support assembly.

23. Remove the following parts after removing the radiator core support assembly.

• Inlet tube bracket (with K9K engine models)
• Intercooler bracket (with K9K engine models)
• Apron reinforcement bracket

INSTALLATION

Install in the reverse order of removal.

CAUTION:

After installation, refill the following parts.
• A/T fluid. Refer to

TM-315, "Changing"

.

• Engine coolant. Refer to

CO-9, "Refilling"

.

DLK-838

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

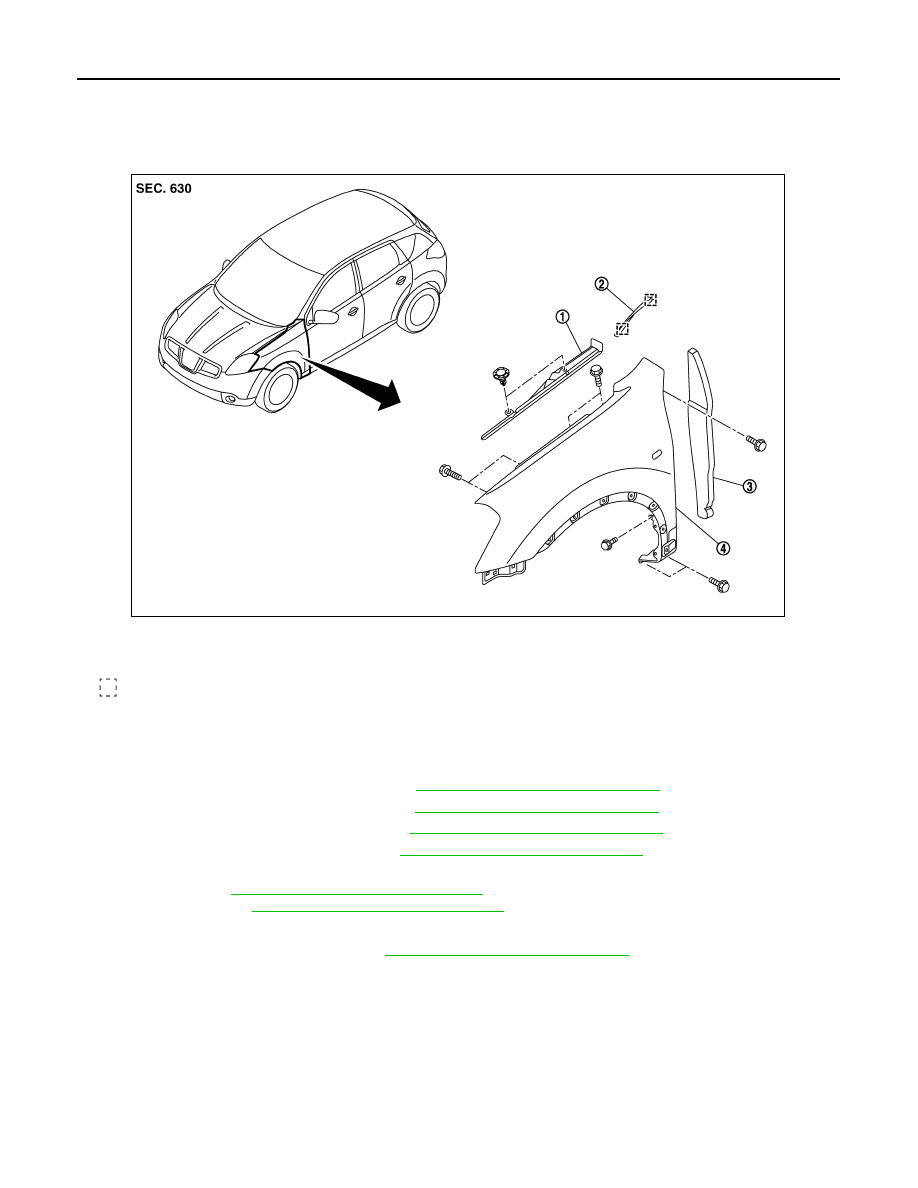

FRONT FENDER

FRONT FENDER

Exploded View

INFOID:0000000001098719

Removal and Installation

INFOID:0000000001098720

REMOVAL

1.

Remove the outer fender protector. Refer to

EXT-22, "Removal and Installation"

.

2.

Remove the inner fender protector. Refer to

EXT-22, "Removal and Installation"

.

3.

Remove the side turn signal lamp. Refer to

EXL-178, "Removal and Installation"

.

4.

Remove the front bumper fascia. Refer to

EXT-11, "Removal and Installation"

.

5.

Remove the front combination lamp.
• XENON TYPE:

EXL-171, "Removal and Installation"

.

• HALOGEN TYPE:

EXL-327, "Removal and Installation"

.

6.

Remove the mounting clips and remove hoodledge cover.

7.

Remove the center mudguard. Refer to

EXT-28, "Removal and Installation"

.

1.

Hood seal assembly (side)

2.

Front fender finisher

3.

Front fender seal

4.

Front fender

: Metal clip

JMKIA0177ZZ
