HOOD HINGE : Exploded View

INFOID:0000000001098703

HOOD HINGE : Removal and Installation

INFOID:0000000001098704

REMOVAL

1.

Remove the hood assembly. Refer to

DLK-829, "HOOD ASSEMBLY : Removal and Installation"

.

2.

Remove the front fender. Refer to

DLK-838, "Removal and Installation"

.

3.

Remove the hood hinge mounting bolts, and then remove the hood hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• After installation, apply touch-up paint (the body color) onto the head of the hinge mounting bolts

and nuts.

• Before installation of hood hinge, apply anticorrosive agent onto the mounting surface of the vehicle

body.

• After installation, perform hood fitting adjustment. Refer to

DLK-830, "HOOD ASSEMBLY : Adjust-

ment"

.

HOOD SUPPORT ROD

HOOD SUPPORT ROD : Exploded View

INFOID:0000000001098706

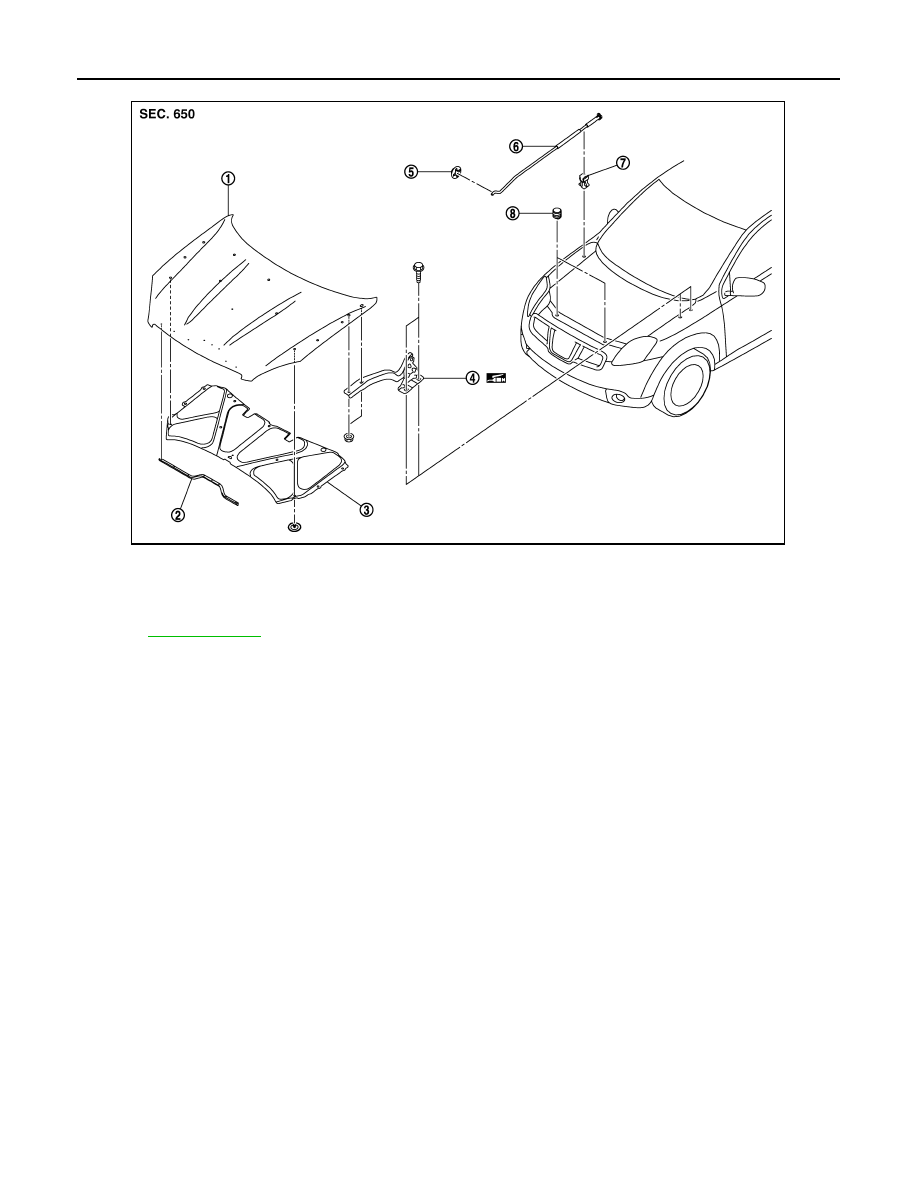

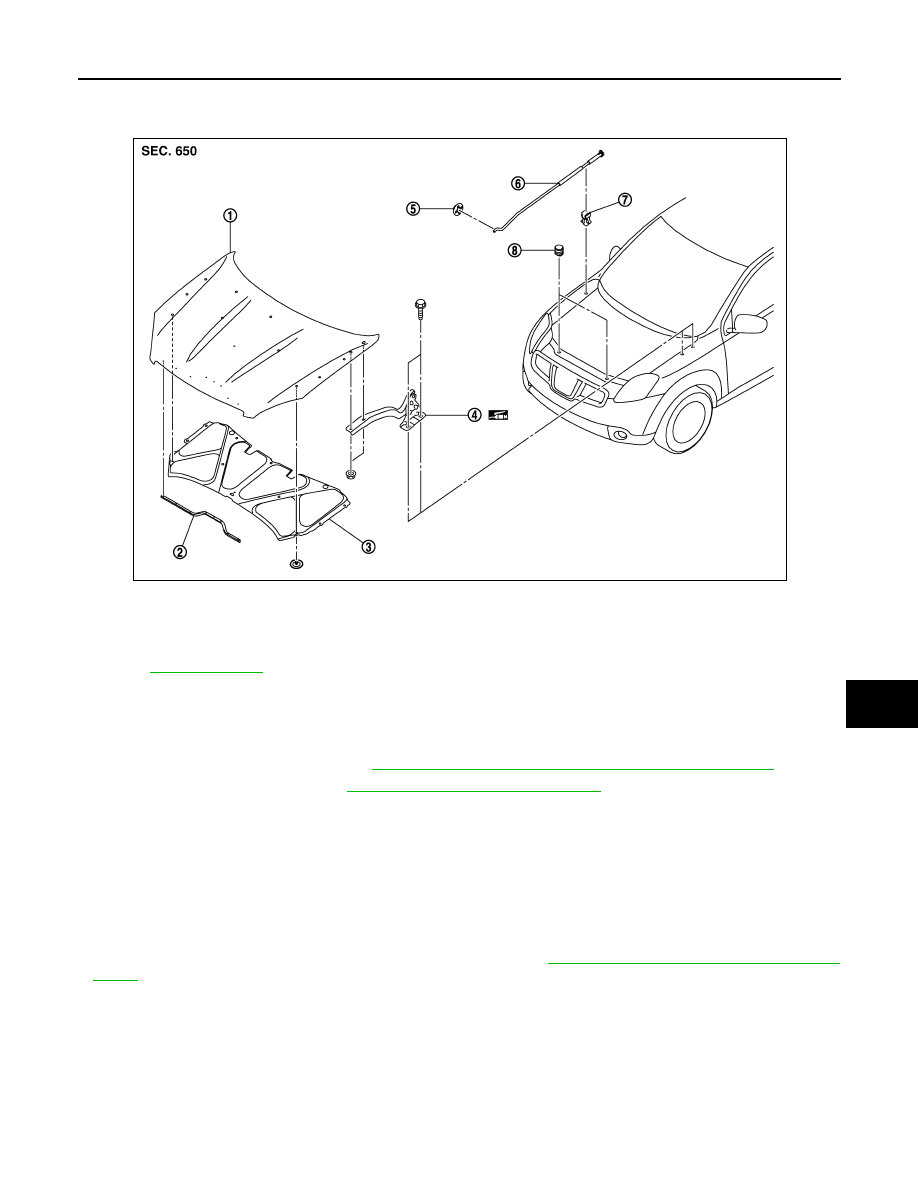

1.

Hood assembly

2.

Hood sealing rubber

3.

Hood insulator

4.

Hood hinge

5.

Grommet

6.

Hood support rod

7.

Clamp

8.

Hood bumper rubber

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0175ZZ

DLK-832

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

HOOD

HOOD SUPPORT ROD : Removal and Installation

INFOID:0000000001098708

REMOVAL

1.

Support the hood lock assembly with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the hood open when removing the hood
stay.

2.

Remove the hood support rod from the grommet.

INSTALLATION

Install in the reverse order of removal.

HOOD LOCK CONTROL

HOOD LOCK CONTROL : Exploded View

INFOID:0000000001098710

1.

Hood assembly

2.

Hood sealing rubber

3.

Hood insulator

4.

Hood hinge

5.

Grommet

6.

Hood support rod

7.

Clamp

8.

Hood bumper rubber

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0175ZZ

HOOD

DLK-833

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HOOD LOCK CONTROL : Removal and Installation

INFOID:0000000001098711

REMOVAL

1.

Remove the hood lock opener mounting bolts, and then remove the hood lock opener.

2.

Remove the front bumper fascia. Refer to

EXT-11, "Removal and Installation"

.

3.

Remove the hood lock mounting bolts, and then remove the hood lock.

4.

Remove the fender protector. Refer to

EXT-22, "Removal and Installation"

.

5.

Disconnect the hood lock cable from hood lock, and clip it from the hoodledge.

6.

Remove the grommet on the dash lower panel, and pull the hood lock control cable toward the passenger
compartment.

CAUTION:

While pulling, do not to damage (peeling) the outside of the hood lock control cable.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Do not to bend the cable too much, keeping the radius 100 mm (3.94 in) or more.
• Check that the cable is not offset from the positioning grom-

met, and apply the sealant to the grommet (at *mark) properly.

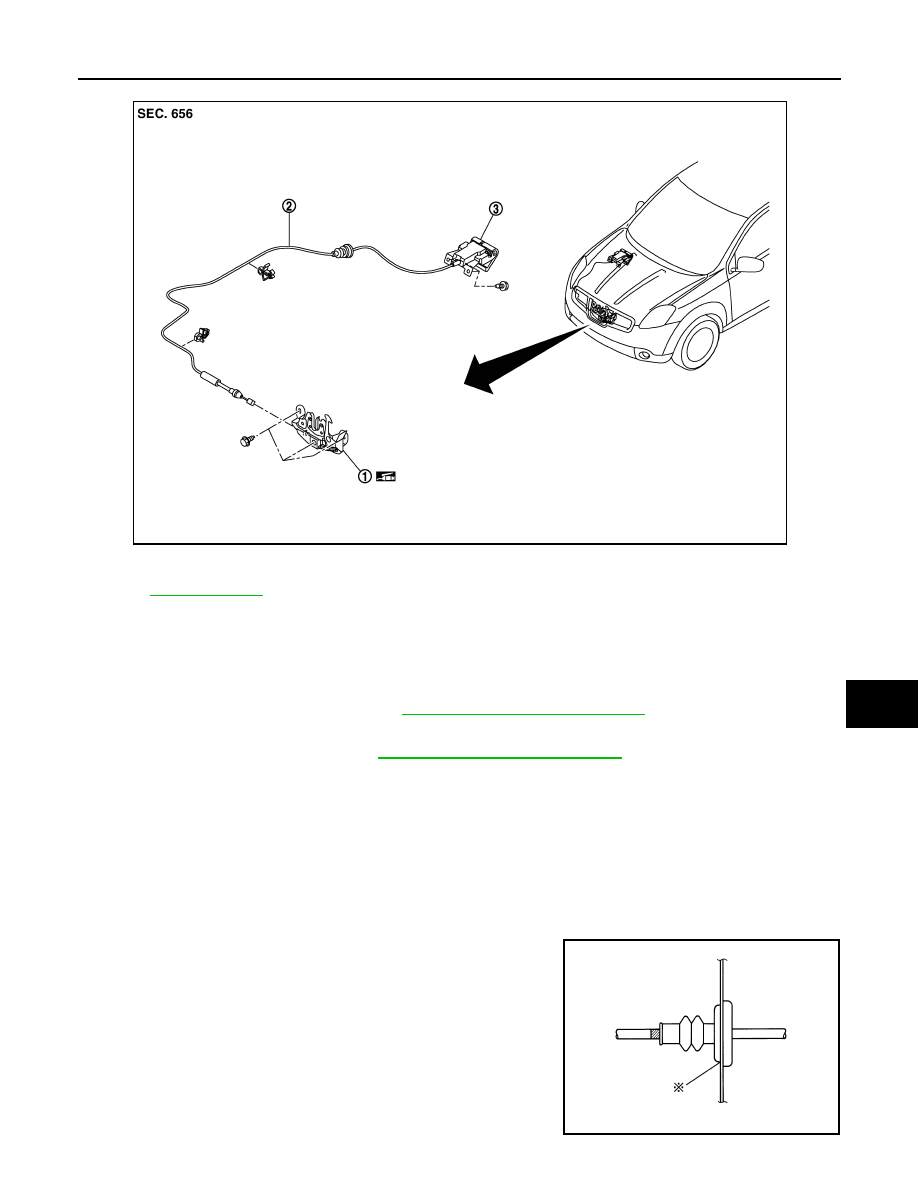

1.

Hood lock assembly

2.

Hood lock control cable

3.

Hood lock opener

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0176ZZ

PIIB5801E

DLK-834

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

HOOD

• Check that the hood lock control cable is properly engaged with the hood lock.
• After installation, perform hood fitting adjustment. Refer to

DLK-830, "HOOD ASSEMBLY : Adjust-

ment"

.

• After installation, perform the hood lock control inspection. Refer to

DLK-834, "HOOD LOCK CON-

TROL : Inspection"

.

HOOD LOCK CONTROL : Inspection

INFOID:0000000001098712

NOTE:
If the hood lock cable is bent or deformed, replace it.

1.

Check that the secondary latch is properly engaged with the secondary striker [6.8 mm (0.268 in) shown
in the figure] by hood weight.

2.

While operating the hood opener, carefully check that the front end of the hood is raised by approximately
20.0 mm (0.787 in). Also check that the hood opener returns to the original position.

3.

Check that the hood opener operating is condition 49 N (5.0 kg) or below.

4.

Install so that static closing face of hood is 94 – 490 N·m (9.6 – 50.0 kg-m).
NOTE:
• Exert vertical force on right side and left side of hood lock.
• Do not press simultaneously both sides.

5.

Check the hood lock lubrication condition. If necessary, apply body grease to the hood lock.
