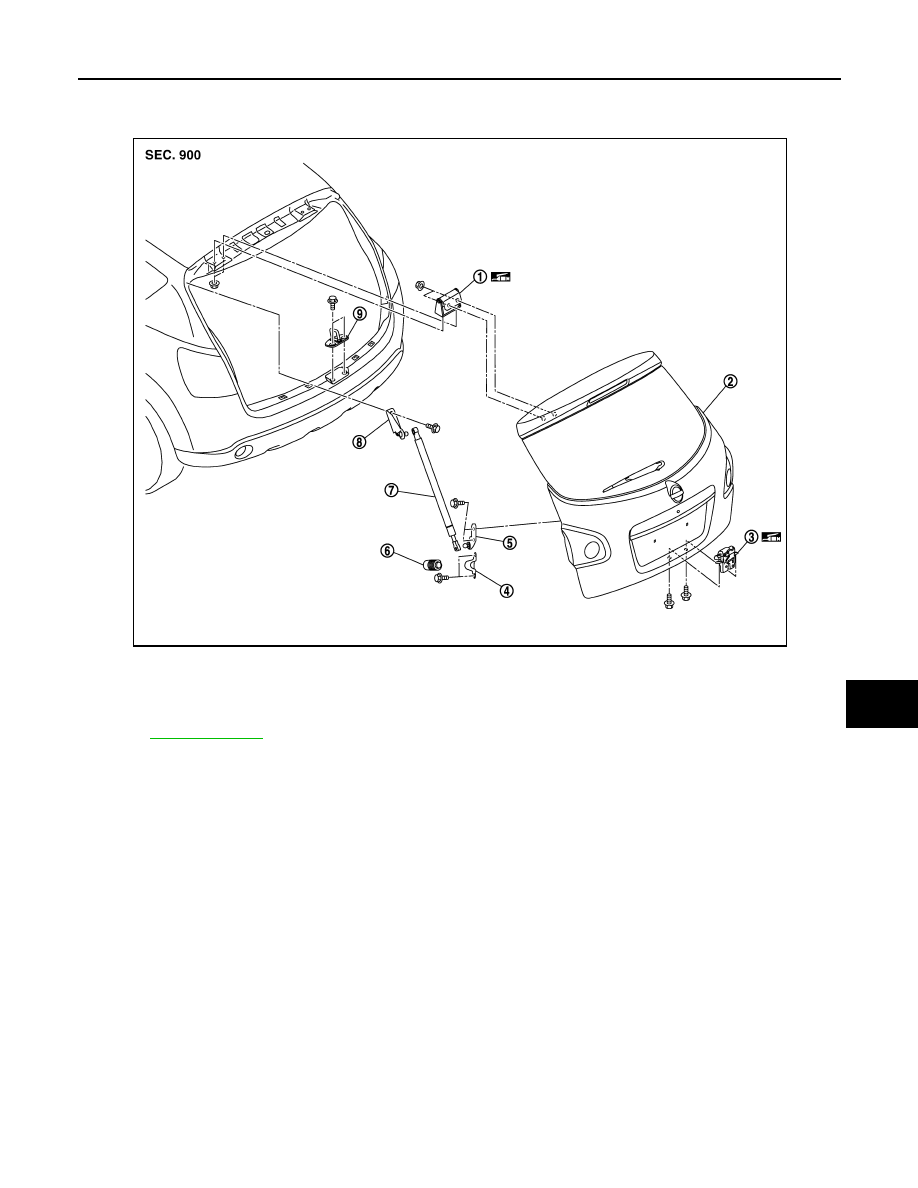

BACK DOOR STAY : Exploded View

INFOID:0000000001098653

BACK DOOR STAY : Removal and Installation

INFOID:0000000001098656

REMOVAL

1.

Remove the stud ball (upper/lower), and then remove the back door stay.

2.

Remove the mounting bolts, and then remove the back door stay bracket (upper/lower).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check the back door open/close operation after installation.

BACK DOOR WEATHER-STRIP

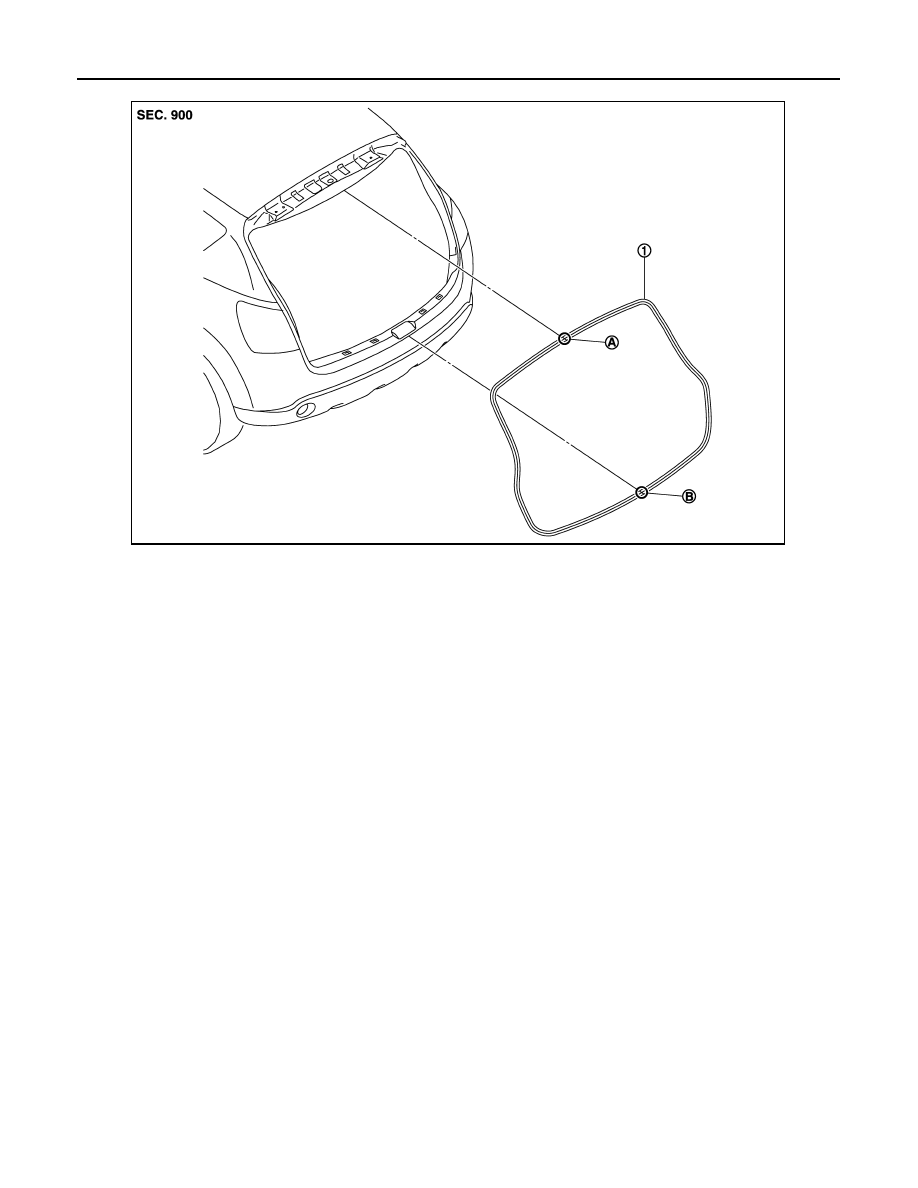

BACK DOOR WEATHER-STRIP : Exploded View

INFOID:0000000001098657

REMOVAL

1.

Back door hinge

2.

Back door assembly

3.

Back door lock assembly

4.

Bumper rubber bracket

5.

Back door stay bracket (lower)

6.

Bumper rubber

7.

Back door stay

8.

Back door stay bracket (upper)

9.

Back door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0186ZZ

DLK-692

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

BACK DOOR

BACK DOOR WEATHER-STRIP : Removal and Installation

INFOID:0000000001098659

REMOVAL

Pull up and remove engagement with body from the weatherstrip joint.

CAUTION:

After removal, do not pull strongly on the weather-strip.

INSTALLATION

1.

Working from the upper section, align the weatherstrip mark with vehicle center position mark and install
the weatherstrip onto the vehicle.

2.

For the lower section, align the weatherstrip seam with center of the back door striker.

3.

After installation, pull the weatherstrip gently to ensure that there is no loose section.
NOTE:
Make sure that the weatherstrip is fit tlightly at each corner and the luggage rear plate.

1.

Back door weatherstrip

A.

Mark (upper)

B.

Mark (lower)

JMKIA0184ZZ

FRONT DOOR LOCK

DLK-693

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT DOOR LOCK

DOOR LOCK

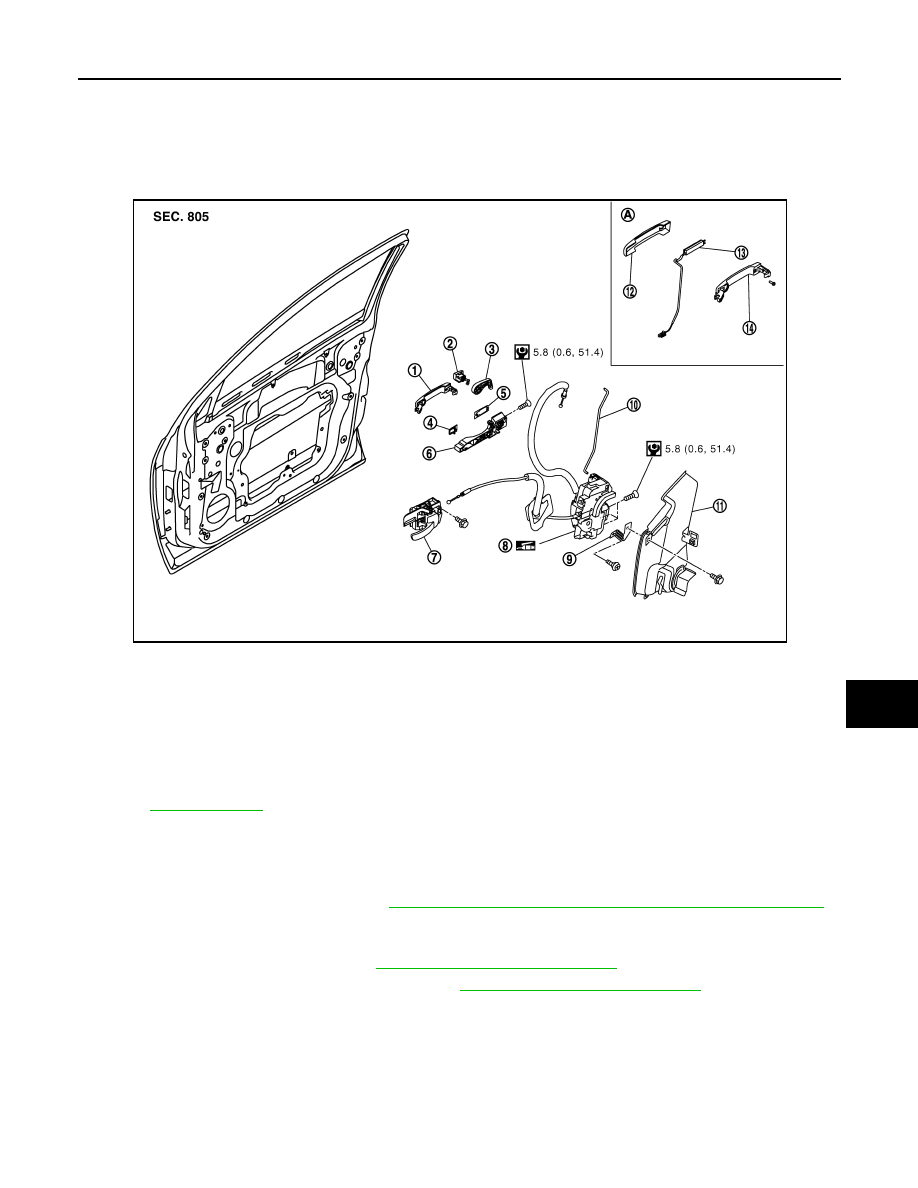

DOOR LOCK : Exploded View

INFOID:0000000001098660

DOOR LOCK : Removal and Installation

INFOID:0000000001098661

REMOVAL

1.

Remove the front door finisher. Refer to

INT-10, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Remove the inside handle mounting bolt, and then disconnect the inside handle knob cable and the lock
knob cable.

3.

Remove the front door glass. Refer to

GW-19, "Removal and Installation"

.

4.

Remove the front door module assembly. Refer to

GW-22, "Removal and Installation"

.

5.

Disconnect the door antenna and the door request switch connector and remove the harness clamp
(models with Intelligent Key system).

1.

Outside handle assembly

2.

Door key cylinder

3.

 Key cylinder lever

4.

Front gasket

5.

Rear gasket

6.

Outside handle bracket

7.

Inside handle

8.

Door lock assembly

9.

Key cylinder rod

10. Key rod protector

11.

Key rod protector assembly (RH
handle only)

12. Outside handle cover

13. Antenna

14. Outside handle base

A:

Intelligent Key only

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0188GB

DLK-694

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

FRONT DOOR LOCK

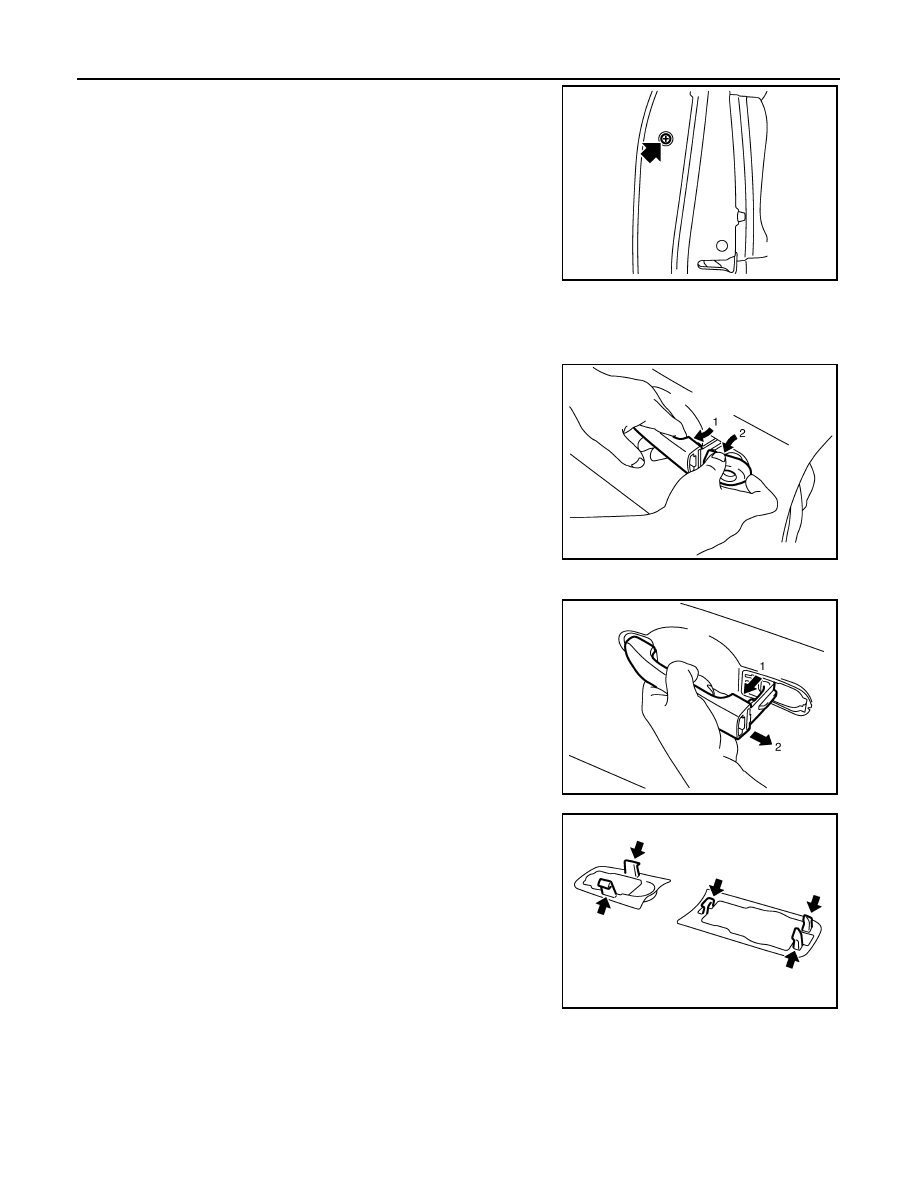

6.

Remove the door side grommet, and remove the door key cylin-
der assembly (driver side) and outside handle escutcheon (pas-
senger side) mounting bolts from grommet hole.

CAUTION:

Do not forcibly remove the bolts (TORX: T10).

7.

Reach in to separate the key cylinder rod connection (on the handle).

8.

Disconnect the door key cylinder switch harness connector.

9.

Remove the key cylinder lever from the door key cylinder.

10. While pulling the outside handle, remove door key cylinder

assembly.

11. Disconnect front door request switch harness connector (models with Intelligent Key system).

12. While pulling outside handle, slide toward rear of vehicle to

remove outside handle.

13. Remove the front gasket and the rear gasket.

JMKIA0020ZZ

PIIB5809E

PIIB5810E

PIIB5811E
