Nissan Qashqai (2007-2010). Manual - part 1151

REAR DOOR

DLK-683

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

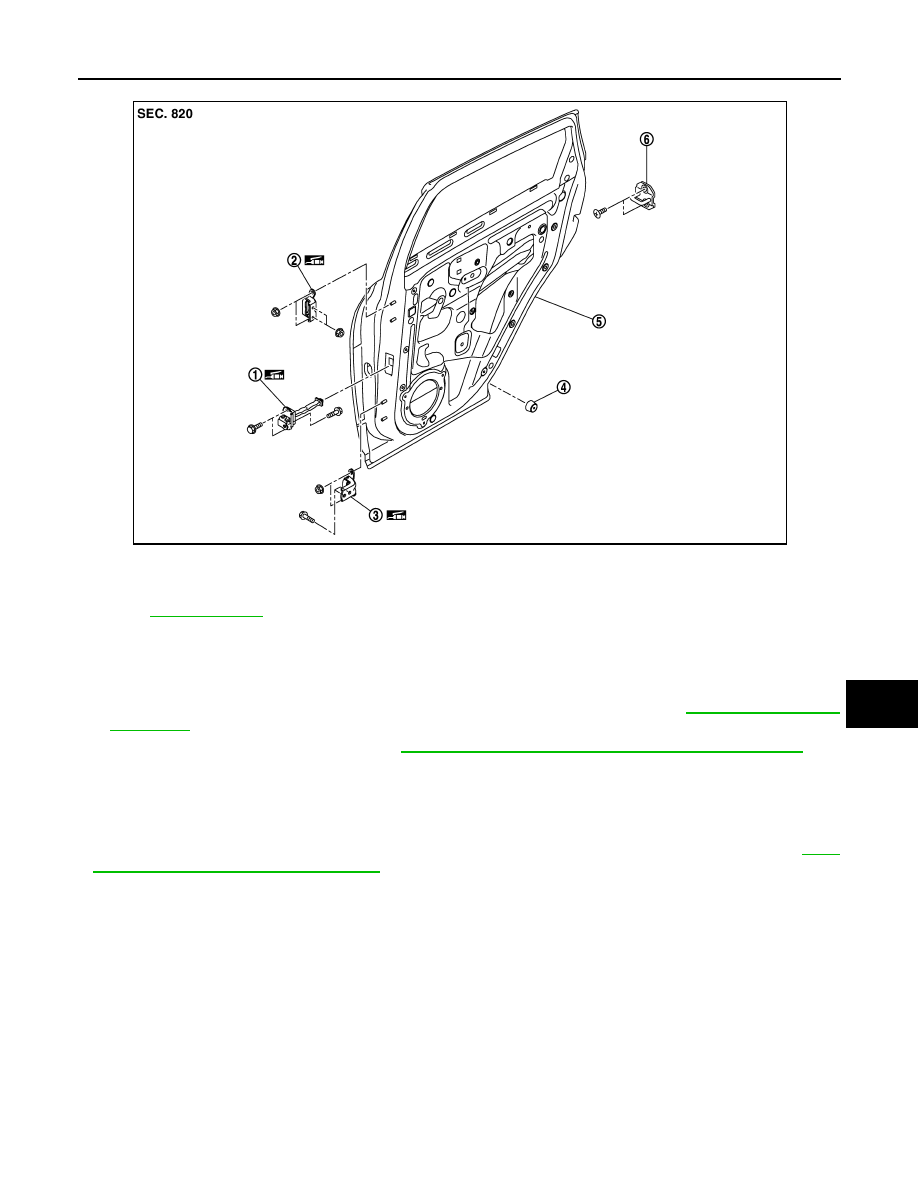

DOOR HINGE : Removal and Installation

INFOID:0000000001098637

REMOVAL

1.

Remove the center pillar lower garnish and the center pillar upper garnish. Refer to

INT-14, "Removal and

Installation"

.

2.

Remove the rear door assembly. Refer to

DLK-242, "DOOR ASSEMBLY : Removal and Installation"

.

3.

Remove the rear door hinge mounting bolts and nuts (body side), and then remove the door hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When removing and installing the rear door assembly, perform the fitting adjustment. Refer to

DLK-

848, "DOOR ASSEMBLY : Adjustment"

.

• Check the door hinge rotating part for poor lubrication. If necessary, apply body grease.
• After installing, apply the touch-up paint (the body color) onto the head of the hinge mounting nuts.
• Check the rear door open/close operation after installation.

DOOR CHECK LINK

DOOR CHECK LINK : Exploded View

INFOID:0000000001098639

1.

Door check link

2.

Door hinge (upper)

3.

Door hinge (lower)

4.

Bumper rubber

5.

Rear door panel

6.

Door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0180ZZ

DLK-684

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

REAR DOOR

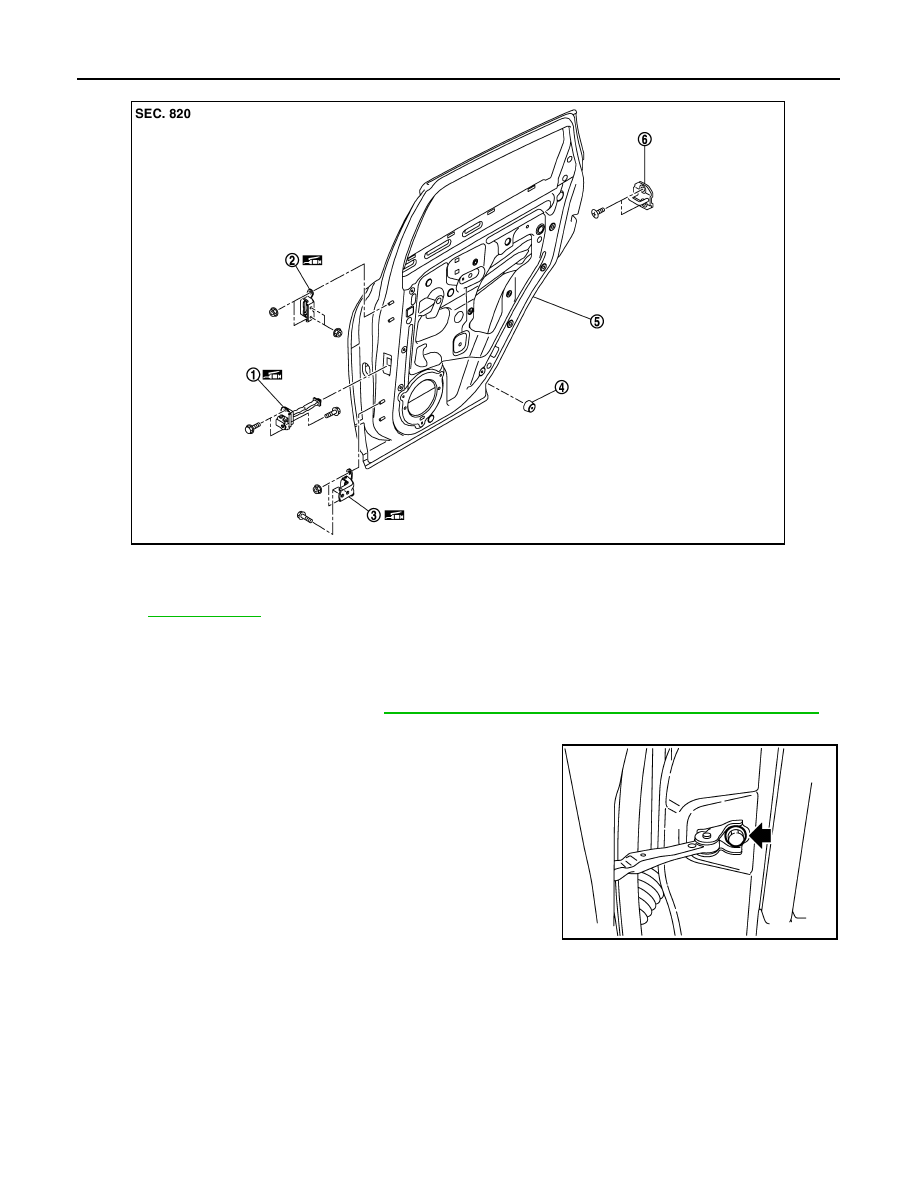

DOOR CHECK LINK : Removal and Installation

INFOID:0000000001098641

REMOVAL

1.

Remove the rear door finisher. Refer to

INT-10, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Remove the rear door sealing screen.

3.

Remove the mounting bolts of the check link on the vehicle.

4.

Remove the door check link cover, and then remove the door check link mounting bolts.

5.

Remove the door check link.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check front door open/close operation after installation.

1.

Door check link

2.

Door hinge (upper)

3.

Door hinge (lower)

4.

Bumper rubber

5.

Rear door panel

6.

Door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0180ZZ

PIIB6543E

BACK DOOR

DLK-685

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR

BACK DOOR ASSEMBLY

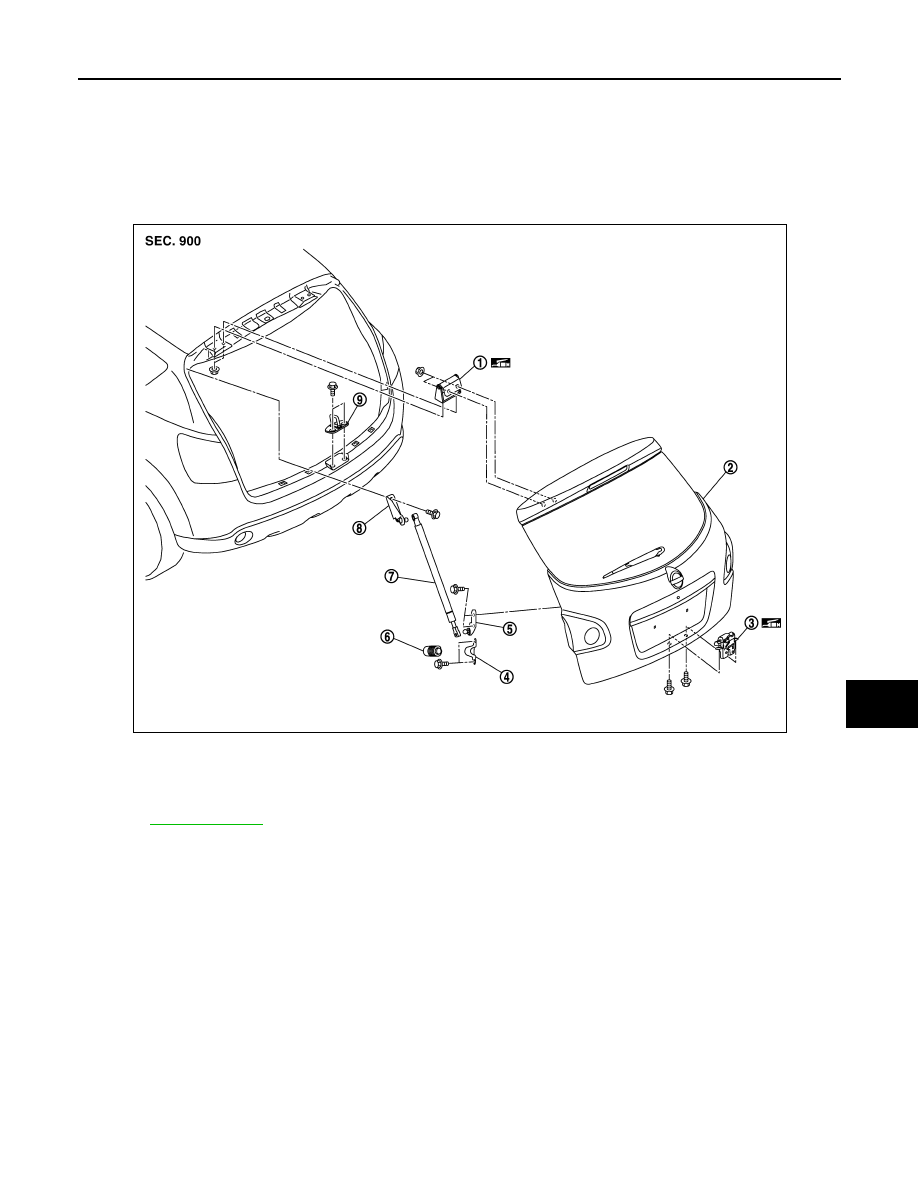

BACK DOOR ASSEMBLY : Exploded View

INFOID:0000000001098646

REMOVAL

ADJUSTMENT

1.

Back door hinge

2.

Back door assembly

3.

Back door lock assembly

4.

Bumper rubber bracket

5.

Back door stay bracket (lower)

6.

Bumper rubber

7.

Back door stay

8.

Back door stay bracket (upper)

9.

Back door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0186ZZ

DLK-686

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

BACK DOOR

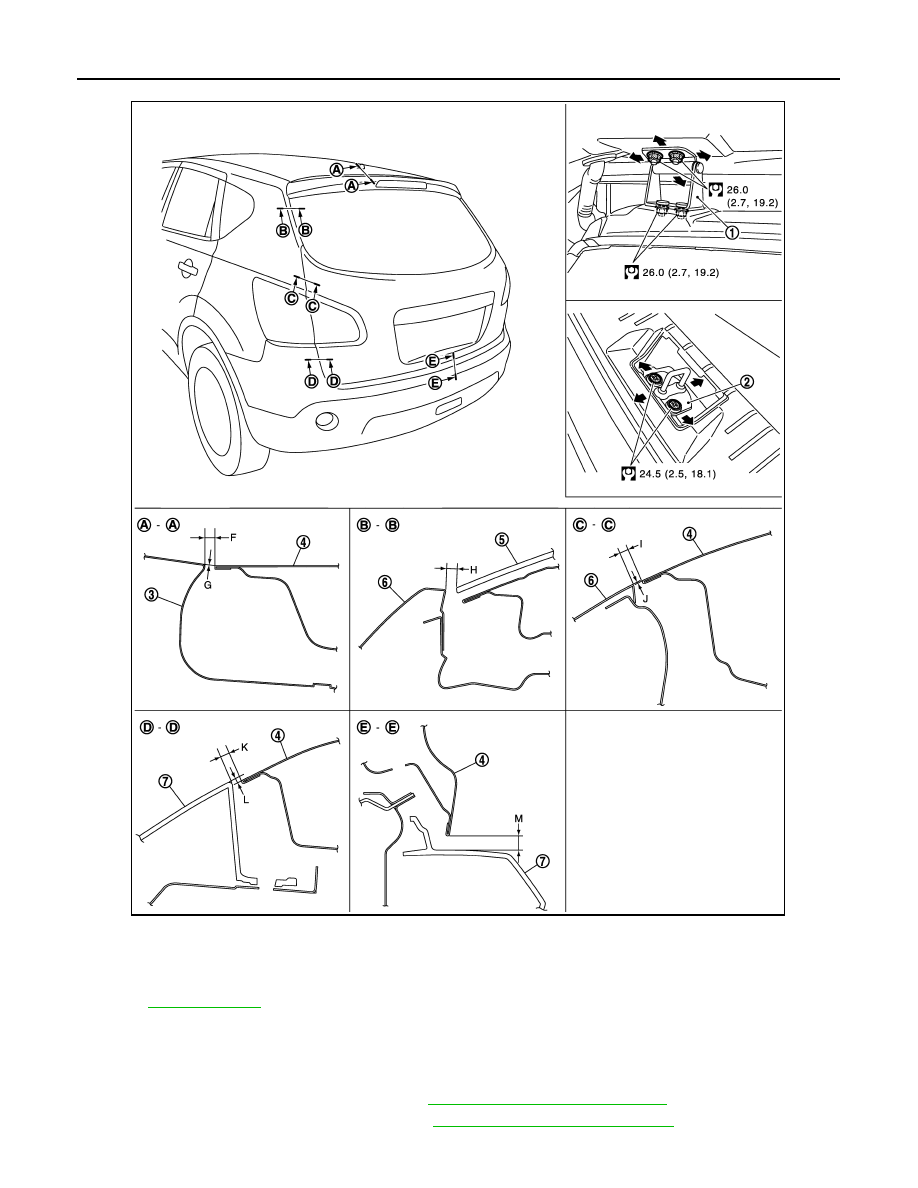

BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000001098647

REMOVAL

1.

Remove the back door finisher inner. Refer to

INT-26, "Removal and Installation"

.

2.

Remove the back door window glass. Refer to

GW-17, "Removal and Installation"

.

NOTE:

1.

Back door hinge

2.

Back door striker

3.

Roof panel

4.

Back door outer

5.

Back door glass

6.

Body side outer

7.

Rear bumper fascia

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0194ZZ
