It is necessary to remove back door window glass in order to remove harness, because harness connec-
tor interferes with back door window glass pin.

3.

Disconnect the connectors in the back door, and then remove the grommet, and pull out hte harness.

4.

Remove the parcel shelf. Refer to

INT-24, "Removal and Installation"

.

5.

Remove the high-mounted stop lamp. Refer to

EXL-183, "Removal and Installation"

.

6.

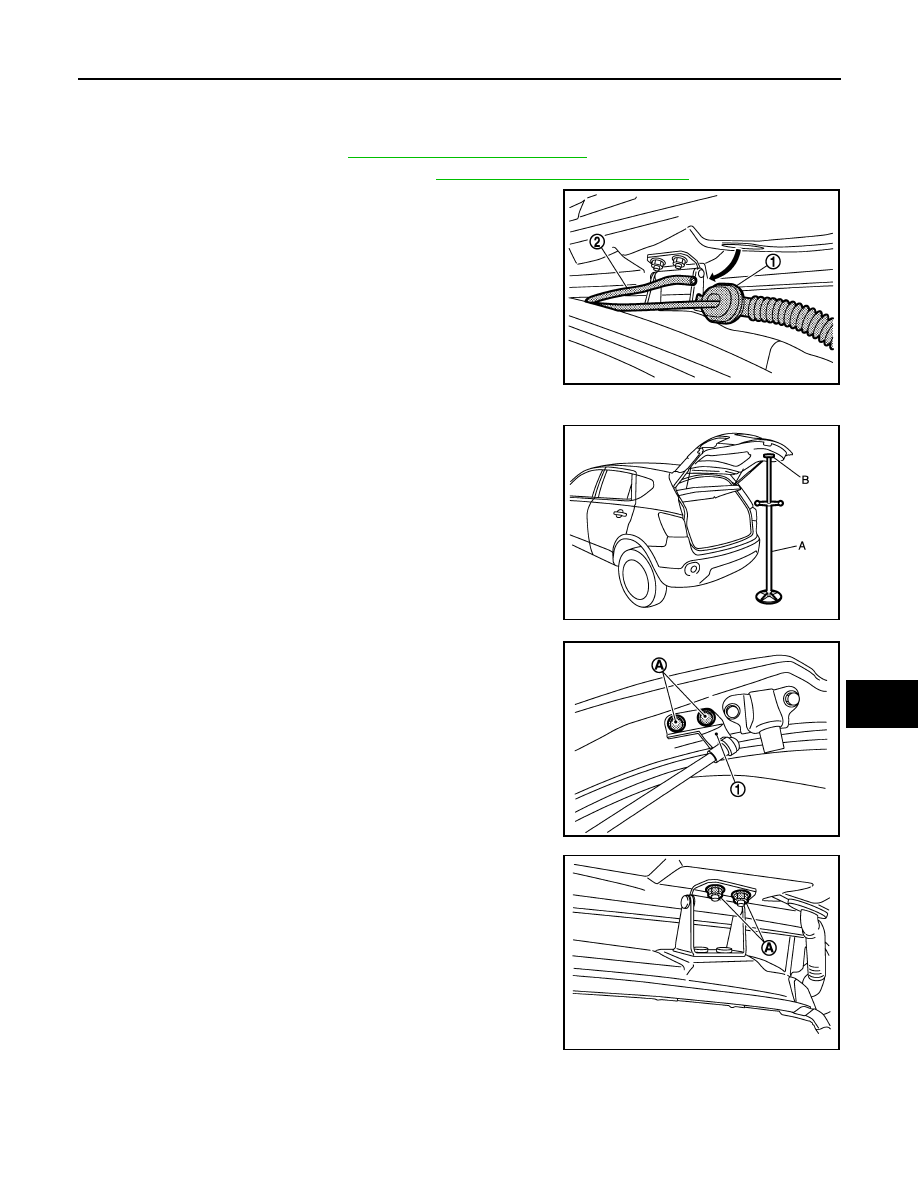

Remove the grommet (1), and then pull out the washer tube (2) .

7.

Pull the harness out of the back door.

8.

Support the back door lock with the proper material to prevent it
from falling.

9.

Remove the back door stay bracket mounting bolts (A) on the
back door.

10. Remove the back door hinge mounting nuts (A) on the back

door and remove the back door assembly.

CAUTION:

Perform work with 2 workers, because of its heavy weight.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Perform work with 2 workers, because of its heavy weight.

JMKIA0190ZZ

A

: Jack

B

: Shop cloth

JMKIA0191ZZ

JMKIA0192ZZ

JMKIA0193ZZ

DLK-688

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

BACK DOOR

• After installation, perform fitting adjustment. Refer to

DLK-855, "BACK DOOR ASSEMBLY : Adjust-

ment"

.

• Check the back door open/close operation after installation.
• Check the back door lock/unlock operation after installation.

BACK DOOR ASSEMBLY : Adjustment

INFOID:0000000001098648

FITTING ADJUSTMENT

1.

Check the clearance and the evenness between the back door and each part visually and by touching.
(Fitting standard dimension in the table below shall be satisfied.)

2.

In case any parts are out of specification, adjust them according to the procedures shown below.

3.

Loosen the bumper rubber.

4.

Loosen the back door striker mounting bolts.

5.

Lift up the back door approximately 100 – 150 mm (3.937 – 5.906 in) height then close it lightly and check
that it is engaged firmly with the back door closed.

6.

Check the clearance and evenness.

7.

Finally tighten the back door striker.

BACK DOOR STRIKER

BACK DOOR STRIKER : Exploded View

INFOID:0000000001098650

Portion

Standard

Difference(RH/LH)

Back door panel –
Roof panel

A – A

F

Clearance

5.0 – 7.0 mm

(0.197 – 0.276 in)

—

G

Surface height

0.0 – 2.0 mm

(0.000 – 0.079 in)

—

Back door glass –
Body side outer

B – B

H

Clearance

3.9 – 8.1 mm

(0.154 – 0.319 in)

2.1 mm (0.083 in)

I

Surface height

- 1.0 – 3.1 mm

(- 0.039 – 0.122 in)

2.0 mm (0.079 in)

Back door panel –
Body side outer

C – C

J

Clearance

3.5 – 6.5 mm

(0.138 – 0.256 in)

2.0 mm (0.079 in)

K

Surface height

- 1.0 – 1.0 mm

(- 0.039 – 0.039 in)

—

Back door panel –
Rear bumper fascia

D – D

L

Clearance

4.0 – 8.0 mm

(0.157 – 0.315 in)

2.0 mm (0.079 in)

M

Surface height

0.1 – 4.1 mm

(0.004 – 0.161 in)

2.1 mm (0.083 in)

Back door panel –
Rear bumper fascia

E – E

N

Clearance

5.8 – 10.2 mm

(0.228 – 0.402 in)

—

BACK DOOR

DLK-689

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR STRIKER : Removal and Installation

INFOID:0000000001098652

REMOVAL

1.

Remove the luggage rear plate cap. Refer to

INT-24, "Removal and Installation"

.

2.

Remove the mounting bolts, and then remove the back door striker.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When removing and installing the back door striker, be sure to perform the fitting adjustment. Refer

to

DLK-855, "BACK DOOR ASSEMBLY : Adjustment"

.

• Check the back door open/close operation after installation.

BACK DOOR HINGE

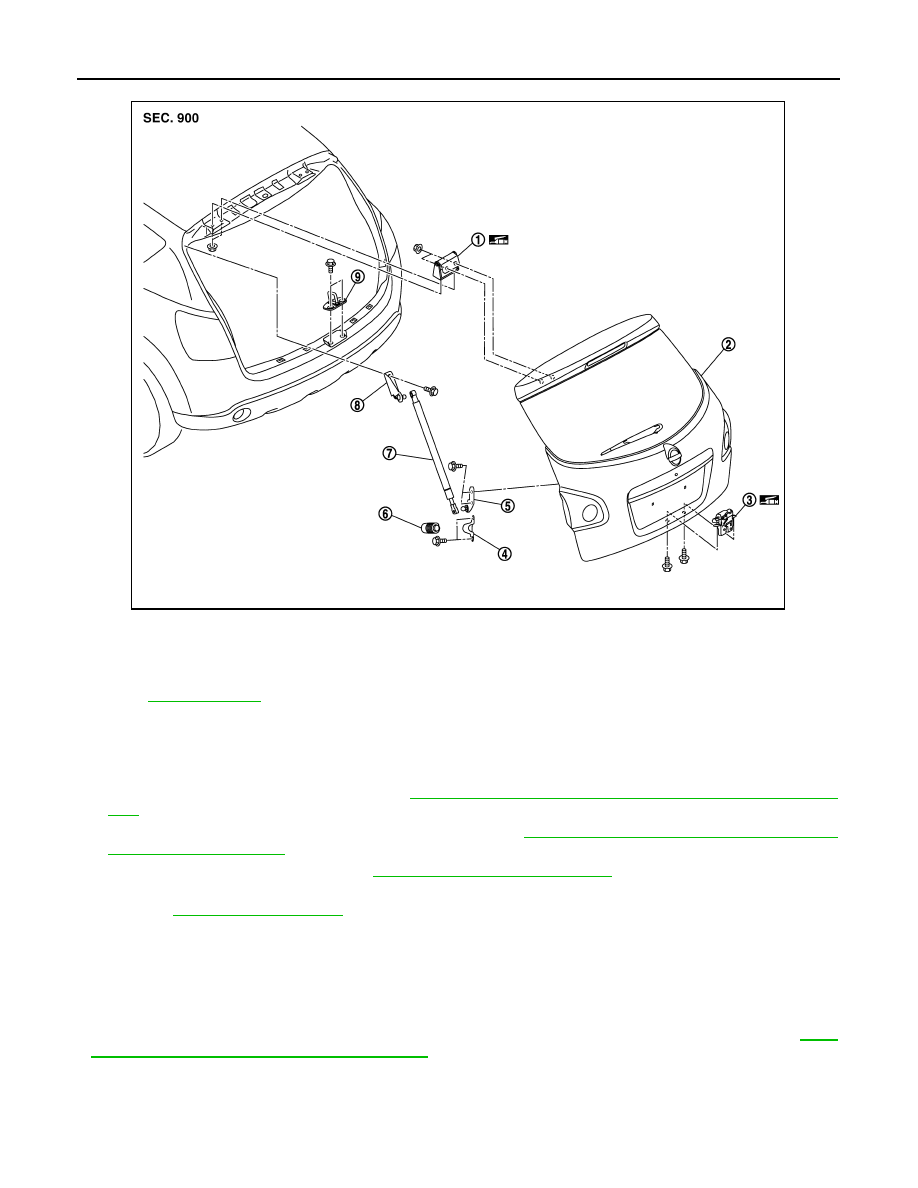

BACK DOOR HINGE : Exploded View

INFOID:0000000001102425

1.

Back door hinge

2.

Back door assembly

3.

Back door lock assembly

4.

Bumper rubber bracket

5.

Back door stay bracket (lower)

6.

Bumper rubber

7.

Back door stay

8.

Back door stay bracket (upper)

9.

Back door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0186ZZ

DLK-690

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

BACK DOOR

BACK DOOR HINGE : Removal and Installation

INFOID:0000000001102426

REMOVAL

1.

Remove the back door assembly. Refer to

DLK-248, "BACK DOOR ASSEMBLY : Removal and Installa-

tion"

.

2.

Remove upper side of the back door weatherstrip. Refer to

DLK-254, "BACK DOOR WEATHER-STRIP :

Removal and Installation"

.

3.

Remove rear seat belt cover. Refer to

INT-21, "Removal and Installation"

.

4.

Using remover tool, remove the headlining clip at the rear side of the headlining.
 Refer to

INT-20, "Exploded View"

.

5.

Remove the rear side of the headlining.

6.

Remove the back door hinge mounting nuts (body side), and then remove the back door hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When removing and installing the back door assembly, perform the fitting adjustment. Refer to

DLK-

250, "BACK DOOR ASSEMBLY : Adjustment"

.

• After installation, apply touch-up paint (the body color) onto the head of the hinge mounting nuts.
• Check the hinge rotating part for poor lubrication. If necessary, apply body grease.
• Check the back door open/close operation after installation.

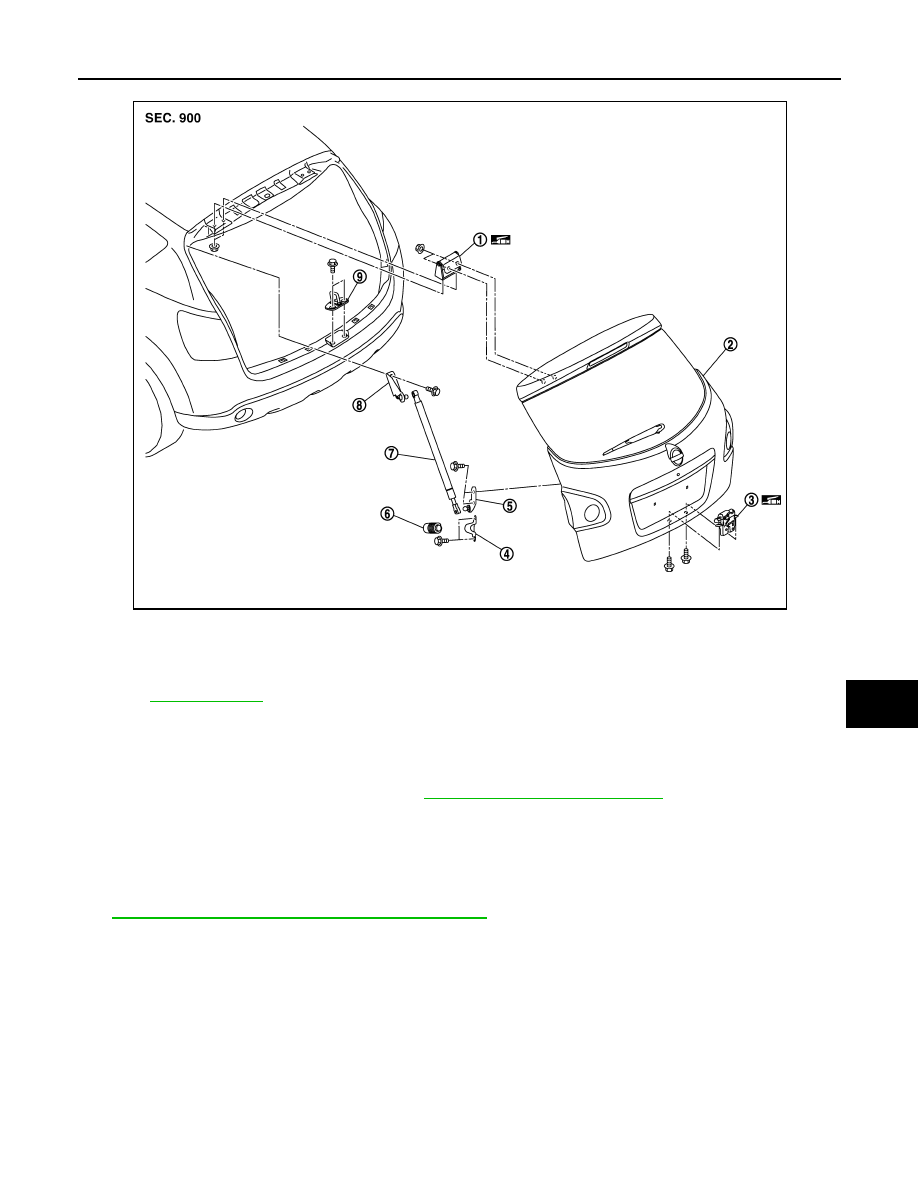

BACK DOOR STAY

1.

Back door hinge

2.

Back door assembly

3.

Back door lock assembly

4.

Bumper rubber bracket

5.

Back door stay bracket (lower)

6.

Bumper rubber

7.

Back door stay

8.

Back door stay bracket (upper)

9.

Back door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0186ZZ
