• Check that the hood lock control cable is properly engaged with the hood lock.
• After installation, perform hood fitting adjustment. Refer to

DLK-830, "HOOD ASSEMBLY : Adjust-

ment"

.

• After installation, perform the hood lock control inspection. Refer to

DLK-834, "HOOD LOCK CON-

TROL : Inspection"

.

HOOD LOCK CONTROL : Inspection

INFOID:0000000001098591

NOTE:
If the hood lock cable is bent or deformed, replace it.

1.

Check that the secondary latch is properly engaged with the secondary striker [6.8 mm (0.268 in) shown
in the figure] by hood weight.

2.

While operating the hood opener, carefully check that the front end of the hood is raised by approximately
20.0 mm (0.787 in). Also check that the hood opener returns to the original position.

3.

Check that the hood opener operating is condition 49 N (5.0 kg) or below.

4.

Install so that static closing face of hood is 94 – 490 N·m (9.6 – 50.0 kg-m).
NOTE:
• Exert vertical force on right side and left side of hood lock.
• Do not press simultaneously both sides.

5.

Check the hood lock lubrication condition. If necessary, apply body grease to the hood lock.

DLK-668

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

RADIATOR CORE SUPPORT

RADIATOR CORE SUPPORT

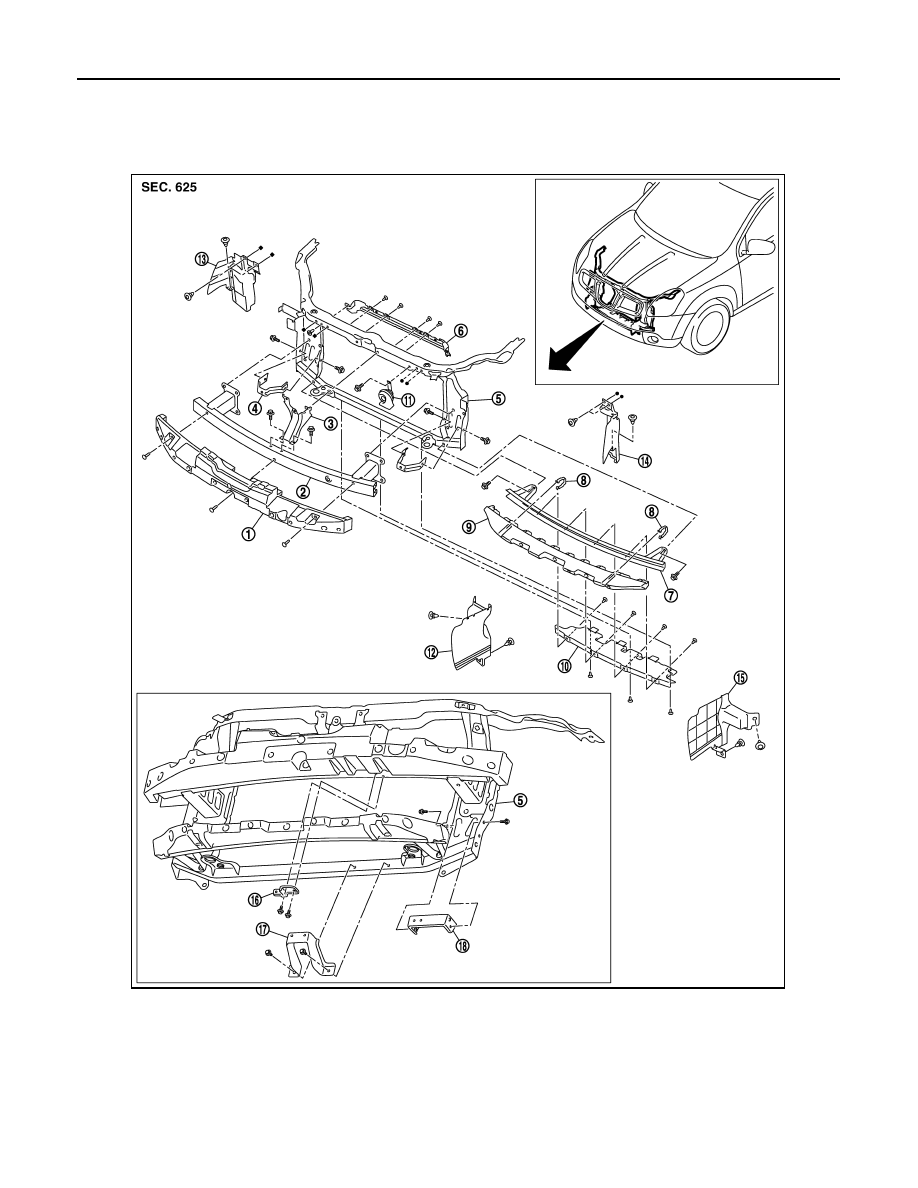

Exploded View

INFOID:0000000001098596

1.

Energy absorber

2.

Bumper reinforcement

3.

Hood lock support stay

4.

Intercooler bracket
(with K9K engine models)

5.

Radiator core support assembly

6.

Upper air dam

7.

Apron bracket assembly

8.

Fastener

9.

Energy absorber lower

10. Front air guide lower

11.

Horn assembly

12. Front air guide side lower RH

13. Front air guide side RH

14. Front air guide side LH

15. Front air guide side lower LH

16. Oil cooler bracket upper

17. Oil cooler bracket lower

18. Oil cooler bracket side

JMKIA0172ZZ

RADIATOR CORE SUPPORT

DLK-669

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Removal and Installation

INFOID:0000000001098597

REMOVAL

1.

Remove the front fillet molding. Refer to

EXT-23, "Removal and Installation"

.

2.

Remove the front bumper fascia and the energy absorber. Refer to

EXT-11, "Removal and Installation"

.

3.

Remove the energy absorber (upper and lower). Refer to

EXT-11, "Removal and Installation"

.

4.

Remove the air cleaner duct. Refer to

EM-27, "Removal and Installation"

.

5.

Remove the front combination lamp (LH/RH). Refer to

EXL-171, "Removal and Installation"

.

6.

Remove the bumper reinforcement. Refer to

EXT-11, "Removal and Installation"

.

7.

Disconnect the hood lock control cable clamp, and then remove the hood lock assembly. Refer to

DLK-

833, "HOOD LOCK CONTROL : Removal and Installation"

.

8.

Remove the air guide mounting clips, and then remove the air guide (LH/RH).

9.

Remove the hood lock stay mounting bolts, and then remove the hood lock stay.

10. Remove the hood switch (with theft warning systems). Refer to SEC-

SEC-156, "Removal and Installa-

tion"

.

11. Remove the crush zone sensor. Refer to

SR-14, "Removal and Installation"

.

12. Remove the horn. Refer to

HRN-5, "Removal and Installation"

.

13. Remove the ambient sensor. Refer to

VTL-22, "Removal and Installation"

.

14. Remove the radiator mounting bracket (LH/RH). Refer to

CO-13, "Removal and Installation"

.

15. Remove the Intelligent Key warning buzzer (with Intelligent Key systems). Refer to

DLK-277, "Removal

and Installation"

.

16. Remove the charge air cooler assembly (with K9K engine models). Refer to

EM-266, "Removal and

Installation"

.

17. Remove the A/T fluid cooler assembly and the A/T fluid cooler bracket (with A/T models only). Refer to

TM-348, "FLUID COOLER : Removal and Installation"

.

18. Remove the A/T fluid cooler pipe bracket (1) mounting bolts (A)

(with A/T models only).

19. Remove the washer tank. Refer to

WW-99, "Removal and Installation"

.

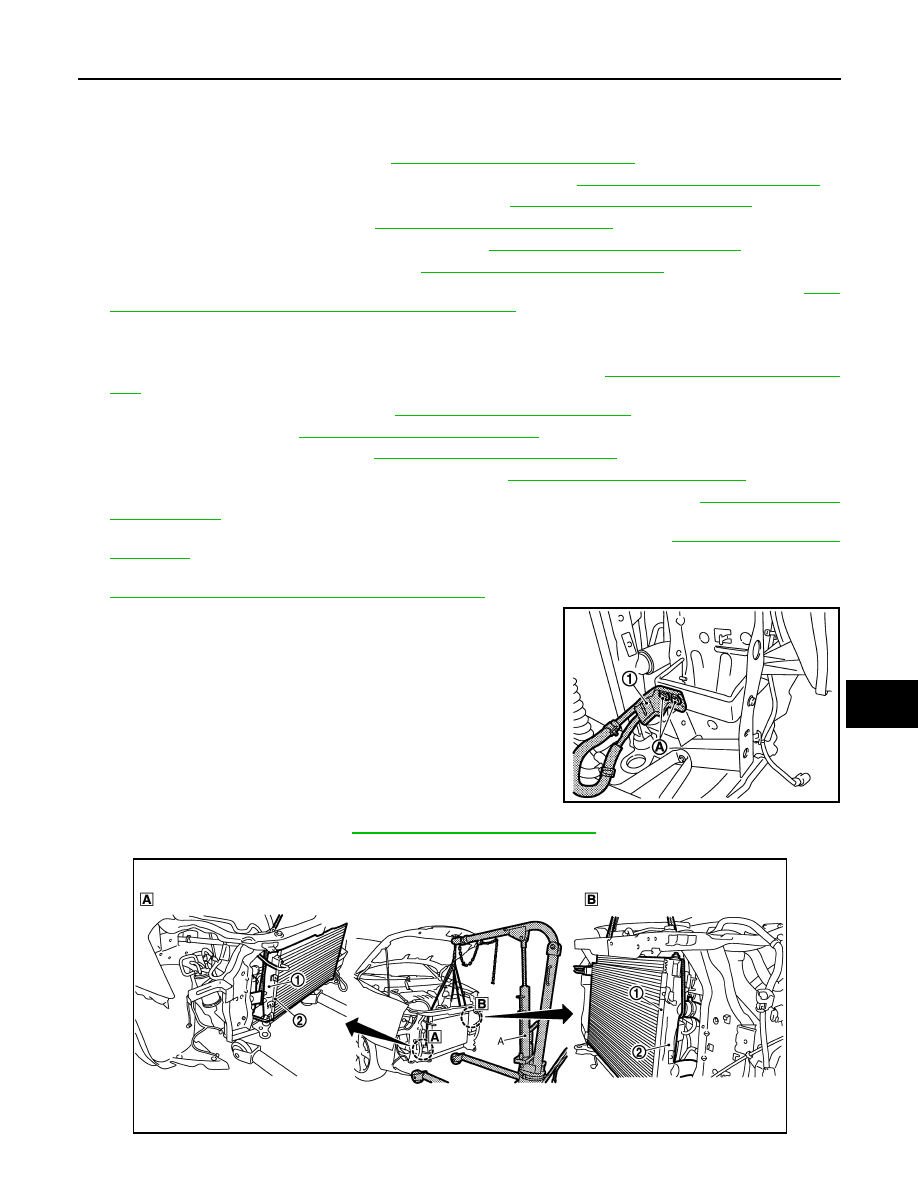

20. Use the baby crane (A) or another piece of equipment to suspend the radiator (1) and condenser (2).

JMKIA0173ZZ

JMKIA0174ZZ

DLK-670

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

RADIATOR CORE SUPPORT

21. Remove the radiator core support assembly mounting bolts, and draw out the radiator core support

assembly to the front of the vehicle.

22. Remove the radiator core support assembly.

23. Remove the following parts after removing the radiator core support assembly.

• Inlet tube bracket (with K9K engine models)
• Intercooler bracket (with K9K engine models)
• Apron reinforcement bracket

INSTALLATION

Install in the reverse order of removal.

CAUTION:

After installation, refill the following parts.
• A/T fluid. Refer to

TM-315, "Changing"

.

• Engine coolant. Refer to

CO-9, "Refilling"

.
