FRONT FENDER

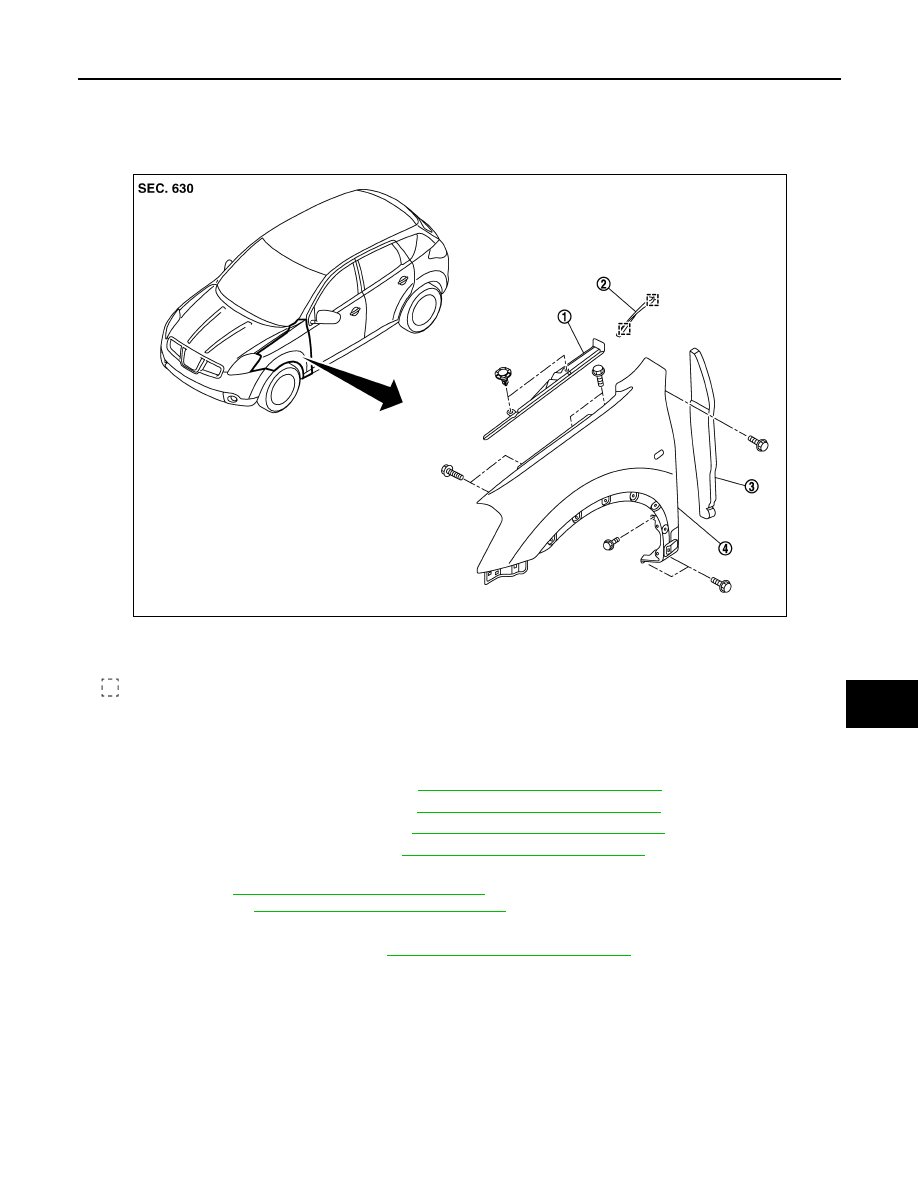

Exploded View

INFOID:0000000001098598

Removal and Installation

INFOID:0000000001098599

REMOVAL

1.

Remove the outer fender protector. Refer to

EXT-22, "Removal and Installation"

.

2.

Remove the inner fender protector. Refer to

EXT-22, "Removal and Installation"

.

3.

Remove the side turn signal lamp. Refer to

EXL-178, "Removal and Installation"

.

4.

Remove the front bumper fascia. Refer to

EXT-11, "Removal and Installation"

.

5.

Remove the front combination lamp.
• XENON TYPE:

EXL-171, "Removal and Installation"

.

• HALOGEN TYPE:

EXL-327, "Removal and Installation"

.

6.

Remove the mounting clips and remove hoodledge cover.

7.

Remove the center mudguard. Refer to

EXT-28, "Removal and Installation"

.

1.

Hood seal assembly (side)

2.

Front fender finisher

3.

Front fender seal

4.

Front fender

: Metal clip

JMKIA0177ZZ

DLK-672

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

FRONT FENDER

8.

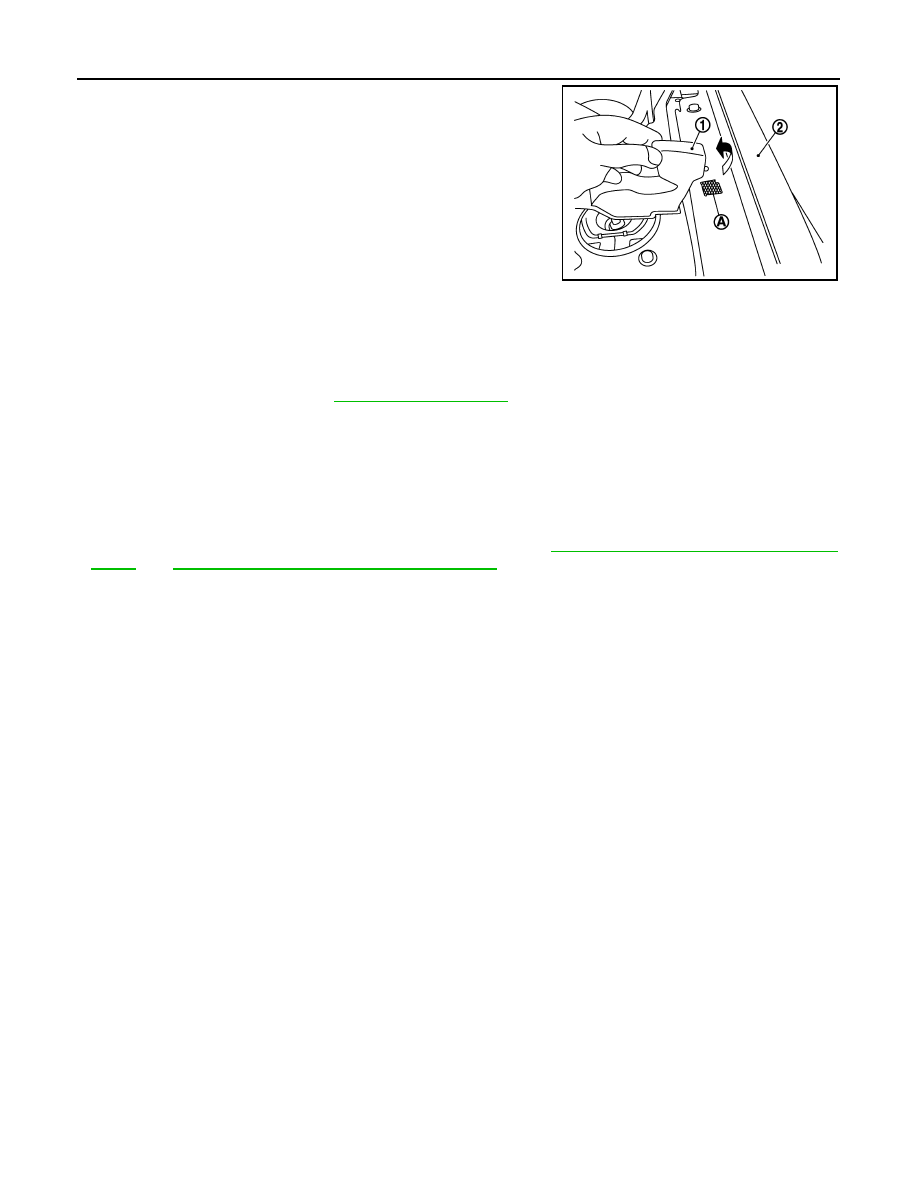

Peel away the double-faced adhesive tape (A) of the front
fender seal (1) from the front fender (2).

9.

Remove the mounting bolts and remove the front fender.

CAUTION:

Use a shop cloth to protect the body from being damaged during removal.

10. Remove the following parts after removing the front fender.

• Front fender seal.
• Bumper side bracket. Refer to

EXT-11, "Exploded View"

.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Replace the double-faced adhesive tape on the back of the cowl top cover seal with new tape.
• Do not wash the vehicle within 24 hours after installation so as to keep adhesive.
• After installation, apply the touch-up paint (the body color) onto the head of the front fender mount-

ing bolts.

• After installation, check the front fender adjustment. Refer to

DLK-830, "HOOD ASSEMBLY : Adjust-

ment"

 and

DLK-842, "DOOR ASSEMBLY : Adjustment"

.

JMKIA0178ZZ

FRONT DOOR

DLK-673

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT DOOR

DOOR ASSEMBLY

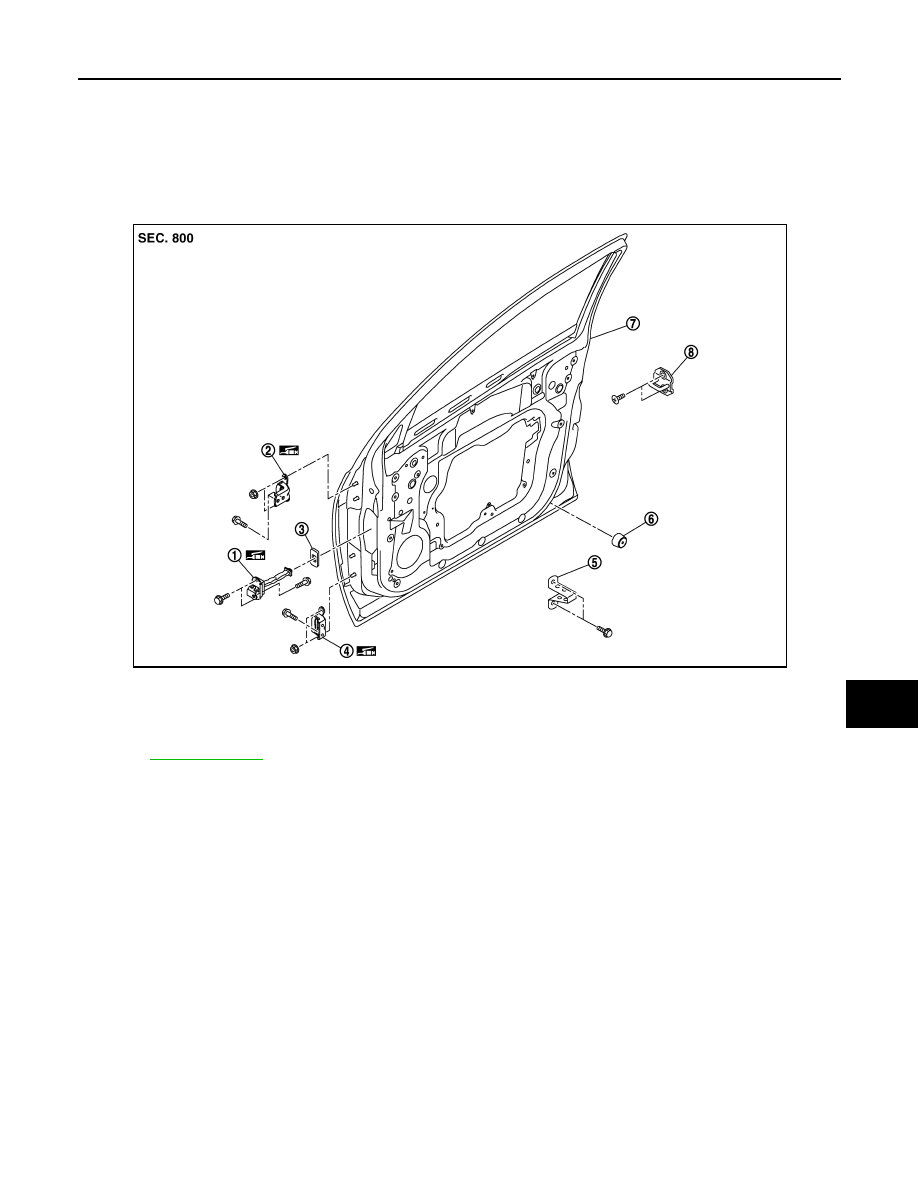

DOOR ASSEMBLY : Exploded View

INFOID:0000000001098600

REMOVAL

ADJUSTMENT

1.

Door check link

2.

Door hinge (upper)

3.

Door check link cover

4.

Door hinge (lower)

5.

Bracket

6.

Bumper rubber

7.

Front door panel

8.

Door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0179ZZ

DLK-674

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

FRONT DOOR

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000001098601

REMOVAL

1.

Remove the mounting bolts of the door check link on the vehicle.

2.

Remove the front door harness grommet, and then pull out the harness from the vehicle.

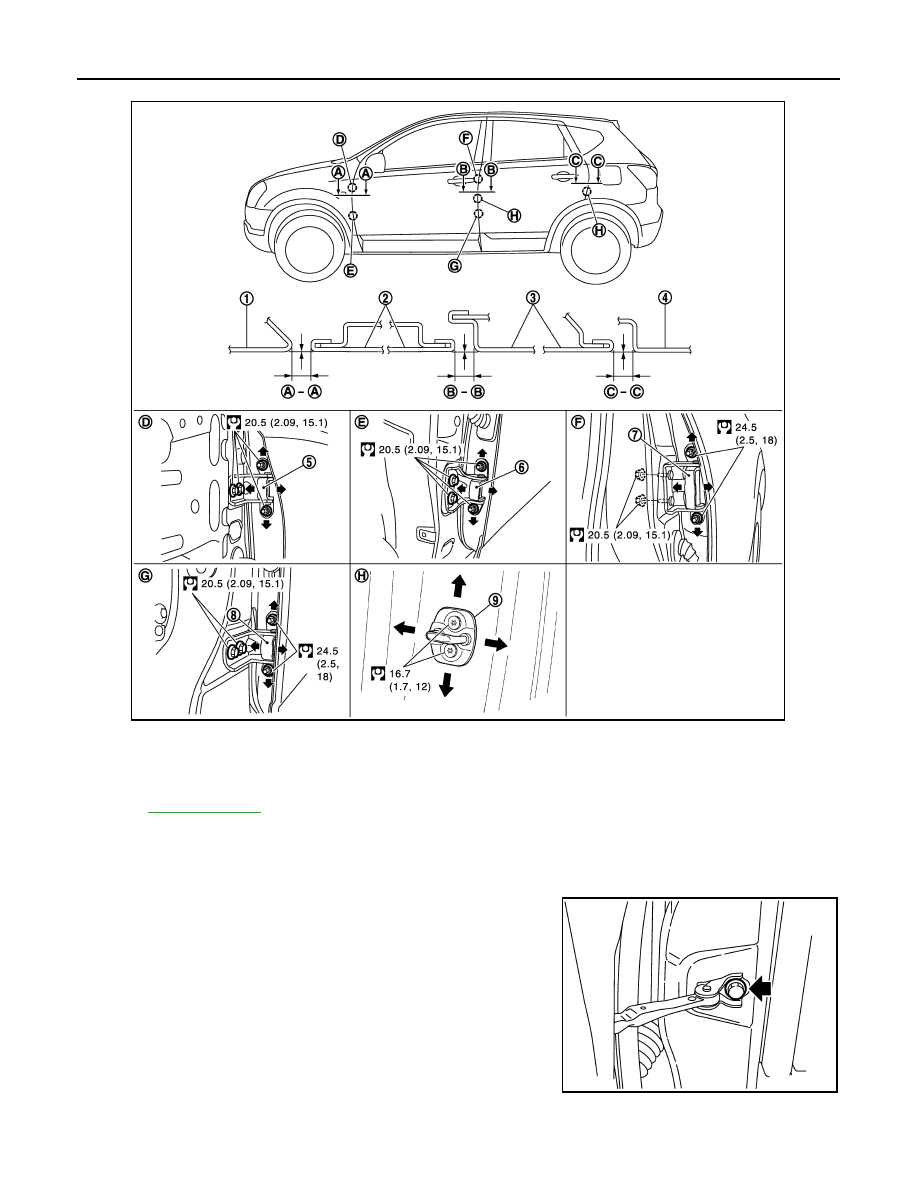

1.

Front fender

2.

Front door outer

3.

Rear door outer

4.

Rear fender

5.

Front door hinge (upper)

6.

Front door hinge (lower)

7.

Rear door hinge (upper)

8.

Rear door hinge (lower)

9.

Door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0195GB

PIIB6543E
