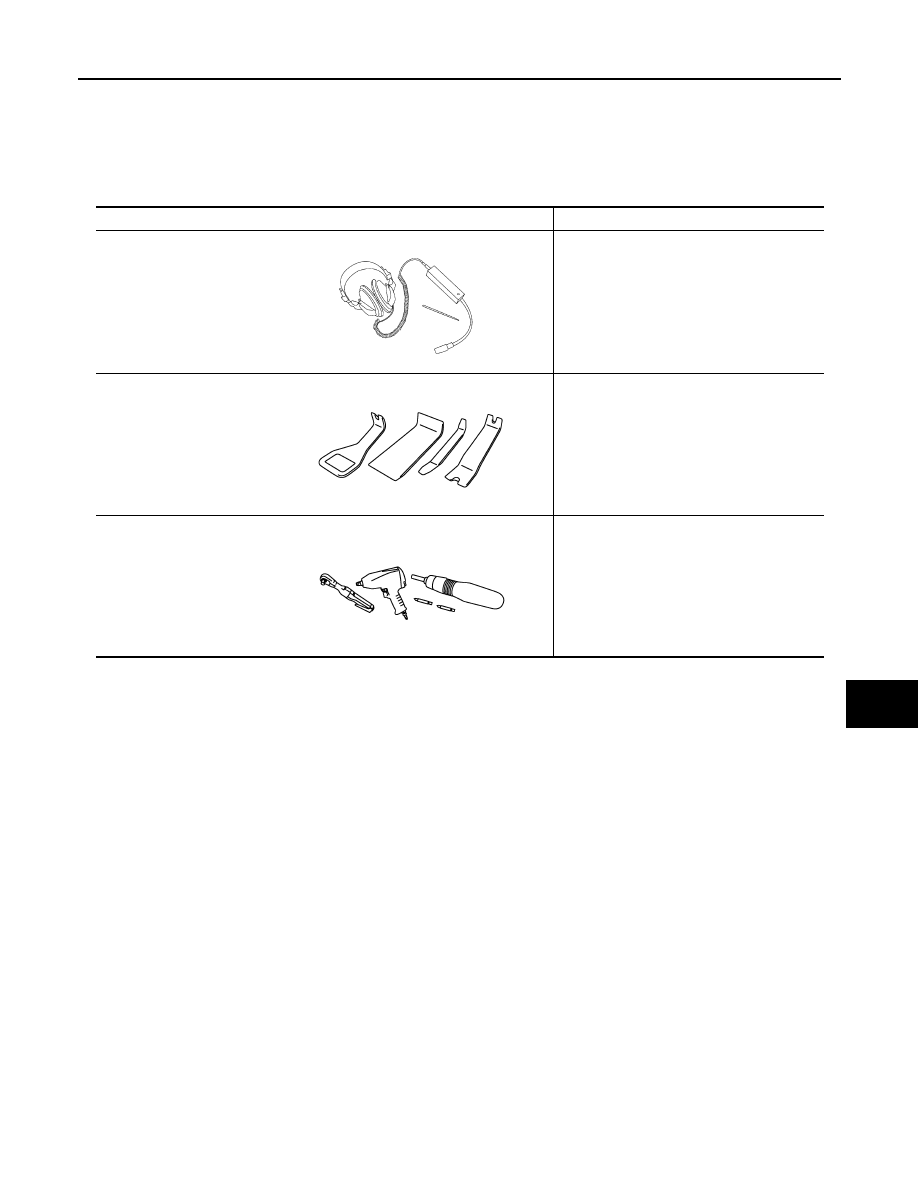

Commercial Service Tools

INFOID:0000000001116410

Tool name

Description

Engine ear

Locating the noise

Remover tool

Remove the clips, pawls, and metal clips

Power tool

SIIA0995E

PIIB7923J

PIIB1407E

DLK-660

< ON-VEHICLE MAINTENANCE >

[WITHOUT I-KEY & SUPER LOCK]

PRE-INSPECTION FOR DIAGNOSTIC

ON-VEHICLE MAINTENANCE

PRE-INSPECTION FOR DIAGNOSTIC

Basic Inspection

INFOID:0000000001090923

BASIC INSPECTION

1.

CHECK DOOR LOCK AND UNLOCK SWITCH OPERATION

Check door lock and unlock operation by operating door lock and unlock switch.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Refer to

DLK-645, "DOOR LOCK AND UNLOCK SWITCH : Symptom Table"

.

2.

CHECK KEYFOB OPERATION

Check door lock and unlock operation by operationg lock and unlock button of keyfob.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Refer to

DLK-645, "KEYFOB : Symptom Table"

.

3.

CHECK AUTO DOOR LOCK OPERATION

Check auto door lock operation. Refer to

DLK-563, "AUTO DOOR LOCK : System Description"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Refer to

DLK-646, "AUTO DOOR LOCK : Symptom Table"

.

4.

CHECK VEHICLE SPEED SENSING AUTO DOOR LOCK OPERATION

Check vehicle speed sensing auto door lock. Refer to

DLK-565, "VEHICLE SPEED SENSING AUTO DOOR

LOCK : System Description"

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Refer to

DLK-646, "VEHICLE SPEED SENSING AUTO DOOR LOCK : Symptom Table"

.

5.

CHECK BACK DOOR OPENER SWITCH OPERATION

Check back door opener operation by operating back door opener switch.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Refer to

DLK-648, "BACK DOOR OPENER SWITCH : Symptom Table"

.

6.

CHECK HAZARD REMINDER FUNCTION

Check hazard reminder function by operating the following switches.
• Lock and unlock button of keyfob.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Refer to

DLK-650, "HAZARD WARNING LAMP : Symptom Table"

.

7.

CHECK WARNING FUNCTION

Check that warning function operate properly. Refer to

DLK-572, "System Description"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Refer to

DLK-649, "BACK DOOR : Symptom Table"

.

8.

CHECK OUT

CHECK OUT.

>> INSPECTION END

HOOD

DLK-661

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ON-VEHICLE REPAIR

HOOD

HOOD ASSEMBLY

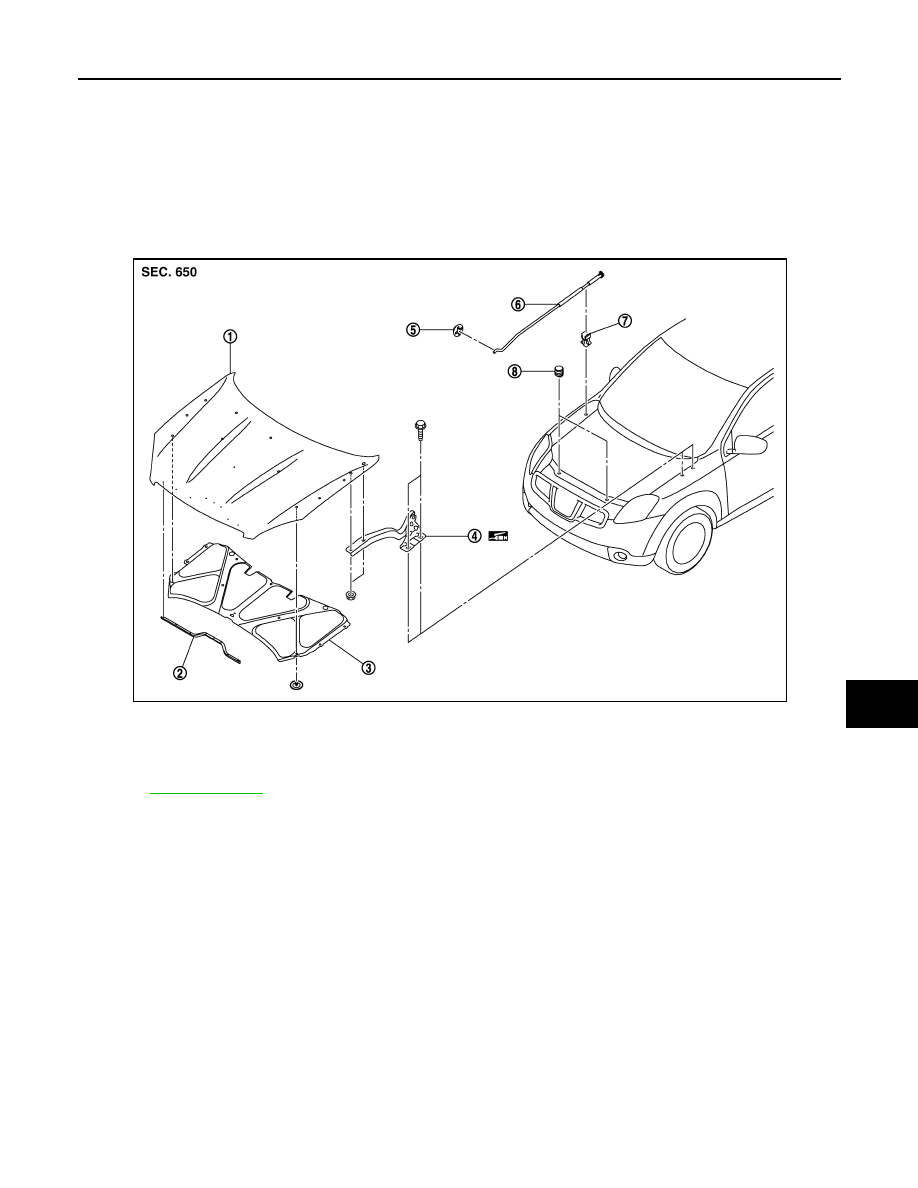

HOOD ASSEMBLY : Exploded View

INFOID:0000000001098574

REMOVAL

ADJUSTMENT

1.

Hood assembly

2.

Hood sealing rubber

3.

Hood insulator

4.

Hood hinge

5.

Grommet

6.

Hood support rod

7.

Clamp

8.

Hood bumper rubber

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0175ZZ

DLK-662

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

HOOD

HOOD ASSEMBLY : Removal and Installation

INFOID:0000000001098575

REMOVAL

1.

Support the hood lock assembly with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the hood open when removing the hood
stay.

2.

Remove the hood hinge mounting nuts on the hood to remove the hood assembly.

CAUTION:

Perform work with 2 workers, because of its heavy weight.

3.

Remove the following parts after removing the hood assembly.
• Hood insulator
• Hood sealing rubber

INSTALLATION

Install in the reverse order of removal.

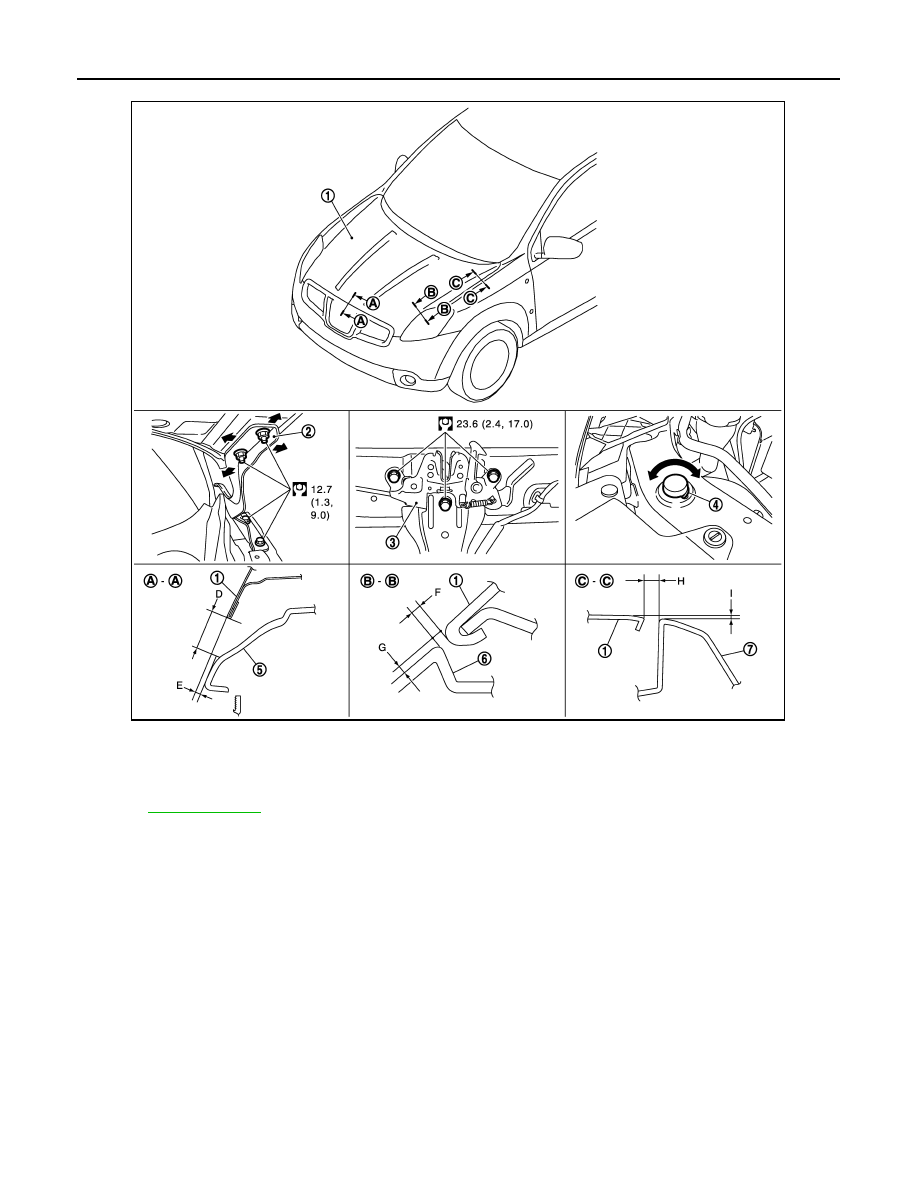

CAUTION:

1.

Hood assembly

2.

Hood hinge

3.

Hood lock assembly

4.

Hood bumper rubber

5.

Front grille

6.

Front combination lamp

7.

Front fender

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0185GB
