OUTSIDE KEY ANTENNA

DLK-547

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR BUMPER : Exploded View

INFOID:0000000001095359

Refer to

DLK-547, "REAR BUMPER : Removal and Installation"

.

REAR BUMPER : Removal and Installation

INFOID:0000000001095360

REMOVAL

1.

Remove the rear bumper. Refer to

EXT-14, "Exploded View"

 and

EXT-15, "Removal and Installation"

.

2.

Remove the outside key antenna (rear bumper) (1) from rear
bumper energy absorber (2).

INSTALLATION

Install in the reverse order of removal.

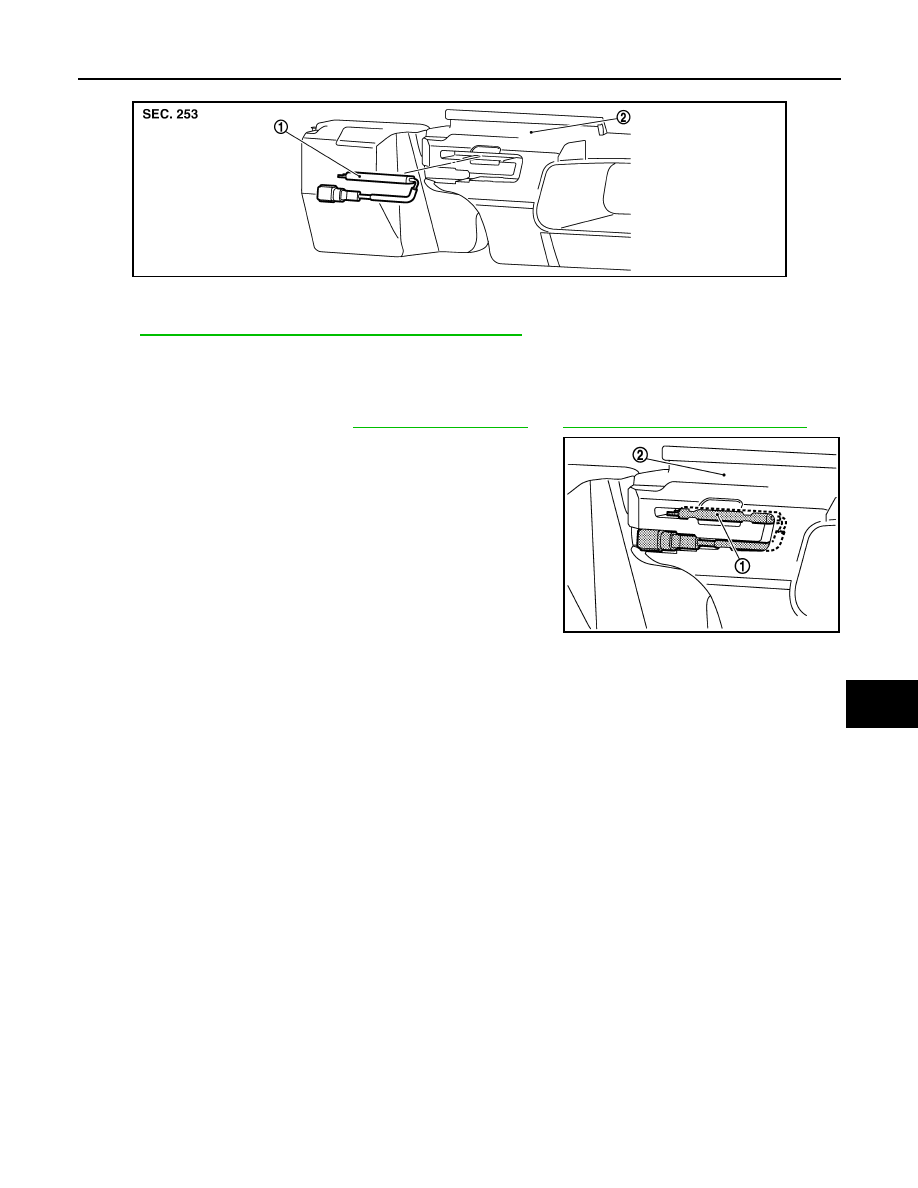

JMKIA0475ZZ

1.

Outside key antenna (rear bumper)

2.

Rear bumper energy absorber

JMKIA0476ZZ

DLK-548

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

INTELLIGENT KEY WARNING BUZZER

INTELLIGENT KEY WARNING BUZZER

Exploded View

INFOID:0000000001095361

Refer to

DLK-548, "Removal and Installation"

.

Removal and Installation

INFOID:0000000001095362

REMOVAL

1.

Remove the front bumper. Refer to

EXT-11, "Exploded View"

 and

EXT-11, "Removal and Installation"

.

2.

Remove the Intelligent Key warning buzzer mounting bolt (A),
and then remove the Intelligent Key warning buzzer (1).

INSTALLATION

Install in the reverse order of removal.

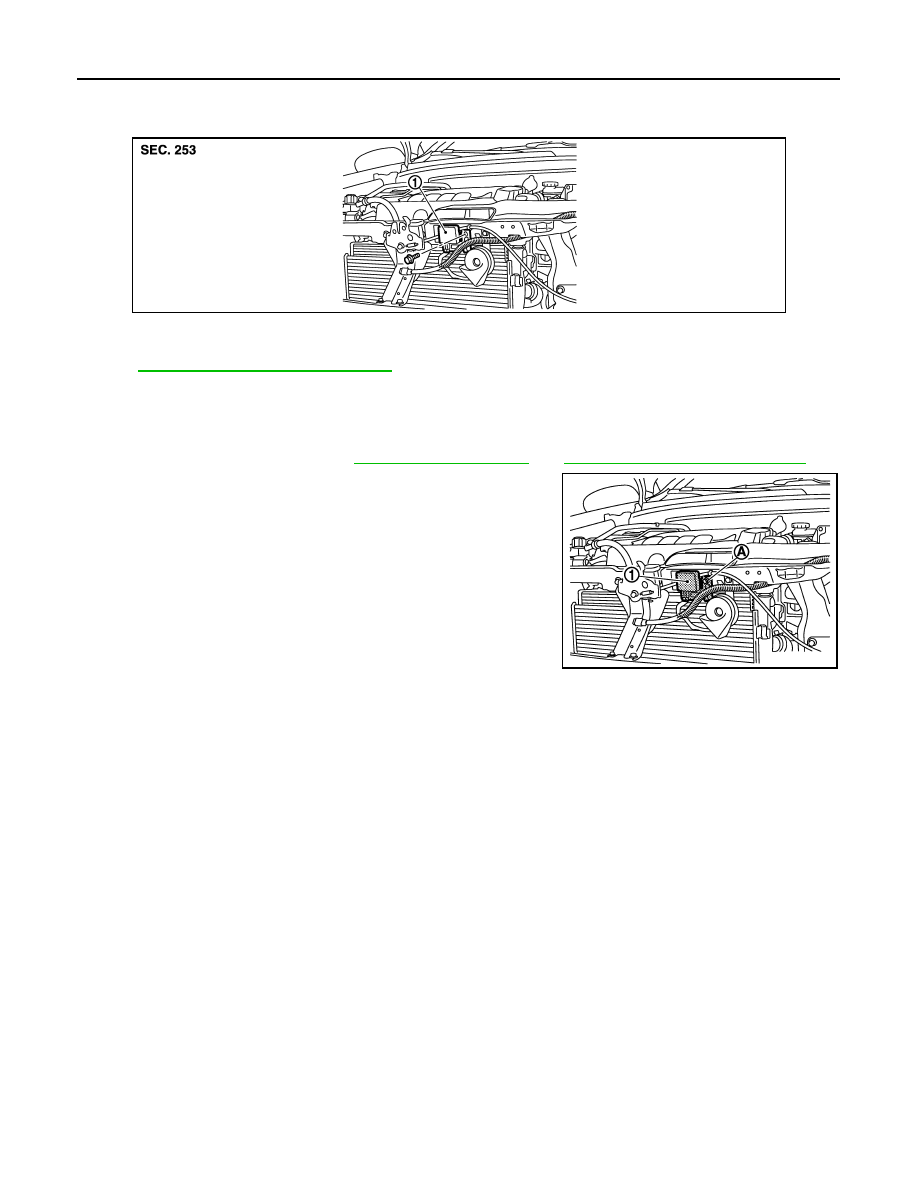

JMKIA0457ZZ

1.

Intelligent Key warning buzzer

JMKIA0458ZZ

BACK DOOR REQUEST SWITCH

DLK-549

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR REQUEST SWITCH

Exploded View

INFOID:0000000001115311

Refer to

DLK-549, "Removal and Installation"

.

Removal and Installation

INFOID:0000000001115312

REMOVAL

1.

Remove the back door finisher.
Refer to

EXT-31, "Exploded View"

 and

EXT-31, "Removal and Installation"

.

2.

Remove the back door request switch (1) from back door fin-
isher (2) using flat-bladed screw driver (A) etc.

3.

Remove the trunk lid request switch mounting screw (B), and then remove trunk lid request switch (3)
from inner bracket (2).

INSTALLATION

Install in the reverse order of removal.

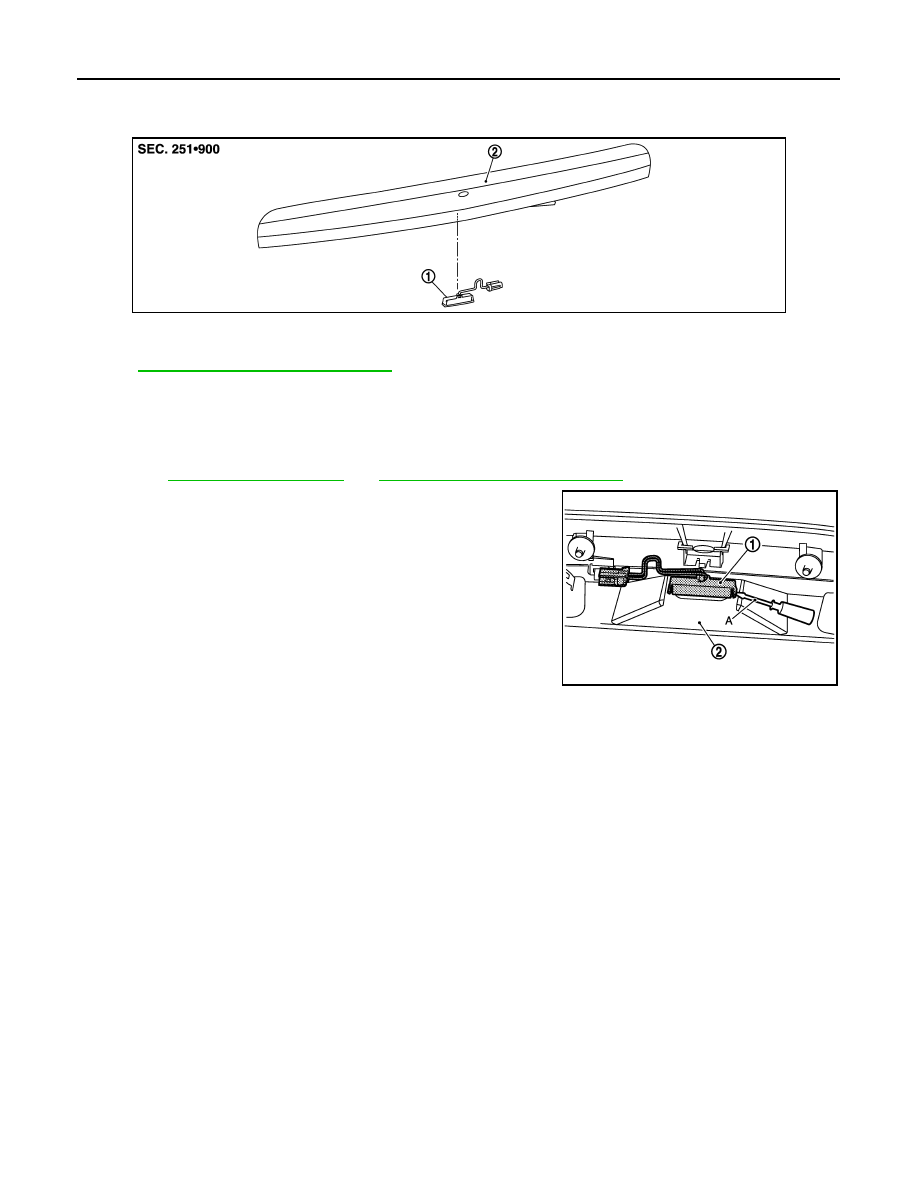

JMKIA0517ZZ

1.

Back door request switch

2.

Back door finisher

: Pawl

JMKIA0518ZZ

DLK-550

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

BACK DOOR OPENER SWITCH

BACK DOOR OPENER SWITCH

Exploded View

INFOID:0000000001116790

Refer to

DLK-550, "Removal and Installation"

.

Removal and Installation

INFOID:0000000001116791

REMOVAL

1.

Remove the back door finisher.
Refer to

EXT-31, "Exploded View"

 and

EXT-31, "Removal and Installation"

.

2.

Remove the back door opener switch (1) from back door finisher
(2) using flat-bladed screw driver (A) etc.

INSTALLATION

Install in the reverse order of removal.

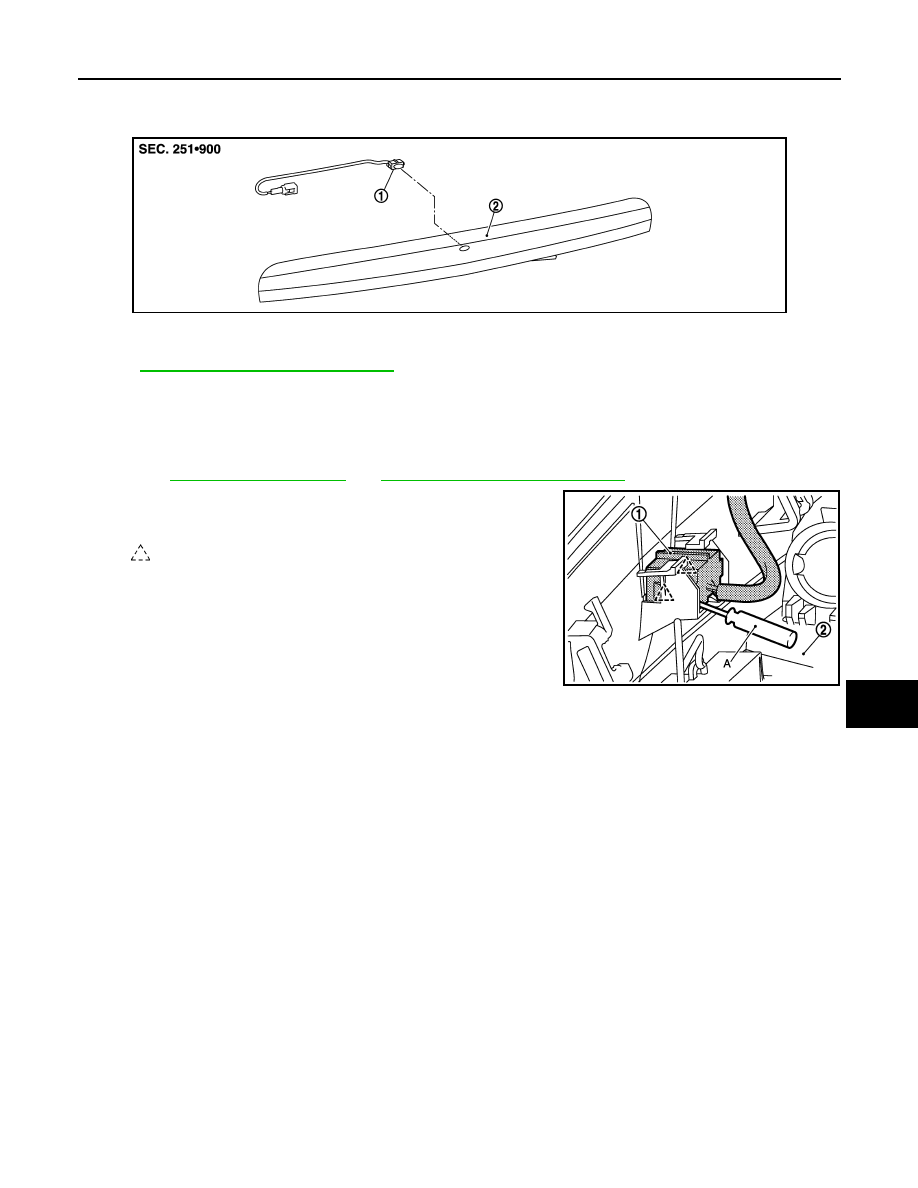

JMKIA0516ZZ

1.

Back door opener switch

2.

Back door finisher

JMKIA0519ZZ
