DOOR SWITCH

DLK-543

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

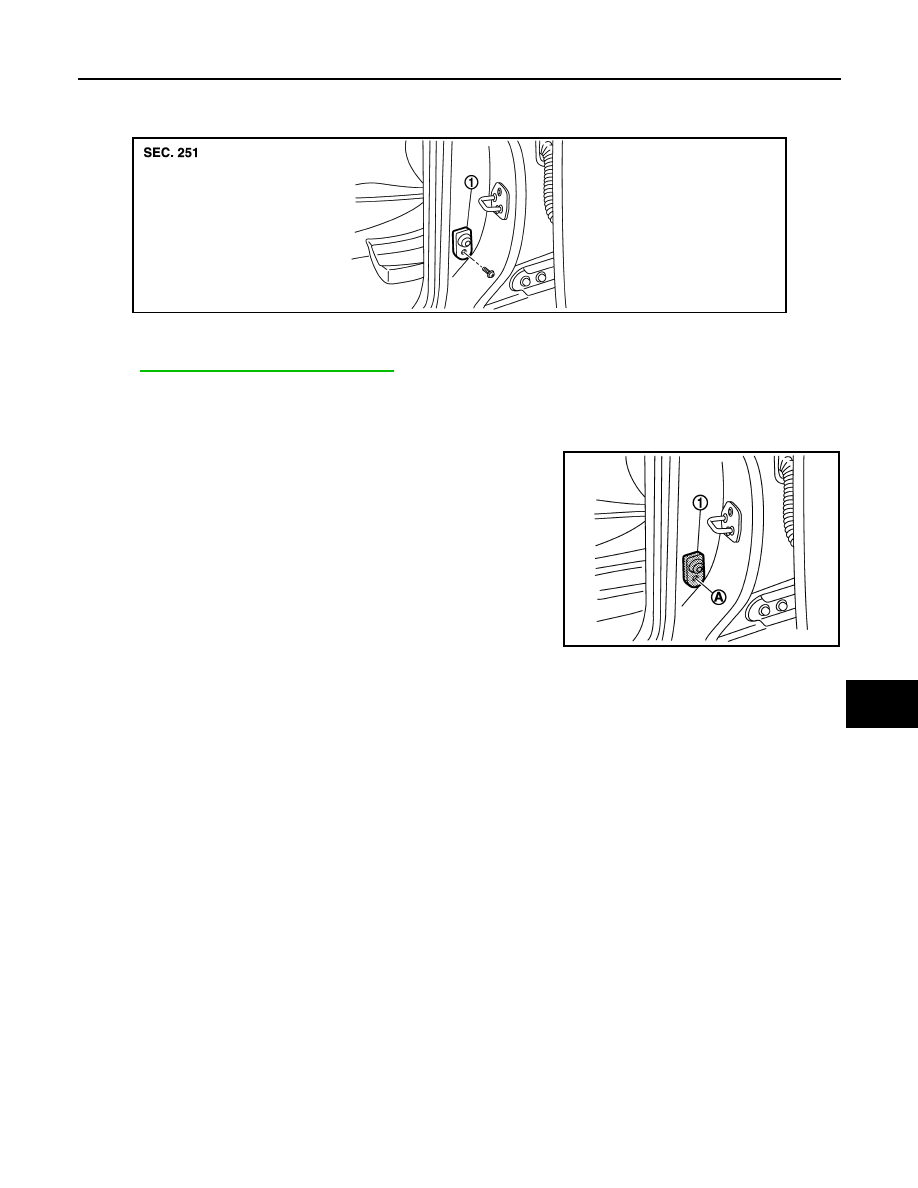

DOOR SWITCH

Exploded View

INFOID:0000000001095347

Refer to

DLK-877, "Removal and Installation"

.

Removal and Installation

INFOID:0000000001095348

REMOVAL

1.

Remove the door switch mounting bolt (A), and then remove
door switch (1).
NOTE:
The same procedure is also performed for door switch (passen-
ger side, rear LH and rear RH).

INSTALLATION

Install in the reverse order of removal.

JMKIA0451ZZ

1.

Door switch (driver side)

JMKIA0452ZZ

DLK-544

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

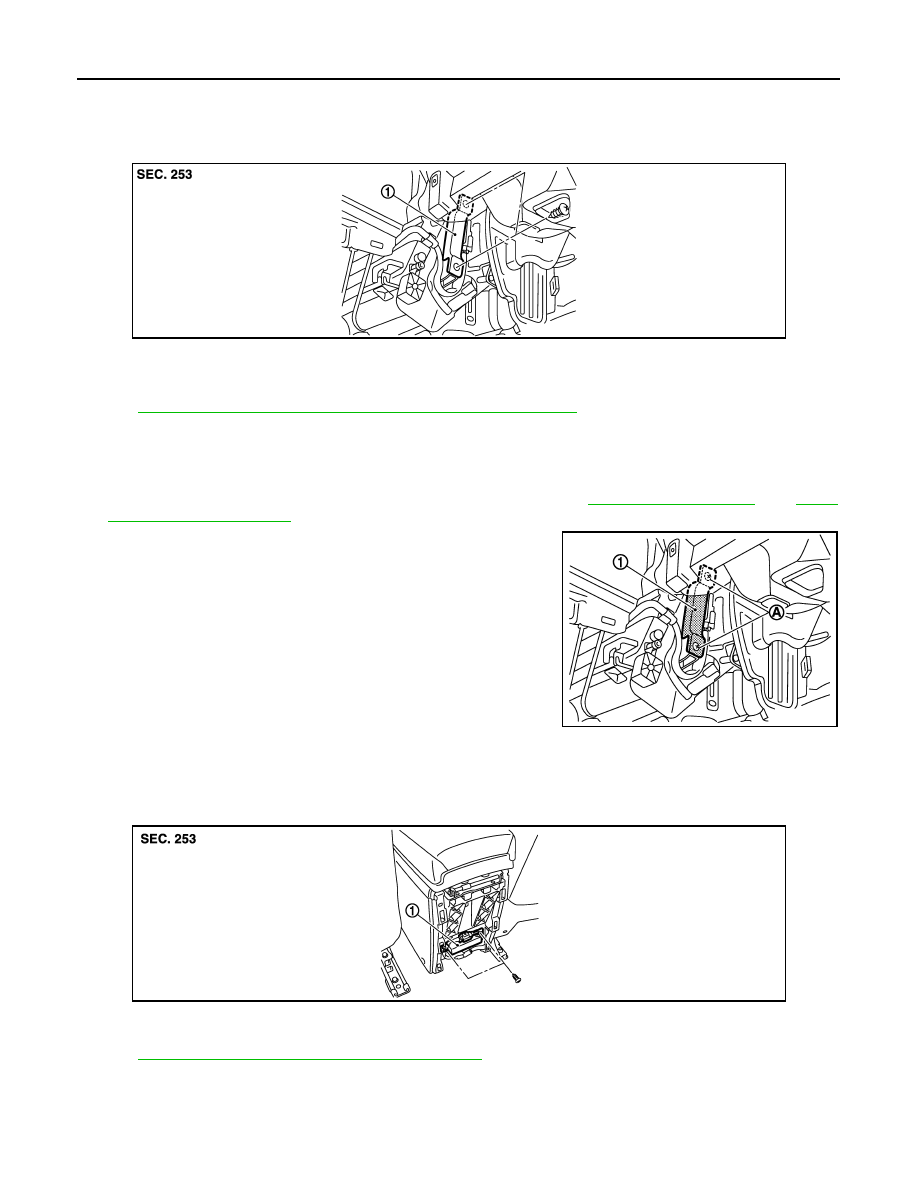

INSIDE KEY ANTENNA

INSIDE KEY ANTENNA

INSTRUMENT CENTER

INSTRUMENT CENTER : Exploded View

INFOID:0000000001095349

Refer to

DLK-544, "INSTRUMENT CENTER : Removal and Installation"

.

INSTRUMENT CENTER : Removal and Installation

INFOID:0000000001095350

REMOVAL

1.

Remove the glove box and instrument lower cover RH. Refer to

IP-11, "Exploded View"

 and

IP-12,

"Removal and Installation"

.

2.

Remove the key slot mounting screw (A), and then remove
inside key antenna (instrument center) (1).

INSTALLATION

Install in the reverse order of removal.

CONSOLE

CONSOLE : Exploded View

INFOID:0000000001095351

Refer to

DLK-544, "CONSOLE : Removal and Installation"

.

CONSOLE : Removal and Installation

INFOID:0000000001095352

REMOVAL

JMKIA0455ZZ

1.

Inside key antenna (instrument cen-
ter)

JMKIA0456ZZ

JMKIA0459ZZ

1.

Inside key antenna (console)

INSIDE KEY ANTENNA

DLK-545

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

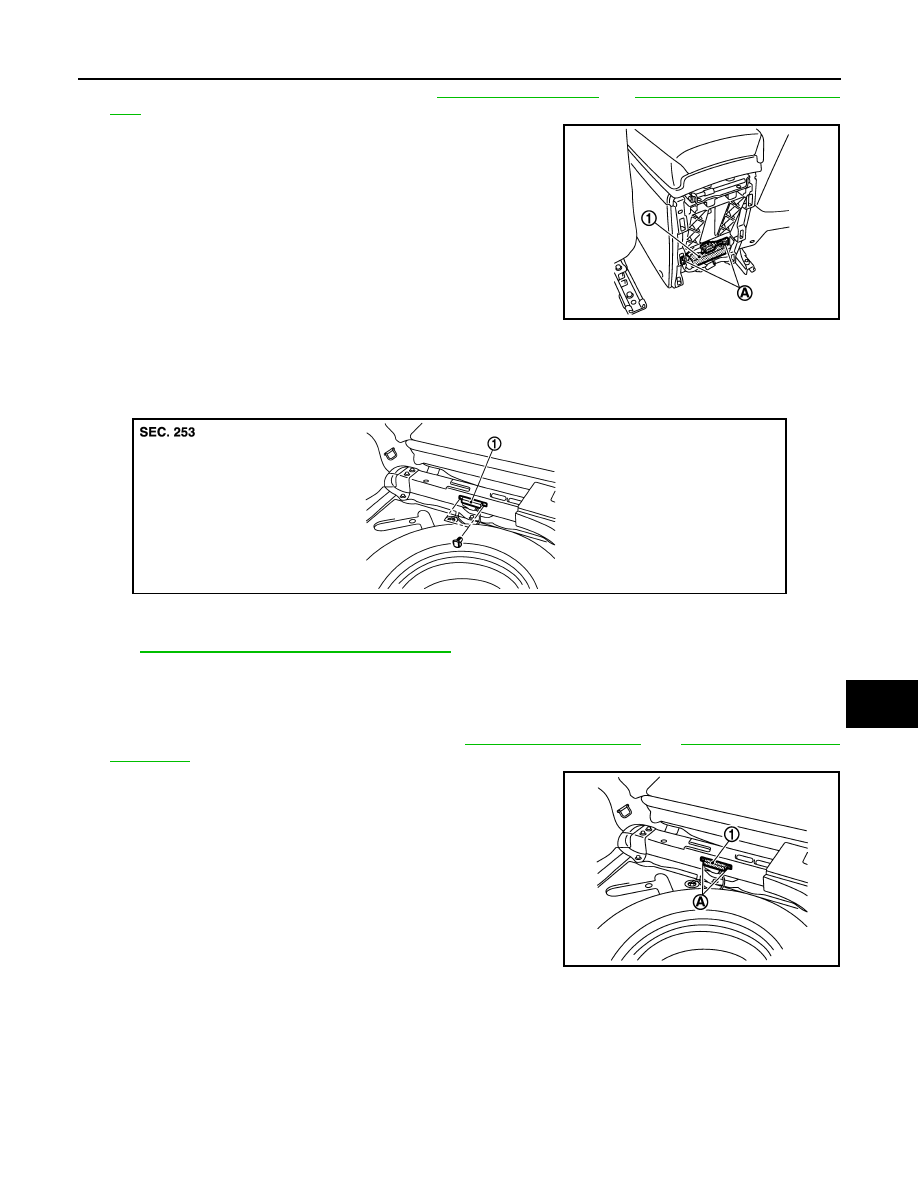

1.

Remove the console rear finisher (2). Refer to

IP-18, "Exploded View"

 and

IP-18, "Removal and Installa-

tion"

.

2.

Remove the inside key antenna mounting screw (A), and then
remove inside key antenna (console) (1).

INSTALLATION

Install in the reverse order of removal.

REAR

REAR : Exploded View

INFOID:0000000001095353

Refer to

DLK-545, "REAR : Removal and Installation"

.

REAR : Removal and Installation

INFOID:0000000001095354

REMOVAL

1.

Remove the luggage floor spacer (LH). Refer to

INT-24, "Exploded View"

 and

INT-24, "Removal and

Installation"

.

2.

Remove the inside key antenna (rear seat) mounting clips (A),
and then remove inside key antenna (rear seat) (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA0460ZZ

JMKIA0453ZZ

1.

Inside key antenna (rear seat)

JMKIA0454ZZ

DLK-546

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

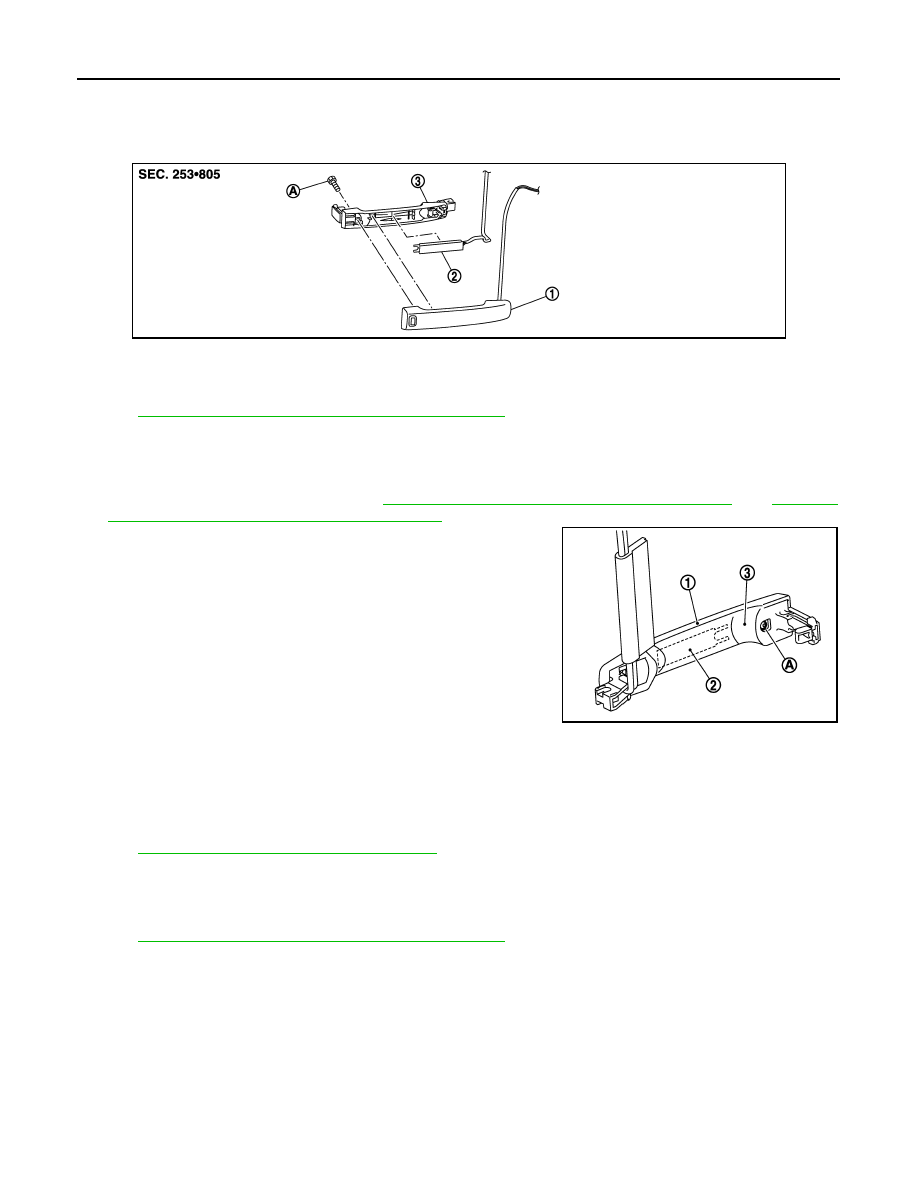

OUTSIDE KEY ANTENNA

OUTSIDE KEY ANTENNA

DRIVER SIDE

DRIVER SIDE : Exploded View

INFOID:0000000001095355

Refer to

DLK-275, "DRIVER SIDE : Removal and Installation"

.

DRIVER SIDE : Removal and Installation

INFOID:0000000001095356

REMOVAL

1.

Remove the outside handle. Refer to

DLK-258, "OUTSIDE HANDLE : Exploded View"

 and

DLK-259,

"OUTSIDE HANDLE : Removal and Installation"

.

2.

Remove the bolt (A) from outside handle grip (1).

3.

Remove the outside key antenna (2) from outside handle
bracket (3).

INSTALLATION

Install in the reverse order of removal.

PASSENGER SIDE

PASSENGER SIDE : Exploded View

INFOID:0000000001095357

Refer to

DLK-275, "DRIVER SIDE : Exploded View"

.

PASSENGER SIDE : Removal and Installation

INFOID:0000000001095358

REMOVAL

Refer to

DLK-275, "DRIVER SIDE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

REAR BUMPER

JMKIA0522ZZ

1.

Outside handle grip

2.

Outside key antenna

3.

Outside handle bracket

A.

Bolt

JMKIA0521ZZ
