REAR DOOR LOCK

DLK-535

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

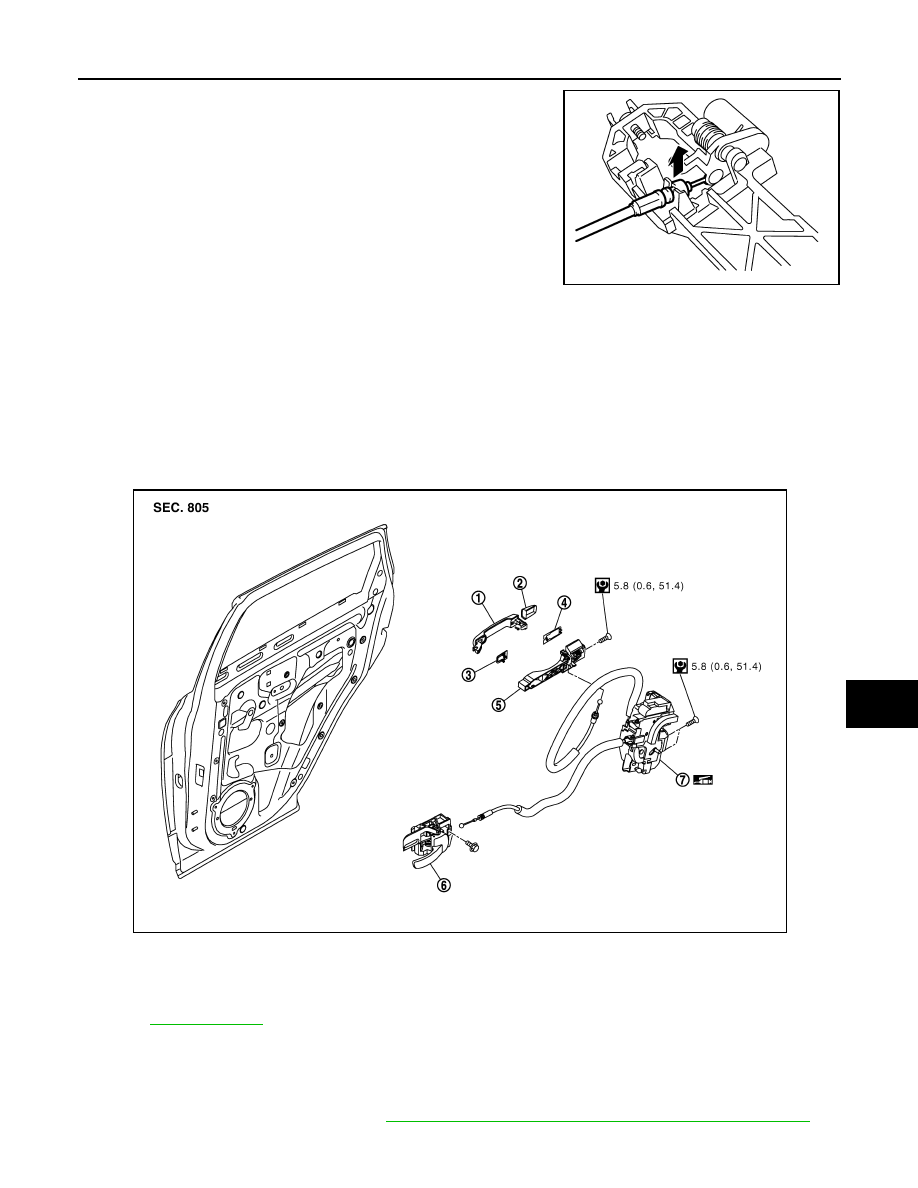

12. Reach in to separate the outside handle cable connection.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• To install each rod, rotate the rod holder until a click is felt.
• Check the door lock/unlock operation after installation.
• Check the door open/close operation after installation.

INSIDE HANDLE

INSIDE HANDLE : Exploded View

INFOID:0000000001098555

INSIDE HANDLE : Removal and Installation

INFOID:0000000001098556

REMOVAL

1.

Remove the rear door finisher. Refer to

INT-13, "REAR DOOR FINISHER : Removal and Installation"

.

2.

Remove the door sealing screen.

PIIB5815E

1.

Outside handle

2.

Outside handle escutcheon

3.

Front gasket

4.

Rear gasket

5.

Outside handle bracket

6.

Inside handle

7.

Door lock assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0189GB

DLK-536

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

REAR DOOR LOCK

3.

Remove the inside handle mounting bolt, and then disconnect the inside handle knob cable and the lock
knob cable.

4.

Remove the inside handle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check the door lock/unlock operation after installation.
• Check the door open/close operation after installation.

OUTSIDE HANDLE

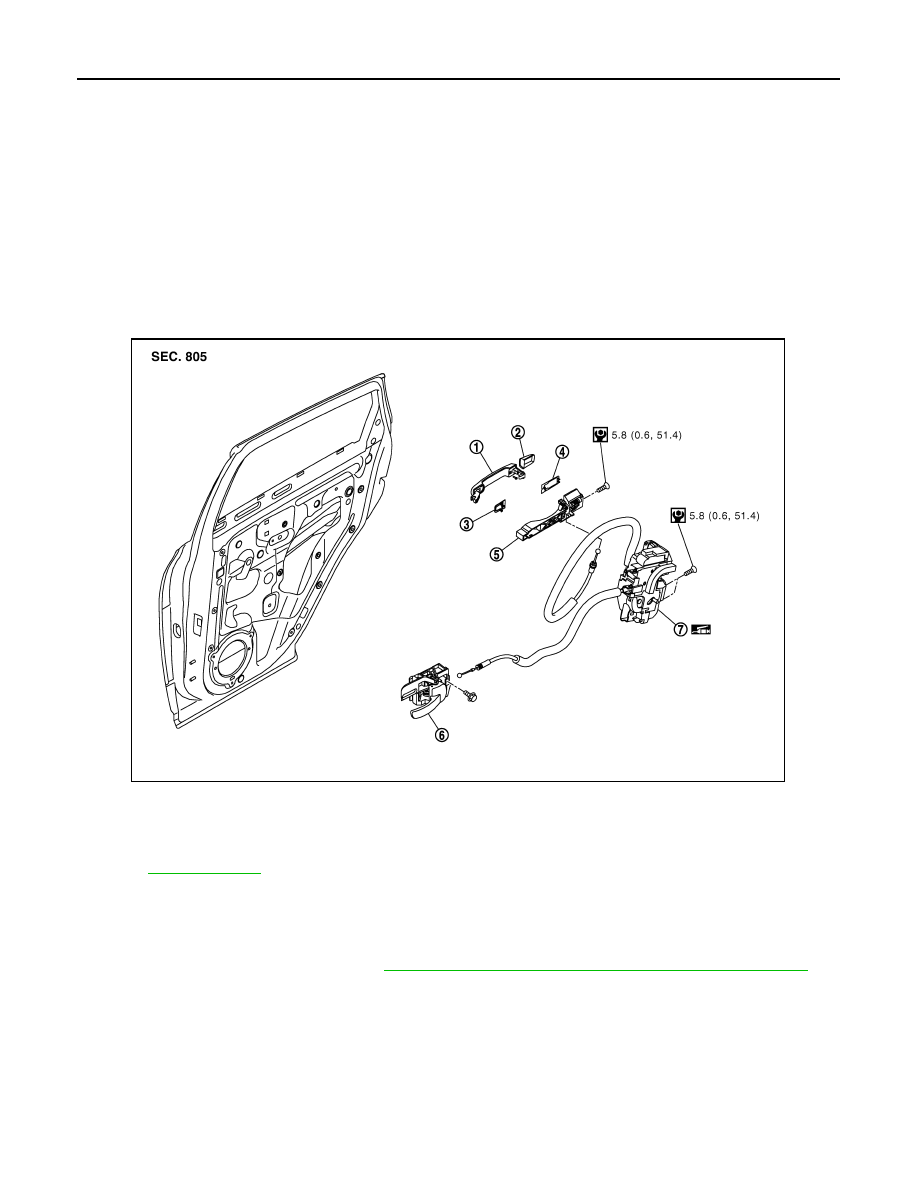

OUTSIDE HANDLE : Exploded View

INFOID:0000000001098557

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000001098558

REMOVAL

1.

Remove the rear door finisher. Refer to

INT-13, "REAR DOOR FINISHER : Removal and Installation"

.

2.

Fully close the front door window.

3.

Remove the door sealing screen.

4.

Remove the inside handle mounting bolt, disconnect the inside handle knob cable and the lock knob
cable.

1.

Outside handle

2.

Outside handle escutcheon

3.

Front gasket

4.

Rear gasket

5.

Outside handle bracket

6.

Inside handle

7.

Door lock assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0189GB

REAR DOOR LOCK

DLK-537

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

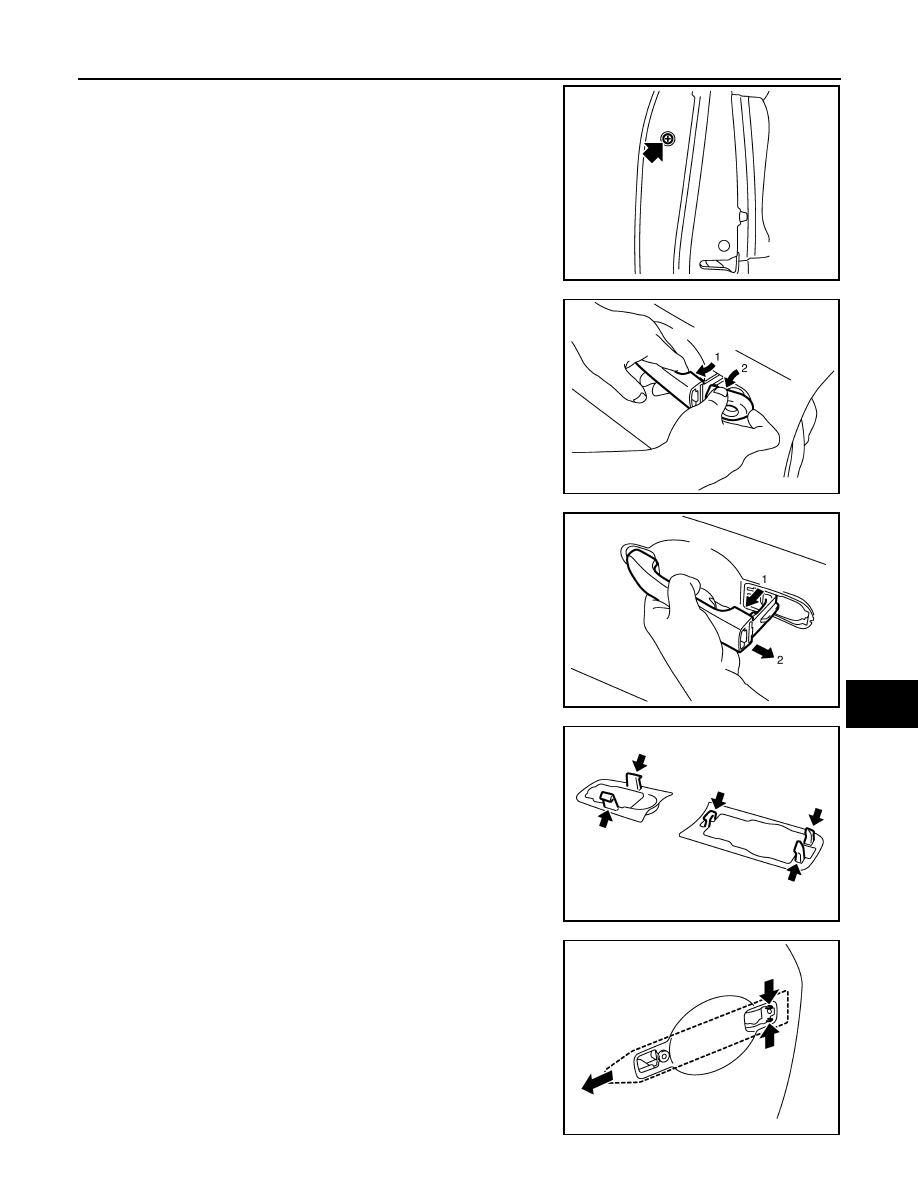

5.

Remove the door side grommet, and remove the door key cylin-
der assembly (driver side) and the outside handle escutcheon
(passenger side) mounting bolts from the grommet hole.

CAUTION:

Do not forcibly remove the bolts (TORX: T10).

6.

While pulling the outside handle, and then remove the door key
cylinder assembly.

7.

While pulling the outside handle, slide toward rear of vehicle to
remove the outside handle.

8.

Remove the front gasket and the rear gasket.

9.

While pulling the outside handle bracket, slide toward rear of
vehicle to remove the outside handle bracket.

JMKIA0020ZZ

PIIB5809E

PIIB5810E

PIIB5811E

PIIB5814E

DLK-538

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

REAR DOOR LOCK

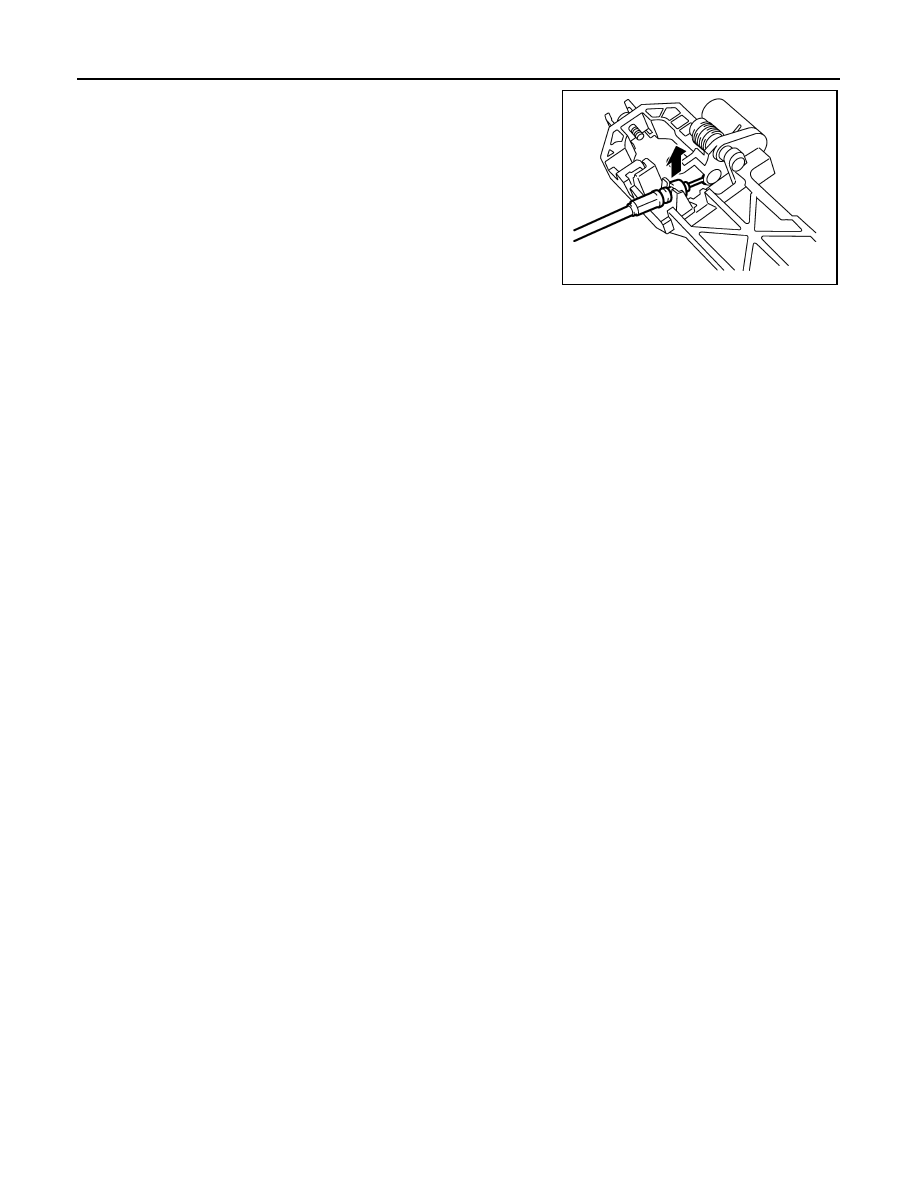

10. Reach in to separate the outside handle cable connection.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check the door lock/unlock operation after installation.
• Check the door open/close operation after installation.
