FRONT DOOR LOCK

DLK-531

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

7.

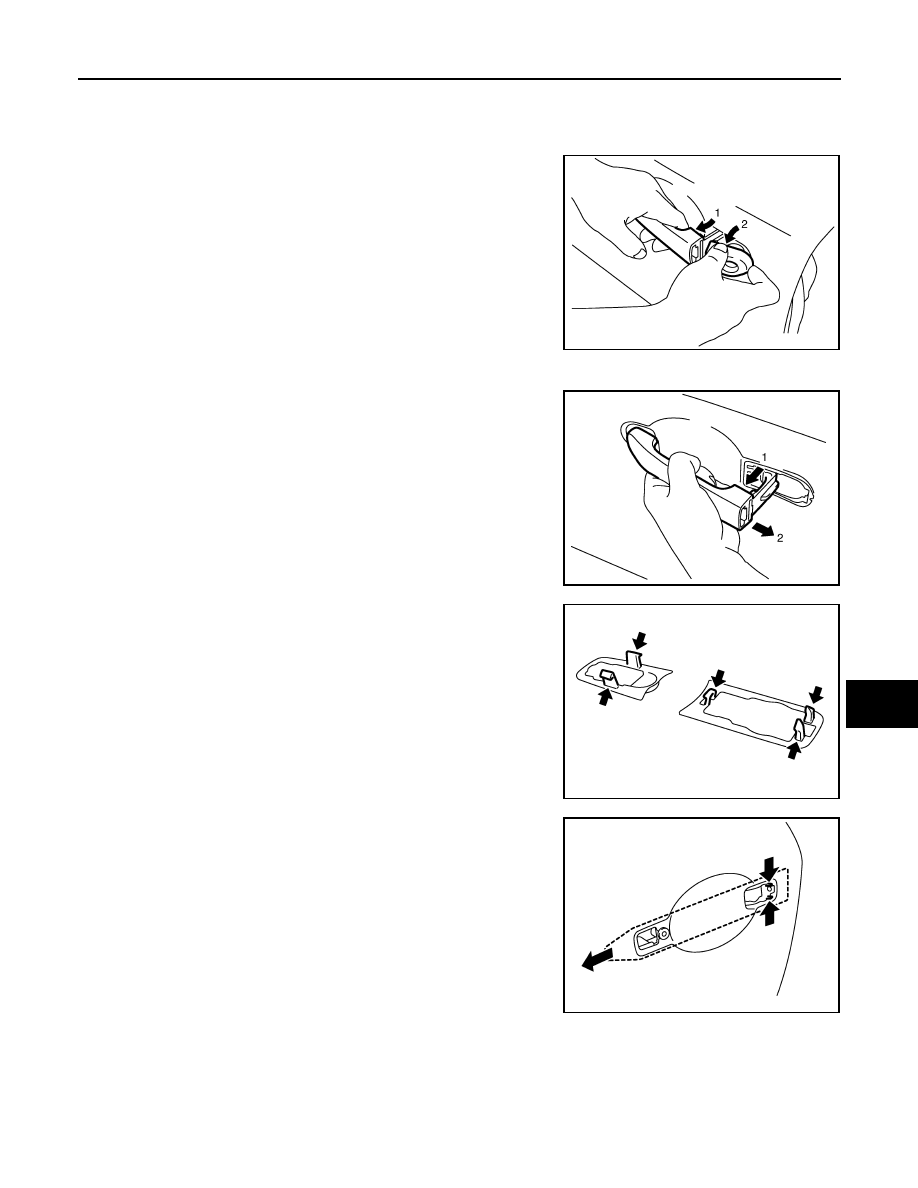

Reach in to separate the key cylinder rod connection (on the handle).

8.

Disconnect the door key cylinder switch harness connector.

9.

Remove the key cylinder lever from the door key cylinder.

10. While pulling the outside handle, remove the door key cylinder

assembly.

11. Disconnect the front door request switch harness connector (models with Intelligent Key system).
12. While pulling the outside handle, slide toward rear of vehicle to

remove the outside handle.

13. Remove the front gasket and rear gasket.

14. While pulling the outside handle bracket, slide toward rear of

vehicle to remove the outside handle bracket.

PIIB5809E

PIIB5810E

PIIB5811E

PIIB5814E

DLK-532

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

FRONT DOOR LOCK

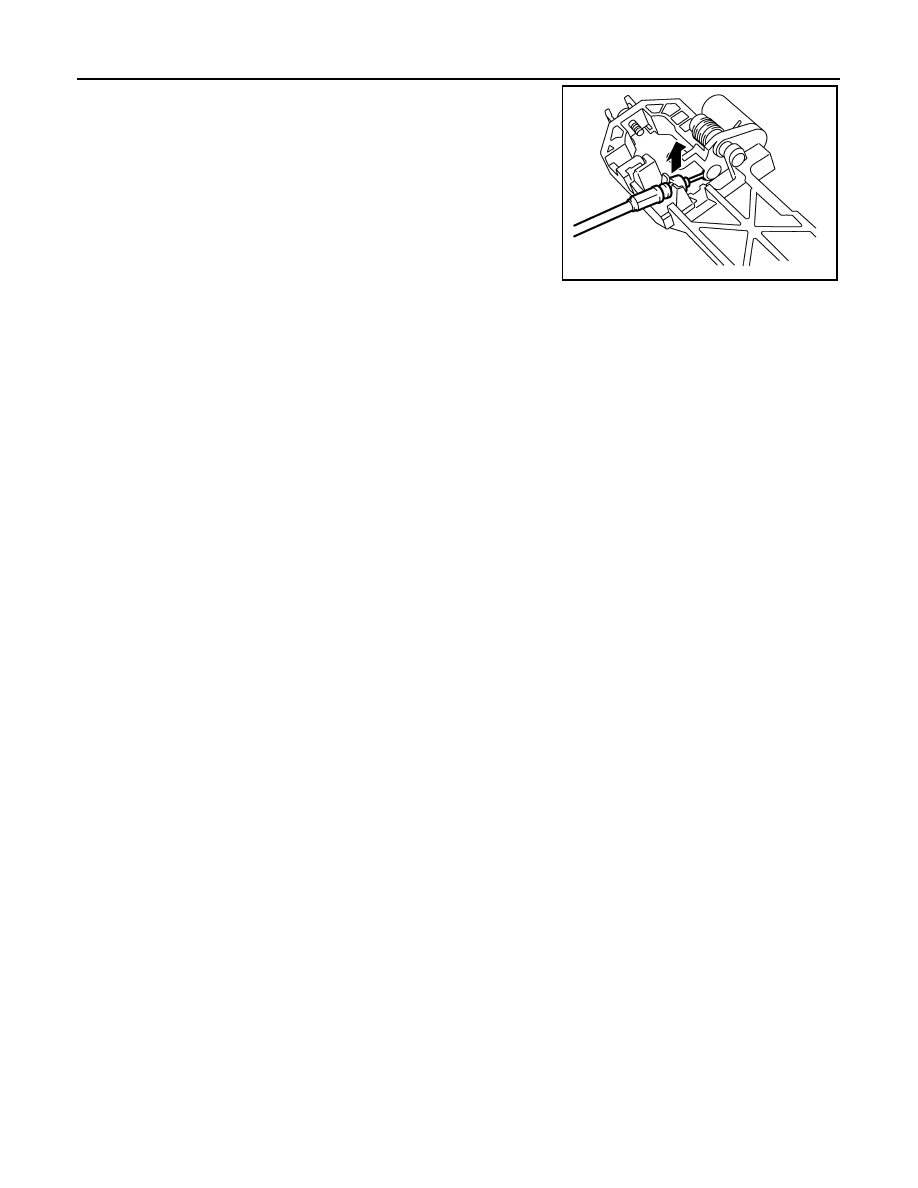

15. Reach in to separate the outside handle cable connection.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• To install each rod, rotate the rod holder until a click is felt.
• Check the door lock/unlock operation after installation.
• Check the door open/close operation after installation.

PIIB5815E

REAR DOOR LOCK

DLK-533

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

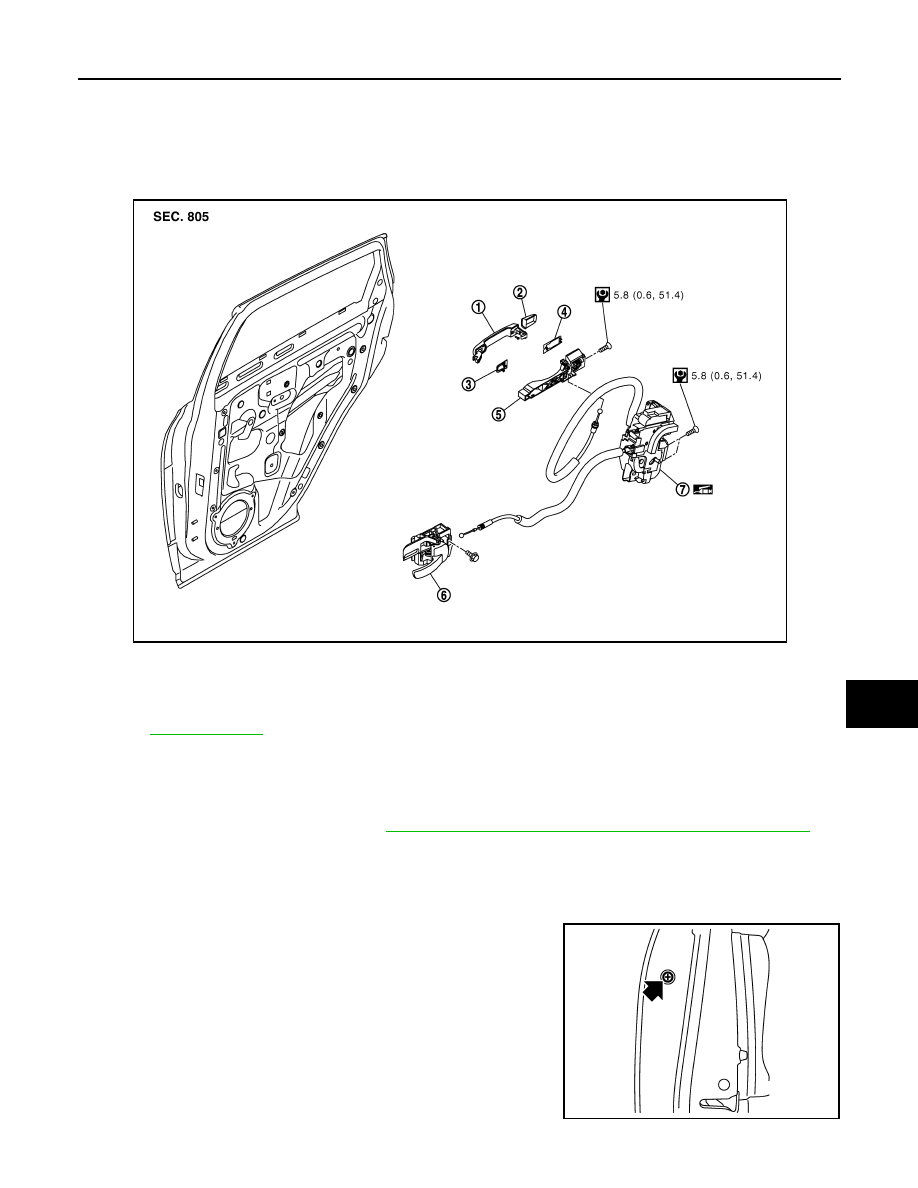

REAR DOOR LOCK

DOOR LOCK

DOOR LOCK : Exploded View

INFOID:0000000001098551

DOOR LOCK : Removal and Installation

INFOID:0000000001098552

REMOVAL

1.

Remove the rear door finisher. Refer to

INT-13, "REAR DOOR FINISHER : Removal and Installation"

.

2.

Fully close the front door window.

3.

Remove the door sealing screen.

4.

Remove the inside handle mounting bolt, and then disconnect the inside handle knob cable and the lock
knob cable.

5.

Remove the door side grommet, and remove the door key cylin-
der assembly (driver side) and the outside handle escutcheon
(passenger side) mounting bolts from the grommet hole.

CAUTION:

Do not forcibly remove the bolts (TORX: T10).

1.

Outside handle

2.

Outside handle escutcheon

3.

Front gasket

4.

Rear gasket

5.

Outside handle bracket

6.

Inside handle

7.

Door lock assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0189GB

JMKIA0020ZZ

DLK-534

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

REAR DOOR LOCK

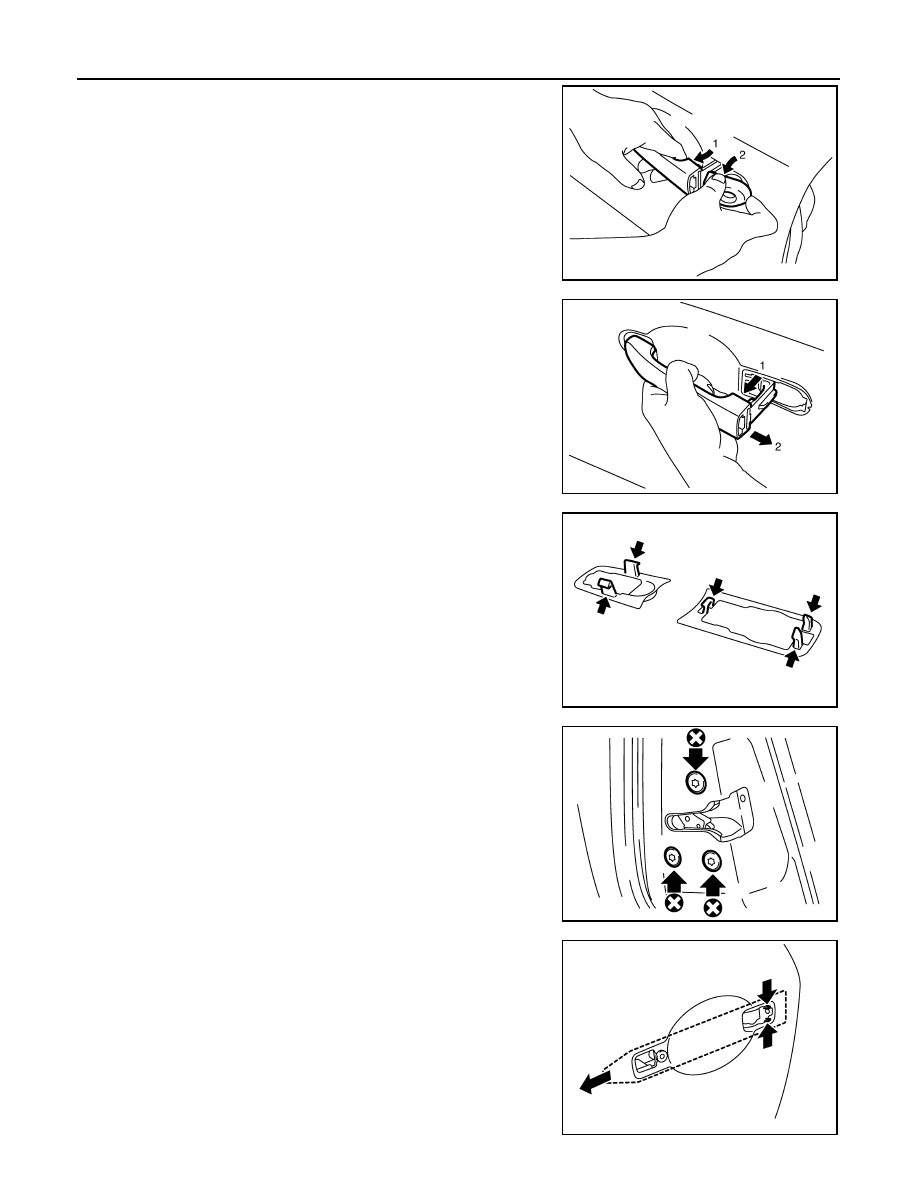

6.

While pulling the outside handle, remove the door key cylinder
assembly.

7.

While pulling the outside handle, slide toward rear of vehicle to
remove the outside handle.

8.

Remove the front gasket and the rear gasket.

9.

Remove the door lock assembly mounting bolts (TORX: T30).

10. Disconnect the door lock actuator connector, and then remove

the door lock assembly.

11. While pulling the outside handle bracket, slide toward rear of

vehicle to remove the outside handle bracket.

PIIB5809E

PIIB5810E

PIIB5811E

MIIB0633E

PIIB5814E
