FUNCTION DIAGNOSIS

DOOR LOCK FUNCTION

DOOR LOCK AND UNLOCK SWITCH

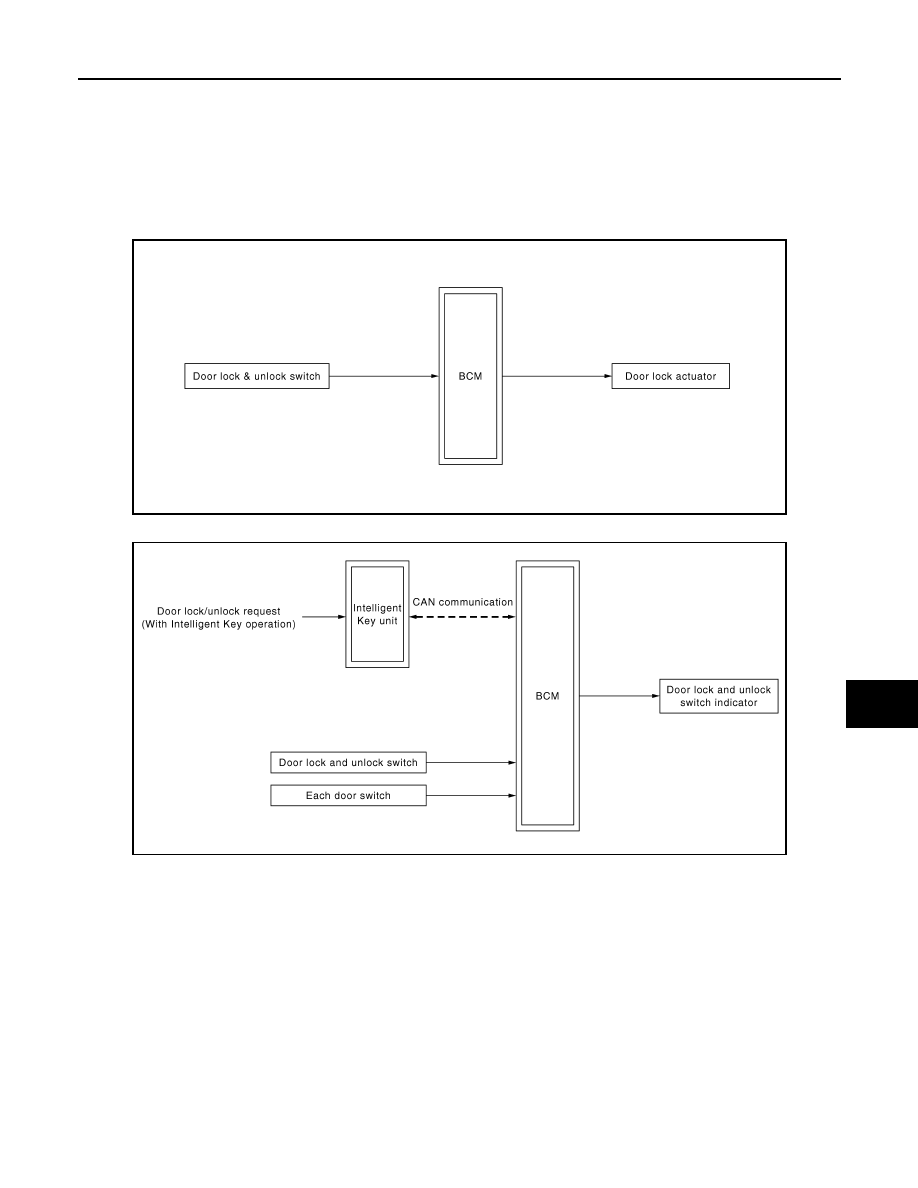

DOOR LOCK AND UNLOCK SWITCH : System Diagram

INFOID:0000000001081194

DOOR LOCK AND UNLOCK SWITCH OPERATION

DOOR LOCK AND UNLOCK SWITCH INDICATOR OPERATION

DOOR LOCK AND UNLOCK SWITCH : System Description

INFOID:0000000001081195

DOOR LOCK AND UNLOCK SWITCH OPERATION

Functions available by operating the door lock and unlock switch on center console. Interlocked with the lock/
unlock operation of door lock and unlock switch, door lock actuators of all doors are locked/unlocked.

Operation Condition

If the following conditions are not satisfied, door lock/unlock operation is not performed even if the door lock
and unlock switch is operated.

JMKIA0399GB

JMKIA0408GB

DLK-288

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

DOOR LOCK FUNCTION

NOTE:
When the door lock is locked with Intelligent Key or door request switch (in super lock set state), door lock and
unlock switch operation will be invalid until either following condition is satisfied.
• Turn ignition switch ON.
• Unlock with Intelligent key or door request switch.

DOOR LOCK AND UNLOCK SWITCH INDICATOR OPERATION

Door lock and unlock switch indicator indicates door lock status. The indicator turn ON while ignition switch is
ON and door lock is locked or super lock is set. If any door is opened, the indicator will be turn OFF.

1 Minute Timer

A timer must be running to turn OFF the indicator. The timer will running for 1 minute after super lock set or
lock with Intelligent Key, door request switch or auto door lock.

30 Minutes Timer

A timer must be running to turn OFF the indicator. The timer will running for 30 minutes after locking with door
lock and unlock switch.
NOTE:
1minuite timer condition is satisfied during 30 minutes timer is active, 30 minutes timer is not change to 1 min-
utes.

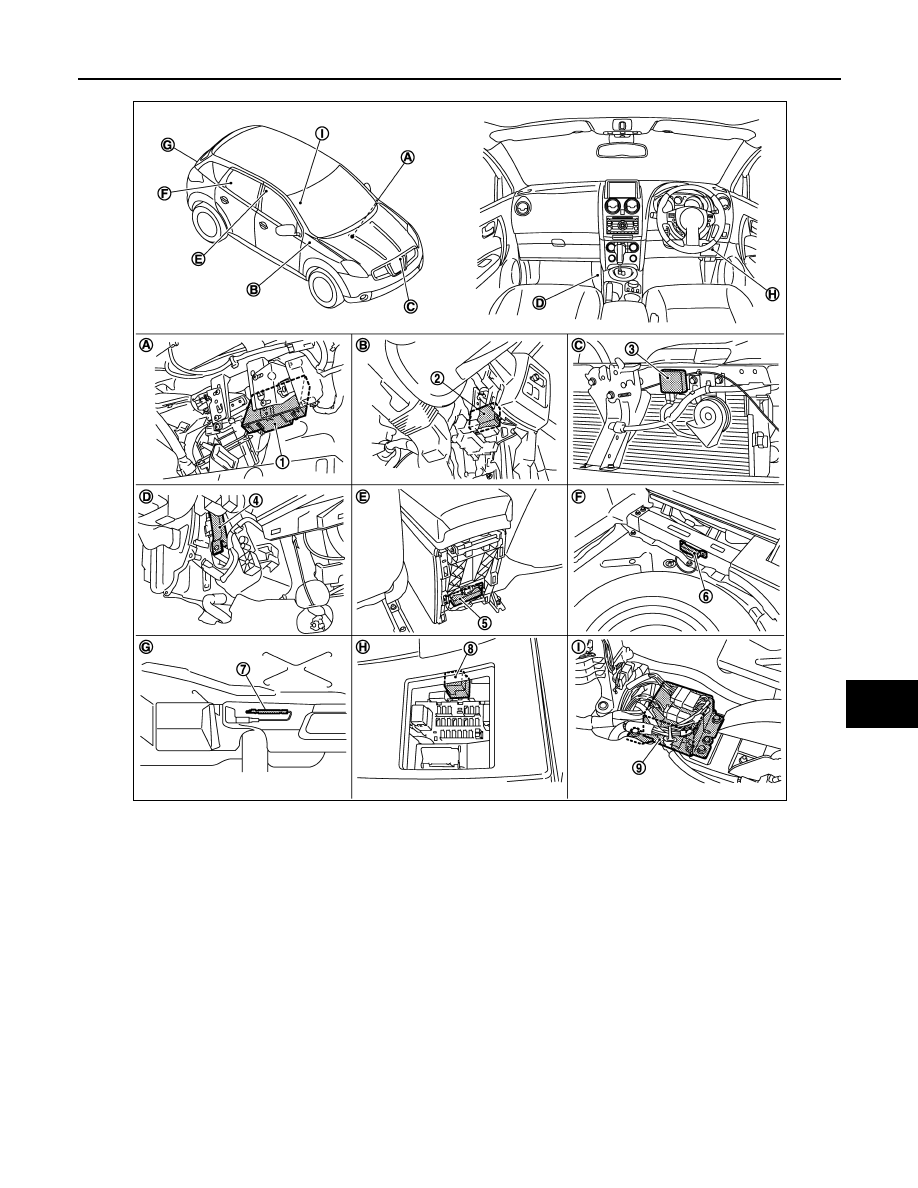

DOOR LOCK AND UNLOCK SWITCH : Component Parts Location

INFOID:0000000001081196

Door lock and unlock switch

Operation condition

Lock operation

Following all conditions are satisfied.
• Except driver side doors are closed.
• Doors are not locked with Intelligent Key or door request switch.

Unlock operation

Following all conditions are satisfied.
• Doors are not locked with Intelligent Key or door request switch.

DOOR LOCK FUNCTION

DLK-289

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JMKIA0483ZZ

1.

BCM
M65, M66, M67

2.

Intelligent Key unit
M40

3.

Intelligent Key warning buzzer
E25

4.

Inside key antenna (instrument center)
M70

5.

Inside key antenna (center console)
M61

6.

Inside key antenna (rear seat)
B45

7.

Inside key antenna (rear bumper)
B81

8.

Passenger side anti-hijack relay
M90

9.

Air bag diagnosis sensor unit
M59

A.

Over the glove box

B.

Over the instrument lower panel (driver
side)

C. View with front bumper removed

D.

View with lower instrument cover re-
moved

E.

View with center console rear finisher re-
moved

F.

View with luggage floor spacer (LH)
removed

G.

View with rear bumper fascia removed

H.

View with fuse box lid removed

I.

View with center console removed

DLK-290

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

DOOR LOCK FUNCTION

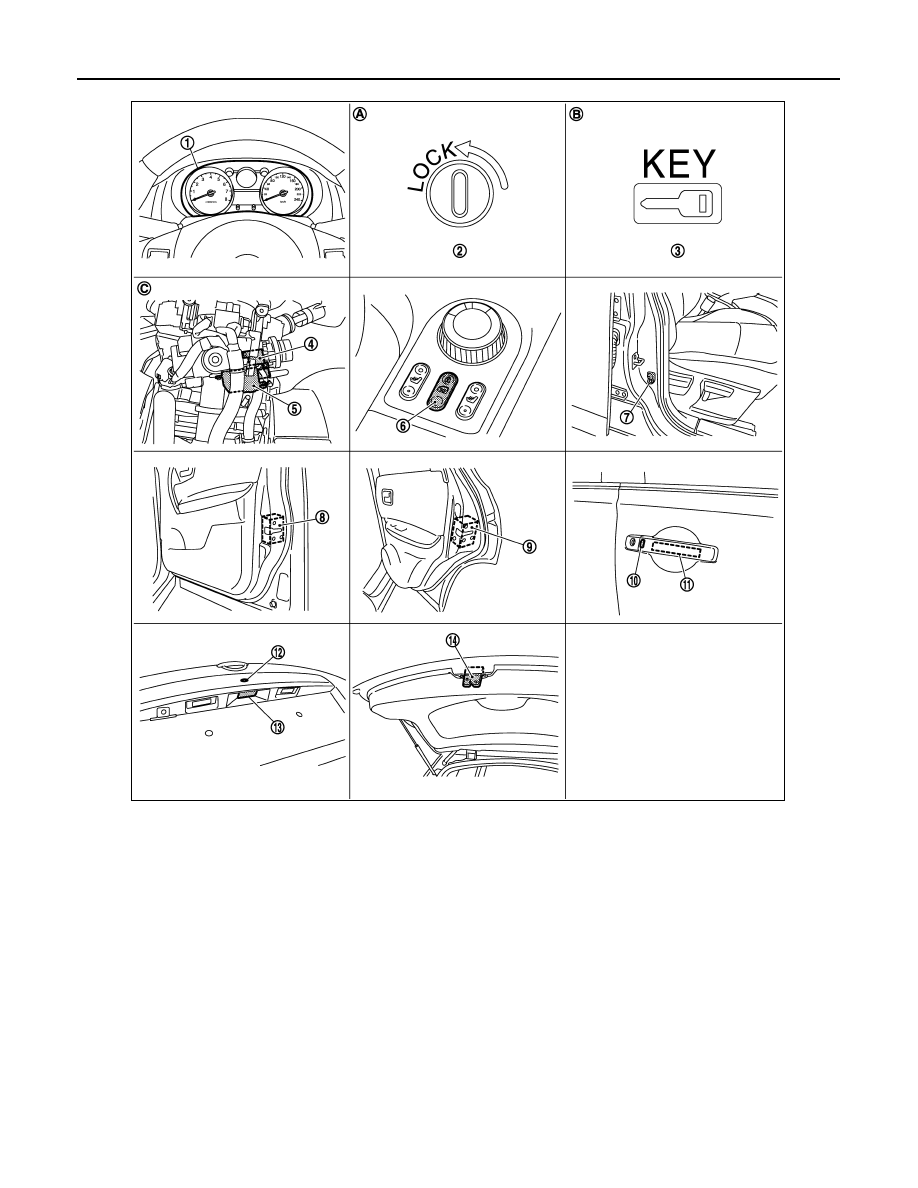

DOOR LOCK AND UNLOCK SWITCH : Component Description

INFOID:0000000001081197

1.

Combination meter
M34

2.

Lock warning lamp
M34

3.

Key warning lamp
M34

4.

Ignition knob switch, key switch and
key lock solenoid (key switch)
M25

5.

Ignition knob switch, key switch and key
lock solenoid (key lock solenoid)
M25

6.

Door lock and unlock switch
M89

7.

Front door switch (driver side)
B34

8.

Front door lock actuator (driver side)
D29

9.

Rear door lock actuator RH
D95

10. Front door request switch (driver side)

D30

11. Outside key antenna (driver side)

D31

12. Back door request switch

D187

13. Back door opener switch

D186

14. Back door lock assembly

D152

A.

Inside the combination meter

B.

Inside the combination meter

C.

View with steering column cover re-
