DOOR LOCK FUNCTION
DLK-291
< FUNCTION DIAGNOSIS >
[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
M
A
B
DLK
N
O
P
INTELLIGENT KEY
INTELLIGENT KEY : System Diagram
INFOID:0000000001081202
INTELLIGENT KEY OPERATION
INTELLIGENT KEY : System Description
INFOID:0000000001081203
INTELLIGENT KEY OPERATION
The Intelligent Key has the same functions as the multi remote control system. Therefore, it can be used in the
same manner as the keyfob by operating the door lock/unlock button.
This function can be set to OFF with CONSULT-III. For the setting information, refer to
III Function (INTELLIGENT KEY)"
.
OPERATION CONDITION
OPERATION AREA
To ensure that the Intelligent Key works effectively, use within 100 cm range of each door, however the opera-
ble range may differ according to surroundings.
LOCK AND UNLOCK CONTROL
When door lock and unlock button of the Intelligent Key is pressed, lock signal or unlock signal is transmitted
from Intelligent Key to Intelligent Key unit.
When Intelligent Key unit receives the door lock and unlock signal, it operates door lock actuator.

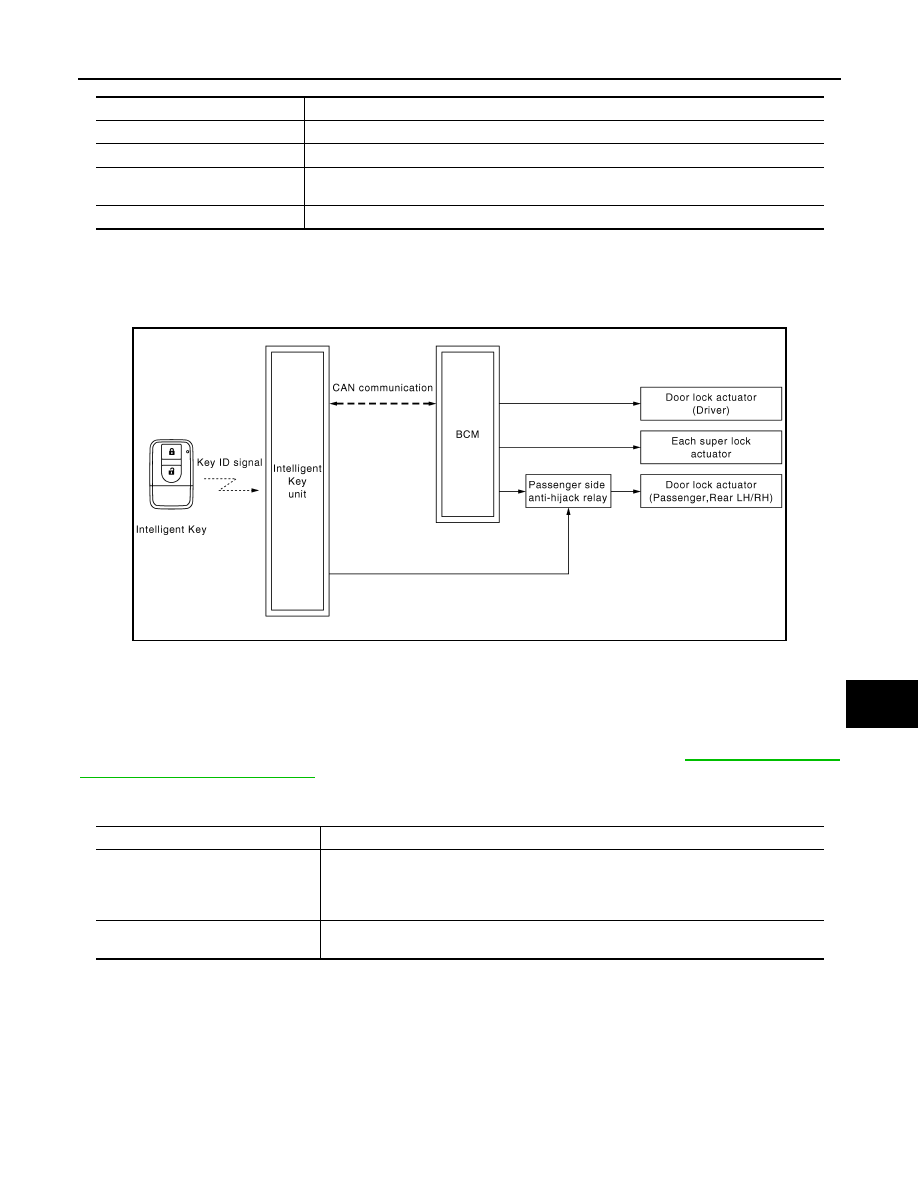

SUPER LOCK CONTROL WITH ANTI-HIJACK MODE

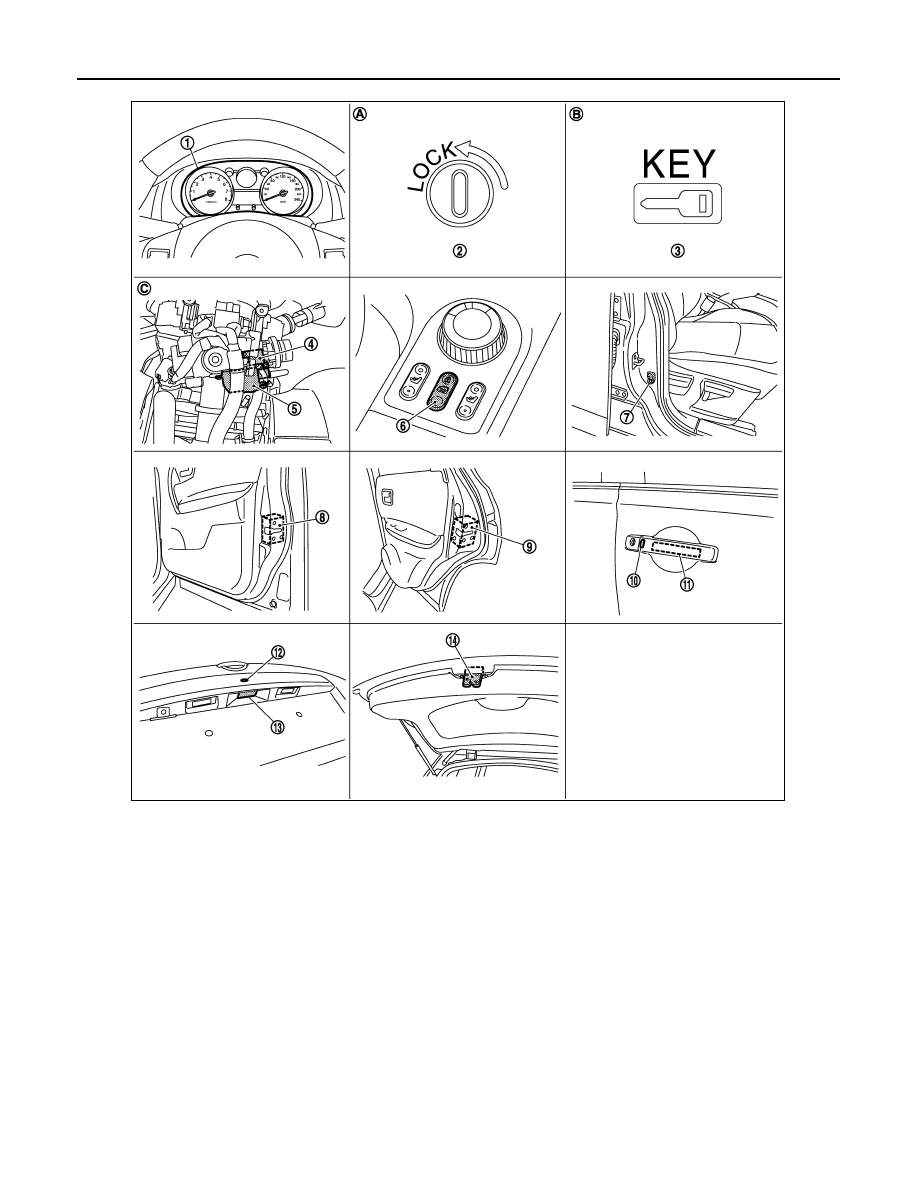

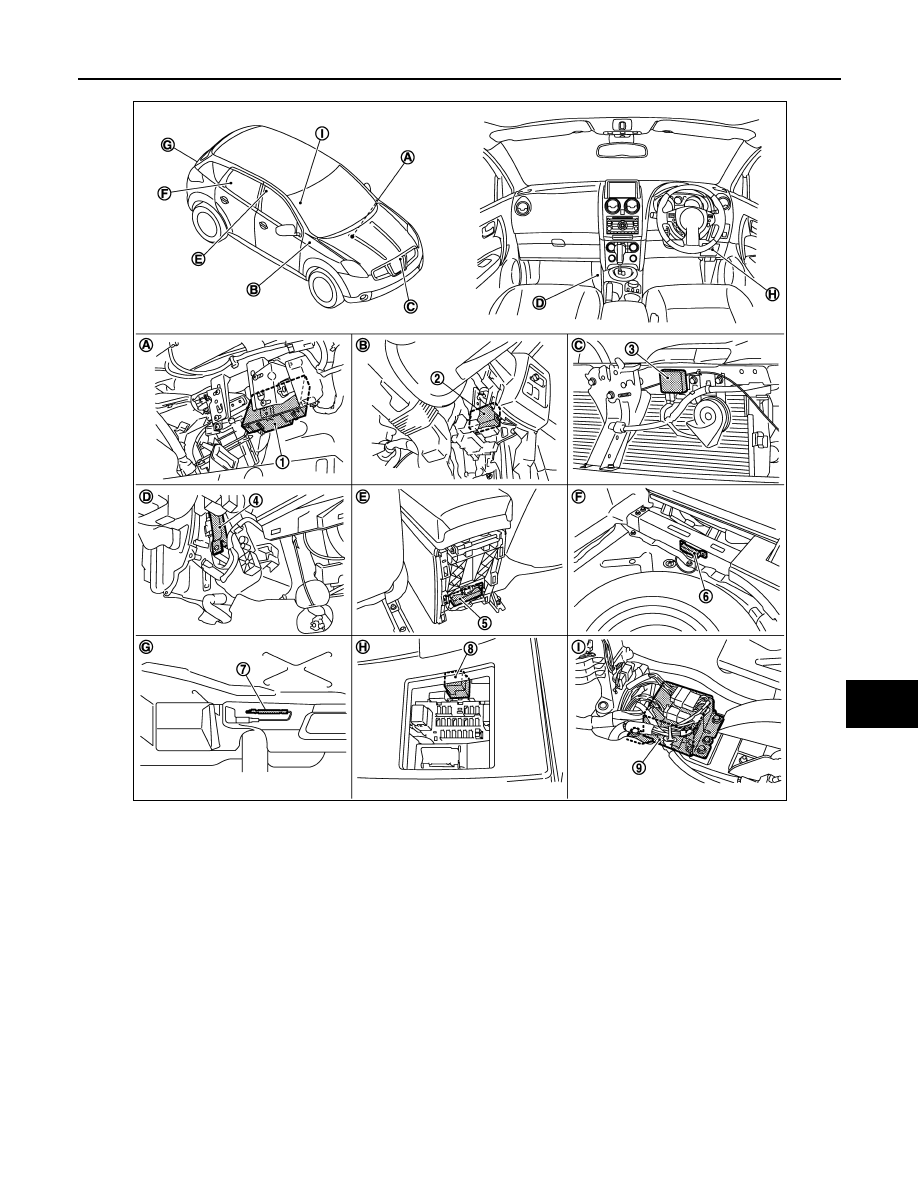

Item
Function
BCM
Controls the door lock function.
Door switch
Detects door state (open or close).
Door lock and unlock switch
Transmits door lock and unlock signal to BCM. Door lock/unlock switch indicator is built-in
door lock/unlock switch.
Door lock actuator
Receives door lock/unlock signal from BCM and locks/unlock each door.
JMKIA0505GB
Remote controller operation
Operation condition
Lock
• All doors are closed
• Key switch is OFF (key is removed from ignition key cylinder)
• Ignition knob switch is OFF (Ignition switch is not pressed)
• No Intelligent Keys are inside the vehicle.
Unlock
• Key switch is OFF (key is removed from ignition key cylinder)
• Ignition knob switch is OFF (Ignition switch is not pressed)
