FRONT DOOR

DLK-239

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

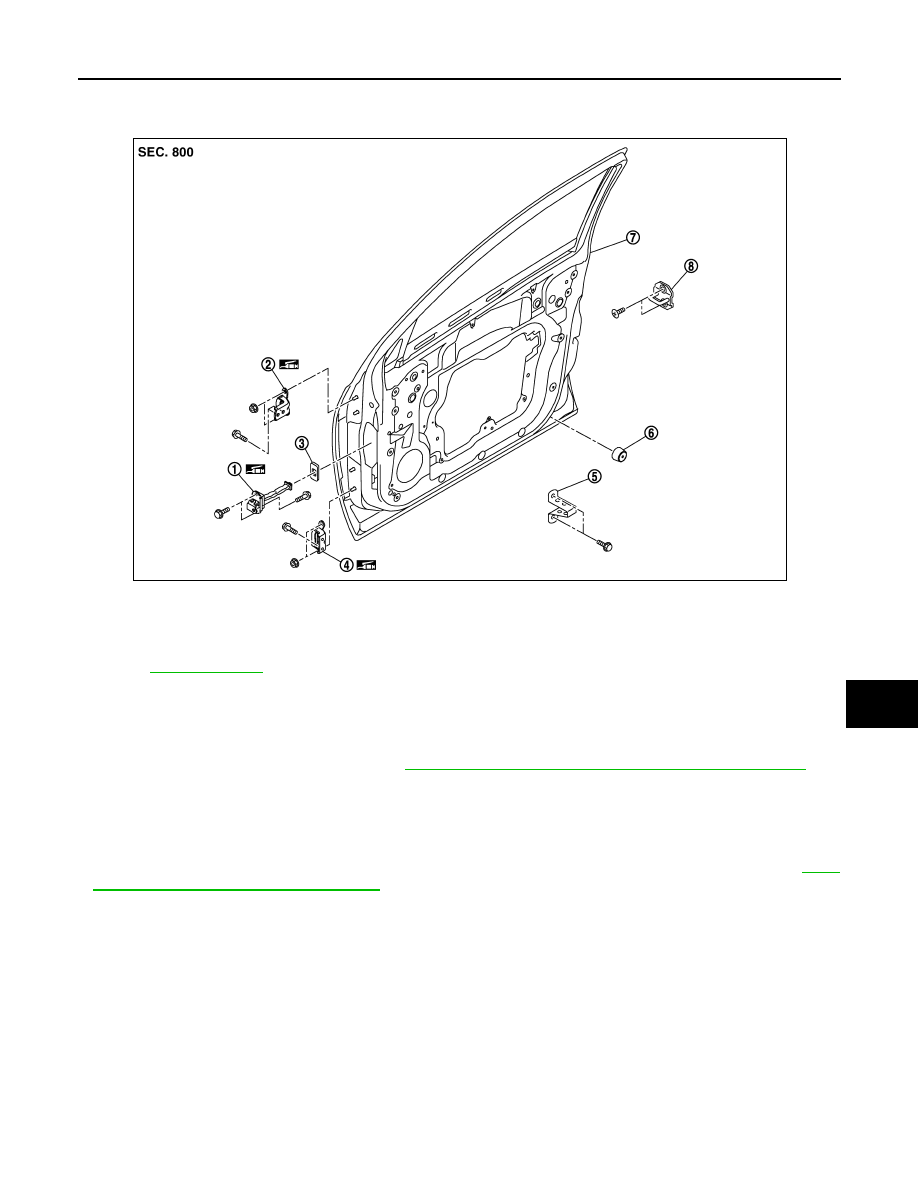

DOOR HINGE : Exploded View

INFOID:0000000001095186

DOOR HINGE : Removal and Installation

INFOID:0000000001091290

REMOVAL

1.

Remove the front door assembly. Refer to

DLK-236, "DOOR ASSEMBLY : Removal and Installation"

.

2.

Remove the door hinge mounting bolts, and then remove the front door hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When removing and installing the front door assembly, perform the fitting adjustment. Refer to

DLK-

237, "DOOR ASSEMBLY : Adjustment"

.

• After installation, apply touch-up paint (the body color) onto the head of the door hinge mounting

nuts.

• Check the door hinge rotating part for poor lubrication. If necessary, apply body grease.
• Check the front door open/close operation after installation.

DOOR CHECK LINK

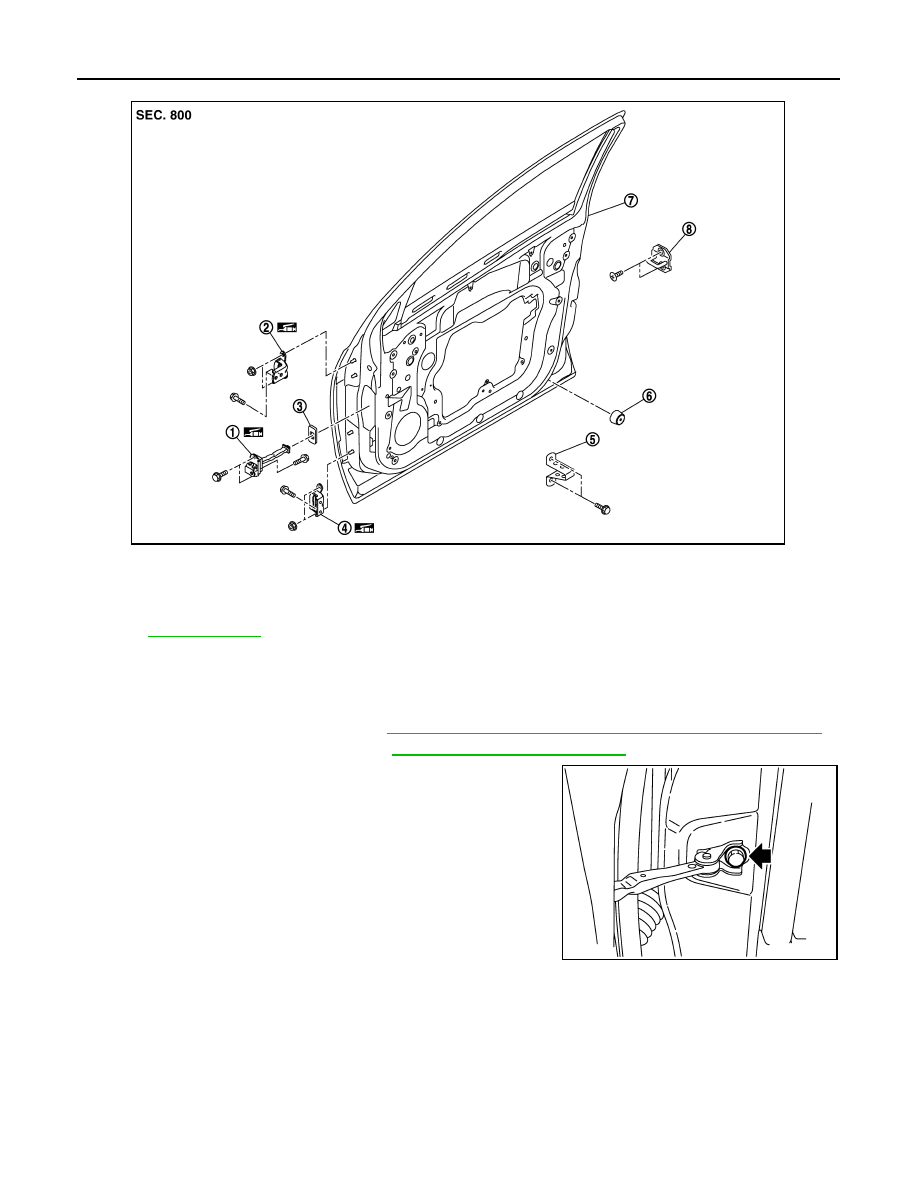

DOOR CHECK LINK : Exploded View

INFOID:0000000001095191

1.

Door check link

2.

Door hinge (upper)

3.

Door check link cover

4.

Door hinge (lower)

5.

Bracket

6.

Bumper rubber

7.

Front door panel

8.

Door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0179ZZ

DLK-240

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

FRONT DOOR

DOOR CHECK LINK : Removal and Installation

INFOID:0000000001096548

REMOVAL

1.

Remove the front door finisher. Refer to

INT-10, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Remove the front door speaker. Refer to

AV-34, "Removal and Installation"

.

3.

Remove the mounting bolts of the door check link on the vehicle.

4.

Remove the door check link cover, and then remove the door check link mounting bolts.

5.

Remove the door check link.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check the front door open/close operation after installation.

1.

Door check link

2.

Door hinge (upper)

3.

Door check link cover

4.

Door hinge (lower)

5.

Bracket

6.

Bumper rubber

7.

Front door panel

8.

Door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0179ZZ

PIIB6543E

REAR DOOR

DLK-241

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR DOOR

DOOR ASSEMBLY

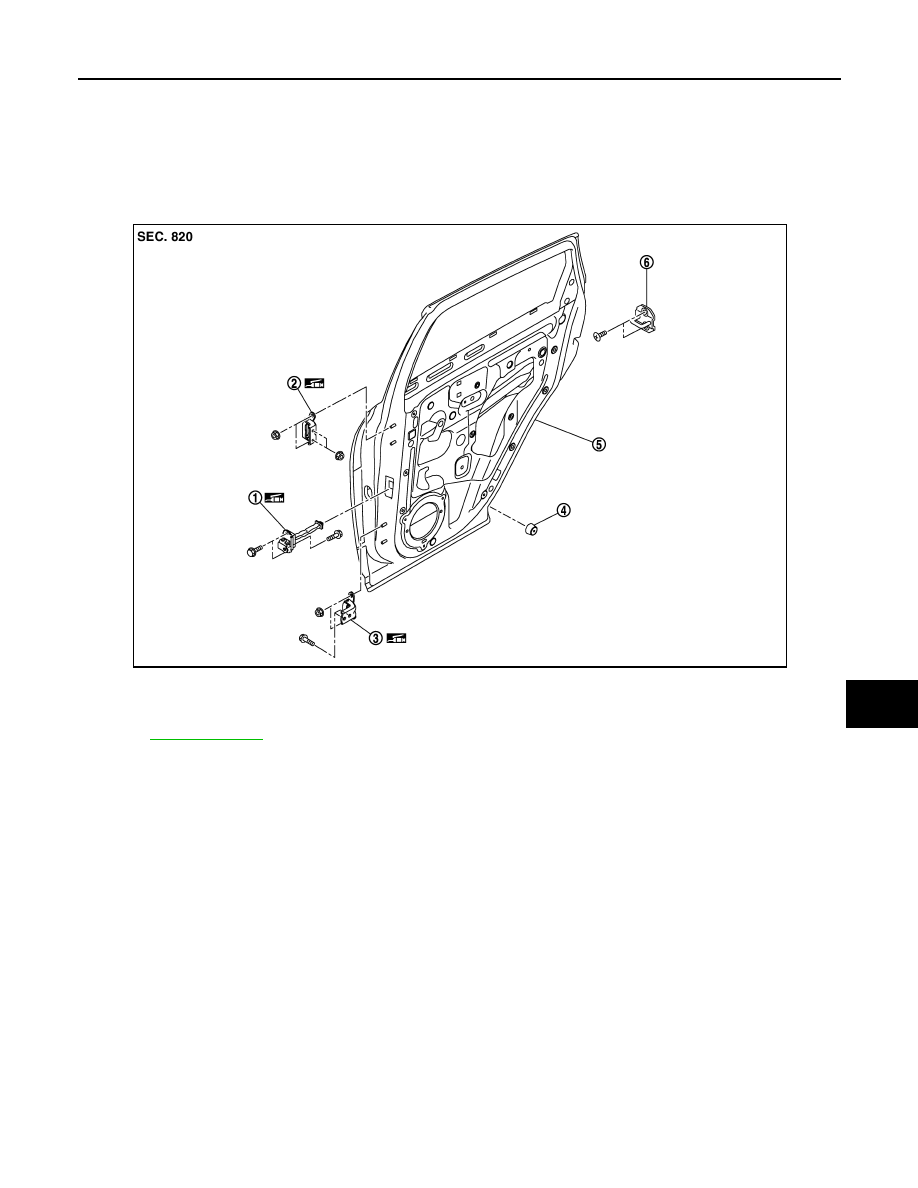

DOOR ASSEMBLY : Exploded View

INFOID:0000000000939221

REMOVAL

ADJUSTMENT

1.

Door check link

2.

Door hinge (upper)

3.

Door hinge (lower)

4.

Bumper rubber

5.

Rear door panel

6.

Door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0180ZZ

DLK-242

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

REAR DOOR

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000001097301

REMOVAL

1.

Remove the mounting bolts of the door check link on the vehicle.

2.

Remove the rear door harness grommet, and then pull out the door harness from the vehicle.

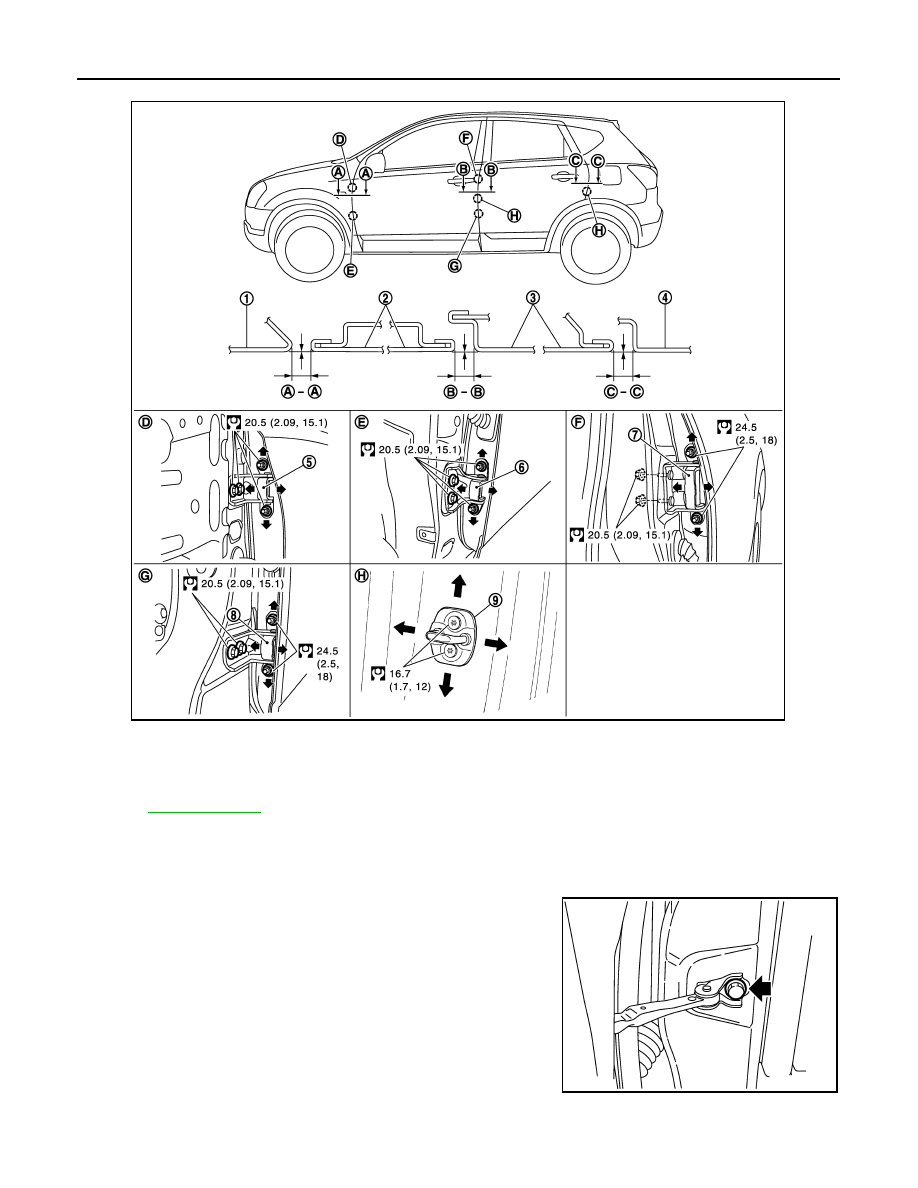

1.

Front fender

2.

Front door outer

3.

Rear door outer

4.

Rear fender

5.

Front door hinge (upper)

6.

Front door hinge (lower)

7.

Rear door hinge (upper)

8.

Rear door hinge (lower)

9.

Striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0195GB

PIIB6543E
