When the appearance of the parking space is affected by the shadow of the
vehicle or trees

•

When an object is detected in the registered parking space

•

When a pedestrian or passing vehicle is detected during assistance

•

When the position the vehicle is stopped when assistance is started differs from
the position when registration was performed

•

When the registered parking space cannot be reached due to the existence of
parking blocks, etc.

•

When the road surface around the parking space has changed (road surface
has degraded or been resurfaced)

•

When the sunlight conditions differ from when registration was performed (due
to weather or time of day)

•

When the sun is shining directly into a camera, such as in the early morning or
evening

•

When the color or brightness of the road surface is uneven

•

When a light is temporarily shined on the parking space (lights of another
vehicle, security light, etc.)

•

When the road surface around the parking space has the same repeating
pattern

•

When there is a low protrusion on the road surface near the parking space

•

When the parking space is on a slope

•

When a camera has been splashed by hot or cold water and the lens has
fogged up

•

When a camera lens is dirty or covered with water droplets

•

When accessories which obstruct the view of the camera are installed

If assistance is ended during registration, perform registration again.

●

When registering a parking space to the memory function, if the road surface
cannot be detected "No available parking space to register" will be displayed.

●

When using the memory function, make sure to stop immediately in front of
the stop position. Otherwise the parking space may not be able to be detected
correctly or assistance may not be provided to the point that the vehicle is fully
parked.

●

Do not use the memory function if a camera has been subjected to a strong impact
or images of the panoramic view monitor are misaligned.

6-2. Using the safe driving support functions

535

Driving suppor

t s

ystem

NOTICE

●

If a camera has been replaced, as the installation angle of the camera will have
changed, it will be necessary to reregister parking spaces of the memory function.

Remote control function

A smartphone can be used to remotely operate the parking functions and exit
functions. Also, assistance can be provided to remotely move the vehicle forward
or backward into a garage, etc.

Parking using Remote control function

A smartphone can be used to remotely operate the parking function if the target
parking space can be detected when the vehicle is stopped close and perpendicu-
lar to the center of the parking space. Also, depending on the condition of the
parking space, etc., if it is necessary to change the direction of travel of the vehicle,
the shift position can be changed by assistance control.

Stop the vehicle with it aligned near the center of the target parking space.

→

P.518

P.523

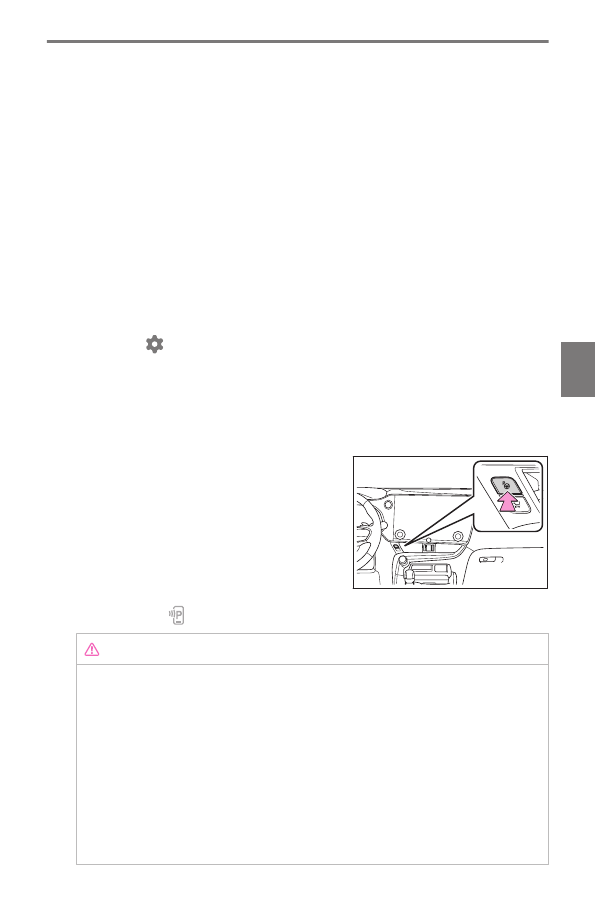

Press the Advanced Park main switch and check that a possible parking space
is displayed on the center display.

→

P.518

P.523

Select

and then select [Perpendicular/parallel].

Select [OK] button.

Exit the vehicle while carrying the electronic key and smartphone, and then
start the Remote Park app on the smartphone.

The detection area of the electronic key is within approximately 9.8 ft.(3 m) around the
vehicle.
If there is an obstruction in the path of the vehicle, move it before parking the vehicle. A
corn can also be moved after exit the vehicle.

From outside of the vehicle, confirm the parking space on the screen of the
smartphone and then select the start button.

Start operation of Remote control function while standing approximately 1.6 ft. (50 cm)
or more from the vehicle and out of the path of the vehicle.

Checking the safety of the area around the vehicle, trace the operation area on
the screen of the smartphone.

While continuously tracing the operation area, the vehicle will move and parking
assistance will be performed.

6-2. Using the safe driving support functions

536

If operation of the screen of the smartphone is stopped, assistance can be suspended
and the vehicle can be stopped. When the operation of the screen of the smartphone is
resumed to move the vehicle, the vehicle will be locked automatically before moving.

When the parking space is reached, after the vehicle is stopped by the parking
brake, the shift position will be changed to P, the power switch will be turned off,
and the doors will be locked.

A completion screen will be displayed on the smartphone.

INFORMATION

■

The parking function can be used even if obstructions exist if

●

When using the parking functions at a parking space made of white lines, even
if an obstruction exists in the parking space, the space can be set as the target
parking space. This allows for assistance to continue after setting a parking space
from inside the vehicle and then exiting the vehicle to move an obstruction, such as
a traffic cone placed in a handicapped parking space.

●

When perpendicular parking using Advanced Park, 3 parking spaces on each
side of the vehicle (up to 6 total) can be detected. However, when using Remote
control function, only 1 parking space on each side of the vehicle can be detected.

■

When the brakes have been operated

→

P.518

Moving the vehicle forward and backward using Remote control function

After the vehicle is stopped, assistance can be provided to move the vehicle into a
garage, etc., by using the forward and backward movement function.

Stop the vehicle at the location you would like
to start assistance.

Press the Advanced Park main switch.

→

P.518

Select

and then select [Forward/reverse].

Select [OK] button.

Exit the vehicle while carrying the electronic key and smartphone, and then
start the Remote Park app on the smartphone.

6-2. Using the safe driving support functions

537

Driving suppor

t s

ystem

The detection area of the electronic key is within approximately 9.8 ft. (3 m) around the
vehicle.

From outside of the vehicle, confirm the direction of travel on the screen of the
smartphone and then select the start button.

Start operation of Remote control function while standing approximately 1.6 ft. (50 cm)
or more from the vehicle and out of the path of the vehicle.The detection area of the
electronic key is within approximately 9.8 ft. (3 m) around the vehicle.

Checking the safety of the area around the vehicle, trace the operation area on
the screen of the smartphone.

While continuously tracing the operation area, the vehicle will move and forward and
reverse movement assistance will be performed.If operation of the screen of the smart-
phone is stopped, assistance can be suspended and the vehicle can be stopped.While
assistance is being performed, it can be stopped part way or the direction of travel of
the vehicle can be changed.

Select the power button on the screen of the smartphone.

The power switch will then turn OFF and the doors will lock automatically.

INFORMATION

■

Changing the direction of travel

While assistance is being performed, the direction of travel of the vehicle can be
changed by the forward and reverse movement function. When there is a wall behind
the vehicle, etc., by operating the direction of travel changing button on the screen of
the smartphone, the vehicle can be slightly moved forward to allow loading of items
and then moved back to its original position.

■

When the brakes have been operated

→

P.518

Exiting using Remote control function

Assistance can be provided to exit from a perpendicular or parallel parking space
when the power switch OFF. When forward and backward movement is selected,
the maximum distance the vehicle can move is 23.0 ft. (7 m) from the starting point
and possible to change the direction of travel.

6-2. Using the safe driving support functions

538

While near the parked vehicle, unlock the
doors using the electronic key, and then start
the Remote Park app on the smartphone.

If the smartphone cannot connect to the vehicle,
using the electronic key, unlock the doors again.

Select the start button on the screen of the smartphone.

The power switch will change to ON.

Check that a possible exit direction is displayed, select the exit direction.

Checking the safety of the area around the vehicle, trace the operation area on
the screen of the smartphone.

While continuously tracing the operation area, the vehicle will move and departure
assistance will be performed.If operation of the screen of the smartphone is stopped,
assistance can be suspended and the vehicle can be stopped.While assistance is being
performed, it can be stopped part way or the direction of travel of the vehicle can be
changed.

Move the vehicle to the position where assistance ends and enter the vehicle
while carrying the electronic key.

To stop assistance part way, stop operating the smartphone or enter the vehicle.

INFORMATION

■

Exit using the remote air conditioning

●

Assistance can be provided to exit from a parking space, even when the remote
air conditioning is operating.

●

When Remote control function is started while the remote air conditioning is
operating, if tracing operations are not performed on a smartphone, assistance
can be canceled by entering the vehicle and depressing the brake pedal.

■

When the brakes have been operated

→

P.518

Parking using the Remote control function and memory function

A smartphone can be used to remotely operate the memory function if the target
parking space can be detected when the vehicle is stopped close to a parking
space which was previously registered to the memory function. Also, depending on
the condition of the parking space, etc., if it is necessary to change the direction of
travel of the vehicle, the shift position can be changed by assistance control.

6-2. Using the safe driving support functions

539

Driving suppor

t s

ystem

Stop the vehicle with it aligned near the center of the target parking space.

→

P.530

Press the Advanced Park main switch and check that a possible parking space
is displayed on the center display.

→

P.530

Select

and then select [Perpendicular/parallel].

Select [OK] button.

If the [MODE] button is displayed, the button can be selected to change between
the memory function, perpendicular parking (forward/reverse) function and parallel
parking function.

Exit the vehicle while carrying the electronic key and smartphone, and then
start the Remote Park app on the smartphone.

The detection area of the electronic key is within approximately 9.8 ft. (3 m) around the
vehicle.If there is a cone or other obstruction in the path of the vehicle, move it after
exiting the vehicle.

From outside of the vehicle, confirm the parking space on the screen of the
smartphone and then select the start button.

Start operation of Remote control function while standing approximately 1.6 ft. (50 cm)
or more from the vehicle and out of the path of the vehicle.

Checking the safety of the area around the vehicle, trace the operation area on
the screen of the smartphone.

While continuously tracing the operation area, the vehicle will move and parking
assistance will be performed.If operation of the screen of the smartphone is stopped,
assistance can be suspended and the vehicle can be stopped.
When the operation of the screen of the smartphone is resumed to move the vehicle,
the vehicle will be locked automatically before moving.

When the parking space is reached, after the vehicle is stopped by the parking
brake, the shift position will be changed to P, the power switch will be turned off,
the and the doors will be locked.

A completion screen will be displayed on the smartphone.

INFORMATION

■

When the brakes have been operated

→

P.518

Preparation before using Remote control function

Preparation before using

Make sure to perform the following before using Remote control function:

6-2. Using the safe driving support functions

540

1. Download the Remote Park app from the app store.

2. Turn the power switch to ON and register the smartphone as a Bluetooth

device to the multimedia system.

For details on registering a Bluetooth device, refer to the"MULTIMEDIA OWN-
ER'S MANUAL".

3. Setup the Remote Park app and register the vehicle.
4. The registered vehicle will be displayed on the screen of the smartphone.

Select the vehicle.

The name and image of the vehicle can be changed on the new vehicle registra-
tion screen.
Vehicles can be added through the menu screen.

Remote control function on/off

1. Select

and then select [Advanced Park] on the center display.

2. Select [Remote Park] to turn it on/off. (The default setting is on.)
3. Press the Advanced Park main switch.

If the switch is pressed while assistance is being performed, the assistance will be
canceled.

4. Select the

button displayed on the center display.

NOTICE

■

Remote control function

●

When using Remote control function, make sure carry an electronic key in your
pocket, etc.

●

If an electronic key is held together with a smartphone, etc., the electronic key
may not be able to be detected.

●

Vehicles with a digital key: Remote control function cannot be used when carry-
ing only a digital key. The driver should always carry the electronic key.

●

When entering the vehicle after using Remote control function, make sure that
the electronic key is brought into the vehicle and all of the doors are closed.

6-2. Using the safe driving support functions

541

Driving suppor

t s

ystem

NOTICE

Vehicles with a power easy access system: After entering the vehicle and ending
Remote control function operation, the seat return function will operate when the
driver’s seat seat belt is fastened or the brake pedal is depressed.

●

If the power switch is turned off when Remote control function operation has
finished or been canceled, the doors will be locked automatically. However, if a
door is open, it may not be locked. Check the vehicle condition after Remote
control function operation has finished.

●

When the doors are locked after Remote control function operation has finished
or been canceled, an alarm may sound if someone is detected inside the vehicle.

■

Situations in which the function may not operate correctly

●

When the functions of the smart access system with push button start may not
operate correctly:

→

P.106

●

When the vehicle is near fluorescent lights

●

Radio wave interference:

→

P.106

■

Electronic key battery consumption

●

When Remote control function is being used, the electronic key battery will be
used as the electronic key will continuously send and receive radio waves.

●

If the electronic key battery is depleted:

→

P.704

■

Situations in which the sensors may not operate properly

→

P.465

●

When using Remote control function, visibility of the area around the vehicle
may be limited. Make sure to check the following when using Remote control
function:

•

The vehicle and area around the vehicle are clearly visible

•

There are no people, animals, or objects in the path of the vehicle

•

An appropriate distance from the vehicle can be maintained and the safety of
yourself and others can be ensured

•

Caution for the area around the vehicle is always maintained and there is no
potential for danger

•

You can cancel Remote control function immediately if necessary

Advanced Park cancelation/suspension

■

Assistance will be canceled when

In situations such as the following, Advanced Park operation will be canceled.
Firmly hold the steering wheel and depress the brake pedal to stop the vehicle.

6-2. Using the safe driving support functions

542

As system operation has been canceled, begin the operation again or continue
parking manually, using the steering wheel.

●

The Advanced Park main switch is pushed

●

The shift position has been changed to P

●

The parking brake is engaged

●

A door or the back door is opened

●

The driver’s seat belt is unfastened

●

The outside rear view mirrors are folded

●

The TRAC or VSC is turned off

●

The TRAC, VSC or ABS operates

●

The power switch is pressed

●

The system determines assistance cannot be continued in the current parking
environment

●

The system malfunctions

●

While the vehicle was stopped, [Cancel] was selected on the center display

■

Assistance will be suspended when

In situations such as the following, Advanced Park operation will be suspended.
Assistance can be started again by following the directions displayed on the center
display.
Also, when assistance is suspended, if the shift position is changed twice with the
brake pedal depressed, assistance will be canceled in that shift position. However, if
assistance is suspended by changing the shift position, assistance will be canceled if
the shift position is changed once.

●

The steering wheel is operated

●

The accelerator pedal is depressed

●

The shift position has been changed

●

A moving object or stationary object that may collide with your vehicle has been
detected, resulting in the operation of the hybrid system output control/braking
control.

●

Camera switch is pressed

■

Remote control function assistance will be canceled when

In situations such as the following, Remote control function operation will be
canceled.

6-2. Using the safe driving support functions

543

Driving suppor

t s

ystem

As system operation has been canceled, while carrying an electronic key, enter the
vehicle and park the vehicle manually, using the steering wheel.

●

When a condition for stopping Advanced Park assistance is met, with the
exception suspension due to a door being opened or the driver’s seat seat belt
being released

●

When Remote control function is operated while the remote air conditioning is
operating and the power switch is changed to ON before remote air condition-
ing has ended

●

When 5 minutes have elapsed since Remote control function operation was
started

●

When 3 minutes have elapsed since any operation was performed

●

When 30 seconds have elapsed with the vehicle not being able to be driven,
even though the screen of the smartphone is being operated to drive the vehicle

●

When the power button on the screen of the smartphone is selected

●

When the Remote Park app is force closed

●

When the vehicle is on a steep slope

●

When an electronic key is detected inside the vehicle while Remote control
function operation is suspended

●

When the ambient temperature is 14°F (-10°C) or less

■

Remote control function assistance will be suspended when

In situations such as the following, assistance will be suspended.

●

When the Bluetooth communication between the smartphone and multimedia
system get lost

●

When smartphone continuous operation is suspended

●

When the Remote Park app is pushed to the background (a call is received, the
home button is pressed, etc.)

●

When electronic key does not detected

●

When there is an obstruction in the movement direction of the vehicle

●

When a charging cable is connected to the vehicle

●

When the vehicle is operated while it is being driven by assistance

●

When the smart key is operated while it is being driven by assistance

●

When the door is unlocked while it is being driven by assistance

●

When a door is opened while the vehicle is being driven

6-2. Using the safe driving support functions

544

Changing the Advanced Park settings

Select

on the center display, and then select [Advanced Park].

■

Remote Park

Remote control function can be turned on/off.

■

Speed Profile

The vehicle speed for when assistance is performed can be set.
This setting cannot be changed when registering a parking space to the memory
function.

■

Obstacle detection range

The distance from which obstacles will be avoided while assistance is being per-
formed can be set.

■

Preferred parking method

The preferred parking direction displayed when at a parking space which perpen-
dicular (forward/reverse) or parallel parking is possible can be set.

■

Preferred parking direction

The preferred parking direction displayed when it is possible to pull perpendicular
forward or reverse into a parking space can be selected.

■

Preferred exit direction (perpendicular)

The preferred exit direction displayed when it is possible to pull forward or reverse
to the left or right out of a parking space can be selected.

■

Preferred exit direction (parallel)

The preferred exit direction displayed when it is possible to exit to the left or right
from a parallel parking space can be selected.

■

Camera view when parking

The display angle of the camera image when using the perpendicular parking
(forward/reverse) function or parallel parking function can be set.

■

Camera view when exiting

The display angle of the camera image when using the perpendicular exiting
(forward/reverse) function or parallel parking exit function can be set.

■

Parking path adjustment

The course for when parking assistance is operating can be adjusted inward or
outward.

* :

If equipped

6-2. Using the safe driving support functions

545

Driving suppor

t s

ystem

If the tires are worn, the path of vehicle may be offset from the center of the parking
space. In this case, use this setting to adjust the parking course.

■

Road width adjustment

When parking assistance is started, the amount of lateral movement while the
vehicle is moving forward can be adjusted.

■

Park position adjustment (forward)

The position at which perpendicular parking (forward/reverse) is completed can
be adjusted. (Except when using the memory function.)

■

Park position adjustment (reverse)

The position at which perpendicular parking (forward/reverse) is completed can
be adjusted. (Except when using the memory function.)

■

Rear accessory setting

If an accessory, such as a trailer hitch, has been installed to the rear of the vehicle,
the length of the rear of the vehicle can be adjusted to help avoid colliding with
objects to the rear of the vehicle.

■

Clear registered parking space

The parking spaces registered to the memory function can be deleted. Parking
space information cannot be deleted when assistance is being performed or when
registering parking space information to the memory function.

NOTICE

■

When using the customize features

●

Take care when using the park position adjustment (forward) or park position adjust-
ment (reverse) for adjusting because the vehicle may collide with parking blocks, curb
stones, or other low objects.

●

If it is likely that your vehicle will collide with a nearby vehicle/object, parking block,
curb stone, etc., depress the brake pedal to stop the vehicle and press the Advanced
Park main switch to disable the system.

Changing the Remote Park app settings

■

Intuitive parking assist warning sound ON/OFF (Smartphone setting)

The warning sounds of the intuitive parking assist from smartphone application can
be turned on/off using the Remote Park app.

6-2. Using the safe driving support functions

546

■

Intuitive parking assist warning sound volume adjustment (Smartphone set-
ting)

The volume of the warning sounds of the intuitive parking assist from smartphone
application can be adjusted using the Remote Park app.

Advanced Park displayed messages

The operating state, assistance operation, etc. of the Advanced Park is displayed
on the center display. If a message is displayed, respond according to the content
displayed.

INFORMATION

■

If "No available parking space" is displayed

Move the vehicle to a location where a parking space or parking lines can be detected.

■

If "Unavailable in current condition" is displayed

Move the vehicle to another location and use the system.

■

If "Not enough space to exit" is displayed

The parallel parking exit function cannot be used due to a situation such as the distance
between your vehicle and vehicles parked in front of and behind your vehicle being short,
the existence of an object in the exit direction, etc.
Check the conditions of the area around your vehicle and exit from the parking space
manually.

■

If "Cannot control speed" is displayed

The system judged that it cannot adjust the speed of the vehicle when using the system in
an area with a slope or step and assistance was canceled.
Use the system in a level location.

■

If "Obstacle detected" is displayed

As a moving object or stationary object that may collide with your vehicle has been de-
tected, the hybrid system output control/braking control operates to suspend Advanced
Park assistance.
Check the condition of the surrounding area. To resume assistance, select the [Start]
button on the center display.

■

If "No available parking space to register" is displayed

This message is displayed when

is selected at a parking space that cannot be

detected.
Operate the system at a parking space where differences in the road surface can be
recognized.

→

P.530

6-2. Using the safe driving support functions

547

Driving suppor

t s

ystem

Hybrid system output restriction when the accelerator pedal and brake
pedal are depressed at the same time

Purpose of the brake override system

If the accelerator pedal and brake pedal are depressed at the same time, the brake
override system may operate and restrain the hybrid system output. A warning
message is displayed on the multi-information display while the system is operating.

WARNING

To avoid depressing the wrong pedal, become familiar with the location of the brake
pedal and accelerator pedal before driving the vehicle.
If the accelerator pedal is mistaken for the brake pedal and depressed, the vehicle may
suddenly start off.

NOTICE

Do not depress the accelerator pedal and brake pedal at the same time while driving, as
this may cause the hybrid system output to be restrained.

6-2. Using the safe driving support functions

548

Sudden start restraint control

Sudden start restraint control (Drive-Start Control [DSC])

When the following unusual operation is performed with the accelerator pedal
depressed, the hybrid system output may be restrained.

●

When the shift lever is shifted to R

●

When the shift lever is shifted from P or R to forward drive shift positon such as
D

When the system operates, a message appears on the multi-information display.
Read the message and follow the instruction.

INFORMATION

■

Drive-Start Control (DSC)

When the TRAC is turned off, sudden start restraint control also does not operate.

If your vehicle have trouble escaping from the mud or fresh snow due to sudden start
restraint control operation, deactivate TRAC so that the vehicle may become able to
escape from the mud or fresh snow.
Also, sudden start restraint control will not operate in the following conditions:

●

When Trail Mode is turned on

Related Links

Driving assist systems(P. 374)

*1 :

Depending on the situation, the shift position may not be changed.

6-2. Using the safe driving support functions

549

Driving suppor

t s

ystem

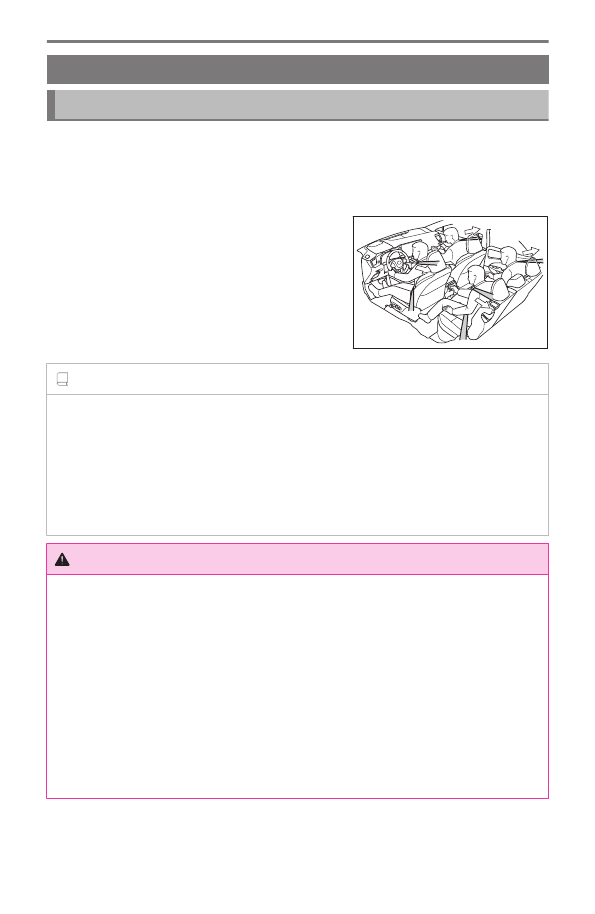

Reducing impact to the occupants in a collision

Reducing impact to passengers in a collision

Seat belt pretensioners

When the vehicle is subjected to a severe frontal or side impact or rollover, the
pretensioners retract the seat belts of the front seats and rear outer seats to
securely restrain the occupants.

The pretensioners will not operate in minor frontal or side impacts, or rear impacts.

INFORMATION

■

Replacing the belt after the pretensioner has been activated

If the vehicle is involved in multiple collisions, the pretensioner will activate for the first
collision, but will not activate for the second or subsequent collisions.

■

PCS-linked control

If the PCS (Pre-Collision System) determines that the possibility of a collision with a
vehicle is high, the seat belt pretensioners will be prepared to operate.

WARNING

■

Seat belt pretensioners

Observe the following precautions to reduce the risk of injury in the event of sudden
braking or an accident. Failure to do so may result in death or serious injury.

●

Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor from detect-
ing the passenger’s weight properly. As a result, the seat belt pretensioner for the front
passenger’s seat may not operate in the event of a collision.

●

If a pretensioner has operated, the SRS warning light will illuminate.
In this situation, the seat belt cannot be used and must be replaced by your Lexus
dealer.

6-3. Reducing impact to the occupants in a collision

550

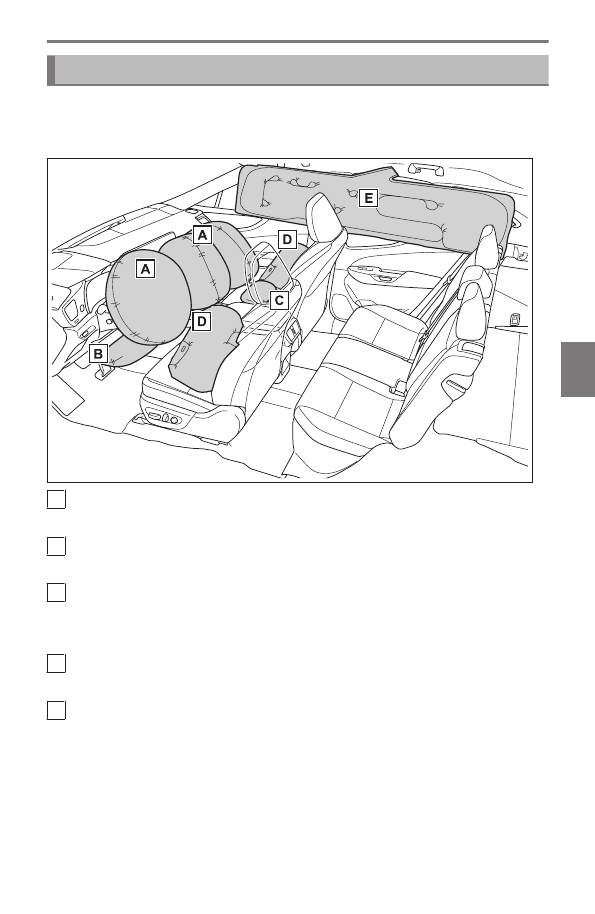

SRS airbags

The SRS airbags deploy when the vehicle is subjected to certain types of severe
impact that may cause significant injury to the occupants. The airbags work togeth-
er with the seat belts to help reduce the risk of death or serious injury.

SRS driver airbag/front passenger airbag

Help reduce impact to the head and chest of the driver and front passenger

SRS knee airbags

Help reduce impact to the driver

SRS seat cushion airbags

●

Helps reduce impact to the front passenger

●

Help restrain the occupant of a rear seat

SRS side airbags

●

Help reduce impact to the chest of the occupants of the front seats

SRS curtain shield airbags

●

Help reduce impact to the heads of the occupants of the front and rear outer seats

●

Can help prevent the occupants from being thrown from the vehicle in the event of
vehicle rollover

Your vehicle is equipped with ADVANCED AIRBAGS designed based on US
motor vehicle safety standards (FMVSS208). The airbag sensor assembly (ECU)
controls airbag deployment based on information obtained from the sensors, etc.,

6-3. Reducing impact to the occupants in a collision

551

Driving suppor

t s

ystem

shown in the system components diagram above. This information includes crash
severity and occupant information. As the airbags deploy, a chemical reaction in
the inflators quickly fills the airbags with non-toxic gas to help restrain the motion of
the occupants.

INFORMATION

■

If the SRS airbags deploy (inflate)

●

Slight abrasions, burns, bruising, etc., may be sustained from SRS airbags, due to the
extremely high speed of deployment (inflation) by hot gases.

●

A loud noise and white powder will be emitted.

●

Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as
the parts around the airbags may be hot for several minutes. The airbag itself may also
be hot.

●

The windshield may crack.

●

The hybrid system will be stopped and fuel supply to the engine will be stopped.

●

All of the doors will be unlocked.

●

The brakes and stop lights will be controlled automatically.

●

The interior lights will turn on automatically.

●

The emergency flashers will turn on automatically.

●

For Safety Connect subscribers, if any of the following situations occur, the system is
designed to send an emergency call to the response center, notifying them of the vehi-
cle's location (without needing to push the [SOS] button) and an agent will attempt to
speak with the occupants to ascertain the level of emergency and assistance required.
If the occupants are unable to communicate, the agent automatically treats the call as
an emergency and helps to dispatch the necessary emergency services.

•

When an SRS airbag has been deployed

•

When a seat belt pretensioner has operated

•

When the vehicle has been involved in a severe rear-end collision

■

The SRS airbags deploy in a frontal impact when

●

The following SRS airbags will deploy in the event of an impact that exceeds a
threshold level (level of force corresponding to an approximately 12 - 18 mph [20 - 30
km/h] frontal collision with a fixed wall that does not move or deform):

•

SRS front airbags

•

SRS seat cushion airbags

•

SRS knee airbags

●

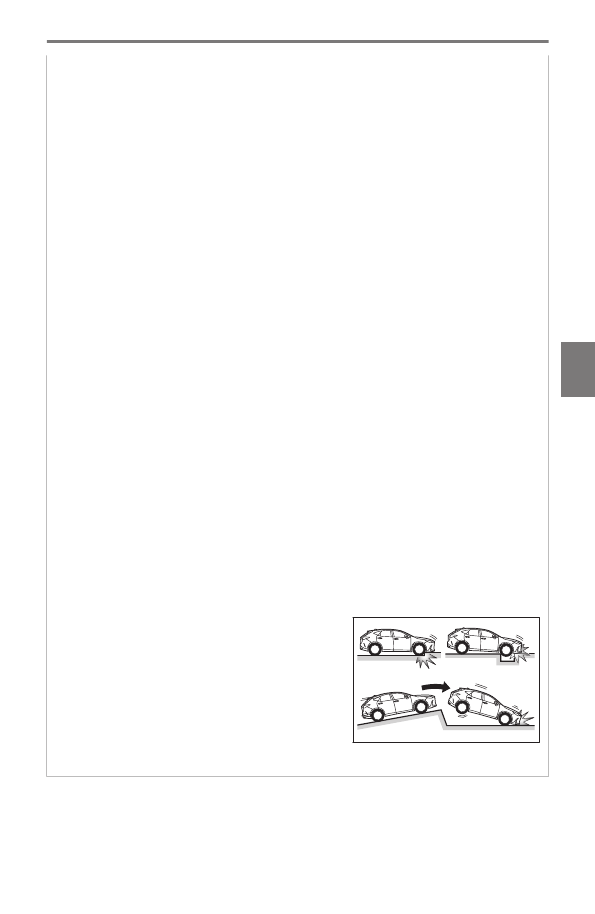

The threshold level at which the SRS airbags will deploy will be higher than normal in
the in the following situations:

6-3. Reducing impact to the occupants in a collision

552

•

When the vehicle collides with an object, such as a parked vehicle or sign pole,
which moves or deforms on impact
If the vehicle is involved in an underride collision, such as a collision in which the
front of the vehicle “underrides”, or goes under, the bed of a truck

●

Depending on the type of collision, only the following may deploy:

•

Seat belt pretensioners

●

The SRS airbags for the front passenger's seat will not deploy if there is no passenger
in the front passenger seat. However, the SRS airbags for the front passenger's seat
may deploy, even if the seat is unoccupied, if luggage is put on the seat.

●

The SRS seat cushion airbag for the front passenger’s seat will not deploy if the seat
belt of the front passenger’s seat is unfastened.

●

In the event of an especially severe frontal collision, the left and right SRS curtain shield
airbags may also deploy.

■

The SRS airbags deploy in a side impact when

●

The following SRS airbags will deploy in the event of an impact that exceeds the
set threshold level (level of force corresponding to the impact force produced by an
approximately 3300 lb. [1500 kg] vehicle colliding with the passenger compartment
at a perpendicular angle at an approximate speed of 12 - 18 mph [20 - 30 km/h]):

•

SRS side airbags

•

SRS curtain shield airbags

●

In the event of a side collision, regardless of the impacted side, both the left and right
SRS curtain shield airbags will deploy.

●

If the vehicle is involved in a rollover, the following SRS airbags will deploy:

•

Both left and right SRS curtain shield airbags

■

The SRS airbags deploy in an underside impact when

●

The following airbags may deploy if the underside
of the vehicle collides with a hard object:

•

SRS front airbags

•

SRS knee airbags

•

SRS seat cushion airbags

•

SRS side airbags

•

SRS curtain shield airbags

6-3. Reducing impact to the occupants in a collision

553

Driving suppor

t s

ystem

●

The following airbags may deploy if the vehicle be-
comes significantly tilted or is strongly impacted
by skidding into a curb, etc.:

•

SRS curtain shield airbags

■

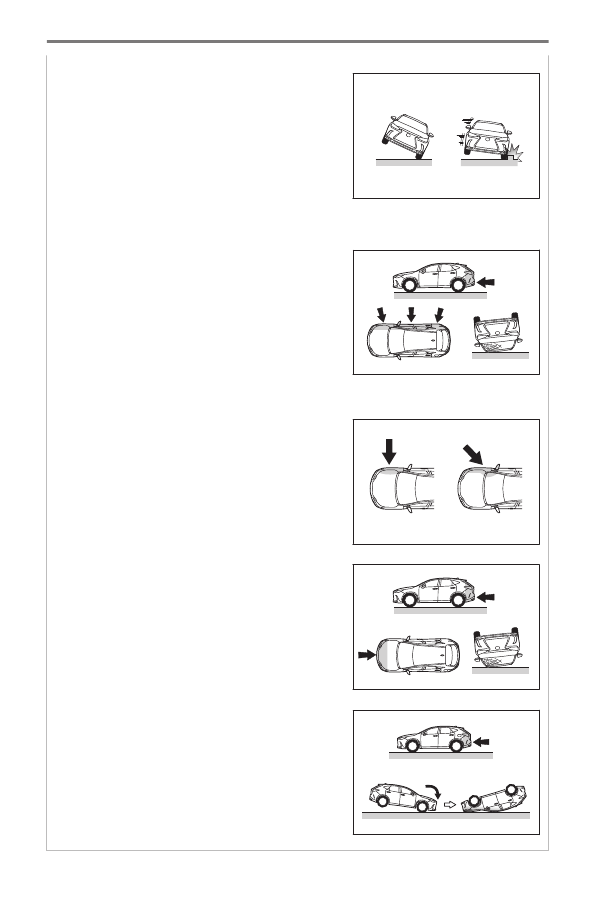

The SRS side airbags will not deploy when

●

The following SRS airbags will not normally deploy
in side or rear collisions, vehicle rollovers, or low
speed frontal collisions. However, if such a colli-
sion causes sufficient sudden deceleration, the
SRS airbags may deploy.

•

SRS front airbags

•

SRS knee airbags

•

SRS seat cushion airbags

●

The following SRS airbags may not deploy if the
vehicle is collided with at a certain angle or in a
side collision where an area of the vehicle other
than the passenger compartment is collided with:

•

SRS side airbags

•

SRS curtain shield airbags

●

The following SRS airbags will not normally deploy
in front or rear collisions, vehicle rollovers, or low
speed side collisions:

•

SRS side airbags

●

The following SRS airbags will not normally deploy
in rear collisions, end over end vehicle rollovers, or
low speed front or side collisions:

•

SRS curtain shield airbags

6-3. Reducing impact to the occupants in a collision

554

■

When to contact your Lexus dealer

In the following situations, the vehicle will require inspection and/or repair. Contact your
Lexus dealer as soon as possible.

●

When any of the SRS airbags have been deployed

●

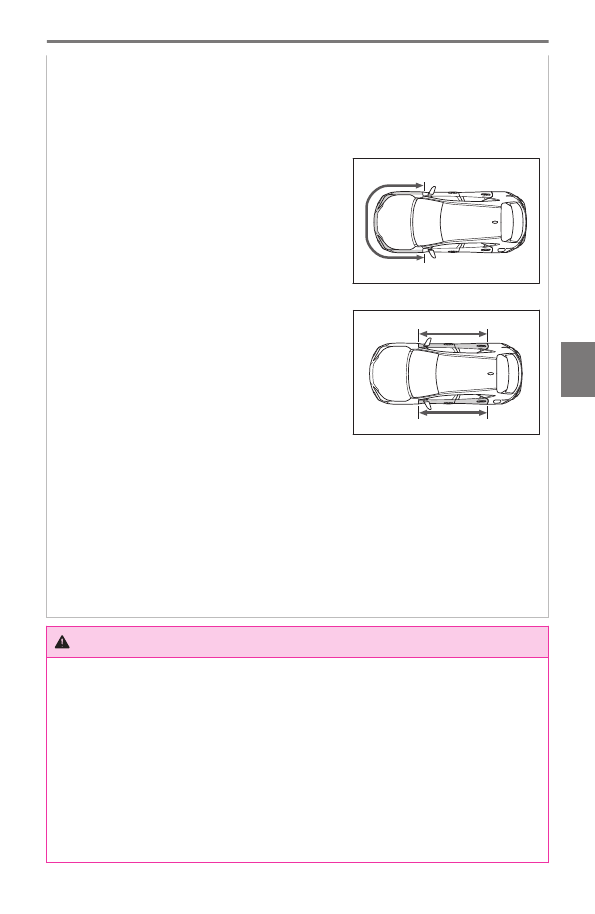

When the front of the vehicle is damaged or de-
formed, or was involved in a collision that was not
severe enough to cause any of the following SRS
airbags to deploy:

•

SRS front airbags

•

SRS knee airbags

•

SRS seat cushion airbags

●

When a door or its surrounding area is damaged,
deformed or has had a hole made in it, or was in-
volved in a collision that was not severe enough to
cause any of the following SRS airbags to deploy:

•

SRS side airbags

•

SRS curtain shield airbags

●

When the pad section of the steering wheel, the dashboard near the front passenger
SRS airbag or the lower side of the instrument panel is scratched, cracked, or other-
wise damaged.

●

When the seat cushion surface is scratched, cracked, or otherwise damaged.

●

When the surface of a seat with an SRS side airbag is scratched, cracked, or otherwise
damaged.

●

When the part of a front pillar, rear pillar or roof side rail garnish (padding) which
covers a SRS curtain shield airbag is scratched, cracked, or otherwise damaged.

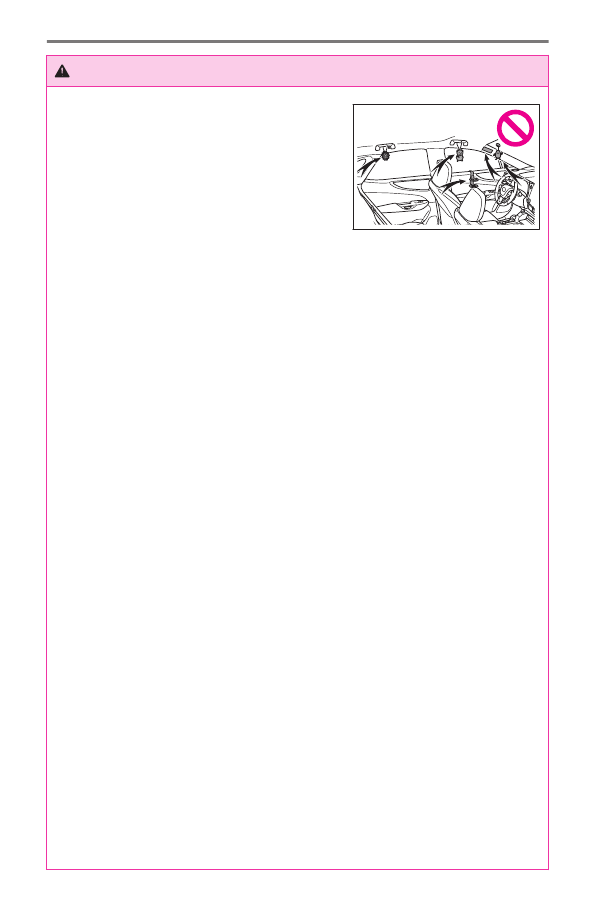

WARNING

■

SRS airbag precautions

Observe the following precautions. Failure to do so may result in death or serious injury.

●

The driver and all passengers must wear their seat belts correctly.
The SRS airbags are supplemental devices to be used with the seat belts.

●

The SRS driver airbag deploys with considerable force, and can cause death or
serious injury, especially if the driver is very close to the airbag. The National Highway
Traffic Safety Administration (NHTSA) advises:
Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm) of inflation,
placing yourself 10 in. (250 mm) from your driver airbag provides you with a clear

6-3. Reducing impact to the occupants in a collision

555

Driving suppor

t s

ystem

WARNING

margin of safety. This distance is measured from the center of the steering wheel to
your breastbone. If your current driving position places you less than 10 in. (250 mm)
away from the driver airbag, you can change your driving position in several ways:

•

Move your seat to the rear as far as possible while still being able to reach the
pedals comfortably.

•

Slightly recline the seatback. Although vehicle designs vary, many drivers can
achieve the 10 in. (251 mm) distance, even with the driver seat all the way forward,
simply by reclining the seatback somewhat. If reclining the seatback makes it hard
to see the road, raise yourself by using a firm, non-slippery cushion, or raise the seat
if your vehicle has that feature.

•

If your steering wheel is adjustable, tilt it downward. This points the airbag toward
your chest instead of your head and neck. The seat should be adjusted as recom-
mended by the NHTSA, while still being able to control the vehicle with the pedals
and steering wheel, and maintaining your view of the instrument panel controls.

●

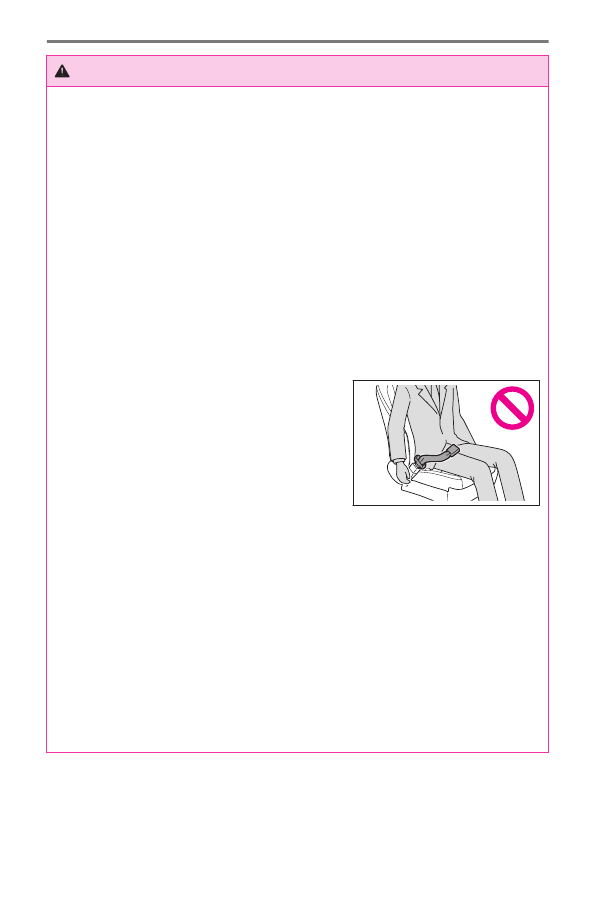

If a seat belt extender has been connected to a
front seat belt buckle but the latch plate of the seat
belt has not been fastened to the seat belt extend-
er, the SRS airbag system will judge that the occu-
pant is wearing the seat belt even though the seat
belt has not been fastened. In this case, the SRS
front airbags may not deploy correctly in a colli-
sion, resulting in death or serious injury. Be sure to
wear the seat belt correctly when using a seat belt
extender.

●

The SRS front passenger airbag deploys with considerable force, and can cause death
or serious injury, especially if the front passenger is very close to the airbag. The front
passenger seat should be positioned as far possible from the airbag with the seatback
adjusted so that the passenger is sat upright.

●

Improperly seated and/or restrained infants and children can be killed or seriously
injured by a deploying airbag. An infant or child who is too small to use a seat belt
should be properly secured using a child restraint system. Lexus strongly recommends
that all infants and children be placed in the rear seats of the vehicle and properly
restrained. The rear seats are safer for infants and children than the front passenger
seat.

6-3. Reducing impact to the occupants in a collision

556

WARNING

●

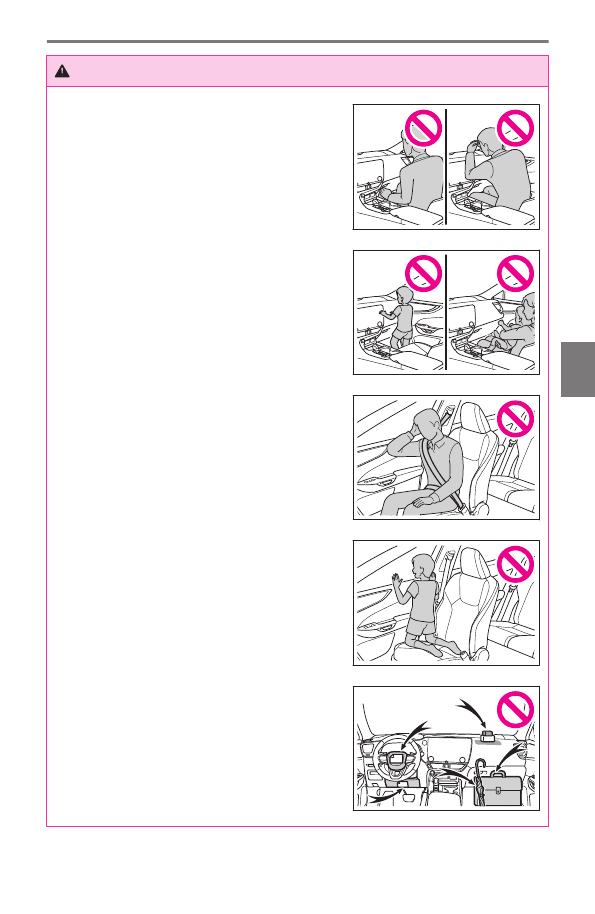

Do not sit on the edge of the seat or lean against
the dashboard.

●

Do not allow a child to stand in front of the SRS
front passenger airbag or sit on the lap of a front
passenger.

●

Front seat occupants should never hold items on
their lap.

●

Do not lean against the door, roof side rail, or front,
side, or rear pillar.

●

Do not allow anyone to kneel on a seat toward the
door or put their head or hands outside the vehi-
cle.

●

Do not attach anything to or lean anything against
areas such as the dashboard, steering wheel pad
and lower portion of the instrument panel.

6-3. Reducing impact to the occupants in a collision

557

Driving suppor

t s

ystem

WARNING

●

Do not attach anything to areas such as the doors,
windshield, side windows, front or rear pillars, roof
side rails and assist grips.

●

Do not hang coat hangers or other hard objects on the coat hooks. These items could
become projectiles if the SRS curtain shield airbags deploy, possibly leading to death
or serious injury.

●

If a vinyl cover is attached to the area where the SRS knee airbag deploys, be sure to
remove it.

●

Do not use seat accessories which cover the parts from which the SRS airbags deploy,
as they may interfere with inflation of the SRS airbags. Such accessories may prevent
the SRS airbags from deploying correctly, may disable the system or cause the SRS
airbags to inflate unintentionally, possibly resulting in death or serious injury.

●

Do not strike or apply significant force to the SRS airbag system components, front
doors or their surrounding area. Doing so may cause the SRS airbags to malfunction.

●

Do not touch any components of the SRS airbags immediately after the SRS airbags
have deployed (inflated) as they may be hot.

●

If breathing becomes difficult after the SRS airbags have deployed, open a door or
window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off any
residue as soon as possible to prevent skin irritation.

●

If a part where an SRS airbag is stored is damaged or cracked, have it replaced by
your Lexus dealer.

●

Do not place anything, such as a cushion, on the front passenger's seat. Doing so
will disperse the passenger’s weight, which prevents the sensor from detecting the
passenger’s weight properly. As a result, the SRS front airbags for the front passenger’s
seat may not deploy in the event of a collision.

■

Modification and disposal of SRS airbag system components

Do not dispose of your vehicle or perform any of the following modifications without
consulting your Lexus dealer.
The SRS airbags may malfunction or deploy unintentionally, possibly leading to death or
serious injury.

●

Removal, installation, disassembly or repair of the SRS airbags

●

Repair, removal or modification of the following parts or their surrounding

•

Steering wheel

6-3. Reducing impact to the occupants in a collision

558

WARNING

•

Instrument panel

•

Dashboard

•

Seats

•

Seat upholstery

•

Front pillars

•

Side pillars

•

Rear pillars

•

Roof side rails

•

Front door panels

•

Front door trim

•

Front door speakers

●

Modifications to the front door panels (such as making holes in them)

●

Repair or modification of the following parts or their surrounding

•

Front fender

•

Front bumper

•

Sides of the vehicle interior

●

Installation of the following parts or accessories

•

Bull bars or kangaroo bars

•

Snow plows

•

Winches

●

Modifications to the vehicle's suspension

●

Installation of electronic devices such as mobile two-way radios (RF-transmitter) and
CD players

●

Modifications to your vehicle for a persons with a physical disability

Lexus NX450H+ (2024 year). Manual in english - page 17
