Detection range of the intuitive parking assist

■

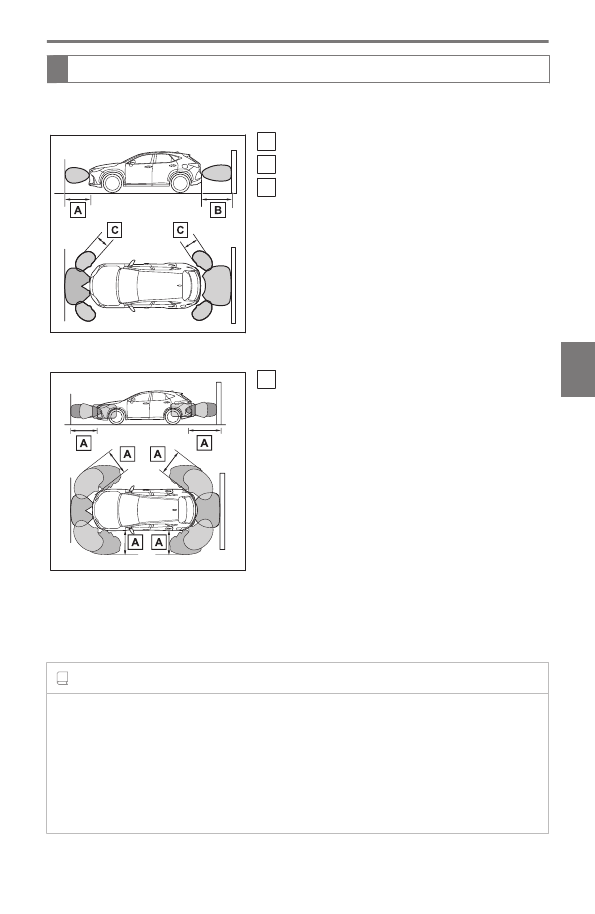

Detection range of the sensors

▶

Vehicles without Advanced Park

Approximately 3.3 ft. (100 cm)

Approximately 4.9 ft. (150 cm)

Approximately 2.0 ft. (60 cm)

▶

Vehicles with Advanced Park

Approximately 6.6 ft. (200 cm)

The diagram shows the detection range of the sensors.
Note that the sensors cannot detect objects that are extremely close to the vehicle.
The range of the sensors may change depending on the shape of the object, etc.

INFORMATION

■

Sensor detection information

●

The detection range of the sensors is limited to the areas around the vehicle’s bump-
ers.

●

Certain vehicle conditions and the surrounding environment may affect the ability of a
sensor to correctly detect an object.

●

Objects may not be detected if they are too close to the sensor.

6-2. Using the safe driving support functions

471

Driving suppor

t s

ystem

●

There is a short delay between when an object is detected and when the display and
buzzer operate. Even at slow speeds, there is a possibility that an object will come
within the detection range before the display is shown and the buzzer sounds.

●

It might be difficult to hear the buzzer due to the volume of the audio system or air flow
noise of the air conditioning system.

●

It may be difficult to hear the sound of this system due to the buzzers of other systems.

■

The distance and buzzer

▶

Vehicles without Advanced Park

Approximate distance to obstacle

Buzzer

Rear center sensor: Approximately 4.9 ft.
(150 cm) to 2.0 ft. (60 cm)

(1)

Front center sensor: Approximately 3.3 ft.
(100 cm) to 2.0 ft. (60 cm)

(1)

Slow

Approximately 2.0 ft. (60 cm) to 1.5 ft. (45
cm)

(1)

Medium

Approximately 1.5 ft. (45 cm) to 1.0 ft. (30
cm)

(1)

Fast

Less than approximately 1.0 ft. (30 cm),
Less than approximately 0.5 ft. (15 cm)

(1)

Continuous

(1)

Automatic buzzer mute function is enabled.

▶

Vehicles with Advanced Park

Approximate distance to obstacle

Buzzer

Rear center sensor: Approximately 6.6 ft.
(200 cm) to 4.9 ft. (150 cm)
Front center sensor: Approximately 6.6 ft.
(200 cm) to 3.3 ft. (100 cm)
Side sensor: Approximately 6.6 ft. (200
cm) to 5.4 ft. (165 cm)
Corner sensor: Approximately 6.6 ft. (200
cm) to 2.0 ft. (60 cm)

Does not sound (Display only)

6-2. Using the safe driving support functions

472

Approximate distance to obstacle

Buzzer

Rear center sensor: Approximately 4.9 ft.
(150 cm) to 2.0 ft. (60 cm)

(1)

Front center sensor: Approximately 3.3 ft.
(100 cm) to 2.0 ft. (60 cm)

(1)

Side sensor: Approximately 5.4 ft. (165 cm)
to 2.0 ft. (60 cm)

(1)

Slow

Approximately 2.0 ft. (60 cm) to 1.5 ft. (45
cm)

(1)

Side sensor: Approximately 2.0 ft. (60 cm)
to 1.3 ft. (40 cm)

(1)

Medium

Approximately 1.5 ft. (45 cm) to 1.0 ft. (30
cm)

(1)

Side sensor: Approximately 1.3 ft. (40 cm)
to 1.0 ft. (30 cm)

(1)

Fast

Less than approximately 1.0 ft. (30 cm),
Less than approximately 0.5 ft. (15 cm)

(1)

Continuous

(1)

Automatic buzzer mute function is enabled.

Intuitive parking assist buzzer operation and range

A buzzer sounds when objects are detected.

●

A buzzer sounds when the sensors are operating.

●

The buzzer beeps faster as thevehicle approaches an object. When the vehicle
comes within the approximately 1.0 ft. (30 cm) of the object, the buzzer will
sound continuously.

●

When 2 or more sensors simultaneously detect a static object, the buzzer
sounds for the nearest object.

●

Even when the sensors are operating, the buzzer will be muted in some situa-
tions. (automatic buzzer mute function)

Changing the intuitive parking assist buzzer volume

The buzzer volume can be adjusted on the center display.

Select

Select [Driving assist].

6-2. Using the safe driving support functions

473

Driving suppor

t s

ystem

Select [Collision mitigation].

Select [Parking assist volume].

Temporarily muting the intuitive parking assist buzzer

A mute button will be displayed on the center display when an object is detected.
To mute the buzzer, select

To mute the buzzer, select

. The buzzers for the intuitive parking assist sensor,

RCTA and RCD function will be muted simultaneously.
Mute will be canceled automatically in the following situations:

●

When the shift position is changed.

●

When the vehicle speed exceeds a certain speed.

●

When there is a malfunction in a sensor or the system is temporarily unavailable.

●

When the operating function is disabled manually.

●

When the power switch is turned off.

Intuitive parking assist object warning function (vehicles with Advanced
Park)

The object warning function informs the driver of the existence of objects along
the side of the vehicle, using a display and buzzer, if the objects are within the
estimated path of the vehicle.

Object

Calculated vehicle route

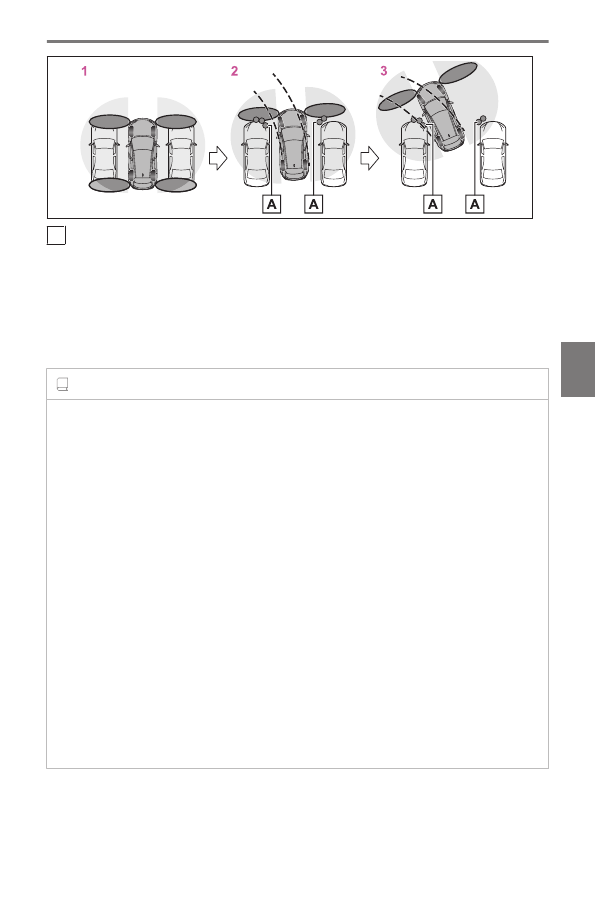

When the vehicle is moving, the side sensors or side cameras can detect objects.
While the vehicle is moving, if a detected object can no longer be detected by the
side sensors or side cameras, the location of the object relative to the vehicle is
estimated. If the object is determined to be in the estimated path of the vehicle, the
object warning function will operate.

6-2. Using the safe driving support functions

474

Object detected by side sensors or side cameras

The vehicle is stopped and objects along the sides of the vehicle are not
detected.

Objects are detected as the vehicle is moving.

Even though the objects are outside of the detection area of the side sensors or
side cameras, a warning is displayed and a buzzer sounds.

INFORMATION

■

Object warning function operating conditions

●

The vehicle moves about 23.0 ft. (7 m) after the hybrid system is started.

●

The R shift position is selected.

●

After the D shift position has been selected, the vehicle has moved 23.0 ft. (7 m) or
less.

●

Panoramic view main switch has been pressed and the center display is displayed.

●

The front or rear sensor detects a stationary object.

■

Detection of objects along the sides of the vehicle

●

Objects along the sides of the vehicle are not instantaneously detected. The location
of objects in relation to the vehicle is estimated after they are first detected by the front
or rear side sensors, or side cameras. Therefore, after the power switch is changed
to ON, even if an object is along the side of the vehicle, it may not be detected until
the vehicle has been driven a small amount and the side sensors or side cameras
completely scan the areas along the sides of the vehicle.

●

If a vehicle, person, animal, etc., is detected by a side sensors or side cameras, but then
leaves the detection area of the side sensors or side cameras, the system will assume
the object has not moved.

6-2. Using the safe driving support functions

475

Driving suppor

t s

ystem

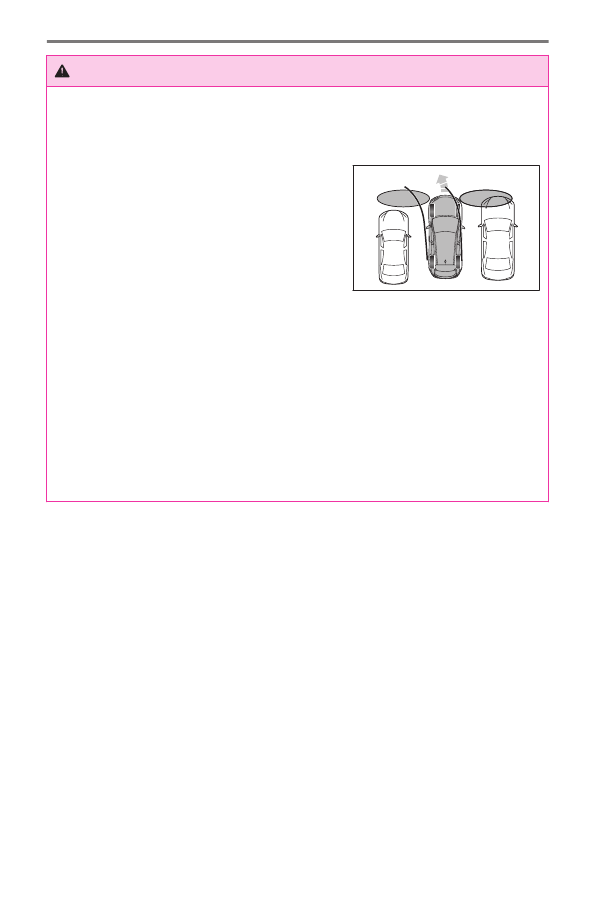

WARNING

■

Side sensors and side cameras

In situations such as the following, the function may not operate correctly, possibly
leading to an accident. Proceed carefully.

●

When starting off shortly after the power switch is
turned to ON and a small vehicle or other object
which cannot be detected by a front side sensor is
next to the vehicle.
In the situation shown in the following illustration,
even if the vehicle starts off, the vehicle on the left
will not be detected and the object warning func-
tion will not operate.

●

When an object or person is in a position which cannot be detected by the side
sensors or side cameras.

●

When, after the side sensors have completed scanning the areas along the sides of
the vehicle, a vehicle, person, or other object approaches the side of the vehicle and
cannot be detected.

●

When the outside rear view mirror is closed, the side sensors or side cameras cannot
detect objects.

●

If the 12-volt battery was discharged or has been removed and installed, fold and
extend the outside rear view mirrors.

6-2. Using the safe driving support functions

476

Rear Cross Traffic Alert

Purpose of the RCTA (Rear cross traffic alert) function

The RCTA function uses the BSM rear side radar sensors installed behind the rear
bumper. This function is intended to assist the driver in checking areas that are not
easily visible when backing up.

WARNING

■

Cautions regarding the use of the system

The driver is solely responsible for safe driving. Always drive safely, taking care to
observe your surroundings.
The RCTA function is only a supplementary function which alerts the driver that a vehicle
is approaching from the right or left at the rear of the vehicle.
As the RCTA function may not function correctly under certain conditions, the driver’s
own visual confirmation of safety is necessary.
Over reliance on this function may lead to an accident resulting death or serious injury.

■

To ensure the system can operate properly

→

P.454

INFORMATION

■

The RCTA function is operational when

The RCTA function operates when all of the following conditions are met:

●

The power switch is in ON.

●

The RCTA function is on.

●

The shift position is in R.

●

The vehicle speed is approximately 9 mph (15 km/h) or less.

●

The approaching vehicle speed is between approximately 5 mph (8 km/h) and 34
mph (56 km/h).

■

Conditions under which the system will not detect a vehicle

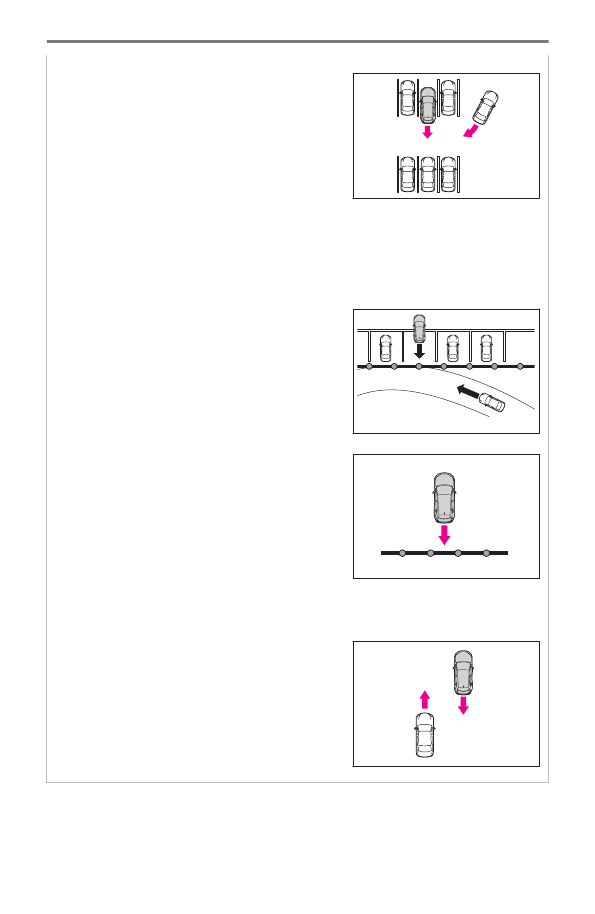

The RCTA function is not designed to detect the following types of vehicles and/or
objects:

●

Vehicles approaching from directly behind

●

Vehicles backing up in a parking space next to your vehicle

6-2. Using the safe driving support functions

477

Driving suppor

t s

ystem

●

Vehicles that the sensors cannot detect due to ob-
structions

●

Guardrails, walls, signs, parked vehicles and similar stationary objects

●

Small motorcycles, bicycles, pedestrians, etc.

●

Vehicles moving away from your vehicle

●

Vehicles approaching from the parking spaces next to your vehicle

●

The distance between the sensor and approaching vehicle gets too close

■

Situations in which the system may not operate properly

The RCTA function may not detect vehicles correctly in the following situations:

●

When the sensor is misaligned due to a strong impact to the sensor or its surrounding
area

●

When mud, snow, ice, a sticker, etc.,is covering the sensor or surrounding area on the
position above the rear bumper

●

When driving on a road surface that is wet with standing water during bad weather,
such as heavy rain, snow, or fog

●

When multiple vehicles are approaching with only a small gap between each vehicle

●

When a vehicle is approaching at high speed

●

When equipment that may obstruct a sensor is installed, such as a towing eyelet,
bumper protector (an additional trim strip, etc.), bicycle carrier, or snow plow

*1 :

Depending on the conditions, detection of a vehicle and/or object may occur.

6-2. Using the safe driving support functions

478

●

When backing up on a slope with a sharp change
in grade

●

When backing out of a sharp angle parking spot

●

Immediately after the RCTA function is turned on

●

Immediately after the hybrid system is started with the RCTA function on

●

When the sensors cannot detect a vehicle due to obstructions

●

When towing with the vehicle

●

When there is a significant difference in height between your vehicle and the vehicle
that enters the detection area

●

When a sensor or the area around a sensor is extremely hot or cold.

●

If the suspension has been modified or tires of a size other than specified are installed

●

If the front of the vehicle is raised or lowered due to the carried load

●

When turning while backing up

6-2. Using the safe driving support functions

479

Driving suppor

t s

ystem

●

When a vehicle turns into the detection area

■

Situations in which the system may operate even if there is no possibility of a
collision

Instances of the RCTA function unnecessary detecting a vehicle and/or object may
increase in the following situations:

●

When the parking space faces a street and vehi-
cles are being driven on the street

●

When the distance between your vehicle and met-
al objects, such as a guardrail, wall, sigh, or parked
vehicle, which may reflect electrical waves toward
the rear of the vehicle, is short

●

When equipment that may obstruct a sensor is installed, such as a towing eyelet,
bumper protector (an additional trim strip, etc.), bicycle carrier, or snow plow

●

When a vehicle passes by the side of your vehicle

6-2. Using the safe driving support functions

480

●

When a detected vehicle turns while approaching
the vehicle

●

When there are spinning objects near your vehicle such as the fan of an air condition-
ing unit

●

When water is splashed or sprayed toward the rear bumper, such as from a sprinkler

●

Moving objects (flags, exhaust fumes, large rain droplets or snowflakes, rain water on
the road surface, etc.)

●

When the distance between your vehicle and a guardrail, wall, etc., that enters the
detection area is short

●

Gratings and gutters

●

When a sensor or the area around a sensor is extremely hot or cold.

●

If the suspension has been modified or tires of a size other than specified are installed

●

If the front of the vehicle is raised or lowered due to the carried load

●

When towing with the vehicle

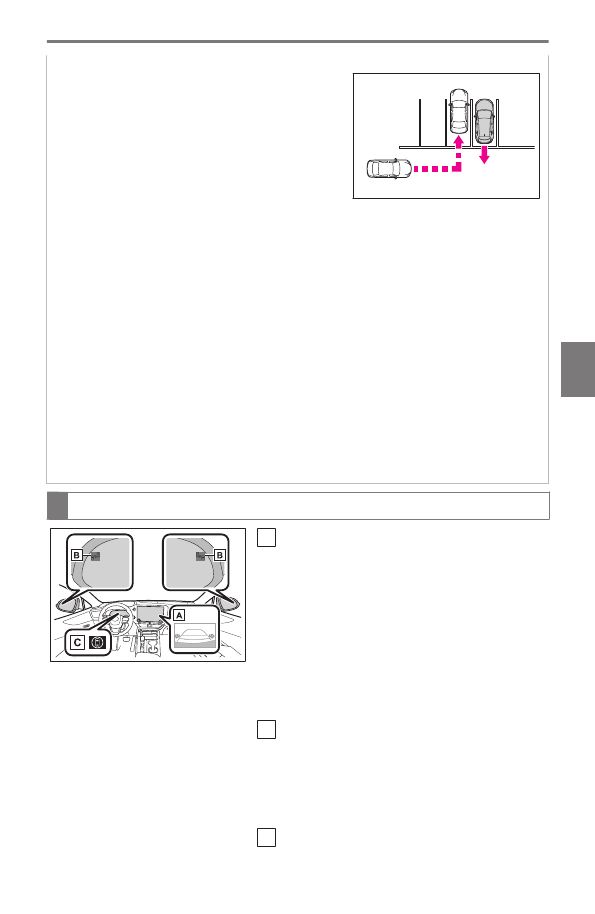

System components

Center display
Turning the RCTA function on/off in center
display. If a vehicle approaching from the
right or left at the rear of the vehicle is
detected, the RCTA icon (

→

P.482

) for the

detected side will be displayed on the cen-
ter display.

This illustration

shows an example of a vehicle

approaching from both sides of the vehicle.

Outside rear view mirror indicators
If a vehicle is detected as approaching from
the left or right behind the vehicle, both out-
side rear view mirror indicators (

→

P.330

)

will blink and a buzzer will sound.

Driving assist information indicator

6-2. Using the safe driving support functions

481

Driving suppor

t s

ystem

Illuminates when the RCTA is turned off. At
this time, a message will be displayed on the
multi-information display.

INFORMATION

■

Outside rear view mirror indicator visibility

In strong sunlight, the outside rear view mirror indicator may be difficult to see.

■

Hearing the RCTA buzzer

The RCTA buzzer may be difficult to hear over loud noises, such as if the audio system
volume is high.

■

Rear side radar sensors

→

P.454

RCTA function

The RCTA function is operational when

The RCTA function uses rear side radar sensors to detect vehicles approaching
from the right or left at the rear of the vehicle and alerts the driver of the presence
of such vehicles by flashing the outside rear view mirror indicators and sounding a
buzzer.

Approaching vehicles

Detection areas of approaching vehicles

RCTA icon display

When a vehicle approaching from the right or left at the rear of the vehicle is
detected, the following will be displayed on the center display.

*2 :

Depending on the vehicle grade and equipped options, the actual screen may be

different from this illustration.

6-2. Using the safe driving support functions

482

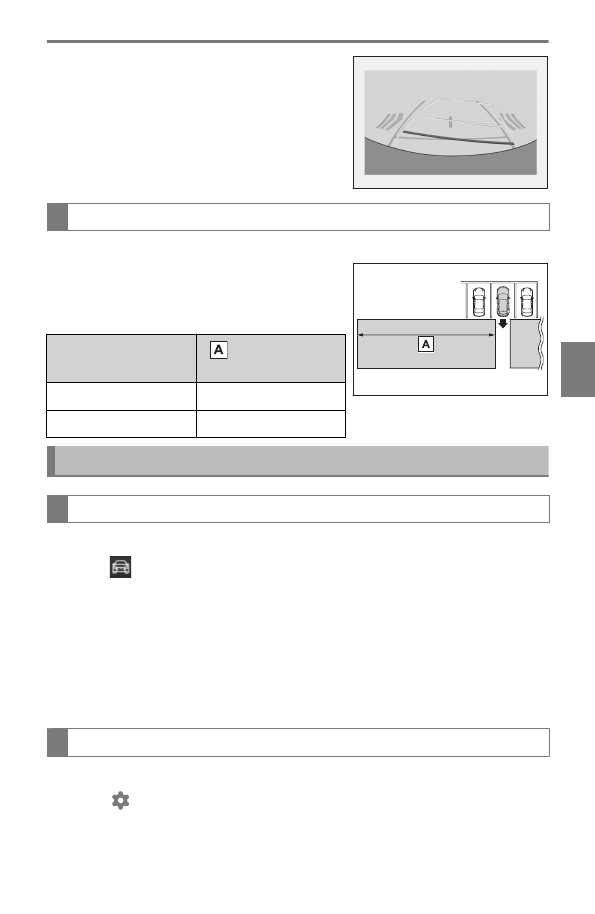

Example: Vehicles are approaching from both
sides of the vehicle (Example: Vehicles with a
Lexus parking assist monitor)

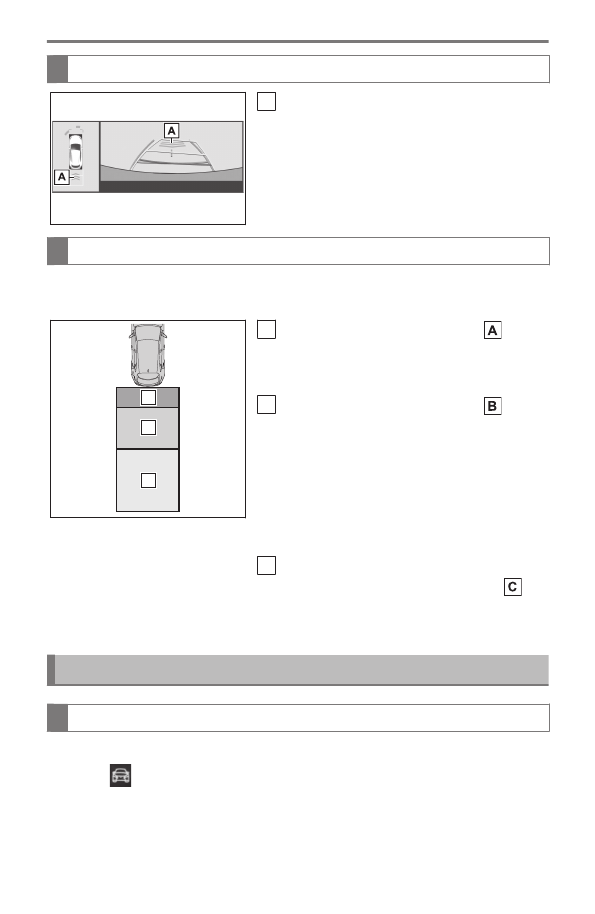

RCTA function detection areas

The areas that vehicles can be detected in are outlined below.
The buzzer can alert the driver of faster vehicles
approaching from farther away.
Example:

Approaching vehicle

speed

Approximate alert

distance

34 mph (56 km/h) (fast) 98 ft. (30 m)

5 mph (8 km/h) (slow)

13 ft. (4 m)

Changing the RCTA settings

Turning the RCTA function ON/OFF

The RCTA function can be enabled/disabled on the center display as follows:

Select

Select [Driving assist].

Select [Rear cross traffic alert].

When the RCTA function is disabled, the driving assist information indicator
illuminates on the multi-information display.
(Each time the power switch is turned off then changed to ON, the RCTA function
will be enabled automatically.)

Changing the RCTA buzzer volume

The buzzer volume can be adjusted on the center display.

Select

Select [Driving assist].

Select [Collision mitigation].

6-2. Using the safe driving support functions

483

Driving suppor

t s

ystem

Select [Parking assist volume].

Temporarily muting the RCTA buzzer

A mute button will be displayed on the center display when an object is detected.
To mute the buzzer, select

.To mute the buzzer, select

. The buzzers for the

intuitive parking assist sensor, RCTA and RCD function will be muted simultane-
ously.

INFORMATION

Mute will be canceled automatically in the following situations:

●

When the shift position is changed.

●

When the vehicle speed exceeds a certain speed.

●

When there is a malfunction in a sensor or the system is temporarily unavailable.

●

When the operating function is disabled manually.

●

When the power switch is turned off.

6-2. Using the safe driving support functions

484

Rear Camera Detection

Purpose of the RCD (Rear Camera Detection)

When the vehicle is backing up, the rear camera detection function can detect
pedestrians in the detection area behind the vehicle. If a pedestrian is detected, a
buzzer will sound and an icon will be displayed on the center display to inform the
driver of the pedestrian.

WARNING

■

Cautions regarding the use of the system

The recognition and control capabilities for this system are limited.
The driver should always drive safely by always being responsible without over relying on
the system and have a understanding of the surrounding situations.

■

To ensure the system can operate properly

Observe the following, otherwise there is the danger that could lead to an accident.

●

Always clean the camera with damaging it.

●

Do not install market electronic parts (such as Illuminated license plate, fog lamps,
etc.) in the camera vicinity.

●

Do not subject the camera vicinity to strong impacts. If the vicinity is subjected to a
strong impact, have the vehicle inspected by your Lexus dealer.

●

Do not disassemble, remodel or paint the camera.

●

Do not attach accessories or stickers to the camera.

●

Do not install market protection parts (bumper trim, etc.) to the rear bumper.

●

Maintain suitable tire air pressure.

●

Make sure the back door is completely closed.

■

RCD function is turned off

In the following situations the system turns off. The RCD function may not operate
properly and thus there is the danger that an accident may occur.

●

The contents mentioned above are not observed.

●

Suspensions other than Lexus genuine parts are installed.

INFORMATION

■

The rear camera detection function is operational when

●

The power switch is in ON.

* :

If equipped

6-2. Using the safe driving support functions

485

Driving suppor

t s

ystem

●

RCD function is on.

●

The shift position is in R.

●

Advanced Park is not operating

■

Situations in which the system may not operate properly

●

Some pedestrians, such as the following, may not be detected by the rear camera
detection function, preventing the function from operating properly:

•

Pedestrians who are bending forward or squatting

•

Pedestrians who are lying down

•

Pedestrians who are running

•

Pedestrians who suddenly enter the detection area

•

People riding a bicycle, skateboard, or other light vehicle

•

Pedestrians wearing oversized clothing such as a rain coat, long skirt, etc., making
their silhouette obscure

•

Pedestrians whose body is partially hidden by an object, such as a cart or umbrella

•

Pedestrians which are obscured by darkness, such as at night

●

In some situations, such as the following, pedestrians may not be detected by the rear
camera detection function, preventing the function from operating properly:

•

When backing up in inclement weather (rain, snow, fog, etc.)

•

When the rear camera is obscured (dirt, snow, ice, etc. are attached) or scratched

•

When a very bright light, such as the sun, or the headlights of another vehicle,
shines directly into the rear camera

•

When backing up in a place where the surrounding brightness changes suddenly,
such as at the entrance or exit of a garage or underground parking lot

•

When backing up in a dim environment such as during dusk or in an underground
parking lot

•

When the camera position and direction are deviated

•

When a towing hook is attached

•

When water droplets are flowing on the camera lens

•

When the rear washer is operating

•

When the vehicle height is extremely changed (nose up, nose down)

•

When tire chains or an emergency tire puncture repair kit is used

•

If the suspension has been modified or tires of a size other than specified are
installed

•

When install market electronic parts (such as Illuminated license plate, fog lamps,
etc.) in the camera vicinity

6-2. Using the safe driving support functions

486

•

When install market protection parts (bumper trim, etc.) to the rear bumper

■

Situations in which the system may operate unexpectedly

●

Even though there are no pedestrians in the detection area, some objects, such as the
following, may be detected, possibly causing the rear camera detection function to
operate.

•

Three dimensional objects, such as a pole, traffic cone, fence, or parked vehicle

•

Moving objects, such as a car or motorcycle

•

Objects moving toward your vehicle when backing up, such as flags or puddles (or
airborne matter, such as smoke, steam, rain, or snow)

•

Cobblestone or gravel roads, tram rails, road repairs, white lines, pedestrian cross-
ings or fallen leaves on the road

•

Metal covers (gratings), such as those used for drainage ditches

•

Objects reflected in a puddle or on a wet road surface

•

Shadows on the road

●

In some situations, such as the following, the rear camera detection function may
operate even though there are no pedestrians in the detection area.

•

When backing up toward the roadside or a bump on the road

•

When backing up toward an incline/decline

•

If the rear of the vehicle is raised or lowered due to the carried load

•

If a bumper protector, such as an additional trim strip, is installed to the rear bumper

•

If the orientation of the rear camera has been changed

•

If a towing eyelet is installed to the rear of the vehicle

•

When water is flowing over the rear camera lens

•

When the rear camera is obscured (dirt, snow, ice, etc., are attached) or scratched

•

If there is a flashing light in the detection area, such as the emergency flashers of
another vehicle

•

When a tire chains or an emergency tire puncture repair kit is used

●

Situations in which the rear camera detection function may be difficult to notice

•

The buzzer may be difficult to hear if the surrounding area is noisy, the volume of
the audio system volume is high, the air conditioning system is being used, etc.

•

If the temperature in the cabin is extremely high or low, the audio system screen
may not operate correctly.

RCD function

6-2. Using the safe driving support functions

487

Driving suppor

t s

ystem

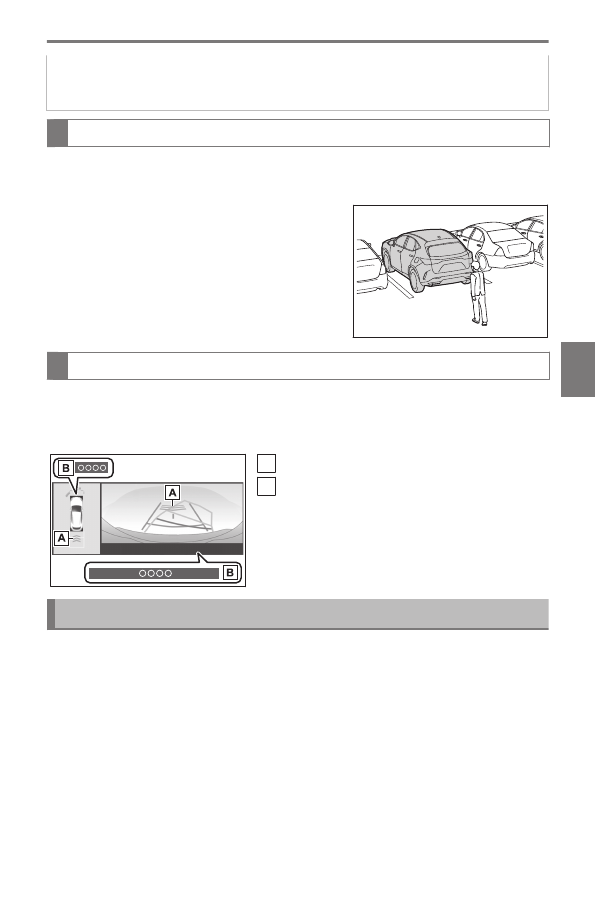

Center Display

Pedestrian detection icon
Displayed automatically when a pedestrian
is detected.
(Each time the power switch is turned off
then changed to ON, the RCD function will
be enabled automatically.)

When a pedestrian is detected

If the rear camera detection function detects a pedestrian in the detection area, the
buzzer and pedestrian detection will operate as follows:

If a pedestrian is detected in area
Buzzer: Sounds repeatedly
Pedestrian detection icon: Blinks

If a pedestrian is detected in area
Buzzer (When the vehicle is stationary):
Sounds 3 times
Buzzer (When the vehicle is backing up,
when a pedestrian approaches the rear of
the vehicle): Sounds repeatedly
Pedestrian detection icon: Blinks

If the system determines that your vehicle
may collide with a pedestrian in area
Buzzer: Sounds repeatedly
Pedestrian detection icon: Blinks

Changing the RCD settings

Turning the RCD function ON/OFF

The RCD function can be enabled/disabled on the center display as follows:

Select

Select [Driving assist].

Select [Rear camera detection].

6-2. Using the safe driving support functions

488

When the RCD function is disabled, the driving assist information indicator illumi-
nates on the multi-information display.

Changing the RCD buzzer volume

The buzzer volume can be adjusted on the center display.

Select

Select [Driving assist].

Select [Collision mitigation].

Select [Parking assist volume].

Temporarily muting the RCD buzzer

A mute button will be displayed on the center display when an object is detected.
To mute the buzzer, select

.To mute the buzzer, select

. The buzzers for

the intuitive parking assist sensor, RCTA and RCD function will be muted simulta-
neously.

INFORMATION

Mute will be canceled automatically in the following situations:

●

When the shift position is changed.

●

When the vehicle speed exceeds a certain speed.

●

When there is a malfunction in a sensor or the system is temporarily unavailable.

●

When the operating function is disabled manually.

●

When the power switch is turned off.

6-2. Using the safe driving support functions

489

Driving suppor

t s

ystem

Parking Support Brake

Purpose of the PKSB (Parking Support Brake) system

The PKSB (Parking Support Brake) system consists of the following functions that
operate when driving at a low speed or backing up, such as when parking. When
the system determines that the probability of a collision with a detected object is
high, a warning operates to urge the driver to take evasive action.

■

Parking assist function

The system can detect the following as detectable objects. (Detectable objects
differ depending on the function.)

●

Static Objects Front and Rear of the vehicle

●

Moving Vehicles Rear of the Vehicle

●

Pedestrians Rear of the Vehicle

●

Static Objects Around the vehicle (vehicles with Advanced Park)

PKSB (Parking Support Brake) system

WARNING

■

Cautions regarding the use of the system

Do not overly rely on the system, as doing so may lead to an accident. Always drive while
checking the safety of the surroundings of the vehicle.
Depending on the vehicle and road conditions, weather, etc., the system may not operate.
The detection capabilities of sensors and radars are limited. Always drive while checking
the safety of the surroundings of the vehicle.

●

The driver is solely responsible for safe driving. Always drive carefully, taking care to
observe your surroundings. The PKSB (Parking Support Brake) system is designed
to provide support to lessen the severity of collisions. However, it may not operate in
some situations.

●

The PKSB (Parking Support Brake) system is not designed to stop the vehicle com-
pletely. Additionally, even if the system has stopped the vehicle, it is necessary to
depress the brake pedal immediately as brake control will be canceled after approxi-
mately 2 seconds.

●

It is extremely dangerous to check the system operations by intentionally driving the
vehicle into the direction of a wall, etc. Never attempt such actions.

* :

If equipped

6-2. Using the safe driving support functions

490

WARNING

■

When to disable the PKSB (Parking Support Brake) system

In the following situations, disable the PKSB (Parking Support Brake) as the system may
operate even though there is no possibility of a collision.

●

When inspecting the vehicle using a chassis roller, chassis dynamo or free roller

●

When loading the vehicle onto a boat, truck or other transport vessel

●

If the suspension has been modified or tires of a size other than specified are installed

●

If the front of the vehicle is raised or lowered due to the carried load

●

When equipment that may obstruct a sensor is installed, such as a towing eyelet,
bumper protector (an additional trim strip, etc.), bicycle carrier, or snow plow

●

When using automatic car washing devices

●

If the vehicle cannot be driven in a stable manner, such as when the vehicle has been in
an accident or is malfunctioning

●

When the vehicle is driven in a sporty manner or off-road

●

When the tires are not properly inflated

●

When the tires are very worn

●

When a tire chains, compact spare tire or an emergency tire puncture repair kit is
used

●

When your vehicle is towing a trailer or during emergency towing

■

Precautions for the suspension

Do not modify the suspension of the vehicle. If the height or tilt of the vehicle is changed,
the sensors may not be able to detect detectable objects and the system may not operate
correctly, possibly leading to an accident.

■

System overview

If the PKSB (Parking Support Brake) determines that a collision with a detected
object or pedestrian is possible, the hybrid system output will be restricted to re-
strain any increase in the vehicle speed. (Hybrid system output restriction control:
See figure 2.) Additionally, if the accelerator pedal continues to be depressed, the
brakes will be applied automatically to reduce the vehicle speed. (Brake control:
See figure 3.)

●

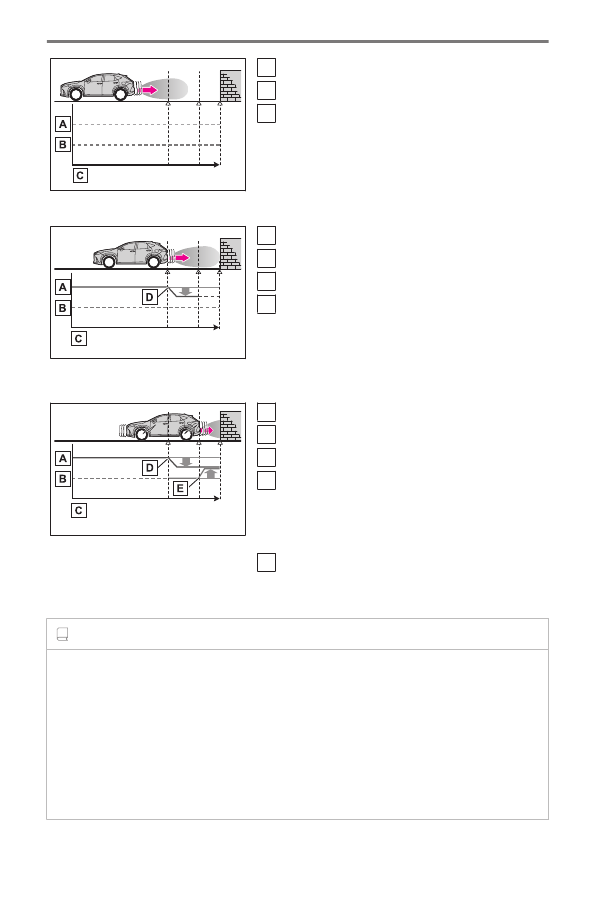

Figure 1 When the PKSB (Parking Support Brake) is not operating

6-2. Using the safe driving support functions

491

Driving suppor

t s

ystem

Hybrid system output

Braking force

Time

●

Figure 2 When hybrid system output restriction control operates

Hybrid system output

Braking force

Time

Hybrid system output restriction control
begins operating (System determines that
possibility of collision with detected object is
high)

●

Figure 3 When hybrid system restriction control and brake control operates

Hybrid system output

Braking force

Time

Hybrid system output restriction control
begins operating (System determines that
possibility of collision with detected object is
high)

Brake control begins operating (System de-
termines that possibility of collision with de-
tected object is extremely high)

INFORMATION

■

If the PKSB (Parking Support Brake) system has operated

If the vehicle is stopped due to operation of the PKSB (Parking Support Brake), the PKSB
(Parking Support Brake) will be disabled and the driving assist information indicator will
illuminate.
If the PKSB (Parking Support Brake) system operates unnecessarily, brake control can
be canceled by depressing the brake pedal or waiting approximately 2 seconds for
it to automatically be canceled. Then, the vehicle can be operated by depressing the
accelerator pedal.

6-2. Using the safe driving support functions

492

■

Re-enabling the PKSB (Parking Support Brake) system

To re-enable the PKSB (Parking Support Brake) the when it is disabled due to operation
of the PKSB (Parking Support Brake), either enable the system again, or turn the power
switch off and then back to ON.
Additionally, if any of the following conditions are met, the system will be re-enabled
automatically and the driving assist information indicator will turn off:

●

The P shift position is selected

●

The object is no longer detected in the traveling direction of the vehicle

●

The traveling direction of the vehicle changes

Turning the PKSB (Parking Support Brake) system ON/OFF

The PKSB (Parking Support Brake) system can be changed between ON (ena-
bled) and OFF (disabled) on the center display.

Select

Select [Driving assist].

Select [Parking support brake] to change ON (enable)/OFF (disabled).

When the PKSB (Parking Support Brake) is disabled, the driving assist information
indicator illuminates.
When turned OFF (disabled), the PKSB (Parking Support Brake) will be disabled
and will not be enabled until the setting is changed to ON again in center display.
(The function will not be re-enabled by operating the power switch.)

PKSB (Parking Support Brake) function displays and buzzers

When the hybrid system output restriction control or brake control operates,
a buzzer sounds and a message is displayed on the multi-information display,
head-up display

and center display to alert the driver.

Depending on the situation, output restriction control operates to either limit
acceleration or restrict output as much as possible.

■

Hybrid system output restriction control is operating (acceleration restric-
tion)

●

Acceleration greater than a certain amount is restricted by the system.

●

Multi-information display:"Object Detected Acceleration Reduced"

●

Head-up display

:"Object Detected Acceleration Reduced"

*1 :

Except when the Pedestrians Rear of the Vehicle operated.

* :

If equipped

6-2. Using the safe driving support functions

493

Driving suppor

t s

ystem

●

Center display: No warning displayed

●

Driving assist information indicator: Not illuminated

●

Buzzer: Does not sound

■

Hybrid system output restriction control is operating (output restricted as
much as possible)

●

The system has determined that stronger-than-normal brake operation is neces-
sary.

●

Multi-information display and head-up display

: "BRAKE!"

●

Center display: "BRAKE!"

●

Driving assist information indicator: Not illuminated

●

Buzzer: Short beep

■

Brake control is operating

●

The system determined that emergency braking is necessary.

●

Multi-information display and head-up display

: "BRAKE!"

●

Center display: "BRAKE!"

●

Driving assist information indicator: Not illuminated

●

Buzzer: Short beep

■

Vehicle stopped by system operation

●

The vehicle has been stopped by brake control operation.

●

Multi-information display: "Accelerator Pedal is Pressed Press Brake Pedal" (If
the accelerator pedal is not depressed, "Press Brake Pedal" will be displayed.)

●

Head-up display

: "Accelerator Pedal is Pressed Press Brake Pedal" (If the

accelerator pedal is not depressed, "Press Brake Pedal" will be displayed.)

●

Center display: "Press Brake Pedal"

●

Driving assist information indicator: Illuminated

●

Buzzer: Sounds repeatedly

Static Objects Front and Rear of the vehicle

If the sensors detect a static object, such as a wall, in the travelling direction of the
vehicle and the system determines that a collision may occur due to the vehicle
suddenly moving forward due to an accidental accelerator pedal operation, the
vehicle moving the unintended direction due to the wrong shift position, or while

* :

If equipped

6-2. Using the safe driving support functions

494

parking or traveling at low speeds, the system will operate to lessen the impact with
the detected static object and reduce the resulting damage.

INFORMATION

■

The system will operate when

The function will operate when the driving assist information indicator is not illuminated
or flashing and all of the following conditions are met:

●

Hybrid system output restriction control

•

PKSB (Parking Support Brake) system is enabled.

•

The vehicle speed is approximately 9 mph (15 km/h) or less.

•

There is a static object in the traveling direction of the vehicle (approximately 6 to
13 ft. [2 to 4 m] ahead).

•

The Parking Support Brake determines that a stronger-than-normal brake opera-
tion is necessary to avoid a collision.

●

Brake control

•

Hybrid system output restriction control

•

The Parking Support Brake determines that an immediate brake operation is
necessary to avoid a collision.

■

The system will stop operating when

The function will stop operating if any of the following conditions are met:

●

Hybrid system output restriction control

•

PKSB (Parking Support Brake) system is disabled.

•

The system determines that the collision has become avoidable with normal brake
operation.

•

The static object is no longer in the traveling direction of the vehicle or approxi-
mately 6 to 13 ft. (2 to 4 m) away from the vehicle.

●

Brake control

•

PKSB (Parking Support Brake) system is disabled.

•

Approximately 2 seconds have elapsed since the vehicle was stopped by brake
control.

•

The brake pedal is depressed after the vehicle is stopped by brake control.

•

The static object is no longer in the traveling direction of the vehicle or approxi-
mately 6 to 13 ft. (2 to 4 m) away from the vehicle.

■

Detection range

The detection range of the system differs from the detection range of the intuitive parking
assist.

6-2. Using the safe driving support functions

495

Driving suppor

t s

ystem

Therefore, even if the intuitive parking assist detects a static object and provides a
warning, the PKSB (Parking Support Brake) system may not start operating.

■

Intuitive parking assist sensor buzzer

Regardless of whether the intuitive parking assist sensor buzzer is enabled or not, if the

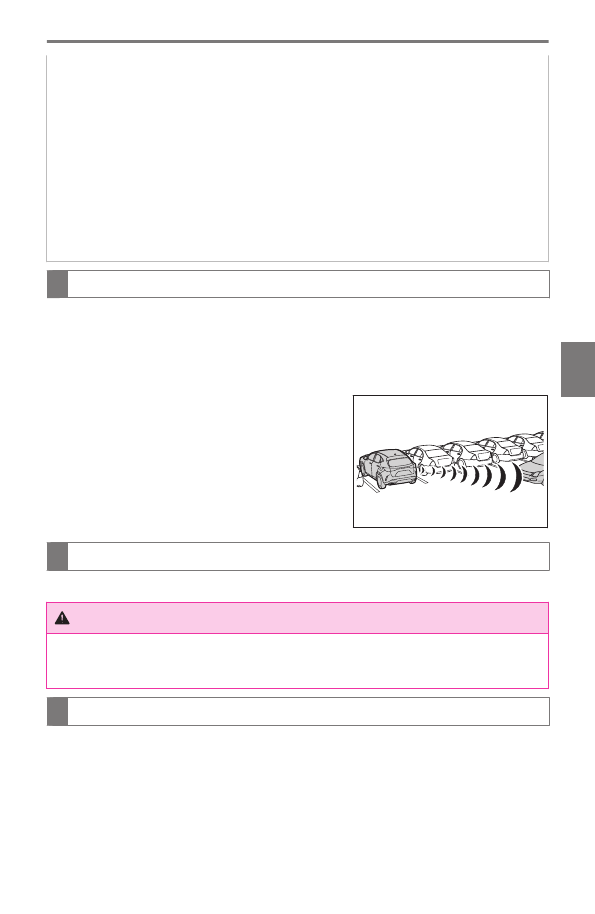

PKSB (Parking Support Brake) system is enabled, the front or rear sensors detect an
object and brake control is performed, the intuitive parking assist buzzer will sound to
notify the driver of the approximate distance to the object.

■

Situations in which the system may not operate properly

→

P.466

■

Situations in which the system may operate even if there is no possibility of a
collision

→

P.465

WARNING

■

If the PKSB (Parking Support Brake) system operates unnecessarily, such as at a
railroad crossing

→

P.490

Static Objects Front and Rear of the vehicle sensors

→

P.470

WARNING

■

To ensure the system can operate properly

→

P.465

■

Notes when washing the vehicle

→

P.470

Static Objects Front and Rear of the vehicle operation examples

The system operates in the following situations when a static object is detected in
the traveling direction of the vehicle.

6-2. Using the safe driving support functions

496

●

When the vehicle is traveling at a low speed
and the brake pedal is not depressed, or is de-
pressed late

●

When the accelerator pedal is depressed ex-
cessively

●

When the moves forward due to the incorrect
shift position being selected

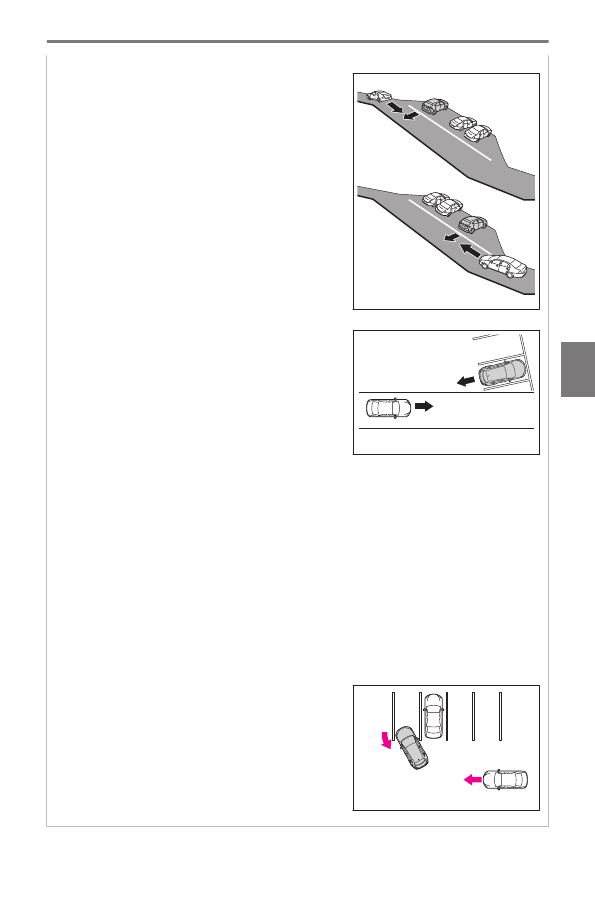

Moving Vehicles Rear of the Vehicle

If a rear radar sensor detects a vehicle approaching from the right or left at the rear
of the vehicle and the system determines that the possibility of a collision is high,
this function will perform brake control to reduce the likelihood of an impact with
the approaching vehicle.

* :

If equipped

6-2. Using the safe driving support functions

497

Driving suppor

t s

ystem

INFORMATION

■

The system will operate when

The function will operate when the driving assist information indicator is not illuminated
or flashing and all of the following conditions are met:

●

Hybrid system output restriction control

•

PKSB (Parking Support Brake) system is enabled.

•

The vehicle speed is 9 mph (15 km/h) or less.

•

Vehicles are approaching from the right or left at the rear of the vehicle at a
traveling speed of approximately 5 mph (8 km/h) or more.

•

The shift position is in R.

•

The PKSB (Parking Support Brake) determines that a stronger than normal brake
operation is necessary to avoid a collision with an approaching vehicle.

●

Brake control

•

Hybrid system output restriction control is operating.

•

The PKSB (Parking Support Brake) determines that an emergency brake operation
is necessary to avoid a collision with an approaching vehicle.

■

The system will stop operating when

The function will stop operating if any of the following conditions are met:

●

Hybrid system output restriction control

•

PKSB (Parking Support Brake) system is disabled.

•

The collision becomes avoidable with normal brake operation.

•

A vehicle is no longer approaching from the right or left at the rear of the vehicle.

●

Brake control

•

PKSB (Parking Support Brake) system is disabled.

•

Approximately 2 seconds have elapsed since the vehicle was stopped by brake
control.

•

The brake pedal is depressed after the vehicle is stopped by brake control.

•

A vehicle is no longer approaching from the right or left at the rear of the vehicle.

■

Detection range

The detection range of the system differs from the detection area of the RCTA function.
(

→

P.483

) Therefore, even if the RCTA function detects a vehicle and provides an alert,

the PKSB (Parking Support Brake) system may not start operating.

6-2. Using the safe driving support functions

498

■

RCTA buzzer

Regardless of whether the RCTA function is on or off, if the PKSB (Parking Support
Brake) system is not disabled, when the brake control operates, the buzzer will sound to
alert the driver.

■

Situations in which the system may not operate properly

→

P.477

■

Situations in which the system may operate even if there is no possibility of a
collision

→

P.477

Examples of the Moving Vehicles Rear of the Vehicle operation

This function will operate in situations such as the following if a vehicle is detected
in the traveling direction of the vehicle.

■

When reversing, a vehicle is approaching and the brake pedal is not de-
pressed, or is depressed late

Moving Vehicles Rear of the Vehicle sensors

→

P.453

WARNING

■

To ensure the system can operate properly

→

P.453

Pedestrians Rear of the Vehicle

If the rear camera sensor detects a pedestrian behind the vehicle while backing
up and the system determines that the possibility of colliding with the detected
pedestrian is high, a buzzer will sound. If the system determines that the possibility
of colliding with the detected pedestrian is extremely high, the brakes will be
applied automatically to help reduce the impact of the collision.

* :

If equipped

6-2. Using the safe driving support functions

499

Driving suppor

t s

ystem

INFORMATION

■

The system will operate when

●

The function will operate when the driving assist information indicator is not illuminat-
ed or flashing and all of the following conditions are met:

•

Hybrid system output restriction control

•

PKSB (Parking Support Brake) system is enabled.

•

The vehicle speed is approximately 9 mph (15 km/h) or less.

•

The shift position is in R.

•

The rear camera sensor detects a pedestrian behind the vehicle while backing
up and the system determines that the possibility of colliding with the detected
pedestrian is high.

•

The PKSB (Parking Support Brake) determines that a stronger-than-normal brake
operation is necessary to avoid a collision.

●

Brake control

•

Hybrid system output restriction control is operating.

•

The PKSB (Parking Support Brake) determines that an emergency brake operation
is necessary to avoid a collision with a pedestrians.

■

The system will stop operating when

The function will stop operating if any of the following conditions are met:

●

Hybrid system output restriction control

•

PKSB (Parking Support Brake) system is disabled.

•

The collision becomes avoidable with normal brake operation.

•

The pedestrian is no longer detected behind your vehicle.

●

Brake control

•

PKSB (Parking Support Brake) system is disabled.

•

Approximately 2 seconds have elapsed since the vehicle was stopped by brake
control.

•

The brake pedal is depressed after the vehicle is stopped by brake control.

●

The pedestrian is no longer detected behind your vehicle.

■

Detection range

The detection range of the system differs from the detection area of the RCTA function.
(

→

P.488

) Therefore, even if the RCTA function detects a vehicle and provides an alert,

the PKSB (Parking Support Brake) system may not start operating.

■

Situations in which the system may not operate properly

→

P.485

6-2. Using the safe driving support functions

500

■

Situations in which the system may operate unexpectedly

→

P.485

When a vehicle is detected behind the vehicle

When a pedestrian is detected behind the vehicle while backing up, the brake
pedal is not depressed or is depressed late.

Pedestrians Rear of the Vehicle display

Displays a message to urge the driver to take evasive action when a pedestrian
is detected in the detection area behind the vehicle. (A message will also be
displayed on the center display.)

Pedestrian detection icon

Brake reminder

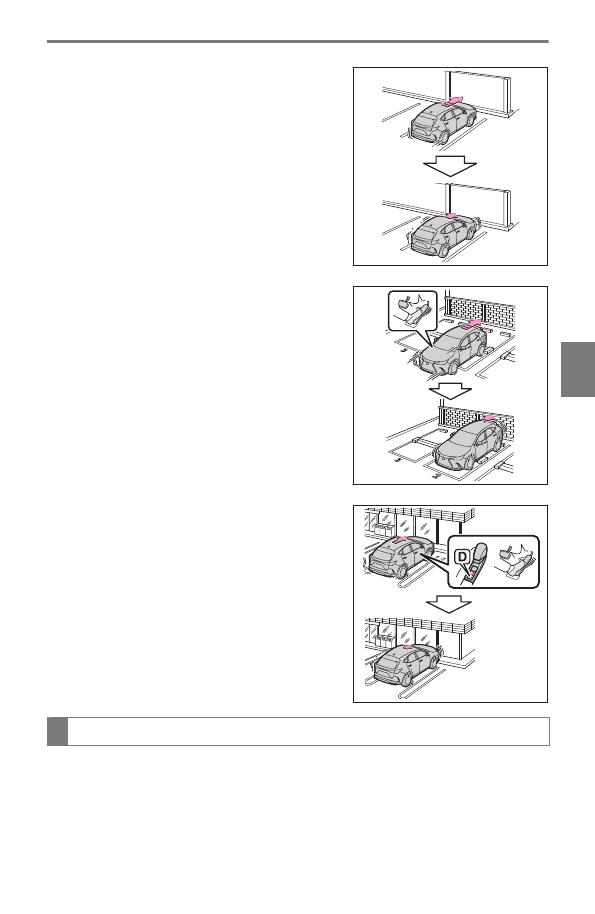

Static Objects Around the vehicle (Vehicles with Advanced Park)

While parking, if a sensor detects a surrounding stationary object, such as a wall,
with which a collision is likely, the system will operate to help avoid a collision or
reduce the impact of the collision.
The system will operate in the following situations when a stationary object is
detected in the surrounding area.

●

When moving forward and a collision with a stationary object on the inner side
of a turn is likely

* :

If equipped

6-2. Using the safe driving support functions

501

Driving suppor

t s

ystem

●

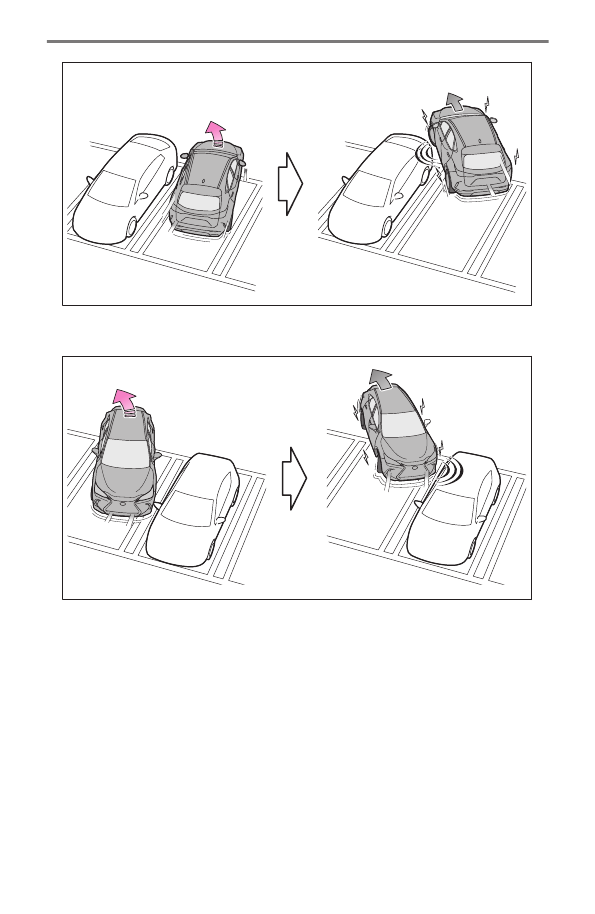

When reversing and a collision with a stationary object on the outer side of a
turn is likely

■

Operating conditions

This function is operable when any of the following conditions are met in addition to
the operating conditions for stationary objects in around the vehicle.

●

After the hybrid system has been started, the vehicle has moved approximately
23.0 ft. (7 m) or less

●

The R shift position is selected

●

After the shift position has been changed from R to D, the vehicle has moved
approximately 23.0 ft. (7 m) or less

■

The system will stop operating when

→

P.494

6-2. Using the safe driving support functions

502

Lexus NX450H+ (2024 year). Manual in english - page 15
