Decrease set vehicle speed

Short press adjustment : Press the switch
Long press adjustment : Press and hold the switch until the desired set vehicle speed
is reached.

The set vehicle speed will increase or decrease as follows:

For U.S.A.

Short press adjustment : Increases or decreases by 1 mph (1.6 km/h) each
time the switch is pressed
Long press adjustment : Increases or decreases in 1 mph (1.6 km/h) incre-
ments continuously while the switch is pressed and held

Except for U.S.A.

Short press adjustment : By 1 km/h (0.6 mph) or 1 mph (1.6 km/h) each time
the switch is pressed
Long press adjustment : Increases or decreases in 5 km/h (3.1 mph) or 5
mph (8 km/h) increments continuously while the switch is pressed and held

Increasing the set vehicle speed using the accelerator pedal

1

Depress the accelerator pedal to accelerate the vehicle to the desired vehicle
speed.

2

Press the [+] switch.

Canceling/resuming control

1

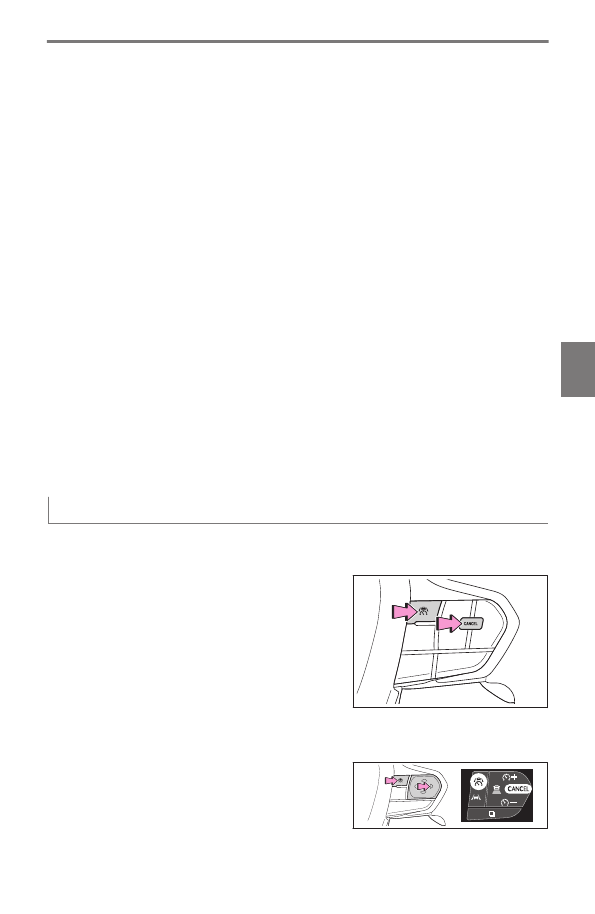

Press the cancel switch or driving assist
switch to cancel control.

Control will also be canceled if the brake pedal is
depressed.
(If the vehicle has been stopped by system control,
depressing the brake pedal will not cancel con-
trol.)

2

Press the [RES] switch to resume control.

▶

Vehicles without a head-up

display

▶

Vehicles with a head-up dis-

play

6-2. Using the safe driving support functions

439

6

Driving suppor

t s

ystem

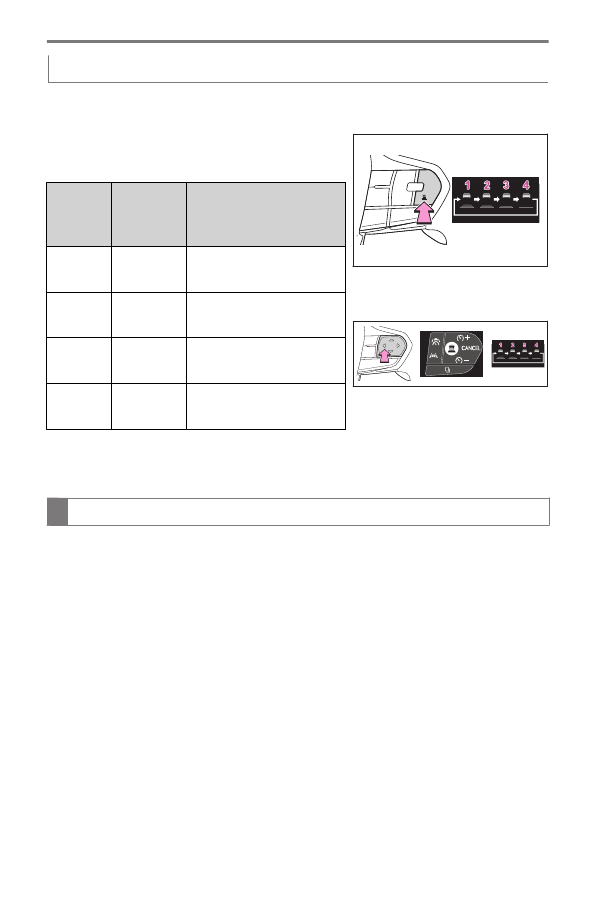

Changing the vehicle-to-vehicle distance

Each time the switch is pressed, the vehicle-to-
vehicle distance setting will change as follows:

If a preceding vehicle is detected, the preceding
vehicle mark will be displayed.

Illustra-
tion
Number

Vehicle-to-
vehicle dis-
tance

Approximate Distance
(Vehicle Speed: 60 mph
[100 km/h])

1

Extra long

Approximately 200 ft (60
m)

2

Long

Approximately 145 ft (45
m)

3

Medium

Approximately 100 ft (30
m)

4

Short

Approximately 85 ft (25
m)

The actual vehicle-to-vehicle distance varies in accordance with the vehicle speed. Also,
when the vehicle is stopped by system control, it will be stopped at a certain distance from
the preceding vehicle, depending on the situation, regardless of the setting.

Approach warning

In situations where the vehicle approaches a preceding vehicle and the system
cannot provide sufficient deceleration, such as if a vehicle cuts in front of the
vehicle, a warning display will flash and a buzzer will sound to alert the driver.
Depress the brake pedal to ensure appropriate vehicle-to-vehicle distance.

Warnings may not occur when

In the following situations, the warning may not operate even though the vehicle-
to-vehicle distance is short.

When the preceding vehicle is traveling at the same speed or faster than your
vehicle

When the preceding vehicle is traveling at an extremely low speed

Immediately after the vehicle speed has been set

When the accelerator pedal is depressed

▶

Vehicles without a head-up

display

▶

Vehicles with a head-up dis-

play

6-2. Using the safe driving support functions

440

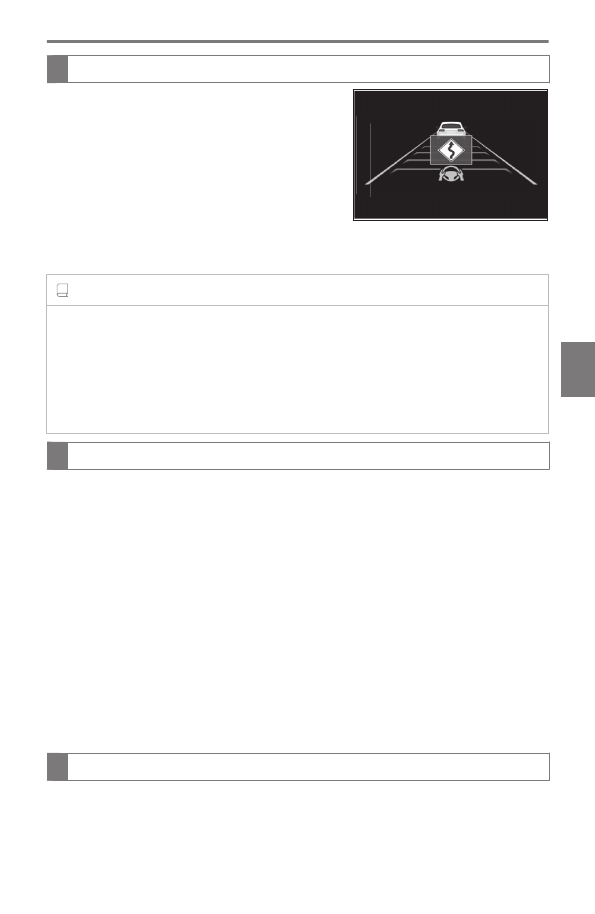

Curve speed reduction function

When a curve is detected, the vehicle speed will
begin being reduced. When the curve ends, the
vehicle speed reduction will end.

Depending on the situation, the vehicle speed will
then return to the set vehicle speed.
In situations where vehicle-to-vehicle distance control
needs to operate, such as when a preceding vehicle
cuts in front of your vehicle, the curve speed reduction
function will be canceled.

INFORMATION

Situations in which the curve speed reduction function may not operate

In situations such as the following, the curve speed reduction function may not operate:

When the vehicle is being driven around a gentle curve

When the accelerator pedal is being depressed

When the vehicle is being driven around an extremely short curve

Support for lane change

If your vehicle is being driven at approximately 50 mph (80 km/h) or more and
a lane change to the passing lane is performed, when the turn signal lever is
operated and the lane is changed, the vehicle will accelerate up to the set speed to
assist in overtaking.

The system’s recognition of which lane is the passing lane may be based solely on the
location of the steering wheel in the vehicle (left-hand drive/right-hand drive). If the vehicle
is driven in a location where the passing lane is on the opposite side of that where
the vehicle was originally sold, the vehicle may accelerate when the turn signal lever is
operated away from the passing lane. (e.g. The vehicle was manufactured for a right-hand
traffic location, but is being driven in a left-hand traffic location. The vehicle may accelerate
when the turn signal lever is operated to the right.)
If your vehicle is being driven at approximately 50 mph (80 km/h) or more and the lane is
changed to that with a vehicle traveling slower than your vehicle, when the turn signal lever
is operated the vehicle will gradually decelerate to assist in changing lanes.

Changing Dynamic radar cruise control settings

The settings of Dynamic radar cruise control can be changed through customize
settings.

 P.793

6-2. Using the safe driving support functions

441

6

Driving suppor

t s

ystem

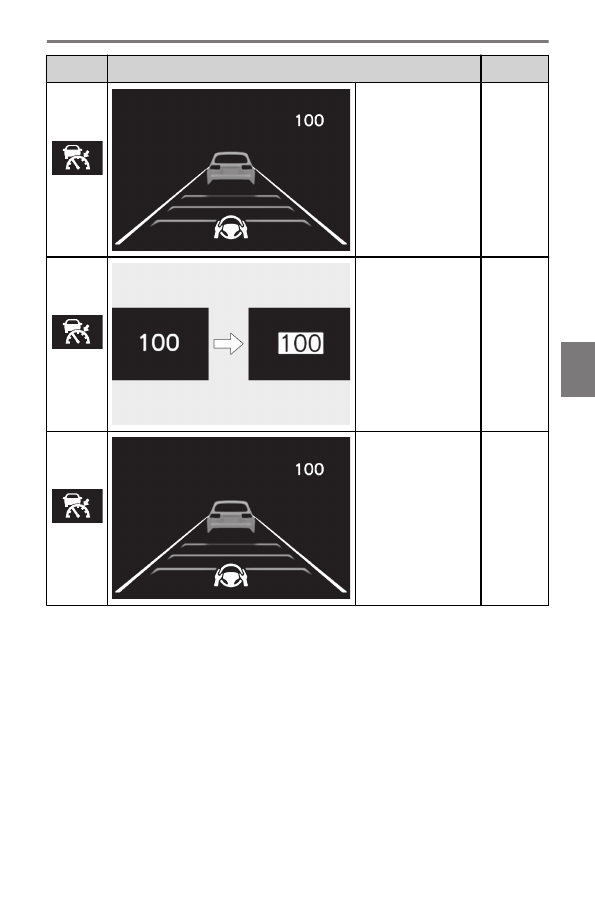

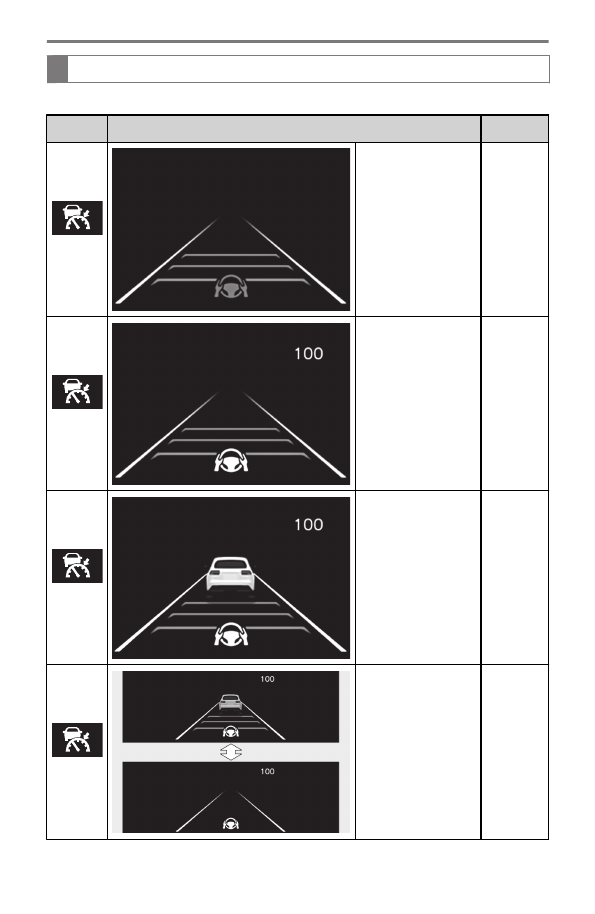

Display and system operation state

The operating state of Dynamic radar cruise control is indicated.

Indicator

Multi-information display

Situation

White

Vehicle-to-vehicle
distance setting:
Grey

Dynamic
radar
cruise
control
being
OFF

Green

Vehicle-to-vehicle
distance setting:
Blue
Set vehicle speed:
Green



Constant
speed
cruising

Green

Vehicle-to-vehicle
distance setting:
Blue
Set vehicle speed:
Green
Preceding vehicle:
White

Follow-up
cruising

Green

Vehicle-to-vehicle
distance setting: Or-
ange flashing
Set vehicle speed:
Green
Preceding vehicle:
Orange flashing

Approach
warning

6-2. Using the safe driving support functions

442

Indicator

Multi-information display

Situation

Green

Vehicle-to-vehicle
distance setting:
Grey
Set vehicle speed:
White
Preceding vehicle:
Grey

Acceler-
ating with
the accel-
erator
pedal

Green

Set vehicle speed:
Green in reverse
display

Set vehi-
cle speed
being ex-
ceeded

Green

Vehicle-to-vehicle
distance setting:
Grey
Set vehicle speed:
White
Preceding vehicle:
Grey

Vehicle in
controlled
stop

6-2. Using the safe driving support functions

443

6

Driving suppor

t s

ystem

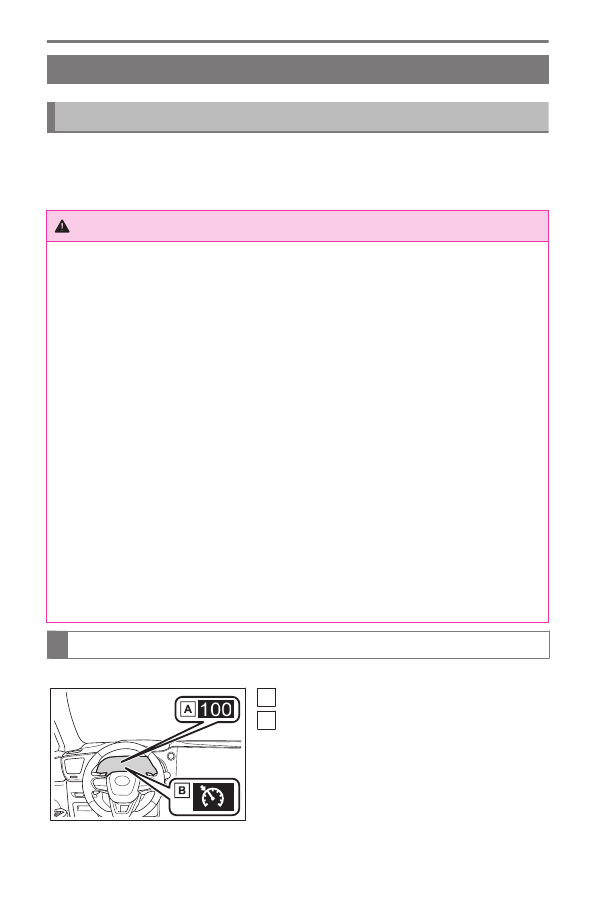

Cruise Control

Cruise control

The vehicle can be driven at a set speed even if the accelerator pedal is not
depressed.
Use the cruise control only on highways and expressways

WARNING

For safe use

Driving safely is solely the responsibility of the driver. Therefore, do not overly rely
on this system. The driver is solely responsible for paying attention to the vehicle’s
surroundings and driving safely.

Set the speed appropriately according to the speed limit, traffic flow, road conditions,
weather conditions, etc. The driver is responsible for confirming the set speed.

Situations in which cruise control should not be used

Do not use the cruise control in the following situations. As the system will not be able to
provide appropriate control, using it may lead to an accident resulting in death or serious
injury.

On roads with sharp bends

On winding roads

On slippery roads, such as those covered with rain, ice or snow

On steep downhills, or where there are sudden changes between sharp up and down
gradients
Vehicle speed may exceed the set speed when driving down a steep hill.

When it is necessary to disable the system:

 P.384

System Components

Meter display



A

Set vehicle speed

B

Cruise control indicator

6-2. Using the safe driving support functions

444

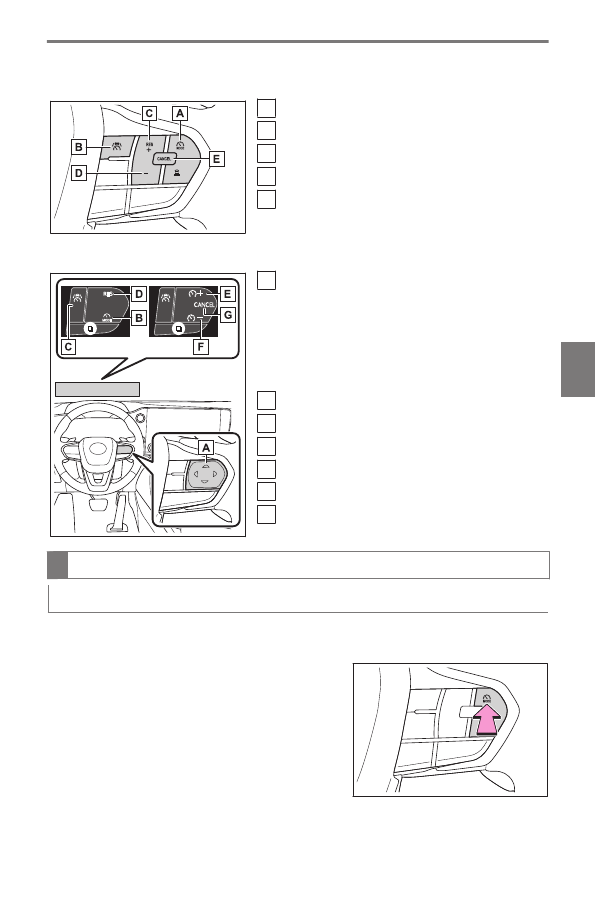

Switches



▶

Vehicles without a head-up display:

A

Driving assist mode select switch

B

Driving assist switch

C

[+] switch, [RES] switch

D

[ - ]switch

E

Cancel switch



▶

Vehicles with a head-up display:

A

The function of each switch differs depend-
ing on the conditions and settings.

When a switch is touched, the function of each
switch is displayed on the head-up display. If
the head-up display is off, the functions will be
displayed on the multi-information display.

B

Driving assist mode select switch

C

Driving assist switch

D

[RES]switch

E

[ + ]switch

F

[ - ]switch

G

Cancel switch

Using the cruise control

Setting the vehicle speed

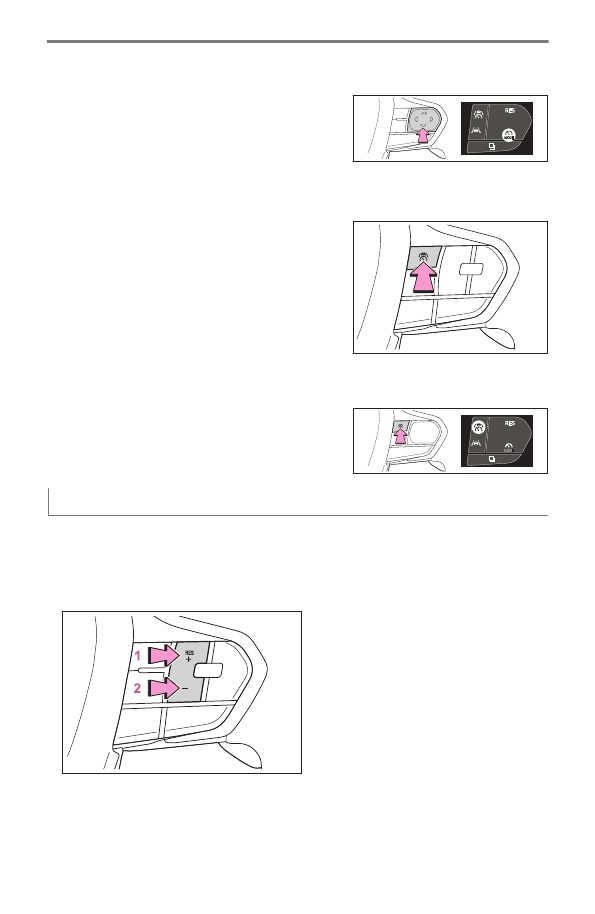

1

Press the driving assist mode select switch to
select cruise control.

The cruise control indicator will illuminate.

▶

Vehicles without a head-up

display

6-2. Using the safe driving support functions

445

6

Driving suppor

t s

ystem

2

Using the accelerator pedal, accelerate to
the desired vehicle speed (approximately 20
mph [30 km/h] or more), and press the driv-
ing assist switch to set the set vehicle speed.

The vehicle speed at the moment the switch is re-
leased will be the set vehicle speed.

Adjusting the set vehicle speed

Adjusting the set vehicle speed using the switches

To change the set vehicle speed, press the[ + ] switch or [ - ] switch until the
desired speed is displayed.

▶

Vehicles without a head-up display

▶

Vehicles with a head-up dis-

play

▶

Vehicles without a head-up

display

▶

Vehicles with a head-up dis-

play

6-2. Using the safe driving support functions

446

▶

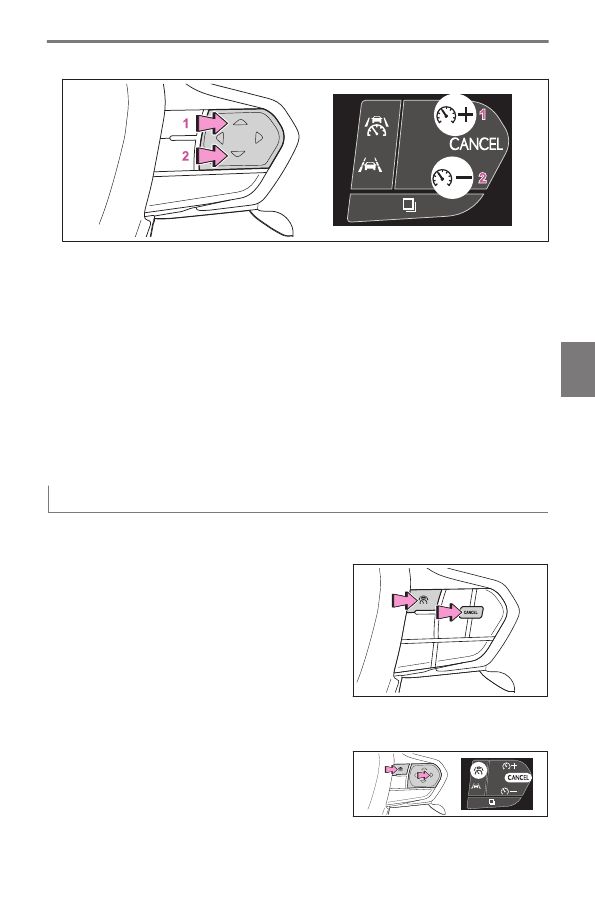

Vehicles with a head-up display

1

Increase set vehicle speed

2

Decrease set vehicle speed

The set vehicle speed will increase or decrease as follows:

Fine adjustment: By 1 mph (1.6 km/h) or 1 km/h (0.6 mph) each time the switch
is pressed
Large adjustment: Increases continuously while the switch is pressed and held

Increasing the set vehicle speed using the accelerator pedal

1

Depress the accelerator pedal to accelerate the vehicle to the desired vehicle
speed.

2

Press the [ + ] switch.

Canceling/resuming control

1

Press the cancel switch or driving assist
switch to cancel control.

Control will also be canceled if the brake pedal is
depressed.

2

Press the [RES] switch to resume control.

▶

Vehicles without a head-up

display

▶

Vehicles with a head-up dis-

play

6-2. Using the safe driving support functions

447

6

Driving suppor

t s

ystem

INFORMATION

Automatic cancellation of the cruise control

In the following situations, the cruise control will be canceled automatically:

When the vehicle speed drops approximately 10 mph (16 km/h) or more below
the set vehicle speed

When the vehicle speed drops below approximately 20 mph (30 km/h)

When the brake control or output restriction control of a driving support system
operates (For example: PCS, drive-start control)

When the parking brake has been operated

Situations in which some or all of the functions of the system cannot operate:

 P.391

Display and system operation state

The operating state of cruise control is indicated.

Indicator

Multi-information display

Situation

White

Blank

Cruise con-
trol being
OFF

Green

Set vehicle
speed: Green



Constant
speed cruis-
ing

6-2. Using the safe driving support functions

448

Indicator

Multi-information display

Situation

Green

Set vehicle
speed: Green in
reverse display

Set vehicle
speed being
exceeded

6-2. Using the safe driving support functions

449

6

Driving suppor

t s

ystem

Emergency Driving Stop System

Emergency Driving Stop System

The emergency driving stop system is a system which automatically decelerates
and stops the vehicle within its lane if the driver becomes unable to continue
driving the vehicle, such as if they have suffered a medical emergency, etc.
During LTA (Lane Tracing Assist) control, if the system does not detect driving
operations, such as if the driver is not holding the steering wheel, and determines
the driver is not responsive, the vehicle will be decelerated and stopped within its
current lane to help avoid a collision or reduce the impact of a collision.

WARNING

For safe use

Driving safely is solely the responsibility of the driver. Pay careful attention to the
surrounding conditions in order to ensure safe driving. The emergency driving stop
system is designed to provide support in an emergency where it is difficult for the
driver to continue driving, such as if they have had a medical emergency. It is not
designed to support driving while drowsy or in poor physical health, or inattentive
driving.

Although the emergency driving stop system is designed to decelerate the vehicle
within its lane to help avoid or help reduce the impact of a collision if the system
determines that it is difficult for the driver to continue driving, its effectiveness may
change according to various conditions. Therefore, it may not always be able to
achieve the same level of performance. Also, if the operating conditions are not met,
this function will not operate.

After the emergency driving stop system operates, if driving becomes possible again,
immediately begin driving again or, if necessary, park the vehicle on the shoulder of
the road and set a warning reflector and flare to warn other drivers of your stopped
vehicle.

After this system operates, passengers should attend to the driver as necessary and
take appropriate hazard prevention measures, such as moving to a place where safety
can be ensured, such as the shoulder of the road or behind a guardrail.

This system detects the condition of the driver through the operation of the steering
wheel. This system may operate if the driver is aware but intentionally and continuously
does not operate the vehicle. Also, the system may not operate if it cannot determine
that the driver is not responsive, such as if they are leaning on the steering wheel.

6-2. Using the safe driving support functions

450

Summary of the system

Operation of this system is separated into 4 control states. Through control state
"warning phase 1" and "warning phase 2", the system determines if the driver
is aware and responsive while outputting a warning and controlling the vehicle
speed. If the system determines the driver is not responsive, it will operate in
control state "deceleration stop phase" and "stop hold phase" and decelerate and
stop the vehicle. It will then operate continuously in "stop hold phase".

INFORMATION

Operating conditions

This system operates when all of the following conditions are met:

When the LTA is on

When the vehicle speed is approximately 30 mph (50 km/h) or more

Operation cancelation conditions

In the following situations, system operation will be canceled:

When LTA control has been canceled (the LTA switch has been pressed, etc.)

When the dynamic radar cruise control has been canceled

When driver operations are detected (the steering wheel is held, the brake pedal,
accelerator pedal, parking brake, hazard light switch, or turn signal lever is operated)

When the driving assist switch is pressed while in the stop and hold phase

When the power switch has been turned from ON to OFF

Situations in which some or all of the functions of the system cannot operate:

 P.391

LTA control when operation is canceled

When emergency driving stop system operation is canceled, LTA control may also be
canceled.

Warning phase 1

If driving operations are not detected after the hands off steering wheel warning
operates, a buzzer will sound intermittently and a message will be displayed to
warn the driver, and the system will judge if the driver is responsive or not. If driving
operations, such as holding the steering wheel, are not performed within a certain
amount of time, the system will enter warning phase 2.

Warning phase 2

After entering warning phase 2, a buzzer will sound in short intervals and a
message will be displayed to warn the driver, and the vehicle will slowly decelerate.

6-2. Using the safe driving support functions

451

6

Driving suppor

t s

ystem

If driving operations, such as holding the steering wheel, are not performed within
a certain amount of time, the system will determine that the driver is not responsive
and enter the deceleration stop phase.

The audio system will be muted until the driver becomes responsive.
When the vehicle is decelerating, the brake lights may illuminate, depending on the road
conditions, etc.

Deceleration stop phase

After entering the deceleration stop phase, a buzzer will sound continuously and a
message will be displayed to warn the driver, and the vehicle will slowly decelerate
and stop. After the vehicle stops, the system will enter the stop and hold phase.

Stop hold phase

After the vehicle is stopped, the parking brake will be applied automatically. After
entering the stop and hold phase, the buzzer will continue sounding continuously
and the emergency flashers (hazard lights) will flash to warn other drivers of the
emergency.

INFORMATION

Restricted functions after the operation is canceled

After shifting to the deceleration stop phase, the following functions will not be available
until the hybrid system is re-started even though the emergency driving stop system is
canceled:

LTA

LCA

*

* :

If equipped

6-2. Using the safe driving support functions

452

Blind Spot Monitor

 Related Links

Customizable features(P. 783)

Purpose of the Blind Spot Monitor

The Blind Spot Monitor is a system that uses rear side radar sensors installed on
the inner side of the rear bumper on the left and right side to assist the driver in
confirming safety when changing lanes.

WARNING

Cautions regarding the use of the system

The driver is solely responsible for safe driving. Always drive safely, taking care to
observe your surroundings.
The Blind Spot Monitor is a supplementary function which alerts the driver that a vehicle
is in a blind spot of the outside rear view mirrors or is approaching rapidly from behind
into a blind spot. Do not overly rely on the Blind Spot Monitor. As the function cannot
judge if it is safe to change lanes, over reliance could lead to an accident resulting in
death or serious injury.
As the system may not function correctly under certain conditions, the driver’s own visual
confirmation of safety is necessary.

INFORMATION

Conditions under which the system will not detect a vehicle

The Blind Spot Monitor is not designed to detect the following types of vehicles and/or
objects:

Small motorcycles, bicycles, pedestrians, etc.

*1

Vehicles traveling in the opposite direction

Guardrails, walls, signs, parked vehicles and similar stationary objects

*1

Following vehicles that are in the same lane

*1

Vehicles traveling 2 lanes away from your vehicle

*1

Vehicles which are being overtaken rapidly by your vehicle

*1

*1 :

Depending on the conditions, detection of a vehicle and/or object may occur.

6-2. Using the safe driving support functions

453

6

Driving suppor

t s

ystem

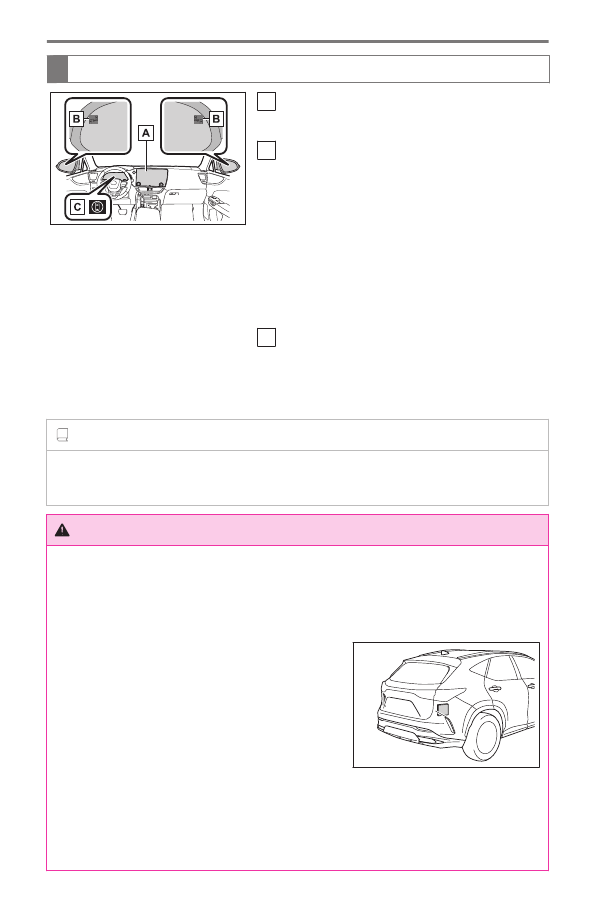

System components



A

Center display
Turning the Blind Spot Monitor on/off.

B

Outside rear view mirror indicators
When a vehicle is detected in a blind
spot of the outside rear view mirrors or ap-
proaching rapidly from behind into a blind
spot, the outside rear view mirror indicator
(

 P.330

) on the detected side will illumi-

nate. If the turn signal lever is operated
toward the detected side, the outside rear
view mirror indicator flashes.

C

Driving assist information indicator
Illuminates when the Blind Spot Monitor is
turned off. At this time, a message will be
displayed on the multi-information display.

INFORMATION

Outside rear view mirror indicator visibility

In strong sunlight, the outside rear view mirror indicator may be difficult to see.

WARNING

To ensure the system can operate properly

Blind Spot Monitor sensors are installed behind the left and right sides of the rear bumper
respectively. Observe the following to ensure the Blind Spot Monitor can operate
correctly.

Keep the sensors and the surrounding areas on
the rear bumper clean at all times.
If a sensor or its surrounding area on the rear
bumper is dirty or covered with snow, the Blind
Spot Monitor may not operate and a warning
message will be displayed. In this situation, clear
off the dirt or snow and drive the vehicle with the
operation conditions of the BSM function
(

 P.456

) satisfied for approximately 10 minutes. If the warning message does not

disappear, have the vehicle inspected by your Lexus dealer.

Do not attach accessories, stickers (including transparent stickers), aluminum tape,
etc., to a sensor or its surrounding area on the rear bumper.

6-2. Using the safe driving support functions

454

WARNING

Do not subject a sensor or its surrounding area on the rear bumper to a strong impact.
If a sensor is moved even slightly off position, the system may malfunction and vehicles
may not be detected correctly. In the following situations, have your vehicle inspected
by your Lexus dealer.

A sensor or its surrounding area is subject to a strong impact.

If the surrounding area of a sensor is scratched or dented, or part of them has
become disconnected.

Do not disassemble the sensor.

Do not modify the sensor or surrounding area on the rear bumper.

If a sensor or the rear bumper needs to be removed/installed or replaced, contact
your Lexus dealer.

Do not paint the rear bumper any color other than an official Lexus color.

Vehicles that can be detected by the Blind Spot Monitor

The Blind Spot Monitor uses rear side radar sensors to detect the following
vehicles traveling in adjacent lanes and advises the driver of the presence of such
vehicles via the indicators on the outside rear view mirrors.

A

Vehicles that are traveling in areas that are not visible using the outside rear
view mirrors (the blind spots)

B

Vehicles that are approaching rapidly from behind in areas that are not visible
using the outside rear view mirrors (the blind spots)

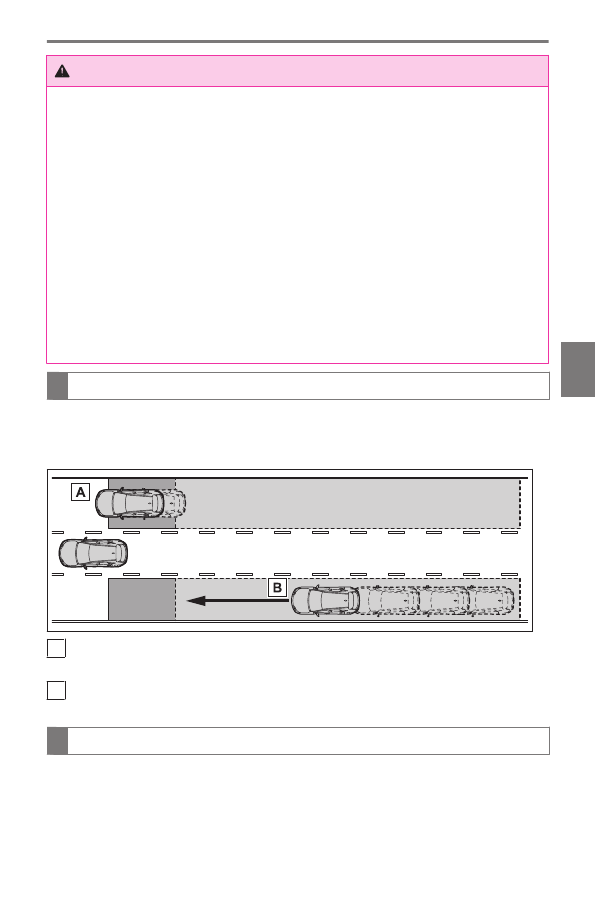

The Blind Spot Monitor detection areas

The areas that vehicles can be detected in are outlined below.

6-2. Using the safe driving support functions

455

6

Driving suppor

t s

ystem

The range of each detection area is:

A

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of the vehicle

*2

B

Approximately 3.3 ft. (1 m) forward of the rear bumper

C

Approximately 9.8 ft. (3 m) from the rear bumper

D

Approximately 9.8 ft. (3 m) to 197 ft. (60 m) from the rear bumper

*3

Turning the Blind Spot Monitor system ON/OFF

The Blind Spot Monitor system can be changed between ON and OFF on the
center display.

1

Select

 .

2

Select [Driving assist] .

3

Select [Blind spot monitor] .

When the Blind Spot Monitor is off, the driving assist information indicator
(

 P.330

) will illuminate and a message will be displayed on the multi-information

display.
Each time the power switch is turned to ON, the Blind Spot Monitor is enabled.

INFORMATION

The Blind Spot Monitor is operational when

The Blind Spot Monitor is operational when all of the following conditions are met:

The power switch is in ON.

The Blind Spot Monitor is on.

The shift position is in a position other than R.

*2 :

The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side of the vehicle

cannot be detected.

*3 :

The greater the difference in speed between your vehicle and the detected vehicle

is, the farther away the vehicle will be detected, causing the outside rear view mirror

indicator to illuminate or flash.

6-2. Using the safe driving support functions

456

The vehicle speed is greater than approximately 7 mph (10 km/h).

The Blind Spot Monitor will detect a vehicle when

The Blind Spot Monitor will detect a vehicle present in the detection area in the following
situations:

A vehicle in an adjacent lane overtakes your vehicle.

You overtake a vehicle in an adjacent lane slowly.

Another vehicle enters the detection area when it changes lanes.

Conditions under which the system may not function correctly

The Blind Spot Monitor may not detect vehicles correctly in the following situations:

When the sensor is misaligned due to a strong impact to the sensor or its surround-
ing area

When mud, snow, ice, a sticker, etc., is covering the sensor or surrounding area on
the rear bumper

When driving on a road surface that is wet with standing water during bad weather,
such as heavy rain, snow, or fog

When multiple vehicles are approaching with only a small gap between each
vehicle

When the distance between your vehicle and a following vehicle is short

When there is a significant difference in speed between your vehicle and the
vehicle that enters the detection area

When the difference in speed between your vehicle and another vehicle is chang-
ing

When a vehicle enters a detection area traveling at about the same speed as your
vehicle

As your vehicle starts from a stop, a vehicle remains in the detection area

When driving up and down consecutive steep inclines, such as hills, dips in the road,
etc.

When driving on roads with sharp bends, consecutive curves, or uneven surfaces

When vehicle lanes are wide, or when driving on the edge of a lane, and the vehicle
in an adjacent lane is far away from your vehicle

When an accessory (such as a bicycle carrier) is installed to the rear of the vehicle

When there is a significant difference in height between your vehicle and the
vehicle that enters the detection area

Immediately after the Blind Spot Monitor is turned on

When towing with the vehicle

6-2. Using the safe driving support functions

457

6

Driving suppor

t s

ystem

Instances of the Blind Spot Monitor unnecessarily detecting a vehicle and/or object
may increase in the following situations:

When the sensor is misaligned due to a strong impact to the sensor or its surround-
ing area

When the distance between your vehicle and a guardrail, wall, etc., that enters the
detection area is short

When driving up and down consecutive steep inclines, such as hills, dips in the road,
etc.

When vehicle lanes are narrow, or when driving on the edge of a lane, and a vehicle
traveling in a lane other than the adjacent lanes enters the detection area

When driving on roads with sharp bends, consecutive curves, or uneven surfaces

When the tires are slipping or spinning

When the distance between your vehicle and a following vehicle is short

When an accessory (such as a bicycle carrier) is installed to the rear of the vehicle

When towing with the vehicle

6-2. Using the safe driving support functions

458

Safe Exit Assist

 Related Links

Customizable features(P. 783)

Purpose of the Safe Exit Assist

The Safe Exit Assist (with door opening control) is a system that uses radar sensors
installed on the inner side of the rear bumper to help occupants judge if an
approaching vehicle or bicycle may collide with a door when opening it or cancel
opening of a door, to reduce the possibility of a collision.

WARNING

Cautions regarding the use of the system

The driver is solely responsible for safe driving. Always drive safely, taking care to
observe your surroundings. The safe exit assist is a supplementary system that, when
the vehicle is stopped, informs occupants of the existence of approaching vehicles
and bicycles. As this system alone cannot be used to judge safety, over-reliance on
this system may lead to an accident resulting in death or serious injury. In certain
situations, this system may not function to its fullest extent. Therefore it is necessary for
the occupants to visually check for safety directly and using the mirrors.

INFORMATION

Conditions under which the system will not detect a vehicle

Safe Exit Assist does not detect the following objects, vehicles, and bicycles:

Vehicles or bicycles which are approaching slowly

*1

Vehicles or bicycles which are determined to have a low possibility of colliding with
a door (other than the back door) when opened

*1

Vehicles or bicycles which are approaching from directly behind

*1

Vehicles or bicycles which are approaching from the front

*1

Guardrails, walls, signs, parked vehicles, and other stationary objects

*1

Pedestrians, animals, etc.

*1

In situations such as the following, Safe Exit Assist will not operate:

When 3 minutes or more have elapsed since the hybrid system was stopped (the
time which operation is possible may be extended if a door is opened and closed)

When your vehicle is not completely stopped

*1 :

Depending on the conditions, detection of a vehicle and/or object may occur.

6-2. Using the safe driving support functions

459

6

Driving suppor

t s

ystem

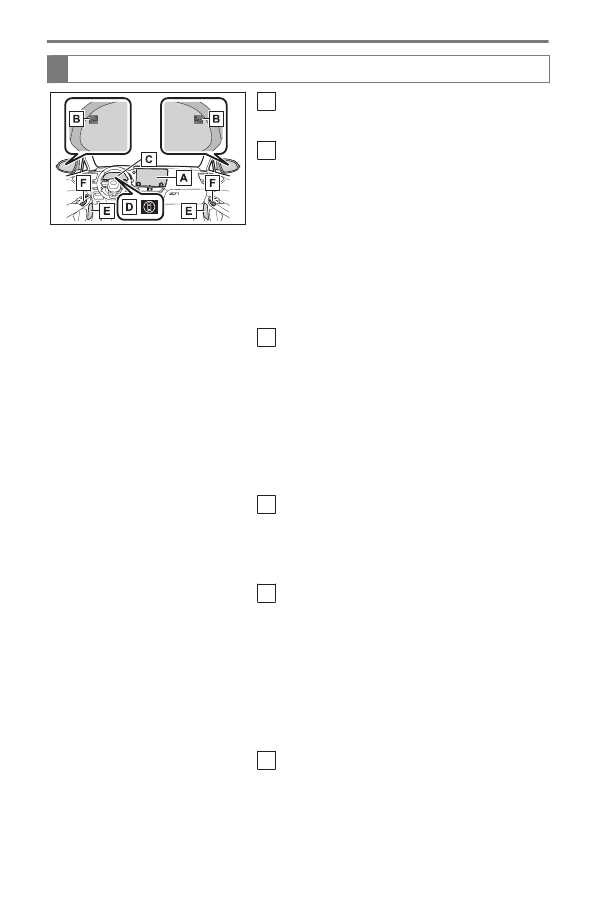

System components



A

Center display
Turning the Safe Exit Assist on/off.

B

Outside rear view mirror indicators
When a vehicle or bicycle which may col-
lide with a door (other than the back door)
when opened is detected, the outside rear
view mirror indicator (

 P.330

) on the de-

tected side will illuminate. If the door on
the detected side is open, or opening of
the door is canceled, the outside rear view
mirror indicator will blink.

C

Multi-information display
If collision with a door is likely and the
door is opened or opening of the door is
canceled, the door will be displayed on the
multi-information display. Also, if a door is
opened when an outside rear view mirror
indicator is illuminated, a buzzer will sound
as a warning.

D

Driving assist information indicator
Illuminates when the safe exit assist is turned
off. At this time, a message will be displayed
on the multi-information display.

E

Speakers
When the outside rear view mirror indicator
blinks, the driver is informed through voice
guidance that the system has operated. Af-
ter the notification through voice guidance
is made, no more voice guidance notifica-
tions will be made again until the door is
fully closed.

F

Door opener switch (manual release han-
dle)
If a door opener switch is operated to open
a door while the outside rear view mirror

6-2. Using the safe driving support functions

460

indicator on that side is illuminated, opening
of the door will be canceled.

INFORMATION

Outside rear view mirror indicator visibility

In strong sunlight, the outside rear view mirror indicator may be difficult to see.

Buzzer

If the volume setting of the audio system is high or the surrounding area is loud, it may be
difficult to hear the buzzer.

Voice notifications

In the following situations, voice notifications will not be output:

After opening a door and entering the vehicle, until the hybrid system is started

When 3 minutes or more have elapsed since the hybrid system was stopped

When the language setting of the center display has been set to a language that does
not support voice notifications

When all of the doors have been locked from outside the vehicle

When a door remains open for 1 minute or more after the hybrid system is stopped

When ACC mode (

 P.781

) has been enabled through a customize setting on the

center display and the hybrid system has been stopped

When the parking assist volume setting on the center display has been set to off

Opening of a door can be canceled when

Opening of a door can be canceled only when the inside door opener switch is pushed
in. Opening of a door will not be able to be canceled when the outside door opener
switch is used.

WARNING

To ensure the system can operate properly

 P.460

Vehicles that can be detected by the Safe Exit Assist

When the Safe Exit Assist detects the following vehicles or bicycles using a rear
side radar sensor, the occupants of the vehicle are informed through an outside
rear view mirror indicator, buzzer, multi-information display, head-up display, and
voice notification.

6-2. Using the safe driving support functions

461

6

Driving suppor

t s

ystem

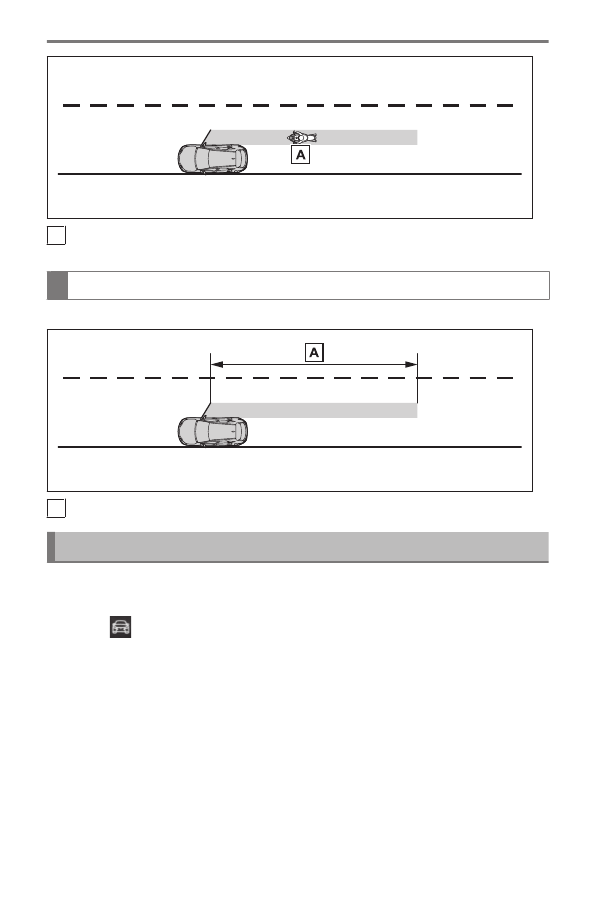

A

A Vehicle or bicycle which has a high possibility of colliding with a door (other
than the back door) when opened

The Safe Exit Assist detection areas

The areas that vehicles can be detected in are outlined below.

A

Approximately 145 ft. (45 m) rearward from the front door

*2

Turning the Safe Exit Assist system ON/OFF

The Safe Exit Assist system can be changed between ON and OFF on the center
display.

1

Select

 .

2

Select [Driving assist] .

3

Select [Safe exit assist] .

When the Safe Exit Assist function is disabled, the driving assist information
indicator illuminates.
Each time the power switch is turned off then changed to ON, the Safe Exit Assist
will be enabled automatically.

*2 :

The faster a vehicle or bicycle is approaching, the distance at which an outside rear

view mirror indicator will illuminate or blink will become further.

6-2. Using the safe driving support functions

462

INFORMATION

The Safe Exit Assist is operational when

The Safe Exit Assist is operational when all of the following conditions are met:

When the hybrid system is running, less than 3 minutes have elapsed since the hybrid
system was stopped, or less than 3 minutes have elapsed since a door was opened
and someone has entered the vehicle (the time which operation is possible may be
extended if a door is opened and closed)

Safe Exit Assist is on

The vehicle is stopped.

The shift position is in a position other than R.

The Safe Exit Assist will detect a vehicle when

The Safe Exit Assist will detect a vehicle present in the detection area in the following
situations:
When the vehicle is stopped and a vehicle or bicycle, which is traveling parallel to the
vehicle, is approaching within the area that a door opens (other than the back door)

Opening the doors when opening is canceled by the system

Perform the following operation to open a door.
After the approaching vehicle or bicycle passes or changes direction, check the sur-
rounding area and press the door opener switch again.

Press and hold an inside door opener switch for approximately 3 seconds or more

 P.460

Press an inside door opener switch quickly 3 times or more

Pull a manual release handle

Conditions under which the system may not function correctly

The Safe Exit Assist may not detect vehicles correctly in the following situations:

When the sensor is misaligned due to a strong impact to the sensor or its surround-
ing area

When mud, snow, ice, a sticker, etc., is covering the sensor or surrounding area on
the rear bumper

When driving on a road surface that is wet with standing water during bad weather,
such as heavy rain, snow, or fog

When a vehicle or bicycle approaches from behind a nearby parked vehicle

When an approaching vehicle or bicycle suddenly changes direction

Immediately after a vehicle or bicycle starts moving

When the back door is open

6-2. Using the safe driving support functions

463

6

Driving suppor

t s

ystem

When a bicycle carrier, ramp, or other accessory is installed to the back of the
vehicle

When a parked vehicle, wall, sign, person or other stationary object is behind the
vehicle

When the vehicle is stopped at an angle to the road

When a vehicle is traveling near an approaching vehicle or bicycle

When an approaching vehicle or bicycle is traveling along a stationary object, such
a wall or sign

When a vehicle or bicycle is approaching at high speed

When towing with the vehicle

When stopped on a steep slope

When stopped on a curve or at the exit of a curve

Instances of the Safe Exit Assist unnecessarily detecting a vehicle and/or object may
increase in the following situations:

When the sensor is misaligned due to a strong impact to the sensor or its surround-
ing area

When a vehicle or bicycle approaches from behind your vehicle at an angle

When the vehicle is stopped at an angle to the road

When a vehicle or bicycle approaches from behind a parked vehicle at an angle

When a parked vehicle, wall, sign, person or other stationary object is behind the
vehicle

When an approaching vehicle or bicycle suddenly changes direction

When an approaching vehicle or bicycle is traveling along a stationary object, such
a wall or sign

When the back door is open

When a bicycle carrier, ramp, or other accessory is installed to the back of the
vehicle

When a vehicle or bicycle is approaching at high speed

When towing with the vehicle

When stopped on a steep slope

When stopped on a curve or at the exit of a curve

6-2. Using the safe driving support functions

464

Intuitive parking assist

*

Purpose of the intuitive parking assist

The distance from your vehicle to nearby obstacles when parallel parking or
maneuvering into a garage is measured by the sensors and communicated via the
displays and a buzzer. Always check the surrounding area when using this system.

WARNING

Cautions regarding the use of the system

There is a limit to the degree of recognition accuracy and control performance that this
system can provide, do not overly rely on this system. The driver is always responsible for
paying attention to the vehicle’ surroundings and driving safely.

To ensure the system can operate properly

Observe the following precautions. Failing to do so may result in the vehicle being unable
to be driven safely and possibly cause an accident.

Do not damage the sensors, and always keep them clean.

Do not attach a sticker or install an electronic component, such as a backlit license
plate (especially fluorescent type), fog lights, fender pole or wireless antenna near a
radar sensor.

Do not subject the surrounding area of the sensor to a strong impact. If subjected to
an impact, have the vehicle inspected by your Lexus dealer. If the front or rear bumper
needs to be removed/installed or replaced, contact your Lexus dealer.

Do not modify, disassemble or paint the sensors.

Do not attach a license plate cover.

Keep your tires properly inflated.

When to disable the function

In the following situations, disable the function as it may operate even though there is no
possibility of a collision.

Failing to observe the warnings above.

A non-genuine Lexus suspension (lowered suspension, etc.) is installed.

INFORMATION

The intuitive parking assist can be operated when

The power switch is in ON.

The intuitive parking assist is on.

* :

If equipped

6-2. Using the safe driving support functions

465

6

Driving suppor

t s

ystem

The vehicle speed is less than about 6 mph (10 km/h).

A shift position other than P is selected.

Objects which the system may not be properly detected

The shape of the object may prevent the sensor from detecting it. Pay particular attention
to the following objects:

Wires, fences, ropes, etc.

Cotton, snow and other materials that absorb sound waves

Sharply-angled objects

Low objects

Tall objects with upper sections projecting outwards in the direction of your vehicle
People may not be detected if they are wearing certain types of clothing.

Situations in which the system may not operate properly

Certain vehicle conditions and the surrounding environment may affect the ability of a
sensor to correctly detect objects. Particular instances where this may occur are listed
below.

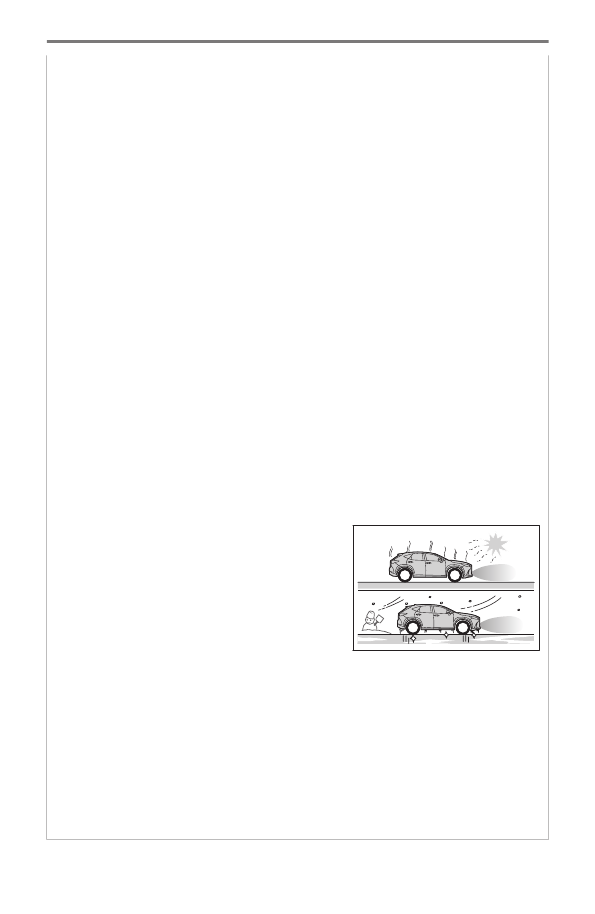

There is dirt, snow, water drops or ice on a sensor. (Cleaning the sensors will resolve
this problem.)

A sensor is frozen. (Thawing the area will resolve this problem.)
In especially cold weather, if a sensor is frozen the sensor display may be displayed
abnormally, or objects, such as a wall, may not be detected.

When a sensor or the area around a sensor is ex-
tremely hot or cold.

On an extremely bumpy road, on an incline, on gravel, or on grass.

When vehicle horns, vehicle detectors, motorcycle engines, air brakes of large vehi-
cles, the clearance sonar of other vehicles or other devices which produce ultrasonic
waves are near the vehicle

A sensor is coated with a sheet of spray or heavy rain

If objects draw too close to the sensor.

When a pedestrian is wearing clothing that does not reflect ultrasonic waves (ex. skirts
with gathers or frills).

6-2. Using the safe driving support functions

466

When objects that are not perpendicular to the ground, not perpendicular to the
vehicle traveling direction, uneven, or waving are in the detection range.

When strong winds are blowing

When driving in inclement weather such as fog, snow or a sandstorm

When an object that cannot be detected is between the vehicle and a detected object

If an object such as a vehicle, motorcycle, bicycle or pedestrian cuts in front of the
vehicle or runs out from the side of the vehicle

If the orientation of a sensor has been changed due to a collision or other impact

When equipment that may obstruct a sensor is installed, such as a towing eyelet,
bumper protector (an additional trim strip, etc.), bicycle carrier, or snow plow

If the front of the vehicle is raised or lowered due to the carried load

If the vehicle cannot be driven in a stable manner, such as when the vehicle has been in
an accident or is malfunctioning

When a tire chains, compact spare tire or an emergency tire puncture repair kit is
used

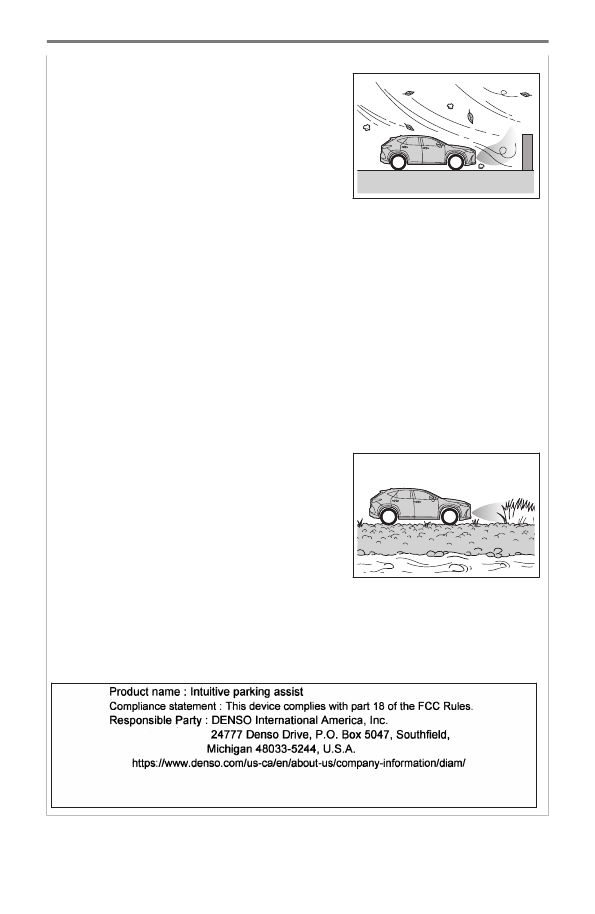

Situations in which the system may operate even if there is no possibility of a
collision

In some situations, such as the following, the system may operate even though there is no
possibility of a collision.

When driving on a narrow road

When driving toward a banner, flag, low-hanging branch or boom barrier (such as
those used at railroad crossings, toll gates and parking lots)

When there is a rut or hole in the surface of the road

When driving on a metal cover (grating), such as those used for drainage ditches

When driving up or down a steep slope

If a sensor is hit by a large amount of water, such as when driving on a flooded road

There is dirt, snow, water drops or ice on a sensor. (Cleaning the sensors will resolve
this problem.)

A sensor is coated with a sheet of spray or heavy rain

When driving in inclement weather such as fog, snow or a sandstorm

6-2. Using the safe driving support functions

467

6

Driving suppor

t s

ystem

When strong winds are blowing

When vehicle horns, vehicle detectors, motorcycle engines, air brakes of large vehi-
cles, the clearance sonar of other vehicles or other devices which produce ultrasonic
waves are near the vehicle

If the front of the vehicle is raised or lowered due to the carried load

If the orientation of a sensor has been changed due to a collision or other impact

The vehicle is approaching a tall or curved curb

Driving close to columns (H-shaped steel beams, etc.) in multi-story parking garages,
construction sites, etc.

If the vehicle cannot be driven in a stable manner, such as when the vehicle has been in
an accident or is malfunctioning

On an extremely bumpy road, on an incline, on gravel, or on grass

When a tire chains, compact spare tire or an emergency tire puncture repair kit is
used

Certification

▶

For vehicles sold in the U.S.A.

6-2. Using the safe driving support functions

468

▶

For vehicles sold in Canada

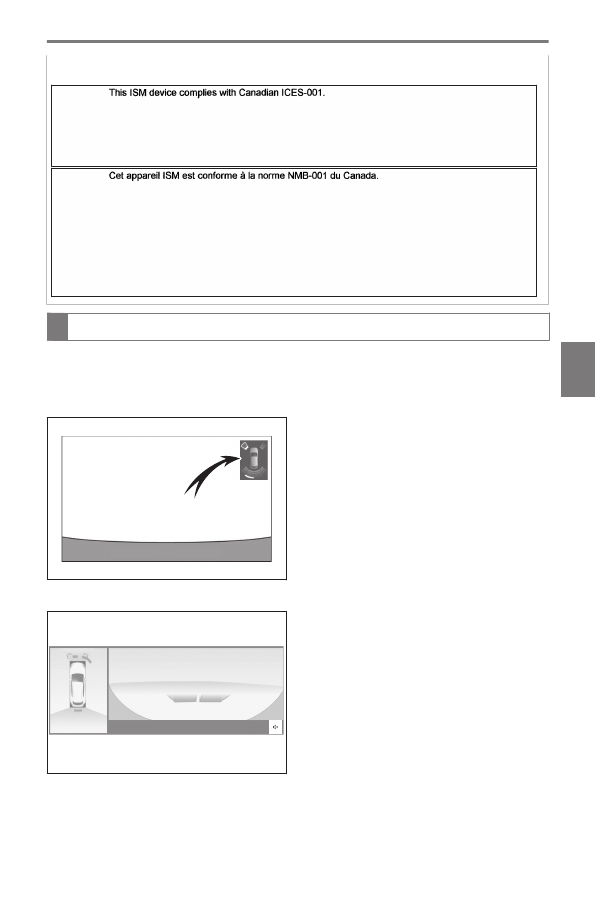

Intuitive parking assist display

When an object is detected by a sensor, the following displays inform the driver of
the position and distance to the obstacle.

▶

Lexus parking assist monitor

*

▶

Panoramic view monitor

*

* :

If equipped

6-2. Using the safe driving support functions

469

6

Driving suppor

t s

ystem

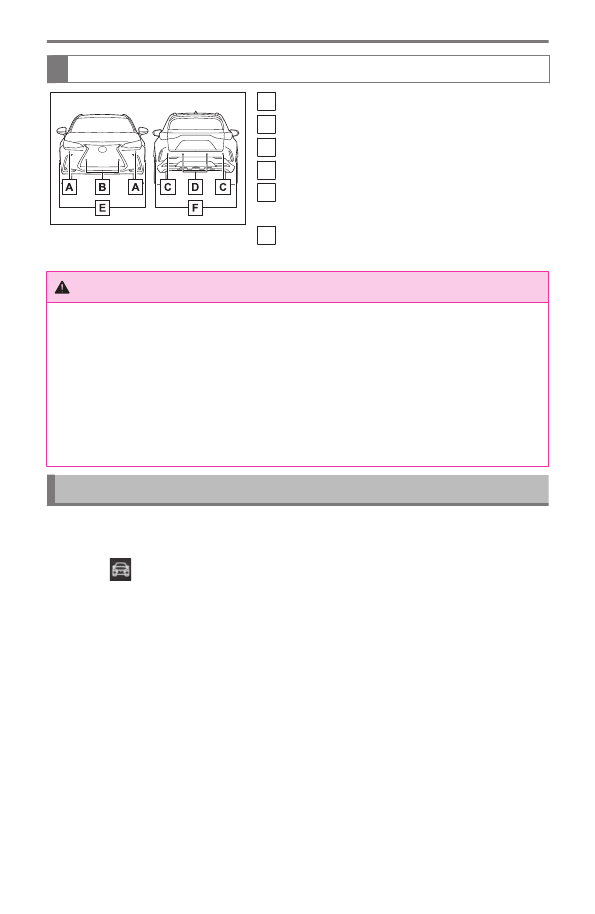

Position of the sensors of the Intuitive assist sensor



A

Front corner sensors

B

Front center sensors

C

Rear corner sensors

D

Rear center sensors

E

Front side sensors (vehicles with Advanced
Park)

F

Rear side sensors (vehicles with Advanced
Park)

WARNING

Notes when washing the vehicle

Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.

When using a high pressure washer to wash the vehicle, do not spray the sensors
directly, as doing so may cause a sensor to malfunction.

When using steam to clean the vehicle, do not direct steam too close to the sensors, as
doing so may cause a sensor to malfunction.

Turning the intuitive parking assist function ON/OFF

The intuitive parking assist can be enabled/disabled on the center display as
follows:

1

Select

 .

2

Select [Driving assist].

3

Select [Intuitive parking assist] to change ON (enable)/OFF (disabled).

When ON (enable) is selected, the intuitive parking assist indicator comes on.
When turned OFF (disabled), the intuitive parking assist will be disabled and will not be
enabled until the setting is changed to ON again in center display.
(The system will not be reenabled by operating the power switch.)

6-2. Using the safe driving support functions

470















Content      ..     12      13      14      15     ..
