WARNING

Do not store items on the wireless charger instead of in an auxiliary box.

Do not apply force or impact to the wireless charger.

Do not disassemble, modify or remove the wireless charger.

Do not attempt to charge portable devices which are not compatible with the Qi
wireless charging standard.

Do not allow magnetic objects to come near the wireless charge

Do not perform charging if the charging area is dirty

Do not cover the wireless charger with a cloth or other object while charging.

NOTICE

Preventing malfunction and corruption of data

Do not bring magnetic cards, such as credit cards, or magnetic recording media, etc.,
close to the charger while charging, otherwise, data may be erased.
Additionally, do not bring precision instruments such as wrist watches, close to the
wireless charger, as such objects may malfunction.

Do not perform charging with a contactless smart card, such as a credit card, between
the charging surface of a portable device and the charging area. The IC chip in the
card may become extremely hot, possibly damaging the portable device or smart
card.Failure to do so may result in the possibility of fire, equipment failure or damage,
or burns due to heat.
Be extra careful to not charge a portable device with a case or cover which a
contactless smart card can be inserted.

Do not leave portable devices in the vehicle. The temperature inside the vehicle may
become high, when in direct sunlight, possibly damaging the device.

To prevent battery discharge

When the engine is stopped, do not use the wireless charger for longer than necessary.

INFORMATION

The wireless charger can be operated when

The engine switch is in ACC or ON.

About connected portable devices

Portable devices compatible with the Qi wireless charging standard can be charged
by the wireless charger. However, compatibility with all devices which meet the Qi
wireless charging standard is not guaranteed.

4-5. Using the interior features

280

The wireless charger is designed to supply low power electricity (5 W or less) to a
cellular phone, smartphone, or other portable device.

Failure to do so may result in the possibility of fire,However, portable devices, such as
the following, can be charged with more than 5 W.

7.5 W charging compatible iPhones can be charged at 7.5 W or less.

Portable devices which conform to WPC Ver 1.2.4 (Extended Power profile) can be
charged at 10 W or less.

Using the smart access system with push-button start

Charging will be suspended for the smart access system with push-button start to detect
the electronic key during charging such as when the electronic key has been brought
outside the vehicle. When the electronic key is detected, charging will automatically start
again.

If a cover or accessory is attached to the portable device

Do not charge a portable device if a cover or accessory which is not Qi compatible is
attached.
Even if a device is “Qi” compatible, charging may not be possible if a cover or accessories
are attached. (

 P.283

Charging precautions

While charging, the wireless charger and the portable device will become warm. This is
not a malfunction.
If a portable device becomes warm while charging and charging stops due to the
protection function of the portable device, wait until the portable device cools down and
charge it again.
Also, to decrease the temperature inside the wireless charger, a fan may operate. This
does not indicate a malfunction.

Sound generated during operation

Operation sounds may be heard when the engine switch is pressed to change to ACC or
ON, or when a portable device is being detected. This does not indicate a malfunction.

“Qi” symbol

The “Qi” logo is a trademark of the Wireless Power Consortium.

4-5. Using the interior features

281

4

Interior feat

ur

es

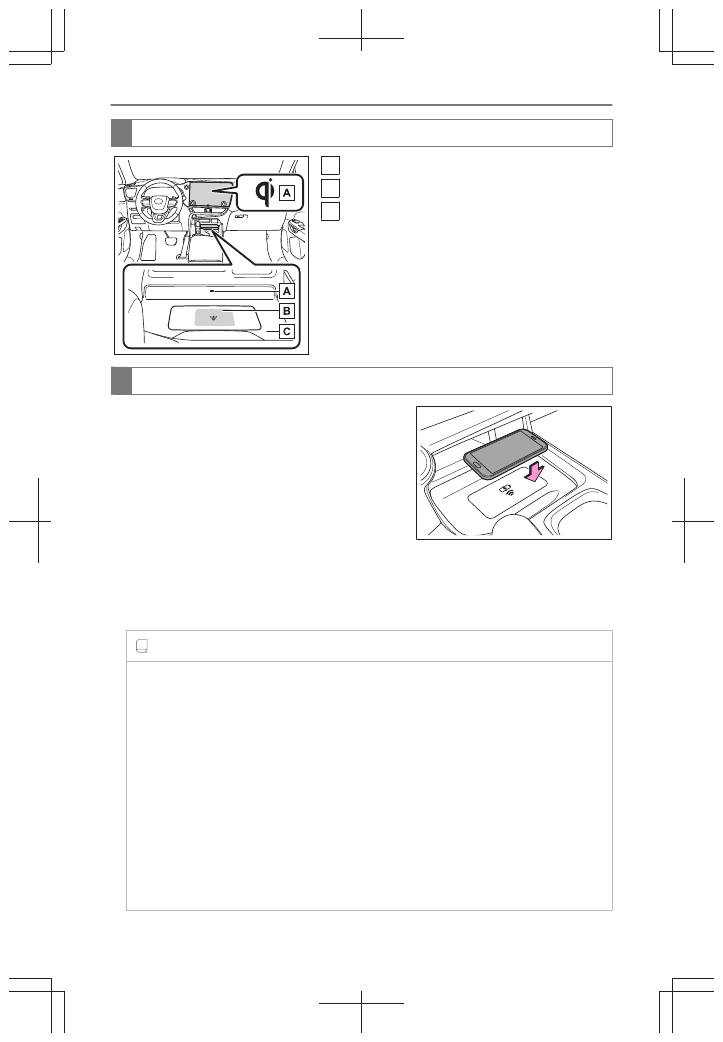

Names of the parts of the wireless charger



A

Operation indicator light

B

Charging area

C

Charging tray

Use the wireless charger

Place a portable device on the charging tray.

Depending on the portable device, its charging coil
may not be in the center of the device. In this case,
place the portable device so that its charging coil is
centered in the charging area.
While charging, the operation indicator light on the
charging tray (orange) will be illuminated.
If charging does not begin, move the portable de-
vice as close to the center of the charging area as possible.
When charging is complete, the operation indicator light on the charging tray (green)
will illuminate.

INFORMATION

AM radio broadcast linked function during charging

During charging, if noise occurs when listening to the AM radio, the charging
frequency is automatically changed to reduce the noise.

When automatically seeking AM radio stations, charging will be suspended to
prevent charging noise from being detected as a radio station. Charging will
resume automatically when seek tuning is stopped.

Recharging function

If a certain amount of time has elapsed since charging completed and the portable
device has not been moved, the wireless charger will restart charging.

If a portable device is moved significantly within the charging area, the charging coil
may disconnect and charging may temporarily be stopped. However, if a charging

4-5. Using the interior features

282

coil is detected within the charging area, the charging coil inside the wireless
charger will move near the other coil and charging will resume.

Rapid charging function

Portable devices, such as the following, can be rapidly charged.

Rapid charging capable devices which conform to WPC Ver1.2.4 EPP (Extended
Power profile)

7.5 W charging capable iPhones (iPhone 8 and later)

Situations in which the wireless charger may not operate correctly

In the following situations, the wireless charger may not operate correctly:

When a portable device is fully charged

When a portable device is being charged by a wired connection.

When there is foreign matter between the charging area and portable device

When the temperature of a portable device becomes high while charging

When the temperature near the charging tray is 95 °F (35 °C) or more due to
being in direct sunlight, etc.

When a portable device is placed with its charging surface facing up

When a portable device is not centered on the charging area

When a portable device is larger than the charging tray

When a foldable portable device is placed outside of the charging area

When the vehicle is near a TV tower, electric power plant, fuel station, radio station,
large display, airport, or other facility that generates strong radio waves or electrical
noise

The electronic key is not inside the vehicle

When the any of the following objects are between or attached to a portable device
and cause a gap of 0.08 in. (2 mm) or more between the charging surface of a
portable device and the charging area:

Thick cases or covers

Thick decorations

Cases or covers which the charging surface is not flat, but is grooved or changes
in thickness

Accessories, such as finger rings, straps, etc.

When the portable device is in contact with, or is covered by any of the following
metallic objects:

Cards covered with metal, such as aluminum foil

Cigarette boxes that have aluminum foil inside

4-5. Using the interior features

283

4

Interior feat

ur

es

Metallic wallets or bags

Coins

Heat packs

Recorded media such as CDs and DVDs

Metallic decorations

Metallic cases or covers

When wireless keys (that emit radio waves) other than those of your vehicle are
being used nearby

When 2 or more portable devices are placed on the charging tray at the same time

In situations other than above, if the wireless charger does not operate properly
or the operation indicator light blinks continuously, the wireless charger may be
malfunctioning.
Contact your Lexus dealer.

Wireless charger operation indicator light status

The operation indicator light of the wireless charger indicates the operating state
of the wireless charger as follows:

Operation indicator light

State

Charging tray

Center dis-

play

Off

Disappear The Wireless charger is off

Green (illumi-

nated)

Gray

Standby (charging is possible)

(1)

Charging is complete

(2)

Orange (illu-

minated)

Blue

A portable device has been placed on the charging area
(identifying the portable device)

Charging

(1)

While in standby, charging power is not output. If a metal object is placed on the

charging tray in this state, the object will not heat up.

(2)

Depending on the portable device, the operation indicator light may stay illuminated

(orange) after charging has completed.



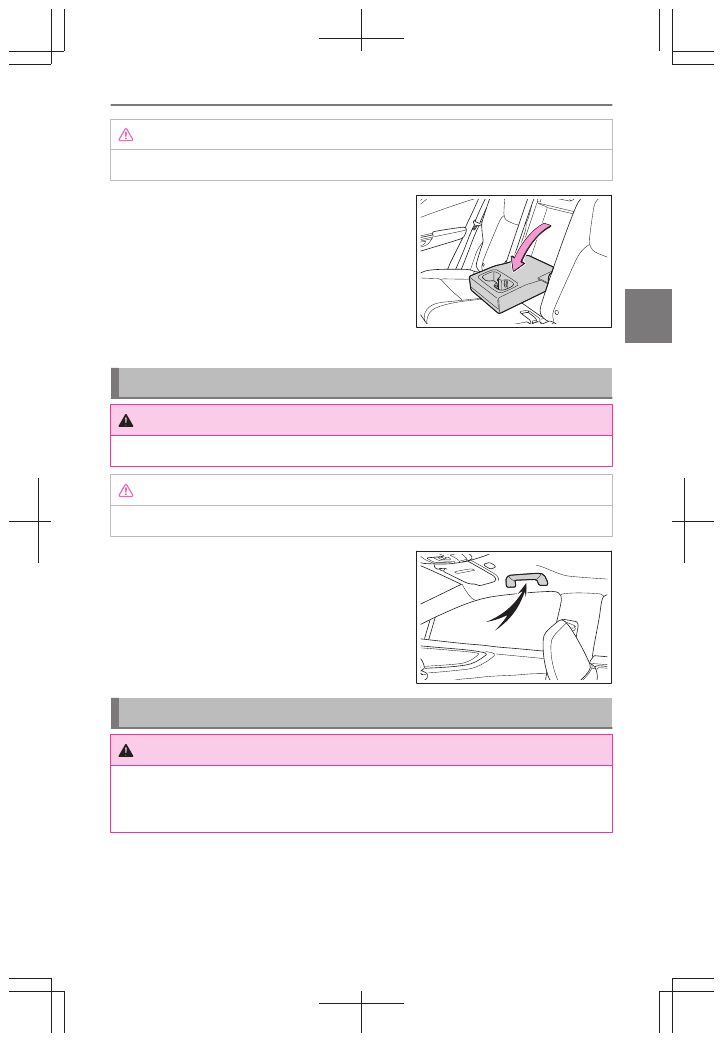

Using the armrest

4-5. Using the interior features

284

NOTICE

Do not apply excessive load to the armrest. Doing so may damage the armrest.

Fold down the armrest for use.

Assist grip functions and operation

WARNING

Do not use the assist grip when getting in or out of the vehicle or rising from your seat.

NOTICE

Do not hang any heavy object or put a heavy load on the assist grip.

An assist grip installed on the ceiling can be used
to support your body while sitting on the seat.

Locations of coat hooks

WARNING

Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS curtain
shield airbags deploy, these items may become projectiles, causing death or serious
injury.

4-5. Using the interior features

285

4

Interior feat

ur

es

The coat hooks are provided with the rear assist
grips.

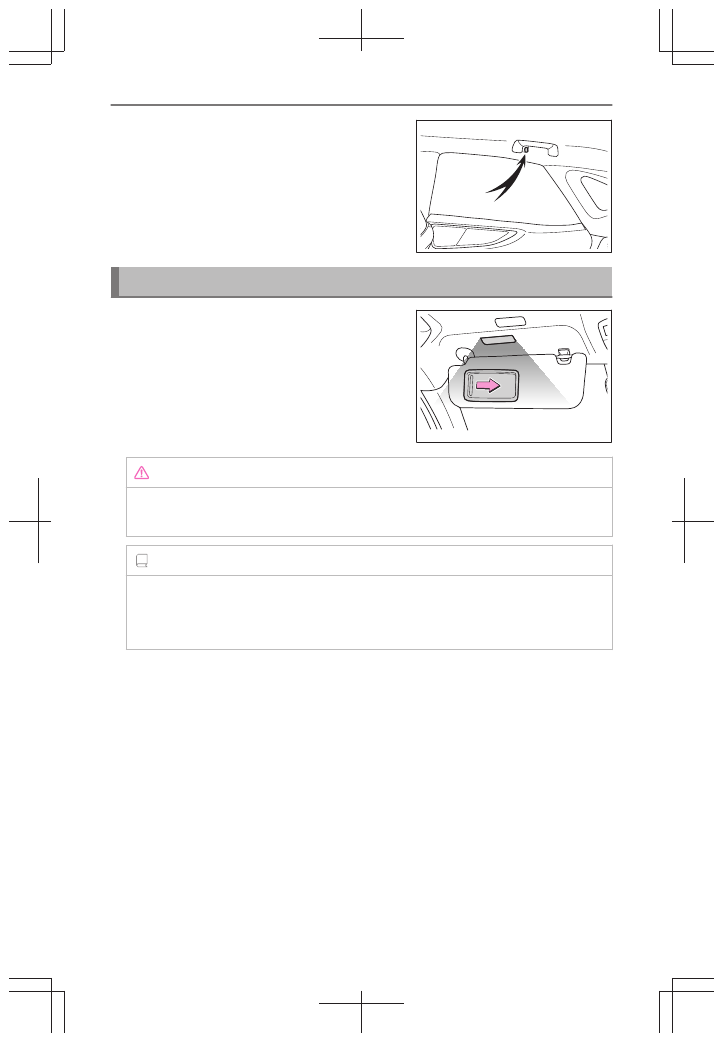

Using the vanity mirrors

Slide the cover to open.

The vanity light turns on when the cover is opened.

NOTICE

Do not leave the vanity lights on longer than necessary with the engine stopped. Doing
so may lead to the battery becoming discharged.

INFORMATION

Automatic light off function

When the engine switch is off, if the vanity lights are turned on, they will be turned off
automatically after 20 minutes.

4-5. Using the interior features

286

Using the luggage compartment

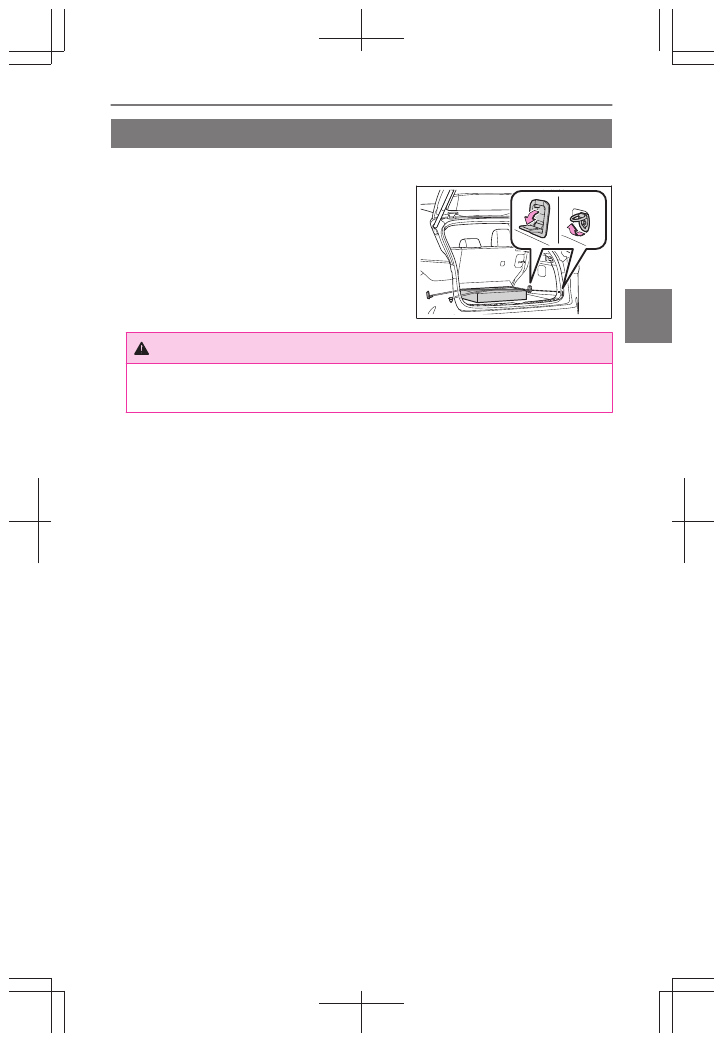

Using the cargo hooks

The cargo hooks are provided for securing loose items.

Raise the hook to use.

WARNING

To avoid injury, when the cargo hooks are not in use, make sure to return them to their
stowed position.

4-6. Using the luggage compartment

287

4

Interior feat

ur

es

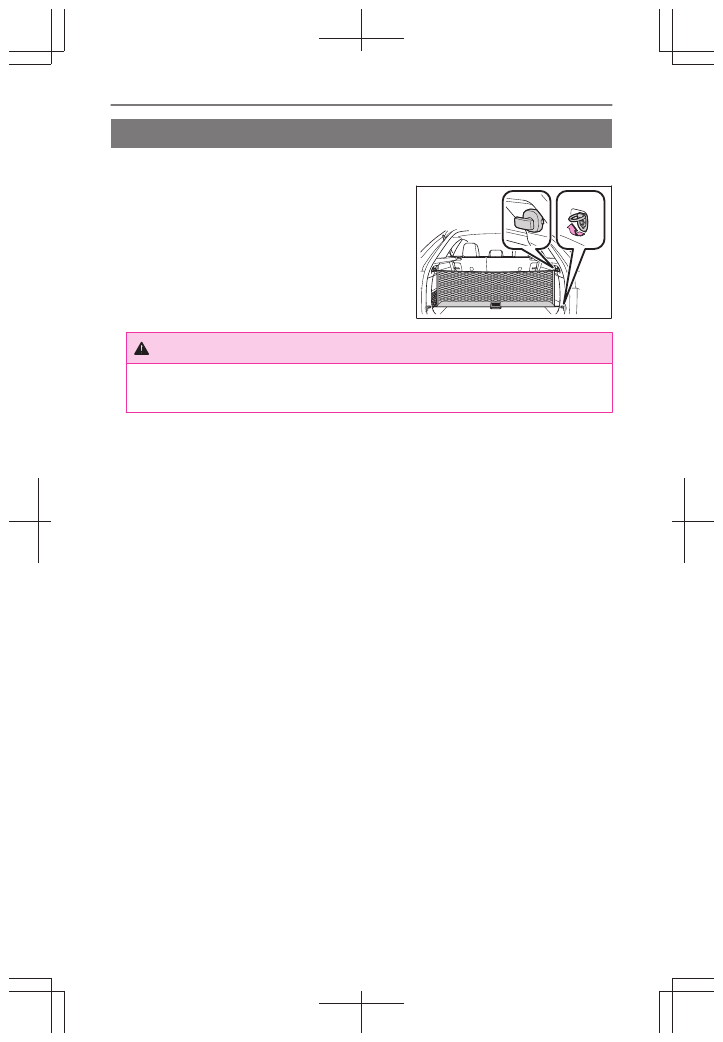

Using the cargo net hooks

The cargo net can be hung using the cargo net hooks.

Raise the hook to use.

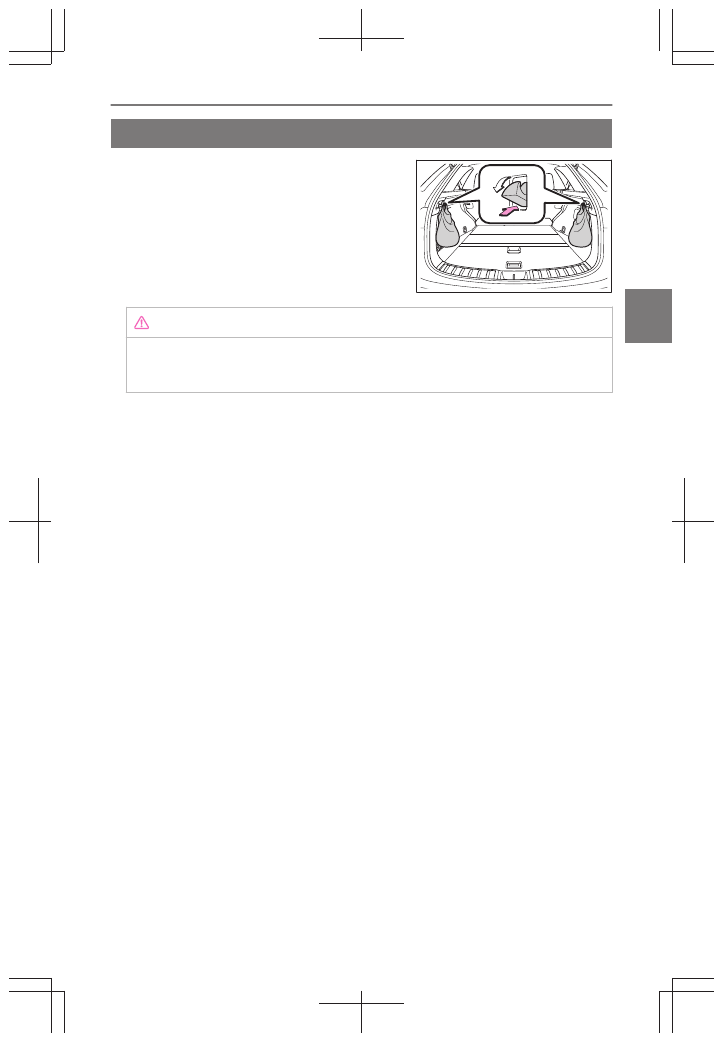

WARNING

To avoid injury, when the cargo net hooks are not in use, make sure to return them to
their stowed position.

4-6. Using the luggage compartment

288

Using the grocery bag hooks

Push the grocery back hook to use.

NOTICE

Do not hang objects heavier than 8.8 lb. (4 kg) on the grocery bag hooks.
Doing so may damage the grocery bag hook.

4-6. Using the luggage compartment

289

4

Interior feat

ur

es

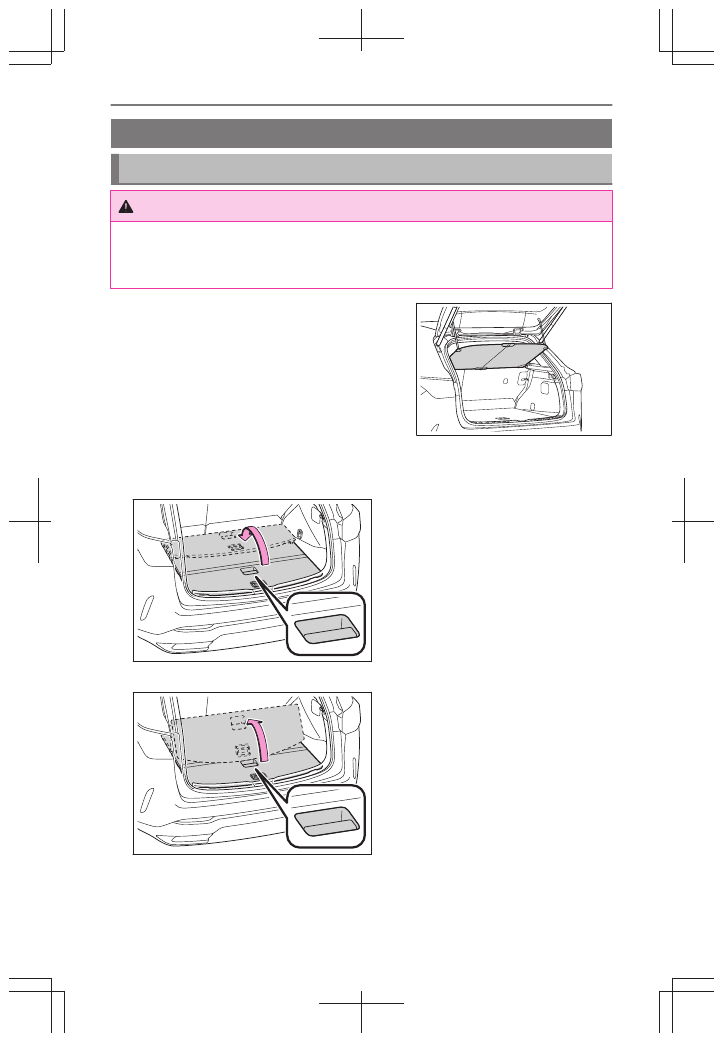

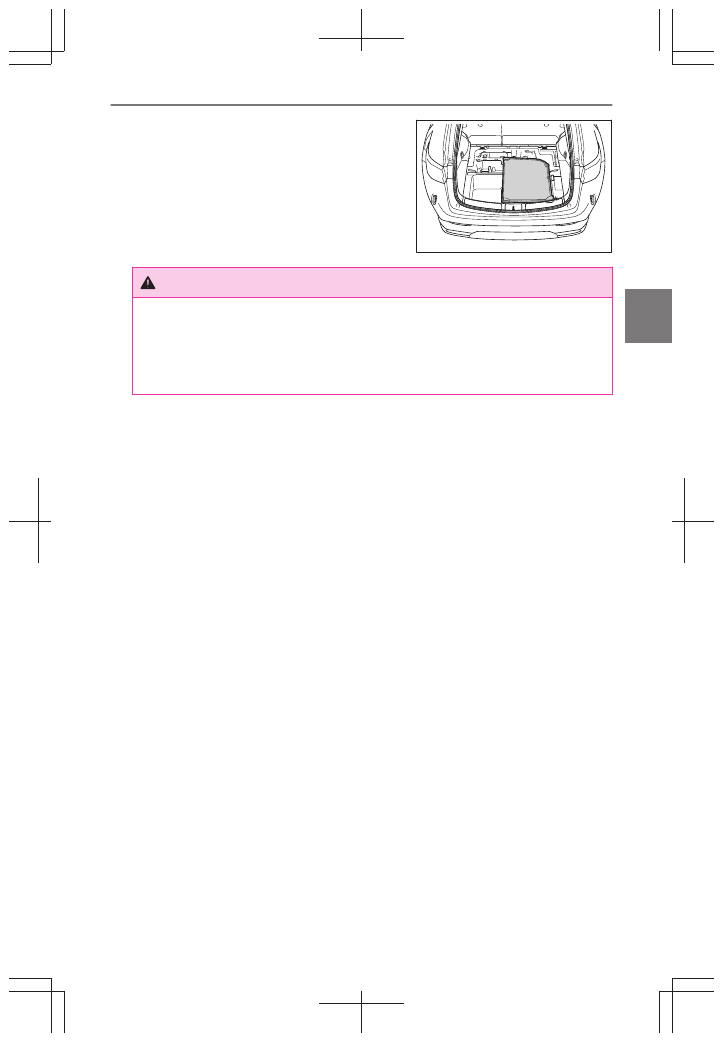

Deck board

Opening the deck board

WARNING

If a deck board has been opened or removed, return it to its original position before
driving. Otherwise, in the event of sudden braking or an accident, a deck board or stored
items may fly out and strike an occupant.

1

Open the back door.

2

Open the deck board.

▶

Pattern A

▶

Pattern B

4-6. Using the luggage compartment

290

▶

Pattern C

Storing items in the deck under tray

The following items can be stowed.

Accessories

Warning reflector

*1

*1 :

A warning reflector itself is not included as an original equipment.

4-6. Using the luggage compartment

291

4

Interior feat

ur

es

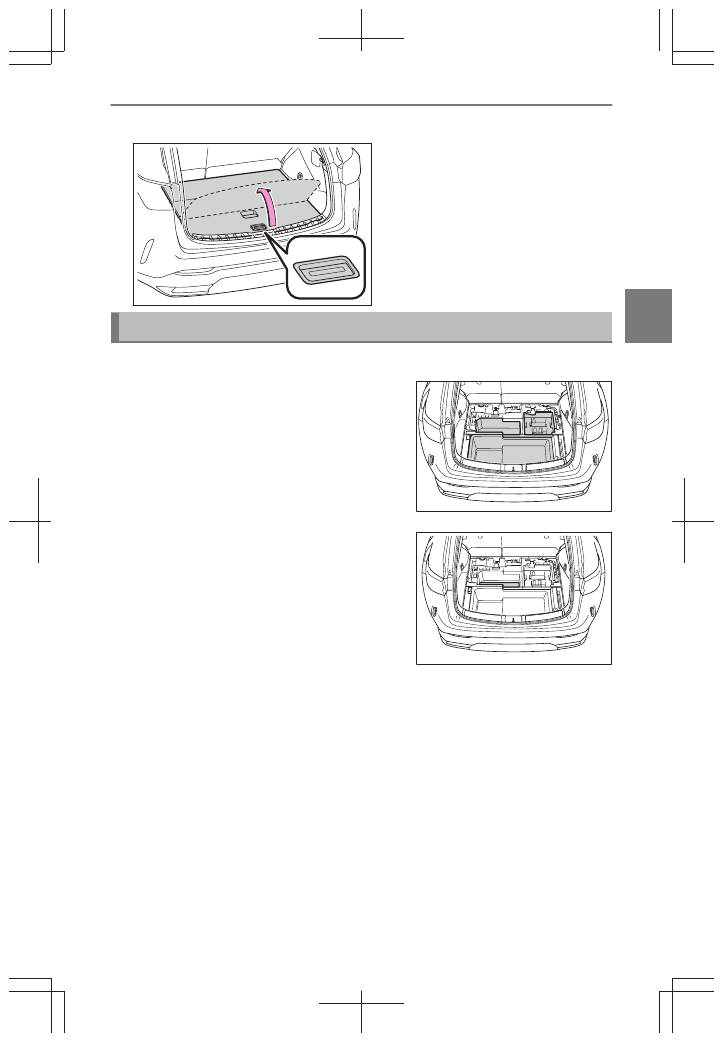

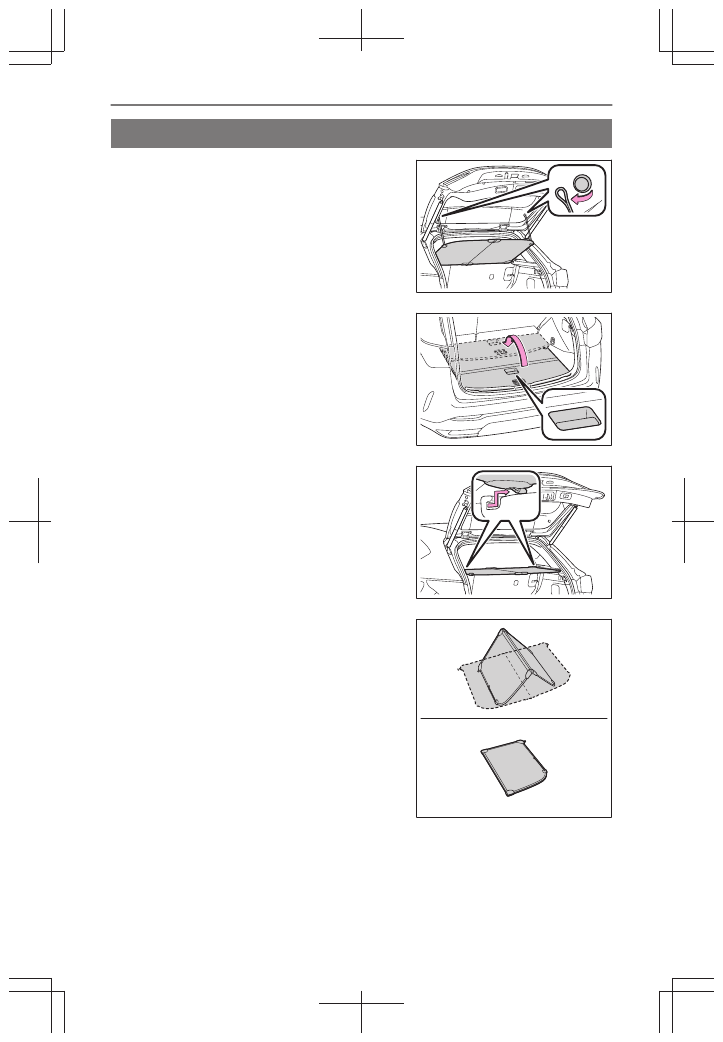

Stowing the luggage cover

1

Unhook each cord.

2

Pull the lever upwards and fold the deck
board.

3

Remove the luggage cover.

If a rear seat seatback is reclined, remove the
luggage cover after moving the seatback to the
upright position.

4

Fold the luggage cover

4-6. Using the luggage compartment

292

5

Lift the deck board and stow the luggage
cover in the deck under tray.

WARNING

Do not stow items on the luggage cover. In the event of sudden braking or
swerving, the items may fly about and strike an occupant.

Do not allow children to climb on the luggage cover. Doing so may damage the
luggage cover.

4-6. Using the luggage compartment

293

4

Interior feat

ur

es

4-6. Using the luggage compartment

294

5

Vehicle status information and indicators

5-1. Functions and displays of the

meter

Warning lights and indica-

tors..............................................

296

Gauges and meters (except

F SPORT models)...............

303

Gauges and meters (F

SPORT models)...................

308

5-2. Functions of the displays

Multi-information display

(vehicles without a head-
up display) ................................

313

Multi-information display

(vehicles with a head-up
display).......................................

315

Head-up display........................

317

Displayed content ..................

320

5-3. Changing the settings of the

displays

Changing the instrument

panel light brightness.........

330

Changing settings for the

head-up display......................

331

295

5

Vehicle st

at

us information and indicator

s

Functions and displays of the meter

Warning lights and indicators

The warning lights and indicators on the instrument cluster and outside rear view
mirrors inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.

▶

Vehicles without a head-up display

▶

Vehicles with a head-up display

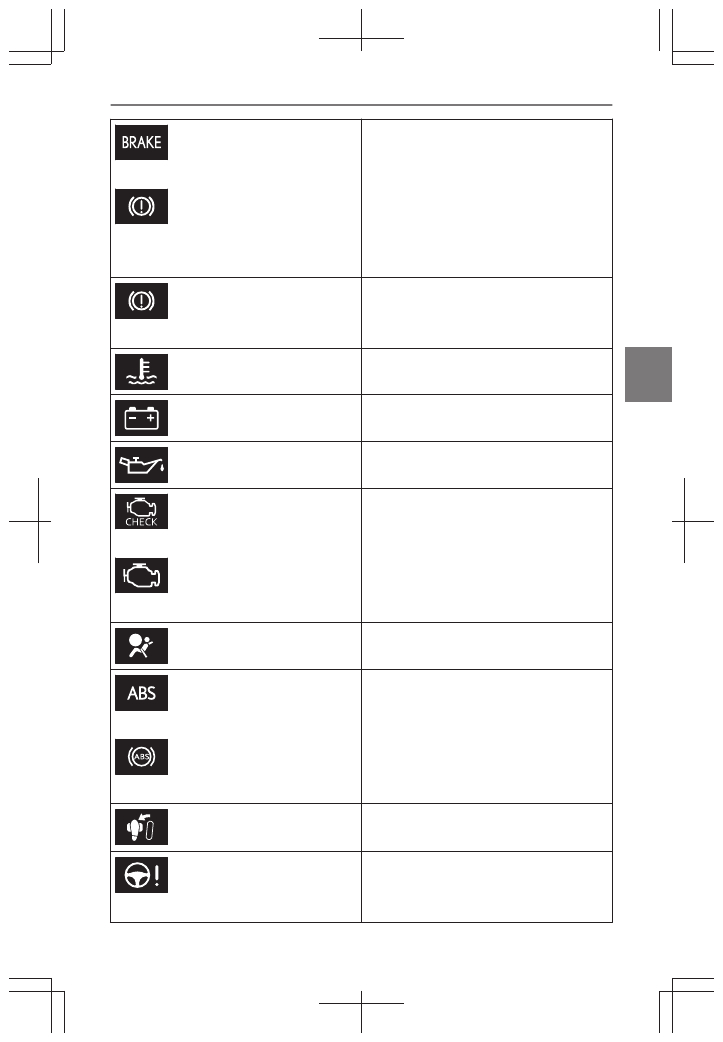

List of warning lights

Warning lights inform the driver of malfunctions in the indicated vehicle’s systems.

5-1. Functions and displays of the meter

296

(U.S.A.)

(Canada)
(red)

Brake system warning light

(1)

(yellow)

Brake system warning light

(1)

High coolant temperature warning light

(2)

Charging system warning light

(2)

Low engine oil pressure warning light

(2)

(U.S.A.)

(Canada)

Malfunction indicator lamp

(1)

SRS warning light

(1)

(U.S.A.)

(Canada)

ABS warning light

(1)

Inappropriate pedal operation warning
light

(2)

(red)

Electric power steering system warning
light

(1)

5-1. Functions and displays of the meter

297

5

Vehicle st

at

us information and indicator

s

(yellow)

Electric power steering system warning
light

(1)

Low fuel level warning light

Driver’s and front passenger’s seat belt re-
minder light

Rear passengers’ seat belt reminder light
(vehicles without a head-up display)

Rear passengers’ seat belt reminder light
(vehicles with a head-up display)

Tire pressure warning light

(1)

(yellow)

LDA indicator

(yellow)

LTA indicator

(yellow)

PDA indicator

(flashes)

Stop & Start cancel indicator

(1)

(flashes)

Stop & Start indicator

(1)

Intuitive parking assist OFF indicator

*(1)

(yellow)

Cruise control indicator

* :

If equipped

5-1. Functions and displays of the meter

298

(yellow)

Dynamic radar cruise control indicator

Driving assist information indicator

(1)

PCS warning light

(1)

Slip indicator

(1)

(U.S.A.)
(flashes)

(Canada)
(flashes)

Parking brake indicator

(flashes)

Brake hold operated indicator

(1)

(1)

These lights come on when the engine switch is turned to ON to indicate that a system

check is being performed. They will turn off after the engine is started, or after a few

seconds. There may be a malfunction in a system if the light does not come on, or turn

off. Have the vehicle inspected by your Lexus dealer.

(2)

This light illuminates on the multi-information display.



WARNING

Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine, this could mean that these systems are not available to help
protect you in an accident, which could result in death or serious injury. Have the vehicle
inspected by your Lexus dealer immediately if this occurs.

 Related Links

If a warning light turns on/flashes(P. 557)

5-1. Functions and displays of the meter

299

5

Vehicle st

at

us information and indicator

s

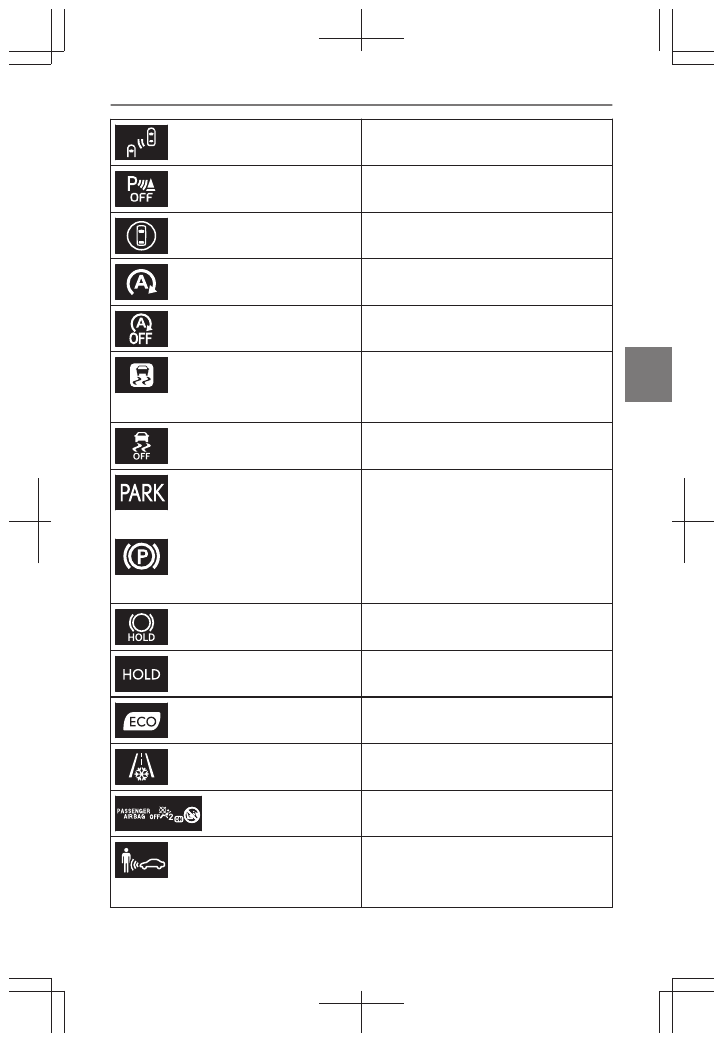

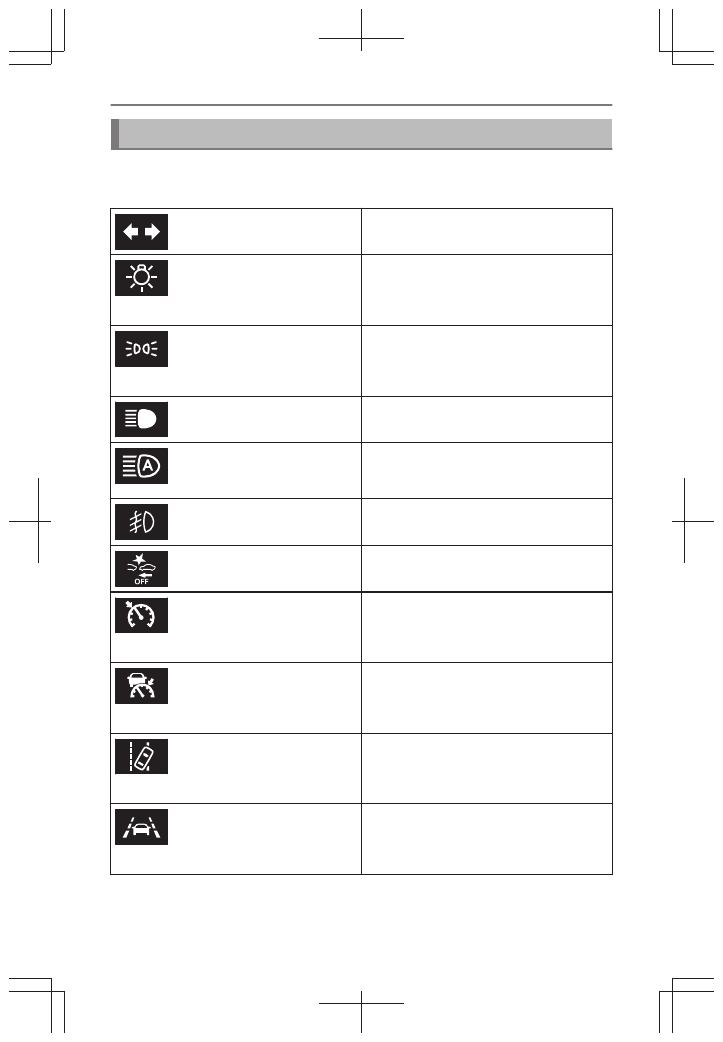

List of indicators

The indicators inform the driver of the operating state of the vehicle’s various
systems.

Turn signal indicator

(U.S.A.)

Headlight indicator

(Canada)

Tail light indicator

Headlight high beam indicator

AHS indicator

*(1)

AHB indicator

*(1)

Front fog light indicator

PCS warning light

(1)(3)

(green/white)

Cruise control indicator

(green/white)

Dynamic radar cruise control indicator

(green/white)

LDA indicator

(green/white)

LTA indicator

* :

If equipped

5-1. Functions and displays of the meter

300

Outside rear view mirror indicators

(2)

Intuitive parking assist OFF indicator

*(1)(3)

Driving assist information indicator

(1)(3)

Stop & Start indicator

(1)

Stop & Start cancel indicator

(1)(3)

(flashes)

Slip indicator

(1)

VSC OFF indicator

(1)(3)

(U.S.A.)

(Canada)

Parking brake indicator

Brake hold standby indicator

(1)

Brake hold operated indicator

(1)

Eco driving indicator light

(1)

Low outside temperature indicator

(4)

[AIR BAG ON/OFF] indicator

(5)

(green/white)

PDA indicator

5-1. Functions and displays of the meter

301

5

Vehicle st

at

us information and indicator

s

Downhill assist control system indicator

*

Eco drive mode indicator

Sport mode indicator

(6)

Sport S mode indicator

(7)

Sport S+ mode indicator

(7)

Custom mode indicator

(7)

Trail Mode indicator

*

(1)

These lights come on when the engine switch is turned to ON to indicate that a system

check is being performed. They will turn off after the engine is started, or after a few

seconds. There may be a malfunction in a system if the light does not come on, or turn

off. Have the vehicle inspected by your Lexus dealer.

(2)

This light illuminates on the outside rear view mirrors.

(3)

This light comes on when the system is turned off.

(4)

When the outside temperature is approximately 37°F (3°C) or lower, this indicator

will flash for approximately 10 seconds, then stay on.

(5)

This light illuminates on the front interior/personal lights.

(6)

Except F SPORT models

(7)

F SPORT models



 Related Links

Customizable features(P. 711)

5-1. Functions and displays of the meter

302

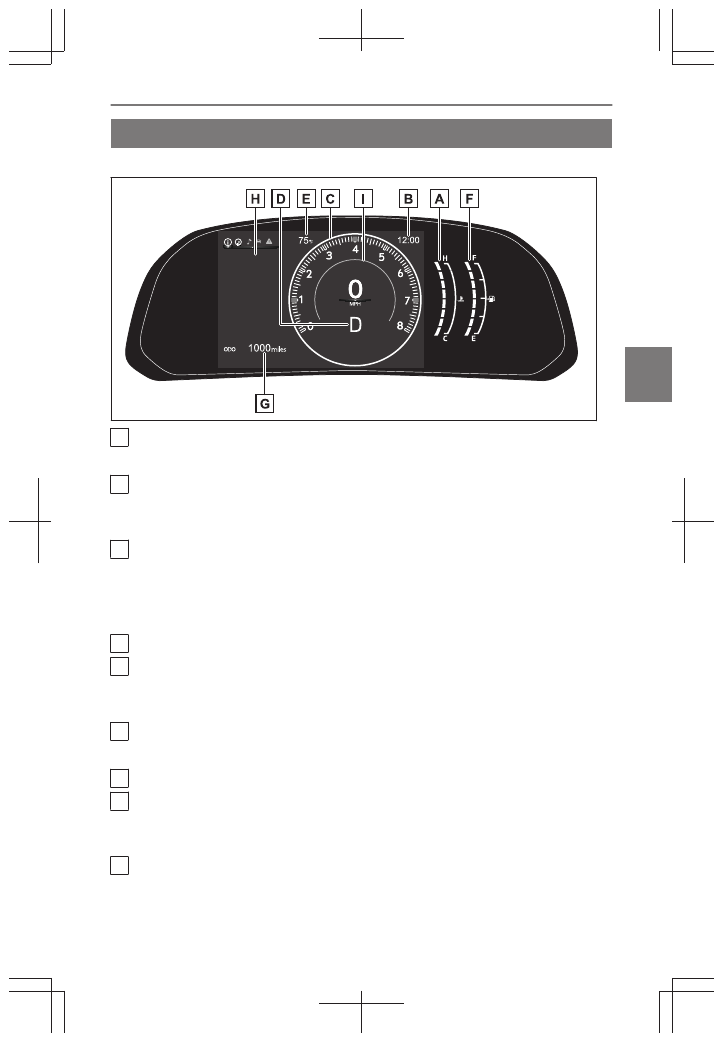

Gauges and meters (except F SPORT models)

▶

Vehicles without a head-up display

A

Engine coolant temperature gauge

Displays the engine coolant temperature

B

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For
details, refer to "MULTIMEDIA OWNER'S MANUAL".

C

Tachometer

Displays the engine speed in revolutions per minute
Speedometer
Depending on the certain settings, the display will change.

D

Shift position/shift range/gear position

E

Outside temperature

Displays the ambient temperature within the range of -40°F (-40°C) to 140°F
(60°C).

F

Fuel gauge

Displays the quantity of fuel remaining in the tank.

G

Odometer and trip meter display

H

Multi-information display

Presents the driver with a variety of vehicle data and displays warning messages if a
malfunction occurs .

I

Background color of driving mode

Background color changes according to the driving mode.

5-1. Functions and displays of the meter

303

5

Vehicle st

at

us information and indicator

s

▶

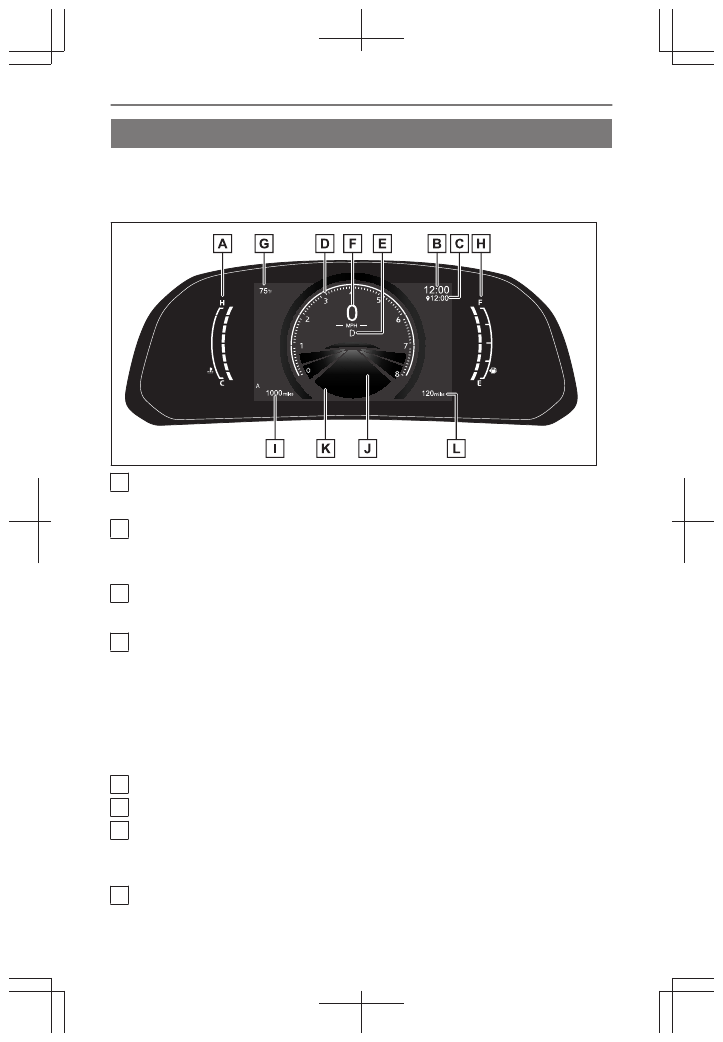

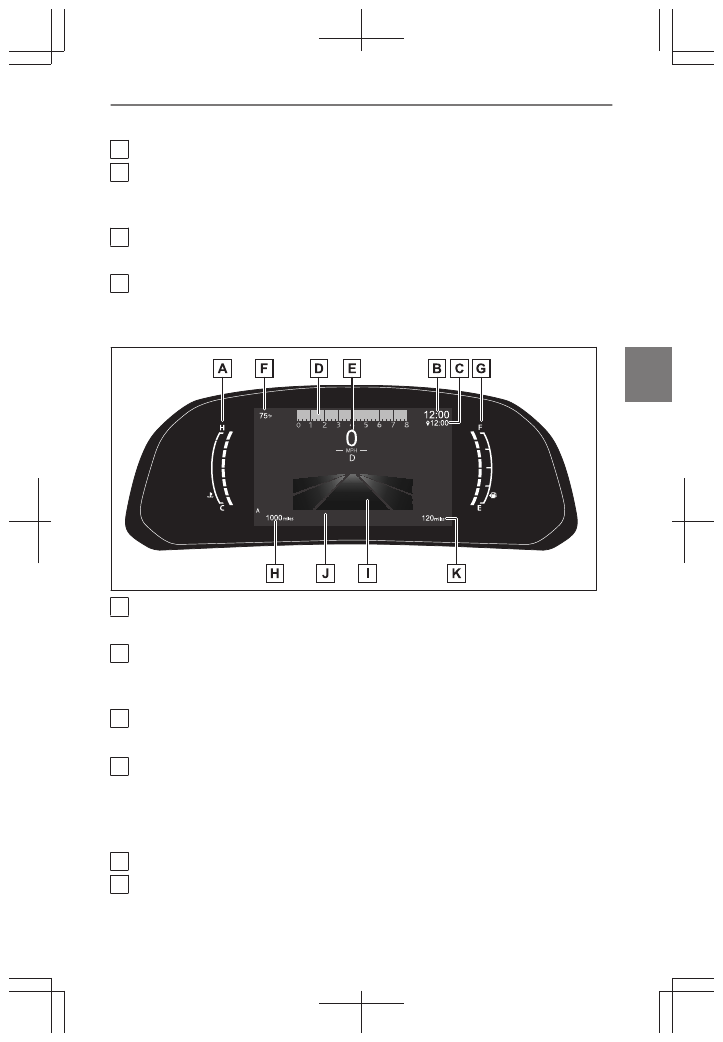

Vehicles with a head-up display

A

Engine coolant temperature gauge

Displays the engine coolant temperature

B

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For
details, refer to "MULTIMEDIA OWNER'S MANUAL".

C

Navigation system estimated time of arrival display

*

Displays the estimated time of arrival according to the navigation system.

D

Tachometer

Displays the engine speed in revolutions per minute
Analog speedometer
Depending on the certain settings, the display will change.

E

Shift position/shift range/gear position

F

Digital speedometer

G

Outside temperature

Displays the ambient temperature within the range of -40°F (-40°C) to 140°F
(60°C).

H

Fuel gauge

Displays the quantity of fuel remaining in the tank.

I

Odometer and trip meter display

J

Multi-information display

Presents the driver with a variety of vehicle data and displays warning messages if a
malfunction occurs .

K

Background color of driving mode

* :

If equipped

5-1. Functions and displays of the meter

304

Background color changes according to the driving mode.

L

Distance to empty

Displays the driving range with remaining fuel.

INFORMATION

The meters and display illuminate when

The engine switch is in ON.

Outside temperature display

In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change:

When stopped, or driving at low speeds (less than 16 mph [25 km/h])

When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)

When "--" or "E" is displayed, the system may be malfunctioning.
Take your vehicle to your Lexus dealer.

Distance to empty

*

This distance is computed based on your average fuel consumption. As a result, the
actual distance that can be driven may differ from that displayed.

When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled without turning the
engine switch off, the display may not be updated.

Liquid crystal display

Small spots or light spots may appear on the display.
This phenomenon is characteristic of liquid crystal displays, and there is no problem
continuing to use the display.

Free/Open Source Software Information

This product contains Free/Open Source Software (FOSS). The license information
and/or the source code of such FOSS can be found at the following URL.
https://www.denso.com/global/en/opensource/meter/toyota/

WARNING

Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, the information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing rapid
and excessive engine braking and possibly an accident resulting in death or injury.

5-1. Functions and displays of the meter

305

5

Vehicle st

at

us information and indicator

s

NOTICE

To prevent the engine or components from being damaged, observe the following
precautions.

Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.

The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H); or "Engine Coolant Temp High Stop in a Safe Place See Owner's Manual"
is shown on the multi-information display. In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely.

 Related Links

Customizable features(P. 711)

Changing between the tachometer/speedometer displays

Depending on the current drive mode or settings, the displays will change as
follows. Settings can be changed on the center display.

Vehicles without a head-up display

Tachometer

Displayed when the meter display type setting is set to display type 1 or display type 3.

Speedometer

Always displayed.
The display will change between a digital speedometer and/or analog speedometer
depending on the meter display type setting.

Vehicles with a head-up display

Tachometer

Displayed when the meter display type setting is set to display type 1.
F SPORT models: Also displayed when set to display type 3.

Speedometer

A digital speedometer is always displayed.
When the meter display type setting is set to display type 2, an analog speedometer will
also be displayed.

 Related Links

Customizable features(P. 711)

5-1. Functions and displays of the meter

306

Changing the distance driven display/resetting the distance driven

The display can be changed between the following items.

Odometer

Displays the total distance the vehicle has been driven.

Trip meter A/trip meter B

Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters A and B can be used to record and display different distances independently.

Distance until next engine oil change

Displays the distance the vehicle can be driven until an oil change is necessary.

Each time the switch is pressed, the displayed
item will be changed.
When the trip meter is displayed, pressing and
holding the switch will reset the trip meter.

5-1. Functions and displays of the meter

307

5

Vehicle st

at

us information and indicator

s

Gauges and meters (F SPORT models)

Depending on the shift position or current drive mode, the meter displays or
position of some gauges will change.

▶

Ring display state

A

Engine coolant temperature gauge

Displays the engine coolant temperature

B

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For
details, refer to "MULTIMEDIA OWNER'S MANUAL".

C

Navigation system estimated time of arrival display

*

Displays the estimated time of arrival according to the navigation system.

D

Tachometer

Displays the engine speed in revolutions per minute

Rev indicator

Rev peak

Analog speedometer
Depending on the selected drive mode or certain settings, the display will change.

E

Shift position/shift range/gear position

F

Digital speedometer

G

Outside temperature

Displays the ambient temperature within the range of -40°F (-40°C) to 140°F
(60°C).

H

Fuel gauge

* :

If equipped

5-1. Functions and displays of the meter

308

Displays the quantity of fuel remaining in the tank.

I

Odometer and trip meter display

J

Multi-information display

Presents the driver with a variety of vehicle data and displays warning messages if a
malfunction occurs.

K

Background color of driving mode

Background color changes according to the driving mode.

L

Distance to empty

Displays the driving range with remaining fuel.

▶

Bar display state

A

Engine coolant temperature gauge

Displays the engine coolant temperature

B

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For
details, refer to "MULTIMEDIA OWNER'S MANUAL".

C

Navigation system estimated time of arrival display

*

Displays the estimated time of arrival according to the navigation system.

D

Tachometer

Displays the engine speed in revolutions per minute

Rev indicator

Rev peak

E

Shift position/shift range/gear position/digital speedometer

F

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 140°F (60°C).

5-1. Functions and displays of the meter

309

5

Vehicle st

at

us information and indicator

s

G

Fuel gauge

Displays the quantity of fuel remaining in the tank.

H

Odometer and trip meter display

I

Multi-information display

Presents the driver with a variety of vehicle data and displays warning messages if a
malfunction occurs .

J

Background color of driving mode

Background color changes according to the driving mode.

K

Distance to empty

Displays the driving range with remaining fuel.

INFORMATION

The meters and display illuminate when

The engine switch is in ON.

Outside temperature display

In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change:

When stopped, or driving at low speeds (less than 16 mph [25 km/h])

When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)

When "--" or "E" is displayed, the system may be malfunctioning.
Take your vehicle to your Lexus dealer.

Distance to empty

This distance is computed based on your average fuel consumption. As a result, the
actual distance that can be driven may differ from that displayed.

When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled without turning the
engine switch off, the display may not be updated.

Liquid crystal display

Small spots or light spots may appear on the display.
This phenomenon is characteristic of liquid crystal displays, and there is no problem
continuing to use the display.

Free/Open Source Software Information

This product contains Free/Open Source Software (FOSS). The license information
and/or the source code of such FOSS can be found at the following URL.
https://www.denso.com/global/en/opensource/meter/toyota/

5-1. Functions and displays of the meter

310

WARNING

Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, the information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing rapid
and excessive engine braking and possibly an accident resulting in death or injury.

NOTICE

To prevent the engine or components from being damaged, observe the following
precautions.

Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.

The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H); or "Engine Coolant Temp High Stop in a Safe Place See Owner's Manual"
is shown on the multi-information display. In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely.

 Related Links

Changing between the tachometer/speedometer displays(P. 306)
Changing the distance driven display/resetting the distance driven(P. 307)
Customizable features(P. 711)

Rev indicator/Rev peak display

Rev indicator

When the engine speed reaches a set speed or the red zone, the tachometer will
be highlighted.

The indicators will be displayed in amber when the engine speed reaches a set speed, and
in red when the engine speed reaches the red zone.

The engine speed at which the Rev indicator is displayed can be changed on the
center display.

Rev peak

When the engine speed reaches or exceeds 5000 rpm, an afterimage of the
tachometer will be displayed at the highest engine speed for approximately 1
second.

5-1. Functions and displays of the meter

311

5

Vehicle st

at

us information and indicator

s















Content      ..     7      8      9      10     ..
