3-1. Instrument cluster

3-1.Instrument cluster

For the purpose of explanation, the following illustration display all warning lights
and indicators illuminated.

Warning lights inform the driver of
malfunctions in the indicated vehicle’s
systems.

Warning lights and indicators

The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.

Warning lights and indicators displayed on the instrument cluster

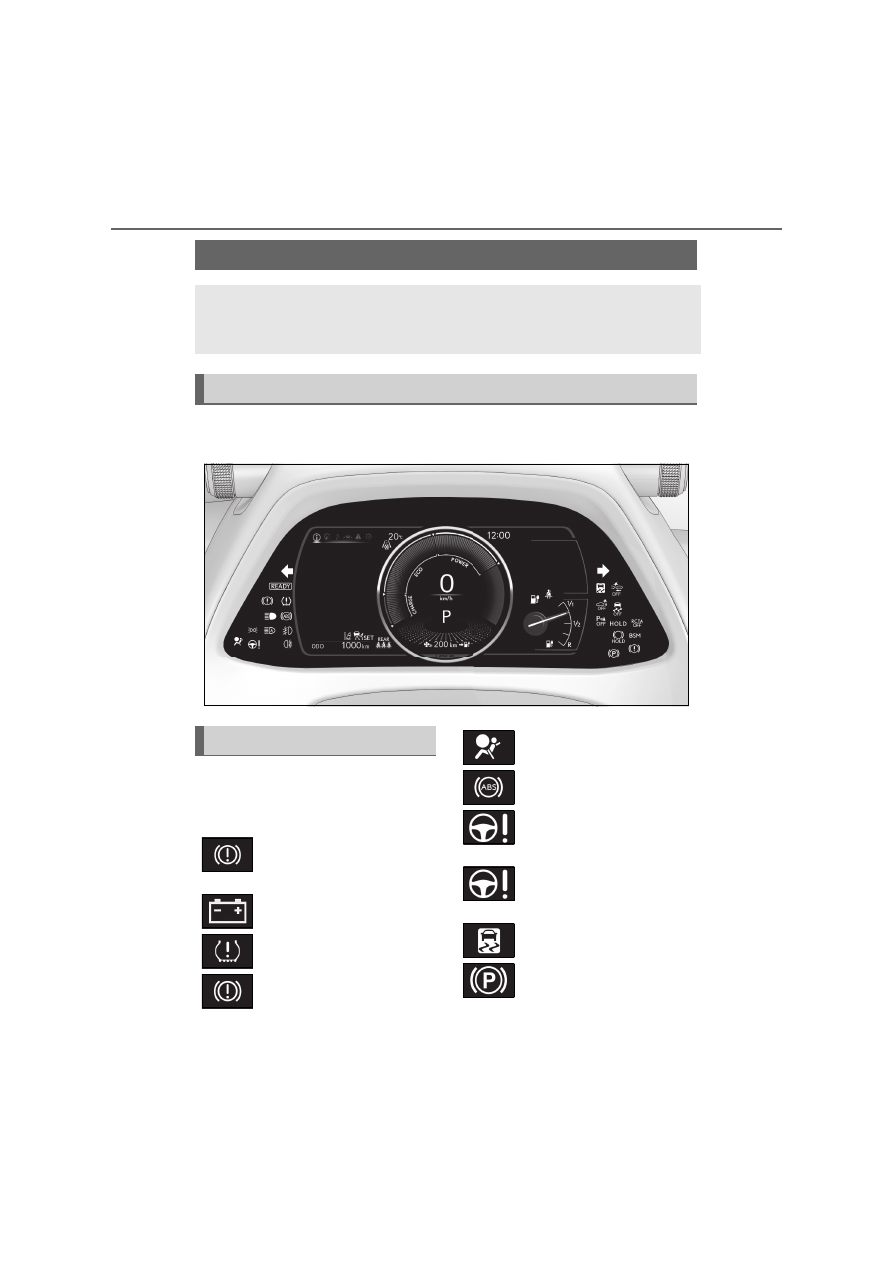

Warning lights

(red)

Brake system warning light

(



P.432)

12-volt battery charging system
warning light

(



P.432)

Tire pressure warning light

(



P.433)

(yellow)

Brake system warning light

(



P.433)

SRS warning light

(



P.433)

ABS warning light

(



P.433)

(red)

Electric power steering system
warning light

(



P.434)

(yellow)

Electric power steering system
warning light

(



P.434)

Slip indicator

(



P.434)

(flashes)

Parking brake indicator
(



P.434)

159

3-1. Instrument cluster

icle

ion
an

d i

ica

tor

: These lights come on when the power

switch is turned to ON to indicate that a
system check is being performed. They
will turn off after the EV system is on, or
after a few seconds. There may be a
malfunction in a system if the lights do
not come on, or turn off. Have the vehi-
cle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer.

: This light illuminates on the multi-infor-

mation display.

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

(flashes)

Brake hold operated indica-
tor

(



P.434)

(flashes)

Lexus parking assist-sensor
OFF indicator

(if equipped)

(



P.435)

(flashes)

RCTA OFF indicator

(if

equipped) (



P.435)

(flashes)

PKSB OFF indicator

(if

equipped) (



P.435)

Traction battery charge warn-
ing light (



P.436)

Driver’s and front passenger’s
seat belt reminder light
(



P.436)

Rear passengers’ seat belt
reminder lights

(



P.436)

Brake Override System warn-
ing light/Drive-Start Control
warning light/PKSB warning
light

(



P.437)

(orange)

LTA indicator

(



P.437)

(flashes or

illuminates)

PCS warning light

(



P.438)

WARNING

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the EV system, this could

mean that these systems are not avail-

able to help protect you in an accident,

which could result in death or serious

injury. Have the vehicle inspected by any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer immediately if this occurs.

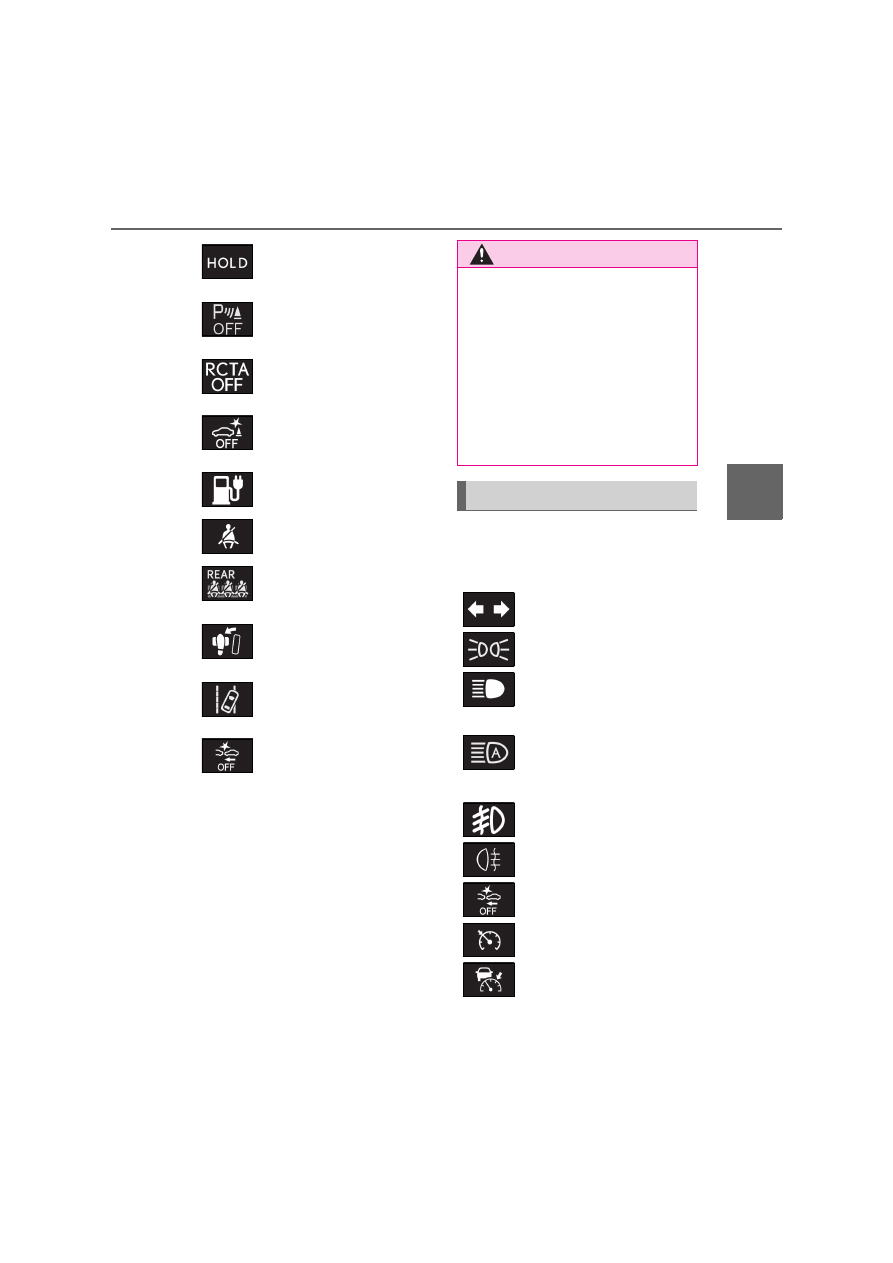

Indicators

Turn signal indicator (



P.233)

Tail light indicator (



P.240)

Headlight high beam indicator
(



P.241)

AHS indicator

(if equipped)

(



P.242)

Automatic High Beam indica-
tor

(if equipped) (



P.246)

Front fog light indicator (if
equipped) (



P.249)

Rear fog light indicator
(



P.249)

PCS warning light

*1, 2

(



P.262)

Cruise control indicator

(



P.282)

Dynamic radar cruise control
indicator

(



P.282)

160

3-1. Instrument cluster



Drive mode indicators

: These lights come on when the power

: This light comes on when the system is

turned off.

: This light illuminates on the multi-infor-

mation display.

: Depending on the operating condition,

the color and illuminating/flashing state
of the light change.

: This light flashes to indicate that the sys-

tem is operating.

: This light illuminates on the outside rear

view mirrors.

: When the outside temperature is

approximately 3°C (37°F) or lower,
this indicator will flash for approxi-
mately 10 seconds, then stay on.

: This light illuminates on the center

panel.

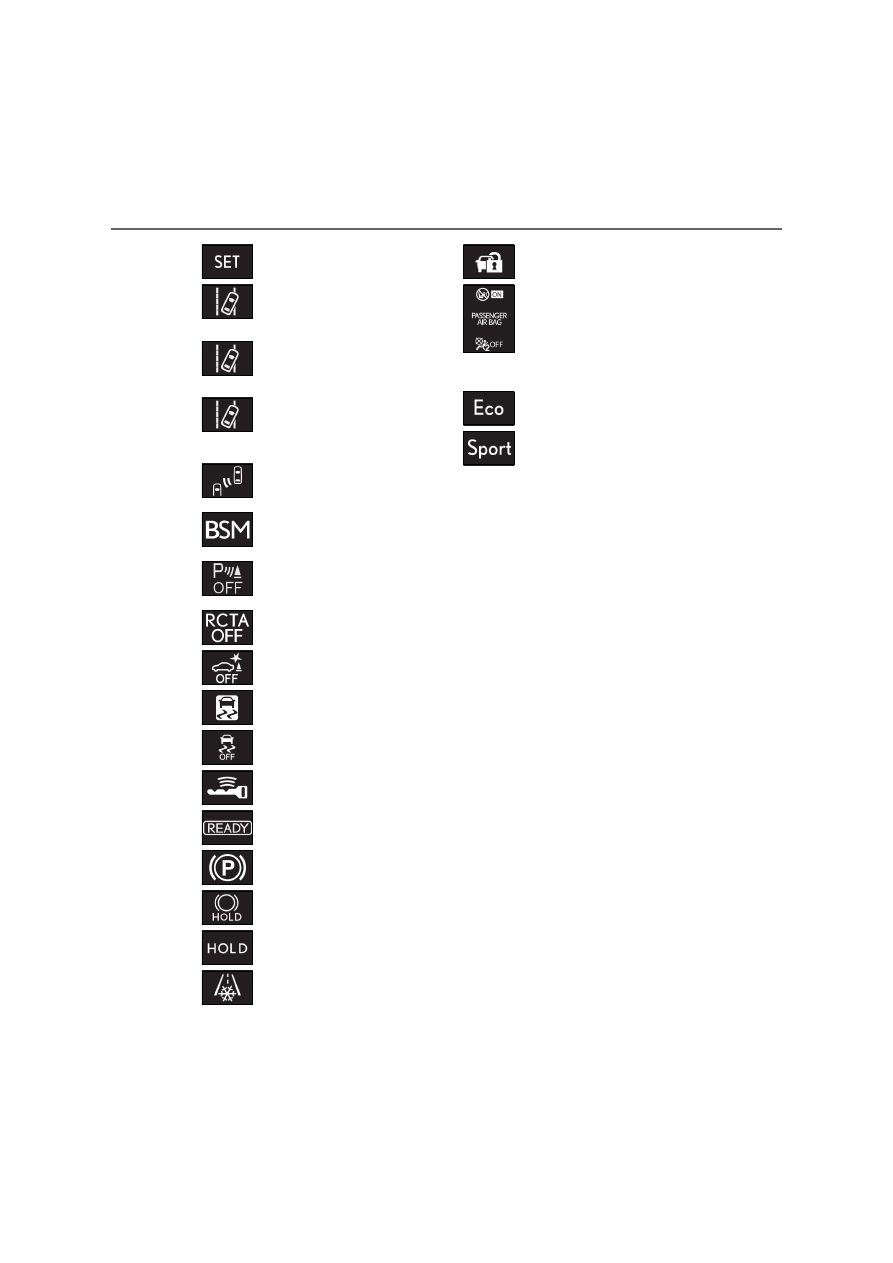

Cruise control “SET” indica-
tor

(



P.282)

(white)

LTA indicator

*3, 4

(



P.274)

(green)

LTA indicator

*3, 4

(



P.274)

(orange)

LTA indicator

*3, 4, 5

(



P.274)

BSM outside rear view mirror
indicators

*1, 6

(if equipped)

(



P.293)

BSM indicator (if equipped)
(



P.293)

Lexus parking assist-sensor
OFF indicator

*1, 2

(if equipped)

(



P.307)

RCTA OFF indicator

*1, 2

(if

equipped) (



P.314)

PKSB OFF indicator

*1, 2

(if

equipped) (



P.320)

Slip indicator

*1, 5

(



P.329)

VSC OFF indicator

*1, 2

(



P.329)

Smart entry & start system indi-
cator

(



P.224)

“READY” indicator (



P.224)

Parking brake indicator
(



P.234)

Brake hold standby indicator

(



P.237)

Brake hold operated indica-
tor

(



P.237)

Low outside temperature indi-
cator

*3, 7

(



P.161)

Security indicator

(



P.71,

73)

“PASSENGER AIR BAG” indi-
cator

*1, 8

(



P.44)

Eco drive mode indicator
(



P.327)

Sport mode indicator
(



P.327)

161

3-1. Instrument cluster

icle

ion
an

d i

ica

tor

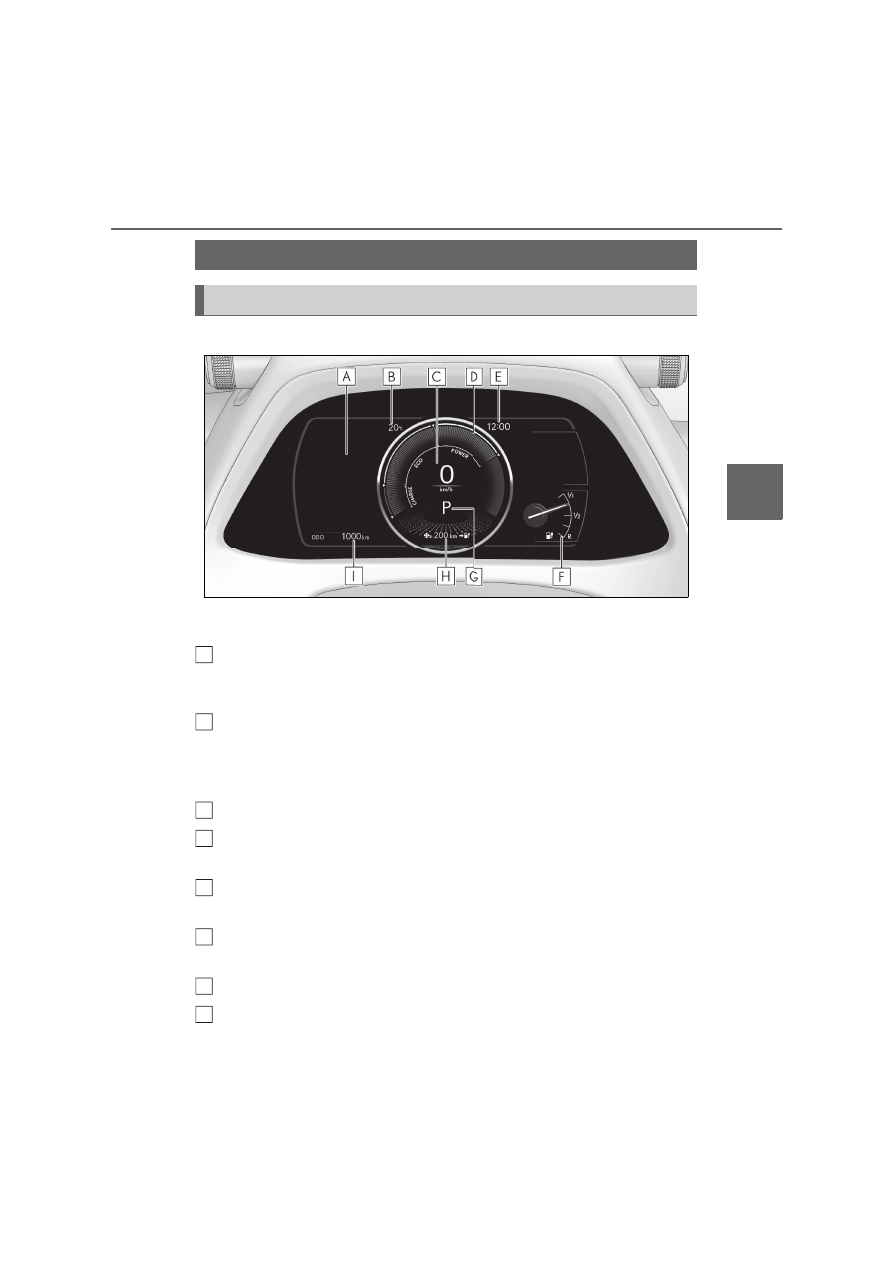

Locations of gauges and meters

The location of some displayed items and the units of measure may differ depending on the
intended destination of the vehicle.

Multi-information display

Presents the driver with a variety of vehicle data (



P.164)

Displays warning messages if a malfunction occurs (



P.440)

Outside temperature

Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F)
Low outside temperature indicator comes on when the ambient temperature is 3°C
(37°F) or lower

Speedometer

EV System Indicator

Displays EV system output or regeneration level (



P.162)

Clock

Time displayed is linked to the analog clock on the center panel. (



P.371)

SOC (State of Charge) gauge

Displays the amount of charge remaining in the traction battery.

Shift position/regenerative braking power indicator (



P.228, 232)

Driving range

Gauges and meters

Meter display

C
D

162

3-1. Instrument cluster

Displays driving range with remaining charge. (



P.165)

When the air conditioning system is operating,

and the driving range with the air con-

ditioning system on are displayed.

Odometer and trip meter display (



P.162)

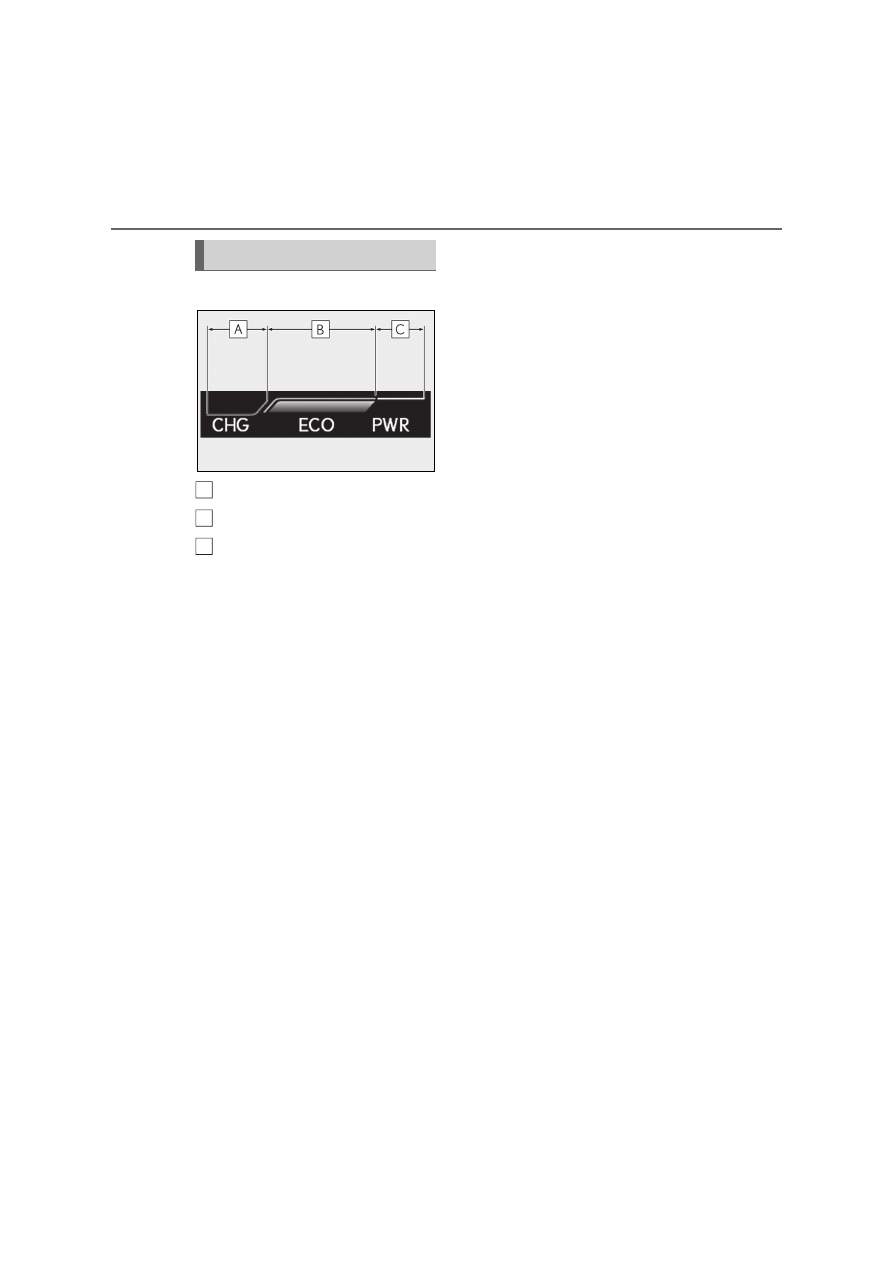

EV System Indicator

Charge area

Shows regeneration

status.

Regenerated energy will be used to
charge the traction battery.

Eco area

Shows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the bar display within Eco area,
more Eco-friendly driving can be
achieved.

Power area

Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)

: When used in this manual, regeneration

refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.

Outside temperature display

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 20 km/h [12 mph])

• When the outside temperature has

changed suddenly (at the entrance/exit

of a garage, tunnel, etc.)

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

Liquid crystal display



P.164

Customization

The gauges and meters can be customized
on

of the multi-information display.

(



P.476)

Display items



Odometer

WARNING

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the regenerative

braking power appearing on the display.

This lag could cause the driver to down-

shift again, causing rapid and excessive

regenerative braking and possibly an

accident resulting in death or injury.

Odometer and trip meter dis-
play

163

3-1. Instrument cluster

icle

ion
an

d i

ica

tor

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.

Changing the display

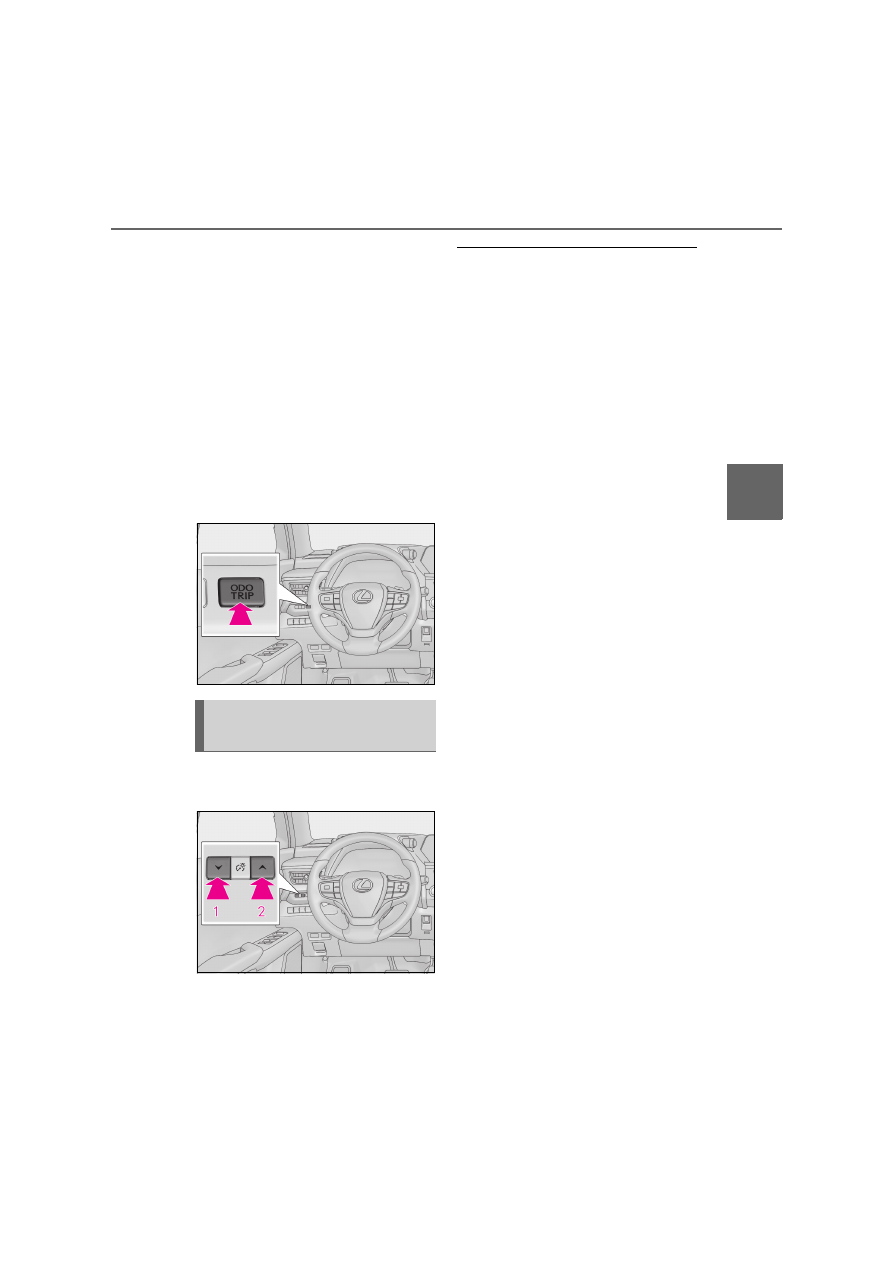

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

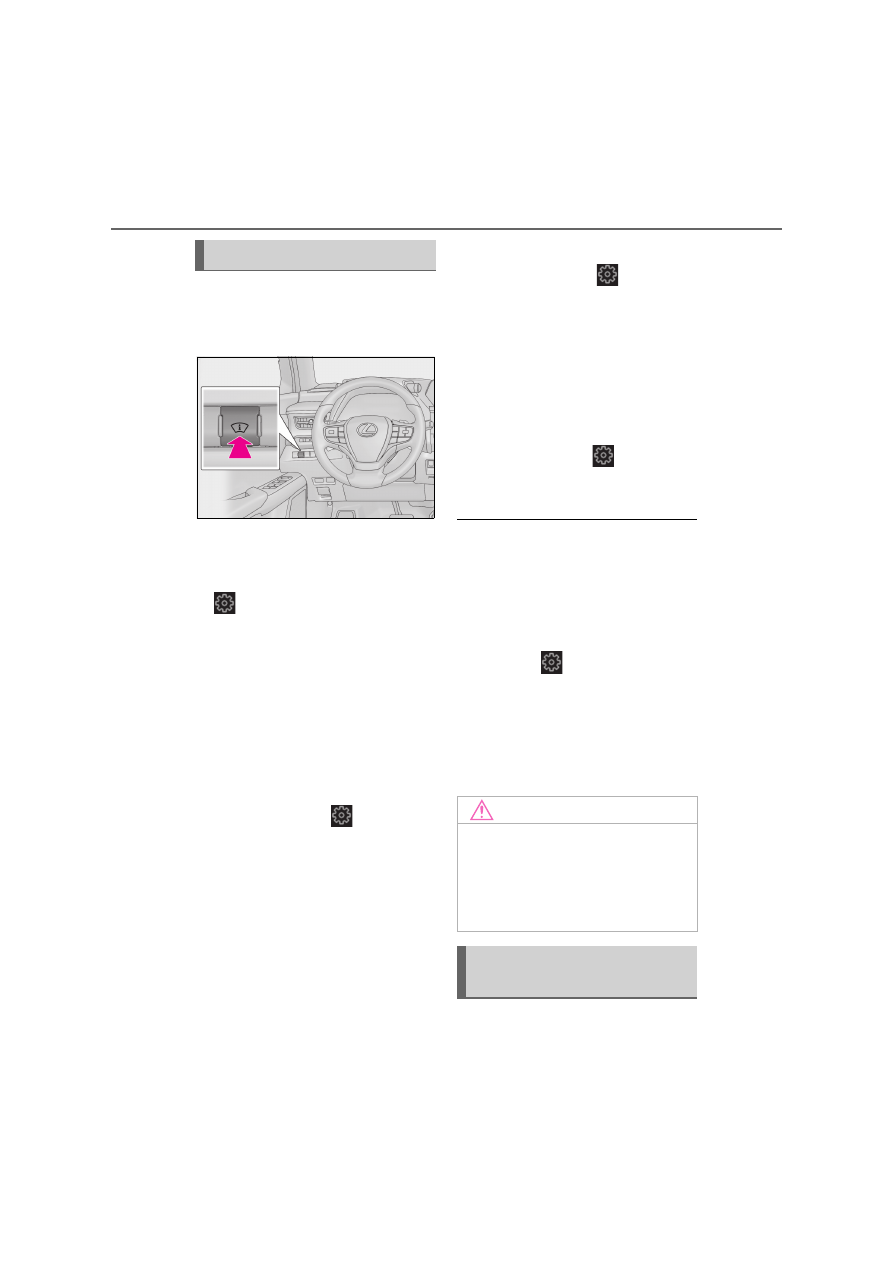

The brightness of the instrument panel
lights can be adjusted.

Darker

Brighter

Instrument panel brightness adjustment

The instrument panel brightness levels

when the surroundings are bright (daytime

etc.) and dark (nighttime etc.) can be

adjusted individually.

Changing the instrument panel
light brightness

164

3-1. Instrument cluster

Display

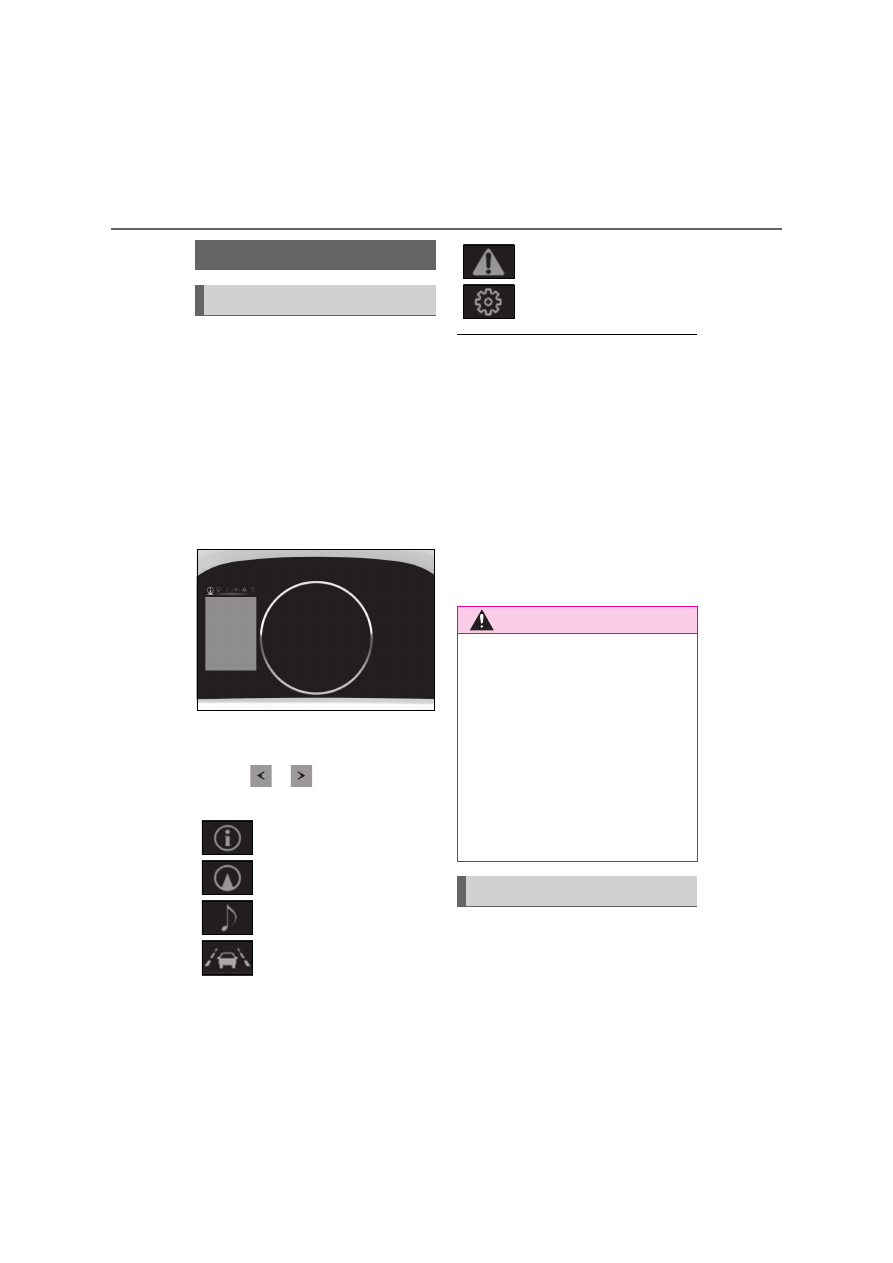

By selecting menu icons on the multi-
information display, a variety of driv-
ing-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

Menu icons

The menu icons will be displayed by
pressing

of the meter con-

trol switches (



P.164).

Opening image display

When the power switch is in ACC or ON,

the opening image is displayed on the multi-

information display.
While the opening image is being dis-

played, the meter display cannot be

changed even if the drive mode is changed.

When the opening image is finished, the

meter display for the currently selected

mode will be displayed.

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

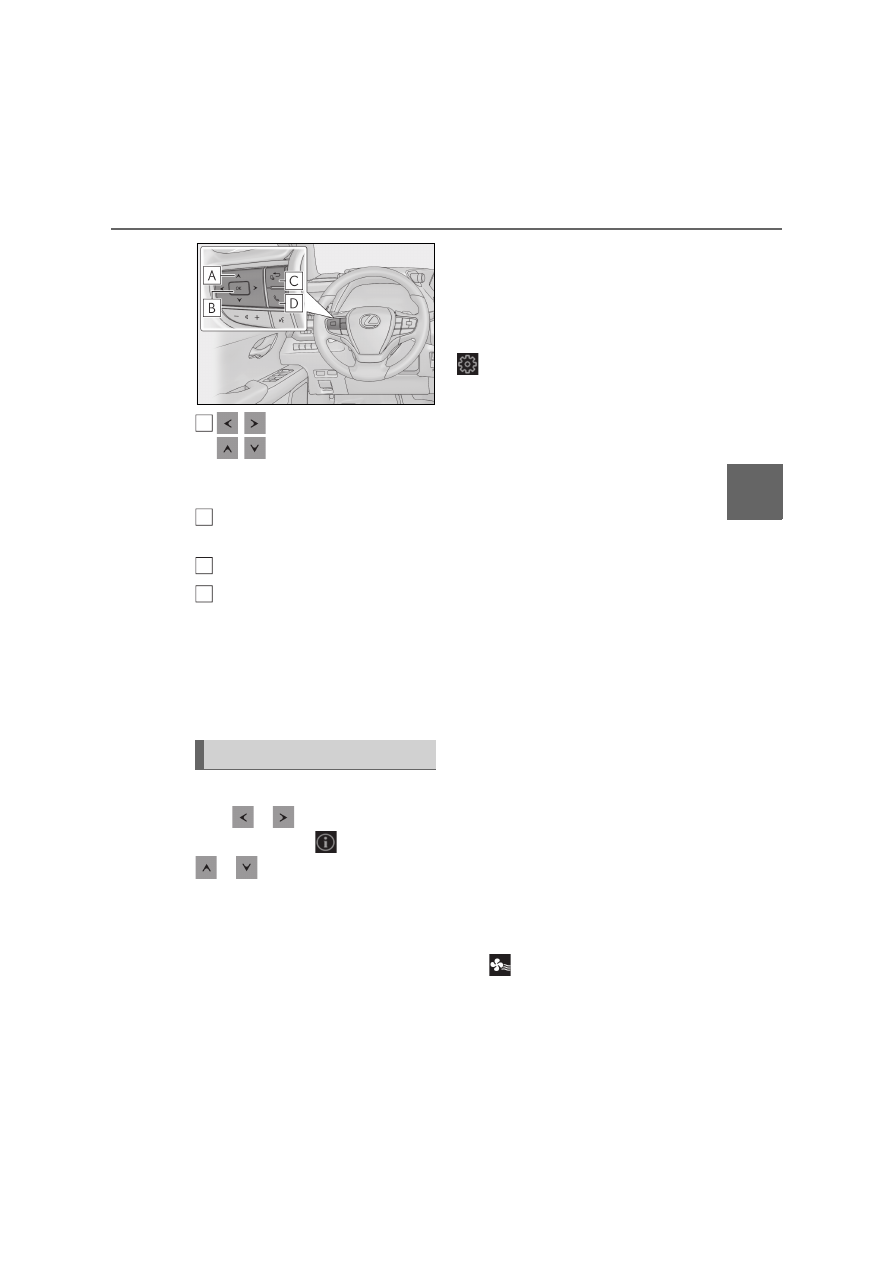

The multi-information display is oper-
ated using the meter control switches.

Multi-information display

Display and menu icons

Driving information display
(



P.165)

Navigation system-linked dis-
play (if equipped) (



P.166)

Audio system-linked display
(



P.166)

Driving support system infor-
mation display (



P.166)

Warning message display
(



P.440)

Settings display (



P.166)

WARNING

Caution for use while driving

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around

the vehicle.

Do not look continuously at the multi-

information display while driving as

you may fail to see pedestrians, objects

on the road, etc. ahead of the vehicle.

The information display at low tem-

peratures



P.162

Changing the meter display

165

3-1. Instrument cluster

icle

ion
an

d i

ica

tor

: Select menu icons

: Change displayed con-

tent, scroll up/down the screen or
move the cursor up/down

Press: Enter/Set
Press and hold: Reset

Return to the previous screen

Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
the “NAVIGATION AND MULTIME-
DIA SYSTEM OWNER’S MANUAL”.

Display items

Press

of the meter control

switches and select

. Then press

to display the following

items:



Drive information 1



Drive information 2



Tire pressure



Display off

Drive information 1/Drive informa-
tion 2

2 of the following drive information can
be displayed in each screen.
Displayed items can be changed on

. (



P.164)

Use the displayed values as a reference
only.



Current electricity consumption

Displays instantaneous current electricity
consumption



Average electricity consumption

After reset: Displays average electricity
consumption since the display was reset



Average vehicle speed

After reset: Displays average vehicle
speed since the display was reset

After start: Displays average vehicle speed
since the EV system was started



Driven distance

Displays the distance driven since the EV
system was started



Elapsed time

After reset: Displays elapsed time since the
display was reset

After start: Displays elapsed time since the
EV system was started



Driving range

Displays driving range with remaining
charge

When the air conditioning system is oper-
ating,

and the driving range with the air

conditioning system on are displayed



Other

Drive information

C
D

166

3-1. Instrument cluster

No item

: To reset, display the desired item and

press and hold “OK” of the meter con-
trol switches.

: This distance is computed based on the

remaining charge of the traction bat-
tery. (



P.87)

The actual distance that can be driven
may differ from that displayed.

: When the air conditioning system is on,

the displayed driving range is less than
that with the air conditioning system off.

Tire pressure



P.399

Display OFF

Displays a blank screen.

Select to display the following naviga-
tion system-linked information.



Route guidance to destination



Compass display

Route guidance to destination display

When the route guidance to destination

display is enabled on the head-up display, it

will not be displayed on the multi-informa-

tion display. (



P.168)

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

Select to display the operational status
of the following systems:



LTA (Lane Tracing Assist)
(



P.269)



Dynamic radar cruise control with
full-speed range (



P.282)



RSA (Road Sign Assist) (



P.278)

Select to display warning messages
and measures to be taken if a malfunc-
tion is detected. (



P.440)

Meter display settings that can be
changed



Language

Select to change the language displayed.



Units

Select to change the units of measure dis-
played.



Speedometer display

Select to set the display of the speedome-
ter to digital/analog.



Drive information 1/Drive informa-
tion 2

Select to select up to 2 items (



P.165)

that will be displayed on each Drive infor-
mation screen (Drive information 1 screen
and Drive information 2 screen) respec-
tively.



Clock

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving support system informa-
tion display

Warning message display

Settings display

167

3-1. Instrument cluster

icle

ion
an

d i

ica

tor

Select to switch between 24-hour display
and 12-hour display.



Pop-up display

Select to enable/disable some pop-up dis-
plays for each relevant system.



Accent color

Select to change the accent color on the
screen, such as the cursor color.



Default settings

Select to reset the meter display settings to
the default setting.

Suspension of the settings display

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.

Suggestion to enable the power
back door (if equipped)

If the power back door system is dis-
abled on

of the multi-information

display (



P.164) and the power back

door switch on the instrument panel is
operated, a suggestion message will

be displayed asking if you wish to
enable the power back door system.
To enable the power back door sys-
tem, select “Yes”.
After enabling the power back door
system, press the power back door
switch again to open or close the
power back door.

Suggestion to turn on the head-
lights

If the headlight switch is in other than

position, and the vehicle

speed is 5 km/h (3 mph) or higher for
a certain amount of time when the sur-
roundings are dark, a suggestion mes-
sage will be displayed.

Suggestion to turn off the head-
lights

If the headlights are left on for a certain
amount of time with the headlight
switch in

after the power switch

has been turned off, a suggestion mes-
sage will be displayed asking if you
wish to turn the headlights off.
To turn the headlights off, select “Yes”.

If a front door is opened after the power
switch is turned off, this suggestion mes-
sage will not be displayed.

Suggestion to close the power win-
dows (linked to windshield wiper
operation)

If the windshield wipers are operated
with a power window open, a sugges-
tion message will be displayed asking if
you wish to close the power windows.

NOTICE

During setting up the display

To prevent 12-volt battery discharge,

ensure that the EV system is operating

while setting up the display features.

Suggestion function

169

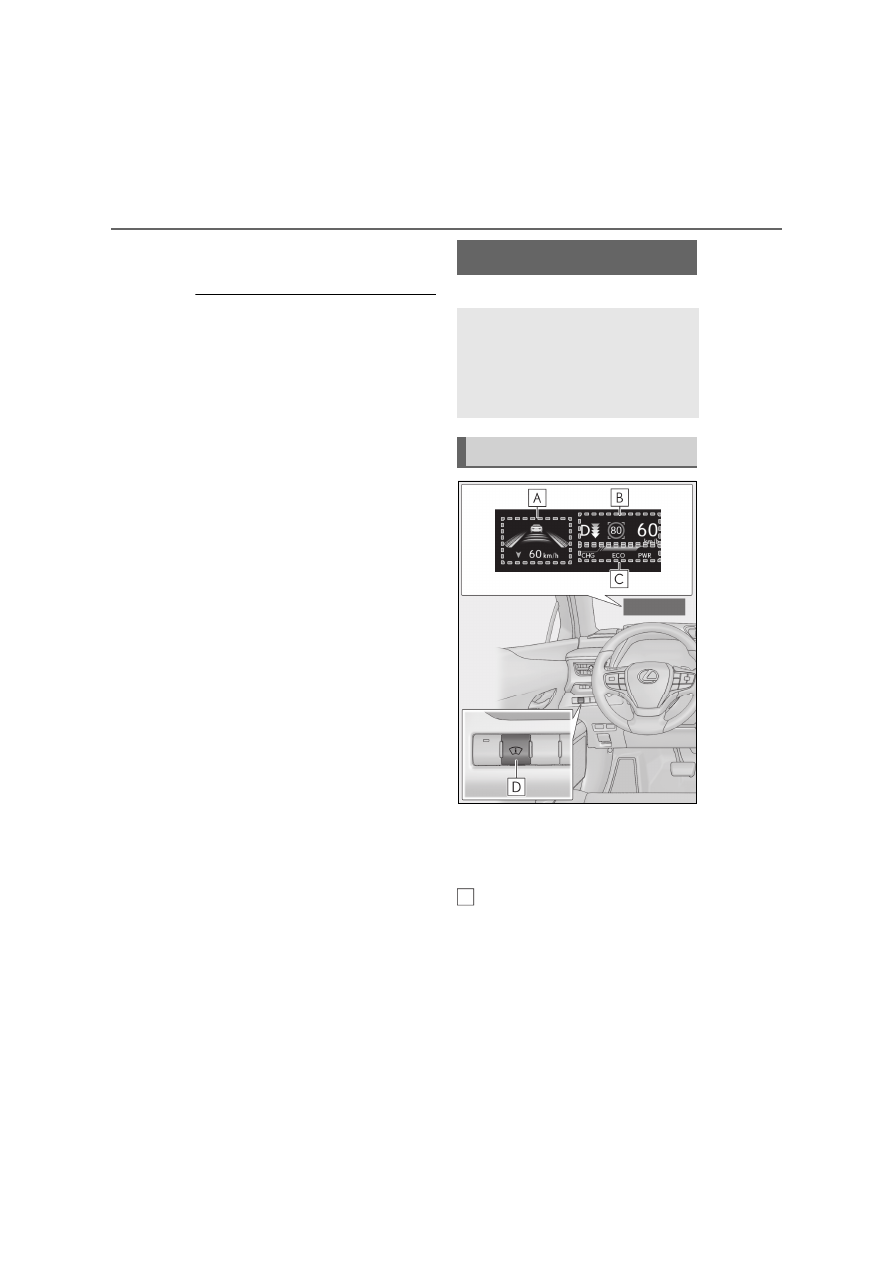

3-1. Instrument cluster

icle

ion
an

d i

ica

tor

• Street name
• Compass (heading-up display)

Driving information display area

Displays the following items:
• Speedometer
• Shift position/regenerative braking

power (



P.232)

• RSA (Road Sign Assist) (



P.278)

EV System Indicator (



P.172)

Head-up display switch

Head-up display will operate when

The power switch is in ON.

When using the head-up display

The head-up display may seem dark or hard

to see when viewed through sunglasses,

especially polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

Street name display

Only street names which are included in the

map data will be displayed.

Outside temperature display

In the following situations, the outside

temperature is displayed.

• When the ambient temperature is

approximately 3°C (37°F) or lower (In

this case, the outside temperature display

will be displayed and the low outside tem-

perature indicator will flash for approxi-

mately 10 seconds.)

• After the opening image (



P.164) is dis-

played (The outside temperature display

will be displayed for approximately 10

seconds.)

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 20 km/h [12 mph])

• When the outside temperature has

changed suddenly (at the entrance/exit

of a garage, tunnel, etc.)

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

C
D

WARNING

When using the head-up display

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

Do not continuously look at the head-

up display while driving as you may fail

to see pedestrians, objects on the

road, etc. ahead of the vehicle.

NOTICE

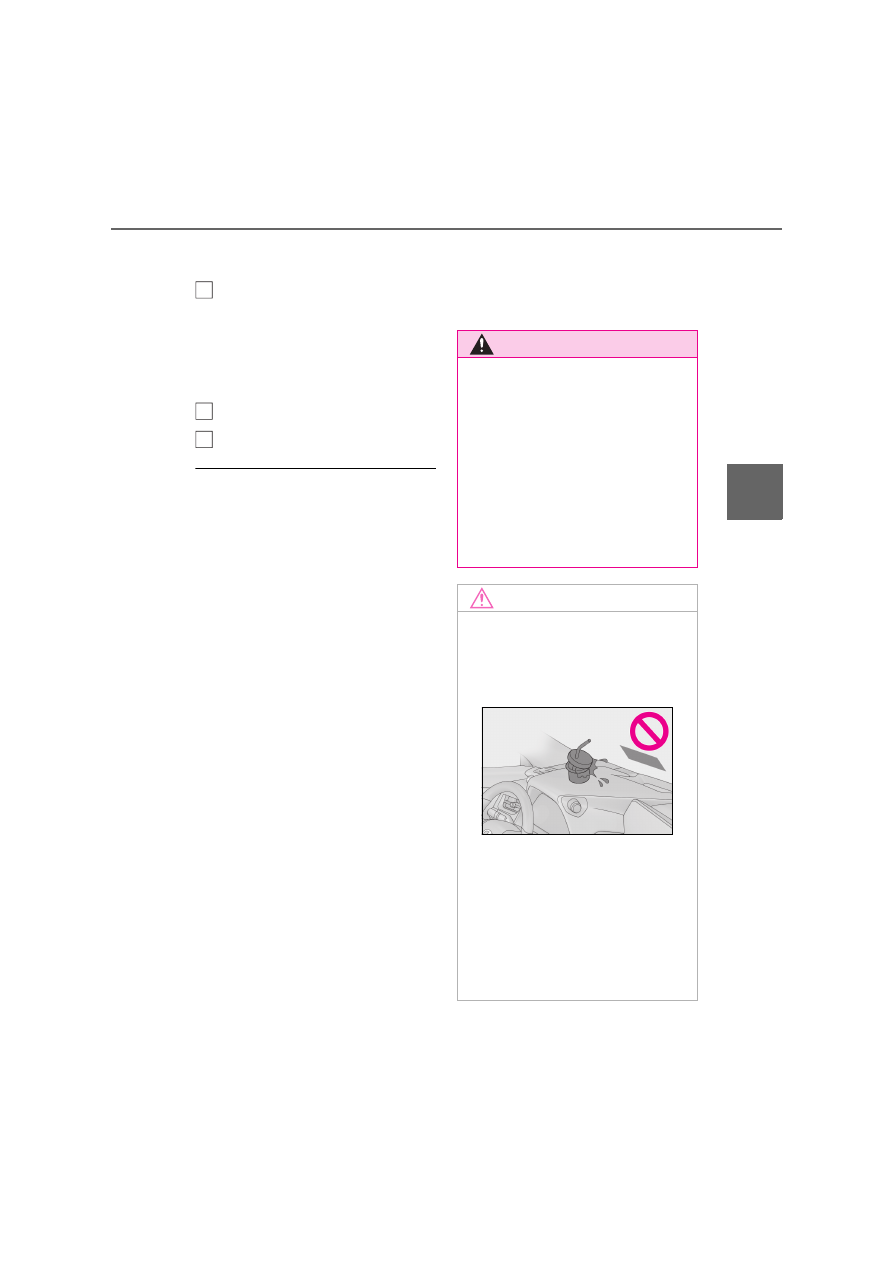

Head-up display projector

Do not place any drinks near the head-

up display projector. If the projector

gets wet, electrical malfunctions may

result.

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector.

Doing so could cause mechanical mal-

functions.

170

3-1. Instrument cluster

Enabling/disabling the head-up
display

Press the head-up display switch.

Changing settings of the head-up
display

The following settings can be changed
on

of the multi-information display.

(



P.164)



Brightness and vertical position of
the head-up display

Select to adjust the brightness or vertical
position of the head-up display.



EV System Indicator

Select to display the EV System Indicator
or no content.

: To set this item, select

on the multi-

information display, select “Vehicle Set-
tings” and select “HUD”.



Display content

Select to enable/disable the following
items:
• Route guidance to destination/street

name

• Driving support system display

• Compass (heading-up display)

• Audio system operation status

: To set this item, select

on the multi-

information display, select “Vehicle Set-
tings” and select “HUD”.

: Make sure to enable this display when

using the driving support systems



Display angle

Select to adjust the angle of the head-up
display.

: To set this item, select

on the multi-

information display, select “Vehicle Set-
tings” and select “HUD”.

Enabling/disabling of the head-up dis-

play

If the head-up display is disabled, it will

remain disabled when the power switch is

turned off then back to ON.

Display brightness

The brightness of the head-up display can
be adjusted on

of the multi-information

display. Also, it is automatically adjusted

according to the ambient brightness.

When the 12-volt battery is discon-

nected

The customize settings of the head-up dis-

play will be reset.

Displays the operational status of the

Using the head-up display

NOTICE

When changing the settings of the

head-up display

To prevent 12-volt battery discharge,

ensure that the EV system is operating

while changing the settings of the head-

up display.

Driving support system display
area

171

3-1. Instrument cluster

icle

ion
an

d i

ica

tor

following systems:



LTA (Lane Tracing Assist)
(



P.269)



Dynamic radar cruise control with
full-speed range (



P.282)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

Pop-up displays for the following sys-
tems will be displayed when necessary.

Driving support systems

Displays a warning/suggestion/advice
message or the operating state of a rel-
evant system.



PCS (Pre-Collision System)
(



P.262)



Lexus parking assist-sensor (if
equipped) (



P.306)



Parking Support Brake function
(static objects) (if equipped)
(



P.323)



Brake Override System (



P.217)



Drive-Start Control (



P.217)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

icons

These icons are linked to the multi-
information display

: Master warning icon

Displayed when a warning message is dis-
played on the multi-information display.
(



P.440)

: Information icon

Displayed when a suggestion pop-up dis-
play (



P.167) or advice pop-up display is

displayed on the multi-information display.

Warning message

Some warning messages are displayed
when necessary, according to certain
conditions.

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display.

Audio system operation status

Displayed when an audio remote con-
trol switch on the steering wheel is
operated.

Hands-free system status

Displayed when the hands-free system
is operated.

When a pop-up display is displayed

When a pop-up display is displayed, a cur-

rent display may no longer be displayed. In

this case, the display will return after the

pop-up display disappears.

Pop-up display

173

Before drivi

Before driving

4-1. Key information

Keys .................................................

174

4-2. Opening, closing and locking the

doors

Side doors .....................................

178

Back door......................................

182

Smart entry & start system.....

195

4-3. Adjusting the seats

Front seats....................................

200

Rear seats......................................

201

Head restraints...........................

202

4-4. Adjusting the steering wheel and

mirrors

Steering wheel ...........................

204

Inside rear view mirror............

205

Outside rear view mirrors.....

206

4-5. Opening, closing the windows

and moon roof

Power windows .........................

209

Moon roof ......................................

211

174

4-1. Key information

4-1.Key information

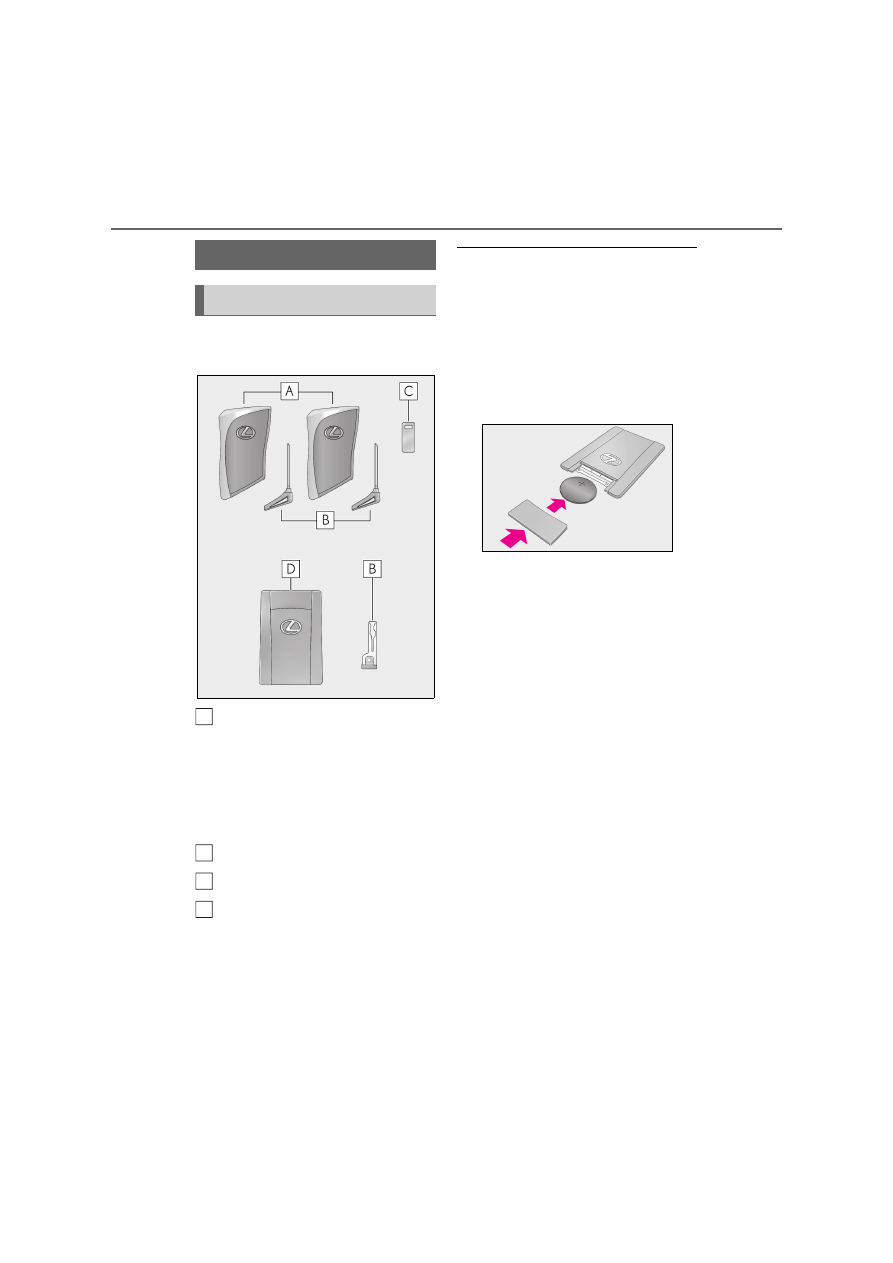

The following keys are provided with
the vehicle.

Electronic keys

• Operating the smart entry & start sys-

tem (if equipped) (



P.195)

• Operating the wireless remote control

function

• Operating the Remote Air Conditioning

System (



P.355)

Mechanical keys

Key number plate

Card key (electronic key) (if
equipped)

Operating the smart entry & start system
(



P.195)

Card key (if equipped)

The mechanical key that is stored inside

the card key should be used only if a

problem arises, such as when the card

key does not operate properly.

If the battery cover is not installed and the

battery falls out or if the battery was

removed because the key got wet, rein-

stall the battery with the positive terminal

facing the Lexus emblem.

The card key is not waterproof.

When riding in an aircraft

When bringing an electronic key onto an

aircraft, make sure you do not press any

buttons on the electronic key while inside

the aircraft cabin. If you are carrying an

electronic key in your bag, etc., ensure that

the buttons are not likely to be pressed

accidentally. Pressing a button may cause

the electronic key to emit radio waves that

could interfere with the operation of the air-

craft.

Electronic key battery depletion

The standard battery life is 1 to 2 years.

(The card key battery life is from one year

to one year and a half.)

If the battery becomes low, an alarm will

sound in the cabin when the EV system

stops.

To reduce key battery depletion when

the electronic key is to not be used for

long periods of time, set the electronic

key to the battery-saving mode.

(



P.197)

As the electronic key always receives

radio waves, the battery will become

depleted even if the electronic key is not

used. The following symptoms indicate

Keys

Key types

B
C
D

175

4-1. Key information

Before drivi

that the electronic key battery may be

depleted. Replace the battery when nec-

essary. (



P.414)

• The smart entry & start system or the

wireless remote control does not oper-

ate.

• The detection area becomes smaller.

• The LED indicator on the key surface

does not turn on.

You can replace the battery by yourself

(



P.414). However, as there is a danger

that the electronic key may be damaged, it

is recommended that replacement be car-

ried out by any authorized Lexus retailer or

Lexus authorized repairer, or any reliable

repairer.

To avoid serious deterioration, do not

leave the electronic key within 1 m (3 ft.)

of the following electrical appliances that

produce a magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones and

battery chargers

• Recharging cellular phones or cordless

phones

• Table lamps

• Induction cookers

Replacing the battery



P.414

Confirmation of the registered key

number

The number of keys already registered to

the vehicle can be confirmed. Ask any

authorized Lexus retailer or Lexus autho-

rized repairer, or any reliable repairer for

details.

If “A New Key has been Registered

Contact Your Dealer for Details” is

shown on the multi-information display

This message will be displayed each time

the driver’s door is opened when the doors

are unlocked from the outside for approxi-

mately 10 days after a new electronic key

has been registered.
If this message is displayed but you have not

had a new electronic key registered, ask

any authorized Lexus retailer or Lexus

authorized repairer, or any reliable repairer

to check if an unknown electronic key

(other than those in your possession) has

been registered.

NOTICE

To prevent key damage

Do not drop the keys, subject them to

strong shocks or bend them.

Do not expose the keys to high tem-

peratures for long periods of time.

Do not get the keys wet or wash them

in an ultrasonic washer, etc.

Do not attach metallic or magnetic

materials to the keys or place the keys

close to such materials.

Do not disassemble the keys.

Do not attach a sticker or anything else

to the surface of the electronic key.

Do not place the keys near objects that

produce magnetic fields, such as TVs,

audio systems and induction cookers,

or medical electrical equipment, such

as low-frequency therapy equipment.

Carrying the electronic key on your

person

Carry the electronic key 10 cm (3.9 in.)

or more away from electric appliances

that are turned on. Radio waves emitted

from electric appliances within 10 cm

(3.9 in.) of the electronic key may inter-

fere with the key, causing the key to not

function properly.

In case of a smart entry & start system

malfunction or other key-related

problems



P.458

When an electronic key is lost



P.457

176

4-1. Key information

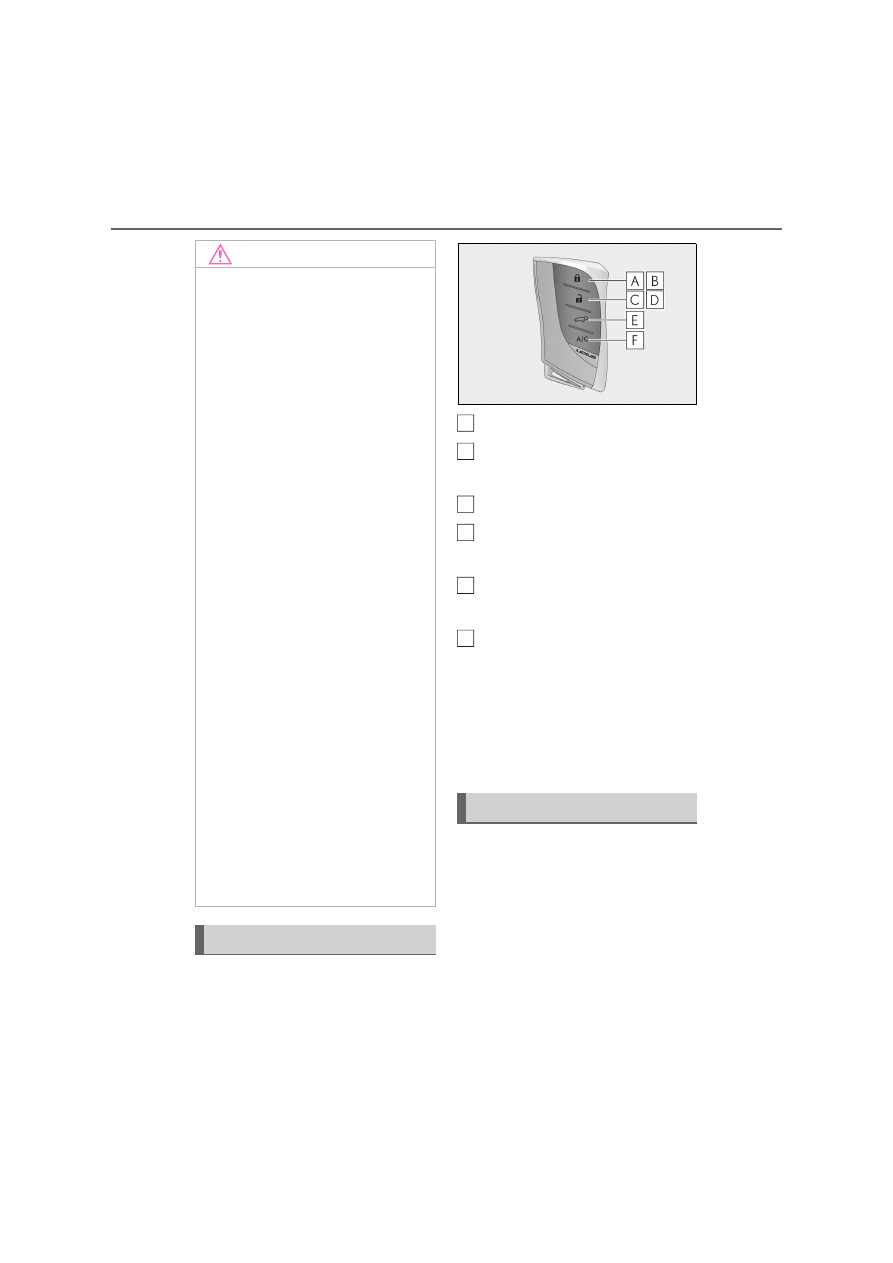

The electronic keys are equipped with
the following wireless remote control:

Locks all the doors (



P.178)

Closes the windows and moon
roof

*1, 2

(



P.178)

Unlocks all the doors (



P.178)

Opens the windows and moon
roof

*1, 2

(



P.178)

Opens and closes the power back
door

(



P.185)

Operates Remote Air Condition-
ing System (



P.355)

: If equipped

: These settings must be customized at

any authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

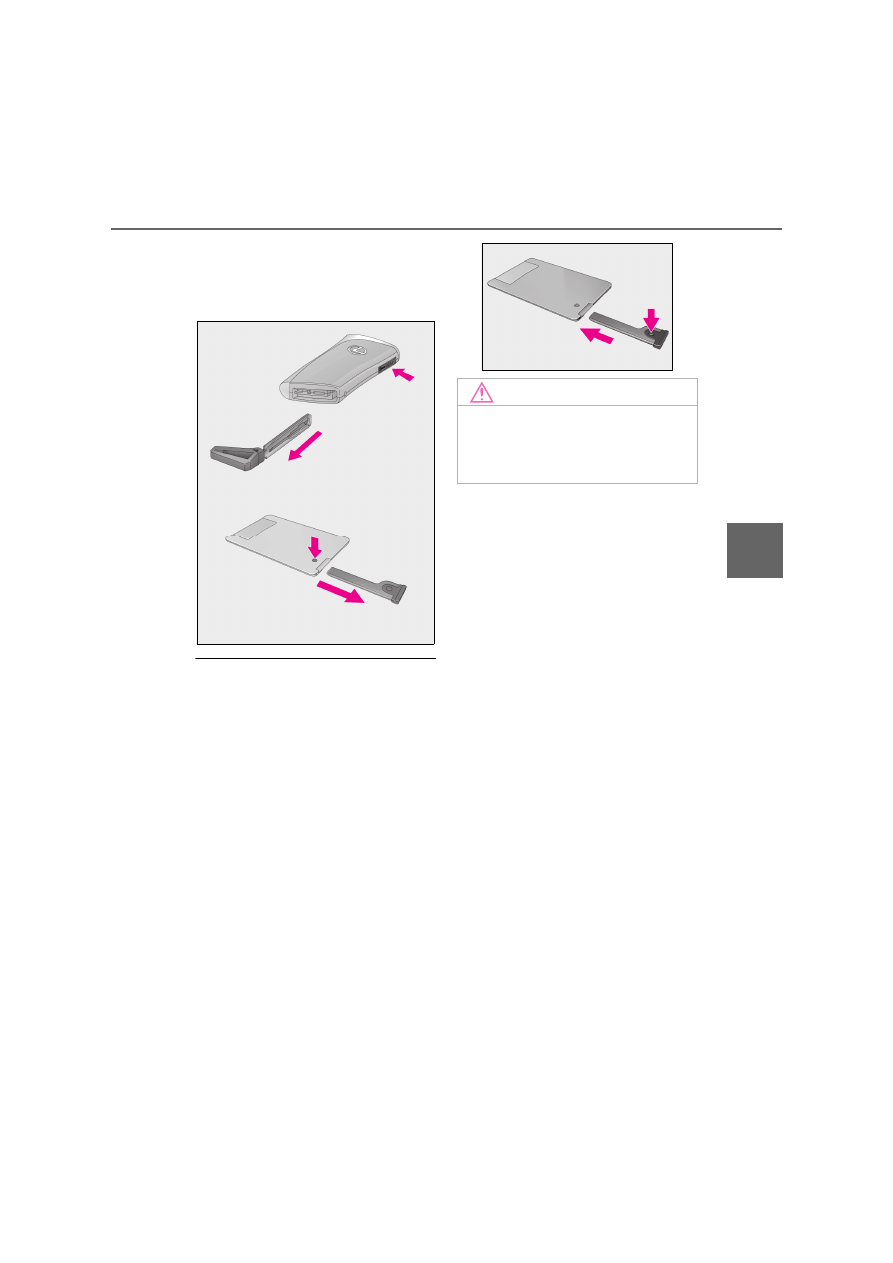

To take out the mechanical key, push
the release button and take the key out.

The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key.

NOTICE

Handling the card key (if equipped)

If the battery or card key terminals get

wet, the battery may corrode and the

card key may stop working.

If the key is dropped into water, or if

drinking water, etc., is spilled on the

key, immediately remove the battery

cover and wipe the battery and termi-

nals. (To remove the battery cover,

lightly grasp and pull it.) If the battery is

corroded, have any authorized Lexus

retailer or Lexus authorized repairer,

or any reliable repairer replace the

battery.

Do not crush the battery cover or use

a screwdriver to remove the battery

cover.

Forcibly removing the battery cover

may bend or damage the key.

If the battery cover is frequently

removed, the battery cover may

become loose.

When installing the battery, make sure

to check the direction of the battery.

Installing the battery in the wrong

direction may cause the battery to

deplete rapidly.

The surface of the card key may be

damaged, or its coating may peel off in

the following situations:

• The card key is carried together with

hard objects, such as coins and keys.

• The card key is scraped with a sharp

object, such as the tip of a mechanical

pencil.

• The surface of the card key is wiped

with thinner or benzene.

Wireless remote control

Using the mechanical key

A
B

C
D

177

4-1. Key information

Before drivi

If the electronic key battery is depleted or
the entry function does not operate prop-
erly, you will need the mechanical key.
(



P.458)

When required to leave the vehicle’s

key with a parking attendant

Lock the glove box as circumstances

demand. (



P.365)

Remove the mechanical key for your own

use and provide the attendant with the elec-

tronic key only.

If you lose your mechanical keys



P.457

If a wrong key is used

The key cylinder rotates freely to isolate

inside mechanism.

Card key (if equipped)

If it is difficult to take out the mechanical

key, push down the release button using

a pen tip, etc. If it is still difficult to pull it

out, use a coin, etc.

To store the mechanical key in the card

key, insert it while pressing the release

button.

NOTICE

Handling the card key (if equipped)

Do not apply excess force when inserting

the mechanical key into the card key.

Doing so may damage the card key.

178

4-2. Opening, closing and locking the doors

4-2.Opening, closing and locking the doors

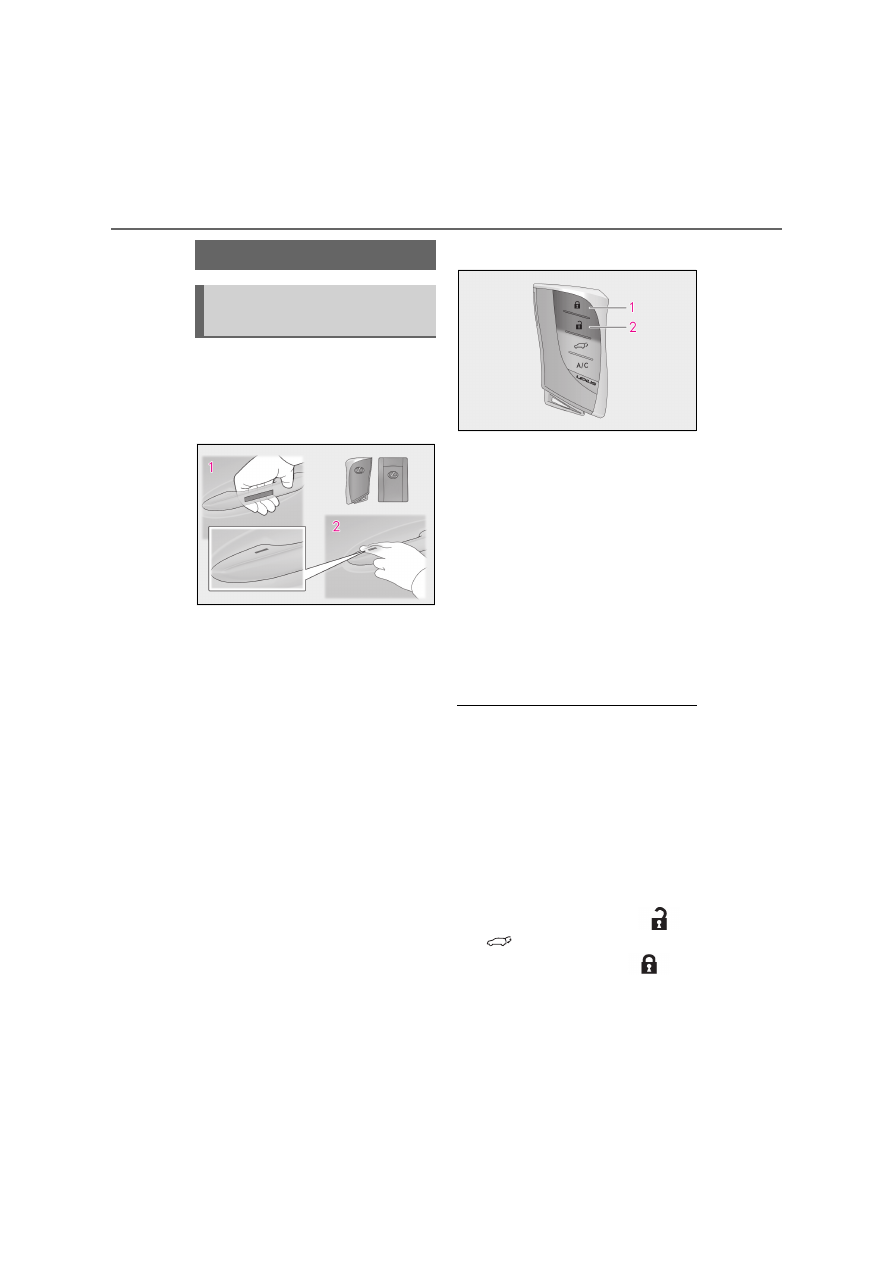

Smart entry & start system (vehi-
cles with entry function)

Carry the electronic key to enable this
function.

Grip the front door handle to
unlock the doors.

Make sure to touch the sensor on the back
of the handle.
The doors cannot be unlocked for 3 sec-
onds after the doors are locked.

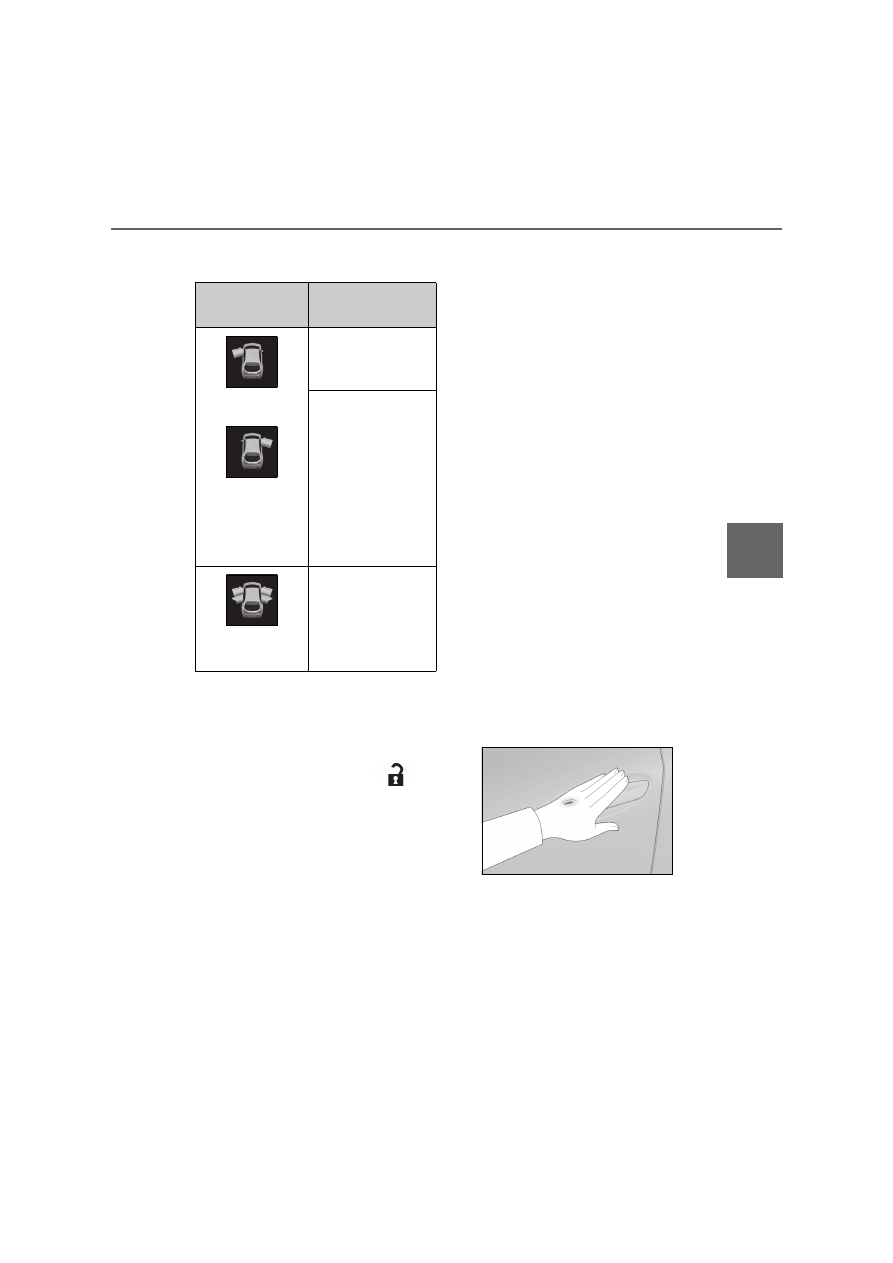

: The door unlock settings can be

changed.

Touch the lock sensor (the indenta-
tion on the upper part of the front
door handle) to lock all the doors.

Check that the door is securely locked.

Wireless remote control

Locks all the doors

Check that the door is securely locked.
Press and hold to close the windows and
moon roof.

*1, 2

Unlocks all the doors

Press and hold to open the windows and
moon roof.

*1, 2

: If equipped

: These settings must be customized at

any authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

Switching the door unlock function

(vehicles with entry function)

It is possible to set which doors the entry

function unlocks using the wireless remote

control.

Turn the power switch off.

Cancel the intrusion sensor and tilt sen-

sor of the alarm system to prevent unin-

tended triggering of the alarm while

changing the settings. (if equipped)

(



P.74)

When the indicator light on the key sur-
face is not on, press and hold

for approximately 5 seconds

while pressing and holding

The setting changes each time an operation
is performed, as shown below. (When
changing the setting continuously, release

Side doors

Unlocking and locking the doors
from the outside

179

4-2. Opening, closing and locking the doors

Before drivi

the buttons, wait for at least 5 seconds, and
repeat step

For vehicles with alarm: To prevent unin-

tended triggering of the alarm, unlock the

doors using the wireless remote control

and open and close a door once after the

settings have been changed. (If a door is not
opened within 30 seconds after

pressed, the doors will be locked again and

the alarm will automatically be set.)

In a case that the alarm is triggered, imme-

diately stop the alarm. (



P.73)

Locking the front doors from the outside

without a key

Push down the inside lock button.

(



P.181)

Close the door while pulling the door

handle.

The door cannot be locked if the power

switch is in ACC or ON, or the electronic

key is left inside the vehicle.
The key may not be detected correctly and

the door may be locked.

Impact detection door lock release sys-

tem

In the event that the vehicle is subject to a

strong impact, all the doors are unlocked.

Depending on the force of the impact or the

type of accident, however, the system may

not operate.

Operation signals

The emergency flashers flash to indicate

that the doors have been locked/unlocked.

(Locked: once; Unlocked: twice)
A buzzer sounds to indicate that the win-

dows are operating.

Security feature

If a door is not opened within approximately

30 seconds after the vehicle is unlocked,

the security feature automatically locks the

vehicle again.

When the door cannot be locked by the

lock sensor on the upper part of the

door handle (vehicles with entry func-

tion)

When the door cannot be locked even if the

lock sensor on the upper part of the door

handle is touched by a finger, touch the lock

sensor with the palm.

When gloves are being worn, remove the

gloves.

Open door warning buzzer

If an attempt to lock the doors is made when

a door is not fully closed, a buzzer sounds

continuously for 5 seconds. Fully close the

door to stop the buzzer, and lock the vehi-

cle once more.

Setting the alarm (if equipped)

Locking the doors will set the alarm system.

Multi-information

display/Beep

Unlocking function

(Left-hand drive

vehicles)

(Right-hand drive

vehicles)

Exterior: Beeps 3

times

Interior: Pings once

Holding the driver’s
door handle unlocks
only the driver’s door.

Holding the front pas-
senger door handle
unlocks all the doors.

Exterior: Beeps twice

Interior: Pings once

Holding a front door
handle unlocks all the
doors.

180

4-2. Opening, closing and locking the doors

(



P.73)

Conditions affecting the operation of

the smart entry & start system or wire-

less remote control



P.197

If the smart entry & start system or the

wireless remote control does not oper-

ate properly

Use the mechanical key to lock and

unlock the doors. (



P.458)

Replace the key battery with a new one if

it is depleted. (



P.414)

If the 12-volt battery is discharged

The doors cannot be locked and unlocked

using the smart entry & start system or

wireless remote control. Lock or unlock the

doors using the mechanical key. (



P.458)

Rear seat reminder function

In order to remind you not to forget lug-

gage, etc. on the rear seat, when the

power switch is turned off after any of the

following conditions is met, a buzzer will

sound and a message will be displayed on

the multi-information display for approxi-

mately 6 seconds.

• The EV system is started within 10 min-

utes after opening and closing a rear

door.

• A rear door has been opened and closed

after the EV system was started.

However, if a rear door is opened and then

closed within approximately 2 seconds, the

rear seat reminder function may not oper-

ate.

The rear seat reminder function deter-

mines that luggage, etc. has been placed

on a rear seat based on opening and

closing of a rear door. Therefore,

depending on the situation, the rear seat

reminder function may not operate and

you may still forget luggage, etc. on the

rear seat, or it may operate unnecessar-

ily.

The rear seat reminder function can be

enabled/disabled. (



P.476)

Customization

Settings (e.g. unlocking function using a

key) can be changed. (Customizable fea-

tures:



P.478)

WARNING

To prevent an accident

Observe the following precautions while

driving the vehicle.

Failure to do so may result in a door

opening and an occupant falling out,

resulting in death or serious injury.

Ensure that all doors are properly

closed and locked.

Do not pull the inside handle of the

doors while driving.

Be especially careful for the front

doors, as the doors may be opened

even if the inside lock buttons are in

locked position.

Set the rear door child-protector locks

when children are seated in the rear

seats.

When opening or closing a door

Check the surroundings of the vehicle

such as whether the vehicle is on an

incline, whether there is enough space

for a door to open and whether a strong

wind is blowing. When opening or clos-

ing the door, hold the door handle tightly

to prepare for any unpredictable move-

ment.

When using the wireless remote con-

trol and operating the power win-

dows or moon roof (if equipped)

Operate the power window or moon

roof after checking to make sure that

there is no possibility of any passenger

having any of their body parts caught in

the window or moon roof. Also, do not

allow children to operate the wireless

remote control. It is possible for children

and other passengers to get caught in

the power window or moon roof.

181

4-2. Opening, closing and locking the doors

Before drivi

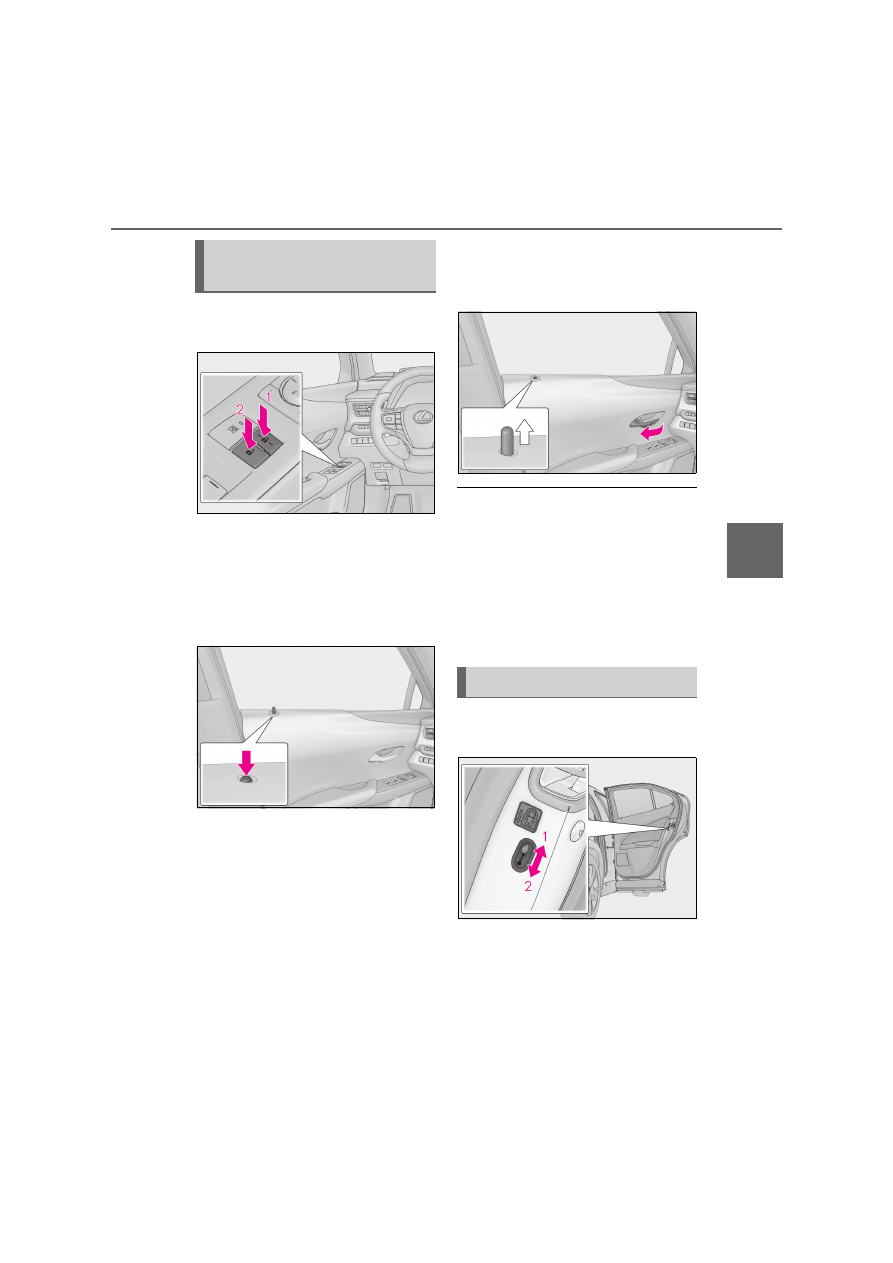

Door lock switches (to
lock/unlock)

Locks all the doors

Unlocks all the doors

Inside lock buttons (to lock)

Push down the inside lock button to
lock the door.

Inside door handles (to unlock)



For the front doors

Pull the handle to unlock and open the
door.

When the door is unlocked, the inside lock
button will pop up.



For the rear doors

Pull the handle to unlock the door. Pull
the handle a second time to open the

door.

When the door is unlocked, the inside lock
button will pop up.

If a symbol indicating one or more doors

are open is shown on the multi-informa-

tion display

The hood or one or more of the doors are

not fully closed. The system also indicates

which doors are not fully closed. If the vehi-

cle reaches a speed of 5 km/h (3 mph), a

buzzer sounds to indicate that the door(s)

are not yet fully closed. Make sure that the

hood and all the doors are closed.

The door cannot be opened from
inside the vehicle when the lock is set.

Unlock

Lock

These locks can be set to prevent children
from opening the rear doors. Push down
on each rear door switch to lock both rear

Unlocking and locking the doors
from the inside

Rear door child-protector lock

182

4-2. Opening, closing and locking the doors

doors.

The following functions can be set or
canceled:

For instructions on customizing, refer to
P.478.

Automatic door locking and
unlocking systems

Function

Operation

Speed linked door
locking function

All doors are auto-
matically locked
when vehicle speed
is approximately 20
km/h (12 mph) or
higher.

Shift position linked
door locking func-
tion

All doors are auto-
matically locked
when the shift posi-
tion is shifted to a
position other than
P.

Shift position linked
door unlocking
function

All doors are auto-
matically unlocked
when shift position is
shifted to P.

Driver’s door linked
door unlocking
function

All doors are auto-
matically unlocked
when driver’s door is
opened within
approximately 45
seconds after turn-
ing the power switch
off.

Back door

The back door can be
locked/unlocked and
opened/closed by the following
procedures.

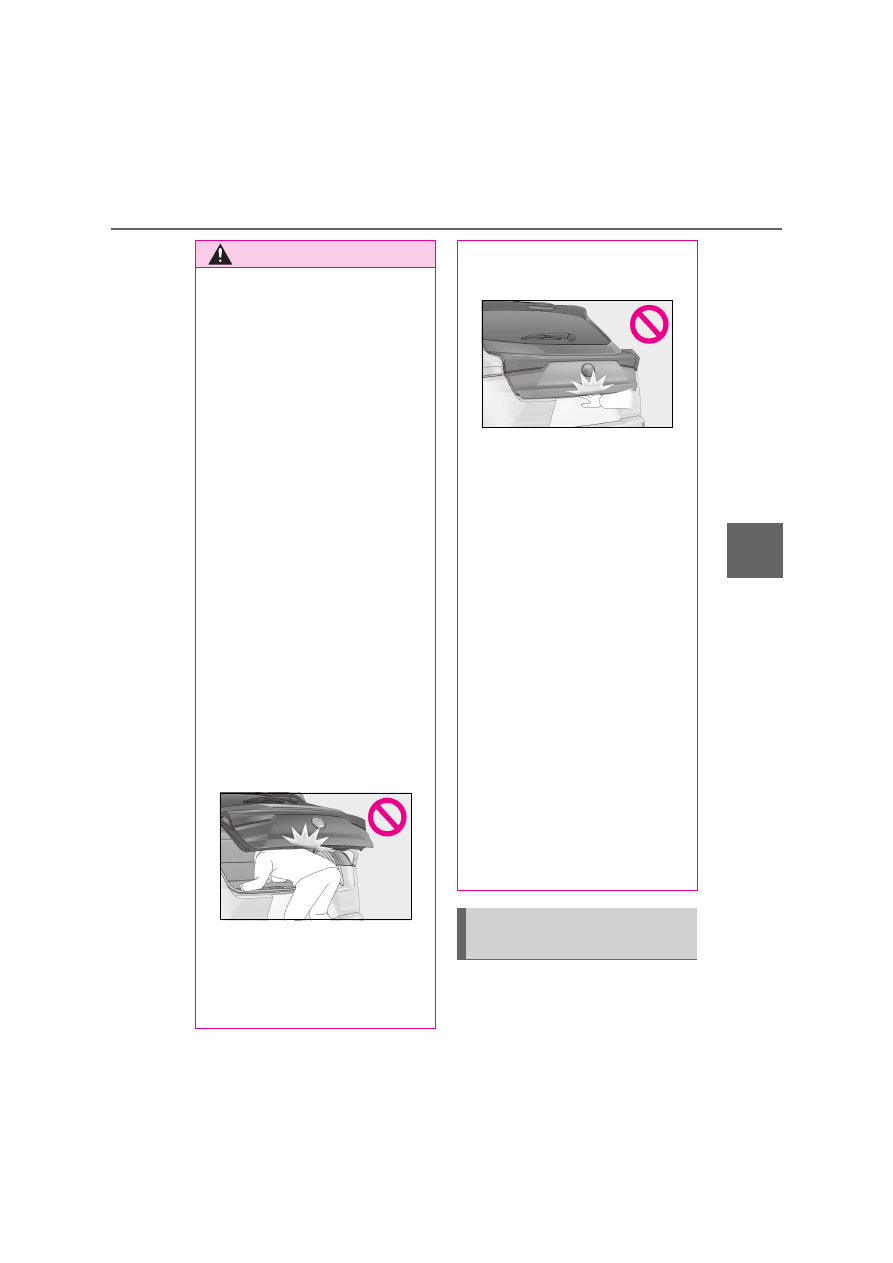

WARNING

Before driving the vehicle

Make sure that the back door is fully

closed. If the back door is not fully closed,

it may open unexpectedly while driving,

causing an accident.

Caution while driving

Keep the back door closed while driv-

ing.

If the back door is left open, it may hit

nearby objects while driving or lug-

gage may be unexpectedly thrown

out, causing an accident.

Never let anyone sit in the luggage

compartment. In the event of sudden

braking, sudden swerving or a colli-

sion, they are susceptible to death or

serious injury.

When children are in the vehicle

Observe the following precautions.

Failure to do so may result in death or

serious injury.

Do not allow children to play in the

luggage compartment.

If a child is accidentally locked in the

luggage compartment, they could

have heat exhaustion or other injuries.

Do not allow a child to open or close

the back door.

Doing so may cause the back door to

move unexpectedly, or cause the

child’s hands, arms, head, or neck to

be caught by the closing back door.

183

4-2. Opening, closing and locking the doors

Before drivi

Smart entry & start system (vehi-
cles with entry function)

Carry the electronic key to enable this

WARNING

Operating the back door

Observe the following precautions.

Failure to do so may cause parts of the

body to be caught, resulting in death or

serious injury.

Remove any heavy loads, such as

snow and ice, from the back door

before opening it. Failure to do so may

cause the back door to suddenly shut

again after it is opened.

When opening or closing the back

door, thoroughly check to make sure

the surrounding area is safe.

If anyone is in the vicinity, make sure

they are safe and let them know that

the back door is about to open or

close.

Use caution when opening or closing

the back door in windy weather as it

may move abruptly in strong wind.

Vehicles without power back door:

The back door may suddenly shut if it is

not opened fully. It is more difficult to

open or close the back door on an

incline than on a level surface, so

beware of the back door unexpectedly

opening or closing by itself. Make sure

that the back door is fully open and

secure before using the luggage com-

partment.

Vehicles with power back door: The

back door may suddenly shut if it is not

opened fully, while on a steep incline.

Make sure that the back door is

secured before using the luggage

compartment.

When closing the back door, take

extra care to prevent your fingers, etc.,

from being caught.

When closing the back door, make

sure to press it lightly on its outer sur-

face. If the back door handle is used to

fully close the back door, it may result

in hands or arms being caught.

Do not pull on the back door damper

stay (vehicles without power back

door) (



P.185) or back door spindle

(vehicles with power back door)

(



P.192) to close the back door, and

do not hang on the back door damper

stay (vehicles without power back

door) or back door spindle (vehicles

with power back door).

Doing so may cause hands to be

caught or the back door damper stay

(vehicles without power back door) or

back door spindle (vehicles with

power back door) to break, causing an

accident.

If a bicycle carrier or similar heavy

object is attached to the back door, it

may suddenly shut again after being

opened, causing someone’s hands,

arms, head or neck to be caught and

injured. When installing an accessory

part to the back door, using a genuine

Lexus part is recommended.

Unlocking and locking the back
door from the outside

184

4-2. Opening, closing and locking the doors

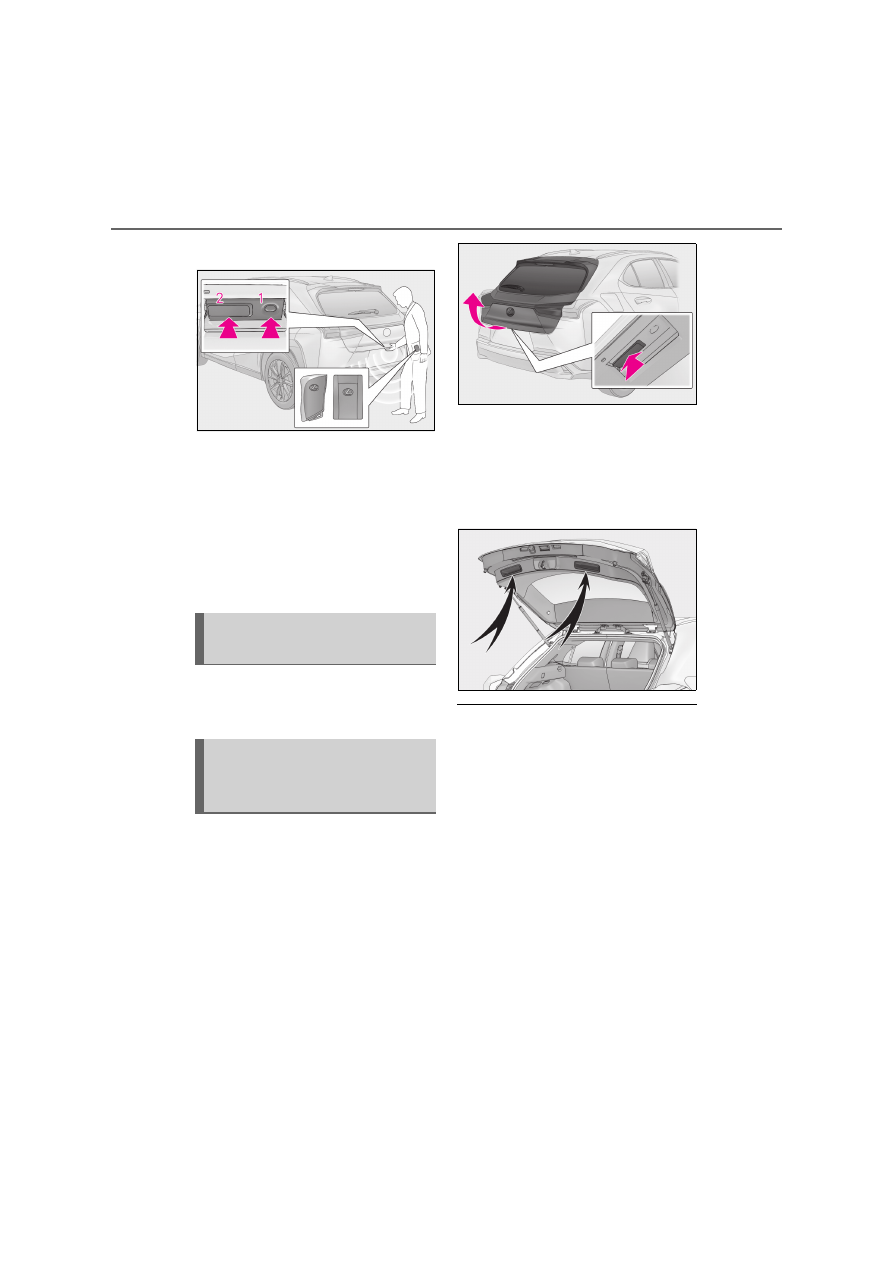

function.

Locks all the doors

Check that the door is securely locked.

Unlocks all the doors

The doors cannot be unlocked for 3 sec-
onds after the doors are locked.

Wireless remote control



P.178

Door lock switch



P.181

Open

Raise the back door while pressing up
the back door opener switch.

Lower the back door using the back
door handle, and make sure to push
the back door down from the outside
to close it.

Luggage compartment light

The luggage compartment light turns on

when the back door is opened.

If the luggage compartment light is left on

when the power switch is turned off, the

light will go off automatically after 20

minutes.

If the back door opener is inoperative

The back door can be unlocked from the

inside.

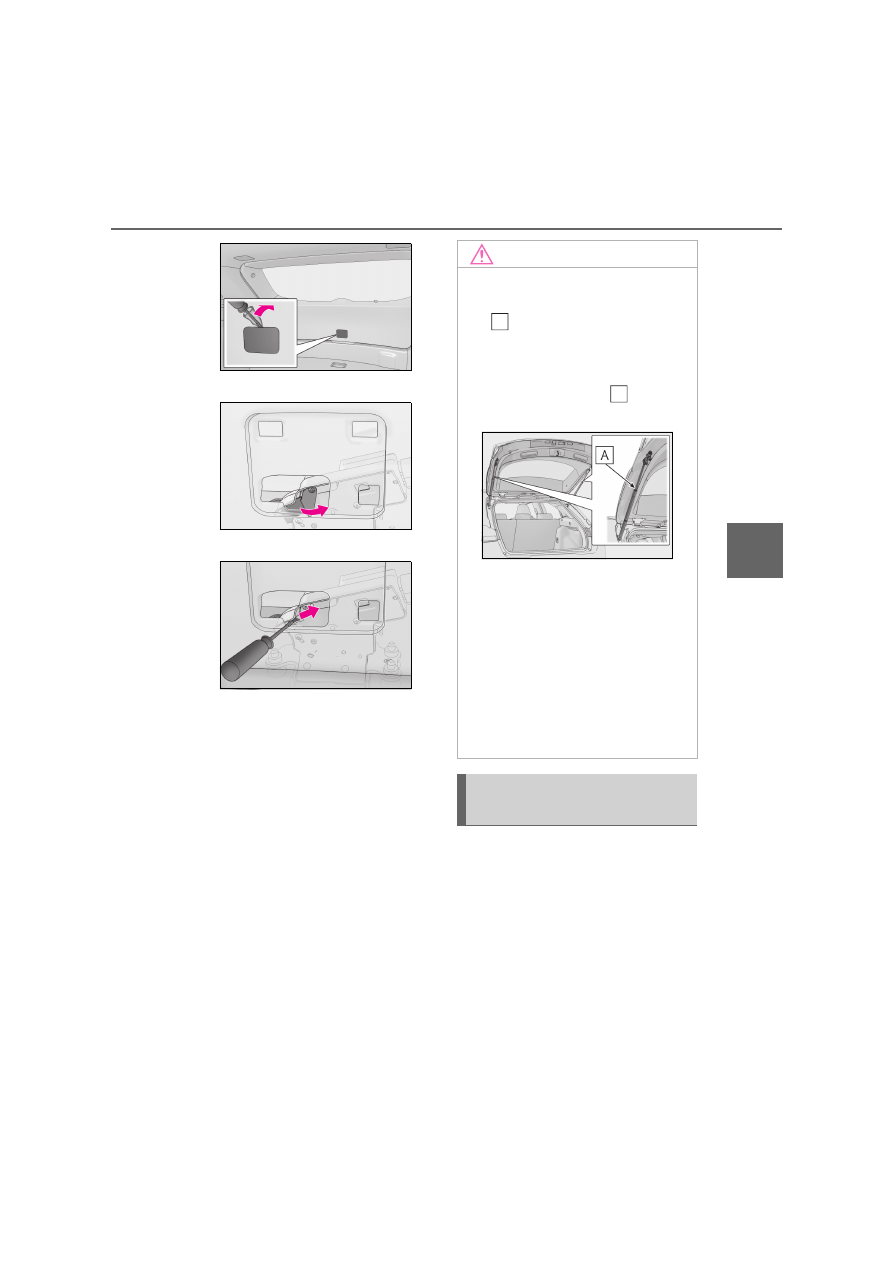

Remove the cover.

To protect the cover, place a rag between

the flathead screwdriver and the cover as

shown in the illustration.

Unlocking and locking the back
door from the inside

Opening/closing the back door
(vehicles without power back
door)

185

4-2. Opening, closing and locking the doors

Before drivi

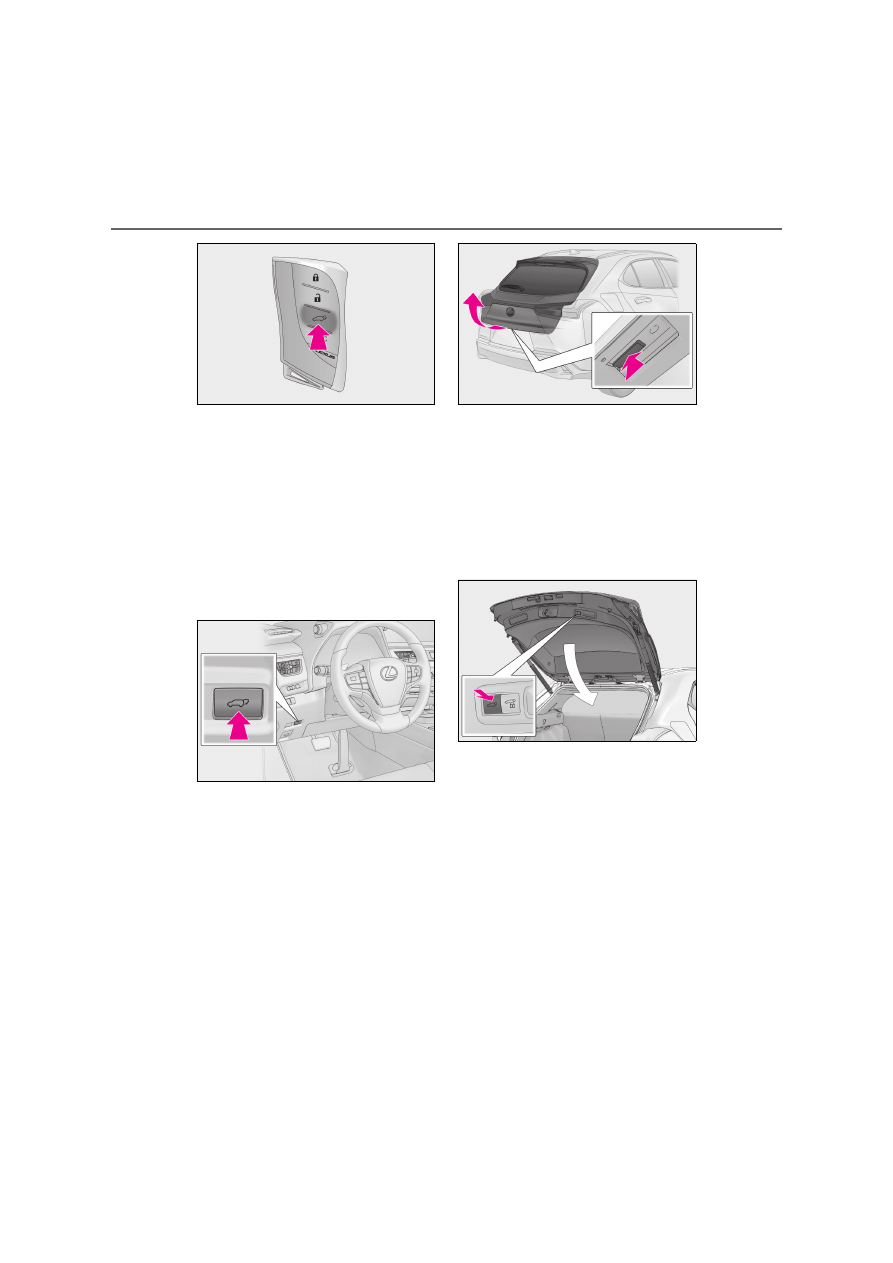

Loose the screw and move the cover.

Move the lever.

Opening/closing the back door
using the wireless remote control

Press the switch for 1 second.

If the back door is locked, unlock it before
operating the power back door.

NOTICE

Back door damper stays

The back door is equipped with damper
stays

that hold the back door in

place.

Observe the following precautions.

Failure to do so may cause damage to
the back door damper stay

, resulting

in malfunction.

Do not attach any foreign objects,

such as stickers, plastic sheets, or

adhesives to the damper stay rod.

Do not touch the damper stay rod with

gloves or other fabric items.

Do not attach any accessories other

than genuine Lexus parts to the back

door.

Do not place your hand on the damper

stay or apply lateral forces to it.

Opening/closing the back door
(vehicles with power back door)

186

4-2. Opening, closing and locking the doors

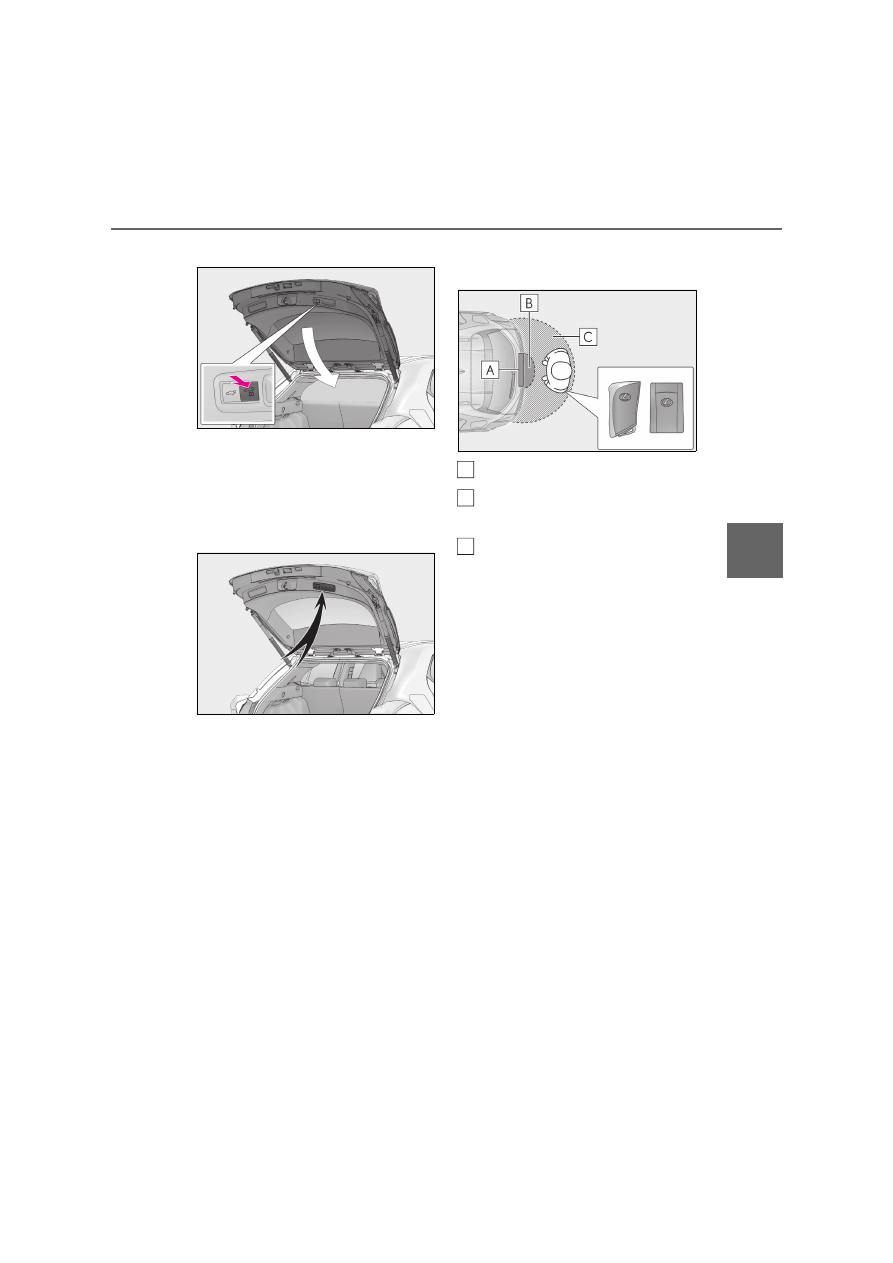

Opening/closing the back door
from the inside

Press the switch for 1 second.

A buzzer sounds and the back door auto-
matically opens and closes.
Pressing the switch while the back door is
opening/closing stops the operation.
When the switch is pressed again for 1 sec-
ond during the halted operation, the back
door will perform the reverse operation.

Opening/closing the back door
from the outside



Open

When the back door is unlocked: Press the
back door opener switch.
When the back door is locked: While car-
rying the electronic key on your person,
press the back door opener switch.
A buzzer sounds and the back door auto-
matically opens.
Pressing the switch while the back door is
opening stops the operation.



Press the switch.
A buzzer sounds and the back door auto-
matically closes.
Pressing the switch while the back door is
closing stops the operation.
Pressing the switch again will open the
back door automatically.



Close the back door and lock all
doors (close & lock function)

Press the switch.
A different buzzer than the normal one will
sound and the power back door will begin
closing automatically. When the power
back door is closed, all of the doors will
lock simultaneously and operation signals
will indicate that all of the doors have been
locked.
If the switch is pressed while the power
back door is closing, the operation will
stop.
Pressing the switch again will close the

188

4-2. Opening, closing and locking the doors

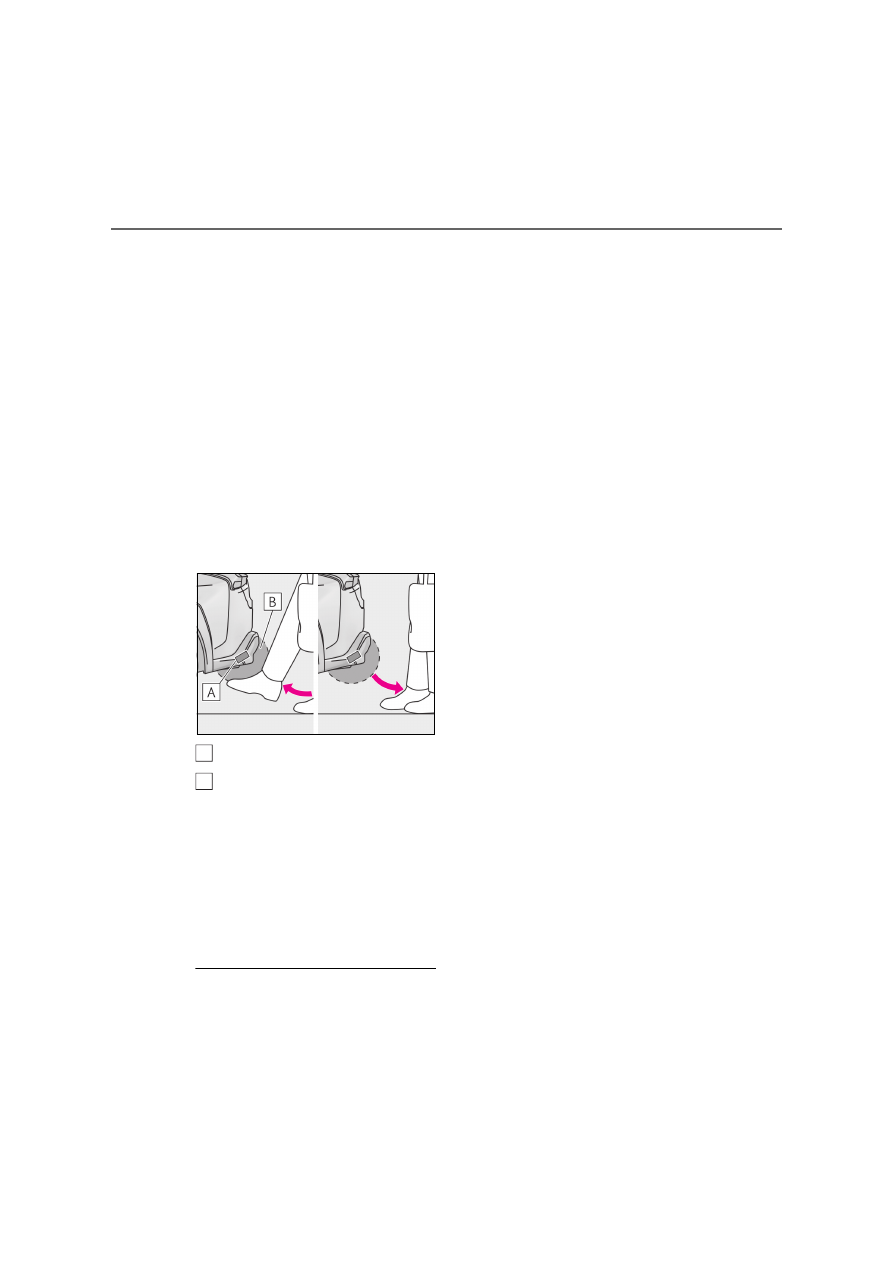

Perform a kick operation by mov-
ing your foot to within approxi-
mately 10 cm (3.9 in.) of the rear
bumper and then pulling it back.

• Perform the entire kick operation

within 1 second.

• The Hands Free Power Back Door

will not start operating while a foot is
detected under the rear bumper.

• Operate the Hands Free Power

Back Door without contacting the
rear bumper with your foot.

• If another electronic key is in the

cabin or luggage compartment, it
may take slightly longer than normal
for the operation to occur.

Kick sensor

Hands Free Power Back Door
operation detection area

When the kick sensor detects that
your foot is pulled back, a buzzer
will sound and the back door will
automatically fully open/close.

If a foot is moved under the rear bumper

while the back door is operating, the back

door will stop moving.

Luggage compartment light

The luggage compartment light turns on

when the back door is opened.

If the luggage compartment light is left on

when the power switch is turned off, the

light will go off automatically after 20

minutes.

Power back door operating conditions

With the power back door operations set to

ON, it can automatically open and close for

the following conditions:

The power back door is unlocked. How-

ever, the power back door will operate if

it is locked, in the following situations:

• When an electronic key is being carried

and the back door opener switch is

pressed

• When opening of the power back door

using the wireless remote control when it

is locked is enabled by a customized set-

ting.

When the power switch is in ON during

opening operations, the back door

unlocks and operates for any of the fol-

lowing conditions:

• Parking brake is engaged

• The brake pedal is depressed

• The shift position is in P

Hands Free Power Back Door (if

equipped) operating conditions

When the Hands Free Power Back Door

(kick sensor) operation setting is turned

When an electronic key is carried within

the operation range

Back door closer

In the event that the back door is left slightly

open, the back door closer will automati-

cally close it to the fully closed position.

Whatever the state of the power switch, the

back door closer operates.

Operation of the power back door

A buzzer sounds to indicate that the back

door is opening/closing.

When the power back door operations

are OFF, the power back door does not

operate but it can be opened and closed

by hand.

When the power back door automati-

cally opens, if an abnormality due to peo-

A
B

Lexus UX 300e (2023 year). Manual in english - page 5
