9-6. If the EV system cannot be used normally

When trouble

ises

EV system does not start after DC charging

Cause

Remedy

System check is not completed properly
after charging.

Do a system check following the procedures
on P.519. If the system check cannot be
completed properly even after these proce-
dures are performed, contact any author-
ized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

The DC charging connector is still con-
nected.

For safety, the EV system cannot be started
when the DC charging connector is con-
nected. (



P.47)

Remove the DC charging connector imme-
diately after the charging is completed.

The DC charging system is malfunctioning



Depending on the type of malfunction, the
EV system can be started after closing the
charging port lid.



If the EV system cannot be started, con-
tact any authorized Lexus retailer or
Lexus authorized repairer, or any reliable
repairer.

570

9-6. If the EV system cannot be used normally

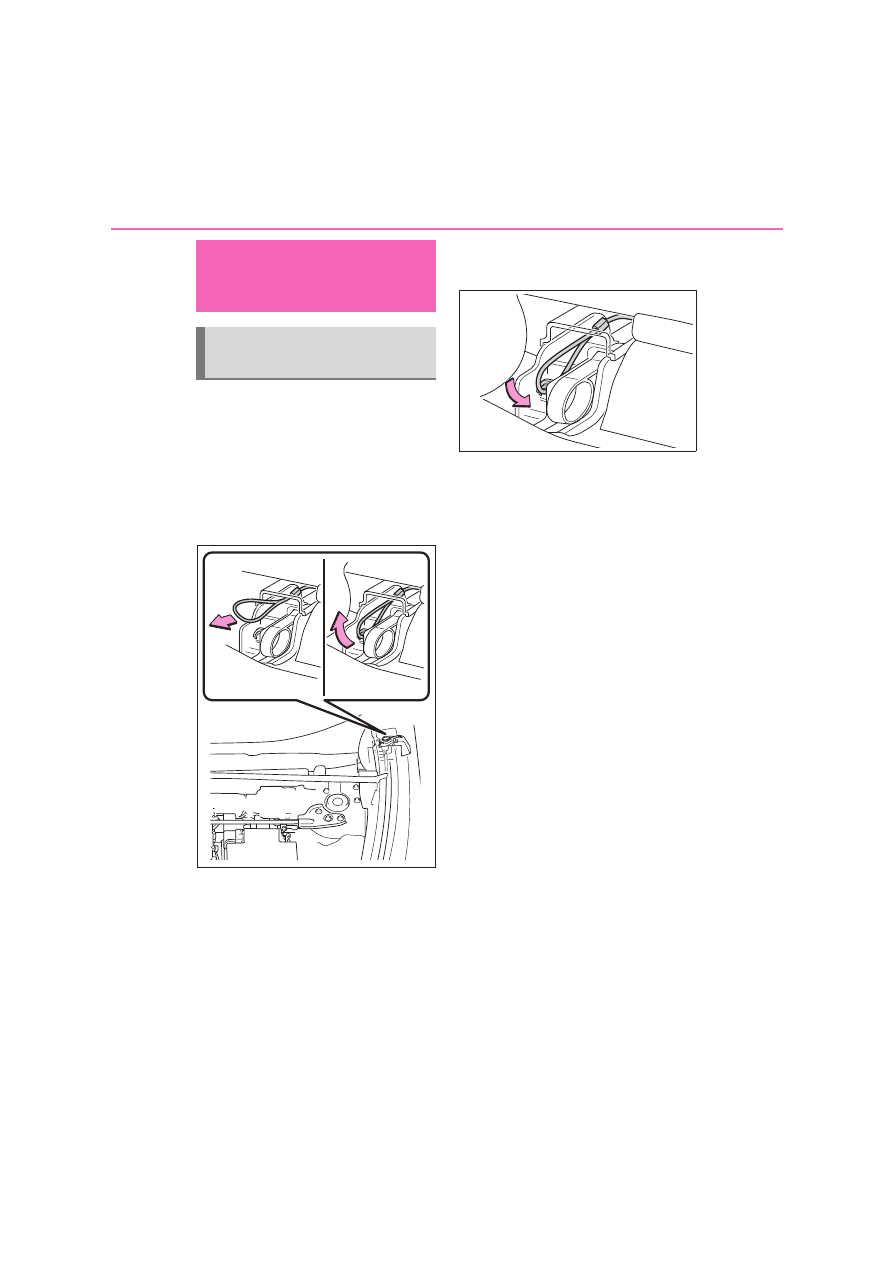

The charging connector can be
unlocked by operating the emergency
release wire.

Open the hood. (



P.461)

Pull the emergency release wire.

The charging connector is unlocked and

can be removed.

After unlocking the charging con-
nector, fix the handle of the emer-

gency release wire to the
attachment.

If the charging connector
cannot be disconnected from
the charging inlet

If the charging connector cannot
be unlocked

571

9-6. If the EV system cannot be used normally

When trouble

ises

: For the setting procedure for the clock,

refer to the “MULTIMEDIA OWNER’S
MANUAL”.

If the charging schedule
function does not operate
normally

Cannot charge at desired time

Cause

Remedy

The vehicle calendar
or clock is not set
correctly.

Check the calendar
setting and set it to
the correct date.

AC charging con-
nector is not con-
nected to vehicle

Before using the
charging schedule,
connect the AC
charging connector.

AC charging con-
nector was con-
nected after set time

Connect the AC
charging connector
before the time set
in “Start at set time”.
When the charging
mode is set to “Start
and stop at set
times”, the traction
battery will charge
even if the start time
has passed, if the
AC charging con-
nector is connected
before the stop time.

Charging starts, even though
charging schedule is registered

Cause

Remedy

“Charge now” is set
to on

When charging
according to the
charging schedule,
set “Charge now” to
off. (



P.63)

Charging schedule
is set to off

Check that charging
schedule is not set to
off. (



P.62)

AC charging con-
nector was removed
and reinserted while
charging indicator
of the charging port
was flashing

If the AC charging
connector is
removed and rein-
serted while the
charging indicator is
flashing, the charg-
ing schedule is
canceled. Tempo-
rarily remove the
AC charging con-
nector, and then
reconnect it.

My Room Mode
was operated

When My Room
Mode is operated,
the system will start
charging, even if the
charging schedule is
registered. To carry
out charging using
the charging sched-
ule, stop My Room
Mode, and then
reconnect the AC
charging cable.

573

9-7. If an indicator on an interior feature illuminates or flashes

When trouble

ises

9-7.If an indicator on an interior feature illuminates or flashes

: If equipped

If the indicator light illuminates alternatively in orange and green, refer to P.234.

When the wireless charger operation indicator light (on the
charging tray) flashes

When the wireless charger indicator light continuously flashes once per
second (orange / green)

Operation indicator light

Suspected causes/Handling method

Charging tray side

Center Display side

Orange (Flashing
repeatedly once
every second)

Gray

Vehicle to wireless charger communica-
tion failure



If the EV system is started, stop and then

restart the EV system.

If the power switch is in ACC, start the EV
system.(



P.148)

Green (Flashing
repeatedly once
every second)

Disappear

Wireless charger and multimedia system
communication failure



If the EV system is started, stop and then

restart the EV system.

If the power switch is in ACC, start the EV
system.(



P.148)

574

9-7. If an indicator on an interior feature illuminates or flashes

When the wireless charger indicator light continuously flashes 3 times
quickly (orange)

Cause

Remedy

The following causes are possible.



Foreign matter detected: If a metallic for-
eign object is detected in the charge area,
the overheat prevention function of the
metallic foreign object will operated



Portable device not aligned correctly: If
the charging coil of a portable device is
not properly positioned on the charging
area, the overheat prevention function will
operated



Remove the foreign object from the
charge area.



Remove the portable device from the
charging tray, check that the operation
indicator light changes back to green, and
then place the portable device so that it is
near the center of the charging tray.

Also, if a case or cover is installed to the
portable device, remove it.

When the wireless charger indicator light continuously flashes 4 times
quickly (orange)

Cause

Remedy

The temperature inside the wireless charger
may have become too high.

Stop charging, remove the portable device
from the charging tray, and wait for the tem-
perature to decrease before attempting to
begin charging again.

575

9-8. If the vehicle cannot move

When trouble

ises

9-8.If the vehicle cannot move

There may be a problem with the
drivetrain.
Contact any authorized Lexus retailer
or Lexus authorized repairer, or any
reliable repairer or commercial towing
service before towing.

When a EV system warning
message is displayed and the
vehicle does not move

If the transmission makes
abnormal sounds

576

9-8. If the vehicle cannot move

If towing is necessary, we recommend
having your vehicle towed by any
authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer or commercial towing service,
using a wheel-lift type truck or flatbed
truck.Use a safety chain system for all
towing, and abide by all state/provin-
cial and local laws.



From the front

Use a towing dolly under the rear
wheels.

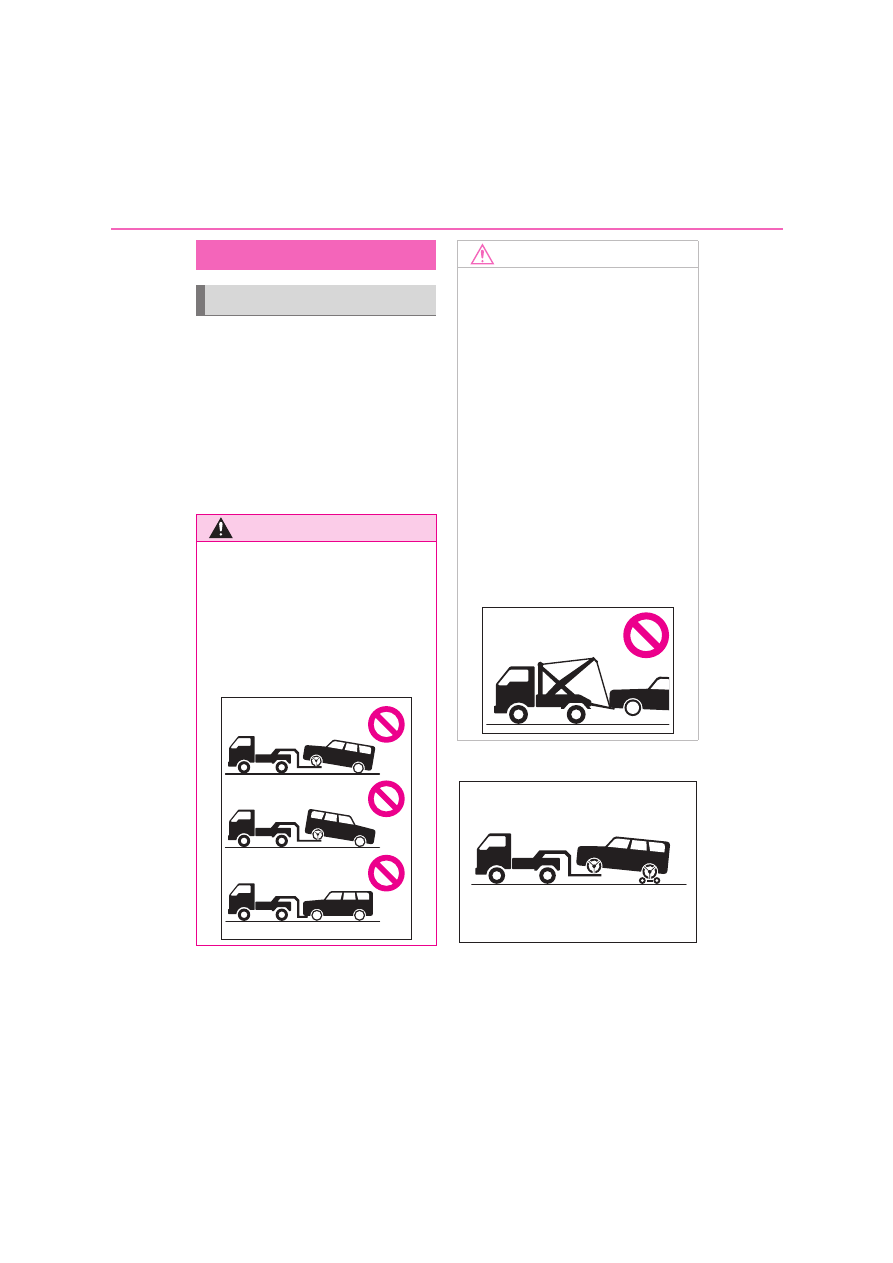

Towing with a tow truck

Towing with a tow truck

WARNING

Be sure to transport the vehicle with all

four wheels raised off the ground. If the

vehicle is towed with the tires contacting

the ground, the drivetrain or related

parts may be damaged, the vehicle may

fly off the truck, or electricity generated

by the operation of the motor may cause

a fire to occur depending on the nature

of the damage or malfunction.

NOTICE

■

To prevent damage to the vehicle

when towing using a wheel-lift type

truck

●

Vehicles with a steering lock function:

Do not tow the vehicle from the rear

when the power switch is off. The

steering lock mechanism is not strong

enough to hold the front wheels

straight.

●

When raising the vehicle, ensure ade-

quate ground clearance for towing at

the opposite end of the raised vehicle.

Without adequate clearance, the vehi-

cle could be damaged while being

towed.

■

Towing with a sling-type truck

Do not tow with a sling-type truck to pre-

vent body damage.

578

9-8. If the vehicle cannot move

If a tow truck is not available in an
emergency, your vehicle may be tem-
porarily towed using cables or chains
secured to the emergency towing eye-
lets. This should only be attempted on
hard surfaced roads for short distances
at under 30 km/h (18 mph).
A driver must be in the vehicle to steer
and operate the brakes. The vehicle's
wheels, drive train, axles, steering and
brakes must be in good condition.

In the following situations, it is not pos-
sible to be towed by another vehicle
using cables or chains, as the front
wheels may be locked due to the park-
ing lock.
Contact any authorized Lexus retailer
or Lexus authorized repairer or any
reliable repairer, or commercial towing

service.



There is a malfunction in the shift
control system. (



P.520)



There is a malfunction in the immo-
bilizer system. (



P.95)



There is a malfunction in the smart
entry & start system. (



P.551)



The 12-volt battery is discharged.
(



P.555)

To have your vehicle towed by another
vehicle, the towing eyelet must be
installed to your vehicle. Install the tow-
ing eyelet using the following proce-
dure.

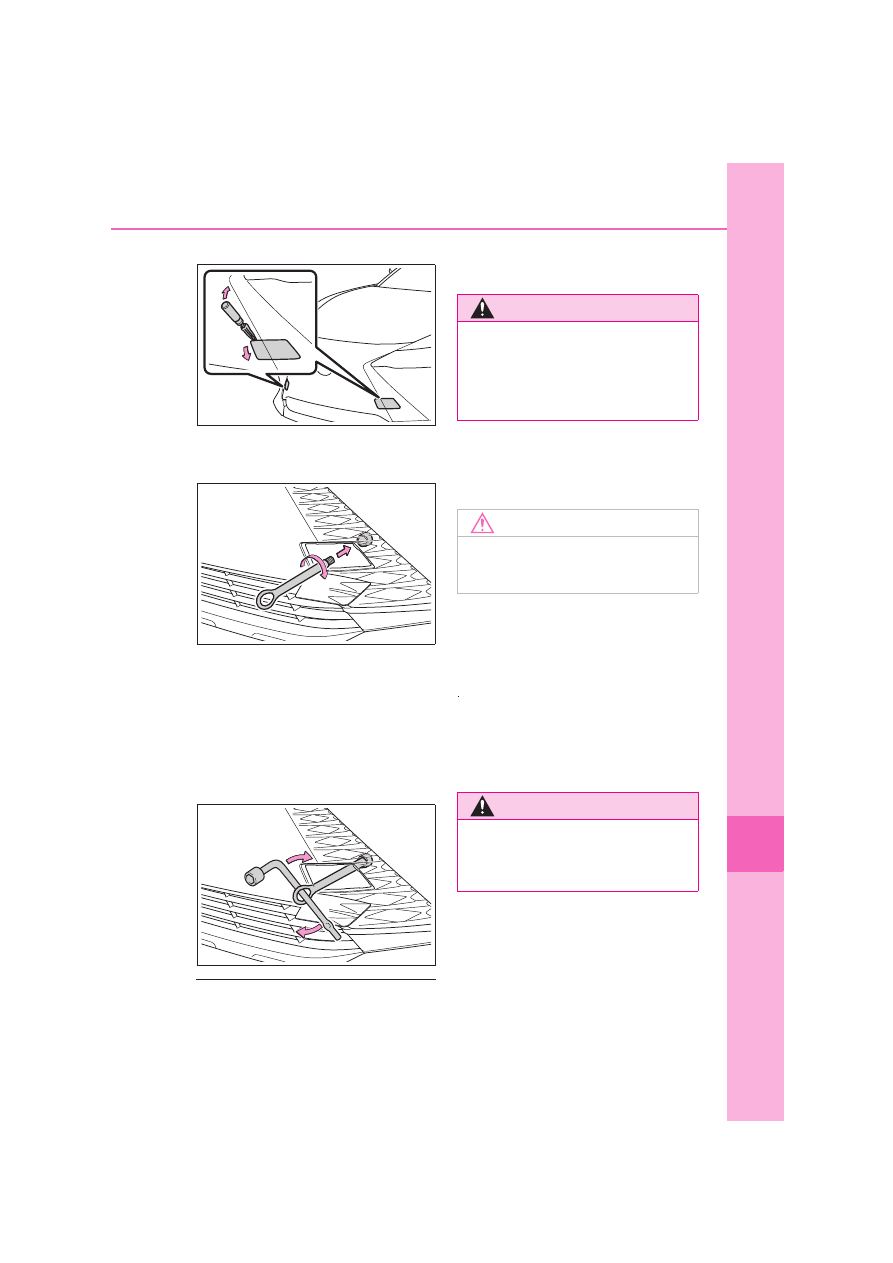

Take out the towing eyelet.

Remove the eyelet cover using a
flathead screwdriver.

To protect the bodywork, place a rag

between the screwdriver and the vehicle

Towing with another vehicle

If towing is necessary, we recom-
mend having your vehicle towed by
any authorized Lexus retailer or
Lexus authorized repairer, or any
reliable repairer or commercial
towing service, using a wheel-lift
type truck or flatbed truck.Use a
safety chain system for all towing,
and abide by all state/provincial and
local laws.

Emergency towing

Situations when it is not possible
to be towed by another vehicle

Emergency towing procedure

WARNING

Do not perform any of the following as

doing so may cause the parking lock

mechanism to engage, locking the front

wheels and possibly leading to an acci-

dent resulting in death or serious injury:

●

Unfasten the driver’s seat belt and

open the driver’s door.

●

Turn the power switch off.

579

9-8. If the vehicle cannot move

When trouble

ises

body as shown in the illustration.

Insert the towing eyelet into the
hole and tighten partially by hand.

Tighten down the towing eyelet
securely using a wheel bolt
wrench

or hard metal bar.

: Wheel bolt wrench can be purchased at

any authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

■

Wheel bolt wrench

Wheel bolt wrench can be purchased at

any authorized Lexus retailer or Lexus

authorized repairer, or any reliable repairer.

Securely attach cables or chains to
the towing eyelet.

Take care not to damage the vehicle body.

Enter the vehicle being towed and
start the EV system.

If the EV system does not start, turn the

power switch to ON.

■

While towing

If the EV system is off, the power assist for

the brakes and steering will not function,

making steering and braking more difficult.

Shift the shift position to N and
release the parking brake.

Turn auto mode of the parking brake off.

WARNING

When installing towing eyelets to the

vehicle, make sure to securely install

them to the specified positions.

If not securely installed, towing eyelets

may come loose during towing.

NOTICE

To prevent damage to the vehicle during

emergency towing, do not secure cables

or chains to the suspension components.

WARNING

Do not turn the power switch off while

towing the vehicle with another vehicle.

This may lead to an accident as the front

wheels will be locked by the parking lock.

580

9-8. If the vehicle cannot move

Stop the EV system. Set the parking
brake and shift the shift position to
P.

Remove the mud, snow or sand
from around the front wheels.

Place wood, stones or some other
material under the front wheels to
help provide traction.

Restart the EV system.

Shift the shift position to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.

WARNING

When towing, avoid sudden starts, etc.,

which place excessive stress on the tow-

ing eyelets, cables or chains. The towing

eyelets, cables or chains may become

damaged, broken debris may hit people,

and cause serious damage.

Getting unstuck from mud,
sand, or snow

WARNING

■

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

■

When shifting the shift position

Be careful not to shift the shift position

with the accelerator pedal depressed.

This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

●

Avoid spinning the tires and depress-

ing the accelerator pedal more than

necessary.

581

9-8. If the vehicle cannot move

When trouble

ises

If it is difficult to free the vehicle,
press the

switch and turn the

TRC off.

If the vehicle remains stuck even after

these procedures are performed, the vehi-

cle may require towing to be freed.

NOTICE

●

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be freed.

NOTICE

■

Emergency hook

When stuck in a snow drift, etc. and you

are unable to drive out, the emergency

hook can be used to pull the vehicle out

with another vehicle. It cannot be used to

tow another vehicle, nor is it designed for

any type of towing.

582

9-9. If you think something is wrong

9-9.If you think something is wrong

The following symptoms are abnormal.



Fluid leaks under the vehicle

Water dripping from the air conditioning
after use is normal.



Flat-looking tires or uneven tire
wear

Contact any authorized Lexus retailer
or Lexus authorized repairer, or any
reliable repairer as soon as possible.
Your vehicle probably needs adjust-
ment or repair.

The following sounds are abnormal
sounds.



Excessive tire squeal when corner-
ing



Strange noises related to the sus-
pension system



Other noises related to the EV sys-
tem

Contact any authorized Lexus retailer
or Lexus authorized repairer, or any
reliable repairer as soon as possible.
Your vehicle probably needs adjust-
ment or repair.

If a vehicle abnormality is
found

If abnormal sounds are emit-
ted from the vehicle

583

9-9. If you think something is wrong

When trouble

ises

The following symptoms are abnormal.



Stumbling or running roughly



Appreciable loss of power



Vehicle pulls heavily to one side
when braking



Vehicle pulls heavily to one side
when driving on a level road



Loss of brake effectiveness, spongy
feeling, pedal almost touches the
floor

Contact any authorized Lexus retailer
or Lexus authorized repairer, or any
reliable repairer as soon as possible.
Your vehicle probably needs adjust-
ment or repair.

If the vehicle behaves abnor-
mally

584

9-10. Items to check before contacting a dealership

9-10.Items to check before contacting a dealership

: Vehicles with a steering lock function

It is locked automatically to prevent
theft of the vehicle. (



P.149)



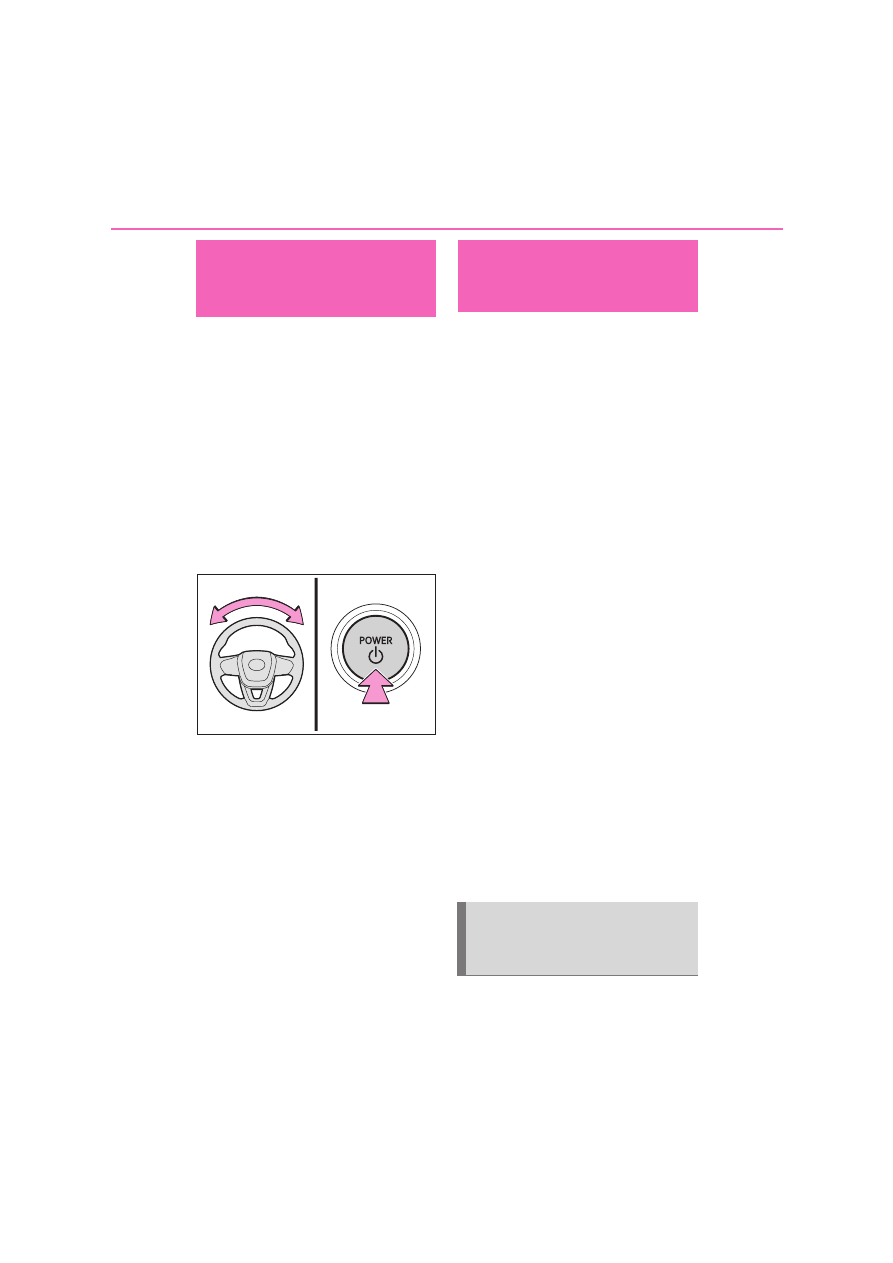

When the steering lock cannot be
released, “Push POWER Switch
while Turning the Steering Wheel in
Either Direction” will be displayed
on the multi-information display.
Check that the shift position is in P.
Press the power switch while turning
the steering wheel left and right.



To prevent the steering lock motor
from overheating, operation of the
motor may be suspended if the EV
system is turned on and off repeat-
edly in a short period of time. In this
case, refrain from operating the EV
system. After about 10 seconds, the
steering lock motor will resume
functioning.

Check if the window lock switch is on.
(



P.110)

If the window lock switch is on, the
power windows other than that for the
driver’s seat cannot be operated.
Turn the window lock switch off.
When the jam protection function or
catch protection function operates
unusually and the side window cannot
be opened or closed, perform the fol-
lowing operations with the power win-
dow switch of that door. (



P.108)



Stop the vehicle. With the power
switch in ON, within 4 seconds of
the jam protection function or catch
protection function activating, con-
tinuously operate the power win-
dow switch in the one-touch closing
direction or one-touch opening
direction so that the side window
can be opened and closed.



If the side window cannot be
opened and closed even when per-
forming the above operations, per-
form the procedure for function
initialization. (



P.584)

Turn the power switch to ON.

The steering wheel cannot
be turned after the EV sys-
tem is stopped

If the windows do not open
or close by operating the
power window switches

Initializing the jam protection
function/catch protection func-
tion

585

9-10. Items to check before contacting a dealership

When trouble

ises

Pull and hold the power window
switch in the one-touch closing
direction and completely close the
side window. (



P.109)

Release the power window switch
for a moment, resume pulling the
switch in the one-touch closing
direction, and hold it there for
approximately 6 seconds or more.

Press and hold the power window
switch in the one-touch opening
direction. After the side window is
completely opened, continue hold-
ing the switch for an additional 1
second or more.

Release the power window switch
for a moment, resume pushing the
switch in the one-touch opening
direction, and hold it there for
approximately 4 seconds or more.

Pull and hold the power window
switch in the one-touch closing
direction again. After the side win-
dow is completely closed, continue
holding the switch for a further 1
second or more.

If you release the switch while the window

is moving, start again from the beginning.
If the window reverses and cannot be fully

closed or opened, have the vehicle

inspected by any authorized Lexus retailer

or Lexus authorized repairer, or any relia-

ble repairer.

In the following situations, power will
be turned off due to the automatic
power off function.



The vehicle is left in ACC or ON
(the EV system is not operating) for
more than 20 minutes with the shift
position in P.



The 12-volt battery is low with the
shift position is in P and the power
switch is in ACC or ON (the EV
system is not operating).

Next time when starting the EV sys-
tem, operate the EV system for
approximately 5 minutes to recharge
the 12-volt battery.
Do not leave the vehicle with the
power switch in ACC or ON for long
periods of time when the EV system is
not operating.

The power switch is turned
off automatically

586

9-10. Items to check before contacting a dealership

The following may indicate that your
vehicle is overheating.



The high coolant temperature warn-
ing light comes on.



A loss of EV system power is experi-
enced. (For example, the vehicle
speed does not increase.)



“EV System overheated Output
power reduced” is displayed on the
multi-information display.



Steam comes out from under the
hood.

If your vehicle overheats

NOTICE

The radiator coolant is exclusive for radi-

ator usage. Damage may occur when

water or any other type of coolant is

used, so never use any other fluid. When

there is no “Toyota Genuine Traction Bat-

tery Coolant”, immediately contact any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

The high coolant temperature
warning light comes on or “EV
System overheated Output
power reduced” is displayed on
the multi-information display

WARNING

■

To prevent an accident or injury when

inspecting under the hood of your

vehicle

Observe the following precautions. Fail-

ure to do so may result in serious injury

such as burns.

●

If steam is seen coming from under the

hood, do not open the hood until the

steam has subsided. The motor com-

partment may be very hot.

●

Keep hands and clothing (especially a

tie, a scarf or a muffler) away from the

fan. Failure to do so may cause the

hands or clothing to be caught, result-

ing in serious injury.

●

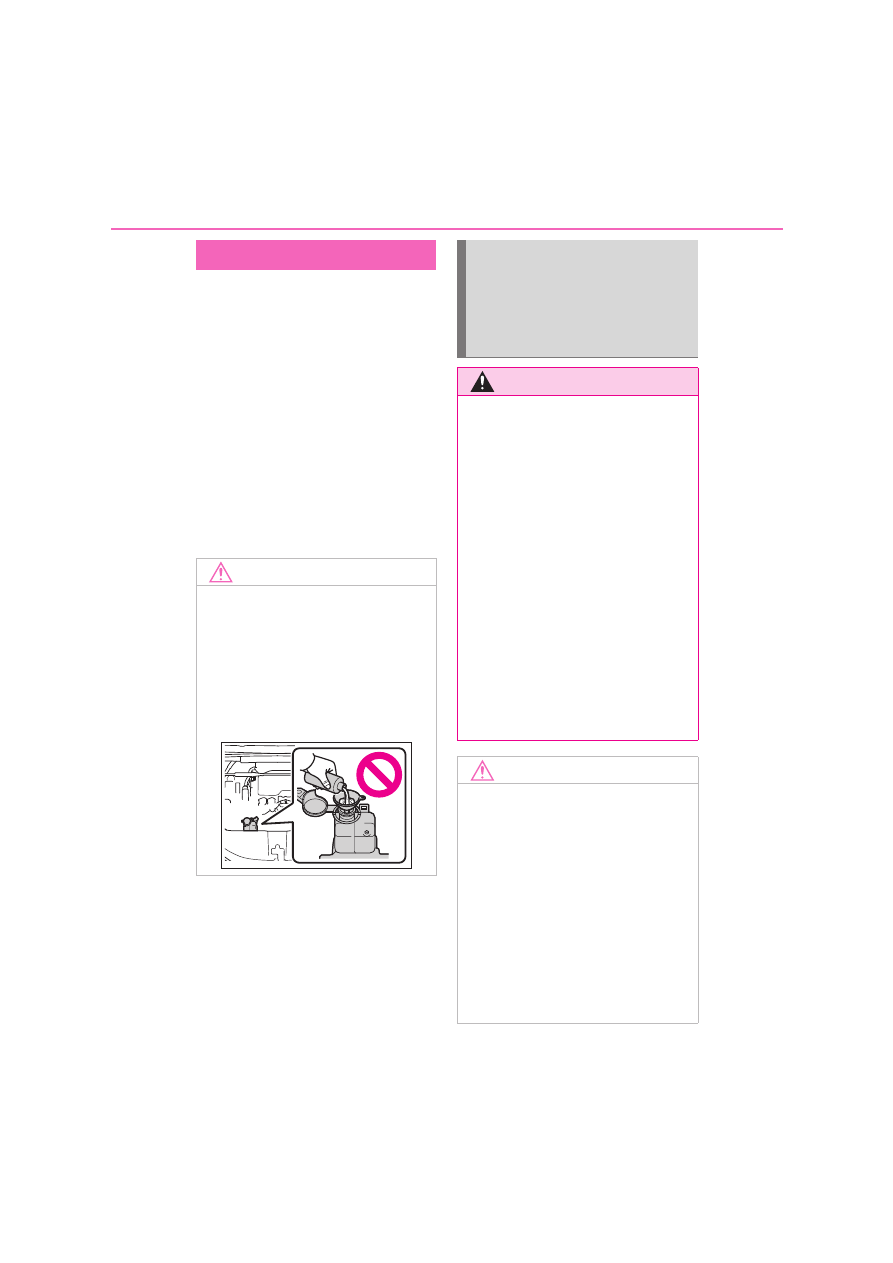

Do not loosen the coolant reservoir

cap while the EV system and radiator

are hot. High temperature steam or

coolant could spray out.

NOTICE

■

When adding coolant

Add coolant slowly after the EV system

has cooled down sufficiently. Adding

cool coolant to a hot EV system too

quickly can cause damage to the EV sys-

tem.

■

To prevent damage to the cooling sys-

tem

Observe the following precautions:

●

Avoid contaminating the coolant with

foreign matter (such as sand or dust,

etc.).

587

9-10. Items to check before contacting a dealership

When trouble

ises

Stop the vehicle in a safe place and
turn off the air conditioning system.

Leave the EV system operating and
carefully lift the hood.

Check if the cooling fan is operat-
ing.
If the fan is operating: Wait until the
“EV System overheated Output
power reduced” message disap-
pears and then stop the EV system.
If the message does not disappear,
call any authorized Lexus retailer or
Lexus authorized repairer, or any
reliable repairer.
If the fan is not operating: Stop the
EV system immediately and call any
authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

After the EV system has cooled
down, inspect the hoses and radia-
tor core (radiator) for any leaks.

If a large amount of coolant leaks, immedi-

ately contact any authorized Lexus retailer

or Lexus authorized repairer, or any relia-

ble repairer.

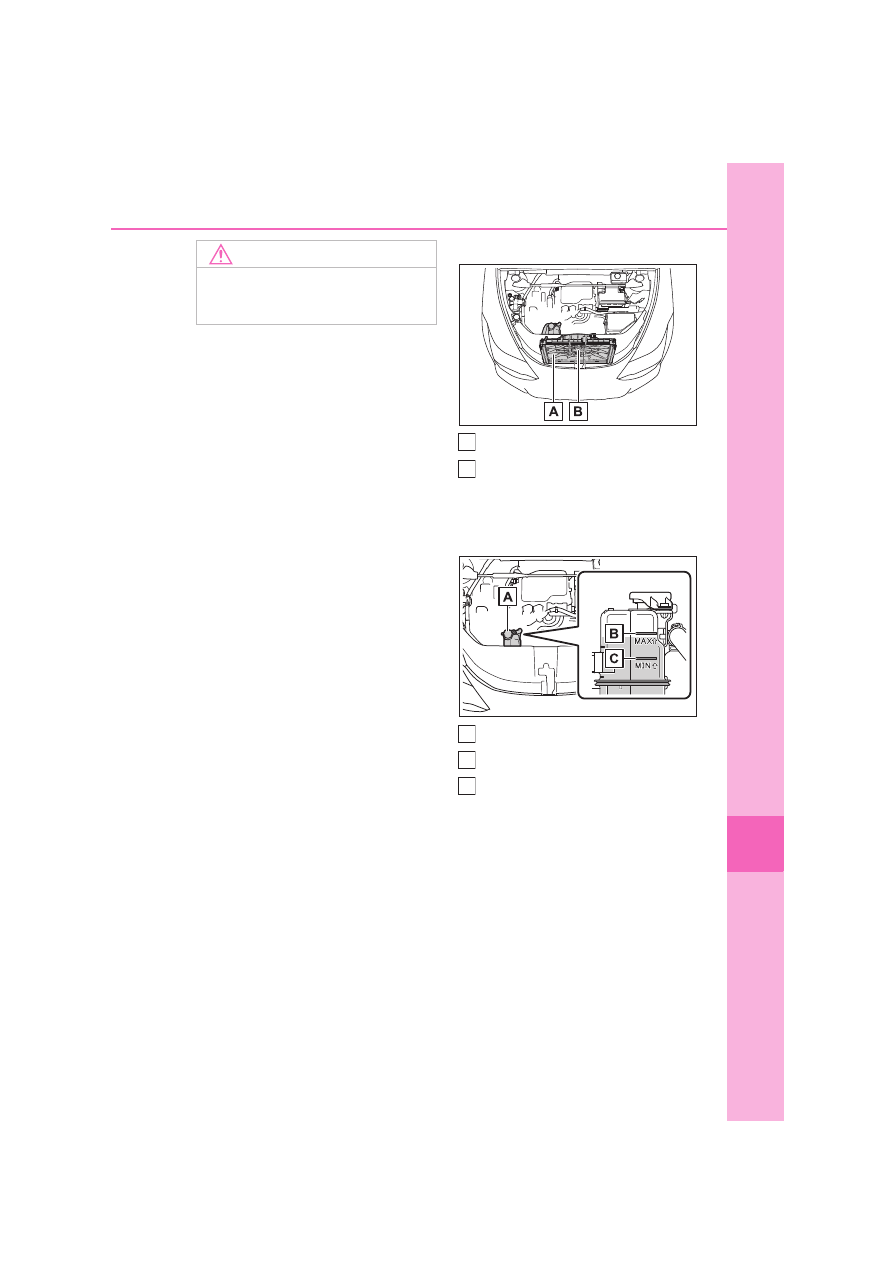

Radiator
Cooling fan

The coolant level is satisfactory if it
is between the “MAX” and “MIN”
lines on the reservoir.

Reservoir
“MAX” line
“MIN” line

If the coolant is insufficient, replen-
ish with “Toyota Genuine Traction
Battery Coolant”.

If you do not have “Toyota Genuine Trac-

tion Battery Coolant”, contact any author-

ized Lexus retailer or Lexus authorized

NOTICE

●

Do not use water or any other coolant

when refilling coolant. Also, do not use

any additive agents for the coolant.

A
B

A
B
C

588

9-10. Items to check before contacting a dealership

repairer, or any reliable repairer.

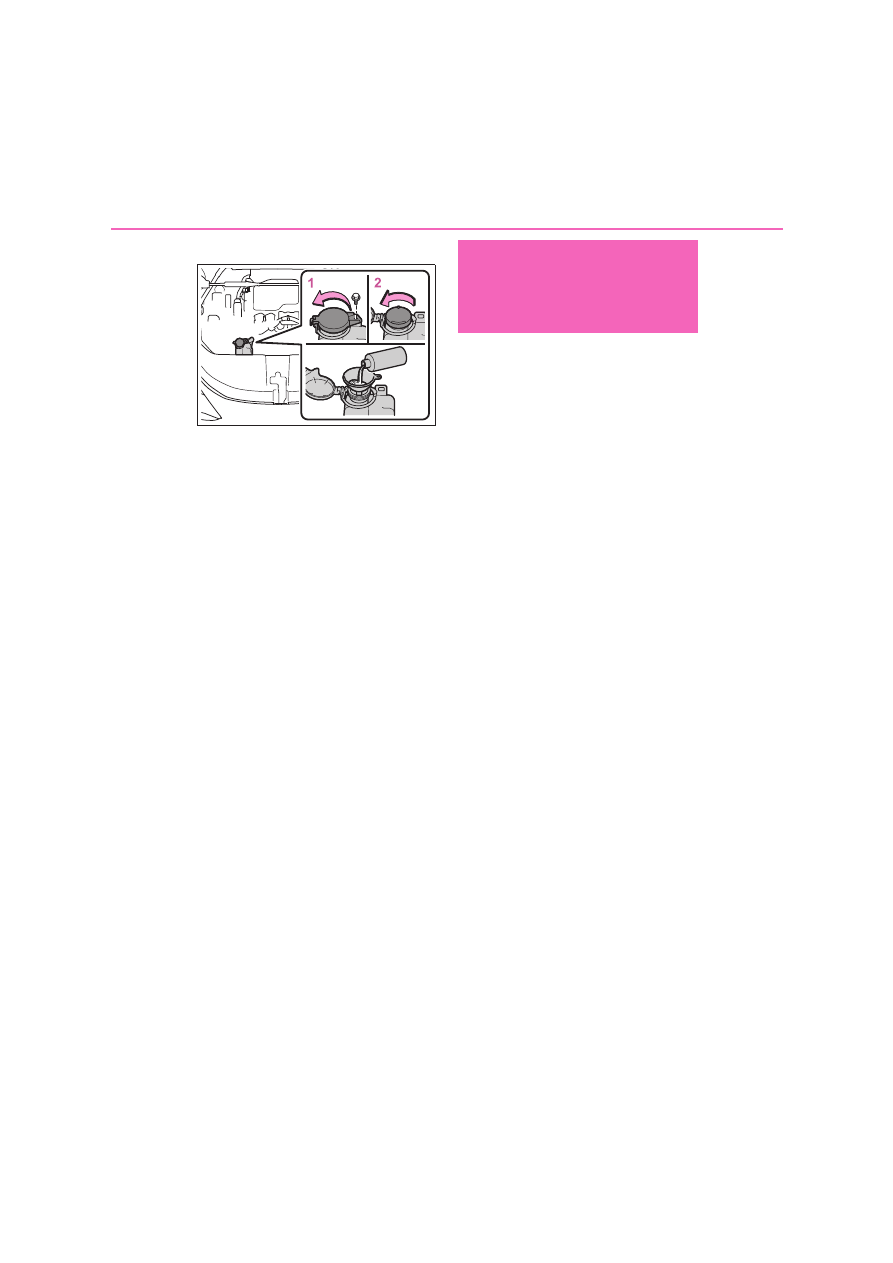

Remove the bolt.

Open the reservoir cap

Have the vehicle inspected at the near-
est authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer as soon as possible.

If any of the electrical components do
not operate, a fuse may have blown.
If this happens, check and replace the
fuses as necessary. (



P.589)

If electrical components can-
not be used or do not oper-
ate when a switch is
operated

589

9-10. Items to check before contacting a dealership

When trouble

ises

Turn the power switch off.

Vehicles with Remote Air Conditioning

System: Confirm that the charging con-

nector is not connected. Also, do not use

the Remote Air Conditioning System dur-

ing the procedure.

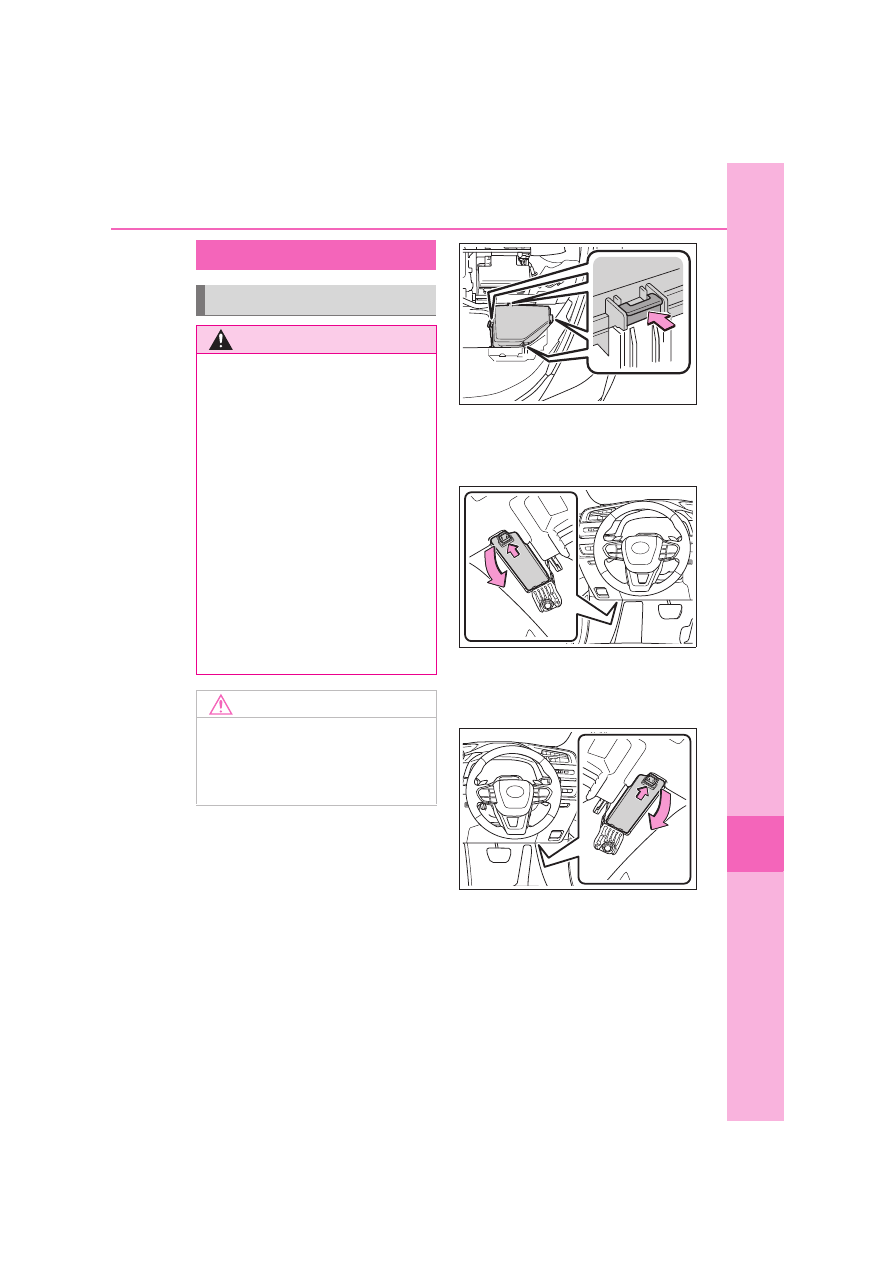

Open the fuse box cover.



Motor compartment

Push the tab in and lift the lid off.



Left side instrument panel (left-hand
drive vehicles)

Remove the lid.



Right side instrument panel
(right-hand drive vehicles)

Remove the lid.

Remove the fuse.

Only type A fuse can be removed using the

If a light does not illuminate

Checking and replacing fuses

WARNING

Observe the following precautions. Fail-

ure to do so may cause damage to the

vehicle, possibly leading to a fire or injury.

●

Never use a fuse of a higher amperage

rating than specified, or use any other

object in place of a fuse.

●

Always use a genuine Lexus fuse or

equivalent. Never replace a fuse with a

wire, even as a temporary fix.

●

Do not modify the fuses or fuse boxes.

●

Never check or replace the fuses in

the fuse box near the inverter with

converter assembly, as there are high

voltage parts and wiring near the fuse

box.

Doing so may cause electric shock,

resulting in death or serious injury.

NOTICE

Have the cause of electrical overload

determined and repaired by any author-

ized Lexus retailer or Lexus authorized

repairer, or any reliable repairer as soon

as possible.

590

9-10. Items to check before contacting a dealership

pullout tool.

Check if the fuse is blown.

Replace the blown fuse with a new fuse of

an appropriate amperage rating. The

amperage rating can be found on the fuse

box lid.



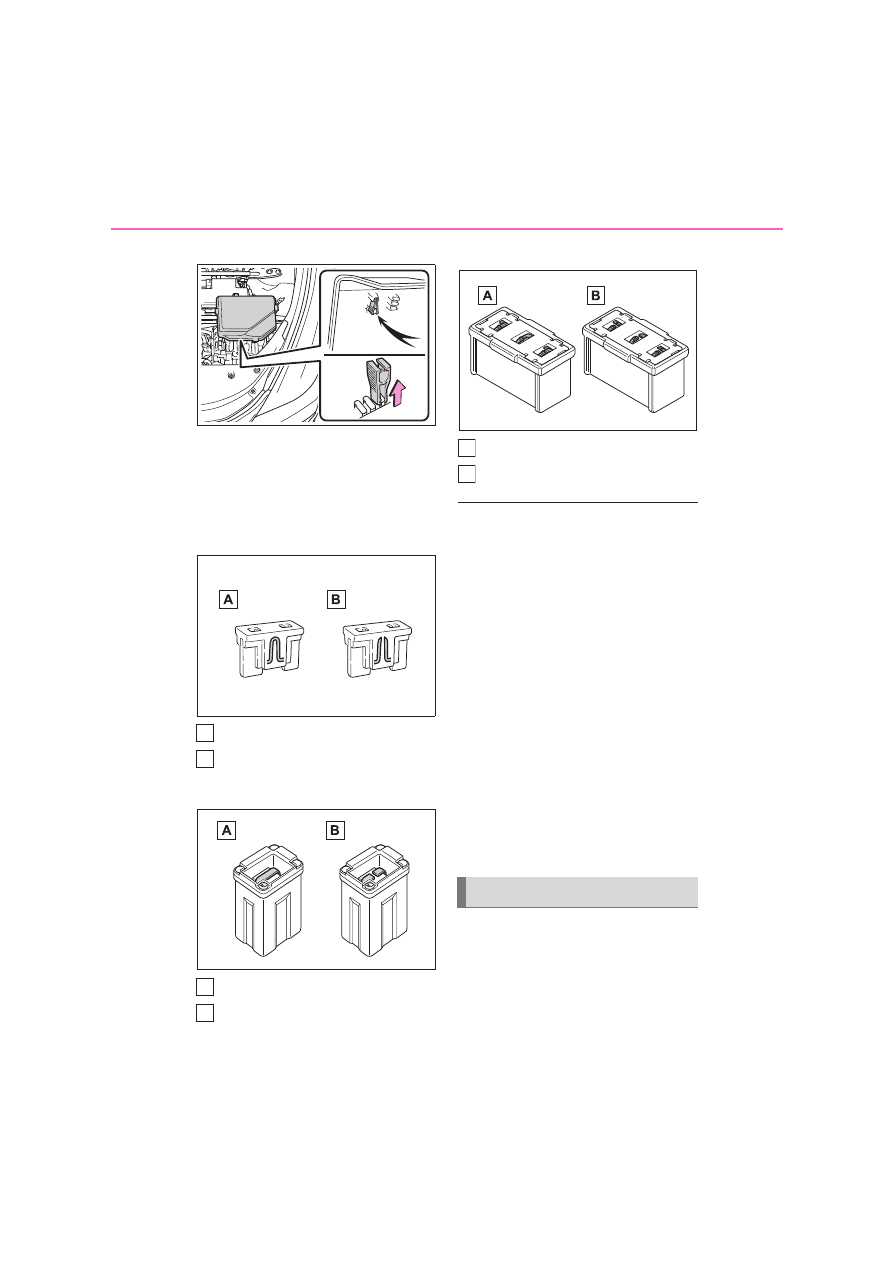

Type A

Normal fuse
Blown fuse



Type B

Normal fuse
Blown fuse



Type C

Normal fuse
Blown fuse

■

After a fuse is replaced

●

When installing the lid, make sure to

engage the claw securely.

●

If the lights do not turn on even after the

fuse has been replaced, a bulb may need

replacement.

●

If the replaced fuse blows again, have the

vehicle inspected by any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

■

If there is an overload in a circuit

The fuses are designed to blow, protecting

the wiring harness from damage.

■

When replacing light bulbs

Lexus recommends that you use genuine

Lexus products designed for this vehicle.
Because certain bulbs are connected to cir-

cuits designed to prevent overload,

non-genuine parts or parts not designed for

this vehicle may be unusable.

If any lights burn out, have it replaced
by any authorized Lexus retailer or
Lexus authorized repairer, or any relia-
ble repairer.

A
B

Light bulbs

A
B

591

9-10. Items to check before contacting a dealership

When trouble

ises

■

LED Lights

The lights consist of a number of LEDs. If

any of the LEDs burn out, take your vehicle

to any authorized Lexus retailer or Lexus

authorized repairer, or any reliable repairer

to have the light replaced.

■

Condensation build-up on the inside of

the lens

Temporary condensation build-up on the

inside of the headlight lens does not indi-

cate a malfunction. Contact any authorized

Lexus retailer or Lexus authorized repairer,

or any reliable repairer for more informa-

tion in the following situations:

●

Large drops of water have built up on the

inside of the lens.

●

Water has built up inside the headlight.

593

Veh
icle speci

fic

ations

Vehicle specifications

10-1. Specifications

Maintenance data.....................

594

10-2. Customizable features

User customization function out-

line .................................................

601

Method to change settings ....

601

Customizable features ...........

603

10-3. Initialization

Items to initialize .........................

619

594

10-1. Specifications

10-1.Specifications

: Unladen vehicle

: Vehicles with towing package

: Vehicles without towing package

■

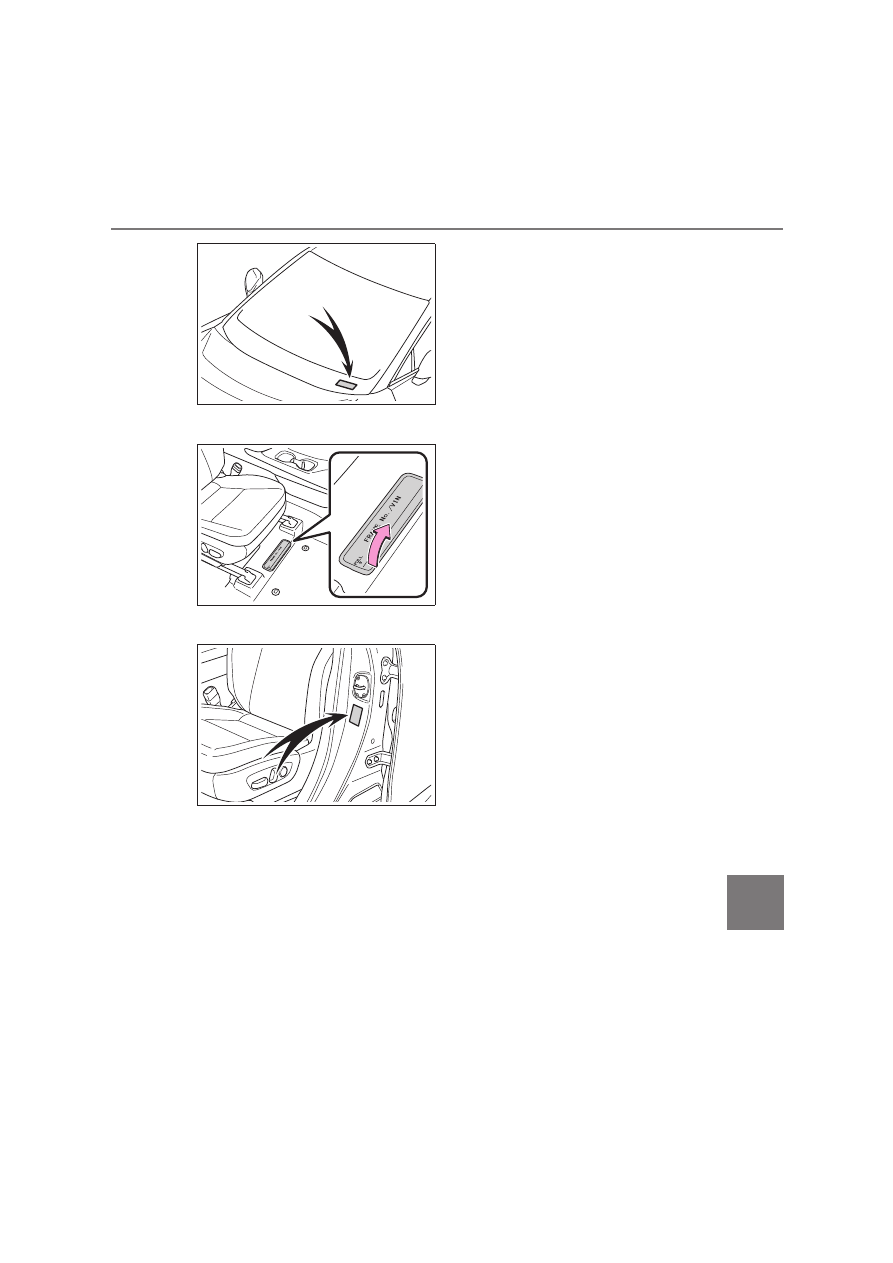

Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for your vehicle. This
is the primary identification number for your Lexus. It is used in registering the
ownership of your vehicle.
This number is stamped on the top left of the instrument panel.

Maintenance data

Dimensions and weights

Overall length

4910 mm (193.3 in.)

4805 mm (189.2 in.)

Overall width

1895 mm (74.6 in.)

Overall height

1635 mm (64.4 in.)

Wheelbase

2850 mm (112.2 in.)

Tread

Front

1610 mm (63.4 in.)

Rear

1620 mm (63.8 in.)

Gross vehicle mass

2640 kg (5820 lb.)

Maximum permissible axle capac-
ity

Front

1380 kg (3042 lb.)

Rear

1470 kg (3241 lb.)

Drawbar load

75 kg (165 lb.)

Towing capacity

Without brake

750 kg (1653 lb.)

With brake

750 kg (1653 lb.)

Vehicle identification

596

10-1. Specifications



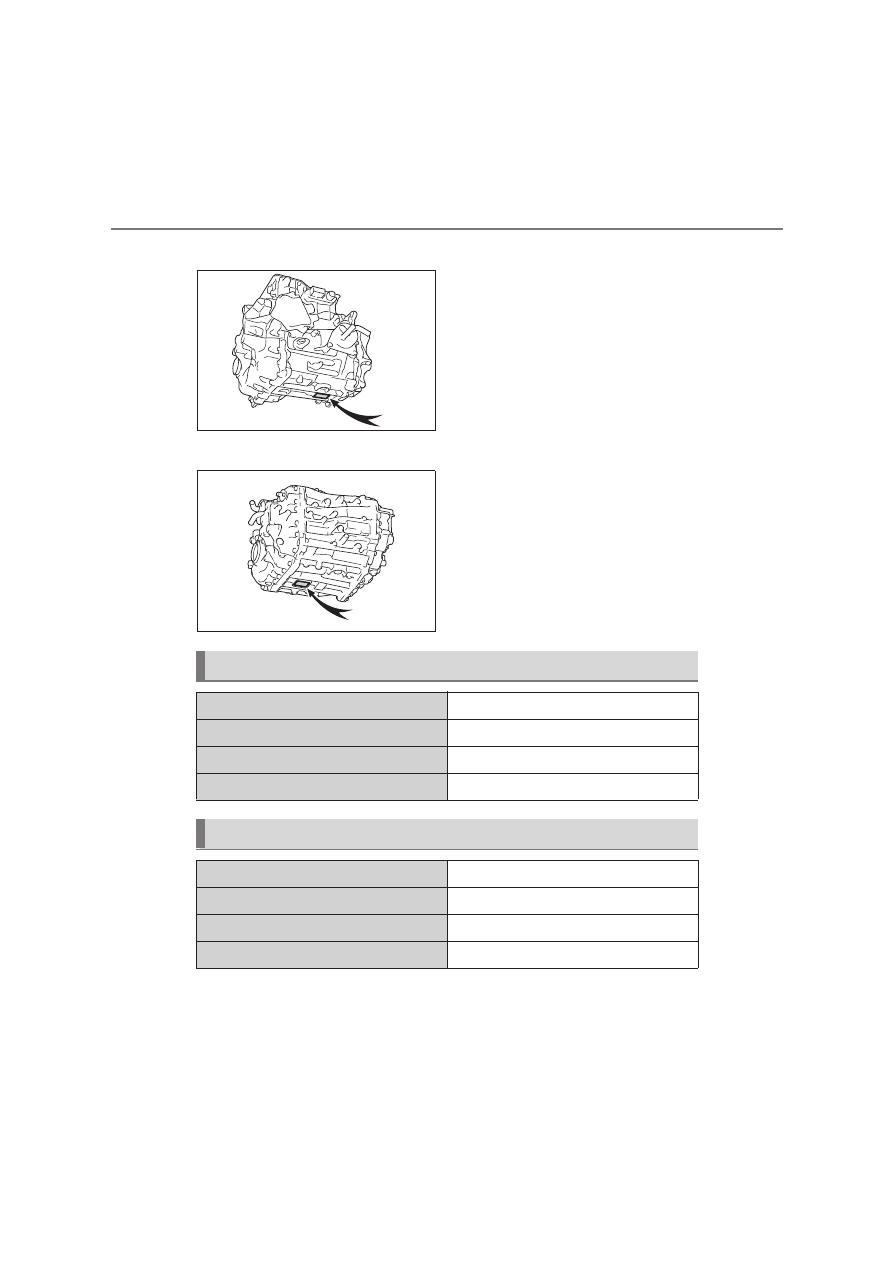

Front electric motor (traction motor)



Rear electric motor (traction motor)

Front electric motor (traction motor)

Model

1XM

Type

Permanent magnet synchronous motor

Maximum output

150 kW

Maximum torque

266.3 N•m (27.2 kgf•m, 196.4 ft•lbf)

Rear electric motor (traction motor)

Model

1YM

Type

Permanent magnet synchronous motor

Maximum output

80 kW

Maximum torque

168.5 N•m (17.2 kgf•m, 124.3 ft•lbf)

597

10-1. Specifications

Veh
icle speci

fic

ations

: The coolant capacity is a reference quantity.

If replacement is necessary, contact any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

Traction battery

Type

Lithium-ion battery

Voltage

3.7 V/cell

Capacity

201 Ah

Quantity

96 cells

Nominal voltage

355.2 V

Cooling system

Capacity

7.4 L (7.8 qt., 6.5 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Genuine Traction Battery Coolant”



Similar high-quality ethylene glycol-based, low electric
conductivity coolant, non-amine and non-borate coolant
with azole additives.

Do not use plain water alone.

NOTICE

■

Cooling system coolant

In order to ensure maximum performance of the traction battery cooling system and limit

risks of battery short-circuit and other damage to your vehicle, Lexus recommends using

“Toyota Genuine Traction Battery Coolant” or similar high-quality ethylene glycol-based,

low electric conductivity coolant, non-amine and non-borate coolant with azole addi-

tives.

Lexus cannot guarantee that the use of a product other than “Toyota Genuine Traction

Battery Coolant” will prevent risks of battery short circuit or other damage.

Never use water as it will cause damage.

Do not reuse coolant that has been removed from the radiator.

598

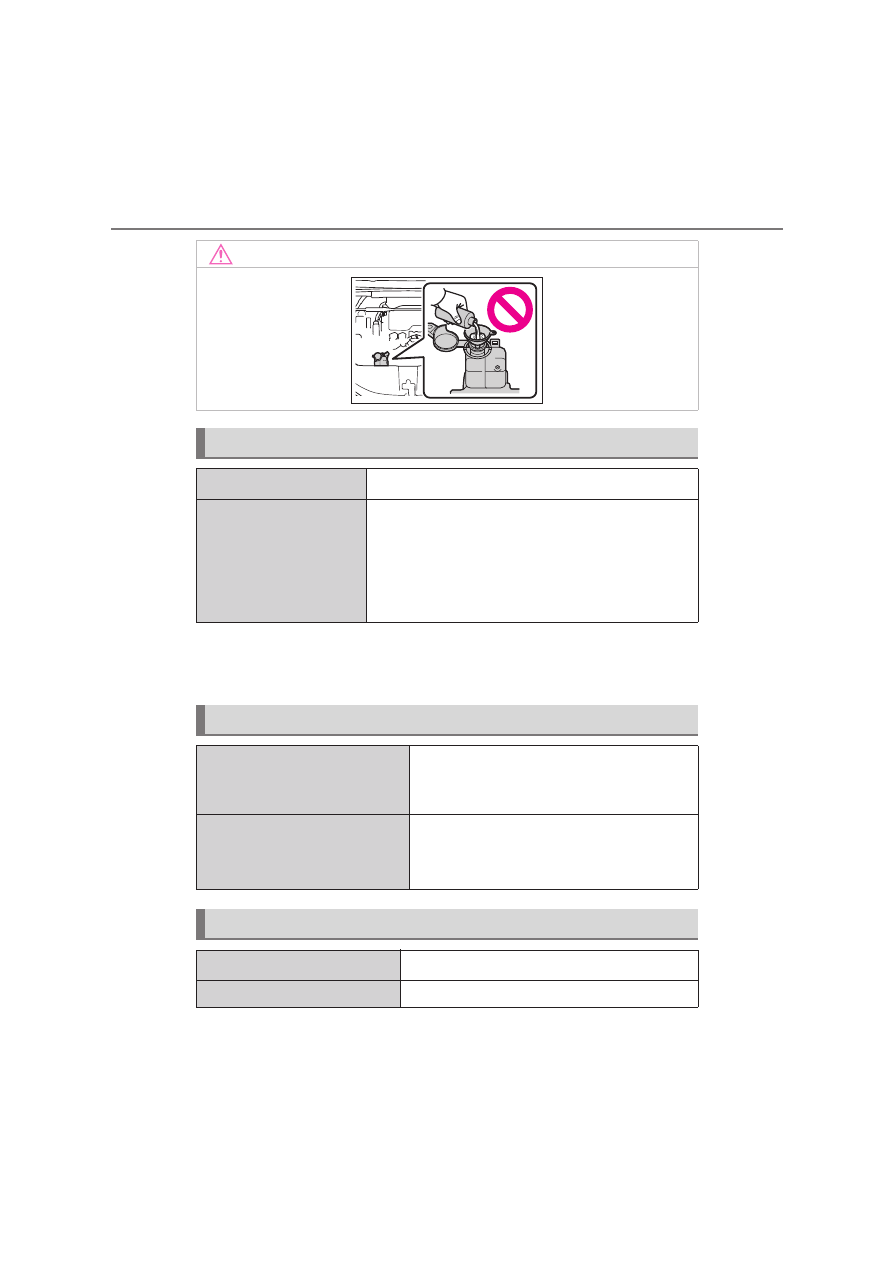

10-1. Specifications

: The coolant capacity is a reference quantity.

If replacement is necessary, contact any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

: The fluid capacity is a reference quantity.

NOTICE

Heater system

Capacity

6.5 L (6.9 qt., 5.2 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene glycol-based non-silicate,
non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology

Do not use plain water alone.

Electrical system (12-volt battery)

Specific gravity reading at 20°C
(68°F):

1.250 or higher
If the specific gravity is lower than the standard
value, charge the 12-volt battery.

Charging rates:
Quick charge
Slow charge

15 A max.
5 A max.

Front eAxle

Fluid capacity

3.9 L (4.1 qt., 3.4 Imp. qt.)

Fluid type

“Toyota Genuine e-Transaxle fluid TE”

599

10-1. Specifications

Veh
icle speci

fic

ations

If replacement is necessary, contact any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

: The fluid capacity is a reference quantity.

If replacement is necessary, contact any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf, 67.5 lbf)

NOTICE

■

Front eAxle fluid type

Using transaxle fluid other than the above type may cause abnormal noise or vibration, or

ultimately damage the front eAxle of your vehicle.

Rear eAxle

Fluid capacity

3.1 L (3.3 qt., 2.7 Imp. qt.)

Fluid type

“Toyota Genuine e-Transaxle fluid TE”

NOTICE

■

Rear eAxle fluid type

Using transaxle fluid other than the above type may cause abnormal noise or vibration, or

ultimately damage the rear eAxle of your vehicle.

Brakes

Pedal clearance



Left-hand drive vehicles

57.5 mm (2.3 in.) Min.



Right-hand drive vehicles

62 mm (2.4 in.) Min.

Pedal free play



6 mm (0.04



0.24 in.)

Brake pad wear limit

1.0 mm (0.04 in.)

Parking brake indicator

When pushing the parking brake switch for 1 to 4
seconds: turns off
When pulling the parking brake switch for 1 to 4
seconds: comes on

Fluid type

FMVSS No. 116 DOT 3 or SAE J1703
FMVSS No. 116 DOT 4 or SAE J1704

600

10-1. Specifications

while the EV system is operating.

: Make sure to confirm that the brake warning light (yellow) does not illuminate. (If the

brake warning light illuminates, refer to P.509.)



Vehicles with 18-inch wheels



Vehicles with 20-inch wheels

■

When towing a trailer (vehicles with towing package)

Add 20.0 kPa (0.2 kgf/cm

or bar, 3 psi) to the recommended tire inflation pressure, and

drive at speeds below 100 km/h (62 mph).

Steering

Free play

Less than 30 mm (1.2 in.)

Tires and wheels

Tire size

Front tires: 235/60R18 103H
Rear tires: 255/55R18 105V

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

260 kPa (2.6 kgf/cm2 or bar, 38 psi)



Rear

260 kPa (2.6 kgf/cm2 or bar, 38 psi)

Wheel size

Front wheels: 18



7 1/2 J

Rear wheels: 18



8 J

Wheel bolt torque

140 N•m (14.3 kgf•m, 103 ft•lbf)

Tire size

Front tires: 235/50R20 104V
Rear tires: 255/45R20 105W

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

260 kPa (2.6 kgf/cm2 or bar, 38 psi)



Rear

240 kPa (2.4 kgf/cm

or bar, 35 psi)

Wheel size

Front wheels: 20



8 J

Rear wheels: 20



9 1/2 J

Wheel bolt torque

140 N•m (14.3 kgf•m, 103 ft•lbf)

Lexus RZ (2023 year). Manual in english - page 18
