9-3. If the EV system will not start

When trouble

ises

■

If a 12-volt battery terminal has been

disconnected

●

If a 12-volt battery terminal has been dis-

connected, the doors cannot be locked

or unlocked using the smart entry & start

system or wireless remote control, and

the door opener switches will not oper-

ate.

Make sure to remove the electronic key

(mechanical key) from the vehicle before

disconnecting a 12-volt battery terminal.
If the electronic key (mechanical key) is to

be left in the vehicle, open a window so an

inside manual release handle can be oper-

ated.

●

The doors may not be able to be

unlocked using the smart entry & start

system immediately after a 12-volt bat-

tery terminal is disconnected and recon-

nected.

If the doors cannot be unlocked, use the

wireless remote control or mechanical key

to lock and unlock the doors.

●

When a 12-volt battery terminal is dis-

connected, information recorded by vari-

ous computers will be cleared.

●

Some systems may require initialization.

WARNING

■

12-volt battery precautions

The 12-volt battery contains poisonous

and corrosive acidic electrolyte, while

related parts contain lead and lead com-

pounds. Observe the following precau-

tions when handling the 12-volt battery:

●

When working with the 12-volt battery,

always wear safety glasses and take

care not to allow any battery fluids

(acid) to come into contact with skin,

clothing or the vehicle body.

●

Do not lean over the 12-volt battery.

●

In the event that battery fluid comes

into contact with the skin or eyes,

immediately wash the affected area

with water and seek medical attention.

Place a wet sponge or cloth over the

affected area until medical attention can

be received.

●

Always wash your hands after handling

the 12-volt battery support, terminals,

and other battery-related parts.

●

Do not allow children near the 12-volt

battery.

538

9-3. If the EV system will not start

: if equipped

When the interior lights or
headlights do not illuminate
and the EV system cannot be
started

Cause

Remedy

The 12-volt battery
may be discharged.
(



P.533)

Restarting the EV
system using the
jumper (or booster)
cables. (



P.555)

Contact any author-
ized Lexus retailer
or Lexus authorized
repairer, or any reli-
able repairer if the
problem cannot be
repaired, or if repair
procedures are
unknown.

One or both of the
12-volt battery ter-
minals may be dis-
connected.

Check if a 12-volt
battery terminal is
disconnected.
Contact any author-
ized Lexus retailer
or Lexus authorized
repairer, or any reli-
able repairer if the
problem cannot be
repaired, or if repair
procedures are
unknown.

The steering lock
system may be mal-
functioning.

Contact any author-
ized Lexus retailer
or Lexus authorized
repairer, or any reli-
able repairer.

When the horn sounds at a
low volume and the EV sys-
tem cannot be started

Cause

Remedy

The 12-volt battery
may be discharged.
(



P.533)

Restarting the EV
system using the
jumper (or booster)
cables. (



P.555)

The 12-volt battery
terminal connec-
tions may be loose
or corroded.

The 12-volt battery
terminals may be
loose or corroded.

539

9-3. If the EV system will not start

When trouble

ises

: if equipped

When the horn does not
sound and the EV system
cannot be started

Cause

Remedy

The 12-volt battery
may be discharged.
(



P.533)

Restarting the EV
system using the
jumper (or booster)
cables. (



P.555)

Contact any author-
ized Lexus retailer
or Lexus authorized
repairer, or any reli-
able repairer if the
problem cannot be
repaired, or if repair
procedures are
unknown.

One or both of the
12-volt battery ter-
minals may be dis-
connected.

Check if a 12-volt
battery terminal is
loose.
Contact any author-
ized Lexus retailer
or Lexus authorized
repairer, or any reli-
able repairer if the
problem cannot be
repaired, or if repair
procedures are
unknown.

The steering lock
system may be mal-
functioning.

Contact any author-
ized Lexus retailer
or Lexus authorized
repairer, or any reli-
able repairer.

540

9-4. If a tire is flat

9-4.If a tire is flat

■

A flat tire that cannot be repaired with

the emergency tire puncture repair kit

In the following cases, the tire cannot be

repaired with the emergency tire puncture

repair kit.

Contact any authorized Lexus retailer or

Lexus authorized repairer, or any reliable

repairer.

●

When the tire is damaged due to driving

without sufficient air pressure

●

When the tire lost air pressure due to a

crack or damage in the tire sidewall

●

When the tire is visibly separated from

the wheel

●

When the cut or damage to the tread is 4

mm (0.16 in.) long or more

●

When the wheel is damaged

●

When two or more tires have been punc-

tured

●

When there is more than one hole or cut

in the damaged tire

●

When the sealant has expired

Before using the emergency tire punc-
ture repair kit, perform the following.

Stop the vehicle in a safe place on a
hard, flat surface.

Set the parking brake.

Change the shift position to P.

Stop the EV system.

Turn on the emergency flashers.
(



P.497)

Check the degree of the tire dam-
age.

A tire should only be repaired with the

emergency tire puncture repair kit if the

damage is caused by a nail or screw pass-

ing through the tire tread.



Do not remove the nail or screw
from the tire. Removing the object
may widen the opening and
disenable emergency repair with

Repairing a tire with the
emergency tire puncture
repair kit

Your vehicle is not equipped with a
spare tire, but instead is equipped
with an emergency tire puncture
repair kit.

A puncture caused by a nail or
screw passing through the tire
tread can be repaired temporarily
with the emergency tire puncture
repair kit. (The kit contains a bottle
of sealant. The sealant can be used
only once to temporarily repair one
tire without removing the nail or
screw from the tire.)

After temporarily repairing the tire
with the kit, have the tire repaired
or replaced by any authorized
Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

WARNING

Do not continue driving with a flat tire.

Driving even a short distance with a flat

tire can damage the tire and the wheel

beyond repair.

Driving with a flat tire may cause a cir-

cumferential groove on the side wall. In

such a case, the tire may explode when

using the emergency tire puncture repair

kit, resulting in death or serious injury.

Preparing to use the emergency
tire puncture repair kit

541

9-4. If a tire is flat

When trouble

ises

the kit.



To avoid sealant leakage, move the
vehicle until the area of the punc-
ture, if known, is positioned at the

top of the tire.

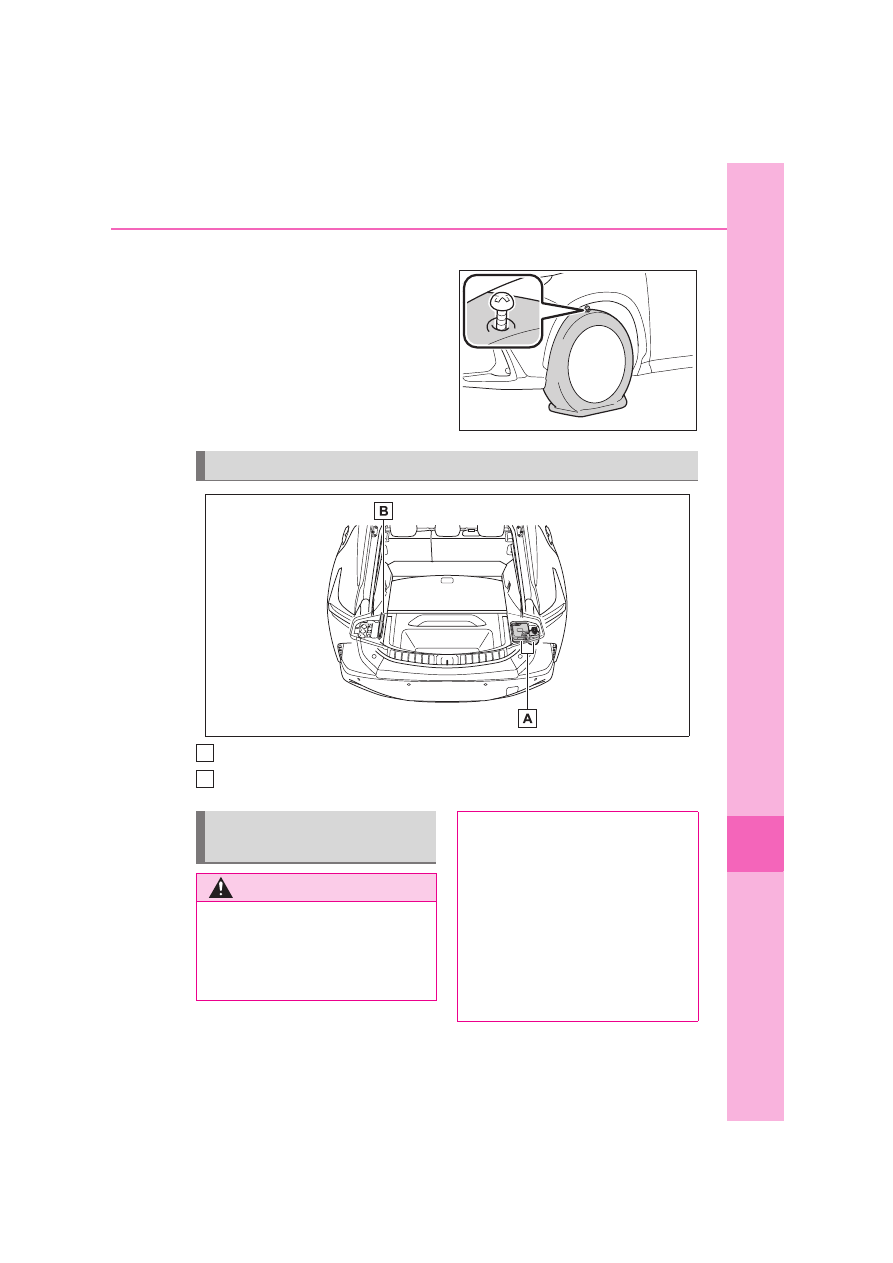

Emergency tire puncture repair kit
Towing eyelet

Storage position of the emergency tire puncture repair kit and tool

A
B

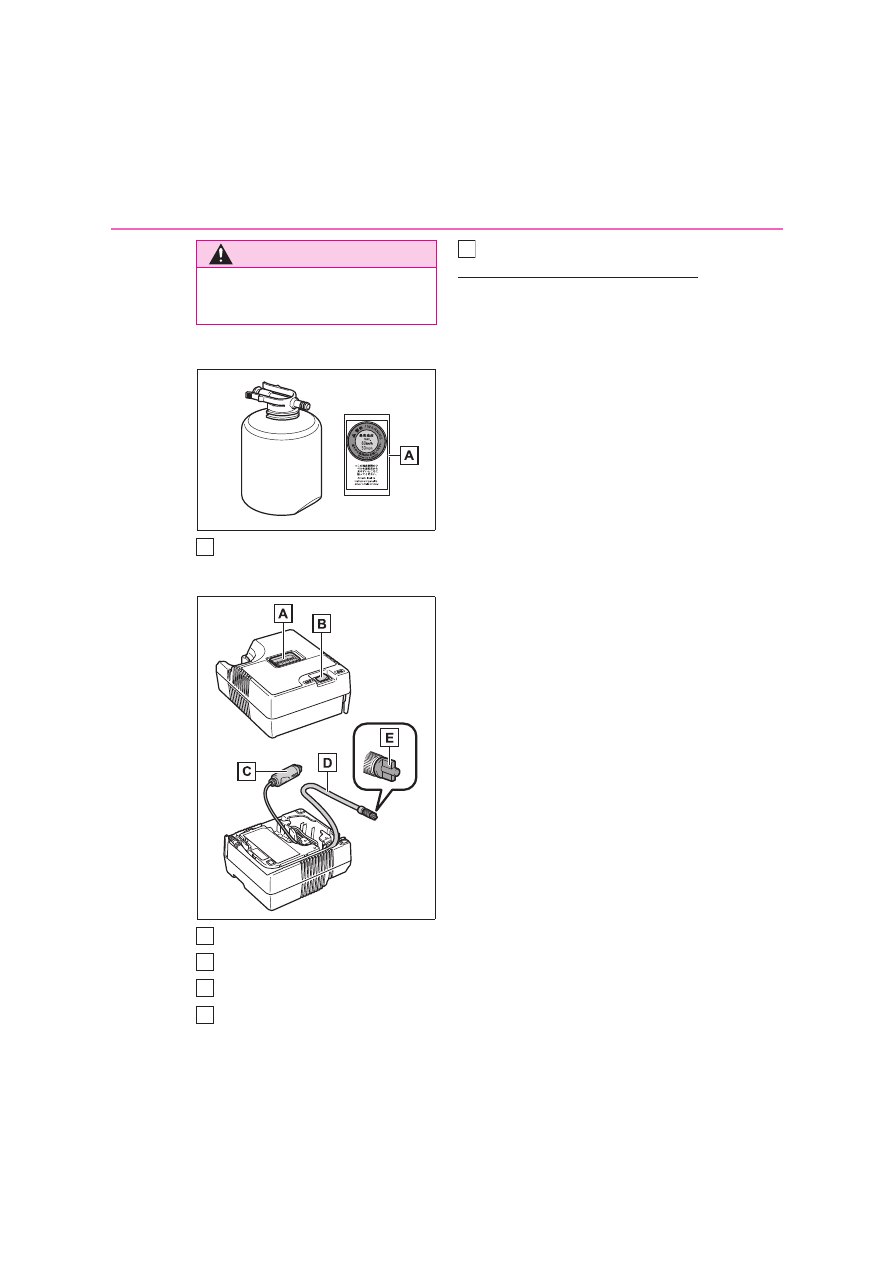

Emergency tire puncture repair
kit details/name of each part

WARNING

■

Precautions for handling the emer-

gency tire puncture repair kit

●

The emergency tire puncture repair kit

is made exclusively for your vehicle.

Do not use it on other vehicles.

●

Do not use the emergency tire punc-

ture repair kit for tires that are a differ-

ent size than the specified ones or for

any other purpose.

Doing so may cause the tires to not be
repaired properly.

■

Precautions for use of the sealant

●

Ingesting the sealant is hazardous to

your health. If you ingest sealant, con-

sume as much water as possible, then

immediately consult a doctor.

542

9-4. If a tire is flat



Bottle

Sticker



Compressor

Air pressure gauge
Compressor switch
Power plug
Hose

Air release cap

■

Handling the emergency tire puncture

repair kit/sealant

●

The emergency tire puncture repair kit is

designed to inflate vehicle tires.

●

Do not use to check or to adjust the tire

pressure.

●

The kit is exclusively designed for size

and type of tires originally installed on

your vehicle. Do not use it for tires that a

different size than the original ones, or for

any other purposes.

●

The sealant stored in the emergency tire

puncture repair kit can be used only once

to temporarily repair a single tire.

If the sealant in the bottle and other parts of
the kit have been used and need to be
replaced, contact any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer.

●

The sealant can be used when the outside

temperature is from -40°C (-40°F) to

60°C (140°F).

●

If the sealant gets on your clothes, it may

stain.

●

If the sealant adheres to a wheel or the

surface of the vehicle body, the stain may

not be removable if it is not cleaned at

once. Immediately wipe away the sealant

with a wet cloth.

●

The compressor can be used repeatedly.

●

During operation of the kit, a loud opera-

tion noise is produced. This does not indi-

cate a malfunction.

■

Checking the sealant

The sealant has a limited lifespan. Check

the sealant expiration date occasionally.
The expiration date is printed on the bottle.
The sealant should be replaced before the

expiry date. Contact any authorized Lexus

retailer or Lexus authorized repairer, or any

reliable repairer for replacement.
Do not use sealant whose expiry date has

already passed. Otherwise, repairs con-

WARNING

●

If sealant gets in eyes or adheres to

skin, immediately wash it off with water.

If discomfort persists, consult a doctor.

A
B
C
D

543

9-4. If a tire is flat

When trouble

ises

ducted using the emergency tire puncture

repair kit may not be performed properly.

■

When disposing of the liquid sealant

The liquid sealant contains materials which

are harmful to the environment. When dis-

posing of liquid sealant or a liquid sealant

bottle, contact any authorized Lexus

retailer or Lexus authorized repairer, or any

reliable repairer or contact your local gov-

ernment for information on the appropriate

authorized waste disposal method.

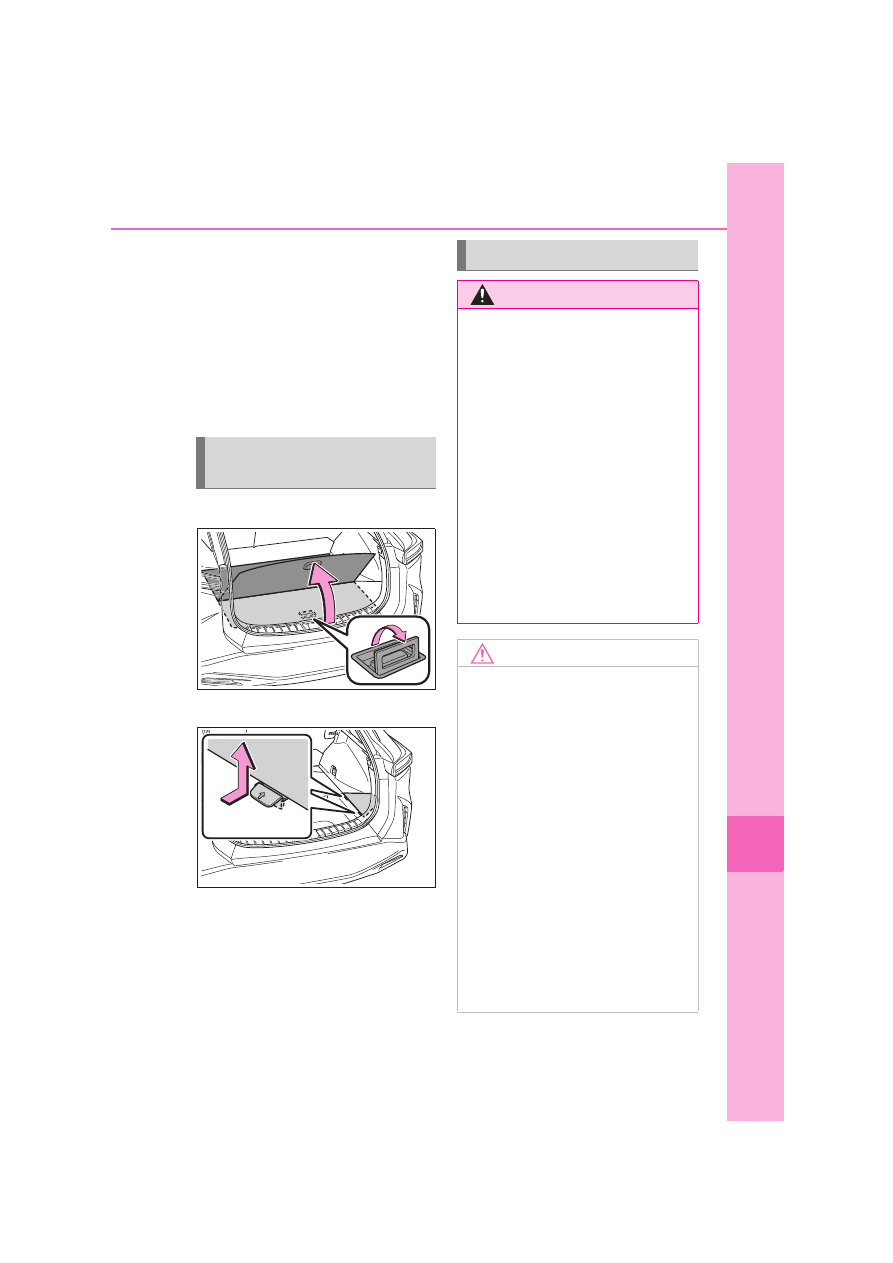

Fold the deck board.

Remove the deck side board.

Take out the emergency tire punc-
ture repair kit.

Taking out the emergency tire
puncture repair kit

Repairing a flat tire

WARNING

Observe the following when repairing a

flat tire.

●

Stop your vehicle in a safe and flat

area.

●

Do not touch the wheels or the area

around the brakes immediately after

the vehicle has been driven.

After the vehicle has been driven, the
wheels and the area around the brakes
may be extremely hot. Touching these
areas with hands, feet or other body
parts may result in burns.

●

Perform repairs according to the spec-

ified procedure.

If the procedure is not followed, the tire
sealant may spray.

NOTICE

■

Precautions for repairing a flat tire

●

Perform the emergency repair with-

out removing the nail or screw that has

punctured the tread of the tire. If the

object that has punctured the tire is

removed, repair by the emergency tire

puncture repair kit may not be possi-

ble.

●

The kit is not waterproof. Make sure

that the kit is not exposed to water,

such as when it is being used in the

rain.

●

Do not put the kit directly onto dusty

ground such as sand at the side of the

road. If the kit vacuums up dust, etc., a

malfunction may occur.

●

Make sure to stand the kit with the bot-

tle vertical. The kit cannot work prop-

erly if it is laid on its side.

544

9-4. If a tire is flat

Take out the emergency tire punc-
ture repair kit.

The sticker enclosed with the bottle will be

attached at a specified location. (See step

Pull out the hose and power plug
from the compressor.

Connect the bottle to the compres-
sor.

Insert the bottle straight into the compres-

sor to connect it, and make sure that the

claws are securely engaged to the com-

pressor as shown in the illustration.

Connect the hose to the bottle.

Make sure that the hose is securely con-

nected to the bottle, as shown in the illus-

NOTICE

■

Handling the emergency tire punc-

ture repair kit

●

The compressor power source should

be 12 V DC suitable for vehicle use.

Do not connect the compressor to any

other source.

●

Take care not to allow gasoline to con-

tact the emergency tire puncture

repair kit. If gasoline splatters on the

kit, it may deteriorate.

●

Place the repair kit in a storage to pre-

vent it from being exposed to dirt or

water.

●

Store the kit in its assigned place out of

reach of children.

●

Do not disassemble or modify the kit.

Do not subject parts such as the air

pressure indicator to impacts. This may

cause a malfunction.

■

To avoid damage to the tire pressure

warning valves and transmitters

When a tire is repaired with liquid seal-

ants, the tire pressure warning valve and

transmitter may not operate properly. If a

liquid sealant is used, contact any author-

ized Lexus retailer or Lexus authorized

repairer, or any reliable repairer or other

qualified service shop as soon as possi-

ble. After use of liquid sealant, make sure

to replace the tire pressure warning valve

and transmitter when repairing or

replacing the tire. (



P.475)

545

9-4. If a tire is flat

When trouble

ises

tration.

Remove the valve cap from the
valve of the flat tire.

Extend the hose. Remove the air
release cap from the hose.

The air release cap may be used later.

Therefore keep it in a safe place.

Connect the hose to the valve of
the flat tire.

Screw the end of hose clockwise as far as

possible.

WARNING

Check the following.

●

Make sure that the valve and hose are

securely connected, with the tire

installed on the vehicle.

●

If the hose is not properly connected to

the valve, air leakage may occur or

sealant may be sprayed out.

●

If the hose comes off the valve while

inflating the tire, there is a risk that the

hose will move abruptly due to air

pressure.

546

9-4. If a tire is flat

Make sure that the compressor
switch is off.

Connect the power plug to the
power outlet socket. (



P.230)

Attach the sticker provided with the
tire puncture repair kit to a position
easily seen from the driver’s seat.

Check the specified tire inflation
pressure.

Tire inflation pressure is specified on the

label as shown. (



P.594)



Left-hand drive vehicles



Right-hand drive vehicles

Start the EV system. (



P.148)

WARNING

Do not attach the vehicle speed warning

sticker to an area other than the one indi-

cated. If the sticker is attached to an area

where an SRS airbag is located, such as

the pad of the steering wheel, it may pre-

vent the SRS airbag from operating

properly.

547

9-4. If a tire is flat

When trouble

ises

To inject the sealant and inflate the
tire, turn the compressor switch on.

Inflate the tire until the specified
pressure is reached.

The sealant will be injected and the
pressure will spike to between 300
kPa (3.0 kgf/cm

or bar, 44 psi)

and 400 kPa (4.0 kgf/cm

or bar,

58 psi), then gradually decrease.
The air pressure gauge will display
the actual tire inflation pressure
about 1 to 5 minutes after the
switch is turned on.

• Turn the compressor switch off and then

check the tire inflation pressure. Being
careful not to over inflate, check and
repeat the inflation procedure until the
specified tire inflation pressure is
reached.

• The tire can be inflated for about 5 to 20

minutes (depending on the outside tem-
perature). If the tire inflation pressure is
still lower than the specified point after
inflation for 25 minutes, the tire is too
damaged to be repaired. Turn the com-

WARNING

Observe the following precautions.

●

Keep back from the tire while it is

being repaired, as there is a chance of

it bursting while the repair operation is

being performed. If you notice any

cracks or deformation in the tire, turn

off the compressor switch and stop the

repair operation immediately.

●

Do not operate the compressor con-

tinuously for more than 40 minutes.

The kit may overheat if operated for a

long period of time.

●

Parts of the emergency tire puncture

repair kit become hot during opera-

tion. Be careful when handling it during

and after operation.

●

Do not touch the metal connecting

parts of the bottle and compressor

while being used or immediately after,

as they will be extremely hot.

548

9-4. If a tire is flat

pressor switch off and contact any
authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

If the tire inflation pressure exceeds the
specified level, let out some air to adjust the
tire inflation pressure. (



P.549, 594)

Make sure that the compressor
switch is off and then disconnect
the power plug from the power out-
let and the hose from the valve of
the tire.

Some sealant may leak when the hose is

removed.

Install the valve cap onto the valve
of the emergency repaired tire.

Attach the air release cap to the
end of the hose.

If the air release cap is not attached, the

sealant may leak and dirty the interior of

the vehicle or ones clothes.

Temporarily store the bottle in the
luggage compartment while it is
connected to the compressor.

To spread the liquid sealant evenly
within the tire, immediately drive
safety for about 5 km (3 miles)
below 80 km/h (50 mph).

After driving, stop your vehicle in a
safe place on a hard, flat surface
and reconnect the emergency tire
puncture repair kit.

Remove the air release cap from the hose

before reconnecting the hose.

Turn the compressor switch on and
wait for several seconds, then turn it

WARNING

After inflation of the tire has completed,

the sealant may splatter when the hose is

disconnected or some air is let out of the

tire.

WARNING

Observe the following precautions when

driving to spread the sealant evenly.

●

Drive the vehicle carefully at a low

speed. Be especially careful when

turning and cornering.

●

If the vehicle does not drive straight or

you feel a pull through the steering

wheel, stop the vehicle and check the

following:

• Tire condition. The tire may have sepa-

rated from the wheel.

• Tire inflation pressure. If the tire infla-

tion pressure is 130 kPa (1.3 kgf/cm

or bar, 19 psi) or below, this may indi-

cate severe tire damage.

549

9-4. If a tire is flat

When trouble

ises

off. Check the tire inflation pres-
sure.

If the tire inflation pressure is below
130 kPa (1.3 kgf/cm

or bar, 19 psi):

The puncture cannot be repaired.
Contact any authorized Lexus
retailer or Lexus authorized
repairer, or any reliable repairer.
If the tire inflation pressure is
between 130 kPa (1.3 kgf/cm

bar, 19 psi) and a point below the
specified level: The tire can be
repaired. Proceed to step

If the tire inflation pressure is at the
specified level (



P.594): Proceed

to step

Even if the tire inflation pressure is at the
recommended level, the tire pressure
warning light may come on/flash.

Turn the compressor switch on to
inflate the tire until the specified tire
inflation pressure is reached. Drive
for about 5 km (3 miles) and then
perform step

Attach the air release cap to the
end of the hose.

If the air release cap is not attached, the

sealant may leak and dirty the interior of

the vehicle or ones clothes.

Store the bottle in the luggage
compartment while it is connected
to the compressor.

Taking precautions to avoid sud-
den braking, sudden acceleration
and sharp turns, drive carefully at
under 80 km/h (50 mph) to any
authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer that is less than 100 km
(62 miles) away for tire repair or
replacement.

When having the tire repaired or replaced,

make sure to tell any authorized Lexus

retailer or Lexus authorized repairer, or

any reliable repairer that the sealant is

injected.
After using the emergency tire puncture

repair kit, have the vehicle inspected and

the tire pressure warning valve and trans-

mitter replaced by any authorized Lexus

retailer or Lexus authorized repairer, or

any reliable repairer. Otherwise the tire

inflation pressure may not be able to be

measured correctly.

Disconnect the hose from the valve.

Install the air release cap to the end
of the hose and push the protrusion

Decreasing the tire inflation pres-
sure when a tire is overinflated

551

9-5. If a door cannot be opened or locked

When trouble

ises

9-5.If a door cannot be opened or locked

New genuine mechanical keys can be
made by any authorized Lexus retailer
or Lexus authorized repairer, or any
reliable repairer using another
mechanical key and the key number
stamped on your key number plate.



The smart entry & start system may
have been disabled by a customize
setting.

In this case, change the customize setting
to enable the smart entry & start system.



The electronic key may have been
set to battery saving mode.

Battery saving mode has been set, cancel
it.



The battery of the electronic key
may be discharged.

Replace the battery.
Using the mechanical key.



The 12-volt battery may be dis-
charged.

Restarting the EV system using the jumper
(or booster) cables. (



P.555)

If a key has been lost

NOTICE

If the electronic key remains lost, the risk

of vehicle theft increases significantly.

Visit any authorized Lexus retailer or

Lexus authorized repairer, or any reliable

repairer immediately with all remaining

electronic keys and the card key (if

equipped) that were provided with your

vehicle.

When the doors/windows
cannot be operated using an
electronic key

If communication between the
electronic key and vehicle is inter-
rupted or the electronic key cannot
be used because the battery is
depleted, the smart entry & start
system and wireless remote control
cannot be used.

NOTICE

When taking the vehicle to any author-

ized Lexus retailer or Lexus authorized

repairer, or any reliable repairer due to a

malfunction of the smart entry & start

system, make sure to bring all registered

electronic keys (including the card key).

552

9-5. If a door cannot be opened or locked

Replace the battery with a new one if it
is depleted.
The battery for the card key is available
only at any authorized Lexus retailer or
Lexus authorized repairer, or any relia-
ble repairer. Your Lexus retailer or
Lexus authorized repairer, or any relia-
ble repairer can replace the battery for
you.
Prepare the following before replacing
the battery:



Flathead screwdriver



Small flathead screwdriver



Lithium battery CR2032 (for Israel
and Ukraine) or CR2450 (except
for Israel and Ukraine)

■

Use a CR2032 and CR2450 lithium

battery

●

Batteries can be purchased at any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer, local electrical appliance shops

or camera stores.

●

Replace only with the same or equivalent

type recommended by the manufacturer.

●

Dispose of used batteries according to

the local laws.

■

If the electronic key battery is depleted

The following symptoms may occur:

●

The smart entry & start system and wire-

less remote control will not function

properly.

●

The operational range will be reduced.

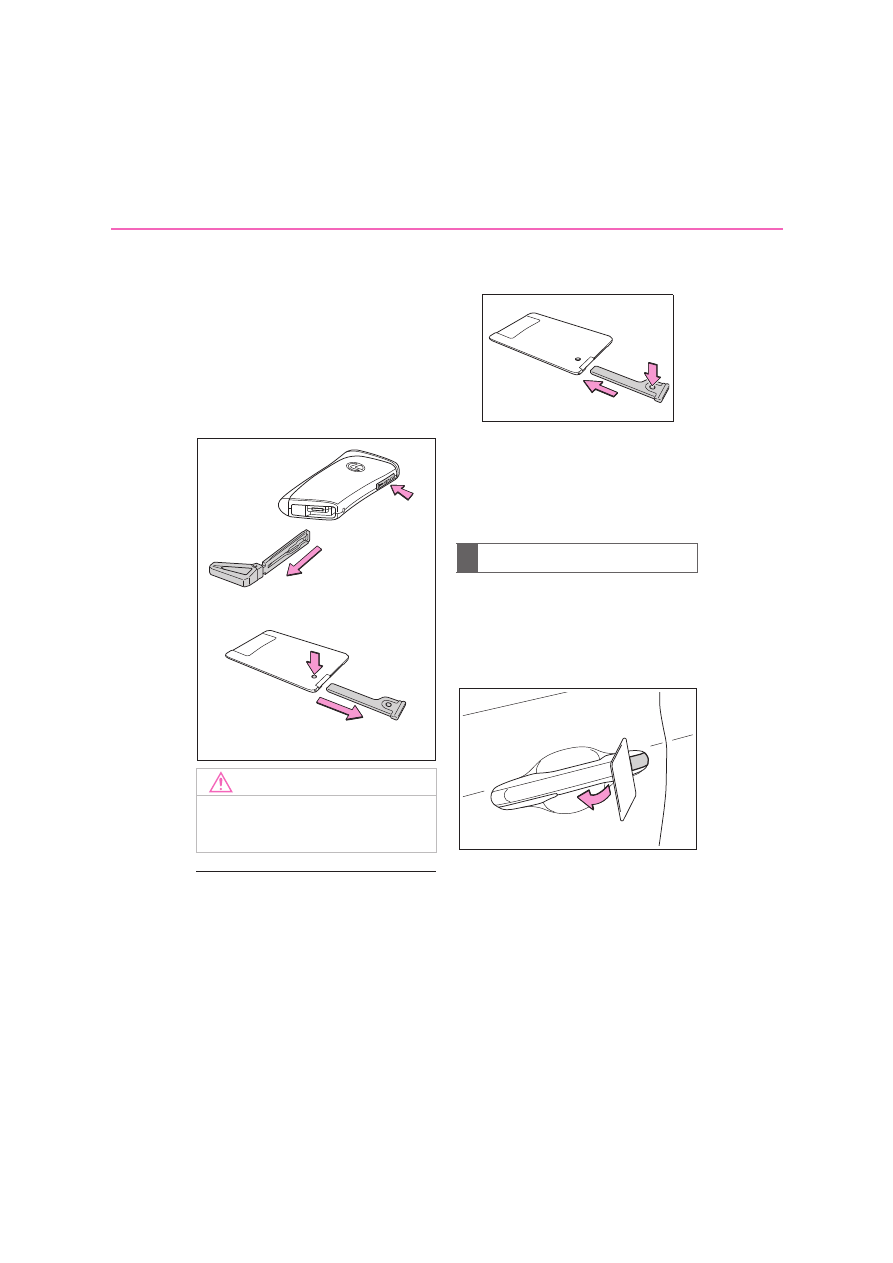

Take out the mechanical key.

Remove the cover.

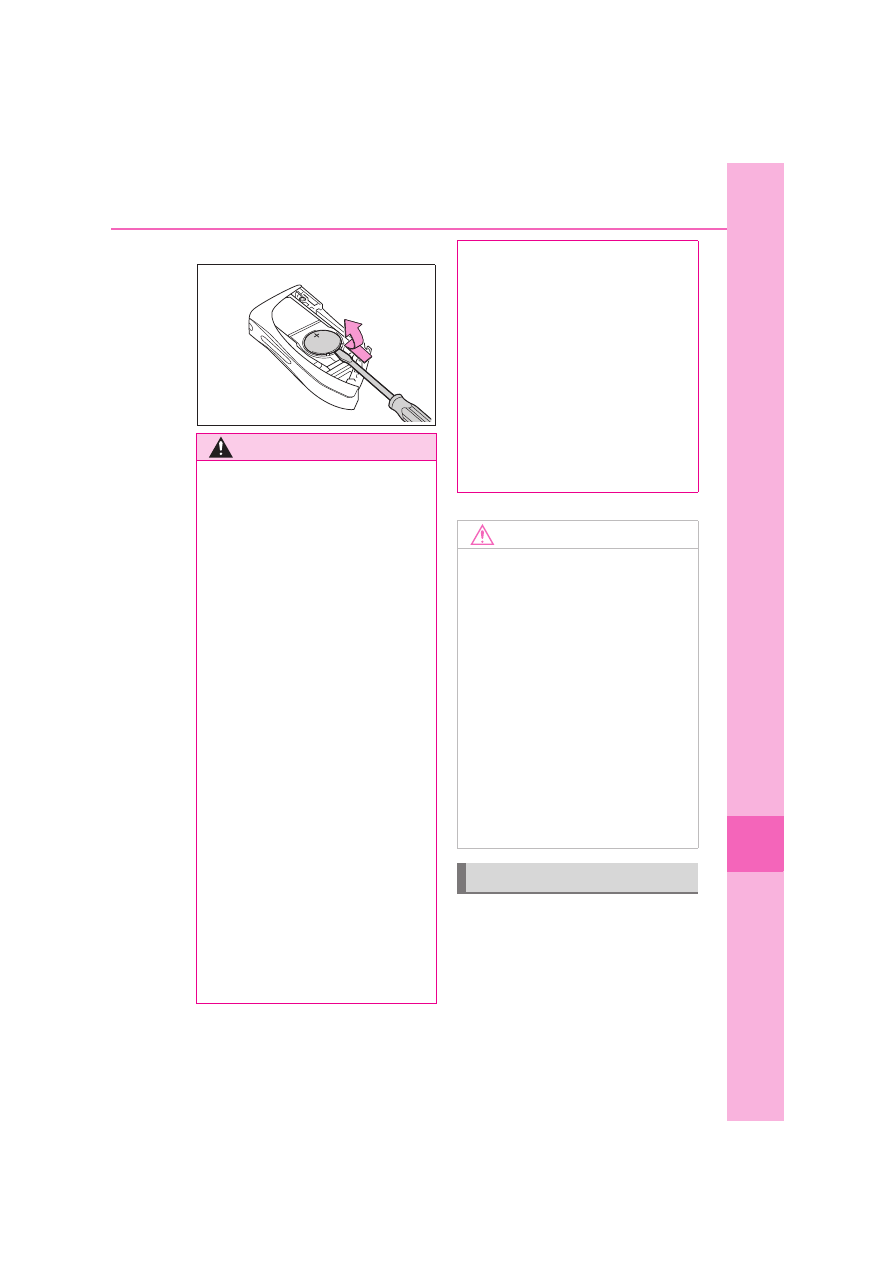

Remove the battery cover.

Remove the depleted battery.

Insert a new battery with the “+” terminal

Replace the electronic key bat-
tery

553

9-5. If a door cannot be opened or locked

When trouble

ises

facing up.

To take out the mechanical key, push
the release button and take the key out.
The mechanical key can only be
inserted in one direction, as the key
only has a groove on one side. If the
key cannot be inserted in a lock cylin-

WARNING

■

Battery precautions

Observe the following precautions. Fail-

ure to do so may result in death or seri-

ous injury.

●

Do not swallow the battery. Doing so

may cause chemical burns.

●

A coin battery or button battery is

used in the electronic key. If a battery is

swallowed, it may cause severe chemi-

cal burns in as little as 2 hours and may

result in death or serious injury.

●

Keep away new and removed batteries

from children.

●

If the cover cannot be firmly closed,

stop using the electronic key and stow

the key in the place where children

cannot reach, and then contact any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

●

If you accidentally swallow a battery or

put a battery into a part of your body,

get emergency medical attention

immediately.

■

To prevent battery explosion or leak-

age of flammable liquid or gas

●

Replace the battery with a new battery

of the same type. If a wrong type of

battery is used, it may explode.

●

Do not expose batteries to extremely

low pressure due to high altitude or

extremely high temperatures.

●

Do not burn, break or cut a battery.

■

Lithium battery precautions

CAUTION

RISK OF EXPLOSION IF BATTERY IS

REPLACED BY AN INCORRECT

TYPE.

DISPOSE OF USED BATTERIES

ACCORDING TO THE INSTRUC-

TIONS

NOTICE

■

When replacing the battery

Use a flathead screwdriver of appropri-

ate size. Applying excessive force may

deform or damage the cover.

■

For normal operation after replacing

the battery

Observe the following precautions to

prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery to rust.

●

Do not touch or move any other com-

ponent inside the remote control.

●

Do not bend either of the battery ter-

minals.

Using the mechanical key

554

9-5. If a door cannot be opened or locked

der, turn it over and attempt to insert it
again.
After using the mechanical key, return
it to its original position and carry it
with the electronic key. If the electronic
key battery is depleted, the entry func-
tion is not operating properly, or the
vehicle 12-volt battery is discharged,
you will need the mechanical key.

■

If the incorrect key is used

The key cylinder rotates freely to isolate

inside mechanism.

■

Card key (if equipped)

●

If it is difficult to take out the mechanical

key, push down the release button using a

pen tip, etc. If it is still difficult to pull it out,

use a coin, etc.

●

To store the mechanical key in the card

key, insert it while pressing the release

button.

■

Alarm (if equipped)

Using the mechanical key to lock the doors

will not set the alarm system. If a door is

unlocked using the mechanical key when

the alarm system is set, the alarm may be

triggered.

Insert a plastic card, etc. into the
gap in the door handle to pry up the
cover.

To avoid damage, do not apply excessive

force to the cover.

NOTICE

Do not apply excess force when inserting

the mechanical key into the card key.

Doing so may damage the card key.

Locking/unlocking the doors

555

9-5. If a door cannot be opened or locked

When trouble

ises

Remove the cover by pressing it on
the rear.

Use the mechanical key in order to
perform the following operations:

Unlocks all the doors

Locks all the doors

■

Key linked functions

Opens the windows (turn and hold)

Closes the windows (turn and hold)

: These settings must be customized at

any authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

If you have a set of jumper (or booster)
cables and a second vehicle with a
12-volt battery, you can jump start your
vehicle by following the steps below.

The EV system cannot be started by

push-starting.

WARNING

Operate the power window after check-

ing to make sure that there is no possibil-

ity of any passenger having any of their

body parts caught in the window. Also,

do not allow children to operate the

mechanical key. It is possible for children

and other passengers to get caught in

the power window.

Restarting the EV system when
the 12-volt battery is discharged

WARNING

■

Avoiding 12-volt battery fires or

explosions

Observe the following precautions to

prevent accidentally igniting the flamma-

ble gas that may be emitted from the

12-volt battery:

●

Make sure each jumper cable is con-

nected to the correct terminal and that

it is not unintentionally in contact with

any other than the intended terminal.

●

Do not allow the other end of the

jumper cable connected to the “+” ter-

minal to come into contact with any

other parts or metal surfaces in the

area, such as brackets or unpainted

metal.

●

Do not allow the + and - clamps of the

jumper cables to come into contact

with each other.

556

9-5. If a door cannot be opened or locked

Confirm that the electronic key is being carried.

When connecting the jumper (or booster) cables, depending on the situation, the alarm

may activate and the doors may lock.

Open the hood

WARNING

●

Do not smoke, use matches, cigarette

lighters or allow open flame near the

12-volt battery.

■

12-volt battery precautions

The 12-volt battery contains poisonous

and corrosive acidic electrolyte, while

related parts contain lead and lead com-

pounds. Observe the following precau-

tions when handling the 12-volt battery:

●

When working with the 12-volt battery,

always wear safety glasses and take

care not to allow any battery fluids

(acid) to come into contact with skin,

clothing or the vehicle body.

●

Do not lean over the 12-volt battery.

●

In the event that battery fluid comes

into contact with the skin or eyes,

immediately wash the affected area

with water and seek medical attention.

Place a wet sponge or cloth over the

affected area until medical attention

can be received.

●

Always wash your hands after handling

the 12-volt battery support, terminals,

and other battery-related parts.

●

Do not allow children near the 12-volt

battery.

557

9-5. If a door cannot be opened or locked

When trouble

ises

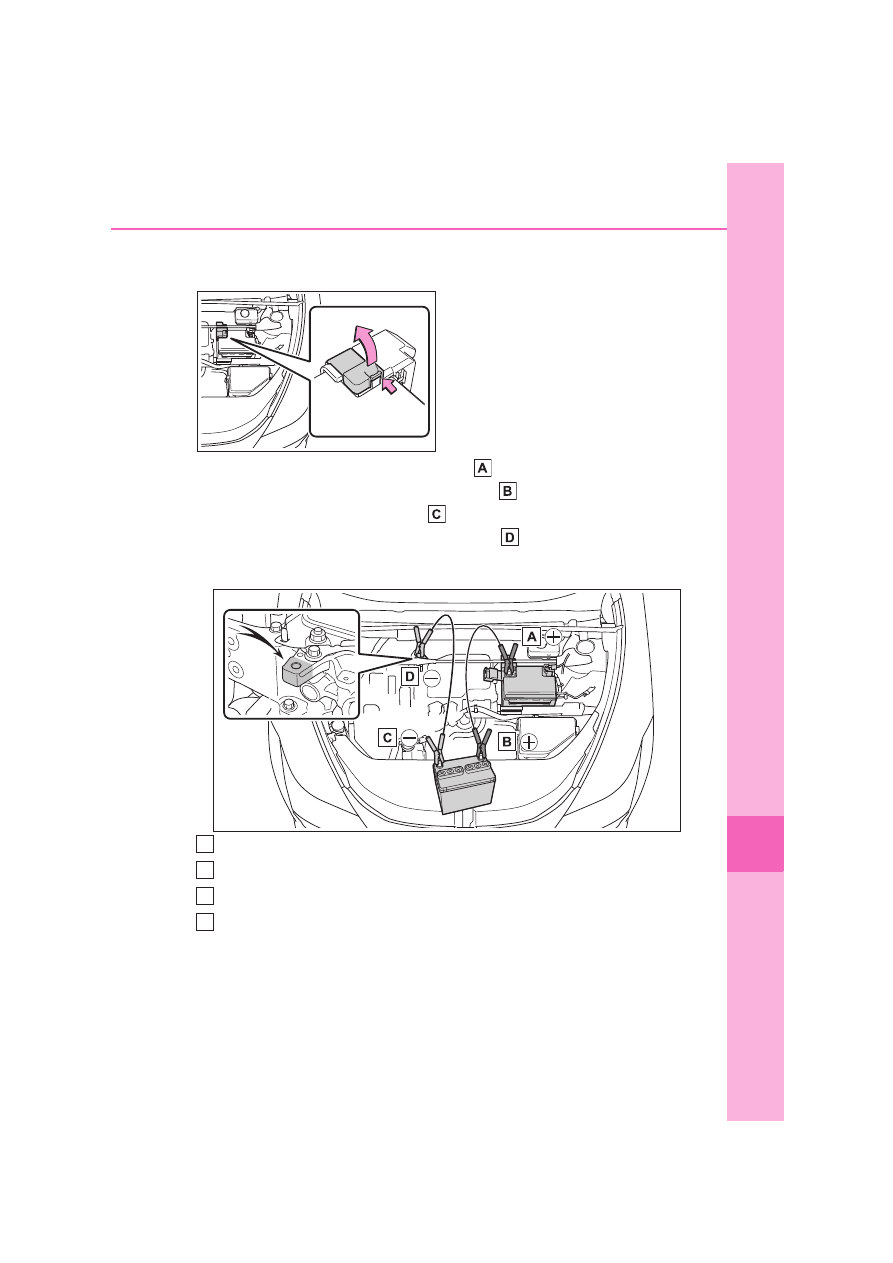

Open the positive (+) battery terminal cover.

While pressing on the claw, open the cover as shown in the illustration.

Connect a positive jumper cable clamp to   on your vehicle and connect the
clamp on the other end of the positive cable to   on the second vehicle. Then,
connect a negative cable clamp to   on the second vehicle and connect the
clamp at the other end of the negative cable to  .

Use jumper cables that can reach the specified terminals and connecting point.

Positive (+) battery terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Metallic point shown in the illustration

A
B
C
D

558

9-5. If a door cannot be opened or locked

Start the engine of the second vehicle. Increase the engine speed slightly and
maintain at that level for approximately 5 minutes to recharge the 12-volt bat-
tery of your vehicle.

Open and close any of the doors of your vehicle with the power switch off.

Maintain the engine speed of the second vehicle and start the EV system of
your vehicle by turning the power switch to ON.

Make sure the “READY” indicator comes on.

If the indicator light does not come on, contact any authorized Lexus retailer or Lexus

authorized repairer, or any reliable repairer.

Once the EV system has started, remove the jumper cables in the exact reverse
order from which they were connected.

Close the positive (+) battery terminal cover.

Once the EV system starts, have the vehicle inspected at any authorized Lexus retailer or

Lexus authorized repairer, or any reliable repairer as soon as possible.

NOTICE

■

12-volt battery precautions

When connecting the jumper cables, ensure that they do not become entangled in the

cooling fan or belt.

■

When connecting jumper cables

Make sure to connect jumper cables to the specified terminals and connecting point.

Failure to do so may adversely affect the electronic devices or damage to them.

559

9-5. If a door cannot be opened or locked

When trouble

ises

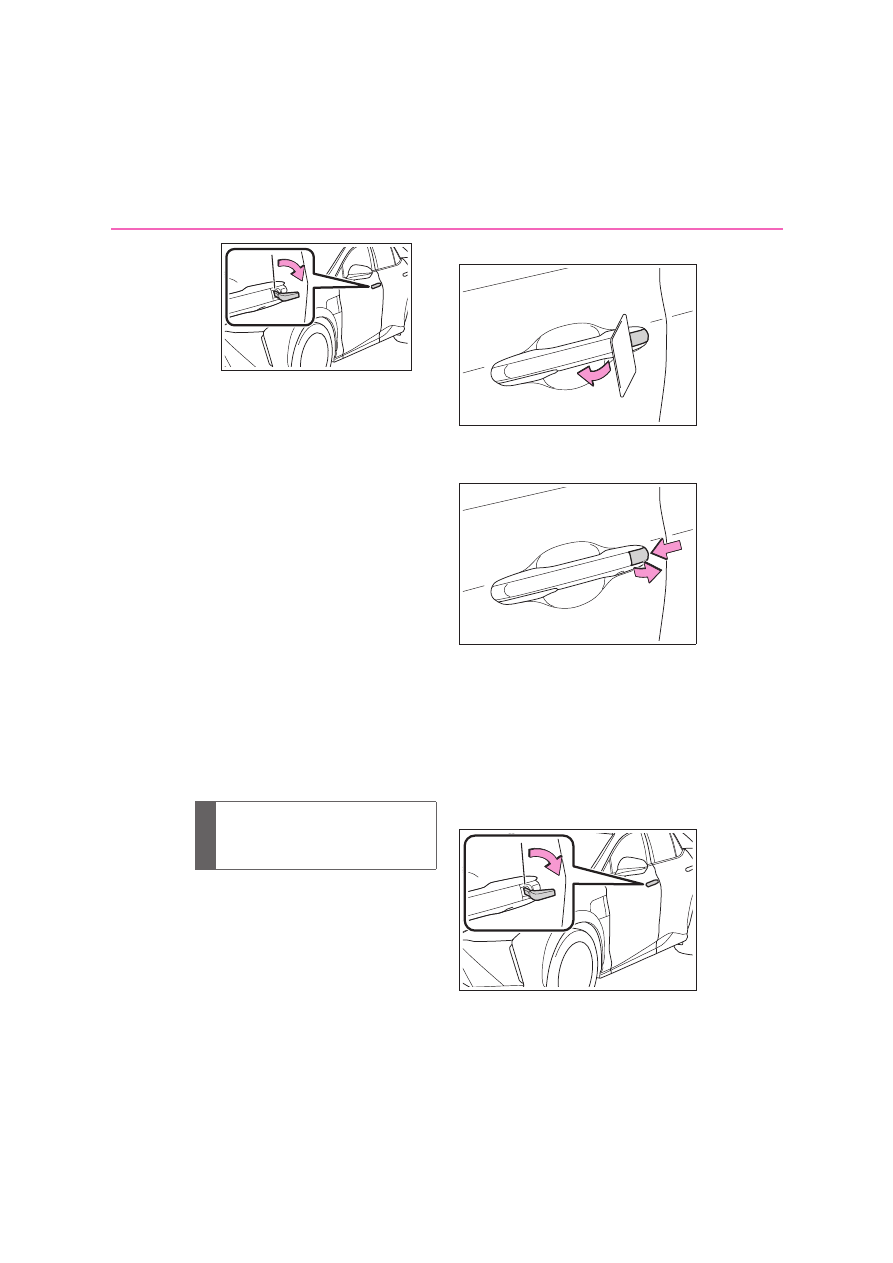

If a door cannot be opened using the
door opener switch, it can be opened
using a manual release handle.



Outside the vehicle

Pull the manual release handle to
open the door.
Normally, the manual release handles
cannot be used to open the doors.
To open a door, enable manual release
handle operation. (



P.559)



Inside the vehicle

Pull the manual release handle
twice to open the door.
Pulling the handle once will enable
operation. Pulling the handle again will
open the door.

■

Manual release handle operating condi-

tions

●

If the vehicle is involved in a severe frontal

or rear collision, manual release handle

operation will be enabled for all of the

doors.

However, the manual release handle may

not become operable depending on the

force of the impact and conditions of the

collision.

●

When the 12-volt battery voltage drops

slowly while a door was unlocked

It may not work depending on how it is low-

ered.

●

When manual release handle operation

is enabled from inside the vehicle

●

When manual release handle operation

is enabled from outside the vehicle using

a mechanical key

If a door cannot be opened
using the door opener switch

Operating a manual release
handle

NOTICE

Normally, the manual release handles

cannot be used to open the doors. To

enable manual release handle operation,

perform the following. If the following is

not performed and/or a manual release

handle is operated with force, it may

deform or be damaged.

560

9-5. If a door cannot be opened or locked

■

Conditions which manual release han-

dle operation is disabled

●

Normally, operation of the outside man-

ual release handles is disabled, and they

cannot be used to open the doors.

When operation is enabled by operating a

manual release handle or using a mechani-

cal key, operation will be disabled automat-

ically if the door is opened using the door

opener switch or locked.

●

Operation of the inside manual release

handles is disabled when the power

switch is in ON, and they cannot be used

to open the doors.

When operation is enabled by operating a

manual release handle or using a mechani-

cal key, operation will be disabled automat-

ically if the door is opened using the door

opener switch or locked.

●

To prevent a door from being opened

accidentally, when the power switch is in

ON, after an inside manual release han-

dle is operated once, operation will auto-

matically be disabled after approximately

1 second.

Operation of a manual release handle
can be enabled by unlocking a door
with the mechanical key. (



P.553)

Insert a plastic card, etc. into the
gap in the door handle to pry up the
cover.

To avoid damage, do not apply excessive

force to the cover.

Remove the cover by pressing it on
the rear.

Using the mechanical key, turn the
lock cylinder to the unlock side to
enable the manual release handle
operation.

The mechanical key can only be inserted in

one direction, as the key only has a groove

on one side.
If the key cannot be inserted in a lock cylin-

der, turn it over and re-attempt to insert it.

Enabling outside manual release
handle operation using a
mechanical key

561

9-5. If a door cannot be opened or locked

When trouble

ises

The child-protector lock may be
engaged.
Open the door from outside the vehi-
cle and disengage the child-protector
lock. (



P.66)



Vehicles with a power back door:

Using a flathead screwdriver,
remove the cover.

To protect the cover, place a rag between

the flathead screwdriver and the cover as

shown in the illustration.

Loosen the screw and turn back the
cover.

If the rear doors cannot be
opened from the inside

If the back door cannot be
opened

The back door can be unlocked
from the inside.

562

9-5. If a door cannot be opened or locked

Using a screwdriver, push the lever.

When installing, reverse the steps
listed.



Vehicles without a power back
door:

Using a flathead screwdriver,
remove the cover.

To protect the cover, place a rag between

the flathead screwdriver and the cover as

shown in the illustration.

Turn the cover.

Using a screwdriver, push the lever.

When installing, reverse the steps
listed.

563

9-6. If the EV system cannot be used normally

When trouble

ises

9-6.If the EV system cannot be used normally

Open the hood. (



P.461)

Pull the ring section horizontally
toward the inside of the vehicle.

After the unlocking operation is com-

pleted, push the ring part back to its origi-

nal position until it clicks into place.

Emergency release lever

■

When unlocking with the emergency

release lever

Be sure to observe the following.

●

Do not apply excessive force to the ring

part

●

Do not pull horizontally too much

Use only in an emergency.
If the problem persists, have the vehicle

inspected by any authorized Lexus retailer

or Lexus authorized repairer, or any reliable

repairer immediately if this occurs.

If the charging port lid can-
not be opened

If the charging port lids cannot be
opened when using the normal pro-
cedure, the following procedure
can be used to open the charging
port lid.

564

9-6. If the EV system cannot be used normally

If AC charging cannot be performed normally

Charging indicator of the charging port does not illuminate

Cause

Remedy

The plug is not properly connected
to the socket

Check that the plug is properly connected to the
socket.

AC charging connector is not
securely connected to AC charging
inlet

Check the connection status of the AC charging
connector.



When connecting the AC charging connector,
insert the charging connector securely.



After connecting the AC charging connector,
check that the charging indicator of the charging
port is turned on.

If the charging indicator of the charging port does
not illuminate, even though the charging connector
is securely connected, there may be a malfunction in
the system. Immediately stop charging and contact
any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

Traction battery is already fully
charged

When the traction battery is fully charged, AC
charging is not performed.

The remaining charge of the traction
battery exceeds the set upper limit of
the charge capacity

Change to a higher upper limit setting than the cur-
rent remaining charge capacity and perform charg-
ing again. (



P.53)

The charger does not operate

Please contact the facility manager when there is a
problem with charger.

Power is out

After power is restored, carry out the charging pro-
cedure again.

Remote switch is off

If the remote switch is equipped, turn the switch on.

Building breaker is tripped and
power is cut off

Check that the breaker is connected and if there is
no malfunction, check if the vehicle can be charged
through another socket.
If charging is possible, the first socket may have a
malfunction. Contact the building or facility man-
ager, or an electrician.

565

9-6. If the EV system cannot be used normally

When trouble

ises

: Refer to P.41 for details regarding charging indicator of the charging port illumination

and flashing.

When the charging indicator on the charging port is blinking and charg-
ing cannot be carried out

Cause

Remedy

When charging indicator of the charging
port flashes

: Charging schedule is regis-

tered

When you wish to charge according to the
charging schedule, wait until the set time.
To start charging, set “Charge now” to on.
(



P.63)

When charging indicator of the charging
port rapidly flashes

: Malfunction occurred

in an external power source or the vehicle

When a door is opened with the power
switch off, a message is displayed on the
multi-information display. Follow instructions
displayed.(



P.510)

566

9-6. If the EV system cannot be used normally

If DC charging cannot be performed normally

DC charging does not start

Cause

Remedy

The DC charging connector is not properly
connected to the vehicle.

Check the connection status of the DC
charging connector and be sure that it is
locked.
If the DC charging does not start, even
though the DC charging connector is
securely connected, there may be a mal-
function with the DC charger or charging
system.



If there is a malfunction with the DC
charger, contact the charging station man-
ager.



If there is not a malfunction with the DC
charger, there may be a malfunction in the
system. Contact any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer.



If there is an error in the connection status
due to the weight of the connector, dis-
connect the connector and then recon-
nect it. Lift and hold the connector in place
for about 3 seconds after reinserting it
until it locks. If the connector still does not
lock, check if it can be charged with
another DC charger.

The DC charging connector is not securely
locked.

567

9-6. If the EV system cannot be used normally

When trouble

ises

Error is detected by the DC charger or vehi-
cle’s system check.

There may be a malfunction with the DC
charger or charging system.



If there is a malfunction with the DC
charger, contact the facility manager.



If there is not a malfunction with the DC
charger, there may be a malfunction in the
system. Contact any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer.



If the EV system cannot be started, con-
tact any authorized Lexus retailer or
Lexus authorized repairer, or any reliable
repairer.

The DC charger power goes off.

Contact the charging station manager and
check the power status.

Traction battery is already fully charged

When the traction battery is fully charged,
DC charging cannot be performed.

The remaining charge of the traction battery
exceeds the set upper limit of the charge
capacity

Change to a higher upper limit setting than
the current remaining charge capacity and
perform charging again. (



P.53)

AC charging connector is also connected.

DC charging and AC charging cannot be
performed together.

The EV system is started.

When the EV system is started, DC charg-
ing cannot be started.
Also, if the shift position is not in P, DC
charging cannot be performed.

When DC charging is interrupted

Cause

Remedy

Cause

Remedy

The timer for the DC charger operates.

Depending on the type of the DC charger,
the timer may be set to stop charging after a
certain time.
Check with the charging station manager.

The power for the DC charger is off.

Check the power status of the DC charger. If
there are uncertainties with the power status,
contact the charging station manager.

568

9-6. If the EV system cannot be used normally

The temperature of the traction battery is
extremely high or low.

DC charging may not be performed in
extremely high or extremely low tempera-
ture environments. Charge the traction bat-
tery after the temperature has been
stabilized.

Error is detected by the DC charger or vehi-
cle’s system check.

There may be a malfunction with the DC
charger or charging system.



If there is a malfunction with the DC
charger, contact the facility manager.



If there is not a malfunction with the DC
charger, there may be a malfunction in the
system. Contact any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer.



If the EV system cannot be started, con-
tact any authorized Lexus retailer or
Lexus authorized repairer, or any reliable
repairer.

High temperature of charging related parts

If the temperature of charging related parts
is high, DC charging may not be possible.
Wait for a while and then charge again.

The electrical components such as the air
conditioning system stop operating while the
traction battery is approximately fully
charged.

Keep the electrical components such as the
air conditioning system in the OFF state, and
then perform the charging procedure again.

Cause

Remedy

Lexus RZ (2023 year). Manual in english - page 17
