6-2. Using the safe driving support functions

Driving support

system

• If a bumper protector, such as an addi-

tional trim strip, is installed to the rear

bumper

■

Situations in which the system may

operate unexpectedly

●

Even though there are no pedestrians in

the detection area, some objects, such as

the following, may be detected, possibly

causing the rear camera detection func-

tion to operate.

• Three dimensional objects, such as a

pole, traffic cone, fence, or parked vehi-

cle

• Moving objects, such as a car or motor-

cycle

• Objects moving toward your vehicle

when backing up, such as flags or pud-

dles (or airborne matter, such as smoke,

steam, rain, or snow)

• Cobblestone or gravel roads, tram rails,

road repairs, white lines, pedestrian

crossings or fallen leaves on the road

• Metal covers (gratings), such as those

used for drainage ditches

• Objects reflected in a puddle or on a wet

road surface

• Shadows on the road

●

In some situations, such as the following,

the rear camera detection function may

operate even though there are no pedes-

trians in the detection area.

• When backing up toward the roadside or

a bump on the road

• When backing up toward an

incline/decline

• If the rear of the vehicle is raised or low-

ered due to the carried load

• When install market electronic parts

(such as Illuminated license plate, fog

lamps, etc.) in the camera vicinity

• If a bumper protector, such as an addi-

tional trim strip, is installed to the rear

bumper

• If the orientation of the rear camera has

been changed

• If a towing eyelet is installed to the rear of

the vehicle

• When towing with the vehicle

• When water is flowing over the rear cam-

era lens

• When the rear camera is obscured (dirt,

snow, ice, etc. are attached) or scratched

• If there is a flashing light in the detection

area, such as the emergency flashers of

another vehicle

• When a tire chains or an emergency tire

puncture repair kit is used

●

Situations in which the rear camera

detection function may be difficult to

notice

• The buzzer may be difficult to hear if the

surrounding area is noisy, the volume of

the audio system volume is high, the air

conditioning system is being used, etc.

• If the temperature in the cabin is

extremely high or low, the audio system

screen may not operate correctly.

378

6-2. Using the safe driving support functions

The system can detect the following as
detectable objects. (Detectable
objects differ depending on the func-
tion.)



Parking Support Brake (Static
Objects Front and Rear of the vehi-
cle) (



P.382)



Parking Support Brake (Moving
Vehicles Rear of the Vehicle)
(



P.384)



Parking Support Brake (Pedestrians
Rear of the Vehicle) (



P.385)



Parking Support Brake (Static
Objects Around the vehicle) (vehi-
cles with Advanced Park)
(



P.382)

PKSB (Parking Support
Brake) system

The PKSB (Parking Support Brake)
system consists of the following
functions that operate when driving
at a low speed or backing up, such
as when parking. When the system
determines that a collision with a
detected object or pedestrian is
high, a warning operates to urge
the driver to take evasive action. If
the system determines that the pos-
sibility of a collision with a detected
object or pedestrian is extremely
high, the brakes are automatically
applied to help avoid the collision or
help reduce the impact of the colli-
sion.

WARNING

■

Cautions regarding the use of the sys-

tem

Do not overly rely on the system, as

doing so may lead to an accident. Always

drive while checking the safety of the

surroundings of the vehicle.

Depending on the vehicle and road con-

ditions, weather, etc., the system may not

operate.

The detection capabilities of sensors,

radars and camera are limited. Always

drive while checking the safety of the

surroundings of the vehicle.

●

The driver is solely responsible for safe

driving. Always drive carefully, taking

care to observe your surroundings.

The PKSB (Parking Support Brake)

system is designed to provide support

to lessen the severity of collisions.

However, it may not operate in some

situations.

●

The PKSB (Parking Support Brake)

system is not designed to stop the

vehicle completely. Additionally, even

if the system has stopped the vehicle, it

is necessary to depress the brake

pedal immediately as brake control will

be canceled after approximately 2

seconds.

●

It is extremely dangerous to check the

system operations by intentionally

driving the vehicle into the direction of

a wall, etc. Never attempt such actions.

■

When to disable the PKSB (Parking

Support Brake) system

In the following situations, disable the

PKSB (Parking Support Brake) as the

system may operate even though there is

no possibility of a collision.

In some countries, when the R shift posi-

tion is selected, the system will turn ON

(enabled) automatically and the driving

assist information indicator will turn off.

379

6

6-2. Using the safe driving support functions

Driving support

system

The PKSB (Parking Support Brake)
can be enabled/disabled on

 of the

center display. (



P.614)

When the PKSB (Parking Support
Brake) function is off, the driving assist
information indicator (



P.246) will

illuminate and a message will be dis-
played on the multi-information dis-
play.

When turned OFF (disabled), the PKSB
(Parking Support Brake) will be disabled
and will not be enabled until the setting is
changed to ON again in center display.
(The function will not be reenabled by
operating the power switch.)

In some countries, when the R shift
position is selected, the system will turn
ON (enabled) automatically and the
driving assist information indicator will
turn off.
In this situation, the PKSB (Parking
Support Brake) system setting will
remain unchanged.
When the R shift position is selected,
the PKSB (Parking Support Brake) sys-
tem cannot be turned ON/OFF.

If the EV system output restriction con-
trol or brake control operates, a buzzer
will sound and a message will be dis-
played on the multi-information display
and center display to alert the driver.

WARNING

●

When inspecting the vehicle using a

chassis roller, chassis dynamo or free

roller

●

When loading the vehicle onto a boat,

truck or other transport vessel

●

If the suspension has been modified or

tires of a size other than specified are

installed

●

If the front of the vehicle is raised or

lowered due to the carried load

●

When equipment that may obstruct a

sensor is installed, such as a towing

eyelet, bumper protector (an addi-

tional trim strip, etc.), bicycle carrier, or

snow plow

●

When using automatic car washing

devices

●

If the vehicle cannot be driven in a sta-

ble manner, such as when the vehicle

has been in an accident or is malfunc-

tioning

●

When the vehicle is driven in a sporty

manner or off-road

●

When the tires are not properly

inflated

●

When the tires are very worn

●

When a tire chains or an emergency

tire puncture repair kit is used

●

When your vehicle is towing a trailer

or during emergency towing

■

Precautions for the suspension

Do not modify the suspension of the

vehicle. If the height or tilt of the vehicle is

changed, the sensors may not be able to

detect detectable objects and the system

may not operate correctly, possibly lead-

ing to an accident.

Enabling/Disabling the PKSB
(Parking Support Brake)

PKSB (Parking Support Brake)
displays and buzzers

380

6-2. Using the safe driving support functions

Depending on the situation, EV system
output restriction control will operate
to either limit acceleration or restrict
output as much as possible.

■

EV system output restriction con-
trol is operating (acceleration
restriction)



Acceleration greater than a certain
amount is restricted by the system.



Center display: No warning dis-
played



Multi-information display: “Object
Detected Acceleration Reduced”



Driving assist information indicator:
Not illuminated



Buzzer: Pong (single)

■

EV system output restriction con-
trol is operating (output restricted
as much as possible)



The system has determined that
stronger-than-normal brake opera-
tion is necessary.



Center display (vehicles with pano-
ramic view monitor, etc.): A display
urging to operate the brakes



Multi-information display: A display
urging to operate the brakes



Driving assist information indicator:
Not illuminated



Buzzer: Intermittent beep

■

Brake control is operating



The system determined that emer-
gency braking is necessary.



Center display (vehicles with pano-
ramic view monitor, etc.): A display

urging to operate the brakes



Multi-information display: A display
urging to operate the brakes



Driving assist information indicator:
Not illuminated



Buzzer: Intermittent beep

■

Vehicle stopped by system opera-
tion



The vehicle has been stopped by
brake control operation.



Center display (vehicles with pano-
ramic view monitor, etc.):  “Press
Brake Pedal”



Multi-information display: “Switch to
Brake” (If the accelerator pedal is
not depressed, “Press Brake Pedal”
will be displayed.)



Driving assist information indicator:
Illuminated



Buzzer: Intermittent beep

If the PKSB (Parking Support Brake)
determines that a collision with a
detected object or pedestrian is possi-
ble, the EV system output will be
restricted to restrain any increase in
the vehicle speed. (EV system output
restriction control: See figure 2.) Addi-
tionally, if the accelerator pedal contin-
ues to be depressed, the brakes will be
applied automatically to reduce the
vehicle speed. (Brake control: See fig-
ure 3.)



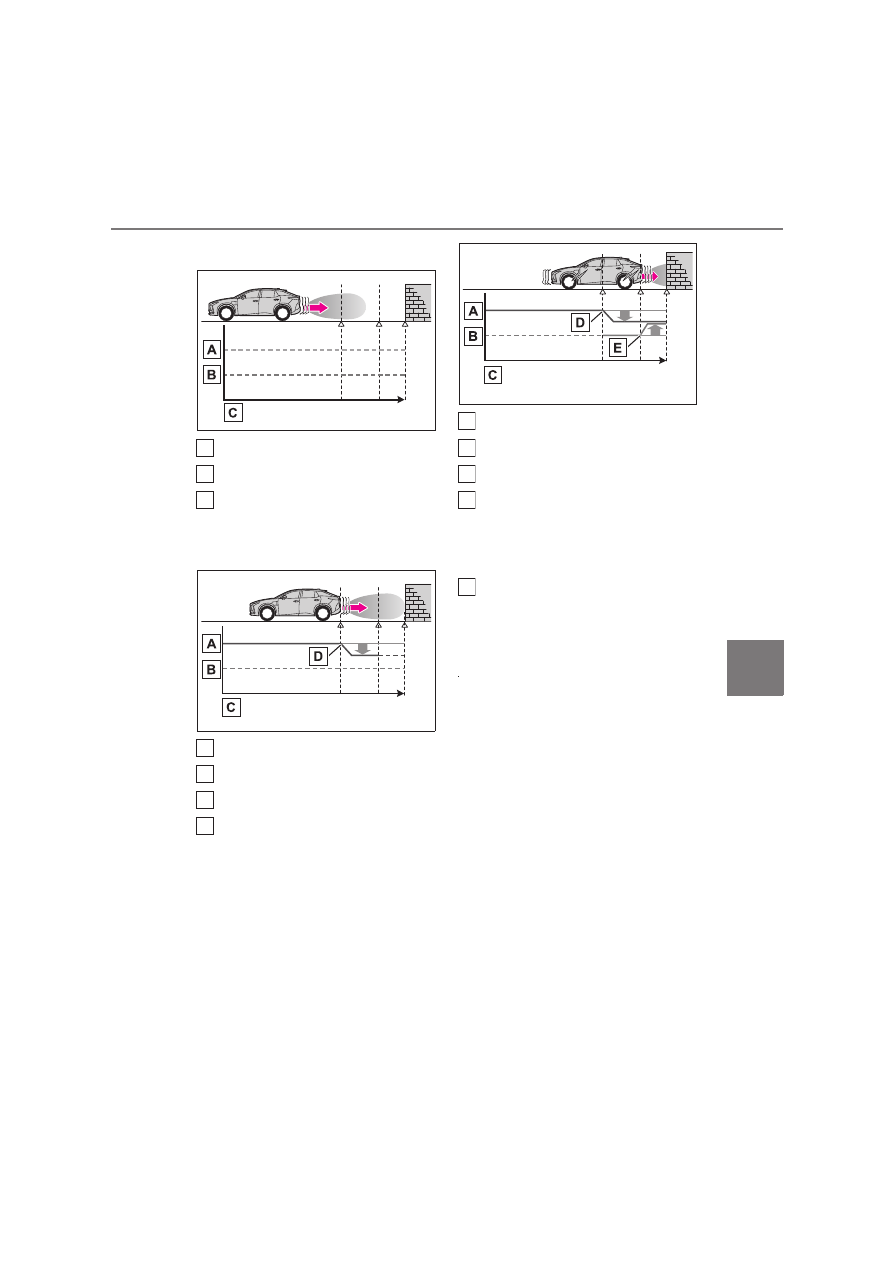

Figure 1 When the PKSB (Parking

System overview

381

6

6-2. Using the safe driving support functions

Driving support

system

Support Brake) is not operating

EV system output
Braking force
Time



Figure 2 When EV system output
restriction control operates

EV system output
Braking force
Time
EV system output restriction con-
trol begins operating (System
determines that possibility of colli-
sion with detected object is high)



Figure 3 When EV system restric-
tion control and brake control oper-
ates

EV system output
Braking force
Time
EV system output restriction con-
trol begins operating (System
determines that possibility of colli-
sion with detected object is high)
Brake control begins operating
(System determines that possibility
of collision with detected object is
extremely high)

■

If the PKSB (Parking Support Brake) has

operated

If the vehicle is stopped due to operation of

the PKSB (Parking Support Brake), the

PKSB (Parking Support Brake) will be disa-

bled and the driving assist infomation indi-

cator will illuminate. If the PKSB (Parking

Support Brake) operates unnecessarily,

brake control can be canceled by depress-

ing the brake pedal or waiting for approxi-

mately 2 seconds for it to automatically be

canceled. Then, the vehicle can be oper-

ated by depressing the accelerator pedal.

■

Re-enabling the PKSB (Parking Support

Brake) system

To re-enable the PKSB (Parking Support

Brake) when it has been disabled due to

operation of the PKSB (Parking Support

Brake), either enable the system again

(



P.379), or turn the power switch off and

then back to ON.

A
B
C

A
B
C
D

A
B
C
D

E

382

6-2. Using the safe driving support functions

Additionally, if any of the following condi-

tions are met, the system will be re-enabled

automatically and the driving assist infoma-

tion indicator will turn off:

●

The P shift position is selected

●

The object is no longer detected in the

traveling direction of the vehicle

●

The traveling direction of the vehicle

changes

If the sensors detect a static object,
such as a wall, in the travelling direction
of the vehicle and the system deter-
mines that a collision may occur due to
the vehicle suddenly moving forward
due to an accidental accelerator pedal
operation, the vehicle moving the unin-
tended direction due to the wrong shift
position, or while parking or traveling
at low speeds, the system will operate
to lessen the impact with the detected
static object and reduce the resulting
damage.

The system operates in the following
situations when a static object is
detected in the traveling direction of
the vehicle.



When the vehicle is traveling at a
low speed and the brake pedal is not
depressed, or is depressed late



When the accelerator pedal is
depressed excessively



When the moves forward due to the
incorrect shift position being
selected

Parking Support Brake (Static
Objects Front and Rear of the
vehicle/Static Objects Around
the vehicle [vehicles with
Advanced Park])

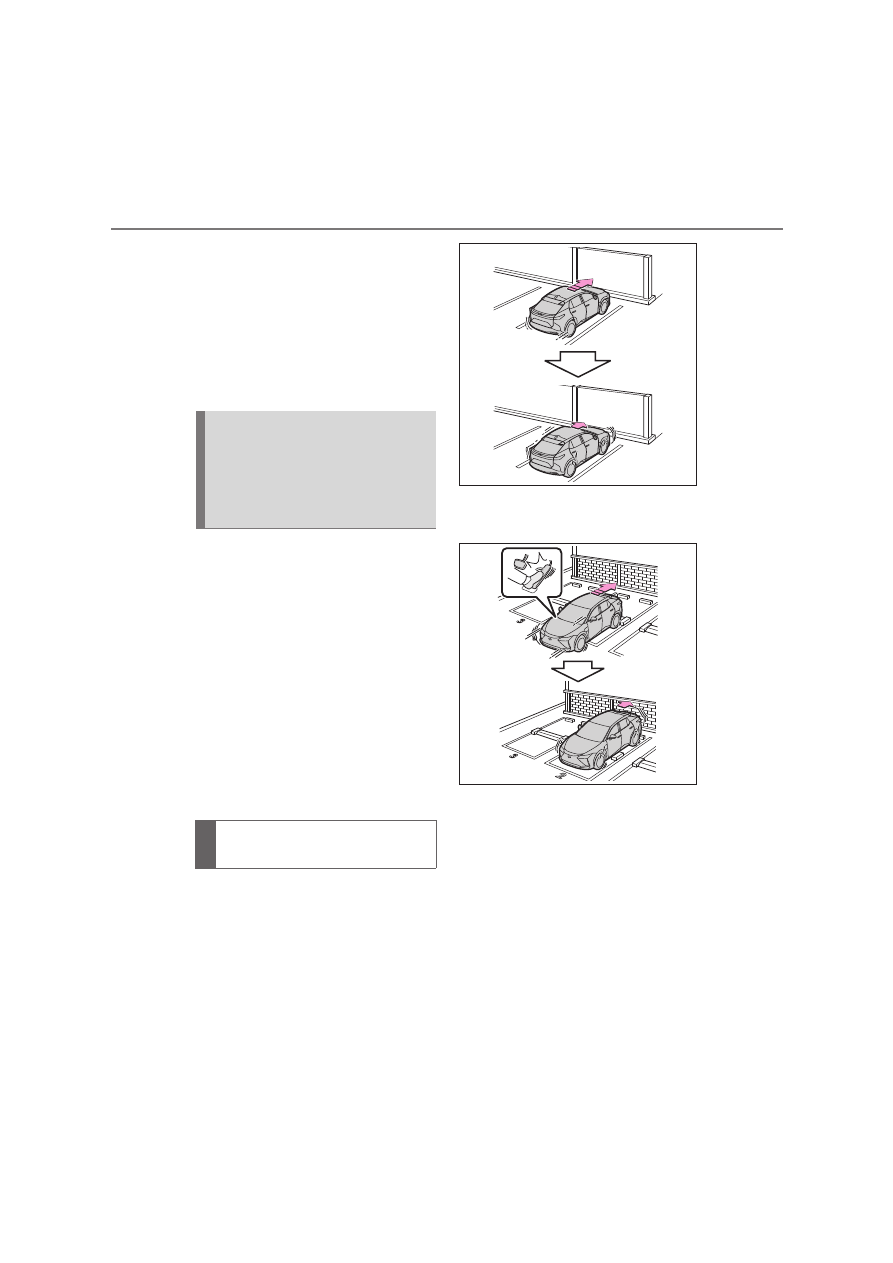

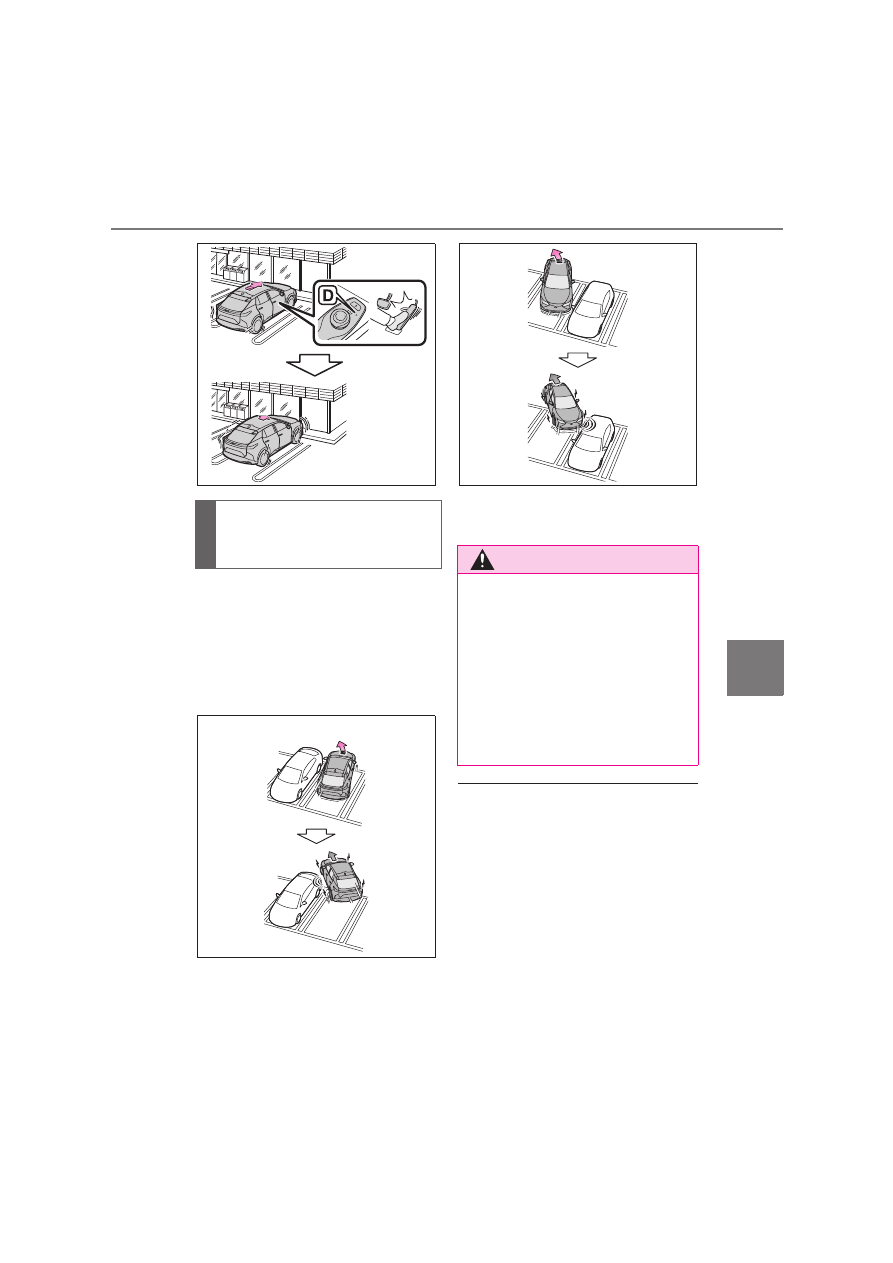

Static Objects Front and Rear of
the vehicle operation examples

383

6

6-2. Using the safe driving support functions

Driving support

system

The system will operate in the following
situations when a stationary object is
detected in the surrounding area.



When moving forward and a colli-
sion with a stationary object on the
inner side of a turn is likely



When reversing and a collision with
a stationary object on the outer side
of a turn is likely

■

Types of sensors



P.361

■

Operating conditions of Parking Sup-

port Brake (Static Objects Front and

Rear of the vehicle)

The function will operate when the driving

assist infomation indicator is not illuminated

(



P.244, 508) and all of the following

conditions are met:

●

EV system output restriction control

• PKSB (Parking Support Brake) system is

enabled.

• The vehicle speed is approximately 15

km/h (9 mph) or less.

• There is a static object in the traveling

direction of the vehicle and approxi-

mately 2 to 4 m (6 to 13 ft.) away.

Examples of the Static Objects
Around the vehicle (Vehicles with
Advanced Park)

WARNING

■

To ensure the system can operate

properly



P.362

■

If the system operates unnecessarily,

such as at a railroad crossing



P.381

■

Notes when washing the vehicle



P.362

384

6-2. Using the safe driving support functions

• The PKSB (Parking Support Brake)

determines that a stronger-than-normal

brake operation is necessary to avoid a

collision.

●

Brake control

• EV system output restriction control is

operating.

• The PKSB (Parking Support Brake)

determines that an immediate brake

operation is necessary to avoid a colli-

sion.

■

Operating conditions of Parking Sup-

port Brake (Static Objects Around the

vehicle)

This function is operable when any of the

following conditions are met in addition to

the operating conditions of Parking Support

Brake (Static Objects Front and Rear of the

vehicle).

●

After the EV system has been started, the

vehicle has moved approximately 7 m

(23.0 ft.) or less

●

The R shift position is selected

●

After the shift position has been changed

from R to D, the vehicle has moved

approximately 7 m (23.0 ft.) or less

■

Stop operating conditions of Parking

Support Brake (Static Objects Front

and Rear of the vehicle/Static Objects

Around the vehicle)

The function will stop operating if any of the

following conditions are met:

●

EV system output restriction control

• PKSB (Parking Support Brake) system is

disabled.

• The collision becomes avoidable with

normal brake operation.

• The static object is no longer approxi-

mately 2 to 4 m (6 to 13 ft.) away from the

vehicle or in the traveling direction of the

vehicle.

●

Brake control

• PKSB (Parking Support Brake) system is

disabled.

• Approximately 2 seconds have elapsed

since the vehicle was stopped by brake

control.

• The brake pedal is depressed after the

vehicle is stopped by brake control.

• The static object is no longer approxi-

mately 2 to 4 m (6 to 13 ft.) away from the

vehicle or in the traveling direction of the

vehicle.

■

Objects which the system may not be

properly detected



P.363

■

Object warning function operating con-

ditions



P.368

■

Situations in which the system may not

operate properly



P.363

■

Situations in which the system may

operate even if there is no possibility of a

collision with Static Objects Front and

Rear of the vehicle



P.364

■

Situations in which the system may

operate even though there is no possi-

bility of a collision with Static Objects

Around the vehicle

In addition to the situations in which the sys-

tem may operate even if there is no possibil-

ity of a collision with Static Objects Front

and Rear of the vehicle (



P.364), objects

may not be detected by the sensors when

your vehicle is moving sideways, such as

when parallel parking

If a rear radar sensor detects a vehicle
approaching from the right or left at
the rear of the vehicle and the system
determines that the possibility of a col-
lision is high, this function will perform
brake control to reduce the likelihood
of an impact with the approaching
vehicle.

Parking Support Brake (Moving
Vehicles Rear of the Vehicle)

385

6

6-2. Using the safe driving support functions

Driving support

system

This function will operate in situations
such as the following if a vehicle is
detected in the traveling direction of
the vehicle.

■

When reversing, a vehicle is
approaching and the brake pedal is
not depressed, or is depressed late

■

Types of sensors



P.352

■

Operating conditions of Parking Sup-

port Brake (Moving Vehicles Rear of the

Vehicle)

The function will operate when the driving

assist infomation indicator is not illuminated

(



P.244, 508) and all of the following

conditions are met:

●

EV system output restriction control

• PKSB (Parking Support Brake) system is

enabled.

• The vehicle speed is approximately 15

km/h (9 mph) or less.

• Vehicles which are approaching from the

right or left at the rear of the vehicle at a

traveling speed of approximately 8 km/h

(5 mph) or more.

• The shift position is in R.

• The PKSB (Parking Support Brake)

determines that a stronger than normal

brake operation is necessary to avoid a

collision.

●

Brake control

• EV system output restriction control is

operating.

• The PKSB (Parking Support Brake)

determines that an emergency brake

operation is necessary to avoid a collision

with an approaching vehicle.

■

Stop operating conditions of Parking

Support Brake (Moving Vehicles Rear

of the Vehicle)

The function will stop operating if any of the

following conditions are met:

●

EV system output restriction control

• PKSB (Parking Support Brake) system is

disabled.

• The collision becomes avoidable with

normal brake operation.

• A vehicle is no longer approaching from

the right or left at the rear of the vehicle.

●

Brake control

• PKSB (Parking Support Brake) system is

disabled.

• Approximately 2 seconds have elapsed

since the vehicle was stopped by brake

control.

• The brake pedal is depressed after the

vehicle is stopped by brake control.

■

Situations in which the system may not

operate properly



P.372

■

Situations in which the system may

operate even if there is no possibility of a

collision



P.373

If the rear camera sensor detects a
pedestrian behind the vehicle while

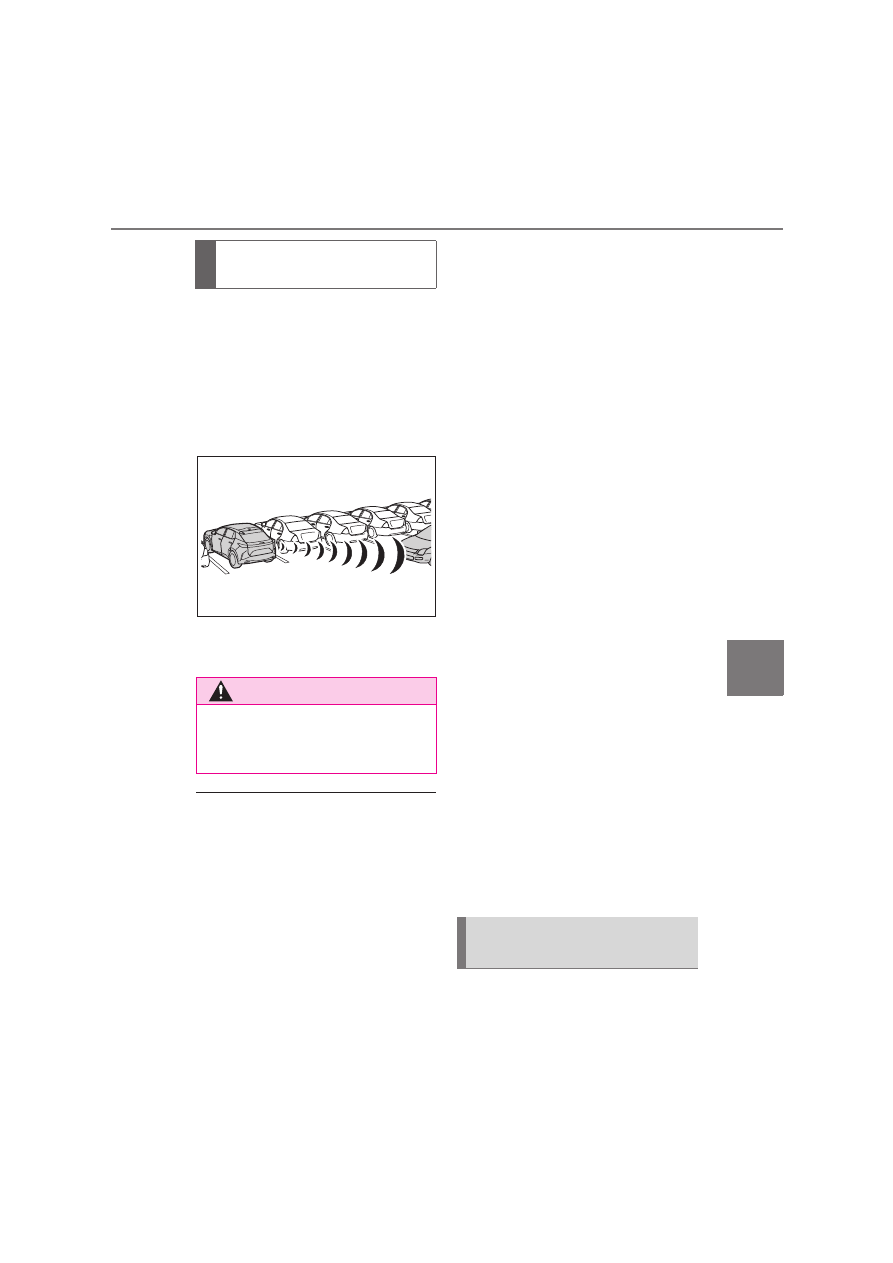

Examples of the Moving Vehicles
Rear of the Vehicle operation

WARNING

■

To ensure the system can operate

properly



P.352

Parking Support Brake (Pedes-
trians Rear of the Vehicle)

386

6-2. Using the safe driving support functions

backing up and the system determines
that the possibility of colliding with the
detected pedestrian is high, a buzzer
will sound. If the system determines
that the possibility of colliding with the
detected pedestrian is extremely high,
the brakes will be applied automatically
to help reduce the impact of the colli-
sion.

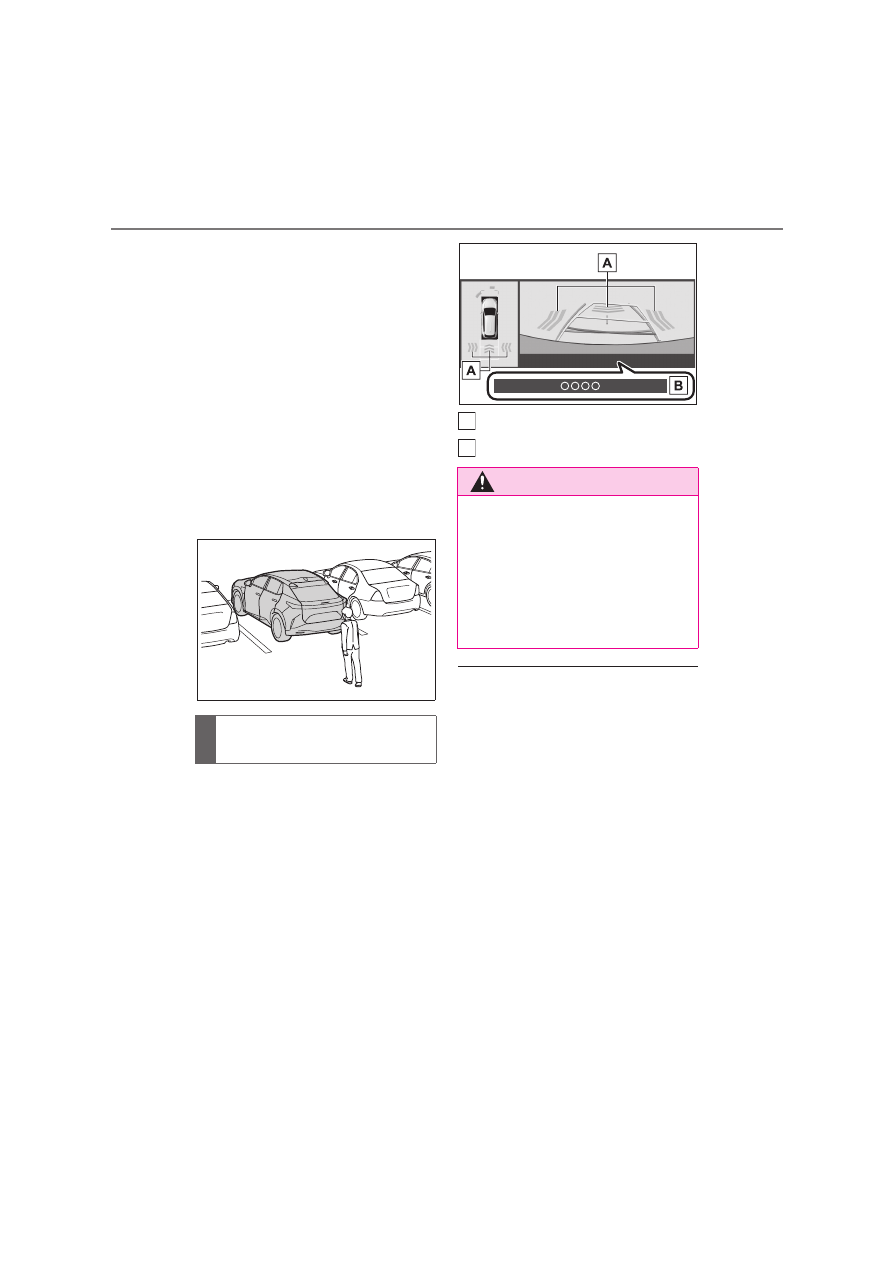

When a pedestrian is detected behind
the vehicle while backing up and the
brake pedal is not depressed or is
depressed late, the PKSB system will
operate automatically.

Displays a message to urge the driver
to take evasive action when a pedes-
trian is detected in the detection area
behind the vehicle. (A message will
also be displayed on the center dis-
play.)

Pedestrian detection icon
Brake reminder

■

Operating conditions of Parking Sup-

port Brake (Pedestrians Rear of the

Vehicle)

The function will operate when the driving

assist infomation indicator is not illuminated

(



P.244, 508) and all of the following

conditions are met:

●

EV system output restriction control

• PKSB (Parking Support Brake) system is

enabled.

• The vehicle speed is 15 km/h (9 mph) or

less.

• The shift position is in R.

• A pedestrian is behind the vehicle.

• The system determines that a slightly

stronger brake operation than usual is

needed to avoid a collision.

●

Brake control

• EV system output restriction control is

operating.

• The PKSB (Parking Support Brake)

determines that an emergency brake

Pedestrians Rear of the Vehicle
display

WARNING

■

If the system operates unnecessarily

Depress the brake pedal immediately

after the system operates. (Operation of

the function is canceled by depressing

the brake pedal.)

■

Correct use of the system



P.374

A
B

387

6

6-2. Using the safe driving support functions

Driving support

system

operation is necessary to avoid a collision

with a pedestrians.

■

Stop operating conditions of Parking

Support Brake (Pedestrians Rear of the

Vehicle)

The function will stop operating if any of the

following conditions are met:

●

EV system output restriction control

• PKSB (Parking Support Brake) system is

disabled.

• The collision becomes avoidable with

normal brake operation.

• The pedestrian is no longer detected

behind your vehicle.

●

Brake control

• PKSB (Parking Support Brake) system is

disabled.

• Approximately 2 seconds have elapsed

since the vehicle was stopped by brake

control.

• The brake pedal is depressed after the

vehicle is stopped by brake control.

■

Re-enabling the system



P.381

■

Situations in which the system may not

operate properly



P.376

■

Situations in which the system may

operate unexpectedly



P.377

*

: If equipped

The Advanced Park is a system which
assists in a safe and smooth parking or
exiting from a parking space by dis-
playing the blind spots around the vehi-
cle and the target parking spot through
a bird’s eye view, delivering operation
guidance through displays and buzzer
operation, and shifting the shift posi-
tion, operating the steering wheel,
accelerator pedal, and brake pedal.
Additionally, the panoramic view moni-
tor

*

 can display the area in front,

behind, and from above the vehicle,
helping confirm the condition of the
area around the vehicle.
The turn signal lights will blink automat-
ically when the parking assistance
starts until the vehicle reaches the tar-
get parking spot, to notify people
around the vehicle that parking is being
performed.

Depending on the condition of the road
surface or the vehicle, the distance
between the vehicle and a parking space,
etc., it may not be possible to assist in park-
ing in the target space.

*

: For details on the panoramic view moni-

tor refer to “MULTIMEDIA OWNER’S
MANUAL”.

Lexus Teammate Advanced
Park

*

Function description of the
Lexus Teammate Advanced Park

388

6-2. Using the safe driving support functions

■

Remote control function (if
equipped)

Remote control function is a system
which assists in parking or exiting from
a parking space selected on the center
display by allowing shifting the shift
position, operating the steering wheel,
accelerator pedal, and brake pedal
from outside of the vehicle via a
smartphone.
The turn signal lights will blink automat-
ically when the parking assistance,
except that for moving the vehicle for-
ward and backward, starts until the
vehicle reaches the target parking
spot, to notify people around the vehi-
cle that parking is being performed.
Preparation before using:



P.416

■

Perpendicular parking (for-
ward/reverse) function

Assistance is provided from the posi-
tion the vehicle is stopped near the tar-
get parking space until the vehicle is in
the parking space. (



P.398)

■

Perpendicular exiting (for-
ward/reverse) function

Assistance is provided from the parked
position until the vehicle is in a position
where you can easily exit from the
parking space. (



P.401)

■

Parallel parking function

Assistance is provided from the posi-
tion the vehicle is stopped near the tar-
get parking space until the vehicle is in

the parking space. (



P.402)

■

Parallel exiting function

Assistance is provided from the parked
position until the vehicle is in a position
where you can easily exit from the
parking space. (



P.405)

■

Memory function

Assistance is provided until the vehicle
is guided into a previously registered
parking space. (



P.407)

■

Remote control function (if
equipped)

By operating a smartphone, assistance
in entering or exiting a nearby target
parking space, confirmed on the
screen of the smartphone, is provided
from outside of the vehicle. (



P.412)

Functions

WARNING

■

Cautions regarding the use of the sys-

tem

The recognition and control capabilities

for this system are limited. The driver

should always drive safety by always

being responsible without over relying

on the system and have a understanding

of the surrounding situations.

●

As with a normal vehicle, take care to

observe your surroundings while the

vehicle is moving.

●

Always pay attention to the vehicle’s

surroundings while the system is oper-

ating and depress the brake pedal as

necessary to slow or stop the vehicle.

●

When parking, make sure that the

vehicle can be parked in the target

parking space before beginning oper-

ation.

389

6

6-2. Using the safe driving support functions

Driving support

system

WARNING

●

Depending on the condition of the

road surface or the vehicle, the dis-

tance between the vehicle and a park-

ing space, etc., it may not be possible

to detect a parking space or the sys-

tem may not be able to provide assis-

tance to the point the vehicle is fully

parked.

●

This system will guide the vehicle to

appropriate positions for changing the

direction of travel, however, if you feel

that the vehicle is approaching too

close to an adjacent parked vehicle at

any time, depress the brake pedal and

shift the shift position. However, if this

is performed, the number of times the

vehicle changes direction may

increase, and the vehicle may be

parked at an angle.

●

As following objects may not be

detected, make sure to check the

safety of the area around your vehicle

and depress the brake pedal to stop

the vehicle if it may collide with an

object.

• Wires, fences, ropes, etc.

• Cotton, snow and other materials that

absorb sound waves

• Sharply-angled objects

• Low objects (curb stones, parking

blocks, etc.)

• Tall objects with upper sections pro-

jecting outwards in the direction of

your vehicle

●

Even if there is an object in the target

parking space, it may not be detected

and assistance may be performed.

●

While the system is operating, if it is

likely that your vehicle will collide with

a nearby vehicle, parking block, object,

or person, depress the brake pedal to

stop the vehicle and press the

Advanced Park main switch to disable

the system.

●

Never use only the center display to

view the area behind the vehicle. The

image displayed may differ than the

actual situation. Using only the screen

when backing up may lead to an acci-

dent, such as a collision with another

vehicle. When backing up, make sure

to look directly or use the mirrors to

check the safety of the area around

your vehicle, especially behind the

vehicle.

●

When the ambient temperature is

extremely low, the screen may appear

dark or the displayed image may

become unclear. Also, as moving

objects may appear distorted or may

not be able to be seen on the screen,

make sure to directly check the safety

of the area around your vehicle.

●

In the following situations, while the

vehicle is stopped and held by

Advanced Park, it may be canceled

and the vehicle may start moving.

Immediately depress the brake pedal.

Failure to do so may lead to an acci-

dent.

• When the driver’s door is opened

• When operations instructed by the

system are not performed within a cer-

tain amount of time

• When the brake pedal is depressed

and the vehicle is stopped for a certain

amount of time

• When the system malfunctions

390

6-2. Using the safe driving support functions

WARNING

●

As the steering wheel will turn while

this system is operating, pay attention

to the following.

• Be careful so that a necktie, scarf, or

arm does not get caught. Keep your

upper body away from the steering

wheel. Also, keep children away from

the steering wheel.

• Long fingernails may be caught and

when the steering wheel is rotating,

leading to injury.

• In an emergency, depress the brake

pedal to stop the vehicle, and then

press the Advanced Park main switch

to disable the system.

●

Do not allow anyone to put their hands

outside of a window while this system is

operating.

■

To ensure correct operation of the

Advanced Park

Observe the following precautions. Fail-

ing to do so may result in the vehicle

being unable to be driven safely and pos-

sibly cause an accident.

●

Do not use this system in situations

such as the following:

• When in areas other than common

parking spaces

• When the surface of the parking space

is sand or gravel and is not clearly

defined with parking space lines

• When the parking space is not level,

such as when on a slope or has differ-

ences in height

• Mechanical parking system

• Parking lot with a device which raises

to contact the bottom of the vehicle

• When the road surface is frozen, slick,

or covered with snow

• When it is extremely hot and the

asphalt is melting

• When there are objects around the

vehicle

• When there is an object between your

vehicle and the target parking spot or

within the target parking spot (within

the displayed blue box)

• When there is a gutter between your

vehicle and the target parking space

or within the target parking spot

(within the displayed blue box)

• When there is a hole or gutter in the

exit direction

• When in high pedestrian or vehicle

traffic areas

• When the parking space is in a loca-

tion that is difficult to park in (too nar-

row for your vehicle, etc.)

• When images are unclear due to dirt

or snow attached to the camera lens,

light being shined into the camera or

shadows

• When tire chains or a compact spare

tire is installed to the vehicle

• When the doors or back door are not

completely closed

• When an arm is held outside of a win-

dow

• In inclement weather such as heavy

rain or snow

391

6

6-2. Using the safe driving support functions

Driving support

system

WARNING

●

Make sure to use only standard sized

tires, such as those that were installed

to the vehicle when it was shipped

from the factory. Otherwise,

Advanced Park may not operate prop-

erly. Also, when the tires have been

replaced, the displayed position of the

lines or box displayed on the screen

may become incorrect. When replac-

ing the tires, contact any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

●

In situations such as the following, it

may not be possible for the system to

provide assistance to a registered

parking spot:

• When the tires are extremely worn or

the tire inflation pressure is low

• When carrying a heavy load

• When the vehicle is tilted due to the

carried load

• When a heater is installed in the sur-

face of the parking space (road sur-

face freeze prevention heater)

• When the wheels are misaligned, such

after a wheel has been subjected to a

strong impact

• When a pedestrian or passing vehicle

is detected during assistance

• When something is incorrectly

detected as a parking line (light, reflec-

tions from a building, difference in

height on the parking surface, a gutter,

painted road lines, redrawn lines, etc.)

If the vehicle deviates greatly from the set

parking space in any situation other than

the above, have the vehicle inspected by

any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

■

When using Remote control function

●

Remote control function is a function

of the Advanced Park system. When

using Remote control function on pub-

lic roads, be sure to follow all local

road traffic laws and regulations.

●

Remote control function can only be

used after agreeing to the disclaimer

of the smartphone application.

●

Remote control function can only per-

form some driving operations. It

should only be operated by a driver

with a valid driving license. While using

application, carry electronic key.

While operating, do not stare at the

application screen, and pay attention

to the vehicle’s surroundings. In an

emergency, cancel the Remote control

function operation and stop the vehi-

cle.

●

As with a normal vehicle, take care to

observe the area around the vehicle

while the vehicle is moving.

●

Always pay attention to the vehicle’s

surroundings while the system is oper-

ating.

●

Remote control function is a system

which assists in remote parking or exit-

ing operations using a smartphone.

When using Remote control function,

the driver must carry the electronic

key and smartphone and confirm the

safety of the area around the vehicle.

●

While using Remote control function,

the vehicle can be stopped by stop

continuously operating the

smartphone (stopping movement of

your finger, removing your finger from

the screen, etc.). The vehicle can also

be stopped by touching the cancel

button on the smartphone application,

unlocking the doors using the elec-

tronic key, or opening a door.

392

6-2. Using the safe driving support functions

WARNING

●

If it seems like your vehicle may con-

tact an obstruction, etc., stop operat-

ing the smartphone and cancel

Remote control function if necessary.

●

System operation will only be per-

formed at a fixed speed and the vehi-

cle cannot be accelerated or

decelerated even if the speed of con-

tinuous operation of the smartphone is

increased or decreased.

●

Never drive the vehicle while staring at

the smartphone screen.

●

When driving, make sure to directly

check the safety of the area around

your vehicle.

●

Do not use Remote control function

when passengers or pets are in the

vehicle.

●

In an emergency, the system can be

canceled by operating a switch on the

electronic key or by opening a door.

●

To use Remote control function, it is

necessary to have a smartphone with

the latest version of the Remote Park

app. The following operating systems

are supported:

• Android

™

• Apple

®

 iOS

●

When registering the vehicle to the

Remote Park smartphone app, discon-

nect any other apps which are con-

nected to the vehicle.

●

To enable Remote control function,

make sure to disable the Apple

CarPlay connection.

●

When parking, make sure that the

vehicle can be parked in the target

parking space before beginning oper-

ation.

●

Only use Remote control function on

level road surfaces which are not slick.

Do not use Remote control function

for parking spaces on a downward or

upward slope.

●

While Remote control function is

operating, if a malfunction or system

limitation is detected, the following will

occur automatically:

• Remote control function will be

canceled

• The vehicle will stop

• The shift position will shift to P and the

parking brake will be engaged

• The power switch will turn off (for

some malfunctions, the power switch

will not turn off or cannot be turned off.

Enter the vehicle and take corrective

action according to the message dis-

played on the smartphone.)

• The doors will remain locked

●

When starting Remote control func-

tion, unlock the doors with wireless

remote control by electronic key.

●

When Remote control function is

operating, the driver should remain

within approximately 3 m (9.8 ft.) of

the vehicle. If the driver becomes more

than approximately 3 m (9.8 ft.) away,

Remote control function will be sus-

pended and a message will be dis-

played on the smartphone. Remote

control function operation can be

resumed by approaching the vehicle.

●

The headlights will be turned on if the

surrounding area is dark.

●

If system operation is canceled due to

a malfunction, the emergency flashers

will flash. The emergency flashers will

turn off if any of the following condi-

tions are met:

• A door is opened

393

6

6-2. Using the safe driving support functions

Driving support

system

WARNING

• 3 minutes have elapsed since the

emergency flashers began flashing

●

Remote control function can only be

started when the following conditions

are met:

• When the EV system is starting, after

assist mode is selected

• When the power switch is off

• When the remote air conditioning is

operating

●

After unlocking the doors using the

wireless remote control, if the doors

are locked using the smart entry func-

tion, the lock operation may be

delayed.

NOTICE

■

Precautions for use Advanced Park

If the 12-volt battery was discharged or

has been removed and installed, fold and

extend the outside rear view mirrors.

■

When using Remote control function

●

Check the battery charge level of the

smartphone before using Remote con-

trol function. If the battery of the

smartphone dies while operating

Remote control function, assist will be

suspended. Also, if the battery charge

level of the smartphone is 20% or less

when attempting to start Remote con-

trol function, Remote control function

will not be started.

●

Turn on the Bluetooth communication

function of the smartphone before

using Remote control function.

Remote control function cannot be

used if the Bluetooth function is off.

●

Do not turn off the Bluetooth function

of the smartphone or disconnect from

the multi-media system while using

Remote control function. If the vehicle

cannot be connected to via Bluetooth,

Remote control function cannot be

used.

●

While using Remote control function, if

a call is received, etc., and another app

is opened, Remote control function will

be suspended. Assist can be resumed

if the Remote Park app is reopened

within 3 minutes. If 3 minutes or more

elapse, assist will be canceled.

●

While using Remote control function, if

the home button or power button of

the smartphone is pressed and the

screen is locked, Remote control func-

tion will be suspended. Assist can be

resumed if the Remote Park app is reo-

pened within 3 minutes. If 3 minutes or

more elapse, assist will be canceled.

●

Do not force close the Remote Park

app while Remote Park is being used. If

the app is force closed, assist will be

canceled.

●

When the ambient temperature is low,

it may take time for the system to start,

due to 12-volt battery charging.

●

If the 12-volt battery voltage drops,

assistance will be canceled.

●

When using Remote control function

on a slope, the vehicle speed will be

slower and the distance that the vehi-

cle will approach objects will become

longer than when on a level road sur-

face.

●

If a system temporary failure occurs,

after the vehicle is stopped by the elec-

tronic parking brake or the shift posi-

tion being shifted to P, the power

switch may turn off and the system may

be canceled. In this case, have the

vehicle inspected by any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

394

6-2. Using the safe driving support functions

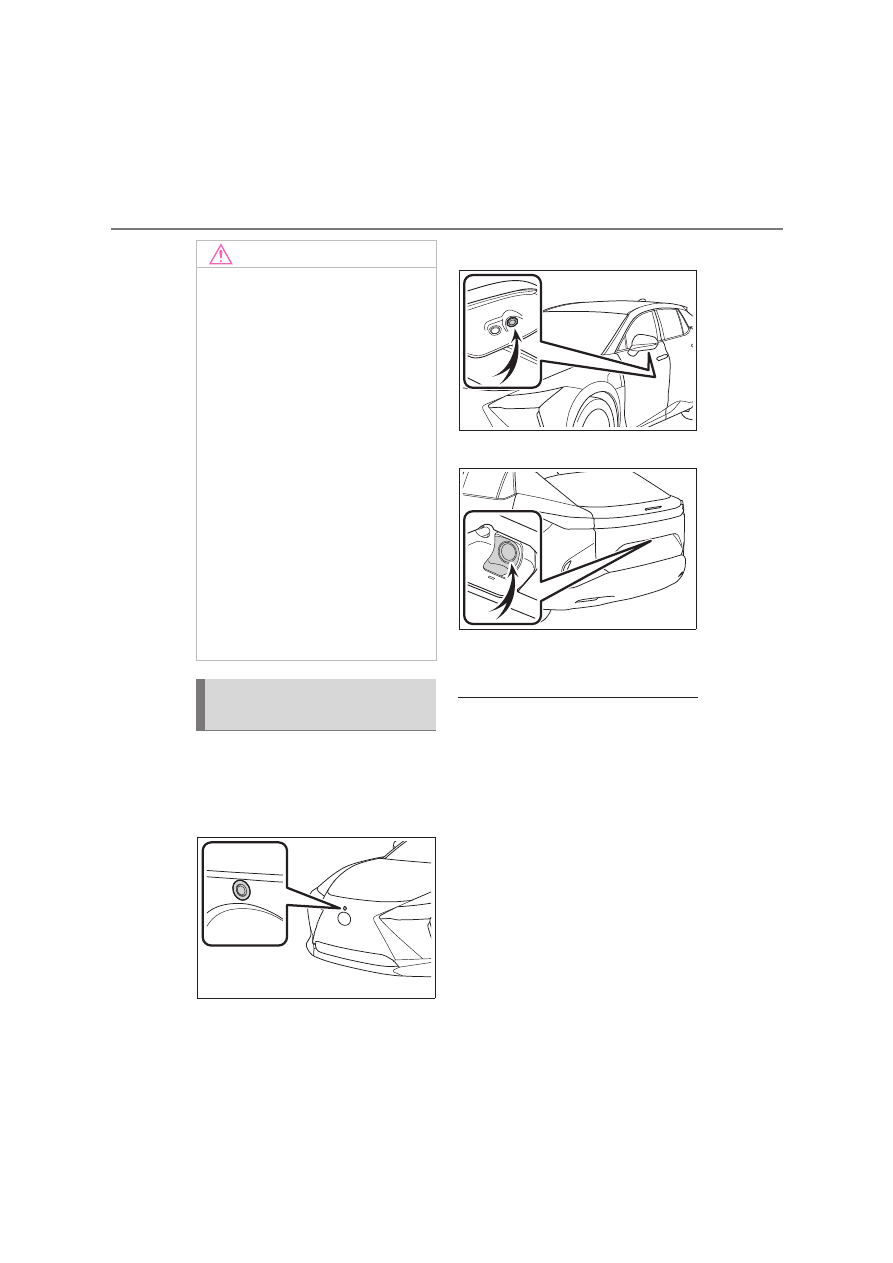

Cameras and sensors are used to
detect parked vehicles, making it eas-
ier to identify parking spaces.



Front camera



Side cameras



Rear camera



Sensors



P.361

■

Camera images

As special cameras are used, the colors in

displayed images may differ from the actual

color.

■

Precautions for use

For details on the following, refer to “Pano-

ramic view monitor (Vehicles equipped with

Lexus Teammate Advanced Park)” of

“Peripheral monitoring system” in the

“MULTIMEDIA OWNER’S MANUAL”.

●

Displayable range of the screens

●

Cameras

●

Differences between displayed images

and the actual road

●

Differences between displayed images

and the actual objects

NOTICE

●

If a system malfunction occurs, assis-

tance may be temporarily suspended.

If the system returns to normal, opera-

tion can be resumed. Follow the con-

tent on the smartphone screen to

resume operation.

●

Remote control function cannot be

started if the EV system has been

started using an aftermarket remote

starter.

●

After Remote control function com-

pletes, the parking brake will be

engaged as per regulations. As the

parking brake may freeze and not be

able to be released, avoid using

Remote control function in extremely

cold areas. Also, if the parking brake

freezes, it may make a noise when it is

released. However, this does not indi-

cate a malfunction.

●

Do not use Remote control function

when the electronic key battery is

depleted.

Types of cameras and sensors
used for the Advanced Park

395

6

6-2. Using the safe driving support functions

Driving support

system

■

Detection range of the cameras and

sensors

●

If a parked vehicle is behind the target

parking space and the distance between

it and the vehicle becomes far, it may no

longer be able to be detected. Depend-

ing on shape or condition of a parked

vehicle, the detection range may become

short or the vehicle may not be detected.

●

Objects other than parked vehicles, such

as columns, walls, etc., may not be

detected. Also, if they are detected, they

may cause the target parking space to be

misaligned.

■

Situations in which parking space lines

may not be recognized properly

●

In situations such as the following, park-

ing space lines on the road surface may

not be detected:

• When the parking space does not use

lines (parking space boundaries are

marked with rope, blocks, etc.)

• When the parking space lines are faded

or dirty, making them unclear

• When the road surface is bright, such as

concrete, and the contrast between it and

the white parking space lines is small

• When the parking space lines are any

color other than yellow or white

• When the area surrounding the parking

space is dark, such as at night, in an

underground parking lot, parking garage,

etc.

• When it is raining or has rained and the

road surface is wet and reflective or there

are puddles

• When the sun is shining directly into a

camera, such as in the early morning or

evening

• When the parking space is covered with

snow or de-icing agent

• When there marks from repairs or other

marks on the road surface, or there is a

traffic bollard, or other object on the road

surface

• When the color or brightness of the road

surface is uneven

• When a camera has been splashed by

hot or cold water and the lens has fogged

up

• When the appearance of the parking

space is affected by the shadow of the

vehicle or trees

• When a camera lens is dirty or covered

with water droplets

●

In situations such as the following, the tar-

get parking space may not be recognized

correctly:

• When there marks from repairs or other

marks on the road surface, or there is a

parking block, traffic bollard, or other

object on the road surface

• When it is raining or has rained and the

road surface is wet and reflective or there

are puddles

• When the area around the vehicle is dark

or backlit

• When the color or brightness of the road

surface is uneven

• When the parking space is on a slope

• When there are diagonal lines (access

aisle) near the parking space

• When the appearance of the parking

space is affected by the shadow of a

parked vehicle (such as shadows from the

grille, side step, etc.)

• When accessories which obstruct the

view of the camera are installed

• When the parking space lines are faded

or dirty, making them unclear

• When the appearance of the parking

space is affected by the shadow of the

vehicle or trees

■

Sensor detection information



P.365

■

Objects which the sensor may not be

properly detected



P.363

■

Situations in which the sensor may not

operate properly



P.363

■

Situations in which parking assistance

may not operate even if there is no pos-

sibility of a collision



P.364

396

6-2. Using the safe driving support functions

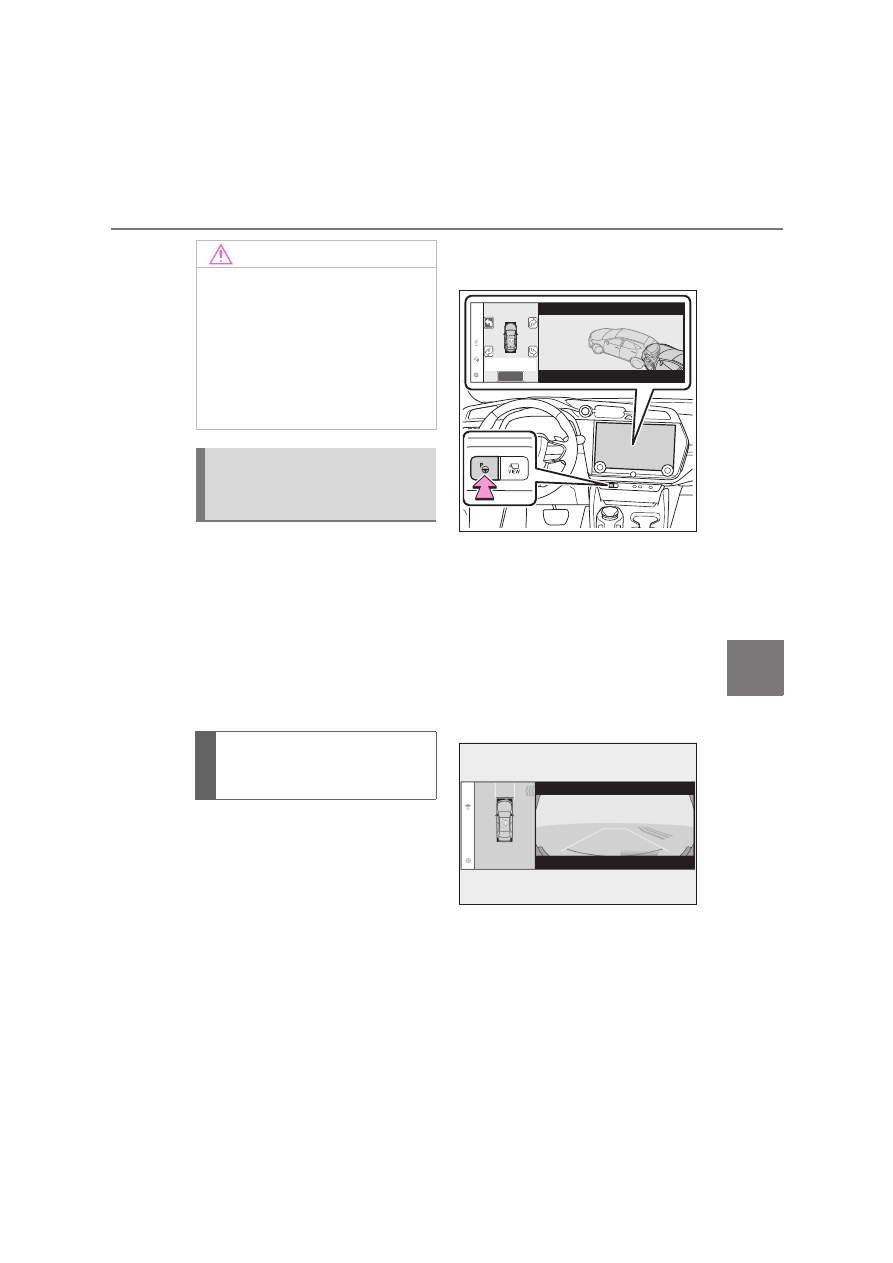

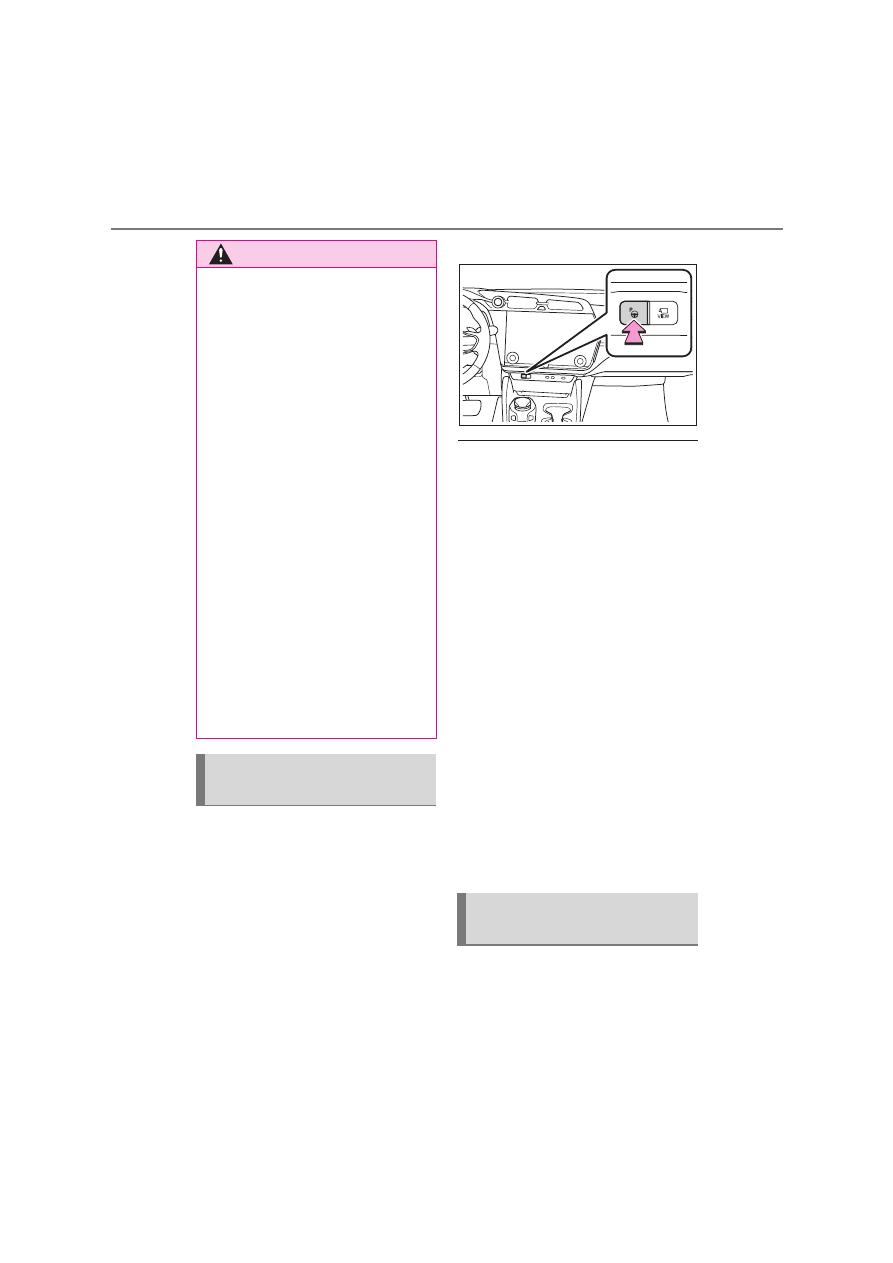

1

Press the Advanced Park main
switch.

If the switch is pressed while assistance is

being performed, the assistance will be

canceled.

■

Operating conditions of the Advanced

Park

Assistance will begin when all of the follow-

ing conditions are met:

●

The brake pedal is depressed

●

The vehicle is stopped

●

The driver’s seat belt is fastened

●

The steering wheel is not being operated

●

The accelerator pedal is not depressed

●

All of the doors and the back door are

closed

●

The outside rear view mirrors are not

folded

●

The parking brake is not engaged

●

The dynamic radar cruise control are not

operating

●

ABS, VSC, TRC, PCS and PKSB are not

operating

●

The vehicle is not on a steep slope

●

The VSC and TRC are not turned off

If assistance cannot be started, check the

message displayed on the center display.

(



P.421)

Guidance screens are displayed on the
center display.

WARNING

■

Precautions for the cameras and sen-

sors

●

Due to the characteristics of the cam-

era lens, the position of and distance to

people and objects displayed on the

screen may differ from the actual situa-

tion. For details, refer to “MULTIME-

DIA OWNER’S MANUAL”.

●

Make sure to observe the precautions

for using the Lexus parking assist-sen-

sor, otherwise a sensor may not oper-

ate correctly, possibly leading to an

accident. (



P.362)

●

In situations such as the following, the

sensors may not operate correctly,

possibly leading to an accident. Pro-

ceed carefully.

• When there is a parked vehicle next to

the target parking space, if the dis-

played target parking space is far from

the actual target parking space, a sen-

sor may be misaligned. Have the vehi-

cle inspected by any authorized Lexus

retailer or Lexus authorized repairer,

or any reliable repairer.

• Do not install any accessories near the

detection area of the sensors.

Turning the Advanced Park sys-
tem on/off

Advanced Park guidance
screens

397

6

6-2. Using the safe driving support functions

Driving support

system



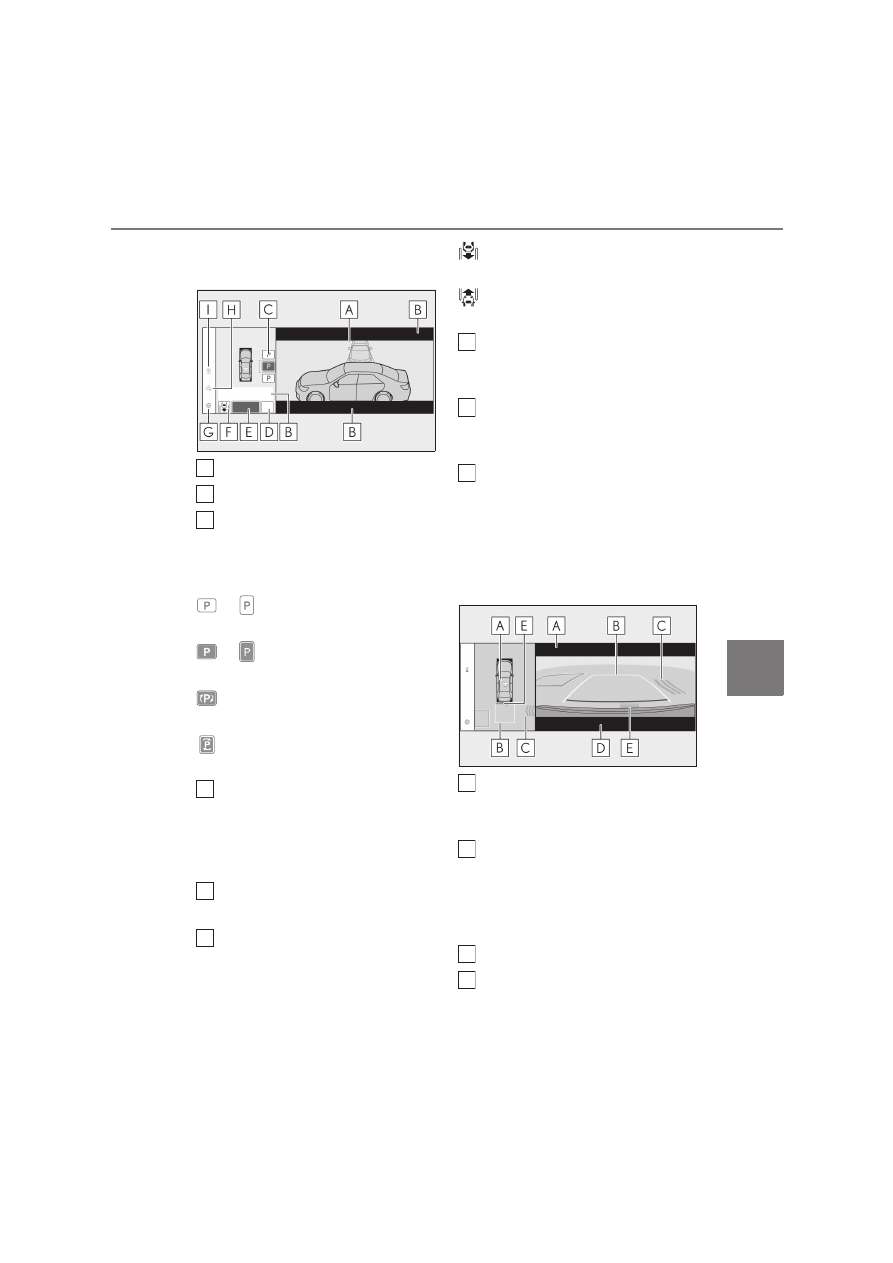

Guidance screen (When assistance
starts)

Target parking space box (blue)
Advice display
Parking type change button

If multiple buttons are displayed, depend-
ing on the condition of the button its func-
tion differs as follows.

 or

: Change the target to another

parking space.

 or

: Select the current target park-

ing space.

: Select to change to the parallel park-

ing function

: Change the perpendicular parking

(forward/reverse) function

“MODE” button

Select to change between the memory
function and the perpendicular parking
(forward/reverse) function and parallel
parking function. (



P.409)

“Start” button

Select to start parking assistance.

Perpendicular parking direction
change button

Select to change between the parking (for-
ward) function and parking (reverse) func-
tion.

: Change the perpendicular parking

(forward) function

: Change the perpendicular parking

(reverse) function

Customize setting button

Select to display the Advanced Park set-
ting screen. (



P.419)

Registration button

Select to begin registering a parking
space.

Remote control function start but-
ton*

Select to start parking assistance operation
on the smartphone display.

*

: If equipped



Guidance screen (When reversing)

Operation icon

Displayed when the Advanced Park is
operating.

Guide lines (yellow and red)

Display points from the center of the edge
of the front or rear bumper to the target
stopping position (yellow)

*

 and approxi-

mately 0.3 m (1 ft.) (red) from the vehicle.

Moving object warning icon
Emergency support brake control
operation display

“BRAKE!” is displayed.

A
B
C

D

E

F

G

H

I

A

B

C
D

398

6-2. Using the safe driving support functions

Lexus parking assist-sensor display



P.361

*

: The yellow lateral line is not displayed

when the target stopping position is
approximately 2.5 m (8.2 ft.) or more
away from the vehicle.

■

Lexus parking assist-sensor pop-up dis-

play

Regardless of whether the Lexus parking

assist-sensor is off or on (



P.361), if an

object is detected by the Lexus parking

assist-sensor when the Advanced Park is

operating, the Lexus parking assist-sensor

pop-up display will automatically be dis-

played over the guidance display.

■

Brake control operation when

Advanced Park is operating

While the Advanced Park is operating, if the

system determines that the possibility of

collision with detected moving or stationary

object is high, the EV system output restric-

tion control and brake control will operate.
If brake control operates, Advanced Park

operation will be suspended and a message

will be displayed on the multi-information

display.

■

Buzzer

Depending on surrounding sounds or

sounds from other systems, it may be diffi-

cult to hear the buzzer of this system.

■

If a black screen is displayed on the

center display when the Advanced Park

is operating

The system is being affected by radio waves

or may be malfunctioning. If a radio antenna

is installed near a camera, move it to a loca-

tion as far from the cameras as possible. If a

radio antenna is not installed near a camera,

and the screen does not return to normal

after turning the power switch off and then

starting the EV system again, have the vehi-

cle inspected by any authorized Lexus

retailer or Lexus authorized repairer, or any

reliable repairer.

The perpendicular parking (for-
ward/reverse) function can be used if
the target parking space can be
detected when the vehicle is stopped
close and perpendicular to the center
of the parking space. Also, depending
on the condition of the parking space,
etc., if it is necessary to change the
direction of travel of the vehicle, the
shift position can be shifted by assis-
tance control.

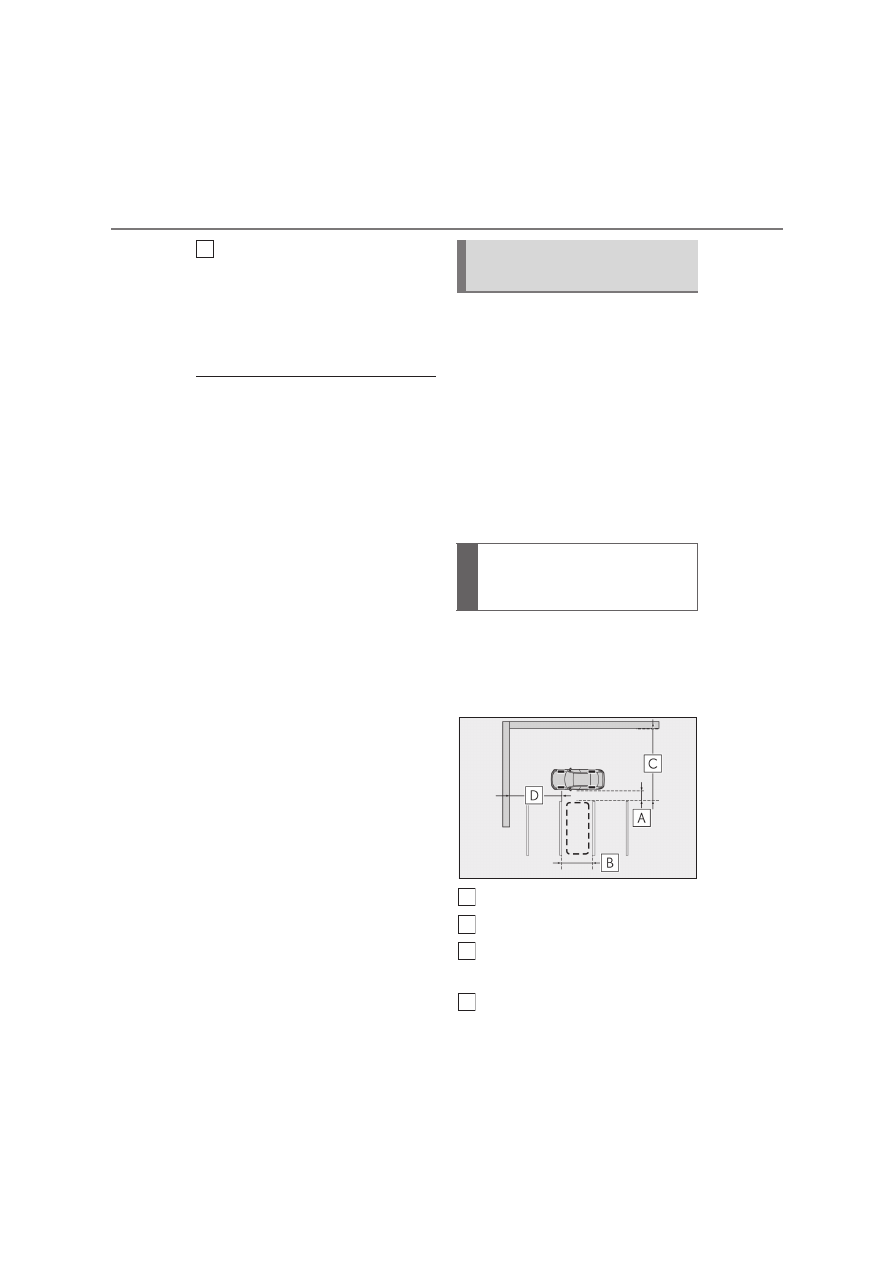

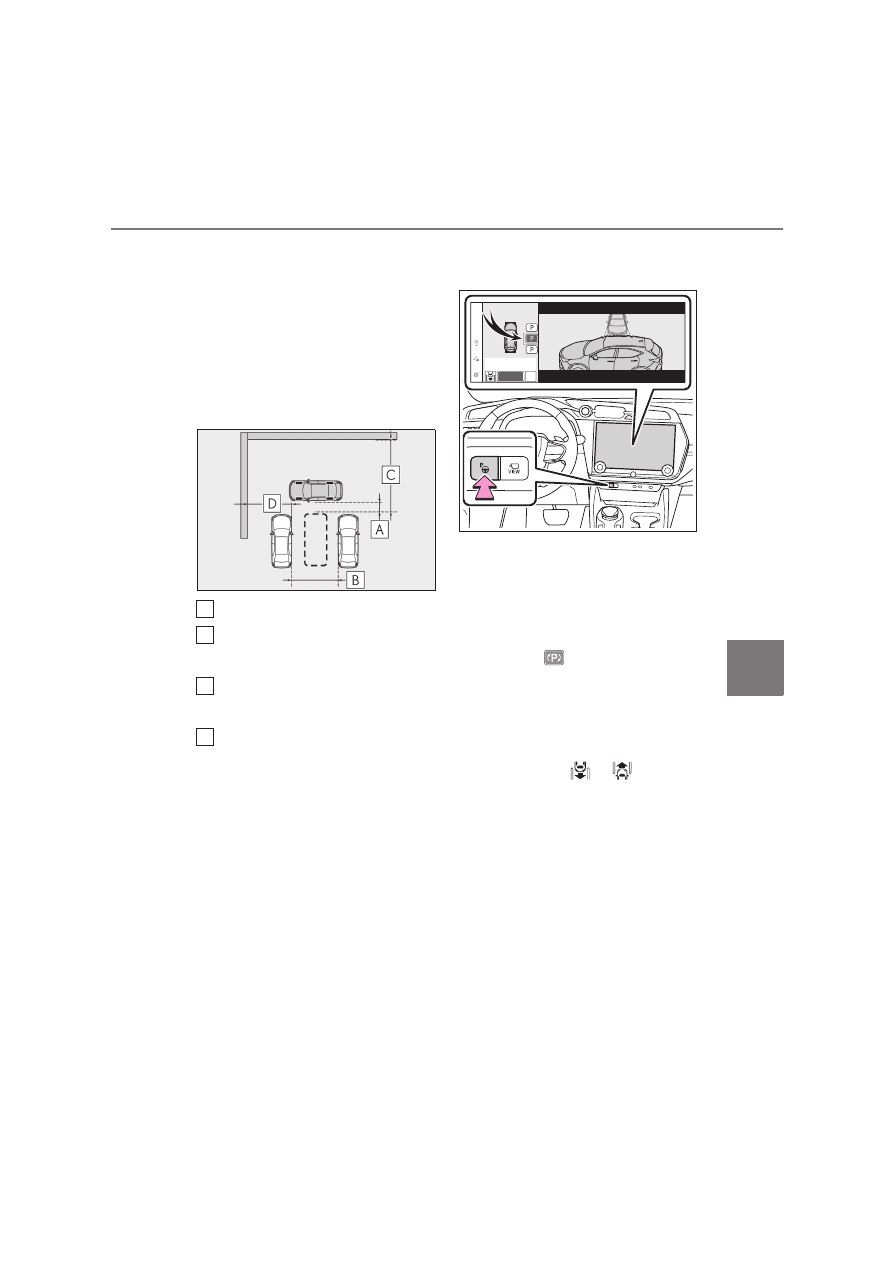

1

Stop the vehicle at a position close
and perpendicular to the center of
the target parking space.



If there are parking space lines

Approximately 1 m (3.3 ft.)

*

Approximately 2.5 m (8.2 ft.)

*

Approximately 6 m (19.7 ft.) or
more

*

Approximately 5.5 m (18.0 ft.) or

E

Perpendicular parking (for-
ward/reverse) function

Parking using the perpendicular
parking (forward/reverse) func-
tion

A
B
C

D

399

6

6-2. Using the safe driving support functions

Driving support

system

more

*

The system can operate even if there is a

parking space line on only one side of the

target parking space.

*

: This is a reference measurement for

detection of a parking space. Depending
on the surrounding environment, detec-
tion may not be possible.



If there is an adjacent parked vehicle

Approximately 1 m (3.3 ft.)

*

Approximately 3 m (9.8 ft.) or
more

*

Approximately 6 m (19.7 ft.) or
more

*

Approximately 5.5 m (18.0 ft.) or
more

*

The system can operate even if there is a

vehicle on only one side of the target park-

ing space.

*

: This is a reference measurement for

detection of a parking space. Depending
on the surrounding environment, detec-
tion may not be possible.

2

Press the Advanced Park main
switch and check that a possible

parking space is displayed on the
center display.



If a space which your vehicle can be
parked is detected, a target parking
space box will be displayed.



If it is possible to parallel park in the
space, select the parking space, and
then select

 to change to the

parallel parking function.



If it is possible to change the direc-
tion which a parking space is
entered, select the parking space,
and then select

 or

 change

the direction.



Depending on the surrounding
environment, it may not be possible
to use this function. According to
the information displayed on the
center display, use the function on
another parking space.

3

Select “Start” button.

A buzzer will sound, an operation message

will be displayed on the multi-information

A
B

C

D

400

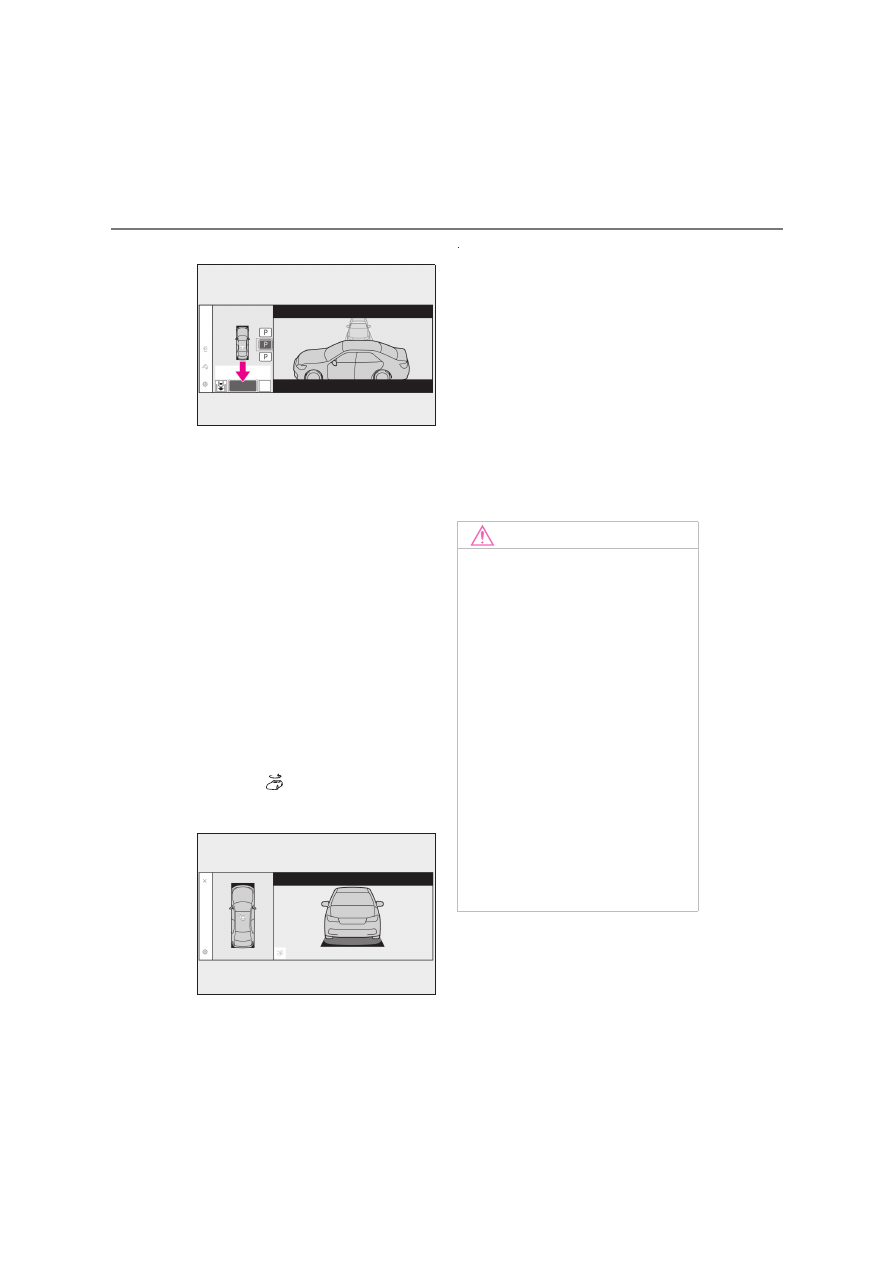

6-2. Using the safe driving support functions

display, and assistance will begin operating.



When the brake pedal is released,
“Moving Forward…”, “Backing Up…”
will be displayed and the vehicle will
begin moving forward/reverse.



To cancel assistance, press the
Advanced Park main switch.

If assistance is canceled, “Advanced Park

Cancel” will be displayed.
If you feel that the vehicle is approaching

close to a surrounding vehicle, object, per-

son, or gutter:



P.400

4

Perform operations as indicated by
the advice displays until the vehicle
stops in the target parking space.

When the vehicle stops, “Advanced Park

Finished” will be displayed and parking

assistance will end.

If you select

 on the center display, the

vehicle displayed on the parking assist

completion screen will rotate.

■

If you feel that the vehicle is approach-

ing close to a surrounding vehicle,

object, person, or gutter

Depress the brake pedal to stop the vehicle

and then shift the shift position to change

the direction of travel of the vehicle. At this

time, assist will be suspended. However, if

the “Start” button is selected, assist will

resume and the vehicle will move in the

direction corresponding to the selected

shift position.

■

When the brakes have been operated

When the brakes have been operated,

brake operation sound may be heard. This

does not indicate a malfunction.

NOTICE

■

When using the perpendicular park-

ing (forward/reverse) function

●

Make sure that there are no obstruc-

tions within the yellow guide lines and

between the vehicle and target park-

ing spot. If there are any obstructions

between the vehicle and the target

parking space, or between the yellow

guide lines, cancel the function.

●

As the target parking space will not be

able to be set correctly if the surface of

the parking space is on a slope or has

differences in height, the vehicle may

stray from the target parking space or

be slanted. Therefore, do not use the

function for this kind of parking spot.

●

When parking in a narrow parking

space, the vehicle may closely

approach an adjacent parked vehicle.

If a collision seems likely, depress the

brake pedal to stop the vehicle.

401

6

6-2. Using the safe driving support functions

Driving support

system

When exiting from a perpendicular
parking space, if the system deter-
mines that exit is possible the perpen-
dicular exiting (forward/reverse)
function can be used. Also, depending
on the surrounding environment, if it is
necessary to change the direction of
travel of the vehicle, the shift position
can be shifted by assistance control.

1

With the brake pedal depressed
and P shift position selected, press
the Advanced Park main switch
and check that the exit direction

selection screen is displayed on the
center display.

2

Select an arrow on the center dis-
play to select the direction you wish
to exit.

If the turn signal lever is operated, only exit

to the left or right can be selected.

3

Depress the brake pedal and select
“Start” button.

A buzzer will sound, an operation message

will be displayed on the multi-information

display, and assistance will begin operating.

To cancel assistance, press the Advanced

Park main switch.
If assistance is canceled, “Advanced Park

Cancel” will be displayed.
If you feel that the vehicle is approaching

close to a surrounding vehicle, object, per-

son, or gutter:



P.400

NOTICE

●

If a detected parked vehicle is narrow

or parked extremely close to the curb,

the position at which assistance will

park the vehicle will also be close to

the curb. If it seems likely the vehicle

will collide with something or drive off

of the road, depress the brake pedal to

stop the vehicle, and then press the

Advance Park main switch to disable

the system.

Advanced Park perpendicular
exiting (forward/reverse) func-
tion

Leaving a parking space using the
perpendicular exiting (for-
ward/reverse) function

402

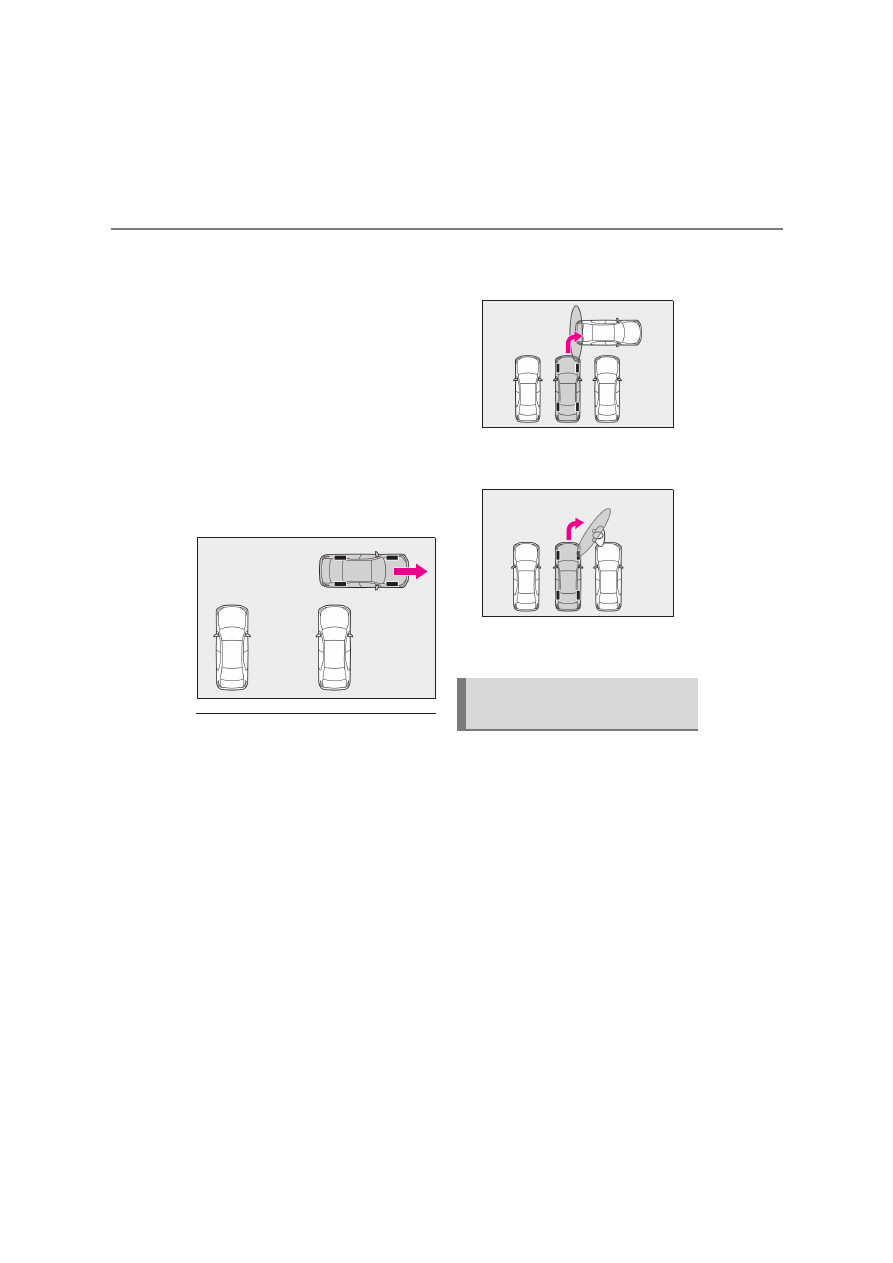

6-2. Using the safe driving support functions

4

Perform operations as indicated by
the advice displays until the vehicle
is in a position where exit is possi-
ble.

When the vehicle reaches a position where

exit is possible, “You can exit by moving the

steering wheel” will be displayed. If the

steering wheel is operated, “Advanced

Park Finished” will be displayed and assis-

tance will end.
As assistance will end while the vehicle is

moving, grip the steering wheel and drive

forward.

If the steering wheel is not operated, the

vehicle will stop at the exit position. Assis-

tance can be ended by depressing the

accelerator pedal or brake pedal.

■

If you feel that the vehicle is approach-

ing close to a surrounding vehicle,

object, person, or gutter



P.400

■

Perpendicular exiting (for-

ward/reverse) function

Do not use exiting (forward/reverse) func-

tion in any situation other than when exiting

a parallel parking spot. If assistance is

started unintentionally, depress the brake

pedal and stop the vehicle, then press the

Advanced Park main switch to cancel assis-

tance.

■

Situations in which the perpendicular

exiting (forward/reverse) function will

not operate

In situations such as the following, the per-

pendicular exiting (forward/reverse) func-

tion will not operate:

●

When a vehicle which is waiting to park is

in the exit direction

●

When a wall, column, or person is

detected as near a front or rear center or

corner sensor

■

When the brakes have been operated



P.400

The parallel parking function can be
used if the target parking space can be
detected when the vehicle is stopped
close and aligned with the center of the
parking space. Also, depending on the
condition of the parking space, etc., if it
is necessary to change the direction of
travel of the vehicle, the shift position
can be shifted by assistance control.

Advanced Park parallel parking
function

403

6

6-2. Using the safe driving support functions

Driving support

system

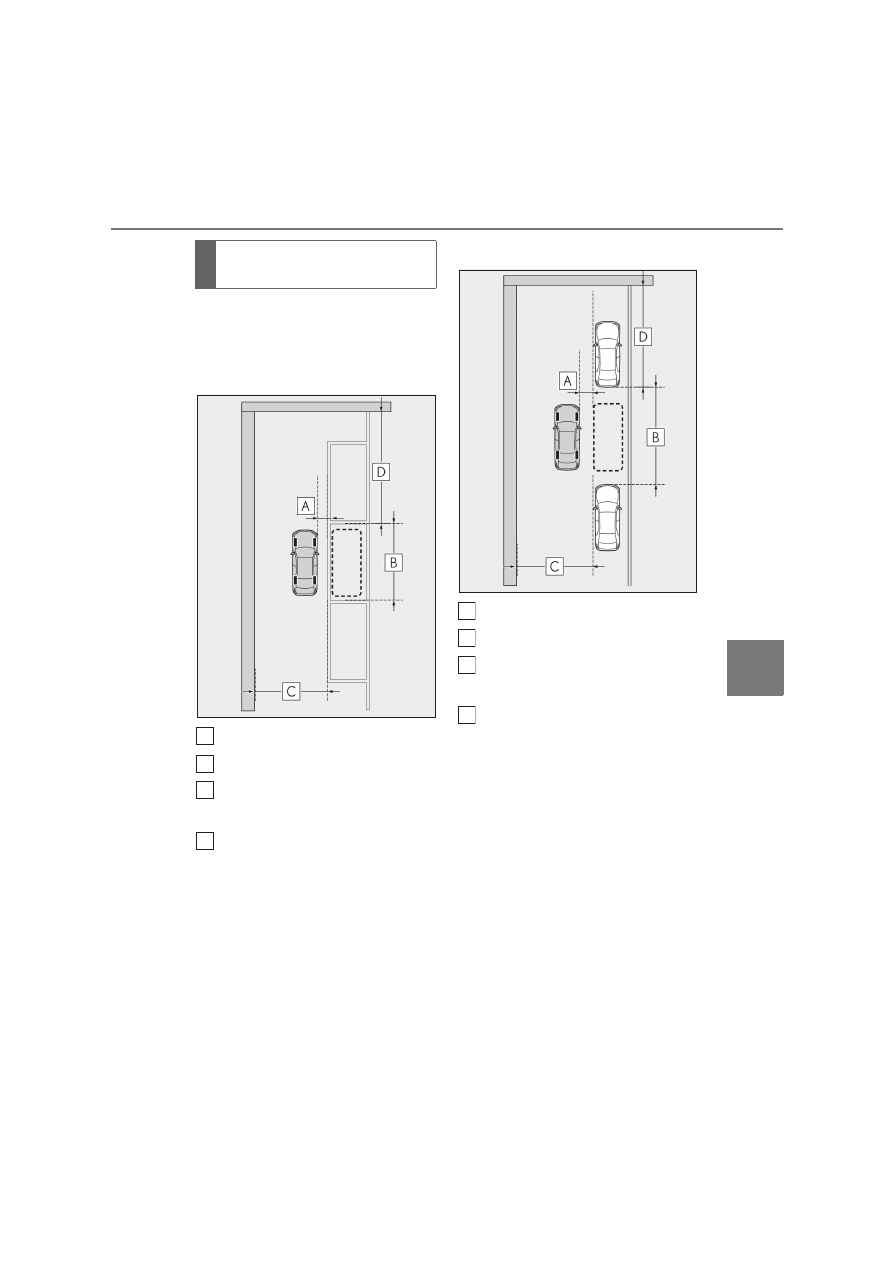

1

Stop the vehicle with it aligned near
the center of the target parking
space.



If there are parking space lines

Approximately 1 m (3.3 ft.)

*

Approximately 6 m (19.7 ft.)

*

Approximately 4.5 m (14.8 ft.) or
more

*

Approximately 8 m (26.2 ft.) or
more

*

*

: This is a reference measurement for

detection of a parking space. Depending
on the surrounding environment, detec-
tion may not be possible.



If there is an adjacent parked vehicle

Approximately 1 m (3.3 ft.)

*

Approximately 7 m (23.0 ft.)

*

Approximately 4.5 m (14.8 ft.) or
more

*

Approximately 8 m (26.2 ft.) or
more

*

*

: This is a reference measurement for

detection of a parking space. Depending
on the surrounding environment, detec-
tion may not be possible.

2

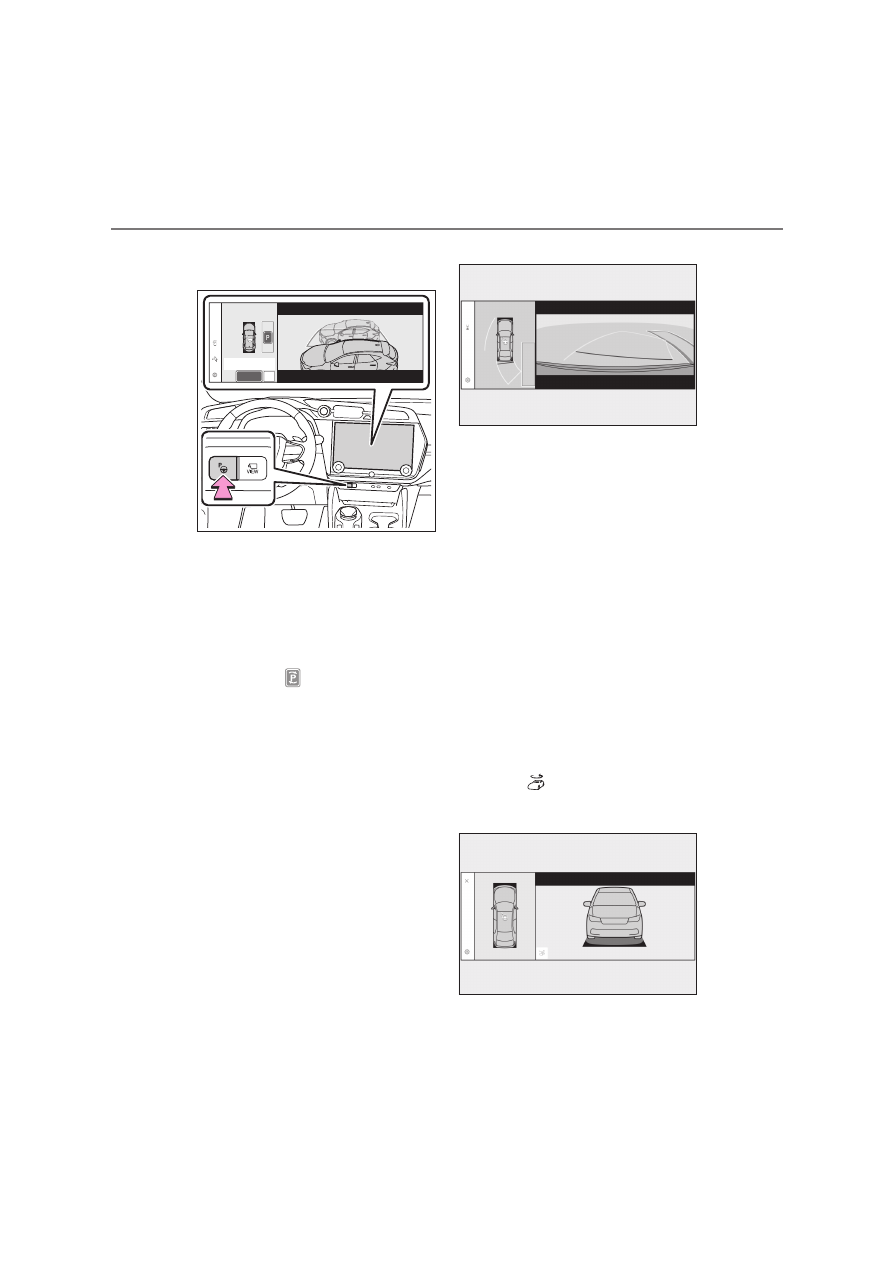

Press the Advanced Park main
switch and check that a possible

Parking using the parallel parking
function

A
B
C

D

A
B
C

D

404

6-2. Using the safe driving support functions

parking space is displayed on the
center display.



If a space which your vehicle can be
parked is detected, a target parking
space box will be displayed.



If it is possible to perpendicular
parking (forward/reverse) in the
space, select the parking space, and
then select

 to change to the

perpendicular parking (for-
ward/reverse) function.



Depending on the surrounding
environment, it may not be possible
to use this function. According to
the information displayed on the
center display, use the function on
another parking space.

3

Select “Start” button.

A buzzer will sound, an operation message

will be displayed on the multi-information

display, and assistance will begin operating.



When the brake pedal is released,
“Moving Forward…” will be dis-
played and the vehicle will begin
moving forward.



To cancel assistance, press the
Advanced Park main switch.

If assistance is canceled, “Advanced Park

Cancel” will be displayed.
If you feel that the vehicle is approaching

close to a surrounding vehicle, object, per-

son, or gutter:



P.400

4

Perform operations as indicated by
the advice displays until the vehicle
stops in the target parking space.

When the vehicle stops, “Advanced Park

Finished” will be displayed and parking

assistance will end.

If you select

 on the center display, the

vehicle displayed on the parking assist

completion screen will rotate.

405

6

6-2. Using the safe driving support functions

Driving support

system

■

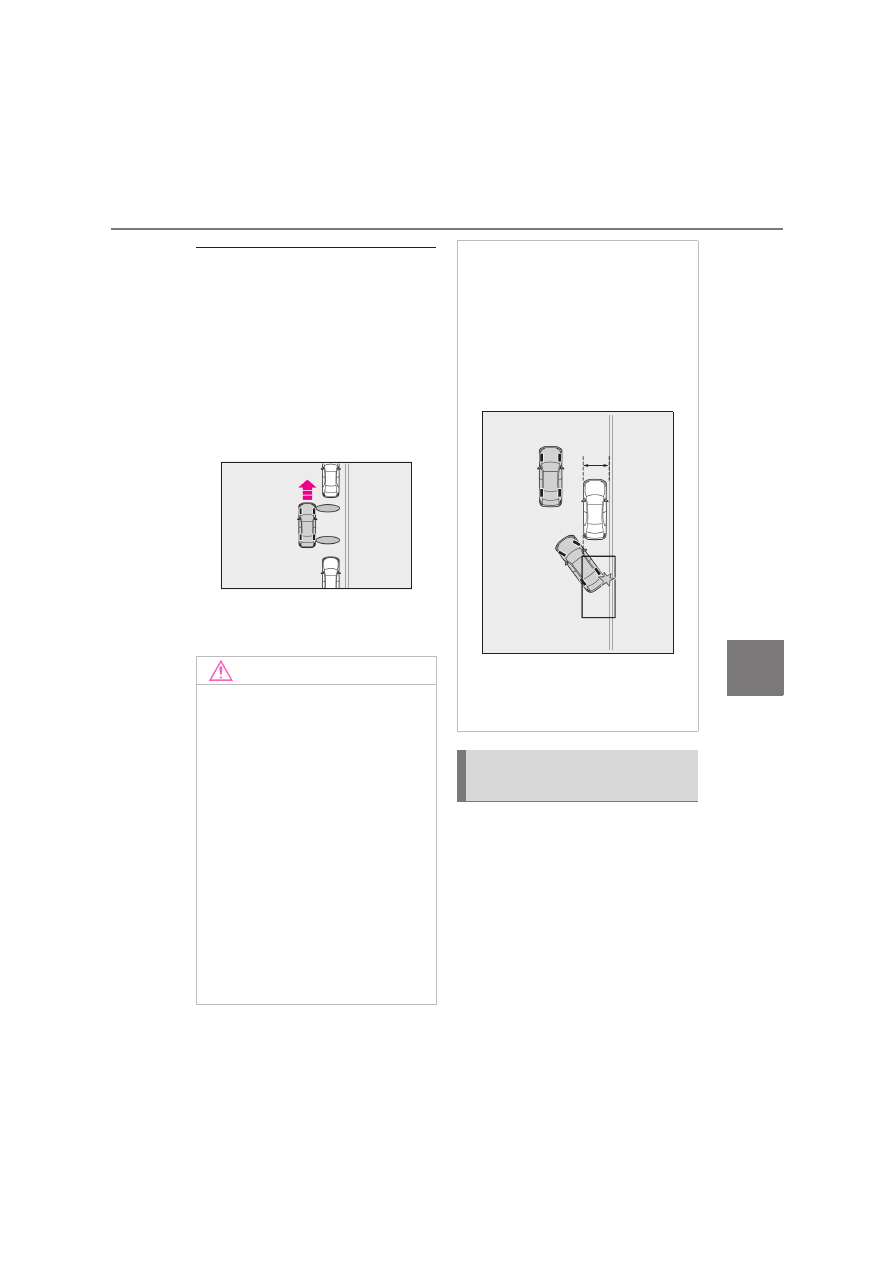

If you feel that the vehicle is approach-

ing close to a surrounding vehicle,

object, person, or gutter



P.400

■

If “No available parking space” is dis-

played

Even if the vehicle is stopped parallel to a

parking space, an adjacent parked vehicle

may not be detected. In this case, if the vehi-

cle is moved to a position that a parked

vehicle can be detected, assistance can be

started.

■

When the brakes have been operated



P.400

When exiting from a parallel parking
space, if the system determines that
exit is possible the parallel exiting func-
tion can be used. Also, depending on
the surrounding environment, if it is
necessary to change the direction of
travel of the vehicle, the shift position
can be shifted by assistance control.

NOTICE

■

When using the parallel parking func-

tion

●

Make sure that there are no obstruc-

tions within the yellow guide lines and

between the vehicle and target park-

ing spot. If any obstructions are

detected within the yellow guide lines

or between the vehicle and the target

parking space, the parallel parking

function will be cancelled or sus-

pended.

●

As the target parking space will not be

able to be set correctly if the surface of

the parking space is on a slope or has

differences in height, the vehicle may

stray from the target parking space or

be slanted. Therefore, do not use the

parallel parking function for this kind of

parking spot.

●

If an adjacent parked vehicle is narrow

or parked extremely close to the curb,

the position at which assistance will

park the vehicle will also be close to

the curb. If it seems likely the vehicle

will collide with the curb or drive off of

the road, depress the brake pedal to

stop the vehicle, and then press the

Advanced Park main switch to disable

the system.

●

If there is a wall or other barrier on the

inner side of the parking space, the

vehicle may stop at a position slightly

outside of the set target parking space.

Advanced Park parallel exiting
function

406

6-2. Using the safe driving support functions

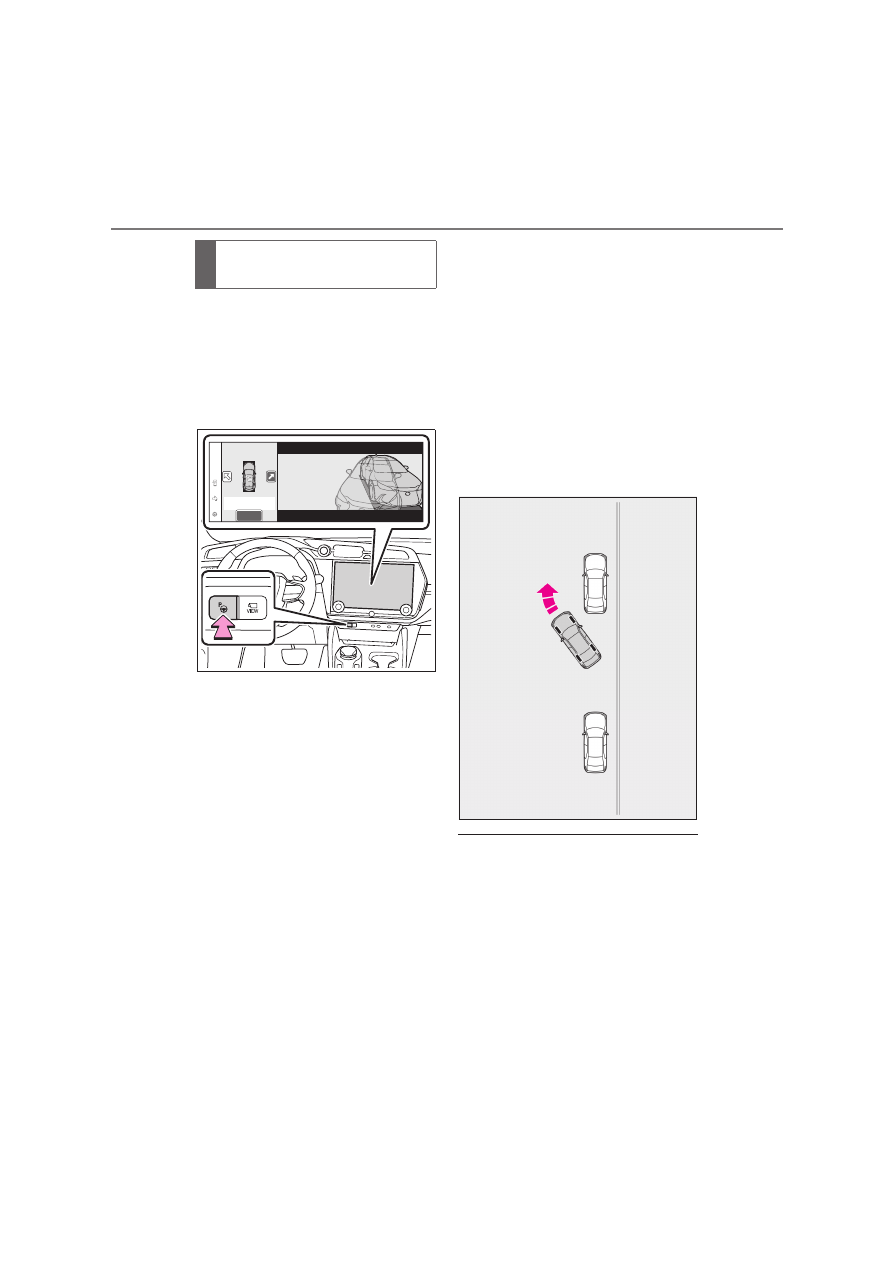

1

With the brake pedal depressed
and P shift position selected, press
the Advanced Park main switch
and check that the exit direction
selection screen is displayed on the
center display.

2

Select an arrow on the center dis-
play to select the direction you wish
to exit.

If the turn signal lever is operated, only exit

to the left or right can be selected.

3

Depress the brake pedal and select
“Start” button.

A buzzer will sound, an operation message

will be displayed on the multi-information

display, and assistance will begin operating.

To cancel assistance, press the Advanced

Park main switch.
If assistance is canceled, “Advanced Park

Cancel” will be displayed.
If you feel that the vehicle is approaching

close to a surrounding vehicle, object, per-

son, or gutter:



P.400

4

Perform operations as indicated by
the advice displays until the vehicle

is in a position where exit is possi-
ble.

When the vehicle reaches a position where

exit is possible, “You can exit by moving the

steering wheel” will be displayed. If the

steering wheel is operated, “Advanced

Park Finished” will be displayed and assis-

tance will end.
As assistance will end while the vehicle is

moving, grip the steering wheel and drive

forward.

If the steering wheel is not operated, the

vehicle will stop at the exit position. Assis-

tance can be ended by depressing the

accelerator pedal or brake pedal.

■

If you feel that the vehicle is approach-

ing close to a surrounding vehicle,

object, person, or gutter



P.400

■

Parallel exiting function

Do not use parallel exiting function in any

situation other than when exiting a parallel

parking spot. If assistance is started unin-

tentionally, depress the brake pedal and

stop the vehicle, then press the Advanced

Park main switch to cancel assistance.

Leaving a parking space using the
parallel exiting function

407

6

6-2. Using the safe driving support functions

Driving support

system

■

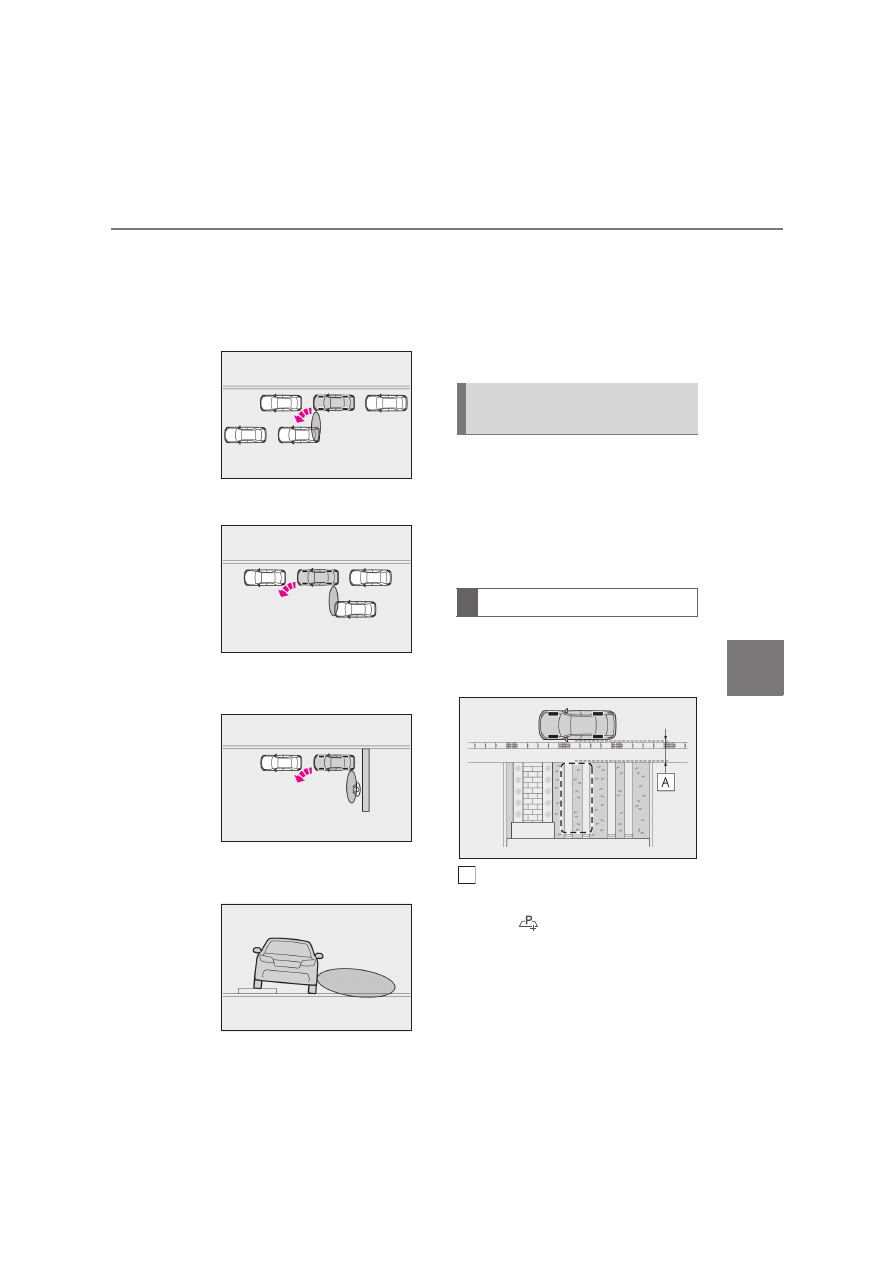

Situations in which the parallel exiting

function will not operate

In situations such as the following, the paral-

lel exiting function will not operate:

●

When vehicles waiting at a traffic signal in

the exit direction

●

When a vehicle is stopped in the area

behind where the vehicle will exit

●

When a wall, column, or person is

detected as near a front or rear side sen-

sor

●

When the vehicle has been parked on a

curb and a side sensor detects the road

surface

●

When a vehicle is not parked in front of

the vehicle

●

When there is excessive space between

the front of the vehicle and a parked vehi-

cle

■

When the brakes have been operated



P.400

The memory function can be used to
park in a previously registered parking
space, even if there are no parking
space lines or adjacent parked vehi-
cles.

Up to 3 parking spaces can be registered.

1

Stop the vehicle with it aligned near
the center of the target parking
space.

Approximately 1 m (3.3 ft.)

2

Press the main switch and then
select .

If the Advanced Park main switch is

pressed at a parking space without parking

lines or any adjacent parked vehicles, “No

available parking space” may be displayed.

Advanced Park memory func-
tion

Registering a parking space

A

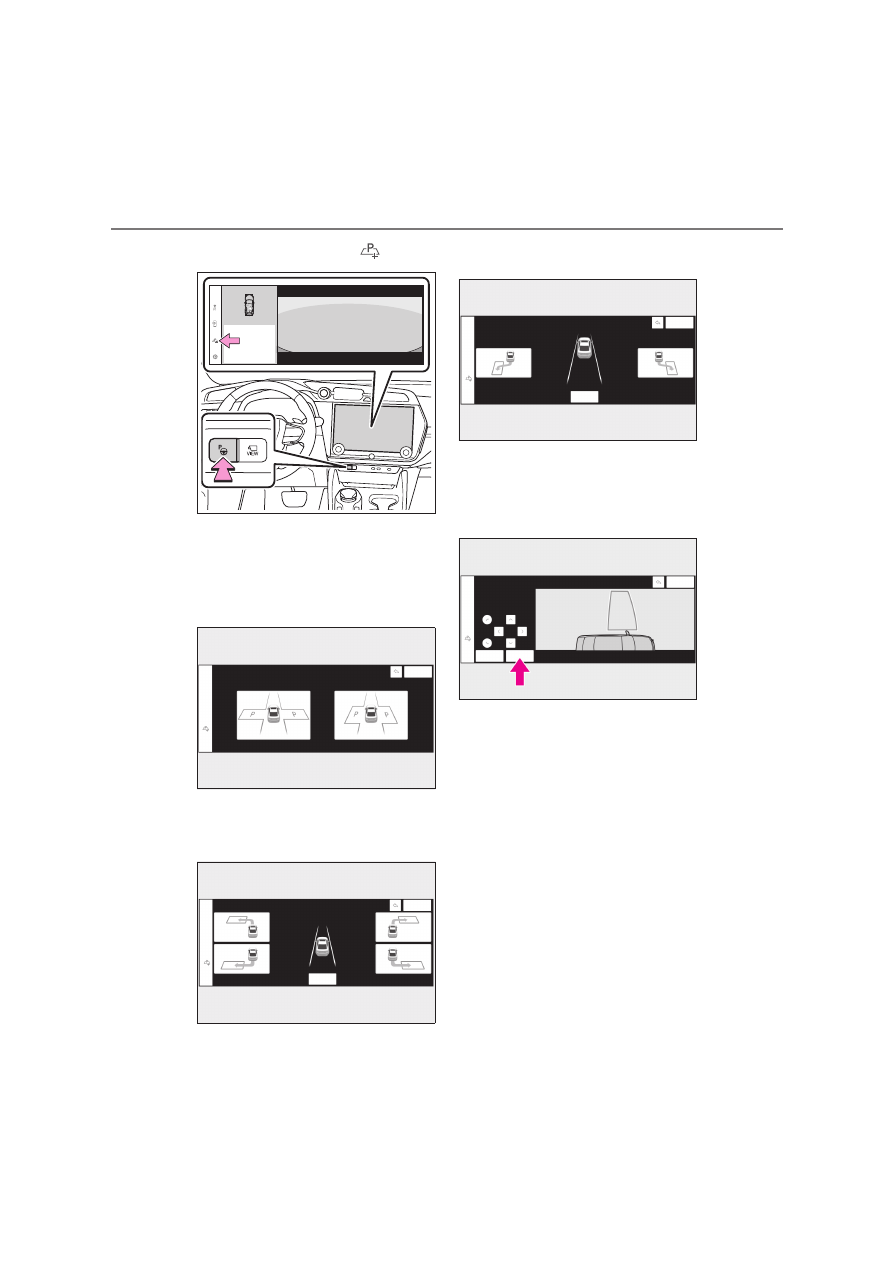

408

6-2. Using the safe driving support functions

Continuously select and hold

.

3

Select perpendicular parking (for-
ward/reverse) function or parallel
parking function.

Only parking spaces for which assist can

be performed are displayed.

4

Select the parking direction.

When perpendicular parking (for-

ward/reverse) was selected in step

3

:

When parallel parking was selected in step

3

:

5

Using the arrow buttons, adjust the
position of the parking space to be
registered, and then select “OK”
button.

6

Select “Start” button.

A buzzer will sound, an operation message

will be displayed on the multi-information

display, and assistance will begin operating.

When the brake pedal is released, “Moving

Forward…” will be displayed and the vehi-

cle will begin moving forward.
If you feel that the vehicle is approaching

close to a surrounding vehicle, object, per-
