Vehicle status information

and indicators

2-1. Instrument cluster

Warning lights and indicators

.........................................................

100

Gauges and meters (except F

SPORT models) ......................

105

Gauges and meters (F SPORT

models)........................................

109

Multi-information display.........

114

Head-up display .........................

120

Energy monitor/consumption

screen ..........................................

124

101

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators



F SPORT models

The location of warning lights and indicators may differ depending on the intended destina-
tion of the vehicle and the selected main meter location.

Warning lights inform the driver of mal-
functions in the indicated vehicle’s sys-
tems.

Warning lights

(red)

Brake system warning light

(



P.495)

(yellow)

Brake system warning light

(



P.495)

High coolant temperature
warning light

(



P.495)

Hybrid system overheat warn-
ing light

(



P.496)

Charging system warning
light

(



P.496)

Low traction battery warning
light

(



P.496)

Low engine oil pressure warn-
ing light

(



P.496)

Malfunction indicator lamp

(



P.497)

SRS warning light

(



P.497)

Pop Up Hood warning light

(



P.497)

ABS warning light

(



P.498)

Inappropriate pedal operation
warning light

(



P.498)

(red)

Electric power steering system
warning light

(



P.499)

(yellow)

Electric power steering system
warning light

(



P.499)

Low fuel level warning light
(



P.499)

Driver’s and front passenger’s
seat belt reminder light
(



P.499)

Rear passengers’ seat
belt reminder lights
(except F SPORT mod-
els) (



P.500)

102

2-1. Instrument cluster

: These lights come on when the power

switch is turned to ON mode to indi-
cate that a system check is being per-
formed. They will turn off after the
hybrid system is on, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not come on, or
turn off. Have the vehicle inspected by
any authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

: This light illuminates on the multi-infor-

mation display.

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

Rear passengers’ seat belt
reminder lights (F SPORT mod-
els) (



P.500)

Tire pressure warning light

(



P.500)

(orange)

LTA indicator (if equipped)
(



P.500)

Lexus parking assist-sensor
OFF indicator

(



P.501)

(flashes or

illuminates)

RCD OFF indicator (if
equipped) (



P.501)

(flashes or

illuminates)

PKSB OFF indicator

(if

equipped) (



P.501)

(flashes or

illuminates)

PCS warning light

(if

equipped) (



P.502)

Slip indicator

(



P.502)

(flashes)

Parking brake indicator
(



P.502)

(flashes)

Brake hold operated indicator

(



P.502)

WARNING

■

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the hybrid system, this

could mean that these systems are not

available to help protect you in an acci-

dent, which could result in death or seri-

ous injury. Have the vehicle inspected by

any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer immediately if this occurs.

Indicators

Turn signal indicator (



P.212)

Tail light indicator (



P.218)

Headlight high beam indicator
(



P.219)

AHS indicator (if equipped)
(



P.221)

AHB indicator (if equipped)
(



P.224)

Multi Weather Lights indicator
(



P.227)

Rear fog light indicator
(



P.228)

PCS warning light

*1, 2

(if

equipped) (



P.251, 265)

Cruise control indicator
(



P.299, 311)

Dynamic radar cruise control
indicator (if equipped)
(



P.299)

103

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators



Drive mode indicators



Except F SPORT models



F SPORT models

Cruise control “SET” indicator
(



P.299, 311)

LTA indicator (if
equipped)(



P.262, 281, 291)

BSM outside rear view mirror
indicators

*1, 4

(if equipped)

(



P.313, 328)

BSM OFF indicator

*1, 2

(if

equipped) (



P.313)

Lexus parking assist-sensor
OFF indicator

*1, 2

(



P.320)

RCTA OFF indicator

*1, 2

(if

equipped) (



P.328)

RCD OFF indicator

(if

equipped) (



P.333)

PKSB OFF indicator

*1, 2

(if

equipped) (



P.338)

(flashes)

Slip indicator

(



P.379)

VSC OFF indicator

*1, 2

(



P.379)

High mode indicator (



P.374)

Smart entry & start system indi-
cator

(



P.199)

“READY” indicator (



P.199)

EV drive mode indicator
(



P.203)

Gear Shift Indicator

(



P.211)

Parking brake indicator
(



P.213)

Brake hold standby indicator

(



P.216)

Brake hold operated indicator

(



P.216)

EV indicator (



P.85)

Low outside temperature indi-
cator

(



P.105, 109)

Security indicator

(



P.92,

94)

“PASSENGER AIR
BAG” indicator

*1, 7

(



P.52)

Snow mode indicator
(



P.209)

Normal mode indicator
(



P.372)

Custom mode indicator
(



P.372)

Comfort mode indicator
(



P.372)

Eco drive mode indicator
(



P.372)

Sport S mode indicator
(



P.372)

Sport S+ mode indicator
(



P.372)

Snow mode indicator
(



P.209)

Normal mode indicator
(



P.372)

Custom mode indicator
(



P.372)

Comfort mode indicator
(



P.372)

104

2-1. Instrument cluster

: These lights come on when the power

: This light comes on when the system is

turned off.

: Depending on the operating condition,

the color and illuminating/flashing state
of the light change.

: This light illuminates on the outside rear

view mirrors.

: This light illuminates on the multi-infor-

mation display.

: When the outside temperature is

approximately 3°C (37°F) or lower, this
indicator will flash for approximately 10
seconds, then stay on.

: This light illuminates on the center

panel.

Eco drive mode indicator
(



P.372)

Sport S mode indicator
(



P.372)

Sport S+ mode indicator
(



P.372)

105

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

■

Locations of gauges and meters

The location of some displayed items and the units of measure may differ depending on the
intended destination of the vehicle.

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (



P.107)

Outside temperature

Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F)

Hybrid System Indicator

Displays hybrid system output or regeneration level (



P.106)

This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. (



P.118, 372)

Speedometer
Clock

Time displayed is linked to the analog clock on the center panel. (



P.424)

Shift position indicator (



P.206)

Shift range/gear position (



P.205)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Gauges and meters (except F SPORT models)

Meter display

B
C

E
F

106

2-1. Instrument cluster

Multi-information display

Presents the driver with a variety of vehicle data (



P.114)

Displays warning messages if a malfunction occurs (



P.505)

■

Hybrid System Indicator

Charge area

Shows regeneration

status.

Regenerated energy will be used to charge
the hybrid battery (traction battery).

Hybrid Eco area

Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.

Eco area

Shows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the bar display within Eco area,
more Eco-friendly driving can be achieved.

Power area

Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)

: When used in this manual, regeneration

refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.

■

Engine speed

On hybrid electric vehicles, engine speed is

precisely controlled in order to help

improve fuel efficiency and reduce exhaust

emissions etc.

There are times when the engine speed that

is displayed may differ even when vehicle

operation and driving conditions are the

same.

■

Hybrid System Indicator is displayed

when

The Hybrid System Indicator is displayed in

the following situations:

●

The shift position is in D or M.

●

When the tachometer setting is set to

change according to the driving mode

and a driving mode other than sport

mode is selected

●

When the tachometer setting is set to

always display the Hybrid System Indica-

tor

However, the Hybrid System Indicator will

not be displayed when the analog and digi-
tal speedometers are both enabled on

of the multi-information display. (



P.118)

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 20 km/h [12 mph])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

■

Liquid crystal display



P.115

■

Customization

The gauges and meters can be customized

107

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

of the multi-information display.

(



P.118)

■

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

■

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

■

Pop-up display

Distance until the next engine oil
change will displayed when a warning
message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

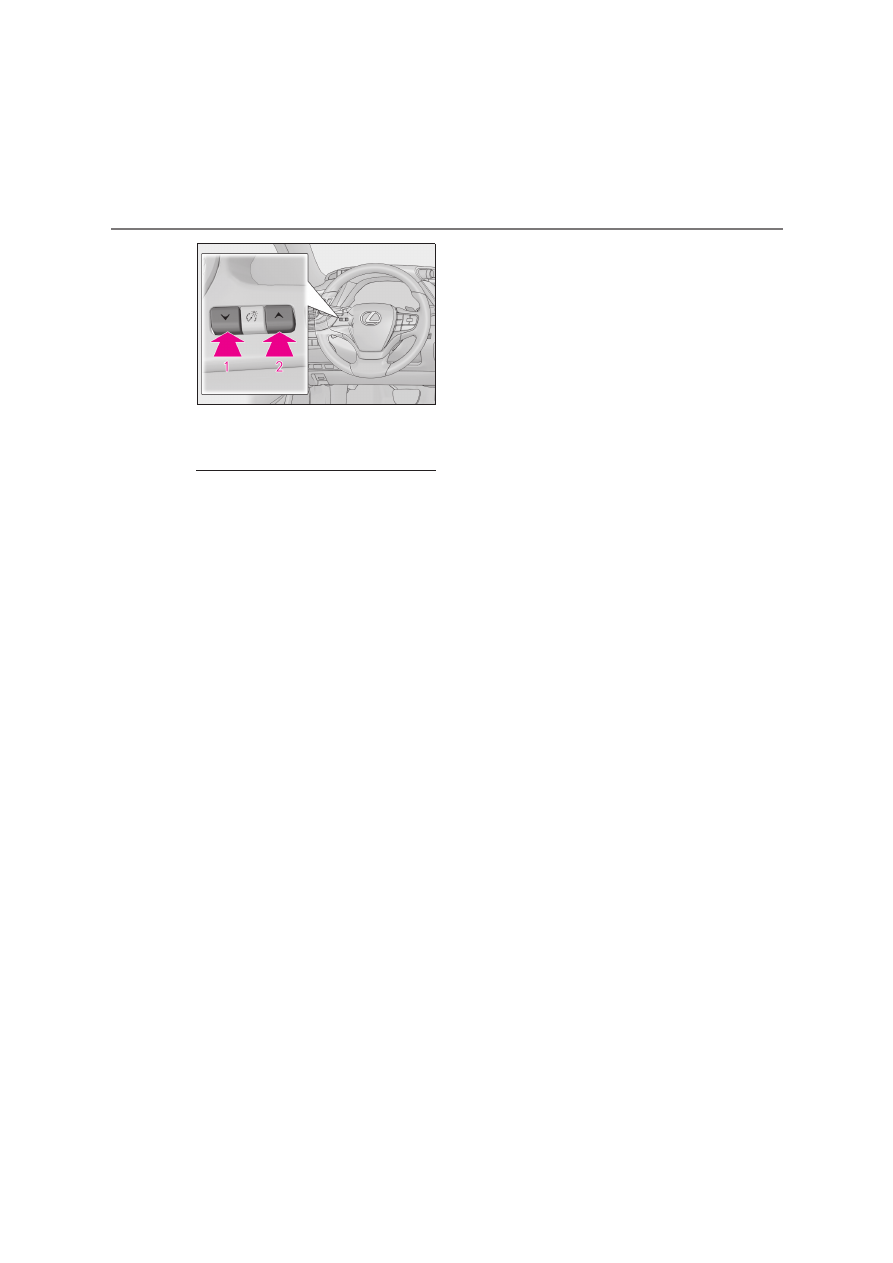

The brightness of the instrument panel
lights can be adjusted.

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low temper-

atures, the information display monitor

may respond slowly, and display changes

may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (



P.522)

Odometer and trip meter dis-
play

Changing the instrument panel
light brightness

109

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

■

Locations of gauges and meters

When the main meter is moved to the right, some of the meter displays and the
gauge layout will change. (



P.113)



Main meter in center position

The location of some displayed items and the units of measure may differ depending on the
intended destination of the vehicle.

Odometer and trip meter display (



P.112)

Engine coolant temperature gauge

Displays the engine coolant temperature

Outside temperature

Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F)

Hybrid System Indicator

Displays hybrid system output or regeneration level (



P.111)

This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. (



P.118, 372)

• Rev indicator (



P.111)

• Rev peak (



P.111)

Shift position/shift range/gear position (



P.205)

Speedometer
Clock

Gauges and meters (F SPORT models)

Meter display

A
B

E
F

110

2-1. Instrument cluster

Time displayed is linked to the analog clock on the center panel. (



P.424)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Shift position indicator (



P.206)

Multi-information display

Presents the driver with a variety of vehicle data (



P.114)

Displays warning messages if a malfunction occurs (



P.505)



Main meter moved to the right

The location of some displayed items and the units of measure may differ depending on the
intended destination of the vehicle.

Outside temperature

Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F)

Clock

Time displayed is linked to the analog clock on the center panel. (



P.424)

Hybrid System Indicator

Displays hybrid system output or regeneration level (



P.106)

This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. (



P.118, 372)

• Rev indicator (



P.111)

• Rev peak (



P.111)

Shift position/shift range/gear position (



P.205)

Speedometer
Shift position indicator (



P.206)

Odometer and trip meter display (



P.112)

E
F

111

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Multi-information display

Presents the driver with a variety of vehicle data (



P.114)

Displays warning messages if a malfunction occurs (



P.505)

■

Hybrid System Indicator

Charge area

Shows regeneration

status.

Regenerated energy will be used to charge
the hybrid battery (traction battery).

Hybrid Eco area

Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.

Eco area

Shows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the bar display within Eco area,
more Eco-friendly driving can be achieved.

Power area

Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)

: When used in this manual, regeneration

refers to the conversion of energy cre-

ated by the movement of the vehicle into
electrical energy.

■

Rev indicator

When the engine speed reaches a set
speed or the red zone, a ring-shaped
indicator ( ) will be displayed on the
tachometer.

The indicators will be displayed in amber
when the engine speed reaches a set
speed, and in red when the engine speed
reaches the red zone.
The engine speed at which the rev indica-
tor will begin to be displayed can be set on

of the multi-information display.

(



P.118)

■

Rev peak

When the engine speed reaches or
exceeds 4000 r/min, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.

112

2-1. Instrument cluster

■

Engine speed

On hybrid electric vehicles, engine speed is

precisely controlled in order to help

improve fuel efficiency and reduce exhaust

emissions etc.

There are times when the engine speed that

is displayed may differ even when vehicle

operation and driving conditions are the

same.

■

Hybrid System Indicator is displayed

when

The Hybrid System Indicator is displayed in

the following situations:

●

The shift position is in D or M.

●

When the tachometer setting is set to

change according to the driving mode

and a driving mode other than sport

mode is selected

●

When the tachometer setting is set to

always display the Hybrid System Indica-

tor

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 20 km/h [12 mph])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

■

Liquid crystal display



P.115

■

Customization

The gauges and meters can be customized
on

of the multi-information display.

(



P.118)

■

Display items



Odometer

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low temper-

atures, the information display monitor

may respond slowly, and display changes

may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (



P.522)

Odometer and trip meter dis-
play

113

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

■

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

■

Pop-up display

The distance until the next engine oil
change will displayed when a warning
message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

The brightness of the instrument panel
lights can be adjusted.

Darker

Brighter

■

Brightness of the meters (day mode and

night mode)

The brightness of the meters changes

between day mode and night mode.

●

Day mode: When the tail lights are off or

when the tail lights are on but the sur-

rounding area is bright

●

Night mode: When the tail lights are on

and the surrounding area is dark

The display can be switched between
the center and side positions.

Changing the instrument panel
light brightness

Changing the main meter loca-
tion

114

2-1. Instrument cluster

■

Display (except F SPORT models)

By selecting menu icons on the
multi-information display, a variety of
driving-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

■

Display (F SPORT models)



Main meter in center position

The multi-information display presents
the driver with a variety of driv-
ing-related information.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.



Main meter moved to the right

■

Menu icons

The menu icons will be displayed by
pressing

of the meter con-

trol switch.

F SPORT models: The menu icons can be
displayed when the main meter is moved to
the right.

Multi-information display

Display and menu icons

115

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

■

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

The multi-information display is oper-
ated using the meter control switches.

: Select menu icons

: Change displayed con-

tent, scroll up/down the screen and
move the cursor up/down
Press: Enter/Set
Press and hold: Reset

Move the main meter

and return

to the previous screen
Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
the “MULTIMEDIA OWNER’S MAN-
UAL”.

: F SPORT models

■

Display items (except F SPORT
models)

Press

of the meter control

switch and select

. Then press

to display the following items:



Drive information 1



Drive information 2



Energy monitor (



P.124)

Driving information display
(



P.115)

Navigation system-linked dis-
play (if equipped) (



P.117)

Audio system-linked display
(



P.118)

Driving support system infor-
mation display (



P.118)

Warning message display
(



P.505)

Settings display (



P.118)

WARNING

■

Caution for use while driving

●

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around the

vehicle.

●

Do not look continuously at the

multi-information display while driving

as you may fail to see pedestrians,

objects on the road, etc. ahead of the

vehicle.

■

The information display at low tem-

peratures



P.107, 112

Changing the meter display

Content of driving information

116

2-1. Instrument cluster



Tire pressure (



P.461)



Display off

■

Display items (F SPORT models)



Main meter in center position

Press

of the meter control

switch to display the following items:



Drive information 1



Drive information 2



Tire pressure (



P.461)



Gear positions



Units (if equipped)



Display off



Driving support system information

(



P.118)

: Can be selected when a driving support

system is enabled. (



P.276, 286, 299)



Main meter moved to the right

Press

of the meter control

switch and select

. Then press

to display the following items:



Drive information 1



Drive information 2



Energy monitor (



P.124)



G-force



Gear Position



Tire pressure (



P.461)



Display off

■

Drive information 1/Drive infor-
mation 2

Displays drive information such as the
following:

Use the displayed values as a reference
only.



Drive information 1

• Current fuel consumption
• Average fuel economy (after reset)



Drive information 2

• Distance (driving range)
• Average vehicle speed (after reset)

Displayed items (listed below) can be
changed on

. (



P.118)



Current fuel consumption

Bar type: Displays instantaneous current
fuel consumption



Average fuel economy

After reset: Displays average fuel con-
sumption since the display was reset

After start: Displays average fuel con-
sumption since hybrid system start
After refuel: Displays average fuel con-
sumption since refuel



Average vehicle speed

After reset: Displays average vehicle
speed since the display was reset

After start: Displays average vehicle speed
since hybrid system start



Elapsed time

After reset: Displays elapsed time since the
display was reset

After start: Displays elapsed time since
hybrid system start



Distance

Driving range: Displays driving range with
remaining fuel

*2, 3

After start: Displays the distance driven

117

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

since hybrid system start



Other

Blank: No item

: To reset, display the desired item and

press and hold

of the meter control

switch.

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the power switch
off. If the vehicle is refueled without
turning the power switch off, the display
may not be updated.

■

G-force (F SPORT models)

Displays lateral G-forces on the vehi-
cle. Also displays, around the periph-
ery of the G-force display, the left and
right steering amount, accelerator
pedal input, and brake fluid pressure.

Acceleration G-force on the vehi-
cle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Record of the maximum G-forces

Accelerator pedal input
Brake fluid pressure
Steering amount

This display is intended for use as a guide-
line. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.



Resetting the record of maximum
G-forces

Press and hold

of the meter control

switch to reset the record.



Peak hold function

If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.

■

Gear Position (F SPORT models)

Displays the current shift range or gear
position when the shift position is in D
or M.

■

Units (F SPORT models)

On some models, the units of measure
used can be changed while driving.

Unlike the units setting performed on the
settings display, the units setting per-
formed on the drive information display
can be changed while driving.

Select to display the following naviga-
tion system-linked information.



Route guidance to destination



Compass display (heading-up dis-
play)

Navigation system-linked dis-
play (if equipped)

E
F

118

2-1. Instrument cluster

■

Route guidance to destination display

When the route guidance to destination

display is enabled on the head-up display, it

will not be displayed on the multi-informa-

tion display. (



P.122)

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

Select to display the operational status
of the following systems:



LTA (Lane Tracing Assist) (if
equipped) (



P.276, 286)



Dynamic radar cruise control with
full-speed range (if equipped)
(



P.299)



Cruise control (if equipped)
(



P.311)



RSA (Road Sign Assist) (if
equipped) (



P.295)

■

Meter display settings that can be
changed



Language

Select to change the language displayed.



Units

Select to change the units of measure dis-
played.



Speedometer display (except F

SPORT models)

Select to set the display of the speedome-
ter to digital/analog/both digital and ana-
log.



Drive information 1/Drive informa-
tion 2

Select to select up to 2 items (



P.116) that

will be displayed on each Drive information
screen (Drive information 1 screen and
Drive information 2 screen) respectively.



Clock

Select to switch between 24-hour display
and 12-hour display.



Pop-up display

Select to enable/disable pop-up displays
for each relevant system.



Tachometer setting

Select to set the display of the Hybrid Sys-
tem Indicator or tachometer for each driv-
ing mode.



Rev indicator (F SPORT models)

• Select to enable/disable the rev indica-

tor.

• Select to set the engine speed at which

the rev indicator (amber) will begin to be
displayed.



Rev peak (F SPORT models)

Select to enable/disable the rev peak.



EV indicator

Select to enable/disable the EV indicator.



Default setting

Select to reset the meter display settings to
the default setting.

■

Vehicle functions and settings that
can be changed



P.540

Audio system-linked display

Driving support system informa-
tion display

Settings display

119

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

■

Suspension of the settings display

●

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

●

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.

■

Suggestion to turn off the head-
lights

If the headlights are left on for a certain
amount of time with the headlight

switch in

after the power switch

has been turned off, a suggestion mes-
sage will be displayed asking if you
wish to turn the headlights off.

To turn the headlights off, select “Yes”.

If a front door is opened after the power
switch is turned off, this suggestion mes-
sage will not be displayed.

■

Suggestion to close the power win-
dows (linked to windshield wiper
operation)

If the windshield wipers are operated
with a power window open, a sugges-
tion message will be displayed asking if
you wish to close the power windows.
To close all of the power windows,
select “Yes”.

■

Customization

Some functions can be customized.

(



P.540)

WARNING

■

Cautions during setting up the dis-

play

As the hybrid system needs to be operat-

ing during setting up the display, ensure

that the vehicle is parked in a place with

adequate ventilation. In a closed area

such as a garage, exhaust gases includ-

ing harmful carbon monoxide (CO) may

collect and enter the vehicle. This may

lead to death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while setting up the display features.

Suggestion function

120

2-1. Instrument cluster

: If equipped

Illustrations used in this text are intended as examples, and may differ from the image that is
actually displayed by the head-up display.

Navigation system-linked display area (if equipped)

Displays the following items which are linked to the navigation system:
• Route guidance to destination
• Street name
• Compass (heading-up display)

Driving support system display area (



P.123)

RSA (Road Sign Assist) display area (if equipped) (



P.295)

Driving information display area

Displays the following items:
• Speedometer
• Shift position/shift range/gear position (



P.205)

Head-up display

The head-up display projects a variety of driving-related information and the
operating state of the driving support systems on the windshield.

System components

B
C
D

121

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

• Gear Shift Indicator (



P.211)

Hybrid System Indicator/tachometer display area (



P.124)

HUD (Head-up display) switch

■

Head-up display will operate when

The power switch is in ON mode.

■

When using the head-up display

The head-up display may seem dark or hard

to see when viewed through sunglasses,

especially polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Street name display

Only street names which are included in the

map data will be displayed.

■

Outside temperature display

●

In the following situations, the outside

temperature is displayed:

• When the ambient temperature is

approximately 3°C (37°F) or lower (In

this case, the outside temperature display

will be displayed and the low outside tem-

perature indicator will flash for approxi-

mately 10 seconds.)

• After the opening screen is displayed

(The outside temperature display will be

displayed for approximately 10 seconds.)

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 20 km/h [12 mph])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

E
F

WARNING

■

When using the head-up display

●

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

●

Do not continuously look at the

head-up display while driving as you

may fail to see pedestrians, objects on

the road, etc. ahead of the vehicle.

NOTICE

■

Head-up display projector

●

Do not place any drinks near the

head-up display projector. If the pro-

jector gets wet, electrical malfunctions

may result.

●

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

●

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector.

Doing so could cause mechanical mal-

functions.

122

2-1. Instrument cluster

■

Enabling/disabling the head-up dis-
play

Press the HUD switch.

■

Changing settings of the head-up
display

The following settings can be changed
on

of the multi-information display.

(



P.540)



Brightness and vertical position of
the head-up display

Select to adjust the brightness or vertical
position of the head-up display.



Hybrid System Indicator/tachome-
ter

Select to display the Hybrid System Indica-
tor, tachometer or no content.



Display content

Select to enable/disable the following
items:
• Route guidance to destination/street

name

• Driving support system display

• Compass (heading-up display)
• Audio system operation status

: Make sure to enable this display when

using the driving support systems



Display angle

Select to adjust the angle of the head-up
display.

■

Enabling/disabling of the head-up dis-

play

If the head-up display is disabled, it will

remain disabled when the power switch is

turned off then back to ON mode.

■

Display brightness

The brightness of the head-up display can
be adjusted on

of the multi-information

display. Also, it is automatically adjusted

according to the ambient brightness.

■

Head-up display automatic position

adjustment

If the display position is recorded into mem-

ory, the head-up display will be automati-

cally adjusted to the desired position.

(



P.161)

■

When the 12-volt battery is discon-

nected

The customize settings of the head-up dis-

play will be reset.

Using the head-up display

WARNING

■

Caution for changing settings of the

head-up display

As the hybrid system needs to be operat-

ing while changing the settings of the

head-up display, ensure that the vehicle

is parked in a place with adequate venti-

lation. In a closed area such as a garage,

exhaust gases including harmful carbon

monoxide (CO) may collect and enter

the vehicle. This may lead to death or a

serious health hazard.

123

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

Displays the operational status of the
following systems:



LTA (Lane Tracing Assist) (if
equipped) (



P.276, 286)



Dynamic radar cruise control with
full-speed range (if equipped)
(



P.299)

Details of content displayed on the
head-up display may differ from that dis-
played on the multi-information display. For
details, refer to the explanation of each sys-
tem.

Pop-up displays for the following sys-
tems will be displayed when necessary.

■

Driving support systems

Displays a warning/suggestion/advice
message or the operating state of a rel-
evant system.



PCS (Pre-Collision System) (if
equipped) (



P.247, 260)



FCTA (Front Cross Traffic Alert) (if
equipped) (



P.272)



Lexus parking assist-sensor

(



P.319)



Parking Support Brake function (for
static objects) (if equipped)
(



P.341)



Brake Override System (



P.192)



Drive-Start Control (



P.197)

Details of content displayed on the
head-up display may differ from that dis-
played on the multi-information display. For
details, refer to the explanation of each sys-
tem.

■

icons

These icons are linked to the
multi-information display

: Master warning icon

Displayed when a warning message is dis-
played on the multi-information display.
(



P.505)

: Information icon

Displayed when a suggestion pop-up dis-
play (



P.119) or advice pop-up display is

displayed on the multi-information display.

■

Warning message

Some warning messages are displayed
when necessary, according to certain
conditions.

Details of content displayed on the
head-up display may differ from that dis-
played on the multi-information display.

■

Audio system operation status

Displayed when an audio remote con-
trol switch on the steering wheel is
operated.

■

Hands-free system status

Displayed when the hands-free system

NOTICE

■

When changing the settings of the

head-up display

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while the changing the settings of the

head-up display.

Driving support system display
area

Pop-up display

124

2-1. Instrument cluster

is operated.

■

When a pop-up display is displayed

When a pop-up display is displayed, a cur-

rent display may no longer be displayed. In

this case, the display will return after the

pop-up display disappears.

■

Hybrid System Indicator

Charge area
Hybrid Eco area
Eco area
Power area

Displayed content is the same as that dis-
played on the meter (Hybrid System Indi-
cator). For details, refer to P.106or P.111.

■

Tachometer

Displays the engine speed in revolu-
tions per minute.

Multi-information display
Center Display
Meter control switches

The energy monitor can be used to
check the vehicle drive status, hybrid
system operation status and energy
regeneration status.

■

Display procedure



Multi-information display

Press the

meter control

switch and select

, and then press

to select the energy monitor

display.



Center Display

Select

on the main menu.

Hybrid System Indica-
tor/tachometer

A
B
C
D

Energy monitor/consump-
tion screen

The state of the hybrid system can
be viewed on the multi-information
display and Center Display.

System components

Energy monitor

A
B
C

125

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

Select “Energy flow”.

■

Reading the display

The arrows will appear in accordance
with the energy flow. When there is no
energy flow, arrows will not be dis-
played.

The color of the arrows will change as fol-
lows

Light blue

/Blue

: When the hybrid bat-

tery (traction battery) is regenerated or
charged.

Yellow

/Orange

: When the hybrid bat-

tery (traction battery) is in use.
Red: When the gasoline engine is in use.

: Multi-information display

: Center Display



Multi-information display

Tire
Hybrid battery (traction battery)
Gasoline engine

The image shows all the arrows as an
example. The actual display will vary
depending on conditions.



Center Display

Gasoline engine
Electric motor (traction motor)
Hybrid battery (traction battery)
Tires

The image shows all the arrows as an
example. The actual display will vary
depending on conditions.

: Depending on the vehicle specification,

the energy monitor may not be dis-
played on the Center Display.

■

Color of the hybrid battery (traction

battery) on the Center Display

It will be green when the hybrid battery

(traction battery) is being charged, and yel-

low when the hybrid battery (traction bat-

tery) is being used.

■

Remaining charge amount warning of

hybrid battery (traction battery)

●

The buzzer sounds intermittently when

the hybrid battery (traction battery)

remains without charging while the shift

position is in N, or the remaining charge

amount drops below a certain level. If the

remaining charge amount drops further,

the buzzer sounds continuously.

●

When a warning message is shown on

the multi-information display and the

buzzer sounds, follow the instructions

displayed on the screen to perform trou-

bleshooting.

A
B
C

A
B
C
D

126

2-1. Instrument cluster

■

Display procedure

Select

on the main menu.

Select “Trip information”.

Select “Current”.

■

Display

Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
hybrid system was started.
Trip range
Elapsed time since the hybrid sys-
tem was started.

Use the displayed average fuel consump-
tion as a reference.
The image is an example only, and may
vary slightly from actual conditions.

■

Display procedure

Select

on the main menu.

Select “Trip information”.

Select “History”.

■

Display

Latest fuel consumption
Best recorded fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consump-
tion data

Use the displayed average fuel consump-
tion as a reference.
The image is an example only, and may
vary slightly from actual conditions.

■

Updating the history data

Update the latest fuel consumption by

selecting “Update” to measure the current

fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear data”.

■

Trip range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.
This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

Current screen

History screen

A
B

C
D

E
F

A
B
C
D

127

fore
driving

Before driving

3-1. Key information

Keys .................................................

128

3-2. Opening, closing and locking the

doors and trunk

Doors ..............................................

132

Trunk ...............................................

137

Smart entry & start system.....

144

3-3. Adjusting the seats

Front seats.....................................

149

Power rear seat ..........................

156

Driving position memory .........

161

Rear seat position memory....

165

Head restraints............................

166

3-4. Adjusting the steering wheel and

mirrors

Steering wheel ............................

170

Inside rear view mirror..............

171

Digital Rearview Mirror ..........

172

Outside rear view mirrors......

180

3-5. Opening, closing the windows

and moon roof

Power windows ..........................

183

Moon roof .....................................

186

128

3-1. Key information

3-1.Key information

The following keys are provided with
the vehicle.

Electronic keys

• Operating the smart entry & start sys-

tem (



P.144)

• Operating the wireless remote control

function (



P.130)

Mechanical keys
Key number plate
Card key (electronic key) (if
equipped)

Operating the smart entry & start system
(



P.144)

■

Card key (if equipped)

●

The card key is not waterproof.

●

The mechanical key that is stored inside

the card key should be used only if a

problem arises, such as when the card

key does not operate properly.

●

If it is difficult to take out the mechanical

key, push down the lock release button

using a pen tip etc. If it is still difficult to

pull it out, use a coin etc.

●

To store the mechanical key in the card

key, insert it while pressing the lock

release button.

●

If the battery cover is not installed and the

battery falls out or if the battery was

removed because the key got wet, rein-

stall the battery with the positive terminal

facing the Lexus emblem.

■

When riding in an aircraft

When bringing an electronic key onto an

aircraft, make sure you do not press any

buttons on the electronic key while inside

the aircraft cabin. If you are carrying an

electronic key in your bag etc., ensure that

the buttons are not likely to be pressed acci-

dentally. Pressing a button may cause the

electronic key to emit radio waves that

could interfere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

(The card key battery life is about a year

and a half.)

●

If the battery becomes low, an alarm will

sound in the cabin and a message will be

Keys

The keys

B
C
D

129

3-1. Key information

fore
driving

shown on the multi-information display

when the hybrid system is stopped.

●

To reduce key battery depletion when the

electronic key is to not be used for long

periods of time, set the electronic key to

the battery-saving mode. (



P.146)

●

As the electronic key always receives

radio waves, the battery will become

depleted even if the electronic key is not

used. The following symptoms indicate

that the electronic key battery may be

depleted. Replace the battery when nec-

essary.

• The smart entry & start system or the

wireless remote control does not oper-

ate.

• The detection area becomes smaller.

• The LED indicator on the key surface

does not turn on.

●

To avoid serious deterioration, do not

leave the electronic key within 1 m (3 ft.)

of the following electrical appliances that

produce a magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones and

battery chargers

• Recharging cellular phones or cordless

phones

• Table lamps

• Induction cookers

■

Replacing the battery



P.477

■

Confirmation of the number of regis-

tered keys

The number of keys already registered to

the vehicle can be confirmed. Ask any

authorized Lexus retailer or Lexus author-

ized repairer, or any reliable repairer for

details.

■

If “A New Key has been Registered

Contact Your Dealer for Details” is

shown on the multi-information display

This message will be displayed each time

the driver’s door is opened when the doors

are unlocked from the outside for approxi-

mately 10 days after a new electronic key

has been registered.

If this message is displayed but you have not

had a new electronic key registered, ask

any authorized Lexus retailer or Lexus

authorized repairer, or any reliable repairer

to check if an unknown electronic key

(other than those in your possession) has

been registered.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to

strong shocks or bend them.

●

Do not expose the keys to high tem-

peratures for a long period of time.

●

Do not get the keys wet or wash them

in an ultrasonic washer etc.

●

Do not attach metallic or magnetic

materials to the keys or place the keys

close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else

to the surface of the electronic key.

●

Do not place the keys near objects that

produce magnetic fields, such as TVs,

audio systems and induction cookers,

or medical electrical equipment, such

as low-frequency therapy equipment.

■

Carrying the electronic key on your

person

Carry the electronic key 10 cm (3.9 in.)

or more away from electric appliances

that are turned on. Radio waves emitted

from electric appliances within 10 cm

(3.9 in.) of the electronic key may inter-

fere with the key, causing the key to not

function properly.

■

In case of a smart entry & start system

malfunction or other key-related

problems



P.512

Lexus LS (2023 year). Manual in english - page 3
