Lexus RX300 (MCU15). Service manual - part 7

INTRODUCTION –

Vehicle Lift and Support Locations

IN-21

4WD

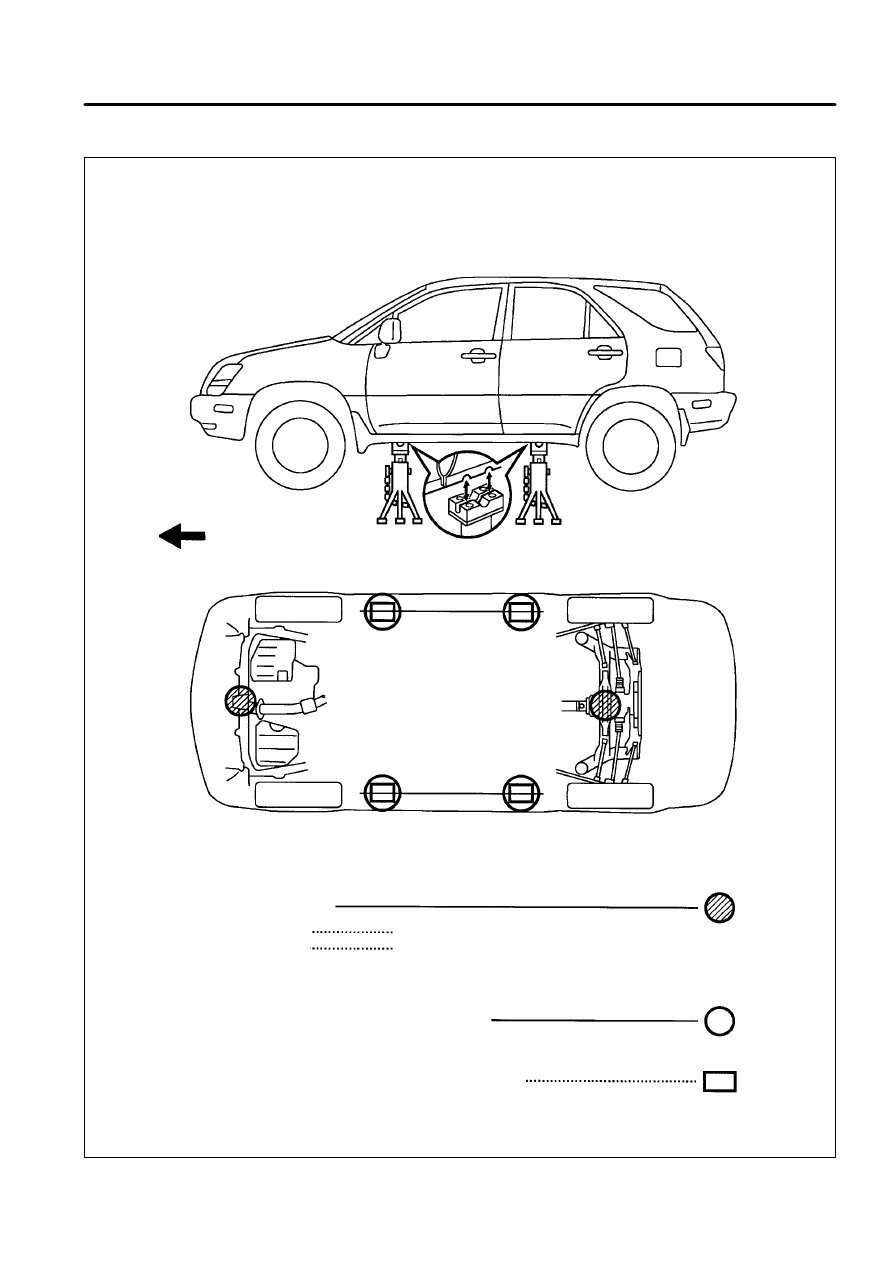

JACK POSITION

SUPPORT POSITION

PANTOGRAPH JACK POSITION

CAUTION: Before jacking–up the front and rear, make

sure the car is not carrying any extra weight.

Safety stand and swing arm type lift

Front frame
Rear differential support

Front
Rear

FRONT

INTRODUCTION

– Vehicle Lift and Support Locations

IN-22

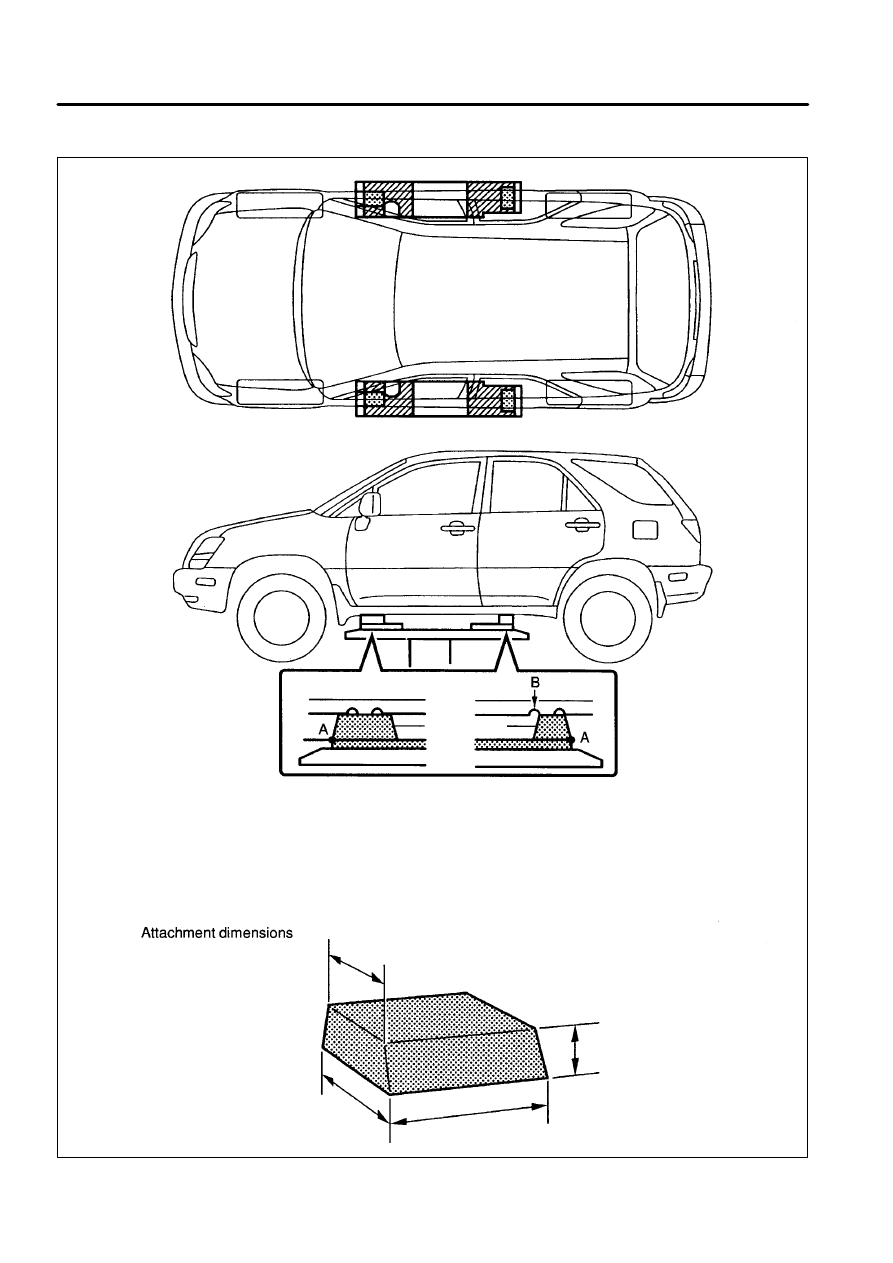

PLATE TYPE LIFT

HINT:

Left and right set position

Front and rear set position

Place the over center of lift.

S Align the cushion gum ends of the plate with the attachment lower

ends (A).

S Align the attachment upper end (B) with the front cut–out at the

pantograph jack position.

S Place the rear attachment sideways.

Attachment

85 mm (3.35 in.)

70 mm (2.76 in.)

200 mm (7.87 in.)

100 mm (3.94 in.)

AR

AR-1

ANTI-RUST TREATMENT

Page

GENERAL INFORMATION

AR-2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

BODY PANEL SEALING AREAS

AR-4

. . . . . . . . . . . . . . . . . . . . . . .

BODY PANEL UNDERCOATING AREAS

AR-9

. . . . . . . . . . . . . . . .

BODY PANEL ANTI-RUST AGENT

APPLICATION AREAS

AR-10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BODY PANEL ANTI-CHIPPING PAINT

APPLICATION AREAS

AR-11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

UNDERCOAT APPLICATION

Weld-Through Primer
(Spot Sealer)

WELD-THROUGH PRIMER (SPOT SEALER)
APPLICATION

Sealer Gun

BODY SEALER APPLICATION

ANTI-RUST TREATMENT –

General Information

AR-2

GENERAL INFORMATION

Anti-rust treatment is necessary before welding and before and after the painting process.

ANTI-RUST TREATMENT BEFORE WELDING

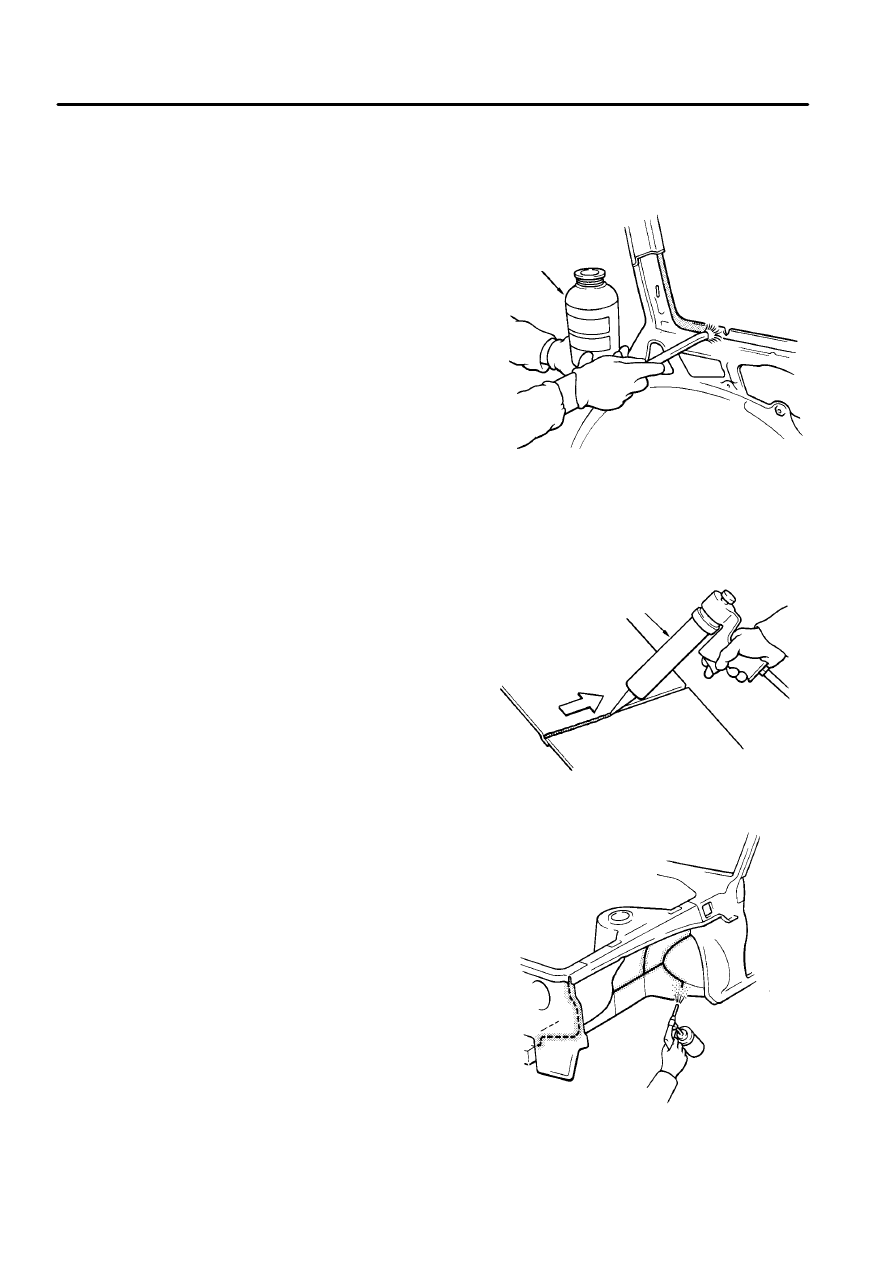

1.

WELD-THROUGH PRIMER (SPOT SEALER)APPLICATION

For anti-corrosion measures, always apply the
weld-through primer (spot sealer) to welding sur-
faces where the paint film has been removed.

HINT:

Apply the weld-through primer (spot sealer)

so that it does not ooze out from the joining sur-
faces.

ANTI-RUST TREATMENT BEFORE PAINTING PROCESS

1.

BODY SEALER APPLICATION

For water-proofing and anti-corrosion measures, al-
ways apply the body sealer to the body panel seams
and hems of the doors, hoods, etc.

2.

UNDERCOAT APPLICATION

To prevent corrosion and protect the body from
damage by flying stones, always apply sufficient
undercoat to the bottom surface of the under body
and inside of the wheel housings.
