Lexus RX300 (MCU15). Service manual - part 6

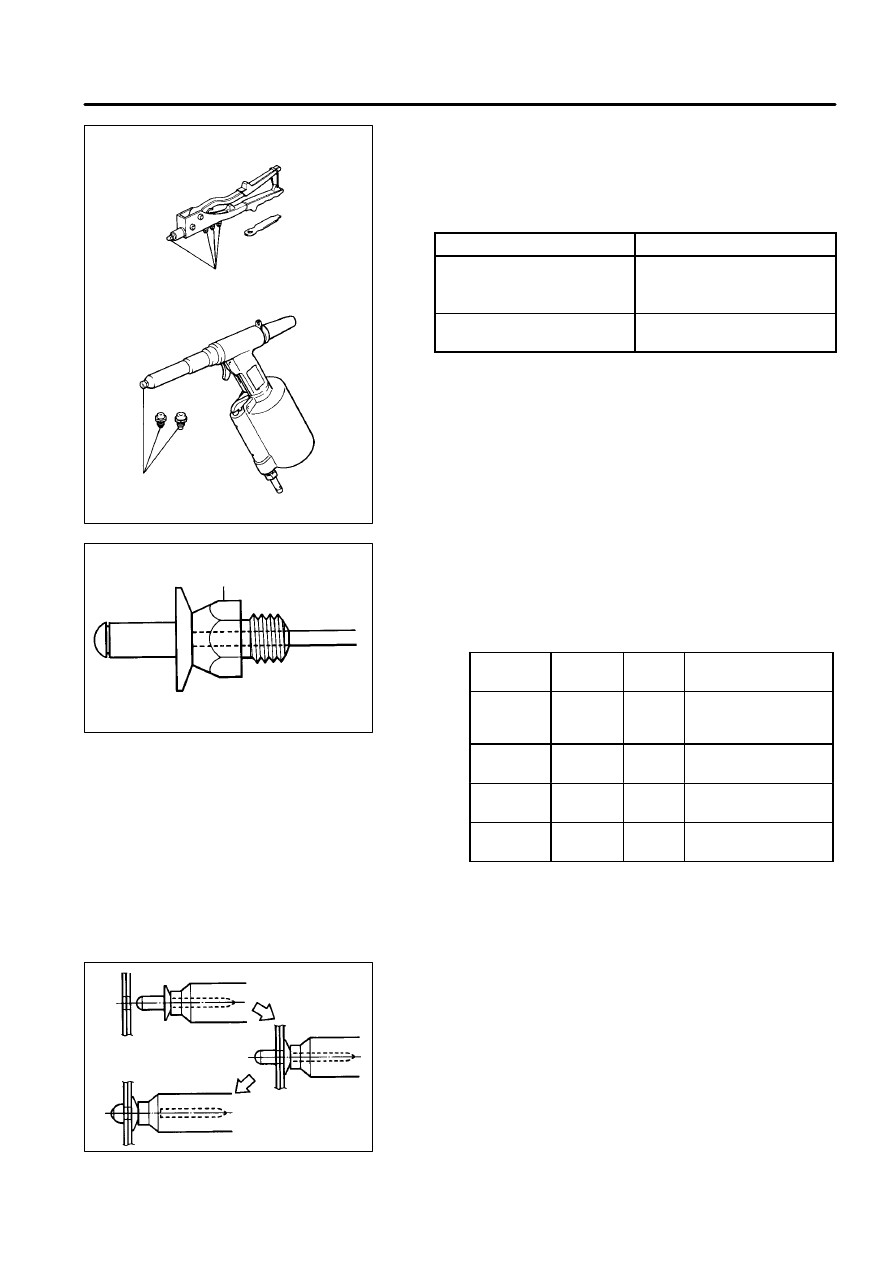

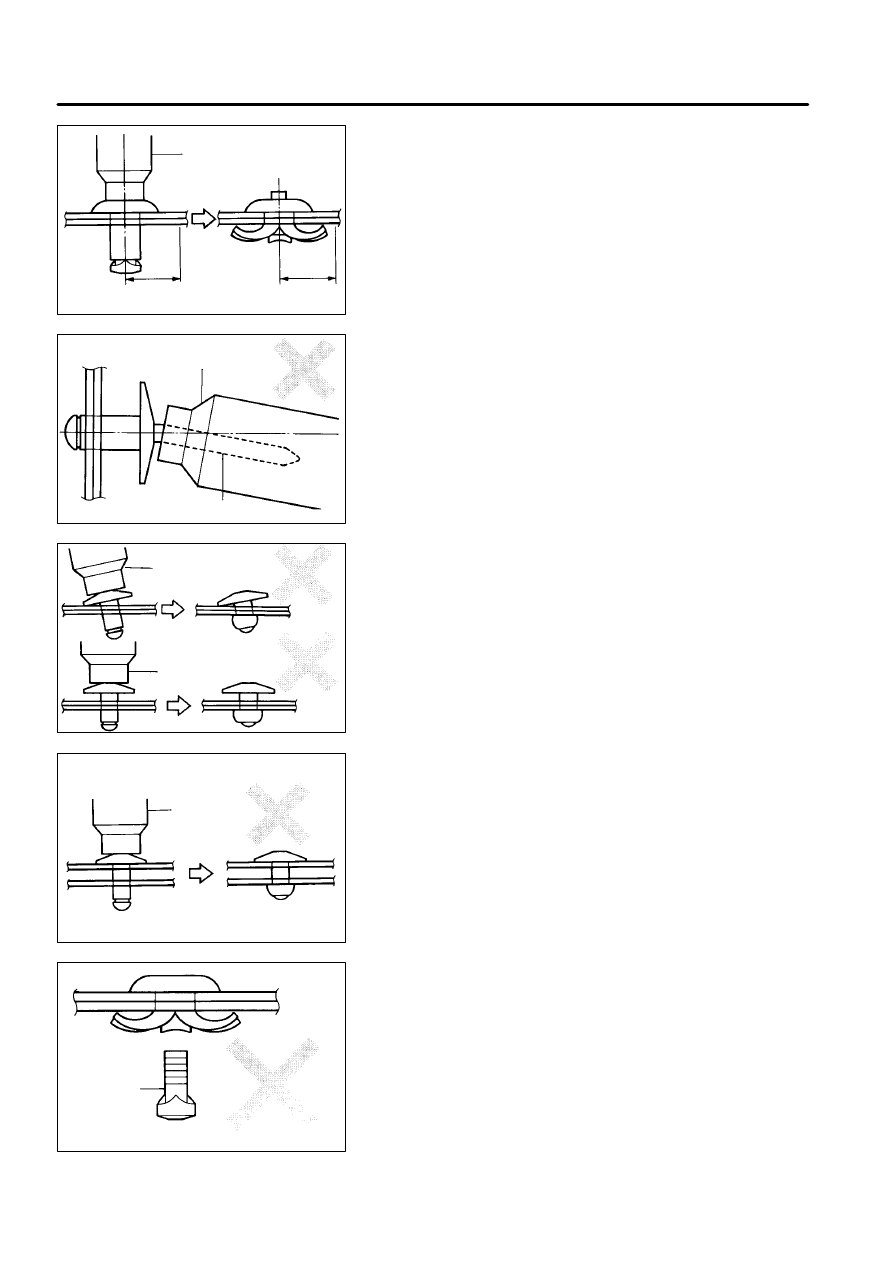

INTRODUCTION

– Rivet Removal and Installation

IN-17

Hand Riveter

Nose Piece

Air Riveter (P / N 09050-20010)

Nose Piece

RIVET INSTALLATION

(1)

Apply touch-up paint at the area.

(2)

Select an installation tool.

Item

Installation tool

Aluminum-Rivet
Waterproof-Rivet

with ø4.8 mm

Hand Riveter or Air Riveter

Steel-Rivet
T-Rivet

with ø6.4 mm

Air Riveter

(3)

Select the smallest a nose piece possible for a rivets
mandrel.

NOTE:

Wrong selection of a nose piece may cause

the riveter to be damaged or bad tightening.

<Reference> Nose piece of Air Riveter

Parts

Name

Parts

Number

Color

Rivet type

Nose piece

No. 1

09050

-02020

Silver

ø4.0 mm Aluminum
ø4.0 mm Steel
ø4.8 mm Waterproof

Nose piece

No. 2

09050

-02030

Copper

ø4.8 mm Aluminum
ø4.8 mm Steel

Nose piece

No. 3

09050

-02040

Black

ø6.4 mm T-Rivet

Nose piece

No. 4

09050

-02050

Black

ø4.0 mm Waterproof
Special

(4)

Insert the nose piece to the riveter and then the man-
drel of the new rivet into the nose piece.

(5)

Vertically insert the rivet into a hole and keep place it
strongly.

NOTE:
D If the tip of the rivet is not deformed or the mandrel

is not cut, repeat process (5) again.

INTRODUCTION

– Rivet Removal and Installation

IN-18

Riveter

20 mm
(0.79 in.)

Riveter

Mandrel

Riveter

Mandrel

D T-Rivet with ø6.4 mm:

Do not place your hands or the wire harness within
a radius of 20 mm (0.70 in.) from the rivet, as the riv-
et is cut and opened in this area.

D Prizing a riveter damages the riveter showing that it

is not tightened correctly and bends the mandrel.

D Loose tightening may result from either tilting the

riveter while handling or the riveter not connecting
to the material.

D Loose tightening also occurs when a rivet is applied

between materials without touching.

D T-Rivet with ø6.4 mm:

When a mandrel of a rivet is lost, the rivet should be
replaced to prevent loose tightening.

INTRODUCTION –

Abbreviations Used in This Manual

IN-19

ABBREVIATIONS USED IN THIS MANUAL

For convenience, the following abbreviations are used in this
manual.

ABS

Antilock Brake System

A / C

Air Conditioner

assy

assembly

ECT

Electronic Controlled Transmission

ECU

Electronic Control Unit

e.g.

Exempli Gratia (for Example)

Ex.

Except

FWD

Front Wheel Drive Vehicles

4WD

Four Wheel Drive Vehicles

in.

inch

Left-hand

LHD

Left-hand Drive

MIG

Metal Inert Gas

M / Y

Model Year

PPS

Progressive Power Steering

Right-hand

RHD

Right-hand Drive

SRS

Supplemental Restraint System

SSM

Special Service Materials

w /

with

w / o

without

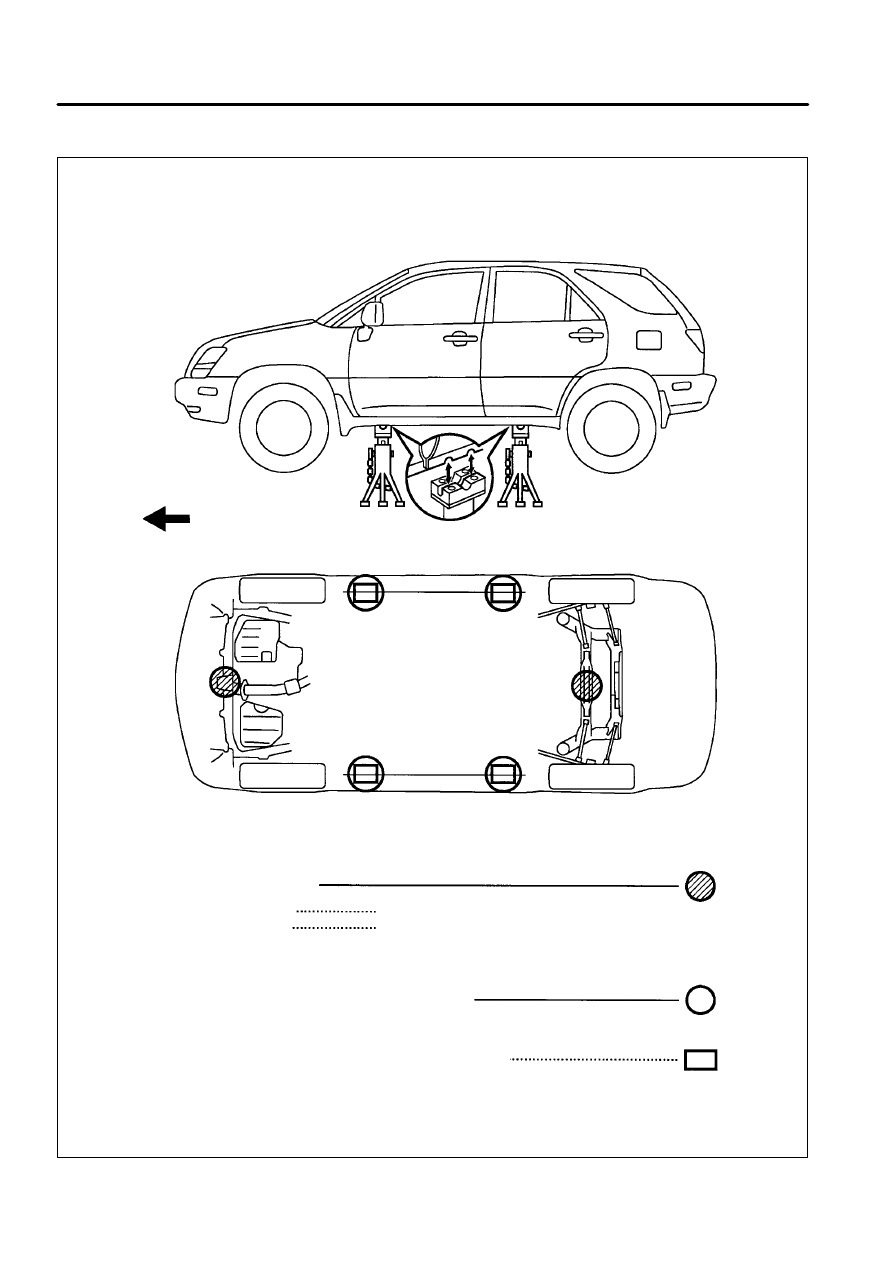

INTRODUCTION

– Vehicle Lift and Support Locations

IN-20

2WD

FRONT

JACK POSITION

SUPPORT POSITION

PANTOGRAPH JACK POSITION

CAUTION: Before jacking–up the front and rear, make

sure the car is not carrying any extra weight.

Safety stand and swing arm type lift

Front frame
Rear suspension member

Front
Rear

VEHICLE LIFT AND SUPPORT LOCATIONS
