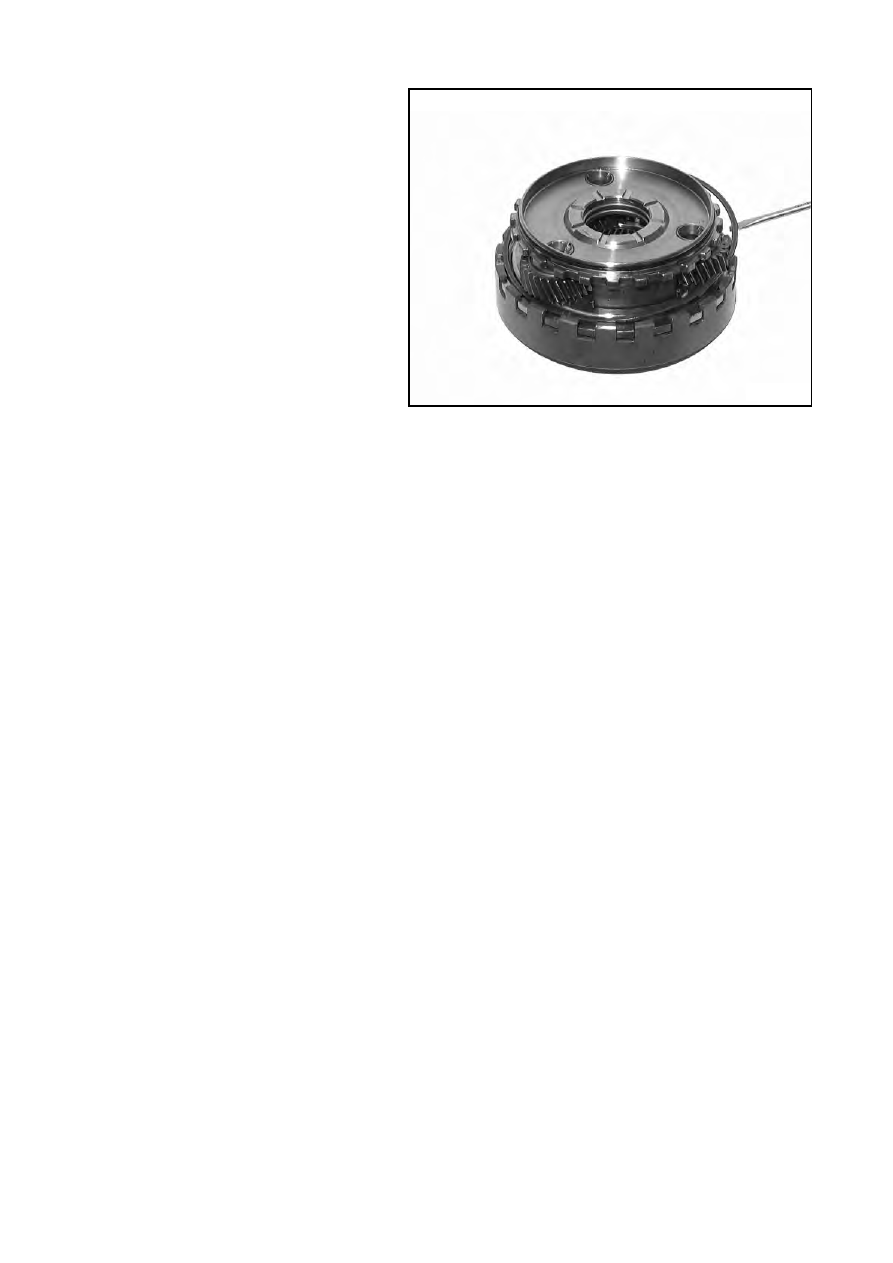

Ring gear II can be separated from planet
carrier I by taking out the snap ring.
Remove the O-ring from planet carrier I.

2.4/8

97216

2.5

Tower II

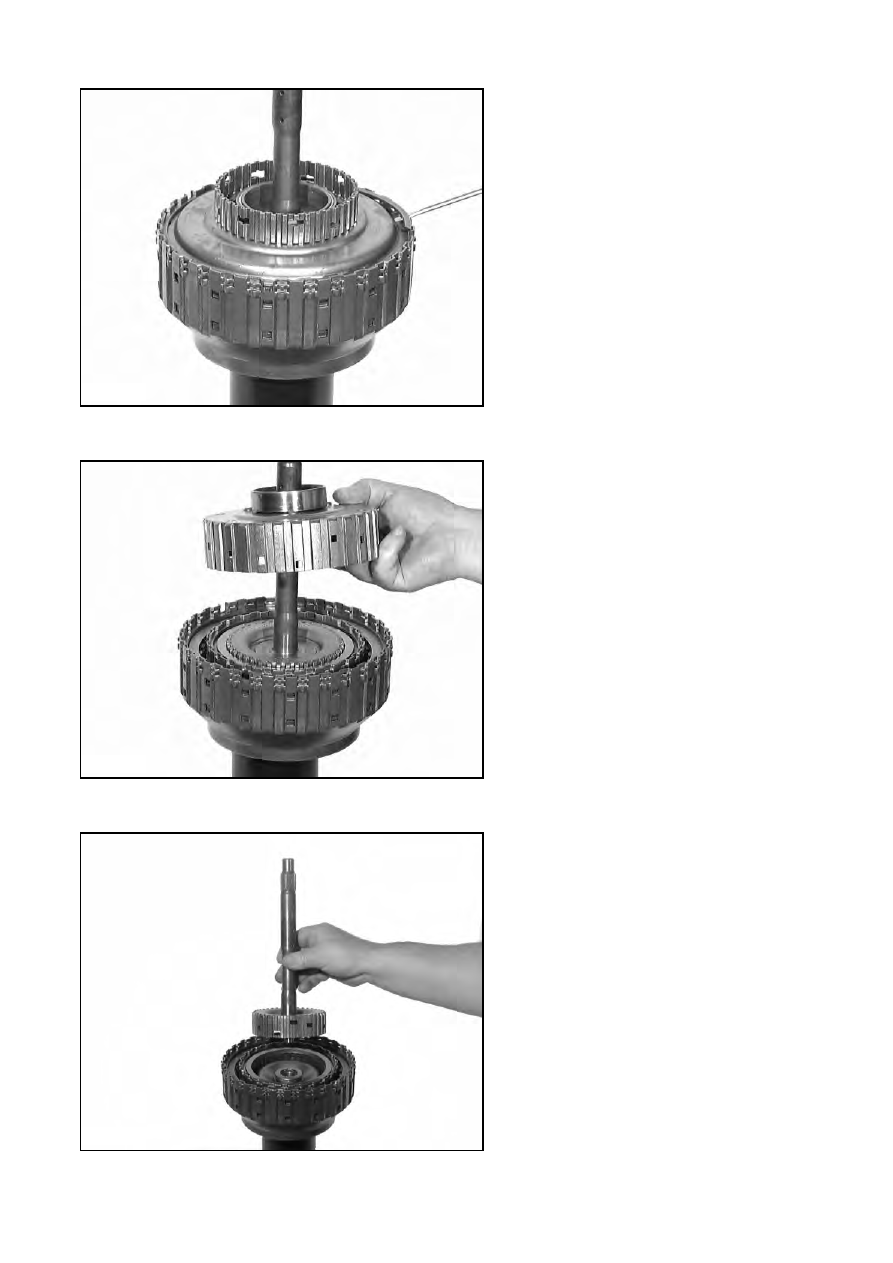

Take out the snap ring and remove inner
disc carrier C.

Take out inner disc carrier B and lift off
the axial needle roller bearing from the
intermediate shaft.

Lift up the intermediate shaft with inner
disc carrier A. Remove axial needle
bearing.

Now turn the set by 180° and put it back
into the supporting fixture.

2.5/1

97217

97218

97048

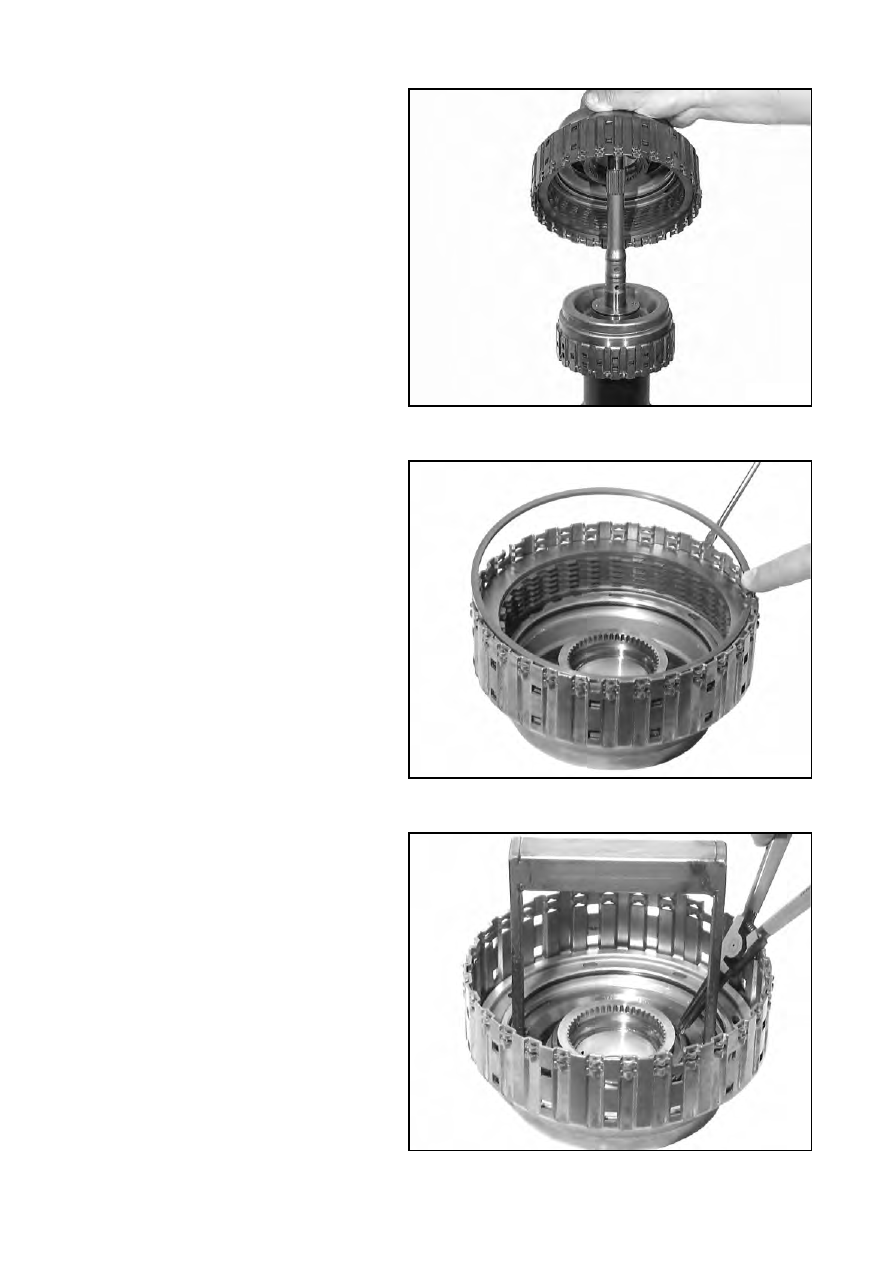

Take off clutch B from clutch A/ input
shaft.

Note!
The input shaft is meshed with clutch B.

Unsnap clutch B’s snap ring and take out
the complete clutch pack.

Press down the cup spring in the mandrel
press using assembly bracket 5x46 001
500. Remove the snap ring with suitable
pliers. Take out the fixing washer and the
cup spring.

2.5/2

97219

97050

97051

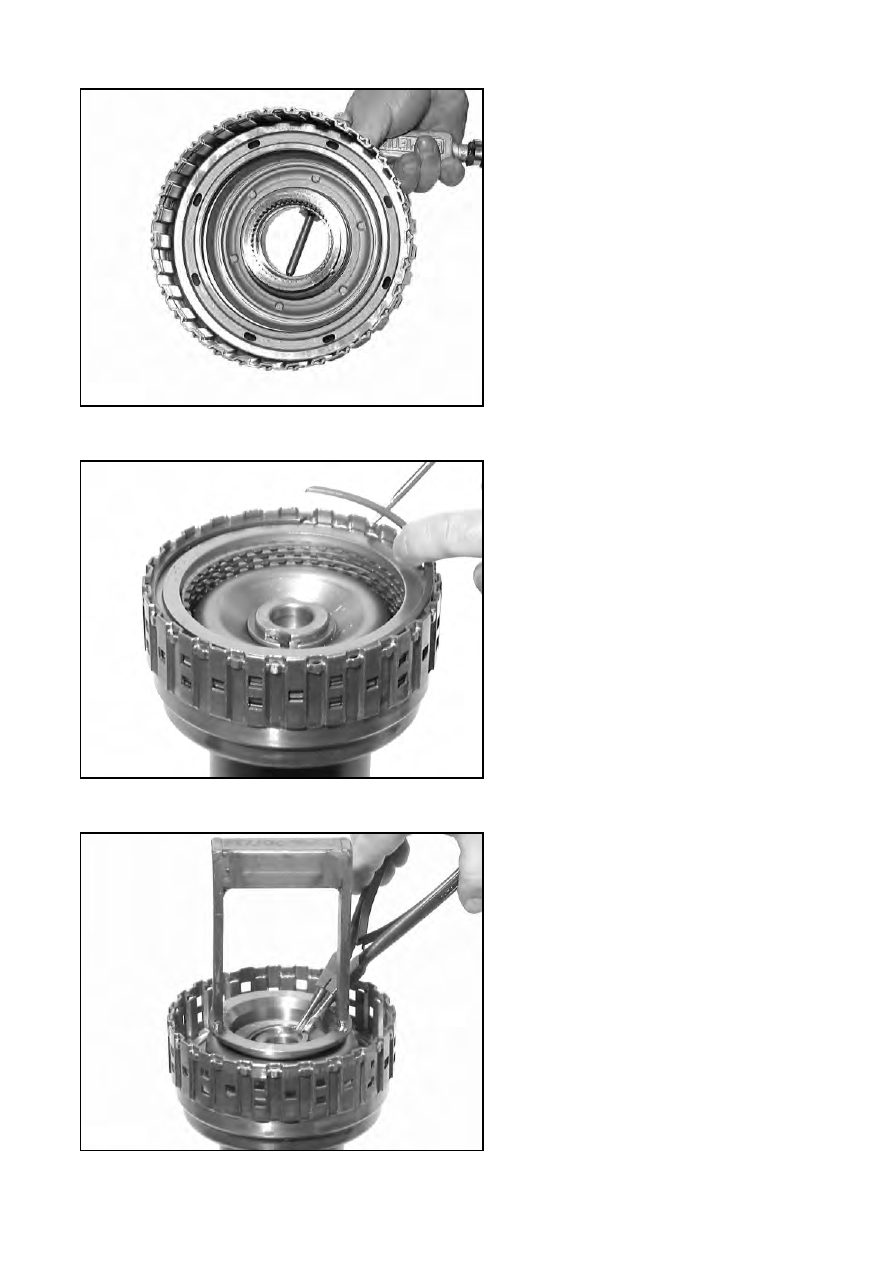

Cover one of the two oil supply bores
and press out the piston with compressed
air. Remove three O-rings from piston B.

Take out the snap ring for clutch A and
remove its complete clutch pack.

Using assembly bracket 5x46 001 499,
press down the oil dam and remove the
snap ring with suitable pliers. Take out
the oil dam and cup spring, and pull the
O-ring off the oil dam.
