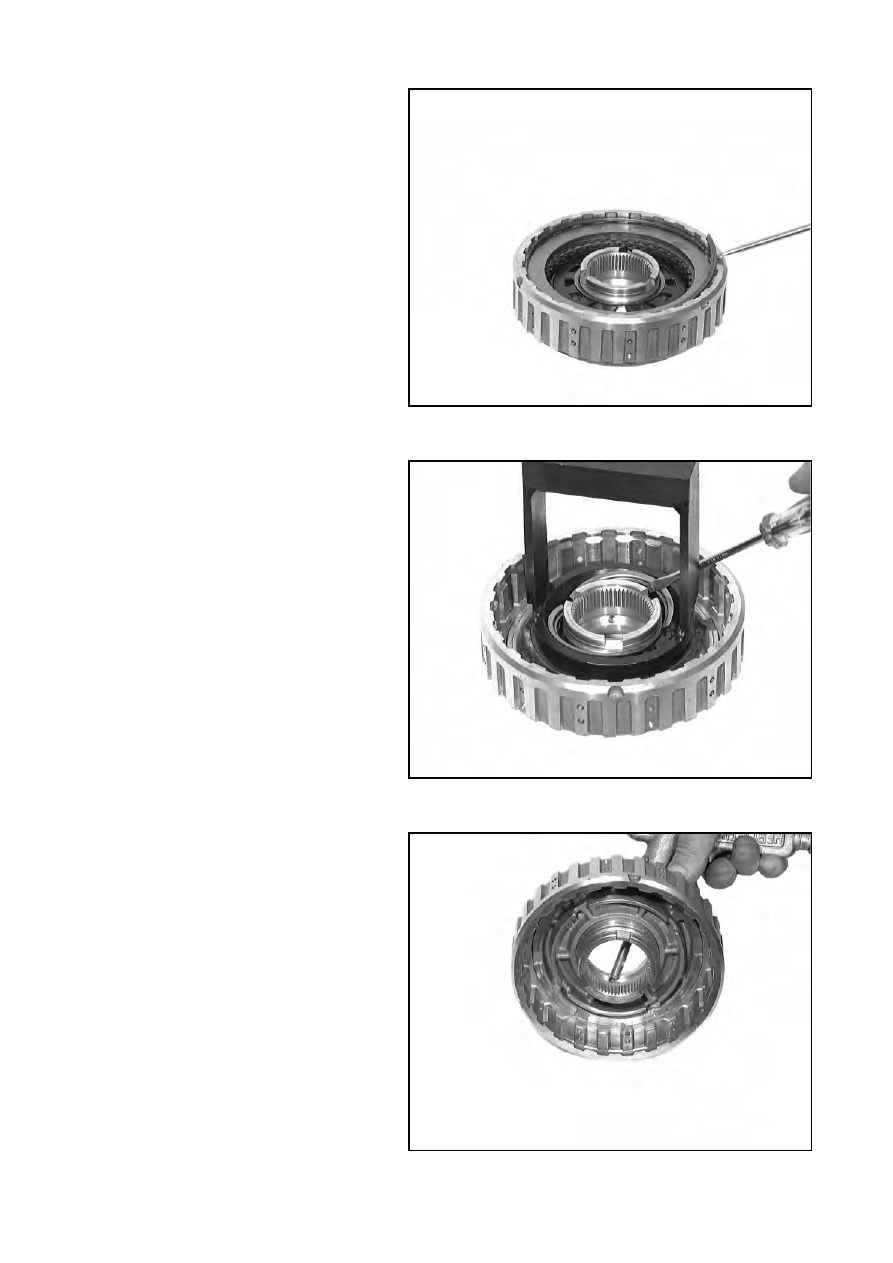

Unsnap the snap ring for clutch C and
remove the complete clutch pack.

Using assembly bracket 5x46 030 167,
press down cup spring C with the man-
drel press, take out the split stop ring and
remove the cup spring.

Carefully press out piston C using com-
pressed-air via the oil feed bore.
When doing this, block the other two
bores.

Important!
Remove the two O-rings from the piston.

2.4/4

97210

97211

97212

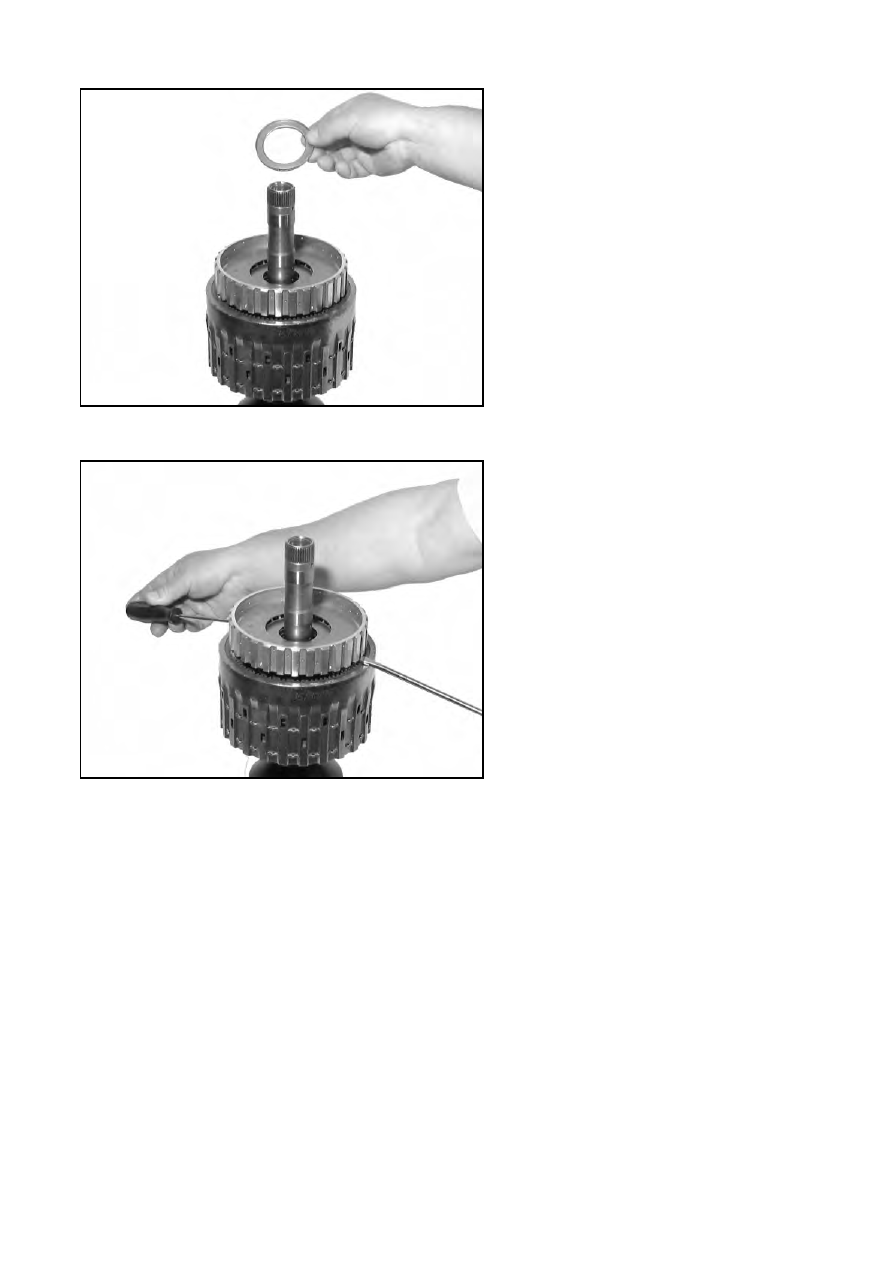

Lift off the needle roller bearing.

Using two screwdrivers, lift up planet
carrier E and take off the thrust washer.

2.4/5

97038

97039

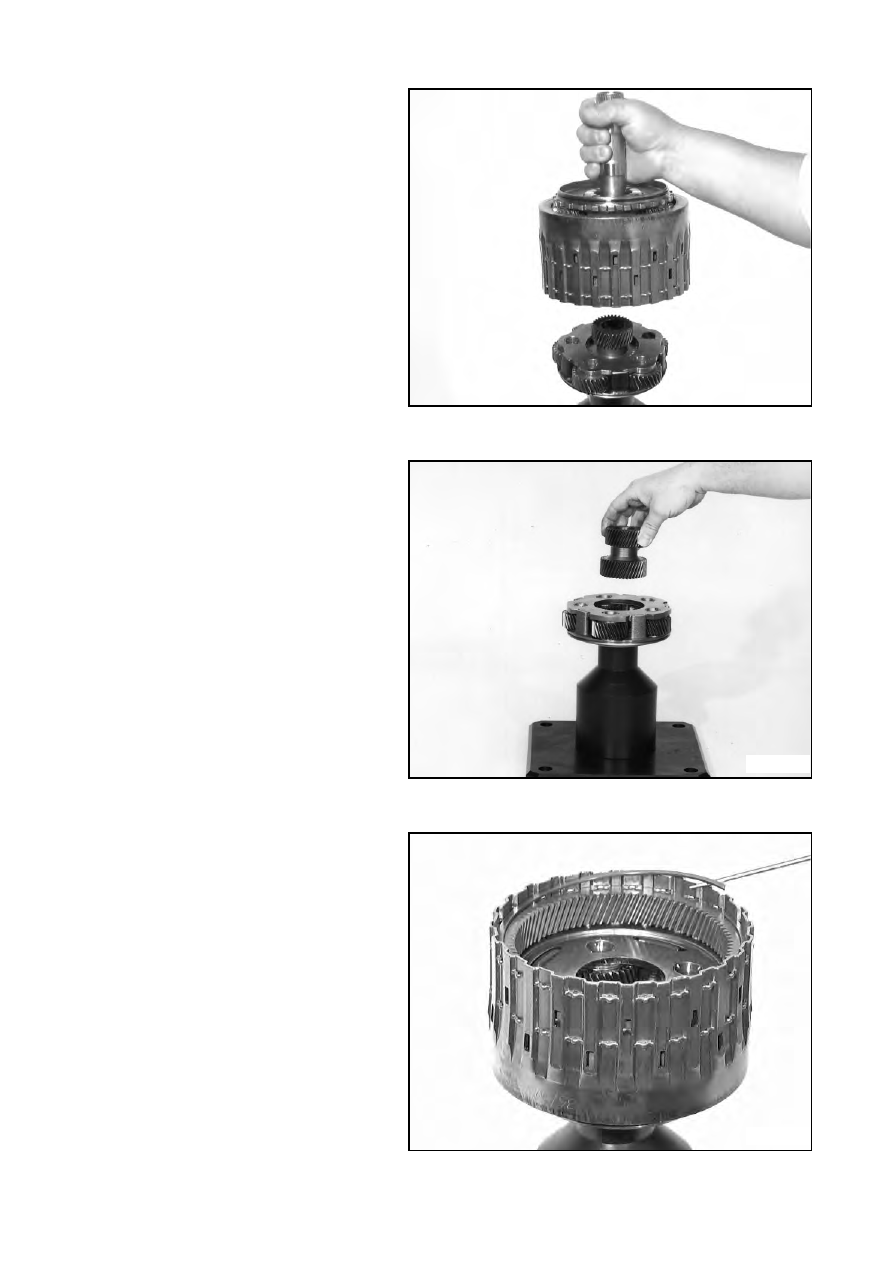

Lift off planetary drive I + II from plane-
tary drive III.

Disassemble planetary drive III by taking
the sun wheel shaft out of planet carrier
III.

Put planetary drive I + II into device
5x46 000 916. Take out the snap ring and
remove ring gear III.

2.4.2 Planetary drive (III, II and I)

2.4/6

97040

92226

97213

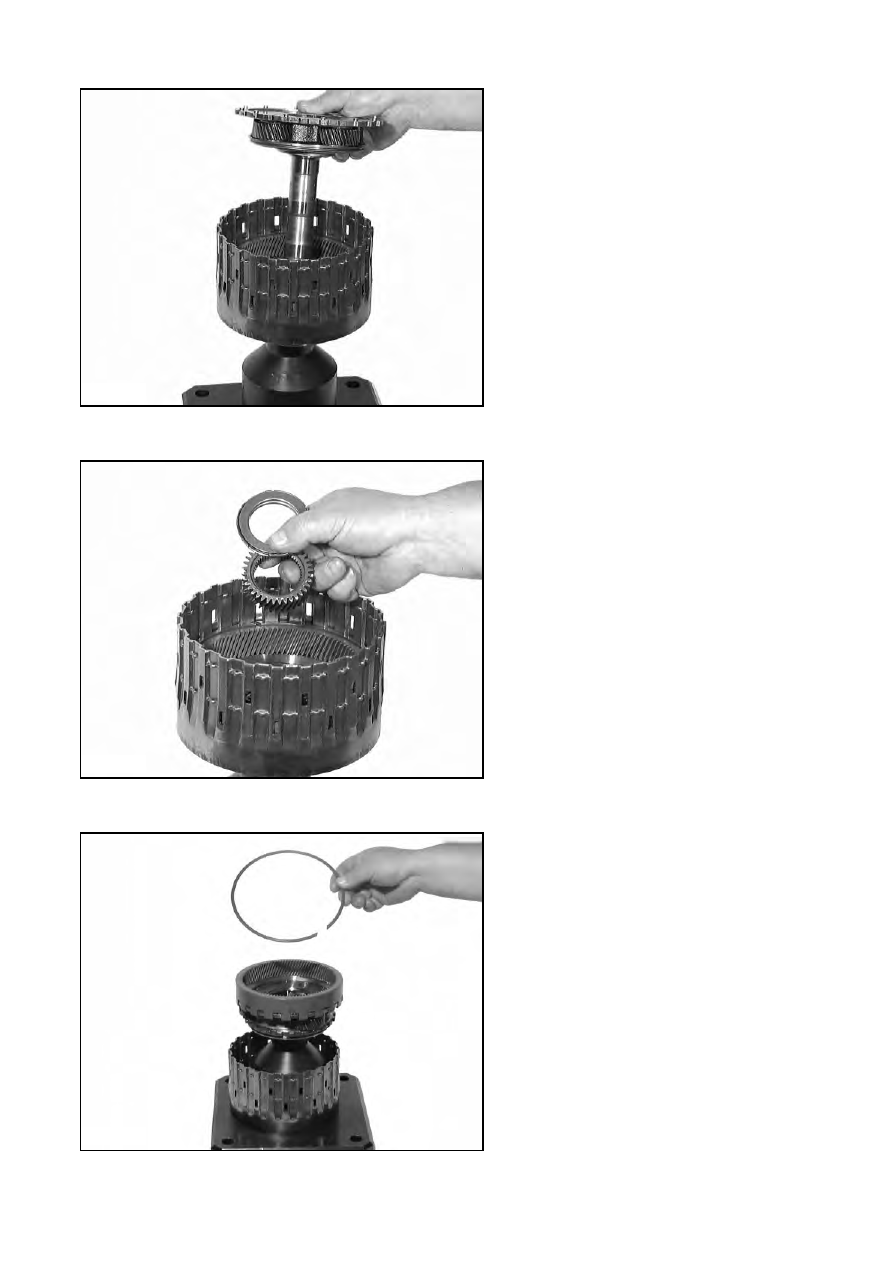

Lift out planet carrier II.

Take out the axial needle roller bearing
and sun wheel.

Take out the snap ring and separate plan-
et carrier I and ring gear II from ring
gear I.

2.4/7

97214

97215

97044
