Jaguar 5HP24 transmission. Service manual - part 15

2.4 Tower I
2.4.1 Brake D, E and clutch C

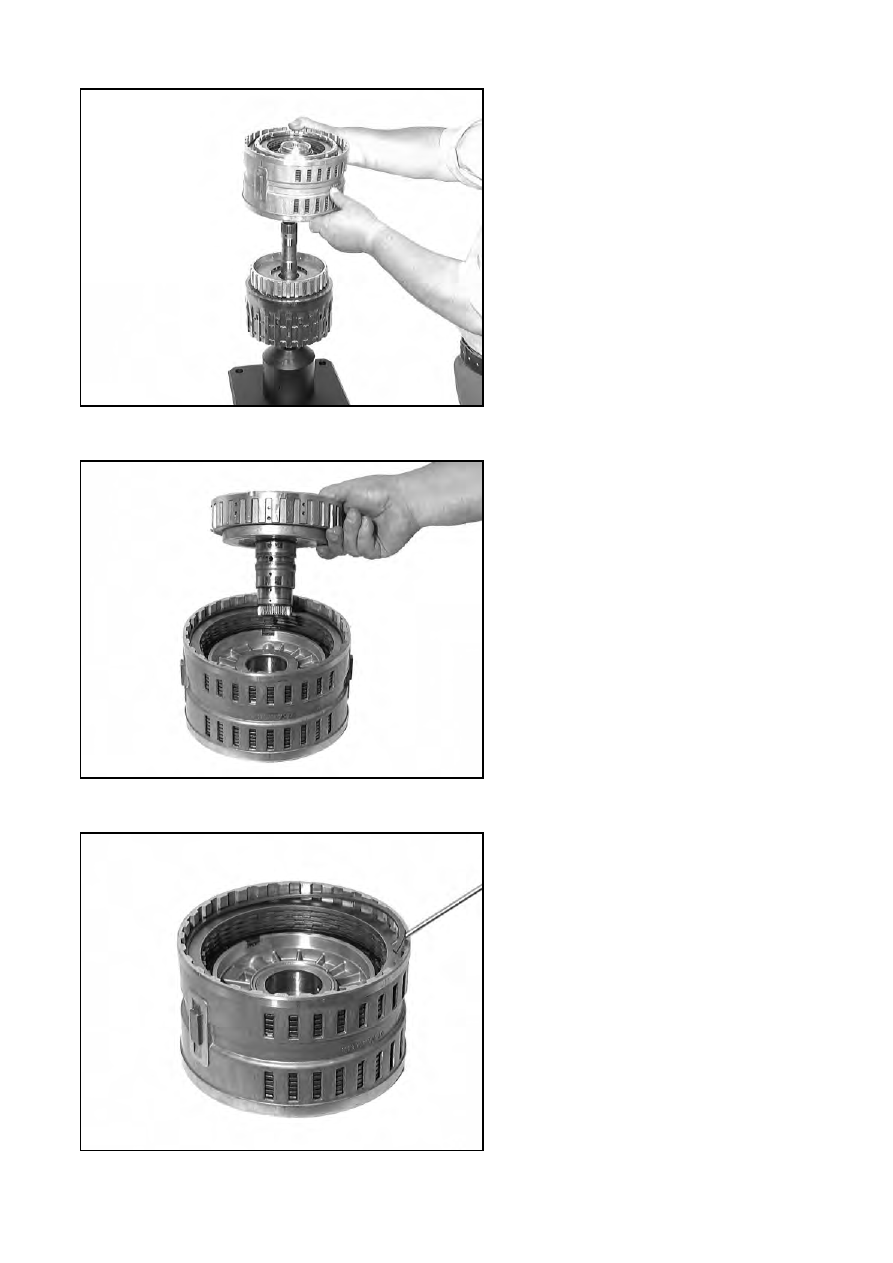

Lift off brake D/E as a complete unit
with clutch C.

Take out clutch C with the sun wheel
shaft.
Remove the axial needle roller bearing
from the hub of cylinder D.

Unsnap the snap ring from brake D and
take out the complete clutch pack.

2.4/1

97202

97205

97206

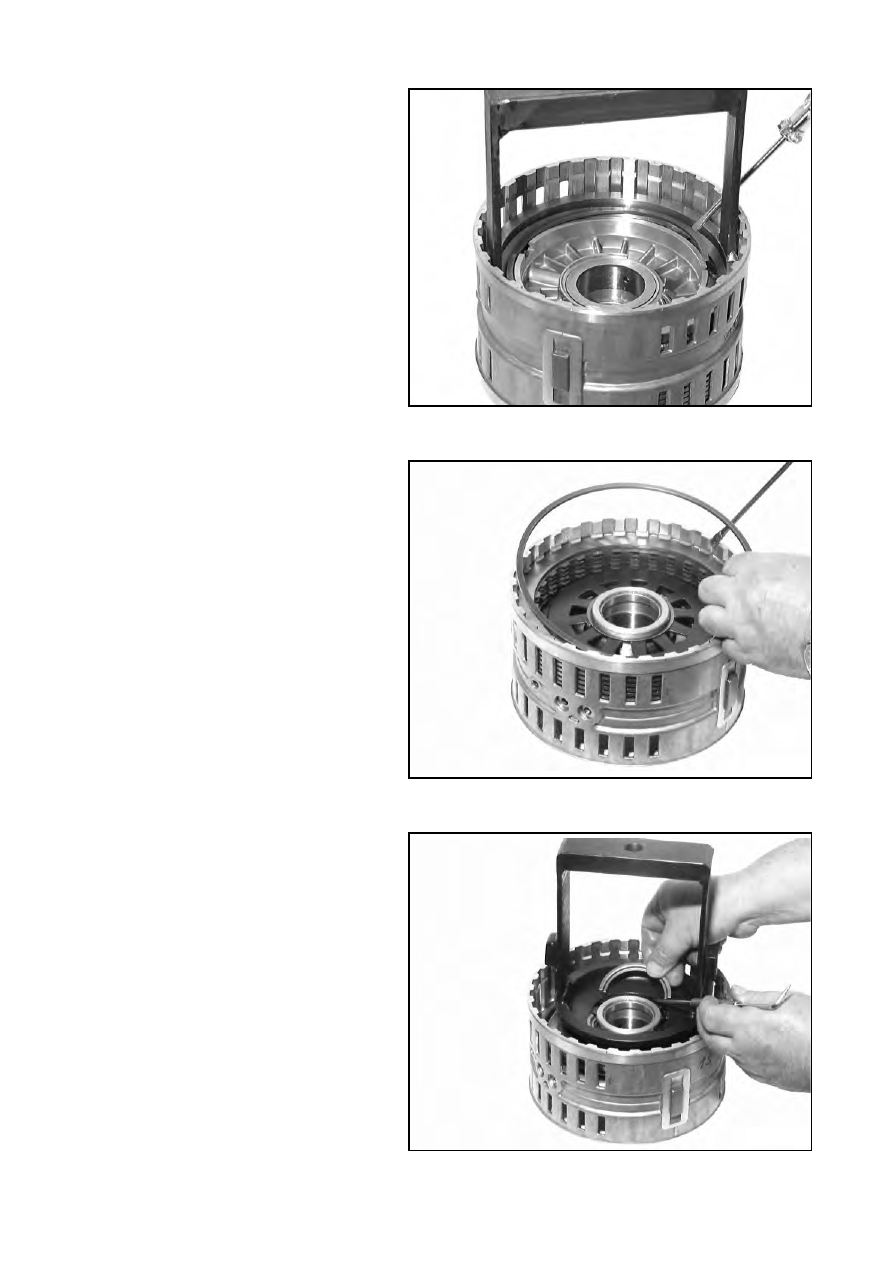

Using assembly bracket 5x46 001 501,
press down cup spring D with the man-
drel press, take out the snap ring, and
remove the cup spring.

Turn over cylinder D/E, take out the
brake E snap ring, and remove the com-
plete clutch pack.

Using assembly bracket 5x46 001 502,
press down cup spring E in the mandrel
press, take out the split stop ring, and
remove the cup spring.

2.4/2

97207

97029

97030

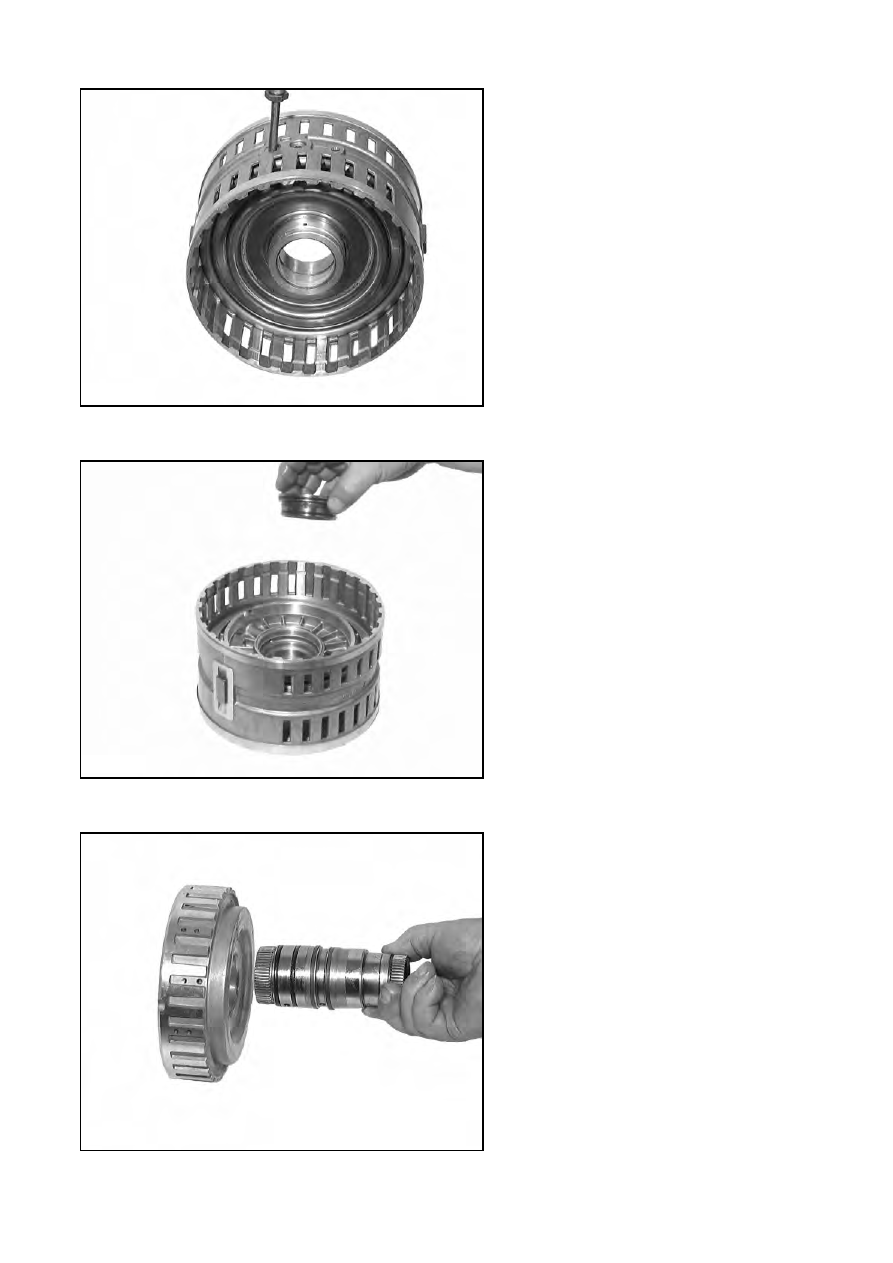

Apply the compressed-air gun to the oil
feed bore and force out pistons D and E
with compressed air.
Remove the O-rings on the cylinder and
piston E and the two O-rings on piston D.

Force the bushing out of cylinder D/E.
Remove the two O-rings from the bushing.

Press out the sun wheel shaft of the
cylinder C using a suitable mandrel. Take
the two O-rings and the two rectangular-
section rings off the shaft.

2.4/3

97208

97032

97209
