6
.

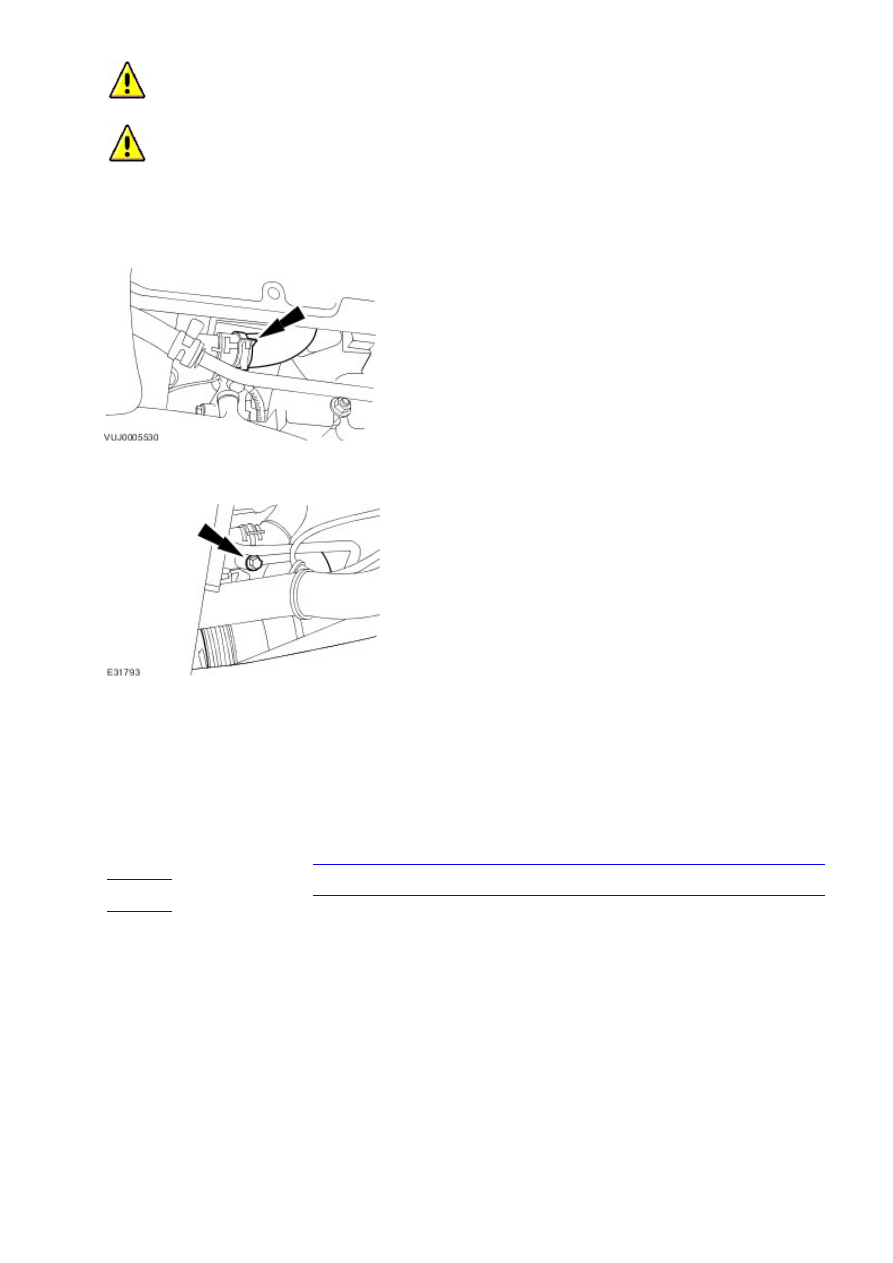

 CAUTION: Cap the power steering line to prevent loss of fluid and prevent dirt ingress.



 CAUTION: If power steering fluid comes into contact with the paintwork, the affected area must be

immediately washed down with cold water.


NOTE:



Drain the fluid into a suitable container.


Disconnect the power steering reservoir to power steering pump supply line.







7 . Remove the air conditioning (A/C) compressor upper bolt.







8 . Lower the vehicle.



Vehicles without supercharger



9
.

Remove the throttle body.
For additional information, refer to

Throttle Body - 4.2L NA V8 - AJV8/3.5L NA V8 - AJV8, VIN Range: G00442->G45703

(19.70.04)



For additional information, refer to

Throttle Body - 4.2L NA V8 - AJV8/3.5L NA V8 - AJV8, VIN Range: G45704->G99999

(19.70.04)








All vehicles

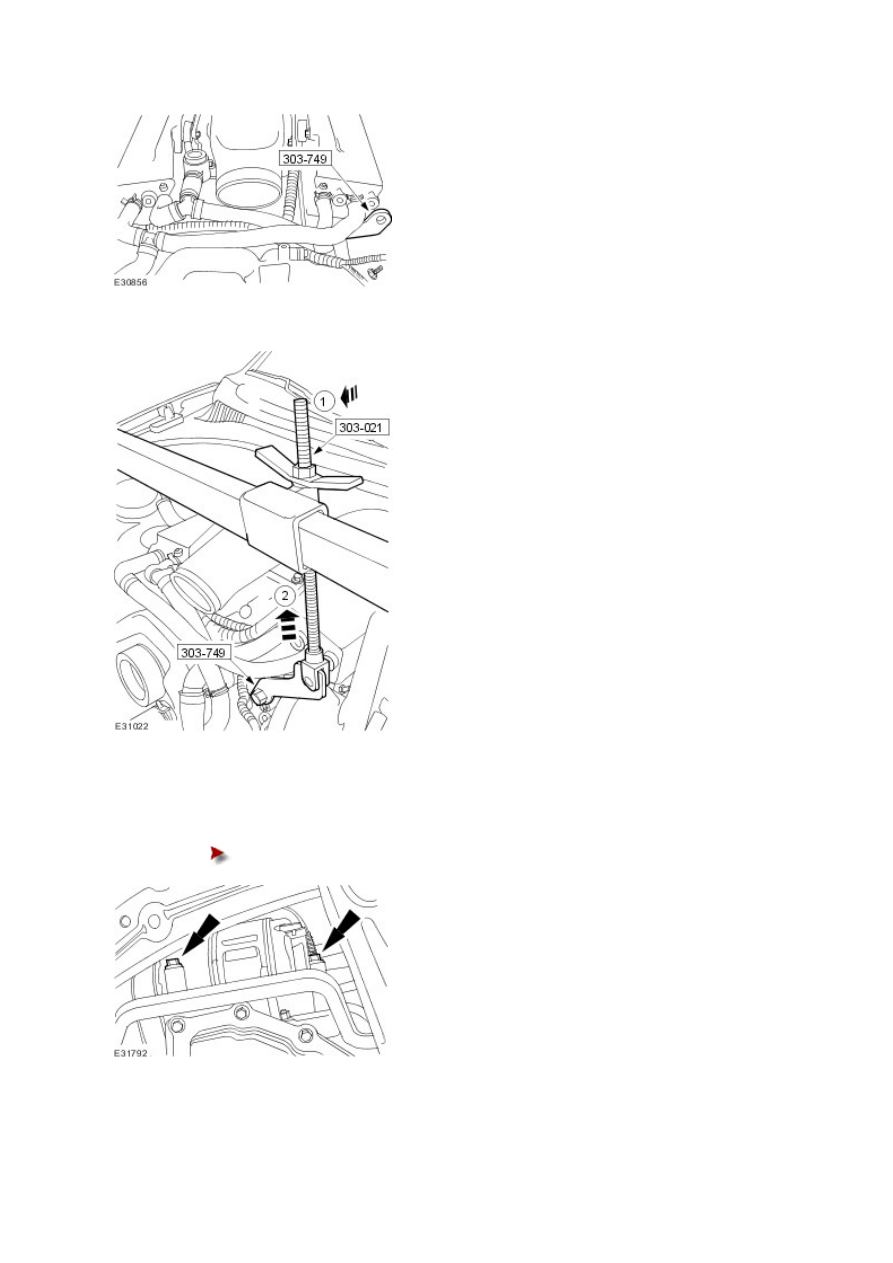

10 . Install the left-hand engine lifting eye.





11 . Using the special tools, raise the engine to a suitable height.







12 . Raise the vehicle.





13 . Detach the A/C compressor.





Remove the 2 A/C compressor lower bolts.







www.



14 . Remove the 2 power steering pump lower bolts.







15 . Lower the vehicle.





16
.

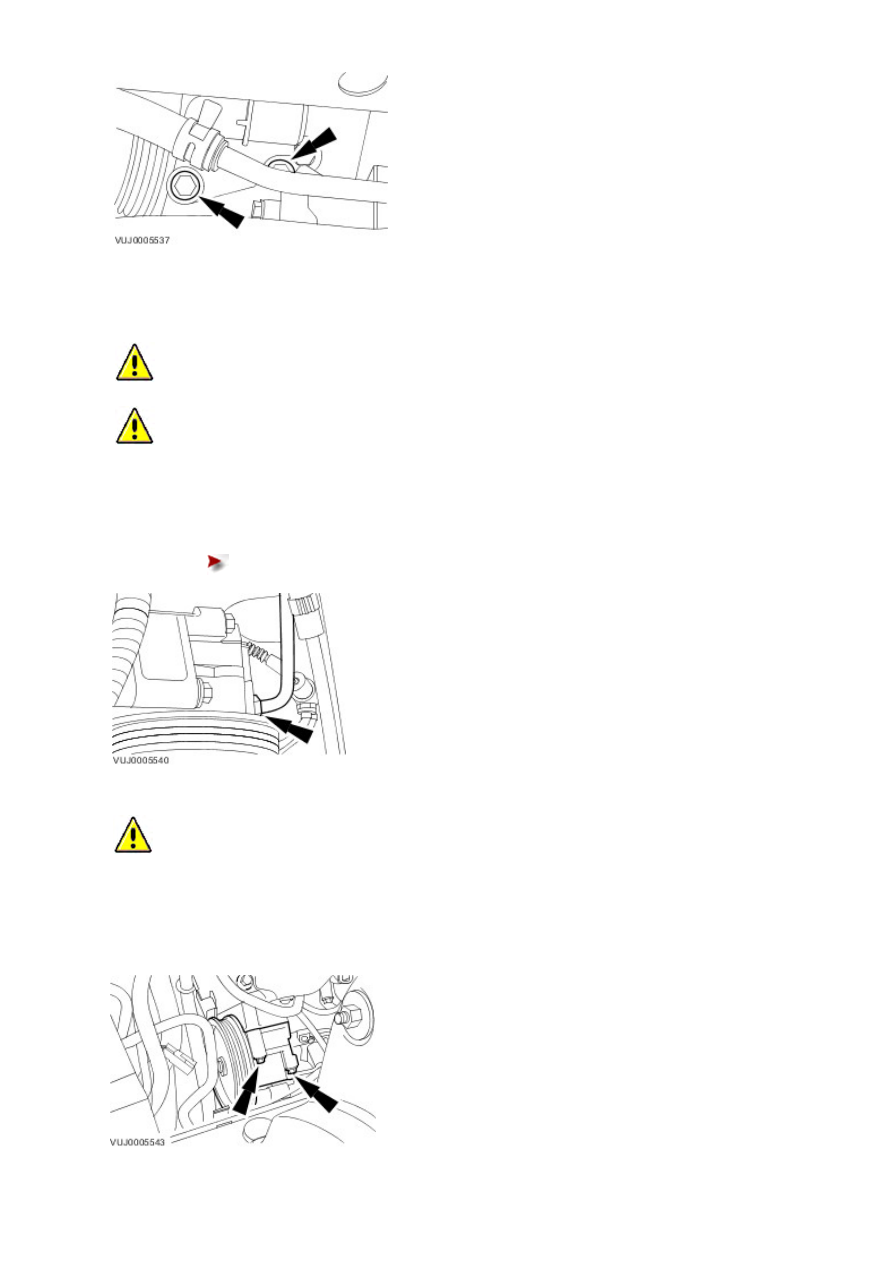

 CAUTION: Cap the power steering lines to prevent loss of fluid and prevent dirt ingress.



 CAUTION: If power steering fluid comes into contact with the paintwork, the affected area must be

immediately washed down with cold water.


NOTE:



Drain the fluid into a suitable container.


Disconnect the power steering pump to steering gear pressure line.





Remove and discard the O-ring seal.









17
.

 CAUTION: Care must be taken to make sure that the coolant hoses and A/C pipes are not damaged

during the removal of the power steering pump.


NOTE:



The power steering pump rear upper bolt cannot be removed with the power steering pump located on the dowels.
The power steering pump must be detached and rotated to allow the bolt to be removed.


Remove the power steering pump.






Installation



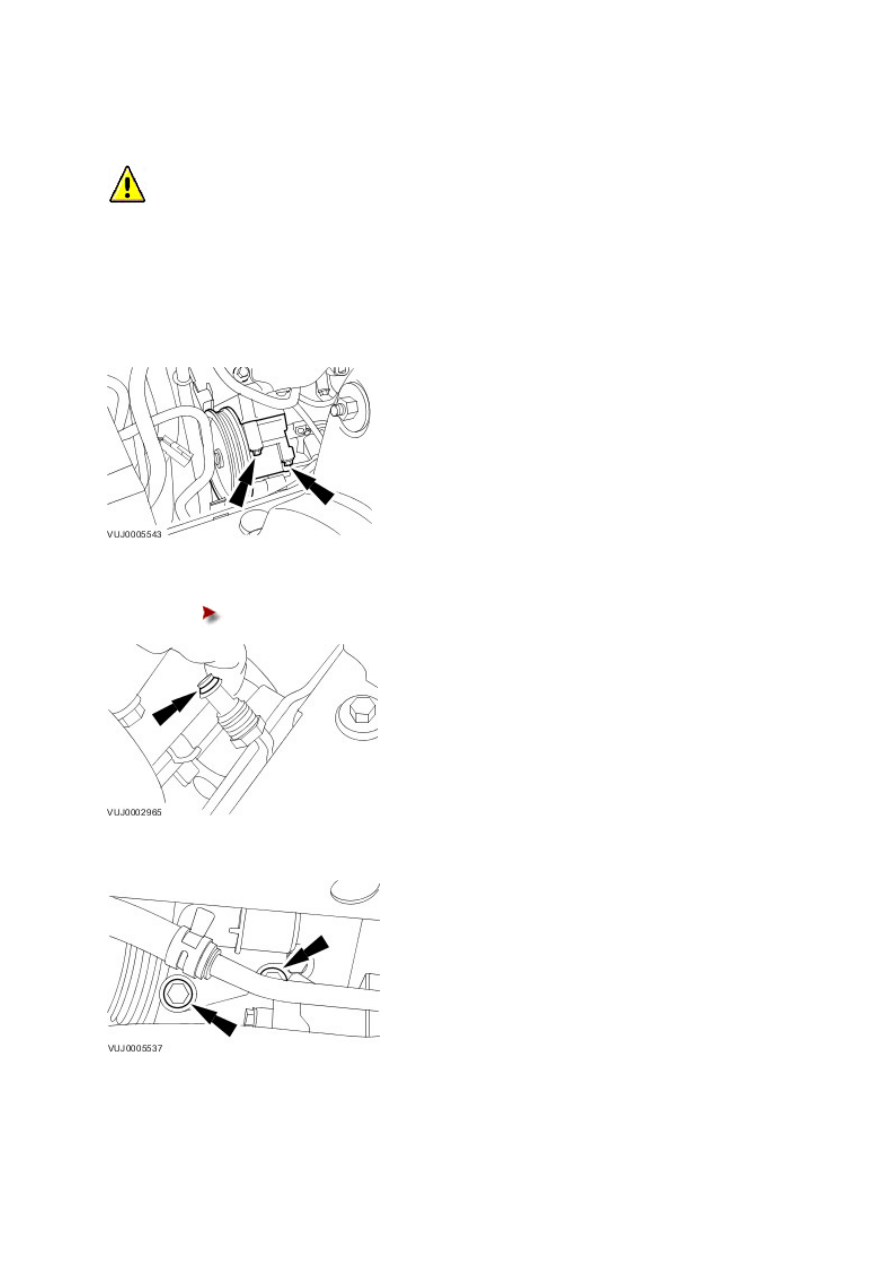

1
.

 CAUTION: Care must be taken to make sure that the coolant hoses and A/C pipes are not damaged during

the installation of the power steering pump.


NOTE:



The power steering pump rear upper bolt must be installed before the power steering pump is located on the
dowels.


To install, reverse the removal procedure.





2 . Tighten to 25 Nm.





3 . Install a new O-ring seal.





Tighten to 15 Nm.







4 . Tighten to 25 Nm.
