Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Continued

Co
ntrols

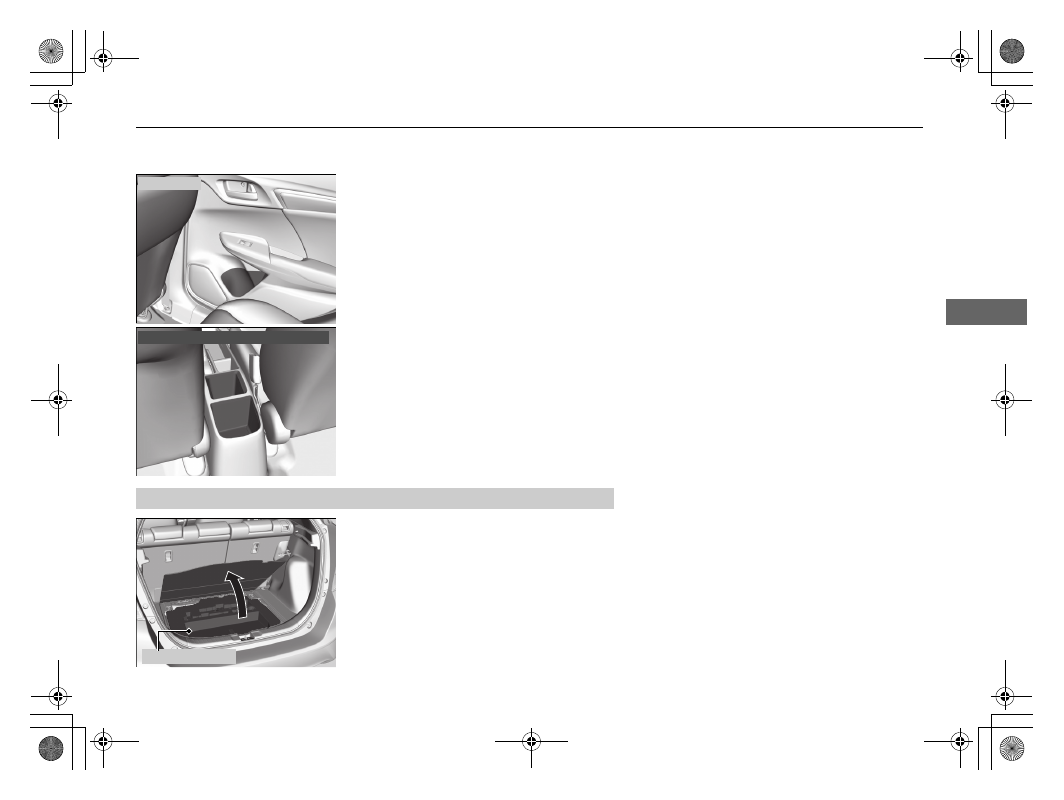

Rear seat beverage holders

The beverage holder is at the front of each
door.

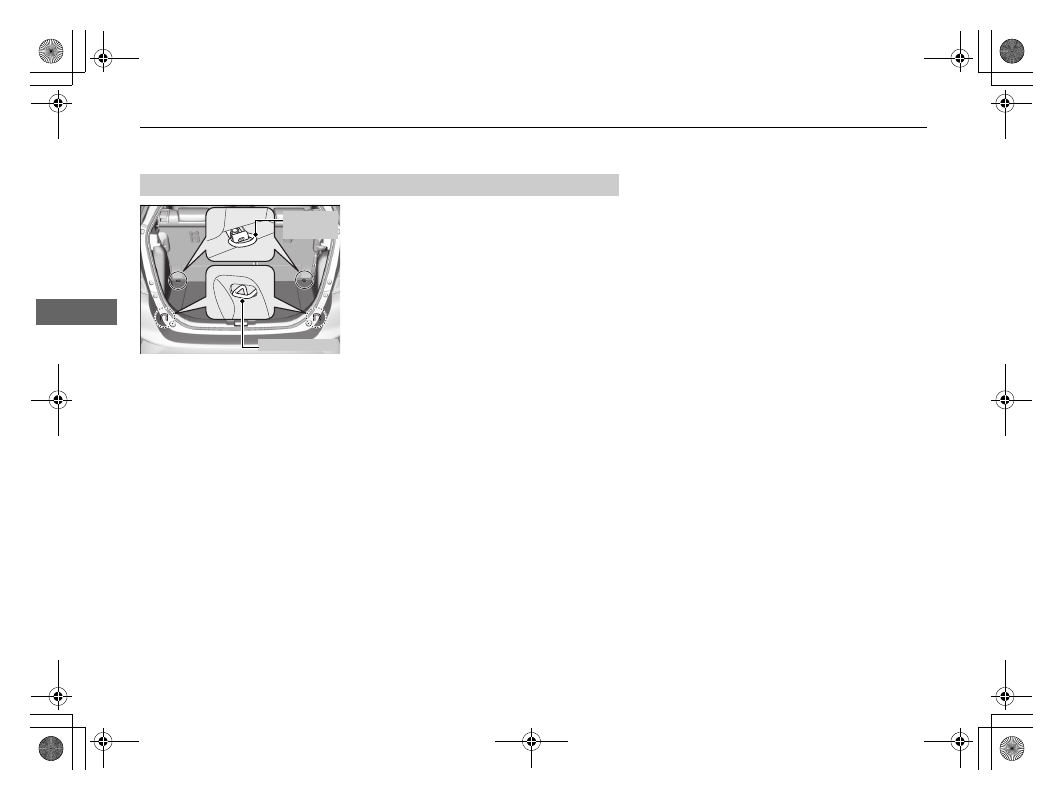

Pull up the cargo area floor lid.

Rear Door

Models without center console box

Cargo Floor Box

Cargo Floor Box

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

192

Co
ntrols

The accessory power socket can be used when the ignition switch must be in
ACCESSORY

(

q or ON

(

w

*1

.

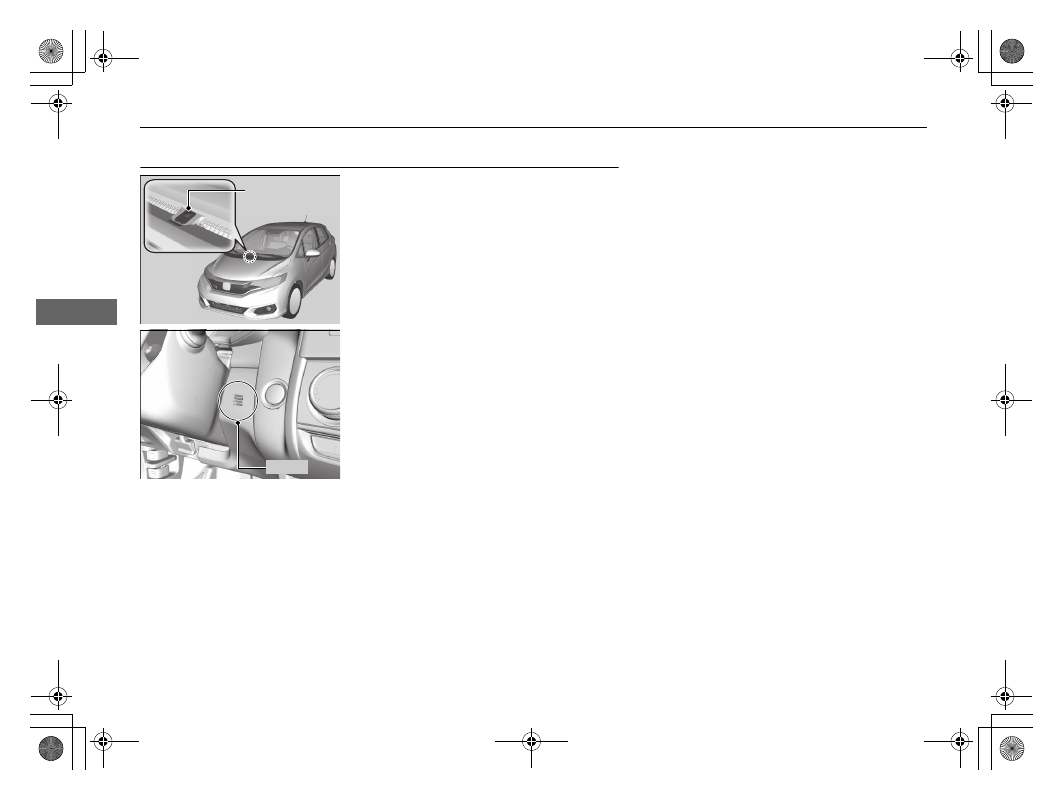

Accessory power socket (console panel)

Open the cover to use it.

Accessory power socket (console
compartment)

*

Open the console lid and the cover to use it.

*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

Accessory Power Socket(s)

1

Accessory Power Socket(s)

NOTICE

Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.

The accessory power socket is designed to supply
power for 12-volt DC accessories that are rated
180 watts (15 amps) or less.

To prevent battery drain, use the power socket only
when the engine is running.

Cover

* Not available on all models

Continued

193

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

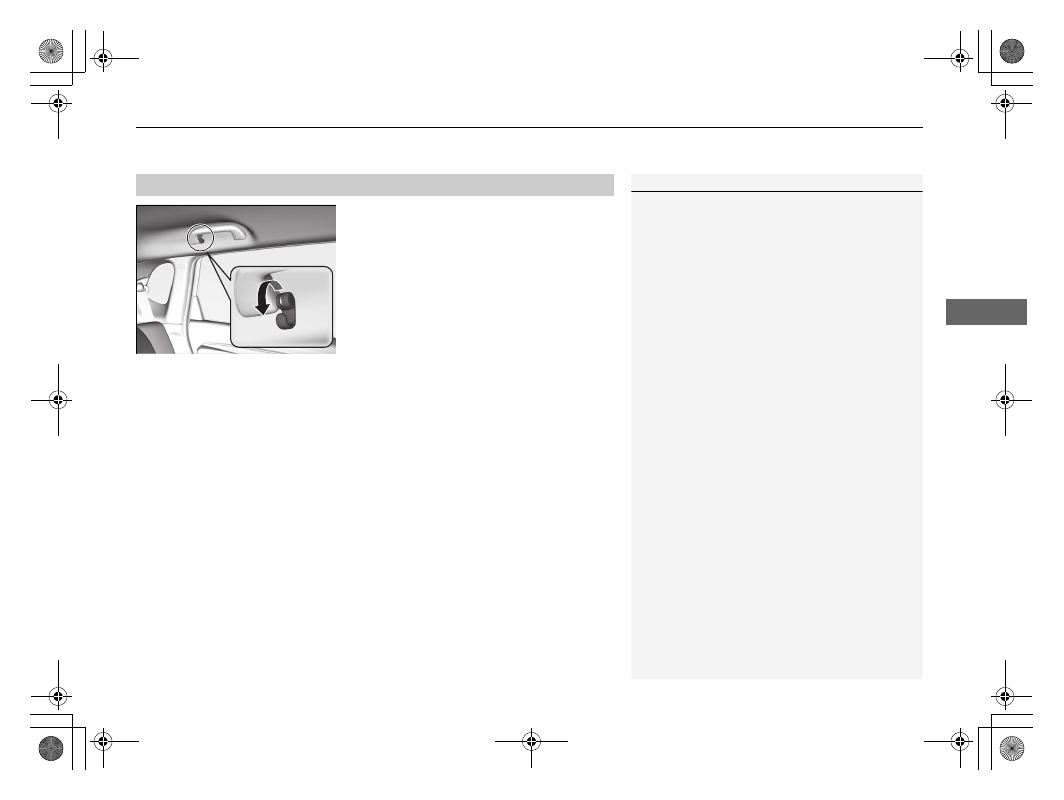

There is a coat hook on the rear left grab
handle. Pull it down to use it.

Coat Hook

1

Coat Hook

The coat hook is not designed for large or heavy
items.

194

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

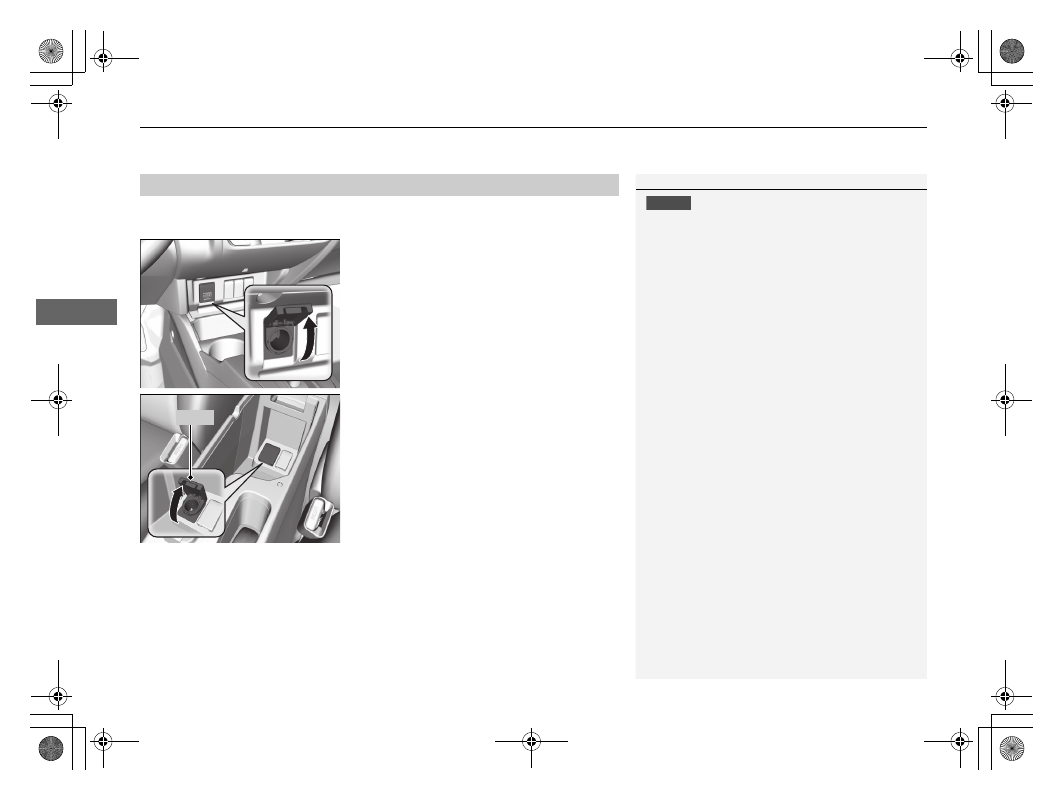

The tie-down anchors on the cargo area floor
can be used to install a net for securing items.

Tie-down Anchors

Front
Anchors

*

Rear Anchors

* Not available on all models

Continued

195

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

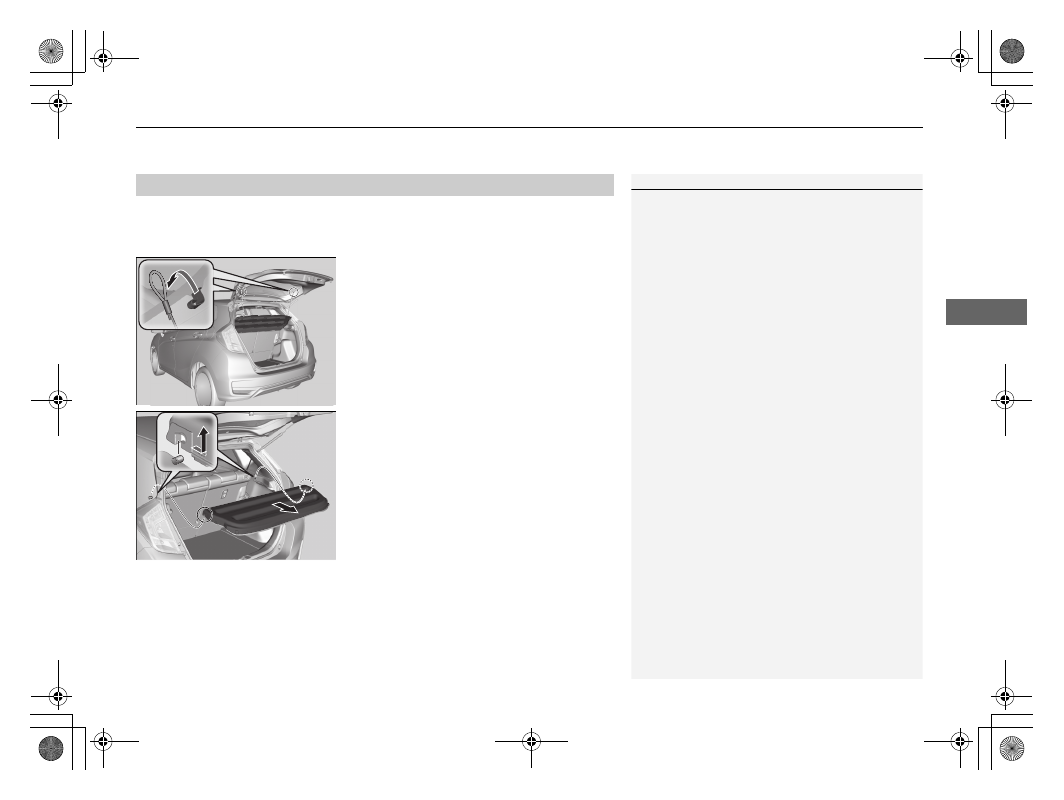

The cargo area cover may be removed to give you more cargo room.

To remove the cargo area cover

1. Open the tailgate.
2. Remove the strap on each side of the

tailgate.

3. Disengage the support rods, then remove

the cargo area cover.

Reverse this procedure to install the cargo
area cover.

After reinstalling the cargo area cover, make
sure it is latched securely.

Cargo Area Cover

*

1

Cargo Area Cover

*

Do not place items on the cargo area cover, or stack
objects higher than the top of the back seat. They
could block your view and be thrown about the
vehicle during a crush or sudden stop.

Do not apply excessive pressure to the cover, such as
leaning on it to retrieve an item.

* Not available on all models

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

196

Co
ntrols

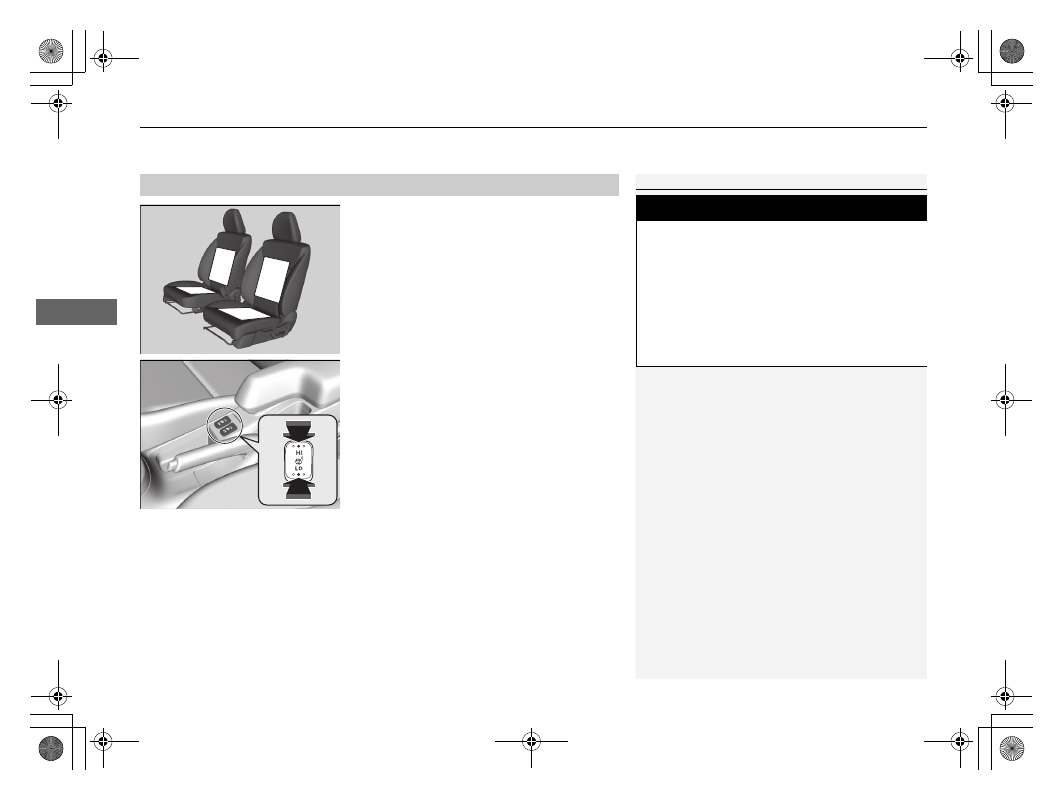

The ignition switch must be in ON

(

w

*1

 to use

the seat heaters. The HI setting heats the seats
faster than the LO setting.

While in HI, the heater cycles on and off.

u

The appropriate indicator will be on
while the seat heater is on. Briefly press
the switch on the opposite side to turn
the heater off. The indicator will be off.
When a comfortable temperature is
reached, select LO to keep the seat
warm.

*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

Seat Heaters

*

1

Seat Heaters

*

Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.

In the LO setting, the heater runs continuously and
does not automatically turn off.

3

WARNING

Heat induced burns are possible when
using seat heaters.

Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.

* Not available on all models

197

Continued

Co
ntrols

Heating and Cooling System

*

Using Vents, Heating and A/C

*

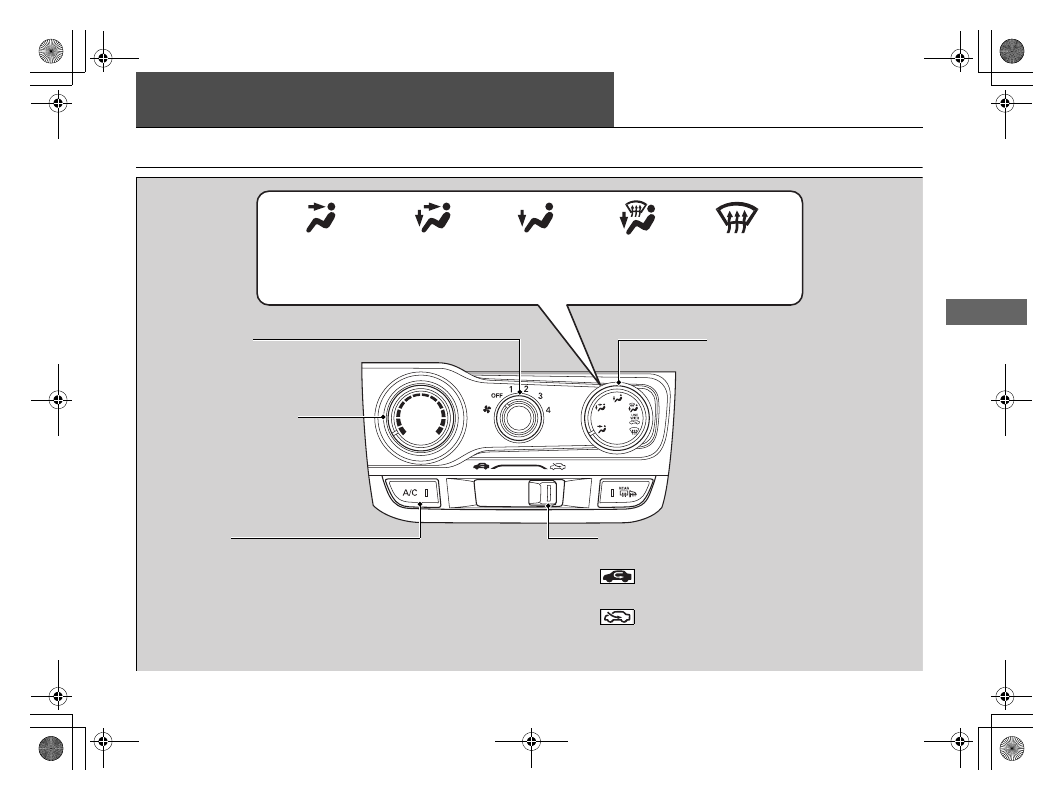

Mode Control Dial
Change airflow.

Fan Control Dial
Adjusts the fan speed. Rotate the dial all
the way to OFF to turn everything off.

A/C Button

*

Press to cool the interior or dehumidify
while heating.

Temperature Control Dial
Adjusts the interior temperature.

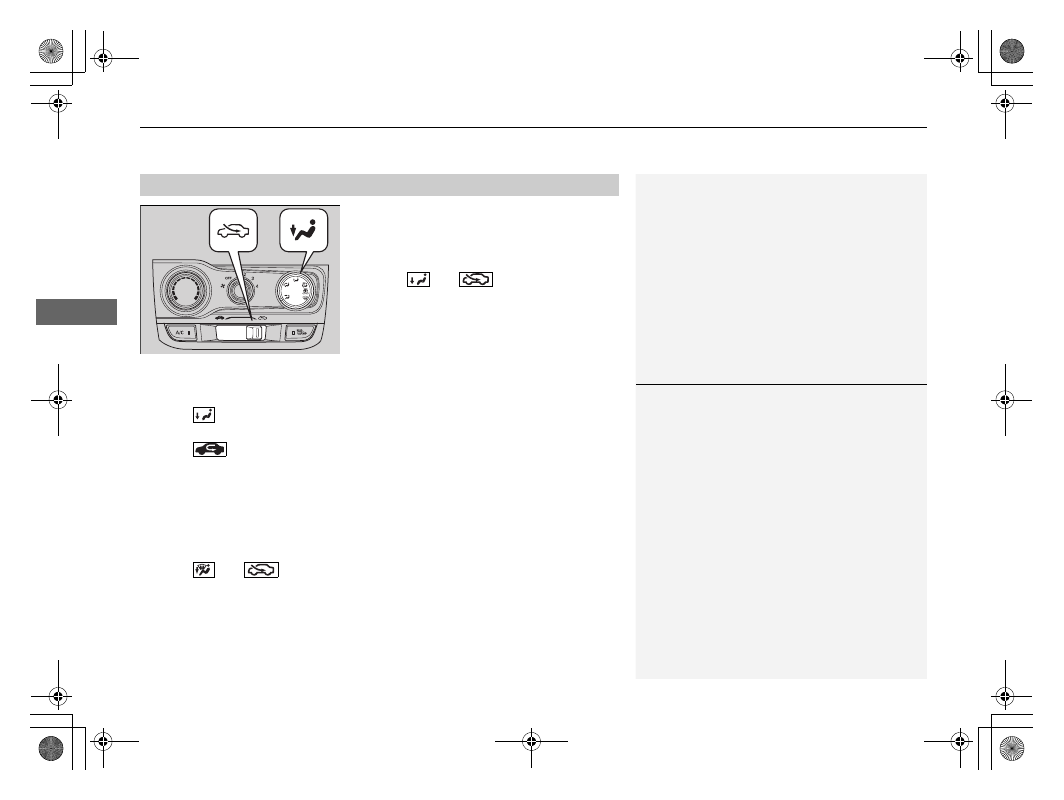

Fresh Air/Recirculation Lever
This lever controls the source of the air going into the system.

 (Recirculation) Mode:

Recirculates air from the vehicle’s interior through the system.

 (Fresh Air) Mode:

Maintains outside ventilation. Keep the system in fresh air mode
in normal situations.

Dashboard
vents

Floor and
dashboard
vents

Floor vents

Floor and
windshield
defroster
vents

Windshield
defroster
vents

* Not available on all models

uu

Heating and Cooling System

*

u

Using Vents, Heating and A/C

*

198

Co
ntrols

The heater uses heat from the engine coolant
to warm the air.
1. Adjust the fan speed using the fan control

dial.

2. Select

and  .

3. Adjust the temperature using the

temperature control dial.

To rapidly warm up the interior

1. Set the fan to the maximum speed.
2. Select .
3. Set the temperature to maximum warm.
4. Select .

To dehumidify the interior

*

When used in combination with the heater, the air conditioning system makes the
interior warm and dry and can prevent the windows from fogging up.
1. Turn the fan on.
2. Press the A/C button to turn on the air conditioning.
3. Select

 and

. Adjust the temperature to your preference.

Heating

1

To rapidly warm up the interior

Change to fresh air mode as soon as the interior gets
warm enough. The windows may fog up if kept in
recirculation mode.

* Not available on all models

199

uu

Heating and Cooling System

*

u

Using Vents, Heating and A/C

*

Co
ntrols

1. Adjust the fan speed using the fan control

dial.

2. Select

and  .

3. Adjust the temperature using the

temperature control dial.

4. Press the A/C button (indicator on).

To rapidly cool down the interior

1. Set the fan to the maximum speed.
2. Set the temperature to maximum cool.
3. Select .

1. Selecting

 turns the air conditioning

system on.

2. Select .

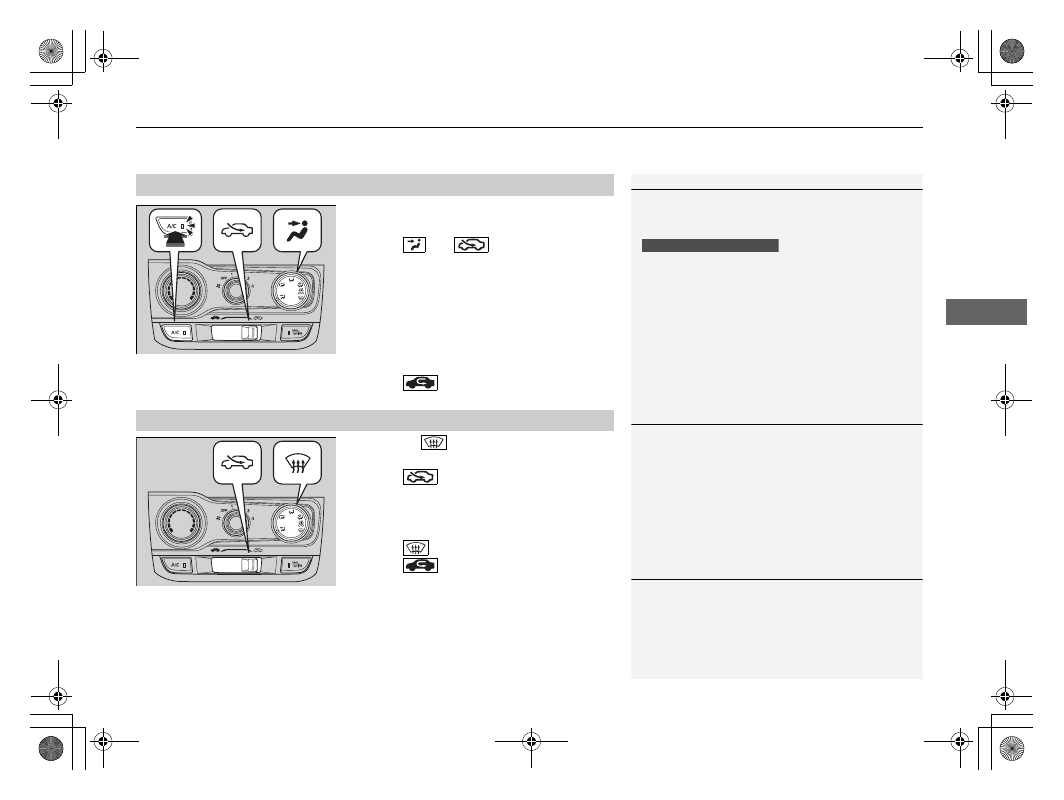

To rapidly defrost the windows

1. Set the fan to the maximum speed.
2. Select .
3. Select .
4. Set the temperature to maximum warm.

Cooling

*

1

To rapidly cool down the interior

If the interior is very warm, you can cool it down
more rapidly by partially opening the windows.

While ECON mode is active, the heating and cooling
system may have reduced cooling performance.

Models with ECON button

Defrosting the Windshield and Windows

*

1

Defrosting the Windshield and Windows

*

For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperature near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits the side windows.

1

To rapidly defrost the windows

After defrosting the windows, switch over to fresh air
mode.
If you keep the system in recirculation mode, the
windows may fog up from humidity. This impedes
visibility.

* Not available on all models

200

Co
ntrols

Climate Control System

*

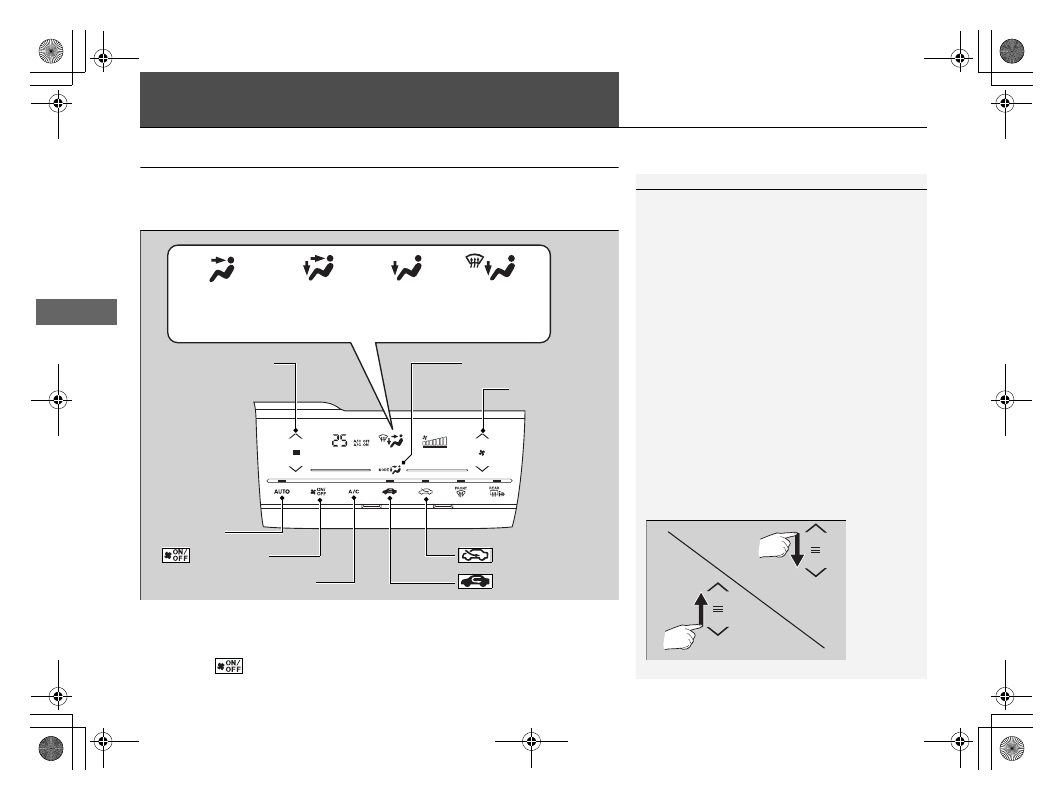

Using Automatic Climate Control

The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heated or cooled air that raises or lowers
the interior temperature to your preference as quickly as possible.

Use the system when the engine is running.

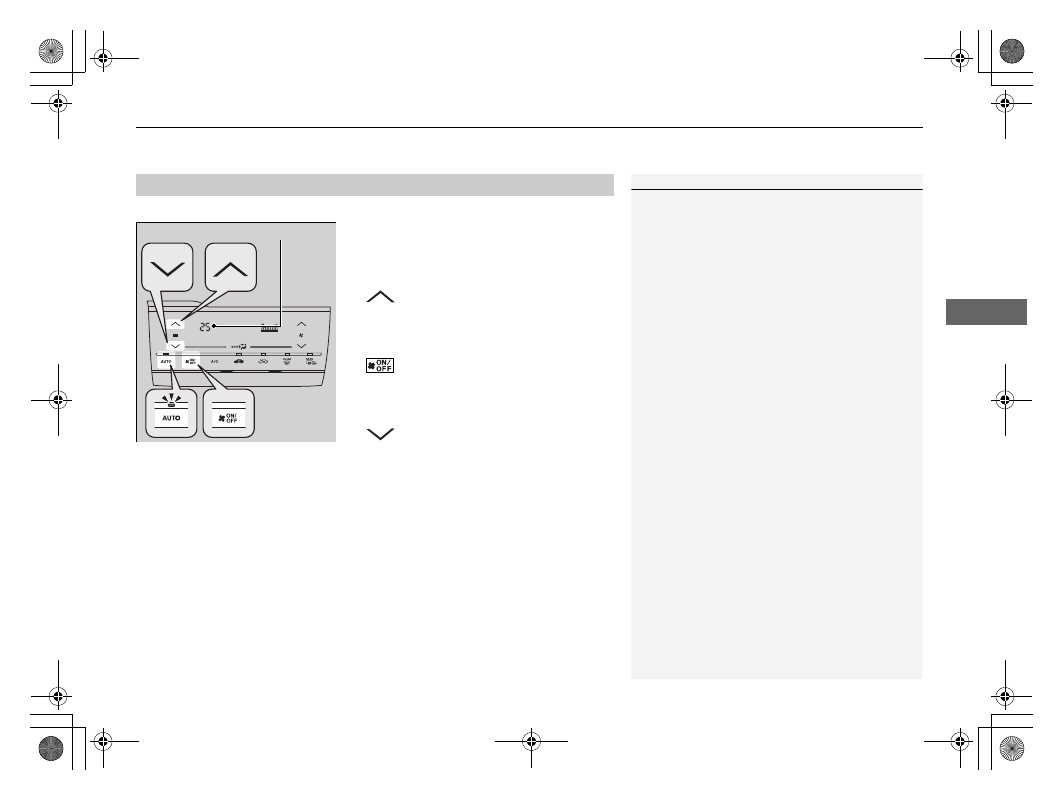

1. Select the AUTO icon.
2. Adjust the interior temperature using the temperature control icons.
3. Select the

 icon to cancel.

1

Using Automatic Climate Control

If any icons are selected while using the climate
control system in auto, the function of the icon that
was selected will take priority.
The AUTO indicator will go off, but functions
unrelated to the icon that was selected will be
controlled automatically.

To prevent cold air from blowing in from outside, the
fan may not start immediately when the AUTO icon
is selected.

If the interior is very warm, you can cool it down
more rapidly by partially opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.

When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.

You can raise or lower the temperature or fan speed
setting flicking either control icon.

Dashboard
vents

Floor and
dashboard
vents

Floor vents

Floor and
windshield
defroster
vents

Temperature Control
Icons

AUTO Icon

Mode Control Icon

Fan Control Icons

 (On/Off) Icon

 (Recirculation) Icon

A/C (Air Conditioning) Icon

 (Fresh Air) Icon

* Not available on all models

Continued

201

uu

Climate Control System

*

u

Using Automatic Climate Control

Co
ntrols

Switching between the recirculation and fresh air modes

Select the

 or

 icon to switch the mode depending on environmental

conditions.

 Recirculation mode (indicator on): Recirculates air from the vehicle’s interior

through the system.

 Fresh air mode (indicator on): Maintains outside ventilation. Keep the system

in fresh air mode in normal situations.

Select the

 icon to turn the air conditioning

system on and automatically switch the
system to fresh air mode.

Select the

 icon again to turn off, the

system returns to the previous settings.

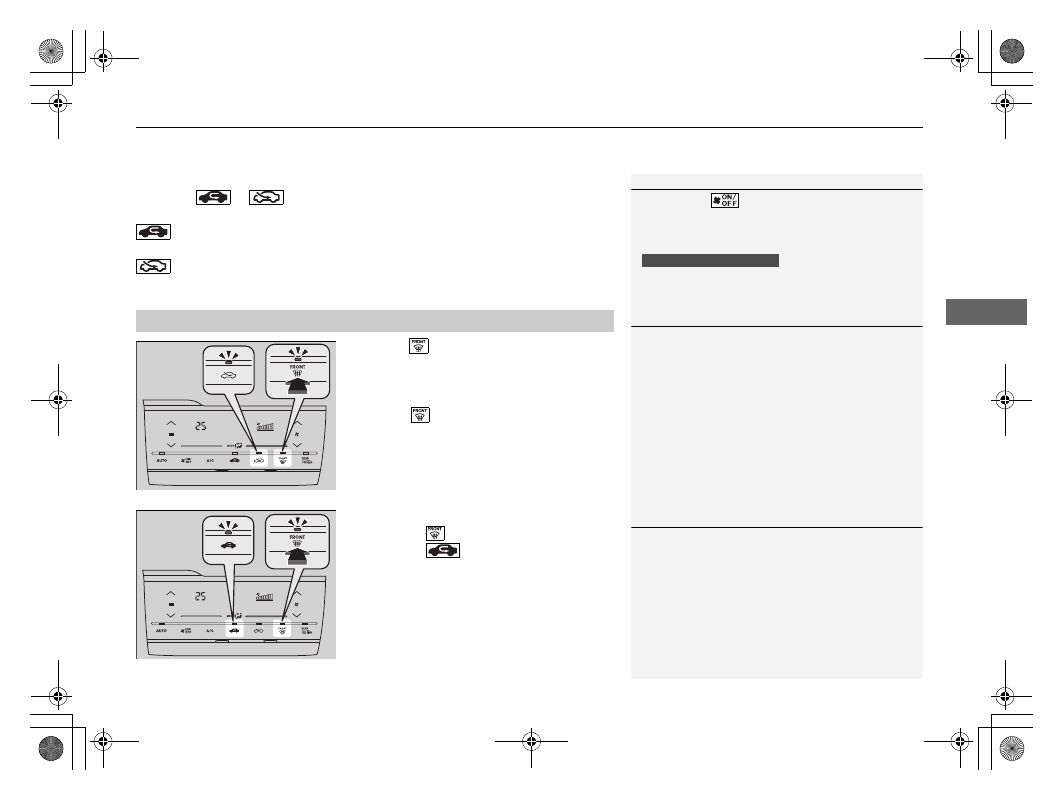

To rapidly defrost the windows

1. Select the

 icon.

2. Select the

 icon.

Defrosting the Windshield and Windows

1

Using Automatic Climate Control

Selecting the

 icon switches the climate control

system between on and off. When turned on, the
system returns to your last selection.

While ECON mode is active, the climate control
system may have reduced cooling performance.

Models with ECON button

1

Defrosting the Windshield and Windows

For your safety, make sure you have a clear view
through all the windows before driving.

Do not set the temperature near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.

If the side windows fog up, adjust the vents so that
the air hits the side windows.

1

To rapidly defrost the windows

After defrosting the windows, switch over to fresh air
mode. If you keep the system in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.

uu

Climate Control System

*

u

Using Automatic Climate Control

202

Co
ntrols

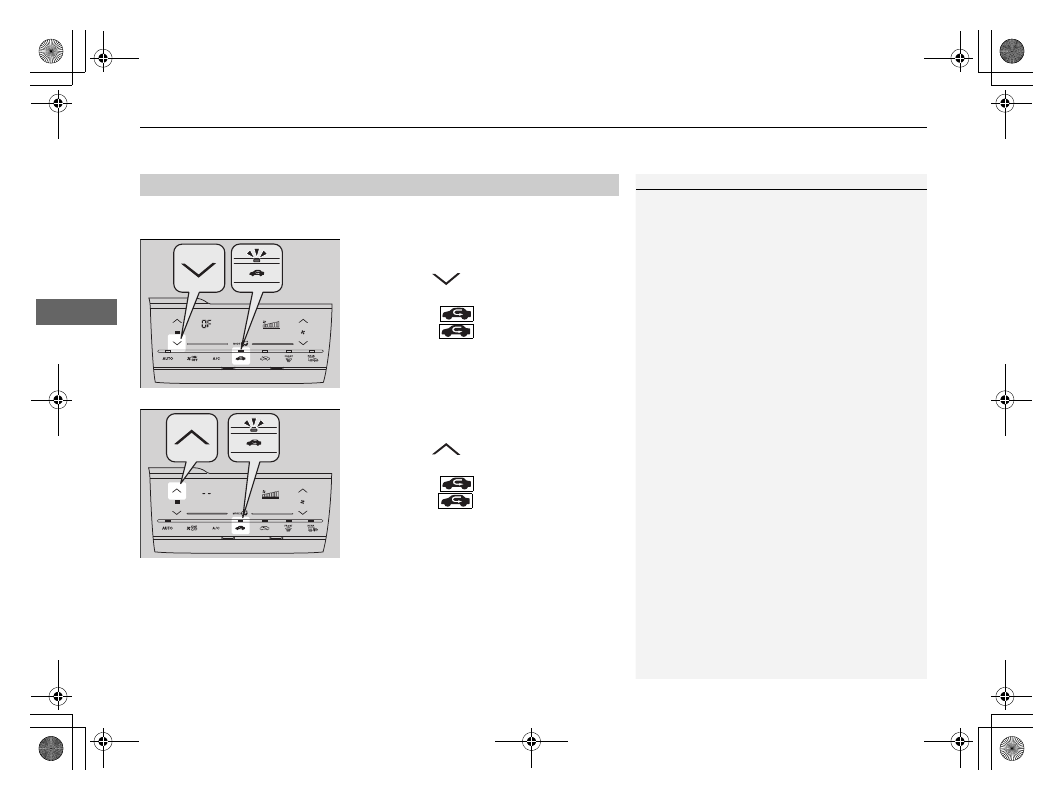

You hear the beep when operating the climate control system on the touch screen.
This can be turned on and off.

To turn off the beep:
1.
Set the power mode to ON.
2. Touch the

 icon of the temperature

control icon five times while pressing and
holding the

 icon.

3. Release the

 icon, after -- blinks five

times and OF is displayed.

To turn on the beep:
1.
Set the power mode to ON.
2. Touch the

 icon of the temperature

control icon five times while pressing and
holding the

 icon.

3. Release the

 icon, after OF blinks five

times and -- is displayed.

Turning On and Off the Touch Screen Beep

1

Using Automatic Climate Control

If you touch any other icons during this procedure,
the setting may fail. In this case, once you set the
power mode to VEHICLE OFF (LOCK), then follow this
procedure again.

203

uu

Climate Control System

*

u

Using Automatic Climate Control

Co
ntrols

You can set the level of sensitivity of the touch control panel to high, normal, or low.

1. Set the power mode to ON.
2. Press and hold the AUTO icon, then press

any of the following icons five times to set
the level.

: High (Hi)

*1

.

u

Previous setting blinks five times and Hi
will be displayed in the temperature
display area.

: Normal (--)

u

Previous setting blinks five times and --
will be displayed in the temperature
display area.

: Low (Lo)

u

Previous setting blinks five times and Lo
will be displayed in the temperature
display area.

3. Release the AUTO icon.

*1 : Default setting

Touch Panel Sensitivity Setting

1

Touch Panel Sensitivity Setting

If you touch any other icons during this procedure,
the setting may fail. In this case, once you set the
power mode to VEHICLE OFF (LOCK), then follow this
procedure again.

Temperature display

204

uu

Climate Control System

*

u

Automatic Climate Control Sensors

Co
ntrols

Automatic Climate Control Sensors

The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.

Sensor

Sensor

205

Features

This chapter describes how to operate technology features.

Audio System

About Your Audio System.................... 206
USB Port(s) ........................................... 207
Audio System Theft Protection ............. 208
Audio Antenna .................................... 209
Audio Remote Controls

*

...................... 210

Audio System Basic Operation............. 212

Audio/Information Screen .................... 213
Adjusting the Sound ............................ 217
Display Setup ....................................... 218
Playing AM/FM Radio ........................... 219
Playing a CD ........................................ 221
Playing an iPod..................................... 224
Playing a USB Flash Drive...................... 227

Models with color audio system

Playing Bluetooth® Audio..................... 230

Audio System Basic Operation ............ 233

Audio/Information Screen .................... 234
Adjusting the Sound ............................ 249
Display Setup ....................................... 250
Playing AM/FM Radio........................... 255
Playing an iPod .................................... 267
Playing Pandora® ................................. 274
Playing a USB Flash Drive ..................... 276
Playing Bluetooth® Audio..................... 279
HondaLink® ......................................... 281
Siri® Eyes Free ...................................... 288

Audio Error Messages .......................... 312

Models with display audio system

General Information on the Audio

System ............................................. 317

Customized Features.............................321

Customized Features........................ 328
Bluetooth® HandsFreeLink®

Using HFL .............................................343

Using HFL .............................................368

Models with color audio system

Models with display audio system

Models with color audio system

Models with display audio system

* Not available on all models

206

Features

Audio System

About Your Audio System

The audio system features AM/FM radio and SiriusXM® Radio service

*

. It can also

play audio CDs

*

, WMA/MP3/AAC files, USB flash drives, and iPod, iPhone and

Bluetooth® devices.

You can operate the audio system from the buttons and switches on the panel, the
remote controls

*

 on the steering wheel, or the icons on the touchscreen interface

*

.

1

About Your Audio System

Video CDs, DVDs, and 3-inch (8-cm) mini CDs are not
supported.

iPod, iPhone and iTunes are trademarks of Apple Inc.

State or local laws may prohibit the operation of
handheld electronic devices while operating a
vehicle.

When the screen is viewed through polarized
sunglasses, a rainbow pattern may appear on the
screen due to optical characteristics of the screen. If
this is disturbing, please operate the screen without
polarized sunglasses.

SiriusXM® Radio

*

 is available on a subscription basis

only. For more information on SiriusXM® Radio

*

contact a dealer.

General Information on the Audio System

P. 317

SiriusXM® Radio

*

 is available in the United States and

Canada, except Hawaii, Alaska, and Puerto Rico.

SiriusXM®

*

 is a registered trademark of SiriusXM

Radio, Inc.

iPod

USB Flash Drive

USB Port

Remote Controls

*

* Not available on all models















Content   ..  11  12  13  14   ..
