Honda Civic Hybrid (2015 year). Manual - part 9





128

uu

Operating the Switches Around the Steering Wheel

u

Wipers and Washers

Co
ntrols

Wipers and Washers

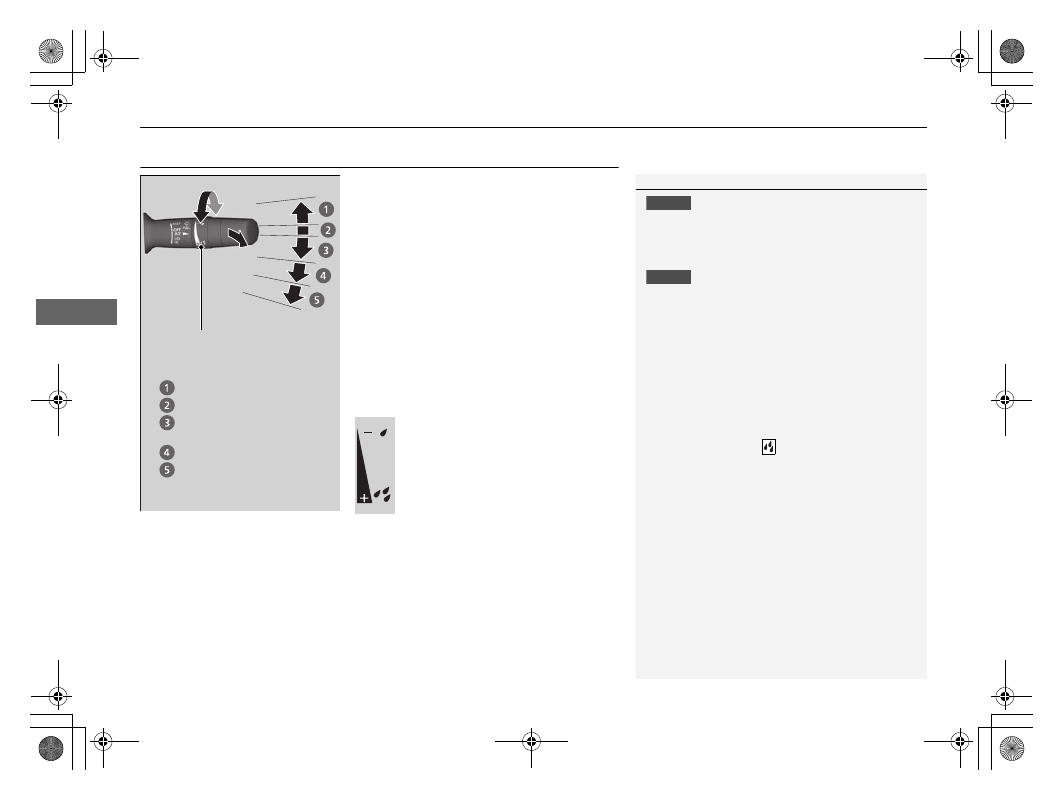

The windshield wipers and washers can be
used when the power mode is in ON.

MIST

The wipers run at high speed until you release
the lever.

Wiper switch (OFF, INT, LO, HI)

Change the wiper switch setting according to
the amount of rain.

Adjusting the delay

Turn the adjustment ring to adjust the wiper
delay.

Washer

Sprays while you pull the lever toward you.
When you release the lever, the wipers make
two or three more sweeps before stopping.

1

Wipers and Washers

NOTICE

Do not use the wipers when the windshield is dry.
The windshield will get scratched, or the rubber
blades will get damaged.

NOTICE

In cold weather, the blades may freeze to the
windshield, becoming stuck.
Operating the wipers in this condition may damage
the wipers. Use the defroster to warm the
windshield, then turn the wipers on.

If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens. When the vehicle starts moving, the
wipers make a single sweep.
When the vehicle speeds up, the wiper operation’s
shortest delay setting (

) and the LO setting

become the same.

Turn the washers off if no washer fluid comes out.
The pump may get damaged.

The wiper motor is equipped with a breaker that may
stop motor operation temporarily to prevent an
overload. Wiper operation will return to normal within a
few minutes, once the circuit has returned to normal.

If the wipers stop operating due to any obstacle such as
the build-up of snow, park the vehicle in a safe place.

Rotate the wiper switch to OFF, and set the power
mode to ACCESSORY or VEHICLE OFF (LOCK), then
remove the obstacle.

Intermittent Time
Adjustment Ring

MIST

INT: Low speed with
intermittent

OFF

LO: Low speed wipe
HI: High speed wipe

Pull to
use
washer.

Long delay

Short delay

129

uu

Operating the Switches Around the Steering Wheel

u

Brightness Control

Co
ntrols

Brightness Control

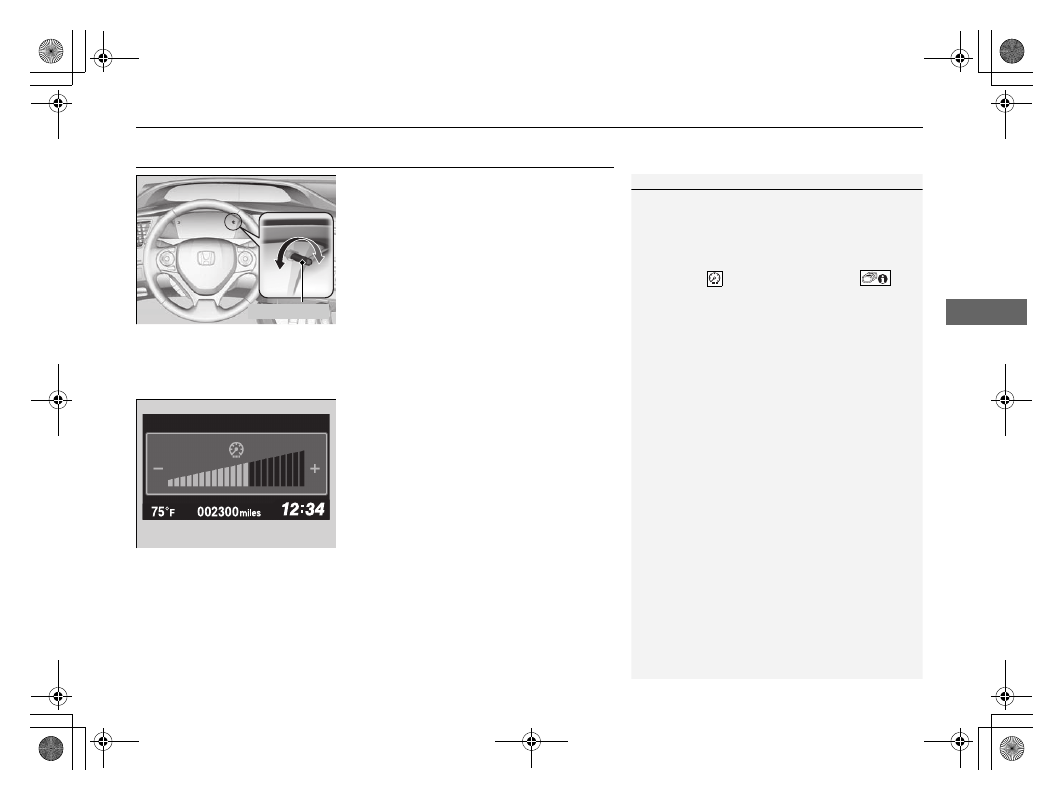

When the parking lights are turned on and the
power mode is in ON, you can use the
brightness control knob to adjust instrument
panel brightness.
Brighten: Turn the knob to the right.
Dim: Turn the knob to the left.

You will hear a beeper when the brightness
reaches minimum or maximum. The
intelligent multi-information display (i-MID)
will return to its original state several seconds
after you adjust the brightness.

Brightness level indicator

The brightness level is shown on the i-MID
while you are adjusting it.
As the brightness level increases to the right,
the instrument panel gets brighter.

1

Brightness Control

Instrument panel brightness varies, depending on
whether the exterior lights are on or off. The
instrument panel dims to reduce glare when they are
on.

Pressing the

 (Select/Reset) knob or the



(display/information) button changes to a different
display.

If you turn the knob to the right until the brightness
display is up to max, the beeper sounds. This cancels
the reduced instrument panel brightness when the
parking lights are on.

The brightness can be set differently for when the
exterior lights are on, and when they are off.

Control Knob

130

uu

Operating the Switches Around the Steering Wheel

u

Rear Defogger/Heated Door Mirror

*

 Button

Co
ntrols

Rear Defogger/Heated Door Mirror

*

 Button

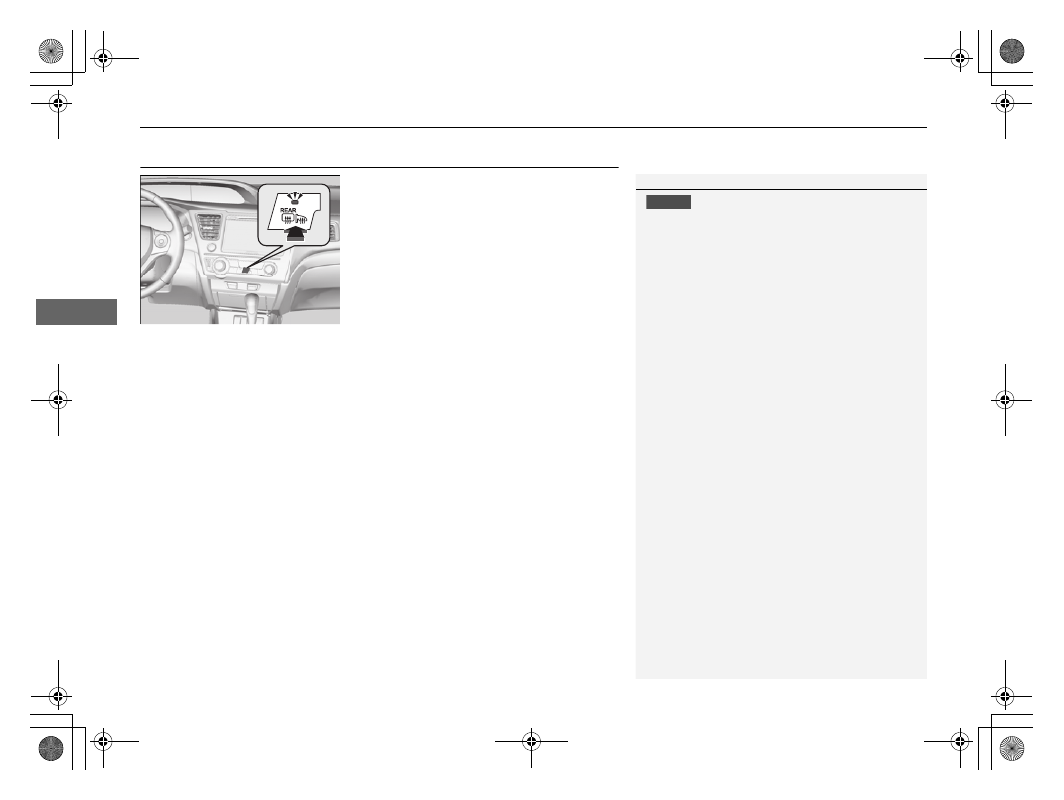

Press the rear defogger and heated door
mirror button to defog the rear window and
mirrors when the power mode is in ON.

The rear defogger and heated door mirrors
automatically switch off after 10-30 minutes
depending on the outside temperature.
However, if the outside temperature is 32°F
(0°C) or below, they do not automatically
switch off.

1

Rear Defogger/Heated Door Mirror

*

 Button

NOTICE

When cleaning the inside of the rear window, be
careful not to damage the heating wires.
It is critical to wipe the window from side to side
along the defogger heating wires.

This system consumes a lot of power, so turn it off
when the window has been defogged.
Also, do not use the system for a long period when
the engine is idling. This may weaken the 12 volt
battery, making it difficult to start the engine.

* Not available on all models

131

uu

Operating the Switches Around the Steering Wheel

u

Adjusting the Steering Wheel

Co
ntrols

Adjusting the Steering Wheel

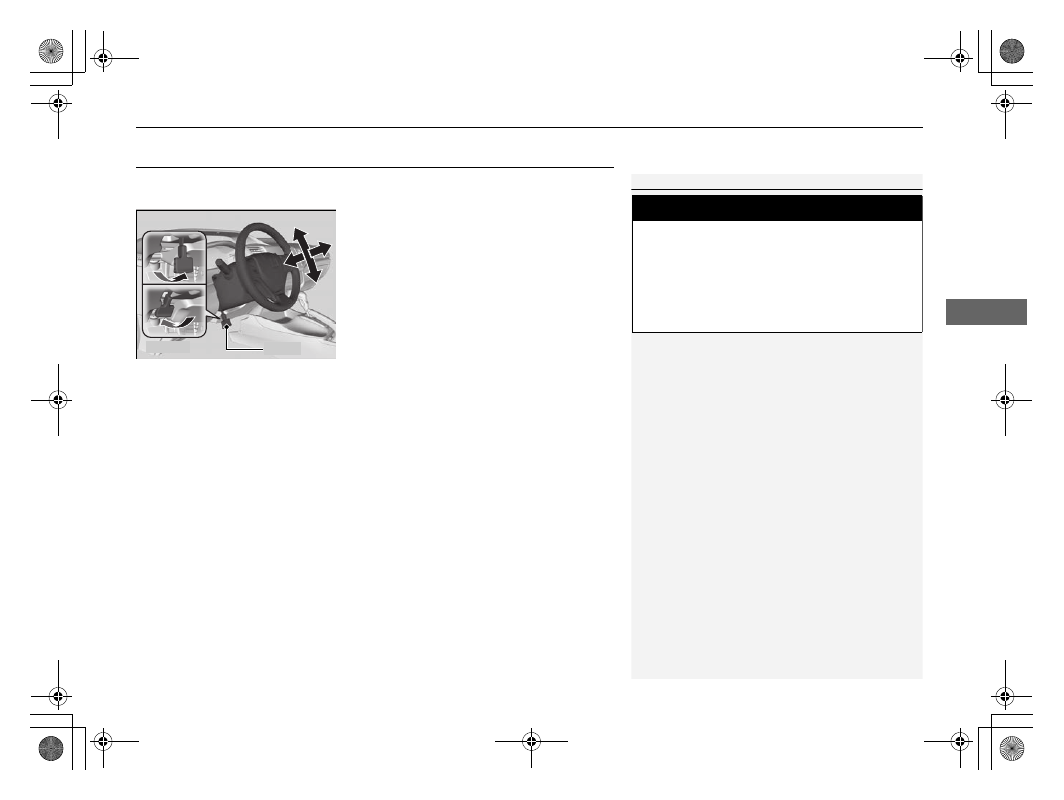

The steering wheel height and distance from your body can be adjusted so that you
can comfortably grip the steering wheel in an appropriate driving posture.

1. Pull the steering wheel adjustment lever up.

u

The steering wheel adjustment lever is
under the steering column.

2. Move the steering wheel up or down, and

in or out.

u

Make sure you can see the instrument
panel gauges and indicators.

3. Push the steering wheel adjustment lever

down to lock the steering wheel in position.

u

After adjusting the position, make sure
you have securely locked the steering
wheel in place by trying to move it up,
down, in, and out.

1

Adjusting the Steering Wheel

Make any steering wheel adjustments before you
start driving.

3

WARNING

Adjusting the steering wheel position while
driving may cause you to lose control of the
vehicle and be seriously injured in a crash.

Adjust the steering wheel only when the
vehicle is stopped.

To adjust

To lock

Lever

132

Co
ntrols

Adjusting the Mirrors

Interior Rearview Mirror

Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.

Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.

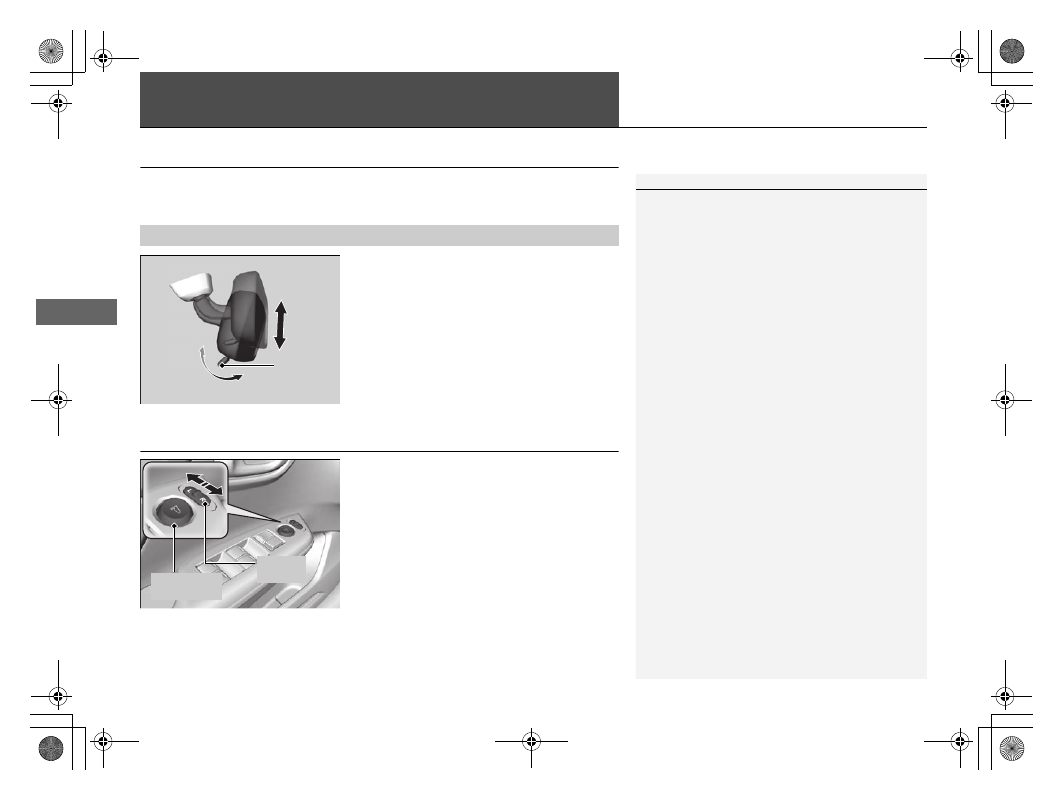

Power Door Mirrors

You can adjust the door mirrors when the
power mode is in ON.

Mirror position adjustment

L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror position adjustment switch: Press
the switch left, right, up, or down to move the
mirror.

Rearview Mirror with Day and Night Positions

1

Adjusting the Mirrors

Keep the inside and outside mirrors clean and
adjusted for best visibility.

Adjust the mirrors before you start driving.

Adjusting the Seat Positions P. 134

Tab

Up

Down

Night Position

Day time
Position

Selector
Switch

Adjustment
Switch

133

uu

Adjusting the Mirrors

u

Power Door Mirrors

Co
ntrols

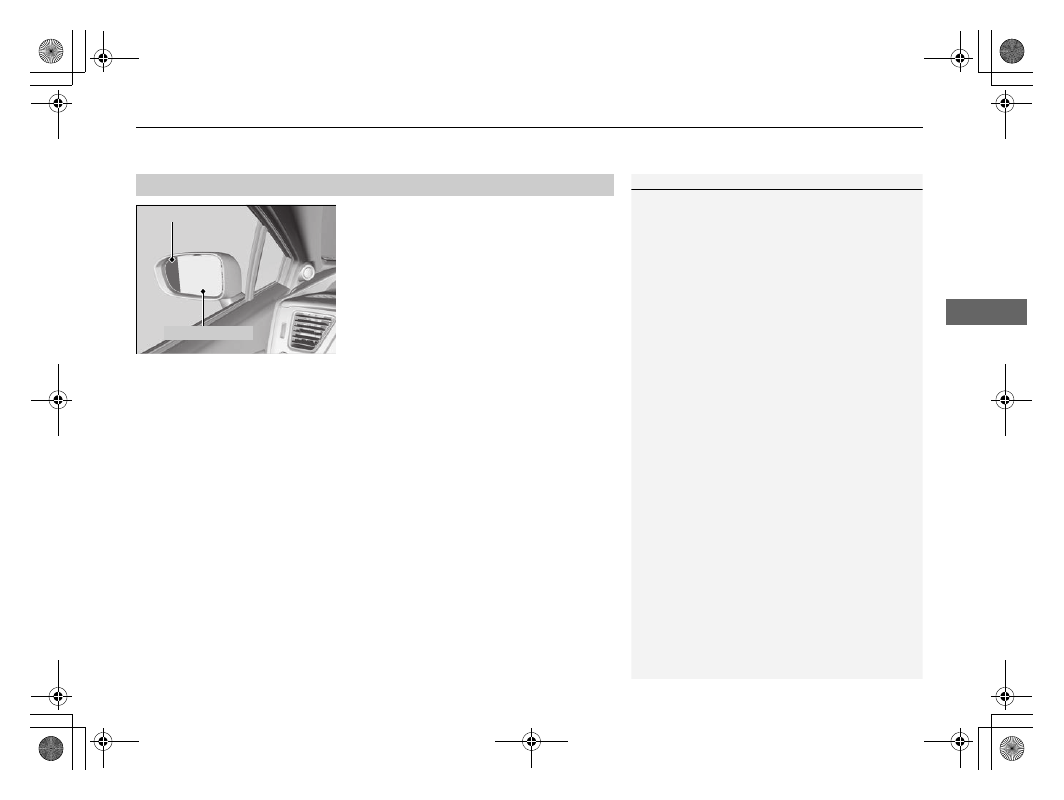

The driver side door mirror has outer and inner
segments.
The outer segment is slightly curved to provide
a wider angle view than a standard flat mirror.
This wider view may help you check areas that
are not visible using a standard door mirror.

Expanded View Driver’s Mirror

1

Expanded View Driver’s Mirror

Objects visible in the outer segment of the driver side
door mirror appear smaller than objects in the rest of
the mirror. But in fact, they are closer than they
appear.

Do not rely on your mirrors. Always look to the side
and behind your vehicle before changing lanes.

Inner Segment

Outer Segment

134

Co
ntrols

Adjusting the Seats

Adjusting the Seat Positions

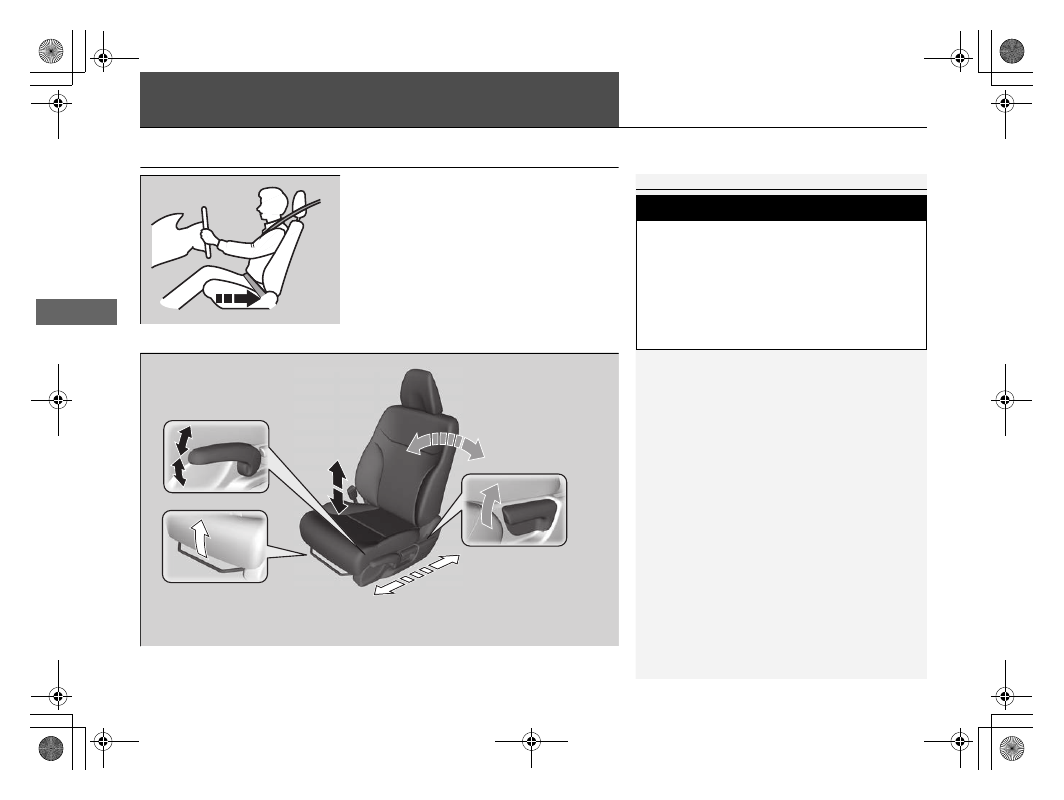

Adjust the driver’s seat as far back as possible
while allowing you to maintain full control of
the vehicle. You should be able to sit upright,
well back in the seat and be able to
adequately press the pedals without leaning
forward, and grip the steering wheel
comfortably. The passenger’s seat should be
adjusted in a similar manner, so that it is as far
back from the front airbag in the dashboard
as possible.

1

Adjusting the Seats

The National Highway Traffic Safety Administration
and Transport Canada recommend that drivers allow
at least 10 inches (25 cm) between the center of the
steering wheel and the chest.

Always make seat adjustments before driving.

Once a seat is adjusted correctly, rock it back and
forth to make sure it is locked in position.

3

WARNING

Sitting too close to a front airbag can result
in serious injury or death if the front
airbags inflate.

Always sit as far back from the front
airbags as possible while maintaining
control of the vehicle.

Move back.

Allow sufficient
space.

Horizontal Position
Adjustment
Pull up on the bar to move the
seat, then release the bar.

Height Adjustment
(Driver side only)
Pull up or push down the lever
to raise or lower the seat.

Seat-back Angle
Adjustment
Pull up the lever to
change the angle.

Driver’s seat is shown.

Continued

135

uu

Adjusting the Seats

u

Adjusting the Seat Positions

Co
ntrols

Adjust the driver’s seat-back to a comfortable,
upright position, leaving ample space
between your chest and the airbag cover in
the center of the steering wheel.

The front seat passenger should also adjust
their seat-back to a comfortable, upright
position.

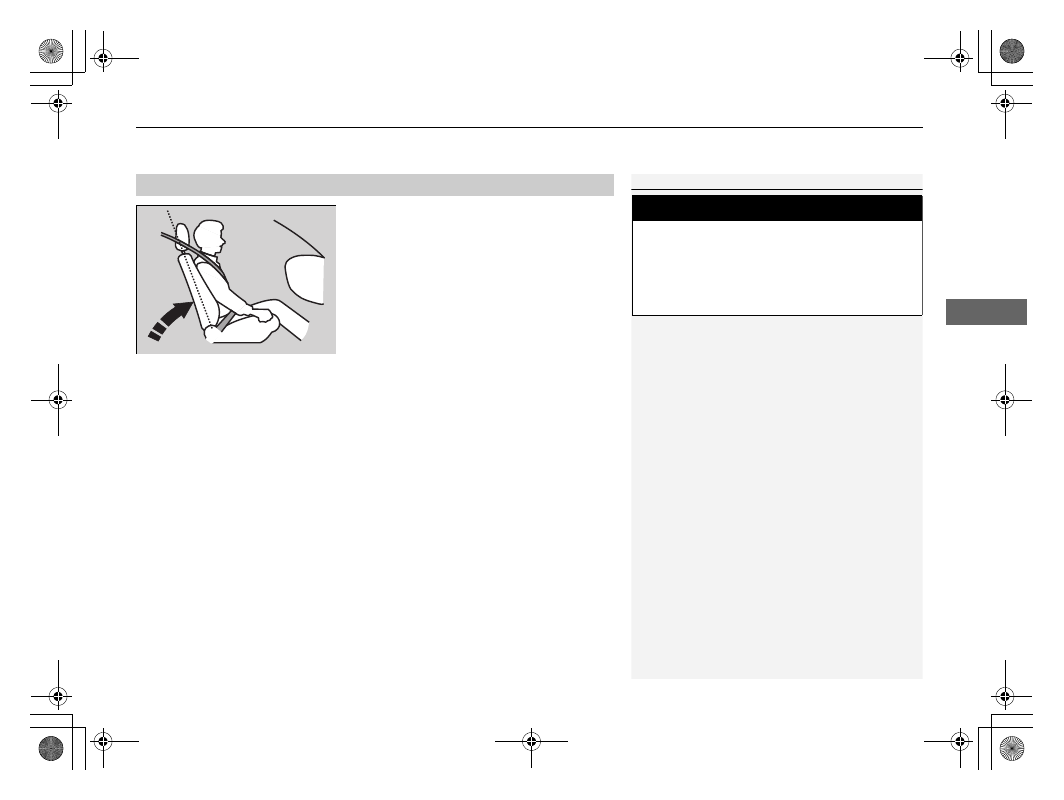

Reclining a seat-back so that the shoulder part of the belt no longer rests against the
occupant’s chest reduces the protective capability of the belt. It also increases the
chance of sliding under the belt in a crash and being seriously injured. The farther a
seat-back is reclined, the greater the risk of injury.

Adjusting the Seat-Backs

1

Adjusting the Seat-Backs

Do not put a cushion, or other object, between the
seat-back and your back.

Doing so may interfere with proper seat belt or airbag
operation.

If you cannot get far enough away from the steering
wheel and still reach the controls, we recommend
that you investigate whether some type of adaptive
equipment may help.

3

WARNING

Reclining the seat-back too far can result in
serious injury or death in a crash.

Adjust the seat-back to an upright position,
and sit well back in the seat.

uu

Adjusting the Seats

u

Adjusting the Seat Positions

136

Co
ntrols

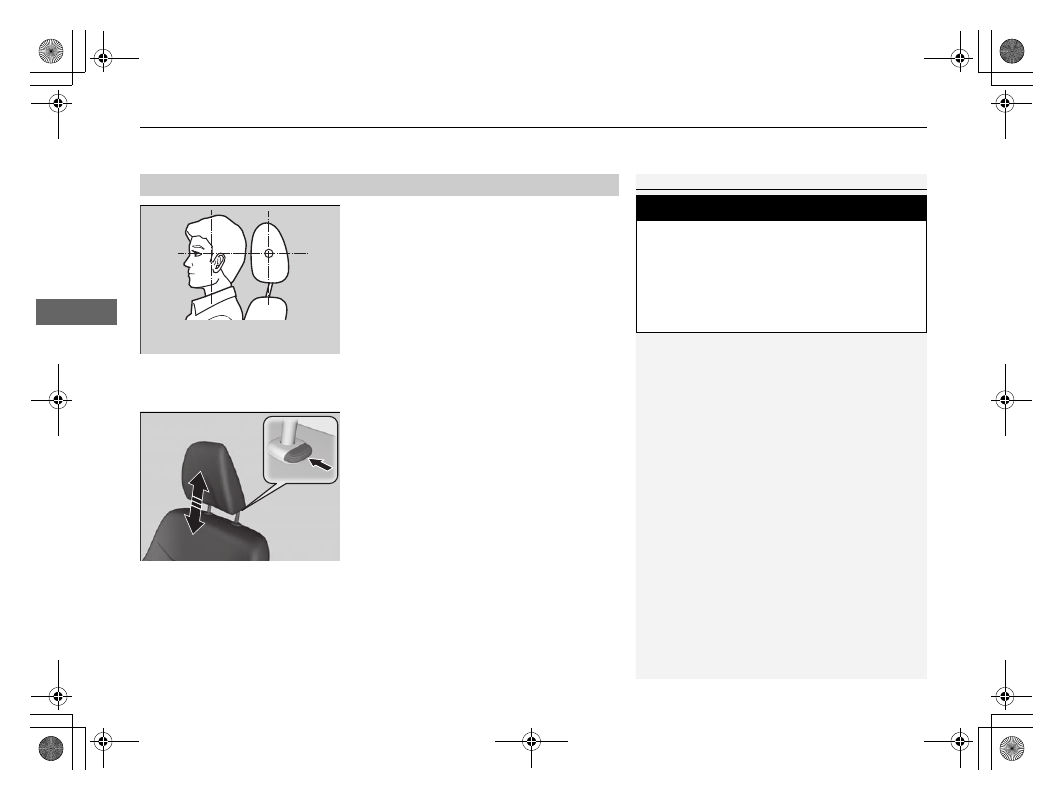

Your vehicle is equipped with head restraints
in all seating positions.

Head restraints are most effective for
protection against whiplash and other rear-
impact crash injuries when the center of the
back of the occupant’s head rests against the
center of the restraint. The tops of the
occupant’s ears should be level with the
center height of the restraint.

Adjusting the front head restraint positions

To raise the head restraint: Pull it upward.
To lower the head restraint: Push it down
while pressing the release button.

Adjusting the Head Restraints

1

Adjusting the Head Restraints

For the head restraint system to work properly:

Do not hang any items on the head restraints, or
from the restraint legs.

Do not place any objects between an occupant and
the seat-back.

Install each restraint in its proper location.

3

WARNING

Improperly positioning head restraints
reduces their effectiveness and increases
the likelihood of serious injury in a crash.

Make sure head restraints are in place and
positioned properly before driving.

Position head in the center
of the head restraint.

Continued

137

uu

Adjusting the Seats

u

Adjusting the Seat Positions

Co
ntrols

A passenger sitting in a back seating position
should adjust the height of their head restraint
to an appropriate position before the vehicle
begins moving.

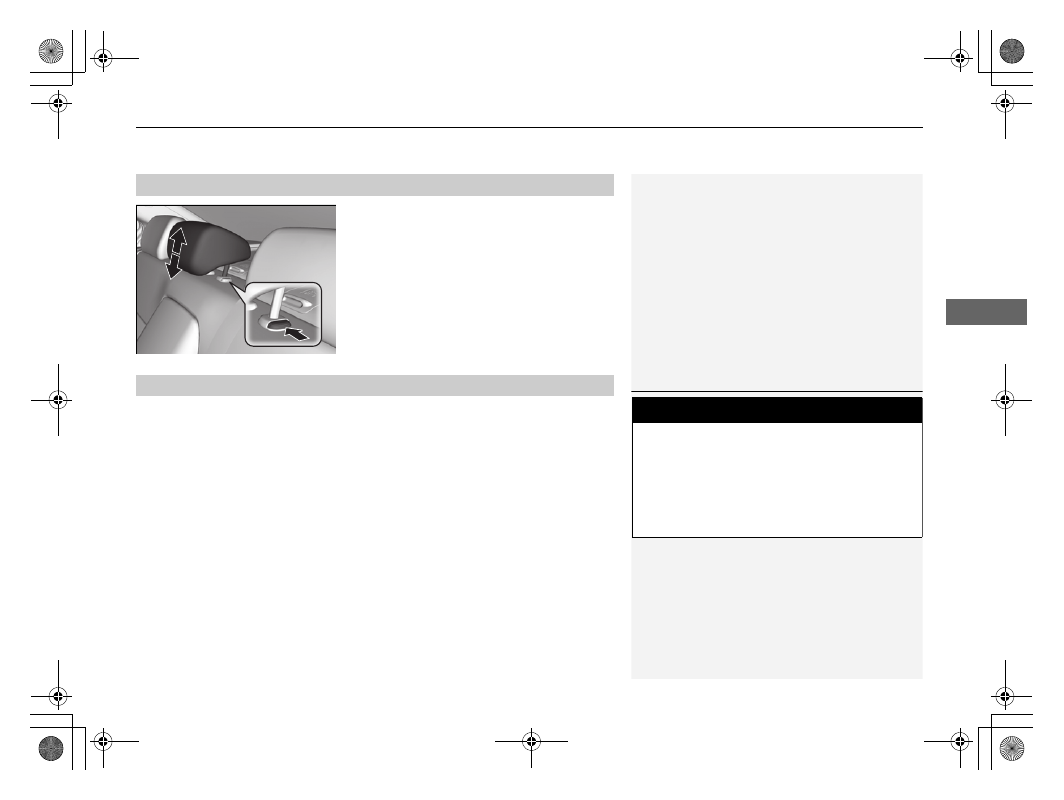

To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button.

Head restraints can be removed for cleaning or repair.

To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.

To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button. Pull up on the restraint to make sure it is locked
in position.

Changing the Rear Seat Head Restraint Positions

Removing and Reinstalling the Head Restraints

1

Removing and Reinstalling the Head Restraints

3

WARNING

Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.

Always replace the head restraints before
driving.

uu

Adjusting the Seats

u

Armrest

138

Co
ntrols

After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safely parked and the engine is
off.

Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.

In addition, an occupant who is out of position in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.

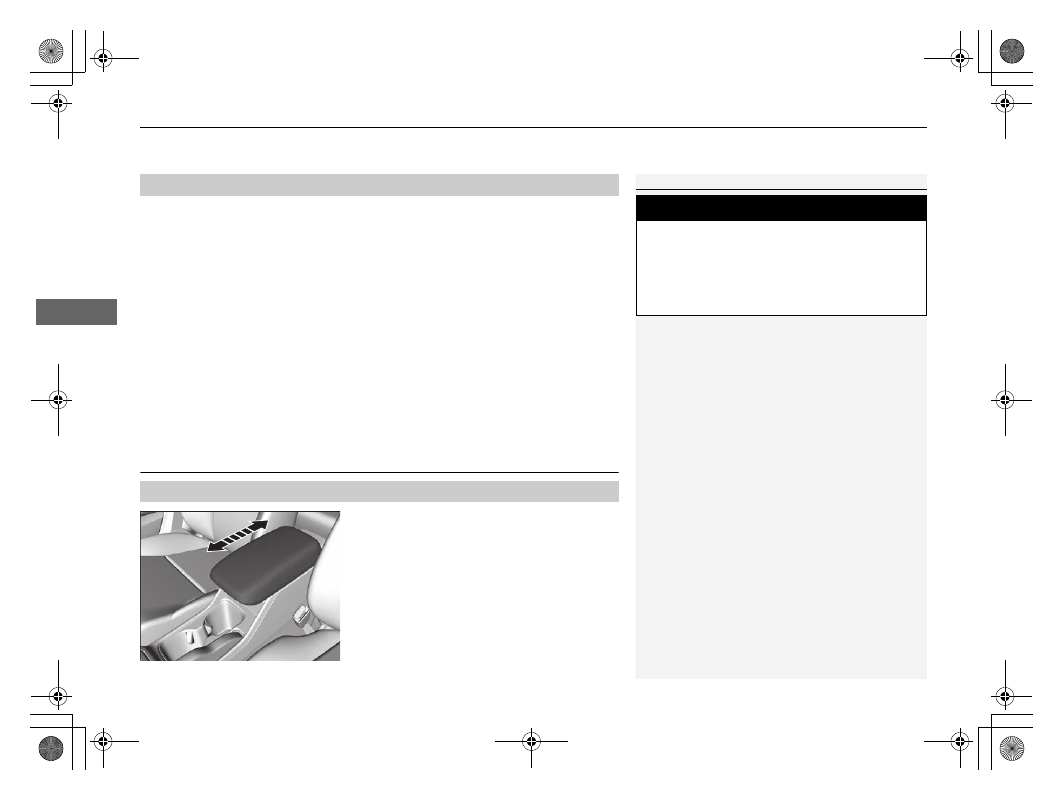

Armrest

The console lid can be used as an armrest.
To adjust:
Slide the armrest to a desired position.

Maintain a Proper Sitting Position

Using the Front Seat Armrest

1

Maintain a Proper Sitting Position

3

WARNING

Sitting improperly or out of position can
result in serious injury or death in a crash.

Always sit upright, well back in the seat,
with your feet on the floor.

139

Co
ntrols

Interior Lights/Interior Convenience Items

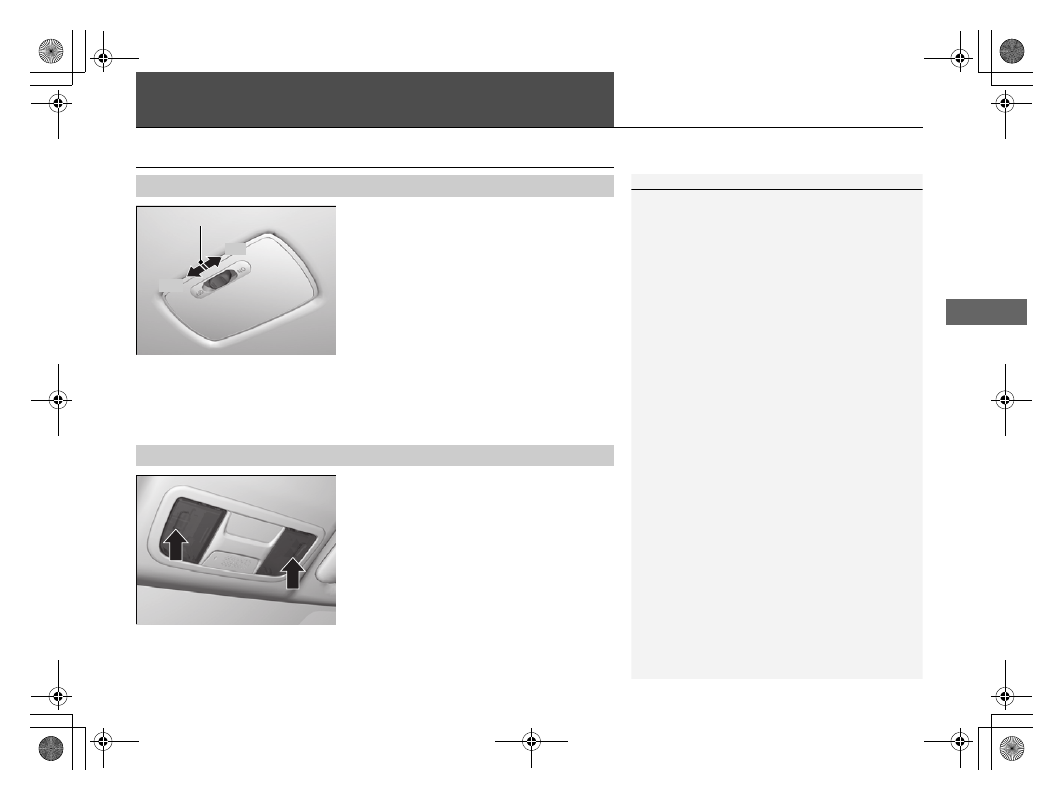

Interior Lights

ON

The interior light comes on regardless of
whether the doors are open or closed.

Door activated

The interior light comes on in the following
situations:
• When any of the doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE

OFF (LOCK).

OFF

The interior light remains off regardless of
whether the doors are open or closed.

The map lights can be turned on and off by
pressing the lenses.

Interior Light Switch

1

Interior Light Switch

In the door activated position, the interior light fades
out and goes off about 30 seconds after the doors
are closed.
The light goes off after 30 seconds in the following
situations:

When you unlock the driver’s door but do not open
it.

When the power mode is set to VEHICLE OFF
(LOCK).

You can change the interior light dimming time.

Customized Features P. 93

The interior light goes off immediately in the
following situations:

When you lock the driver’s door.

When you close the driver’s door in ACCESSORY
mode.

When you set the power mode to ON.

If you leave any doors open, the interior lights go off
after about 15 minutes.

Door Activated Position

On

Off

Map Lights

140

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

Interior Convenience Items

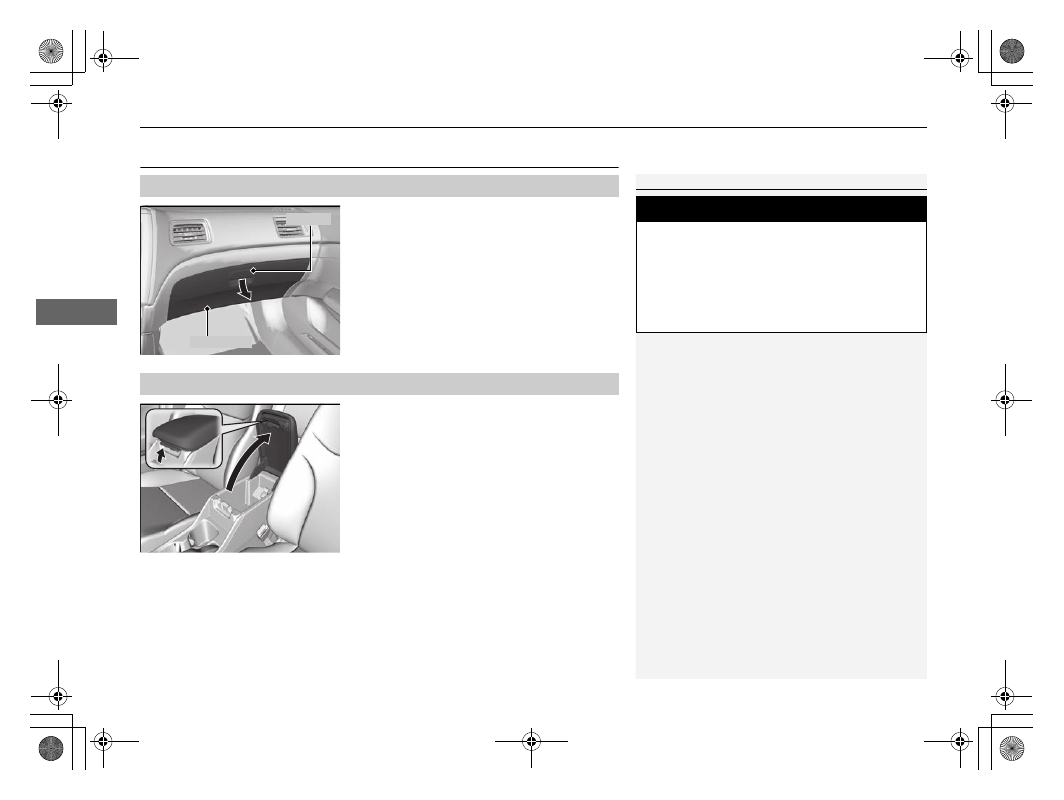

Pull the handle to open the glove box.

Pull the handle to open the console
compartment.

Glove Box

1

Glove Box

3

WARNING

An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.

Always keep the glove box closed while
driving.

Handle

Glove Box

Console Compartment

Continued

141

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

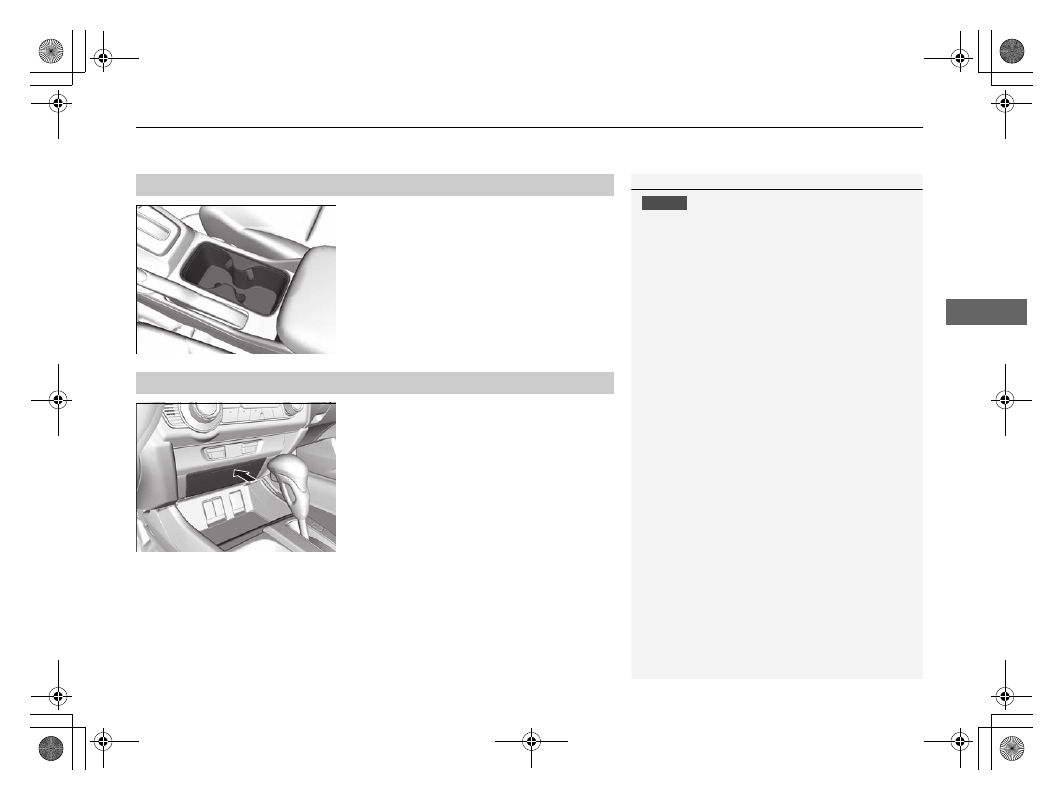

Front seat beverage holders

Press on the upper edge to open the pocket.

Beverage Holders

1

Beverage Holders

NOTICE

Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.

Be careful when you are using the beverage holders.
Hot liquid can scald you.

Center Pocket

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

142

Co
ntrols

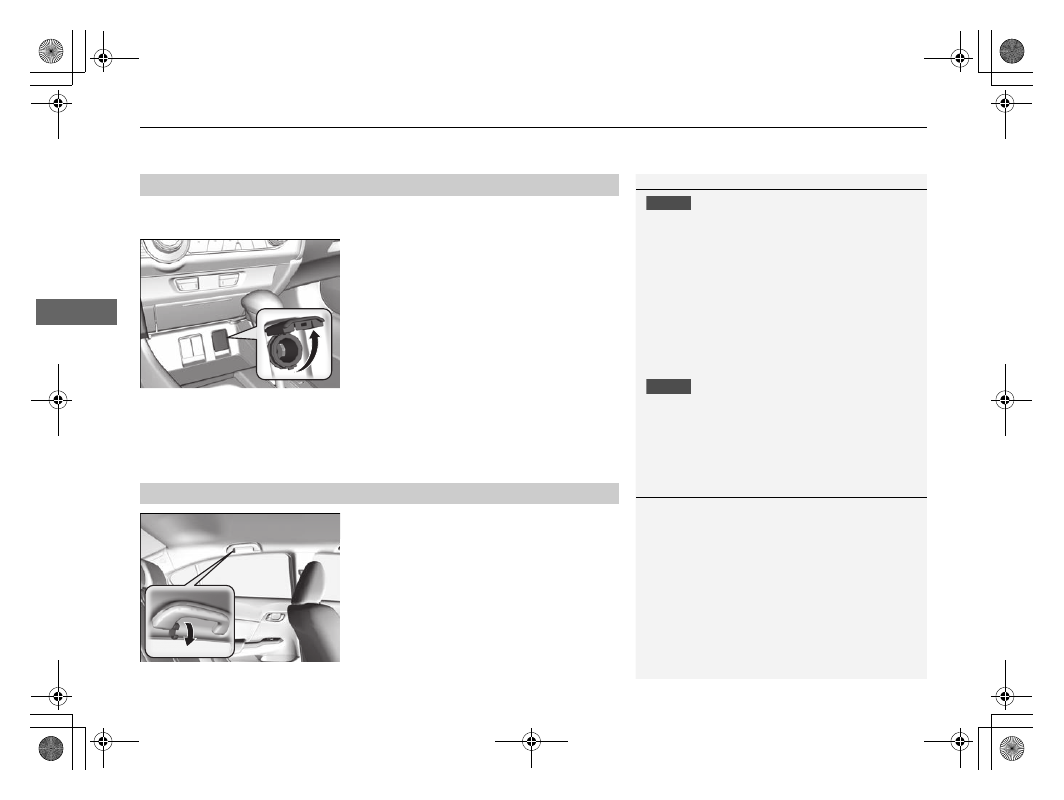

The accessory power socket can be used when the power mode is in ACCESSORY or
ON.

Open the cover to use it.

There is a coat hook on the rear left grab
handle. Pull it down to use it.

Accessory Power Socket

1

Accessory Power Socket

NOTICE

Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.

The accessory power socket is designed to supply
power for 12 volt DC accessories that are rated 180
watts (15 amps) or less.

To prevent battery drain, only use the power socket
with the engine running.

NOTICE

Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The accessory
power socket and compressor can overheat and
become permanently damaged.

Coat Hook

1

Coat Hook

The coat hook is not designed for large or heavy
items.

143

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

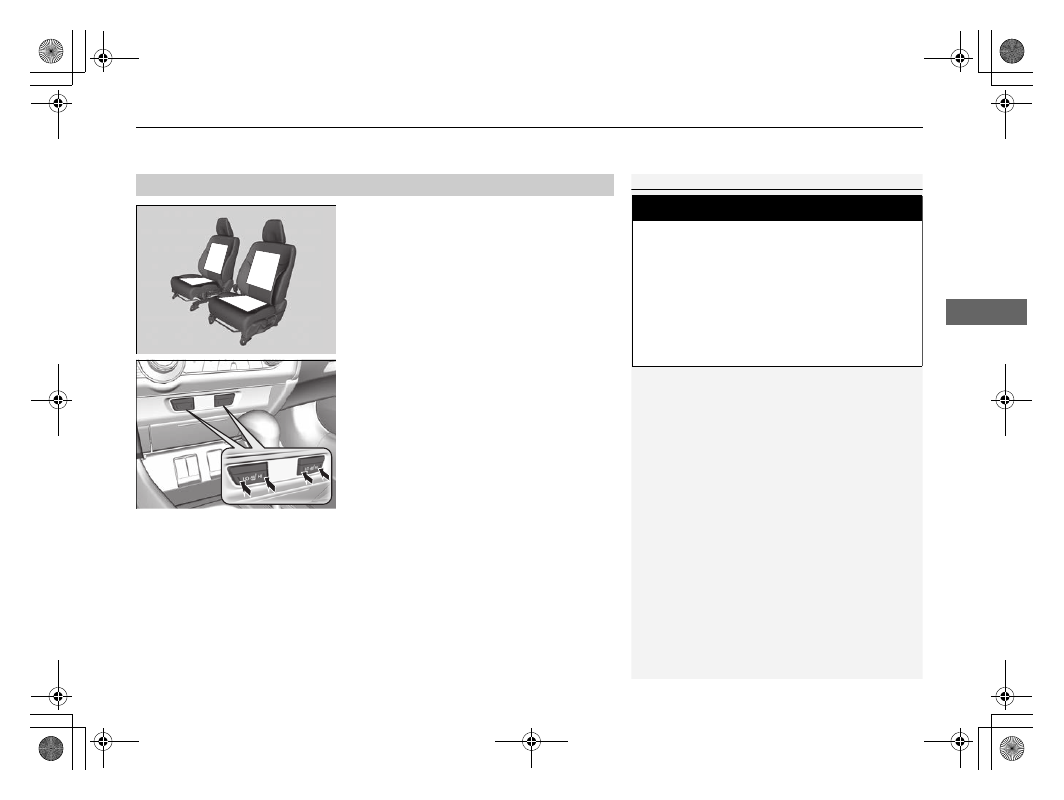

The power mode must be in ON to use the
seat heaters. The HI setting heats the seats
faster than the LO setting.

While in HI, the heater cycles on and off.

u

The appropriate indicator will be on
while the seat heater is on. Briefly press
the button on the opposite side to turn
the heater off. The indicator will be off.
When a comfortable temperature is
reached, select LO to keep the seat
warm.

Seat Heaters

*

1

Seat Heaters

*

Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.

In the LO setting, the heater runs continuously and
does not automatically turn off.

3

WARNING

Heat induced burns are possible when
using seat heaters.

Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.

* Not available on all models















Content   ..  7  8  9  10   ..
