Gauges and intelligent Multi-Information Display (i-MID)

u

intelligent Multi-Information Display (i-MID)

In

strum

e

nt Pa

nel

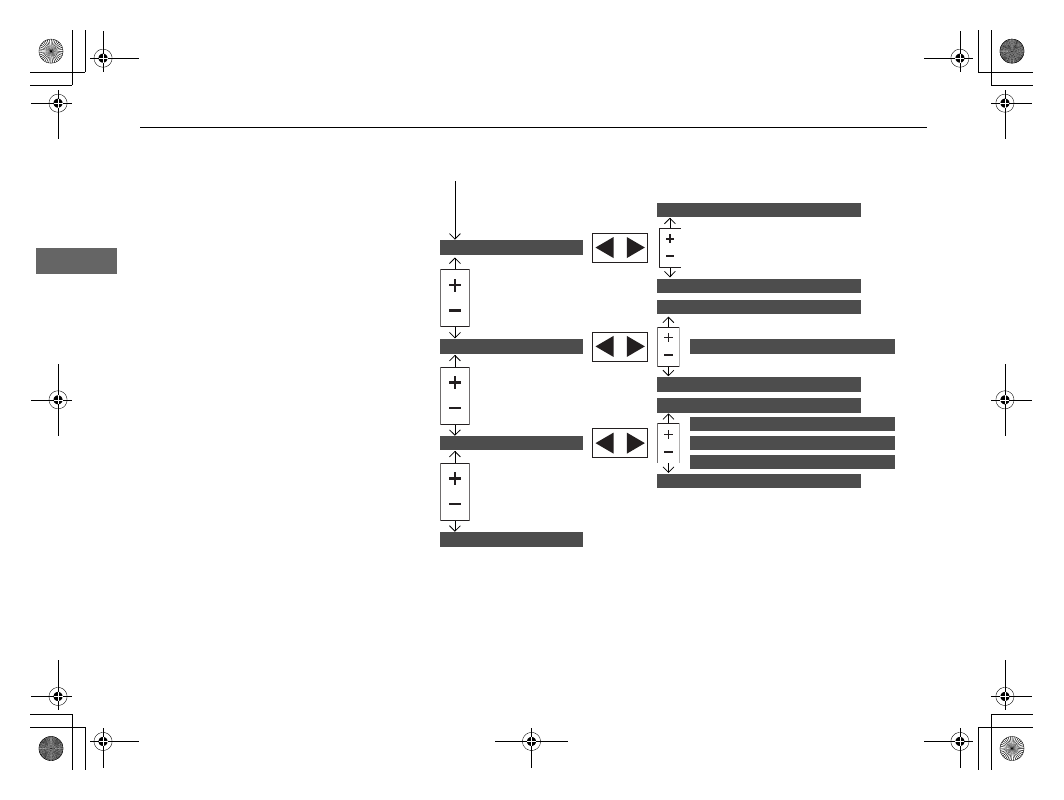

Lighting Setup

Door Setup

Default All

Auto Light Sensitivity

Door Lock Mode

Auto Unlock All Doors

Keyless Lock Acknowledgment

Auto Door Lock

Security Relock Timer

Interior Light Dimming Time

Headlight Auto Off Timer

Keyless Access Setup

Keyless Access Beep

Door Unlock Mode

97

uu

Gauges and intelligent Multi-Information Display (i-MID)

u

intelligent Multi-Information Display (i-MID)

Continued

In

strum

e

nt Pa

nel

List of customizable options

Setup Group

Customizable Features

Description

Selectable settings

Vehicle
Information

Fuel Consumption
History

Shows the fuel consumption history.

Maintenance Info

Resets the Maintenance Minder

TM

.

No/Yes

Odometer/
Trip Meter

Trip Meter Reset

Resets the trip meter.

Trip A/Trip B

Select Trip/Odometer

Switches between odometer, trip meter A, and trip
meter B.

Odometer/Trip A/Trip B

98

uu

Gauges and intelligent Multi-Information Display (i-MID)

u

intelligent Multi-Information Display (i-MID)

In

strum

e

nt Pa

nel

*1: Models with navigation system
*2: Default Setting
*3: Refer to the Navigation System Manual for complete details.

Setup Group

Customizable Features

Description

Selectable settings

Customize
Settings

TPMS Calibration

*

Calibrates the TPMS.

Cancel/Initialize

Driving
Support
System
Setup

*

Forward
Collision
Warning
Distance

Changes at which distance FCW alerts, or turns
FCW on and off.

Long/Normal

*2

/Short/Off

Display
Setup

Trip Meter Item
to Display

Selects an item to be displayed along with average
fuel economy.

Range

*2

/Elapsed Time/

Average Speed

Welcome
Screen

Selects whether the welcome screen comes on or
when you set the power mode to ON.

On

*2

/Off

Color Theme

Changes the color of the screen.

Blue

*2

/Red/Amber/Gray

Keyless Start
Guidance
Screens

Displays the push button start guidance when
conditions are met to change power mode.

On

*2

/Off

Turn by Turn
Display

*1, *3

Selects whether the turn-by-turn display comes on
or not during the route guidance.

On

*2

/Off

Language
Selection

Changes the displayed language.

English

*2

/French/Spanish

* Not available on all models

99

uu

Gauges and intelligent Multi-Information Display (i-MID)

u

intelligent Multi-Information Display (i-MID)

Continued

In

strum

e

nt Pa

nel

*1: Default Setting

Setup Group

Customizable Features

Description

Selectable settings

Customize
Settings

Trip
Computer
Setup

Adjust
Outside
Temp.
Display

Adjusts the temperature reading by a few degrees.

-5°F ~ ±0°F

*1

 ~ +5°F (U.S.)

-3°C ~ ±0°C

*1

 ~ +3°C (Canada)

Trip A reset
trigger

Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.

With refuel/Manual only

*1

/

IGN Off

Trip B reset
trigger

Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.

With refuel/Manual only

*1

/

IGN Off

Display km/
miles

Changes the displayed measurement on the i-MID
and instant fuel economy gauge. In Auto, these
measurements change in accordance with a
change made to the speedometer measurement.

Auto

*1

/km/miles

Fuel
Efficiency
Backlight

Turns the ambient meter feature on and off.

On

*1

/Off

Keyless
Access
Setup

Keyless
Access Beep

Sets the beeper sound or not when you grab either
front door handle.

On

*1

/Off

Door Unlock
Mode

Changes which doors unlock when you grab the
driver’s door handle.

Driver Door Only

*1

/All Doors

100

uu

Gauges and intelligent Multi-Information Display (i-MID)

u

intelligent Multi-Information Display (i-MID)

In

strum

e

nt Pa

nel

*1: Default Setting

Setup Group

Customizable Features

Description

Selectable settings

Customize
Settings

Lighting
Setup

Interior Light
Dimming
Time

Changes the length of time the interior lights stay
on after you close the doors.

60sec/30sec

*1

/15sec

Headlight
Auto Off
Timer

Changes the length of time the exterior lights stay
on after you close the driver’s door.

60sec/30sec/15sec

*1

/0sec

Auto Light
Sensitivity

Changes the timing for the headlights to come on.

Max/High/Mid

*1

/Low/Min

Door
Setup

Auto Door
Lock

Changes the setting for when the doors
automatically lock.

Off/With Vehicle Speed

*1

/

Shift from P

Door Lock
Mode

Sets up either the driver’s door or all doors to unlock
on the first operation of the remote or built-in key.

Driver Door

*1

/All Doors

Auto Unlock
All Doors

Changes the setting for when the doors
automatically unlock.

Off/When Driver’s Door
Opens

*1

/When Shift To

Park

*

/When Ignition Off

Keyless Lock
Acknowledgment

LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.

On

*1

/Off

Security
Relock Timer

Changes the time it takes for the doors to relock
and the security system to set after you unlock the
vehicle without opening any door.

90sec/60sec/30sec

*1

Default
All

Cancels/Resets all the customized settings as
default.

Cancel

Reset All Defaults

* Not available on all models

101

Controls

This chapter explains how to operate the various controls necessary for driving.

Clock .................................................. 102
Locking and Unlocking the Doors

Key Types and Functions .................. 103
Locking/Unlocking the Doors from the

Outside .......................................... 106

Locking/Unlocking the Doors from the

Inside ............................................. 110

Childproof Door Locks ..................... 112
Auto Door Locking/Unlocking .......... 113

Opening and Closing the Trunk....... 114
Security System

Immobilizer System .......................... 117
Security System Alarm...................... 117

Opening and Closing the Windows ... 119
Operating the Switches Around the

Steering Wheel

ENGINE START/STOP Button............. 121
Turn Signals ..................................... 124
Light Switches.................................. 124
Daytime Running Lights ................... 127
Wipers and Washers ........................ 128
Brightness Control ........................... 129
Rear Defogger/Heated Door Mirror

*



Button ........................................... 130

Adjusting the Steering Wheel........... 131

Adjusting the Mirrors

Interior Rearview Mirror ................... 132
Power Door Mirrors ......................... 132

Adjusting the Seats

Adjusting the Seat Positions............. 134

Interior Lights/Interior Convenience

Items

Interior Lights .................................. 139
Interior Convenience Items .............. 140

Climate Control System

Using Automatic Climate Control .... 144
Automatic Climate Control Sensors... 146

* Not available on all models

102

Co
ntrols

Clock

Adjusting the Clock

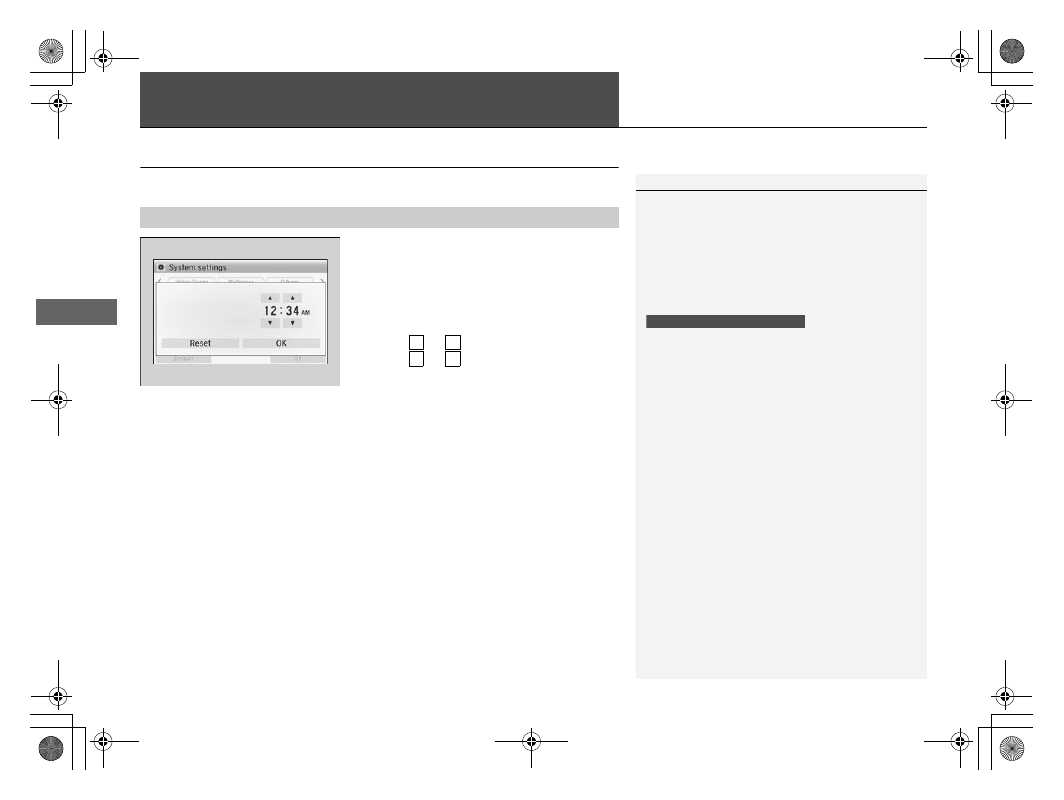

You can adjust the time in the clock display, with the power mode in ON.

Using the Settings menu on the audio/
information screen

1. Select Settings.
2. Select System.
3. Select Clock.
4. Select Clock Adjustment.
5. Select

 or

 to change hour.

6. Select

 or

 to change minute, then

select OK.

Adjusting the Time

1

Adjusting the Clock

You can customize the clock display to show the 12
hour clock or 24 hour clock.

Customized Features P. 192

The clock display is set to off by factory default.
You can turn the clock display on and off.

Customized Features P. 192

The clock is automatically updated through the
navigation system, so the time does not need to be
adjusted.

Models with navigation system

3

4

3

4

103

Continued

Co
ntrols

Locking and Unlocking the Doors

Key Types and Functions

This vehicle comes with the following keys:

Use the key to start and stop the engine, to
lock and unlock the doors and to open the
trunk. You can also use the remote
transmitter or smart entry system to lock and
unlock the doors and to open the trunk.

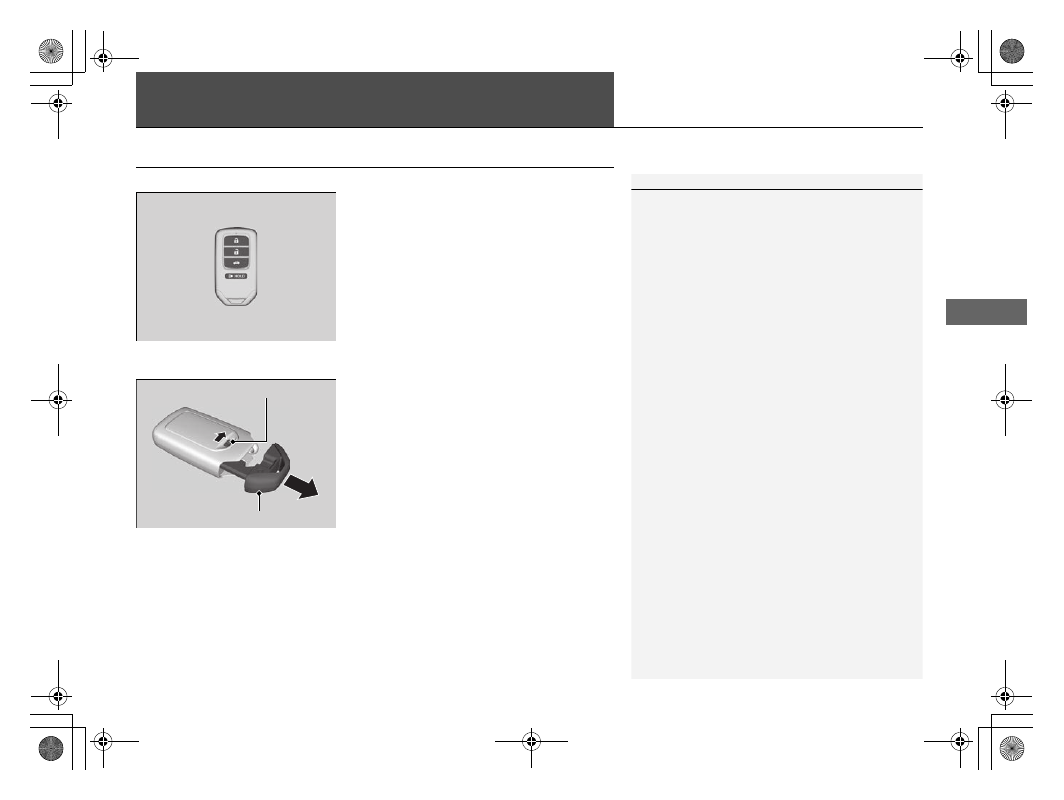

Smart entry remote

The built-in key can be used to lock/unlock the
doors when the smart entry remote battery
becomes weak and the power door lock/
unlock operation is disabled.

To remove the built-in key, pull it out while
sliding the release knob. To reinstall the built-
in key, push the built-in key into the smart
entry remote until it clicks.

1

Key Types and Functions

All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft.

Immobilizer System P. 117

The keys contain precision electronics.
Adhere to the following advice to prevent damage to
the electronics:

Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.

Do not drop the keys or set heavy objects on them.

Keep the keys away from liquids.

Do not take the keys apart except for replacing the
battery.

If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.

Release Knob

Built-in Key

uu

Locking and Unlocking the Doors

u

Key Types and Functions

104

Co
ntrols

Contains a number that you will need if you
purchase a replacement key.

Key Number Tag

1

Key Number Tag

Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.

If you lose your key and you cannot start the engine,
contact a dealer.

105

uu

Locking and Unlocking the Doors

u

Low Smart Entry Remote Signal Strength

Co
ntrols

Low Smart Entry Remote Signal Strength

The vehicle transmits radio waves to locate the smart entry remote when locking/
unlocking the doors, opening the trunk, or to start the engine.

In the following cases, locking/unlocking the doors, opening the trunk, or starting
the engine may be inhibited or operation may be unstable:
• Strong radio waves are being transmitted by nearby equipment.
• You are carrying the smart entry remote together with telecommunications

equipment, laptop computers, cell phones, or wireless devices.

• A metallic object is touching or covering the smart entry remote.

1

Low Smart Entry Remote Signal Strength

Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the smart entry
remote is receiving strong radio waves. Avoid placing
it near electrical appliances such as televisions and
personal computers.

106

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Outside

Co
ntrols

Locking/Unlocking the Doors from the Outside

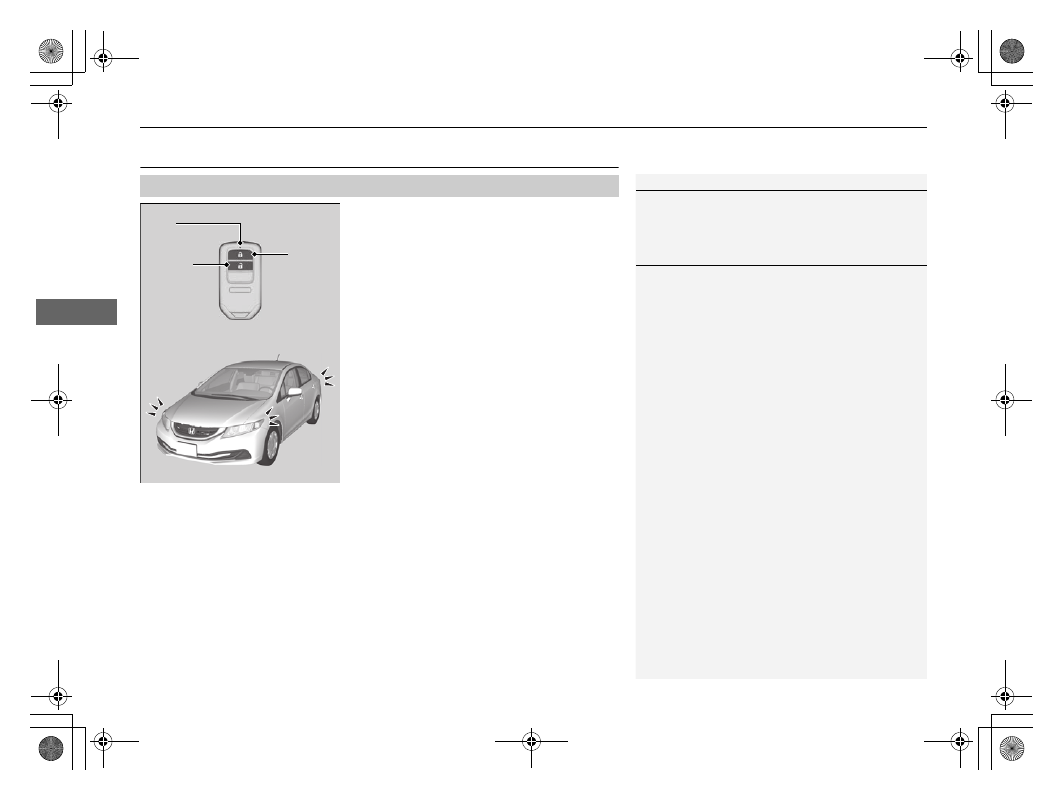

Locking the doors

Press the lock button.
Once:

u

Some exterior lights flash, all the doors
lock, and the security system sets.

Twice (within five seconds after the first
push):

u

The beeper sounds and verifies the
security system is set.

Unlocking the doors

Press the unlock button.
Once:

u

Some exterior lights flash twice, and the
driver’s door unlocks.

Twice:

u

The remaining doors unlock.

Using the Remote Transmitter

1

Locking/Unlocking the Doors from the Outside

You can lock or unlock doors using the remote
transmitter or smart entry system only when the
power mode in VEHICLE OFF.

1

Using the Remote Transmitter

If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will automatically relock.
You can change the relock timer setting.

Customized Features P. 93

If the interior light switch is in the door activated
position, the interior lights come on when you press
the unlock button.
No doors opened: The lights fade out after 30 seconds.
Doors relocked with the remote: The lights go off
immediately.

Interior Lights P. 139

The remote transmitter uses low-power signals, so
the operating range may vary depending on the
surroundings.

The remote will not lock the vehicle when a door is
open.

If the distance at which it works varies, the battery is
probably low.
If the LED does not come on when you press a
button, the battery is dead.

Replacing the Button Battery P. 318

You can customize the door unlock mode setting.

Customized Features P. 93

LED

Unlock
Button

Lock
Button

Continued

107

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Outside

Co
ntrols

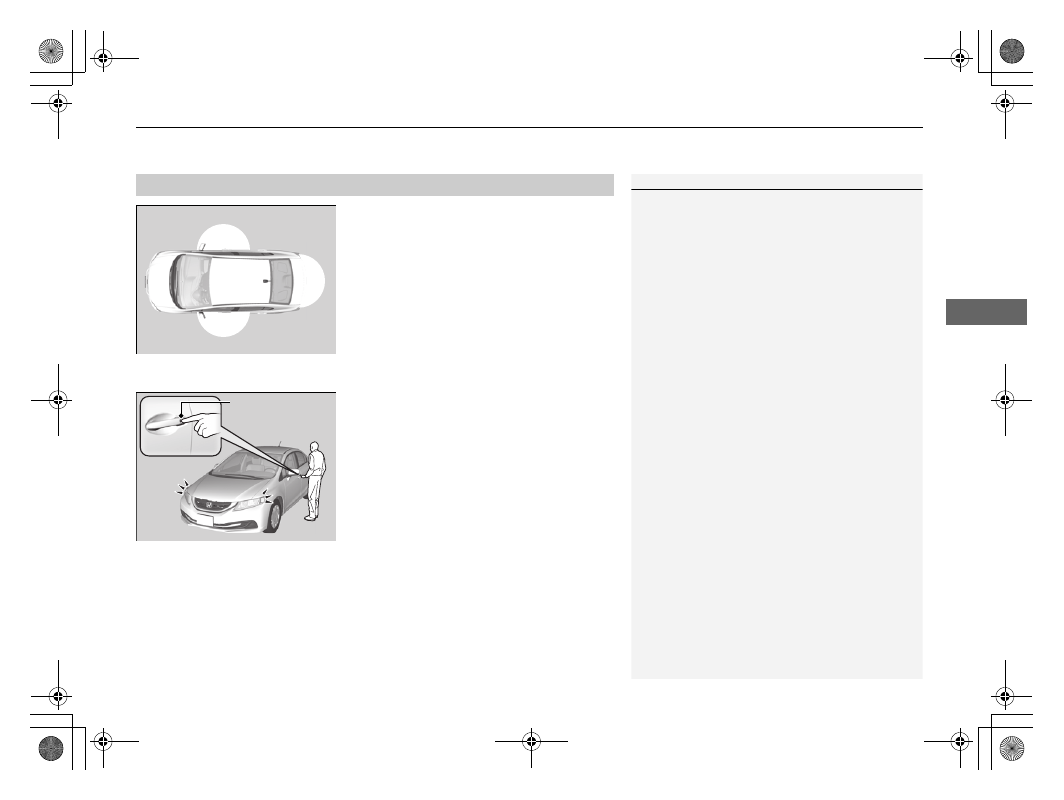

When you carry the smart entry remote, you
can lock/unlock the doors and open the trunk.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the trunk within about
32 inches (80 cm) radius from the trunk
release button.

Locking the doors and the trunk

Press the door lock button on the front door.

u

Some exterior lights flash; the beeper
sounds; all the doors lock; and the
security system sets.

Using the Smart Entry with Push Button Start System

Door Lock Button

1

Using the Smart Entry with Push Button Start System

Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.

Even if you are not carrying the smart entry remote,
you can lock/unlock the doors while someone else
with the remote is within range.

The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the smart entry remote is within range.

If you grip a front door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.

You cannot unlock the door by gripping the handle
after two seconds of unlocking it.

The door may not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that the door is unlocked before
pulling the handle.

Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors with the smart
entry remote if it is above or below the outside
handle.

The smart entry remote may not operate if it is too
close to the door and door glass.

You can customize the door lock mode and keyless
lock acknowledgement setting.

Customized Features P. 93

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Outside

108

Co
ntrols

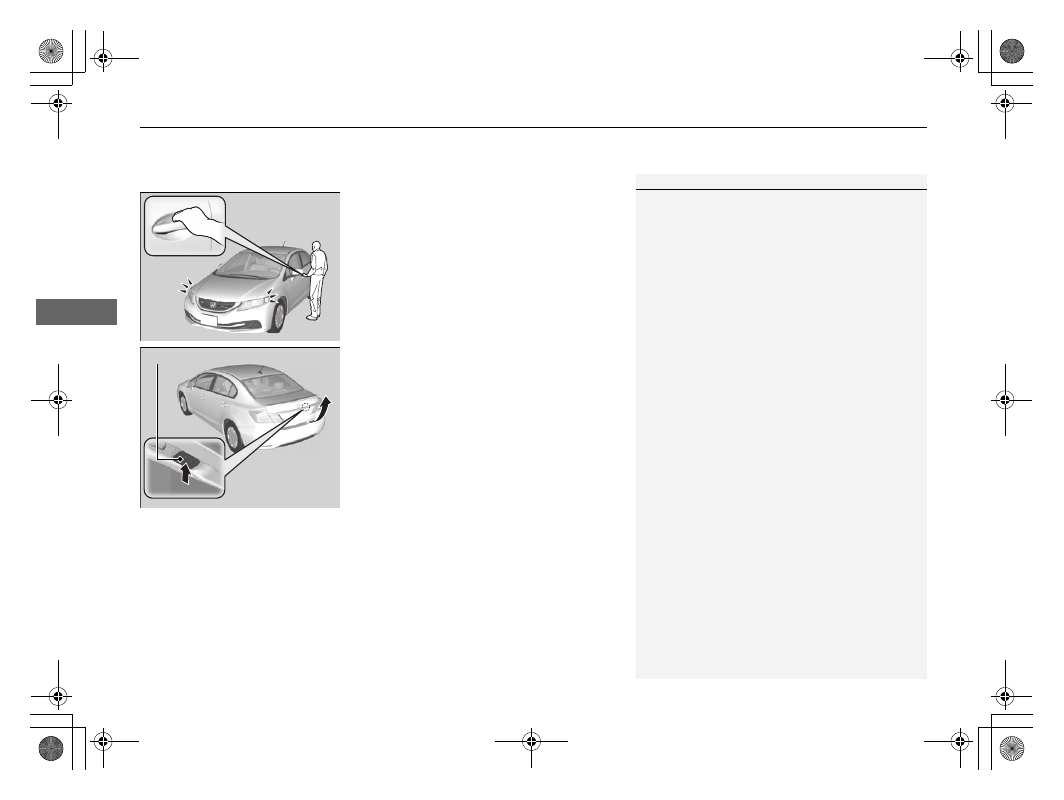

Unlocking the doors and the trunk

Grab the driver’s door handle:

u

The driver’s door unlocks.

u

Some exterior lights flash twice and the
beeper sounds twice.

Grab the front passenger’s door handle:

u

All the doors and trunk unlock.

u

Some exterior lights flash twice and the
beeper sounds twice.

Press the trunk release button:

u

The trunk unlocks and opens.

u

The beeper sounds.

Using the Trunk Release Button P. 115

Trunk Release Button

1

Using the Smart Entry with Push Button Start System

If you do not open a door within 30 seconds of
unlocking the vehicle, the doors will automatically
relock.

The beep and unlock settings can be customized.

Customized Features P. 93

109

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Outside

Co
ntrols

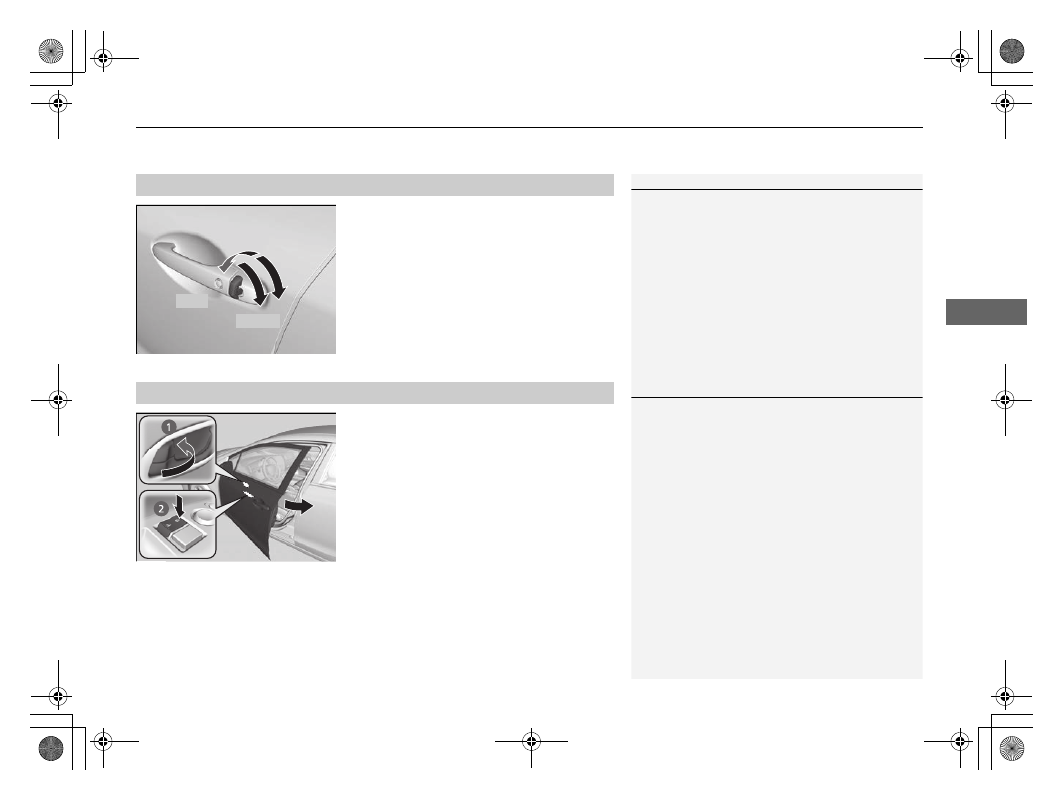

Fully insert the key and turn it.

Locking the driver’s and front
passenger’s door

Push the lock tab forward

a

 or push the

master door lock switch in the lock direction

b

, and close the door.

Locking the rear passengers’ doors

Push the lock tab forward and close the door.

Lockout prevention system

The doors cannot be locked when the smart entry remote is inside the vehicle.

Locking/Unlocking the Doors Using a Key

1

Locking/Unlocking the Doors Using a Key

When you lock the driver’s door with the key, all the
other doors lock at the same time. When unlocking,
the driver’s door unlocks first. Turn the key a second
time within a few seconds to unlock the remaining
doors.

If you unlock the doors with the key, the alarm goes
off when you open the bonnet or move the shift lever
out of

(

P.

You can customize the door unlock mode setting.

Customized Features P. 93

Lock

Unlock

Locking a Door Without Using a Key

1

Locking a Door Without Using a Key

When you lock the driver’s door, all the other doors
lock at the same time.
Make sure you have the key in your hand before
locking the door to prevent it from being locked in
the vehicle.

110

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Inside

Co
ntrols

Locking/Unlocking the Doors from the Inside

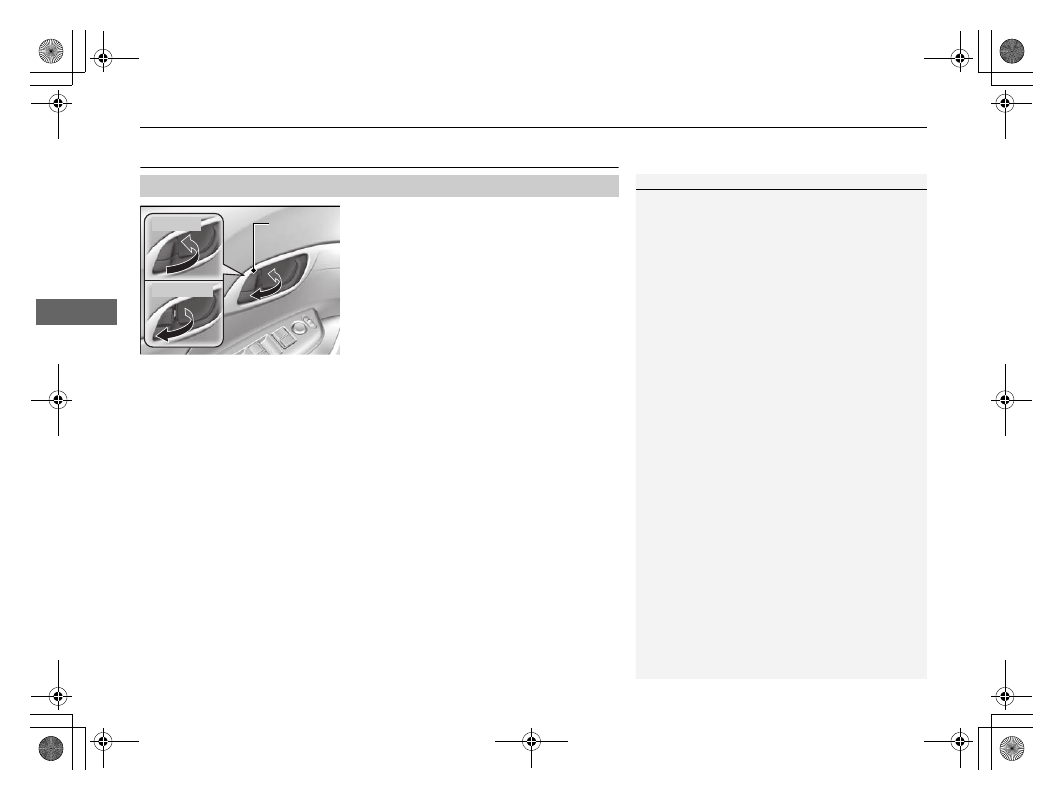

Locking a door

Push the lock tab forward.

Unlocking a door

Pull the lock tab rearward.

Using the Lock Tab

1

Using the Lock Tab

When you lock the door using the lock tab on the
driver’s door, all the other doors lock at the same
time.
When you unlock the door using the lock tab on the
driver’s door, only the driver’s door will unlock.

To Unlock

Lock Tab

To Lock

Continued

111

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Inside

Co
ntrols

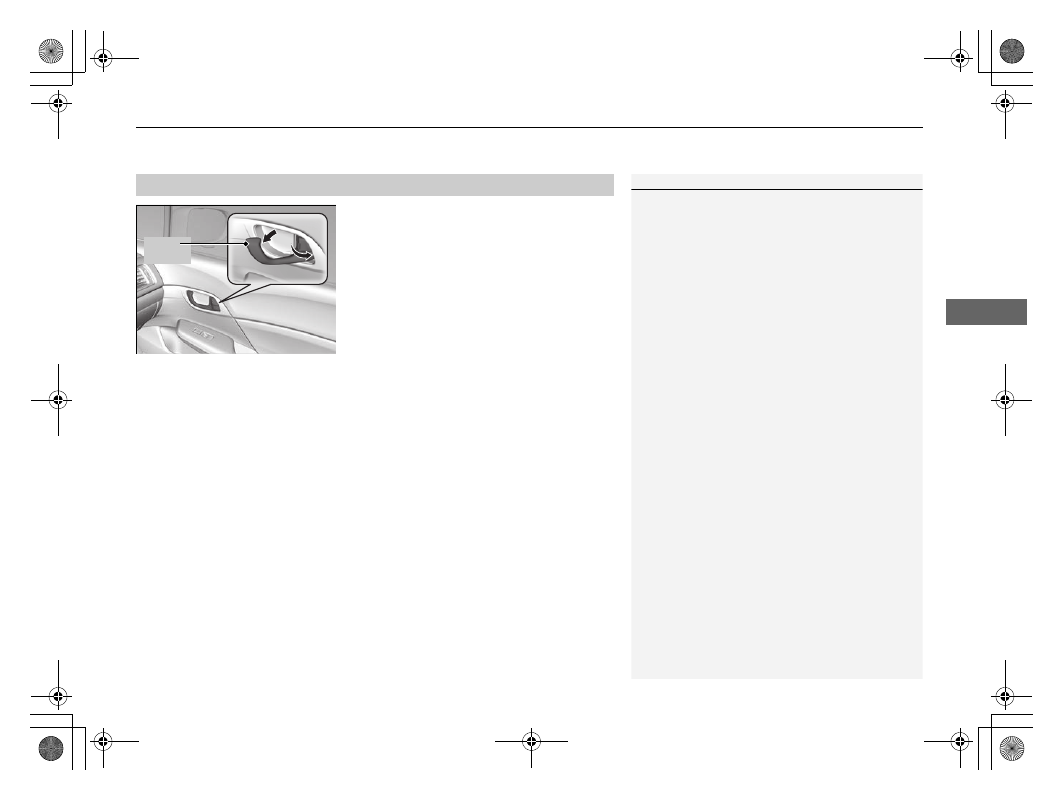

Pull the front door inner handle.

u

The door unlocks and opens in one
motion.

Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.

To avoid all the doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door.

u

This setting works for one time only.
If you do not want all the doors to be unlocked all the time, customize the
Auto Unlock All Doors setting to Off using the i-MID.

Customized Features P. 93

Unlocking Using the Front Door Inner Handle

1

Unlocking Using the Front Door Inner Handle

The inner front door handles are designed to allow
front seat occupants to open the door in one motion.
However this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.

Children should always ride in a rear seat where
childproof door locks are provided.

Childproof Door Locks P. 112

Inner
Handle















Content   ..  5  6  7  8   ..
