intelligent Multi-Information Display (i-MID) Warning and Information Messages

In

strum

e

nt Pa

nel

intelligent Multi-Information Display (i-MID) Warning and Information Messages

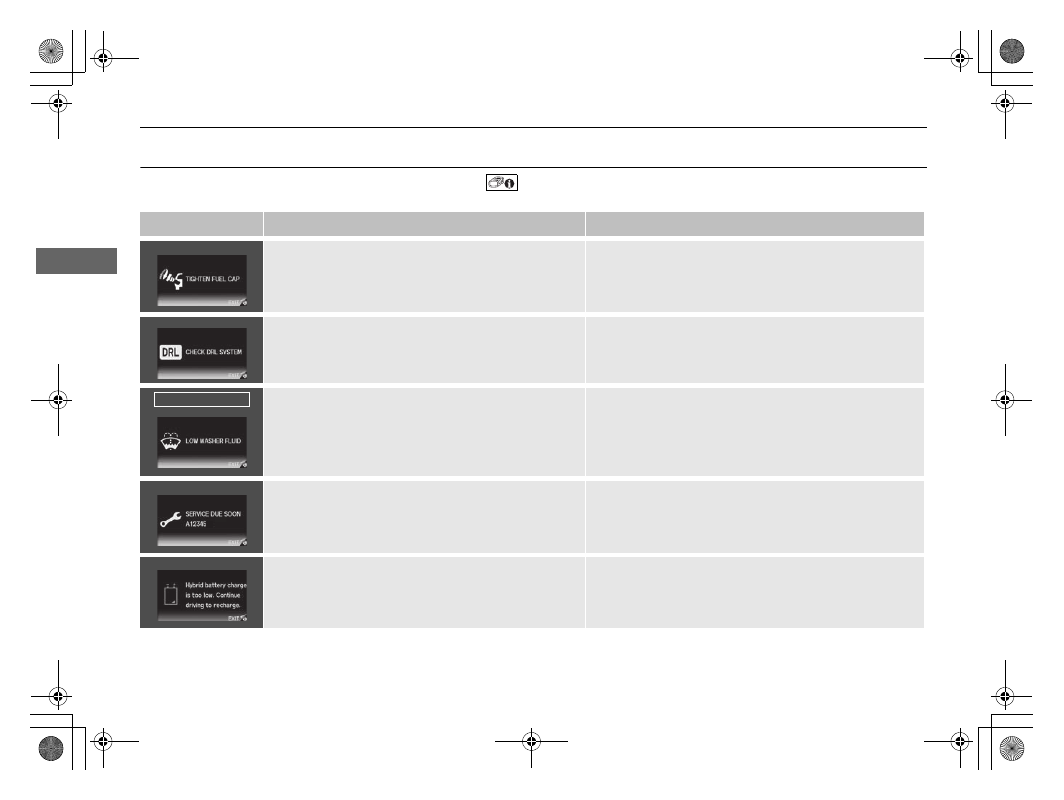

The following messages appear only on the i-MID. Press the

 (display/information) button to see the message again with the system

message indicator on.

Message

Condition

Explanation

Appears when the fuel fill cap is loose or is not
installed.

Tighten Fuel Cap Message P. 350

Appears if there is a problem with the DRL system.

Have your vehicle checked by a dealer.

Daytime Running Lights P. 127

Appears when the washer fluid is low.

Refill washer fluid.

Refilling Window Washer Fluid P. 299

Appears when the scheduled maintenance is due
soon.

u

Consequently, SERVICE DUE NOW and SERVICE
PAST DUE
 follow.

Maintenance Minder

TM

 P. 283

Appears when the IMA battery is significantly low.

Drive continuously or, if necessary, allow the vehicle to
idle in an open area until the message disappears.

Canadian models

81

uu

Indicators

u

intelligent Multi-Information Display (i-MID) Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

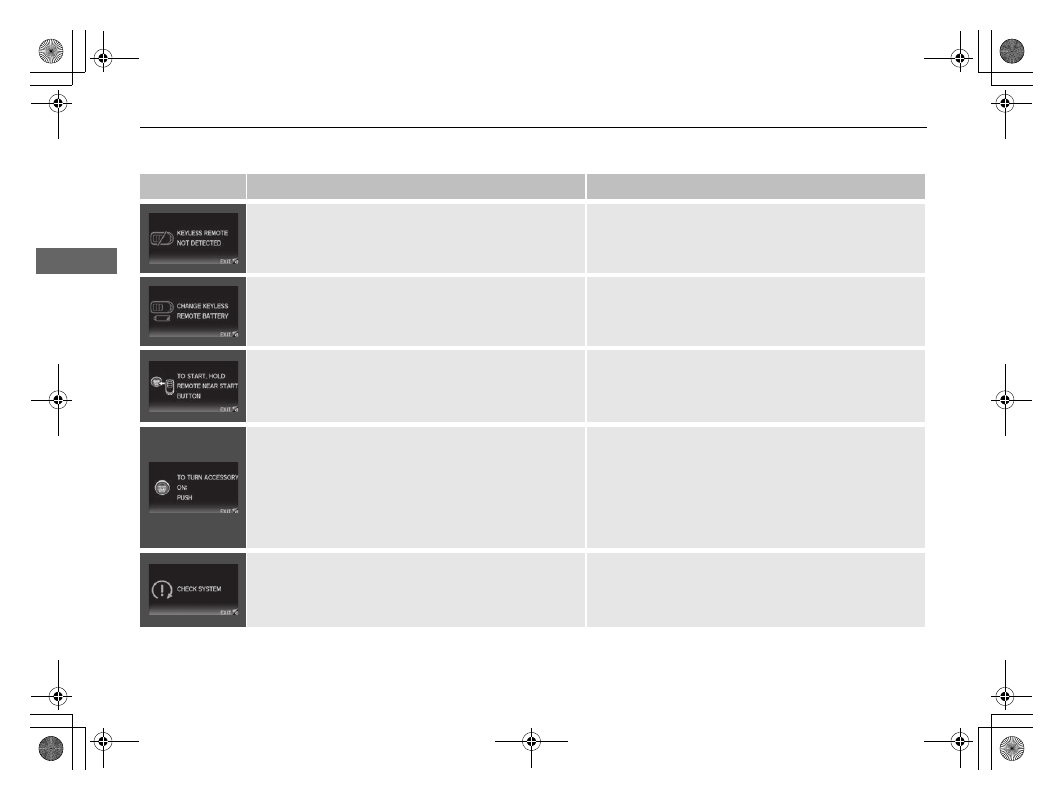

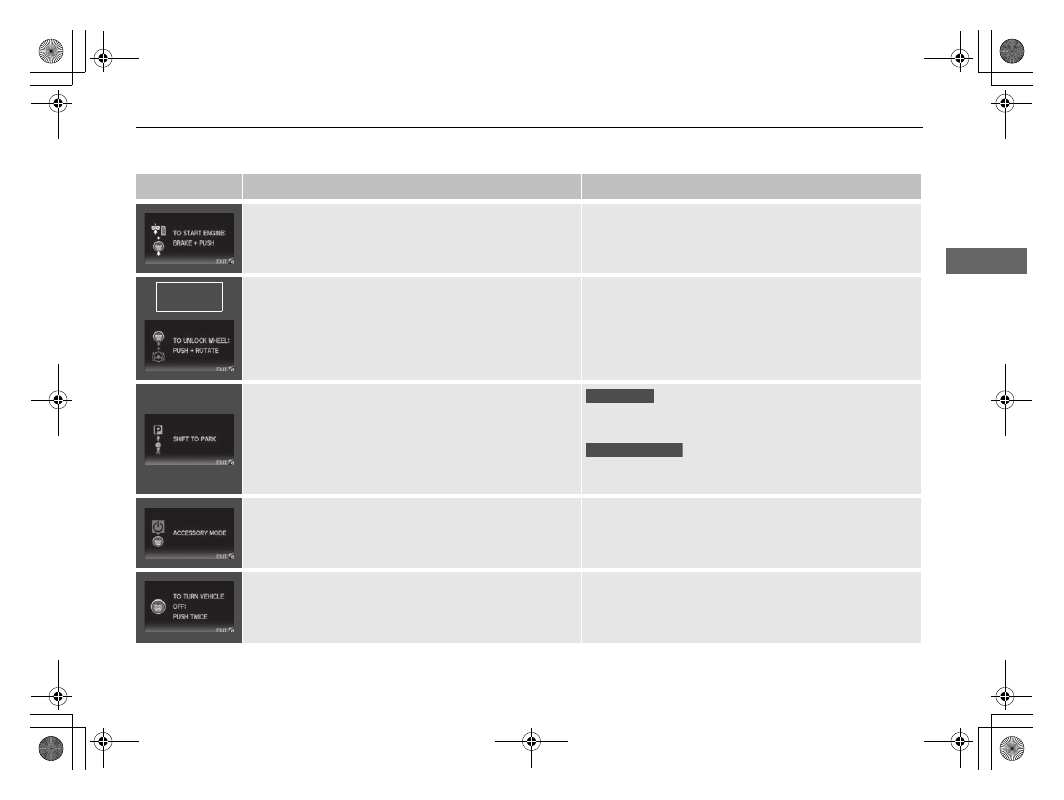

Appears when you set the power mode to ACCESSORY
or ON.

Starting the Engine P. 238

Appears when the steering wheel is locked.

Move the steering wheel left and right while pressing
the ENGINE START/STOP button.

Appears if you push the ENGINE START/STOP button
to turn the engine off without the shift lever in

(

P.

Move the shift lever to

(

P. The power mode changes to

VEHICLE OFF.

Move the shift lever to

(

P, then press the ENGINE

START/STOP button twice.

Appears when the power mode is in ACCESSORY.

Appears after the driver’s door is opened when the
power mode is in ACCESSORY.

Press the ENGINE START/STOP button twice with your
foot off the brake pedal to change the power mode to
VEHICLE OFF (LOCK).

Except U.S.
models

U.S. models

Canadian models

82

uu

Indicators

u

intelligent Multi-Information Display (i-MID) Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

Appears when you close the door with the power mode
in ON without the smart entry remote inside the vehicle.

Disappears when you bring the smart entry remote back
inside the vehicle and close the door.

Smart Entry Remote Reminder P. 123

Appears when the smart entry remote battery becomes
weak.

Replace the battery as soon as possible.

Replacing the Button Battery P. 318

Appears if the smart entry remote battery is too weak to
start the engine or the key is not within operating range
to start the engine.
A beeper sounds six times.

Bring the smart entry remote in front of the ENGINE
START/STOP
 button to be touched with.

If the Smart Entry Remote Battery is Weak P. 342

Appears three seconds after the TO START ENGINE:
BRAKE + PUSH
 messages appears.

Appears three seconds after you bring the smart entry
remote in front of the ENGINE START/STOP button
when TO START, HOLD REMOTE NEAR START
BUTTON
 appears. TO START ENGINE: BRAKE +
PUSH
 appears sequentially.

Changing the Power Mode P. 121

Appears when the starter system has a problem.

As a temporary measure, press and hold the ENGINE
START/STOP
 button for up to 15 seconds while
pressing the brake pedal and manually start the engine.
Have your vehicle checked by a dealer.

83

uu

Indicators

u

intelligent Multi-Information Display (i-MID) Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

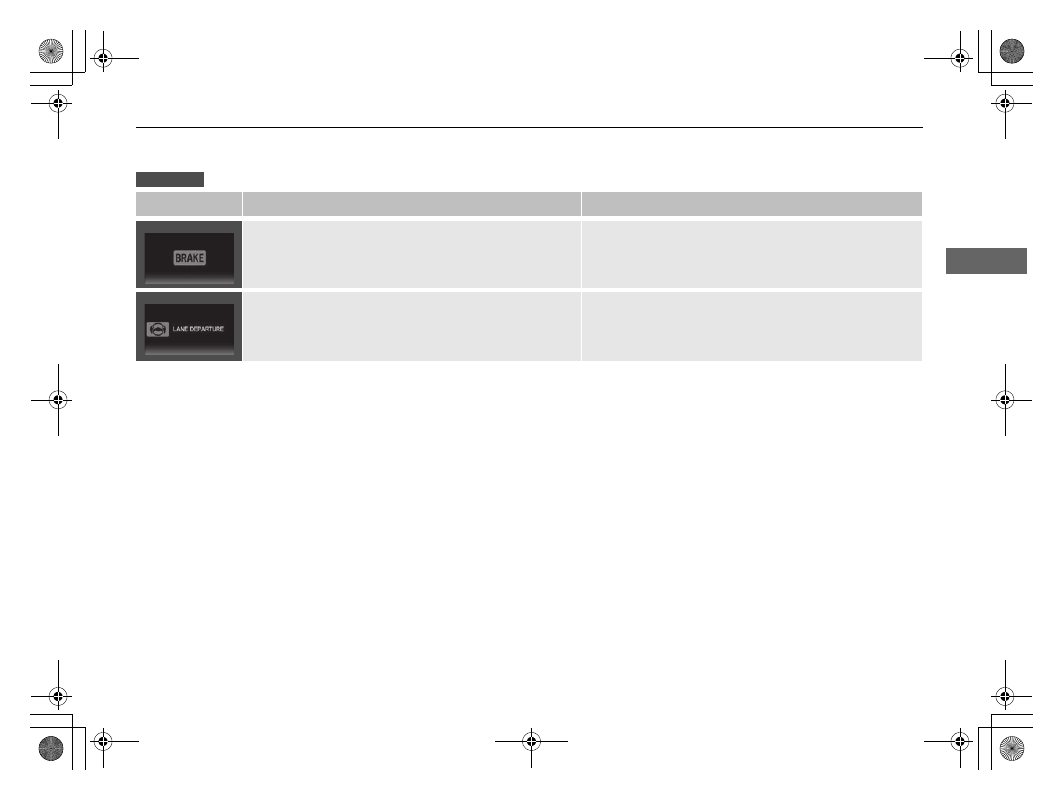

Flashes when the system senses a likely collision with a
vehicle in front of you.

Take appropriate action to prevent a collision (apply the
brakes, change lanes, etc.).

Forward Collision Warning (FCW)

*

 P. 252

Appears when your vehicle is too close to the traffic
lane lines. The beeper sounds.

Take appropriate action to keep your vehicle within the
lane lines.

Lane Departure Warning (LDW)

*

 P. 256

U.S. models

* Not available on all models

84

In

strum

e

nt Pa

nel

Gauges and intelligent Multi-Information Display (i-MID)

Gauges

Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the power mode is in ON.

Displays your driving speed in mph or km/h.

Shows the number of engine revolutions per minute.

Displays the amount of fuel left in the fuel tank.

Shows the instant fuel economy as a bar graph in mpg or l/100km.

Speedometer

Tachometer

Fuel Gauge

Instant Fuel Economy Gauge

1

Gauges

Press and hold the km/mile change knob until you
hear a beep. The speedometer reading and the
displayed measurements switch between mph and
km/h.

1

Fuel Gauge

NOTICE

You should refuel when the reading approaches

.

Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.

The actual amount of remaining fuel may differ from
the fuel gauge reading.

E

1

Instant Fuel Economy Gauge

Press and hold the km/mile change knob to switch
the measurement.

85

uu

Gauges and intelligent Multi-Information Display (i-MID)

u

intelligent Multi-Information Display (i-MID)

Continued

In

strum

e

nt Pa

nel

intelligent Multi-Information Display (i-MID)

The i-MID shows the odometer, trip meter, outside temperature indicator, and other
gauges.
It also displays important messages such as warnings and other helpful information.

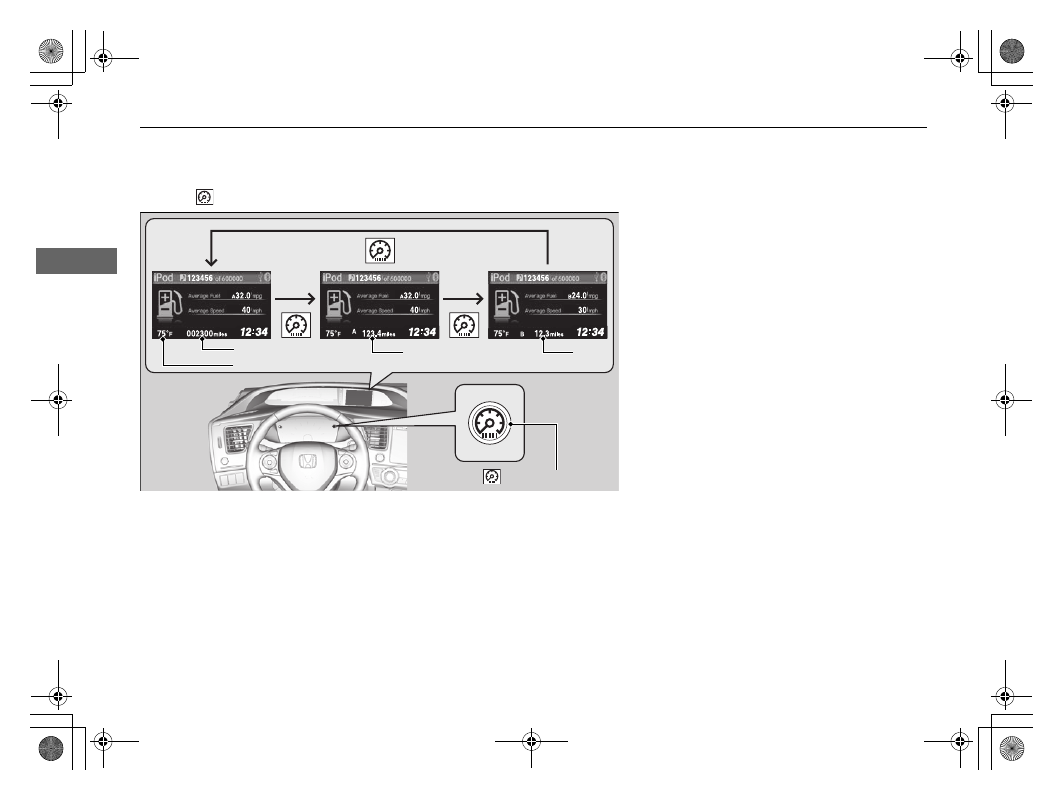

Main display

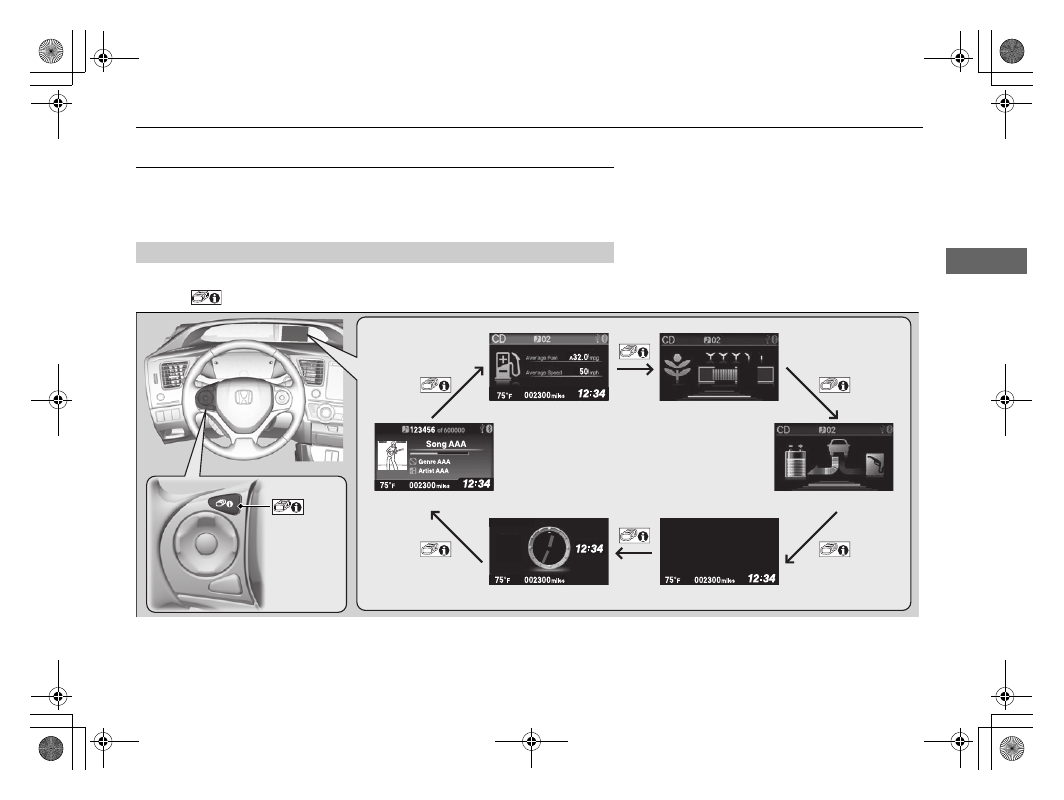

Press the

 (display/information) button to change the display.

Switching the Display



(Display/
Information
Button)

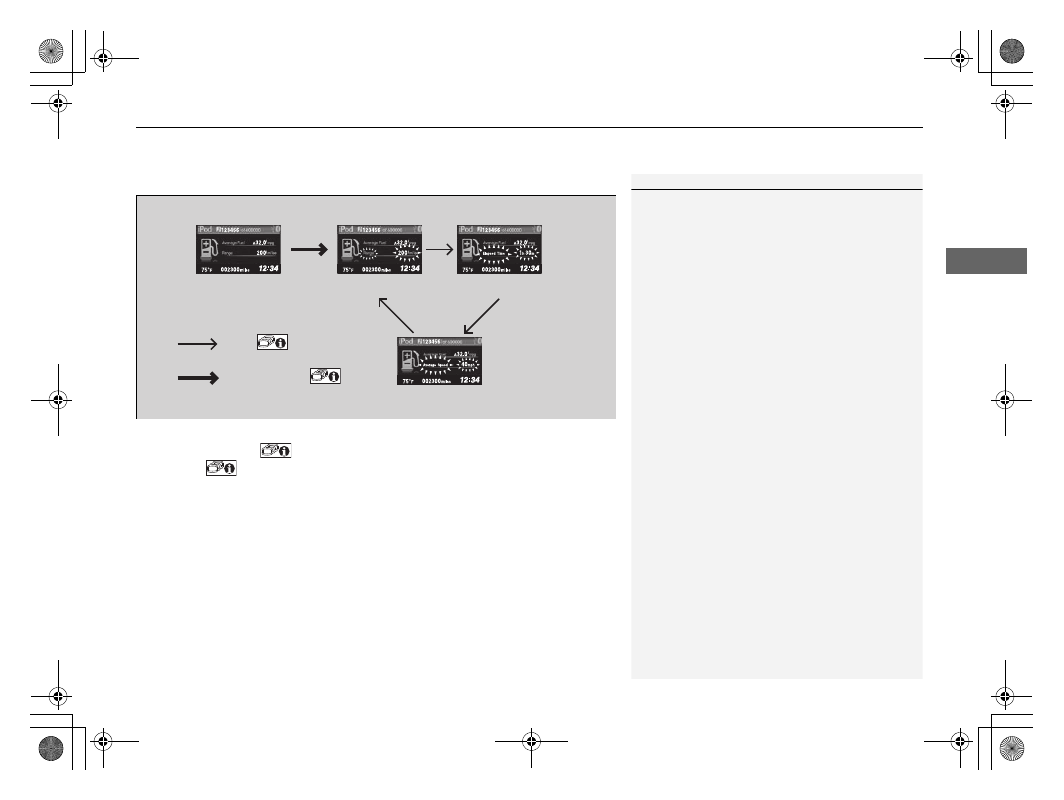

Fuel Consumption

Power Flow Monitor

Full Size Analogue Clock

Audio/HFL Display

Blank Screen

Ecological Drive
Display

86

uu

Gauges and intelligent Multi-Information Display (i-MID)

u

intelligent Multi-Information Display (i-MID)

In

strum

e

nt Pa

nel

Trip computer

Press the

 (Select/Reset) knob to change the display.

Odometer
Outside temperature

Trip A

Trip B

 (Select/Reset) Knob

Continued

87

uu

Gauges and intelligent Multi-Information Display (i-MID)

u

intelligent Multi-Information Display (i-MID)

In

strum

e

nt Pa

nel

Fuel consumption

To change the item displayed on the fuel consumption screen:
1. Press and hold the

 button until the item blinks.

2. Press the

 button to select an item while the item is blinking for about six

seconds.

The display is fixed when the time elapses and blinking stops.

1

Fuel consumption

You can choose an item to be displayed in the fuel
consumption screen. Range, elapsed time, or average
speed can be selected.

Customized Features P. 93
Switching the Display P. 85

Press .

Press and hold

.

Average speed

Elapsed time

Range

Fuel consumption

uu

Gauges and intelligent Multi-Information Display (i-MID)

u

intelligent Multi-Information Display (i-MID)

88

In

strum

e

nt Pa

nel

Shows the total number of miles or kilometers that your vehicle has accumulated.

Shows the total number of miles or kilometers driven since the last reset. Meters A
and B can be used to measure two separate trips.

Resetting a trip meter

To reset a trip meter, display it, then press and hold the

 knob. The trip meter is

reset to 0.0.

Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.

Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.

Shows the time elapsed since Trip A or Trip B was reset.

Odometer

Trip Meter

Average Fuel Economy

Range

Elapsed Time

1

Trip Meter

Switch between trip meter A and trip meter B by
pressing the

 knob, or by using the customized

features on the i-MID.

Customized Features P. 93

1

Average Fuel Economy

You can change the way the average fuel economy is
reset.

Customized Features P. 93

1

Range

You can choose an item to be displayed in the fuel
consumption screen. Range, elapsed time, or average
speed can be selected.

Customized Features P. 93

Continued

89

uu

Gauges and intelligent Multi-Information Display (i-MID)

u

intelligent Multi-Information Display (i-MID)

In

strum

e

nt Pa

nel

Shows the average speed in mph or km/h since Trip A or Trip B was reset.

Shows the remaining oil life and Maintenance Minder

TM

.

Maintenance Minder

TM

 P. 283

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

Adjusting the outside temperature display

Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.

Shows the instant fuel economy as a bar graph in mpg or l/100 km.

Shows you turn-by-turn driving directions to your destination linked with the
navigation system.

Refer to the Navigation System Manual

Average Speed

Engine Oil Life

Outside Temperature

Instant Fuel Economy

Turn-by-Turn Direction

*

1

Outside Temperature

The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be
updated after the temperature reading has stabilized.

Use the i-MID’s customized features to correct the
temperature.

Customized Features P. 93

1

Turn-by-Turn Direction

*

You can select whether the turn-by-turn display
comes on or not during the route guidance.

Customized Features P. 93

* Not available on all models

90

uu

Gauges and intelligent Multi-Information Display (i-MID)

u

intelligent Multi-Information Display (i-MID)

In

strum

e

nt Pa

nel

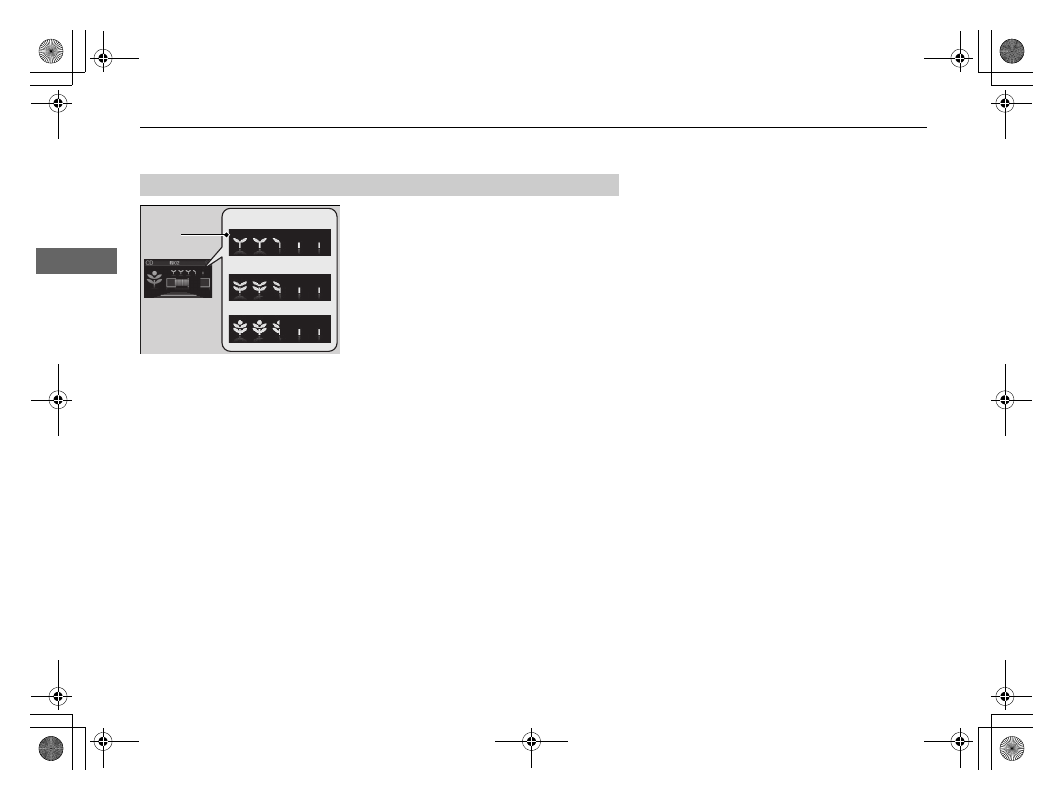

Real-time score

The Eco assist scoring system is a point system
you can use to monitor your driving style and
its impact on fuel economy. Points are
represented by leaf icons on the i-MID. Leaves
are:
• Accumulated when your driving style is fuel

efficient.

• Deducted when your style is not fuel

efficient.

Reset the system

To clear all leaves and lifetime points, complete step 5 through 7 within 30 seconds,
and do not run the engine.

1. The shift lever must be in

(

P.

2. Set the power mode to ON.
3. If the ECON mode is on, press the ECON button to turn it off.
4. Set the power mode to VEHICLE OFF (LOCK).
5. Set the power mode to ON again.
6. Depress the brake pedal twice.

u

The ambient meter color changes from blue to green.

u

When the Fuel Efficiency Backlight setting on the i-MID is off, the color stays
in blue.

7. Press the ECON button twice.

u

The ambient meter color turns off.

8. Set the power mode to VEHICLE OFF (LOCK).

Ecological Drive Display

Leaf
ICON

1st Stage

2nd Stage

3rd Stage

Continued

91

uu

Gauges and intelligent Multi-Information Display (i-MID)

u

intelligent Multi-Information Display (i-MID)

In

strum

e

nt Pa

nel

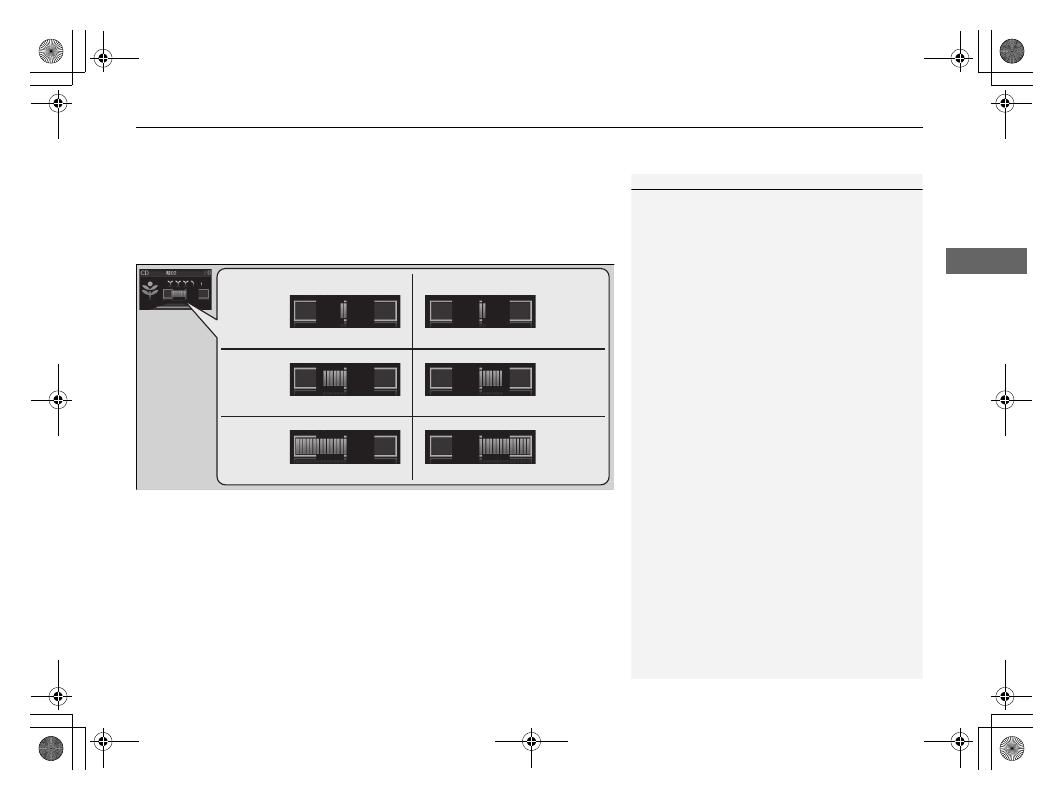

Eco drive bar

The bar extends to the right or left of the center line while driving. The more
aggressive the acceleration is, the further the bar extends to the right. The more
aggressive the deceleration is, the further the bar extends to the left. Keep the bar
near the center line for better fuel economy while driving.

Deceleration

Acceleration

High Fuel Economy

High Fuel Economy

Moderate Deceleration

Aggressive Deceleration

Moderate Acceleration

Aggressive Acceleration

1

Eco drive bar

The ambient meter color changes corresponding to
the level of eco drive bar extension.

uu

Gauges and intelligent Multi-Information Display (i-MID)

u

intelligent Multi-Information Display (i-MID)

92

In

strum

e

nt Pa

nel

Displays engine and electric motor power flow and whether the system is assisting
the engine or charging the battery.

Power flow from/to the IMA battery icon

The degree to which the electric motor is assisting the engine or the IMA battery is
being charged is indicated by the bar graph.

Power Flow Monitor

1

Power Flow Monitor

The IMA battery charge level may decrease rapidly
under the following conditions:

When the 12 volt battery has been replaced.

When the IMA battery has been disconnected.

When the IMA battery control system corrects its
reading.

The charge level reading will be corrected
automatically while driving.

If the IMA battery is too hot or too cold, the IMA
battery’s output power is limited to protect the
battery. This disables the IMA assist and Auto Idle
Stop, even though the battery is wellcharged.

It takes a short time to normalize the IMA battery’s
output power depending on the weather.

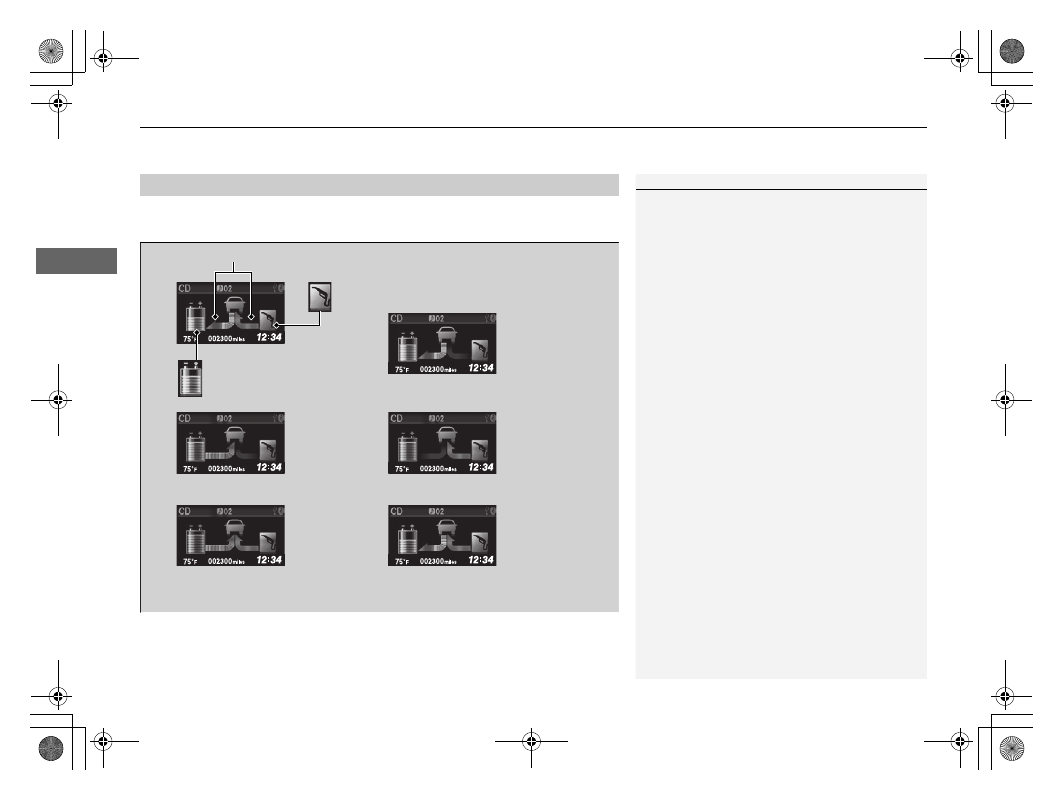

Power Flow

Engine Operation
Icon

IMA battery icon
shows charge level.

Power is supplied by
only the electric motor.

Power is supplied by the
engine and the electric motor
is assisting the engine.

The electric motor is charging the IMA
battery.

Power is only supplied by the engine.

Power is only supplied by the engine
and the electric motor is charging the
IMA battery.

Continued

93

uu

Gauges and intelligent Multi-Information Display (i-MID)

u

intelligent Multi-Information Display (i-MID)

In

strum

e

nt Pa

nel

Use the i-MID to customize certain features.

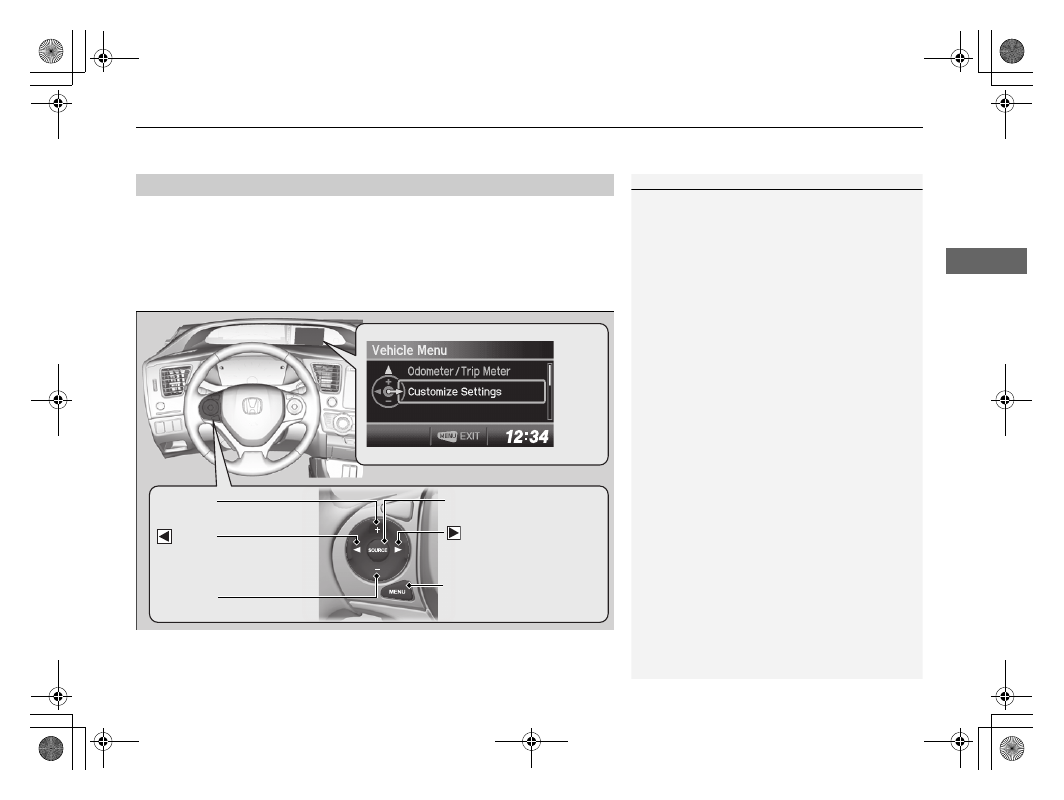

How to customize

Select the Vehicle Menu screen by pressing the MENU button while the power
mode is in ON, and the vehicle is at a complete stop. Select Customize Settings
then press the SOURCE button.

Customized Features

1

Customized Features

To customize other features, press the

(

+ /

(

button.

List of customizable options P. 97

 Button

Press to go to the next
display.

SOURCE Button
Press to set your selection.

MENU Button
Press to go to Vehicle
Menu
.

(

+ Button

Press to scroll upwards.

 Button

Press to go back to the
previous display.

(

- Button

Press to scroll downwards.

94

uu

Gauges and intelligent Multi-Information Display (i-MID)

u

intelligent Multi-Information Display (i-MID)

In

strum

e

nt Pa

nel

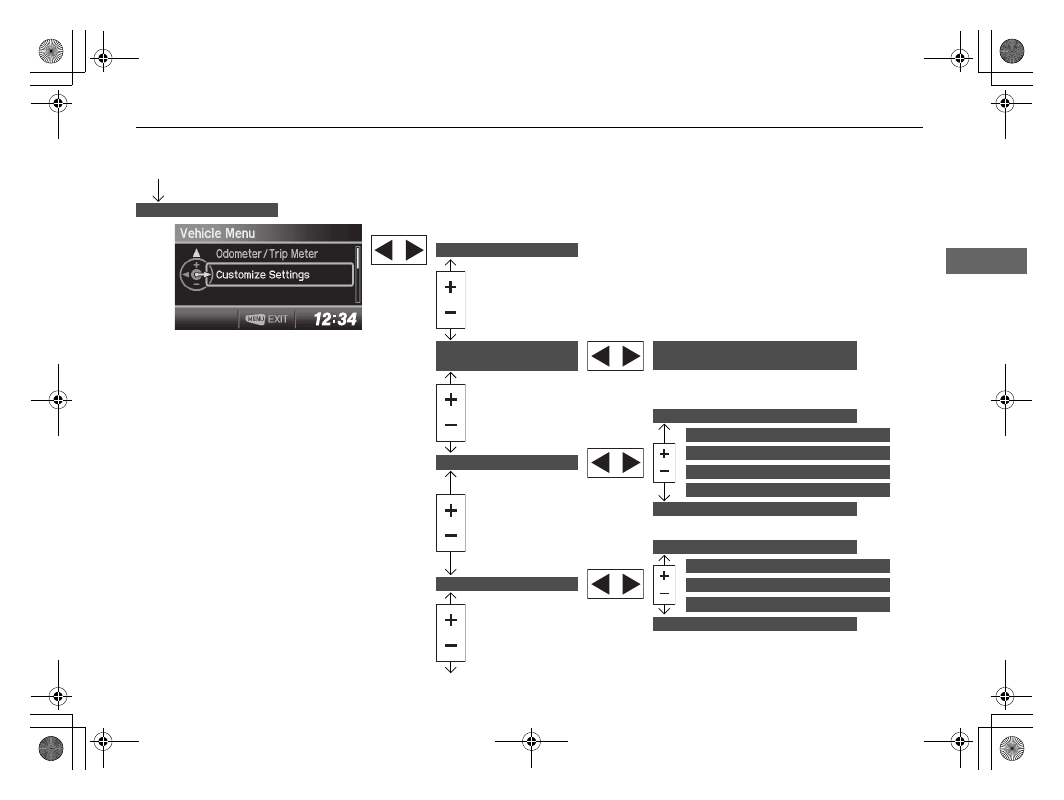

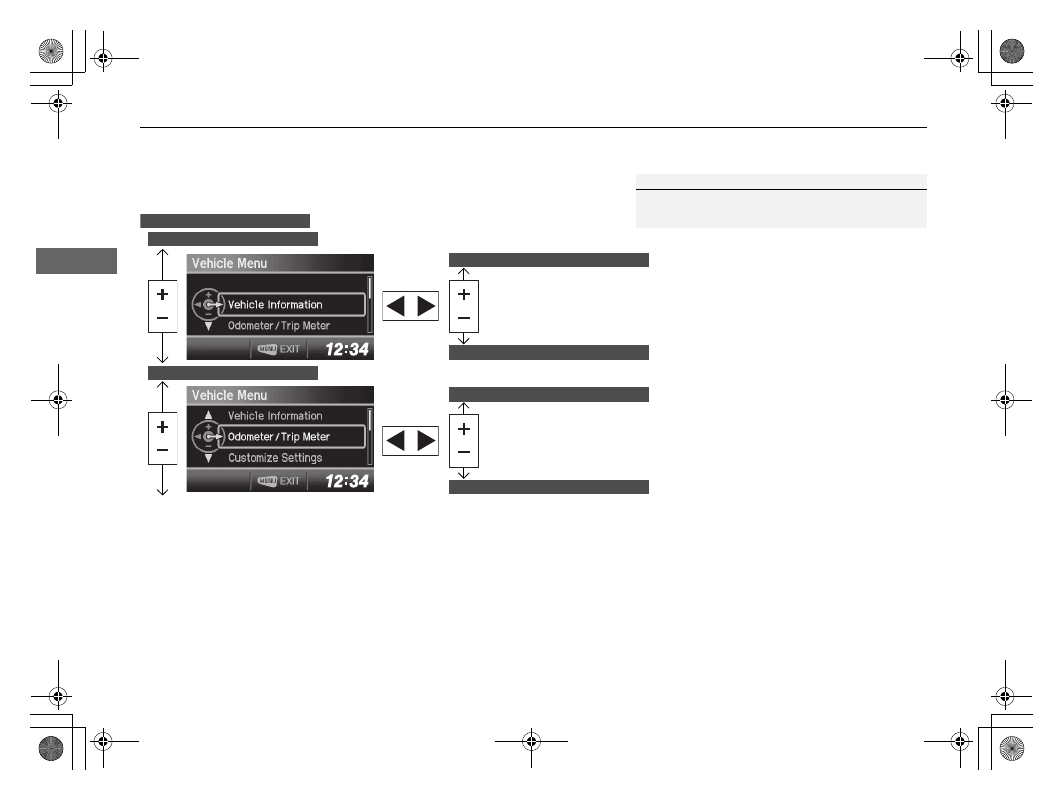

Customization flow

Press the MENU button.

1

Customized Features

You can exit the customizing screen at any time by
pressing the MENU button.

Vehicle Menu

Vehicle Information

Odometer/Trip Meter

Fuel Consumption History

Maintenance info

Trip Meter Reset

Select Trip/Odometer

95

uu

Gauges and intelligent Multi-Information Display (i-MID)

u

intelligent Multi-Information Display (i-MID)

Continued

In

strum

e

nt Pa

nel

Display Setup

Language Selection

Trip Meter Item to Display

Welcome Screen

Color Theme

Customize Settings

Turn by Turn Display

*

Driving support system
setup

*

Forward Collision Warning
Distance

Trip Computer Setup

Adjust Outside Temp. Display

Trip A reset trigger

Display km/miles

Fuel Efficiency Backlight

Trip B reset trigger

TPMS Calibration

*

Keyless Start Guidance Screens

* Not available on all models















Content   ..  4  5  6  7   ..
