Airbags

u

Side Curtain Airbags

Safe Driving

Side Curtain Airbags

The side curtain airbags help protect the heads of the driver and passengers in outer
seating positions during a moderate-to-severe side impact. The side curtain airbags
equipped in this vehicle are also designed to help reduce the likelihood of partial and
complete ejection of vehicle occupants through side windows in crashes, particularly
rollover crashes.

The side curtain airbags are located in the
ceiling above the side windows on both sides
of the vehicle.

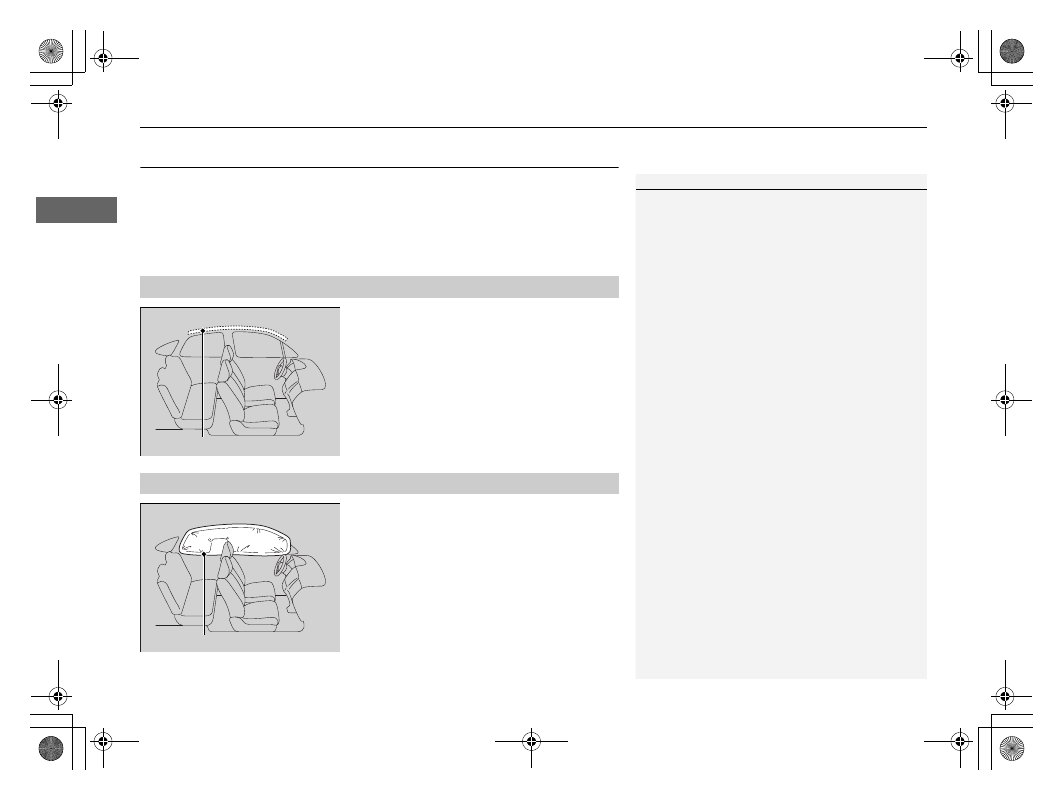

The side curtain airbag is designed to deploy
in a rollover or a moderate-to-severe side
impact.

Housing Locations

1

Side Curtain Airbags

If the SRS control unit senses that your vehicle is
about to rollover, it immediately deploys both side
curtain airbags and activates both front seat belt
tensioners.

If the impact is on the passenger’s side, the
passenger’s side curtain airbag will inflate even if
there are no occupants on that side of the vehicle.

To get the best protection from the side curtain
airbags, occupants should wear their seat belts
properly and sit upright and well back in their seats.

Do not attach any objects to the side windows or roof
pillars as they can interfere with the proper operation
of the side curtain airbags.

Side Curtain Airbag Storage

Operation

Deployed Side Curtain Airbag

Continued

49

uu

Airbags

u

Airbag System Indicators

Safe Driving

When side curtain airbags deploy in a frontal collision

One or both side curtain airbags may inflate in a moderate-to-severe angled frontal
collision.
In this case, the side curtain airbags will deploy slightly after the front airbags.

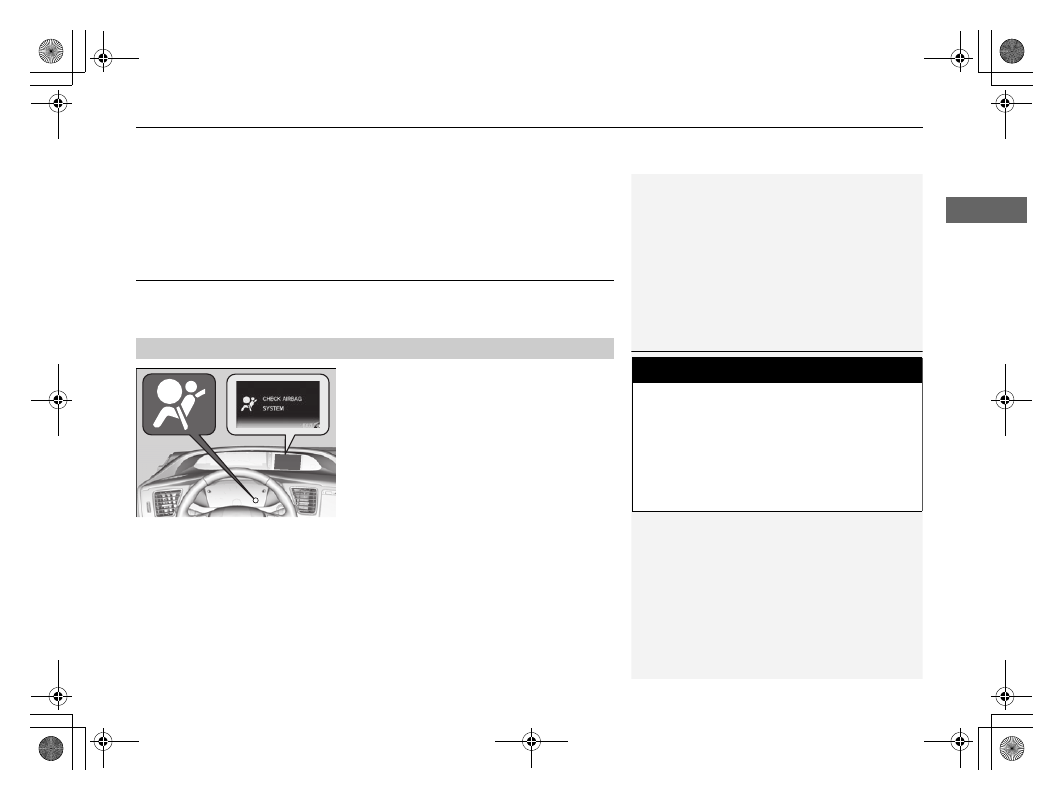

Airbag System Indicators

If a problem occurs in the airbag system, the SRS indicator will come on and a
message appears on the i-MID.

When the power mode is set to ON

The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.

If the indicator comes on at any other time, or does not come on at all, have the
system checked by a dealer as soon as possible. If you don’t, your airbags and seat
belt tensioners may not work properly when they are needed.

Supplemental Restraint System (SRS) Indicator

1

Supplemental Restraint System (SRS) Indicator

3

WARNING

Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.

Have your vehicle checked by a dealer as
soon as possible if the SRS indicator alerts
you to a possible problem.

uu

Airbags

u

Airbag System Indicators

50

Safe Driving

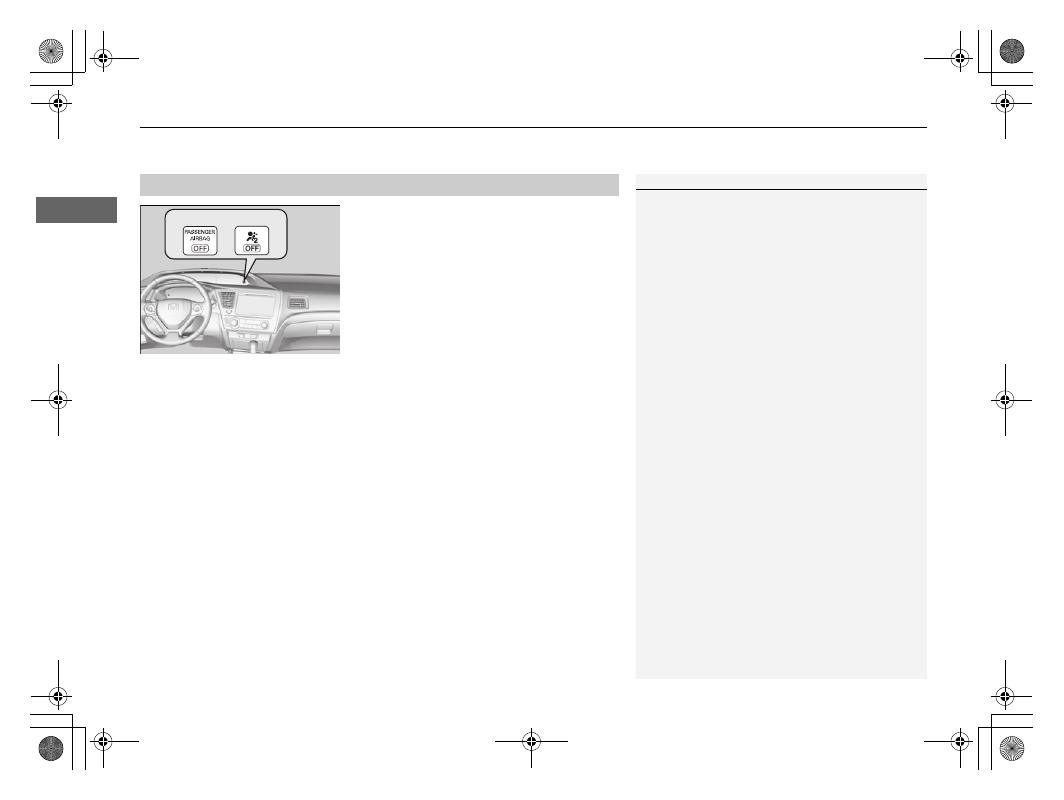

When the passenger airbag off
indicator comes on

The indicator comes on to alert you that the
passenger’s front airbag has been turned off.
This occurs when the front passenger’s weight
sensors detect 65 lbs (29 kg) or less, the
weight of an infant or small child, on the seat.

Infants and small children should always ride properly restrained in a back seat.

Child Safety P. 52

Objects placed on the seat can also cause the indicator to come on.

If the front passenger seat is empty, the passenger’s front airbag will not deploy and
the indicator will not come on.

Passenger Airbag Off Indicator

1

Passenger Airbag Off Indicator

If the indicator comes on with no front passenger and
no objects on the passenger’s seat, or with an adult
riding there, something may be interfering with the
weight sensors, such as:

An object hanging on the seat or in the seat-back
pocket.

A child seat or other object pressing against the
rear of the seat-back.

A rear passenger pushing or pulling on the back of
the front passenger’s seat.

The front seat or seat-back is forced back against
an object on the seat or floor behind it.

An object placed under the front passenger’s seat.

If none of these conditions exist, have your vehicle
checked by a dealer as soon as possible.

The passenger airbag off indicator may come on and
goes off repeatedly if the total weight on the seat is
near the airbag cutoff threshold.

U.S.

Canada

51

uu

Airbags

u

Airbag Care

Safe Driving

Airbag Care

You do not need to, and should not, perform any maintenance on or replace any
airbag system components yourself. However, you should have your vehicle
inspected by a dealer in the following situations:

When the airbags have deployed

If an airbag has inflated, the control unit and other related parts must be replaced.
Similarly, once an automatic seat belt tensioner has been activated, it must be
replaced.

When the vehicle has been in a moderate-to-severe collision

Even if the airbags did not inflate, have your dealer inspect the following: the driver’s
seat position sensor, weight sensors in the passenger’s seat, front seat belt
tensioners, and each seat belt that was worn during the crash.

Do not remove or modify a front seat without consulting a dealer

This would likely disable the driver’s seat position sensor or the weight sensors in the
passenger’s seat. If it is necessary to remove or modify a front seat to accommodate
a person with disabilities, contact a Honda dealer, or for U.S. vehicles, American
Honda Automobile Customer Service at 800-999-1009 and for Canadian vehicles,
Honda Canada Customer Relations at 888-9-HONDA-9.

1

Airbag Care

We recommend against the use of salvaged airbag
system components, including the airbag, tensioners,
sensors, and control unit.

52

Safe Driving

Child Safety

Protecting Child Passengers

Each year, many children are injured or killed in vehicle crashes because they are
either unrestrained or not properly restrained. In fact, vehicle accidents are the
number one cause of death of children ages 12 and under.

To reduce the number of child deaths and injuries, every state, Canadian province
and territory requires that infants and children be properly restrained when they ride
in a vehicle.

Children should sit properly restrained in a rear seat. This is because:

• An inflating front or side airbag can injure

or kill a child sitting in the front seat.

• A child in the front seat is more likely to

interfere with the driver’s ability to safely
control the vehicle.

• Statistics show that children of all sizes and

ages are safer when they are properly
restrained in a rear seat.

1

Protecting Child Passengers

The National Highway Traffic Safety Administration
and Transport Canada recommend that all children
ages 12 and under be properly restrained in a rear
seat. Some states or provinces/territories have laws
restricting where children may ride.

3

WARNING

Children who are unrestrained or
improperly restrained can be seriously
injured or killed in a crash.

Any child too small for a seat belt should be
properly restrained in a child seat. A larger
child should be properly restrained with a
seat belt, using a booster seat if necessary.

53

uu

Child Safety

u

Protecting Child Passengers

Safe Driving

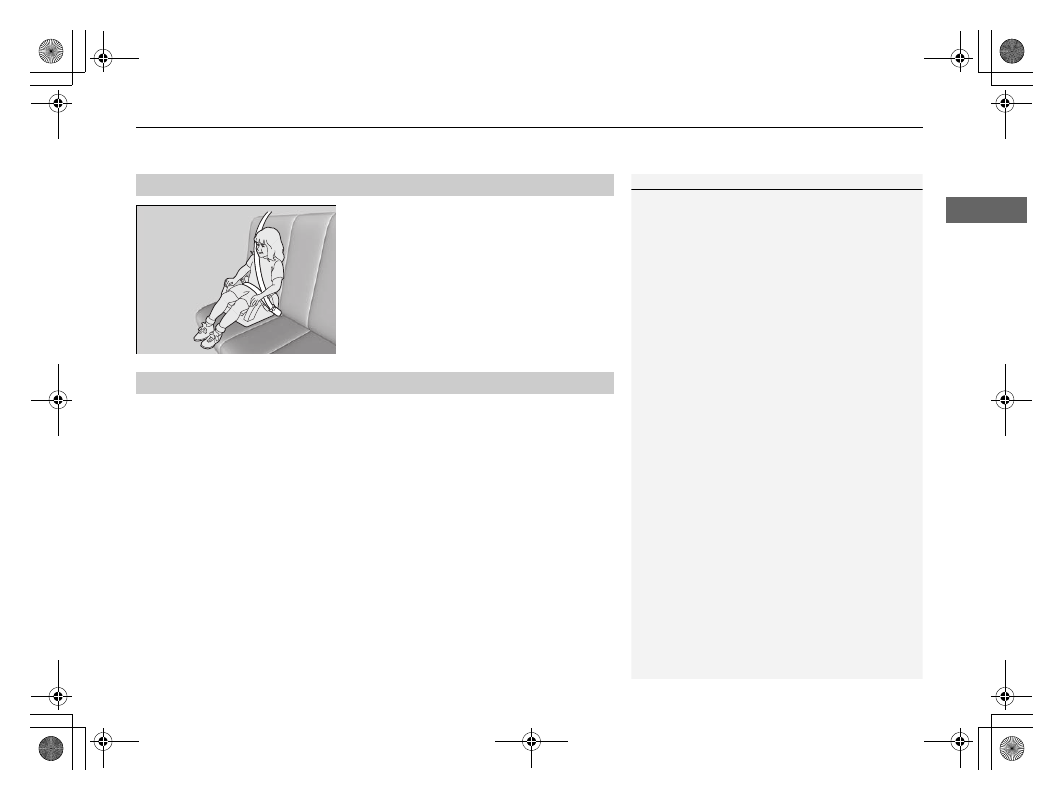

• Any child who is too small to wear a seat belt correctly must be restrained in an

approved child seat that is properly secured to the vehicle using either the lap belt
portion of the lap/shoulder belt or the lower anchors of the LATCH system.

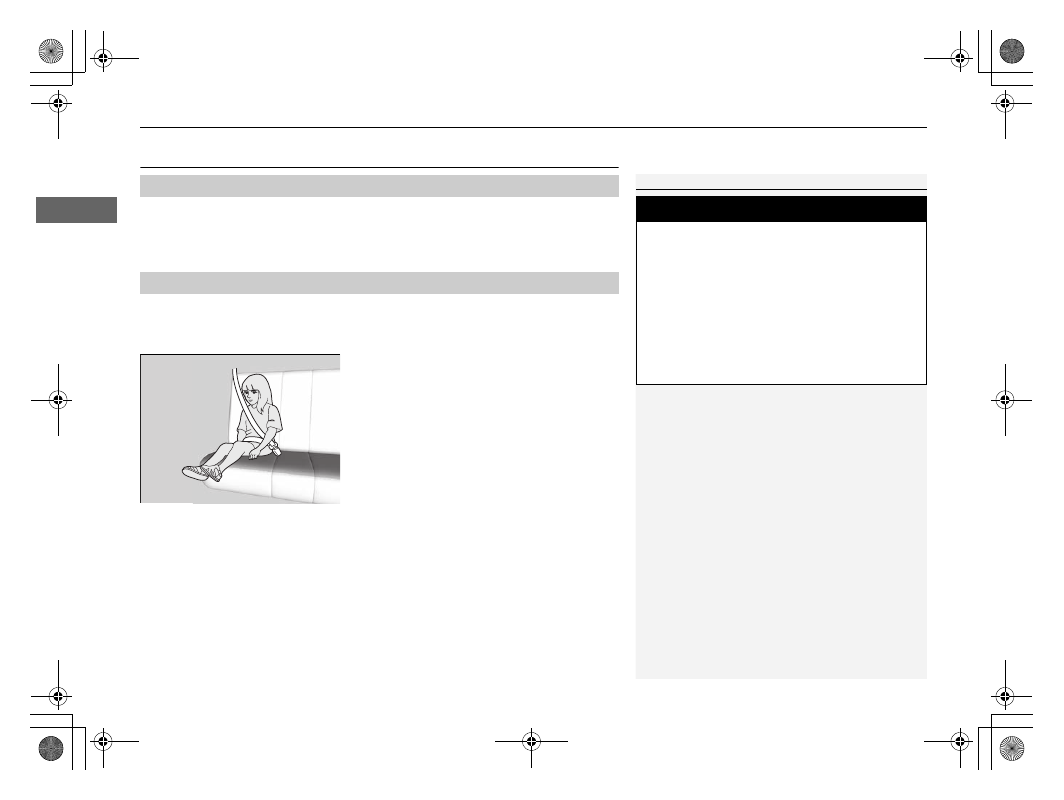

• Never hold a child on your lap because it is impossible to protect them in the

event of a collision.

• Never put a seat belt over yourself and a child. During a crash, the belt would

likely press deep into the child and cause serious or fatal injuries.

• Never let two children use the same seat belt. Both children could be very

seriously injured in a crash.

• Do not allow children to operate the doors, windows or seat adjustments.

• Do not leave children in the vehicle unattended, especially in hot weather when

the inside of the vehicle can get hot enough to kill them. They could also activate
vehicle controls causing it to move unexpectedly.

1

Protecting Child Passengers

To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.

To remind you of the passenger’s front airbag
hazards and child safety, your vehicle has warning
labels on the dashboard (U.S. models) and on the
front visors. Please read and follow the instructions
on these labels.

Safety Labels P. 65

3

WARNING

Allowing a child to play with a seat belt or
wrap one around their neck can result in
serious injury or death.

Instruct children not to play with any seat
belt and make sure any unused seat belt a
child can reach is buckled, fully retracted,
and locked.

54

uu

Child Safety

u

Safety of Infants and Small Children

Safe Driving

Safety of Infants and Small Children

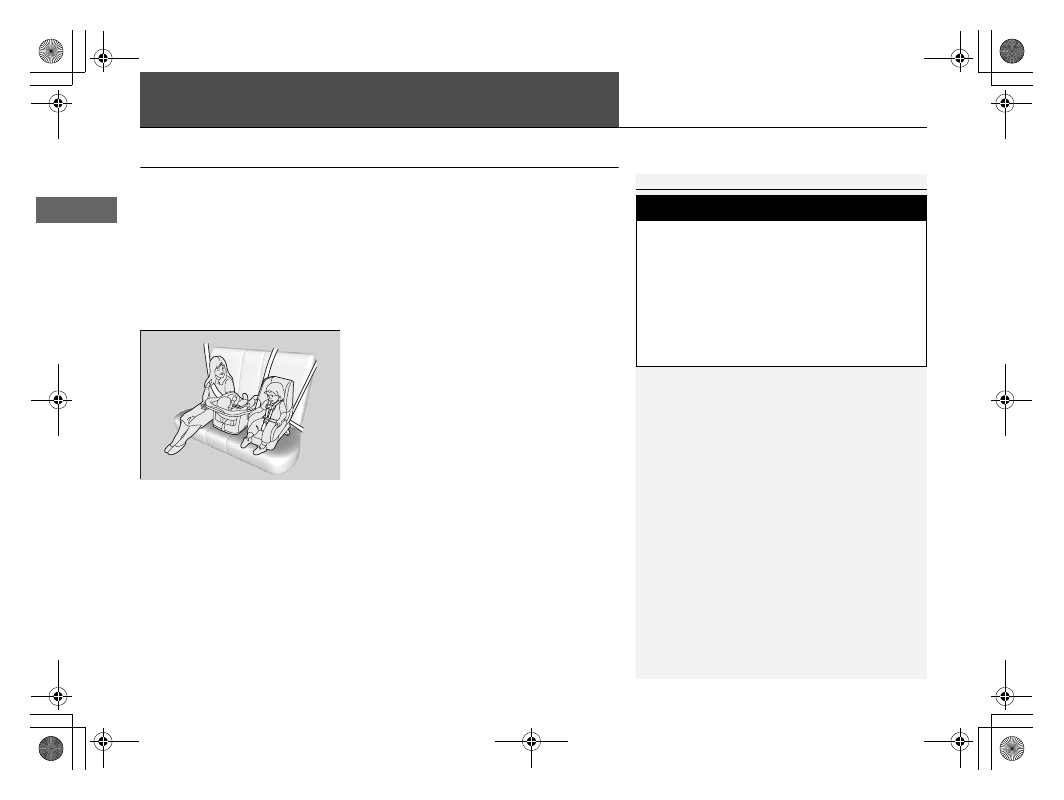

An infant must be properly restrained in a rear-facing, reclining child seat until the
infant reaches the seat manufacturer’s weight or height limit for the seat, and the
infant is at least one year old.

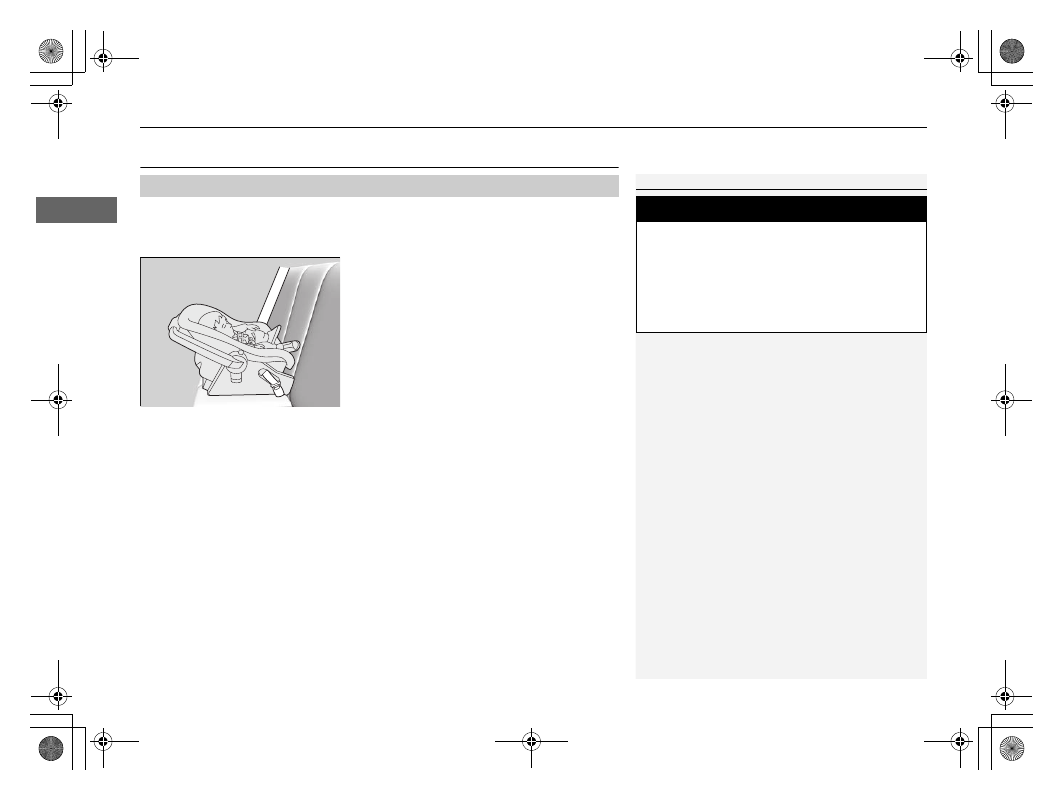

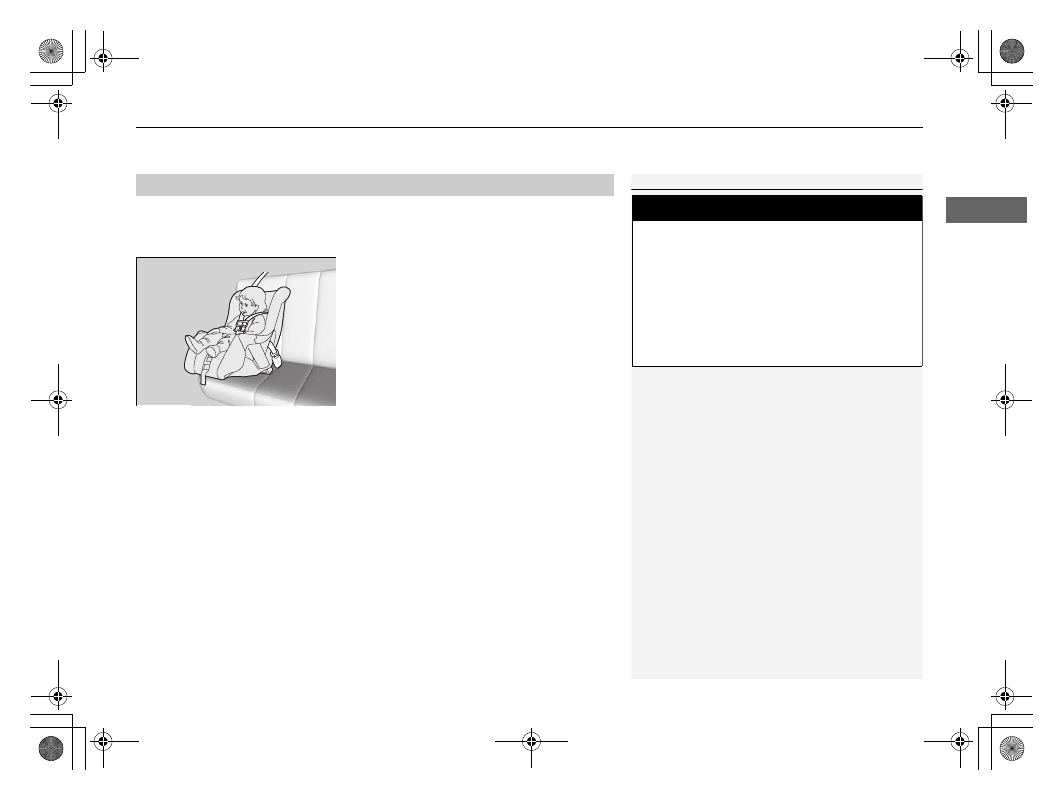

Positioning a rear-facing child seat

Child seats must be placed and secured in a
rear seating position.

When properly installed, a rear-facing child seat may prevent the driver or a front
passenger from moving their seat all the way back, or from locking their seat-back
in the desired position.

It can also interfere with proper operation of the passenger’s advanced front airbag
system.

Airbags P. 39

If this occurs, we recommend that you install the child seat directly behind the front
passenger’s seat, move the seat as far forward as needed, and leave it unoccupied.
Or, you may wish to get a smaller rear-facing child seat.

Protecting Infants

1

Protecting Infants

Rear-facing child seats should never be installed in a
forward facing position.

Always refer to the child seat manufacturer’s
instructions before installation.

3

WARNING

Placing a rear-facing child seat in the front
seat can result in serious injury or death
during a crash.

Always place a rear-facing child seat in the
rear seat, not the front.

Continued

55

uu

Child Safety

u

Safety of Infants and Small Children

Safe Driving

If a child is at least one year old and within the weight range indicated by the child
seat manufacturer, the child should be properly restrained in a firmly secured
forward-facing child seat.

Forward-facing child seat placement

We strongly recommend placing a forward-
facing child seat in a rear seating position.

Placing a forward-facing child seat in the front seat can be hazardous, even with
advanced front airbags that automatically turn the passenger’s front airbag off. A
rear seat is the safest place for a child.

Protecting Smaller Children

1

Protecting Smaller Children

Educate yourself about the laws and regulations
regarding child seat use where you are driving, and
follow the child seat manufacturer’s instructions.

Many experts recommend use of a rear-facing seat
for a child up to two years old if the child’s height and
weight are appropriate for a rear-facing seat.

3

WARNING

Placing a forward-facing child seat in the
front seat can result in serious injury or
death if the front airbag inflates.

If you must place a forward-facing child
seat in front, move the vehicle seat as far
back as possible, and properly restrain the
child.

uu

Child Safety

u

Safety of Infants and Small Children

56

Safe Driving

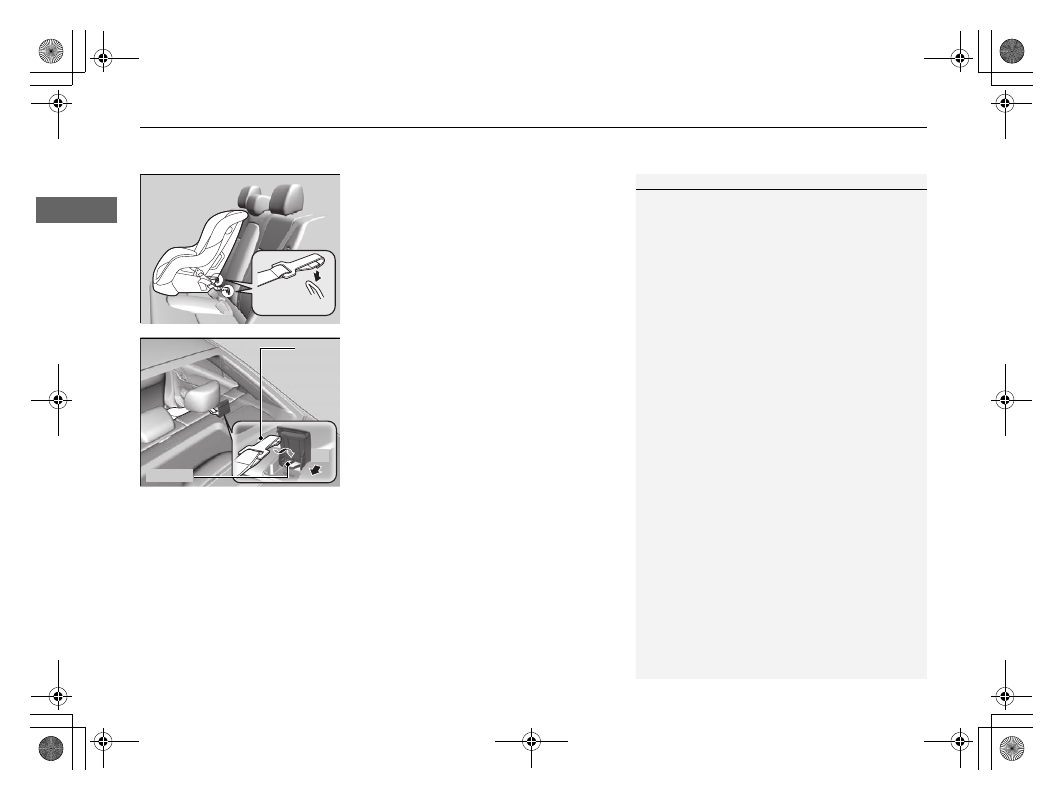

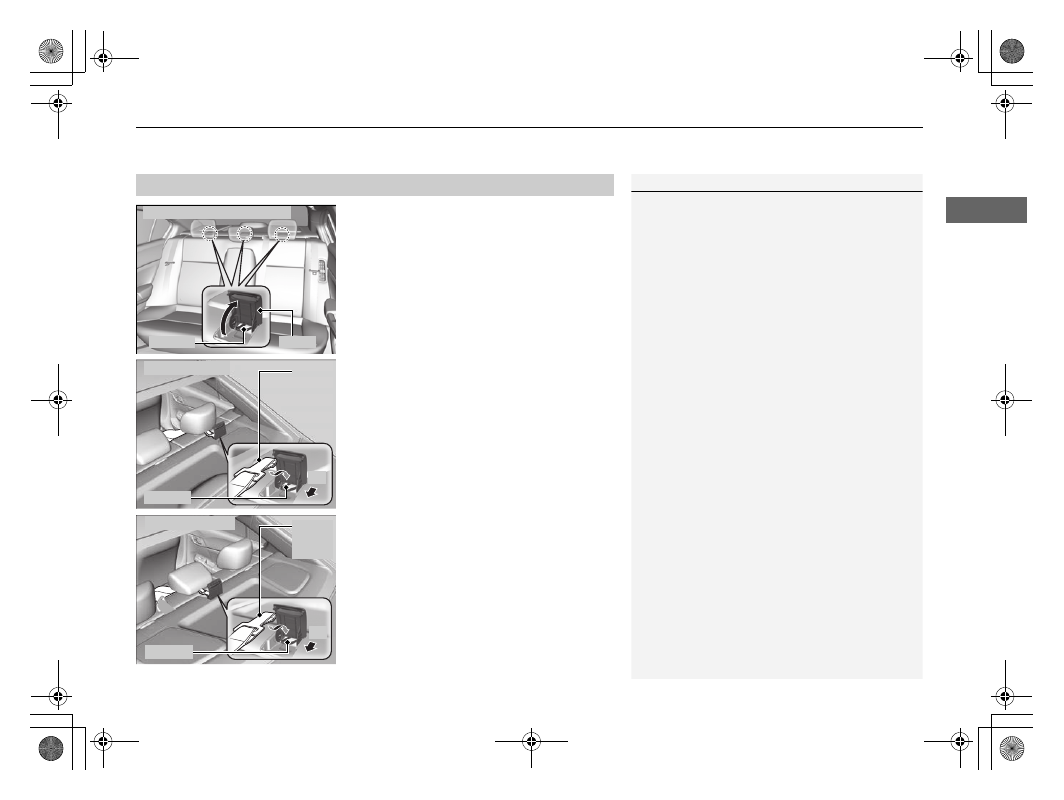

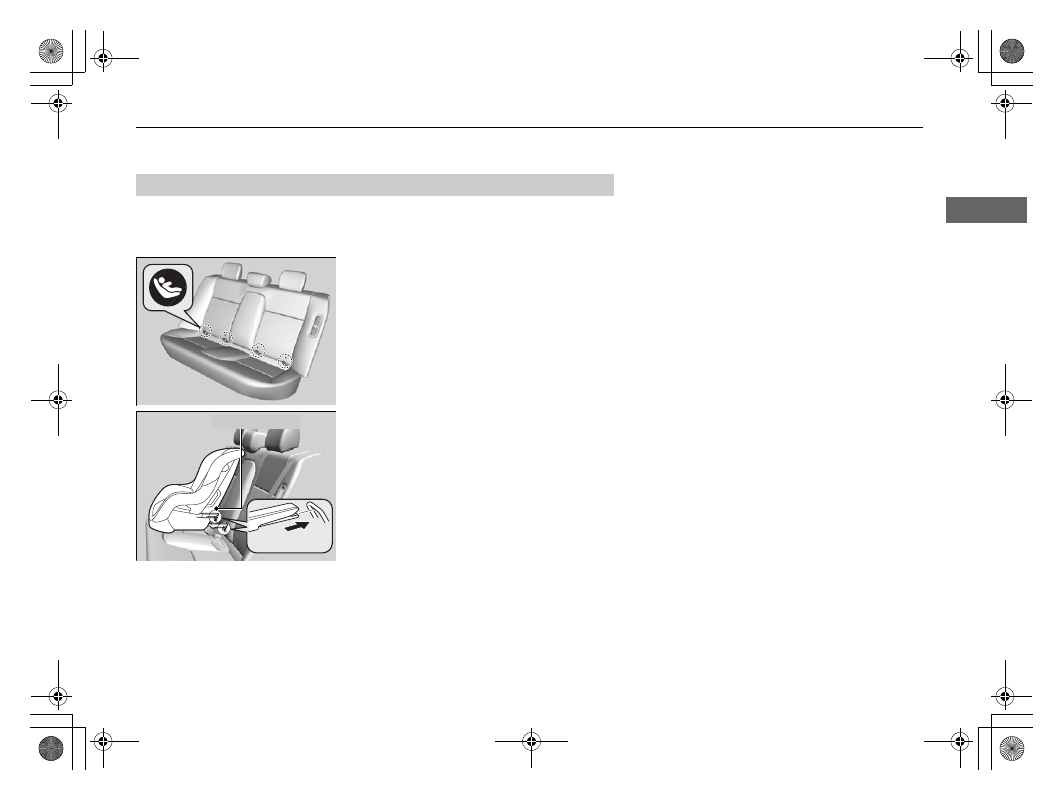

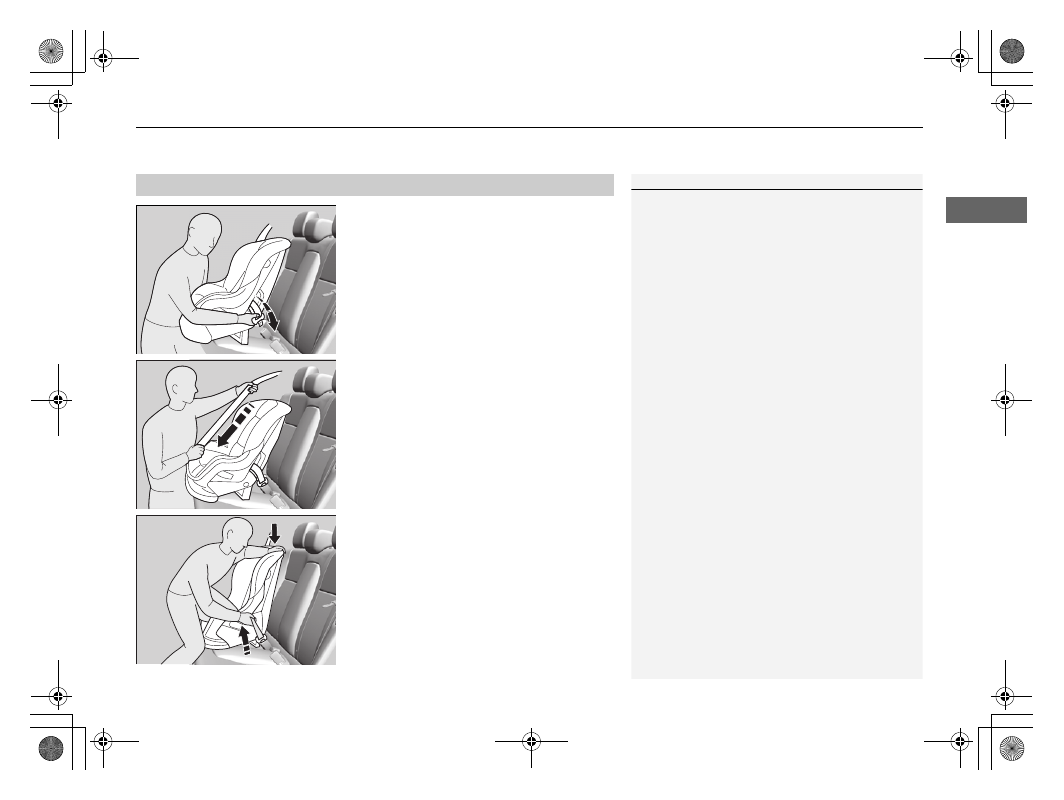

Most child seats are LATCH-compatible (Lower Anchors and Tethers for CHildren).
Some have a rigid-type connector while others have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions as well as the instructions in this manual.
Proper installation is key to maximizing your child’s safety.

In seating positions and vehicles not equipped with LATCH, a LATCH-compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with a lap belt or the lap part of a lap/shoulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a specified weight. Please read the child seat owner’s manual
for proper installation instructions.

Important consideration when selecting a child seat

Make sure the child seat meets the following three requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or

Canadian Motor Vehicle Safety Standard 213.

Selecting a Child Seat

1

Selecting a Child Seat

Installation of a LATCH-compatible child seat is
simple.

LATCH-compatible child seats have been developed
to simplify the installation process and reduce the
likelihood of injuries caused by incorrect installation.

57

uu

Child Safety

u

Safety of Infants and Small Children

Continued

Safe Driving

A LATCH-compatible child seat can be installed in either of the two outer rear seats.
A child seat is attached to the lower anchors with either the rigid or flexible type of
connectors.

1. Locate the lower anchors under the marks.

2. Place the child seat on the vehicle seat then

attach the child seat to the lower anchors
according to the instructions that came
with the child seat.

u

When installing the child seat, make sure
that the lower anchors are not
obstructed by the seat belt or any other
object.

Installing a LATCH-Compatible Child Seat

Marks

Rigid Type

Lower Anchors

uu

Child Safety

u

Safety of Infants and Small Children

58

Safe Driving

3. Open the tether anchor cover behind the

head restraint.

4. Raise the head restraint to its highest

position, then route the tether strap
between the head restraint legs, and secure
the tether strap hook onto the anchor.

5. Tighten the tether strap as instructed by the

child seat manufacturer’s.

6. Make sure the child seat is firmly secured by

rocking it forward and back and side to
side; little movement should be felt.

7. Make sure any unused seat belt that a child

can reach is buckled, the lockable retractor
is activated, and the belt is fully retracted
and locked.

Flexible Type

1

Installing a LATCH-Compatible Child Seat

For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.

Tether
Strap
Hook

Anchor

FR

Continued

59

uu

Child Safety

u

Safety of Infants and Small Children

Safe Driving

1. Place the child seat on the vehicle seat.
2. Route the seat belt through the child seat

according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.

u

Insert the latch plate fully until it clicks.

3. Slowly pull the shoulder part of the belt all

the way out until it stops. This activates the
lockable retractor.

4. Let the seat belt completely wind up into

the retractor, then try to pull it out to make
sure the retractor is locked.

u

If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Pull the seat belt all the way
out, and repeat steps 2 – 4.

5. Grab the shoulder part of the seat belt near

the buckle, and pull up to remove any slack
from the lap part of the belt.

u

When doing this, place your weight on
the child seat and push it into the vehicle
seat.

Installing a Child Seat with a Lap/Shoulder Seat Belt

1

Installing a Child Seat with a Lap/Shoulder Seat Belt

A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.

uu

Child Safety

u

Safety of Infants and Small Children

60

Safe Driving

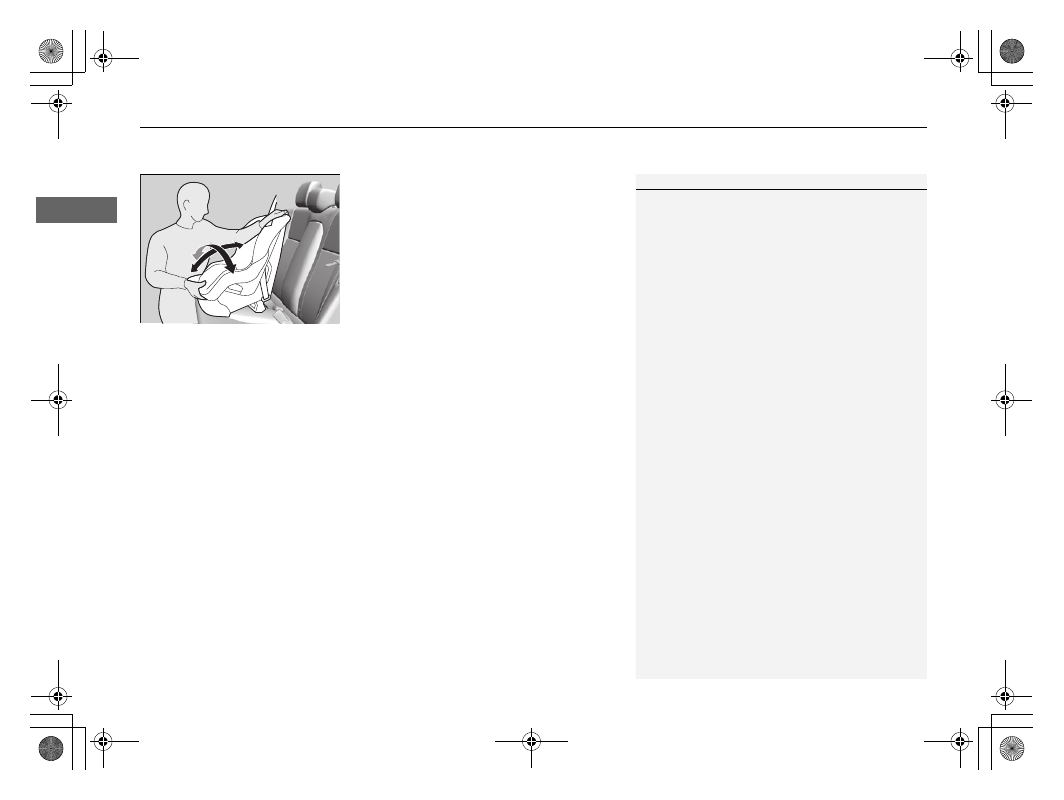

6. Make sure the child seat is firmly secured by

rocking it forward and back and side to
side; little movement should be felt.

7. Make sure any unused seat belt that a child

can reach is buckled, the lockable retractor
is activated, and the belt is fully retracted
and locked.

1

Installing a Child Seat with a Lap/Shoulder Seat Belt

To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.

61

uu

Child Safety

u

Safety of Infants and Small Children

Safe Driving

A tether anchorage point is provided behind
each rear seating position. A child seat that is
installed with a seat belt and comes with a
tether can use the tether for additional
security.

1. Locate the appropriate tether anchorage

point and lift the cover.

2. Raise the head restraint to its highest

position, then route the tether strap
through the head restraint legs. Make sure
the strap is not twisted.

3. Secure the tether strap hook onto the

anchor.

4. Tighten the tether strap as instructed by the

child seat manufacturer.

Adding Security with a Tether

1

Adding Security with a Tether

Since a tether can provide additional security to the
lap/shoulder seat belt installation, we recommend
using a tether whenever one is available.

Tether Anchorage Points

Cover

Anchor

Outer Position

Tether
Strap
Hook

Anchor

Center Position

Tether
Strap
Hook

Anchor

FR

FR

62

uu

Child Safety

u

Safety of Larger Children

Safe Driving

Safety of Larger Children

The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.

When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upright and all the way back, then answer the
following questions.

Checklist

• Do the child’s knees bend comfortably over

the edge of the seat?

• Does the shoulder belt cross between the

child’s neck and arm?

• Is the lap part of the seat belt as low as

possible, touching the child’s thighs?

• Will the child be able to stay seated like this

for the whole trip?

If you answer yes to all these questions, the child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.

Protecting Larger Children

Checking Seat Belt Fit

1

Safety of Larger Children

3

WARNING

Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.

If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, using a booster seat if
needed.

63

uu

Child Safety

u

Safety of Larger Children

Safe Driving

If a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
a rear seating position. For the child’s safety,
check that the child meets the booster seat
manufacturer’s recommendations.

Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and fully understand the instructions and safety information

in this manual.

• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positioned so that the child is secure in the

seat.

Monitoring child passengers

We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be reminded to fasten their seat belts and sit up
properly.

Booster Seats

1

Booster Seats

When installing a booster seat, make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.

Some U.S. states, and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or weight (e.g. 6 years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.

Protecting Larger Children-Final Checks















Content   ..  2  3  4  5   ..
