Harley Davidson Sportster Models 2009. Service Repair Manual - page 54

Fails to Disarm

Correct key fob for

vehicle?

YES

Does left turn signal function?

Obtain correct fob or replace fob.

Verify fob is synchronized to vehicle’s

TSSM.

YES

Replace fob battery and retest.

See E.22 TSSM MAINTENANCE.

Does fob work?

See E.13 TURN SIGNAL

ERRORS: B1121, B1122,

B1141.

YES

System OK.

Attempt to assign new

fob to TSSM and retest.

Does fob work?

YES

System OK.

Replace TSSM.

Learn password and

perform set-up.

6757

6756

6755

fc01161_en

HOME

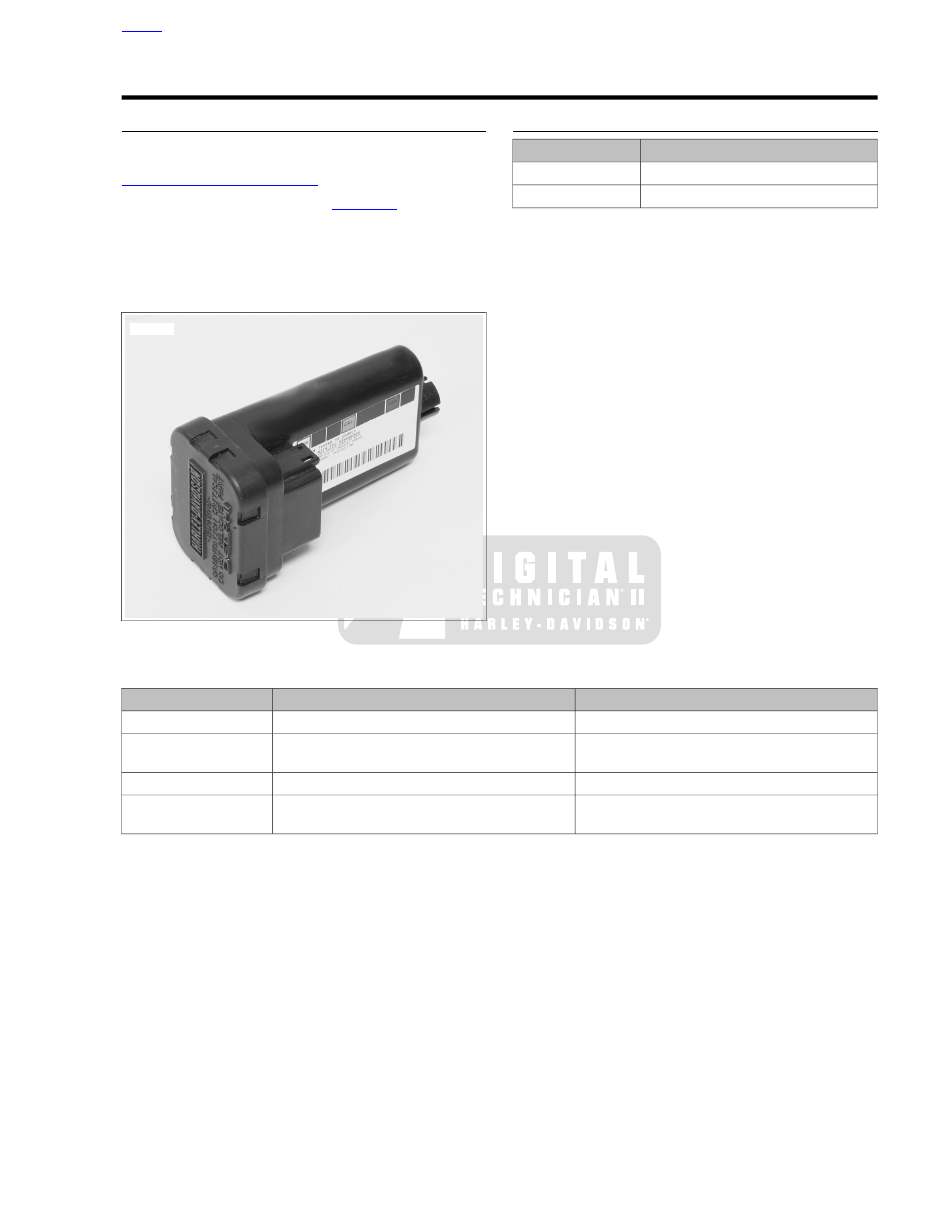

E-32 2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea)

E.13

TURN SIGNAL ERRORS: B1121, B1122, B1141

GENERAL

The turn signals will automatically cancel based on either the
speed/acceleration of the vehicle or upon turn completion. See

E.4 TURN SIGNAL FUNCTIONS

For turn signal diagnostics, refer to

Table E-14

Job/Time Code Values

Dealership technicians filing warranty claims should use the
job/time code values printed in bold text underneath the
appropriate repair.

sm01275

Figure E-18. TSM/TSSM

DIAGNOSTICS

TOOL NAME

PART NUMBER

HARNESS CONNECTOR TEST KIT

HD-41404-B

BREAKOUT BOX

HD-42682

Diagnostic Tips: All

•

DTCs B1121 and B1122 will illuminate the security lamp.

•

DTC B1141 will not illuminate the security lamp.

•

When the TSM/TSSM is in 4-way flasher mode, a fault on
either the left or right turn lamp output will not cause either
DTC B1121 or DTC B1122 to be set. If fault occurs on
both left and right outputs, then both DTC B1121 and DTC
B1122 will be set.

•

When the TSM/TSSM detects an over current or short to
ground condition, it will turn off the turn lamp outputs. The
outputs will be automatically reactivated once the fault is
removed.

Table E-14. Turn Signal Errors: TSM/TSSM

START WITH FLOWCHART

SYMPTOM

DTC

Cancels Erratically

Turn signals cancel erratically

N/A

DTC B1121, DTC B1122, DTC B1141, Will Not
Flash, 4-Way Flashers Inoperable (Part 1 of 6)

Turn signals will not flash, 4-way flashers inoper-
able

B1121, B1122, B1141

Will Not Cancel Upon Turn Completion

Turn signals will not cancel upon turn completion

N/A

Flash at Double Normal Rate, All Bulbs Working

Left or right turn signals flash at double the normal
rate while all bulbs are working

N/A

HOME

2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea) E-33

Star

ter

Right

ront

Lamp

IGN

CCY

15A

[31A]

Ignition

Switch

[7A]

[33]

Batter

ECM

15A

BE/GY

BN/GY

R/BK

Secur

ity

Siren

BN/GY

LGN/BN

TN/GN

LGN/V

(Optional)

O/W

LGN/BN

BN/GY

W/BN

W/V

W/BK

BE/GY

R/BK

R/GY

BK/R

R/BK

[142B]

[142A]

[78B]

[30B]

Signal

Ground

[5]

Amp

MAXIFUSE

GND1

ain

Ground

oint

−

IGN

−

[78A]

87A

ECM

[24B]

BK/R

TSM/

TSSM

[61B]

Hor

Switch

Headlamp

Hi/Lo

Switch

Left

Tur

Switch

[24A]

Left

Hand

Controls

Rear

Signals

1200N

Only

Rear

Signals

Except

1200N

Clutch

Switch

O/W

W/BK

W/BN

BK/R

Right

Tur

Switch

Engine

Stop

Switch

Star

Switch

Stop

Lamp

Switch

[22A]

Right

Hand

Controls

O/W

W/V

BK/R

Fuseb

loc

Vie

[119]

Accessor

ies

Lights

Ignition

Fuel

Pump

Star

tRL

System

ECM

Batter

Spare

P&A

IGN

Instr

uments

Spare

System

Rela

Star

Rela

Spare

Open

[119B]

[128]

[142A]

Left

Indicator

Neutr

Right

Indicator

Batter

Right

Rear

Lamp

Left

Rear

Lamp

ail

Lamp

Con

ter

Module

[19B]

[18B]

5
6

Right

Rear

Lamp

Left

Rear

Lamp

[19B]

[94B]

[94A]

[19A]

V/BN

[18B]

[18A]

[94B]

[94A]

[19A]

[18A]

[93A]

[7B]

tail/

lamp

Left

ront

Lamp

[31B]

R/BK

GN/O

5
6

[7B]

[22B]

O/W

W/BN

W/BK

BK/R

INSTR

15A

GN/O

BE/GY

W/BK

87A

[20A]

[20B]

Batter

Red

Band

[30A]

Batter

Ignition

VSS/

Ser

ial

Data

Link

Neutr

Switch

Left

eed

Right

eed

Right

Switch

Input

Left

Switch

Input

Star

Rela

Control

Clutch

Switch

Alar

Signal

Ground

Neutr

Switch

[136]

System

Rela

Ser

ial

Data

Link

Ground

Switched

Ground

15A

TE:

Spares

and

are

used

for

engine

control

only

em01316

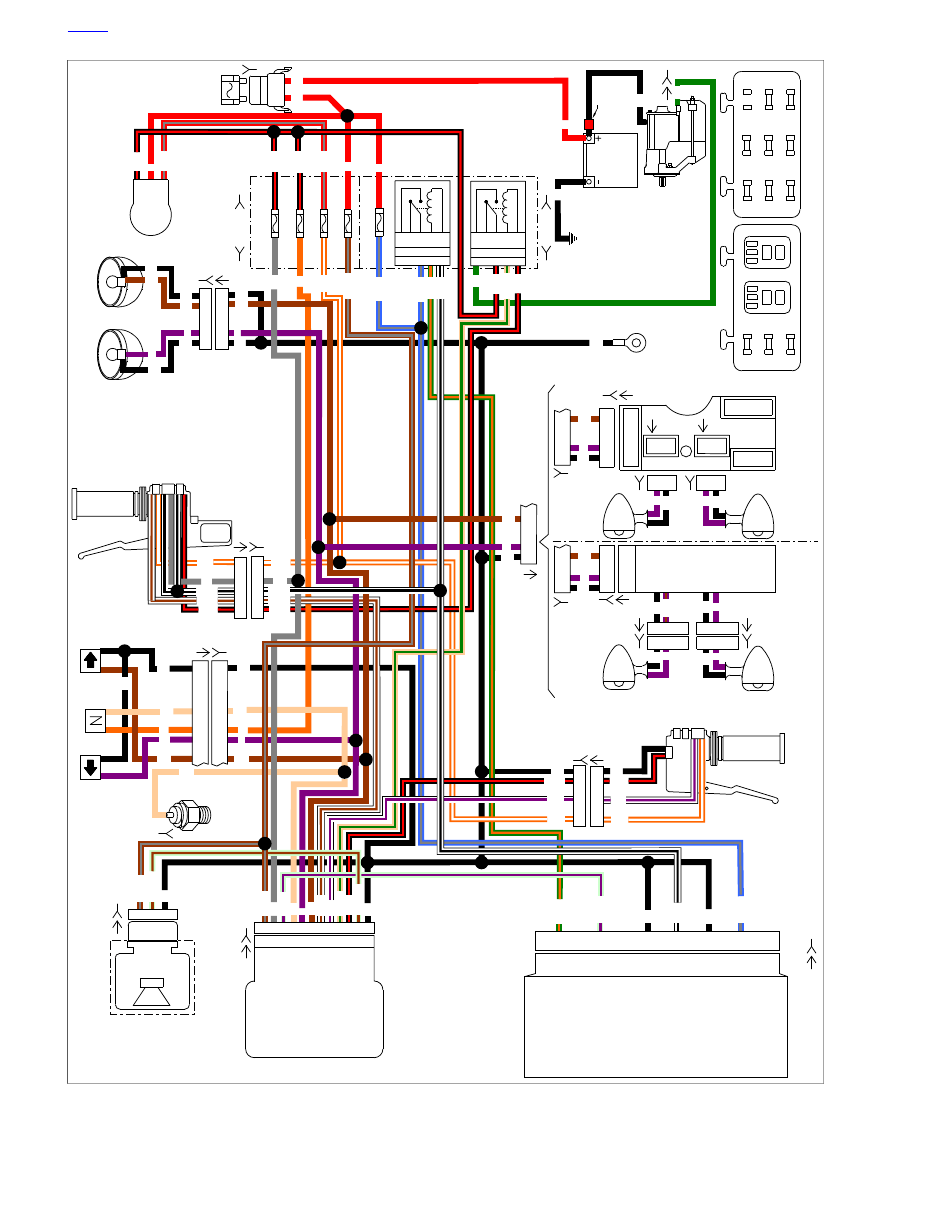

Figure E-19. Turn Signal Circuit (Typical)

HOME

E-34 2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea)

Table E-15. Wire Harness Connectors

LOCATION

TYPE

DESCRIPTION

NO.

On battery strap, behind left side cover

2-place Metri-Pack, black

MAXIFUSE

[5]

Under seat

6-place Multilock

Rear lighting

[7]

Inside tail lamp lens

2-place Multilock

Left rear turn signal

[18]

Inside tail lamp lens

2-place Multilock

Right rear turn signal

[19]

Under fuel tank

12-place Molex

Console gauges/indicator lamps

[20]

Under fuel tank

6-place Molex

Right handlebar controls

[22]

Under fuel tank

8-place Molex

Left handlebar controls

[24]

Under battery

12-place Deutsch

TSM/TSSM

[30]

Under fuel tank

6-place Multilock

Front turn signals

[31]

Behind left side door

Spade terminals

Fuse block

[61B]

Under seat

36-place Packard

ECM

[78]

Inside tail lamp lens

6-place Multilock, black

Tail lamp power in

[94]

Fuse/relay block, behind left side cover

5-place Amp, spade ter-
minals

Relay/fuse block

[119]

Stater solenoid

Locking spade terminal,
white

Starter solenoid

[128]

Right side frame, beneath gear case
cover

1-place molded jumper, black

Neutral switch

[136]

Under frame

3-place Packard, black

Security siren

[142]

Under battery

4-place Deutsch, gray

TSSM antenna connector

[208]

Crankcase housing, top rear

Ring terminal

Security antenna

[209]

Diagnostic Notes: All Turn Signal
Flowcharts

Each reference number below correlates to a circled number
on the flowchart(s).

Gain access to vehicle's TSM/TSSM:

Remove battery. See the Service Manual for pro-
cedure.

Unplug and remove TSM/TSSM from battery tray.

Reroute wiring harness so TSM/TSSM may be
reconnected while removed from vehicle.

Reconnect TSM/TSSM.

Perform the following procedure:

See

Figure E-20

. Position TSM/TSSM in same orient-

ation it is mounted on vehicle. Turn Ignition Switch
on. Turn 4-way flashers on by depressing both left
and right turn signal switches simultaneously. Turn
Ignition Switch off. The 4-way flashers should continue
to flash.

Tilt TSM/TSSM greater than 45 degrees to the left.

Repeat step a.

Tilt TSM/TSSM greater than 45 degrees to the right.

To enable diagnostic mode, see

E.10 ODOMETER SELF-

DIAGNOSTICS

Connect BREAKOUT BOX (Part No. HD-42682) (gray)
between TSM/TSSM connector [30A] and wiring harness
connector [30B]. See

E.11 BREAKOUT BOX: TSM/TSSM

Closely inspect handlebar controls for pinched wiring.

Connect gray HARNESS CONNECTOR TEST KIT (Part
No. HD-41404-B) adapters and patch cords to connector
[22] (right) or connector [24] (left).

HOME

2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea) E-35

ed01792

Left 45 degrees

Right 45 degrees

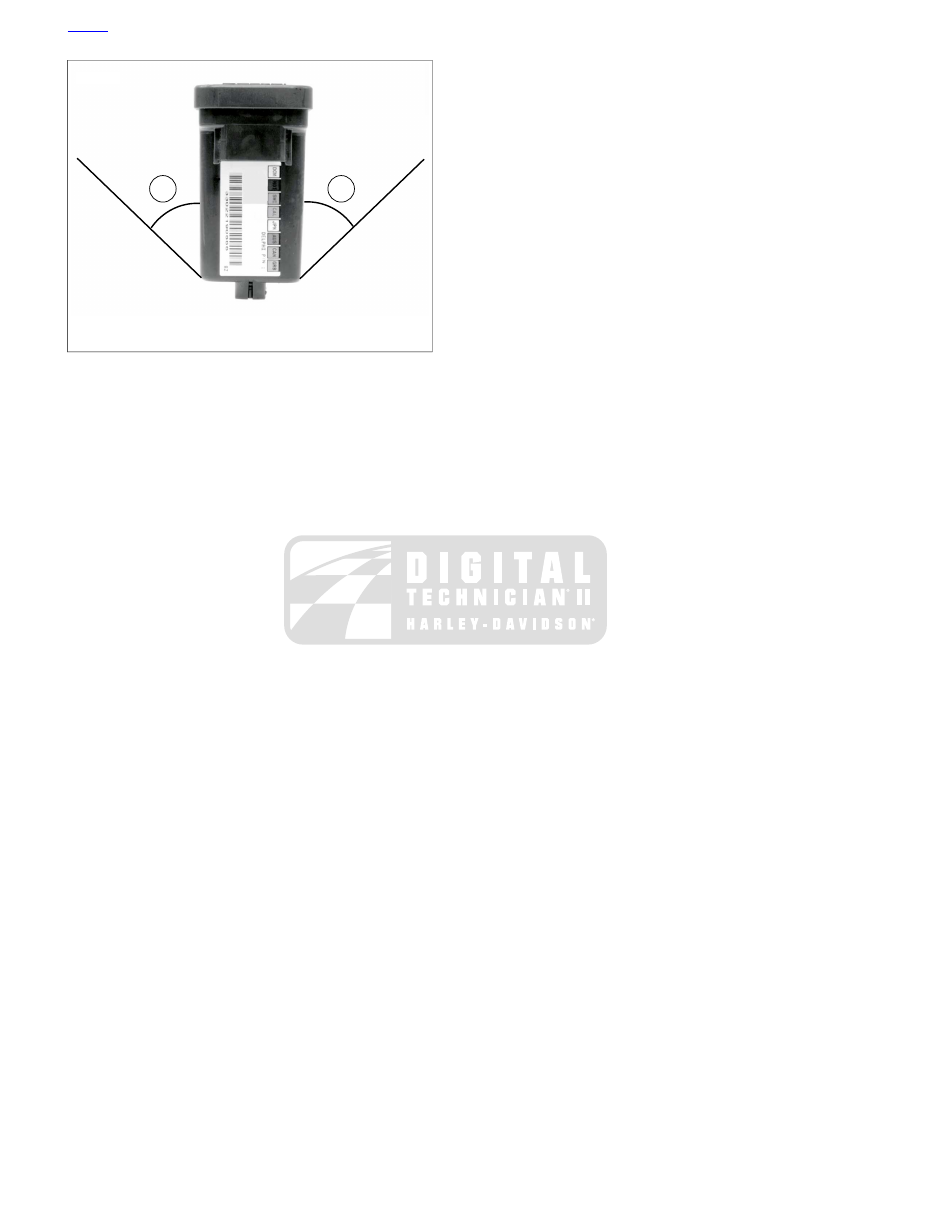

Figure E-20. Tilting: TSM/HFSM

HOME

E-36 2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea)

Will Not Cancel Upon Turn Completion

Is TSM/TSSM mounted properly?

YES

Mount correctly.

Check if TSM/TSSM is configured for

solo or side car operation. See E.3

VEHICLE DELIVERY.

Is it proper configuration?

YES

Select proper

vehicle

configuration.

Do 4-way flashers

cancel in both

directions?

YES

Operate motorcycle at a speed

greater than 7 MPH (10 km/h) in a

straight line. Activate either turn

signal. Turn signals should cancel

after 20 flashes.

Do turn signals cancel?

Replace TSM/TSSM.

Perform setup and

password learn.

6773

YES

Does speedometer

speed?

YES

Replace TSM/TSSM.

Perform password learn

and setup.

Refer to 2.2 INITIAL

DIAGNOSTIC CHECK:

ODOMETER.

6773

fc01996_en

Go to Cancels

Erratically.

HOME

2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea) E-37

Cancels Erratically

Check for voltage between Breakout Box terminal 8 (gray) and

ground at Breakout Box terminal 12 (gray): with left turn signal

switch depressed, wiggle harness between TSM/TSSM and left

handlebar switches while monitoring for voltage fluctuations or

changes in turn signal flash pattern.

Check for voltage between Breakout Box terminal 7 (gray) and

ground at Breakout Box terminal 12 (gray): with right turn signal

switch depressed, wiggle harness between TSM/TSSM and right

handlebar switches while monitoring for voltage fluctuations or

changes in turn signal flash pattern.

Are voltage fluctuations present?

YES

Locate and repair
intermittent open.

Check for voltage between Breakout Box terminal 8 (gray) and ground at Breakout Box terminal 12

(gray): with left turn signal switch NOT depressed, wiggle harness between TSM/TSSM and left

handlebar switches while monitoring for voltage fluctuations or turn signal activation.

Check for voltage between Breakout Box terminal 7 (gray) and ground at Breakout Box terminal 12

(gray): with right turn signal switch depressed, wiggle harness between TSM/TSSM and right

handlebar switches while monitoring for voltage fluctuations or turn signal flash pattern.

Are voltage fluctuations present?

YES

Locate and repair

intermittent short

to voltage.

Turn ignition switch OFF.

Check for continuity between Breakout Box terminal 8 (gray) and ground at Breakout Box terminal 12

(gray): with left turn signal switch depressed, wiggle harness between TSM/TSSM and left handlebar

switches.

Check for continuity between Breakout Box terminal 7 (gray) and ground at Breakout Box terminal 12

(gray): with right turn signal switch depressed, wiggle harness between TSM/TSSM and right

handlebar switches.

Is continuity present at any time?

YES

Locate and repair

intermittent short

to ground.

System OK. Review turn signal

cancellation function with customer. See

TURN SIGNAL FUNCTIONS under 3.1

TURN SIGNAL OVERVIEW.

fc01998_en

HOME

E-38 2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea)

DTCs B1121, B1122, and B1141, Will Not Flash, 4-Way Flashers Inoperable (Part 1 of 6)

Turn ignition switch ON.

Are turn signal lamps on continuously?

YES

Check for voltage on Breakout Box terminal 5 (Gray) (left turn

signals) or terminal 6 (Gray) (right turn signals) with TSM

disconnected from Breakout Box.

Is battery voltage present?

YES

all except XL

1200N

Locate and repair

short to voltage.

Replace TSM.

Learn

password and

perform setup.

Activate 4-way flashers.

Do any lamps illuminate?

YES

Is Connector [30]

mated fully?

YES

Place red meter lead at

terminal 1 (Gray) and

black meter lead at

terminal 12 (Gray) of

Breakout Box.

Is battery voltage

present?

Mate

connector.

YES

Move red meter lead to

Breakout Box terminal 2.

Is battery voltage

present?

Check for voltage at

ignition fuse.

Is battery

voltage present on both

terminals?

YES

6790

6791

6792

YES

Locate and repair

open on (GY) wire

between ignition fuse

and TSM.

6793

YES

XL 1200N only

Unplug connectors [18] and

[19] at tail lamp converter

module. Check for

continuity between

terminals 12 and 6 (right

B1124) or 12 and 5 (left

B1123) of Breakout Box

(Gray).

Is continuity present?

YES

Unplug connectors [7] at tail

lamp converter module. Check

for voltage between terminals

12 and 6 (right B1124) or 12

and 5 (left B1123) or Breakout

Box (Gray).

Is voltage present?

Locate and repair

short to voltage

between tail lamp
converter module

and turn signal.

Locate and repair short to

voltage between

connector [30] and tail

lamp converter module.

Replace tail lamp

converter module.

fc01999_en

Go to DTCs B1121, B1122, and

B1141, Will Not Flash, 4-Way

Flashers Inoperable (Part 2 of 6).

Go to DTCs B1121, B1122,

and B1141, Will Not Flash, 4-

Way Flashers Inoperable

(Part 5 of 6).

Go to DTCs B1121,

B1122, and B1141, Will

Not Flash, 4-Way

Flashers Inoperable

(Part 5 of 6).

See 4.10 NO

ECM

POWER.

HOME

2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea) E-39

DTCs B1121, B1122, and B1141, Will Not Flash, 4-Way Flashers Inoperable (Part 2 of 6)

Continued from DTCs B1121, B1122, and B1141, Will Not Flash, 4-Way Flashers Inoperable (Part 2 of 6).

Inspect bulbs on side that will not flash.

Are the bulbs OK?

YES

Place jumper wire between terminals 2 and 6 of Breakout Box.

Do the right turn signals (front and rear) illuminate?

Replace bulbs

as necessary.

6796

YES

Place a jumper wire

between terminals 1 and 5

of Breakout Box.

Do the left turn signals

(front and rear) illuminate?

Check for continuity between terminal 6 of Breakout Box and right

front turn lamp and also between right front lamp housing and

ground.

Is continuity present?

YES

Check for continuity between terminal 6 of

Breakout Box and right rear lamp and also

between right rear lamp housing and ground.

Is continuity present?

Ground 6797

Signal 6798

Locate and repair open

between connector [30]

or ground and front lamp.

YES

Check for continuity between terminal 6 of Breakout Box

and terminal 2 of connector [19A] and also between

terminal 2 of connector [19A] and ground.

Is continuity present?

YES

Locate and repair open

between connector [19B]

and rear lamp.

Check for continuity between terminal 6 of Breakout Box and terminal 2 of connector

[7A] and also between terminal 6 of connector [7A] and ground.

Is continuity present?

6809

XL 1200N?

YES

Replace TSM/TSSM.

XL 1200N?

6791

YES

Locate and repair

open between

connector [30] or

ground and rear

lamp.

Ground 6797

Signal 6798

YES

Replace tail lamp

converter module.

Locate and repair open between connector

[30] or ground and connector [7A].

Ground 6797

Signal 6798

Ground 6797

Signal 6798

fc02000_en

Go to DTCs B1121,

B1122, and B1141 Will

Not Flash, 4-way Flashers

Inoperable (Part 4 of 6).

Go to DTCs B1121,

B1122, and B1141 Will

Not Flash, 4-way

Flashers Inoperable

(Part 1 of 6).

Go to DTCs B1121,

B1122, and B1141

Will Not Flash, 4-way

Flashers Inoperable

(Part 3 of 6).

HOME

E-40 2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea)

DTCs B1121, B1122, and B1141, Will Not Flash, 4-Way Flashers Inoperable (Part 3 of 6)

Continued from DTCs B1121, B1122, and B1141, Will Not Flash, 4-way Flashers Inoperable (Part 2 of 6).

Check for continuity between terminal 5 of Breakout Box and left front lamp and also between left front lamp housing and ground.

Is continuity present?

YES

Locate and repair open

between connector [30] or

ground and front lamp.

YES

Check for continuity between terminal 5 of

Breakout Box and terminal 2 of connector [18A]
and also between terminal 2 of connector {18A]

and ground.

Is continuity present?

Ground 6797

Signal 6798

Check for continuity between terminal 5 of Breakout Box

and terminal 5 of connector [7A] and also between

terminal 6 of connector [7A] and ground.

Is continuity present?

YES

6809

YES

6791

Ground 6797

Signal 6798

Locate and repair open

between connector

[30] or ground and

connector [7A].

Ground 6797

Signal 6798

Ground 6797

Signal 6798

Check for continuity between terminal 5 of Breakout

Box and left rear lamp and also between left rear lamp

housing and ground.

Is continuity present?

Replace TSM/HFSM.

XL 1200N?

Locate and repair open

between connector [30]

or ground and rear lamp.

Locate and repair open

between connector [18B]

and rear lamp.

Replace tail lamp

converter module.

fc02001_en

HOME

2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea) E-41

DTCs B1121, B1122, and B1141, Will Not Flash, 4-Way Flashers Inoperable (Part 4 of 6)

Continued from DTCs B1121, B1122, and B1141, Will Not Flash, 4-

way Flashers Inoperable (Part 2 of 6).

Remove turn signal bulbs, Unplug connector [20]. Check for continuity

between terminals 12 and 5 (left) of Breakout Box (gray).

Is continuity present?

YES

Unplug connector [31]. Check for

continuity between terminals 12 and 6

(right) or 12 and 5 (left) of Breakout Box

(gray).

Is continuity present?

Locate and repair short to

ground between

connector [31] and front

turn signals.

6810

Unplug connectors [18] and [19] at tail lamp

converter module. Check for continuity

between terminals 12 and 6 (right) or 12

and 5 (left) of Breakout Box (gray).

Is continuity present?

YES

Unplug connectors [7] at tail lamp

converter module. Check for continuity

between terminals 12 and 6 (right) or 12

and 5 (left) of Breakout Box (gray).

Is continuity present?

Locate and repair short to

ground between tail lamp

converter module and

turn signal.

Locate and repair short to

ground between

connector [30] and tail

lamp converter module.

Replace tail lamp

converter module.

YES

6810

6809

fc02002_en

Go to DTCs B1121, B1122,

and B1141, Will Not Flash, 4-

way Flashers Inoperable (Part

2 of 6).

HOME

E-42 2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea)

DTCs B1121, B1122, and B1141, Will Not Flash, 4-Way Flashers Inoperable (Part 5 of 6)

Continued from

DTCs B1121, B1122, and B1141, Will Not Flash,

4-way Flashers Inoperable (Part 1 of 6).

Check resistance to ground on Breakout Box

terminal 12 (Gray).

Is resistance less than 1 ohm?

YES

Check for 12 volts at both

terminals of 15 amp battery fuse.

Is proper voltage present at

both terminals?

YES

Repair open in (BN/GY) wire

between battery fuse and TSM/

TSSM.

6806

1 terminal.

Repair poor

ground.

6805

Neither terminal.

Replace

Fuse.

6807

Repair open between 30 Amp

MAXIFUSE and fuse block.

6808

fc02003_en

HOME

2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea) E-43

DTCs B1121, B1122, and B1141, Will Not Flash, 4-Way Flashers Inoperable (Part 6 of 6)

Continued from

DTCs B1121, B1122, and B1141, Will Not Flash, 4-way Flashers Inoperable (Part 1 of 6).

Check for battery voltage at breakout box terminal 7 (Gray) with right turn signal depressed and

terminal 8 (Gray) with left turn signal depressed.

Is battery voltage present?

YES

Replace TSM/TSSM.

Learn password and

perform set-up.

6791

Check for battery voltage on terminal 1

connector [22B] (right), or connector

[24B] (left).

Is battery voltage present?

YES

With turn signal switch depressed

on side under test, check for continuity

between terminal 1 and terminal

5 on connector [22A] (right), or

connector [24A] (left).

Is continuity present?

Locate and repair open (O/W)

wire between terminal 1 on connector

[22B] (right), or connector

[24B] (left) and accessory fuse.

6814 – right

6812 - left

YES

Locate and repair open wire

between terminal 5 on connector

[22B] (right), or connector [24B]

(left) and TSM/TSSM connector [30].

Replace turn signal

switch or repair wiring to

turn signal switch.

6813 – right

6810 - left

6811

fc02004_en

HOME

E-44 2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea)

Flash at Double Normal Rate, All Bulbs Working

Determine correct part number for all installed turn signal

bulbs and verify against parts installed on motorcycle.

Are the correct parts installed?

YES

Check for corrosion

on bulbs and/or sockets.

Is corrosion present?

Replace with

correct bulbs.

6820

YES

Remove corrosion with a wire brush.

Install ELECTRICAL CONTACT

LUBRICANT (Part No. 99861-02) in

bulb sockets.

Do lamps flash at normal rate?

Check for corrosion

on all lamp connection

terminals.

Is corrosion present?

YES

System

OK.

6821

Clean or replace bulb.

Do lamps flash

at normal rate?

YES

System

OK.

Replace

lamp

assembly.

6822

6823

YES

Clean corrosion from

wires and terminals.

Do lamps flash at

normal rate?

Replace TSM/TSSM.

Learn password (if

needed) and perform

setup.

6824

YES

System

OK.

6822

Replace TSM/TSSM

Learn password (if

needed) and perform

setup.

6824

fc01168_en

Verify that lamps are learned:
1) Turn ignition OFF - ON
2) Activate left turn lamp for 5 flashes.
3) Activate right turn lamp for 5 flashes.
Do the lamps flash at the normal rate?

YES

System OK.

HOME

2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea) E-45

E.14

DTC B0563

GENERAL

Battery Voltage High

The TSM/TSSM continually checks the battery voltage during
IGN/OFF and IGN/RUN power modes. If the voltage exceeds
16.0 Volts for more than 5.0 ± 0.5 seconds, the TSM/TSSM
sets DTC B0563.

DIAGNOSTICS

Diagnostic Tips

•

This DTC may set when the vehicle is placed on a battery
charger, on fast charge, for a long period of time.

•

The TSSM does not illuminate the security lamp when this
DTC is set.

Diagnostic Notes

See

1.7 CHARGING SYSTEM

tests to correct. Problem may

be faulty voltage regulator.

HOME

E-46 2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea)

E.15

DTC B1131, B1132

GENERAL

NOTE

This section applies only to those vehicles equipped with the
optional security system.

Alarm Output Low (DTC B1131) or Alarm
Output High (DTC B1132)

See

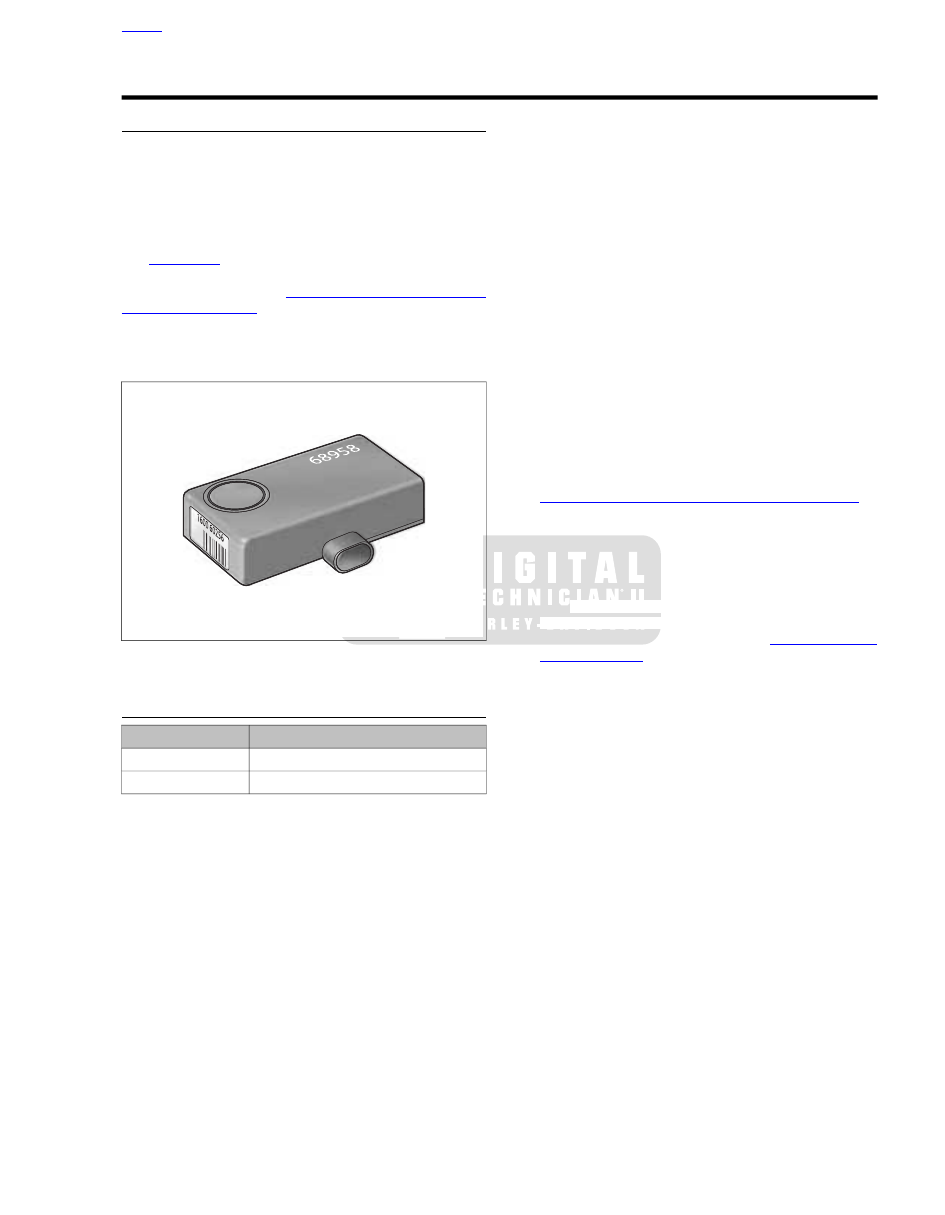

Figure E-21

. An alarm cycle is activated when the TSSM

is connected, the siren has been armed by the TSSM and a
security event occurs. See

E.6 SECURITY SYSTEM FUNC-

TIONS (TSSM ONLY)

. Under normal armed operation, the

siren input (terminal "2") is driven low by the TSSM to trigger
the audible alarm. When the siren input is driven high by the
TSSM the audible alarm stops.

ed02047

Figure E-21. Security Siren

DIAGNOSTICS

TOOL NAME

PART NUMBER

HARNESS CONNECTOR TEST KIT

HD-41404-B

BREAKOUT BOX

HD-42682

Diagnostic Tips

•

If the siren is armed and the internal siren battery is dead,
shorted, disconnected, or has been charging for a period

longer than 24 hours, the siren will respond with three
chirps on arming instead of two.

•

The internal siren battery may not charge if the vehicle's
battery is less than 12.5 volts.

•

If the siren does not chirp two or three times on a valid
arming command from the TSSM, the siren is either not
connected, not working, or the siren wiring was opened
or shorted while the siren was disarmed.

•

If the siren enters the self-driven mode where it is powered
from the siren internal nine-volt battery, the turn-signal
lamps will not alternately flash. If the TSSM activates the
siren, the turn-signal lamps will flash. If the siren has been
armed and a security event occurs, and the siren is in self-
driven mode, the siren will alarm for 20 to 30 seconds and
then turn off for 5 to 10 seconds. This alarm cycle will be
repeated ten times if the siren is in the self-driven mode.

•

If the siren does not stop alarming after it has been armed,
then either the TSSM output or siren input may be shorted
to ground, or the siren vehicle battery connection is open
or shorted to ground, or the siren vehicle ground connec-
tion is open, or a security event has occurred. See

E.6 SECURITY SYSTEM FUNCTIONS (TSSM ONLY)

for

a description of alarm functions.

Diagnostic Notes

Each reference number below correlates to a circled number
on the flowchart(s).

Use BREAKOUT BOX (Part No. HD-42682) and HAR-
NESS CONNECTOR TEST KIT (Part No. HD-41404-B),
gray pin probe and patch cord. See

E.11 BREAKOUT

BOX: TSM/TSSM

Use HARNESS CONNECTOR TEST KIT (Part No. HD-
41404-B), gray socket probe and patch cord.

Having the correct multimeter ohm scale is important for
this test. Some meters may read infinity for high ohm
values. If this is the case, check your ohm scale and retest.

HOME

2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea) E-47

Content .. 52 53 54 55 ..
