E.10 ODOMETER SELF-DIAGNOSTICS

Figure E-1

.The optional, factory-installed, Harley-Davidson

Factory Security System (H-DFSS) includes a Turn Signal
Security Module (TSSM) which provides the same functions
as the TSM, but also includes security and immobilization
functions.

sm01275

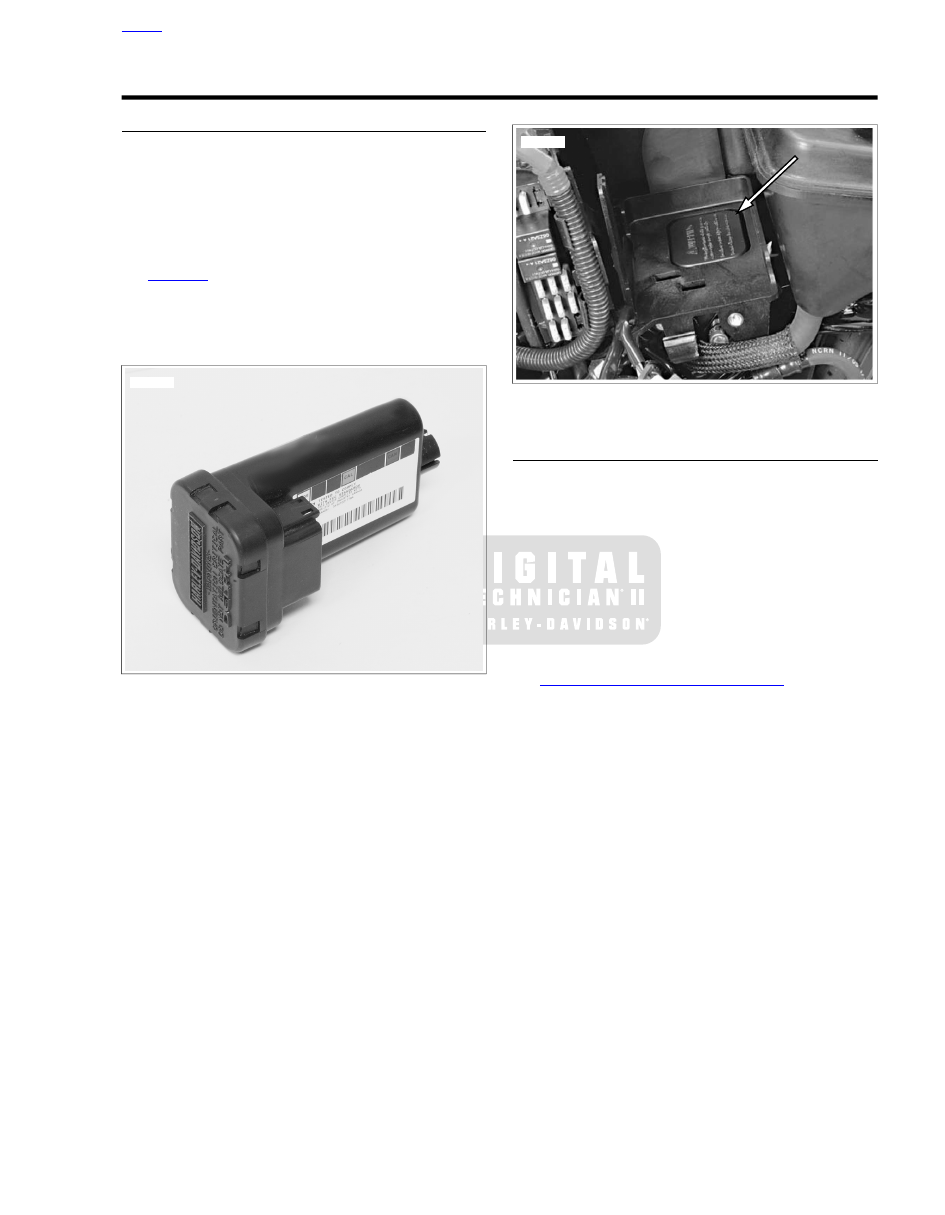

Figure E-1. TSSM (Japan/Korea)

ed02825

Figure E-2. TSM/TSSM Location

TROUBLESHOOTING

Problems fall into at least one of five categories:

•

Turn signal malfunction.

•

Bank angle (engine disable).

•

Clutch/neutral interlock (starter enable).

•

Security lamp problem.

•

Security system malfunction.

To resolve TSM/TSSM problems, four basic steps are involved.
In order of occurrence, they are:

Retrieve DTCs using odometer self-diagnostics. See

Diagnose system problems. This involves using special
tools and the diagnostic flowcharts in this section.

Correct problems through the replacement and/or repair
of the affected components.

After repairs are performed, the work must be validated.
This involves clearing the DTCs and confirming proper
vehicle operation as indicated by the behavior of the turn
signals.

2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea) E-1

E.2

TSM/TSSM FEATURES

TURN SIGNAL FUNCTIONS

TSM/TSSM Features

E.4 TURN SIGNAL FUNCTIONS

for complete details.

•

Manual turn signal control: Manual activation/deactiva-
tion of left and right turn signal flashing sequences.

•

Automatic turn signal cancellation: Automatic cancella-
tion of left and right turn signal flashing sequences based
on either vehicle speed, vehicle acceleration or turn com-
pletion.

•

Emergency flashers: Four-way left and right turn signal
flashing capability.

•

Turn signal lamp diagnostics: Self-diagnostics for short
circuit and open lamp conditions on both left and right turn
signal systems.

BANK ANGLE FUNCTION

E.5 BANK ANGLE FUNCTION

for complete details.

•

Emergency engine shutdown: Will provide engine
shutdown when vehicle is tipped over.

•

Emergency outputs disable: Will disable turn signal
lamps and starter motor when vehicle is tipped over.

CLUTCH/NEUTRAL INTERLOCK
FUNCTIONS

TSM/TSSM Features

•

Disables starter: Disables starter until either the clutch
lever is pulled in or transmission neutral is selected.

•

Diagnostics: Provides diagnostics for clutch and neutral
switch faults.

SECURITY ALARM AND IMMOBILIZATION
FUNCTIONS

TSSM Feature

The following information applies only to motorcycles with the
security option (TSSM). See

E.6 SECURITY SYSTEM

FUNCTIONS (TSSM ONLY)

for more information.

•

Remote arming/disarming: See

Figure E-3

. Owners may

enable and disable security alarm and immobilization
functions with a personally carried transmitter. This trans-
mitter is referred to as a key fob. Remote arming/dis-
arming is a function of the TSSM (Japan/Korea) only.

•

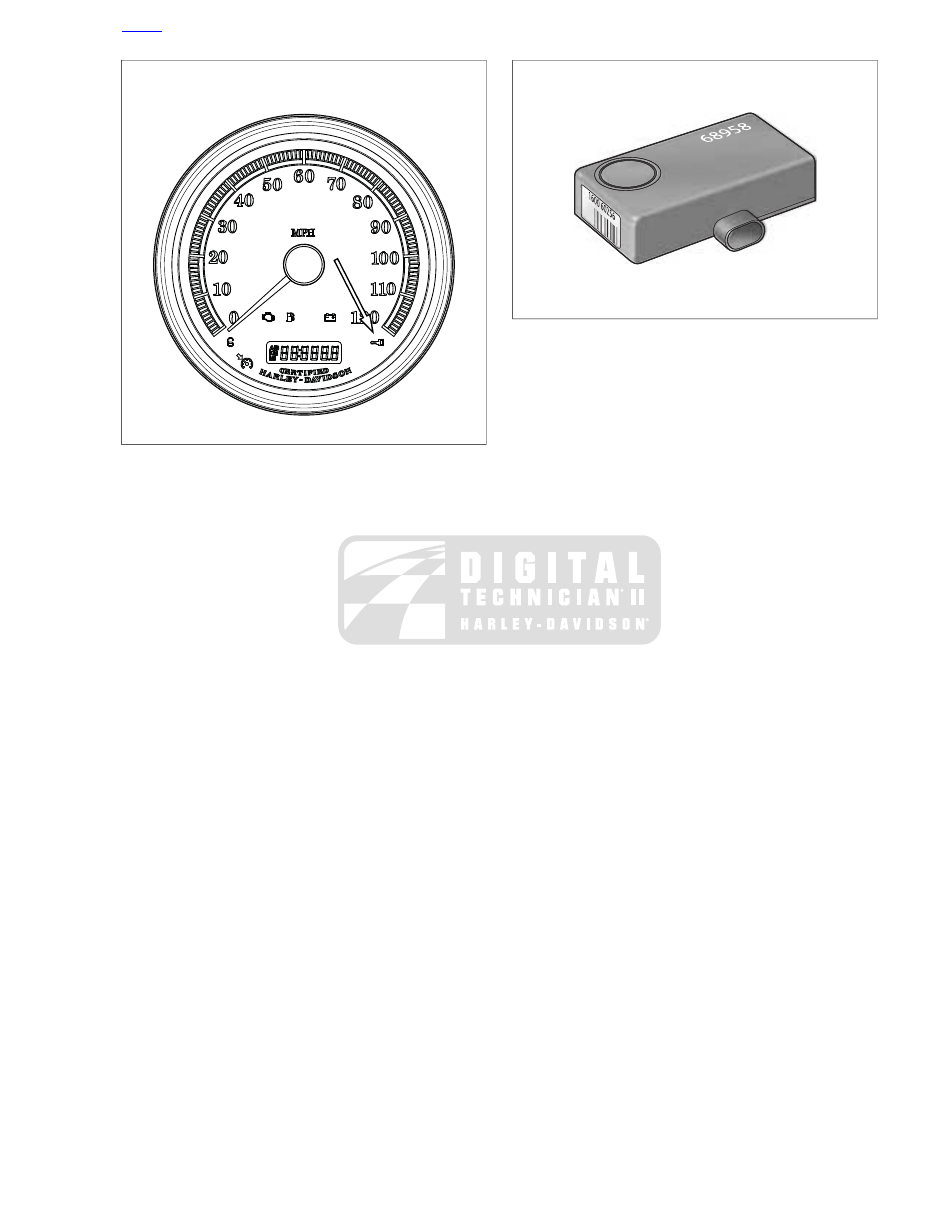

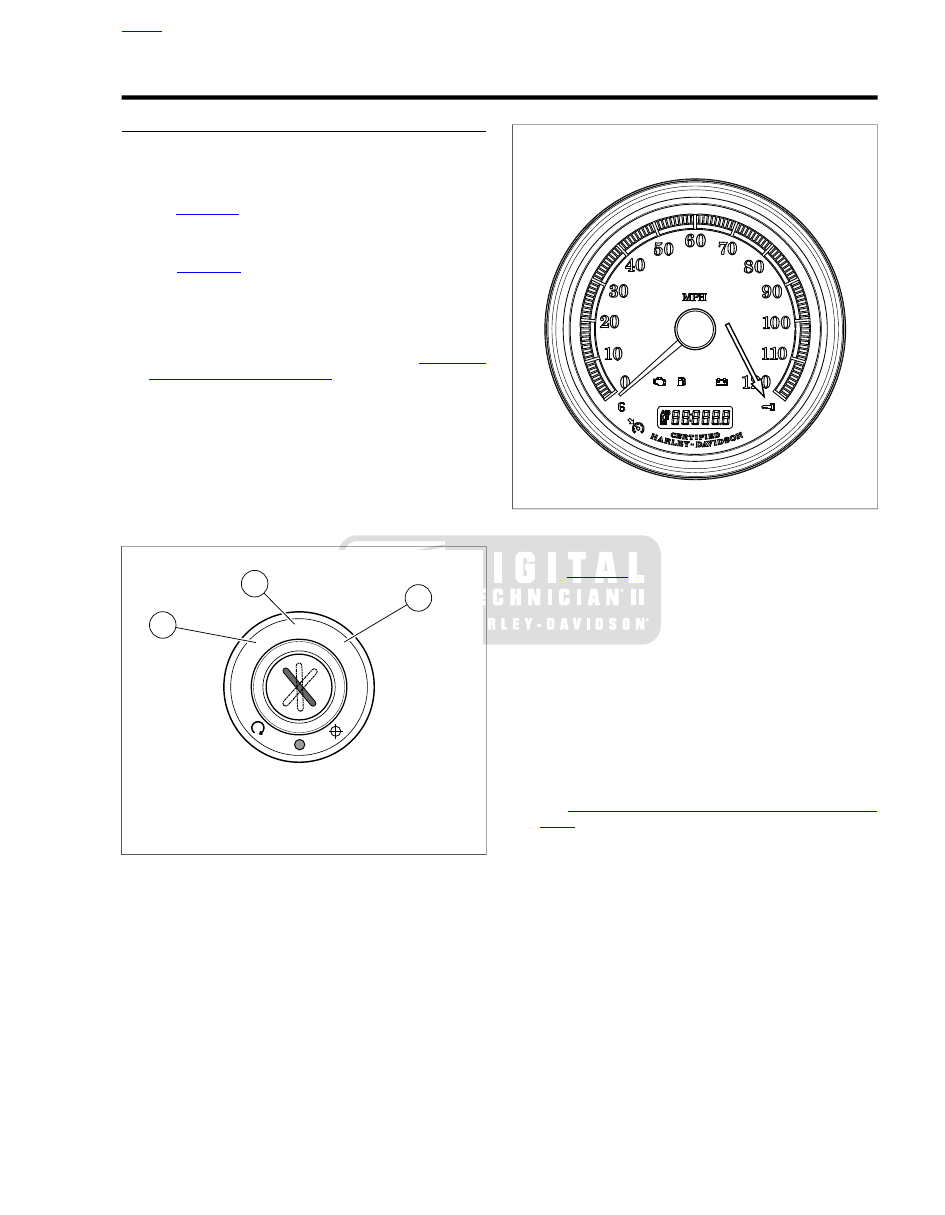

Security lamp (key icon): See

Figure E-4

. A lamp within

the speedometer face on XL, and the tachometer on the
XR, tells the rider if the system is armed or disarmed.

•

PIN disarming: If a key fob is not available, the TSSM
allows the rider to disable the security alarm and immobil-
ization functions if the rider knows the previously entered
personal identification number (PIN).

•

Arming/disarming confirmation: When the TSSM is
armed, the system provides visual feedback to the rider

by flashing the turn signals and sounding the optional
Smart Siren.

•

Auto-arming: Automatically enables the security alarm
and immobilization functions within 30 seconds after the
Ignition Switch is switched OFF.

NOTE

Motorcycles sold with a TSSM have auto-arming disabled, but
it can be activated. See

E.3 VEHICLE DELIVERY

•

Transport mode: It is possible to arm the security system
without enabling the motion detector for one ignition cycle.
This allows the vehicle to be moved in an immobilized
state.

•

Starter/ignition disable: Should the security alarm and
immobilization functions be triggered by a vehicle security
condition, the starter and ignition system will be disabled.

•

Security system alarm: See

Figure E-5

. The system will

alternately flash the left and right turn signals and sound
an optional Security Siren if a vehicle security condition
is detected while the system is armed.

ed03007

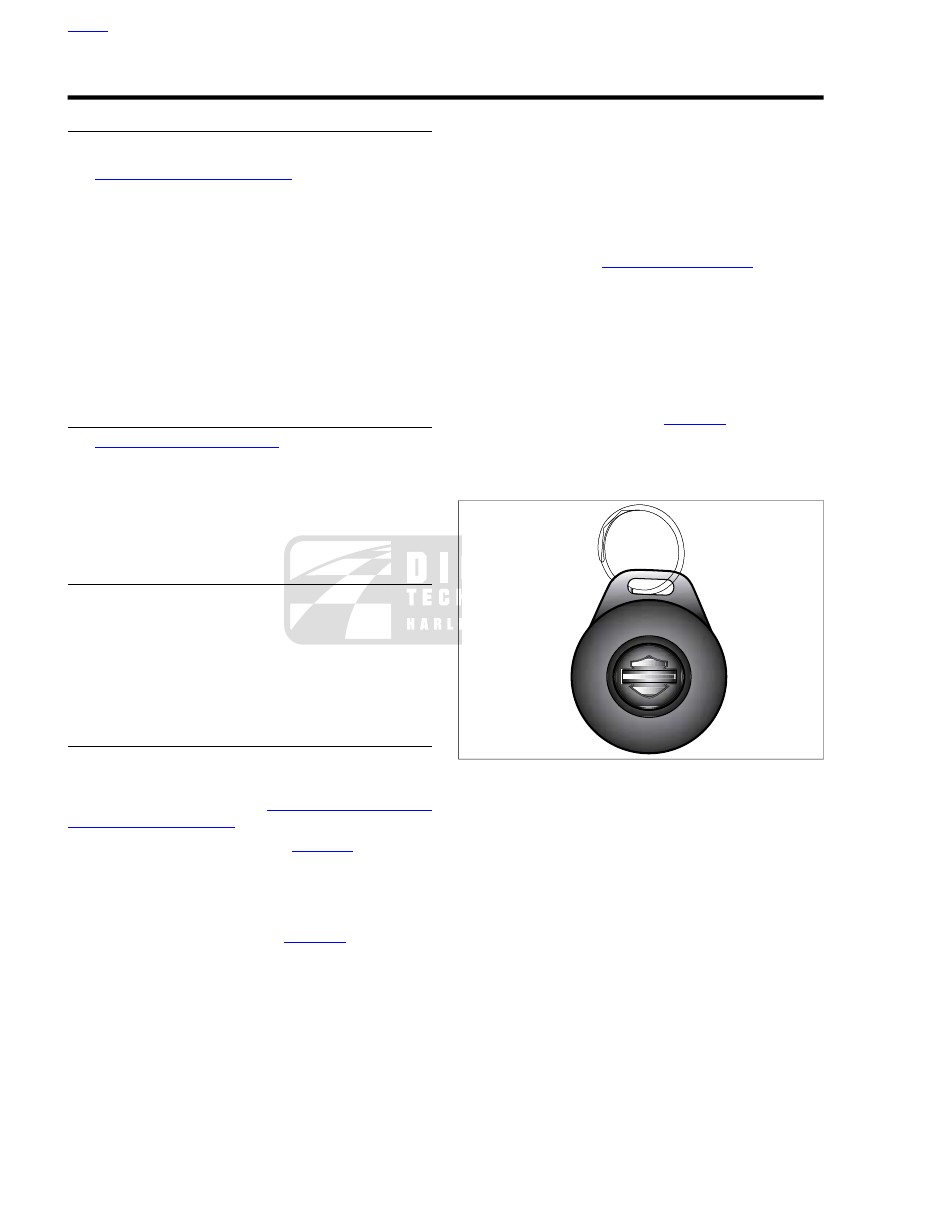

Figure E-3. Key Fob: TSSM

E.3 VEHICLE DELIVERY, Key Fob

E-2 2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea)

E.3

VEHICLE DELIVERY

GENERAL

Only Touring Harley-Davidson Motorcycles are suitable
for sidecar use. Consult a Harley-Davidson dealer. Use of
motorcycles other than Touring models with sidecars
could result in death or serious injury. (00040a)

Setting up a vehicle TSM/TSSM depends on whether the
vehicle has a TSM or the optional TSSM installed.

All motorcycles ship with the TSM/TSSM set for use without
a sidecar installed. If a motorcycle is equipped with a TSM, no
further configuration is required.

However, if a motorcycle has an optional security system
(TSSM) installed, perform the following steps as necessary.

Configure TSSM motorcycles by assigning both key fobs
to the vehicle. See

Assignment: TSSM

Configure TSSM motorcycles by entering a PIN picked by
the owner. The PIN allows the owner to operate the system
if the key fob is lost or inoperable. Record this PIN in the
Owner's Manual and instruct the customer to carry a copy.

CONFIGURING A TSSM

NOTE

Do not forget to enter a Personal Identification Number (PIN)
for TSSM motorcycles. If a PIN is not assigned and both key
fobs are lost or damaged while the motorcycle is armed, the
TSSM must be replaced.

Changes to TSSM settings are made by a series of program-
ming operations involving the ignition switch, left/right turn
signal switches and key fob (security systems).

At certain steps in the programming sequence, the motorcycle
may provide confirmation of settings by flashing the turn sig-
nals, turn signal indicators and/or security lamp. In addition,
when programming a PIN into a TSSM system, the odometer
displays the PIN to the user and dynamically updates it as the
code is entered or changed.

All programming operations are listed in table format. Follow
the numbered steps to configure the system. If a confirmation
response is listed, wait for the confirmation before continuing

to the next step. Important information pertaining to certain
actions will be found in the NOTES column.

SIDECAR CONFIGURATION

POWER DISRUPTION AND CONFIGURING

The TSM/TSSM will not enter configuration mode on the first
attempt after battery voltage has been removed from terminal
"1". This will occur after any of the following situations:

•

Battery disconnect or power drain.

•

Battery fuse removal.

•

Connecting Breakout Box to TSM/TSSM connector.

Therefore, after all battery reconnects, the configuration
sequence must be modified as follows.

Set Engine Stop Switch to OFF, cycle Ignition Switch
ON-OFF-ON-OFF-ON and press left turn signal switch
twice.

Repeat step listed above.

Continue with configuration sequence listed.

KEY FOB ASSIGNMENT: TSSM

Refer to

Table E-1

to assign a key fob to a motorcycle equipped

with a TSSM.

The key fob on TSSM motorcycles must be set so it will operate
the alarm system on the vehicle. This assignment must be
completed with no pauses between steps greater than 10
seconds. Turn the ignition switch to OFF after all key fobs have
been assigned. The programming mode will also exit after 60
seconds has elapsed without detecting any fob sign-up mes-
sages or turn signal switch activity.

Two key fobs may be assigned to the TSSM. The first suc-
cessful attempt to program a fob will disable all previously
assigned fobs. If a second fob is to be programmed, it must
be done in the same programming sequence as the initial fob.

Table E-1. Key FOB Assignment: TSSM

NOTES

WAIT FOR CONFIRMATION

ACTION

NO.

Verify the security lamp is not
blinking (vehicle is disarmed).

Set engine stop switch to OFF.

This assignment procedure
must be completed with no
pauses between steps greater
than 10 seconds.

Cycle the ignition switch IGN - OFF - IGN
- OFF - IGN.

E-4 2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea)

Table E-1. Key FOB Assignment: TSSM

NOTES

WAIT FOR CONFIRMATION

ACTION

NO.

1 flash - Worldwide TSM, no
security.

One to four flashes turn signals and indic-
ators depending on vehicle configuration

Press left turn switch 2 times and release.

2 flashes - Japan/Korea config-
uration TSSM.

(See

regarding

battery disconnects.)

One flash turn signals and indicators

Press right turn switch 1 time and release.

Two flashes turn signals and indicators

Press left turn switch 1 time and release.

This may take 10-25 seconds.

Two flashes turn signals and indicators

Press and hold key fob button until con-
firmation is received.

Optional step.

Two flashes turn signals and indicators

If you have two key fobs, press and hold
button on second key fob until confirma-
tion is received.

Turn ignition switch to OFF.

PIN ENTRY: TSSM

NOTE

Do not forget to enter a PIN for TSSM vehicles. If a PIN is not
assigned and the key fob is lost or damaged while the vehicle
is armed, the TSSM must be replaced.

The TSSM PIN consists of five digits. Each digit can be any
number from 1-9. There can be no zeros (0) in the PIN. The
PIN must be used to disarm the security system in case the
key fob becomes unavailable.

Refer to

Table E-2

to enter an initial PIN with no PIN previously

installed. The procedure listed uses 3-1-3-1-3 as the desired
PIN.

NOTE

For better security, do not use 3-1-3-1-3 as a PIN. It is shown
as an example only.

Decide what five-digit PIN the owner would like to use. The
code will be programmed using the turn signal switches and

key fob. Keep a record of the PIN in a secure place such as
your wallet or the Owner's Manual.

•

When programming the PIN, the security lamp flashes to
provide feedback when entering each digit. The odometer
also displays the PIN and the change dynamically.

•

The number of security lamp flashes corresponds to the
number currently selected for a given digit. Therefore, the
lamp may flash 1-9 times depending on the number
entered. The five-digit PIN will change in the odometer
window and the active digit will blink.

•

Press the left turn switch one time to increment each digit.

•

Quickly press the key fob button twice to advance to the
next digit.

NOTE

The programming mode exits upon turning the ignition switch
to OFF, or if no turn signal switch/key fob button activity occurs
for 60 seconds. No data is saved for partial configuration
attempts if entering a PIN for the first time. If a PIN has previ-
ously been entered, the user can change any digit or group of
digits.

Table E-2. Entering an Initial TSSM PIN (Example: 3-1-3-1-3) with No PIN Previously Entered

NOTES

WAIT FOR CONFIRMATION

ACTION

NO.

Verify the security lamp is not
blinking (vehicle is disarmed).

Set engine stop switch to OFF.

This assignment procedure
must be completed with no
pauses between steps greater
than 10 seconds.

Cycle the ignition switch
ON-OFF-ON-OFF-ON.

One flash - Worldwide TSM, no
security.

One to four flashes turn signals and
indicators depending on vehicle config-
uration

Press left turn switch 2 times and release.

Two flashes - Japan/Korea
configuration TSSM.

(See

regarding battery disconnects).

2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea) E-5

Table E-2. Entering an Initial TSSM PIN (Example: 3-1-3-1-3) with No PIN Previously Entered

NOTES

WAIT FOR CONFIRMATION

ACTION

NO.

Vehicle is in PIN entry mode
ready to enter or modify first
digit.

One flash turn signals and indicators
Odometer displays current five-digit
PIN (five dashes if no code entered),
first digit blinks.

Quickly press key fob button 2 times and
release.

A lack of confirmation flashes
indicates no digit is entered.

Security lamp flashes 1 - 9 times if
code was previously entered.

Press left turn switch 1 time and release.

You have selected 3 as a
number for the first digit.

Blinking digit in odometer display
increments, security lamp flashes to
indicate each digit selected.

Press and release left turn switch to advance
through the digits.
In this example, you will press and release
three times.

In this example, the blinking digit dis-
played is 3 and the security lamp will
flash three times.

You have confirmed 3 as a
number for the first digit and
have advanced to entering the
second digit.

Two flashes turn signals and indicators
second digit in odometer display
blinks.

Quickly press key fob button 2 times and
release.

A lack of confirmation flashes
indicates no digit is entered.

None

Press left turn switch 1 time and release.

You have selected 1 as a
number for the second digit.

Blinking digit in odometer display
increments, security lamp flashes to
indicate each digit selected.

Press and release left turn switch to advance
through the digits.
In this example, you will perform this step
one time.

In this example, the blinking digit dis-
played is 1 and the security lamp will
flash one time.

You have confirmed 1 as a
number for the second digit and
have advanced to entering the
third digit.

Three flashes turn signals and indic-
ators third digit in odometer display
blinks.

Quickly press key fob button 2 times and
release.

A lack of confirmation flashes
indicates no digit is entered.

None

Press left turn switch 1 time and release.

You have selected 3 as a
number for the third digit.

Blinking digit in odometer display
increments, security lamp flashes to
indicate each digit selected.

Press and release left turn switch to advance
through the digits.
In this example, you will repeat this step three
times.

In this example, the blinking digit dis-
played is 3 and the security lamp will
flash three times.

You have confirmed 3 as a
number for the third digit and
have advanced to entering the
fourth digit.

Four flashes turn signals and indic-
ators fourth digit in odometer display
blinks.

Quickly press key fob button 2 times and
release.

A lack of confirmation flashes
indicates no digit is entered.

None

Press left turn switch 1 time and release.

You have selected 1 as a
number for the fourth digit.

Blinking digit in odometer display
increments, security lamp flashes to
indicate each digit selected.

Press and release left turn switch to advance
through the digits.
In this example, you will perform this step
one time.

In this example, the blinking digit dis-
played is 1 and the security lamp will
flash one time.

You have confirmed 1 as a
number for the fourth digit and
have advanced to entering the
fifth digit.

Five flashes turn signals and indicators
fifth digit in odometer display blinks.

Quickly press key fob button 2 times and
release.

A lack of confirmation flashes
indicates no digit is entered.

None

Press left turn switch 1 time and release.

E-6 2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea)

Table E-2. Entering an Initial TSSM PIN (Example: 3-1-3-1-3) with No PIN Previously Entered

NOTES

WAIT FOR CONFIRMATION

ACTION

NO.

You have selected 3 as a
number for the fifth digit.

Blinking digit in odometer display
increments, security lamp flashes to
indicate each digit selected.

Press and release left turn switch to advance
through the digits.
In this example, you will repeat this step three
times.

In this example, the blinking digit dis-
played is 3 and the security lamp will
flash three times.

You have confirmed 3 as a
number for the fifth digit and
have gone back to the first digit.

One flash turn signals and indicators
first digit in odometer display blinks.

Quickly press key fob button 2 times and
release.

Turn ignition switch to OFF.

Write down code in Owner's Manual.

Arm the security system and attempt to
disarm using PIN entry. Refer to

Table E-2

CHANGING THE PIN: TSSM

If a PIN has been previously entered, the security lamp will
flash the equivalent digit, and the odometer will display the

existing PIN with the active digit blinking. Each additional press
of the left turn switch will increment the digit.

•

To advance from 5 to 6, press and release the left turn
switch 1 time.

•

To advance from 8 to 2, press and release the left turn
switch 3 times (9-1-2).

E.8 DIAGNOSTIC TROUBLE CODES (DTC)

2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea) E-7

E.4

TURN SIGNAL FUNCTIONS

GENERAL

The TSM/TSSM turn signal feature has several modes:

•

Automatic cancellation.

•

Manual cancellation.

•

Four-way flashing.

•

Diagnostics mode.

The turn signals cannot be activated or deactivated when the
ignition switch is in the ACC position. The turn signals can only
be activated or deactivated with the ignition switch in the
IGNITION position.

AUTOMATIC CANCELLATION

Press the left or right turn switch to activate automatic turn
signal cancellation. There is no need to hold the turn switch in
when approaching the turn. The TSM/TSSM will not cancel
the signal before the turn is actually completed.

•

When the directional switch is released, the system starts
a 20 count. As long as the vehicle is traveling at more than
7 MPH (11 km/h), the directional will always cancel after
20 flashes, if the system does not recognize any other
input.

•

If the vehicle speed drops to 7 MPH (11 km/h) or less,
including stopped, the directionals will continue to flash.
Counting will resume when vehicle speed reaches 8 MPH
(12 km/h) and will automatically cancel when the count
total equals 20 as stated above.

•

The turn signals will cancel within two seconds upon turn
completion. A sensor inside the TSM/TSSM cancels the
signal after the vehicle has been returned to an upright
position.

NOTE

The bank angle cancellation function has an automatic calibra-
tion feature. Ride the motorcycle for 0.25 mile (0.4 km) at
steady speeds (upright) to calibrate the system. Performance
of bank angle function may not be optimal until this calibration
is performed. This self-calibration is performed automatically
every time the vehicle is started and ridden.

MANUAL CANCELLATION

If you want to stop the turn signals from flashing, briefly depress
the turn signal switch a second time.

If you are signalling to turn in one direction and you depress
the switch for the opposite turn signal, the first signal is can-
celled and the opposite side begins flashing.

FOUR-WAY FLASHING

Use the following method to activate the four-way flashers:

With the ignition switch ON and the security system dis-
armed (models with security only), press the left and right
turn signal switches at the same time.

Turn the ignition switch OFF and arm the security system
if present and desired. The four-way flashers will continue
for two hours.

To cancel four-way flashing, disarm the security system
if necessary, turn the ignition switch ON and press the left
and right turn signal switches at the same time.

This system allows a stranded vehicle to be left in the four-way
flashing mode and secured until help is found.

If the security system is disarmed while the four-way flashers
are active, the lights will flash as follows:

TSSM stops four-way flashing mode. Motorcycle sits for
1 second with turn signals off.

TSSM performs disarming confirmation (1 flash).

Motorcycle sits for 1 second with turn signals off.

Motorcycle restarts four-way flashing mode.

DIAGNOSTICS MODE

The TSM/TSSM measures the current when the turn signals
are used. If there is a burned out light bulb on one side, the
remaining light and the corresponding turn signal indicator flash
at double the normal rate starting with the fifth flash.

Other diagnostic conditions monitored include:

•

Short circuit in the turn signal wiring.

•

Open circuit in the turn signal wiring.

•

Stuck turn signal switch.

NOTES

•

A stuck turn signal switch will disable the automatic turn
signal cancellation feature.

•

If a stuck switch is detected, you must hold the left and
right turn signal switches in for more than one second to
activate the four-way flashers.

See

for more

information.

E.7 ARMING/DISARMING (TSSM ONLY)

E-8 2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea)

E.6

SECURITY SYSTEM FUNCTIONS (TSSM ONLY)

GENERAL

Security System Operation

The TSSM provides security and immobilization functions not
found on the TSM. The TSSM will disable the starter and igni-
tion system. Additional functions include the ability to alternately
flash the left and right turn signals and sound a siren (if
equipped) if a theft attempt is detected.

Conditions that activate the security system when system is
armed include:

•

Detecting tampering of the ignition circuit: Turn signals
flash three times, optional siren chirps once and then turns
off. If the tampering continues, a second warning will
activate after four seconds. Continued tampering will cause
the alarm to activate for 30 seconds and then turn off. The
two warnings/alarm cycle is repeated for each tampering
incident.

•

Detecting vehicle movement: Turn signals flash three
times, optional siren chirps once and then turns off. If the
vehicle is not returned to its original position, a second
warning will activate after four seconds. If the vehicle is
not returned to its original position, the alarm activates for
30 seconds then turns off. The two warnings/alarm cycle
may repeat a maximum of 10 times with a 10 second
pause between alarm cycles.

•

Detecting that a battery or ground disconnect has
occurred while armed: Siren, if installed, activates its
self-alarm mode. Turn signals will not flash.

See

for more

information.

NOTE

Always disarm the TSSM before removing or disconnecting
the battery to prevent the siren (if installed) from activating. If
the TSSM is in auto-arming mode, you must disarm the system
and disconnect the battery or remove the battery fuse before
the 30 second arming period expires.

Security System Options: TSSM

The following options are only available on the TSSM unit:
alarm sensitivity, auto-arming feature, and storage mode.

Default settings for the TSSM include:

•

Solo vehicle configuration.

•

Medium motion sensitivity on alarm sensitivity.

•

All vehicles are shipped with auto-arming disabled.

•

Storage mode set to 10 days.

ALARM SENSITIVITY: TSSM

Sensitivity

The TSSM has four sensitivity settings: extremely low, low,
medium or high. The selection picked controls the sensitivity
of the security system in regards to motion detection.

To set alarm sensitivity, refer to

Table E-3

Table E-3. TSSM Alarm Sensitivity

NOTES

WAIT FOR CONFIRMATION

ACTION

NO.

Verify the security lamp is not blinking
(vehicle is disarmed).

Set RUN/OFF switch to OFF.

Cycle the ignition switch
ON-OFF-ON-OFF-ON.

Two flashes - Japan/Korea configura-
tion TSSM

Two flashes turn signals & indicators
depending on vehicle configuration

Press left turn switch 2 times and
release.

(See

regarding battery disconnects).

One flash turn signals and indicators.

Press and hold key fob button until
confirmation is received.

One flash - extremely low

Turn signals and indicators flash to
indicate option selected.

Press left turn switch 1 time and
release.

Two flashes - low sensitivity
Three flashes - medium sensitivity
Four flashes - high sensitivity

One flash - extremely low

Turn signals and indicators flash to
indicate option selected.

Press and release left turn switch to
advance through options.

Two flashes - low sensitivity
Three flashes - medium sensitivity
Four flashes - high sensitivity

Turn ignition switch to OFF.

E-10 2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea)

Transport Mode

It is possible to arm the security system without enabling the
motion detector for one ignition cycle. This allows the vehicle
to be picked up and moved in an armed state. In this mode,
any attempt to hot-wire the vehicle will trigger the security
system.

•

To enter the transport mode, refer to

Table E-4

•

To exit from transport mode and return the system to
normal operation/functions, disarm the system using either
the key fob or PIN.

NOTE

Transport mode is especially useful when working on the
motorcycle. If it is not used, the alarm will activate under many
typical service activities.

Table E-4. Transport Mode: TSSM

NOTES

WAIT FOR CONFIRMATION

ACTION

NO.

Verify the security lamp is not blinking
(vehicle is disarmed).

Set engine stop switch to OFF.

Turn ignition switch to ON.

Three flashes turn signals & indicators.

Press and hold key fob button until
confirmation is received.

Turn ignition switch to OFF.

The vehicle can be moved without
tripping the alarm.

Three flashes turn signals & indicators.

Press and hold key fob button until
confirmation is received.

AUTO-ARMING FUNCTION: TSSM

Auto-arming causes the system to automatically arm itself (no
key fob needed) within 30 seconds after the ignition switch is
turned OFF. During this period, the security lamp stays on solid
to indicate auto-arming is starting up.

The vehicle may be moved during these 30 seconds without
triggering the alarm. However, any motion after that period will
trigger the security alarm. Upon expiration of the auto-arming
period, the turn signals flash twice, the security lamp begins
to flash and the siren (if equipped) chirps twice.

The TSSM allows remote arming via the key fob at any time.
However, if the system is remotely disarmed (with the key fob)
but the ignition switch is not turned ON within 30 seconds, the
system will rearm itself when auto-arming is enabled.

Japanese and Korean market motorcycles have auto-arming
disabled by default. However, the feature may be enabled if
the customer desires.

When auto-arming is disabled, the key fob must be used to
arm the security system. To set the auto-arming function, refer
to

Table E-5

Table E-5. Selecting TSSM Auto-Arming Function

NOTES

WAIT FOR CONFIRMATION

ACTION

NO.

Verify the security lamp is not blinking
(vehicle is disarmed).

Set engine stop switch to OFF.

Cycle the ignition switch
IGN-OFF-IGN-OFF-IGN.

Two flashes - Japan/Korea configura-
tion TSSM

Two flashes turn signals and indicators
(See

regarding battery disconnects).

Press left turn switch 2 times and
release.

One flash turn signals and indicators.

Press and hold key fob button until
confirmation is received.

Two flashes turn signals and indicators.

Press and hold key fob button until
confirmation is received.

One flash - auto-arming disabled

Turn signals and indicators flash to
indicate option selected.

Press left turn switch 1 time and
release.

Two flashes - auto-arming enabled

Turn signals and indicators flash to
indicate option selected.

Press and release left turn switch to
advance through options.

Turn ignition switch to OFF.

2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea) E-11

STORAGE MODE: TSSM

The TSSM has a special mode for long term storage. This
mode prevents the security system from draining the battery
after a period of days (10, 20, 60 or infinite) without any ignition
switch activity.

•

If the TSSM is set to infinite, the system will not go into
storage mode.

•

Vehicles will enter storage mode whether the security
system is armed or disarmed.

•

If set to 20 days or greater, the customer must use an
approved trickle charger to keep the battery from dischar-
ging.

In storage mode, all alarm functions remain active but the
receiver is shut down and will not respond to the key fob. The
vehicle is immobilized because the starter motor and ECM are
disabled. When the storage mode is entered, the security lamp
stops flashing to conserve power.

To wake up the TSSM from storage mode, the ignition switch
must be turned ON. This will trigger a warning/alarm if the
system was previously armed. You must use the key fob or
PIN to disarm the system and stop the alarm.

To set the storage mode preferences, refer to

Table E-6

Table E-6. Storage Mode Preferences: TSSM

NOTES

WAIT FOR CONFIRMATION

ACTION

NO.

Verify the security lamp is
not blinking (vehicle is dis-
armed).

Set engine stop switch to OFF.

Cycle the ignition switch
IGN-OFF-IGN-OFF-IGN.

Two flashes - Japan/Korea
configuration TSSM

Two flashes turn signals and indicators
depending on vehicle configuration

Press left turn switch 2 times and release.

(See

regarding

battery disconnects).

One flash turn signals and indicators.

Press and hold key fob button until confirma-
tion is received.

Two flashes turn signals and indicators.

Release and then hold key fob button until
confirmation is received.

Three flashes turn signals and indicators.

Release and then hold key fob button until
confirmation is received.

One flash - 10 days

Turn signals and indicators flash to indicate
option selected.

Press left turn switch 1 time and release.

Two flashes - 20 days
Three flashes - 60 days
Four flashes - Infinite

One flash - 10 days

Turn signals and indicators flash to indicate
option selected.

Press left turn switch to advance through
options.

Two flashes - 20 days
Three flashes - 60 days
Four flashes - Infinite

Turn ignition switch to OFF.

E-12 2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea)

E.7

ARMING/DISARMING (TSSM ONLY)

GENERAL

There are two methods to arm the security system:

•

Using the key fob.

•

Using auto-arming. See

E.6 SECURITY SYSTEM

FUNCTIONS (TSSM ONLY)

NOTE

The vehicle cannot be armed with the ignition switch turned to
IGN.

There are two ways to disarm the system:

•

Using the key fob. This method works in all situations
except before turning ignition switch to IGN when TSSM
storage mode is activated.

•

Using a PIN.

SECURITY LAMP

Refer to

Table E-7

. The security lamp within the speedometer

on XL, and tachometer on XR, provides feedback to the rider
confirming armed or disarmed status.

Table E-7. Security Lamp Status: TSSM

MODE

LAMP

No security system (TSM),
security system not armed or
storage mode active.

Does not flash.

Ten minute timeout after failed
PIN entry attempt or a battery
reconnect has occurred while
armed.

Flashes every second.

Security system armed.

Flashes every 2 seconds.

PIN entry mode.

Flashes 4 times a second.

Auto-arming is starting up.
You have 30 seconds before
system is armed.

Stays on solid with ignition
switch turned OFF.

If solid for more than 4
seconds after ignition switch
is turned to IGN, a current
DTC is present.

Stays on solid with ignition
switch turned to IGN.

USING KEY FOB: TSSM

General

The TSSM reception range for the key fob signal depends on
a specific receiver pattern.

NOTE

Environmental and geographic conditions may affect signal
range.

Arming the System

Hold key fob horizontal at waist level.

Point key fob at the front of the vehicle.

Hold down the key fob button until the system responds
with two turn signal flashes.

Disarming the System

Hold key fob horizontal at waist level.

Point key fob at the front of the vehicle.

Quickly press the key fob button twice. The system will
respond with one turn signal flash.

NOTE

Disarming function may require practice. The key fob button
must be pressed twice within 1.5 seconds to send the disarm
command. The action is very similar to double-clicking a com-
puter mouse. Light quick taps work best; very hard or very slow
taps are less likely to work.

Troubleshooting

If the key fob button has been pressed numerous times while
away from the vehicle, the fob may fall out of synchronization
with the TSSM. If this happens, the TSSM might fail to recog-
nize the key fob's commands.

To solve this problem, press and hold the key fob button for
10-15 seconds until the security system responds with two turn
signal flashes. After confirmation, you may resume normal fob
operation.

USING THE PIN

General

The PIN consists of five digits entered using the left and right
turn signal switches. Each digit can be any number from 1-9.
The PIN is intended to be used to disarm the motorcycle in
case the key fob becomes unavailable or inoperable.

See

to set a PIN.

Disarming the System

Refer to

Table E-8

. If you make an error while disarming the

TSSM using a PIN, the alarm will activate for 30 seconds after
the last digit is entered. After a failed attempt, the security lamp
will flash once every second for 10 minutes. During this time,
the vehicle will not accept any attempt to enter a PIN.

Table E-8. Disarming TSSM with the PIN (Example: 3-1-3-1-3)

NOTES

WAIT FOR CONFIRMATION

ACTION

NO.

Set engine stop switch to OFF.

Turn ignition switch to ACC.

2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea) E-13

Table E-8. Disarming TSSM with the PIN (Example: 3-1-3-1-3)

NOTES

WAIT FOR CONFIRMATION

ACTION

NO.

System is ready for PIN
entry.

Security lamp blinks at fast rate.

Hold both turn switches in until confirm-
ation.

Enter first digit of code (3) by pressing
left turn switch 3 times.

Serves as "enter" key for first
digit.

Press right turn switch 1 time.

Enter second digit of code (1) by
pressing left turn switch 1 time.

Serves as "enter" key for
second digit.

Press right turn switch 1 time.

Enter third digit of code (3) by pressing
left turn switch 3 times.

Serves as "enter" key for
third digit.

Press right turn switch 1 time.

Serves as "enter" key for
fourth digit.

Enter fourth digit of code (1) by
pressing left turn switch 1 time.

Press right turn switch 1 time.

System is disarmed. You
may use the vehicle or pro-
gram another key fob.

Enter fifth digit of code (3) by pressing
left turn switch 3 times.

Security lamp stops blinking.

Press right turn switch 1 time.

E-14 2009 Sportster Diagnostics: Appendix E TSM/TSSM (Japan/Korea)

E.8

DIAGNOSTIC TROUBLE CODES (DTC)

TSM/TSSM

To diagnose system problems, start by observing the behavior
of the security lamp.

NOTES

•

See

Figure E-6

. "Key ON" means that the Ignition Switch

is turned to IGNITION (3) and the Engine Stop Switch is
set to RUN (although the engine is not running).

•

See

Figure E-7

. When the Ignition Switch is turned ON,

the security lamp will illuminate for approximately four
seconds and then turn off.

•

If the security lamp is not illuminated at Key ON or if it fails
to turn OFF after the initial four-second period, the
speedometer may need to be replaced. See

E.10 ODO-

METER SELF-DIAGNOSTICS

. If "BUS Er" is displayed

on the odometer, it may take up to twenty seconds for the
security lamp to illuminate.

•

The security lamp will also light for eight seconds after the
bulb check if historic Diagnostic Trouble Codes (DTCs)
are present. The security lamp will stay on if current DTCs
are set. If an historic DTC is present, the security lamp
will light for 2 ignition cycles or until the DTC is cleared
manually.

OFF

ACC.

IGNITION

ed02814

Ignition OFF

Accessory (ACC) ON

Ignition ON

Figure E-6. Ignition Switch

ed02920

Figure E-7. Security Lamp (Key Icon) (Typical)

See

Figure E-8

. After the lamp turns off after being illumin-

ated for the first four-second period, one of three events
may occur:

The lamp remains off. This indicates there are no
current fault conditions or stored historic DTCs cur-
rently detected by the TSSM.

The lamp stays off for only four seconds and then
comes back on for an eight-second period. This
indicates a historic DTC is stored, but no current DTC
exists.

The lamp remains on beyond the eight-second period.
This indicates a current DTC exists.

E.8 DIAGNOSTIC TROUBLE CODES (DTC), Code

Types

for a complete description of DTC formats.
