2.17

TIRES

GENERAL

Use only Harley-Davidson approved tires. See a Harley-
Davidson dealer. Using non-approved tires can adversely
affect stability, which could result in death or serious
injury. (00024a)

Be sure tires are properly inflated, balanced and have
adequate tread. Inspect your tires regularly and see a
Harley-Davidson dealer for replacements. Riding with
excessively worn, unbalanced or under-inflated tires can
adversely affect stability and handling, which could result
in death or serious injury. (00014a)

New tires should be stored on a horizontal tire rack. Avoid
stacking new tires in a vertical stack. The weight of the stack
compresses the tires and closes down the beads.

Tires should be inspected for punctures, cuts, breaks and wear
at least weekly.

See

Figure 2-79

. The tread wear indicator bars will appear on

tire tread surfaces when 1/32 in. (0.8 mm) or less of tread
remains. Always remove tires from service before they reach
the tread wear indicator bars.

New tires are needed if any of the following conditions exist.
See

1.9 TIRES AND WHEELS

Tire wear indicator bars are visible on the tread surfaces.

Tire cords or fabric are visible through cracked sidewalls,
snags or deep cuts.

A bump, bulge or split in the tire.

Puncture, cut or other damage to the tire that cannot be
repaired.

sm02177

Sidewall

Tread surface

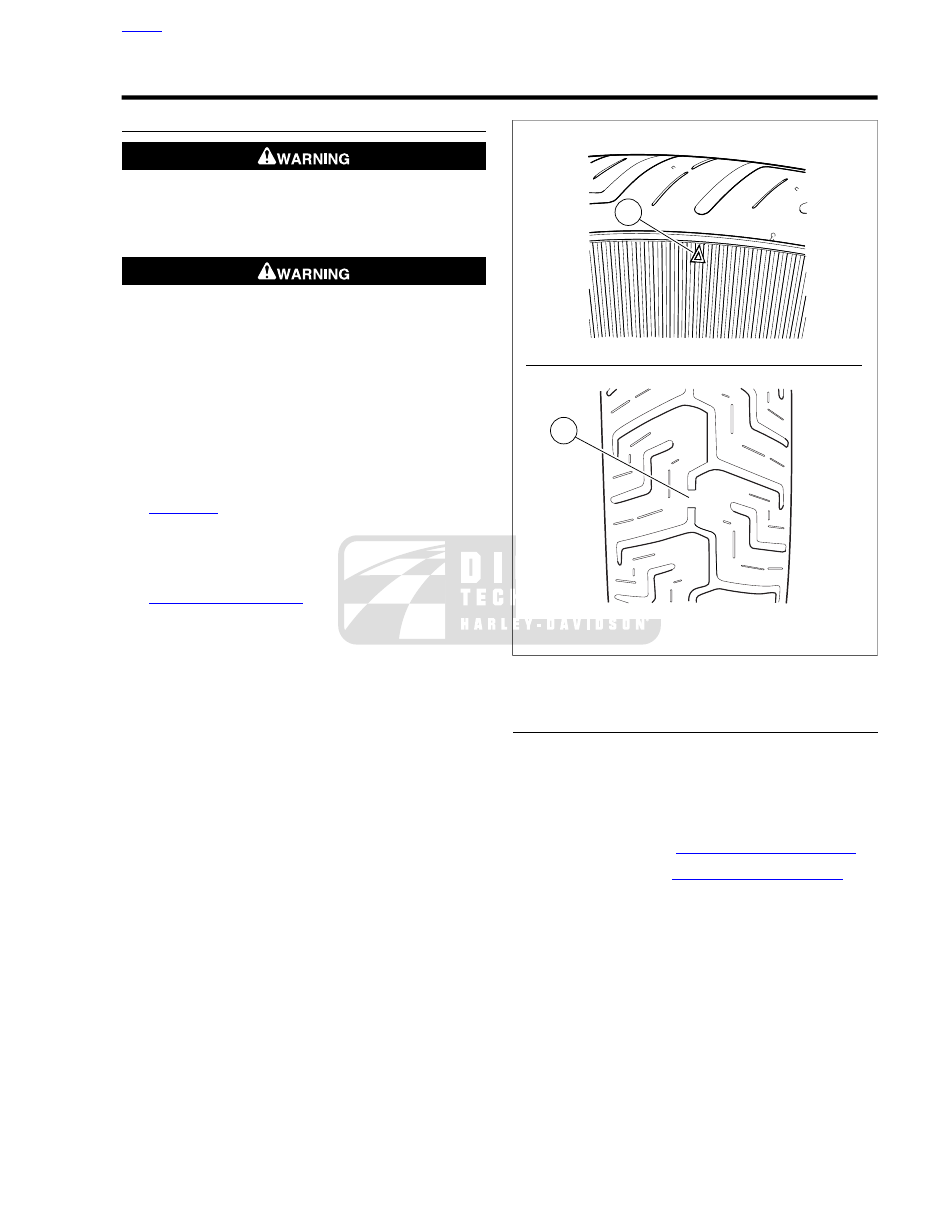

Figure 2-79. Tread Wear Indicators (Typical)

REMOVAL

NOTE

Care must be taken when removing and installing tire to prevent
cosmetic damage to wheel. This is especially true with wheels
that feature painted surfaces.

Remove wheel from motorcycle:

Front wheel: see

2.4 FRONT WHEEL, Removal

Rear wheel: see

2.5 REAR WHEEL, Removal

Deflate tire.

NOTE

On tube type wheels, it is not necessary to completely remove
tire from rim. Removing one side allows the tube to be replaced
and allows for inspection of tire.

Loosen both tire beads from rim flange. In most cases, a
bead breaker machine will be required to loosen the beads
from the rim.

Remove tire.

HOME

2009 Dyna Service: Chassis 2-55

CLEANING, INSPECTION AND REPAIR

Clean the inside of tire and outer surface of tube.

If rim is dirty or rusty, clean with a stiff wire brush.

Check wheels for lateral and radial runout before installing
a new tire.

Models with laced wheels: see

2.10 TRUING

LACED WHEELS

Models with cast wheels: see

2.11 CHECKING

CAST WHEEL RUNOUT

Inspect the tire and tube for wear and damage. Inspect
tread depth. Replace worn tires. Replace damaged tubes.

Replace punctured or damaged tires. In some cases, small
punctures in the tread area may be repaired from within
the demounted tire by a Harley-Davidson dealer. Speed
should NOT exceed 50 mph (80 km/h) for the first 24 hours
after repair, and the repaired tire should NEVER be used
over 80 mph (130 km/h). Failure to follow this warning
could result in death or serious injury. (00015a)

Tubeless tires may be repaired in the tread area only if
the puncture is 1/4 in. (6.4 mm) or smaller. All repairs must
be made from inside the tire.

Acceptable repair method involves the use of a patch and
plug combination.

INSTALLATION

Harley-Davidson front and rear tires are not the same.
Interchanging front and rear tires can cause tire failure,
which could result in death or serious injury. (00026a)

Do not exceed manufacturer's recommended pressure to
seat beads. Exceeding recommended bead seat pressure
can cause tire rim assembly to burst, which could result
in death or serious injury. (00282a)

Do not inflate tire beyond maximum pressure as specified
on sidewall. Over inflated tires can blow out, which could
result in death or serious injury. (00027a)

For tire pressures, see

1.9 TIRES AND WHEELS, Tires

Some tires have arrows molded into the tire sidewall. These
tires should be mounted on the rim with the arrow pointing in
the direction of forward rotation. The colored dot on the sidewall
is a balance mark and should be located next to the valve stem
hole.

Tube Type Tires

Match tires, tubes, air valves and caps to the correct wheel
rim. Contact a Harley-Davidson dealer. Mismatching can
result in damage to the tire bead, allow tire slippage on
the rim or cause tire failure, which could result in death
or serious injury. (00023a)

Use inner tubes on laced (wire spoked) wheels. Using
tubeless tires on laced wheels can cause air leaks, which
could result in death or serious injury. (00025a)

NOTES

•

For correct tire and tube types, see

2.2 SPECIFICATIONS

•

Whenever a tube type tire is replaced, the tube should
also be replaced. Inner tubes should be patched only as
an emergency measure. Replace a damaged or patched
tube as soon as possible. Rim bands must be used on all
laced wheels.

See

Figure 2-80

. On laced wheels, install a rim strip into

the rim well. Make sure no spokes protrude through
nipples, and be sure to align the valve stem hole in rim
strip with valve stem hole in rim.

Install tube and tire.

sm02466

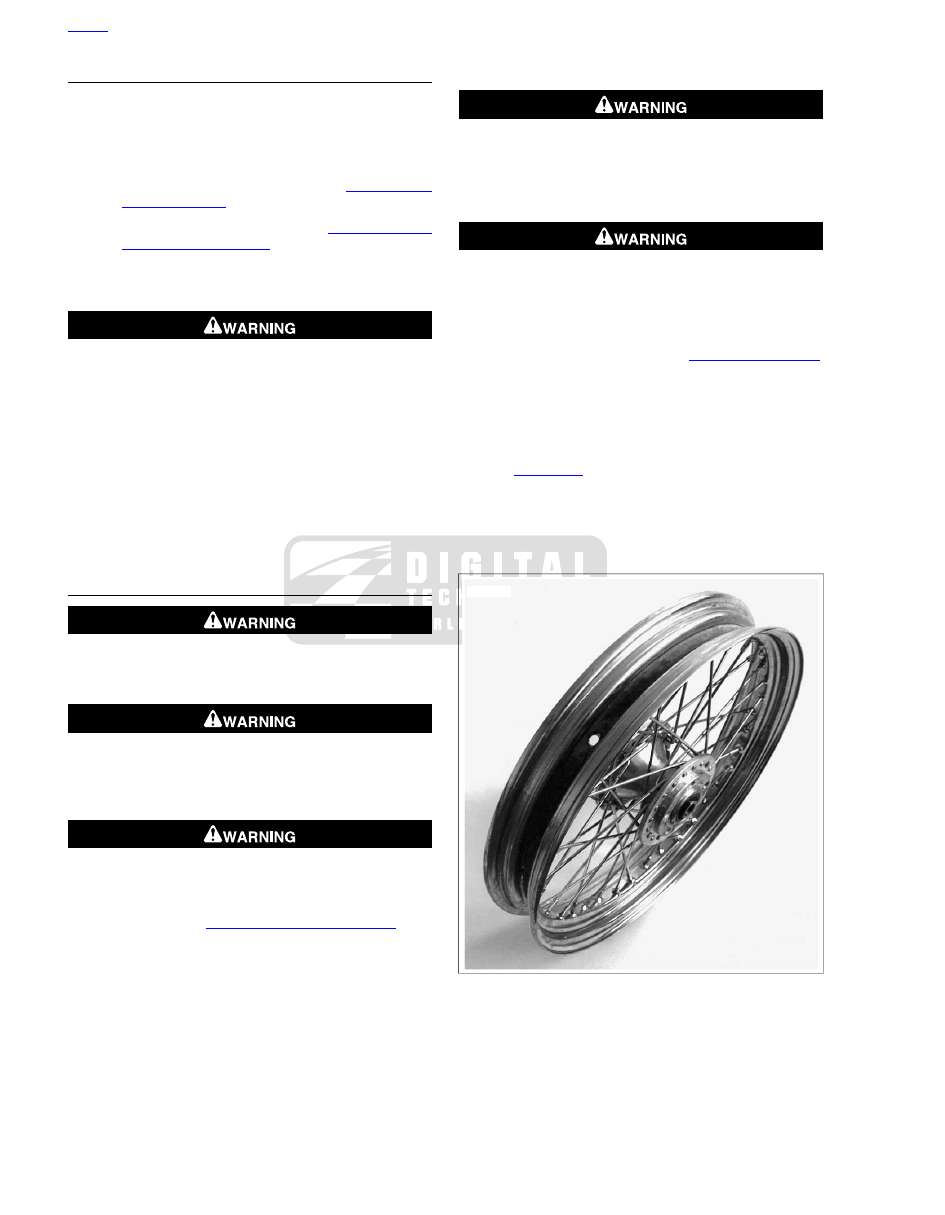

Figure 2-80. Installing Rim Strip

HOME

2-56 2009 Dyna Service: Chassis

Tubeless Tires

Only install original equipment tire valves and valve caps.
A valve, or valve and cap combination, that is too long or
too heavy can strike adjacent components and damage
the valve, causing rapid tire deflation. Rapid tire deflation
can cause loss of vehicle control, which could result in
death or serious injury. (00281a)

See

Figure 2-81

. On tubeless wheels, damaged or leaking

valve stems must be replaced. Install rubber grommet (3)
on valve stem.

Insert valve stem into rim hole.

Install metal washer (2).

Install nut and tighten to 12-15 in-lbs (1.4-1.7 Nm).

Install tire.

sm02467

Nut

Metal washer

Rubber grommet

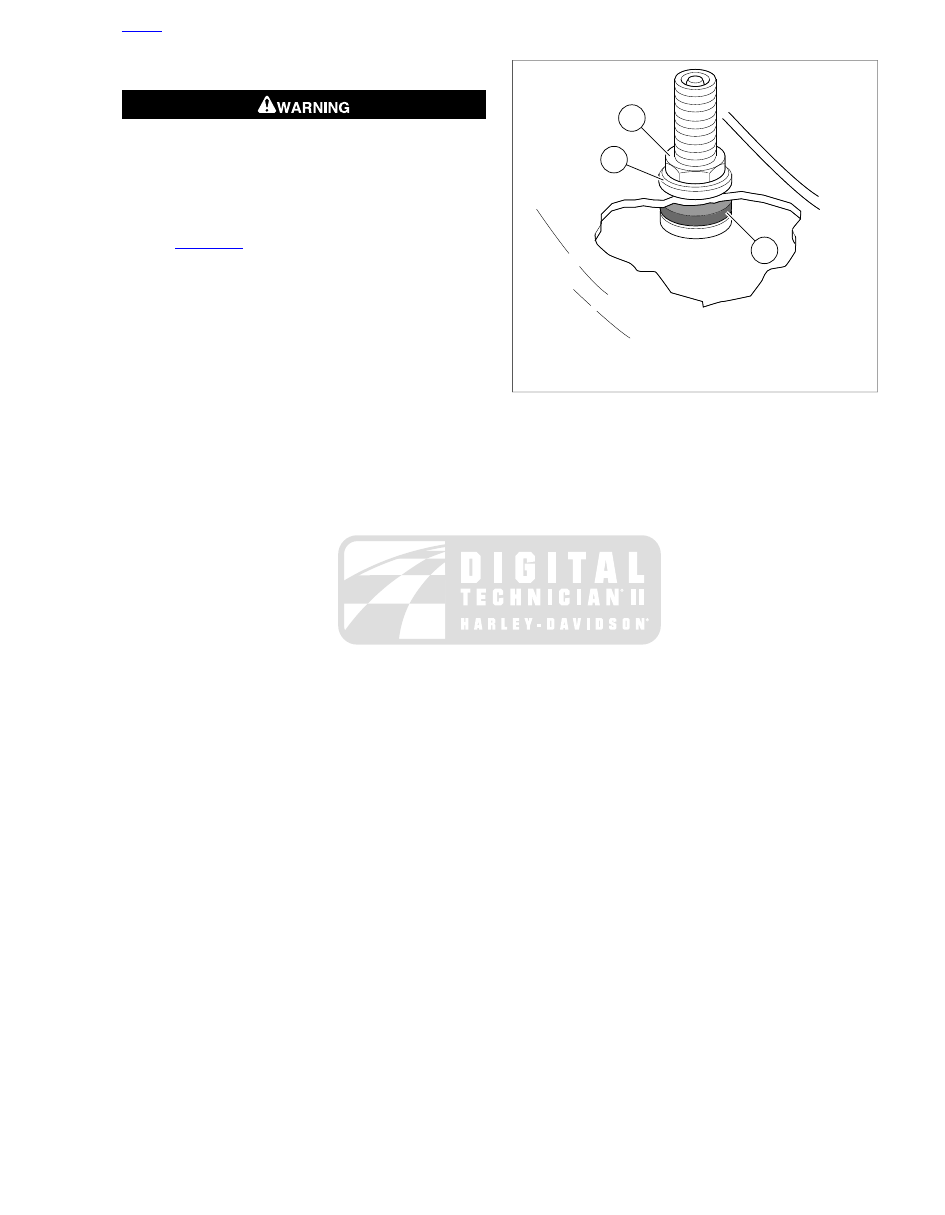

Figure 2-81. Tubeless Tire Valve Stem

HOME

2009 Dyna Service: Chassis 2-57

2.18

FRONT FORK

REMOVAL

Support motorcycle so front end is off floor and forks are
fully extended. Remove brake caliper and front wheel. See

2.4 FRONT WHEEL

Remove front fender. See

2.28 FRONT FENDER

Loosen screws. Do not remove tube caps. Slide fork sides
downward clear of fork brackets.

Repeat procedure for opposite fork tube and slider
assembly.

DISASSEMBLY

TOOL NAME

PART NUMBER

FORK HOLDING TOOL

HD-41177

See

Figure 2-82

. Clamp fork tube and slider assembly in

FORK HOLDING TOOL (Part No. HD-41177) and mount
in vise.

NOTE

In next step, use a 12mm allen wrench to loosen seat pipe
screw.

See

Figure 2-84

. While internal components are still under

tension and less prone to rotate, break loose but do not
completely unthread seat pipe screw.

NOTE

On right fork tube and slider assembly, remove axle holder to
access seat pipe screw.

Wear safety glasses or goggles when servicing fork
assembly. Do not remove slider tube caps without relieving
spring preload or caps and springs can fly out, which could
result in death or serious injury. (00297a)

See

Figure 2-85

. Remove fork tube cap (7) and O-ring

(6).

Remove the long spring collar (8).

Remove from fork holding tool and invert fork over a suit-
able container. Allow fork to drain. Extend and retract slider
several times to push oil out of internal components. The
washer (5), and spring (4) will fall out of fork tube.

Clamp fork tube in holder. Mount fork holding tool horizont-
ally in vise.

See

Figure 2-83

. Remove slider cover from slider by

inserting brass drift into notch in slider and lightly tapping
cover.

See

Figure 2-85

. Compress oil seal retaining ring (11) and

remove retaining ring from groove in top of slider bore.

Remove seat pipe screw (20) and washer (19) from bottom
of slider (16, 17). Retain the seat pipe screw and washer.

10. Withdraw slider from fork tube (1) until bushing guide (14)

contacts bushing (24) on fork tube. Bushing guide is a
slight interference fit in slider.

11. Using the slider as a slide hammer, hit the bushing with

the bushing guide with a quick continuous stroke until
slider is pulled free of the fork tube.

12. Drain the slider and allow the stop oil lock piece (15) to

fall free.

NOTE

If replacing the slider only, the components remaining in the
fork tube can be left assembled and the fork re-assembled.
See

2.18 FRONT FORK, Assembly

13. If still attached to seat pipe, remove stop oil lock piece

from the lower end of seat pipe.

14. Remove seat pipe (3) piston and ring assembly.

15. Remove rebound spring (2).

16. Remove oil seal (12), seal spacer (13), and bushing guide

(14).

17. Repeat procedure for opposite fork tube and slider

assembly.

sm03229

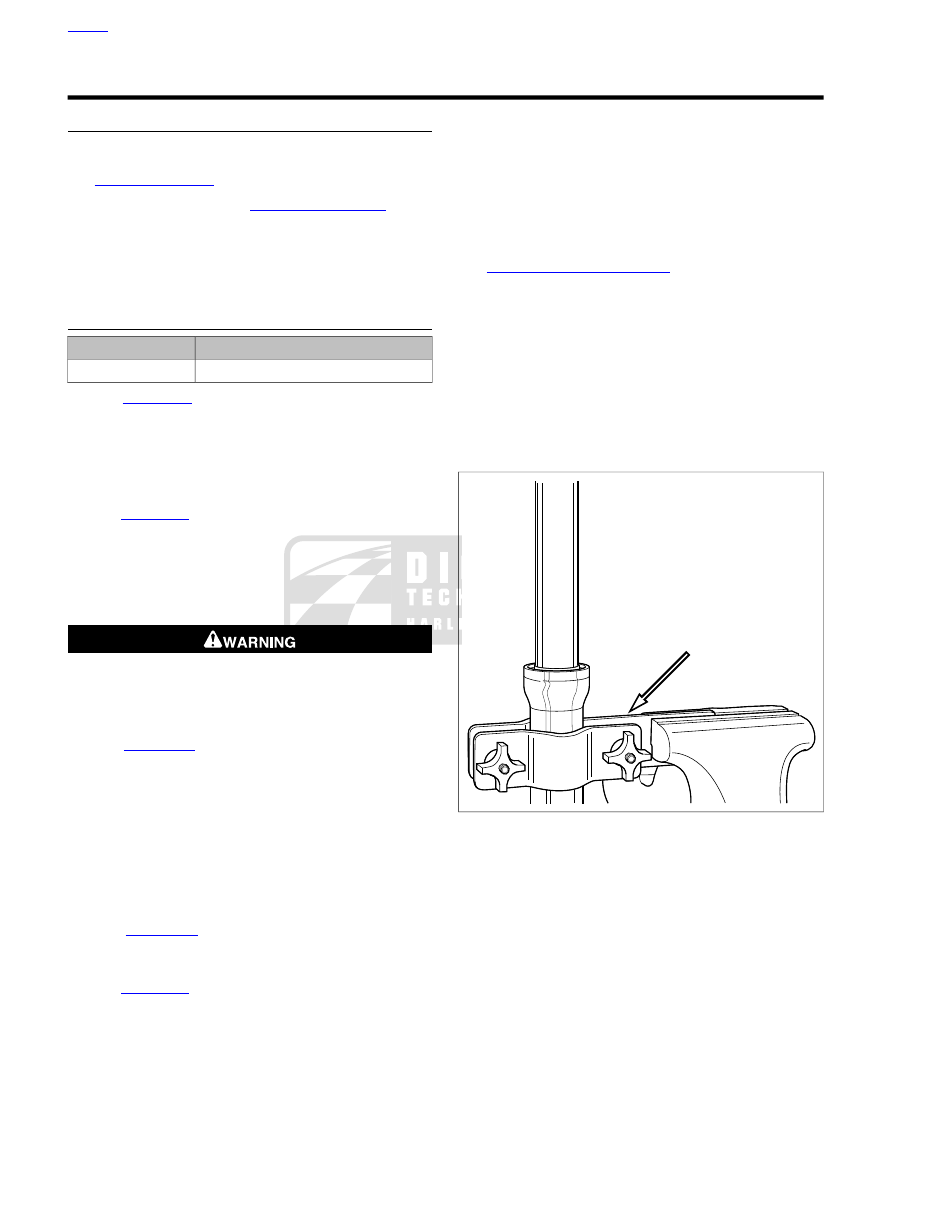

Figure 2-82. Fork Holding Tool (mounted vertically to

slider)

HOME

2-58 2009 Dyna Service: Chassis

sm03224

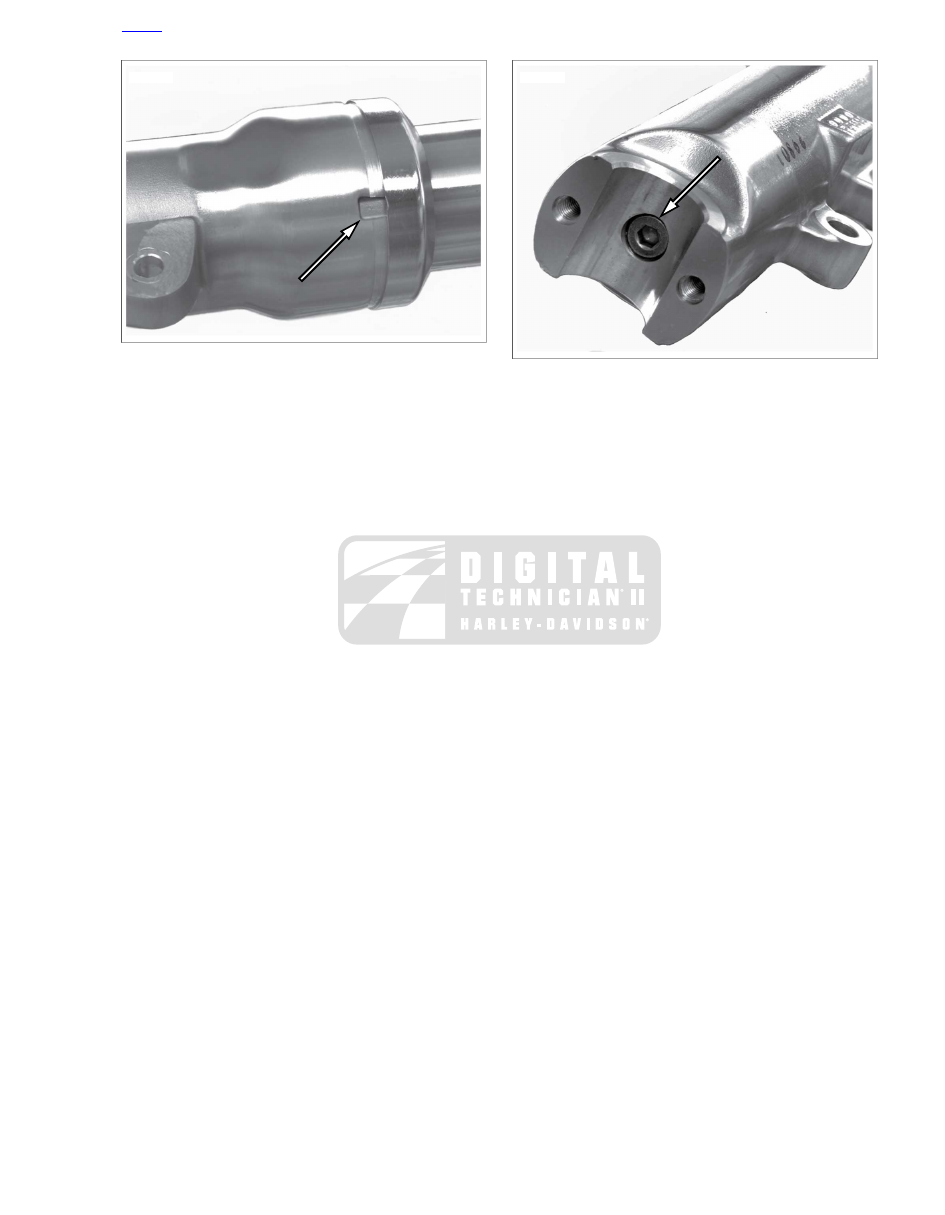

Figure 2-83. Notch in Slider

sm03225

Figure 2-84. Seat Pipe Screw (right fork assembly)

HOME

2009 Dyna Service: Chassis 2-59

sm02848

13.

Oil seal spacer

Fork tube

14.

Spring

Bushing guide

15.

Lower stop

Seat pipe

16.

Spring

Slider assembly (left)

17.

Slider assembly (right)

Washer

18.

O-ring

Reflector

19.

Washer

Fork tube cap

20.

Spring collar

Seat pipe screw

21.

Axle cap fastener

Slider cover

10.

22.

Dust seal

Lockwasher

23.

11.

Axle cap

Oil seal retaining ring

12.

24.

Oil seal

Bushing

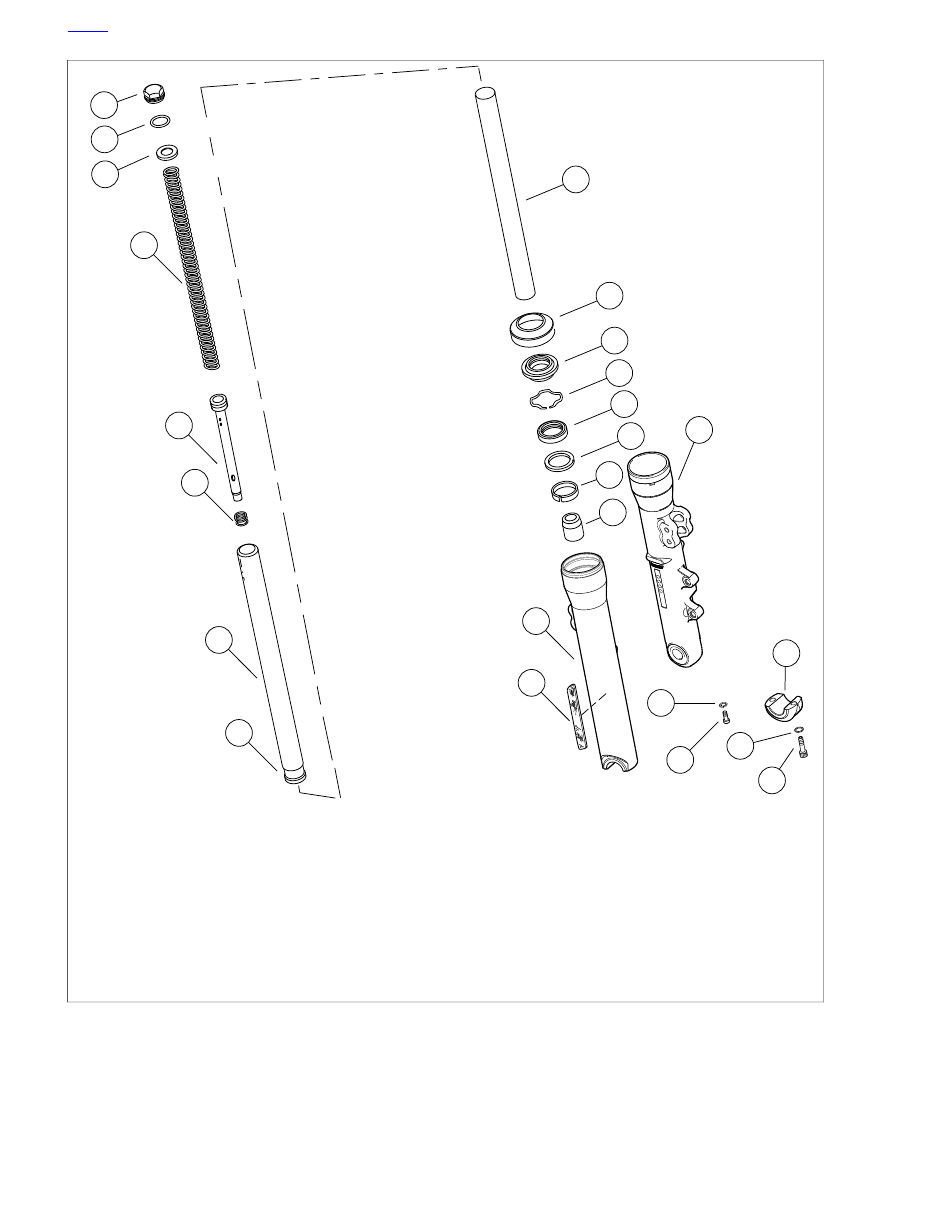

Figure 2-85. Front Fork

HOME

2-60 2009 Dyna Service: Chassis

CLEANING AND INSPECTION

Thoroughly clean and inspect each part. If inspection
shows that any parts are bent, broken or damaged, those
parts should be repaired or replaced.

See

Figure 2-85

. Inspect fork tube bushing (24) and

bushing guide (14) and replace as required.

Always replace oil seals (12) and o-rings (6).

Check dust cover (9) where it rubs on fork tube. The dust
cover should present a good continuous seal and not show
excessive wear.

Check the slider tube (1) where it rubs on dust cover. The
tube should show a bright, shining surface, free of scoring
or abrasions.

If springs (4) are broken, replace springs.

If a fork tube or slider (16, 17) is bent or damaged, replace
it.

Replace all other worn or damaged components as
necessary.

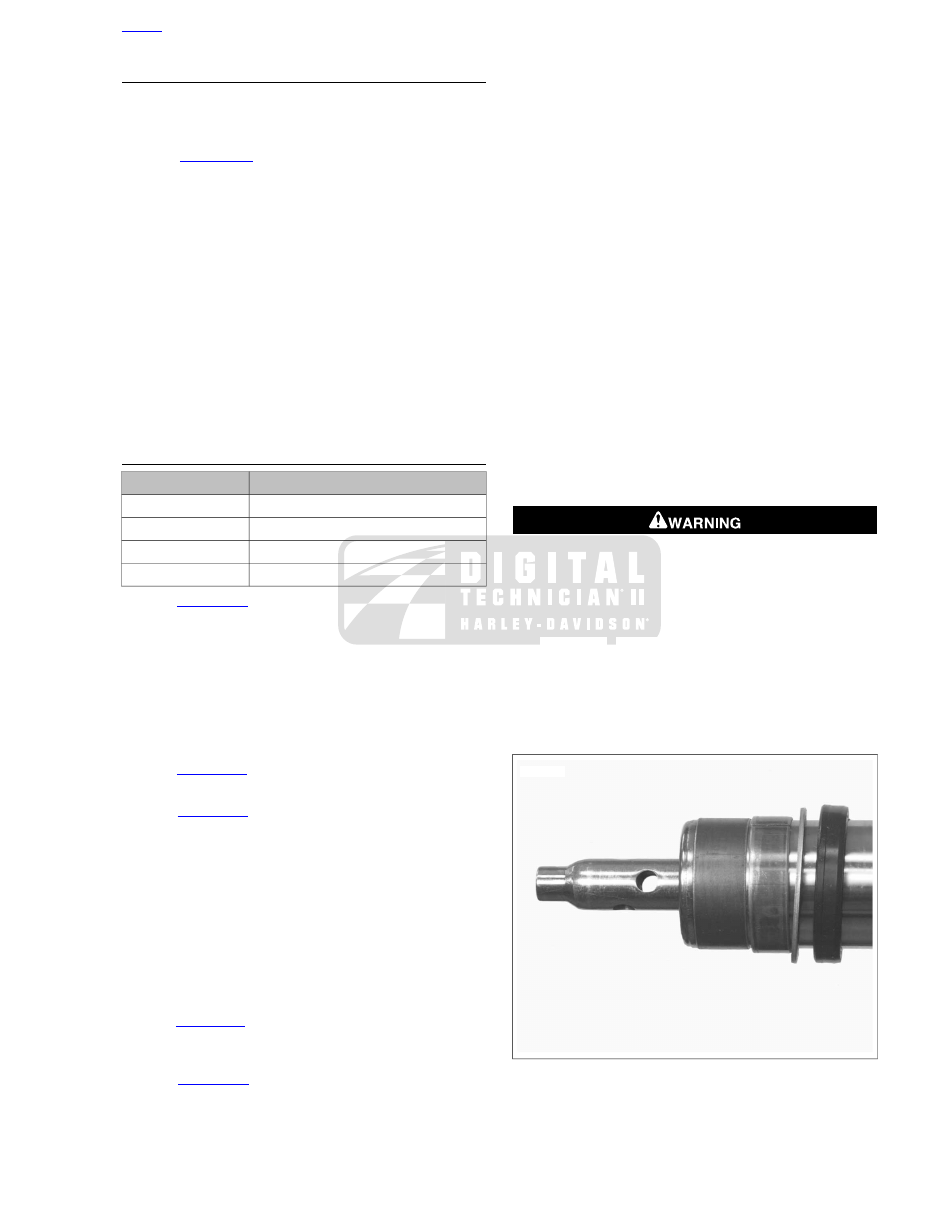

ASSEMBLY

TOOL NAME

PART NUMBER

FORK SEAL DRIVER

B-45305

FORK HOLDING TOOL

HD-41177

PRO-LEVEL OIL GAUGE

HD-59000A

TYPE E FORK OIL

HD-99884-80

See

Figure 2-85

. Insert seat pipe assembly (3) with the

spring (2) into slider tube (1).

Slide bushing guide (14) down to bushing (24) on fork tube
(1). Follow with spacer (13), oil seal (12), retaining ring
(11), dust shield (10) and slider cover (9).

Install fork tube into FORK HOLDING TOOL (Part No. HD-
41177) mounted horizontally in a vise.

Fit lower stop (15) onto seat pipe.

See

Figure 2-86

. Side seat pipe back into fork tube until

seat pipe is centered in tube.

See

Figure 2-85

. Gently install slider assembly (16, 17)

onto slider tube and bushing (24).

Thread seat pipe screw (20) and washer (19) into seat
pipe through bottom of slider assembly. Draw fastener
into seat pipe but do not tighten.

Verify action of fork by sliding slider up and down fork tube.

Assemble the FORK SEAL DRIVER (Part No. B-45305)
over fork tube in front of oil seal.

NOTE

Chamfered lips on oil seal MUST face towards oil in fork.

10. See

Figure 2-87

. Holding fork seal driver (4) together, tap

oil seal (3), spacer (2) and bushing guide (1) into slider
bore.

11. See

Figure 2-85

. Install oil seal retaining ring (11) into

groove in top of oil seal.

12. Push dust seal (10) against oil seal and stopper ring.

13. Rotate slider cover (9) to match any removal burrs to notch

in slider and snap slider cover into place.

14. Move slider through its full range of travel several times

to verify alignment. Then, pulling down on slide to apply
downward force on rebound spring, tighten seat pipe screw
to 106-159 in-lbs (12-18 Nm).

15. Re-position fork tube vertically in fork holding tool. With

slider tube compressed, fill the fork with Harley-Davidson
TYPE E FORK OIL (Part No. HD-99884-80) until it is 4.3
in. (110 mm), approximately 26.6 oz (787 cc) from top of
fork tube:

16. Slowly pump slider 8 to 10 times to exhaust air from

assembly. Fully compress slider to determine oil level.

NOTE

Fork oil level is measured from top of fork tube, with spacer
and spring removed and fork fully compressed.

17. Using the PRO-LEVEL OIL GAUGE (Part No. HD-

59000A), adjust the oil level to specification.

18. Pull out the slider and install the spring (4) in the fork tube

with the tightly wound end at the bottom.

19. Install the washer (5) and spring collar (8).

20. With a new O-ring, install and tighten fork tube caps to

16-43 ft-lbs (22-58 Nm).

NOTE

To prevent cross threading fork tube caps, use caution when
threading in the caps with the spring compressed.

21. Repeat for opposite fork tube and slider assembly.

sm03226

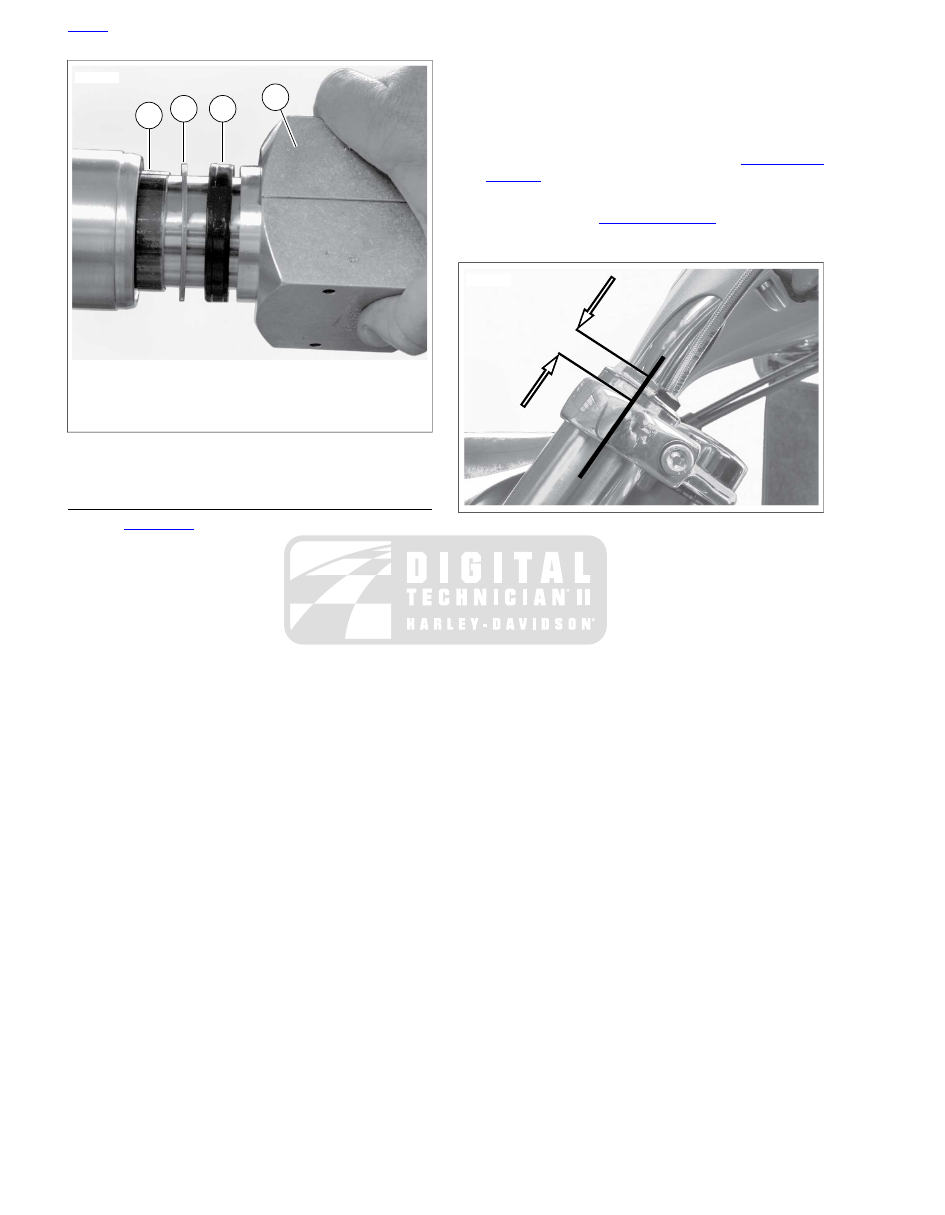

Figure 2-86. Seat Pipe Centered in Fork Tube

HOME

2009 Dyna Service: Chassis 2-61

sm03227

Bushing guide

Spacer

Oil seal (chamfered lips must face oil)

Fork seal driver

Figure 2-87. Assembled Fork Seal Driver

INSTALLATION

See

Figure 2-88

. Insert fork tube and slider assemblies

through lower triple clamp and upper triple clamp. Fork

tubes should protrude above upper triple clamp 0.450-
0.500 in. (11.4-12.7 mm). Measurement must be taken at
midpoint of fork tube between top surface of triple clamp
to top of fork cap. Tighten pinch bolts to 30-35 ft-lbs (41-
48 Nm).

Install front fender and bracket. See

2.28 FRONT

FENDER

Install front brake caliper hydraulic lines and install front
brake calipers. See

2.4 FRONT WHEEL

. Install front wheel

and align the wheel to the forks.

sm03228

Figure 2-88. Fork Tube Protrusion: Typical

HOME

2-62 2009 Dyna Service: Chassis

2.19

STEERING HEAD

REMOVAL

Remove fork sides. See

2.18 FRONT FORK

Remove the headlamp from lower fork bracket. See

7.12 HEADLAMP

See

Figure 2-89

. Remove the fork stem cap (1). Remove

the fork stem nut and the handlebar with upper bracket
(4). Be careful not to pinch or kink control cables.

Remove the adjusting nut (5) and pull the fork stem and
bracket (12) out of the steering head. Remove the upper
dust shield (6) and bearing cone (7). Slide fork stem (12)
and bracket (13) from frame.

sm02274

Fork stem cap

Hardened flat washer

Fork stem nut

Upper fork bracket

Adjusting nut

Upper dust shield

Bearing cone

Bearing cup

10. Bearing cone
11. Lower dust shield
12. Fork stem
13. Lower fork bracket
14. Retaining ring

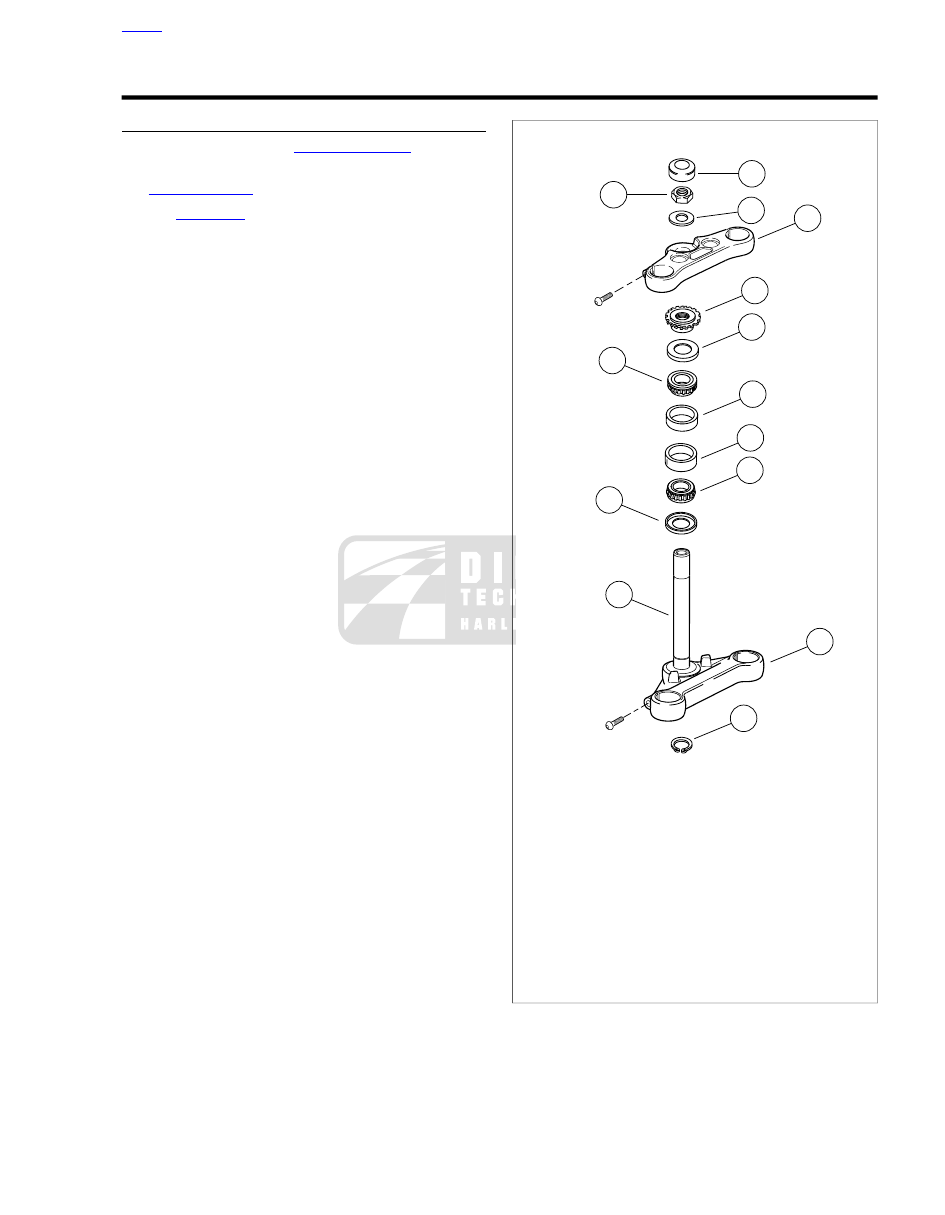

Figure 2-89. Steering Head

HOME

2009 Dyna Service: Chassis 2-63

INSPECTION

Check upper and lower bearing races in steering head. If
they are pitted or grooved, replace the bearings and races
in sets.

Replace both bearing assemblies even if one assembly
appeares to be good. Mismatched bearings can lead to
excessive wear and premature replacement. (00532b)

Check the roughness of the bearings by turning them in
the race. Replace bearings if they do not turn freely and
smoothly.

DISASSEMBLY

TOOL NAME

PART NUMBER

UNIVERSAL DRIVER

HD-33416

STEERING HEAD BEARING RACE
REMOVER

HD-39301-A

sm02275

Remover (2 pieces)

Collet

Driver

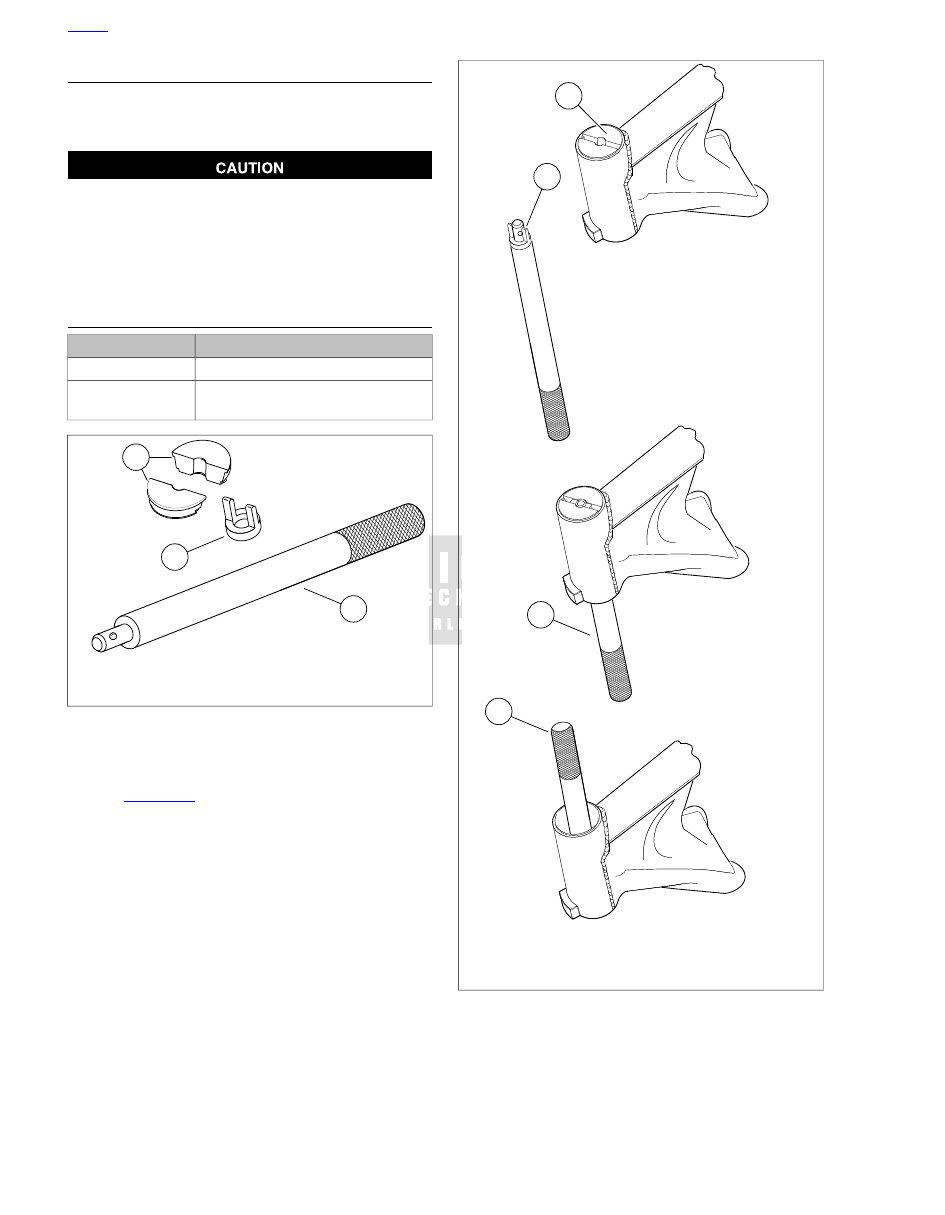

Figure 2-90. Race Remover Tools

Steering Head Bearing Race Removal

See

Figure 2-91

. With the tapered side down, seat the

two-piece STEERING HEAD BEARING RACE
REMOVER (Part No. HD-39301-A) (1) on the upper
bearing race leaving a gap in the middle.

Install the collet (2) on the UNIVERSAL DRIVER (Part
No. HD-33416).

Insert the driver at the bottom of the steering head tube
(3), and while holding the remover tool on the race, center
the collet in the gap. Tap the driver to remove the upper
race.

Reverse the tool and repeat the procedure (4) to remove
the lower bearing race.

NOTE

If bearing cups are removed, the bearings cannot be reused.
They must be replaced. The lower bearing cone is not pressed
on fork stem and may be slipped off fork stem along with lower
dust shield.

sm02489

Install remover on upper race

Install collet on driver

Install driver in remover and remove upper race

Remove lower race

Figure 2-91. Remove Races

HOME

2-64 2009 Dyna Service: Chassis

ASSEMBLY

TOOL NAME

PART NUMBER

STEERING HEAD BEARING RACE
INSTALLER

HD-39302

SPECIAL PURPOSE GREASE

HD-99857-97

Pack the new bearings with SPECIAL PURPOSE
GREASE (Part No. HD-99857-97).

NOTE

Press only on inner bearing race or damage to bearing will
occur.

See

Figure 2-89

. Install the lower dust shield (11) and new

bearing (10) on the fork stem (12).

Properly seat bearing cups in steering head bore. Improper
seating can loosen fork stem bearings adversely affecting
stability and handling, which could result in death or ser-
ious injury. (00302a)

Lubricate the races with engine oil. Install the new races
using STEERING HEAD BEARING RACE
INSTALLER (Part No. HD-39302).

INSTALLATION

Properly adjust fork stem bearings. Improper adjustments
affect stability and handling, which could result in death
or serious injury. (00301a)

See

Figure 2-89

. Insert the stem and bracket assembly

into the frame steering head and install the upper bearing
(7) and dust shield (6). Secure with the adjusting nut (5).
Tighten the adjusting nut until there is no noticeable shake
or freeplay between bearings and races. Fork stem must
turn freely from side to side.

NOTE

The washer under the fork stem nut is a special hardened
material. Never replace this washer with a common flat washer.
Doing so may allow the fork stem nut torque to loosen resulting
in loss of steering control.

Install upper bracket (4), hardened flat washer (2).

NOTE

•

Original equipment fork stem nut has a blue coating. If a
new nut is being installed, the replacement nut will not
have a coating.

•

Whenever the stem nut is loosened or removed, the
threads must be lubricated with anti-seize lubricant prior
to assembly and tightening.

Lubricate threads of fork stem nut (3) with a light coating
of anti-seize lubricant. Install stem nut and tighten securely.

Install the headlamp assembly. See

7.12 HEADLAMP

Install fork sides. See

2.18 FRONT FORK

Adjust steering head bearings. See

1.21 STEERING HEAD

BEARINGS

Tighten fork stem nut to 70-80 ft-lbs (94.9-108.4 Nm).

Install the fork stem cap.

Align headlamp. See

1.24 HEADLAMP ALIGNMENT

HOME

2009 Dyna Service: Chassis 2-65

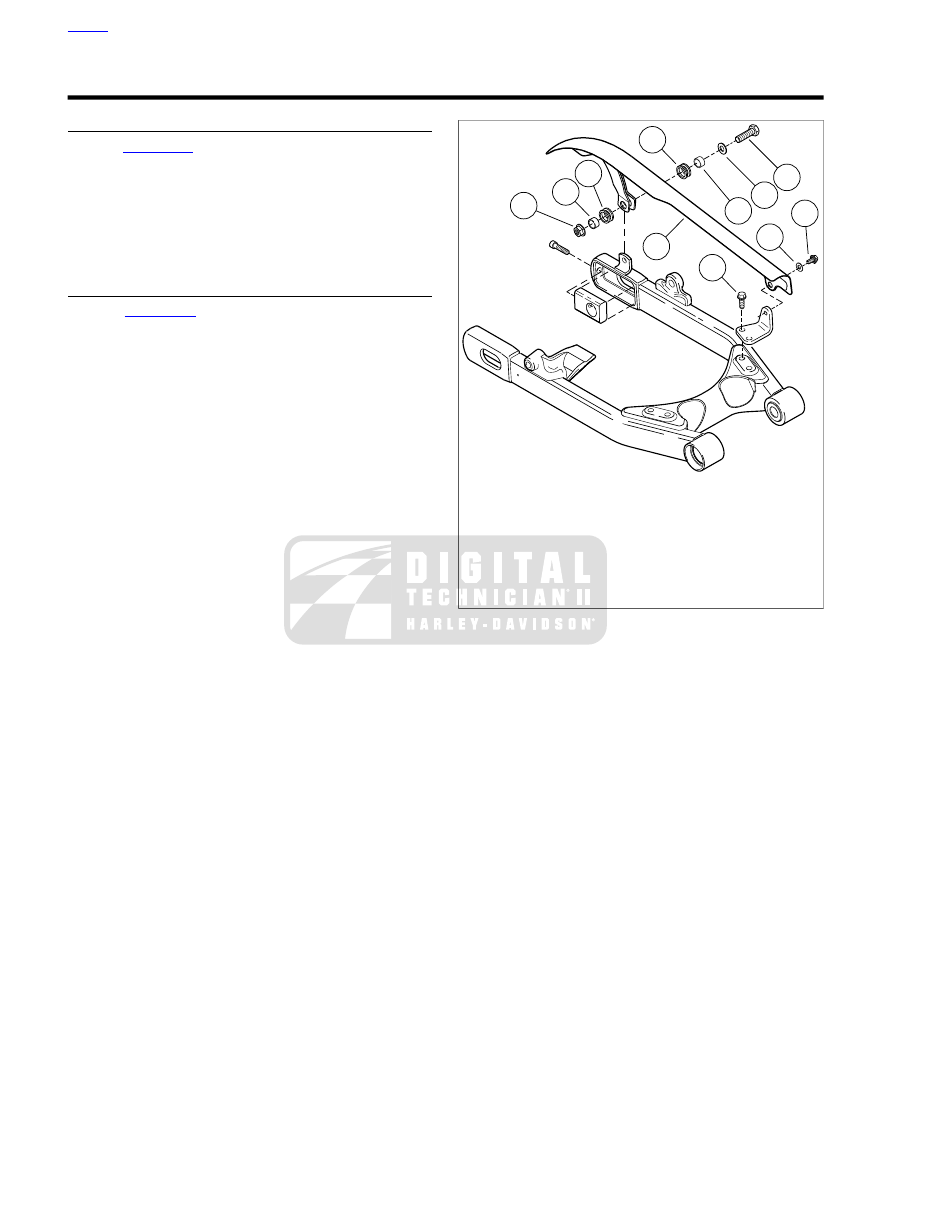

2.20

BELT GUARD

REMOVAL

See

Figure 2-92

. Remove front fastener (1) and washer

(2).

Remove rear fastener (3) and washer (2) from nut (7).

Lift belt guard (8) away from rear fork.

Disassemble belt guard by removing grommets (6) and
spacers (5).

INSTALLATION

See

Figure 2-92

. If removed, install grommets (6) and

spacers (5) on belt guard.

Place assembled belt guard over front and rear tabs on
rear fork.

Loosely install front fastener (1) and washer (2).

Loosely install rear fastener (3) and washer (2) with nut
(7).

Tighten front fastener (1) to 10-15 ft-lbs (13.6-20.3 Nm).

Tighten rear fastener (3) and nut (7) to 10-15 ft-lbs (13.6-
20.3 Nm).

Verify that belt guard does not contact belt during rear fork
travel.

sm02278

Front fastener

Washer (2)

Rear fastener

Screw, belt guard bracket (2)

Spacer (2)

Grommet (2)

Nut

Belt guard

Figure 2-92. Belt Guard

HOME

2-66 2009 Dyna Service: Chassis

2.21

DEBRIS DEFLECTOR

REMOVAL

See

Figure 2-93

. Remove three screws to detach debris

deflector from rear fork.

INSTALLATION

See

Figure 2-93

. Attach debris deflector to rear fork using three

screws. Tighten to 40-60 in-lbs (4.5-6.8 Nm).

sm02279

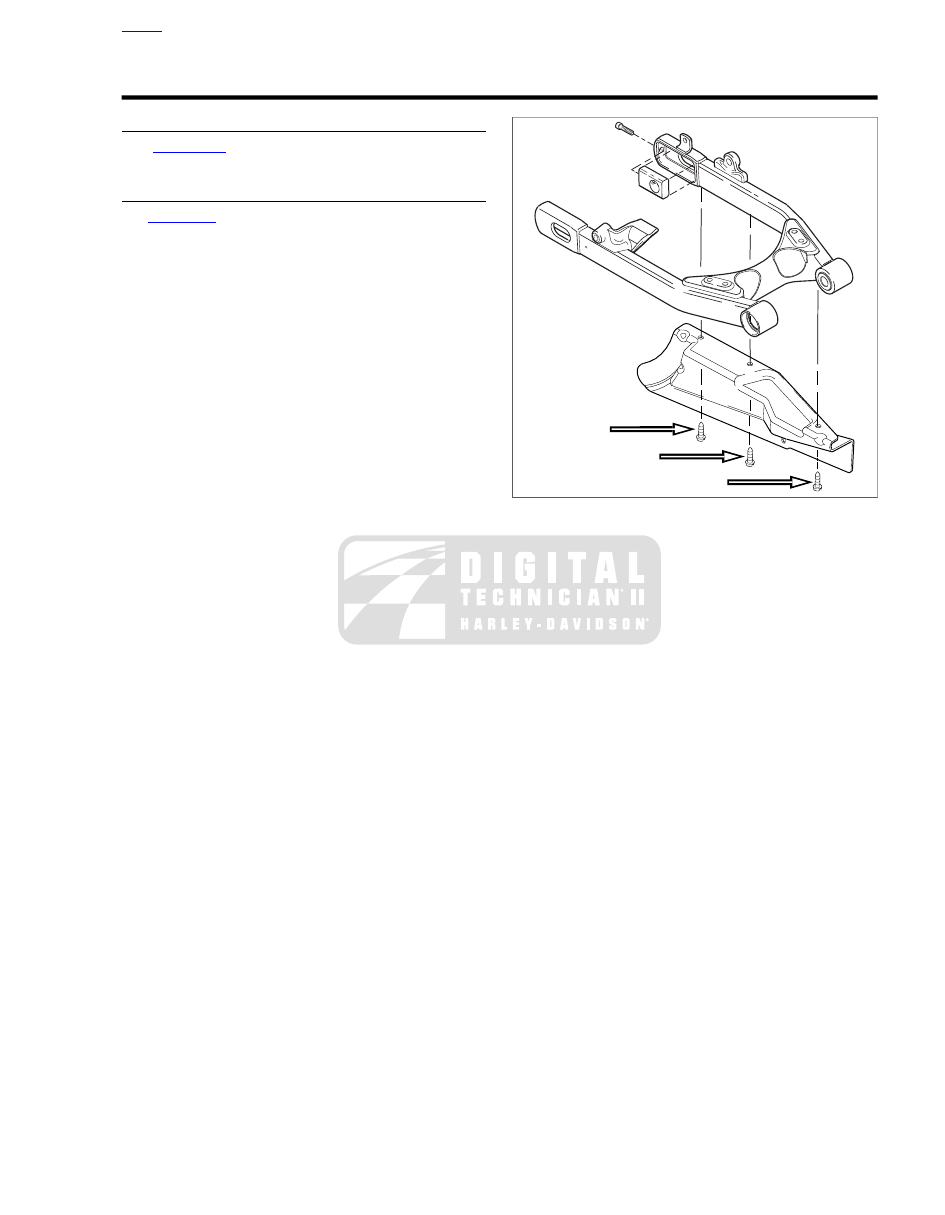

Figure 2-93. Debris Deflector Screws

HOME

2009 Dyna Service: Chassis 2-67

2.22

THROTTLE CONTROL

REMOVAL/DISASSEMBLY

See

Figure 2-94

. Loosen cable adjuster jam nuts. Screw

throttle cable adjuster until it is a short as possible.
Remove the two screws that hold the handlebar housing
together to separate the upper and lower housings.

Unhook the ferrules and cables from the throttle grip and
lower housing.

Remove air cleaner assembly and disconnect throttle
cables from induction module. See

. Pull the cables from the housing by pla-

cing a drop of oil on the retaining ring that holds the cable
in the housing, then firmly pull the bent tubing portion of
the cable out of the housing using a rocking motion.

sm02479

Adjuster jam nut (2)

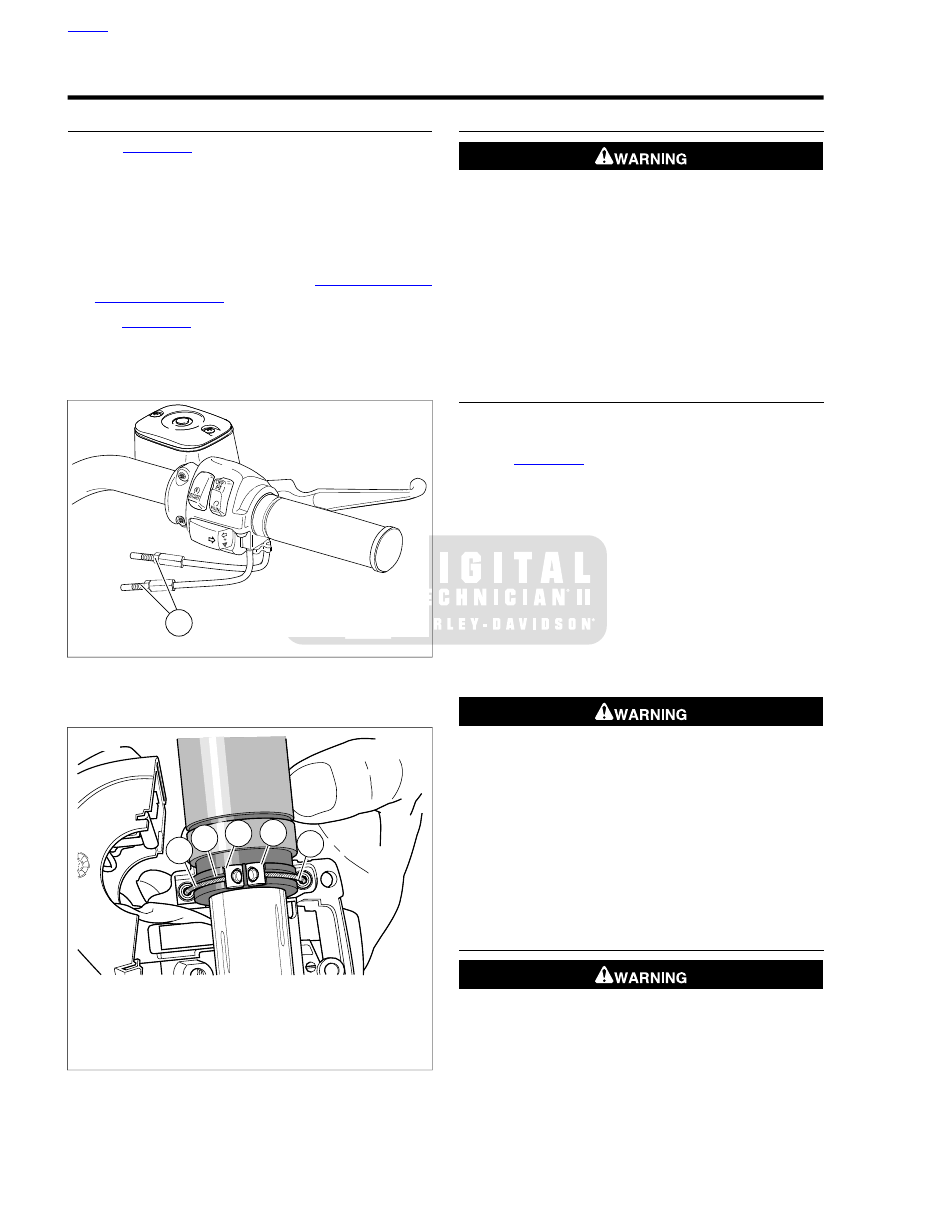

Figure 2-94. Handlebar Throttle Control

sm01084

Throttle cable (silver insert, front hole)

Groove in throttle grip

Notch

Brass ferrule

Idle cable (gold insert, rear hole)

Figure 2-95. Throttle Cable Attachment

CLEANING AND INSPECTION

Compressed air can pierce the skin and flying debris from
compressed air could cause serious eye injury. Wear
safety glasses when working with compressed air. Never
use your hand to check for air leaks or to determine air
flow rates. (00061a)

Wash all components in non-flammable cleaning solvent.
Blow parts dry with low pressure compressed air.

Replace the control cables if frayed, kinked or bent.

Put one or two drops of oil into the housing of each control
cable.

ASSEMBLY/INSTALLATION

Apply a light coating of graphite to the handlebar and
inside surface of the housings.

See

Figure 2-94

. Attach the control cable assemblies to

the lower housing.

Push the silver insert of the throttle cable housing into
the hole in front of the tension adjuster screw.

Push the gold insert of the idle cable housing into the
hole at the rear of the tension adjuster screw.

Install adjusting screw, spring and friction pad in the
lower housing if they were removed.

Position the throttle grip on the handlebar. Place the lower
housing on the throttle. Position the ferrules and retaining
rings over the cable balls and seat them in the throttle
notches.

Do not tighten throttle friction adjustment screw to the
point where the engine will not return to idle automatically.
Over-tightening can lead to loss of vehicle control, which
could result in death or serious injury. (00031b)

Fasten upper housing to lower housing using two screws.
Tighten to 35-45 in-lbs (4.0-5.1 Nm).

Check throttle cable routing.

Install throttle cables and adjust.

Install air cleaner.

THROTTLE CABLE ROUTING

Pinched throttle cables can restrict throttle response,
which could result in loss of control and death or serious
injury. (00423b)

NOTE

•

Control cables must not pull tight when handlebars are
turned to left and right fork stops. Also, be sure control

HOME

2-68 2009 Dyna Service: Chassis

cables and wires are clear of fork stops at steering head
so they will not be pinched when fork is turned against
stop.

•

Install cable ties securing throttle cables to frame so that
tail of cable faces top of vehicle. Using this method will
ensure proper placement of cables.

See

Figure 2-96

. Throttle cables are routed behind front fork

upper bracket, then under right side of tank to induction module.

sm02480

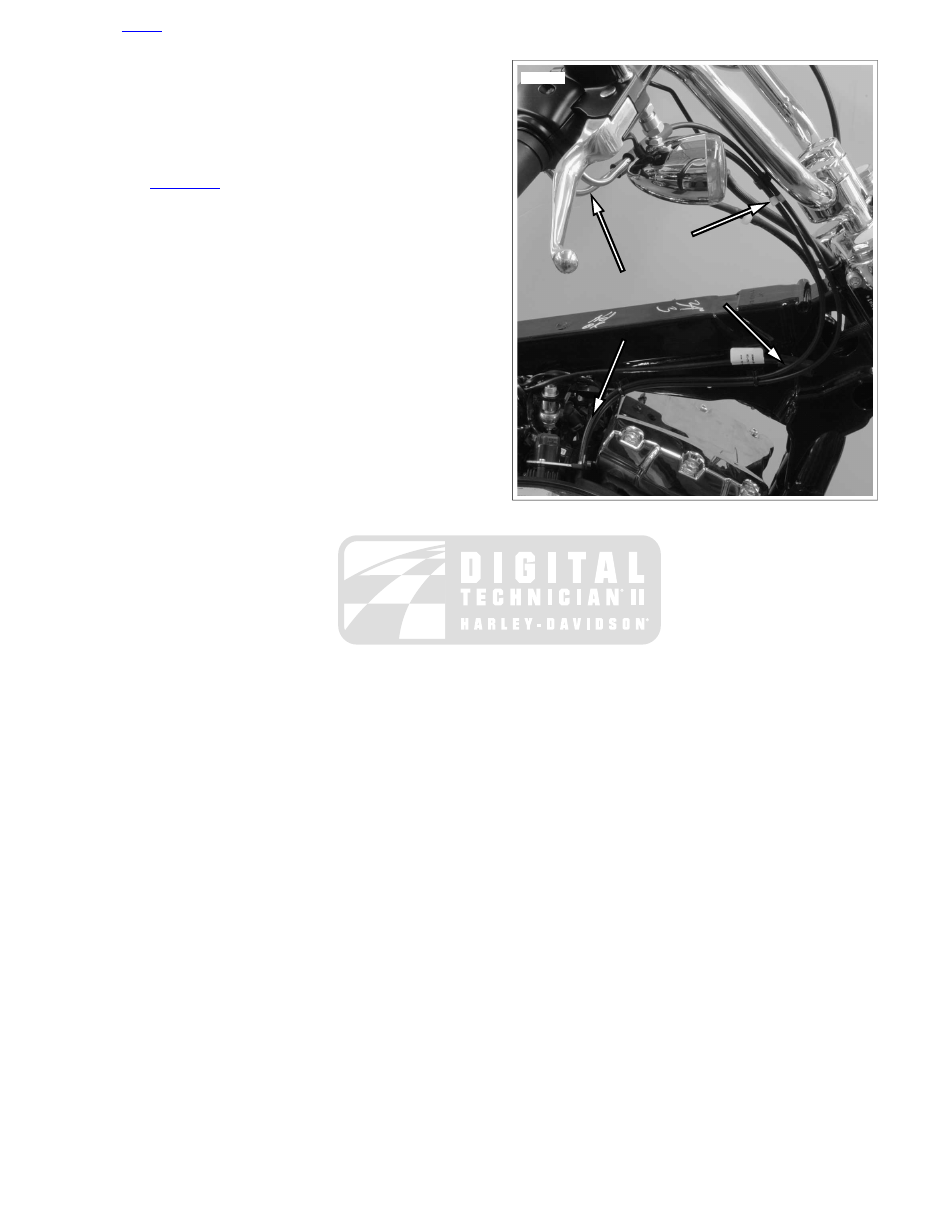

Figure 2-96. Throttle Cable Routing: FXDF (Typical)

HOME

2009 Dyna Service: Chassis 2-69

2.23

REAR SHOCK ABSORBERS

GENERAL

When removing the shocks for repair or replacement, remove
and install one shock first, then the other. This will eliminate
the need for raising the rear end of the motorcycle. If it is
necessary to remove both shocks at once, place the motorcycle
on a center stand with the rear wheel raised off the ground.

For information on preload adjustment and suspension settings,
see

1.19 SUSPENSION ADJUSTMENTS

REMOVAL

Block motorcycle underneath frame so rear wheel is raised
off the ground.

See

Figure 2-97

. Remove lower shock mount screw (1).

Nut (9) is only used on left side.

Remove upper shock mount nut (2), outer washer (4),
chrome cover (3), inner washer (4), and shock absorber
(5).

Repeat for other shock absorber.

If stud (6) is to be removed, remove nut (8) and washer
(7).

sm03773

Lower mounting screw (2)

Upper mounting nut (2)

Cover, chrome (FXDB, FXDC only) (2)

Washer (4)

Shock absorber (2)

Stud (2)

Hardened washer (2)

Nut (2)

Jam nut (lower-left side only)

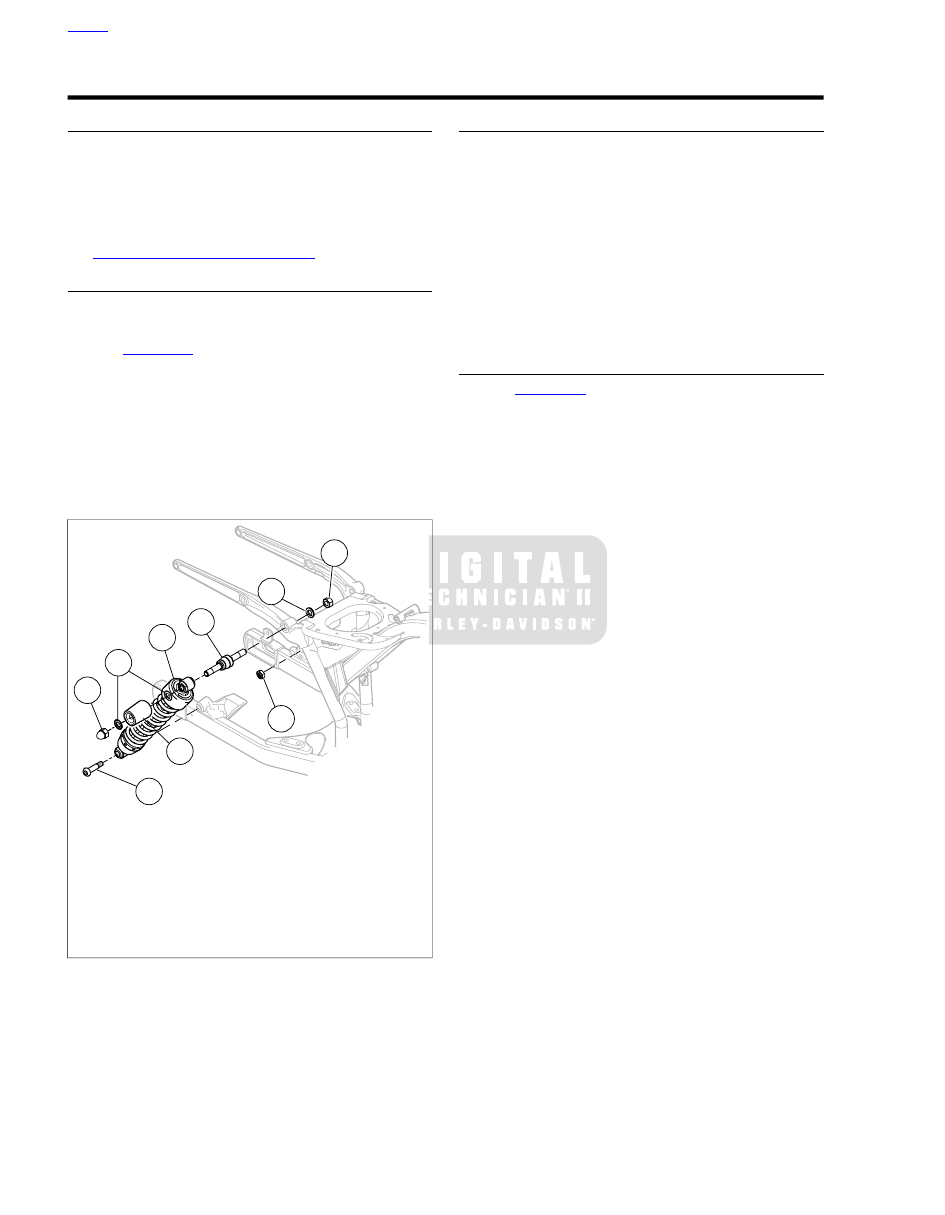

Figure 2-97. Rear Shock Absorber Mounting (Typical)

INSPECTION

NOTE

Shocks are non-repairable items, except for the rubber
mounting bushings. If the shock is leaking or damaged, it must
be replaced as an assembly.

Examine the rubber mounting bushings for cracks or wear.
Examine the shock for leaks. The unit should not leak and
should compress slightly easier than it extends. Compare
the action of the shock with a new one to judge if it is worn.
Replace the shock if necessary.

Clean and examine the shock mounting hardware. Replace
parts that are worn or damaged.

INSTALLATION

See

Figure 2-97

. If removed, install stud (6), hardened

washer (7) and nut (8). Tighten to 70-85 ft-lbs (101.7-115.2
Nm).

Fasten each shock to the frame and rear fork using the
original hardware.

Attach lower shock mount to rear fork.

Apply two to three drops of LOCTITE THREAD-
LOCKER 243 (blue) to threads of bottom bolt (1).

Install bolt and hand tighten.

Apply two to three drops of LOCTITE THREADLOCKER
243 (blue) to threads of shock mount nut (2).

Install inside washer (4), shock (5), cover (3), (if
applicable,) outside washer (4) and upper shock
mount nut (2).

Hand tighten nut (2).

NOTE

Before tightening, rotate shock cover (3) counterclockwise to
provide for proper alignment when tightened.

Tighten upper and lower shock mount screws as follows:

Lower mount: 30-40 ft-lbs (40.7-54.2 Nm)

Upper mount: 30-40 ft-lbs (40.7-54.2 Nm)

HOME

2-70 2009 Dyna Service: Chassis

Content .. 10 11 12 13 ..
