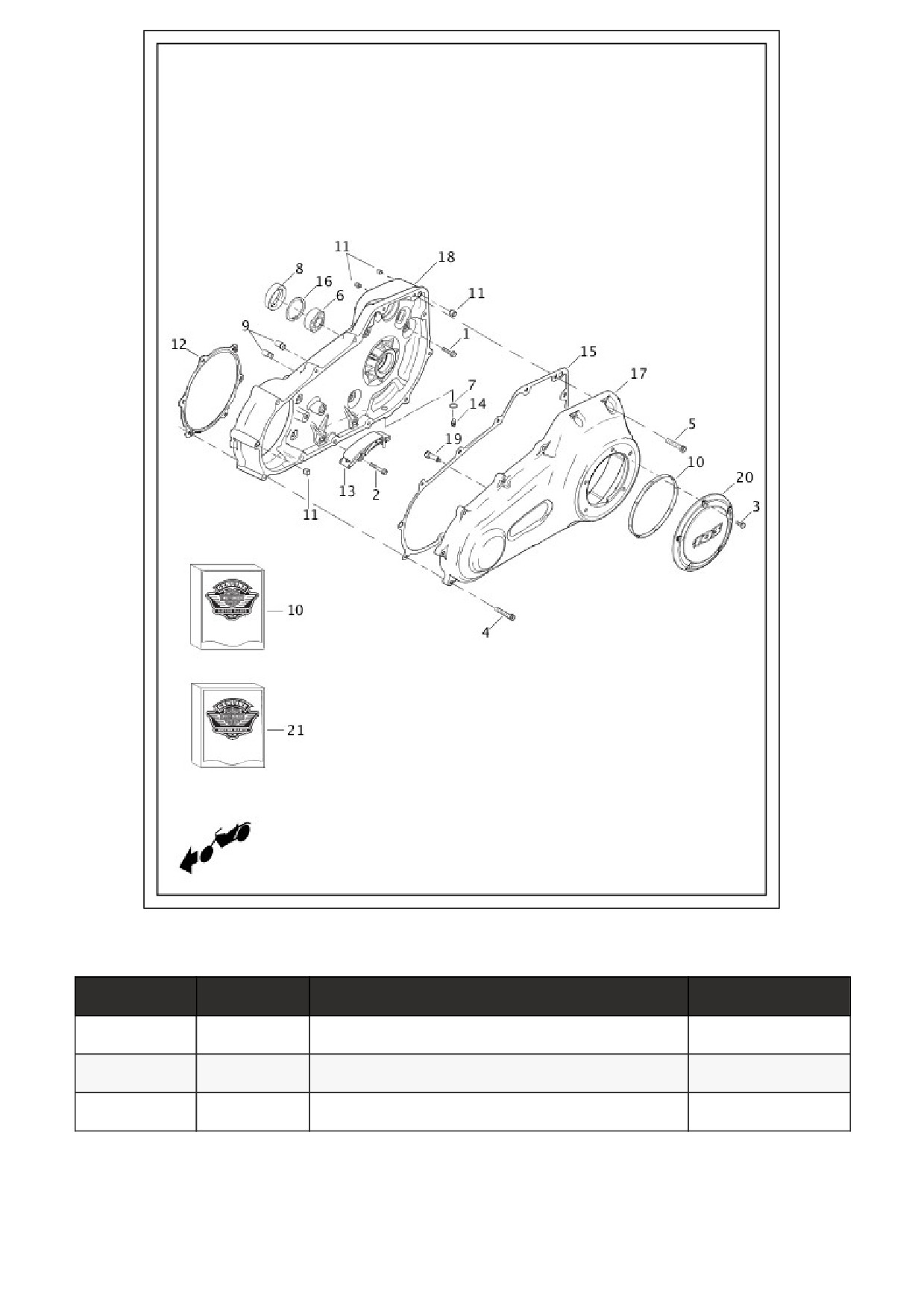

Harley Davidson 2016 Softail Models. Parts Catalog - page 8
Index No.
Part No.
Description
Model(s)
34948-08
GASKET, primary housing (black)
FLSS, FLSTFBS
60876-11A
COVER, primary (gloss black)
FLSS, FLSTFBS
25700020
COVER, clutch (gloss black) (not illustrated)
FLSS, FLSTFBS

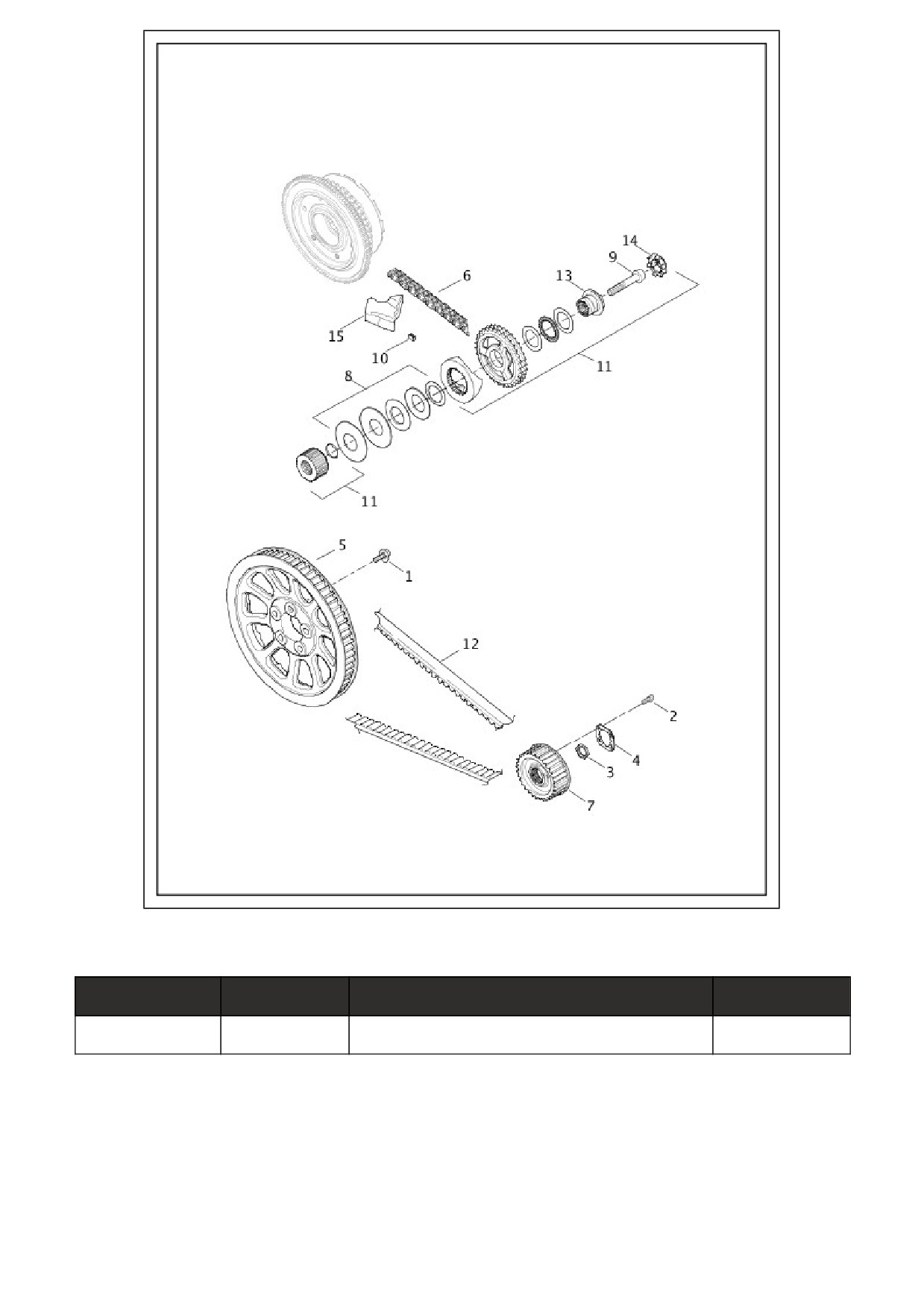

BELT, CHAINS AND SPROCKETS
Index No.
Part No.
Description
Model(s)
5
40325-07
SPROCKET, rear, 66 teeth (black)

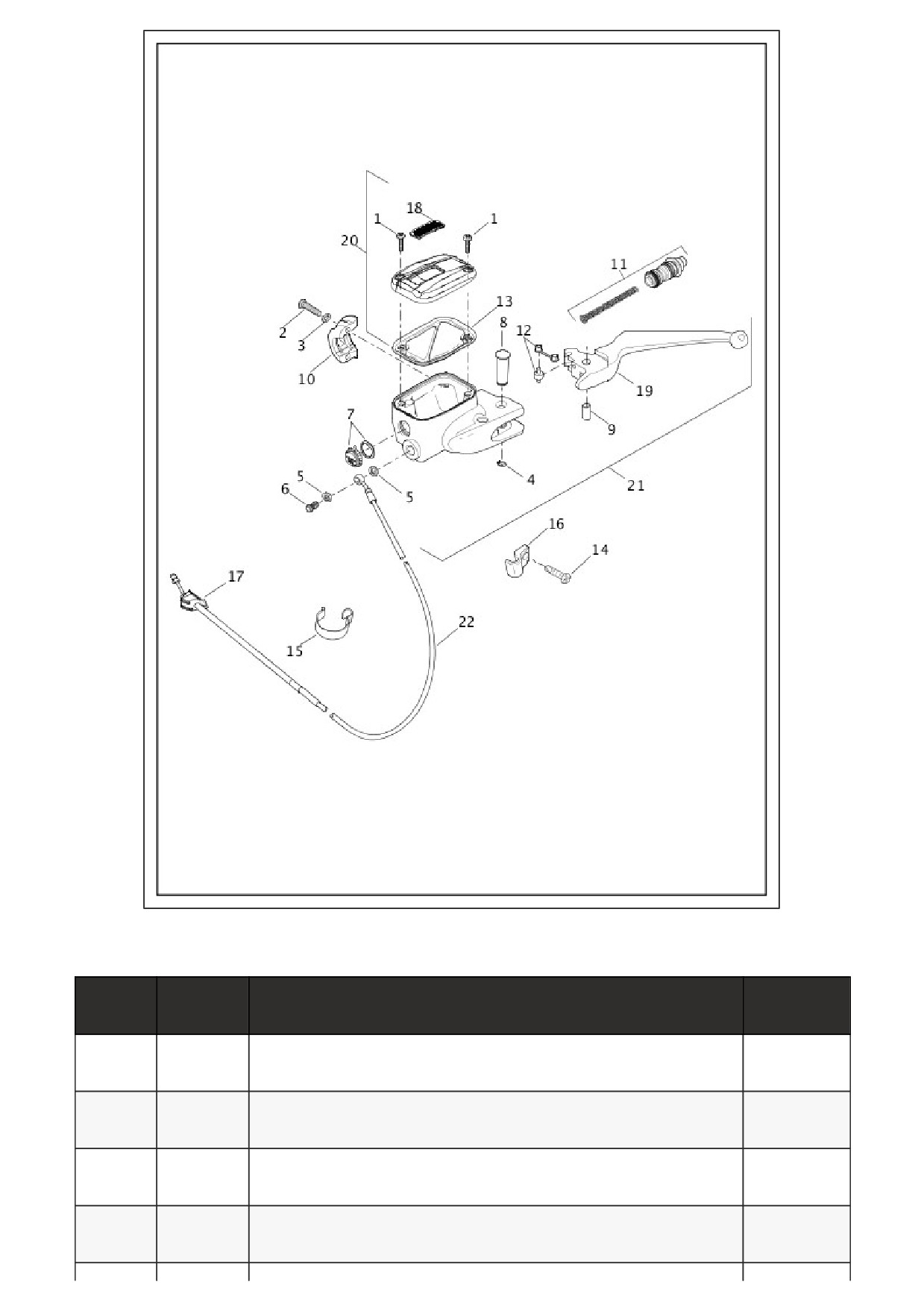

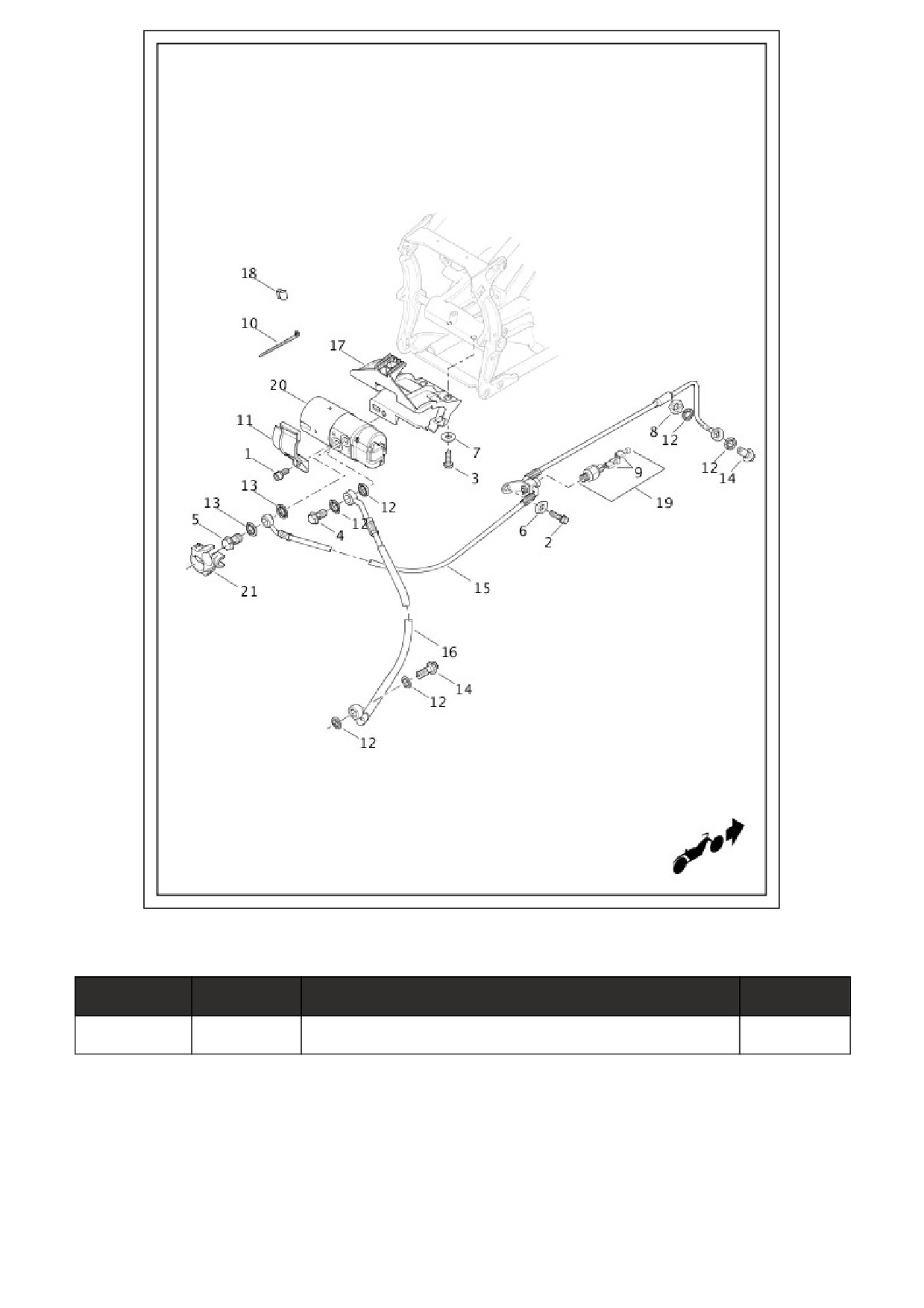

CLUTCH CONTROL - FLSS AND FLSTFBS
Index
Part No.
Description
Model(s)
No.
1
2590
SCREW, (set of two)
FLSS,
FLSTFBS
5
41751-06A
GASKET, banjo bolt (2)
FLSS,
FLSTFBS
6
42010-06B
BOLT, banjo
FLSS,
FLSTFBS
7
42145-06
SIGHT GLASS KIT
FLSS,
FLSTFBS
8
45032-82
PIVOT PIN
FLSS,
FLSTFBS
9
45423-92
BUSHING, hand lever
FLSS,
FLSTFBS
10
45138-08A
CLAMP, master cylinder and clutch (black)
FLSS,
FLSTFBS
11
37200096B
REPAIR KIT, with 41751-06A (black)
FLSS,
FLSTFBS
12
46246-01
BUSHING AND ROLLER, kit
FLSS,
FLSTFBS
13
46322-06
GASKET, cover, master cylinder
FLSS,
FLSTFBS
14
68042-99
SCREW
FLSS,
FLSTFBS
15
10800060
CLAMP, clutch line
FLSS,
FLSTFBS
16
10800102
CLAMP, hose (black)
FLSS,
FLSTFBS
17
12100028
GROMMET
FLSS,
FLSTFBS
18
14100605
DECAL, master cylinder
FLSS,
FLSTFBS
19
36700144
CLUTCH LEVER, with 11143, 45423-92, 46246-01 (black)
FLSS,
FLSTFBS
20
36700145
COVER, with 2590, 14100605, 46322-06 (black)
FLSS,
FLSTFBS
21
36700186
MASTER CYLINDER, clutch lever, with 36700144, 36700145, 42145-06,
FLSS,
45032-82 (black)
FLSTFBS
22
37200186
CLUTCH LINE, (black)
FLSS,
FLSTFBS

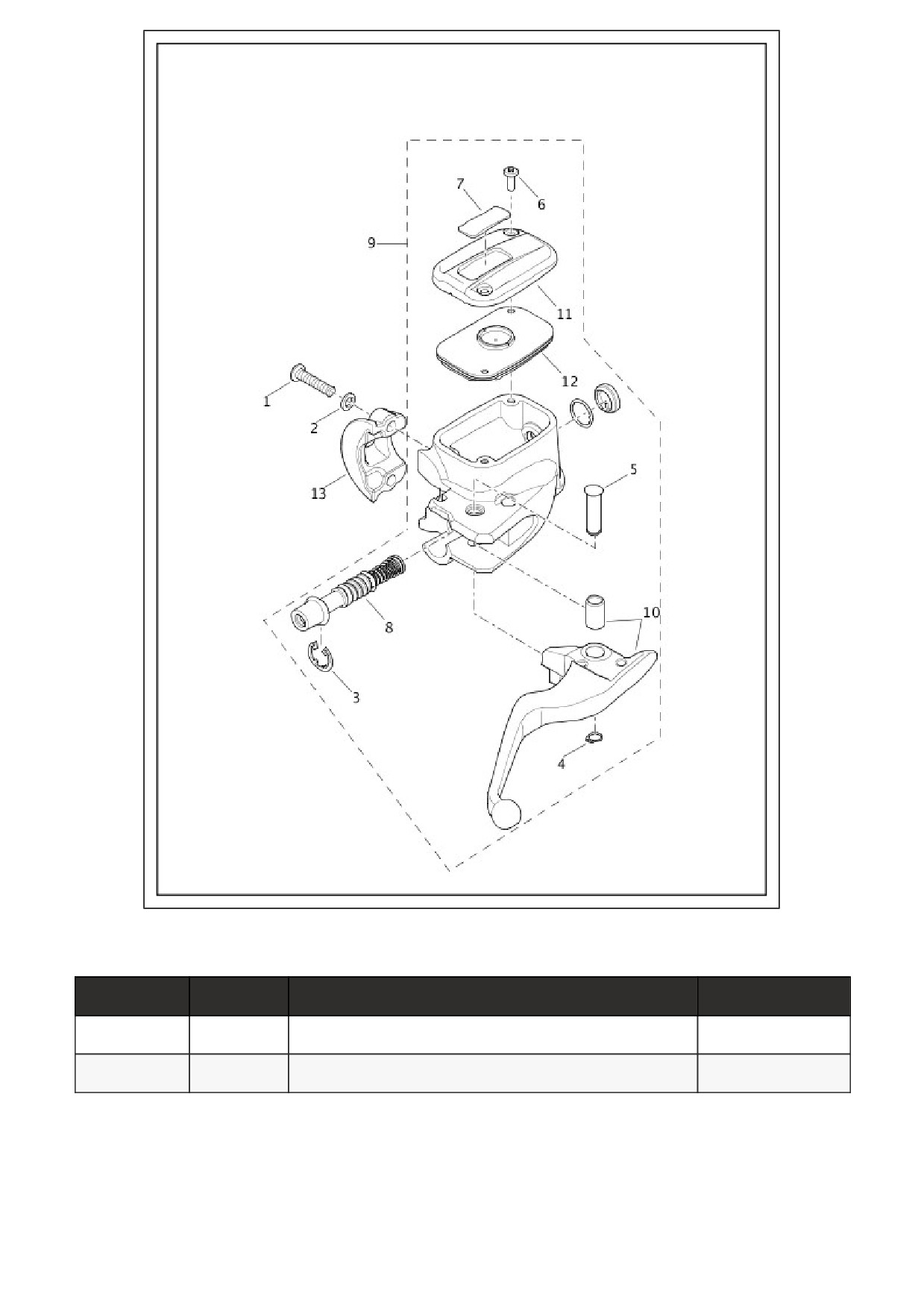

BRAKE CONTROL, FRONT
Index No.
Part No.
Description
Model(s)
41700451
MASTER CYLINDER, front, with hand lever (black)
FLSS, FLSTFBS
41700313
HAND LEVER, front brake control (black)
FLSS, FLSTFBS

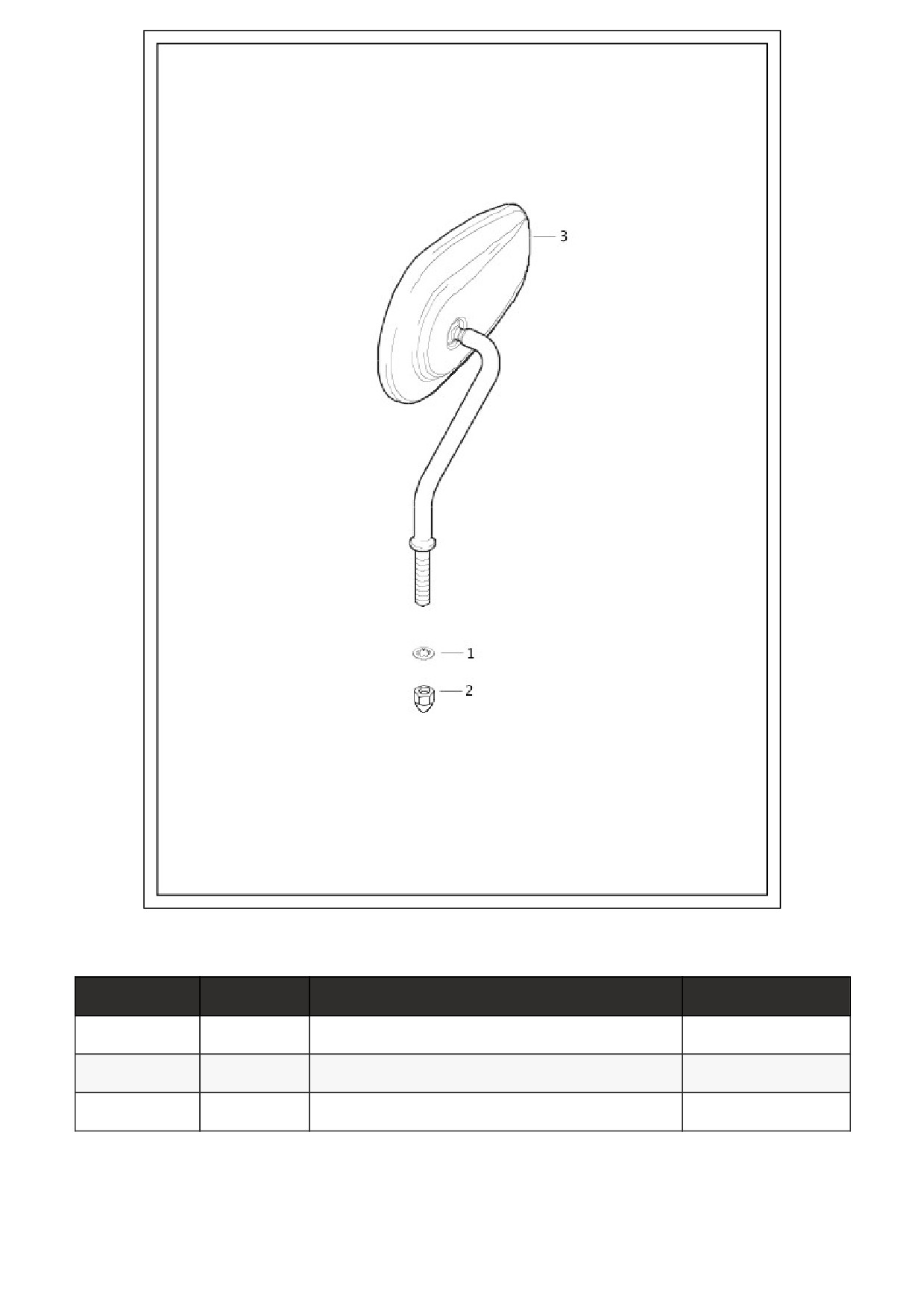

MIRRORS
Index No.
Part No.
Description
Model(s)
7352
ACORN NUT, (black) (2)
FLSS, FLSTFBS
92614-10
MIRROR KIT, short, convex (right) (black)
FLSS, FLSTFBS
92615-10
MIRROR KIT, short, convex (left) (black)
FLSS, FLSTFBS

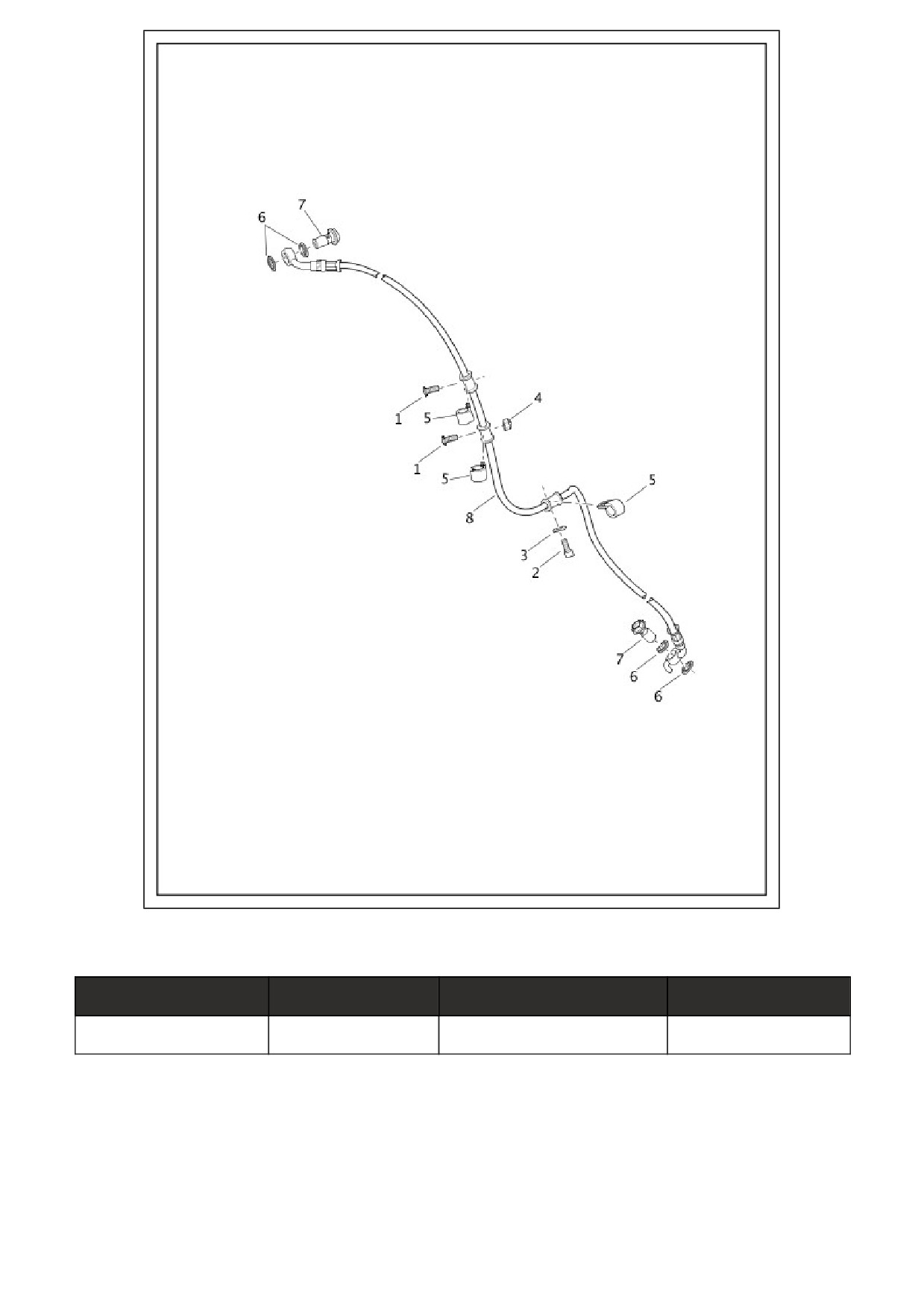

BRAKE LINES, FRONT, NON-ABS - FLS
Index No.
Part No.
Description
Model(s)
5
10800096
CLAMP (3)
FLS

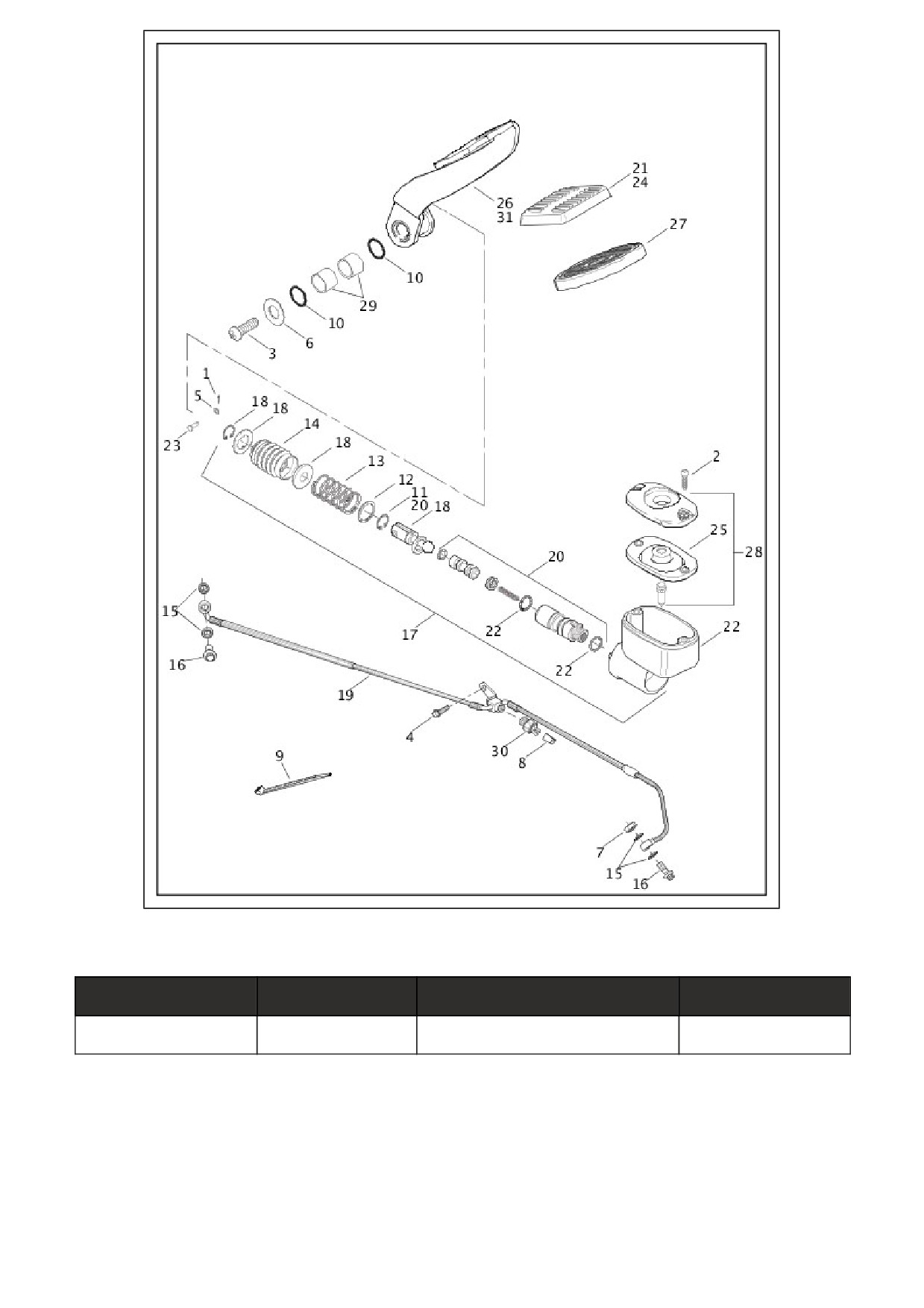

BRAKE CONTROL, REAR
Index No.
Part No.
Description
Model(s)
11
11688
RETAINING RING
BRAKE LINE AND MODULE, REAR, ABS
Index No.
Part No.
Description
Model(s)
16
43384-11A
BRAKE LINE ASSEMBLY, rear, ABS, HCU to caliper

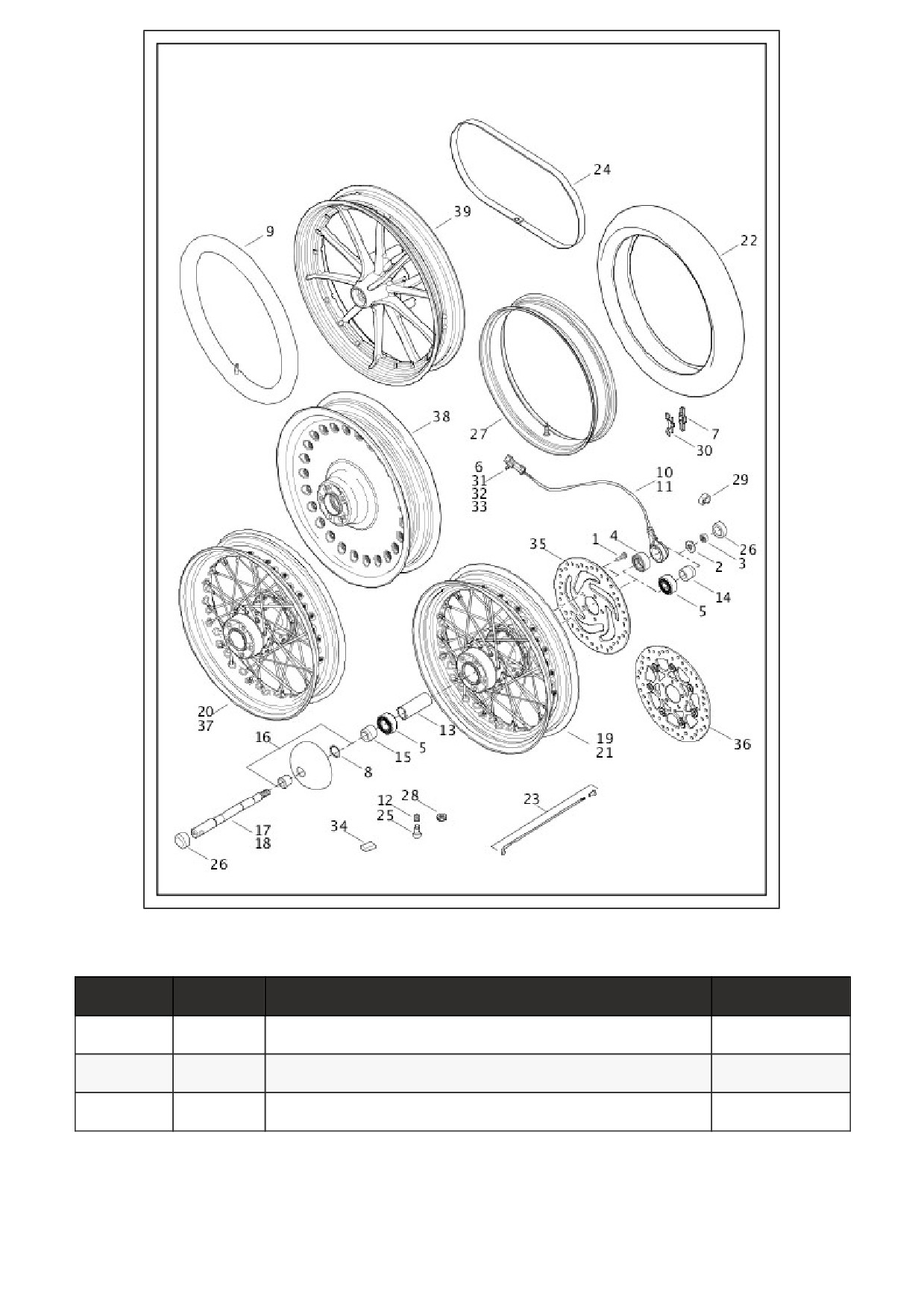

WHEELS, FRONT (2 OF 2)
Index No.
Part No.
Description
Model(s)
26
43583-09
COVER, axle nut (black) (2)
FLSS, FLSTFBS
34
95594-84B
WEIGHT, 5 g (black)
FLS, FXSB, FLSS
43590-09
WHEEL ASSEMBLY, 17 in, without bearings and sleeve (chrome)
FLSTF

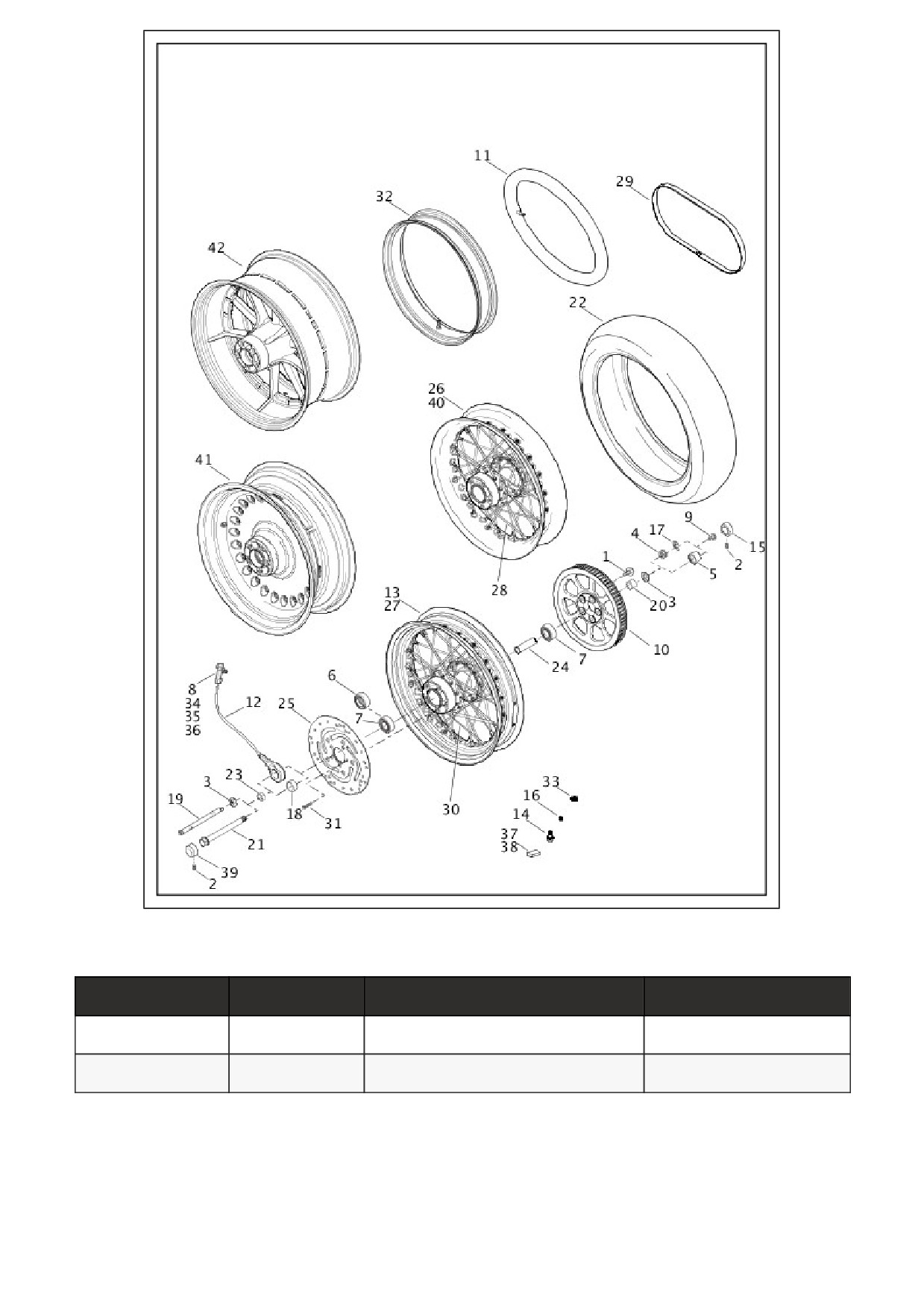

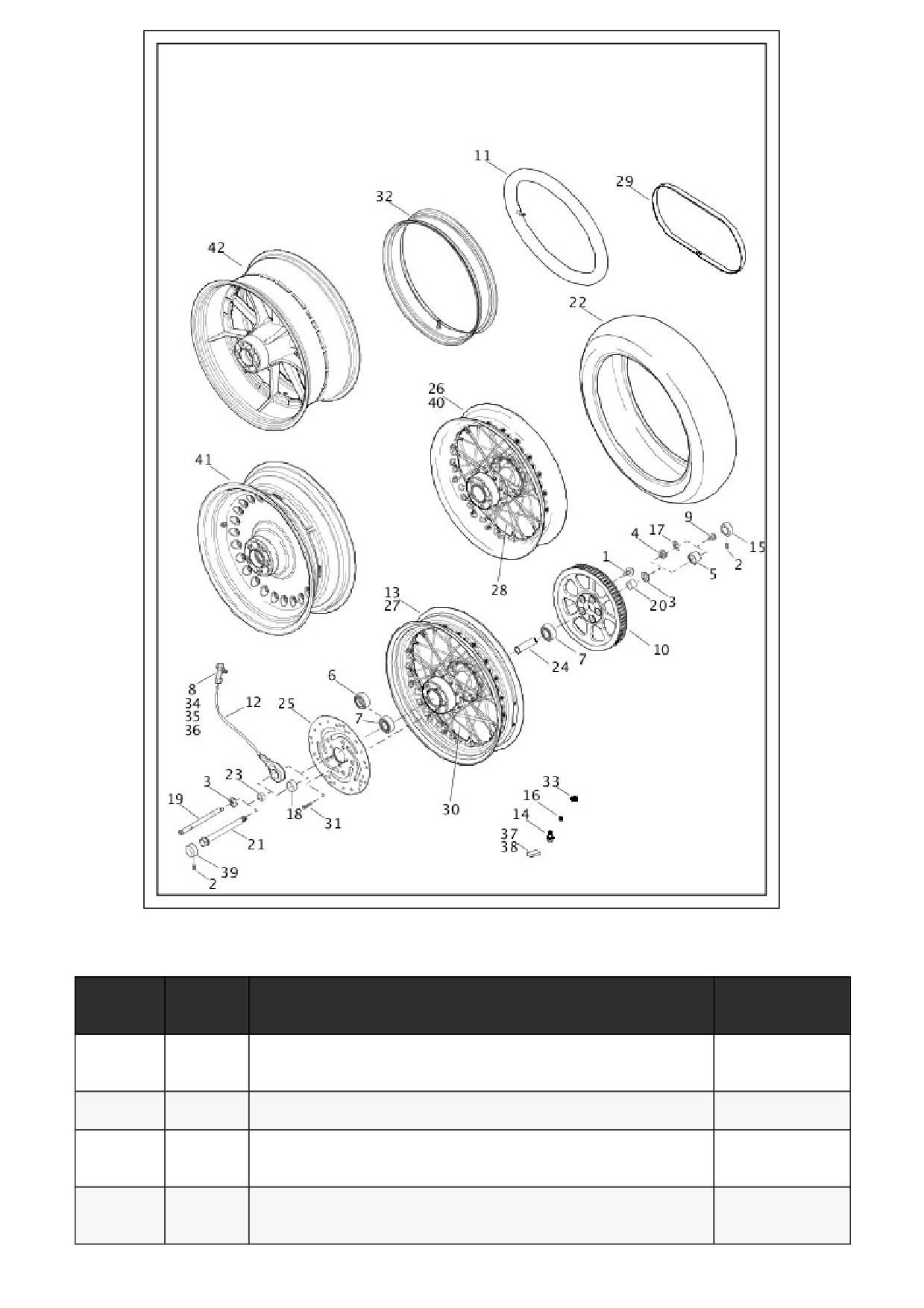

WHEELS, REAR (1 OF 2)
Index No.
Part No.
Description
Model(s)
2
4636
SCREW (2)
FLSS, FLSTFBS
15
41063-09
COVER, nut, left (black)
FLSS, FLSTFBS
WHEELS, REAR (2 OF 2)
Index
Part No.
Description
Model(s)
No.
37
95594-
WEIGHT, 5 g (black)
FLS, FXSB
84B
39
12600177
COVER, nut, right (black)
FLSS, FLSTFBS
41
40900182
WHEEL ASSEMBLY, rear, 17 in disc, without bearings and sleeve
FLSTFBS,
(black)
FLSTFB
43596-09
WHEEL ASSEMBLY, rear, 17 in disc, without bearings and sleeve
FLSTF
(chrome)

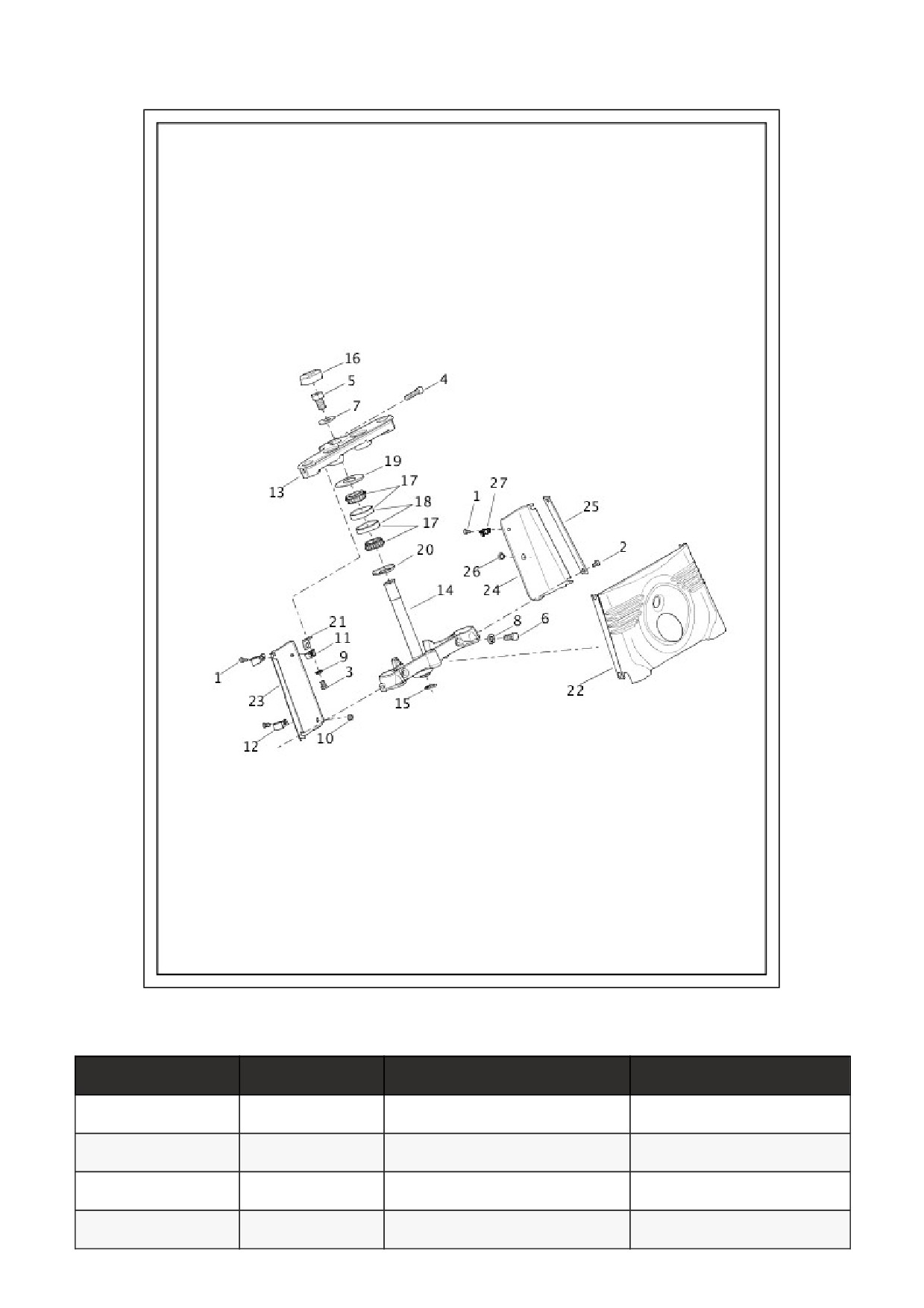

FORK BRACKETS, FRONT - FLS, FLSS, FLSTC, FLSTF, FLSTFB,
FLSTFBS AND FLSTN
Index No.
Part No.
Description
Model(s)
9
7041
LOCKWASHER (2)
FLSS, FLSTFBS
45900150
BRACKET, (upper)
FLSS, FLSTFBS
45800081
CAP, fork stem
FLSS, FLSTFBS
27
10800101
CLAMP
FLSS, FLSTFBS

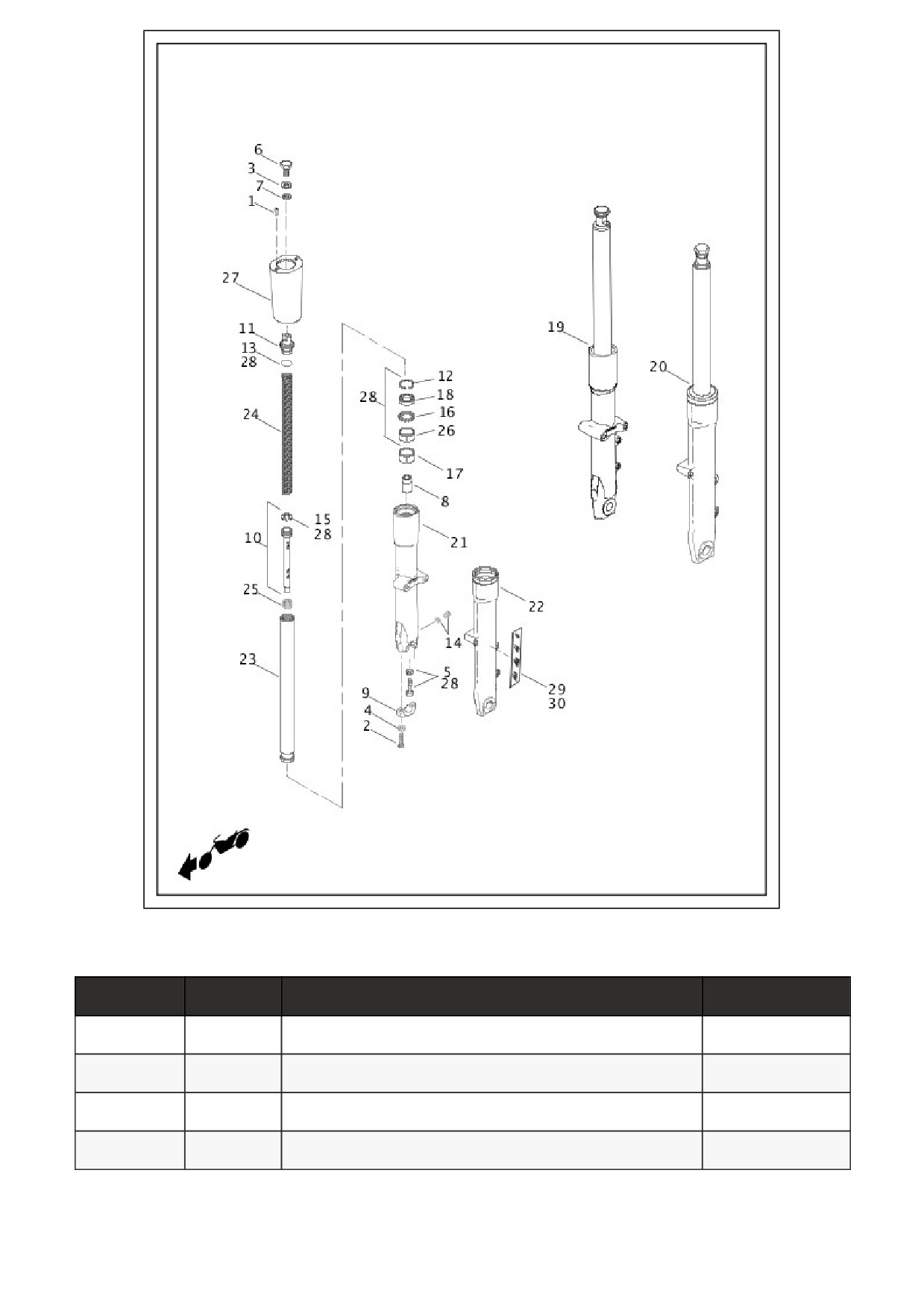

FORK, FRONT-FLS,FLSS,FLSTC,FLSTF,FLSTFB,FLSTFBS AND
FLSTN (1 OF 2)
Index No.
Part No.
Description
Model(s)
46550-03
AXLE CAP, right slider (black)
FLSS, FLSTFBS

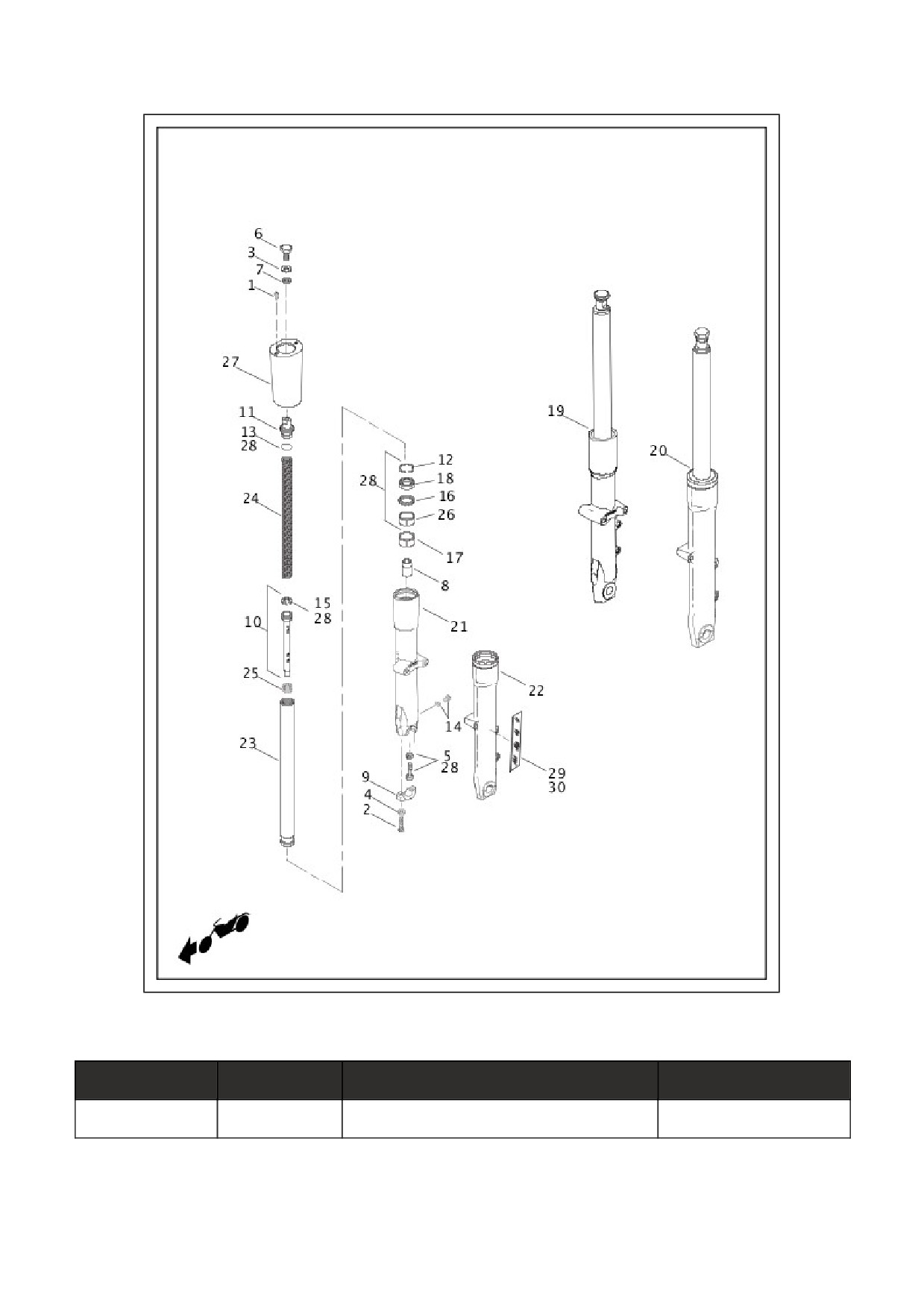

FORK, FRONT-FLS,FLSS,FLSTC,FLSTF,FLSTFB,FLSTFBS AND
FLSTN (2 OF 2)
Index No.
Part No.
Description
Model(s)
45400147
FORK SLIDER AND TUBE ASSEMBLY, (right) (black)
FLSS, FLSTFBS
45400148
FORK SLIDER AND TUBE ASSEMBLY, (left) (black)
FLSS, FLSTFBS
45500367
SLIDER ASSEMBLY, (right) (black)
FLSS, FLSTFBS
46541-02
COVER, slider (black) (2)
FLSS, FLSTFBS

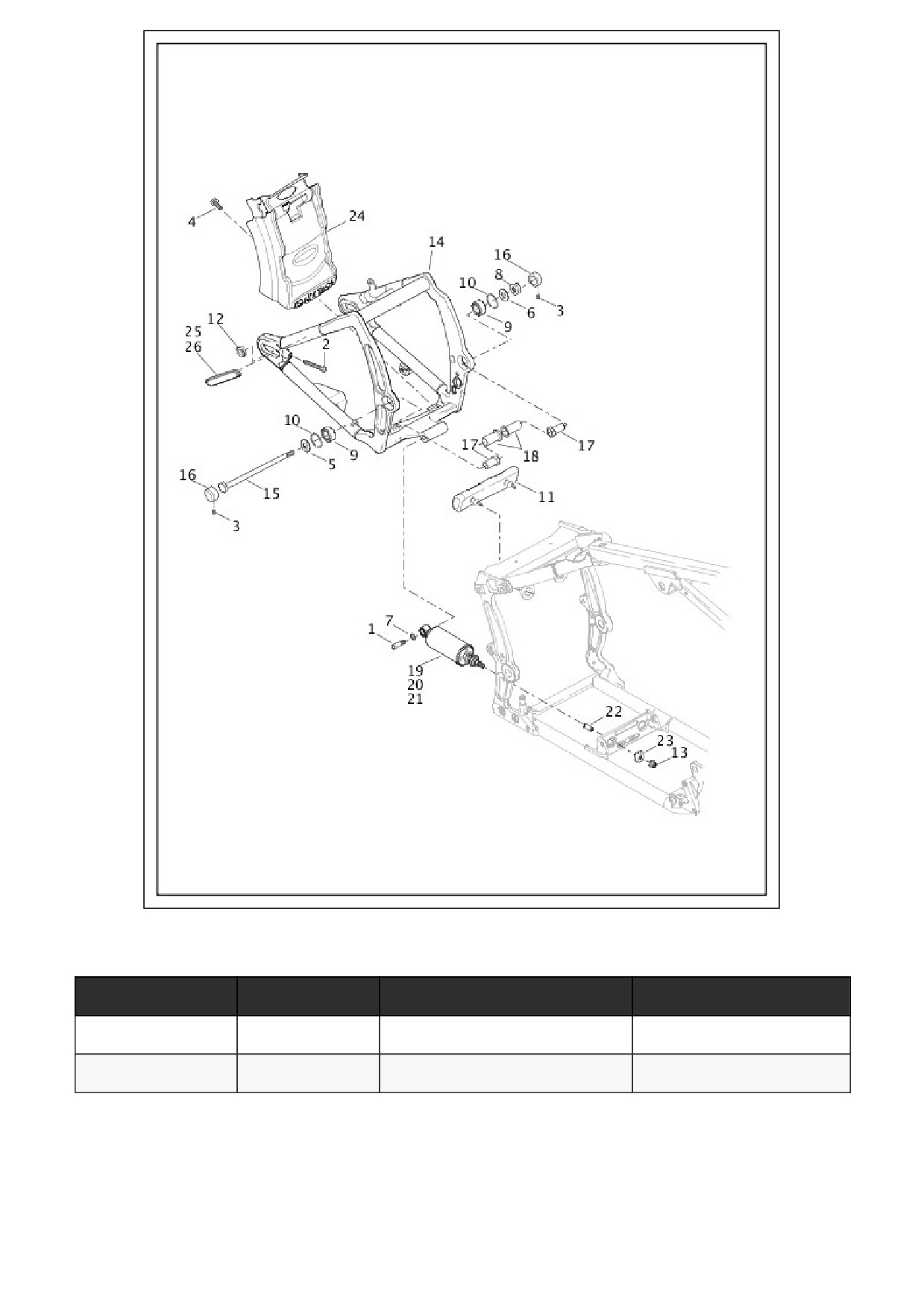

FORK, REAR AND SHOCK ABSORBERS
Index No.
Part No.
Description
Model(s)
3
4636
SET SCREW
FLSS, FLSTFBS
16
47683-09
COVER, bolt (black)
FLSS, FLSTFBS

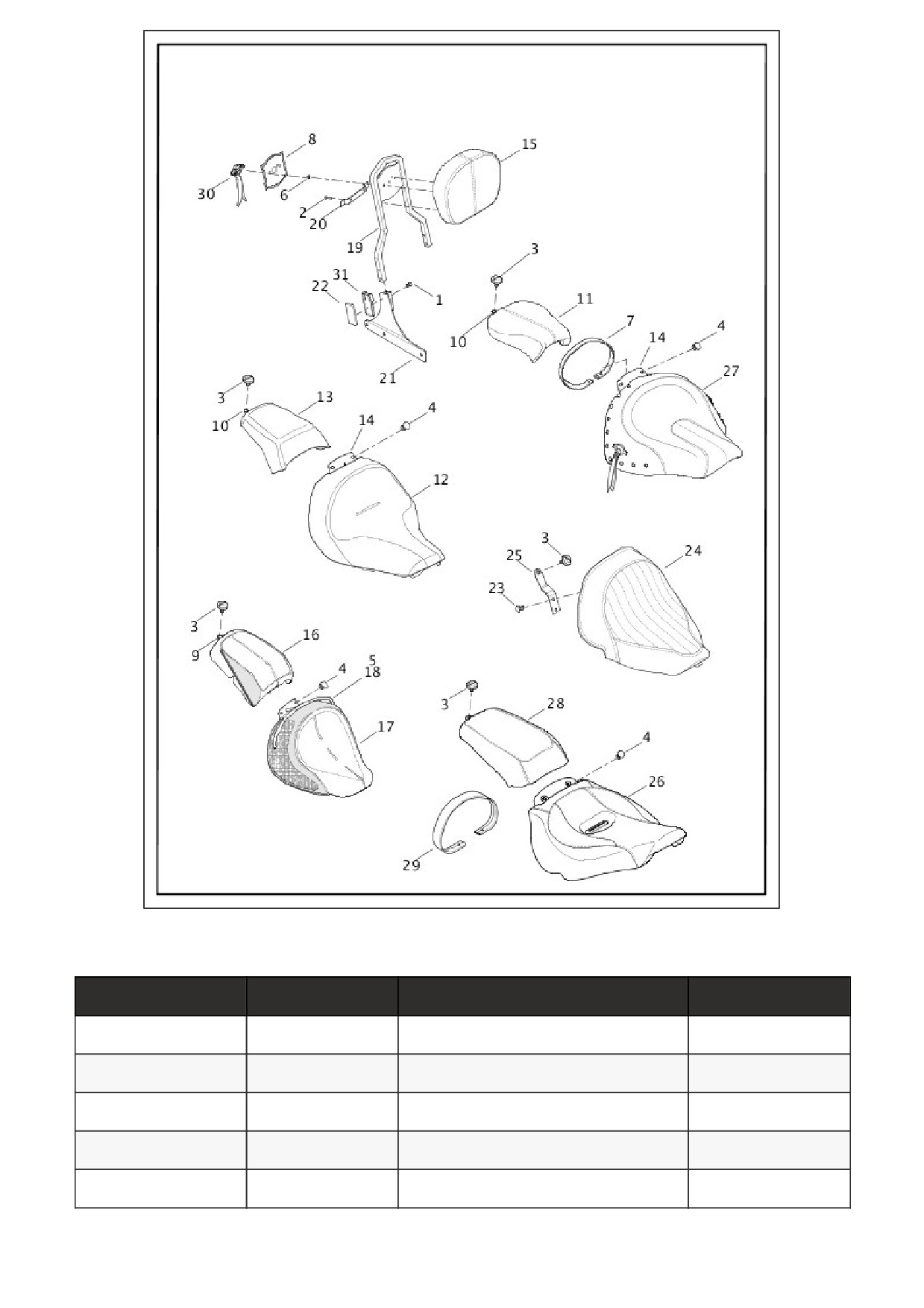

SEATS
Index No.
Part No.
Description
Model(s)
26
52000096
SEAT
FXSB
27
52000222
SEAT ASSEMBLY
FLSTC
28
52400065
PILLION
FXSB
29
52400072
PASSENGER STRAP
FXSB
30
61400327
CONCHO
FLSTC

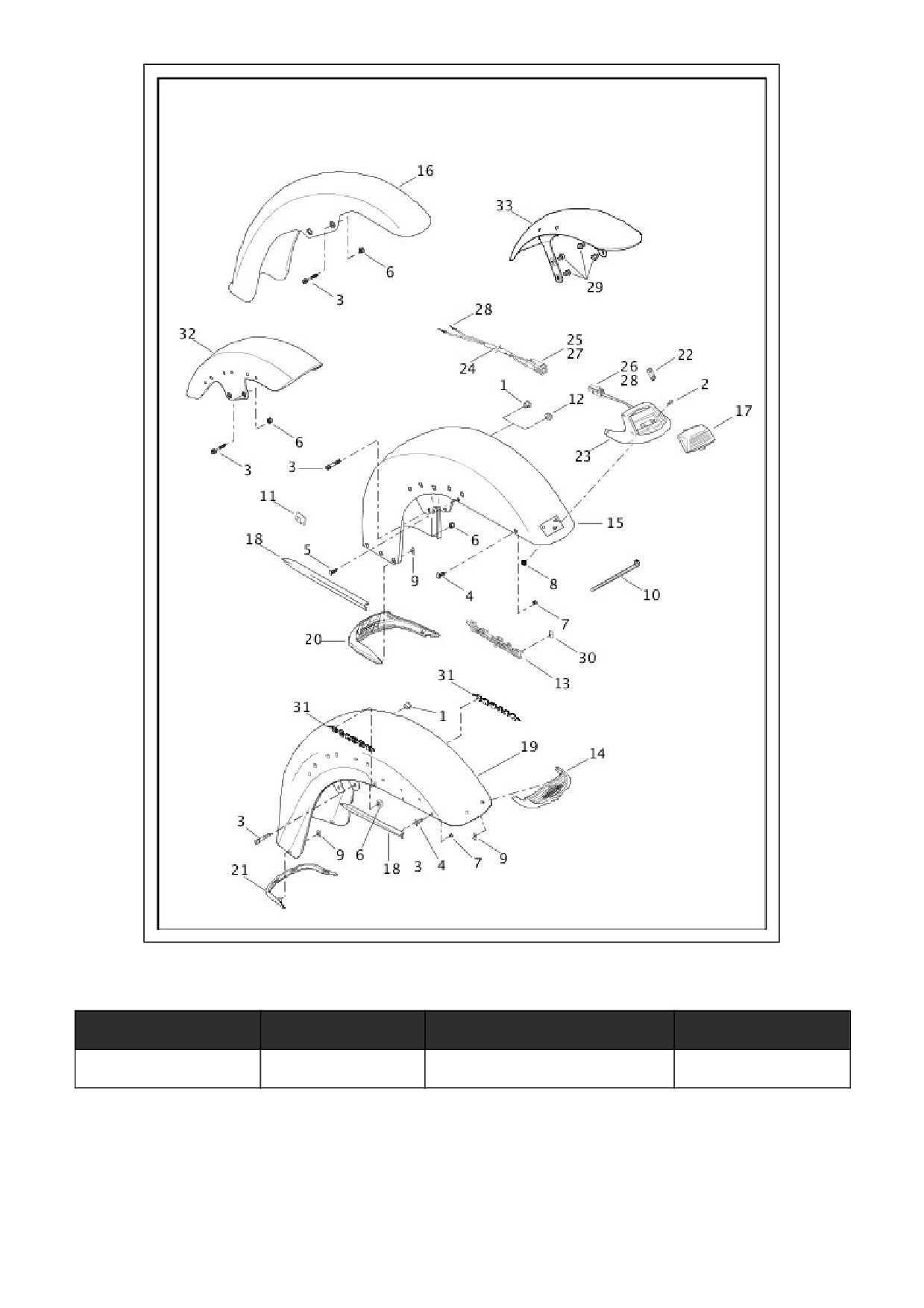

FENDER, FRONT
Index No.
Part No.
Description
Model(s)
31
14100756
NAMEPLATE (2)
FLSTN

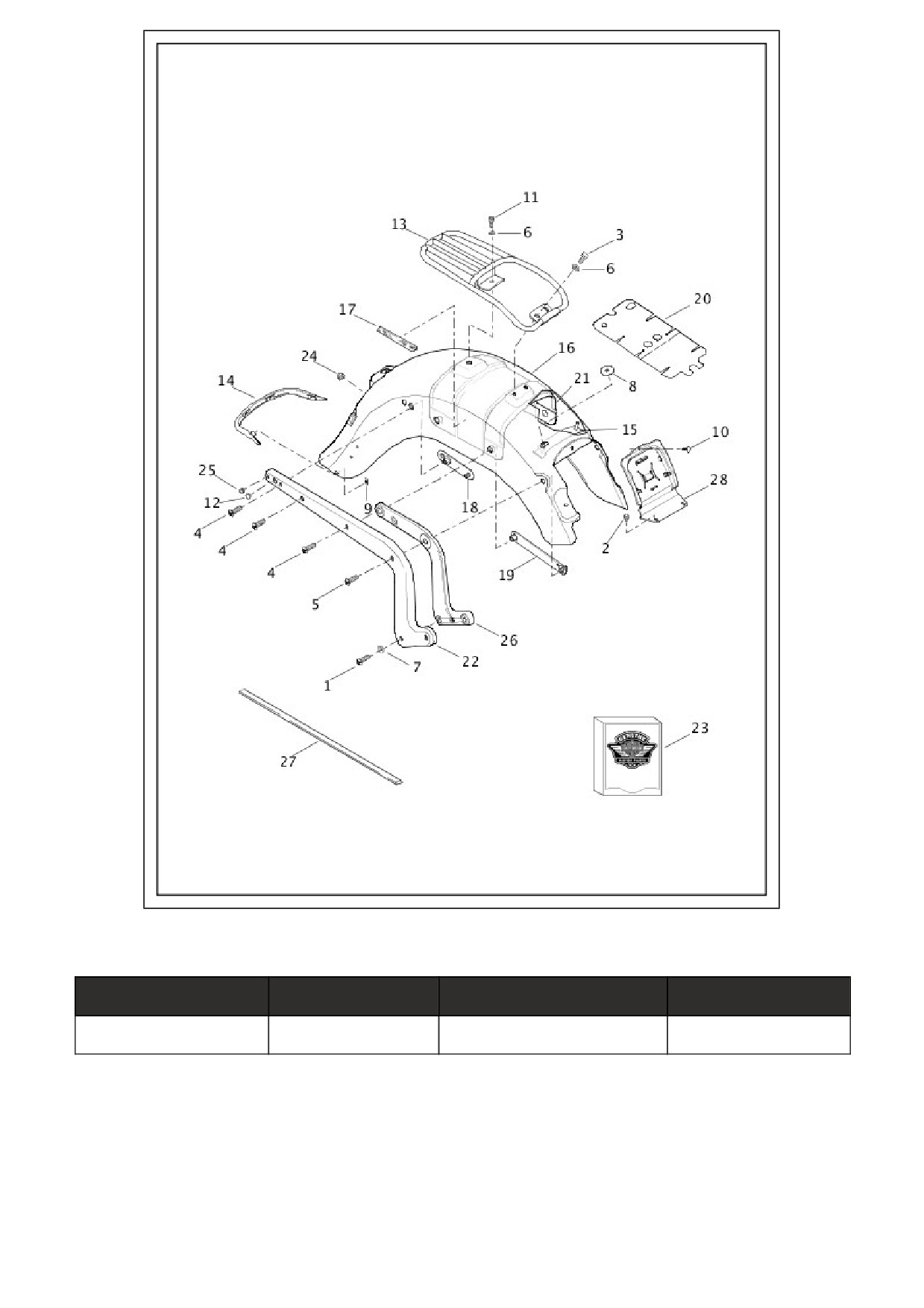

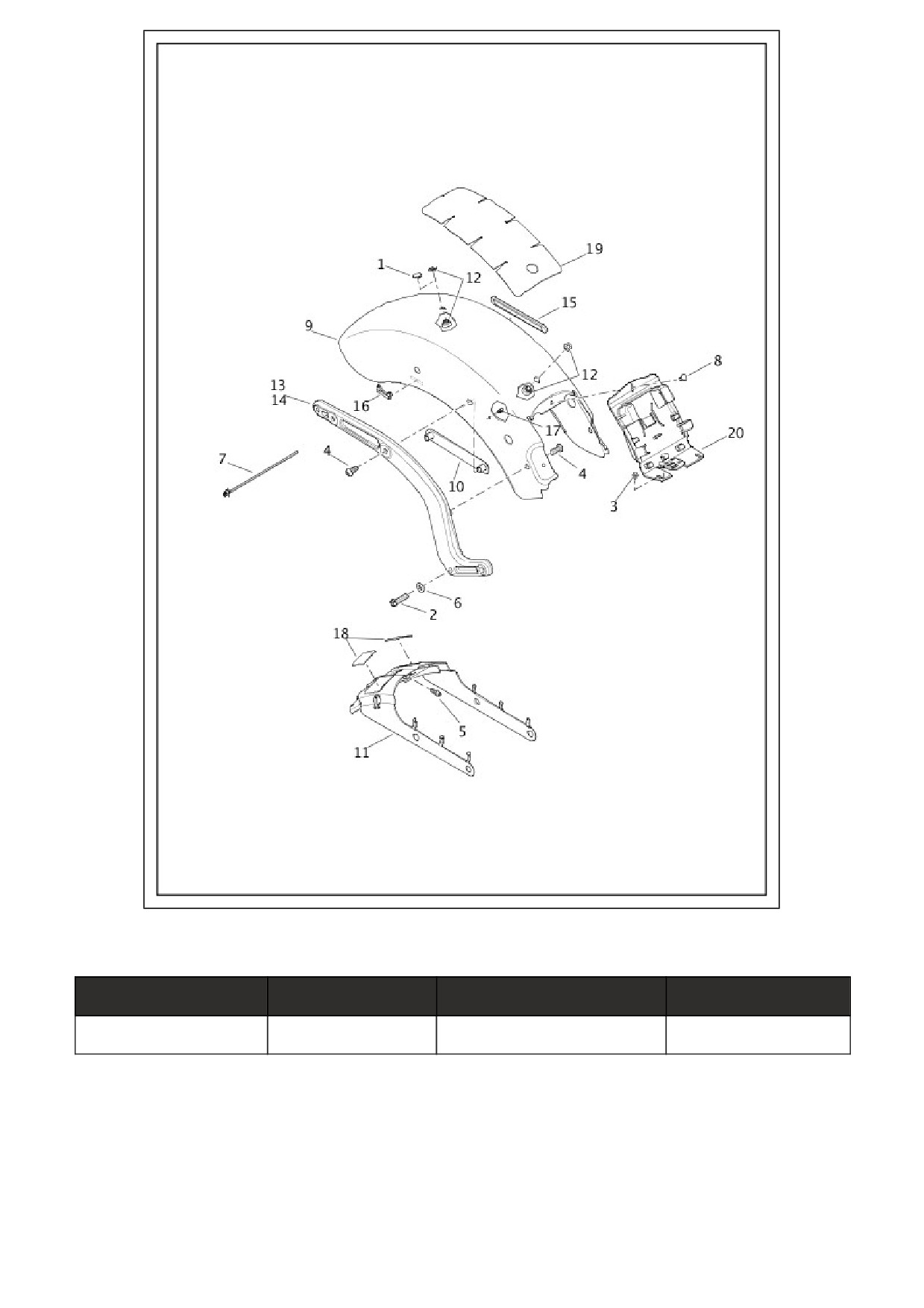

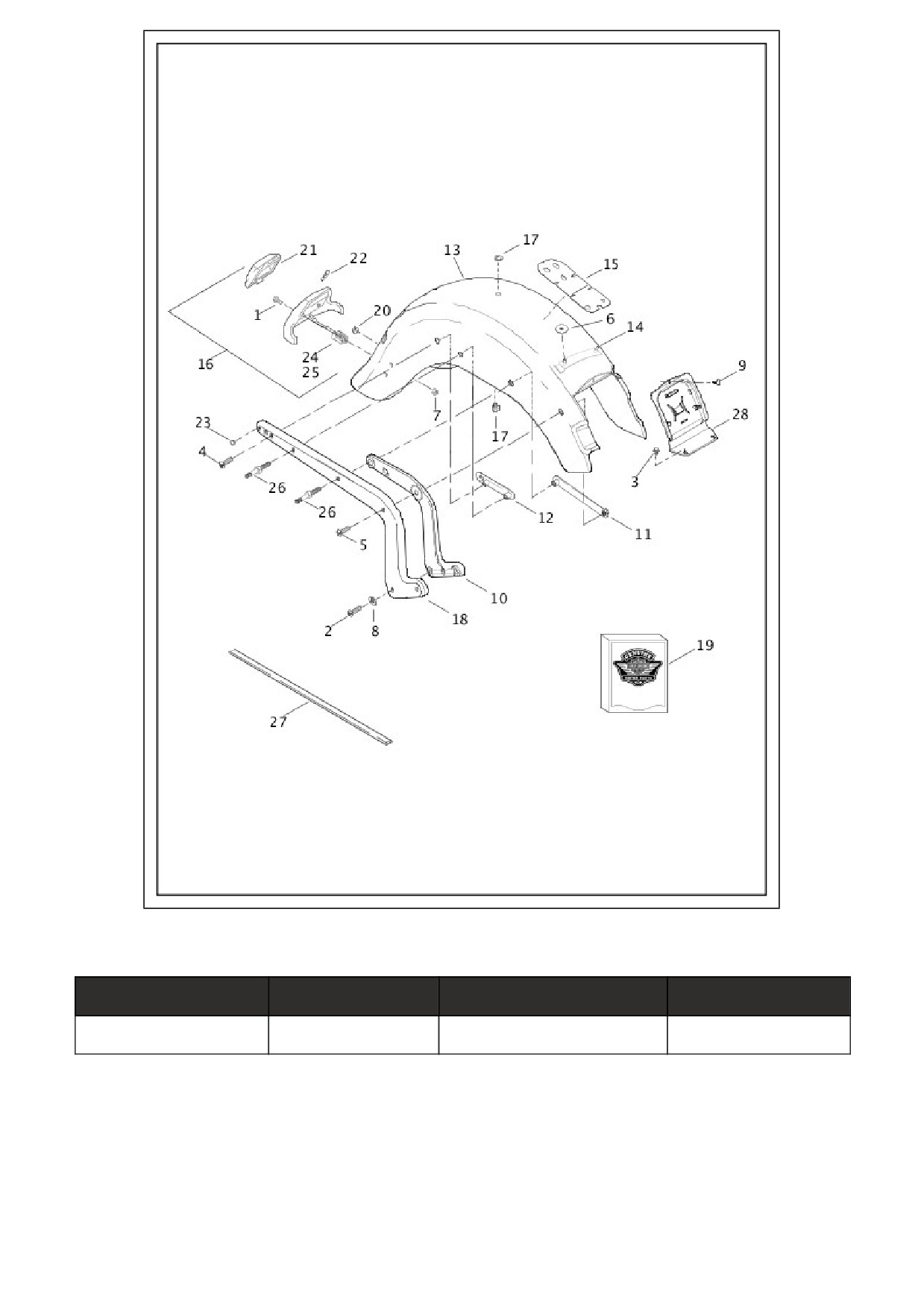

FENDERS AND SUPPORTS, REAR - FLSTC
Index No.
Part No.
Description
Model(s)
28
69200626
CADDY, ECM
FLSTC

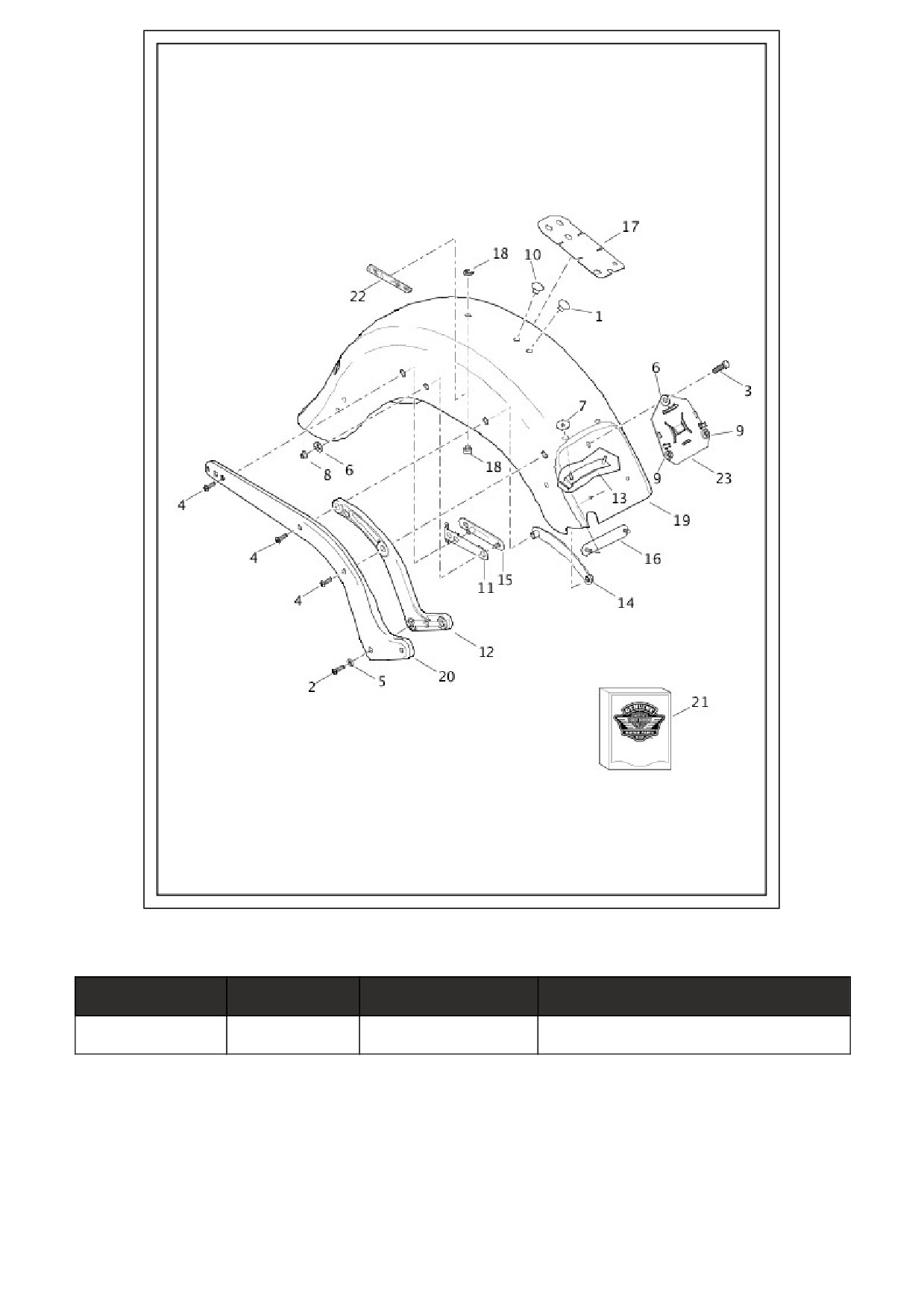

FENDERS AND SUPPORTS, REAR - FLSTF, FLSTFB AND FLSTFBS
Index No.
Part No.
Description
Model(s)
23
69201084
CADDY, ECM
FLSTF, FLSTFB, FLSTFBS
FENDERS AND SUPPORTS, REAR - FLSTN
Index No.
Part No.
Description
Model(s)
28
69200626
CADDY, ECM
FLSTN
FENDERS AND SUPPORTS, REAR - FLS AND FLSS
Index No.
Part No.
Description
Model(s)
20
69201085
CADDY, ECM
FLS, FLSS

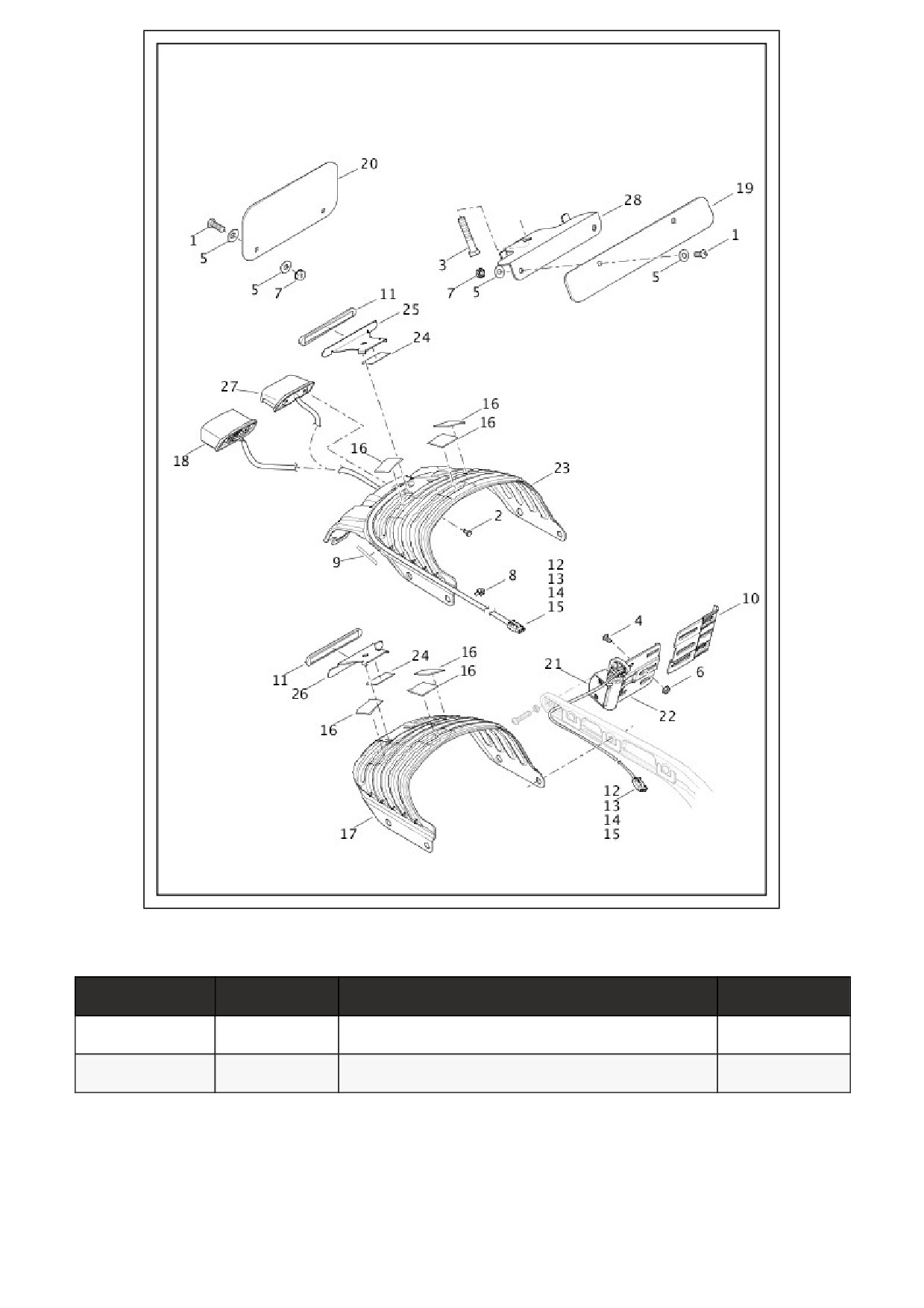

LICENSE PLATE BRACKETS - FXSB
Index No.
Part No.
Description
Model(s)
16
11100103
TAPE, pad mounting (3)
FXSB
28
67900283
BRACKET, license plate, front (India)
FXSB

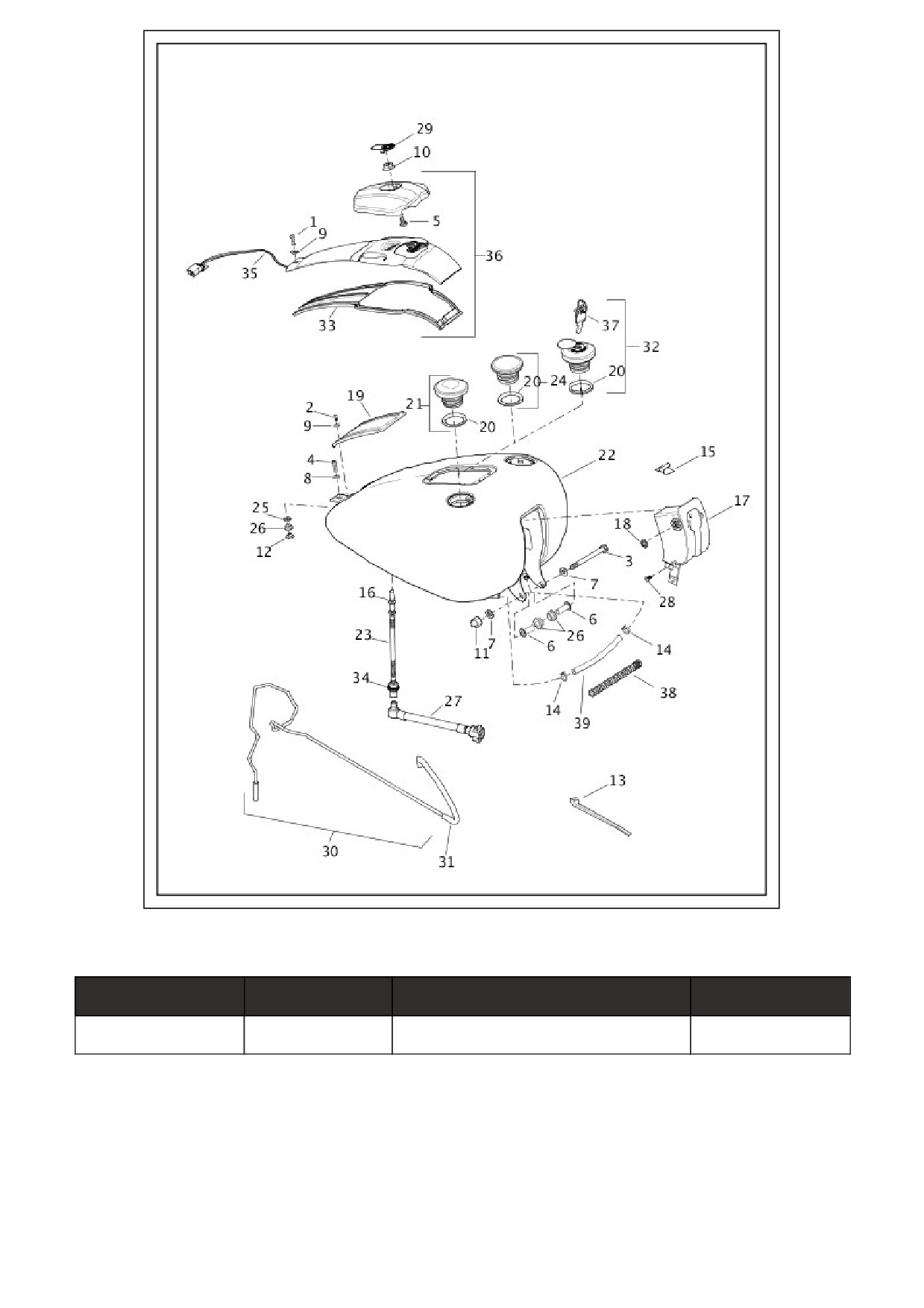

FUEL TANK
Index No.
Part No.
Description
Model(s)
61300537
TRIM PANEL, fuel tank
FLSTC

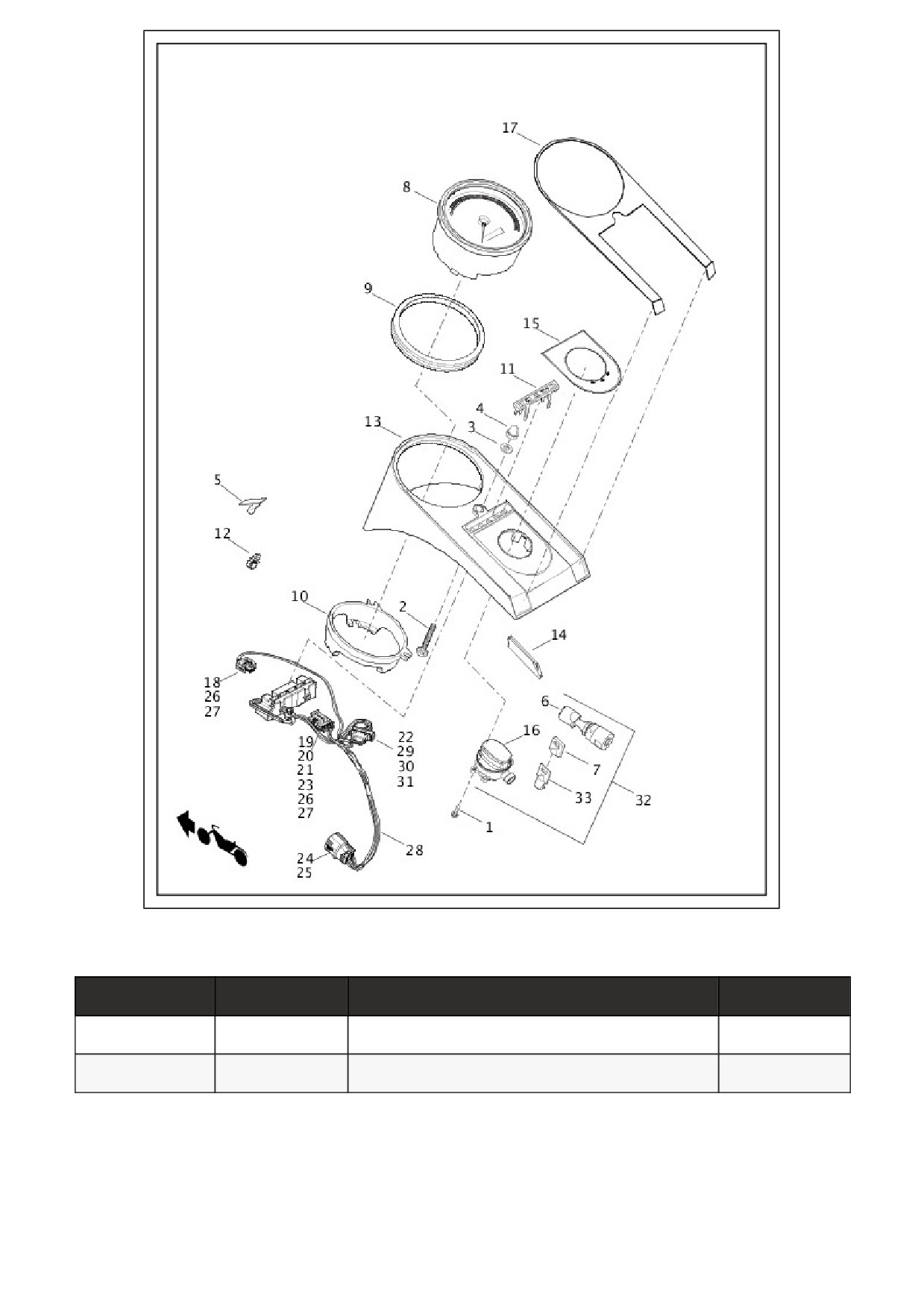

INSTRUMENTS - FLSTF, FLSTFB, FLSTFBS AND FLSTN
Index No.
Part No.
Description
Model(s)
67439-11C
SPEEDOMETER, mph
FLSTN
70900622
INSTRUMENT PANEL, (gloss black)
FLSTFBS
INSTRUMENTS - FXSB
Index No.
Part No.
Description
Model(s)
12
70900369C
SPEEDOMETER, mph
FXSB
70900371A
SPEEDOMETER, mph/km/h (England)
FXSB

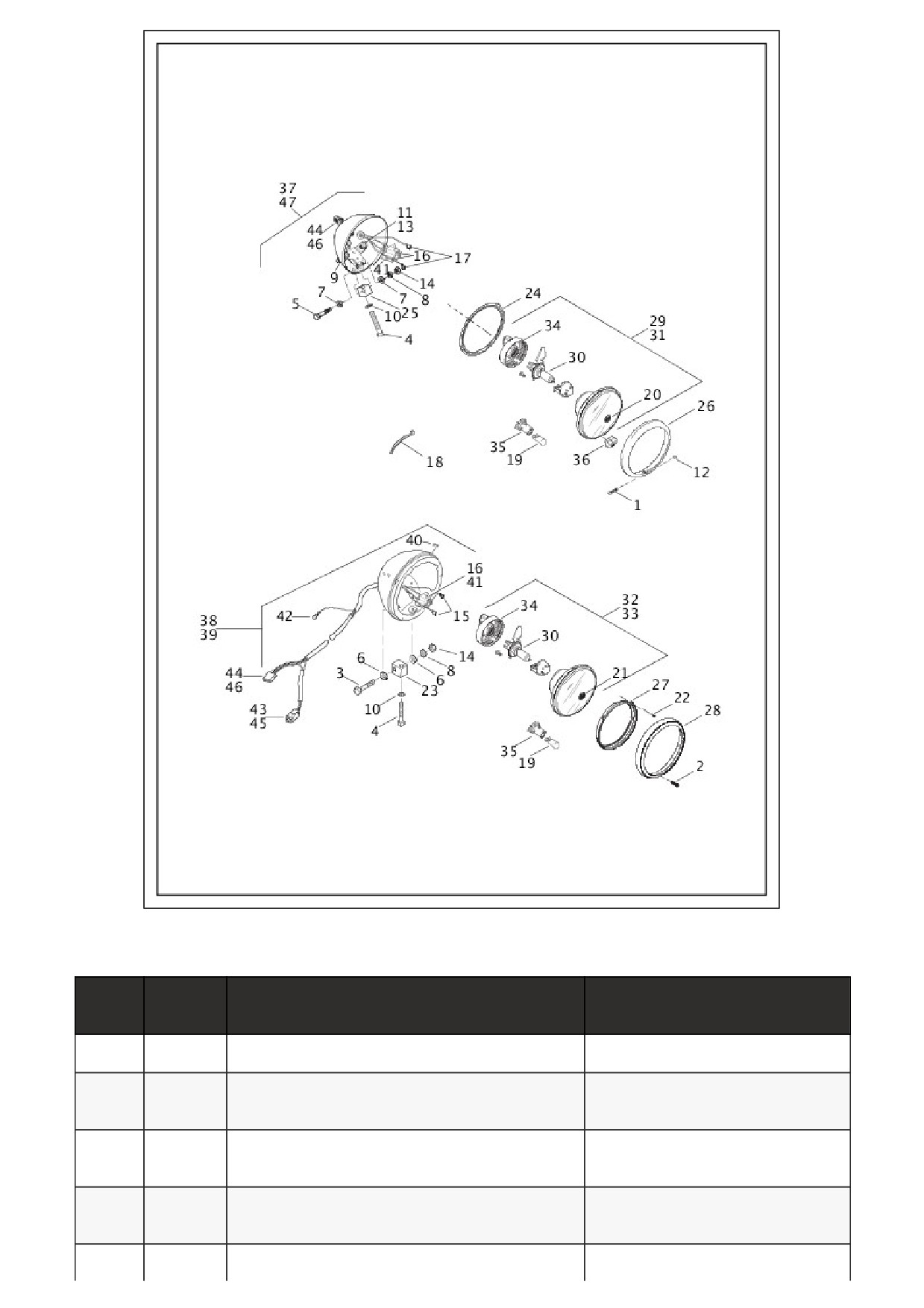

HEADLAMP (2 OF 2)
Index
Part No.
Description
Model(s)
No.
67700115
TRIM RING, (black)
FLSS, FLSTFBS
29
68297-
REFLECTOR ASSEMBLY, 5-3/4 in
FXSB
05A
31
68335-
REFLECTOR ASSEMBLY, left dip, 5-3/4 in (Australia,
FXSB
05A
Brazil, England, Japan)
68341-
REFLECTOR ASSEMBLY, right dip, 5-3/4 in (Asia-
FXSB
05A
Pacific, HDI)
32
68342-
LENS ASSEMBLY, 7 in
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
05A
FLSS, FLSTFBS

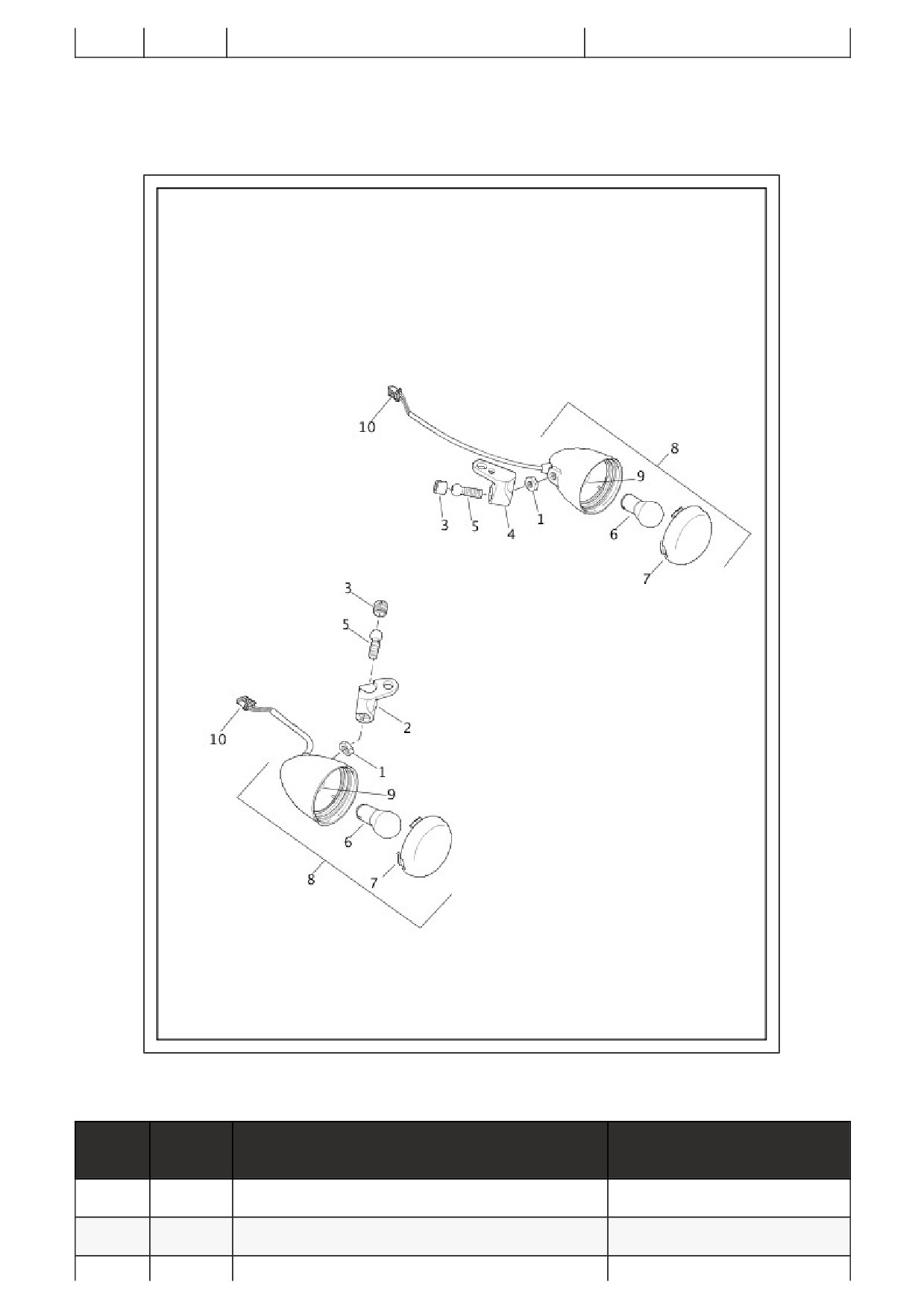

TURN SIGNALS, FRONT - FLS, FLSS, FLSTF, FLSTFB, FLSTFBS,
FXSB
Index
Part No.
Description
Model(s)
No.
67800630
BRACKET, turn signal mount (right) (black)
FLSS, FLSTFBS
67800628
BRACKET, turn signal mount (left) (black)
FLSS, FLSTFBS
8
67800141
TURN SIGNAL, with 68163-84, 68973-00, 67800148
FLSTF
(HDI) (2)
67800519
TURN SIGNAL, with 68168-89A, 68973-00, 67800147
FLSTF
(chrome) (2)
67800520
TURN SIGNAL, with 68168-89A, 68973-00, 67800147
FXSB, FLSTFB, FLSTFBS
(black) (2)
67800521
TURN SIGNAL, with 68163-84, 68973-00, 67800148
FXSB, FLSTFB, FLSTFBS
(HDI) (black) (2)
67800523
TURN SIGNAL, with 68168-89A, 68973-00, 67800147
FLS, FLSS
(gloss black) (2)
67800525
TURN SIGNAL, with 68163-84, 68973-00, 67800148
FLS, FLSS
(HDI) (gloss black) (2)
9
67800147
SOCKET ASSEMBLY (2)
FXSB, FLSTF, FLSTFB, FLS,
FLSS, FLSTFBS
67800148
SOCKET ASSEMBLY, (HDI) (2)
FXSB, FLSTF, FLSTFB, FLS,
FLSS, FLSTFBS
10
69201179
HOUSING, four-way socket (gray) (2)
FXSB, FLSTF, FLSTFB, FLS,
FLSS, FLSTFBS

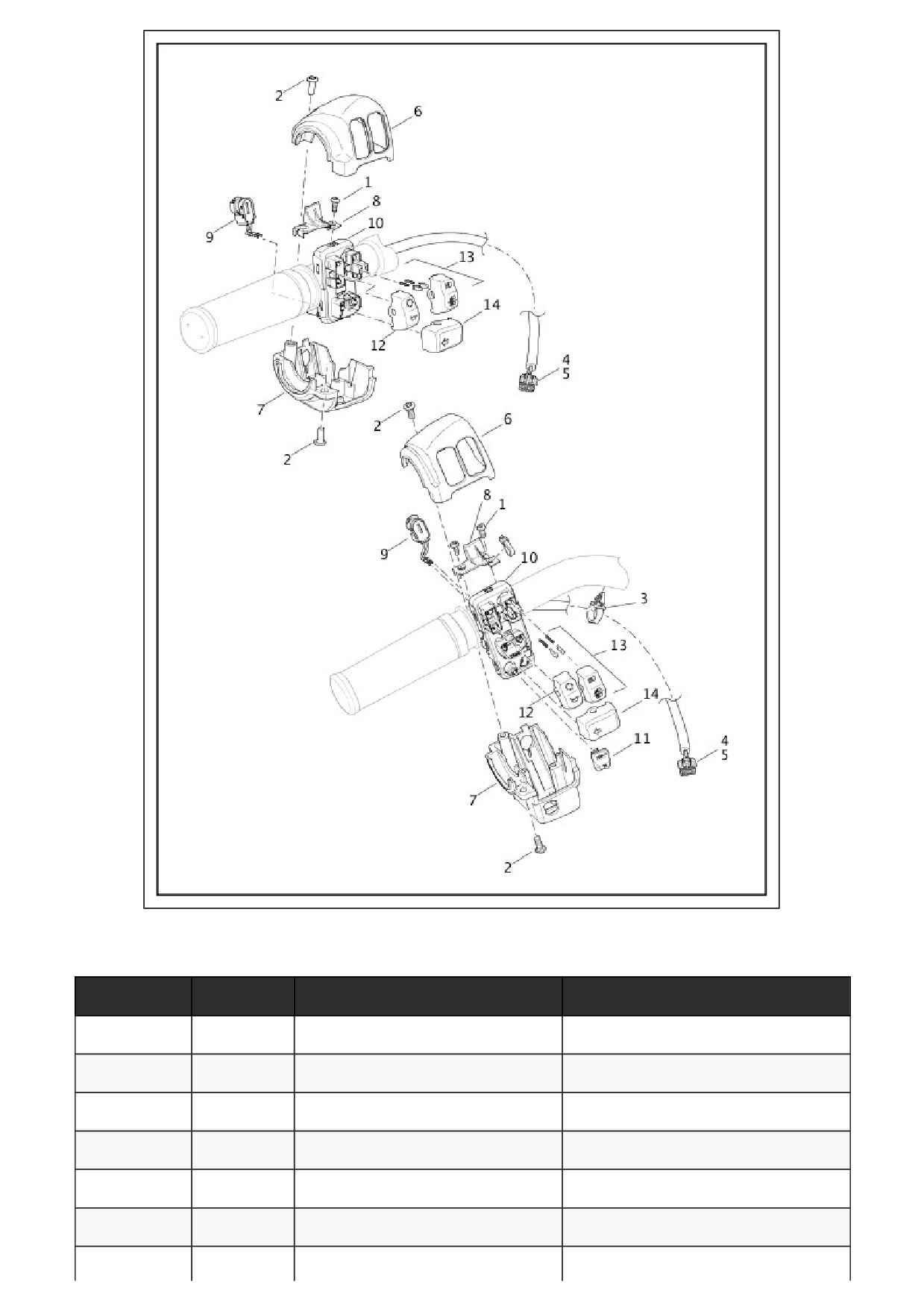

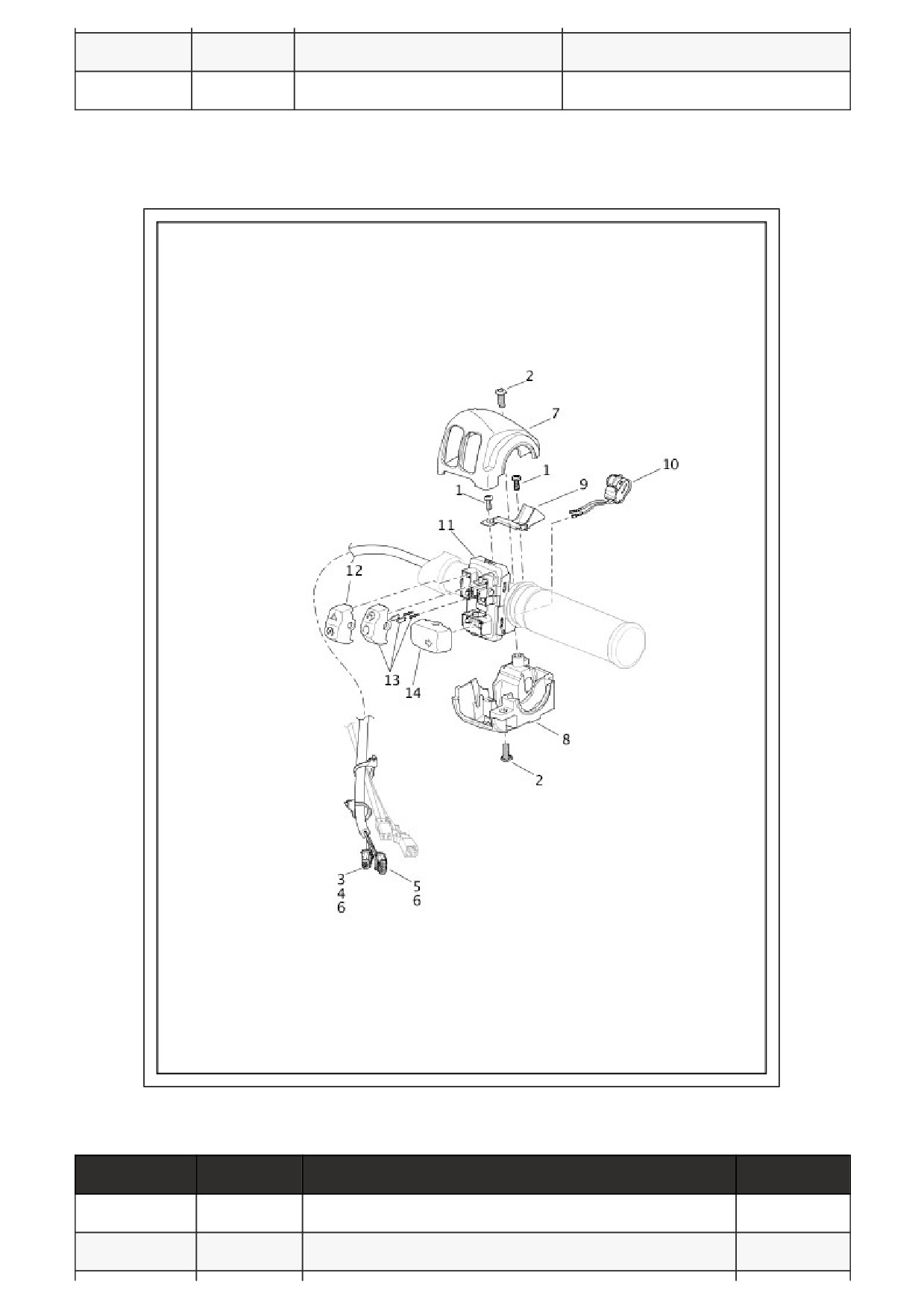

SWITCHES, HANDLEBAR LEFT, FRONT
Index No.
Part No.
Description
Model(s)
71500289
HOUSING, (lower) (left) (black)
FLSTC, FLSTN, FLSS, FLSTFBS
71500114
SWITCH, clutch switch
FLSS, FLSTFBS
10
71500288
SWITCH MODULE, left (black)
FLSTC, FLSTN
71500292
SWITCH MODULE, left (black)
FXSB, FLSTF, FLSTFB, FLS
71500448
SWITCH MODULE, left (black)
FLSS, FLSTFBS
11
71500290
SWITCH CAP, set/resume
FLSTC, FLSTN
12
71500293
SWITCH CAP, horn/trip switch
13
71500294
SWITCH CAP, lights switch
14
71500295
SWITCH CAP, left turn switch
SWITCHES, HANDLEBAR RIGHT, FRONT
Index No.
Part No.
Description
Model(s)
11
71500297
SWITCH MODULE, right side
12
71500298
SWITCH CAP, hazard switch
13
71500299
SWITCH CAP, off/run switch, with pins and springs
14
71500300
SWITCH CAP, right turn switch

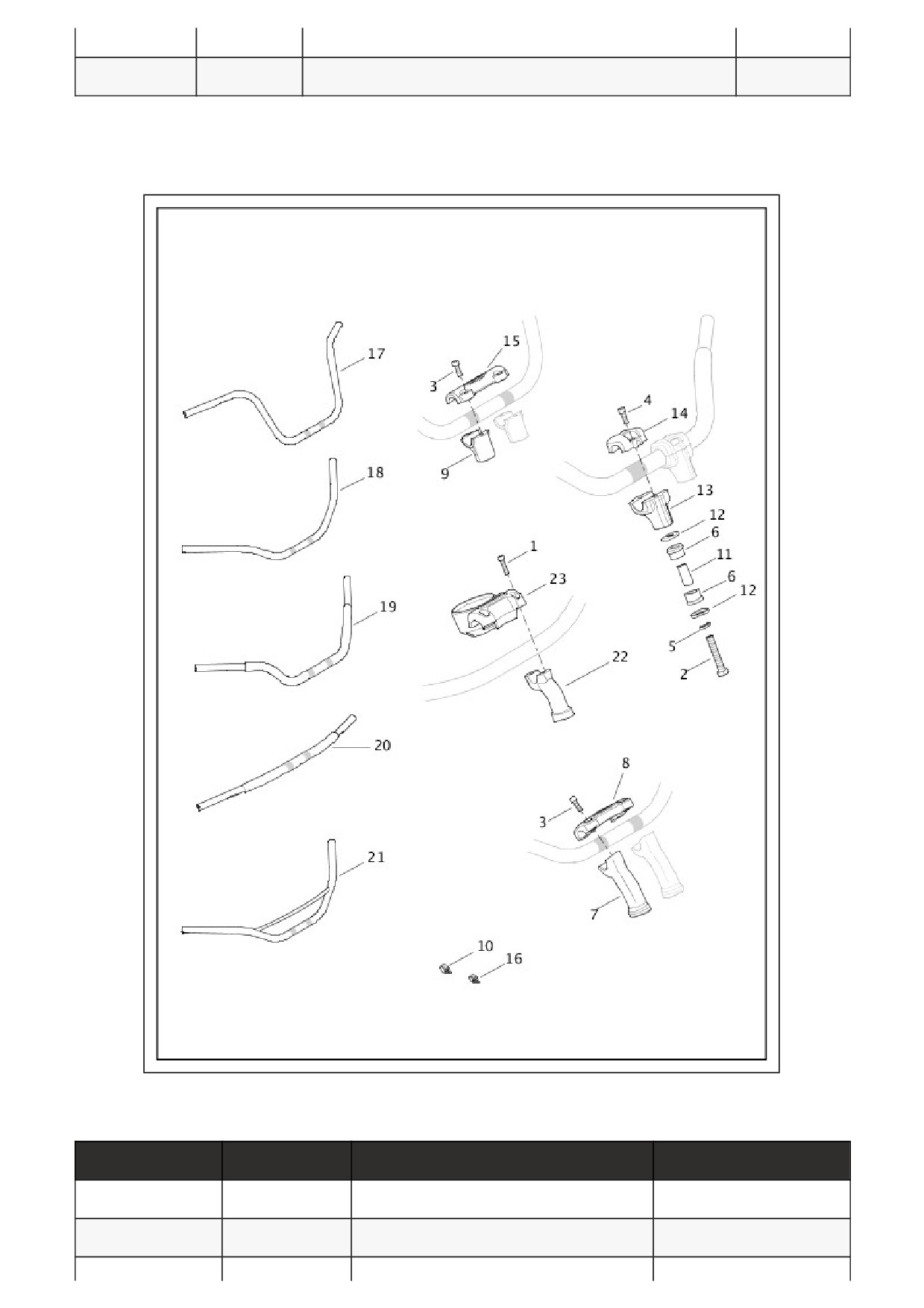

HANDLEBAR
Index No.
Part No.
Description
Model(s)
55900098
RISER, (gloss black) (2)
FLSS
55900097
RISER, (gloss black) (2)
FLSTFBS
55900096
CAP, (gloss black) (2)
FLSTFBS
55900099
CLAMP, (gloss black)
FLSS
17
55800396
HANDLEBAR
FLSTC
18
55800399
HANDLEBAR
FLSTN
19
55800405
HANDLEBAR
FLSTFB, FLSTF
55800634
HANDLEBAR, (gloss black)
FLSTFBS
20
55800411
HANDLEBAR
FXSB
21
55800579
HANDLEBAR
FLS, FLSS

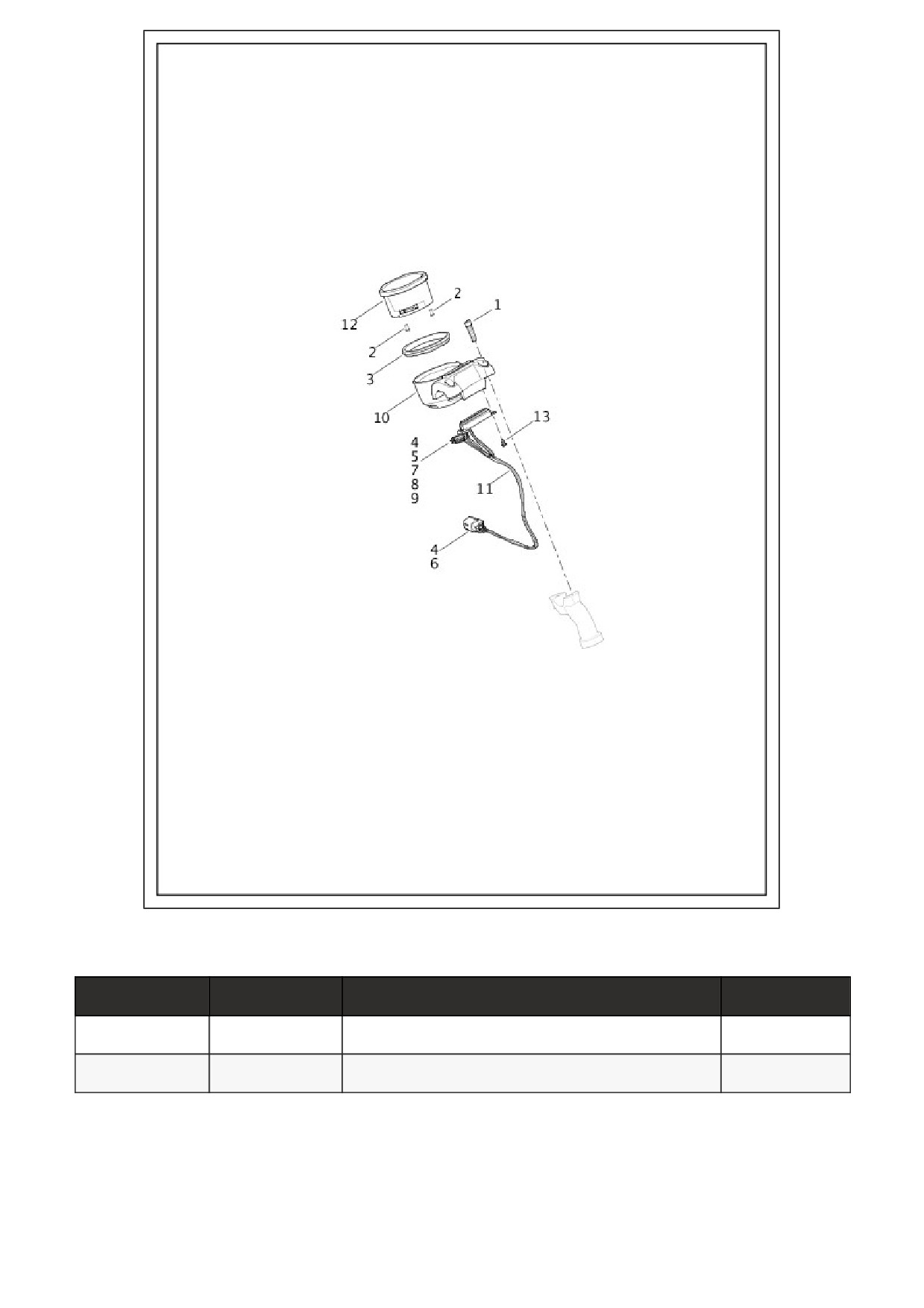

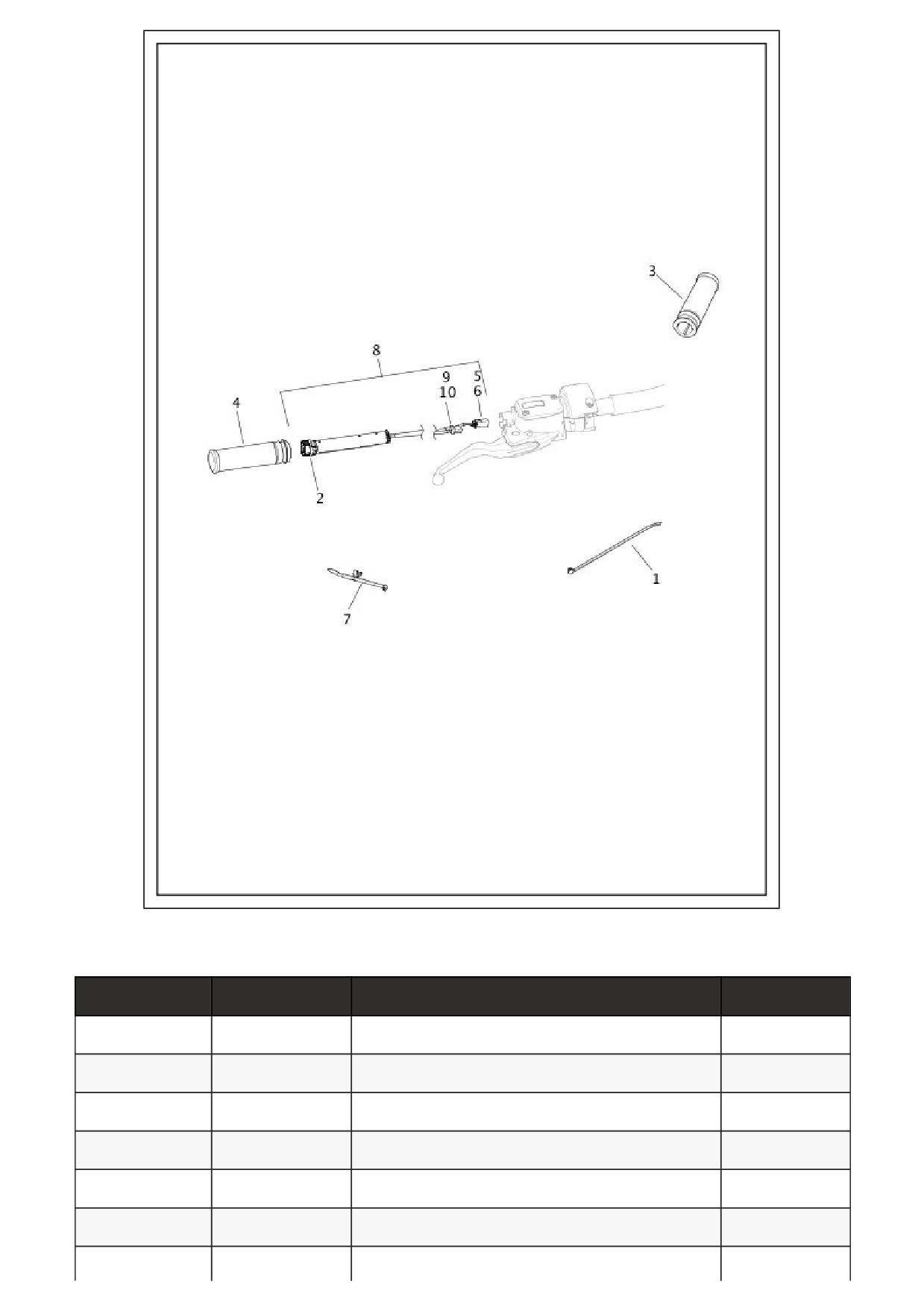

THROTTLE CONTROL
Index No.
Part No.
Description
Model(s)
2
32306-08
SEAL CAP
4
56304-08
THROTTLE SLEEVE AND GRIP
5
72902-01BK
HOUSING, two-way pin (black)
6
72990-01
TERMINAL, pin 18-22 AWG (2)
7
12500001
CABLE STRAP
8
32700050
SENSOR, twist grip
9
69200307
TERMINAL, socket 22 AWG (6)
10
69201162
CONNECTOR, six-way socket (black)

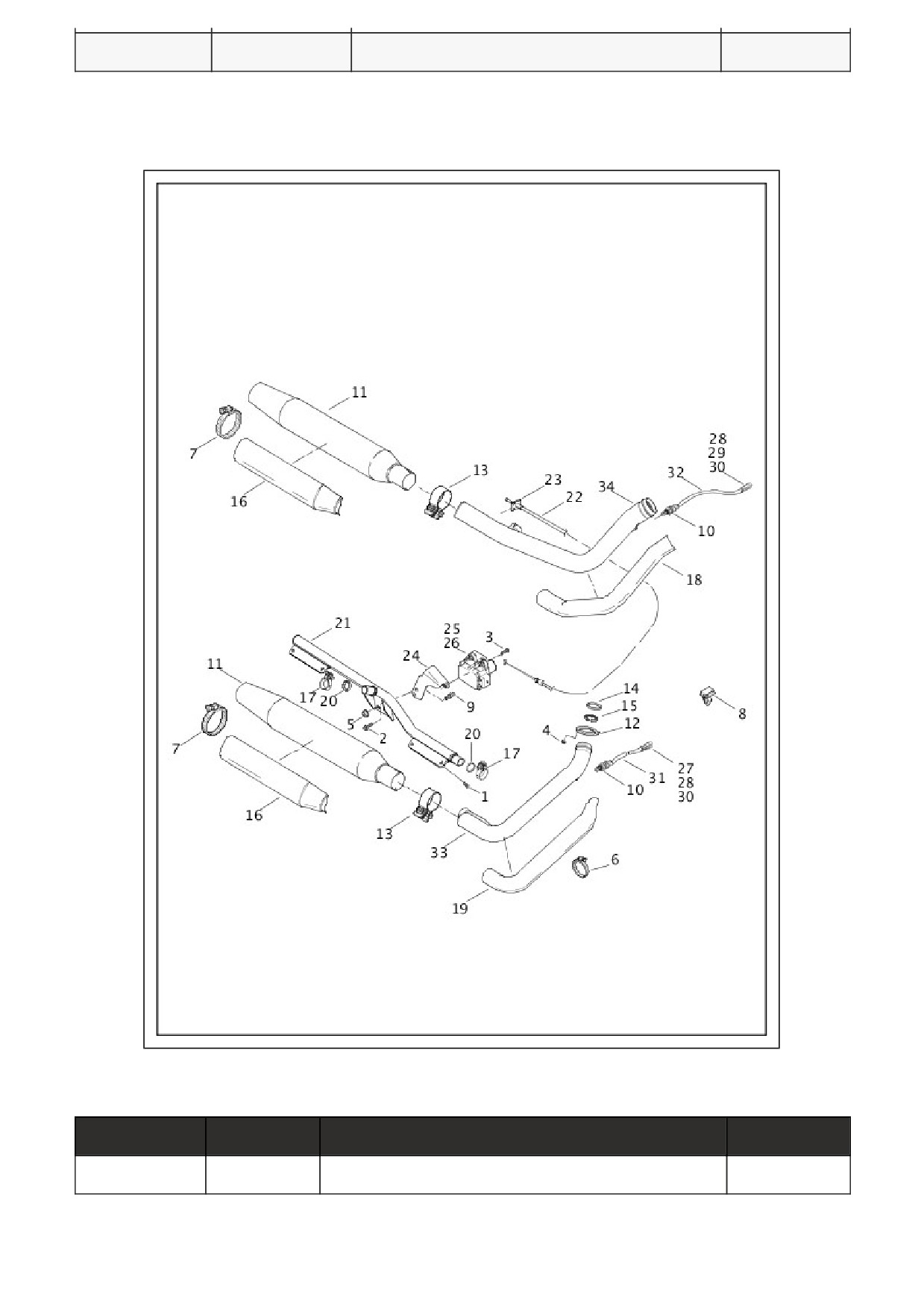

EXHAUST SYSTEM - FLSTC
Index No.
Part No.
Description
Model(s)
3
3799
SCREW, (HDI, Australia, England, India) (2)
FLSTC

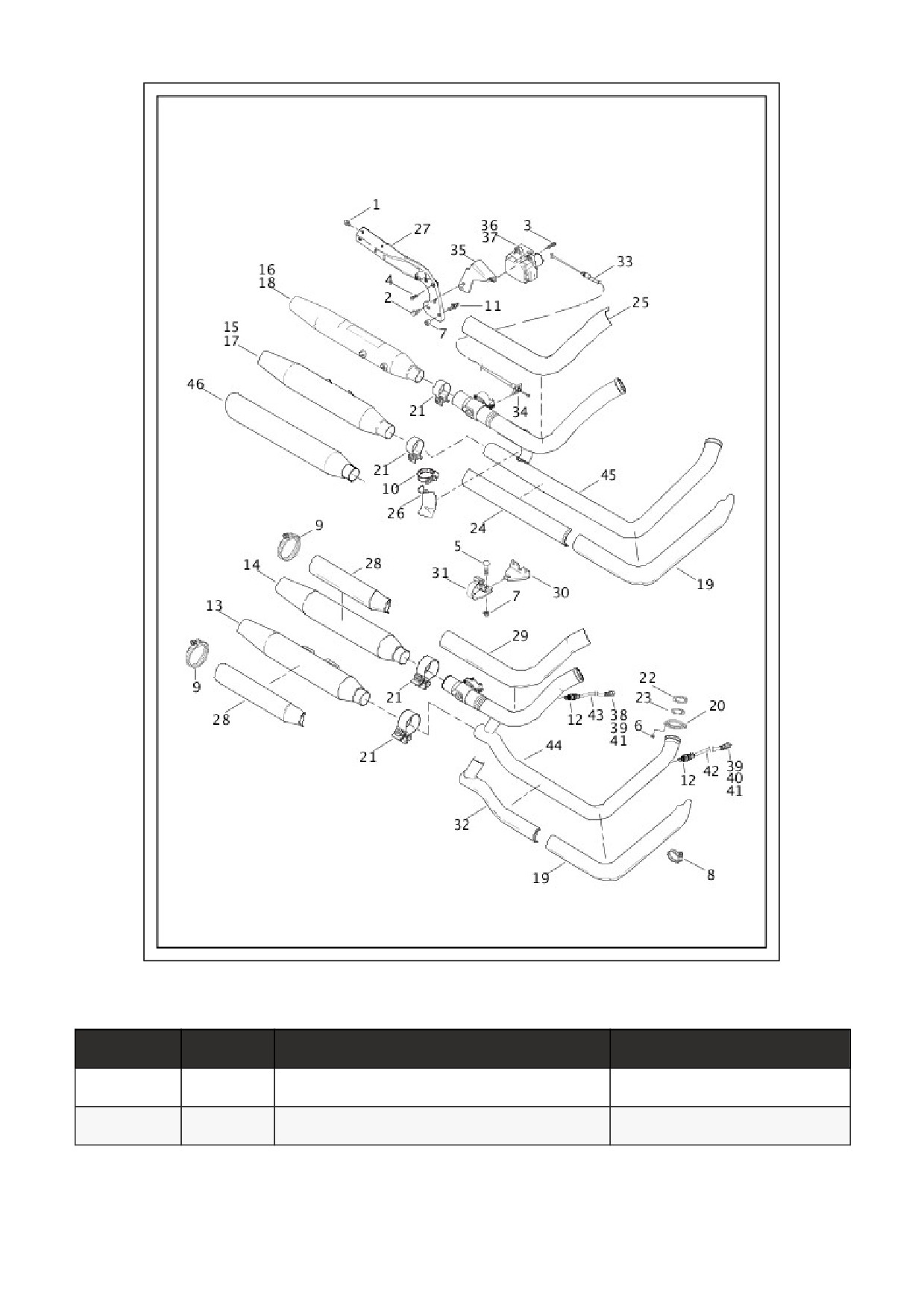

EXHAUST SYSTEM - FLS, FLSS, FLSTF, FLSTFB, FLSTFBS AND
FLSTN (1 OF 2)
Index No.
Part No.
Description
Model(s)
3
3799
SCREW, (HDI, Australia, England, India) (2)
FLSTF, FLSTN, FLSTFB, FLS
10800010
CLAMP, muffler shield (black) (4)
FLSS, FLSTFBS

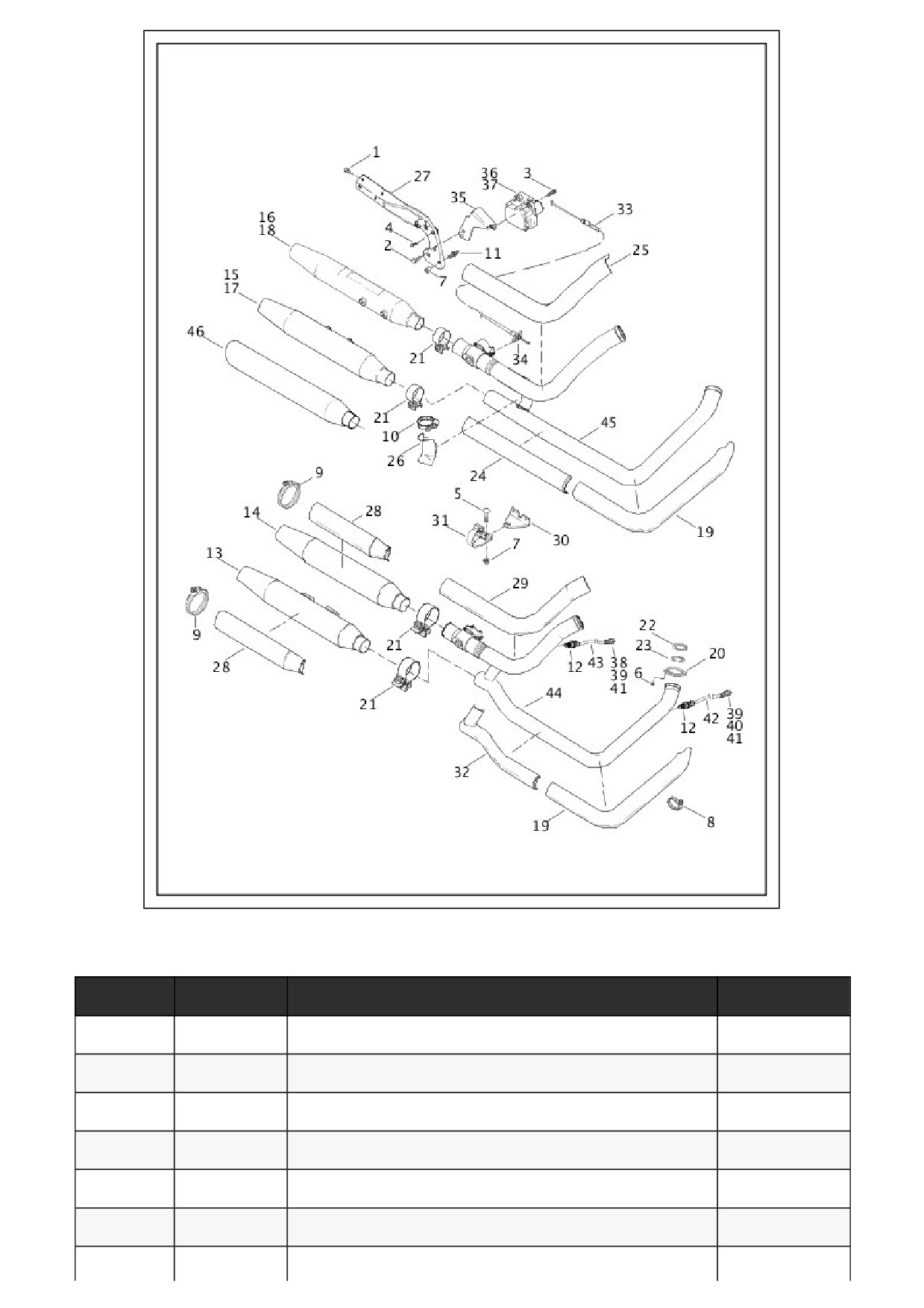

EXHAUST SYSTEM - FLS, FLSS, FLSTF, FLSTFB, FLSTFBS AND
FLSTN (2 OF 2)
Index No.
Part No.
Description
Model(s)
80826-10
SHIELD, exhaust pipe (black)
FLSS
80830-10A
SHIELD, rear exhaust pipe (black)
FLSS
65688-11BHP
MUFFLER SUPPORT, (gloss black)
FLSTFBS
65400277
SHIELD, muffler (2)
FLSS, FLSTFBS
46
64900468
MUFFLER ASSEMBLY, front (black)
FLSS, FLSTFBS
64900469
MUFFLER ASSEMBLY, rear (black)
FLSS, FLSTFBS
64900470
MUFFLER ASSEMBLY, front (black) (Japan)
FLSS, FLSTFBS
64900471
MUFFLER ASSEMBLY, rear (black) (Japan)
FLSS, FLSTFBS
64900472
MUFFLER ASSEMBLY, front (black) (Australia, England, HDI)
FLSS, FLSTFBS
64900473
MUFFLER ASSEMBLY, rear (black) (Australia, England, HDI)
FLSS, FLSTFBS

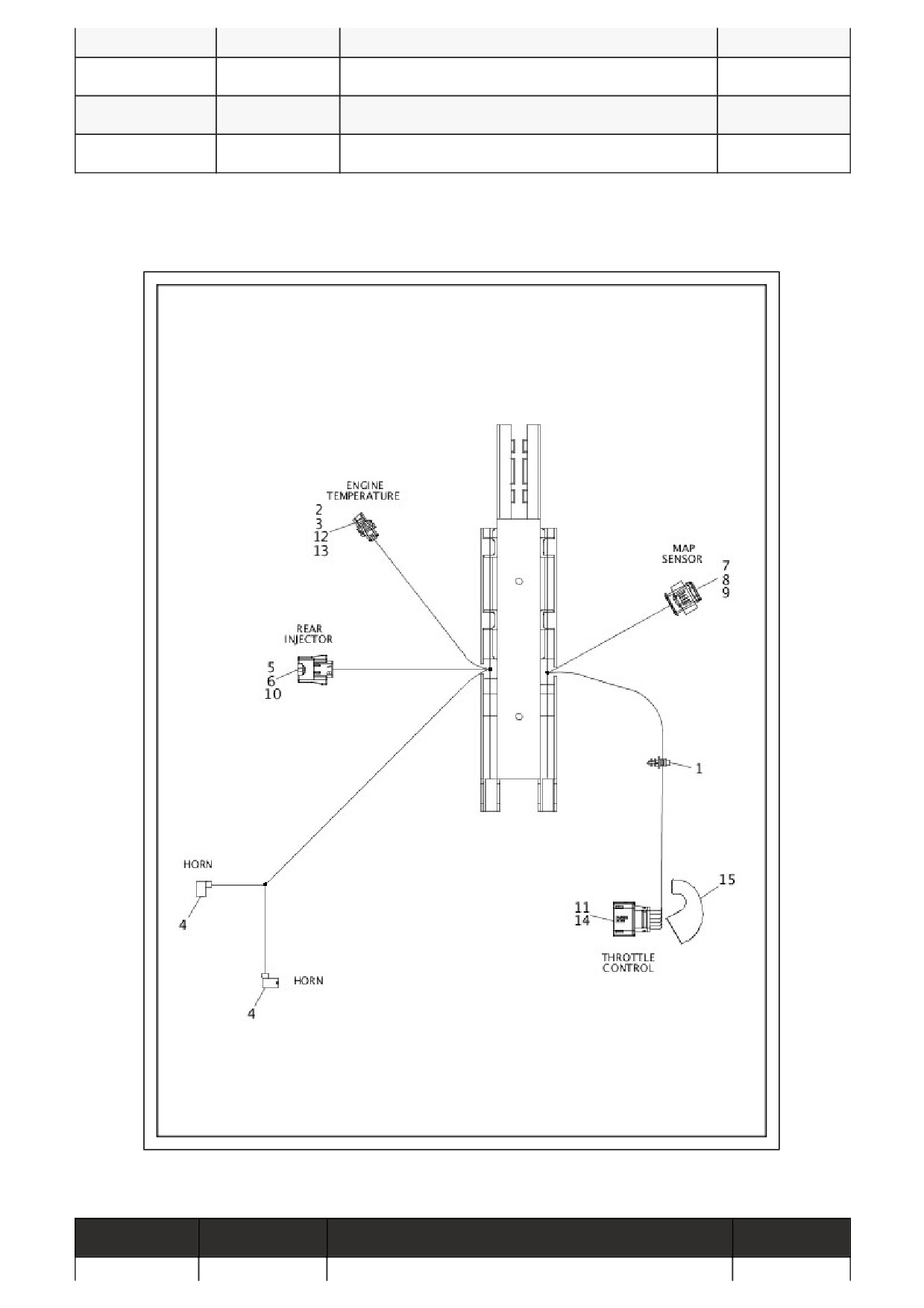

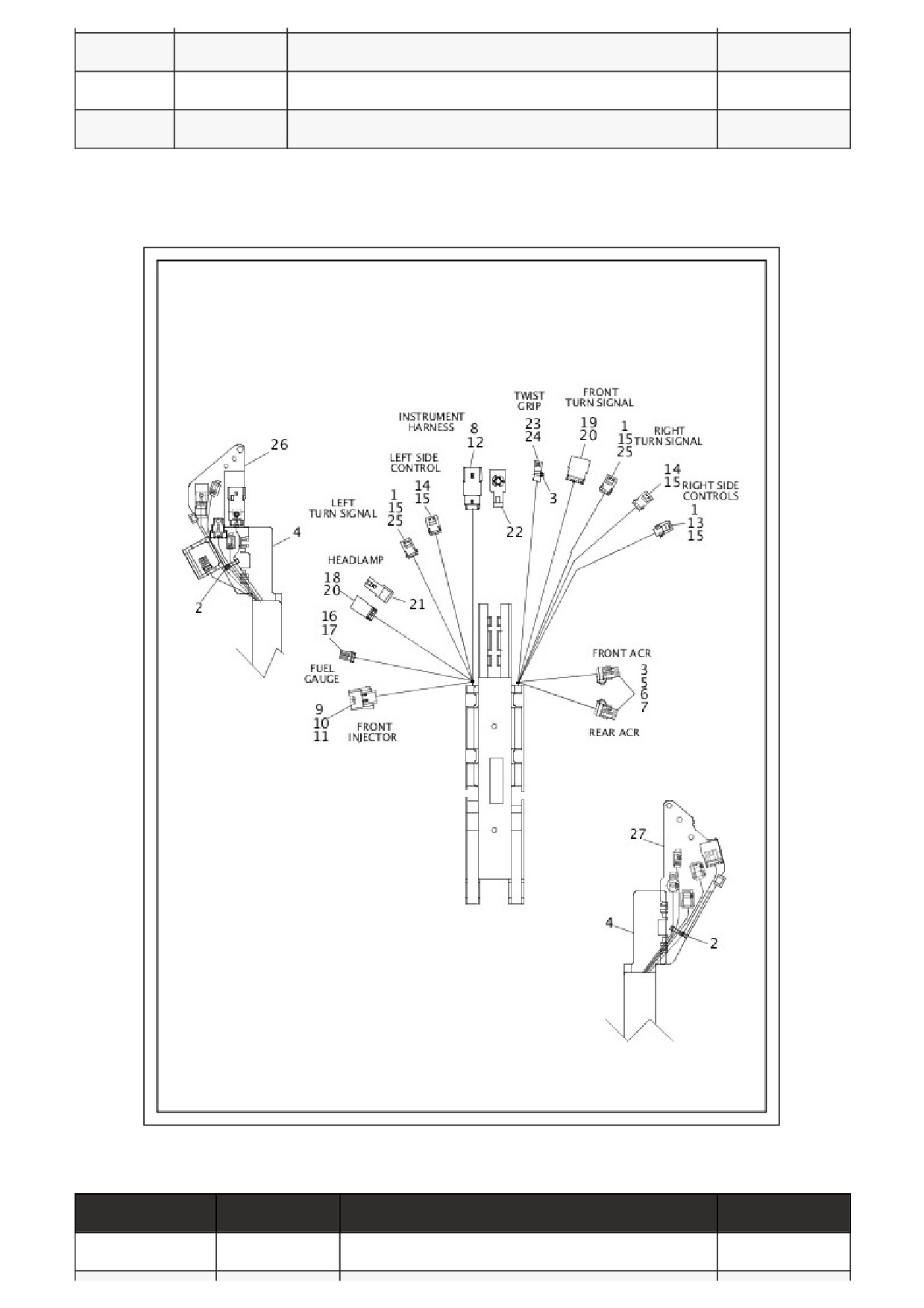

WIRING HARNESS, MAIN, NON-ABS - FLS (1 OF 5)
Index No.
Part No.
Description
Model(s)
23
69201163
HOUSING, six-way pin
FLS
24
69201164
TERMINAL, pin, 22 AWG (6)
FLS
25
69201180
HOUSING, four-way pin (gray) (2)
FLS
26
69201296
BRACKET, electrical connector, right
FLS
27
69201297
BRACKET, electrical connector, left
FLS
WIRING HARNESS, MAIN, NON-ABS - FLS (2 OF 5)
Index No.
Part No.
Description
Model(s)
5
72251-07
SECONDARY LOCK, two-way socket (yellow)
FLS
6
72402-07
HOUSING, two-way socket (black)
FLS
7
72406-07A
HOUSING, four-way socket
FLS
8
72407-07
TERMINAL, socket, 16-20 AWG (4)
FLS
9
72408-07
WIRE SEAL, 20 AWG (blue) (4)
FLS
10
72413-07
TERMINAL, socket, 18-20 AWG (2)
FLS
11
72483-08BK
HOUSING, six-way socket (black)
FLS
15
69200437
BOOT, rubber
FLS
WIRING HARNESS, MAIN, NON-ABS - FLS (3 OF 5)
