Harley Davidson 2016 Softail Models. Parts Catalog

Index No.

Part No.

Description

Model(s)

69201082

WIRING HARNESS, MAIN

FXSB

69201083

WIRING HARNESS, MAIN (Brazil)

FXSB

NOTE: Includes the following parts.

9842

TERMINAL RING, .31 10-12 AWG

FXSB

10006

CABLE STRAP (2)

FXSB

10065

CABLE STRAP (7)

FXSB

72010-05

WIRE SEAL, 22-26 AWG (green) (4)

FXSB

72012-07

HOUSING, five-way socket

FXSB

72014-07

SEAL PIN

FXSB

72024-08

TERMINAL, socket, 20-22 AWG (4)

FXSB

72064-06

HOUSING, three-way socket

FXSB

72066-06A

HOUSING, four-way socket (black)

FXSB

72066-06A

HOUSING, four-way socket (black) (Brazil)

FXSB

72081-11

HOUSING, 48-way socket

FXSB

72094-06

TERMINAL, socket, socket 18 AWG (4)

FXSB

72096-06

WIRE SEAL, 18 AWG (yellow) (4)

FXSB

72097-06

PLUG, oval (orange) (2)

FXSB

72135-06

SECONDARY LOCK, four-way socket (gray)

FXSB

72135-06

SECONDARY LOCK, four-way socket (gray) (Brazil)

FXSB

72209-11

COVER, wire

FXSB

72213-94

TERMINAL, socket, 16-20 AWG (4)

FXSB

72222-11

TERMINAL SOCKET, 18-20 AWG (20)

FXSB

72226-11

TERMINAL SOCKET, 14-16 AWG

FXSB

72227-11

TERMINAL, socket, 18-20 AWG (5)

FXSB

72256-11

SEAL PIN, .6mm, plug (9)

FXSB

72291-94

TERMINAL, 14-16 AWG

FXSB

72295-94

HOUSING, starter connection

FXSB

72350-11

HOUSING, one-way

FXSB

72405-98BK

PUSH ON 90 DEGREE CONNECTOR (2)

FXSB

72473-07

SEAL PIN (5)

FXSB

72484-08

TERMINAL, socket, 20 AWG (6)

FXSB

72484-08

TERMINAL, socket, 20 AWG (Brazil) (8)

FXSB

72486-08

WIRE SEAL, 20 AWG (green) (6)

FXSB

72486-08

WIRE SEAL, 20 AWG (green) (Brazil) (8)

FXSB

72500-07ABK

HOUSING, 20-way socket (black)

FXSB

72518-01

HOUSING, socket, two-way (red)

FXSB

72543-07BK

HOUSING, three-way socket (black)

FXSB

72544-07

SECONDARY LOCK, three-way socket

FXSB

72553-07

DUST CAP, five-way

FXSB

72575-11

SECONDARY LOCK

FXSB

72581-11

TERMINAL, socket, 18-20 AWG (gold) (12)

FXSB

72593-11

TERMINAL, socket, 14-16 AWG (gold) (3)

FXSB

72606-08

HOUSING, two-way socket

FXSB

72609-08

SECONDARY LOCK, two-way socket (black) (2)

FXSB

72610-08

SEAL, cable, 18-20 AWG (white) (4)

FXSB

72664-12A

HOUSING, 18-way, socket, key A (black)

FXSB

72666-12

TERMINAL, socket, 18-20 AWG (silver) (36)

FXSB

73304-04

TERMINAL, .31 socket, 10 AWG

FXSB

73305-04

SEAL WIRE, 10 AWG (blue)

FXSB

69200267A

HOUSING, 18-way, socket, key B (gray)

FXSB

69200268A

HOUSING, 18-way, socket, key C (brown)

FXSB

69201168

TERMINAL, socket, 22 AWG (silver)

FXSB

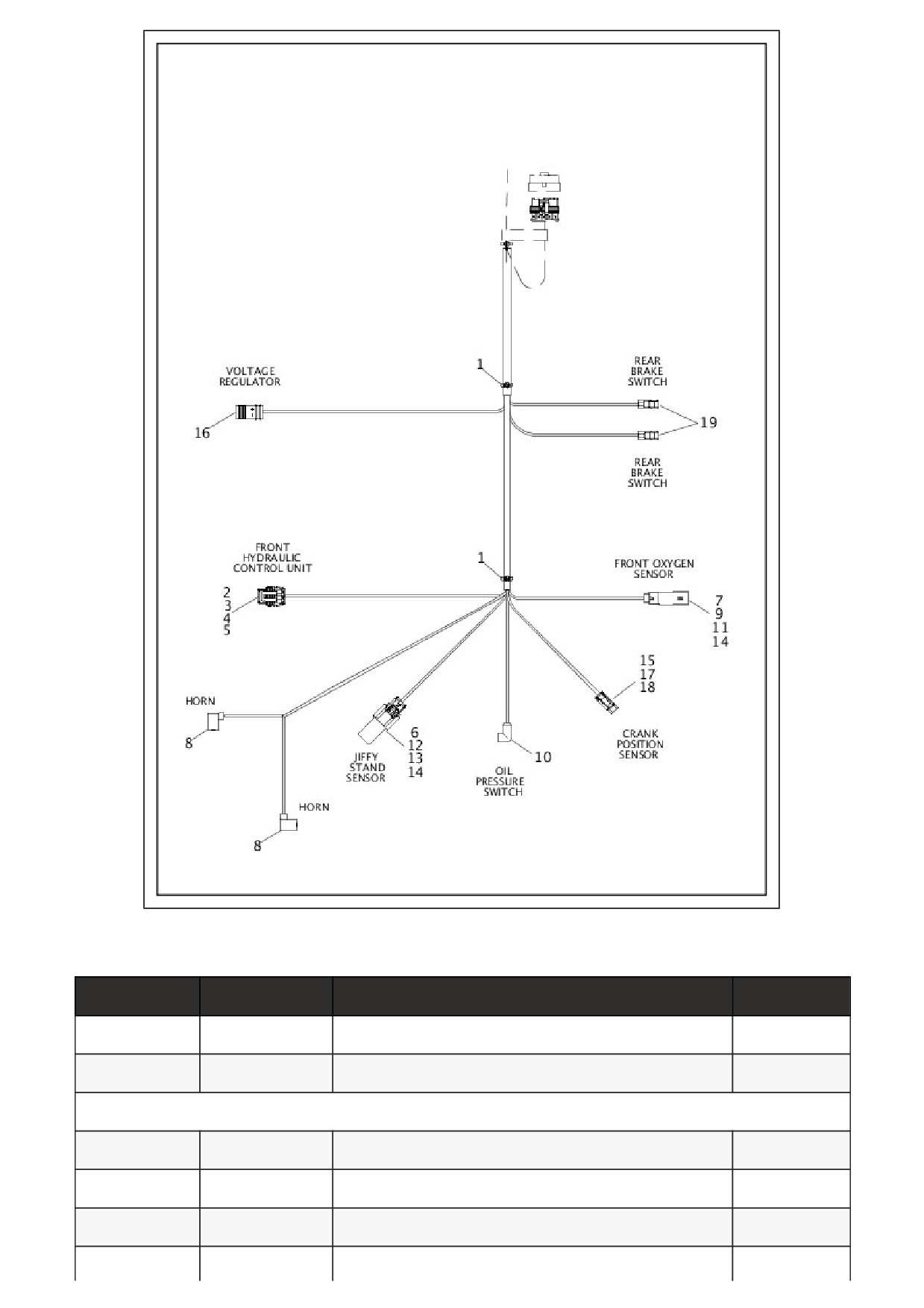

WIRING HARNESS, MAIN, ABS - FXSB (5 OF 5)

Index No.

Part No.

Description

Model(s)

69201082

WIRING HARNESS, MAIN

FXSB

69201083

WIRING HARNESS, MAIN (Brazil)

FXSB

NOTE: Includes the following parts.

10065

CABLE STRAP (2)

FXSB

72066-06A

HOUSING, four-way socket (black)

FXSB

72094-06

TERMINAL, socket, socket 18 AWG (4)

FXSB

72096-06

WIRE SEAL, 18 AWG (yellow) (4)

FXSB

72135-06

SECONDARY LOCK, four-way socket (gray)

FXSB

72168-07

TERMINAL, socket, 18-20 AWG (3)

FXSB

72169-07

TERMINAL, pin, 16-20 AWG (2)

FXSB

72283-09

TERMINAL, socket, 14-16 AWG

FXSB

72343-10

TERMINAL, pin, 16-20 AWG (gold) (2)

FXSB

72405-98BK

PUSH ON 90 DEGREE CONNECTOR

FXSB

72415-07GY

HOUSING, four-way pin (gray)

FXSB

72512-07BK

HOUSING, three-way socket (black)

FXSB

72519-09BK

DUST CAP, three-way socket

FXSB

73213-07

RETAINER, anchored clip (2)

FXSB

74112-98BK

HOUSING, two-way socket (black)

FXSB

74120-08

DC LEAD ASSEMBLY

FXSB

74152-98

SECONDARY LOCK, two-way socket

FXSB

74191-98

TERMINAL, socket (2)

FXSB

69200238

TERMINAL, insulated (2)

FXSB

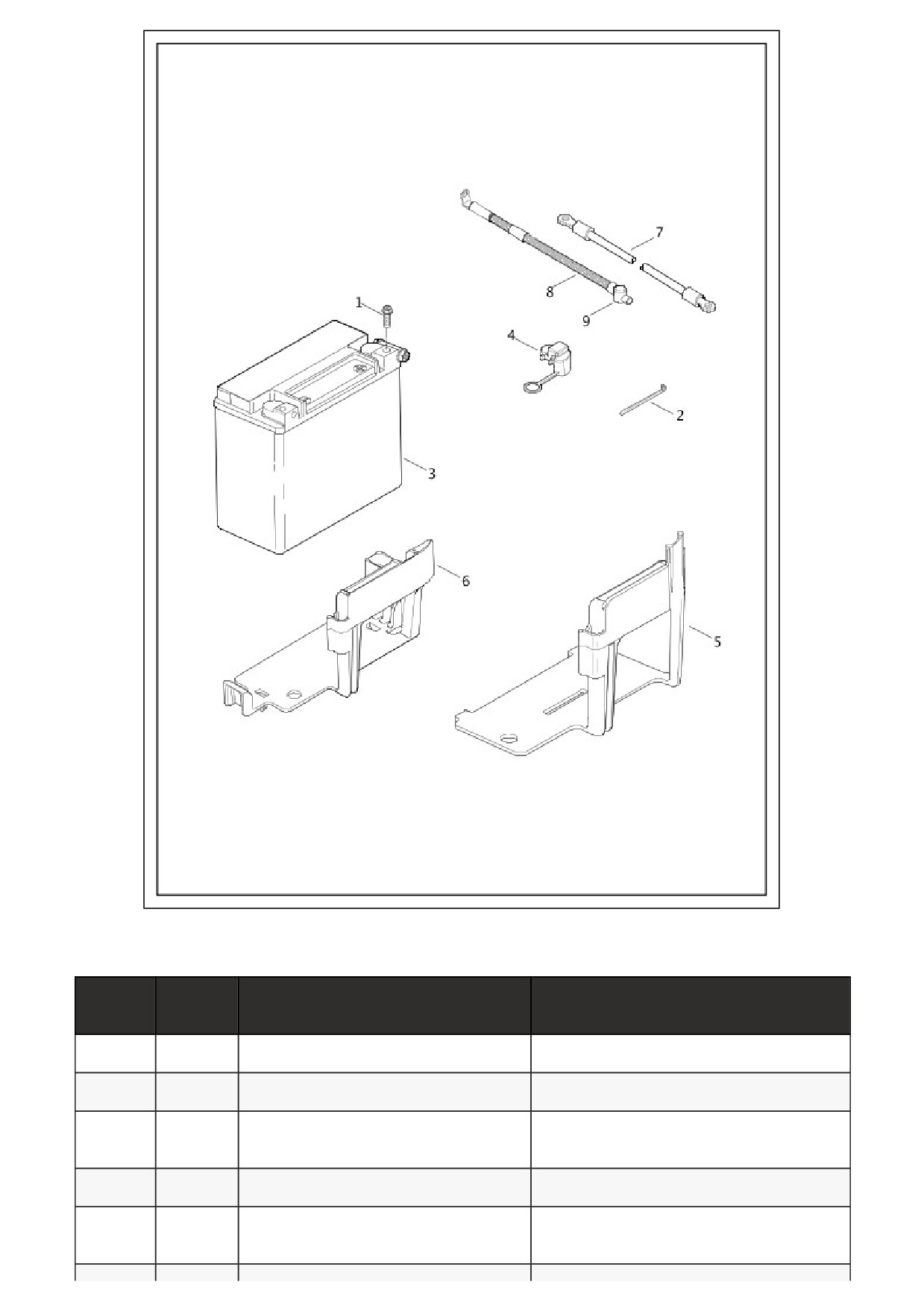

BATTERY

70111-07

CADDY

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

70112-08

CADDY

FXSB

70060-

CABLE ASSEMBLY, battery negative

08A

70078-

CABLE ASSEMBLY, battery positive, with

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

08A

70593-08

FLSTFBS

70082-

CABLE ASSEMBLY, battery positive, with

FXSB

08A

70593-08

BOOT

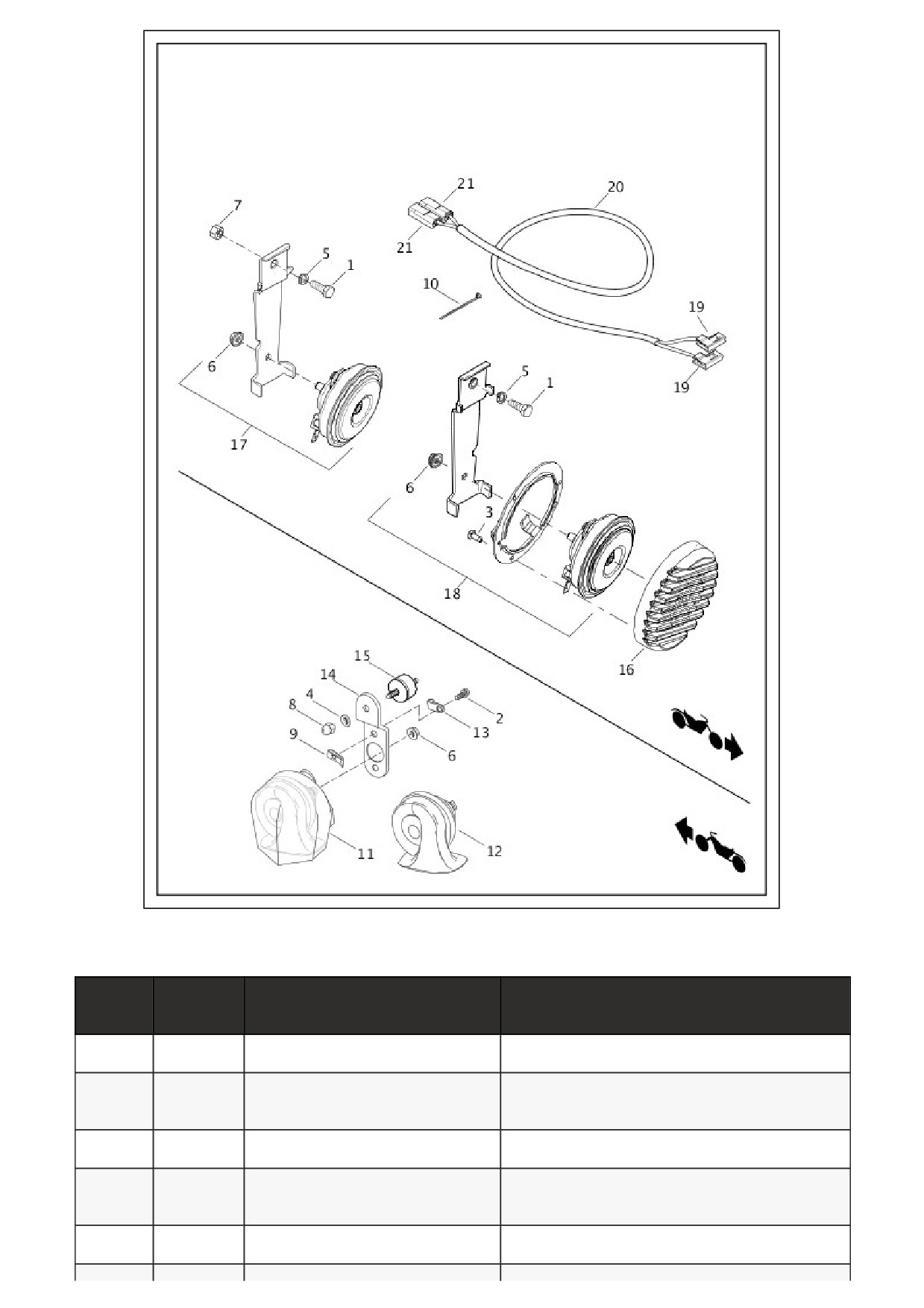

HORN

7495

NUT

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FXSB,

FLSS, FLSTFBS

7531

LOCKNUT, (India) (2)

FLSTC

7549A

ACORN NUT

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

8108

SPEEDNUT (2)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

10006

CABLE STRAP (2)

FXSB

61300477

COVER, horn (gloss black)

FLS, FLSS, FLSTFBS

61300478

COVER, horn (chrome)

FLSTC, FLSTF, FLSTN

61300481

COVER, horn (black denim)

FLSTFB

69060-90H

HORN ASSEMBLY

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

69062-91A

CLAMP

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

69120-91

BRACKET, horn

FLSTC, FLSTF, FLSTN, FLS, FLSS, FLSTFBS

69130-

BRACKET, horn

FLSTFB

10BYM

69123-92A

MOUNT, horn (rubber)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

69170-08

COVER, horn

FXSB

69000026

HORN ASSEMBLY, with 7495 (India)

FLSTC

69000033

HORN ASSEMBLY, with 7495 (India)

FLSTFB, FLSTF, FXSB

69000006

HORN ASSEMBLY, with 7495

FXSB

72283-09

TERMINAL, 14-16 AWG, 90-degree

FLSTC, FLSTFB, FLSTF

(India) (2)

69200282

JUMPER, horn (India)

FLSTC, FLSTFB, FLSTF

69200283

TERMINAL, 14-16 AWG (India) (2)

FLSTC, FLSTFB, FLSTF

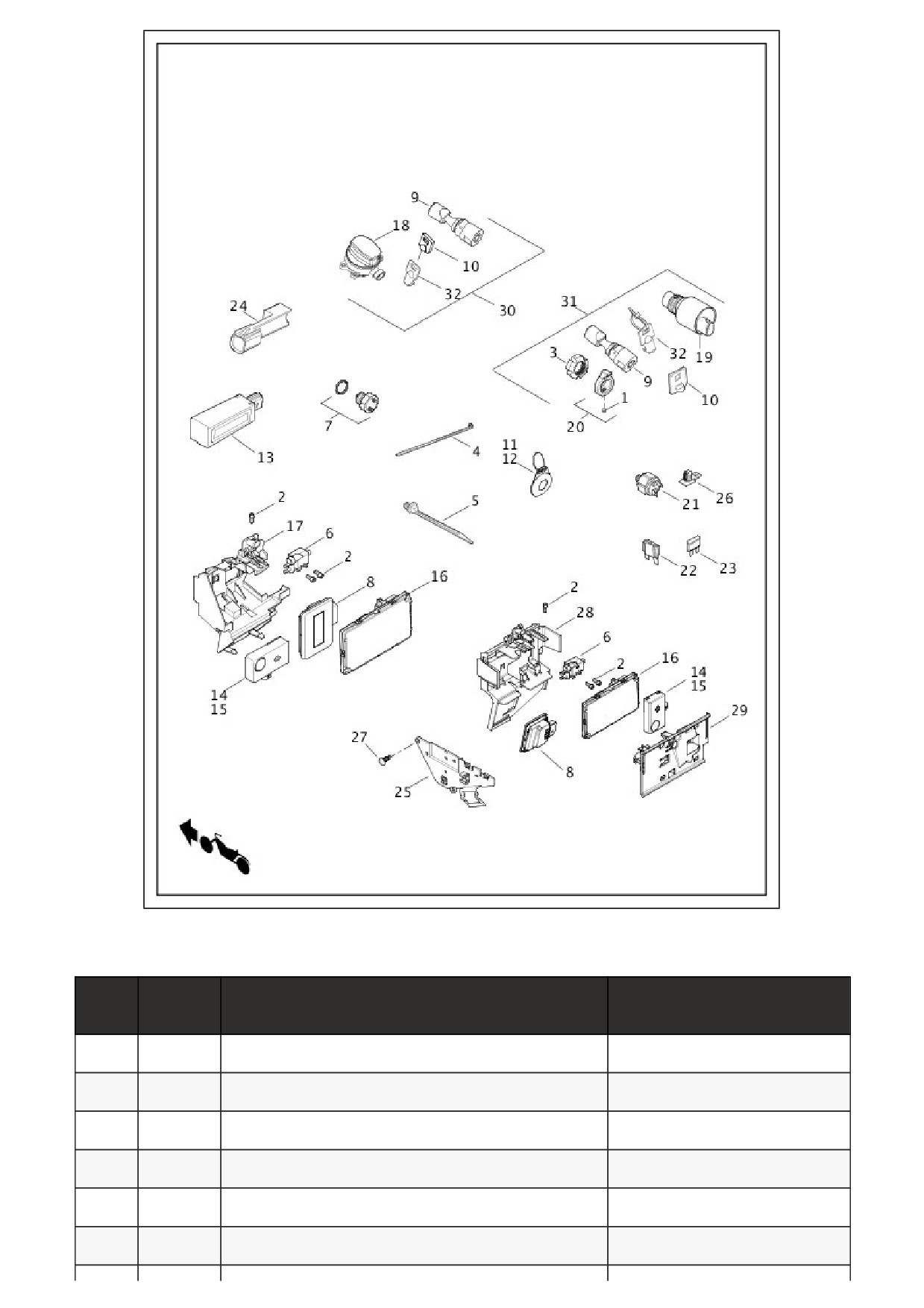

SWITCHES

33926-

SWITCH, neutral indicator

06B

41100036

ABS MODULE (ECU)

45680-90

FORK LOCK

61081-92

COVER, key head set

66373-06

BATTERY, remote control fob

68926-07

REMOTE CONTROL FOB, with 66373-06

69995-11

REMOTE CONTROL FOB, with 66373-06 (Japan)

68956-07

MODULE, antenna security (except Japan)

68958-

SIREN ALARM, for siren vehicles (Asia-Pacific, Australia,

07C

Brazil, England, HDI, Japan)

69309-10

BATTERY, siren (Asia-Pacific, Australia, Brazil, England,

HDI, Japan )

69991-

BODY CONTROL MODULE (BCM), base level

11C

69993-

BODY CONTROL MODULE (BCM), 434 MHZ, security

11C

69997-

BODY CONTROL MODULE (BCM), 315 MHZ, security

11C

(Japan)

70354-11

BRACKET, electrical

FLSTC, FLSTF, FLSTN, FLSTFB,

FLS, FLSS, FLSTFBS

71517-11

IGNITION SWITCH, (specify key number)

FLSTC, FLSTF, FLSTN, FLSTFB,

FLS, FLSS, FLSTFBS

71794-11

SWITCH ASSEMBLY, ignition

FXSB

71796-11

IGNITION SWITCH KNOB KIT, with 1565

FXSB

72023-

STOP LAMP SWITCH, rear

51E

72314-01

MAIN FUSE, 40 A

72330-95

FUSE, 15 A (6)

72594-11

DUST CAP, two-way socket, non-security

72596-11

BRACKET, electrical connectors (right) (not illustrated)

72597-11

BRACKET, electrical connectors (left)

73213-07

RETAINER, anchored

FLSTC, FLSTF, FLSTN, FLS,

FLSTFB, FLSS, FLSTFBS

12600015

FASTENER, push-in

69200451

CADDY, electrical

FXSB

69200452

COVER, electrical caddy

FXSB

71400076

IGNITION SWITCH AND FORK LOCKSET, with 90300043

FLSTC, FLSTF, FLSTN, FLSTFB,

6702

WASHER (2)

FLSTC

7549A

ACORN NUT (2)

FLSTC

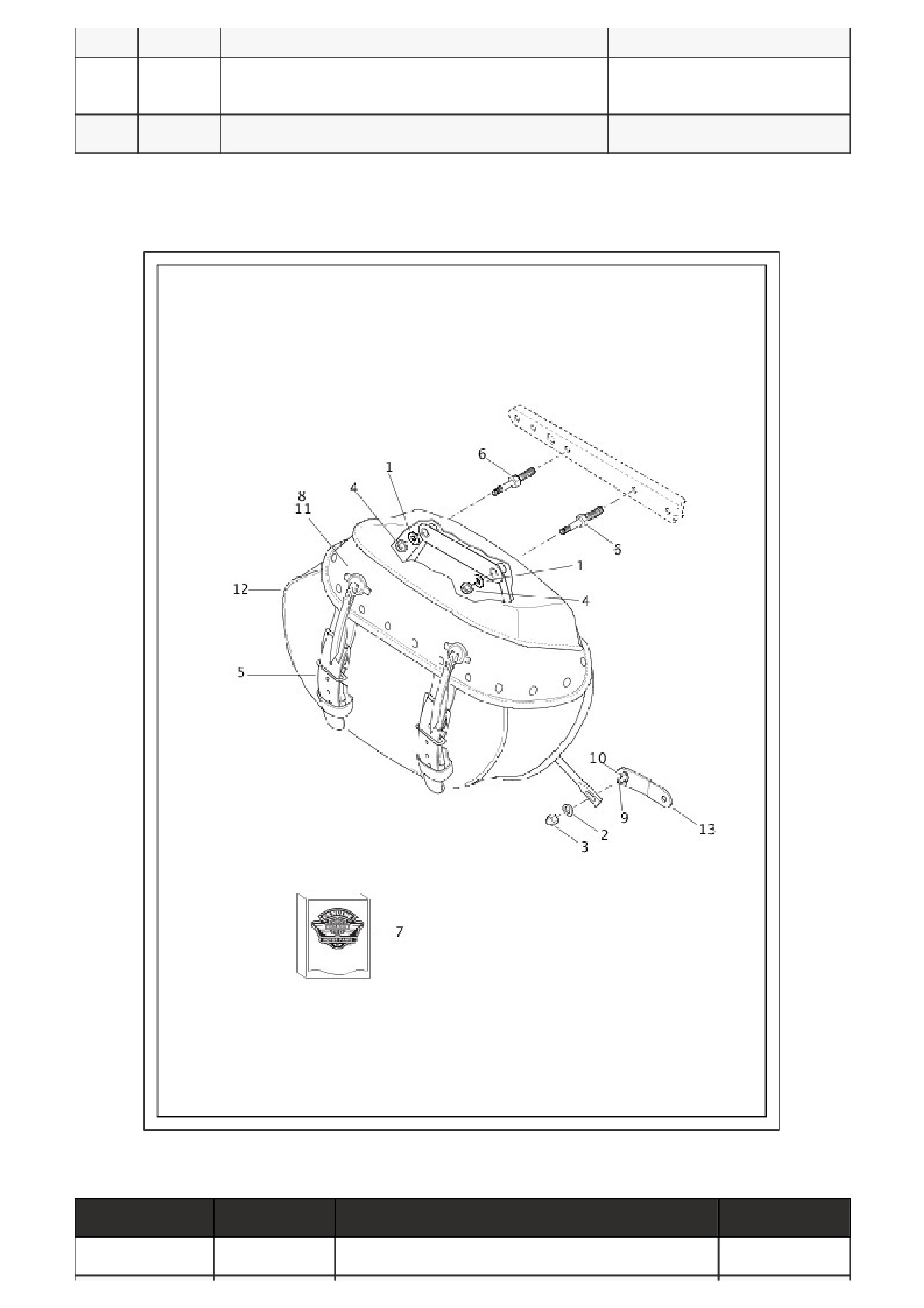

7531

LOCKNUT (4)

FLSTC

90247-00

BUCKLE ASSEMBLY (4)

FLSTC

90367-03

STUD (4)

FLSTC

90438-10

SADDLEBAG STRAP REPAIR KIT (4)

FLSTC

91679-00

BACKPLATE (4)

FLSTC

10200410

BOLT (2)

FLSTC

10300100

WASHER, retaining (2)

FLSTC

61400327

CONCHO (4)

FLSTC

90201299

SADDLEBAG, (left) (not shown)

FLSTC

90201300

SADDLEBAG, (right)

FLSTC

90201305

SUPPORT BAR, saddlebag

FLSTC

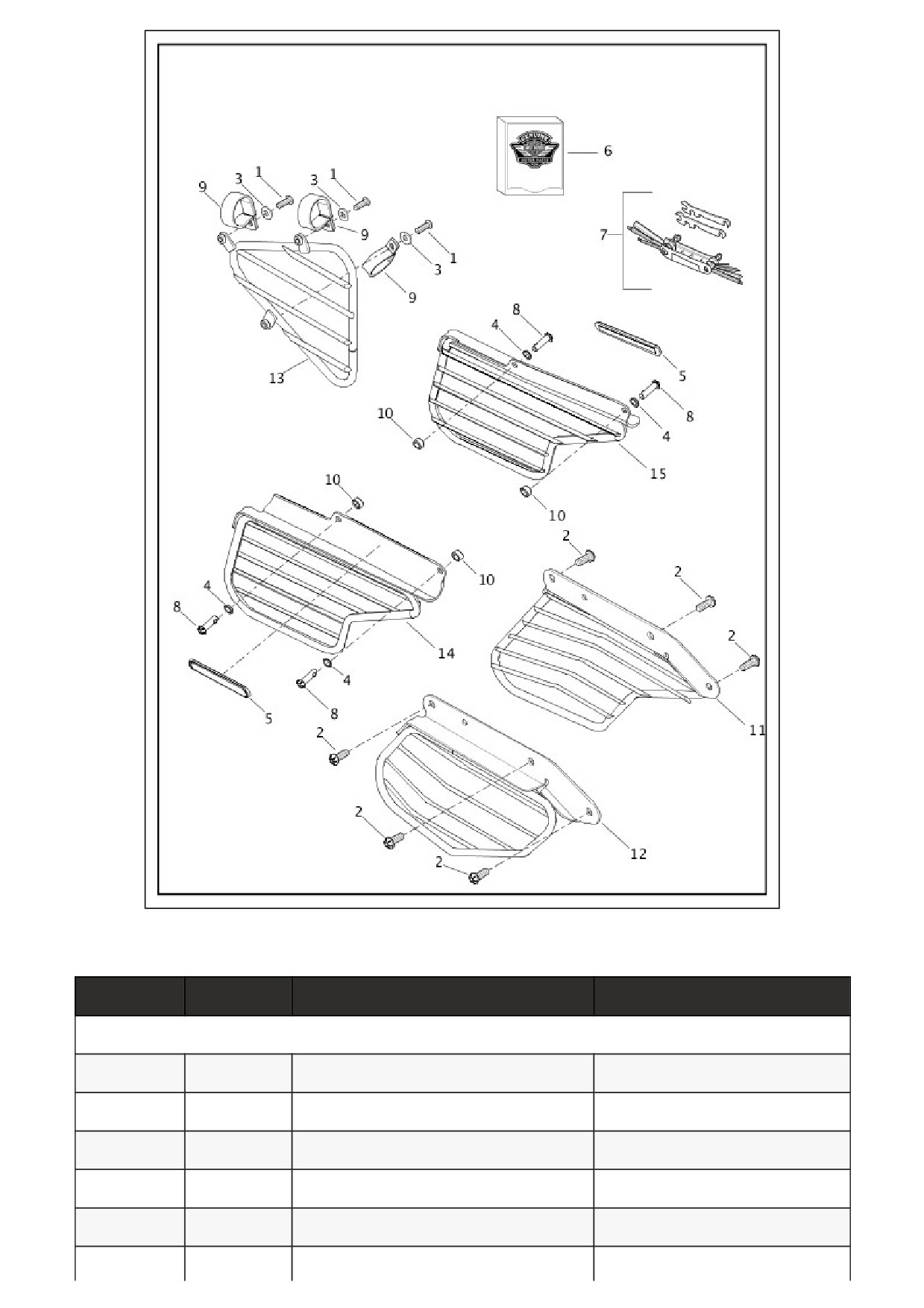

GUARDS, SAREE

Index No.

Part No.

Description

Model(s)

NOTE: These parts are required for motorcycles sold in the India market.

927A

SCREW (3)

FLSTFB, FXSB, FLSTF

4512A

SCREW (6)

FLSTFB, FLSTF

6703

WASHER (3)

FLSTFB, FXSB, FLSTF

6812

WASHER (4)

FXSB

60254-07

REFLECTOR (2)

FXSB

93511-10

FIRST AID KIT

FLSTFB, FXSB, FLSTC, FLSTF

94435-10

FOLDING TOOL

FLSTFB, FXSB, FLSTC, FLSTF

10200386

SCREW (4)

FXSB

10800054

P-CLAMP (3)

FLSTFB, FLSTF

10800093

P-CLAMP, (not shown) (3)

FXSB

12400108

SPACER (4)

FXSB

60300018

SAREE GUARD, rear (left)

FLSTFB, FLSTF

60300019

SAREE GUARD, (right)

FLSTFB, FLSTF

60300032A

SAREE GUARD, front ( left)

FLSTFB, FXSB, FLSTF

60300109

SAREE GUARD, with 60254-07 (right)

FXSB

60300110

SAREE GUARD, with 60254-07 (left)

FXSB

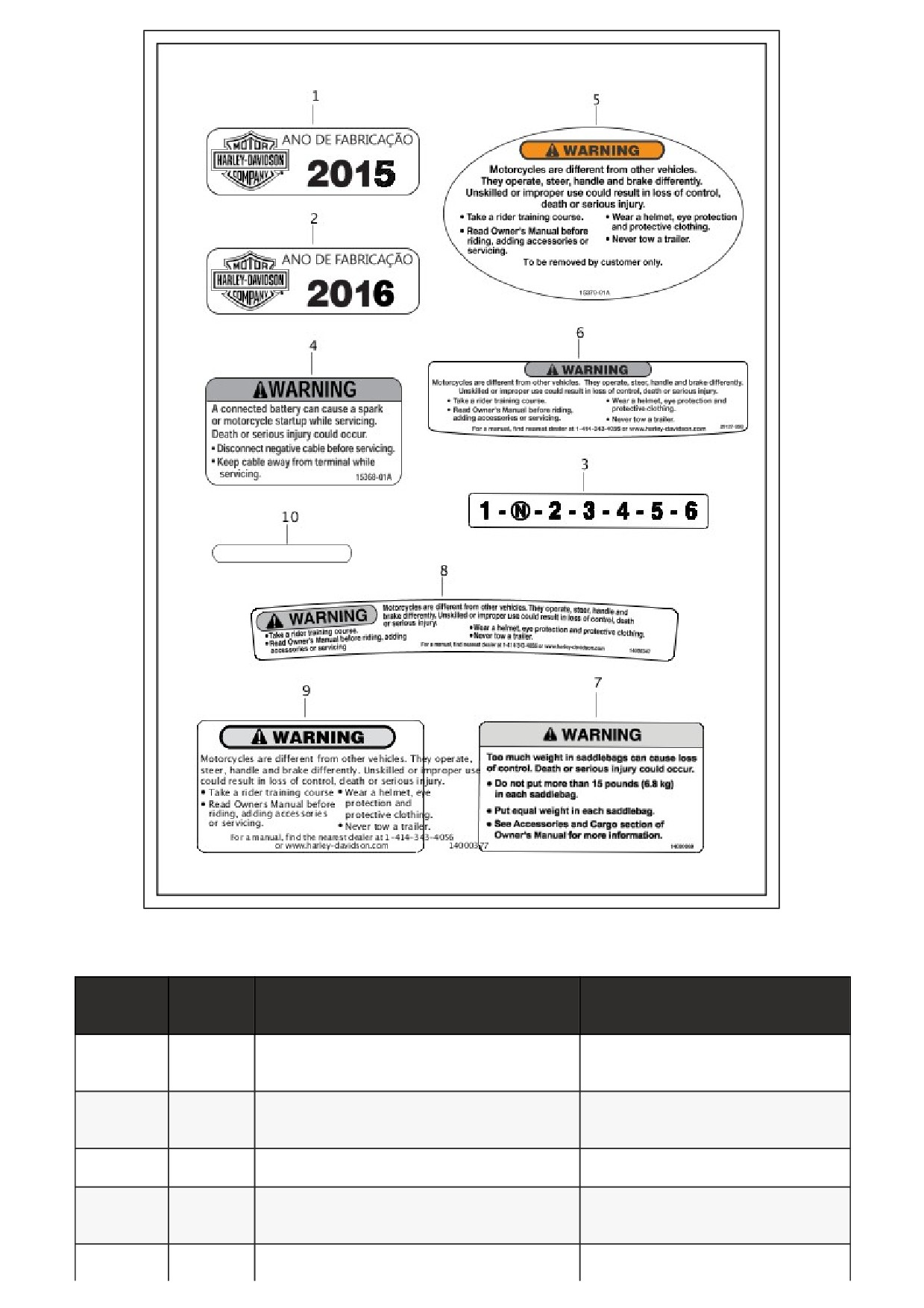

LABELS

Index

Part No.

Description

Model(s)

No.

13729-15

YEAR OF MANUFACTURE LABEL, (Brazil)

FXSB, FLSTC, FLSTF, FLSTN,

FLSTFB

13729-16

YEAR OF MANUFACTURE LABEL, (Brazil)

FXSB, FLSTC, FLSTF, FLSTN,

FLSTFB

14272-06

LABEL, shift pattern (Japan)

15368-

LABEL, battery warning

01A

15370-

LABEL, mirror/general warning

01A

15385-08

LABEL, mirror warning, Portugese (Brazil)

FXSB, FLSTC, FLSTF, FLSTN,

FLSTFB

29127-

LABEL, air cleaner warning

FLSTC, FLSTF, FLSTN, FXSB

95B

29404-

LABEL, air cleaner warning

FLSTFB, FLS

01A

14000069

LABEL, warning, saddlebag

FLSTC

14000347

LABEL, air cleaner warning (Domestic,

FLSS

California)

14000377

LABEL, air cleaner warning (Domestic,

FLSTFBS

California)

14000827

CLEAR OVERLAY, VIN label (Japan)

NOTE: When ordering any VIN, Emissions, or Noise Labels you must contact your local dealer with the VIN number and

model year of your motorcycle and the label type needed. Replacement VIN and Emissions labels can only be ordered

for warranty purposes through h-dnet Service eForm.

LOOSE PARTS

Index

Part No.

Description

Model(s)

No.

68926-07

REMOTE CONTROL FOB, with 66373-06 (except Japan) (2)

69995-11

REMOTE CONTROL FOB, with 66373-06 (Japan) (2)

72314-01

MAIN FUSE, 40 A

99469-16

OWNER'S MANUAL, (English)

94000326

OWNER'S KIT CONTENT, (Domestic)

90300043

KEY, with 61081-92 (set of two) (specify key number)

94000084

ABS DVD, (ABS Models)

57061-09

WINDSHIELD ASSEMBLY, complete (Australia,Canada, Domestic,

FLSTC

India

57091-

WINDSHIELD ASSEMBLY, complete (England, HDI, Japan)

FLSTC

06A

93511-10

FIRST AID KIT, (India)

FLSTC

94435-10

FOLDING TOOL, (India)

FLSTC

93511-10

FIRST AID KIT, (India)

FLSTFB, FXSB,

FLSTF

94435-10

FOLDING TOOL, (India)

FLSTFB, FXSB,

FLSTF

29762-09

RAINSOCK

FLSTFBS

ALL SOFTAILFLSTCFXSB, FLSTF, FLSTFBFLSTFBS

Hardware List

Part No.

Description

1001

SCREW

1/4-20 X 5/8 TORX button hd., self-tapping (Grade 8)

1039

SCREW

5/16-18 X 2-1/2 hex flange hd. (Grade 8)

10500053

SCREW

1/4-20 X 3/8 TORX button hd., w/ lockpatch (zinc)

1062

SCREW

1/4-20 X 5/8 TORX hd. (Grade 8)

1090A

SCREW

5/16-18 X 3-3/4 hex flange hd.w/ seal ring

1775

SCREW

1/4-20 X 4 hex socket hd. (Grade 8)

1778

SCREW

1/4-20 X 4-1/2 hex socket hd. w/lock patch

2441

SCREW No. 10-24 X 1/2 TORX pan hd.

2452

SCREW No. 12-24 X 13/16 pan hd., w/lockpatch

2501A

SCREW No. 8-32 X 3/8 hex hd., self-tapping

2538

SCREW

1/4-20 X 1 Pozidriv pan hd. (Grade 2)

2566

SCREW No. 8-32 X 7/8 self-tapping

2579A

SCREW No. 8-32 X 5/16 Pozidriv oval hd.

2590

SCREW No. 8-32 X 5/8 Phillips hd.

2604

SCREW No. 10-32 X 1/2 Pozidriv pan hd. (Grade 2)

2647B

SCREW No. 10-24 X 3/4 socket hd., self-locking

2692WB

SCREW No. 10-24 X 1/2 socket fillister hd. (Grade 8)

2773

SCREW

1/4-20 X 1/2 Pozidriv pan hd. (Grade 2)

2882W

SCREW

5/16-18 X 5/8 hex hd. (Grade 5)

2921

SCREW No. 12 X 5/8 TORX pan hd.

29269-83A

SCREW 15/16-18 X 5/8 hex button hd., w/lockpatch

29327-94

SCREW 5/16-18 X 1-1/4 lock patch

2941

SCREW 1/4-20 X 35/64 socket hd., self-tapping (Grade 5)

2980

SCREW M6 X 1 X 16mm hex flange hd.

3017

SCREW No. 10-24 X 0.44 TORX pan hd., self-tapping

3022A

SCREW 1/4-20 X 5/8 socket fillister hd., w/lockpatch

3048

SCREW No. 10-24 X 3/8 hex button hd.

3050

SCREW No. 10-24 X 1-3/8 TORX hd.

3056

SCREW 3/8-16 X 1-1/2 TORX button hd.

3061

SCREW 1/4-20 X 5/8 SEMS hex hd.

3075

SCREW 1/4-20 X 11/32 pan hd.

3109

SCREW 7/16-14 X 2-5/8 hex cap w/washer, lock patch

3110

BOLT 3/8-16 X 1-3/4 hex hd.

3210A

SCREW 5/16-18 X 1-1/4 knurled hd.

3233

SCREW 1/4-28 X 1/4 socket hd.

3249

SCREW 5/16-18 X 1-3/16 socket hd. (Grade 8)

3275

SCREW 5/16-18 X 3/4 socket hd. (Grade 8)

3300

SCREW 5/16-18 X 1-1/2 socket hd., w/lockpatch (Grade 8)

3383

SCREW No. 8-32 X 1-1/4 fillister hd. (Grade 2)

3387

SCREW No. 10-16 X 1.0 TORX pan hd., self-tapping

3391

SCREW 1/4-20 X 7/16 hex flange hd.

3471

BOLT 1/2-13 X 2-3/4 hex hd. (Grade 5)

3485A

SCREW 5/16-18 X 1-3/4 knurled hd. (Grade 8)

3494A

BOLT 5/16-18 X 7/8 hex hd.

3514

SCREW No. 8-32 X 1 fillister hd. (Grade 5)

35241-06

NUT 1-3/4-20 X .350 X 2-1/4 hex hd.

35244-06

SCREW 5/16-18 X 1-1/4 hex flange hd.

35259-06

SCREW No. 10-24 X 1/2 hex hd. (Grade 8)

3537

SCREW 1/4-28 X 1/2 flange hd., w/lockpatch

3538

SCREW 5/16-24 X 1/2 socket button hd.

3560WA

BOLT No. 10-24 X 3/8

3561WC

BOLT No. 10-24 X 3/8

3563

SCREW 1/4-20 X 3/8 hex flange hd. (Grade 5)

3574

SCREW 1/4-20 X 3/4 flange

3594

SCREW 1/4-20 X 5/8 knurled hd. (Grade 8)

3612

SCREW No. 10-16 X 1/2 TORX pan hd., self-tapping

3615

SCREW No. 8-32 X 1, pan hd., thread-cutting

3655A

SCREW 5/16-18 X 7/8 TORX pan hd., w/lockpatch (Grade 8)

3656

SCREW No. 8-32 X 3/8 TORX pan hd. (Grade 5)

3658

SCREW No. 10-24 X 1/2 TORX hd. (Grade 5)

36706-01K

BOLT M6 X 1.0 X 30 hex flange hd.

3692A

SCREW 5/16-18 X 1.0 hex hd., w/lockpatch

3693A

SCREW 5/16-18 X 1-3/4 hex hd., w/lockpatch

3699D

SCREW 3/8-16 X 2.0 hex flange hd. (Grade 8)

3736B

SCREW 5/16-18 X 1-1/4 hex flange hd., w/lockpatch

3767B

BOLT 1/4-20 X 5/8 hex hd. (Grade 5)

3799

SCREW 1/4-20 X 3/4 flange hd.

3953W

BOLT 5/16-24 X 1/2 hex hd. (Grade 5)

3983

SCREW 3/8-16 X 1-5/8 hex flange hd., w/washer (Grade 8)

3987

BOLT 5/16-18 X 3/4 hex hd. (Grade 5)

4017

BOLT 5/16-18 X 1 hex hd. (Grade 5)

4042

SCREW M8 X 1.25 X 35 hex button hd.

4074A

BOLT 1/2-13 X 2 hex hd., shoulder

4091

SCREW No. 10-24 X 1/2 hex hd., w/washer, self-tapping (zinc)

4132

SCREW 1/4-20 X 1-1/8 TORX button hd. (Grade 5) (black)

4166

SCREW No. 8-32 X 1/2 socket button hd. (Grade 8) (chrome)

4168A

SCREW 3/8-16 X 1 self-tapping

4190

SCREW 3/8-16 X 3/4 TORX button hd.

4197

BOLT 3/8-16 X 3-3/4 hex hd. (Grade 5)

4216

SCREW 5/16-18 X 7/8 hex flange hd. (Grade 5)

4217

SCREW 5/16-18 X 1.0 hex flange hd. (Grade 5)

4266A

SCREW 3/8-16 X 7/8 button hd. (Grade 5)

4267

SCREW 3/8-16 X 1-1/4 button hd. (Grade 5)

4311

SCREW 3/8-16 X 1-5/8 socket hd.

4312C

SCREW M6 X 1.0 X 14mm, SEMS flange hd. (stainless)

4343

SCREW 5/16-24 X 1-3/4 socket button hd., w/adhesive

4350A

SCREW 3/8-16 X 1-1/2 socket hd.

43567-92

SCREW 3/8-16 X 1 TORX pan hd., w/lockpatch

4380W

BOLT 3/8-24 X 2 hex hd. (Grade 5)

4390

SCREW 1/2-13 X 2 hex hd., shoulder

4400

BOLT 1/4-20 X 1-11/16 hex hd. w/Scotch grip (Grade 8)

4407

SCREW 5/16-18 X 5/8 hex hd., w/washer

4411

BOLT 3/8-24 X 1-3/4 hex hd. (Grade 5)

4419

SCREW 5/16-18 X 1-3/4 SEMS hex hd.

4453

BOLT 1/4-20 X 7/8 hex hd. SPECIAL WITH TAPPED HOLE

4454

SCREW 3/4-16 X 2-1/4 TORX hd. (Grade 8)

4481

SCREW 5/16-24 X 1 socket button hd., w/lockpatch (Grade 8)

4482

SCREW 5/16-24 X 1-3/8 socket button hd., w/lockptach (Grade 8)

4484M

SCREW M5 X 0.8 X 16 SEMS hex hd.

4512A

SCREW 3/8-16 X 1 TORX recessed button hd. (Grade 8)

45405-75A

SCREW M8 X 1.25 x 27 hex socket hd.

4549

SCREW 5/16-18 X 1-3/4 TORX button hd. (Grade 5)

45718-60

NUT 1-24 X 1.5 X 0.47

45727-08

WASHER 1-1/32 X 2.0 X 1/16

46509-01

WASHER 30 X 43 X 2.3

46614-06

BOLT M14 X 1.25 X 30 socket hd.

4688

SCREW 3/8-16 X 1-1/4 SEMS hex socket hd., w/ lock patch

4694

SCREW No. 8-32 X 3/8 TORX pan hd., w/lockpatch

4705

SCREW 1/4-20 X 11/16 SEMS socket hd., w/lockpatch

4717A

SCREW 1/4-20 X 2-1/4 knurled hd., w/lockpatch

4718A

SCREW 1/4-20 X 1-1/2 knurled hd., w/lockpatch

4722

BOLT 3/8-16 X 2-1/4 hex hd. (Grade 5)

4724

BOLT 3/8-24 X 1-1/2 hex hd. (Grade 5)

4729

BOLT 7/16-20 X 1-1/4 hex hd. (Grade 5)

4740A

SCREW 1/4-20 X 1-1/4 knurled hd., w/lockpatch (Grade 8)

4741A

SCREW 1/4-20 X 1 socket hd., w/lockpatch

4751

SCREW 1/4-20 X 3/4 hex hd., w/lockpatch (Grade 8) (zinc)

4763

SCREW 5/16-18 X 1-1/4 TORX button hd. (Grade 5)

4775

SCREW 3/8-16 X 1-1/4 hex hd. (Grade 5)

4813A

SCREW 1/4-20 X 1-3/8 knurled hd., w/lockpatch

4814A

SCREW 1/4-20 X 1-1/8 knurled hd., w/lockpatch

4836

SCREW 3/8-16 X 4 TORX socket hd. (Grade 8)

4867

SCREW hex hd., socket

4945

SCREW 7/16-20 UNRF X 1-1/4 hex hd. (zinc plate)

5403B

BOLT 1/4-20 X 3/8 carriage

5416

BOLT 3/8-16 X 1/8 carriage (Grade 5)

5419

BOLT 5/16-18 X 1-3/4 carriage

54321-85

NUT No. 8-32 X 1/2 X 1/8 (brass)

5471

BOLT 5/16-18 X 5/8 round hd. carriage

5710

WASHER

63/64 X 1-1/2 X 5/64

5775

WASHER

11/32 X 1/2 X 31/64

6019

WASHER

3/8 X 29/32 X 1/16

6036

WASHER

17/64 X 1 X 1/16

6057

WASHER

1/2 X 7/8 X 3/16, nylon

6072

WASHER

3/8 X 1 1/4 X 5/64

6099

WASHER

1/4 X 7/16 X 1/16

6101

WASHER

17/64 X 27/64 X 1/16

6109

WASHER

5/16 X 11/16 X 1/8

6110

WASHER

9/32 X 5/8 X 1/16

6229W

WASHER

5/16 X 1-1/16 X 3/64

6237

WASHER

5/16 X 1-1/8 X 5/64

6294

WASHER

3/8 X 1-1/8 X 7/32

6336B

WASHER

5/16 X 15/16 X 3/16

6400HB

WASHER

5/16 X 13/16 X 3/32

6456

WASHER

13/32 X 1-3/16 X 9/64

6497HW

WASHER

29/64 X 1-1/8 X 1/16

6516HW

WASHER

7/16 X 1-1/8 X 1/8

6530

WASHER

1/2 X 1 X 3/16

6532

WASHER

3/8 X 3/4 X 1/8

6534

WASHER 3/8 X 1-3/4 X 3/32 hardened

6535

WASHER 5/16 X 1-1/4 X 3/32 hardened

6545

WASHER ferrous, heat-treated

6551

WASHER 1 X 1-5/8 X 1/8 hardened

6594

WASHER 5/8 X 1-1/8 X 3/32

6655

WASHER 5/8 X 1-1/2 X 7/64

6701

WASHER 3/8 X 13/16 X 1/16

6702

WASHER 5/16 X 11/16 X 1/16

6703

WASHER 1/4 X 5/8 X 1/16

6716

WASHER No. 10 X 1/2 X 3/64

6724

WASHER 21/32 X 1-1/16 X 1/16

6762B

WASHER 11/16 X 29/32 X 1/32

6771A

WASHER 5/16 X 1/2 X 1/16

67721-48

SCREW headlamp retainer ring

67956-96

SCREW 1/4-20 X 3/4 socket flat hd.

68026-99

SCREW No. 8-32 X 1 Phillips pan hd. (stainless)

68042-99

SCREW No. 8-32 X 3/8 TORX hd.

6812

WASHER 13/32 X 11/16 X 1/16

68120-00

SCREW No. 8-32 x 1-2 TORX hd., self-tapping

7038

LOCKWASHER 3/8

7039

LOCKWASHER 7/16

703B

SCREW 1/4-20 X 7/16 TORX socket button hd.

7041

LOCKWASHER 5/16

7062

LOCKWASHER M8.4 X 13 X 1.2

7068

LOCKWASHER 1/2

7073

LOCKWASHER 1/4 external tooth

7130W

LOCKWASHER 3/8 internal tooth

7137

NUT keps 5/16-18 (Grade 5)

7155

LOCKWASHER 5/16 internal tooth (black)

7230

LOCKWASHER 1/4 external tooth

7330

ACORN NUT 5/16-24 (chrome)

7331

ACORN NUT 5/16-24

7352

ACORN NUT 5/16-24 (black)

7434

WASHER 1/4 X 1-29/64 X 1/16 nylon

7479

NUT 5/8-11 flange (Grade 6)

7495

NUT M6 flange

7531

LOCKNUT 5/16-18 X 9/32 X 1/2 flange

7549A

ACORN NUT 5/16-18 X 9/16 X 1/2

7576

NUT 5/16-18 UNC keps flange

7593

NUT 5/16-24 flange

7601

LOCKNUT 3/8-16 flange

7606

LOCKNUT No. 8-32 X 1/4 X 1/4 hex (chrome)

7624

LOCKNUT No. 10-24 X 1/4 X 3/8

7629

NUT No. 10-32 X 3/8 keps

7651A

ACORN NUT No. 12-24 (Grade 2) (chrome)

7669

NUT 5/16-18

7686

LOCKNUT 1/4-20 X 5/16 X 7/16

7716

LOCKNUT 1/4-20 X 7/16 flange

7744

JAMNUT 5/16-24 X 3/16 X 1/2 (Grade 2)

7792

NUT 1/4-20 X 1/4 (Grade 2)

7800W

NUT 3/8-24 X 5/16 X 9/16 (Grade 2)

7813A

NUT 5/8-18 X 9/16 X 15/16 (Grade 2)

7848W

JAMNUT 7/16-20 X 1/4 X 11/16 (Grade 2)

7862

ACORN NUT 3/8-16 (chrome)

786A

BOLT 5/16-18 X 2-1/4 hex hd. (Grade 5)

7879

NUT 1/2-13 X 1/2 X 3/4 flange (Grade 6)

791A

SCREW 3/8-18 X 2-1/4 hex flange hd. (Grade 5)

8020

NUT M24 X 2.0 X 15

8108

SPEEDNUT 1/4-20

8144

LOCKNUT 5/16-18

8329

SCREW button, TORX

8405

JAMNUT .750-16UNF-2B

856A

SCREW 5/16-24 X 1 socket hd. (Grade 8)

869

SCREW 1/4-20 X 1-1/4 socket button hd. (Grade 8)

895

SCREW 5/16-18 X 3.0 hex flange hd. (Grade 5)

8972

WASHER 1-1/4 X 1-53/64 X 1/8

90770-79

SCREW No. 8-32 X 3/8 Pozidriv hd., self-tapping

927A

SCREW 1/4-20 X 3/4 button hd. (Grade 8)

939

SCREW 1/4-20 X 1 self-tapping, w/washer (Grade 2)

940

SCREW 1/4-20 X 3/4 TORX button hd.

94004-90T

ACORN NUT 1/4-20 X 5/8 X 7/16 (chrome)

941

SCREW 1/4-20 X 5/8 socket button hd. (Grade 8)

942

SCREW 1/4-20 X 3/4 TORX button hd., w/lockpatch (Grade 8)

946

SCREW 1/4-20 X 2-1/4 socket button hd., w/lockpatch (Grade 8)

956

SCREW 5/16-18 X 3-1/4 button hd., w/lockpatch (Grade 8)

New Parts List

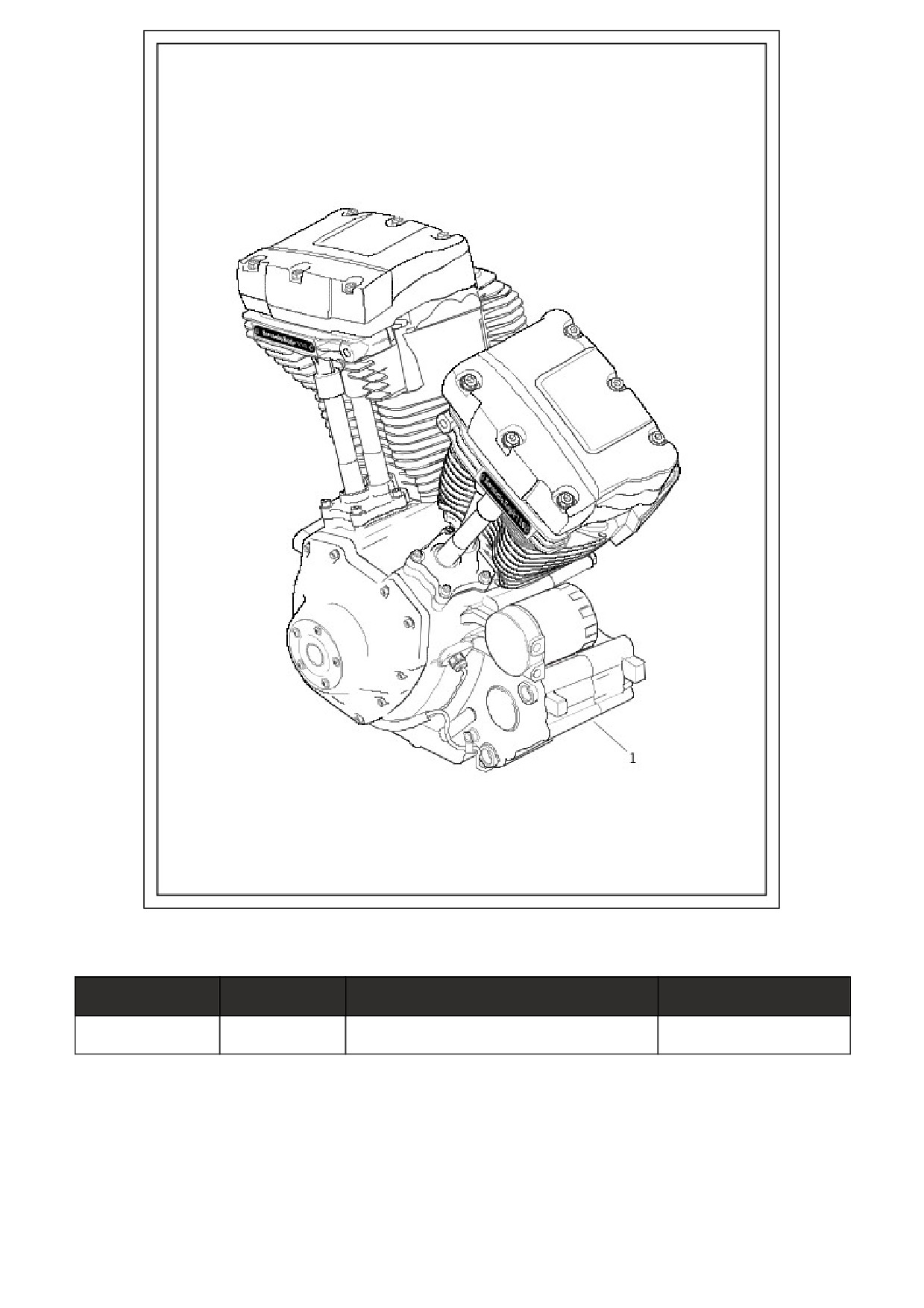

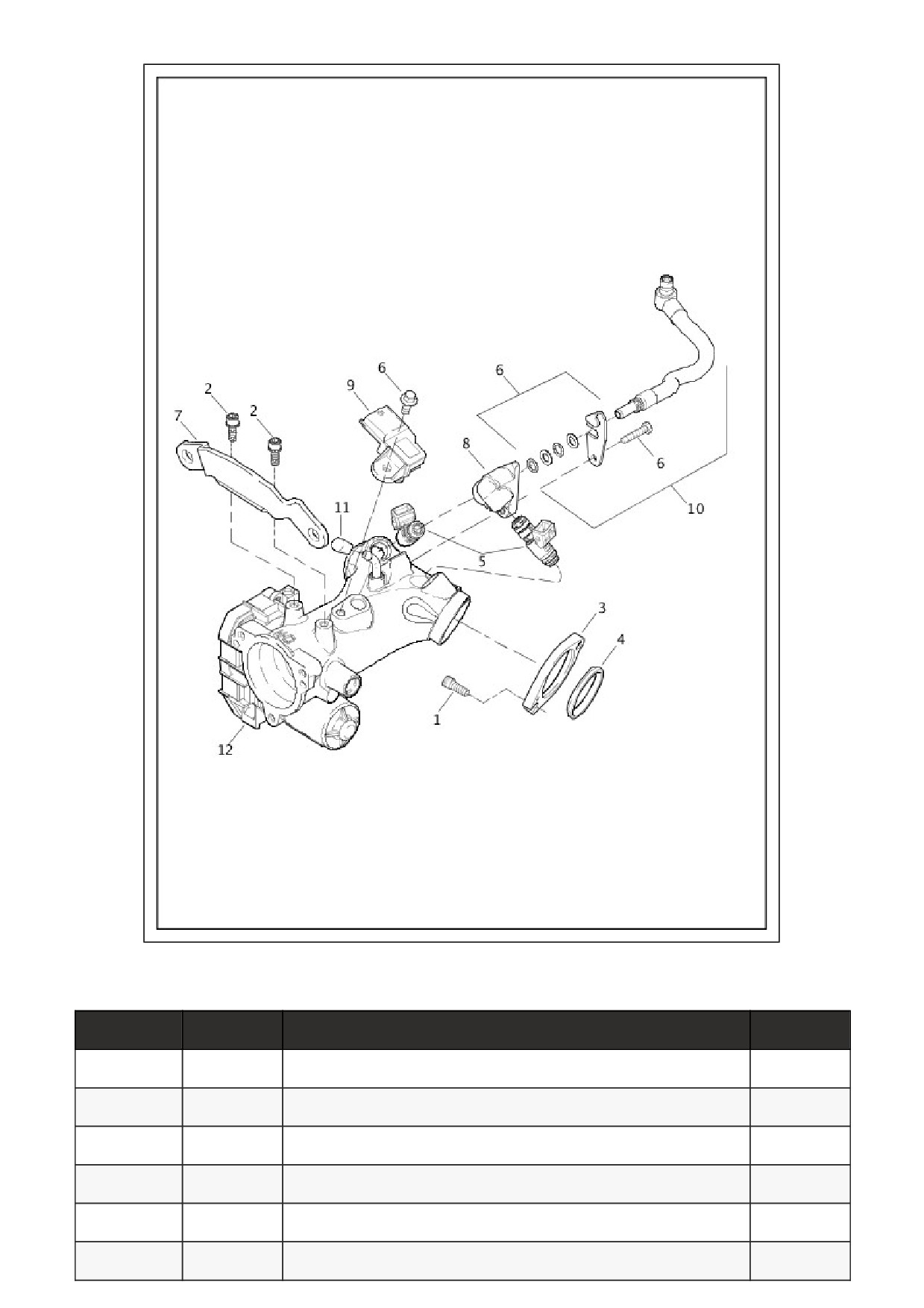

ENGINE ASSEMBLY - TWIN CAM 110™

Index

Part No.

Description

Model(s)

No.

11907

O-RING KIT, cylinder-base (set of 2)

FLSS,

FLSTFBS

16801-

GASKET, cylinder-head (2)

FLSS,

07B

FLSTFBS

17251-

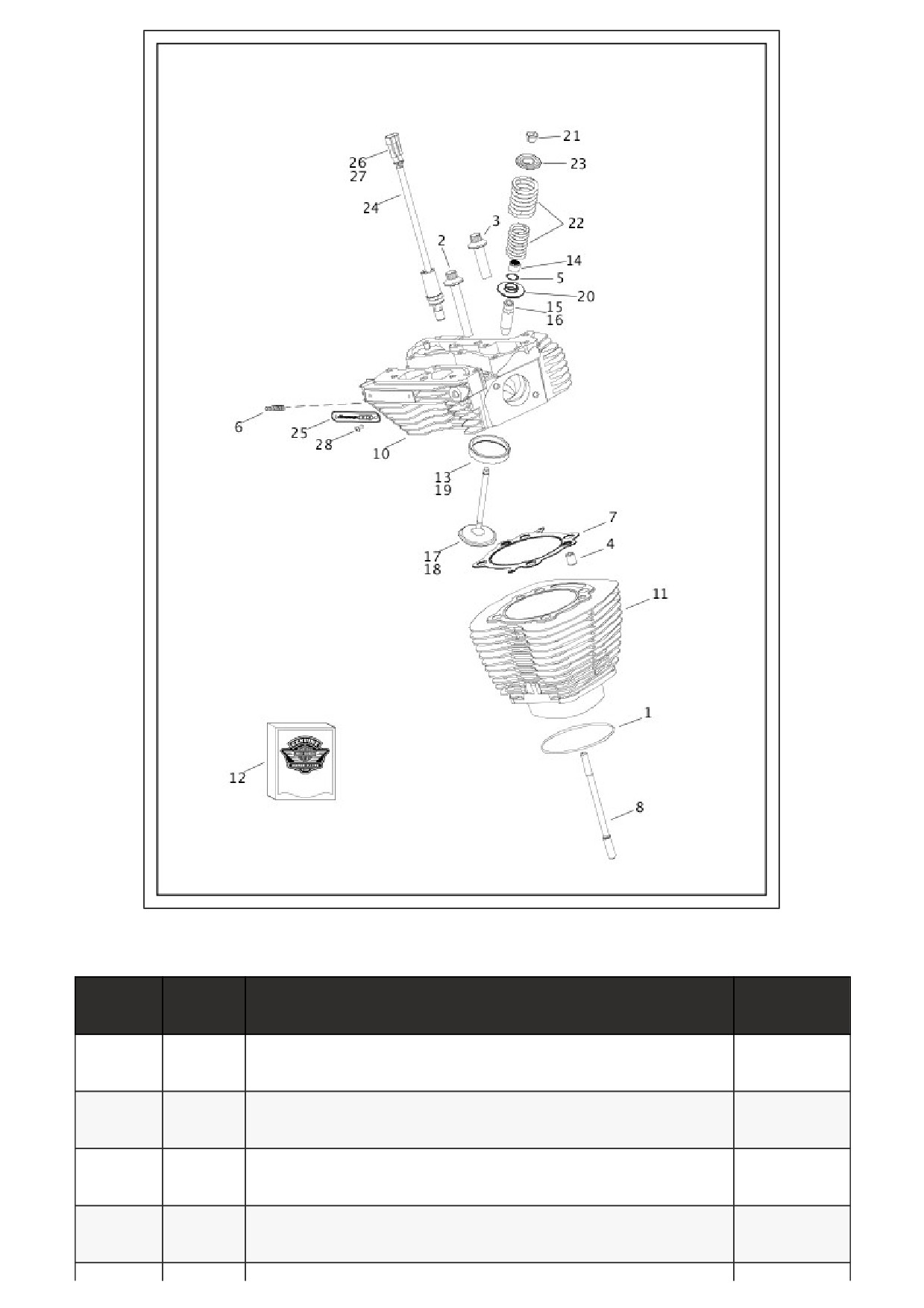

HEAD ASSEMBLY, cylinder, front, with 5, 6, 10, 14, 17, 18, 20, 21 and 22

FLSS,

07B

(black)

FLSTFBS

17252-

HEAD ASSEMBLY, cylinder, rear, with 5, 6, 10, 14, 17, 18, 20, 21 and 22

FLSS,

07A

(black)

FLSTFBS

17253-

HEAD, cylinder, front, with 18048-98A, 18161-08, 18168-08 and 18189-07

FLSS,

07B

(black)

FLSTFBS

17257-

HEAD, cylinder, rear, with 18048-98A, 18161-08, 18168-08 and 18189-07

FLSS,

07A

(black)

FLSTFBS

17285-

CYLINDER ASSEMBLY, with 16595-99A (black) (2)

FLSS,

07A

FLSTFBS

18048-

SEAT, exhaust-valve (2)

FLSS,

98A

FLSTFBS

18067-09

SEAL, valve (4)

FLSS,

FLSTFBS

18161-08

GUIDE, intake-valve (2)

FLSS,

FLSTFBS

18168-08

GUIDE, exhaust-valve (2)

FLSS,

FLSTFBS

18183-03

VALVE, exhaust (2)

FLSS,

FLSTFBS

18187-07

VALVE, intake (2)

FLSS,

FLSTFBS

18189-07

SEAT, intake-valve (2)

FLSS,

FLSTFBS

18270-

COLLAR, lower, valve-spring (4)

FLSS,

00A

FLSTFBS

18271-00

KEY, collar, valve-spring (8)

FLSS,

FLSTFBS

18272-00

SPRING SET, inner and outer, valve (4)

FLSS,

FLSTFBS

18280-07

COLLAR, upper, valve-spring (4)

FLSS,

FLSTFBS

25800017

SCREW, medallion (4)

FLSS,

FLSTFBS

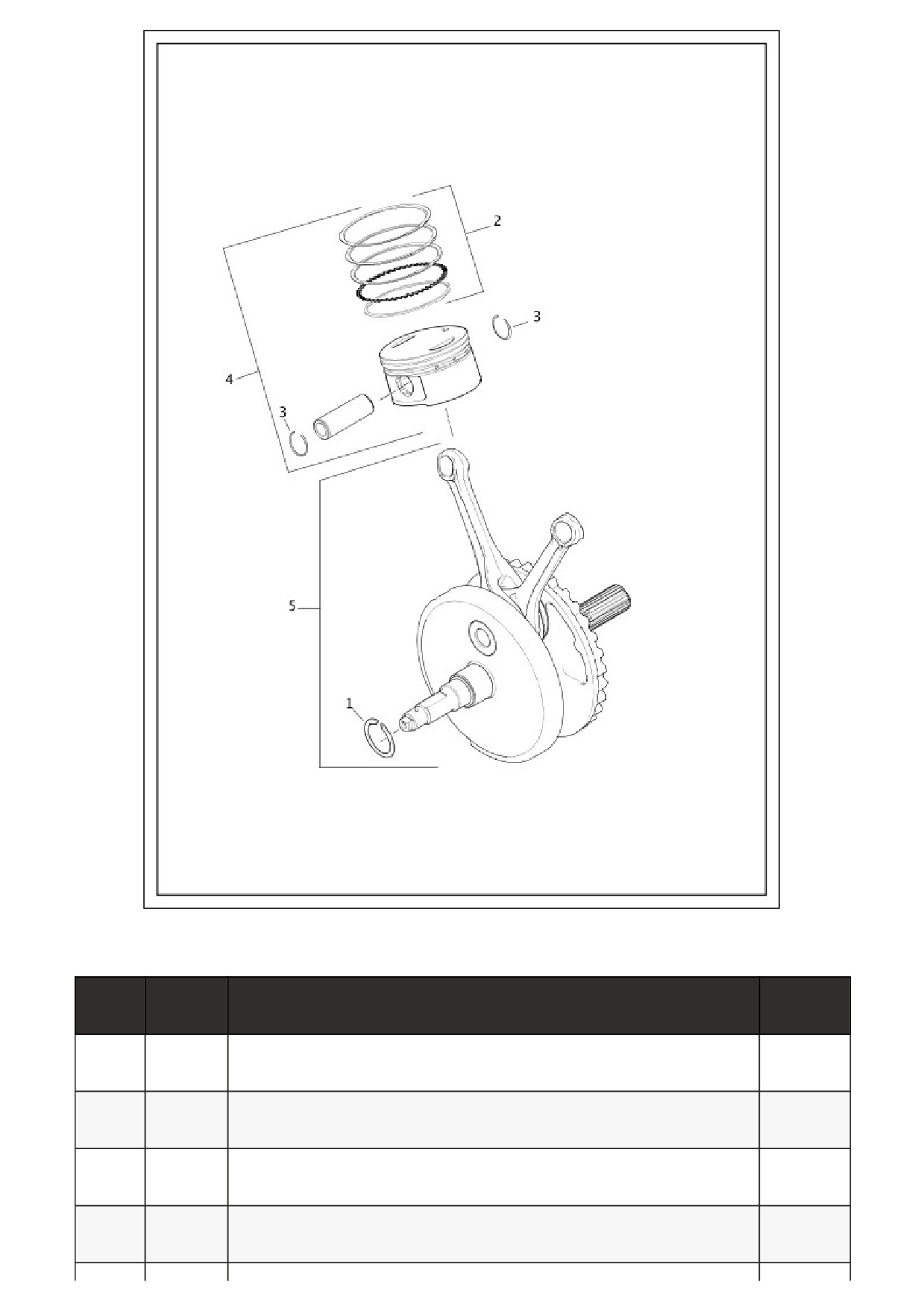

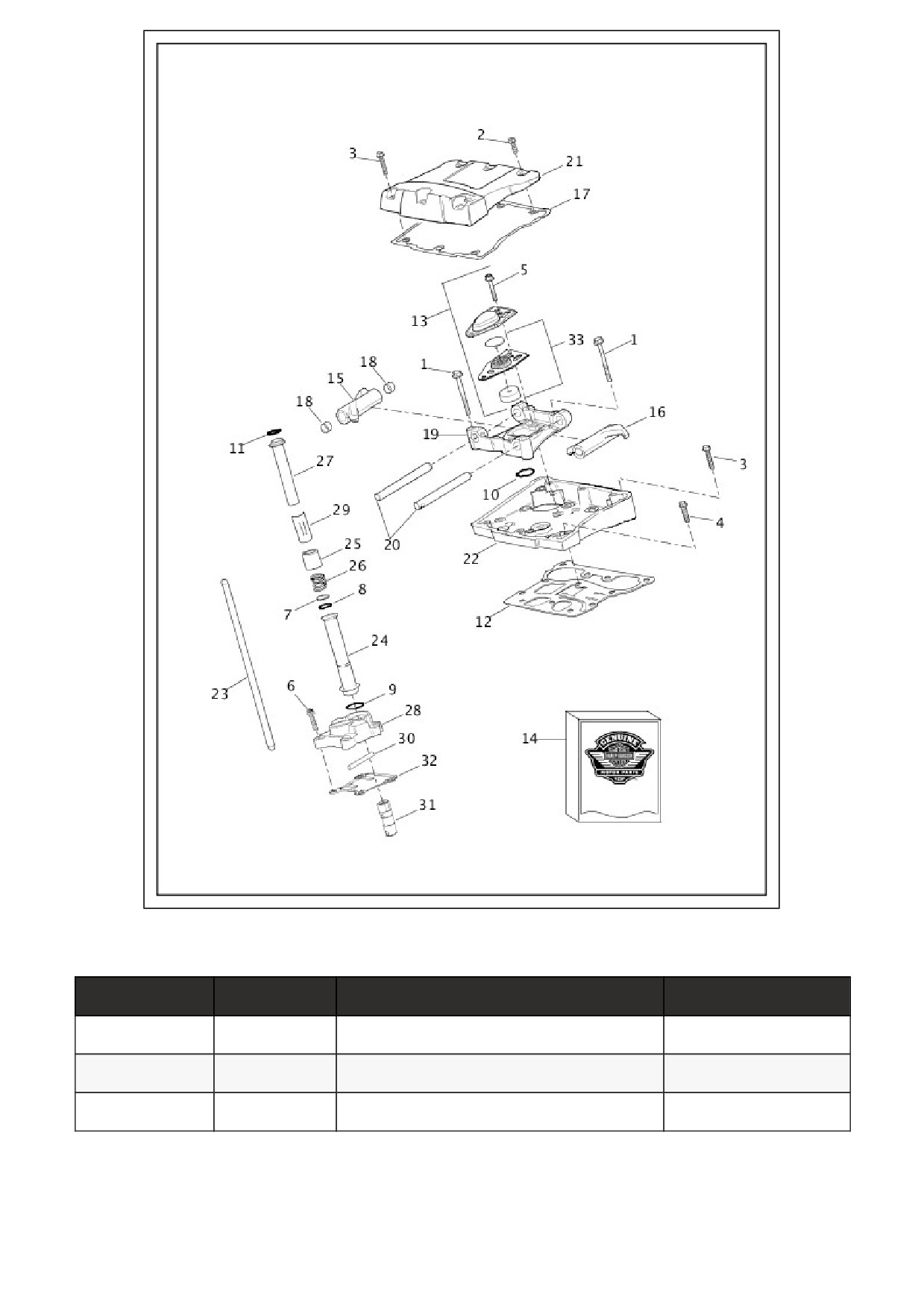

ROCKER ARM ASSEMBLY AND PUSH RODS - TWIN CAM 110™

Index

Part No.

Description

Model(s)

No.

21951-11

KIT PISTON RING SET, standard (2)

FLSS,

FLSTFBS

21953-11

KIT PISTON RING SET, 0.010 in OS (2)

FLSS,

FLSTFBS

22000001

KIT PISTON AND RINGS ASSEMBLY, with piston pin and lock rings - standard

FLSS,

(2)

FLSTFBS

22000003

KIT PISTON AND RINGS ASSEMBLY, with piston pin and lock rings - 0.010 in

FLSS,

over-size (2)

FLSTFBS

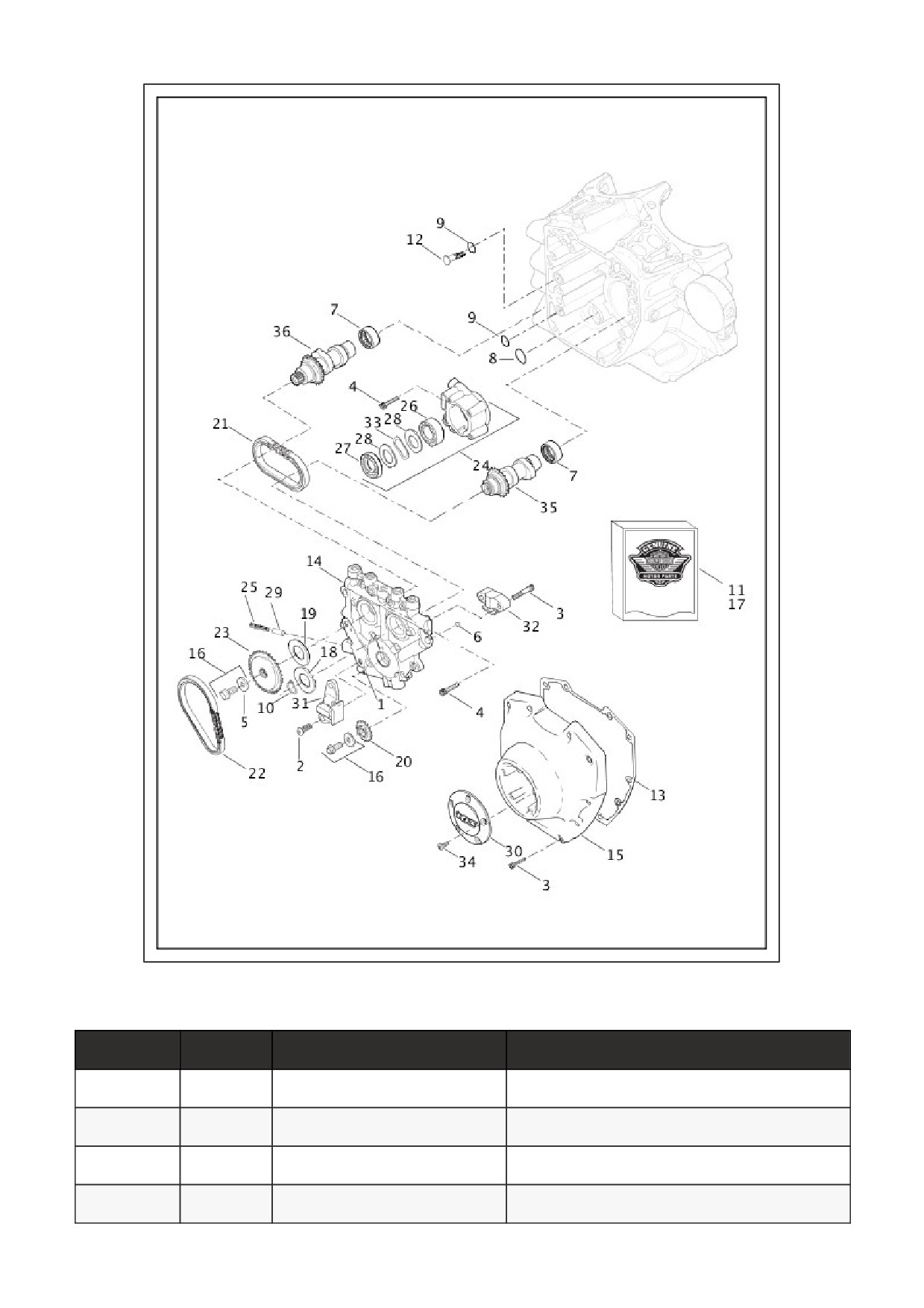

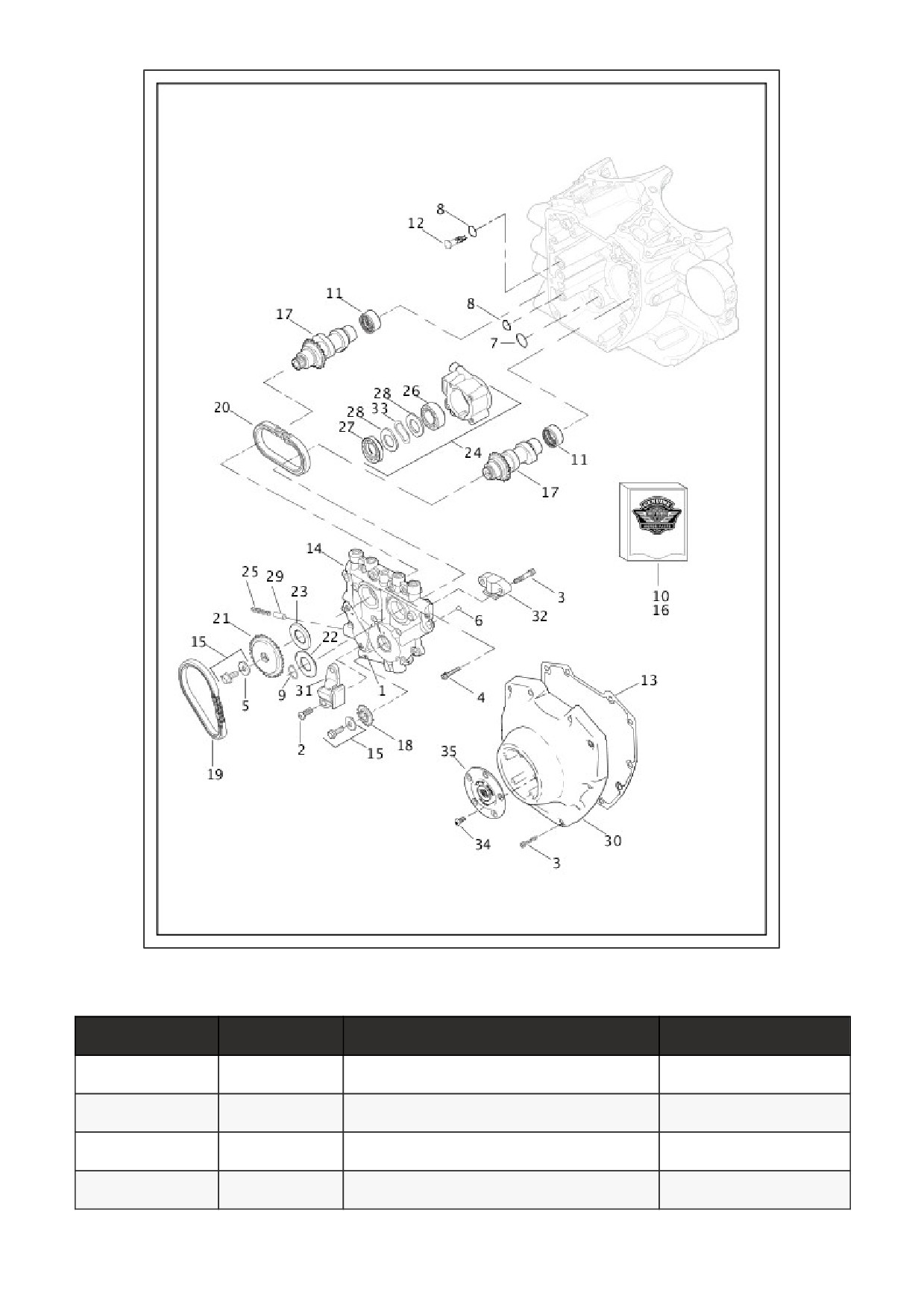

CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 103™

Index No.

Part No.

Description

Model(s)

32727-00

TIMER COVER, (chrome)

FXSB, FLSTC, FLSTF, FLSTN, FLSTFB

32543-07

TIMER COVER, (denim black)

FLS

25400002

CAMSHAFT, front

FXSB, FLSTC, FLSTF, FLSTN, FLSTFB, FLS

25400003

CAMSHAFT, rear

FXSB, FLSTC, FLSTF, FLSTN, FLSTFB, FLS

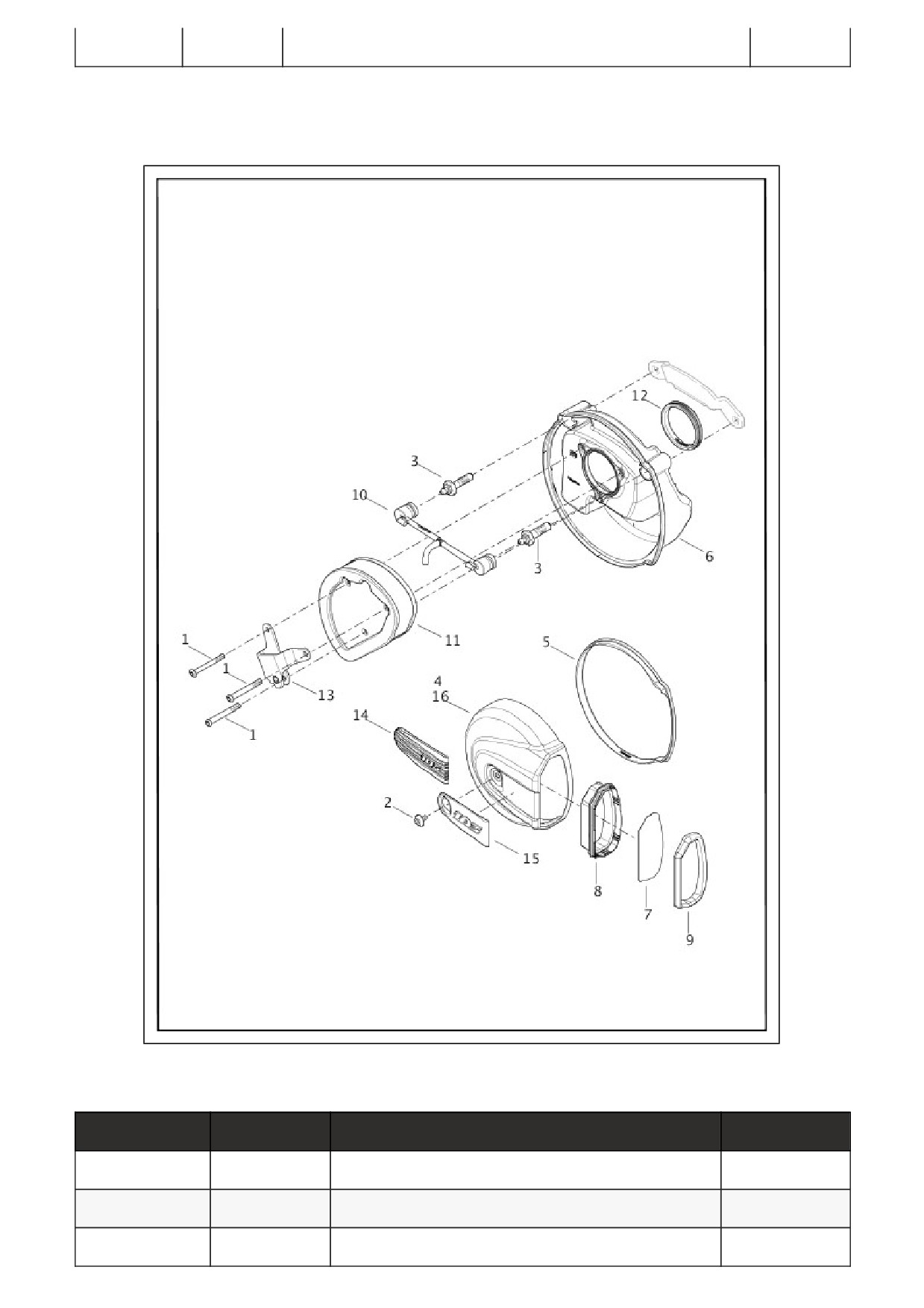

29670-09

ELEMENT, air filter

FLSTFBS

29762-09

RAINSOCK

FLSTFBS

29763-09

BACKPLATE ASSEMBLY, air cleaner (black)

FLSTFBS

10500053

SCREW (3)

FLSTFBS

14000377

LABEL, air cleaner warning (Domestic, California)

FLSTFBS

14100699

INSERT, air cleaner cover

FLSTFBS

61300365

COVER, air cleaner, with 14000377 (black)

FLSTFBS

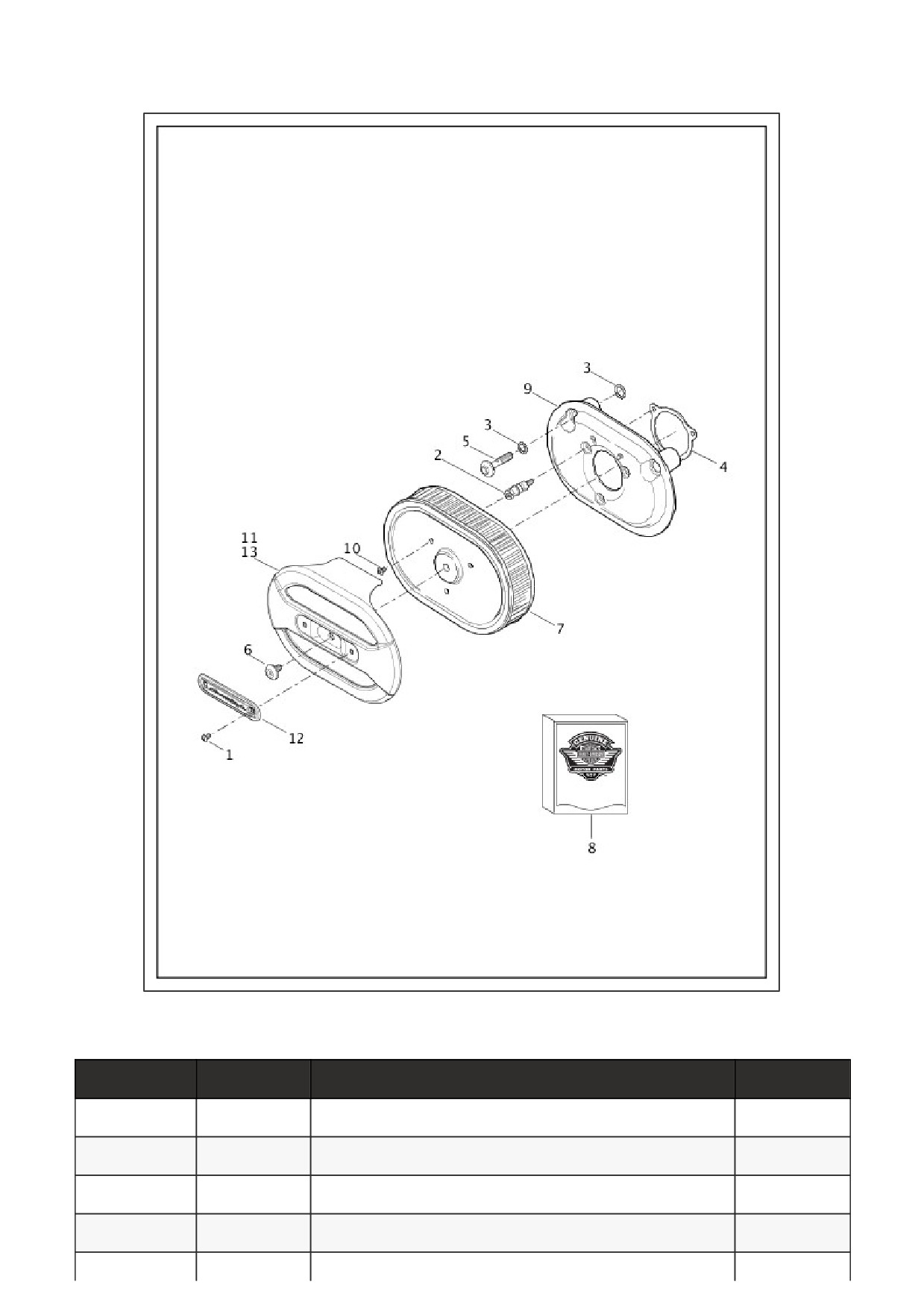

AIR CLEANER - TWIN CAM 110™ - FLSS

Index

Part No.

Description

Model(s)

No.

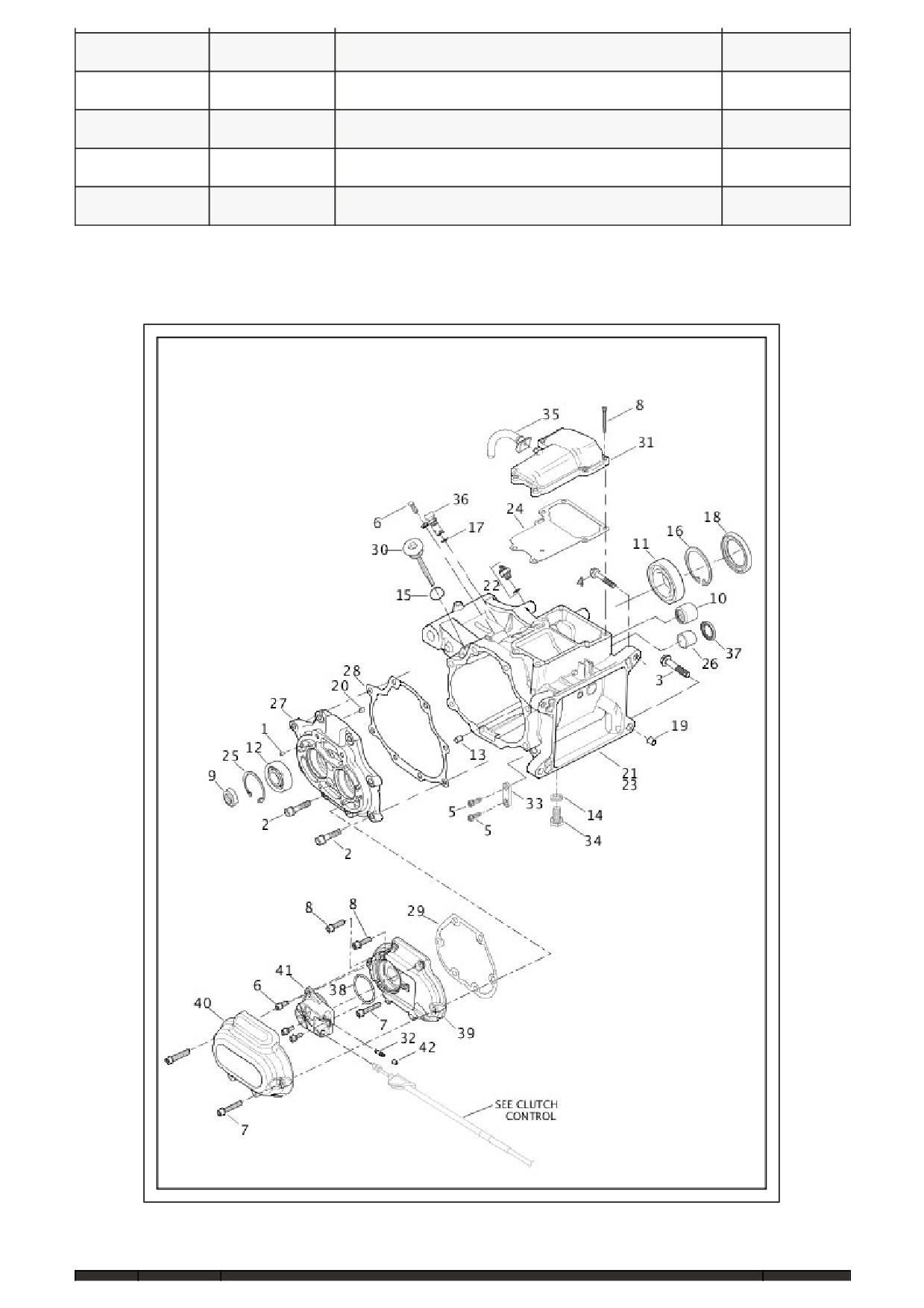

33012-

TRANSMISSION REPLACEMENT, without covers and sensors (black)

FLSS,

10A

FLSTFBS

34799-07

TRANSMISSION CASE SUBASSEMBLY, with 3594, 8963, 8967, 9701A, 11161,

FLSS,

12074, 16574-99A, 35122-06, 35186-06, 35241-06, 35242-061, 40659-06, 60328-

FLSTFBS

98B, 11000101 and shift lever centering screw (black)

37195-11

COVER, upper (black)

FLSS,

FLSTFBS

44613-02

BLEEDER SCREW

FLSS,

FLSTFBS

11900035

O-RING

FLSS,

FLSTFBS

25700178

INNER SIDE COVER

FLSS,

FLSTFBS

25700180

SIDE COVER, (black)

FLSS,

FLSTFBS

37200023

SECONDARY CLUTCH ACTUATOR, with 44613-02, 11900035 and 37200034

FLSS,

FLSTFBS

37200034

CAP, bleeder screw

FLSS,

FLSTFBS

PRIMARY HOUSING

Harley Davidson 2016 Softail Models. Parts Catalog - page 7
