Harley Davidson 2016 Softail Models. Parts Catalog - page 6
6
72010-05
WIRE SEAL, 22-26 AWG (green) (4)
FLS, FLSS
7
72024-08
TERMINAL, socket, 20-22 AWG (4)
FLS, FLSS
8
72169-07
TERMINAL, pin, 16-20 AWG (8)
FLS, FLSS
9
72213-94
TERMINAL, socket, 16-20 AWG (2)
FLS, FLSS
10
72251-07
SECONDARY LOCK, two-way socket (yellow) (2)
FLS, FLSS
11
72402-07
HOUSING, two-way socket
FLS, FLSS
12
72413-07
TERMINAL, socket, 18-20 AWG (2)
FLS, FLSS
13
72478-07BK
HOUSING, eight-way pin (black)
FLS, FLSS
14
72606-08
HOUSING, two-way socket
FLS, FLSS
15
72609-08
SECONDARY LOCK, two-way socket (black)
FLS, FLSS
16
72610-08
SEAL, cable, 18-20 AWG (white) (2)
FLS, FLSS
17
72905-11
HOUSING, two-way pin
FLS, FLSS
18
72907-11
HOUSING, four-way pin (2)
FLS, FLSS
19
72909-11
TERMINAL, pin, 20-21 AWG (15)
FLS, FLSS
20
72914-01BK
HOUSING, four-way socket (black)
FLS, FLSS
21
72991-01
TERMINAL, socket, 18-22 AWG (3)
FLS, FLSS
22
73104-96BK
HOUSING, four-way pin
FLS, FLSS
23
73106-96BK
HOUSING, six-way pin
FLS, FLSS
24
73190-96
TERMINAL, pin, 16-20 AWG (10)
FLS, FLSS
25
73198-96
RETAINER, anchored clip
FLS, FLSS
26
73213-07
RETAINER, anchored clip
FLS, FLSS
27
69201163
HOUSING, six-way pin
FLS, FLSS
28
69201164
TERMINAL, pin, 22 AWG (6)
FLS, FLSS
29
69201180
HOUSING, four-way pin (gray) (2)
FLS, FLSS
30
69201296
BRACKET, electrical connector, right
FLS, FLSS
31
69201297
BRACKET, electrical connector, left
FLS, FLSS

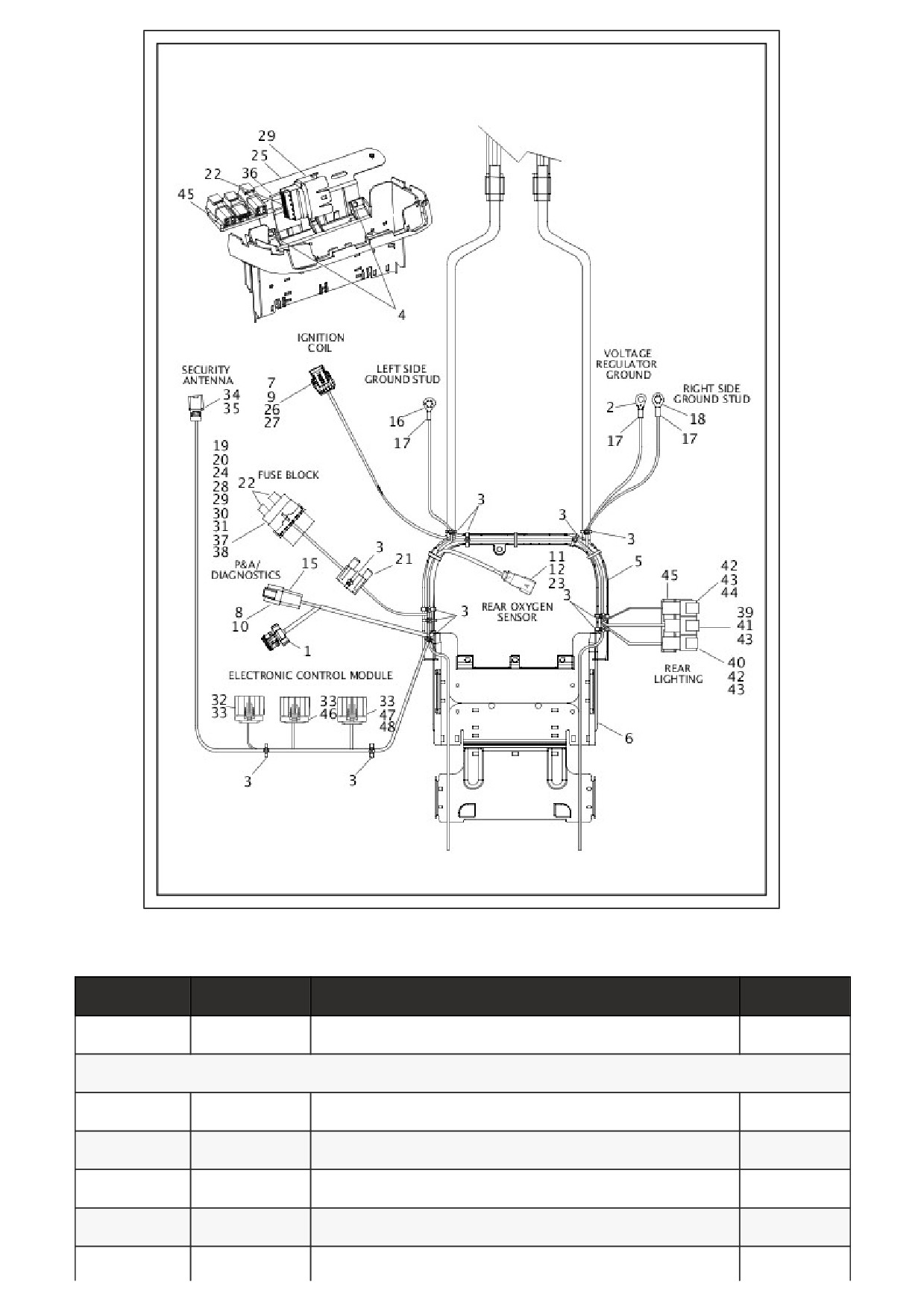

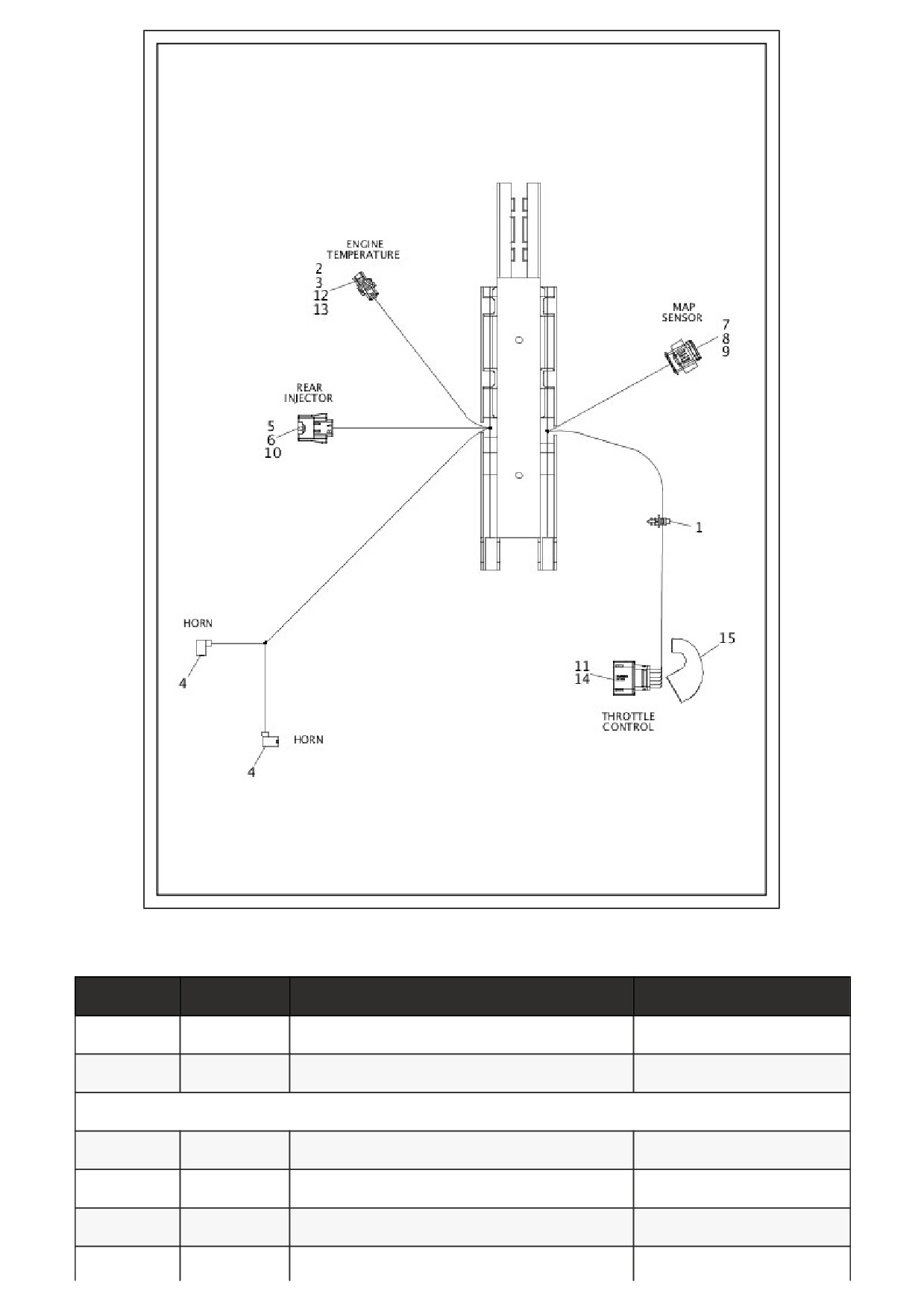

WIRING HARNESS, MAIN, ABS - FLS AND FLSS (2 OF 5)
Index No.
Part No.
Description
Model(s)
69201080
WIRING HARNESS, MAIN
FLS, FLSS
NOTE: Includes the following parts.
1
10177
CABLE STRAP
FLS, FLSS
2
72063-06
HOUSING, two-way socket
FLS, FLSS
3
72111-06
SECONDARY LOCK, two-way socket (gray)
FLS, FLSS
4
72283-09
TERMINAL, socket, 14-16 AWG (2)
FLS, FLSS
5
72251-07
SECONDARY LOCK, two-way socket (yellow)
FLS, FLSS
6
72402-07
HOUSING, two-way socket (black)
FLS, FLSS
7
72406-07A
HOUSING, four-way socket
FLS, FLSS
8
72407-07
TERMINAL, socket, 16-20 AWG (4)
FLS, FLSS
9
72408-07
WIRE SEAL, 20 AWG (blue) (4)
FLS, FLSS
10
72413-07
TERMINAL, socket, 18-20 AWG (2)
FLS, FLSS
11
72483-08BK
HOUSING, six-way socket (black)
FLS, FLSS
12
72484-08
TERMINAL, socket, 20 AWG (2)
FLS, FLSS
13
72486-08
WIRE SEAL, 20 AWG (green) (2)
FLS, FLSS
14
72663-11
TERMINAL, socket, 18-20 AWG (silver) (6)
FLS, FLSS
15
69200437
BOOT, rubber
FLS, FLSS

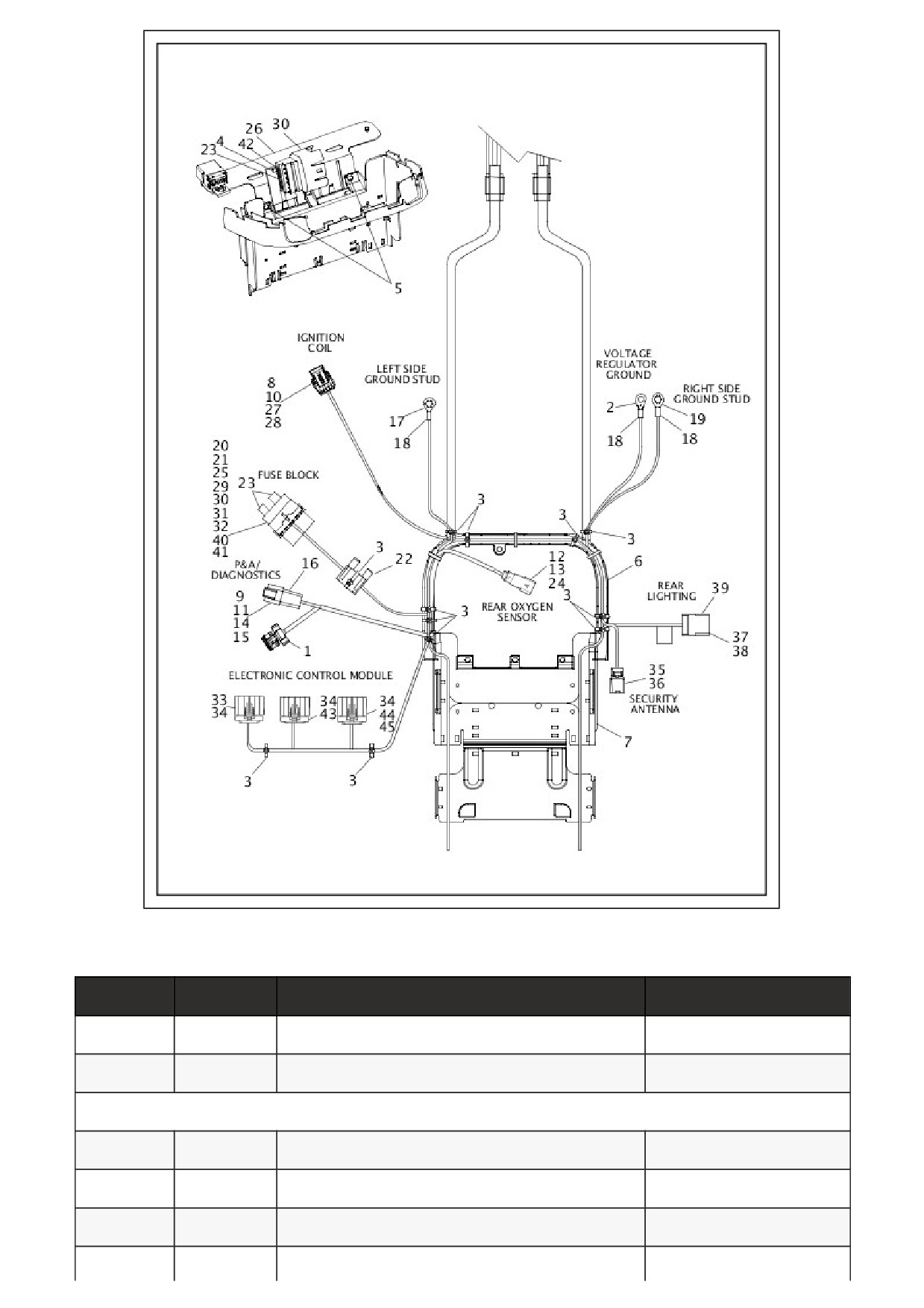

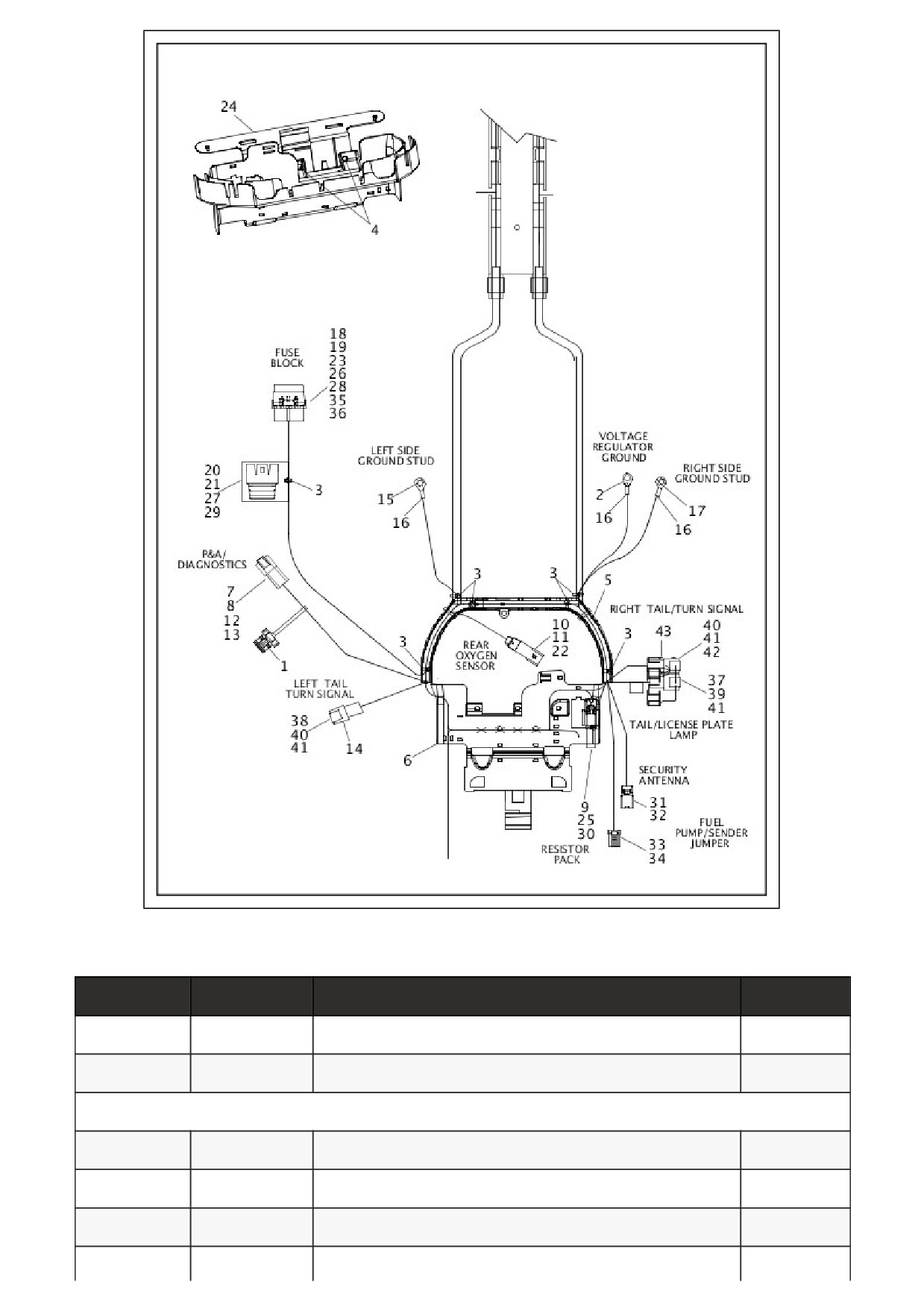

WIRING HARNESS, MAIN, ABS - FLS AND FLSS (3 OF 5)
Index No.
Part No.
Description
Model(s)
69201080
WIRING HARNESS, MAIN
FLS, FLSS
NOTE: Includes the following parts.
1
6990
PLUG, weather, six-way pin
FLS, FLSS
2
9819
TERMINAL RING, .25 stud, 12 AWGX2
FLS, FLSS
3
10065
CABLE STRAP (12)
FLS, FLSS
4
11785
FASTENER, push-in (2)
FLS, FLSS
5
70974-08A
LOOM SHIELD, wire harness
FLS, FLSS
6
70982-08
WIRE SHIELD
FLS, FLSS
7
72066-06A
HOUSING, four-way socket (black)
FLS, FLSS
8
72106-94BK
HOUSING, six-way (black) (replaces gray connector)
FLS, FLSS
9
72135-06
SECONDARY LOCK, four-way socket (gray)
FLS, FLSS
10
72146-94
PIN LOCK, sec 6
FLS, FLSS
11
72169-07
TERMINAL, pin, 16-20 AWG (2)
FLS, FLSS
12
72175-07BK
HOUSING, four-way, pin (black)
FLS, FLSS
13
72190-94
TERMINAL, pin, 16-18 AWG (3)
FLS, FLSS
14
72194-94
TERMINAL, pin, 20 AWG (3)
FLS, FLSS
15
72199-94
CONNECTOR ANCHOR
FLS, FLSS
16
72242-94
TERMINAL, 1/4 ring
FLS, FLSS
17
72249-94
HEAT SHRINK TUBE, .415 x 1 (black)
FLS, FLSS
18
72254-94
TERMINAL RING, .25 stud, 14-16 AWG
FLS, FLSS
19
72298-95
WIRE SEAL, 14-18 AWG (green) (4)
FLS, FLSS
20
72308-97
TERMINAL, socket, 12-14 AWG (2)
FLS, FLSS
21
72314-01
MAIN FUSE, 40 A
FLS, FLSS
22
72330-95
FUSE, 15 A (blue) (2)
FLS, FLSS
23
72343-10
TERMINAL, pin, 16-20 AWG (gold) (2)
FLS, FLSS
24
72356-95
TERMINAL, socket, 18-20 AWG (2)
FLS, FLSS
25
72369-08A
BRACKET, fuse block holder, (black)
FLS, FLSS
26
72484-08
TERMINAL, socket, 20 AWG (4)
FLS, FLSS
27
72486-08
WIRE SEAL, 20 AWG (green) (4)
FLS, FLSS
28
72582-11
FUSE BLOCK
FLS, FLSS
29
72586-11
COVER, fuse block
FLS, FLSS
30
72587-11
SECONDARY LOCK, fuse block
FLS, FLSS
31
72595-11
SEAL, fuse block
FLS, FLSS
32
72664-12A
HOUSING, 18-way, socket, key A (black)
FLS, FLSS
33
72666-12
TERMINAL, socket, 18-20 AWG (silver) (36)
FLS, FLSS
34
72720-07
HOUSING, two-way socket
FLS, FLSS
35
72721-07
TERMINAL, socket, 18-20 AWG (2)
FLS, FLSS
36
73229-11
BRACKET, fuse block mounting
FLS, FLSS
37
73304-04
TERMINAL, .31 socket, 10 AWG (2)
FLS, FLSS
38
73305-04
SEAL WIRE, 10 AWG (blue) (2)
FLS, FLSS
39
74103-98BK
HOUSING, three-way pin
FLS, FLSS
40
74104-98BK
HOUSING, four-way pin (black)
FLS, FLSS
41
74143-98
SECONDARY LOCK, three-way pin
FLS, FLSS
42
74144-98
SECONDARY LOCK, four-way pin (2)
FLS, FLSS
43
74190-98
TERMINAL, pin, 16-20 AWG (11)
FLS, FLSS
44
69200010
CONNECTOR, four-way pin (gray)
FLS, FLSS
45
69200012
BRACKET, pin housing
FLS, FLSS
46
69200267A
HOUSING, 18-way, socket, key B (gray)
FLS, FLSS
47
69200268A
HOUSING, 18-way, socket, key C (brown)
FLS, FLSS
48
69201168
TERMINAL, socket, 22 AWG (silver)
FLS, FLSS

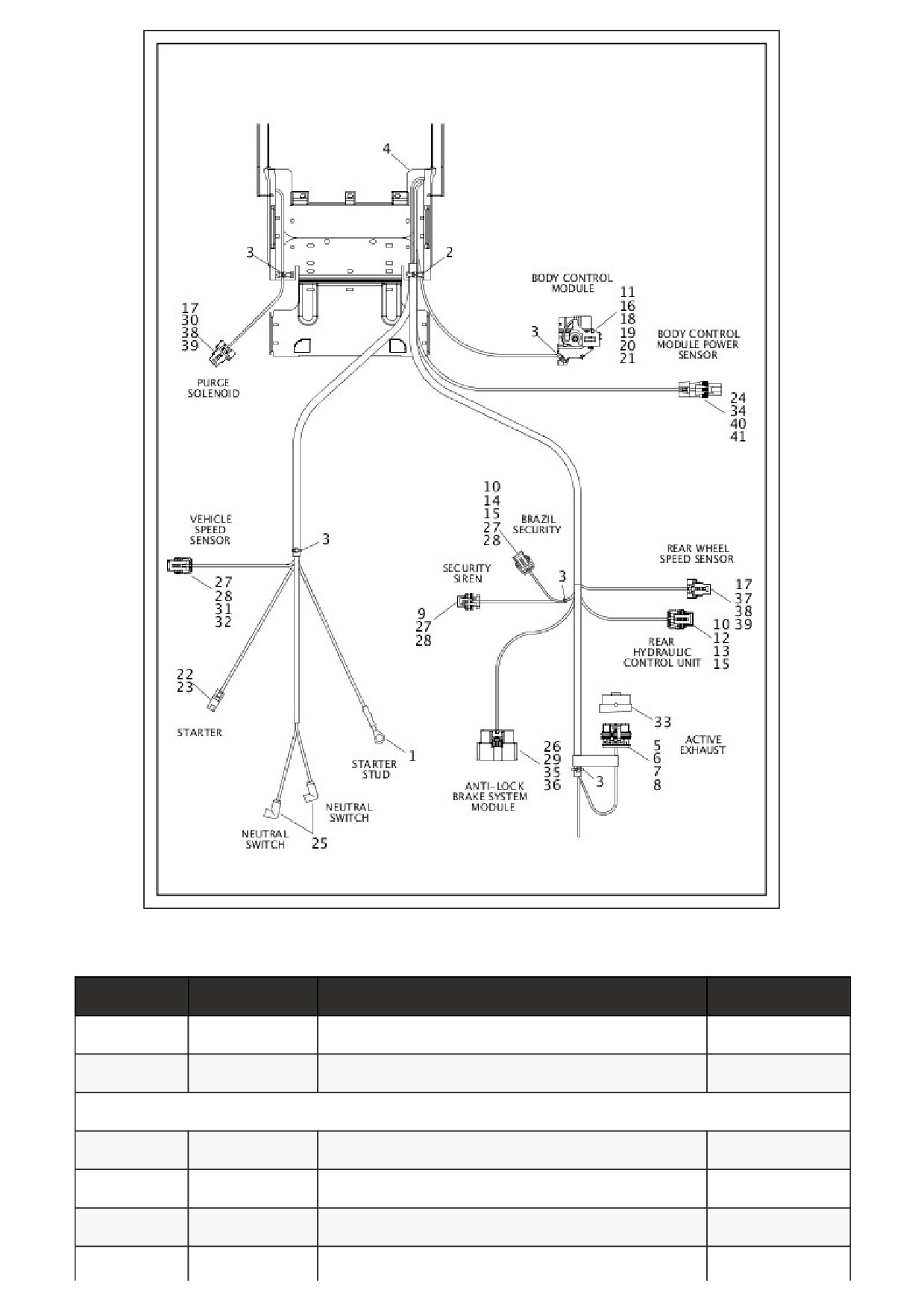

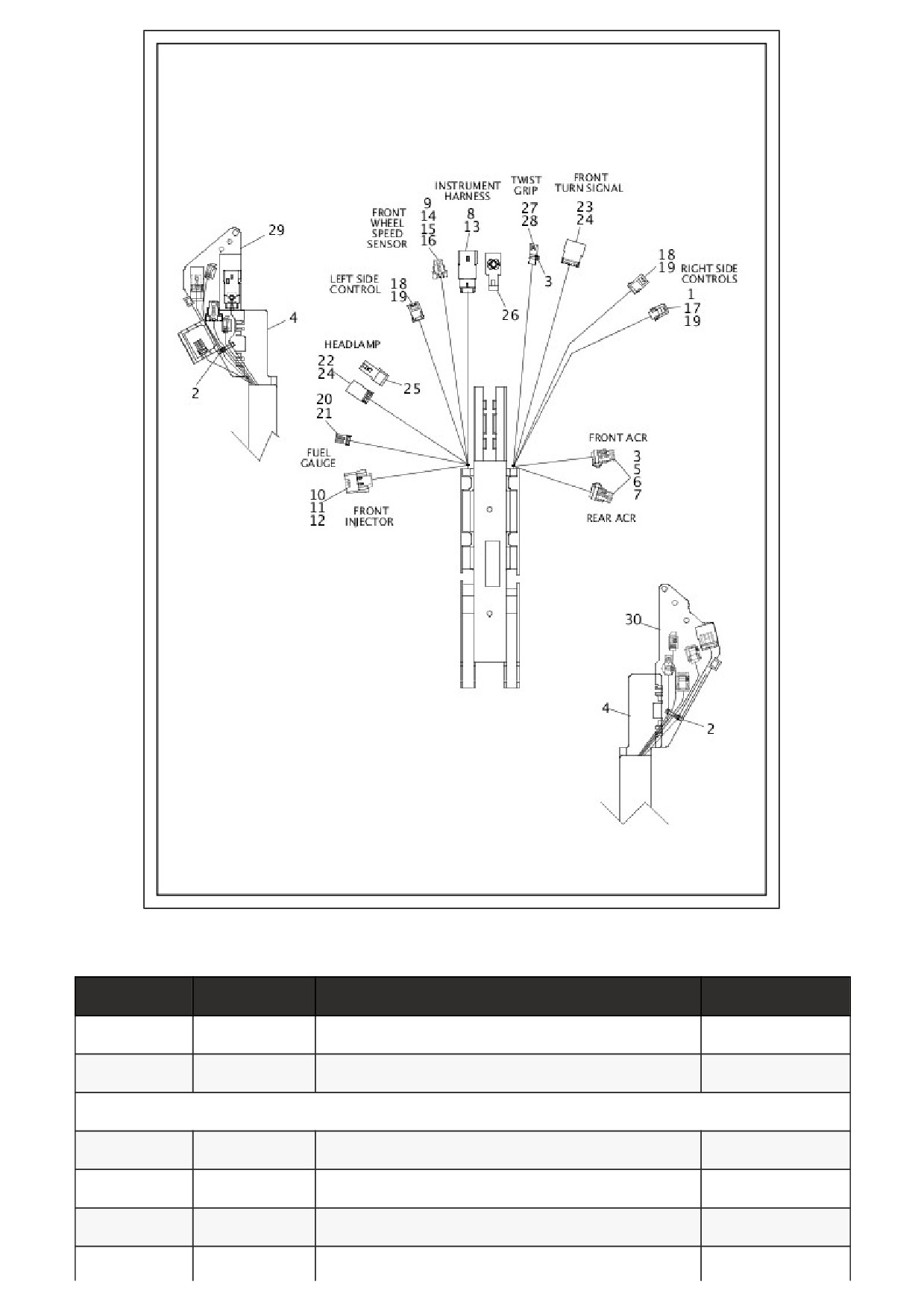

WIRING HARNESS, MAIN, ABS - FLS AND FLSS (4 OF 5)
Index No.
Part No.
Description
Model(s)
69201080
WIRING HARNESS, MAIN
FLS, FLSS
NOTE: Includes the following parts.
1
9842
TERMINAL RING, .31 10-12 AWG
FLS, FLSS
2
10006
CABLE STRAP
FLS, FLSS
3
10065
CABLE STRAP (3)
FLS, FLSS
4
70982-08
WIRE SHIELD
FLS, FLSS
5
72010-05
WIRE SEAL, 22-26 AWG (green) (4)
FLS, FLSS
6
72012-07
HOUSING, five-way socket
FLS, FLSS
7
72014-07
SEAL PIN
FLS, FLSS
8
72024-08
TERMINAL, socket, 20-22 AWG (4)
FLS, FLSS
9
72064-06
HOUSING, three-way socket
FLS, FLSS
10
72066-06A
HOUSING, four-way socket (black)
FLS, FLSS
11
72081-11
HOUSING, 48-way socket
FLS, FLSS
12
72094-06
TERMINAL, socket 18 AWG (4)
FLS, FLSS
13
72096-06
WIRE SEAL, 18 AWG (yellow) (4)
FLS, FLSS
14
72135-06
SECONDARY LOCK, four-way socket (gray)
FLS, FLSS
15
72209-11
COVER, wire
FLS, FLSS
16
72213-94
TERMINAL, socket, 16-20 AWG (4)
FLS, FLSS
17
72222-11
TERMINAL SOCKET, 18-20 AWG (20)
FLS, FLSS
18
72226-11
TERMINAL SOCKET, 14-16 AWG
FLS, FLSS
19
72227-11
TERMINAL, socket, 18-20 AWG (5)
FLS, FLSS
20
72256-11
SEAL PIN, .6mm, plug (10)
FLS, FLSS
21
72291-94
TERMINAL, 14-16 AWG
FLS, FLSS
22
72295-94
HOUSING, starter connection
FLS, FLSS
23
72350-11
HOUSING, one-way
FLS, FLSS
24
72405-98BK
PUSH ON 90 DEGREE CONNECTOR (2)
FLS, FLSS
25
72473-07
SEAL PIN (5)
FLS, FLSS
26
72484-08
TERMINAL, socket, 20 AWG (6)
FLS, FLSS
27
72486-08
WIRE SEAL, 20 AWG (green) (6)
FLS, FLSS
28
72500-07ABK
HOUSING, 20-way socket (black)
FLS, FLSS
29
72518-01
HOUSING, socket, two-way (red)
FLS, FLSS
30
72543-07BK
HOUSING, three-way socket (black)
FLS, FLSS
31
72544-07
SECONDARY LOCK, three-way socket
FLS, FLSS
32
72553-07
DUST CAP, five-way
FLS, FLSS
33
72575-11
SECONDARY LOCK
FLS, FLSS
34
72581-11
TERMINAL, socket, 18-20 AWG (gold) (12)
FLS, FLSS
35
72593-11
TERMINAL, socket, 14-16 AWG (gold) (3)
FLS, FLSS
36
72606-08
HOUSING, two-way socket
FLS, FLSS
37
72609-08
SECONDARY LOCK, two-way socket (black) (2)
FLS, FLSS
38
72610-08
SEAL, cable, 18-20 AWG (white) (4)
FLS, FLSS
39
73304-04
TERMINAL, .31 socket, 10 AWG
FLS, FLSS
40
73305-04
SEAL WIRE, 10 AWG (blue)
FLS, FLSS

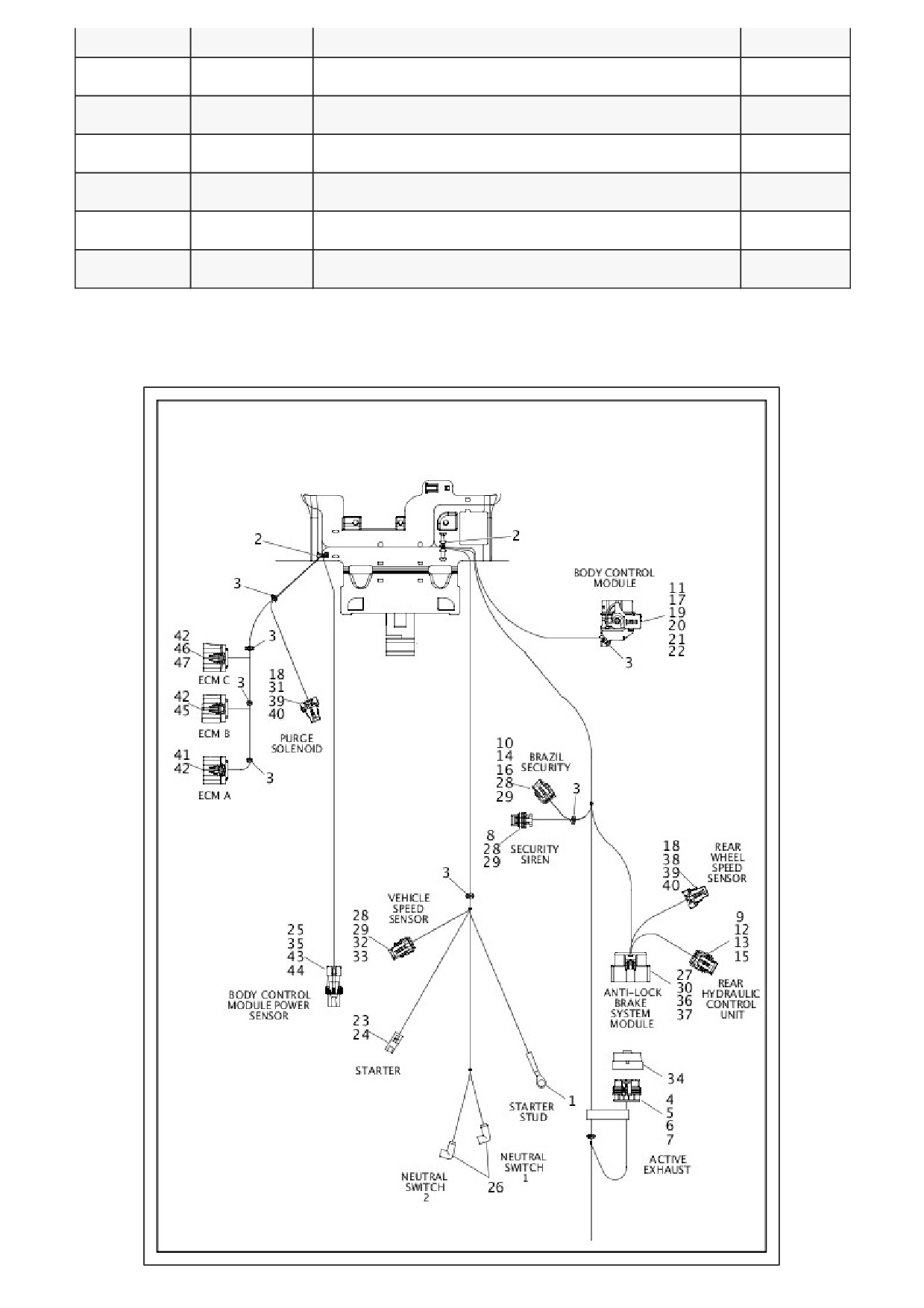

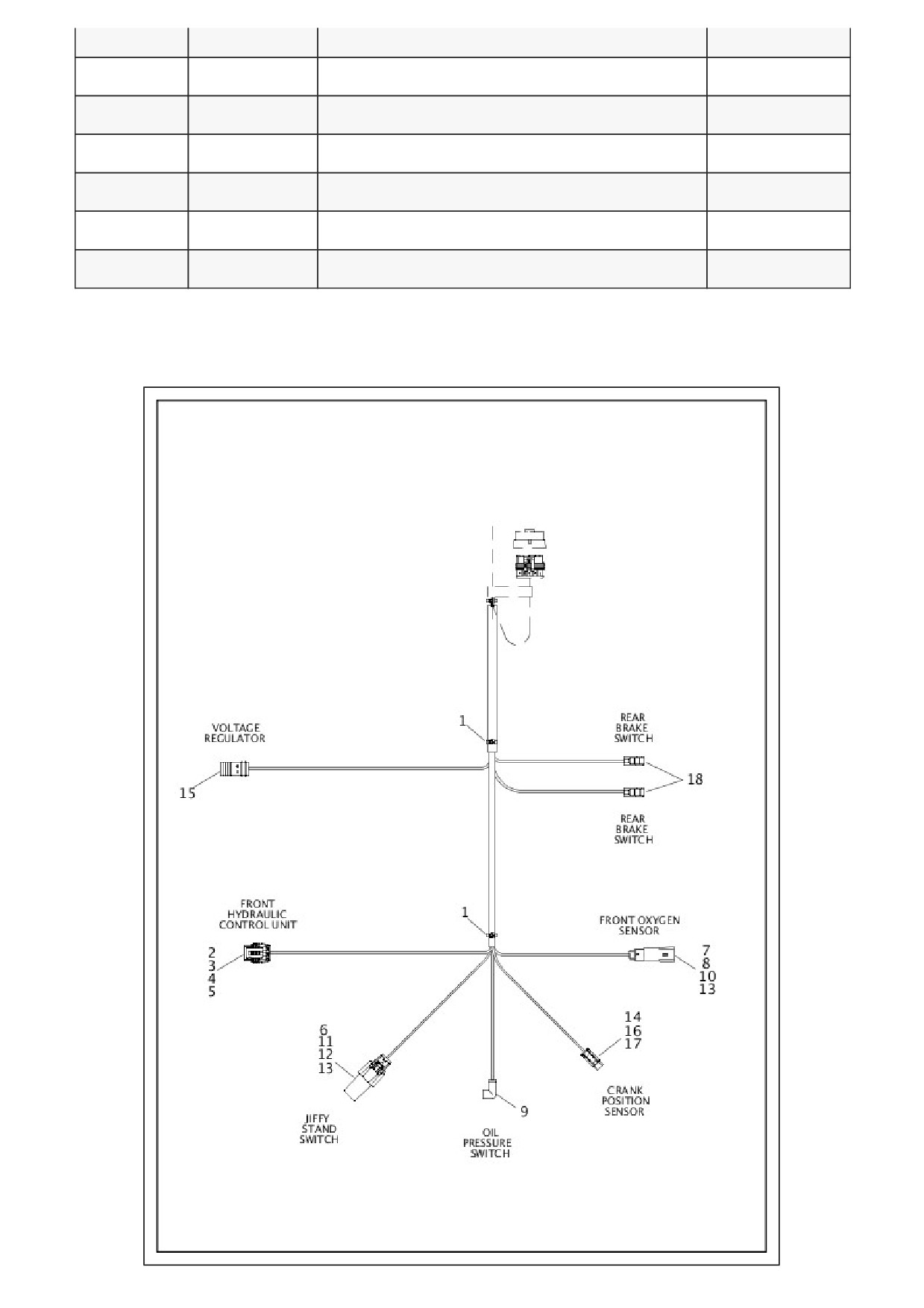

WIRING HARNESS, MAIN, ABS - FLS AND FLSS (5 OF 5)
Index No.
Part No.
Description
Model(s)
69201080
WIRING HARNESS, MAIN
FLS, FLSS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (2)
FLS, FLSS
2
72066-06A
HOUSING, four-way socket (black)
FLS, FLSS
3
72094-06
TERMINAL, socket, socket 18 AWG (4)
FLS, FLSS
4
72096-06
WIRE SEAL, 18 AWG (yellow) (4)
FLS, FLSS
5
72135-06
SECONDARY LOCK, four-way socket (gray)
FLS, FLSS
6
72168-07
TERMINAL, socket, 18-20 AWG (3)
FLS, FLSS
7
72169-07
TERMINAL, pin, 16-20 AWG (2)
FLS, FLSS
8
72343-10
TERMINAL, pin, 16-20 AWG (gold) (2)
FLS, FLSS
9
72405-98BK
PUSH ON 90 DEGREE CONNECTOR
FLS, FLSS
10
72415-07GY
HOUSING, four-way pin (gray)
FLS, FLSS
11
72512-07BK
HOUSING, three-way socket (black)
FLS, FLSS
12
72519-09BK
DUST CAP, three-way socket
FLS, FLSS
13
73213-07
RETAINER, anchored clip (2)
FLS, FLSS
14
74112-98BK
HOUSING, two-way socket (black)
FLS, FLSS
15
74120-08
DC LEAD ASSEMBLY
FLS, FLSS
16
74152-98
SECONDARY LOCK, two-way socket
FLS, FLSS
17
74191-98
TERMINAL, socket (2)
FLS, FLSS
18
69200238
TERMINAL, insulated (2)
FLS, FLSS
WIRING HARNESS, MAIN, ABS - FLSTF, FLSTFB AND FLSTFBS (1
OF 5)
Index No.
Part No.
Description
Model(s)
69201184
WIRING HARNESS, MAIN
FLSTF, FLSTFB, FLSTFBS
69201185
WIRING HARNESS, MAIN (Brazil)
FLSTF, FLSTFB
NOTE: Includes the following parts.
1
5118
SEAL PIN (3)
FLSTF, FLSTFB, FLSTFBS
2
10065
CABLE STRAP (2)
FLSTF, FLSTFB, FLSTFBS
3
10177
CABLE STRAP (3)
FLSTF, FLSTFB, FLSTFBS
4
71044-11
WIRE TROUGH
FLSTF, FLSTFB, FLSTFBS
5
72007-05
HOUSING, two-way socket (2)
FLSTF, FLSTFB, FLSTFBS
6
72010-05
WIRE SEAL, 22-26 AWG (green) (4)
FLSTF, FLSTFB, FLSTFBS
7
72024-08
TERMINAL, socket, 20-22 AWG (4)
FLSTF, FLSTFB, FLSTFBS
8
72169-07
TERMINAL, pin, 16-20 AWG (8)
FLSTF, FLSTFB, FLSTFBS
9
72213-94
TERMINAL, socket, 16-20 AWG (2)
FLSTF, FLSTFB, FLSTFBS
10
72251-07
SECONDARY LOCK, two-way socket (yellow)
FLSTF, FLSTFB, FLSTFBS
11
72402-07
HOUSING, two-way socket
FLSTF, FLSTFB, FLSTFBS
12
72413-07
TERMINAL, socket, 18-20 AWG (2)
FLSTF, FLSTFB, FLSTFBS
13
72478-07BK
HOUSING, eight-way pin (black)
FLSTF, FLSTFB, FLSTFBS
14
72606-08
HOUSING, two-way socket
FLSTF, FLSTFB, FLSTFBS
15
72609-08
SECONDARY LOCK, two-way socket (black)
FLSTF, FLSTFB, FLSTFBS
16
72610-08
SEAL, cable, 18-20 AWG (white) (2)
FLSTF, FLSTFB, FLSTFBS
17
72905-11
HOUSING, two-way pin
FLSTF, FLSTFB, FLSTFBS
18
72907-11
HOUSING, four-way pin (2)
FLSTF, FLSTFB, FLSTFBS
19
72909-11
TERMINAL, pin, 20-21 AWG (15)
FLSTF, FLSTFB, FLSTFBS
20
72914-01BK
HOUSING, four-way socket (black)
FLSTF, FLSTFB, FLSTFBS
21
72991-01
TERMINAL, socket, 18-22 AWG (3)
FLSTF, FLSTFB, FLSTFBS
22
73104-96BK
HOUSING, four-way pin
FLSTF, FLSTFB, FLSTFBS
23
73106-96BK
HOUSING, six-way pin
FLSTF, FLSTFB, FLSTFBS
24
73190-96
TERMINAL, pin, 16-20 AWG (10)
FLSTF, FLSTFB, FLSTFBS
25
73198-96
RETAINER, anchored clip
FLSTF, FLSTFB, FLSTFBS
26
73213-07
RETAINER, anchored clip
FLSTF, FLSTFB, FLSTFBS
27
69201163
HOUSING, six-way pin
FLSTF, FLSTFB, FLSTFBS
28
69201164
TERMINAL, pin, 22 AWG (6)
FLSTF, FLSTFB, FLSTFBS
29
69201180
HOUSING, four-way pin (gray) (2)
FLSTF, FLSTFB, FLSTFBS
30
69201296
BRACKET, electrical connector, right
FLSTF, FLSTFB, FLSTFBS
31
69201297
BRACKET, electrical connector, left
FLSTF, FLSTFB, FLSTFBS
WIRING HARNESS, MAIN, ABS - FLSTF, FLSTFB AND FLSTFBS (2
OF 5)
Index No.
Part No.
Description
Model(s)
69201184
WIRING HARNESS, MAIN
FLSTF, FLSTFB, FLSTFBS
69201185
WIRING HARNESS, MAIN (Brazil)
FLSTF, FLSTFB
NOTE: Includes the following parts.
1
10177
CABLE STRAP
FLSTF, FLSTFB, FLSTFBS
2
72063-06
HOUSING, two-way socket
FLSTF, FLSTFB, FLSTFBS
3
72111-06
SECONDARY LOCK, two-way socket (gray)
FLSTF, FLSTFB, FLSTFBS
4
72283-09
TERMINAL, socket, 14-16 AWG (2)
FLSTF, FLSTFB, FLSTFBS
5
72251-07
SECONDARY LOCK, two-way socket (yellow)
FLSTF, FLSTFB, FLSTFBS
6
72402-07
HOUSING, two-way socket (black)
FLSTF, FLSTFB, FLSTFBS
7
72406-07A
HOUSING, four-way socket
FLSTF, FLSTFB, FLSTFBS
8
72407-07
TERMINAL, socket, 16-20 AWG (4)
FLSTF, FLSTFB, FLSTFBS
9
72408-07
WIRE SEAL, 20 AWG (blue) (4)
FLSTF, FLSTFB, FLSTFBS
10
72413-07
TERMINAL, socket, 18-20 AWG (2)
FLSTF, FLSTFB, FLSTFBS
11
72483-08BK
HOUSING, six-way socket (black)
FLSTF, FLSTFB, FLSTFBS
12
72484-08
TERMINAL, socket, 20 AWG (2)
FLSTF, FLSTFB, FLSTFBS
13
72486-08
WIRE SEAL, 20 AWG (green) (2)
FLSTF, FLSTFB, FLSTFBS
14
72663-11
TERMINAL, socket, 18-20 AWG (silver) (6)
FLSTF, FLSTFB, FLSTFBS
15
69200437
BOOT, rubber
FLSTF, FLSTFB, FLSTFBS
WIRING HARNESS, MAIN, ABS - FLSTF, FLSTFB AND FLSTFBS (3
OF 5)
Index No.
Part No.
Description
Model(s)
69201184
WIRING HARNESS, MAIN
FLSTF, FLSTFB, FLSTFBS
69201185
WIRING HARNESS, MAIN (Brazil)
FLSTF, FLSTFB
NOTE: Includes the following parts.
1
6990
PLUG, weather, six-way pin
FLSTF, FLSTFB, FLSTFBS
2
9819
TERMINAL RING, .25 stud, 12 AWGX2
FLSTF, FLSTFB, FLSTFBS
3
10065
CABLE STRAP (12)
FLSTF, FLSTFB, FLSTFBS
4
10147
CLIP, connector (2)
FLSTF, FLSTFB, FLSTFBS
5
11785
FASTENER, push-in (2)
FLSTF, FLSTFB, FLSTFBS
6
70974-08A
LOOM SHIELD, wire harness
FLSTF, FLSTFB, FLSTFBS
7
70982-08
WIRE SHIELD
FLSTF, FLSTFB, FLSTFBS
8
72066-06A
HOUSING, four-way socket (black)
FLSTF, FLSTFB, FLSTFBS
9
72106-94BK
HOUSING, six-way (black) (replaces gray connector)
FLSTF, FLSTFB, FLSTFBS
10
72135-06
SECONDARY LOCK, four-way socket (gray)
FLSTF, FLSTFB, FLSTFBS
11
72146-94
PIN LOCK, sec 6
FLSTF, FLSTFB, FLSTFBS
12
72169-07
TERMINAL, pin, 16-20 AWG (2)
FLSTF, FLSTFB, FLSTFBS
13
72175-07BK
HOUSING, four-way, pin (black)
FLSTF, FLSTFB, FLSTFBS
14
72190-94
TERMINAL, pin, 16-18 AWG (3)
FLSTF, FLSTFB, FLSTFBS
15
72194-94
TERMINAL, pin, 20 AWG (3)
FLSTF, FLSTFB, FLSTFBS
16
72199-94
CONNECTOR ANCHOR
FLSTF, FLSTFB, FLSTFBS
17
72242-94
TERMINAL, 1/4 ring
FLSTF, FLSTFB, FLSTFBS
18
72249-94
HEAT SHRINK TUBE, .415 x 1 (black)
FLSTF, FLSTFB, FLSTFBS
19
72254-94
TERMINAL RING, .25 stud, 14-16 AWG
FLSTF, FLSTFB, FLSTFBS
20
72298-95
WIRE SEAL, 14-18 AWG (green) (4)
FLSTF, FLSTFB, FLSTFBS
21
72308-97
TERMINAL, socket, 12-14 AWG (2)
FLSTF, FLSTFB, FLSTFBS
22
72314-01
MAIN FUSE, 40 A
FLSTF, FLSTFB, FLSTFBS
23
72330-95
FUSE, 15 A (blue) (2)
FLSTF, FLSTFB, FLSTFBS
24
72343-10
TERMINAL, pin, 16-20 AWG (gold) (2)
FLSTF, FLSTFB, FLSTFBS
25
72356-95
TERMINAL, socket, 18-20 AWG (2)
FLSTF, FLSTFB, FLSTFBS
26
72369-08A
BRACKET, fuse block holder, (black)
FLSTF, FLSTFB, FLSTFBS
27
72484-08
TERMINAL, socket, 20 AWG (4)
FLSTF, FLSTFB, FLSTFBS
28
72486-08
WIRE SEAL, 20 AWG (green) (4)
FLSTF, FLSTFB, FLSTFBS
29
72582-11
FUSE BLOCK
FLSTF, FLSTFB, FLSTFBS
30
72586-11
COVER, fuse block
FLSTF, FLSTFB, FLSTFBS
31
72587-11
SECONDARY LOCK, fuse block
FLSTF, FLSTFB, FLSTFBS
32
72595-11
SEAL, fuse block
FLSTF, FLSTFB, FLSTFBS
33
72664-12A
HOUSING, 18-way, socket, key A (black)
FLSTF, FLSTFB, FLSTFBS
34
72666-12
TERMINAL, socket, 18-20 AWG (silver) (36)
FLSTF, FLSTFB, FLSTFBS
35
72720-07
HOUSING, two-way socket
FLSTF, FLSTFB, FLSTFBS
36
72721-07
TERMINAL, socket, 18-20 AWG (2)
FLSTF, FLSTFB, FLSTFBS
37
73108-96BK
HOUSING, eight-way pin
FLSTF, FLSTFB, FLSTFBS
38
73190-96
TERMINAL, pin, 16-20 AWG (8)
FLSTF, FLSTFB, FLSTFBS
39
73196-96
ANCHOR, T-stud
FLSTF, FLSTFB, FLSTFBS
40
73304-04
TERMINAL, .31 socket, 10 AWG (2)
FLSTF, FLSTFB, FLSTFBS
41
73305-04
SEAL WIRE, 10 AWG (blue) (2)
FLSTF, FLSTFB, FLSTFBS
42
12200044
BRACKET, fuse block mounting
FLSTF, FLSTFB, FLSTFBS
43
69200267A
HOUSING, 18-way, socket, key B (gray)
FLSTF, FLSTFB, FLSTFBS
44
69200268A
HOUSING, 18-way, socket, key C (brown)
FLSTF, FLSTFB, FLSTFBS
45
69201168
TERMINAL, socket, 22 AWG (silver) (2)
FLSTF, FLSTFB, FLSTFBS
WIRING HARNESS, MAIN, ABS - FLSTF, FLSTFB AND FLSTFBS (4
OF 5)
Index No.
Part No.
Description
Model(s)
69201184
WIRING HARNESS, MAIN
FLSTF, FLSTFB, FLSTFBS
69201185
WIRING HARNESS, MAIN (Brazil)
FLSTF, FLSTFB
NOTE: Includes the following parts.
1
9842
TERMINAL RING, .31 10-12 GA
FLSTF, FLSTFB, FLSTFBS
2
10006
CABLE STRAP
FLSTF, FLSTFB, FLSTFBS
3
10065
CABLE STRAP (5)
FLSTF, FLSTFB, FLSTFBS
4
70982-08
WIRE SHIELD
FLSTF, FLSTFB, FLSTFBS
5
72010-05
WIRE SEAL, 22-26 AWG (green) (4)
FLSTF, FLSTFB, FLSTFBS
6
72012-07
HOUSING, five-way socket
FLSTF, FLSTFB, FLSTFBS
7
72014-07
SEAL PIN
FLSTF, FLSTFB, FLSTFBS
8
72024-08
TERMINAL, socket, 20-22 AWG (4)
FLSTF, FLSTFB, FLSTFBS
9
72064-06
HOUSING, three-way socket
FLSTF, FLSTFB, FLSTFBS
10
72066-06A
HOUSING, four-way socket (black) (2)
FLSTF, FLSTFB, FLSTFBS
11
72081-11
HOUSING, 48-way socket
FLSTF, FLSTFB, FLSTFBS
12
72094-06
TERMINAL, socket, socket 18 AWG (4)
FLSTF, FLSTFB, FLSTFBS
13
72096-06
WIRE SEAL, 18 AWG (yellow) (4)
FLSTF, FLSTFB, FLSTFBS
14
72097-06
PLUG, oval (orange) (Brazil) (2)
FLSTF, FLSTFB
15
72135-06
SECONDARY LOCK, four-way socket (gray) (2)
FLSTF, FLSTFB, FLSTFBS
16
72209-11
COVER, wire
FLSTF, FLSTFB, FLSTFBS
17
72213-94
TERMINAL, socket, 16-20 AWG (4)
FLSTF, FLSTFB, FLSTFBS
18
72222-11
TERMINAL SOCKET, 18-20 AWG (20)
FLSTF, FLSTFB, FLSTFBS
19
72226-11
TERMINAL SOCKET, 14-16 AWG
FLSTF, FLSTFB, FLSTFBS
20
72227-11
TERMINAL, socket, 18-20 AWG (5)
FLSTF, FLSTFB, FLSTFBS
21
72256-11
SEAL PIN, .6mm, plug (10)
FLSTF, FLSTFB, FLSTFBS
22
72291-94
TERMINAL, 14-16 AWG
FLSTF, FLSTFB, FLSTFBS
23
72295-94
HOUSING, starter connection
FLSTF, FLSTFB, FLSTFBS
24
72350-11
HOUSING, one-way
FLSTF, FLSTFB, FLSTFBS
25
72405-98BK
PUSH ON 90 DEGREE CONNECTOR (2)
FLSTF, FLSTFB, FLSTFBS
26
72473-07
SEAL PIN (5)
FLSTF, FLSTFB, FLSTFBS
27
72484-08
TERMINAL, socket, 20 AWG (6)
FLSTF, FLSTFB, FLSTFBS
27
72484-08
TERMINAL, socket, 20 AWG (Brazil) (8)
FLSTF, FLSTFB
28
72486-08
WIRE SEAL, 20 AWG (green) (6)
FLSTF, FLSTFB, FLSTFBS
28
72486-08
WIRE SEAL, 20 AWG (green) (Brazil) (8)
FLSTF, FLSTFB
29
72500-07ABK
HOUSING, 20-way socket (black)
FLSTF, FLSTFB, FLSTFBS
30
72518-01
HOUSING, socket, two-way (red)
FLSTF, FLSTFB, FLSTFBS
31
72543-07BK
HOUSING, three-way socket (black)
FLSTF, FLSTFB, FLSTFBS
32
72544-07
SECONDARY LOCK, three-way socket
FLSTF, FLSTFB, FLSTFBS
33
72553-07
DUST CAP, five-way
FLSTF, FLSTFB, FLSTFBS
34
72575-11
SECONDARY LOCK
FLSTF, FLSTFB, FLSTFBS
35
72581-11
TERMINAL, socket, 18-20 AWG (gold) (12)
FLSTF, FLSTFB, FLSTFBS
36
72593-11
TERMINAL, socket, 14-16 AWG (gold) (3)
FLSTF, FLSTFB, FLSTFBS
37
72606-08
HOUSING, two-way socket
FLSTF, FLSTFB, FLSTFBS
38
72609-08
SECONDARY LOCK, two-way socket (black) (2)
FLSTF, FLSTFB, FLSTFBS
39
72610-08
SEAL, cable, 18-20 AWG (white) (4)
FLSTF, FLSTFB, FLSTFBS
40
73304-04
TERMINAL, .31 socket, 10 AWG
FLSTF, FLSTFB, FLSTFBS
41
73305-04
SEAL WIRE, 10 AWG (blue)
FLSTF, FLSTFB, FLSTFBS
WIRING HARNESS, MAIN, ABS - FLSTF, FLSTFB AND FLSTFBS (5
OF 5)
Index No.
Part No.
Description
Model(s)
69201184
WIRING HARNESS, MAIN
FLSTF, FLSTFB, FLSTFBS
69201185
WIRING HARNESS, MAIN (Brazil)
FLSTF, FLSTFB
NOTE: Includes the following parts.
1
10065
CABLE STRAP (2)
FLSTF, FLSTFB, FLSTFBS
2
72066-06A
HOUSING, four-way socket (black)
FLSTF, FLSTFB, FLSTFBS
3
72094-06
TERMINAL, socket, socket 18 AWG (4)
FLSTF, FLSTFB, FLSTFBS
4
72096-06
WIRE SEAL, 18 AWG (yellow) (4)
FLSTF, FLSTFB, FLSTFBS
5
72135-06
SECONDARY LOCK, four-way socket (gray)
FLSTF, FLSTFB, FLSTFBS
6
72168-07
TERMINAL, socket, 18-20 AWG (3)
FLSTF, FLSTFB, FLSTFBS
7
72169-07
TERMINAL, pin, 16-20 AWG (2)
FLSTF, FLSTFB, FLSTFBS
8
72343-10
TERMINAL, pin, 16-20 AWG (gold) (2)
FLSTF, FLSTFB, FLSTFBS
9
72405-98BK
PUSH ON 90 DEGREE CONNECTOR
FLSTF, FLSTFB, FLSTFBS
10
72415-07GY
HOUSING, four-way pin (gray)
FLSTF, FLSTFB, FLSTFBS
11
72512-07BK
HOUSING, three-way socket (black)
FLSTF, FLSTFB, FLSTFBS
12
72519-09BK
DUST CAP, three-way socket
FLSTF, FLSTFB, FLSTFBS
13
73213-07
RETAINER, anchored clip (2)
FLSTF, FLSTFB, FLSTFBS
14
74112-98BK
HOUSING, two-way socket (black)
FLSTF, FLSTFB, FLSTFBS
15
74120-08
DC LEAD ASSEMBLY
FLSTF, FLSTFB, FLSTFBS
16
74152-98
SECONDARY LOCK, two-way socket
FLSTF, FLSTFB, FLSTFBS
17
74191-98
TERMINAL, socket (2)
FLSTF, FLSTFB, FLSTFBS
18
69200238
TERMINAL, insulated (2)
FLSTF, FLSTFB, FLSTFBS

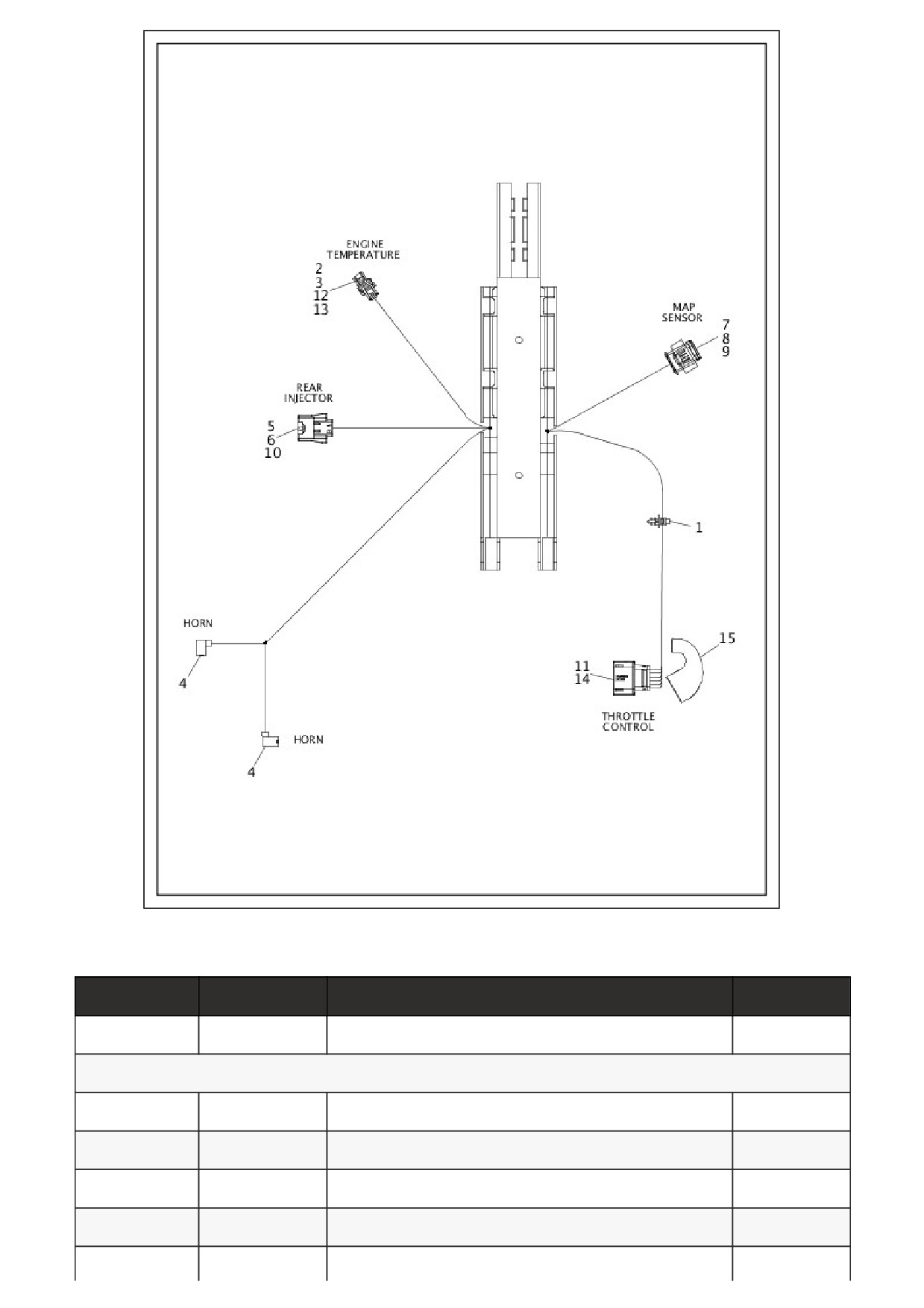

WIRING HARNESS, MAIN, ABS - FLSTC AND FLSTN (1 OF 5)
Index No.
Part No.
Description
Model(s)
69201077
WIRING HARNESS, MAIN
FLSTN, FLSTC
69201078
WIRING HARNESS, MAIN (Brazil)
FLSTN, FLSTC
NOTE: Includes the following parts.
1
5118
SEAL PIN
FLSTN, FLSTC
2
10065
CABLE STRAP (2)
FLSTN, FLSTC
3
10177
CABLE STRAP (3)
FLSTN, FLSTC
4
71044-11
WIRE TROUGH
FLSTN, FLSTC
5
72007-05
HOUSING, two-way socket (2)
FLSTN, FLSTC
6
72010-05
WIRE SEAL, 22-26 AWG (green) (4)
FLSTN, FLSTC
7
72024-08
TERMINAL, socket, 20-22 AWG (4)
FLSTN, FLSTC
8
72169-07
TERMINAL, pin, 16-20 AWG (8)
FLSTN, FLSTC
9
72213-94
TERMINAL, socket, 16-20 AWG (2)
FLSTN, FLSTC
10
72251-07
SECONDARY LOCK, two-way socket (yellow)
FLSTN, FLSTC
11
72402-07
HOUSING, two-way socket
FLSTN, FLSTC
12
72413-07
TERMINAL, socket, 18-20 AWG (2)
FLSTN, FLSTC
13
72478-07BK
HOUSING, eight-way pin (black)
FLSTN, FLSTC
14
72606-08
HOUSING, two-way socket
FLSTN, FLSTC
15
72609-08
SECONDARY LOCK, two-way socket (black)
FLSTN, FLSTC
16
72610-08
SEAL, cable, 18-20 AWG (white) (2)
FLSTN, FLSTC
17
72905-11
HOUSING, two-way pin
FLSTN, FLSTC
18
72907-11
HOUSING, four-way pin (2)
FLSTN, FLSTC
19
72909-11
TERMINAL, pin, 20-21 AWG (9)
FLSTN, FLSTC
20
72914-01BK
HOUSING, four-way socket (black)
FLSTN, FLSTC
21
72991-01
TERMINAL, socket, 18-22 AWG (3)
FLSTN, FLSTC
22
73104-96BK
HOUSING, four-way pin
FLSTN, FLSTC
23
73106-96BK
HOUSING, six-way pin
FLSTN, FLSTC
24
73190-96
TERMINAL, pin, 16-20 AWG (10)
FLSTN, FLSTC
25
73198-96
RETAINER, anchored clip
FLSTN, FLSTC
26
73213-07
RETAINER, anchored clip
FLSTN, FLSTC
27
69201163
HOUSING, six-way pin
FLSTN, FLSTC
28
69201164
TERMINAL, pin, 22 AWG (6)
FLSTN, FLSTC
29
69201296
BRACKET, electrical connector, right
FLSTN, FLSTC
30
69201297
BRACKET, electrical connector, left
FLSTN, FLSTC

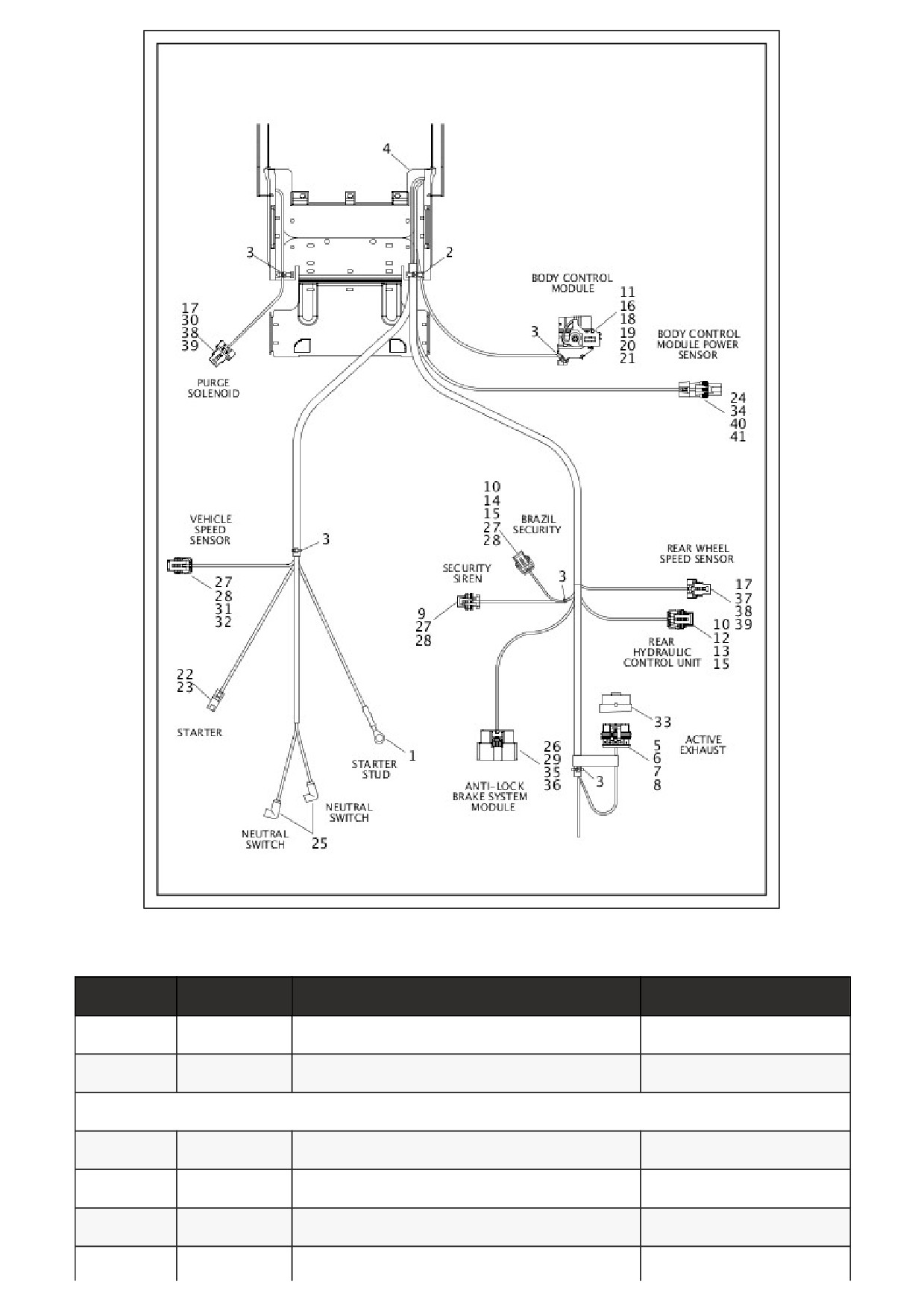

WIRING HARNESS, MAIN, ABS - FLSTC AND FLSTN (2 OF 5)
Index No.
Part No.
Description
Model(s)
69201077
WIRING HARNESS, MAIN
FLSTN, FLSTC
69201078
WIRING HARNESS, MAIN (Brazil)
FLSTN, FLSTC
NOTE: Includes the following parts.
1
10177
CABLE STRAP
FLSTN, FLSTC
2
72063-06
HOUSING, two-way socket
FLSTN, FLSTC
3
72111-06
SECONDARY LOCK, two-way socket (gray)
FLSTN, FLSTC
4
72283-09
TERMINAL, socket, 14-16 AWG (2)
FLSTN, FLSTC
5
72251-07
SECONDARY LOCK, two-way socket (yellow)
FLSTN, FLSTC
6
72402-07
HOUSING, two-way socket (black)
FLSTN, FLSTC
7
72406-07A
HOUSING, four-way socket
FLSTN, FLSTC
8
72407-07
TERMINAL, socket, 16-20 AWG (4)
FLSTN, FLSTC
9
72408-07
WIRE SEAL, 20 AWG (blue) (4)
FLSTN, FLSTC
10
72413-07
TERMINAL, socket, 18-20 AWG (2)
FLSTN, FLSTC
11
72483-08BK
HOUSING, six-way socket (black)
FLSTN, FLSTC
12
72484-08
TERMINAL, socket, 20 AWG (2)
FLSTN, FLSTC
13
72486-08
WIRE SEAL, 20 AWG (green) (2)
FLSTN, FLSTC
14
72663-11
TERMINAL, socket, 18-20 AWG (silver) (6)
FLSTN, FLSTC
15
69200437
BOOT, rubber
FLSTN, FLSTC

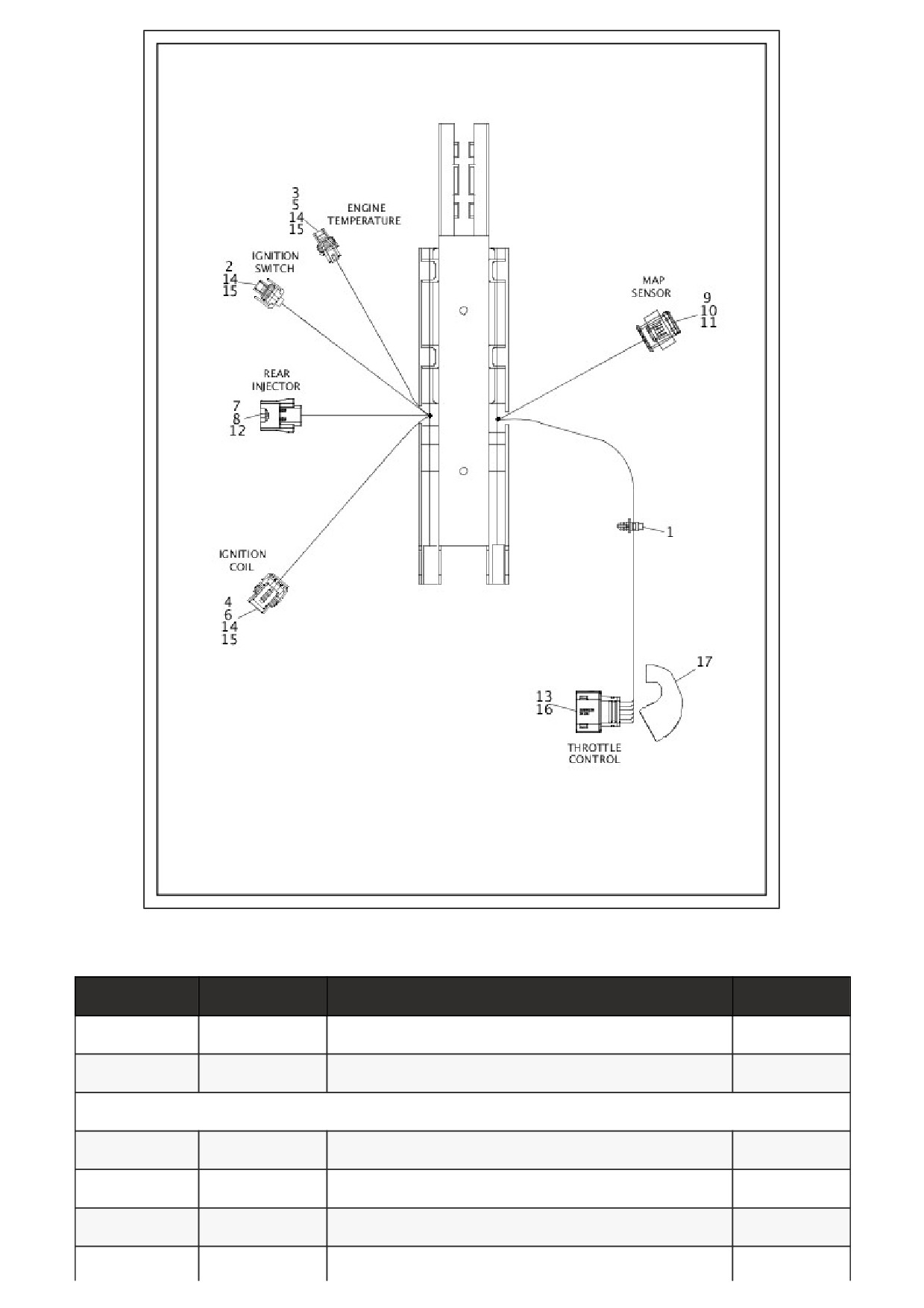

WIRING HARNESS, MAIN, ABS - FLSTC AND FLSTN (3 OF 5)
Index No.
Part No.
Description
Model(s)
69201077
WIRING HARNESS, MAIN
FLSTN, FLSTC
69201078
WIRING HARNESS, MAIN (Brazil)
FLSTN, FLSTC
NOTE: Includes the following parts.
1
6990
PLUG, weather, six-way pin
FLSTN, FLSTC
2
9819
TERMINAL RING, .25 stud, 12 AWGX2
FLSTN, FLSTC
3
10065
CABLE STRAP (12)
FLSTN, FLSTC
4
10147
CLIP, connector (2)
FLSTN, FLSTC
5
11785
FASTENER, push-in (2)
FLSTN, FLSTC
6
70974-08A
LOOM SHIELD, wire harness
FLSTN, FLSTC
7
70982-08
WIRE SHIELD
FLSTN, FLSTC
8
72066-06A
HOUSING, four-way socket (black)
FLSTN, FLSTC
9
72106-94BK
HOUSING, six-way (black) (replaces gray connector)
FLSTN, FLSTC
10
72135-06
SECONDARY LOCK, four-way socket (gray)
FLSTN, FLSTC
11
72146-94
PIN LOCK, sec 6
FLSTN, FLSTC
12
72169-07
TERMINAL, pin, 16-20 AWG (2)
FLSTN, FLSTC
13
72175-07BK
HOUSING, four-way, pin (black)
FLSTN, FLSTC
14
72190-94
TERMINAL, pin, 16-18 AWG (3)
FLSTN, FLSTC
15
72194-94
TERMINAL, pin, 20 AWG (3)
FLSTN, FLSTC
16
72199-94
CONNECTOR ANCHOR
FLSTN, FLSTC
17
72242-94
TERMINAL, 1/4 ring
FLSTN, FLSTC
18
72249-94
HEAT SHRINK TUBE, .415 x 1 (black)
FLSTN, FLSTC
19
72254-94
TERMINAL RING, .25 stud, 14-16 AWG
FLSTN, FLSTC
20
72298-95
WIRE SEAL, 14-18 AWG (green) (4)
FLSTN, FLSTC
21
72308-97
TERMINAL, socket, 12-14 AWG (2)
FLSTN, FLSTC
22
72314-01
MAIN FUSE, 40 A
FLSTN, FLSTC
23
72330-95
FUSE, 15 A (blue) (2)
FLSTN, FLSTC
24
72343-10
TERMINAL, pin, 16-20 AWG (gold) (2)
FLSTN, FLSTC
25
72356-95
TERMINAL, socket, 18-20 AWG (2)
FLSTN, FLSTC
26
72369-08A
BRACKET, fuse block holder, (black)
FLSTN, FLSTC
27
72484-08
TERMINAL, socket, 20 AWG (4)
FLSTN, FLSTC
28
72486-08
WIRE SEAL, 20 AWG (green) (4)
FLSTN, FLSTC
29
72582-11
FUSE BLOCK
FLSTN, FLSTC
30
72586-11
COVER, fuse block
FLSTN, FLSTC
31
72587-11
SECONDARY LOCK, fuse block
FLSTN, FLSTC
32
72595-11
SEAL, fuse block
FLSTN, FLSTC
33
72664-12A
HOUSING, 18-way, socket, key A (black)
FLSTN, FLSTC
34
72666-12
TERMINAL, socket, 18-20 AWG (silver) (36)
FLSTN, FLSTC
35
72720-07
HOUSING, two-way socket
FLSTN, FLSTC
36
72721-07
TERMINAL, socket, 18-20 AWG (2)
FLSTN, FLSTC
37
73108-96BK
HOUSING, eight-way pin
FLSTN, FLSTC
38
73190-96
TERMINAL, pin, 16-20 AWG (8)
FLSTN, FLSTC
39
73196-96
ANCHOR, T-stud
FLSTN, FLSTC
40
73304-04
TERMINAL, .31 socket, 10 AWG (2)
FLSTN, FLSTC
41
73305-04
SEAL WIRE, 10 AWG (blue) (2)
FLSTN, FLSTC
42
12200044
BRACKET, fuse block mounting
FLSTN, FLSTC
43
69200267A
HOUSING, 18-way, socket, key B (gray)
FLSTN, FLSTC
44
69200268A
HOUSING, 18-way, socket, key C (brown)
FLSTN, FLSTC
45
69201168
TERMINAL, socket, 22 AWG (silver) (2)
FLSTN, FLSTC

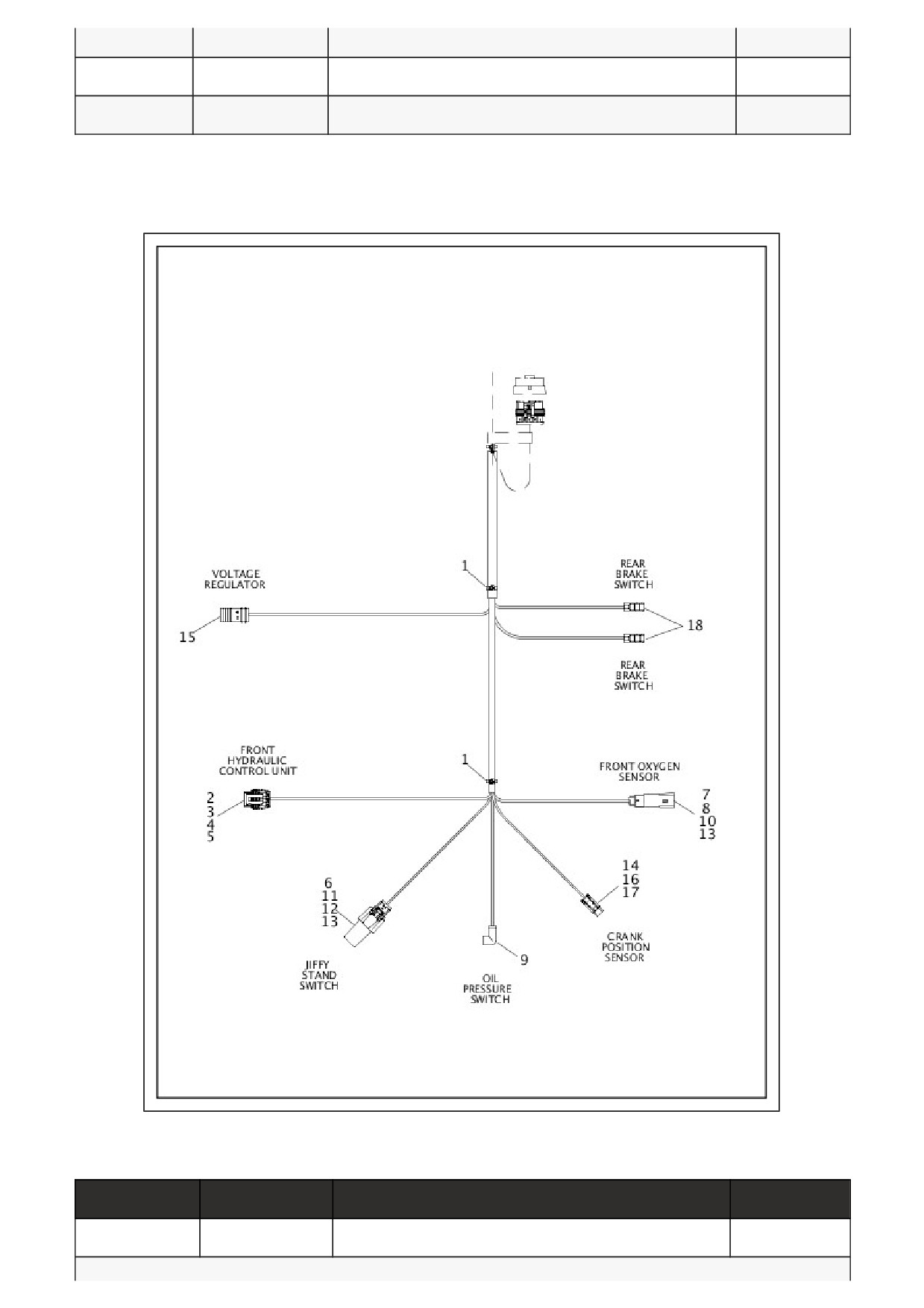

WIRING HARNESS, MAIN, ABS - FLSTC AND FLSTN (4 OF 5)
Index No.
Part No.
Description
Model(s)
69201077
WIRING HARNESS, MAIN
FLSTN, FLSTC
69201078
WIRING HARNESS, MAIN (Brazil)
FLSTN, FLSTC
NOTE: Includes the following parts.
1
9842
TERMINAL RING, .31 10-12 GA
FLSTN, FLSTC
2
10006
CABLE STRAP
FLSTN, FLSTC
3
10065
CABLE STRAP (5)
FLSTN, FLSTC
4
70982-08
WIRE SHIELD
FLSTN, FLSTC
5
72010-05
WIRE SEAL, 22-26 AWG (green) (4)
FLSTN, FLSTC
6
72012-07
HOUSING, five-way socket
FLSTN, FLSTC
7
72014-07
SEAL PIN
FLSTN, FLSTC
8
72024-08
TERMINAL, socket, 20-22 AWG (4)
FLSTN, FLSTC
9
72064-06
HOUSING, three-way socket
FLSTN, FLSTC
10
72066-06A
HOUSING, four-way socket (black) (2)
FLSTN, FLSTC
11
72081-11
HOUSING, 48-way socket
FLSTN, FLSTC
12
72094-06
TERMINAL, socket, socket 18 AWG (4)
FLSTN, FLSTC
13
72096-06
WIRE SEAL, 18 AWG (yellow) (4)
FLSTN, FLSTC
14
72097-06
PLUG, oval (orange) (Brazil) (2)
FLSTN, FLSTC
15
72135-06
SECONDARY LOCK, four-way socket (gray) (2)
FLSTN, FLSTC
16
72209-11
COVER, wire
FLSTN, FLSTC
17
72213-94
TERMINAL, socket, 16-20 AWG (4)
FLSTN, FLSTC
18
72222-11
TERMINAL SOCKET, 18-20 AWG (20)
FLSTN, FLSTC
19
72226-11
TERMINAL SOCKET, 14-16 AWG
FLSTN, FLSTC
20
72227-11
TERMINAL, socket, 18-20 AWG (5)
FLSTN, FLSTC
21
72256-11
SEAL PIN, .6mm, plug (10)
FLSTN, FLSTC
22
72291-94
TERMINAL, 14-16 AWG
FLSTN, FLSTC
23
72295-94
HOUSING, starter connection
FLSTN, FLSTC
24
72350-11
HOUSING, one-way
FLSTN, FLSTC
25
72405-98BK
PUSH ON 90 DEGREE CONNECTOR (2)
FLSTN, FLSTC
26
72473-07
SEAL PIN (5)
FLSTN, FLSTC
27
72484-08
TERMINAL, socket, 20 AWG (6)
FLSTN, FLSTC
27
72484-08
TERMINAL, socket, 20 AWG (Brazil) (8)
FLSTN, FLSTC
28
72486-08
WIRE SEAL, 20 AWG (green) (6)
FLSTN, FLSTC
28
72486-08
WIRE SEAL, 20 AWG (green) (Brazil) (8)
FLSTN, FLSTC
29
72500-07ABK
HOUSING, 20-way socket (black)
FLSTN, FLSTC
30
72518-01
HOUSING, socket, two-way (red)
FLSTN, FLSTC
31
72543-07BK
HOUSING, three-way socket (black)
FLSTN, FLSTC
32
72544-07
SECONDARY LOCK, three-way socket
FLSTN, FLSTC
33
72553-07
DUST CAP, five-way
FLSTN, FLSTC
34
72575-11
SECONDARY LOCK
FLSTN, FLSTC
35
72581-11
TERMINAL, socket, 18-20 AWG (gold) (12)
FLSTN, FLSTC
36
72593-11
TERMINAL, socket, 14-16 AWG (gold) (3)
FLSTN, FLSTC
37
72606-08
HOUSING, two-way socket
FLSTN, FLSTC
38
72609-08
SECONDARY LOCK, two-way socket (black) (2)
FLSTN, FLSTC
39
72610-08
SEAL, cable, 18-20 AWG (white) (4)
FLSTN, FLSTC
40
73304-04
TERMINAL, .31 socket, 10 AWG
FLSTN, FLSTC
41
73305-04
SEAL WIRE, 10 AWG (blue)
FLSTN, FLSTC
WIRING HARNESS, MAIN, ABS - FLSTC AND FLSTN (5 OF 5)
Index No.
Part No.
Description
Model(s)
69201077
WIRING HARNESS, MAIN
FLSTN, FLSTC
69201078
WIRING HARNESS, MAIN (Brazil)
FLSTN, FLSTC
NOTE: Includes the following parts.
1
10065
CABLE STRAP (2)
FLSTN, FLSTC
2
72066-06A
HOUSING, four-way socket (black)
FLSTN, FLSTC
3
72094-06
TERMINAL, socket, socket 18 AWG (4)
FLSTN, FLSTC
4
72096-06
WIRE SEAL, 18 AWG (yellow) (4)
FLSTN, FLSTC
5
72135-06
SECONDARY LOCK, four-way socket (gray) (3)
FLSTN, FLSTC
6
72168-07
TERMINAL, socket, 18-20 AWG (3)
FLSTN, FLSTC
7
72169-07
TERMINAL, pin, 16-20 AWG (2)
FLSTN, FLSTC
8
72343-10
TERMINAL, pin, 16-20 AWG (gold) (2)
FLSTN, FLSTC
9
72405-98BK
PUSH ON 90 DEGREE CONNECTOR
FLSTN, FLSTC
10
72415-07GY
HOUSING, four-way pin (gray)
FLSTN, FLSTC
11
72512-07BK
HOUSING, three-way socket (black)
FLSTN, FLSTC
12
72519-09BK
DUST CAP, three-way socket
FLSTN, FLSTC
13
73213-07
RETAINER, anchored clip
FLSTN, FLSTC
14
74112-98BK
HOUSING, two-way socket (black)
FLSTN, FLSTC
15
74120-08
DC LEAD ASSEMBLY
FLSTN, FLSTC
16
74152-98
SECONDARY LOCK, two-way socket
FLSTN, FLSTC
17
74191-98
TERMINAL, socket (2)
FLSTN, FLSTC
18
69200238
TERMINAL, insulated (2)
FLSTN, FLSTC
WIRING HARNESS, MAIN, ABS - FXSB (1 OF 5)
Index No.
Part No.
Description
Model(s)
69201082
WIRING HARNESS, MAIN
FXSB
69201083
WIRING HARNESS, MAIN (Brazil)
FXSB
NOTE: Includes the following parts.
1
5118
SEAL PIN (3)
FXSB
2
10065
CABLE STRAP (2)
FXSB
3
10177
CABLE STRAP (3)
FXSB
4
71044-11
WIRE TROUGH
FXSB
5
72007-05
HOUSING, two-way socket (2)
FXSB
6
72010-05
WIRE SEAL, 22-26 AWG (green) (4)
FXSB
7
72024-08
TERMINAL, socket, 20-22 AWG (4)
FXSB
8
72169-07
TERMINAL, pin, 16-20 AWG (8)
FXSB
9
72213-94
TERMINAL, socket, 16-20 AWG (2)
FXSB
10
72251-07
SECONDARY LOCK, two-way socket (yellow)
FXSB
11
72402-07
HOUSING, two-way socket
FXSB
12
72413-07
TERMINAL, socket, 18-20 AWG (2)
FXSB
13
72473-07
SEAL PIN
FXSB
14
72554-09GY
HOUSING, six-way pin
FXSB
15
72606-08
HOUSING, two-way socket
FXSB
16
72609-08
SECONDARY LOCK, two-way socket (black)
FXSB
17
72610-08
SEAL, cable, 18-20 AWG (white) (2)
FXSB
18
72905-11
HOUSING, two-way pin
FXSB
19
72907-11
HOUSING, four-way pin (2)
FXSB
20
72909-11
TERMINAL, pin, 20-21 AWG (15)
FXSB
21
73104-96BK
HOUSING, four-way pin
FXSB
22
73106-96BK
HOUSING, six-way pin
FXSB
23
73190-96
TERMINAL, pin, 16-20 AWG (10)
FXSB
24
73198-96
RETAINER, anchored clip
FXSB
25
73213-07
RETAINER, anchored clip
FXSB
26
69201163
HOUSING, six-way pin
FXSB
27
69201164
TERMINAL, pin, 22 AWG (6)
FXSB
28
69201180
HOUSING, four-way pin (gray) (2)
FXSB
29
69201296
BRACKET, electrical connector, right
FXSB
30
69201297
BRACKET, electrical connector, left
FXSB
WIRING HARNESS, MAIN, ABS - FXSB (2 OF 5)
Index No.
Part No.
Description
Model(s)
69201082
WIRING HARNESS, MAIN
FXSB
69201083
WIRING HARNESS, MAIN (Brazil)
FXSB
NOTE: Includes the following parts.
1
10177
CABLE STRAP
FXSB
2
72062-06
HOUSING, two-way socket
FXSB
3
72063-06
HOUSING, two-way socket
FXSB
4
72066-06A
HOUSING, four-way socket (black)
FXSB
5
72111-06
SECONDARY LOCK, two-way socket (gray)
FXSB
6
72135-06
SECONDARY LOCK, four-way socket (gray)
FXSB
7
72251-07
SECONDARY LOCK, two-way socket (yellow)
FXSB
8
72402-07
HOUSING, two-way socket (black)
FXSB
9
72406-07A
HOUSING, four-way socket
FXSB
10
72407-07
TERMINAL, socket, 16-20 AWG (4)
FXSB
11
72408-07
WIRE SEAL, 20 AWG (blue) (4)
FXSB
12
72413-07
TERMINAL, socket, 18-20 AWG (2)
FXSB
13
72483-08BK
HOUSING, six-way socket (black)
FXSB
14
72484-08
TERMINAL, socket, 20 AWG (8)
FXSB
15
72486-08
WIRE SEAL, 20 AWG (green) (8)
FXSB
16
72663-11
TERMINAL, socket, 18-20 AWG (silver) (6)
FXSB
17
69200437
BOOT, rubber
FXSB
WIRING HARNESS, MAIN, ABS - FXSB (3 OF 5)
Index No.
Part No.
Description
Model(s)
69201082
WIRING HARNESS, MAIN
FXSB
69201083
WIRING HARNESS, MAIN (Brazil)
FXSB
NOTE: Includes the following parts.
1
6990
PLUG, weather, six-way pin
FXSB
2
9819
TERMINAL RING, .25 stud, 12 AWGX2
FXSB
3
10065
CABLE STRAP (8)
FXSB
4
11785
FASTENER, push-in (2)
FXSB
5
70996-08
LOOM SHIELD, wire harness
FXSB
6
71060-11A
WIRE SHIELD
FXSB
7
72106-94BK
HOUSING, six-way (black) (replaces gray connector)
FXSB
8
72146-94
PIN LOCK, sec 6
FXSB
9
72168-07
TERMINAL, socket, 18-20 AWG (3)
FXSB
10
72169-07
TERMINAL, pin, 16-20 AWG (2)
FXSB
11
72175-07BK
HOUSING, four-way, pin (black)
FXSB
12
72190-94
TERMINAL, pin, 16-18 AWG (3)
FXSB
13
72194-94
TERMINAL, pin, 20 AWG (3)
FXSB
14
72199-94
CONNECTOR ANCHOR
FXSB
15
72242-94
TERMINAL, 1/4 ring (2)
FXSB
16
72249-94
HEAT SHRINK TUBE, .415 x 1 (black)
FXSB
17
72254-94
TERMINAL RING, .25 stud, 14-16 AWG
FXSB
18
72298-95
WIRE SEAL, 14-18 AWG (green) (4)
FXSB
19
72308-97
TERMINAL, socket, 12-14 AWG (2)
FXSB
20
72314-01
MAIN FUSE, 40 A
FXSB
21
72330-95
FUSE, 15 A (blue) (4)
FXSB
22
72343-10
TERMINAL, pin, 16-20 AWG (gold) (2)
FXSB
23
72356-95
TERMINAL, socket, 18-20 AWG (2)
FXSB
24
72369-08A
BRACKET, fuse block holder (black)
FXSB
25
72514-07GY
HOUSING, three-way socket (gray)
FXSB
26
72582-11
FUSE BLOCK
FXSB
27
72586-11
COVER, fuse block
FXSB
28
72587-11
SECONDARY LOCK, fuse block
FXSB
29
72595-11
SEAL, fuse block
FXSB
30
72677-11
RESISTOR ASSEMBLY, fuel sender
FXSB
31
72720-07
HOUSING, two-way socket
FXSB
32
72721-07
TERMINAL, SOCKET, 18-20 AWG (2)
FXSB
33
73154-96BK
HOUSING, four-way, socket
FXSB
34
73191-96
TERMINAL, socket, 16-20 AWG (4)
FXSB
35
73304-04
TERMINAL, .31 socket, 10 AWG (2)
FXSB
36
73305-04
SEAL WIRE, 10 AWG (blue) (2)
FXSB
37
74103-98BK
HOUSING, three-way pin
FXSB
38
74104-98BK
HOUSING, four-way pin (black)
FXSB
39
74143-98
SECONDARY LOCK, three-way pin
FXSB
40
74144-98
SECONDARY LOCK, four-way pin (2)
FXSB
41
74190-98
TERMINAL, pin, 16-20 AWG (11)
FXSB
42
69200010
CONNECTOR, four-way pin (gray)
FXSB
43
69200012
BRACKET, pin housing
FXSB
WIRING HARNESS, MAIN, ABS - FXSB (4 OF 5)
