Harley Davidson 2016 Softail Models. Parts Catalog - page 4
6
6110
WASHER (3)
FLSTN
7
6400HB
WASHER (4)
FLSTN
8
7434
WASHER (2)
FLSTN
9
8037
NUT (3)
FLSTN
10
10226
FASTENER, nylon
FLSTN
11
53462-05
STUD, rear seat mounting
FLSTN
12
53830-00
PLUG (2)
FLSTN
13
53860-05
LUGGAGE RACK
FLSTN
14
59026-05
REAR FENDER TIP
FLSTN
15
59174-99
STUD PLATE
FLSTN
16
59238-05A
REAR FENDER, (prime)
FLSTN
17
69490-07
REFLECTOR, red (2)
FLSTN
60254-07
REFLECTOR, amber (Asia-Pacific, Australia, Brazil, England, HDI, Japan)
FLSTN
(2)
18
59474-07
BRACKET FENDER MOUNT, rear
FLSTN
19
59475-05
BRACKET FENDER MOUNT, front
FLSTN
20
59572-05
PROTECTIVE TAPE
FLSTN
21
59770-
COVER, fender
FLSTN
05BEO
22
59954-08
COVER, (left) (chrome)
FLSTN
59955-08
COVER, (right) (chrome)
FLSTN
23
60833-07
INNER FENDER DAMPING KIT
FLSTN
24
67267-05
GROMMET, turn signal (2)
FLSTN
25
68446-00
PLUG, button (2)
FLSTN
26
47798-
SUPPORT, (left)
FLSTN
08BHP
47807-
SUPPORT, (right)
FLSTN
08BHP
27
69200018
CONDUIT
FLSTN
28
69200626
CADDY, ECM
FLSTN

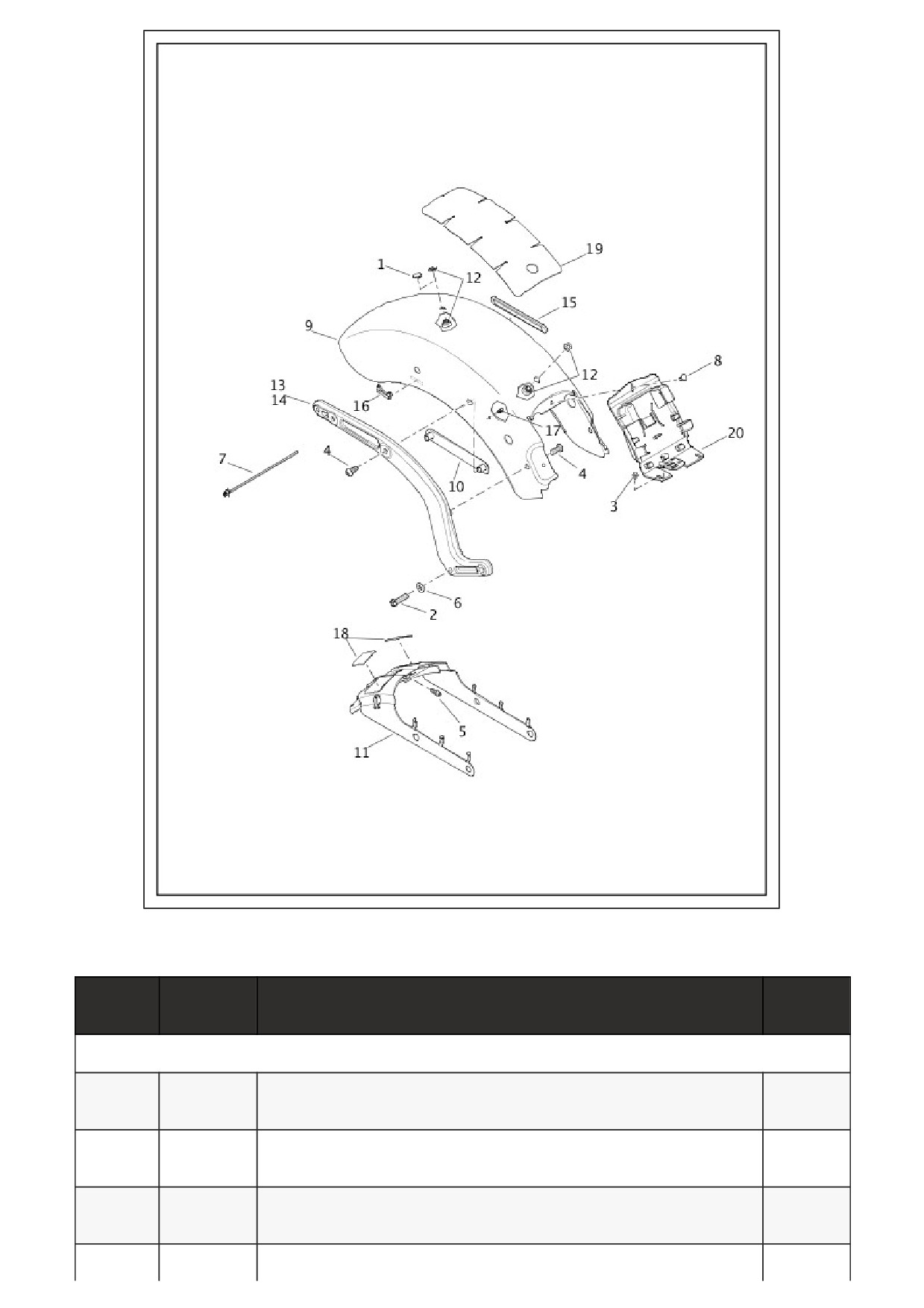

FENDERS AND SUPPORTS, REAR - FLS AND FLSS
Index
Part No.
Description
Model(s)
No.
NOTE: Refer to the Service Section of h-dnet.com for painted part numbers.
1
761
PLUG
FLS,
FLSS
2
3056
SCREW (4)
FLS,
FLSS
3
3391
SCREW (2)
FLS,
FLSS
4
4266A
SCREW (4)
FLS,
FLSS
5
4705
SCREW (2)
FLS,
FLSS
6
6400HB
WASHER (4)
FLS,
FLSS
7
10177
CABLE STRAP, anchored
FLS,
FLSS
8
10226
FASTENER, nylon
FLS,
FLSS
9
59500-11
REAR FENDER, (prime)
FLS,
FLSS
10
59548-11
BRACKET, fender mount (2)
FLS,
FLSS
11
59679-11
BRACKET ASSEMBLY, license plate support (HDI, Australia, Canada,
FLS,
England, Japan)
FLSS
69200356
BRACKET ASSEMBLY, license plate support (Domestic)
FLS
12
59768-97
FENDER SEAT NUT KIT
FLS,
FLSS
13
59904-
SUPPORT, left side fender (not shown)
FLS,
12BHP
FLSS
14
60187-
SUPPORT, right side fender
FLS,
12BHP
FLSS
15
69490-07
REFLECTOR (2)
FLS,
FLSS
60254-07
REFLECTOR, amber (HDI, Asia-Pacific, Australia, England, Japan) (2)
FLS,
FLSS
16
73412-11
WIRE GUIDE (2)
FLS,
FLSS
17
73422-11
WIRE CLIP
FLS,
FLSS
18
11100010
TAPE, pad mounting (2)
FLS,
FLSS
19
11100014
PROTECTIVE TAPE, fender
FLS,
FLSS
20
69201085
CADDY, ECM
FLS,
FLSS

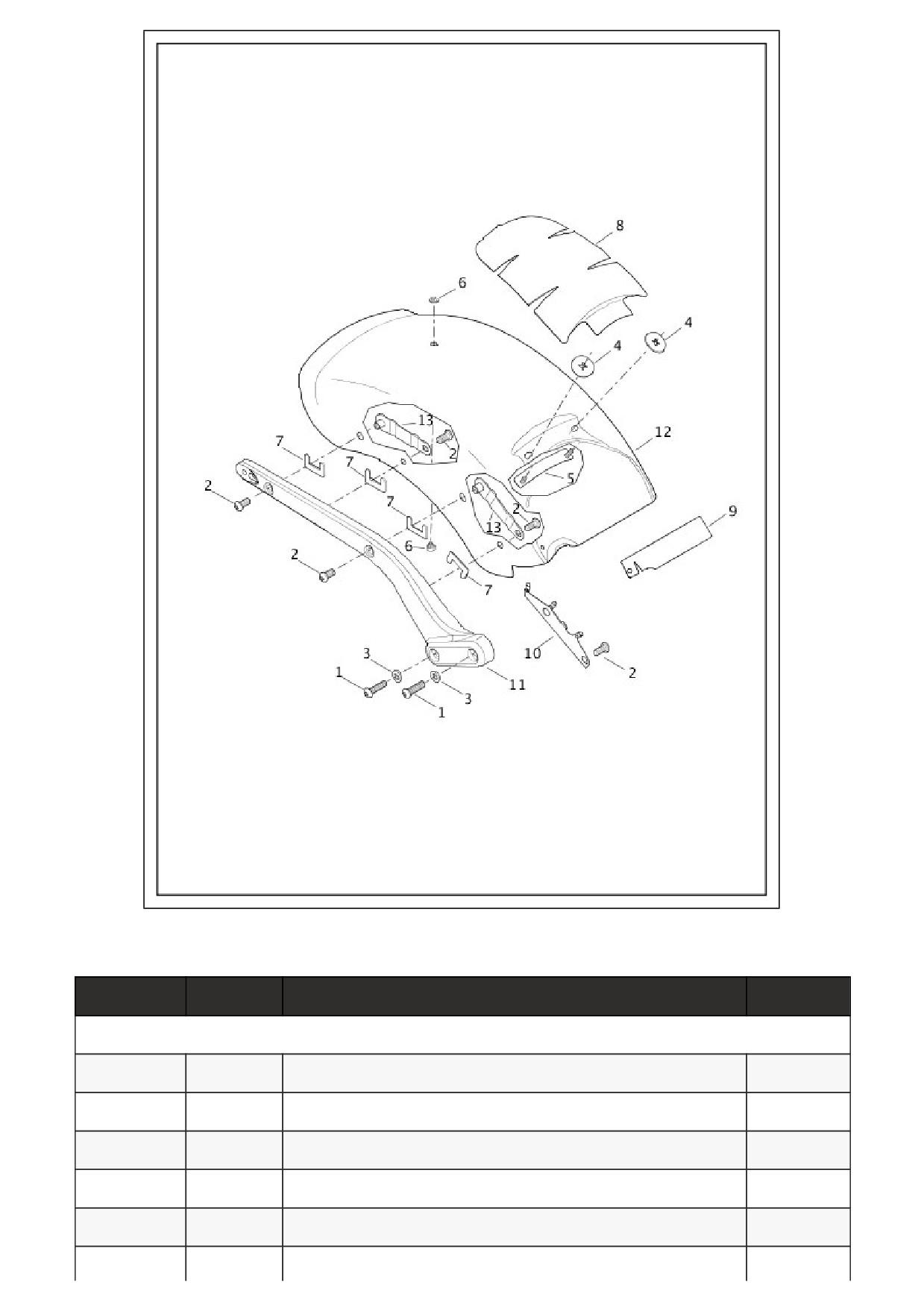

FENDERS AND SUPPORTS, REAR - FXSB
Index No.
Part No.
Description
Model(s)
NOTE: Refer to the Service Section of h-dnet.com for painted part numbers.
1
3056
SCREW, (Canada) (4)
FXSB
2
4266A
SCREW (2)
FXSB
3
6400HB
WASHER (4)
FXSB
4
7434
WASHER (2)
FXSB
5
51803-07
STUD PLATE ASSEMBLY
FXSB
6
59768-97
FENDER SEAT NUT KIT, (Canada)
FXSB
7
11100066
RETENTION PAD (8)
FXSB
8
11100069
PROTECTIVE TAPE, (Canada)
FXSB
9
11100106
PROTECTIVE TAPE
FXSB
10
12200060
PLATE, wire retainer (Australia, England, HDI, India, Japan)
FXSB
11
59500103
SUPPORT, (right)
FXSB
59500101
SUPPORT, (left)
FXSB
12
59500099
REAR FENDER, (prime)
FXSB
13
59500104
BRACKET, mounting (4)
FXSB

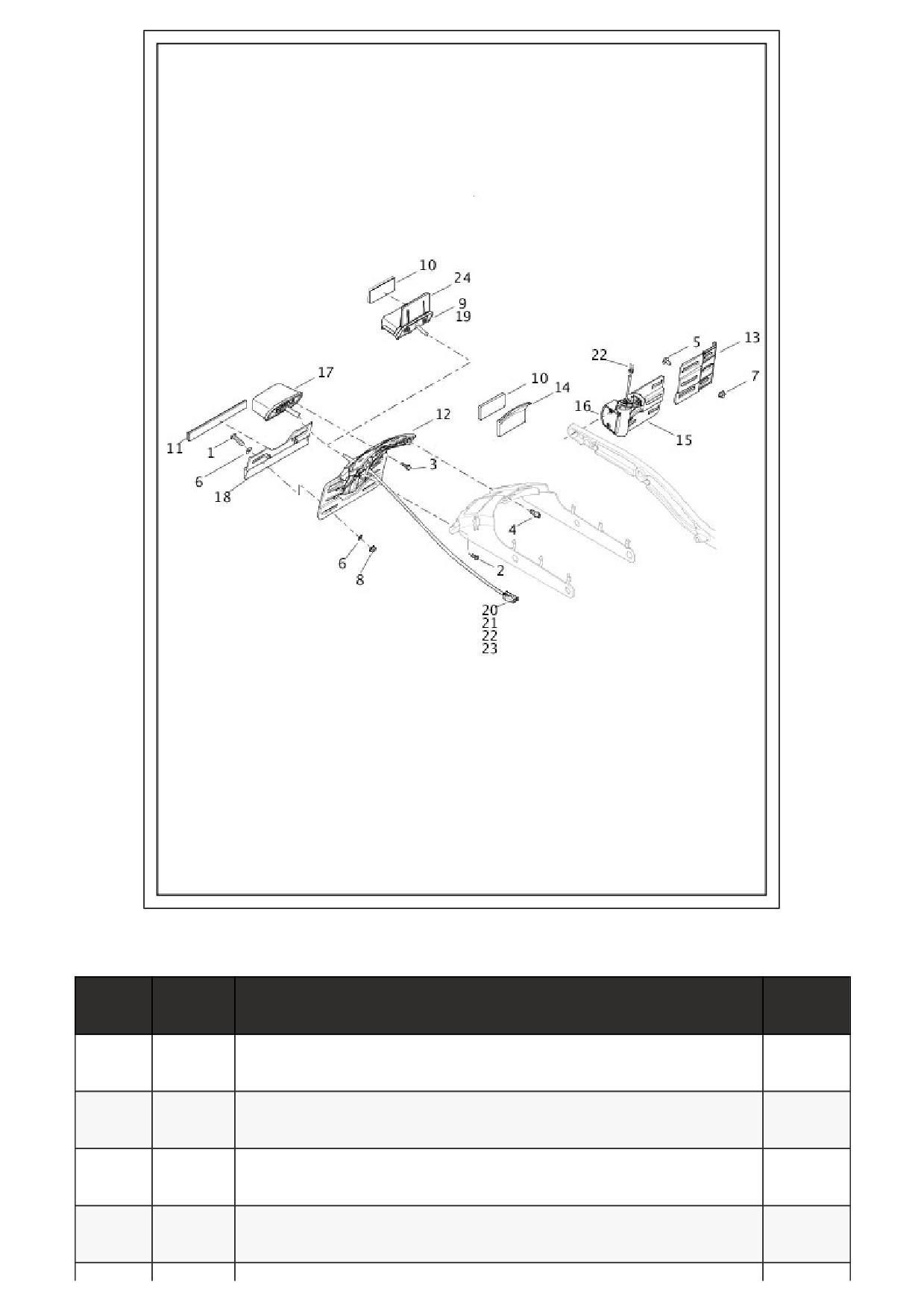

LICENSE PLATE BRACKETS - FLS AND FLSS
Index
Part No.
Description
Model(s)
No.
1
940
SCREW, (Canada) (2)
FLS,
FLSS
2
3387
SCREW, (Canada) (2)
FLS,
FLSS
3
3612
SCREW (2)
FLS,
FLSS
3
3612
SCREW, (Asia-Pacific, Australia, Canada, England, HDI, Japan) (2)
FLS,
FLSS
4
4705
SCREW, (Asia-Pacific, Australia, Canada, England, HDI, Japan) (2)
FLS,
FLSS
5
5403B
BOLT
FLS,
FLSS
6
6703
WASHER, (Canada) (4)
FLS,
FLSS
7
7716
LOCKNUT
FLS,
FLSS
8
7792
NUT, (Canada) (2)
FLS,
FLSS
9
52441-95
BULB, illuminator (Asia-Pacific, Australia, England, HDI, Japan) (2)
FLS,
FLSS
10
59259-90
REFLECTOR, (red)
FLS,
FLSS
11
59988-
REFLECTOR, (red) (Canada)
FLS,
72A
FLSS
12
60154-11
BRACKET, license plate (Asia-Pacific, Australia, Canada, England, HDI, Japan)
FLS,
FLSS
13
68702-07
BRACKET, license plate, adjustable
FLS,
FLSS
14
69557-10
BLOCK, mounting
FLS,
FLSS
15
67900115
LICENSE PLATE ASSEMBLY
FLS,
FLSS
16
67900117
ILLUMINATOR
FLS,
FLSS
17
73403-11
TAIL LAMP ASSEMBLY, (Canada)
FLS,
FLSS
18
73410-11
BRACKET, reflector (Canada)
FLS,
FLSS
19
73504-11
ILLUMINATOR, license plate (Asia-Pacific, Australia, England, HDI, Japan)
FLS,
FLSS
20
74113-
HOUSING, three-way socket (black) (Asia-Pacific, Australia, Canada, England,
FLS,
98BK
HDI, Japan)
FLSS
21
74153-98
SECONDARY LOCK, three-way socket (black) (Asia-Pacific, Australia, Canada,
FLS,
England, HDI, Japan)
FLSS
22
74191-98
SOCKET TERMINAL, (Asia-Pacific, Australia, Canada, England, HDI, Japan) (2)
FLS,
FLSS
23
74195-98
SEAL PIN, (Asia-Pacific, Australia, Canada, England, HDI, Japan) (2)
FLS,
FLSS
24
67900231
BRACKET, with 59259-90(HDI)
FLS,
FLSS

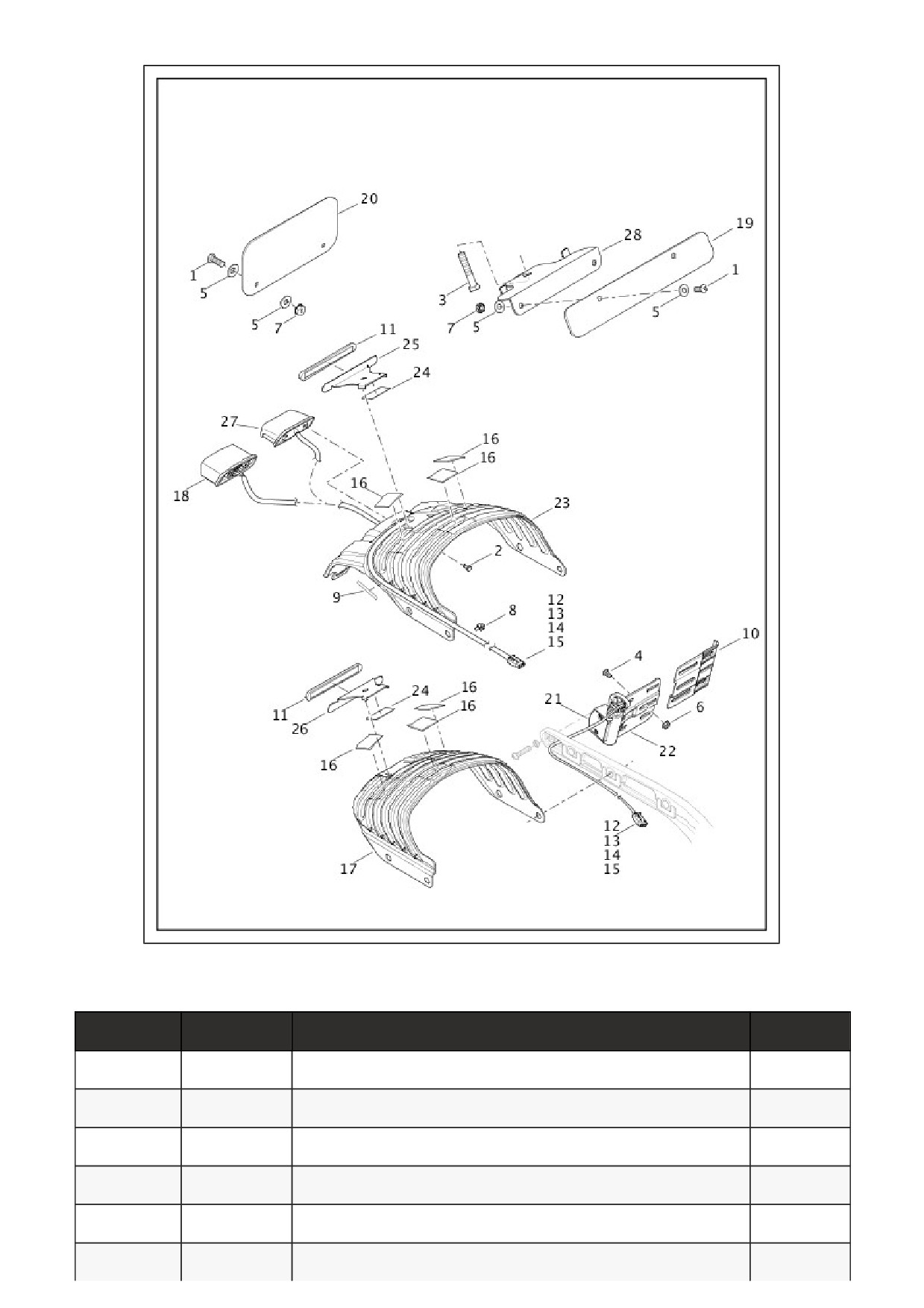

LICENSE PLATE BRACKETS - FXSB
Index No.
Part No.
Description
Model(s)
1
927A
SCREW, (India) (4)
FXSB
2
4091
SCREW, (Canada, HDI) (2)
FXSB
3
4380W
BOLT, (India)
FXSB
4
5403B
BOLT
FXSB
5
6703
WASHER, (India) (8)
FXSB
6
7716
LOCKNUT
FXSB
7
7792
NUT, (India) (4)
FXSB
8
10177
CABLE STRAP, with plug-in retainer (Canada, HDI)
FXSB
9
58382-89
SEAL, (Canada, HDI)
FXSB
10
68702-07
BRACKET, license plate, adjustable
FXSB
11
69490-07
REFLECTOR, red
FXSB
12
74113-98BK
HOUSING, three-way socket (black) (Canada, HDI)
FXSB
13
74153-98
SECONDARY LOCK, three-way socket (black) (Canada, HDI)
FXSB
14
74191-98
SOCKET TERMINAL, (Canada, HDI) (2)
FXSB
15
74195-98
SEAL PIN, (HDI) (2)
FXSB
16
11100103
TAPE, pad mounting (3)
FXSB
17
59500108
INNER SUPPORT, (Domestic)
FXSB
18
67800244
TAIL LIGHT ASSEMBLY, (Canada)
FXSB
19
67900089
LICENSE PLATE, front (India)
FXSB
20
67900093
LICENSE PLATE, rear (India)
FXSB
21
67900117
ILLUMINATOR
FXSB
22
67900145
LICENSE PLATE BRACKET, with 67900117
FXSB
23
67900147
BRACKET, license plate support(Canada, HDI)
FXSB
24
67900163
TAPE, reflector
FXSB
25
67900164
REFLECTOR ASSEMBLY, with 67900163 (Canada, HDI)
FXSB
26
67900165
REFLECTOR ASSEMBLY, with 67900163 (Domestic)
FXSB
27
67900166
LIGHT, license plate (HDI)
FXSB
28
67900283
BRACKET, license plate, front (India)
FXSB

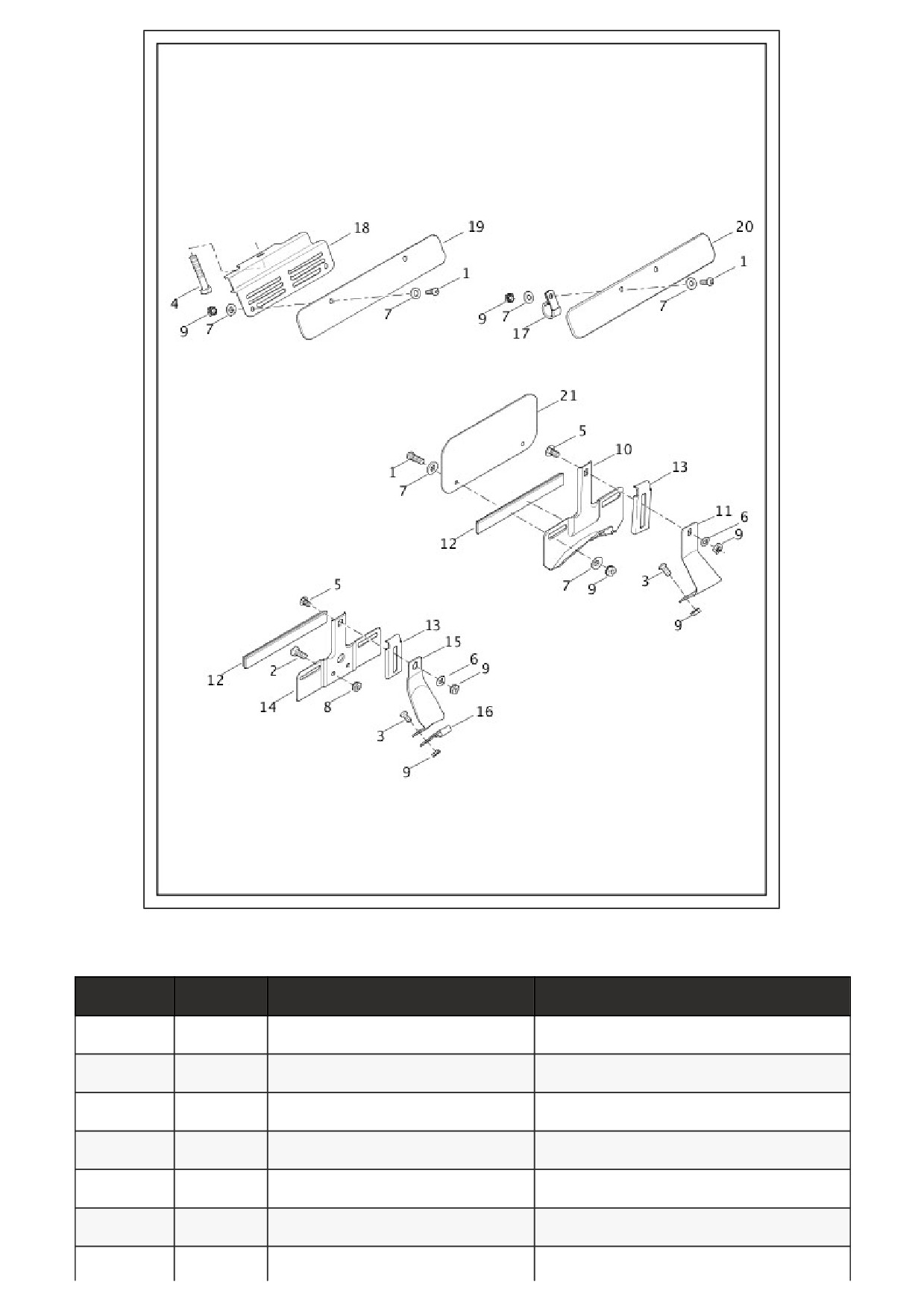

LICENSE PLATE BRACKETS - FLSTC, FLSTF, FLSTN, FLSTFB AND
FLSTFBS
Index No.
Part No.
Description
Model(s)
1
927A
SCREW, (India) (4)
FLSTC, FLSTF, FLSTFB
2
2604
SCREW (2)
FLSTN
3
2773
SCREW (3)
FLSTC, FLSTF, FLSTFB, FLSTFBS
2773
SCREW (2)
FLSTN
4
4380W
BOLT, (India)
FLSTF, FLSTFB
5
5403B
BOLT
FLSTC, FLSTF, FLSTN, FLSTFB, FLSTFBS
6
6110
WASHER
FLSTC, FLSTF, FLSTN, FLSTFB, FLSTFBS
7
6703
WASHER, (India) (8)
FLSTC, FLSTF, FLSTFB
8
7629
NUT (2)
FLSTN
9
7792
NUT (3)
FLSTC, FLSTN, FLSTFBS
7792
NUT, (India) (4)
FLSTC, FLSTF, FLSTFB
10
59984-73
BRACKET, license plate
FLSTC, FLSTF, FLSTFB, FLSTFBS
11
59986-75
SUPPORT, license plate
FLSTC, FLSTF, FLSTFB, FLSTFBS
12
59988-72A
REFLECTOR
FLSTC, FLSTF, FLSTN, FLSTFB, FLSTFBS
13
60001-55
CLAMP
FLSTC, FLSTF, FLSTFB, FLSTFBS
60003-89
CLAMP
FLSTN
14
60020-97
BRACKET, license plate
FLSTN
15
60021-97
SUPPORT, license plate
FLSTN
16
68004-05
CLIP
FLSTN
17
10800007
P-CLAMP, (India) (2)
FLSTC
18
67900016
BRACKET, license plate, front (India)
FLSTF, FLSTFB
19
67900089
LICENSE PLATE, front (India)
FLSTF, FLSTFB
20
67900092
LICENSE PLATE, front (India)
FLSTC
21
67900093
LICENSE PLATE, rear (India)
FLSTC, FLSTF, FLSTFB

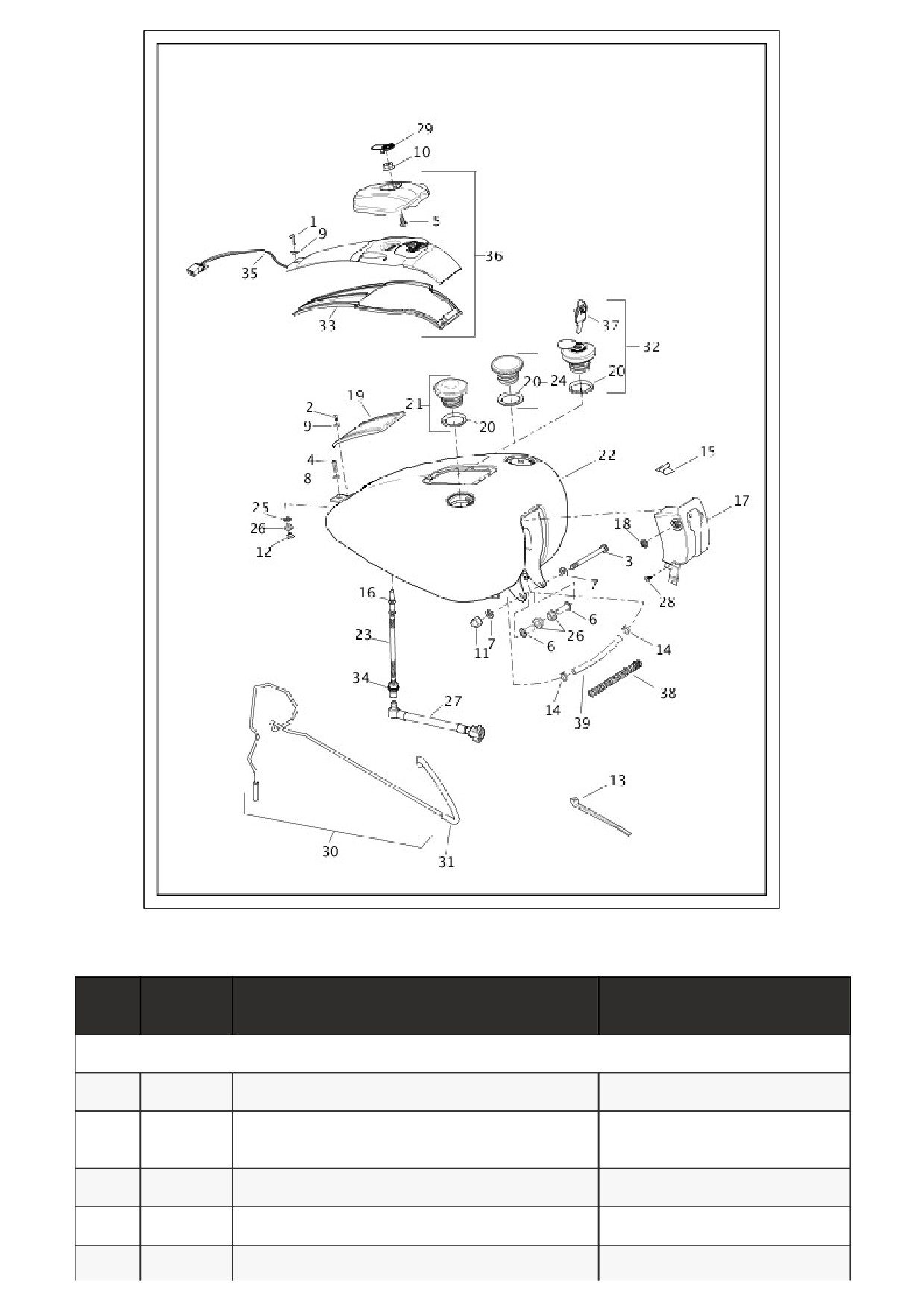

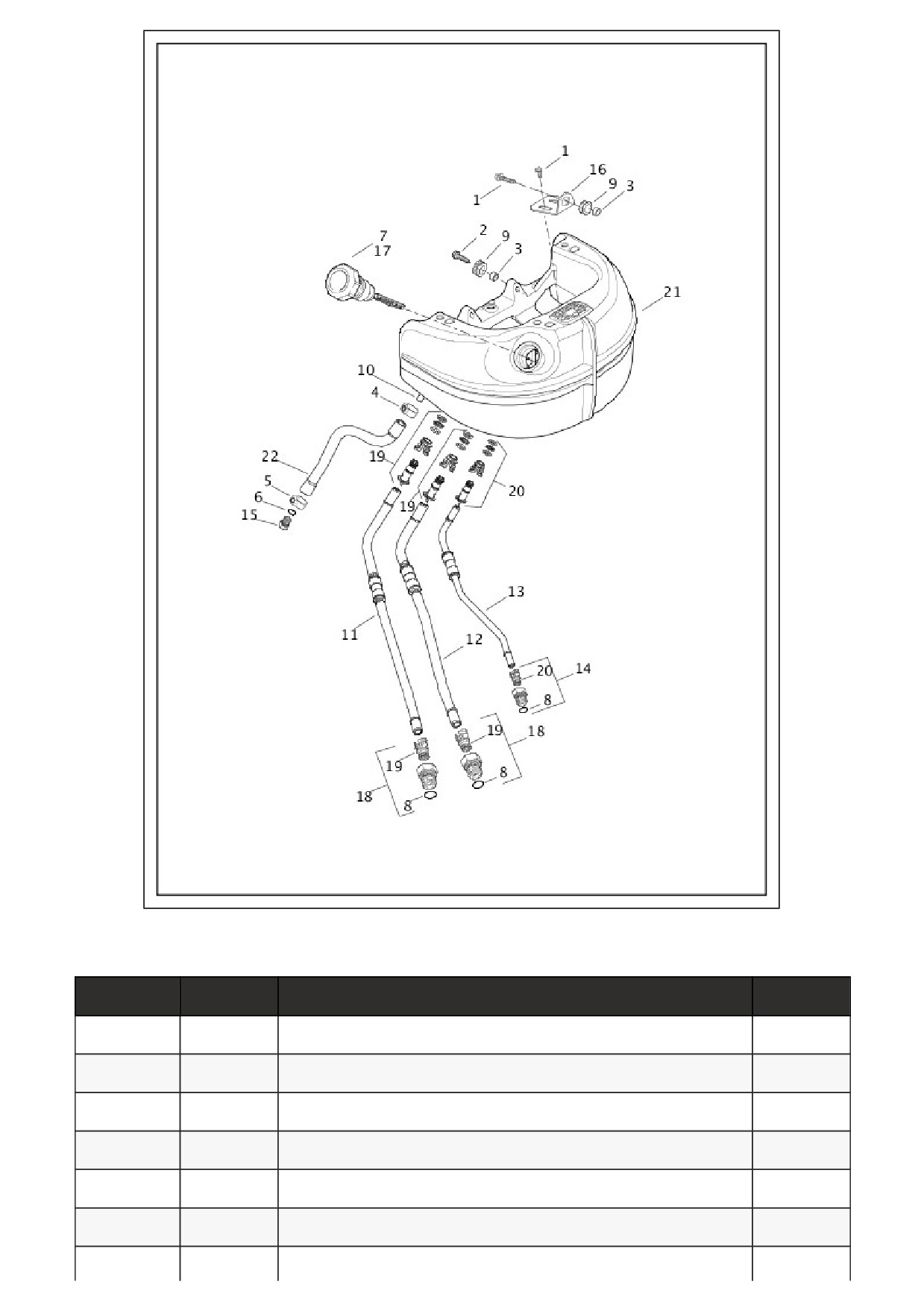

FUEL TANK
Index
Part No.
Description
Model(s)
No.
NOTE: Refer to the Service Section of h-dnet.com for painted part numbers.
1
2441
SCREW
FXSB
2
3017
SCREW
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FLSS, FLSTFBS
3
4197
BOLT
4
4763
SCREW
5
5471
BOLT
FXSB
6
5818A
BUSHING, front tank mount (2)
7
6545
WASHER (2)
8
6702
WASHER
9
6716
WASHER
10
7576
NUT
FXSB
11
7862
ACORN NUT
12
7965
TEE NUT
13
10006
CABLE STRAP (2)
14
10038A
CLAMP, fuel crossover hose (2)
15
10102
CLIP
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FLSS, FLSTFBS
16
11387A
O-RING
17
11529
RUBBER TRIM, fuel tank
18
11533
RETAINING RING (2)
19
61183-10
TRIM PANEL, fuel tank
FLSTFB, FLSTF, FLSTFBS
61257-05
TRIM PANEL, fuel tank
FLSTN
61300537
TRIM PANEL, fuel tank
FLSTC
70900170
TRIM PANEL, fuel tank
FLS, FLSS
20
61109-85D
GASKET
21
61272-92C
CAP, fuel filler, right, with 61109-85D
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FLSS, FLSTFBS
22
61625-11
FUEL TANK, 5 gallon (prime)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FLSS, FLSTFBS
62322-11
FUEL TANK, 5 gallon (prime) (not shown)
FXSB
23
62189-08A
CHECK VALVE, out
24
62543-11
CAP, fuel, low profile with 61109-85D
FXSB
25
62880-00
GROMMET, fuel tank, upper rear
26
62881-00
GROMMET, fuel tank, lower rear and front (3)
27
62900-01D
FUEL LINE, from tank to intake
28
12600067
FASTENER, plastic
29
14100435
MEDALLION, tank console
FXSB
30
61100001
VENT LINE ASSEMBLY, fuel tank to vapor valve
(except California and Asia-Pacific)
31
61100003
VENT HOSE, (except California and Asia-Pacific)
32
61100055
CAP, fuel, locking with 90300093 (Asia-Pacific, Japan)
FLSS, FLSTFBS
33
61300170A
GASKET
FXSB
34
11323
O-RING, check valve to fuel tank
35
69200531
WIRING HARNESS, fuel pump
FXSB
36
70900323A
CONSOLE, with 61300170A, 69200531
FXSB
37
90300093
KEY, locking fuel cap (set of two) (Asia-Pacific, Japan)
FLSS, FLSTFBS
NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length.
38
62555-95
INSULATOR, 5/8 in ID (nylon) (8 ft length)
39
63521-95A
HOSE, 5/16 in ID x 5/8 in OD (rubber) (25 ft length)

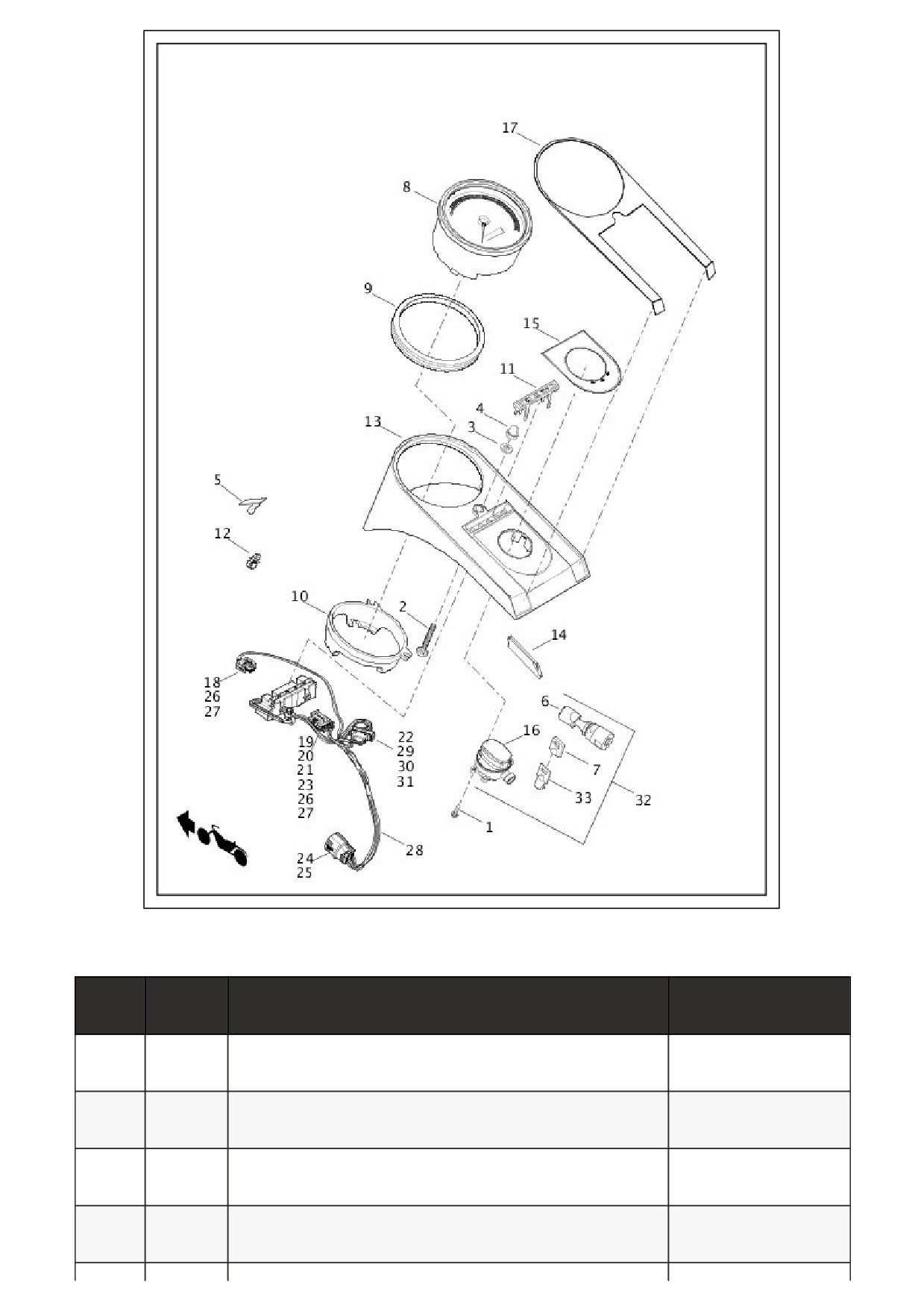

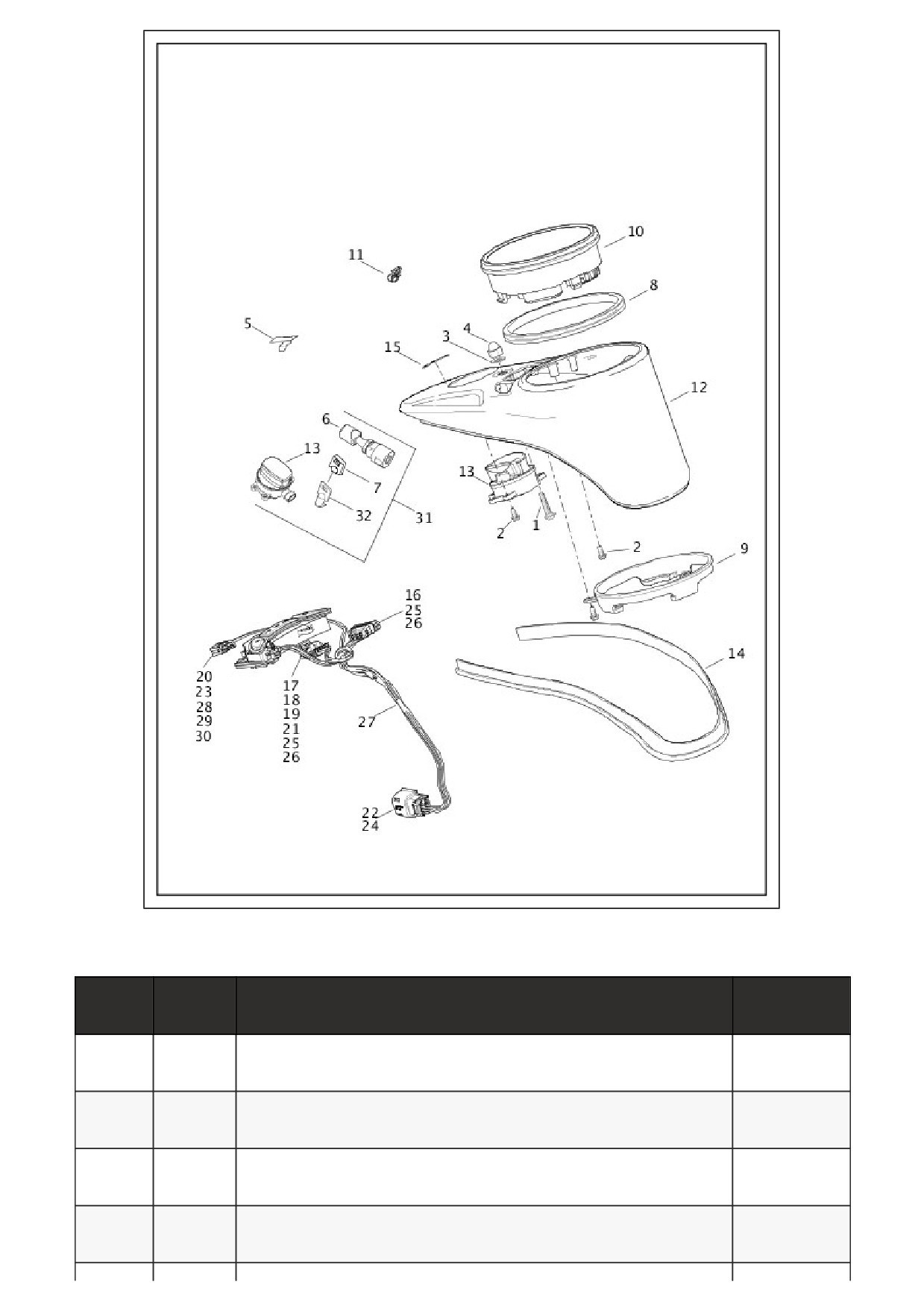

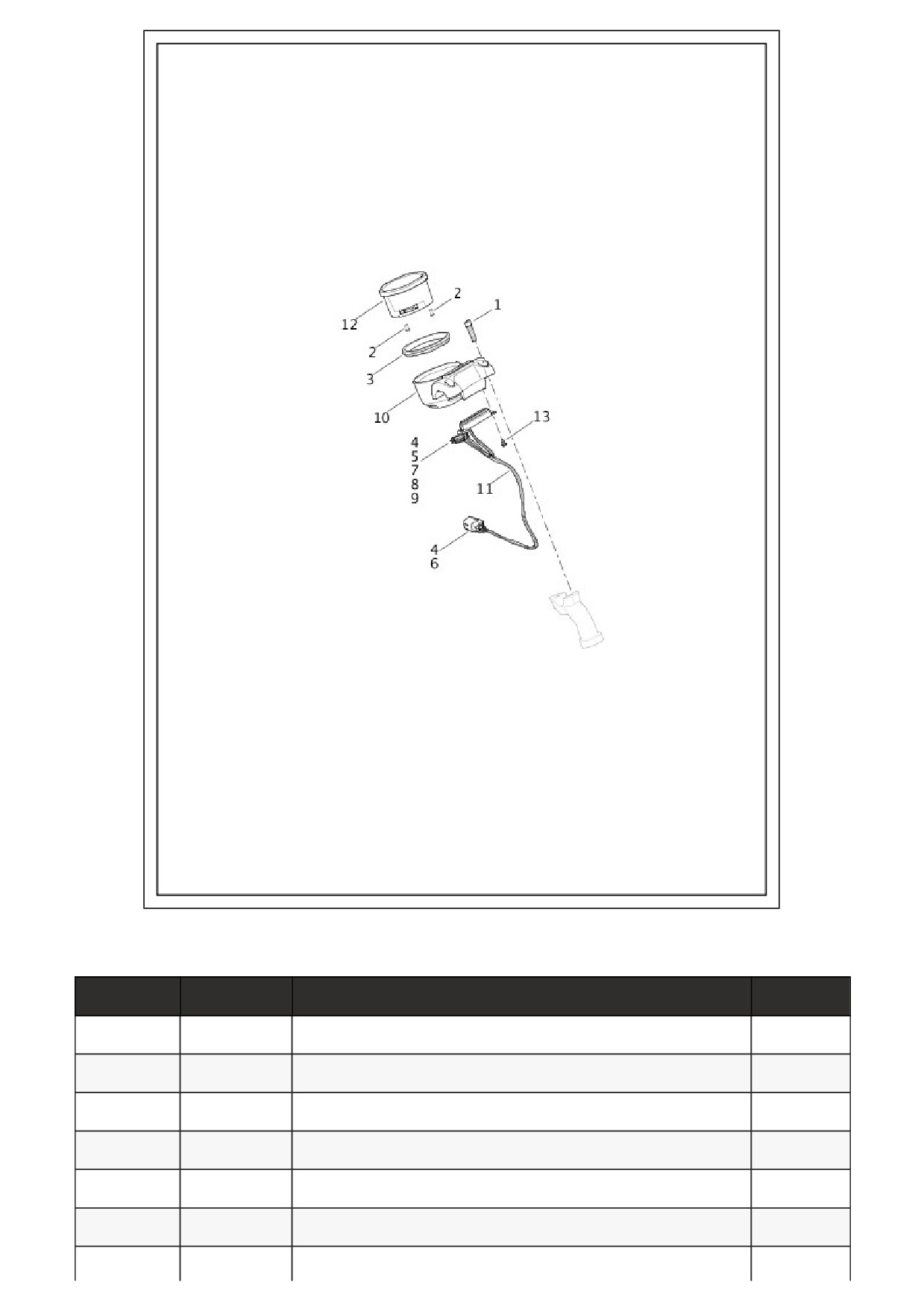

INSTRUMENTS - FLSTF, FLSTFB, FLSTFBS AND FLSTN
Index
Part No.
Description
Model(s)
No.
1
2501A
SCREW (4)
FLSTF, FLSTN, FLSTFB,
FLSTFBS
2
5419
BOLT
FLSTF, FLSTN, FLSTFB,
FLSTFBS
3
6771A
WASHER
FLSTF, FLSTN, FLSTFB,
FLSTFBS
4
7549A
ACORN NUT
FLSTF, FLSTN, FLSTFB,
FLSTFBS
5
10103
CLIP, adhesive backed
FLSTF, FLSTN, FLSTFB,
FLSTFBS
6
45680-90
FORK LOCK
FLSTF, FLSTN, FLSTFB,
FLSTFBS
7
61081-92
COVER, key head set (2)
FLSTF, FLSTN, FLSTFB,
FLSTFBS
8
67033-
SPEEDOMETER, mph
FLSTF, FLSTFB,
11B
FLSTFBS
67439-
SPEEDOMETER, mph
FLSTN
11C
67197-
SPEEDOMETER, km/h (HDI, Asia-Pacific, Brazil, Australia,
FLSTF, FLSTN, FLSTFB,
11A
Canada, Japan)
FLSTFBS
67196-
SPEEDOMETER, mph/km/h (England)
FLSTF, FLSTN, FLSTFB,
11A
FLSTFBS
9
67190-89
SEAL, speedometer
FLSTF, FLSTN, FLSTFB,
FLSTFBS
10
67271-
BACKCLAMP
FLSTF, FLSTN, FLSTFB,
04A
FLSTFBS
11
68112-
BEZEL, indicator lamps
FLSTF, FLSTN, FLSTFB,
99A
FLSTFBS
12
70345-84
RETAINER, wiring
FLSTF, FLSTN, FLSTFB,
FLSTFBS
13
71250-11
INSTRUMENT PANEL, (chrome)
FLSTF, FLSTN
71257-11
INSTRUMENT PANEL, (satin chrome)
FLSTFB
70900622
INSTRUMENT PANEL, (gloss black)
FLSTFBS
14
71265-95
TRIM, instrument panel
FLSTF, FLSTN, FLSTFB,
FLSTFBS
15
71302-
NAMEPLATE, ignition switch (satin black)
FLSTF, FLSTFB,
93A
FLSTFBS
71669-05
NAMEPLATE, ignition switch (gloss black)
FLSTN
16
71517-11
IGNITION SWITCH, (specify key number)
FLSTF, FLSTN, FLSTFB,
FLSTFBS
17
71664-05
NAMEPLATE INLAY, console
FLSTF, FLSTN, FLSTFB
18
72062-06
HOUSING, two-way socket (2)
FLSTF, FLSTN, FLSTFB,
FLSTFBS
19
72066-
HOUSING, four-way socket (black) (3)
FLSTF, FLSTN, FLSTFB,
06A
FLSTFBS
20
72094-06
TERMINAL, socket, 18 AWG (2)
FLSTF, FLSTN, FLSTFB,
FLSTFBS
21
72096-06
WIRE SEAL, 18 AWG (yellow) (2)
FLSTF, FLSTN, FLSTFB,
FLSTFBS
22
72130-04
HOUSING, 12-way socket (black)
FLSTF, FLSTN, FLSTFB,
FLSTFBS
23
72135-06
SECONDARY LOCK, four-way socket (gray) (3)
FLSTF, FLSTN, FLSTFB,
FLSTFBS
24
72168-07
TERMINAL, socket, 18-20 AWG (12)
FLSTF, FLSTN, FLSTFB,
FLSTFBS
25
72479-
HOUSING, eight-way socket (black)
FLSTF, FLSTN, FLSTFB,
07BK
FLSTFBS
26
72484-08
TERMINAL, socket, 20 AWG (2)
FLSTF, FLSTN, FLSTFB,
FLSTFBS
27
72486-08
WIRE SEAL, 20 AWG (green) (2)
FLSTF, FLSTN, FLSTFB,
FLSTFBS
28
72657-12
WIRING HARNESS, instrument controls
FLSTF, FLSTN, FLSTFB,
FLSTFBS
29
72662-11
TERMINAL, socket, 22 AWG (5)
FLSTF, FLSTN, FLSTFB,
FLSTFBS
30
74196-04
TERMINAL, socket, 20 AWG (4)
FLSTF, FLSTN, FLSTFB,
FLSTFBS
31
74197-04
SECONDARY LOCK, 12-way socket
FLSTF, FLSTN, FLSTFB,
FLSTFBS
32
71400076
IGNITION SWITCH AND FORK LOCKSET, with 90300043 keys,
FLSTF, FLSTN, FLSTFB,
ignition switch and fork lock
FLSTFBS
33
90300043
KEY, with 61081-92 (set of two) (specify key number)
FLSTF, FLSTN, FLSTFB,
FLSTFBS
INSTRUMENTS - FLS, FLSS AND FLSTC
Index
Part No.
Description
Model(s)
No.
1
5442
CARRIAGE BOLT
FLSTC, FLS,
FLSS
2
2501A
SCREW (8)
FLSTC, FLS,
FLSS
3
6771A
WASHER
FLSTC, FLS,
FLSS
4
7549A
ACORN NUT
FLSTC, FLS,
FLSS
5
10103
CLIP, adhesive backed
FLSTC, FLS,
FLSS
6
45680-90
FORK LOCK
FLSTC, FLS,
FLSS
7
61081-92
COVER, key
FLSTC, FLS,
FLSS
8
67190-89
SEAL
FLSTC, FLS,
FLSS
9
67341-
BACKCLAMP
FLSTC, FLS,
04B
FLSS
10
67525-
SPEEDOMETER, mph
FLSTC
11B
70700-
SPEEDOMETER, mph
FLS, FLSS
11B
67196-
SPEEDOMETER, mph/km/h (England)
FLSTC, FLS,
11A
FLSS
67197-
SPEEDOMETER, km/h (HDI, Asia-Pacific, Australia, Brazil, Canada, India,
FLSTC, FLS,
11A
Japan)
FLSS
11
70345-84
RETAINER, wiring
FLSTC, FLS,
FLSS
12
71512-11
INSTRUMENT PANEL, (chrome)
FLSTC
71953-11
INSTRUMENT PANEL, (gloss black)
FLS, FLSS
13
71517-11
IGNITION SWITCH, (specify key number)
FLSTC, FLS,
FLSS
14
71978-08
TRIM, rubber
FLSTC, FLS,
FLSS
15
71990-09
NAMEPLATE, ignition switch
FLSTC
71989-08
NAMEPLATE, ignition switch
FLS, FLSS
16
72062-06
HOUSING, two-way socket (2)
FLSTC, FLS,
FLSS
17
72066-
HOUSING, four-way socket (black) (3)
FLSTC, FLS,
06A
FLSS
18
72094-06
TERMINAL, socket, 18 AWG (2)
FLSTC, FLS,
FLSS
19
72096-06
WIRE SEAL, 18 AWG (yellow) (2)
FLSTC, FLS,
FLSS
20
72130-04
HOUSING, 12-way socket (black)
FLSTC, FLS,
FLSS
21
72135-06
SECONDARY LOCK, four-way socket (gray) (3)
FLSTC, FLS,
FLSS
22
72168-07
TERMINAL, socket, 18-20 AWG (12)
FLSTC, FLS,
FLSS
23
72189-04
SEAL PIN (2)
FLSTC, FLS,
FLSS
24
72479-
HOUSING, eight-way socket (black)
FLSTC, FLS,
07BK
FLSS
25
72484-08
TERMINAL, socket, 20 AWG (2)
FLSTC, FLS,
FLSS
26
72486-08
WIRE SEAL, 20 AWG (green) (2)
FLSTC, FLS,
FLSS
27
72658-12
HARNESS, instrument console, with LED indicator array
FLSTC, FLS,
FLSS
28
72662-11
TERMINAL, socket, 22 AWG (5)
FLSTC, FLS,
FLSS
29
74196-04
TERMINAL, socket, 20 AWG (4)
FLSTC, FLS,
FLSS
30
74197-04
SECONDARY LOCK, 12-way socket
FLSTC, FLS,
FLSS
31
71400076
IGNITION SWITCH AND FORK LOCKSET, with 90300043 keys, ignition
FLSTC, FLS,
switch and fork lock
FLSS
32
90300043
KEY, with 61081-92 (set of two) (specify key number)
FLSTC, FLS,
FLSS
INSTRUMENTS - FXSB
Index No.
Part No.
Description
Model(s)
1
3210A
SCREW (2)
FXSB
2
3656
SCREW (2)
FXSB
3
67121-95A
GASKET
FXSB
4
72130-04
HOUSING, 12-way, socket (black)
FXSB
5
72189-04
SEAL PIN (5)
FXSB
6
72546-09GY
HOUSING, six-way, socket (gray)
FXSB
7
72662-11
TERMINAL, socket, 22 AWG (5)
FXSB
8
74196-04
TERMINAL, socket, 20 AWG (5)
FXSB
9
74197-04
SECONDARY LOCK, 12-way, socket
FXSB
10
55900043
UPPER CLAMP, with speedometer housing
FXSB
11
69200530
HARNESS, instrument
FXSB
12
70900369C
SPEEDOMETER, mph
FXSB
70900370A
SPEEDOMETER, km/h (Australia, Brazil, Canada, HDI, Japan)
FXSB
70900371A
SPEEDOMETER, mph/km/h (England)
FXSB
13
2501A
SCREW (2)
FXSB

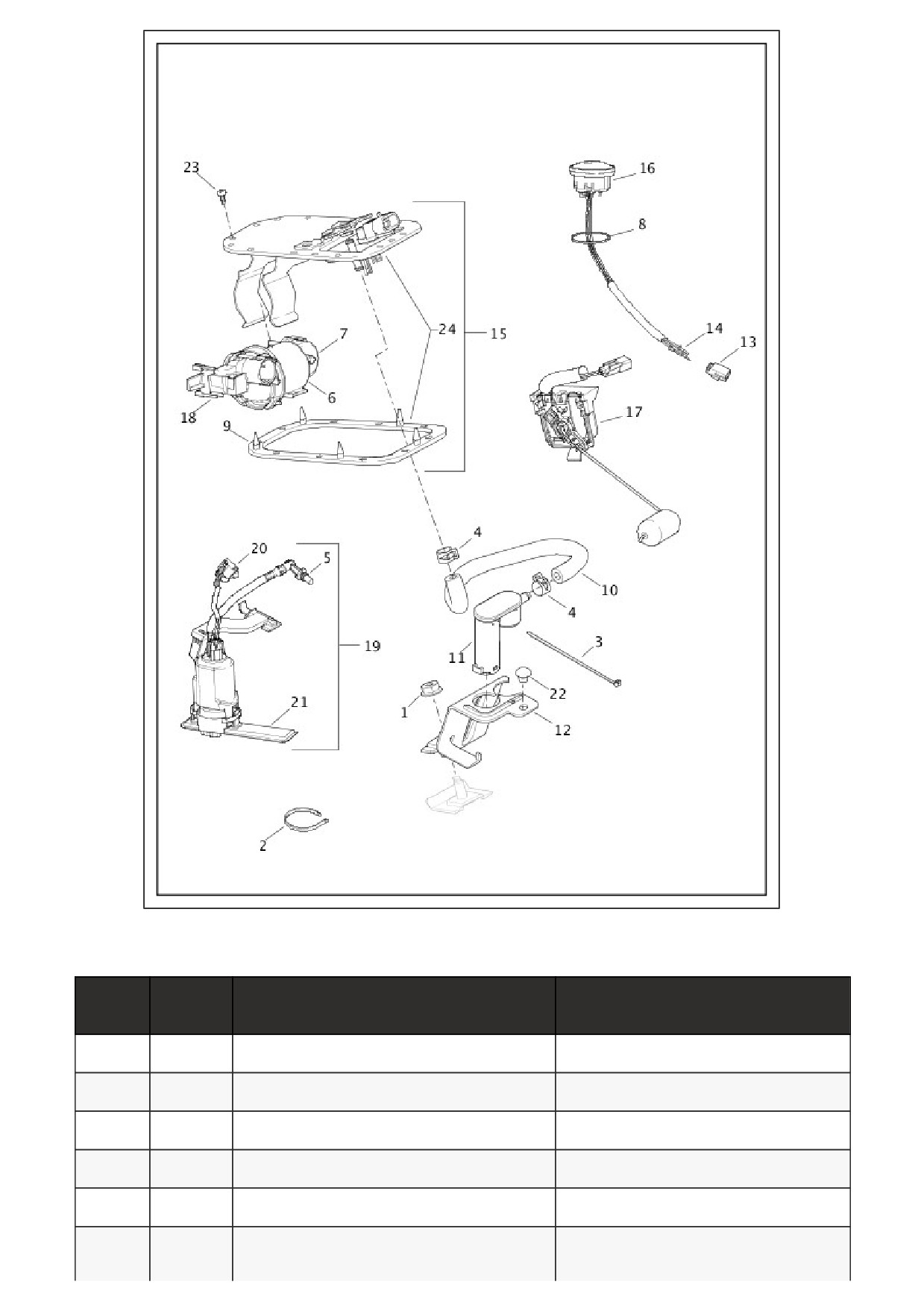

FUEL PUMP
Index
Part No.
Description
Model(s)
No.
1
7576
NUT
2
10006
CABLE STRAP (2)
3
10065
CABLE STRAP
4
10871
CLAMP (2)
5
11387A
O-RING
6
61011-
FILTER, fuel with O-ring
04A
7
61015-
FUEL REGULATOR KIT, with O-rings, spacer
04A
and screen
8
61192-
GASKET, fuel gauge
FLSTF, FLSTFB, FLSTN, FLS, FLSTC,
96A
FLSS, FLSTFBS
9
61381-
GASKET, top plate
02A
10
62143-11
TUBE, roll over valve to top plate
11
62155-11
VALVE, roll over
12
62158-11
BRACKET, roll over valve
13
72904-
HOUSING, four-way pin
FLSTF, FLSTFB, FLSTN, FLS, FLSTC,
01BK
FLSS, FLSTFBS
14
72990-01
TERMINAL, pin (3)
FLSTF, FLSTFB, FLSTN, FLS, FLSTC,
FLSS, FLSTFBS
15
75141-
TOP PLATE ASSEMBLY, with 61381-02A and
FLSTF, FLSTN, FLSTFB, FLSTFBS
11A
75282-08A
75252-
TOP PLATE ASSEMBLY, with 61381-02A and
FLSTC, FLS, FXSB, FLSS
11A
75282-08A
16
75241-08
FUEL GAUGE
FLSTF, FLSTFB, FLSTN, FLS, FLSTC,
FLSS, FLSTFBS
17
75276-
SENDER, fuel level
08A
18
75282-
FILTER MODULE ASSEMBLY
08A
19
75284-
MODULE ASSEMBLY, fuel pump with 75289-08
08A
and 75290-08
20
75289-08
KIT-HARNESS ASSEMBLY, fuel pump
21
75290-08
STRAINER, fuel pump
22
91072-11
BUMPER, rubber
23
10200374
SCREW (10)
24
60900001
TOP PLATE, with 61381-02A
FLSTF, FLSTN, FLSTFB, FLSTFBS
60900003
TOP PLATE, with 61381-02A
FXSB, FLSTC, FLS, FLSS

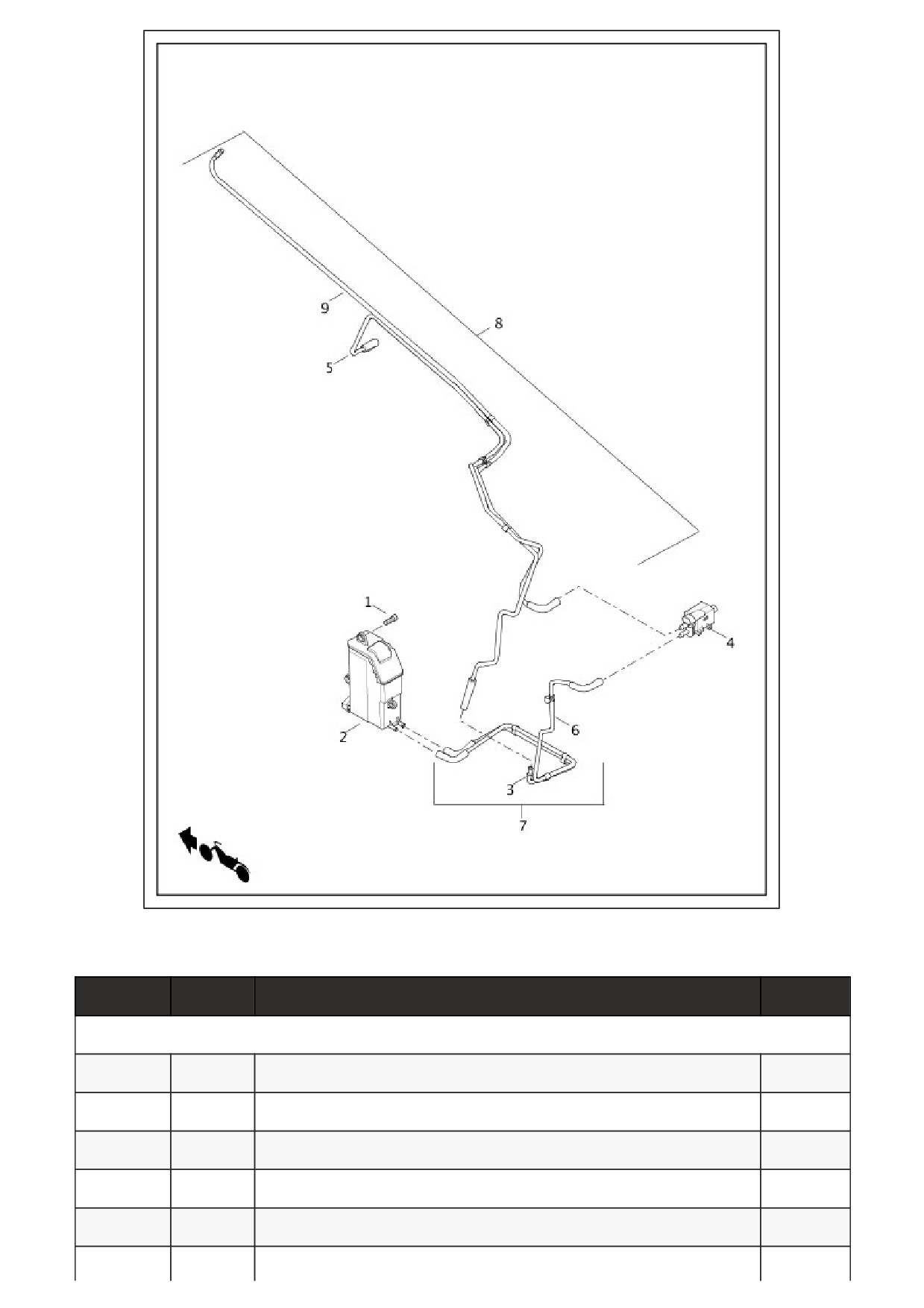

EVAPORATIVE EMISSIONS COMPONENTS
Index No.
Part No.
Description
Model(s)
NOTE: These parts are required for motorcycles sold in the state of California.
1
940
SCREW (3)
2
27050-11
CARBON CANISTER ASSEMBLY
3
27246-11
EVAPORATIVE LINE, tank to canister
4
27715-07
PURGE SOLENOID
5
28839-11
VENTLINE ASSEMBLY
6
28860-11
HOSE, canister to purge
7
28864-11
VENTLINE ASSEMBLY, with 27246-11 and 28860-11 (lower)
8
60800007
EVAPORATIVE SYSTEM ASSEMBLY, with 28839-11 and 61100001 (upper)
9
61100001
VENTLINE ASSEMBLY, tank

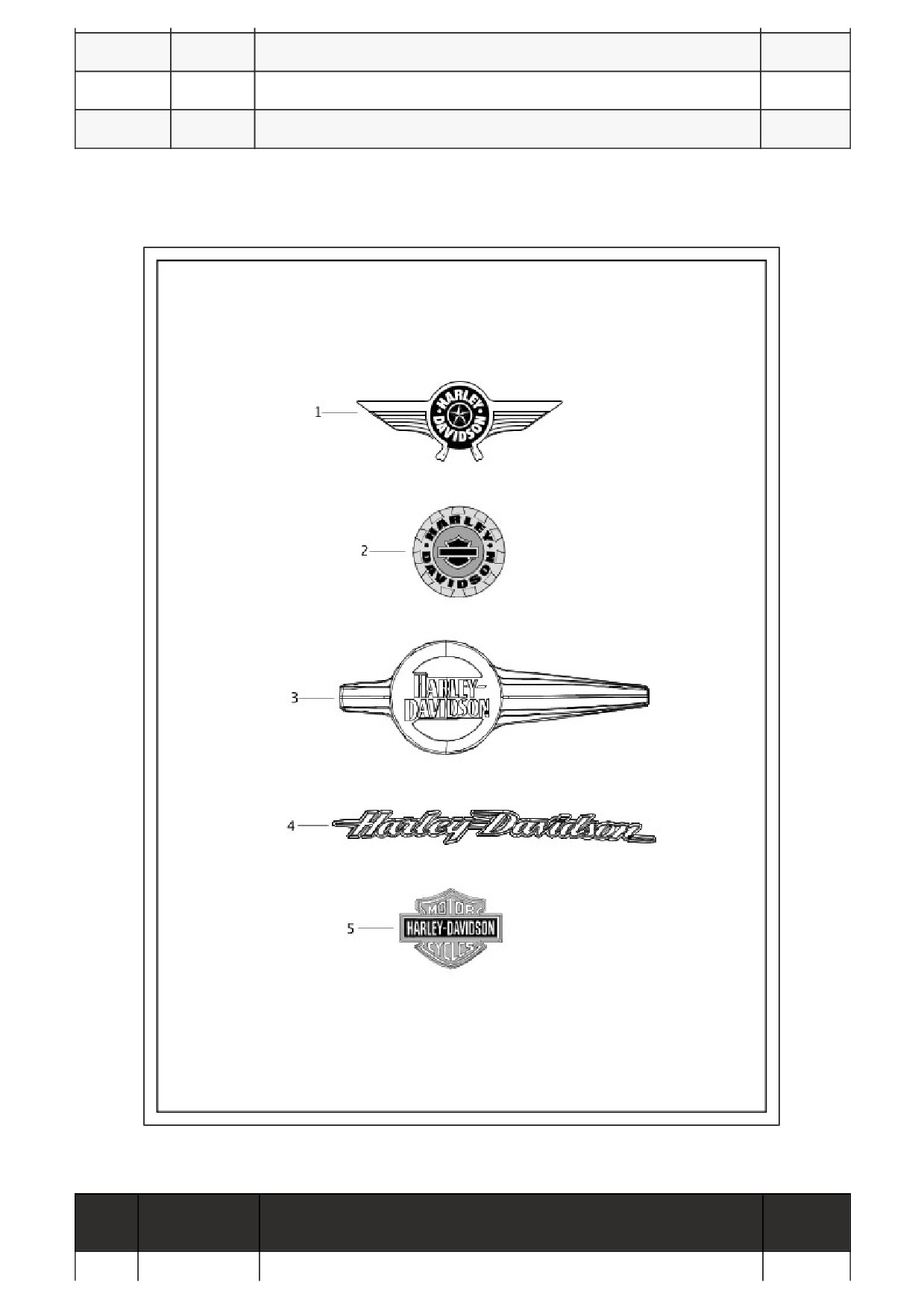

FUEL TANK TRIM
Index
Part No.
Description
Model(s)
No.
1
61264-10
MEDALLION, (right) (for vivid black, amber whiskey, black denim, charcoal
FLSTFB,
denim and crushed ice pearl tanks)
FLSTFBS
61265-10
MEDALLION, (left) (for vivid black, amber whiskey, black denim, charcoal
FLSTFB,
denim and crushed ice pearl tanks)
FLSTFBS
14100035
MEDALLION, (right) (for vivid black, charcoal pearl, velocity red sunglo and 2-
FLSTF
tone billet silver/vivid black tanks)
14100036
MEDALLION, (left) (for vivid black, charcoal pearl, velocity red sunglo and 2-
FLSTF
tone billet silver/vivid black tanks)
2
14100628BAAA
MEDALLION, fuel tank (graphite glass) (for vivid black and charcoal denim
FXSB
tanks) (2)
14100628BAAB
MEDALLION, fuel tank (blue glass) (for billet silver and crushed ice pearl
FXSB
tanks) (2)
14100628BAAC
MEDALLION, fuel tank (red glass) (for velocity red sunglo tanks) (2)
FXSB
3
14100750
MEDALLION, (left) (for vivid black, superior blue, billet silver, olive gold and 2-
FLSTC
tone amber whiskey/vivid black and crushed ice pearl/frosted teal pearl tanks)
14100751
MEDALLION, (right) (for vivid black, superior blue, billet silver, olive gold and
FLSTC
2-tone amber whiskey/vivid black and crushed ice pearl/frosted teal pearl
tanks)
4
14100754
MEDALLION, fuel tank, (right) (for vivid black, superior blue and 2-tone
FLSTN
mysterious red/velocity red sunglo and crushed ice pearl/frosted teal pearl
tanks)
14100755
MEDALLION, fuel tank, (left) (for vivid black, superior blue and 2-tone
FLSTN
mysterious red/velocity red sunglo and crushed ice pearl/frosted teal pearl
tanks)
5
61400055
MEDALLION, fuel tank, (left) (for vivid black, charcoal pearl, black denim,
FLS,
velocity red sunglo, olive gold, olive gold denim and 2-tone charcoal
FLSS
satin/vivid black satin tanks)
61400056
MEDALLION, fuel tank, (right) (for vivid black, charcoal pearl, black denim,
FLS,
velocity red sunglo, olive gold, olive gold denim and 2-tone charcoal
FLSS
satin/vivid black satin tanks)

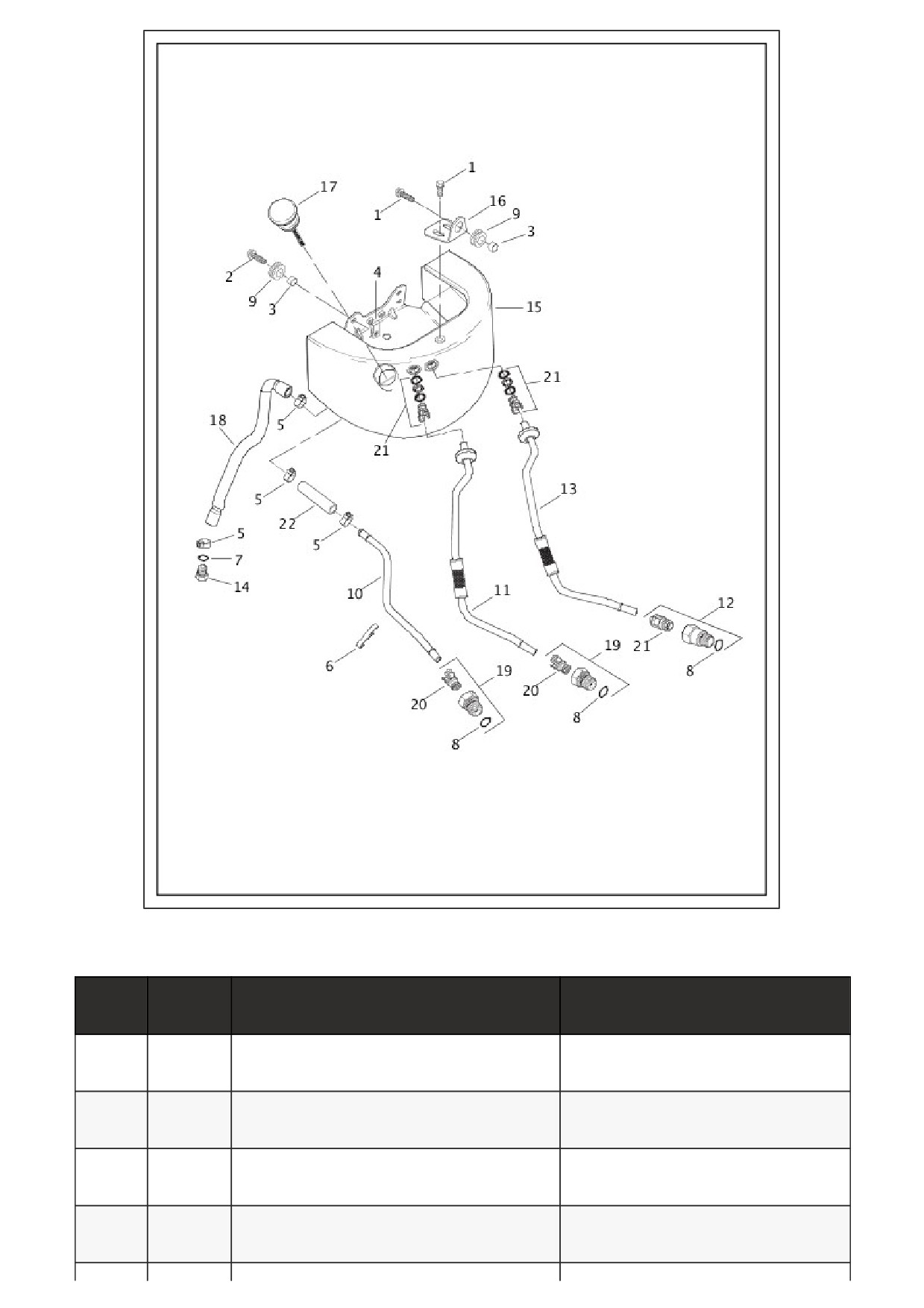

OIL TANK AND LINES - EXCEPT FXSB
Index
Part No.
Description
Model(s)
No.
1
4216
SCREW (3)
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
FLSS, FLSTFBS
2
4217
SCREW (2)
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
FLSS, FLSTFBS
3
5775
WASHER (3)
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
FLSS, FLSTFBS
4
8144
LOCKNUT (2)
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
FLSS, FLSTFBS
5
10208
CLAMP (4)
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
FLSS, FLSTFBS
6
10216
CLIP, oil lines
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
FLSS, FLSTFBS
7
11105
O-RING
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
FLSS, FLSTFBS
8
11326
O-RING (3)
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
FLSS, FLSTFBS
9
11447
GROMMET (3)
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
FLSS, FLSTFBS
10
33525-07
OIL LINE, feed
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
FLSS, FLSTFBS
11
33531-07
OIL LINE, return
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
FLSS, FLSTFBS
12
45468-00
CONNECTOR ASSEMBLY, vent, with 11326 and
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
63783-00
FLSS, FLSTFBS
13
45806-07
OIL LINE, vent
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
FLSS, FLSTFBS
14
60328-
PLUG ASSEMBLY, magnetic drain, with 11105
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
98B
FLSS, FLSTFBS
15
62498-
OIL TANK, (chrome)
FLSTC, FLSTF, FLSTN
01A
62507-
OIL TANK, (denim black)
FLSTFB
10BYM
62492-
OIL TANK, (black)
FLS, FLSS, FLSTFBS
01A
16
62769-
BRACKET, oil tank top
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
00A
FLSS, FLSTFBS
17
62845-
FILLER CAP, with dipstick
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
00A
FLSS, FLSTFBS
18
63553-
HOSE, oil tank drain
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
00B
FLSS, FLSTFBS
19
63601-00
CONNECTOR ASSEMBLY, oil line, with 11326
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
and 63632-00 (2)
FLSS, FLSTFBS
20
63632-00
OIL LINE RETAINER ASSEMBLY (2)
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
FLSS, FLSTFBS
21
63783-00
OIL LINE RETAINER ASSEMBLY (3)
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
FLSS, FLSTFBS
22
63611-00
HOSE, oil feed
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
FLSS, FLSTFBS
OIL TANK AND LINES - FXSB
Index No.
Part No.
Description
Model(s)
1
4216
SCREW (3)
FXSB
2
4217
SCREW (2)
FXSB
3
5775
WASHER (3)
FXSB
4
10080
CLAMP, drain hose
FXSB
5
10208
CLAMP
FXSB
6
11105
O-RING
FXSB
7
11120
O-RING
FXSB
8
11326
O-RING (3)
FXSB
9
11447
GROMMET (3)
FXSB
10
26314-99
FITTING
FXSB
11
33527-08
OIL LINE, feed
FXSB
12
33528-08
OIL LINE, return
FXSB
13
33529-08
OIL LINE, vent
FXSB
14
45468-00
CONNECTOR ASSEMBLY, vent, with 11326, and 63783-00
FXSB
15
60328-98B
PLUG ASSEMBLY, magnetic drain, with 11105
FXSB
16
62769-00A
BRACKET, oil tank top
FXSB
17
63034-08
FILLER CAP, with dipstick (silver)
FXSB
18
63601-00
CONNECTOR ASSEMBLY, oil line, with 11326 and 63632-00 (2)
FXSB
19
63632-00
OIL LINE RETAINER ASSEMBLY (4)
FXSB
20
63783-00
OIL LINE RETAINER ASSEMBLY
FXSB
21
62500015
OIL TANK, with 26314-99 (gloss black)
FXSB
22
62700056
HOSE, oil tank drain
FXSB

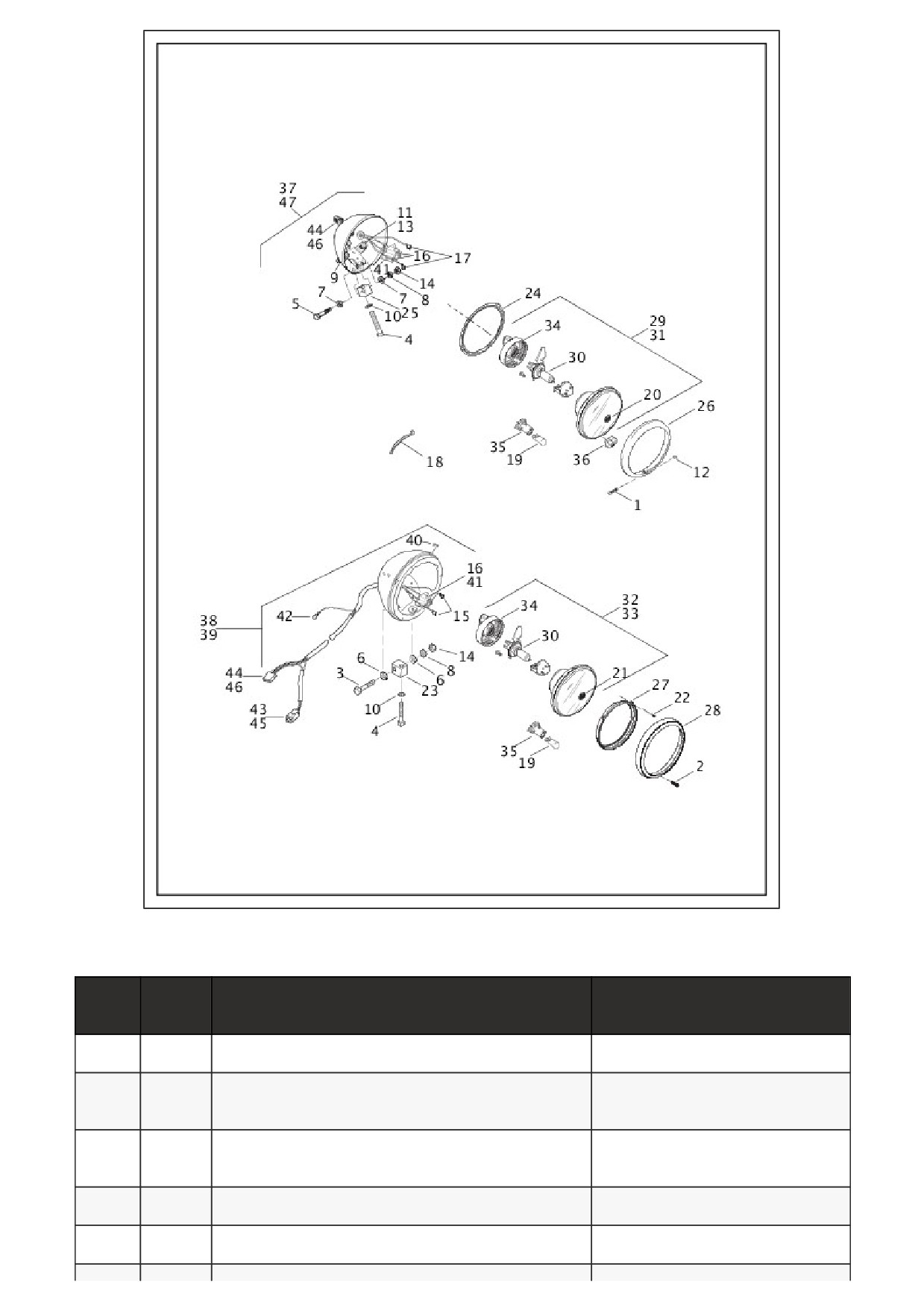

HEADLAMP (1 OF 2)
Index
Part
Description
Model(s)
No.
No.
1
3514
SCREW
FXSB
2
3615
SCREW
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FLSS, FLSTFBS
3
4411
BOLT
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FLSS, FLSTFBS
4
4722
BOLT
5
4724
BOLT
FXSB
6
6400HB
WASHER (2)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FLSS, FLSTFBS
7
6701
WASHER (2)
FXSB
8
7038
LOCKWASHER
9
7073
LOCKWASHER (3)
FXSB
10
7130W
LOCKWASHER
11
7230
LOCKWASHER (3)
FXSB
12
7606
LOCKNUT
FXSB
13
7716
LOCKNUT
FXSB
14
7800W
NUT
15
9841
TERMINAL, (HDI) (2)
FLSTC, FLSTF, FLSTN
16
9847
WIRE TERMINAL, socket spade, right hand
9848
WIRE TERMINAL, socket spade, left hand (2)
17
9898
TERMINAL, socket flag (Asia-Pacific, Australia,
Brazil,England, HDI, India, Japan) (2)
18
10065
CABLE STRAP
19
53436-
BULB, position lamp (Asia-Pacific, Australia, Brazil,
97
England, HDI, Japan)
20
67667-
MEDALLION, lens
FXSB
05
21
67668-
MEDALLION, lens
FLSTC, FLSTF, FLSTN, FLSTFB,
05
FLS, FLSS, FLSTFBS
22
67721-
SCREW (3)
FLSTC, FLSTF, FLSTN, FLSTFB,
48
FLS, FLSS, FLSTFBS
23
67768-
MOUNTING BLOCK
FLSTC, FLSTF, FLSTN, FLSTFB,
97
FLS, FLSS, FLSTFBS
24
67769-
ADAPTER RING
FXSB
93
25
67772-
MOUNTING BLOCK
FXSB
97
26
67790-
BEZEL RING, (chrome)
FXSB
93A
27
68050-
RETAINING RING
FLSTC, FLSTF, FLSTN, FLSTFB,
93A
FLS, FLSS, FLSTFBS
HEADLAMP (2 OF 2)
Index
Part No.
Description
Model(s)
No.
28
68051-08
TRIM RING, (chrome)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS
67700115
TRIM RING, (black)
FLSS, FLSTFBS
29
68297-
REFLECTOR ASSEMBLY, 5-3/4 in
FXSB
05A
30
68329-03
BULB, HB2/H4
31
68335-
REFLECTOR ASSEMBLY, left dip, 5-3/4 in (Australia,
FXSB
05A
Brazil, England, Japan)
68341-
REFLECTOR ASSEMBLY, right dip, 5-3/4 in (Asia-
FXSB
05A
Pacific, HDI)
32
68342-
LENS ASSEMBLY, 7 in
FLSTC, FLSTF, FLSTN, FLSTFB,
05A
FLS, FLSS, FLSTFBS
33
68344-
REFLECTOR ASSEMBLY, left dip, 7 in (Australia,
FLSTC, FLSTF, FLSTN, FLSTFB,
05A
England, India, Japan)
FLS, FLSS, FLSTFBS
68345-
REFLECTOR ASSEMBLY, right dip, 7 in (Asia-Pacific,
FLSTC, FLSTF, FLSTN, FLSTFB,
05A
Brazil, HDI)
FLS
34
68380-05
BOOT
FXSB
68380-05
BOOT, (HDI, Australia, Brazil, England, India, Japan)
68390-05
BOOT
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FLSS, FLSTFBS
35
68653-05
SOCKET, position lamp (Asia-Pacific, Australia, Brazil,
England, HDI, India, Japan)
36
69609-00
BUMPER, rubber
FXSB
37
67700094
SHELL ASSEMBLY, (Australia, England, Japan)
FXSB
67700029
SHELL ASSEMBLY, (Asia-Pacific, HDI, India)
FXSB
38
69748-
SHELL ASSEMBLY, 7.0 in
FLSTC, FLSTF, FLSTN
05B
73295-10
SHELL ASSEMBLY, 7.0 in (black)
FLS, FLSTFB, FLSS, FLSTFBS
39
69750-
SHELL ASSEMBLY, 7 in, left dip (Australia, England,
FLSTC, FLSTF, FLSTN
05C
India, Japan)
69783-
SHELL ASSEMBLY, 7 in, right dip (Asia-Pacific, Brazil,
FLSTC, FLSTF, FLSTN
08A
HDI)
73293-
SHELL ASSEMBLY, 7 in, left dip (Australia, England,
FLSTFB, FLS, FLSS, FLSTFBS
10A
India, Japan)
73294-10
SHELL ASSEMBLY, 7 in, right dip (HDI, Asia-Pacific,
FLSTFB, FLS, FLSS, FLSTFBS,
Brazil)
FLSS, FLSTFBS
40
69969-08
SLEEVE (2)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FLSS, FLSTFBS
41
72056-92
INSULATOR, spade terminal, three-way
42
72249-94
HEAT SHRINK TUBE, .415 x 1 (black)
FLSTC, FLSTF, FLSTN
43
73101-
HOUSING, pin, two-way
FLSTC, FLSTF, FLSTN
96BK
44
73154-
HOUSING, four-way socket
96BK
45
73190-96
TERMINAL, pin, 16-20 AWG (2)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FLSS, FLSTFBS
46
73191-96
TERMINAL, socket, 16-20 AWG (4)
47
67700029
SHELL ASSEMBLY, (Domestic)
FXSB

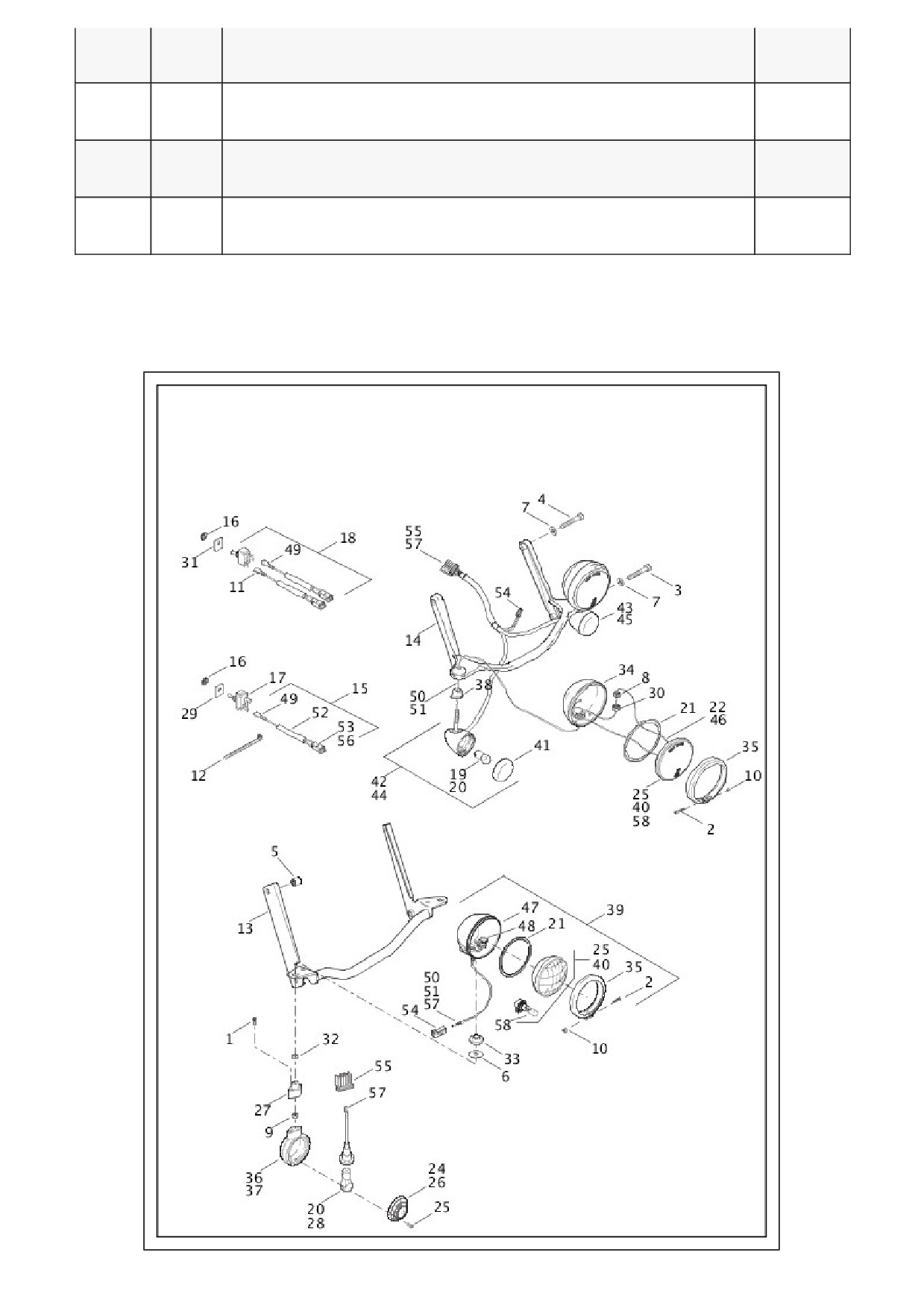

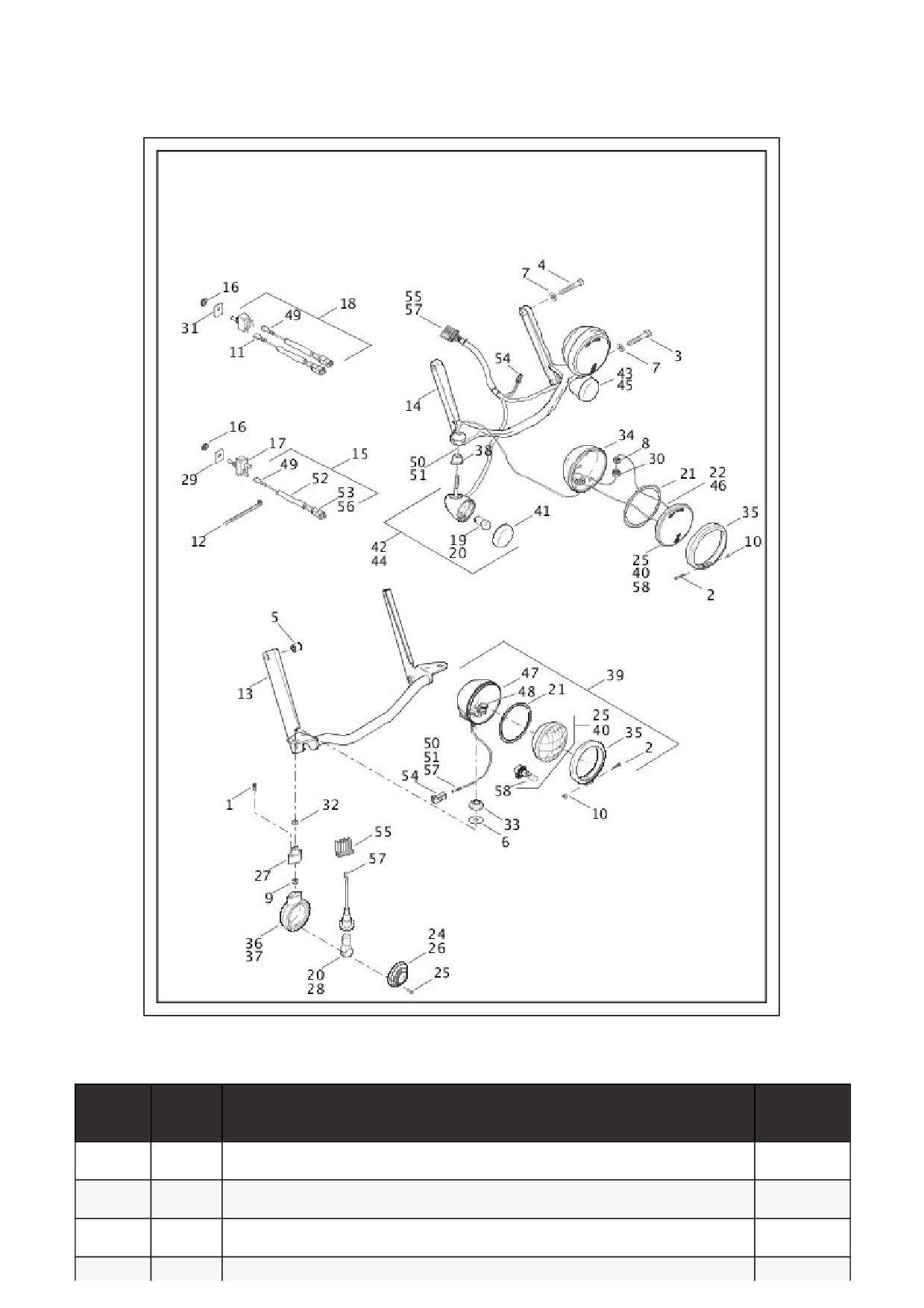

AUXILIARY/FOG LAMPS AND TURN SIGNALS, FRONT - FLSTC,
FLSTN (1 OF 2)
Index
Part
Description
Model(s)
No.
No.
1
2647B
SCREW (4)
FLSTC
2
3383
SCREW (2)
FLSTN
3514
SCREW (2)
FLSTC
3
4481
SCREW (2)
FLSTN
4
4482
SCREW (2)
FLSTC,
FLSTN
5
5885
SPACER (2)
FLSTC
6
6072
WASHER (2)
FLSTC
7
6109
WASHER (4)
FLSTN
8
7137
NUT (2)
FLSTN
9
7601
LOCKNUT (2)
FLSTC
10
7606
LOCKNUT (2)
FLSTC,
FLSTN
11
9897
TERMINAL, wire (Asia-Pacific, Australia, England, HDI, Japan)
FLSTC,
FLSTN
12
10065
CABLE STRAP (2)
FLSTC,
FLSTN
13
58082-
BRACKET, auxiliary/fog lamps
FLSTC
02A
14
58092-
LIGHT BAR
FLSTN
05
15
67615-
WIRING HARNESS, auxiliary/fog lamps
FLSTC,
96
FLSTN
16
67846-
NUT, toggle switch
FLSTC,
70
FLSTN
17
67858-
TOGGLE SWITCH, auxiliary/fog lamps, with 67846-70
FLSTC,
89
FLSTN
18
67873-
TOGGLE SWITCH, auxiliary/fog lamps, with 9897, 67846-70 and 72290-94
FLSTC,
08A
(Australia, England, Japan)
FLSTN
19
68163-
BULB, turn signal (HDI) (2)
FLSTN
84
20
68168-
BULB, turn signal (2)
FLSTC,
89A
FLSTN
21
68331-
RING, auxiliary/fog lamps (2)
FLSTC,
02
FLSTN
22
68337-
JUMPER WIRE, auxiliary/fog lamps, with 9839 and 72049-92 (HDI) (2)
FLSTN
05
23
68414-
AUXILIARY/FOG LAMP, with 68000056 (2)
FLSTC,
05A
FLSTN
24
68440-
LENS, turn signal (amber) (2)
FLSTC
86
25
68452-
SCREW (4)
FLSTC
86
26
68505-
LENS, turn signal (amber) (Asia-Pacific, Australia, England, HDI, Japan) (2)
FLSTC
90
27
68519-
MOUNTING BRACKET (2)
FLSTC
68A
28
68572-
BULB, turn signal (Asia-Pacific, Australia, England, HDI, Japan) (2)
FLSTC
64B
29
68619-
LABEL, spotlight
FLSTC,
83
FLSTN
30
68673-
COLLAR (2)
FLSTN
05
AUXILIARY/FOG LAMPS AND TURN SIGNALS, FRONT - FLSTC,
FLSTN (2 OF 2)
Index
Part No.
Description
Model(s)
No.
31
15346-
LABEL, spotlight (Asia-Pacific, Australia, Brazil, England, HDI, Japan)
FLSTC,
98A
FLSTN
32
68720-62
CLAMP BLOCK, auxiliary/fog lamps (2)
FLSTC
33
68721-62
SWIVEL BLOCK, auxiliary/fog lamps (2)
FLSTC
34
68722-06
HOUSING, auxiliary/fog lamps, with 72298-95 and 72356-95 (2)
FLSTN
35
68725-
BEZEL RING, auxiliary/fog lamps (2)
FLSTC,
62A
FLSTN
36
68766-94
TURN SIGNAL, front, with 68168-89A, 68440-86 and 68452-86 (2)
FLSTC
37
68767-94
TURN SIGNAL, (Asia-Pacific, Australia, England, HDI, Japan) (2)
FLSTC
38
68840-05
SUPPORT (2)
FLSTN
39
68846-09
FOG LAMP ASSEMBLY, with 3514, 7606, 68331-02, 68725-62A, 68847-09 and
FLSTC
72160-06 (Asia-Pacific, Australia, England, HDI, Japan)
40
68847-09
BULB UNIT, auxiliary/fog lamps, with 68000056 (Asia-Pacific, Australia, England,
FLSTC,
HDI, Japan) (2)
FLSTN
41
68973-00
LENS, turn signal (2)
FLSTN
42
69220-06
TURN SIGNAL ASSEMBLY, (right)
FLSTN
43
69221-06
TURN SIGNAL ASSEMBLY, (left)
FLSTN
44
69222-09
TURN SIGNAL ASSEMBLY, (right) (Asia-Pacific, Australia, England, HDI, Japan)
FLSTN
45
69223-09
TURN SIGNAL ASSEMBLY, (left) (Asia-Pacific, Australia, England, HDI, Japan)
FLSTN
46
72049-92
HOUSING, jumper wire (HDI) (2)
FLSTN
47
72160-06
HOUSING, with 72161-06, 72298-95 and 72356-95 (2)
FLSTC
48
72161-06
HOUSING, two-way socket
FLSTC,
FLSTN
49
72290-94
TERMINAL
FLSTC,
FLSTN
50
72298-95
WIRE SEAL, green (4)
FLSTC,
FLSTN
51
72356-95
TERMINAL, socket, 18-20 AWG (4)
FLSTC,
FLSTN
52
72411-97
SHRINK TUBE
FLSTC,
FLSTN
53
73102-
HOUSING, two-way pin
FLSTC,
96BK
FLSTN
54
73152-
HOUSING, two-way socket
FLSTC,
96BK
FLSTN
55
73156-
HOUSING, six-way socket
FLSTC,
96BK
FLSTN
56
73190-96
TERMINAL, pin, 16-20 AWG
FLSTC,
FLSTN
57
73191-96
TERMINAL, socket, 16-20 AWG (8)
FLSTC,
FLSTN
58
68000056
BULB
FLSTC,
FLSTN
The Wiring Harness Kit for the fog lamps is shown for reference only and must be ordered separately through Parts and
Accessories. See a Harley-Davidson dealer.

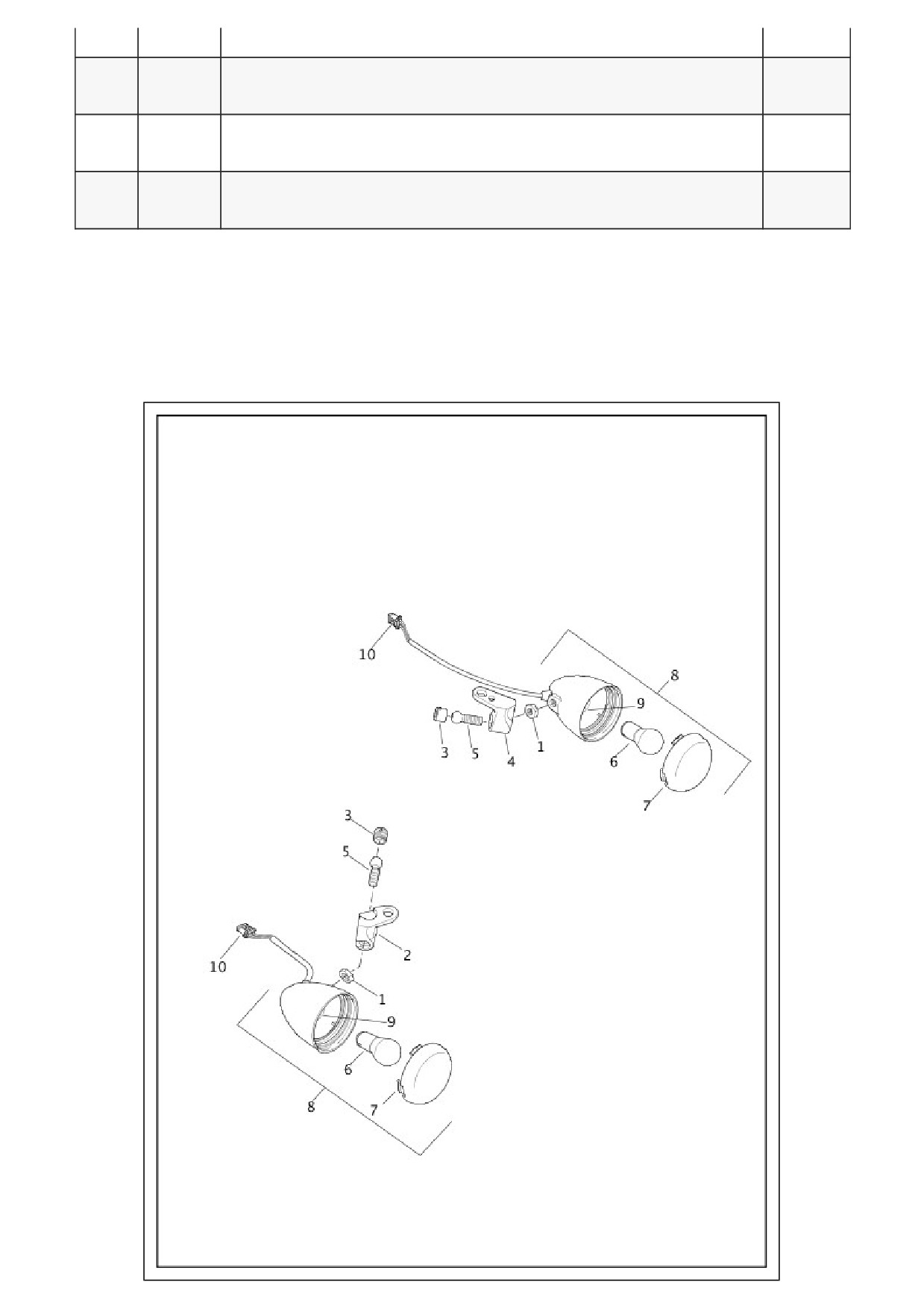

TURN SIGNALS, FRONT - FLS, FLSS, FLSTF, FLSTFB, FLSTFBS,
FXSB
