Harley Davidson 2016 Softail Models. Parts Catalog - page 3

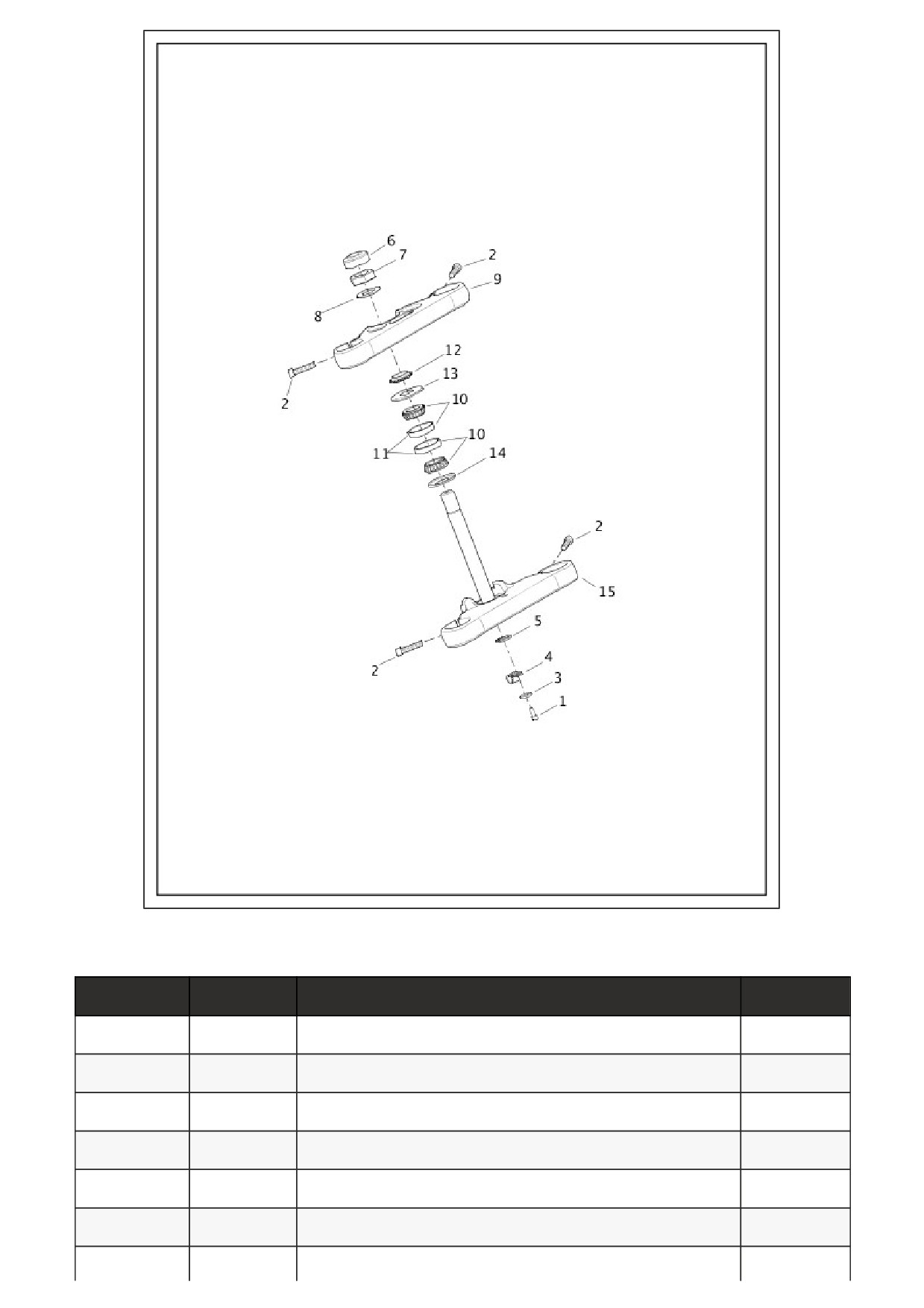

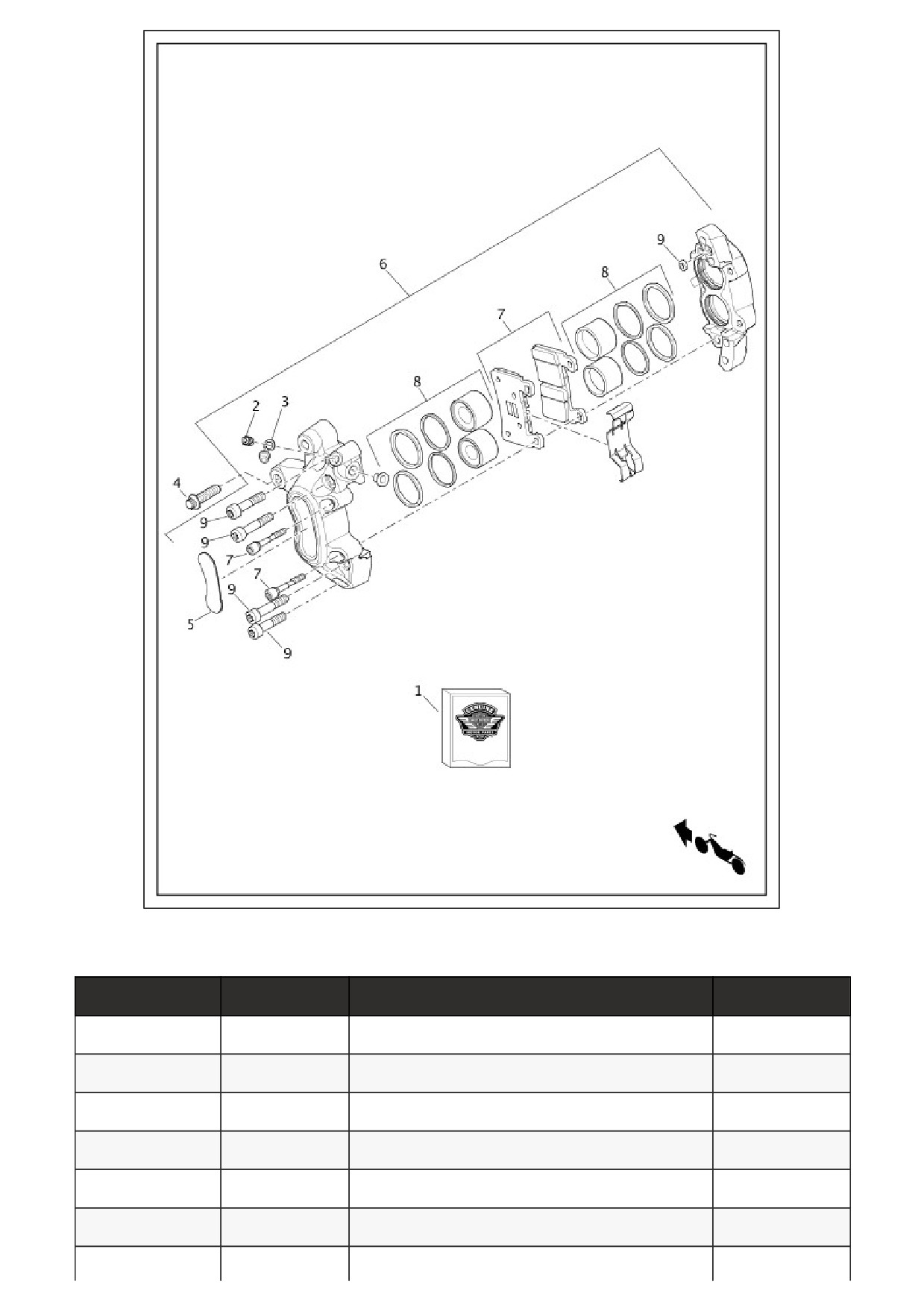

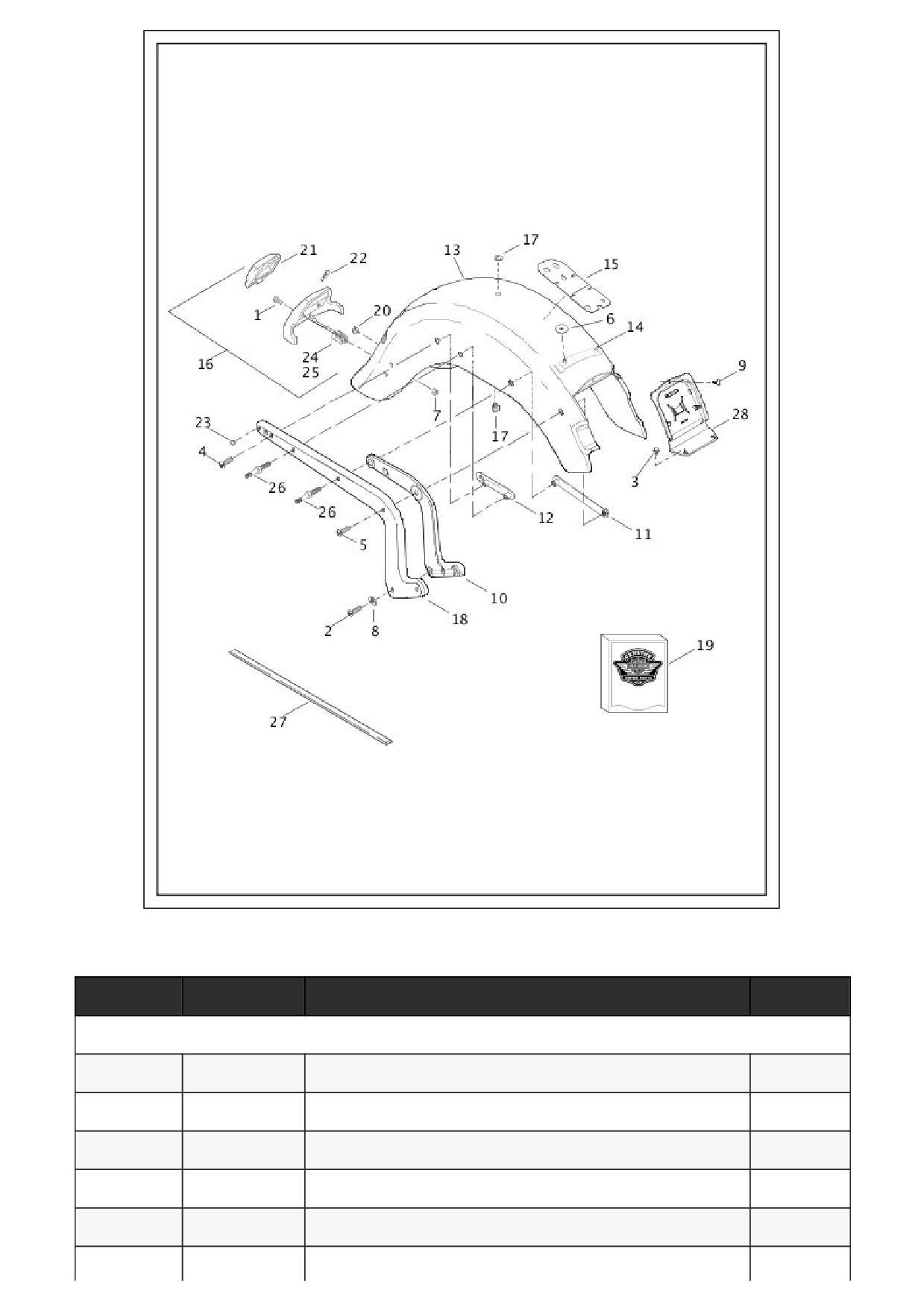

Index No.

Part No.

Description

Model(s)

1

42820-04

GREASE

2

42827-04

SCREW, bleeder

3

42828-04

CAP, bleeder

4

44160-00

BOLT, caliper mounting (lower) (2)

5

14100606

DECAL

6

41300095

CALIPER ASSEMBLY, (left)

7

41300102

PAD KIT

8

41300103

PISTON KIT, with 42820-04

9

41300104

BOLT KIT, brake caliper

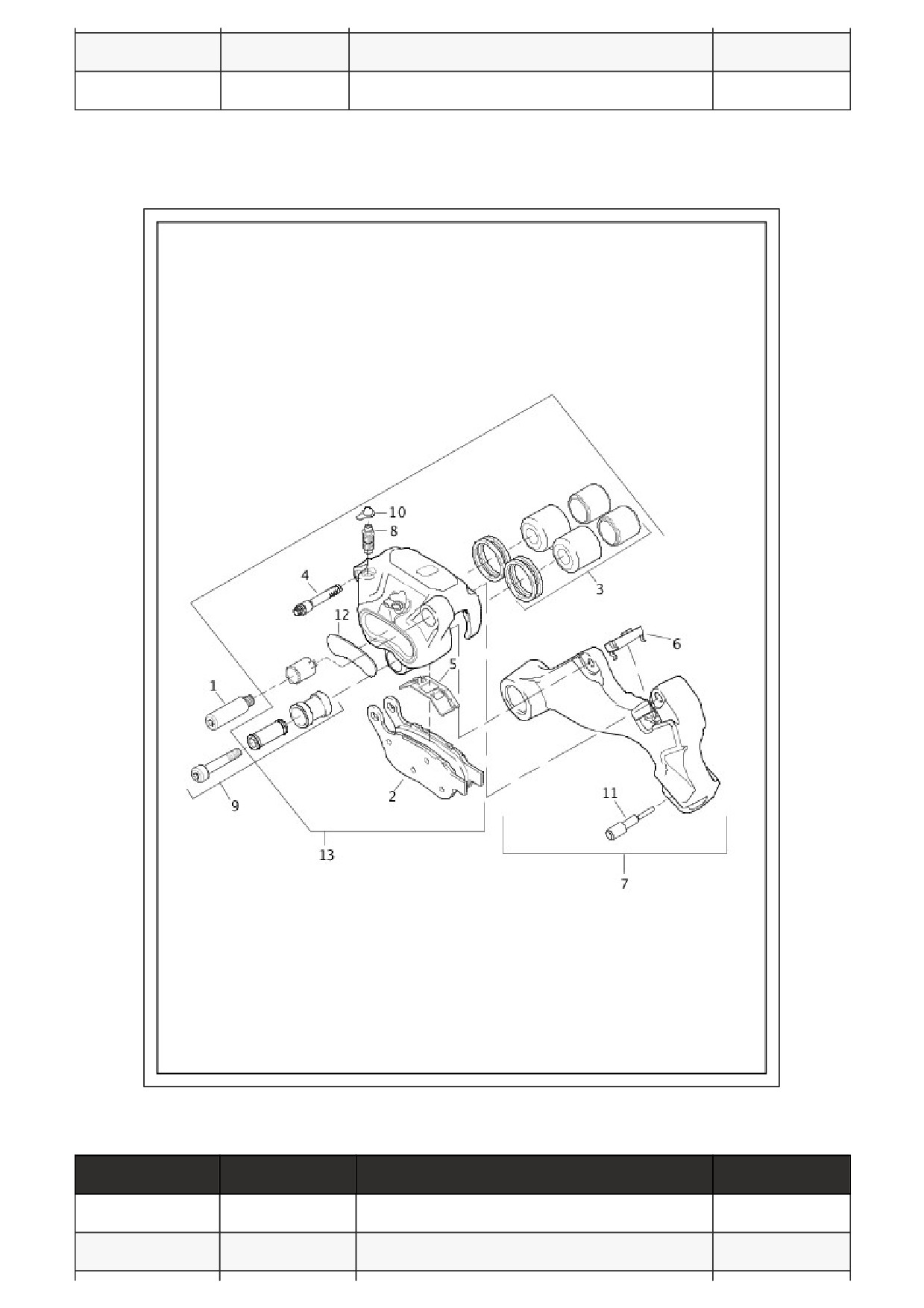

BRAKE CALIPER, REAR

Index No.

Part No.

Description

Model(s)

1

42143-08B

BOLT, (lower)

2

42298-08

PAD KIT

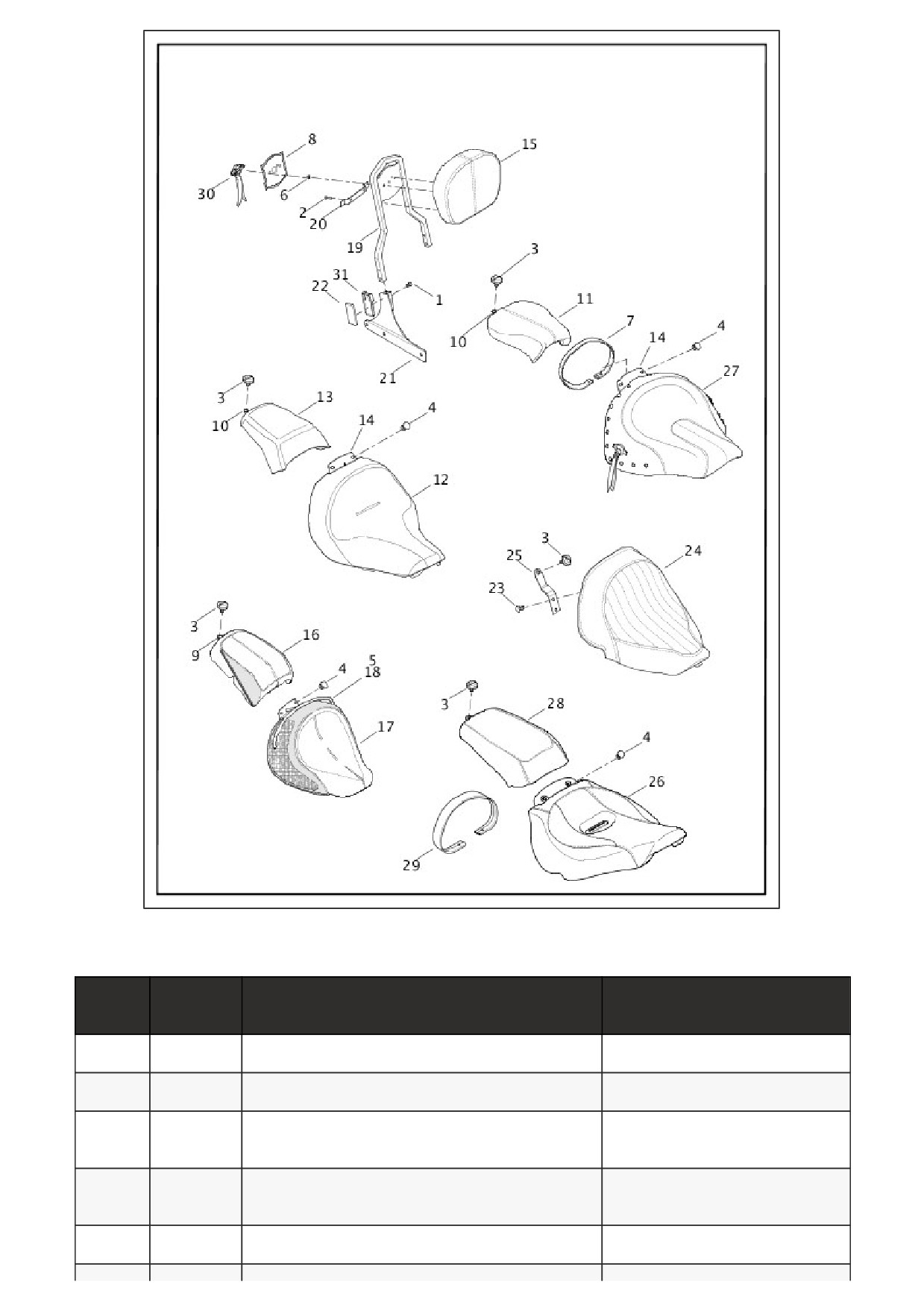

Index

Part No.

Description

Model(s)

No.

1

3655A

SCREW (5)

2

6594

WASHER

3

7813A

NUT

4

9252

BALL BEARING, with encoder, ABS

5

9276A

BALL BEARING, 25 mm, NON-ABS (2)

FLS

5

9276A

BALL BEARING, 25 mm, ABS

6

10147

CLIP, connector

7

10850

CLIP, wheel speed sensor, ABS

8

11180

RETAINING RING

FLSTC, FLSTN

9

40558-82

INNER TUBE, 16 in, offset valve

FLSTC, FLSTN, FLS, FLSS

10

40716-11

SENSOR, wheel speed, ABS

FXSB

11

40982-11

SENSOR, wheel speed, ABS

FLSTC, FLSTN, FLSTF, FLSTFB, FLS,

FLSS, FLSTFBS

12

41123-79

VALVE CAP

13

41349-07

SLEEVE, spacer

43300200

SLEEVE, spacer

FXSB

14

41502-07

SPACER, left side of wheel, NON-ABS

FLS

15

41504-07

SPACER, right side of wheel

FXSB

41695-07

SPACER, right side of wheel

FLSTF, FLSTFB, FLS, FLSS, FLSTFBS

16

41510-07

HUB CAP ASSEMBLY, front (chrome)

FLSTC, FLSTN

17

41545-

AXLE, front

FLSTC, FLSTF, FLSTN, FLSTFB, FLS,

07A

FLSS, FLSTFBS

18

41547-

AXLE, front

FXSB

07A

19

41559-08

WHEEL ASSEMBLY, front, 16 in laced, without

FLSTC, FLSTN

bearings and sleeve

55107-12

WHEEL ASSEMBLY, front, 16 in laced, without

FLS, FLSS

bearings and sleeve (black)

20

41992-11

RIM, 16 in (used on 43300041 wheel assemblies)

FLSTC, FLSTN

(chrome)

21

43017-07

RIM, 16 in (black)

FLS, FLSS

43085-97

RIM, 16 in (chrome)

FLSTC, FLSTN

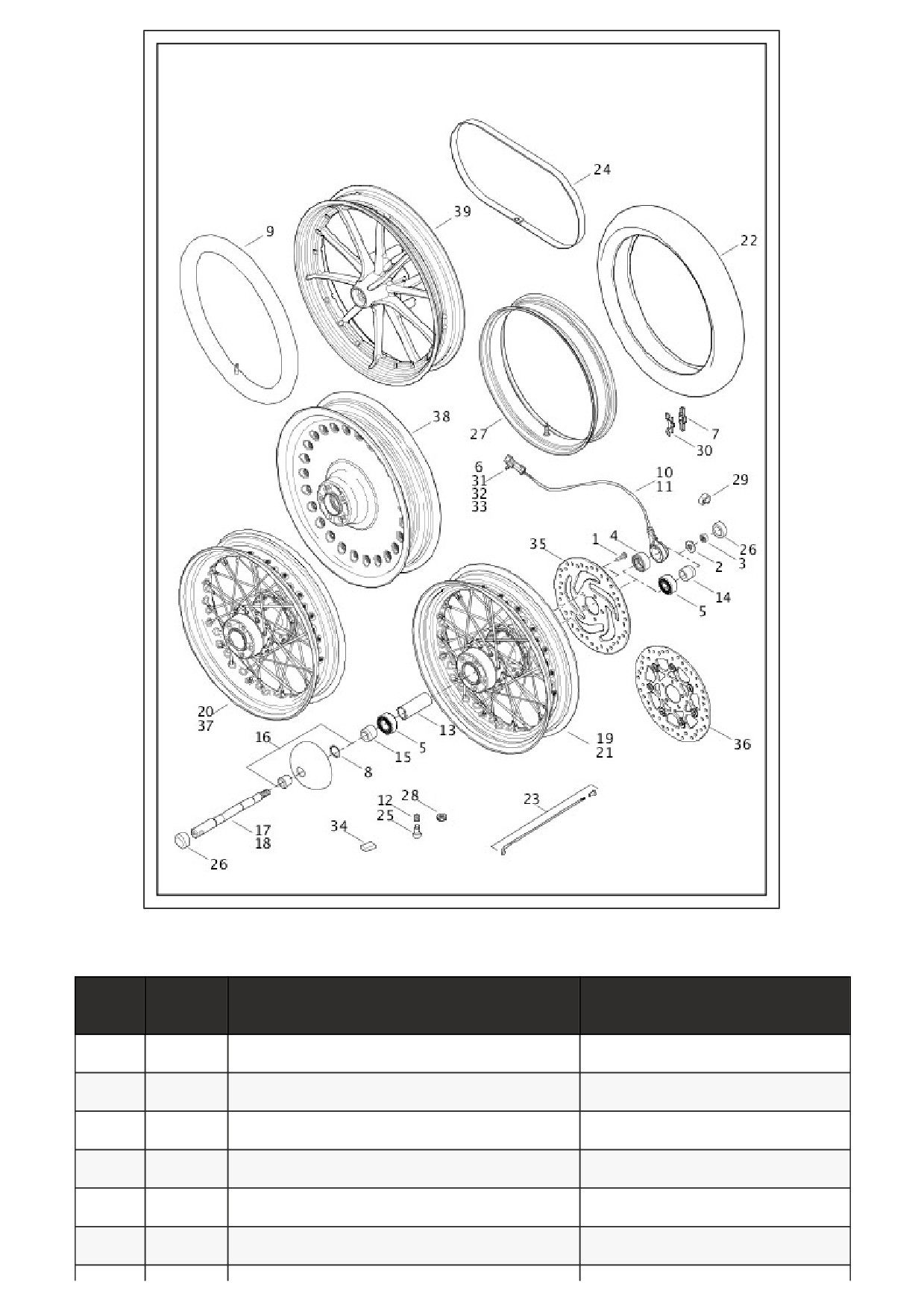

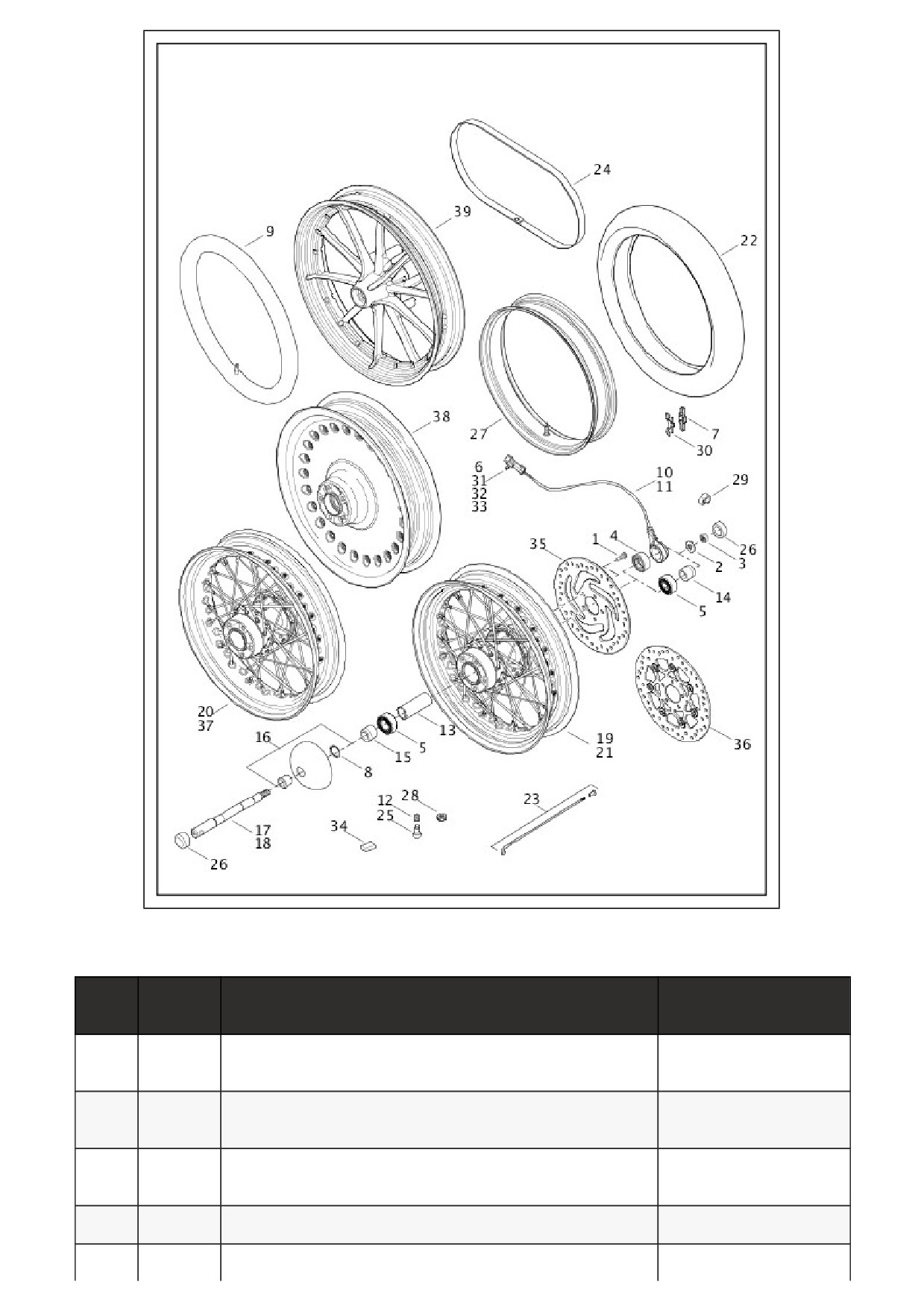

WHEELS, FRONT (2 OF 2)

Index

Part No.

Description

Model(s)

No.

22

43022-

TIRE, 16 in

FLS, FLSS

91A

43118-

TIRE, 16 in, wide white wall

FLSTC, FLSTN

92A

41474-

TIRE, 17 in

FLSTF, FLSTFB, FLSS

06B

43100008

TIRE, 21 in

FXSB

23

43052-

SPOKE AND NIPPLE SET, 16 in (set of 40) (used on 43300041

FLSTC, FLSTN

05A

wheel assembly)

43241-05

SPOKE AND NIPPLE SET, 16 in (set of 40)

FLSTN, FLSTC, FLS,

FLSS

24

43147-40

RIM FLAP, 16 in laced

FLSTN, FLSTC, FLS,

FLSS

43164-05

RIM FLAP, 16 in profile laced, (used on 43300041 wheel

FLSTN, FLSTC

assembly)

25

43157-

VALVE STEM ASSEMBLY

FLSTF, FLSTFB, FLSTFBS

83A

40999-87

VALVE STEM

FXSB

26

43583-09

COVER, axle nut (black) (2)

FLSS, FLSTFBS

27

44752-11

RIM SEAL KIT, 16 X 3 inch, with 41123-79, 43164-05 and 54321-

FLSTC, FLSTN

85 (used on 43300041 wheel assembly)

28

54321-85

NUT, valve stem

29

70631-08

CLIP, conduit

FXSB

30

70684-

BRACKET, wheel speed sensor, ABS

11A

31

72607-08

HOUSING, two-way pin

32

72608-08

TERMINAL, pin, 16-20 AWG (2)

33

72639-10

SECONDARY LOCK, two-way

34

95594-

WEIGHT, 5 g (black)

FLS, FXSB, FLSS

84B

95595-

WEIGHT, 5 g (silver)

FLSTC, FLSTF, FLSTN,

84B

FLSTFB, FLSTFBS

35

41500022

BRAKE DISC, front

FLSTC, FLSTN, FLS

36

41500088

BRAKE DISC, front

FXSB, FLSS, FLSTFBS

41500068

BRAKE DISC, front

FLSTF, FLSTFB

37

43300041

WHEEL ASSEMBLY, front, 16 in profile laced, without bearings

FLSTC, FLSTN

and sleeve

38

43300171

WHEEL ASSEMBLY, 17 in, without bearings and sleeve (black)

FLSTFB, FLSTFBS

43590-09

WHEEL ASSEMBLY, 17 in, without bearings and sleeve (chrome)

FLSTF

39

43300210

WHEEL ASSEMBLY, 21 in without bearings and sleeve

FXSB

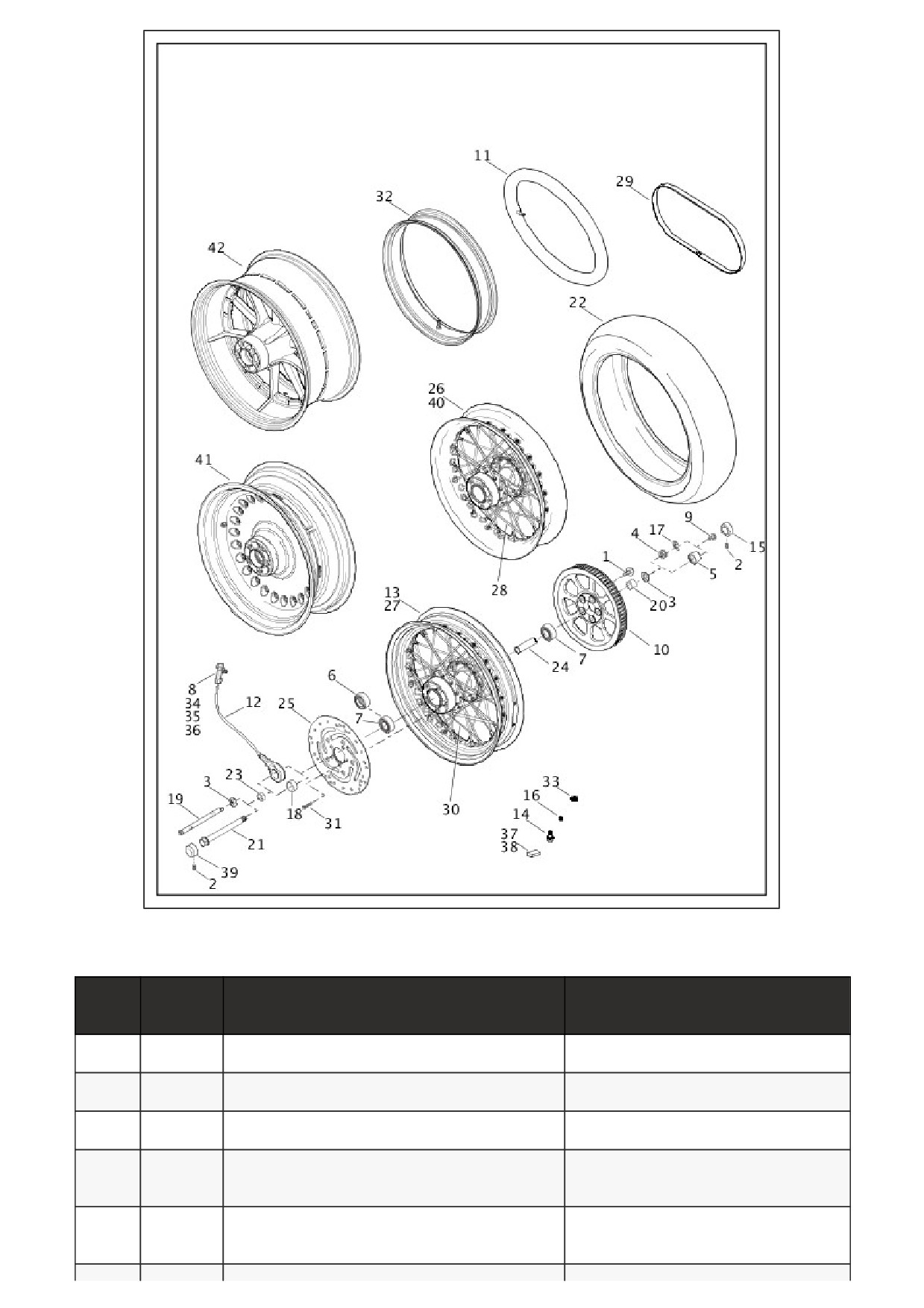

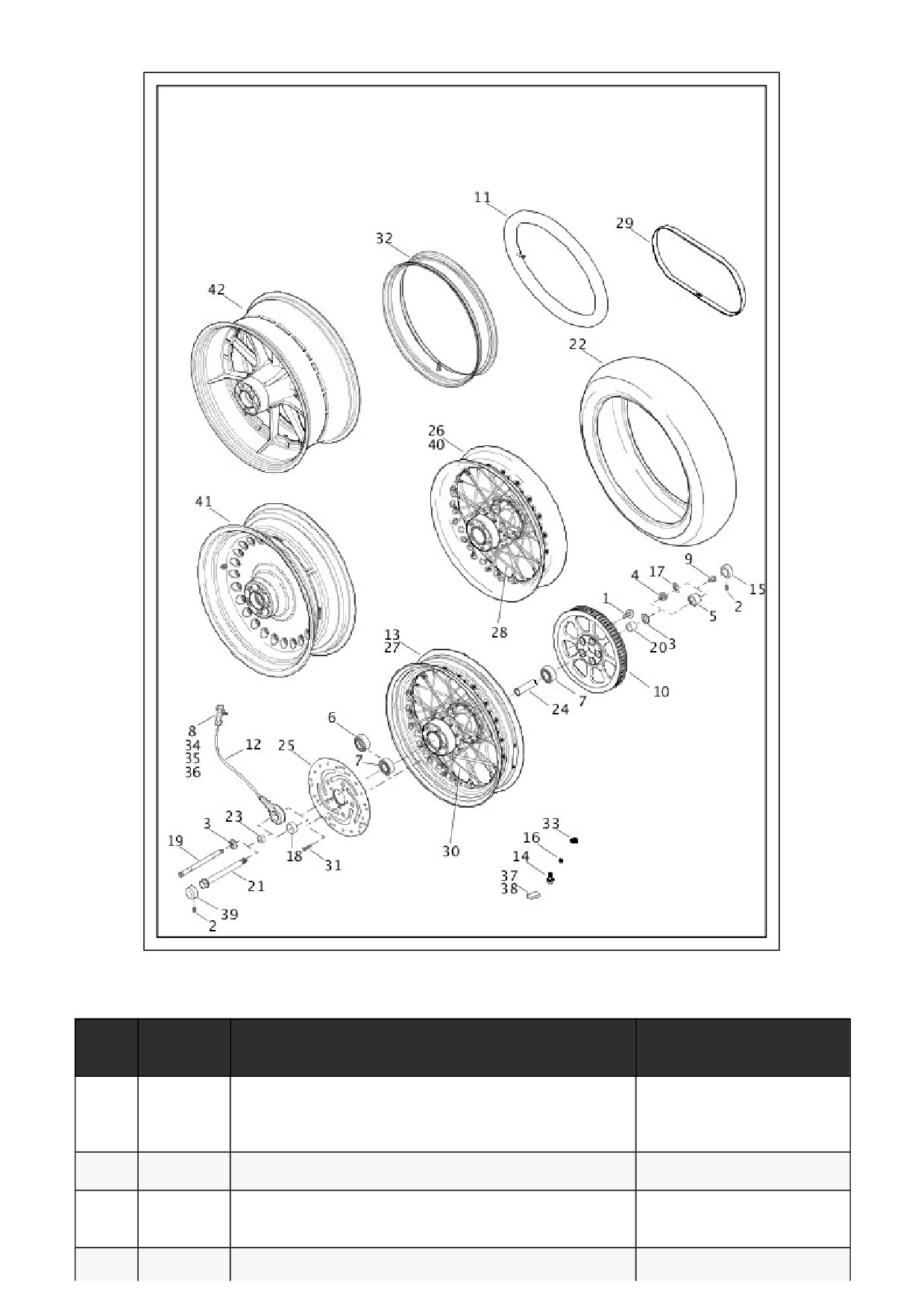

WHEELS, REAR (1 OF 2)

Index

Part No.

Description

Model(s)

No.

1

3109

SCREW, with washer (5)

2

4636

SCREW (2)

FLSS, FLSTFBS

3

6551

WASHER (2)

FXSB

3

6551

WASHER

FLSTC, FLSTF, FLSTN, FLSTFB, FLS,

FLSS, FLSTFBS

4

8020

NUT

FLSTC, FLSTF, FLSTN, FLSTFB, FLS,

FLSS, FLSTFBS

WHEELS, REAR (2 OF 2)

Index

Part No.

Description

Model(s)

No.

24

41696-08

SLEEVE, spacer

FLSTC, FLSTF, FLSTN,

FLSTFB, FLS, FLSS,

FLSTFBS

41358-08

SLEEVE, spacer

FXSB

25

41797-00

BRAKE DISC, rear

FLSTC, FLSTF, FLSTN,

FLSTFB, FLS

41500089

BRAKE DISC, rear

FLSS, FLSTFBS, FXSB

26

41992-11

RIM, 16 in (used on 40900050A wheel assembly) (chrome)

FLSTC, FLSTN

27

43017-07

RIM, 16 in (black)

FLS, FLSS

43085-97

RIM, 16 in (used on 40700-08A wheel assembly) (chrome)

FLSTC, FLSTN

28

43052-05A

SPOKE AND NIPPLE SET, 16/17 in rim (set of 40) (used with

FLSTC, FLSTN

40900050A)

29

43147-40

RIM FLAP, 16 in laced

FLSTC, FLSTN, FLS, FLSS

43164-05

RIM FLAP, 16 in profile laced

FLSTC, FLSTN

30

43241-05

SPOKE AND NIPPLE SET, 16 in rim (set of 40) (used with

FLSTC, FLSTN, FLS

40700-08A and 55109-12)

31

43567-92

SCREW (5)

32

44752-11

RIM SEAL KIT, 16 X 3 inch, with 41123-79, 43164-05 and

FLSTC, FLSTN

54321-85 (used on 40900050A wheel assembly)

33

54321-85

NUT, valve stem

34

72607-08

HOUSING, two-way pin

35

72608-08

TERMINAL, pin, 16-20 AWG (2)

36

72639-10

SECONDARY LOCK, two-way

37

95594-84B

WEIGHT, 5 g (black)

FLS, FXSB

38

95595-84B

WEIGHT, 5 g (silver)

FLSTC, FLSTF, FLSTN,

FLSTFB, FLSTFBS

39

12600177

COVER, nut, right (black)

FLSS, FLSTFBS

40

40900050A

WHEEL ASSEMBLY, rear, 16 in, profile laced, without

FLSTC, FLSTN

bearings and sleeve, with rim seal kit 44752-11 (chrome)

41

40900182

WHEEL ASSEMBLY, rear, 17 in disc, without bearings and

FLSTFBS, FLSTFB

sleeve (black)

43596-09

WHEEL ASSEMBLY, rear, 17 in disc, without bearings and

FLSTF

sleeve (chrome)

42

40900206

WHEEL ASSEMBLY, rear, 18 in, without bearings and sleeve

FXSB

(black)

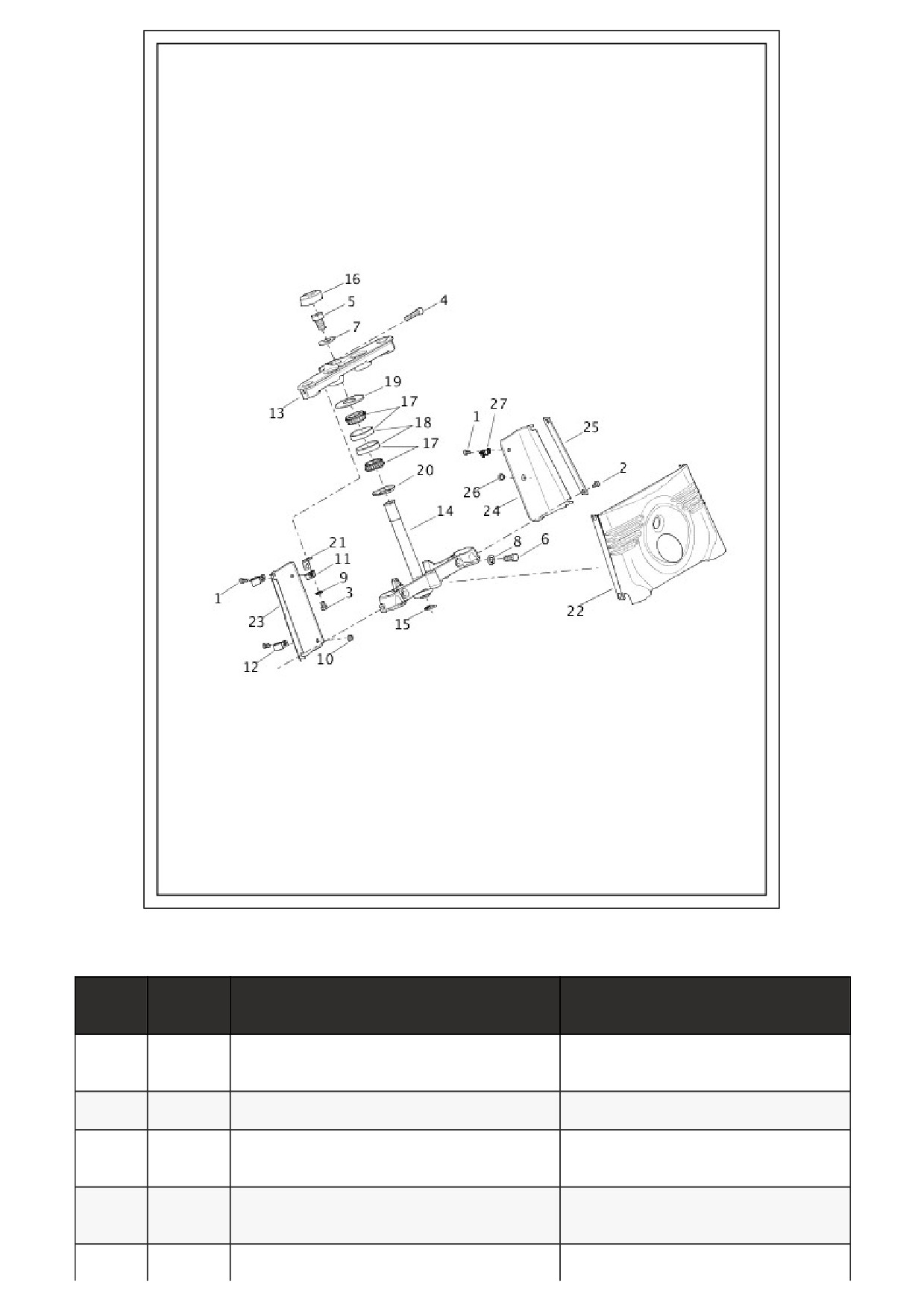

FORK BRACKETS, FRONT - FLS, FLSS, FLSTC, FLSTF, FLSTFB,

FLSTFBS AND FLSTN

Index

Part No.

Description

Model(s)

No.

1

941

SCREW (4)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS,

FLSS, FLSTFBS

2

3538

SCREW (4)

FLSTF, FLSTFB, FLS, FLSS, FLSTFBS

3

3953W

BOLT (2)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS,

FLSS, FLSTFBS

4

4350A

SCREW

FLSTC, FLSTF, FLSTN, FLSTFB, FLS,

FLSS, FLSTFBS

5

4453

BOLT

FLSTC, FLSTF, FLSTN, FLSTFB, FLS,

Index No.

Part No.

Description

Model(s)

1

3594

SCREW

FXSB

2

4311

SCREW (4)

FXSB

3

6703

WASHER

FXSB

4

10053

CLAMP

FXSB

5

45611-86

RETAINING RING, fork stem

FXSB

6

45670-80A

CAP, fork stem

FXSB

7

45718-60

NUT, fork stem

FXSB

Index

Part

Description

Model(s)

No.

No.

1

3537

SCREW (4)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

2

4042

SCREW (2)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

3

5710

WASHER (2)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

4

7062

LOCKWASHER (2)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

5

45405-

SCREW, with washer

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

75A

FLSTFBS

6

45419-80

CAP, slider tube (2)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

7

45733-48

OIL SEAL, fork tube plug (2)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

8

45803-97

OIL LOCK STOP (2)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

9

45835-00

AXLE CAP, right slider

FLSTC, FLSTF, FLSTN, FLSTFB, FLS

46550-03

AXLE CAP, right slider (black)

FLSS, FLSTFBS

10

45837-07

DAMPER TUBE, with 45859-77A (2)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

11

45838-77

PLUG, fork tube (2)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

12

45842-

RETAINING RING

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

77A

FLSTFBS

13

45845-77

O-RING

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

14

45858-77

DRAIN SCREW, with washer and

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

slider (2)

FLSTFBS

15

45859-

DAMPER TUBE RING

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

77A

FLSTFBS

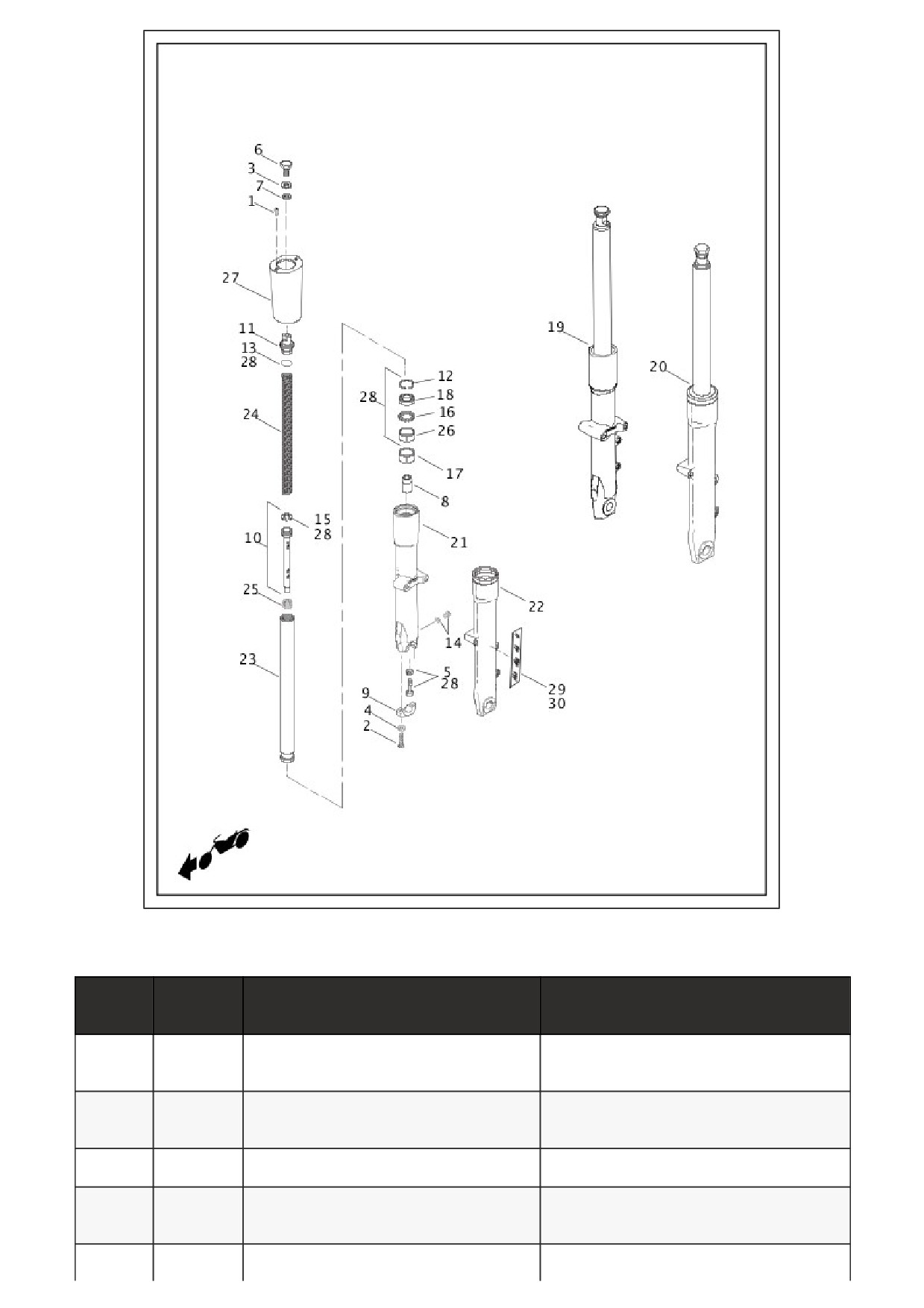

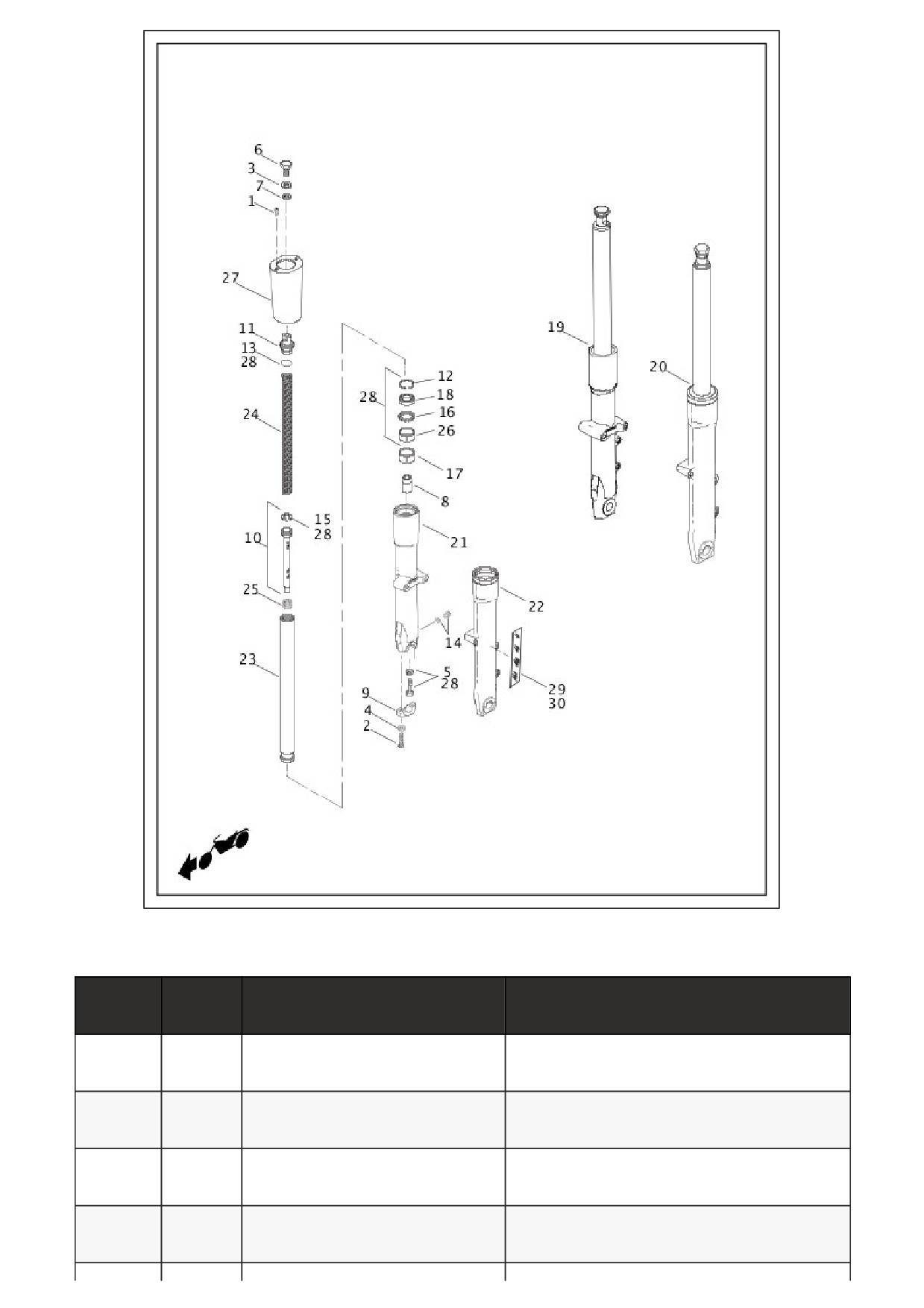

FORK, FRONT-FLS,FLSS,FLSTC,FLSTF,FLSTFB,FLSTFBS AND

FLSTN (2 OF 2)

Index

Part No.

Description

Model(s)

No.

16

45865-84

SLIDER WASHER

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

17

45866-84

BUSHING, slider

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

18

45875-84A

OIL SEAL

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS

19

45915-08A

FORK SLIDER AND TUBE ASSEMBLY,

FLSTC, FLSTF, FLSTN, FLSTFB, FLS

(right)

45400147

FORK SLIDER AND TUBE ASSEMBLY,

FLSS, FLSTFBS

(right) (black)

20

45916-07A

FORK SLIDER AND TUBE ASSEMBLY,

FLSTC, FLSTF, FLSTN, FLSTFB, FLS

(left)

45400148

FORK SLIDER AND TUBE ASSEMBLY,

FLSS, FLSTFBS

(left) (black)

21

45917-08A

SLIDER ASSEMBLY, (right)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS

45500367

SLIDER ASSEMBLY, (right) (black)

FLSS, FLSTFBS

22

45918-07A

SLIDER ASSEMBLY, (left)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS

45500366

SLIDER ASSEMBLY, (left) (black)

FLSS, FLSTFBS

23

45930-00

STANCHION TUBE, with 45866-84 (2)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

24

45931-00

SPRING (2)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

25

45933-86

SPRING, damper tube (2)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

26

45940-84

SLIDER BUSHING

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

27

45964-86

COVER, slider (2)

FLSTC, FLSTF, FLSTN, FLS

54673-

COVER, slider (2)

FLSTFB

10BYM

46541-02

COVER, slider (black) (2)

FLSS, FLSTFBS

28

49377-09A

FORK REBUILD KIT

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

29

60253-07

BRACKET ASSEMBLY, reflector, with

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

60254-07 (2)

FLSTFBS

30

60254-07

REFLECTOR, amber (2)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS, FLSS,

FLSTFBS

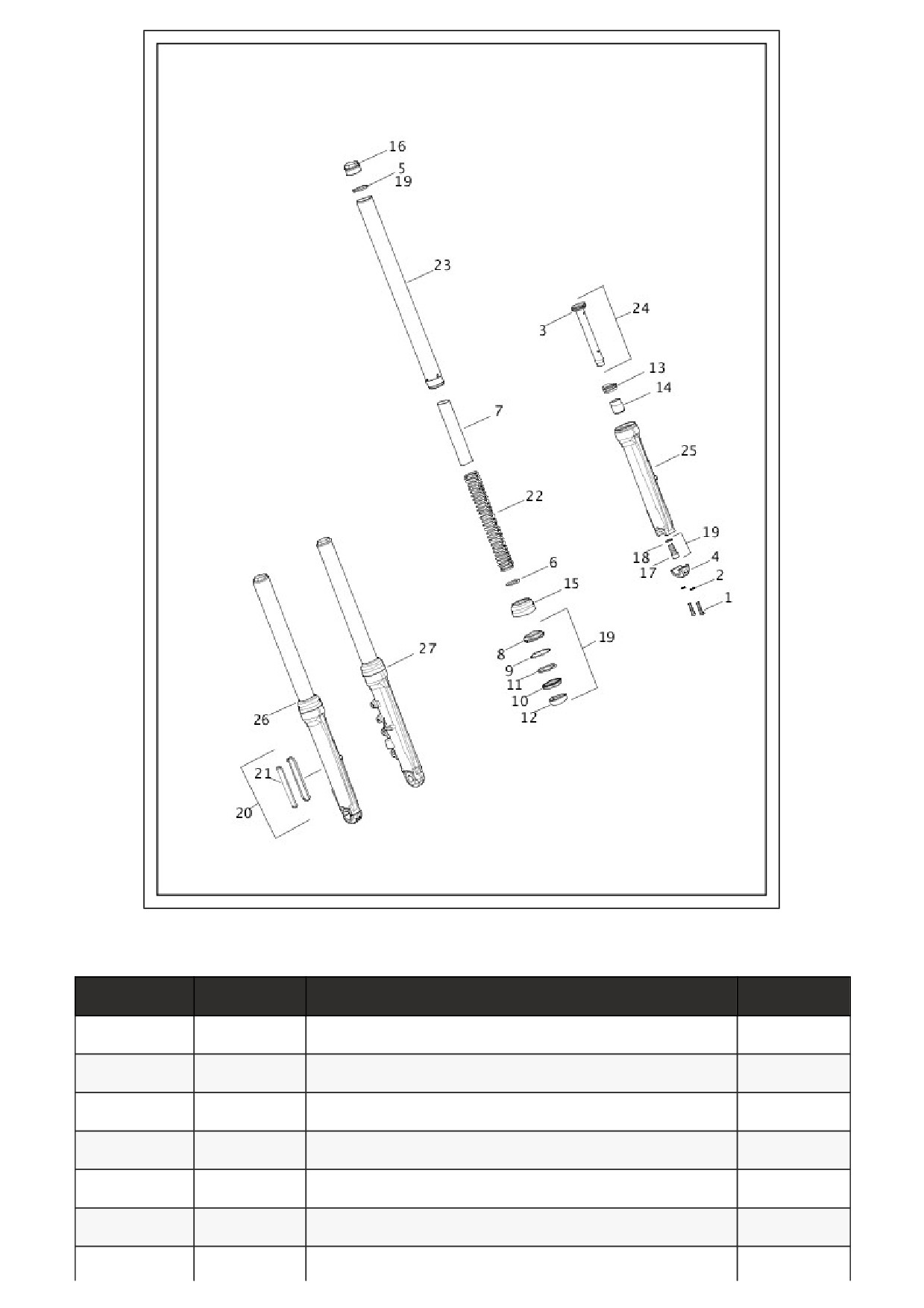

FORK, FRONT - FXSB

Index No.

Part No.

Description

Model(s)

1

4042

SCREW (2)

FXSB

2

7062

LOCKWASHER (2)

FXSB

3

11689

PISTON RING (2)

FXSB

4

45104-08

AXLE CAP, right side (black)

FXSB

5

46508-01

O-RING (2)

FXSB

6

46509-01

WASHER (2)

FXSB

7

46510-07

COLLAR SPRING (2)

FXSB

8

46512-01A

DUST SEAL

FXSB

9

46513-01

RING STOPPER

FXSB

10

46514-01A

OIL SEAL

FXSB

11

46515-01

SPACER SEAL

FXSB

12

46516-01

BUSHING GUIDE

FXSB

13

46517-01

SPRING, rebound (2)

FXSB

14

46609-06

OIL SEAL, fork tube plug (2)

FXSB

15

46611-06

COVER, case (2)

FXSB

16

46612-06

BOLT (2)

FXSB

17

46614-06

BOLT

FXSB

18

46615-06

CU PACKING

FXSB

19

49379-09

FORK REBUILD KIT (2)

FXSB

20

60253-07

BRACKET ASSEMBLY, reflector (2)

FXSB

21

60254-07

REFLECTOR, amber (2)

FXSB

22

45500150

FORK SPRING (2)

FXSB

23

45500151

FORK PIPE (2)

FXSB

24

45500152

SEAT PIPE, with 11689 (2)

FXSB

25

45500159

SLIDER ASSEMBLY, left side (black)

FXSB

45500161

SLIDER ASSEMBLY, right side (black) (not shown)

FXSB

26

45800026

FORK SLIDER AND TUBE ASSEMBLY, (right)

FXSB

27

45800027

FORK SLIDER AND TUBE ASSEMBLY, (left)

FXSB

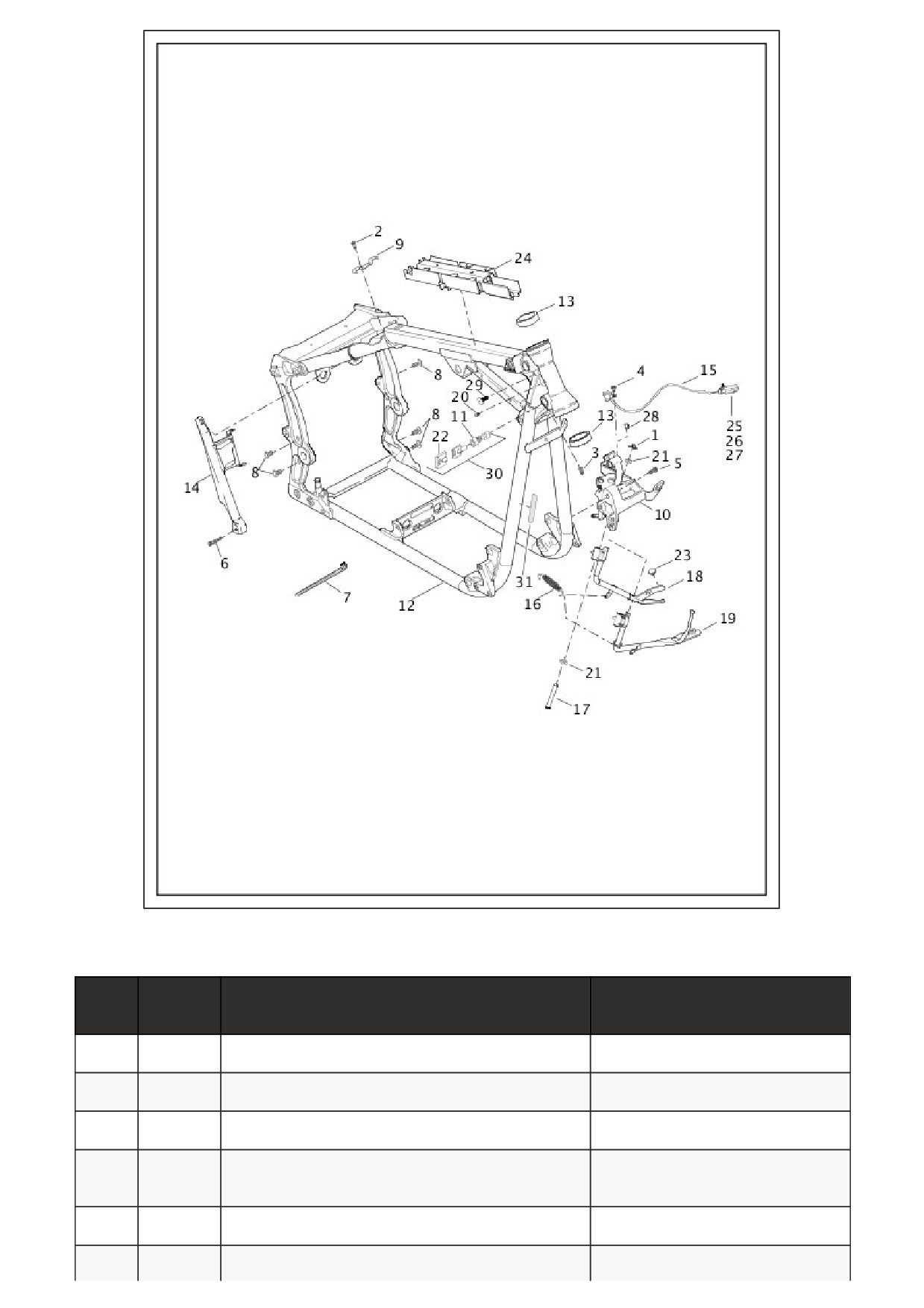

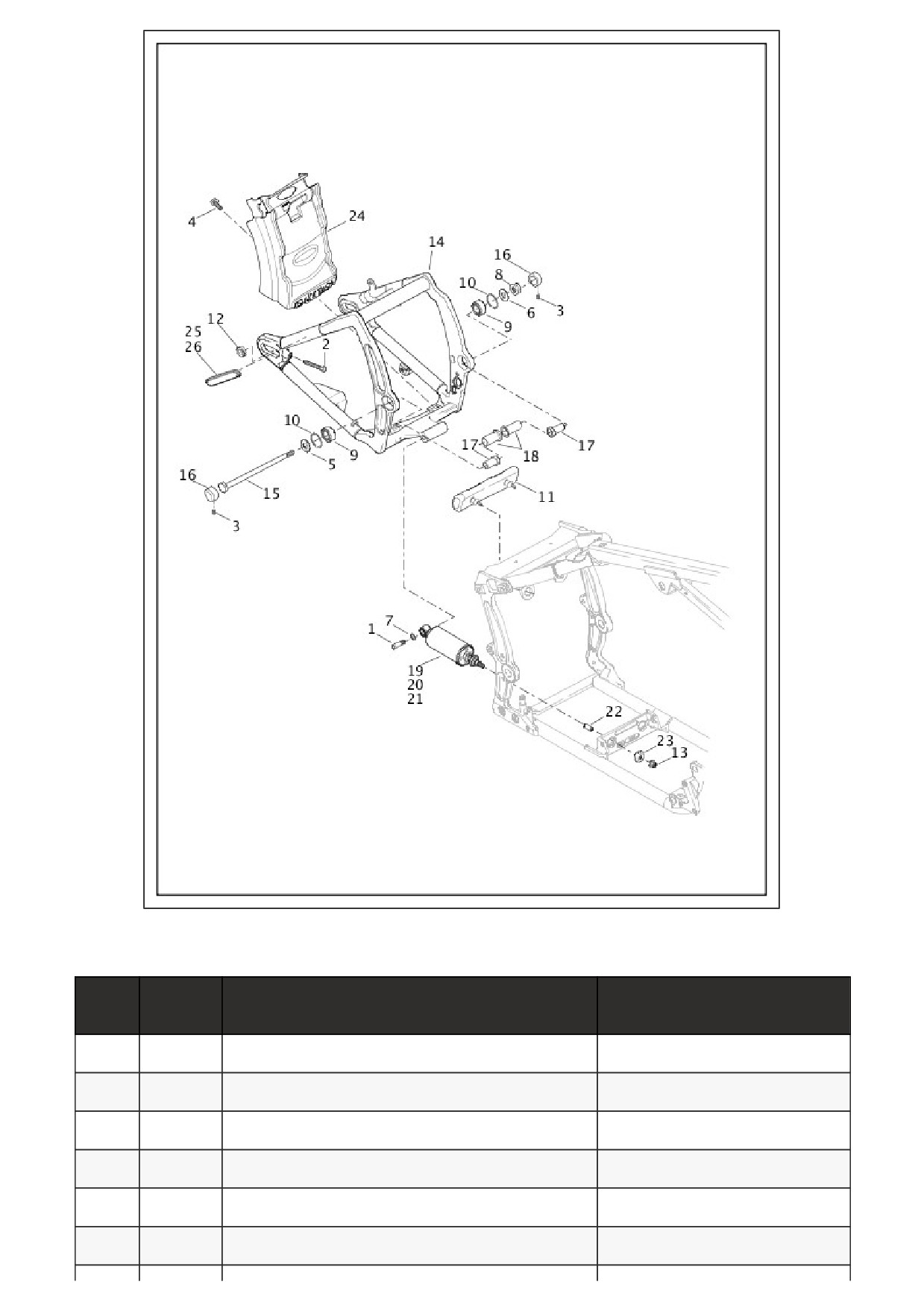

FRAME AND JIFFY STAND

Index

Part No.

Description

Model(s)

No.

1

554A

PRETZEL CLIP, jiffy stand

2

939

SCREW (2)

3

3233

SCREW

4

3594

SCREW, (HDI, Brazil, England)

FLS, FLSTC, FLSTF, FLSTN,

FLSTFB, FXSB, FLSS, FLSTFBS

5

4512A

SCREW (6)

6

4813A

SCREW

FLSTC, FLSTF, FLSTN, FLSTFB,

FLS, FLSS, FLSTFBS

7

10006

CABLE STRAP (3)

10065

CABLE STRAP, keys

8

10040

CLIP (5)

FLS

8

10040

CLIP (4)

FLSTC, FLSTF, FLSTFB, FLSTFBS

8

10040

CLIP (3)

FLSTN

8

10040

CLIP (2)

FXSB

9

10193

WIRE CLAMP

10

33630-

BRACKET, jiffy stand, shift lever and footboard,

FLSTC, FLSTF, FLSTN, FLSTFB,

07A

includes shifter bushings

FLS, FLSS, FLSTFBS

33683-

BRACKET, jiffy stand, shift lever and footrest, includes

FXSB

07A

shifter bushings (black)

11

45680-90

FORK LOCK, (specify key number)

12

47173-

FRAME, (gloss black)

FLSTC, FLSTF, FLSTN, FLS, FLSS

11BHP

47173-

FRAME, (denim black)

FLSTFB, FLSTFBS

11BYM

47167-

FRAME, (gloss black)

FXSB

11BHP

13

48315-60

BEARING CUP (2)

14

48868-07

POST, seat

FLSTC, FLSTF, FLSTN, FLSTFB,

FLS, FLSS, FLSTFBS

15

49716-

JIFFY STAND SENSOR, with 72169-07, 72511-07BK,

08A

73213-07 (HDI, Brazil, England)

16

49725-

SPRING, jiffy stand leg

07A

17

50003-

CLEVIS PIN, jiffy stand

89B

18

50087-

LEG, jiffy stand (chrome)

FLSTC, FLSTF

07A

19

50103-

LEG, jiffy stand

FLSTN, FLSTFB, FLS, FLSS,

07B

FLSTFBS

50000053

LEG, jiffy stand

FXSB

20

50972-75

FITTING, lubrication

21

53176-08

BUSHING, jiffy stand (2)

22

61081-92

COVER, key head set (2)

23

62123-07

BUMPER

FLS, FLSTC, FLSTF, FLSTN,

FLSTFB

23

62123-

BUMPER

FXSB, FLSS, FLSTFBS

Index

Part No.

Description

Model(s)

No.

1

4074A

BOLT (2)

2

4433

ADJUSTING SCREW, rear axle (2)

3

4636

SET SCREW

FLSS, FLSTFBS

4

4867

SCREW

5

6534

WASHER, hardened, right side

6

6535

WASHER, hardened, left side

Index

Part No.

Description

Model(s)

No.

1

1001

SCREW (4)

FLSTC

2

2538

SCREW (3)

FLSTC

3

3075

SCREW

FLSTN, FLSTF, FLSTFB, FLS,

FLSS, FLSTFBS

4

3633

NUT, seat mounting (2)

FLSTC, FLSTN, FLSTF, FLSTFB,

FLSTFBS

5

6036

WASHER (2)

FLSTN

6

8126A

RETAINER CLIP (2)

FLSTC

7

51184-00

PASSENGER STRAP

FLSTC, FLSTF, FLSTFB, FLSTFBS

8

51494-11

TRIM PANEL, backrest

FLSTC

9

51669-07

BRACKET

FLSTN

10

51740-10

BRACKET, seat mounting (gloss black)

FLSTF, FLSTFB, FLSTFBS

51652-97A

BRACKET, seat mounting

FLSTC

11

51812-09

PILLION ASSEMBLY

FLSTC

12

51873-10A

SEAT ASSEMBLY

FLSTF, FLSTFB, FLSTFBS

13

51874-10A

PILLION ASSEMBLY

FLSTF, FLSTFB, FLSTFBS

14

52125-05

BRACKET

FLSTF, FLSTFB, FLSTFBS

15

52189-09

BACKREST

FLSTC

16

52237-07

SEAT, passenger, with 51669-07

FLSTN

17

52502-05C

SEAT ASSEMBLY, front, with 6036 and 52691-05

FLSTN

18

52691-05

GRAB RAIL

FLSTN

19

52731-00

SISSY BAR UPRIGHT

FLSTC

20

52771-82

BRACKET, backrest

FLSTC

21

52787-00

SIDE PLATE, (right)

FLSTC

52788-00

SIDE PLATE, (left)

FLSTC

22

59259-90

REFLECTOR, (Domestic, Canada) (2)

FLSTC

59256-84A

REFLECTOR, (amber) (HDI, Asia-Pacific, Australia,

FLSTC, FLS, FLSS

England, Japan) (2)

23

67956-96

SCREW

FLS, FLSS

24

52000031A

SEAT

FLS, FLSS

25

52000032

BRACKET, mounting

FLS, FLSS

26

52000096

SEAT

FXSB

27

52000222

SEAT ASSEMBLY

FLSTC

28

52400065

PILLION

FXSB

29

52400072

PASSENGER STRAP

FXSB

30

61400327

CONCHO

FLSTC

31

67900140

BRACKET, reflector

FLSTC

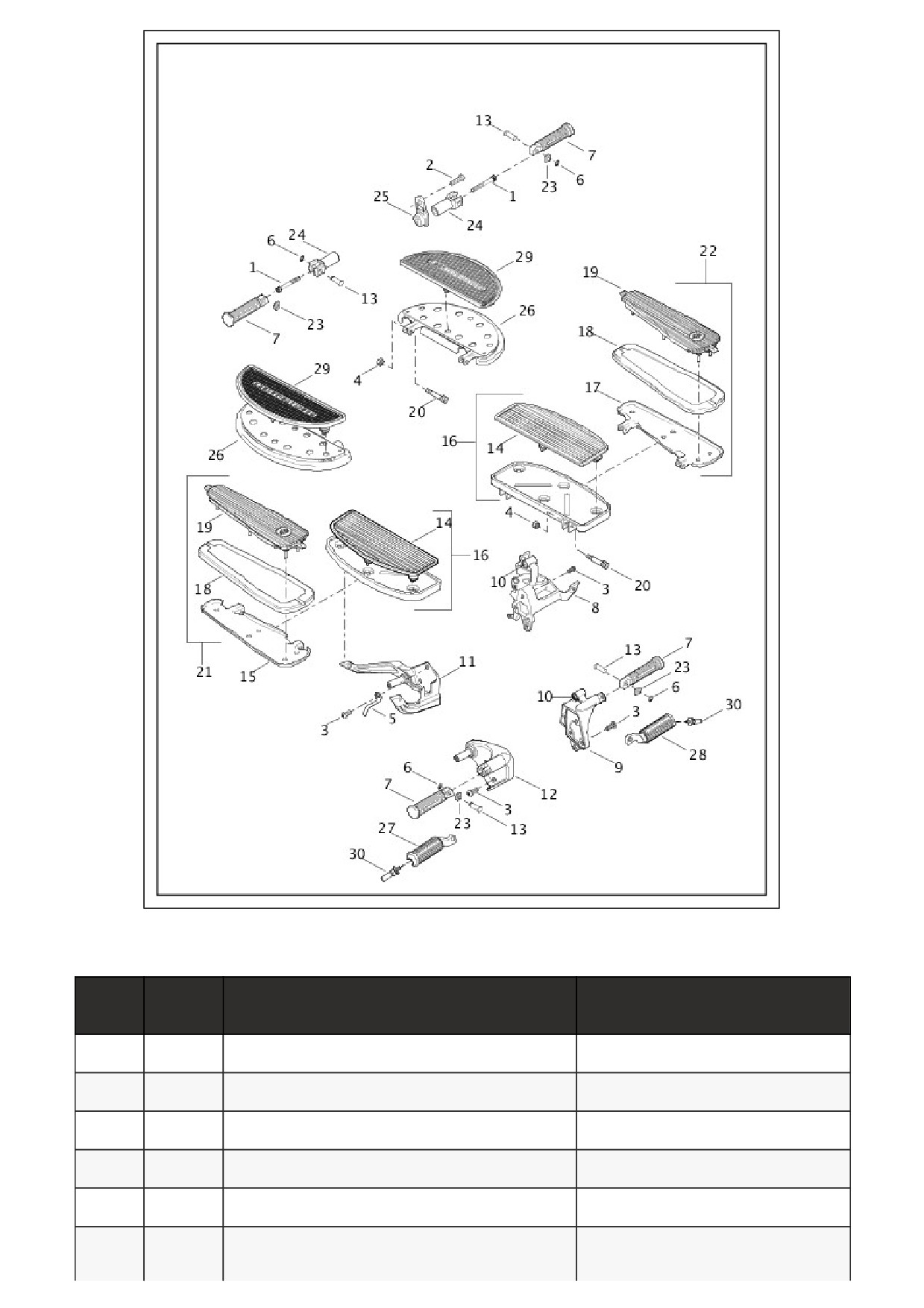

FOOTRESTS AND FOOTBOARDS

Index

Part

Description

Model(s)

No.

No.

1

4454

SCREW (2)

FLSTC, FXSB

1

4454

SCREW

FLSTF, FLSTN, FLSTFB, FLSTFBS

4836

SCREW, (right)

FLSTF, FLSTN, FLSTFB, FLSTFBS

2

4390

SCREW (2)

FLSTN

3

4512A

SCREW (6)

4

7716

LOCKNUT (4)

FLSTC, FLSTF, FLSTN, FLSTFB, FLS,

FLSS, FLSTFBS

51402-

FOOTBOARD BOTTOM, (gloss black) (2)

FLSTFB, FLS, FLSS, FLSTFBS

08A

27

51323-08

FOOT PEG, (right)

FXSB

28

51327-08

FOOT PEG, (left)

FXSB

29

51403-08

PAD, footboard (2)

FLSTC, FLSTFB, FLS, FLSS, FLSTFBS

30

54204-11

WEAR PEG, footrest (2)

FXSB

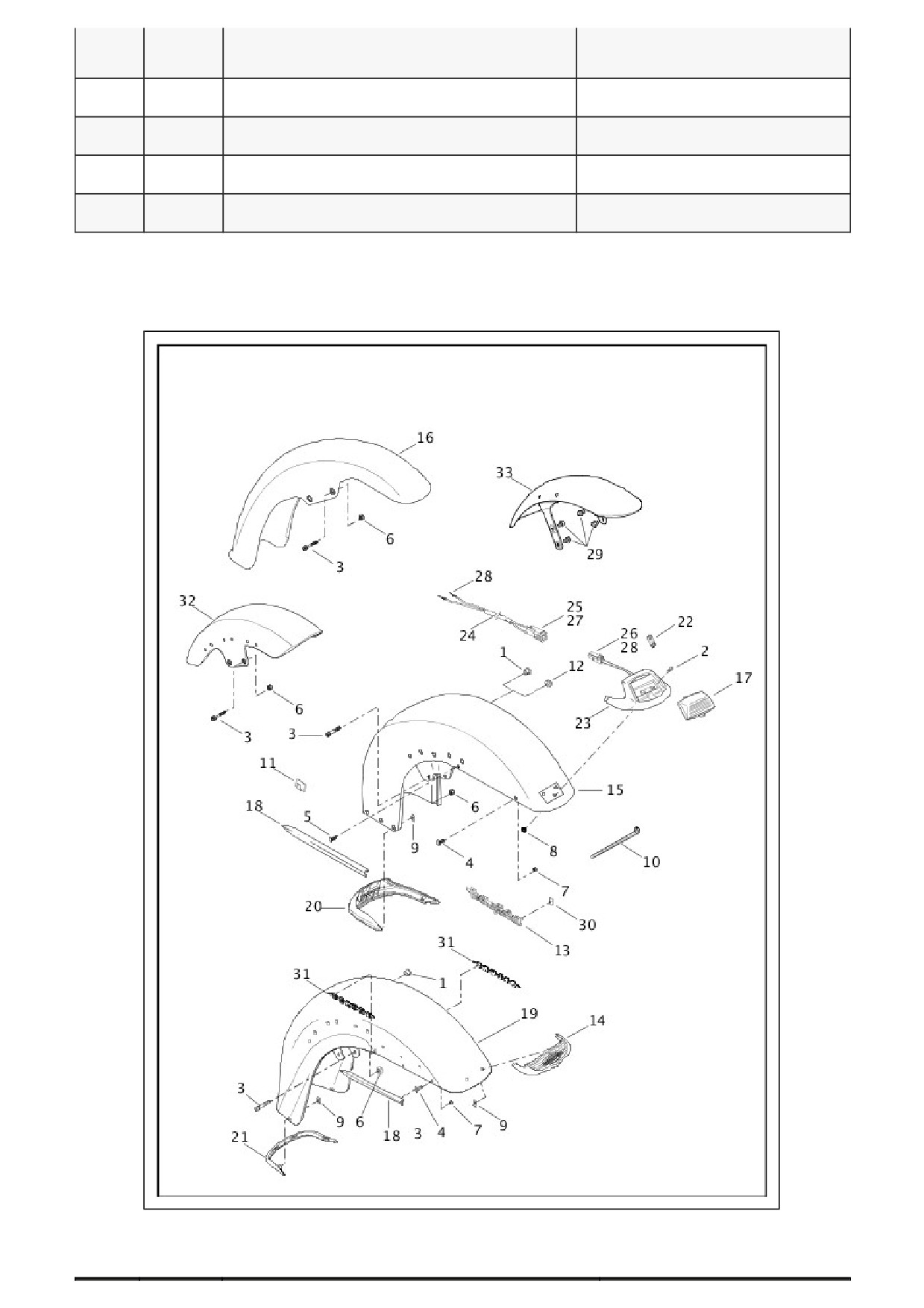

FENDER, FRONT

Index

Part No.

Description

Model(s)

No.

NOTE: Refer to the Service Section of h-dnet.com for painted part numbers.

1

755

HOLE PLUG

FLSTN

755

HOLE PLUG, (HDI) (2)

FLSTC

2

2604

SCREW (2)

FLSTC

3

3485A

SCREW (4)

FLSTC, FLSTN, FLSTF, FLSTFB,

FLS, FLSS, FLSTFBS

4

3560WA

BOLT, tee (2)

FLSTC, FLSTN

5

3561WC

BOLT, tee (2)

FLSTC, FLSTN

6

7531

LOCKNUT (4)

FLSTC, FLSTN, FLSTF, FLSTFB,

FLS, FLSS, FLSTFBS

7

7624

LOCKNUT (4)

FLSTC, FLSTN

8

7629

NUT (2)

FLSTC

9

8037

NUT (3)

FLSTC

8037

NUT (5)

FLSTN

10

10065

CABLE STRAP (2)

FLSTC

11

10102

CLIP

FLSTC

12

11437

GROMMET

FLSTC

13

14142-09

TRIM, Heritage Softail (2)

FLSTC

14

59019-05

FRONT FENDER TIP

FLSTN

15

59129-09

FENDER, (prime)

FLSTC

16

59139-

FENDER, (prime)

FLSTF, FLSTFB, FLSTFBS

00A

17

59180-80

LENS, fender tip lamp (amber)

FLSTC

59201-96

LENS, fender tip (HDI)

FLSTC

18

59211-

SIDE TRIM (2)

FLSTC, FLSTN

74A

19

59234-05

FENDER, (prime)

FLSTN

20

59235-09

TRIM SKIRT, (lower)

FLSTC

21

59360-05

TRIM SKIRT, (lower)

FLSTN

22

68193-95

BULB, fender tip lamp

FLSTC

23

68706-00

LAMP ASSEMBLY FENDER TIP, with 59180-80, 68193-

FLSTC

95, 73152-96BK and 73191-96

59116-96

LAMP ASSEMBLY FENDER TIP, with 59201-96 (HDI)

FLSTC

24

70196-00

HARNESS ASSEMBLY, fender tip light, with 73102-

FLSTC

Index No.

Part No.

Description

Model(s)

NOTE: Refer to the Service Section of h-dnet.com for painted part numbers.

1

2604

SCREW (2)

FLSTC

2

3056

SCREW (4)

FLSTC

3

3391

SCREW (2)

FLSTC

4

4266A

SCREW (2)

FLSTC

5

4267

SCREW (2)

FLSTC

6

7434

WASHER (2)

FLSTC

7

7629

NUT (2)

FLSTC

8

6400HB

WASHER (4)

FLSTC

9

10226

FASTENER, nylon

FLSTC

10

47798-08BHP

SUPPORT, (left)

FLSTC

47807-08BHP

SUPPORT, (right)

FLSTC

11

59050-03

BRACKET, fender mounting, front (2)

FLSTC

12

59119-03

BRACKET, fender mounting, rear (2)

FLSTC

13

59144-06A

REAR FENDER, (prime)

FLSTC

14

59174-99

STUD PLATE

FLSTC

15

59567-00C

PROTECTIVE TAPE

FLSTC

16

59683-03

LAMP ASSEMBLY FENDER TIP, with 68046-79 (Domestic)

FLSTC

59117-96

LAMP ASSEMBLY FENDER TIP, with lens (HDI)

FLSTC

17

59768-97

FENDER SEAT NUT KIT

FLSTC

18

59954-08

COVER, (left) (chrome)

FLSTC

59955-08

COVER, (right) (chrome)

FLSTC

19

60832-07

INNER FENDER DAMPING KIT

FLSTC

20

67266-94

GROMMET, turn signal (2)

FLSTC

21

68046-79

LENS, rear fender lamp (Domestic)

FLSTC

22

68193-95

BULB, rear fender lamp

FLSTC

23

68446-00

PLUG, button (2)

FLSTC

24

73191-96

TERMINAL, socket, 16-20 AWG (3)

FLSTC

25

73153-96BK

HOUSING, three-way socket

FLSTC

26

90367-03

STUD, saddlebag (4)

FLSTC

27

69200018

CONDUIT

FLSTC

28

69200626

CADDY, ECM

FLSTC

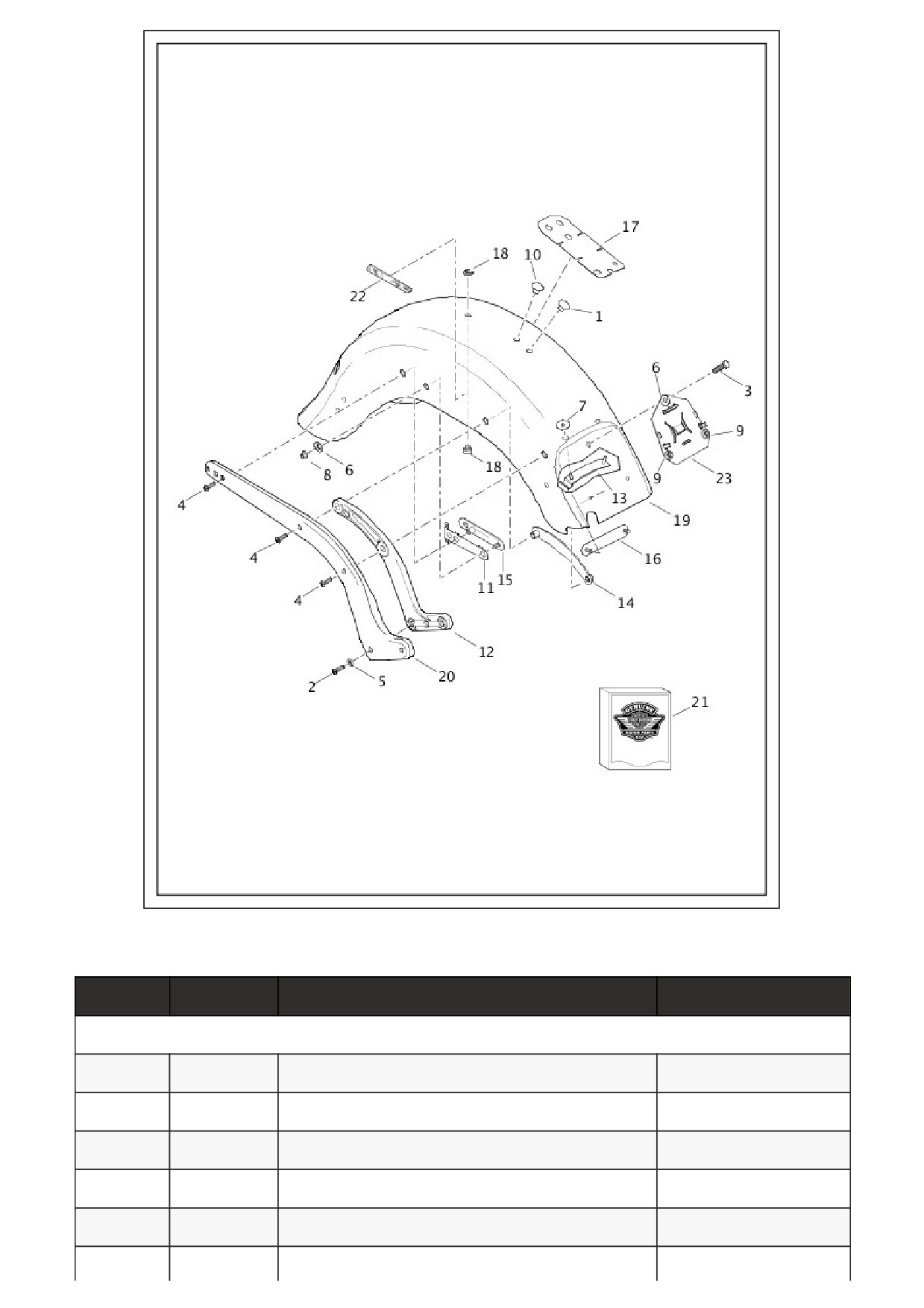

FENDERS AND SUPPORTS, REAR - FLSTF, FLSTFB AND FLSTFBS

Index No.

Part No.

Description

Model(s)

NOTE: Refer to the Service Section of h-dnet.com for painted part numbers.

1

761

PLUG

FLSTF, FLSTFB, FLSTFBS

2

3056

SCREW (4)

FLSTF, FLSTFB, FLSTFBS

3

3767B

BOLT

FLSTF, FLSTFB, FLSTFBS

4

4266A

SCREW (6)

FLSTF, FLSTFB, FLSTFBS

5

6400HB

WASHER (4)

FLSTF, FLSTFB, FLSTFBS

6

6701

WASHER (2)

FLSTF, FLSTFB, FLSTFBS

7

7434

WASHER (2)

FLSTF, FLSTFB, FLSTFBS

8

7601

LOCKNUT (2)

FLSTF, FLSTFB, FLSTFBS

9

7792

NUT (2)

FLSTF, FLSTFB, FLSTFBS

10

10228

PLUG

FLSTF, FLSTFB, FLSTFBS

11

45550-03

PLATE, wire retainer (2)

FLSTF, FLSTFB, FLSTFBS

12

47809-08BHP

SUPPORT, (left) (chrome)

FLSTF, FLSTFB, FLSTFBS

47813-08BHP

SUPPORT, (right) (chrome)

FLSTF, FLSTFB, FLSTFBS

13

51803-07

STUD PLATE ASSEMBLY

FLSTF, FLSTFB, FLSTFBS

14

59798-06

BRACKET, fender mounting, front (2)

FLSTF, FLSTFB, FLSTFBS

15

59088-03

BRACKET, fender mounting, rear (2)

FLSTF, FLSTFB, FLSTFBS

16

59438-00

BRACKET ASSEMBLY

FLSTF, FLSTFB, FLSTFBS

17

61008-10

PROTECTIVE TAPE

FLSTF, FLSTFB, FLSTFBS

18

59768-97

FENDER SEAT NUT KIT (2)

FLSTF, FLSTFB, FLSTFBS

19

59819-06B

REAR FENDER, (prime)

FLSTF, FLSTFB, FLSTFBS

20

59430-08

COVER, (right) (chrome)

FLSTF

59434-08

COVER, (left) (chrome)

FLSTF

59821-08

COVER, (right) (black)

FLSTFB, FLSTFBS

59824-08

COVER, (left) (black)

FLSTFB, FLSTFBS

21

60832-07

INNER FENDER DAMPING KIT

FLSTF, FLSTFB, FLSTFBS

22

69490-07

REFLECTOR, rear fender (2)

FLSTF, FLSTFB, FLSTFBS

60254-07

REFLECTOR, amber (HDI, Australia, England, Japan) (2)

FLSTF, FLSTFB, FLSTFBS

23

69201084

CADDY, ECM

FLSTF, FLSTFB, FLSTFBS

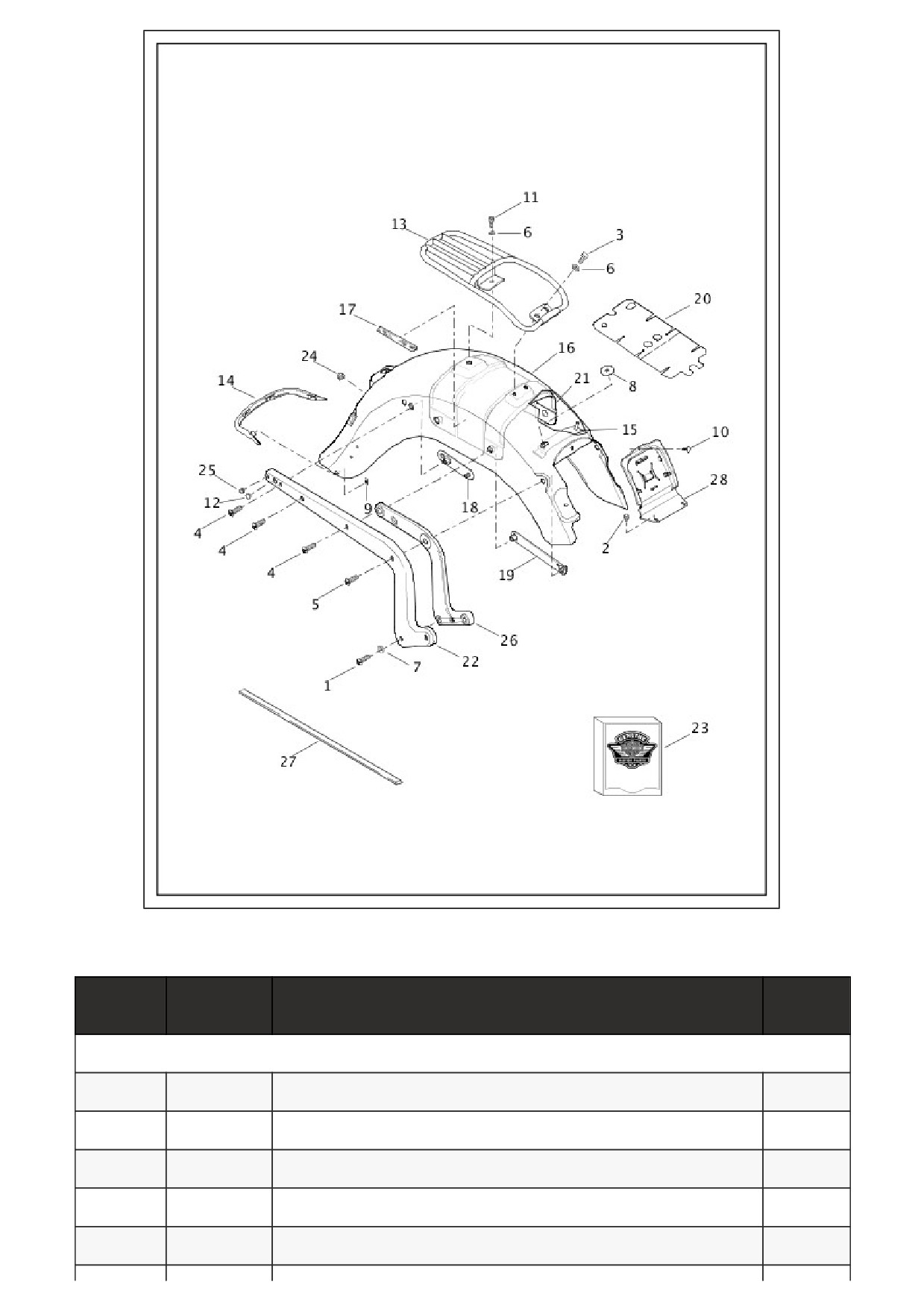

FENDERS AND SUPPORTS, REAR - FLSTN

Index

Part No.

Description

Model(s)

No.

NOTE: Refer to the Service Section of h-dnet.com for painted part numbers.

1

3056

SCREW (4)

FLSTN

2

3391

SCREW (2)

FLSTN

3

3767B

BOLT (2)

FLSTN

4

4266A

SCREW (6)

FLSTN

5

4267

SCREW (2)

FLSTN

Content      ..     1      2      3      4      ..
