2016 Softail Models Parts Catalog
Alphabetical List
Parts
Hardware List
New Parts List
Numerical Index
Component Types and Introduction Dates
Common Service Parts

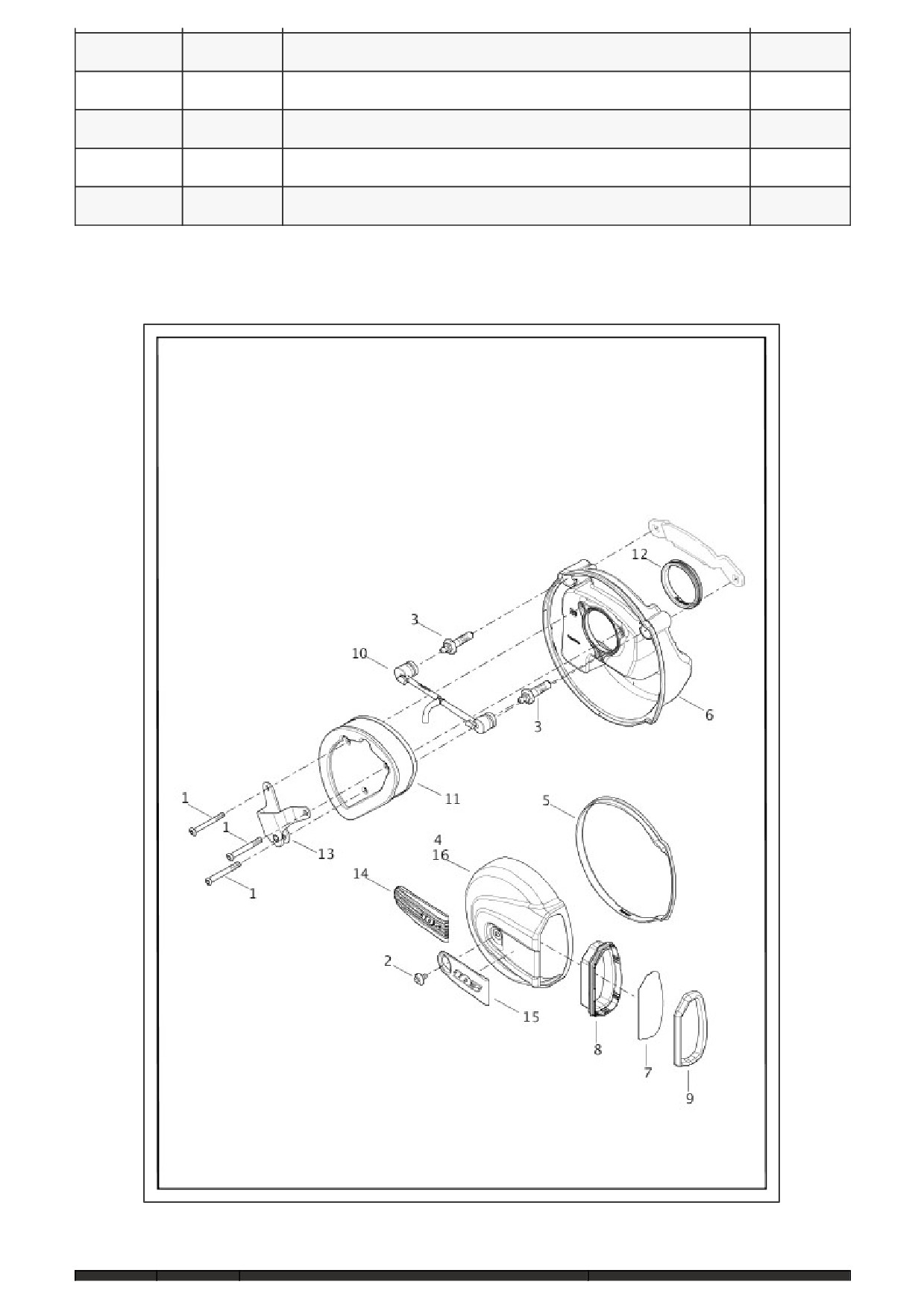

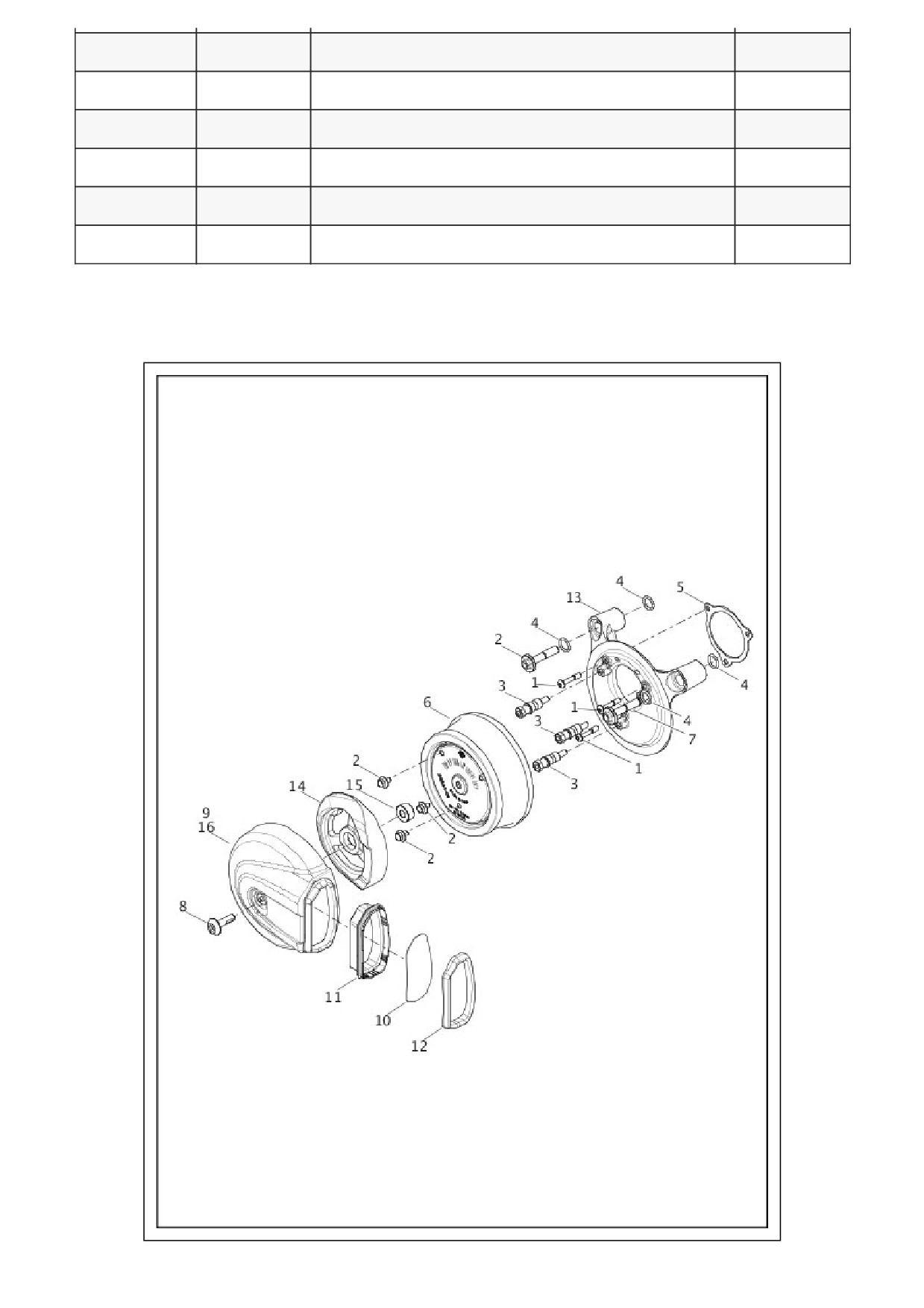

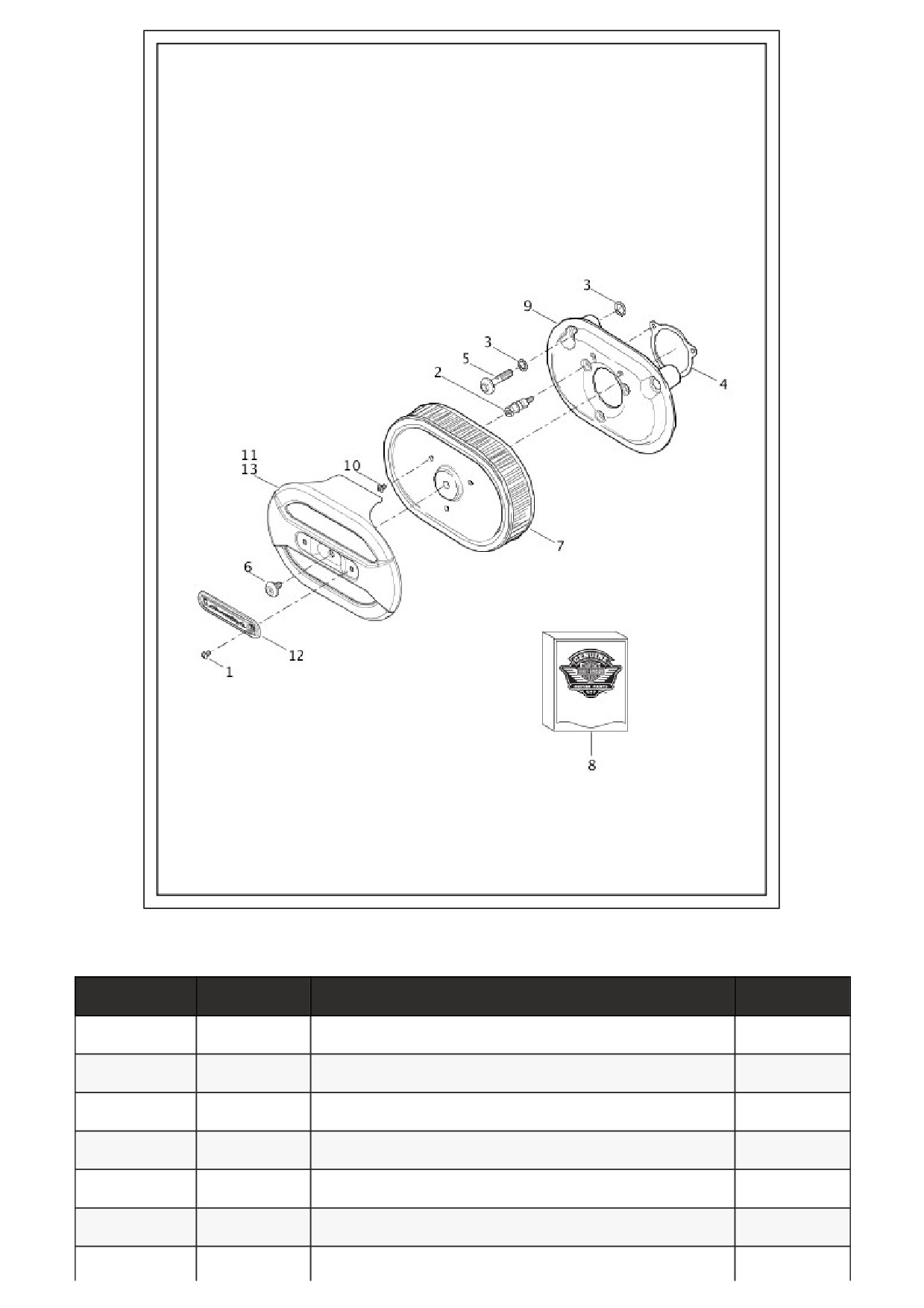

AIR CLEANER - FXSB, FLSTC, FLSTF, FLSTN, FLSTFB, FLS
AIR CLEANER - TWIN CAM 110™ - FLSS
AIR CLEANER - TWIN CAM 110™ - FLSTFBS

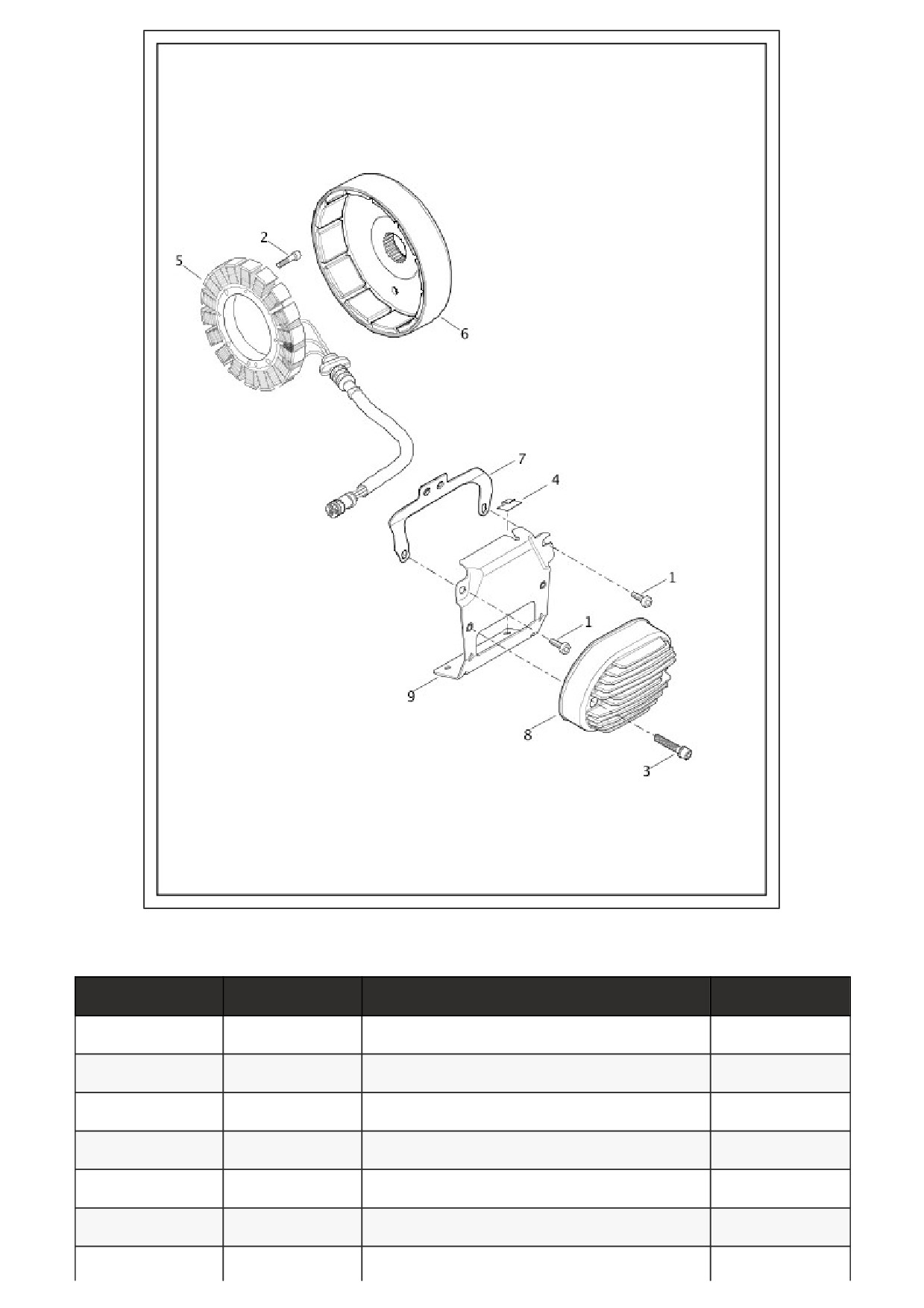

ALTERNATOR AND REGULATOR
AUXILIARY/FOG LAMPS AND TURN SIGNALS, FRONT - FLSTC, FLSTN (1 OF 2)
AUXILIARY/FOG LAMPS AND TURN SIGNALS, FRONT - FLSTC, FLSTN (2 OF 2)
BATTERY
BELT, CHAINS AND SPROCKETS
BRAKE CALIPER, FRONT
BRAKE CALIPER, REAR
BRAKE CONTROL, FRONT
BRAKE CONTROL, REAR
BRAKE LINE AND MODULE, REAR, ABS
BRAKE LINES, FRONT, ABS
BRAKE LINES, FRONT, NON-ABS - FLS

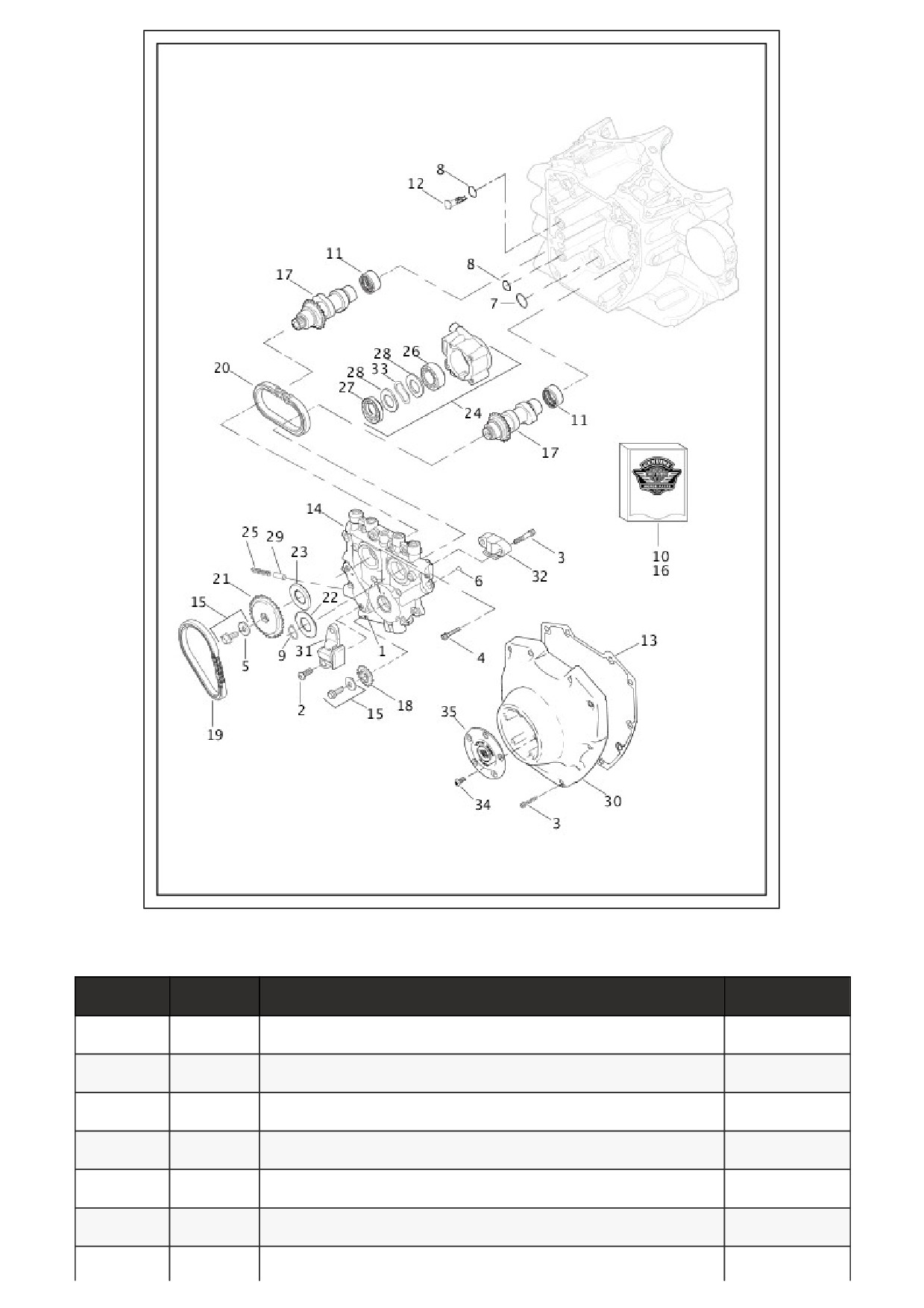

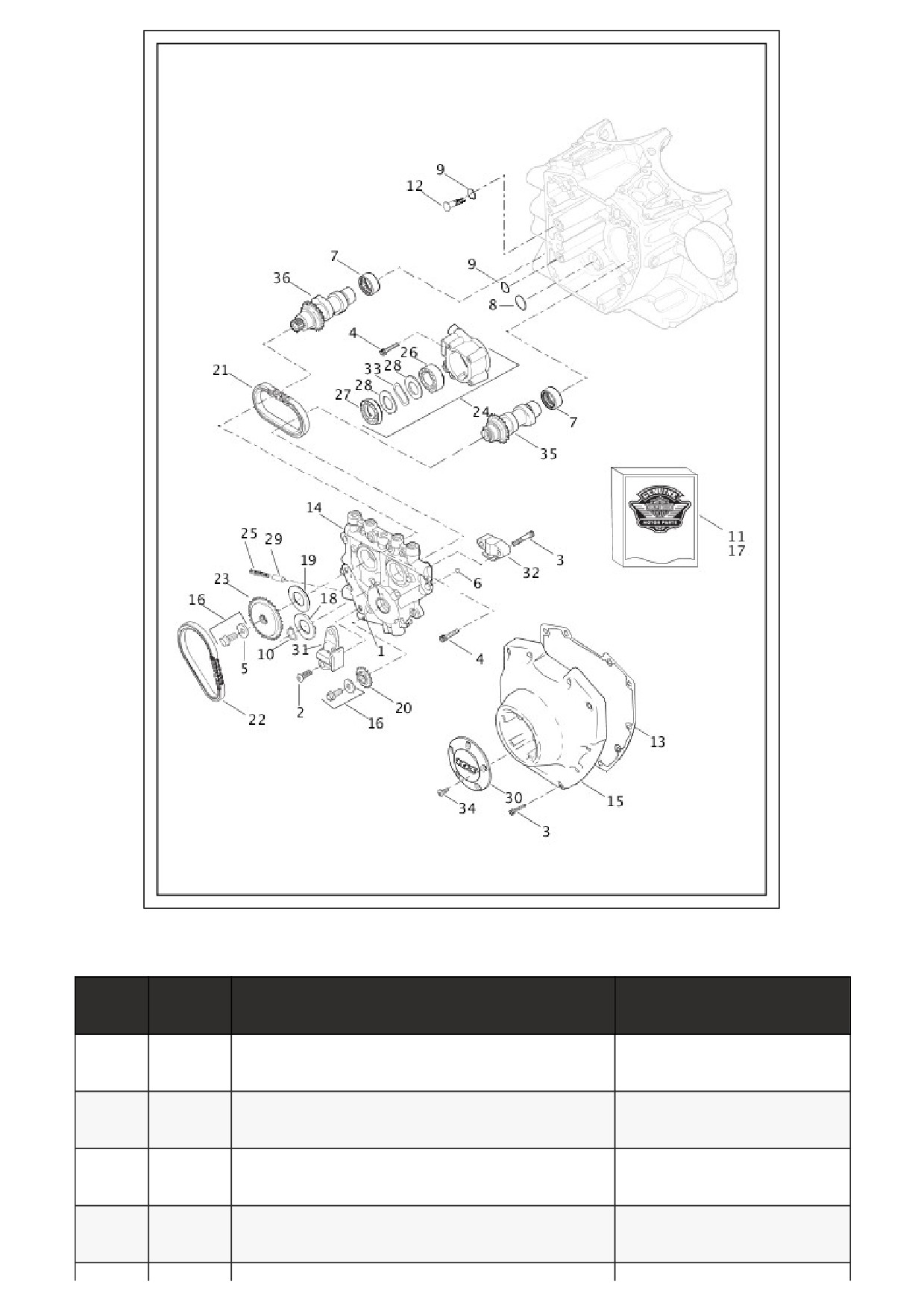

CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 103™
CAMSHAFTS and CAMSHAFT COVER - TWIN CAM 110™
CLUTCH - ASSIST AND SLIP - TWIN CAM 110™
CLUTCH - TWIN CAM 103™
CLUTCH CONTROL - FLS, FLSTC, FLSTF, FLSTFB, FLSTN AND FXSB
CLUTCH CONTROL - FLSS AND FLSTFBS

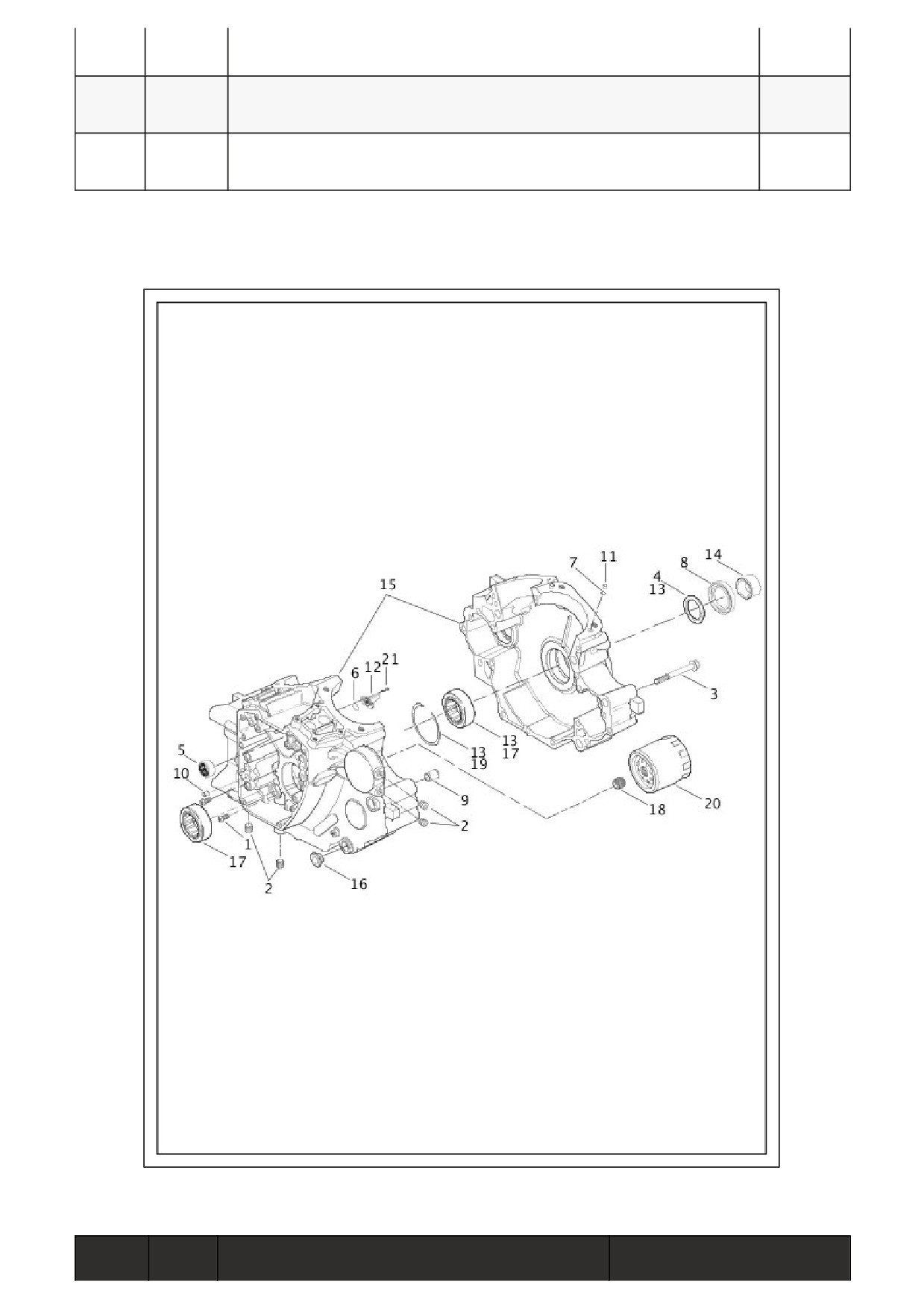

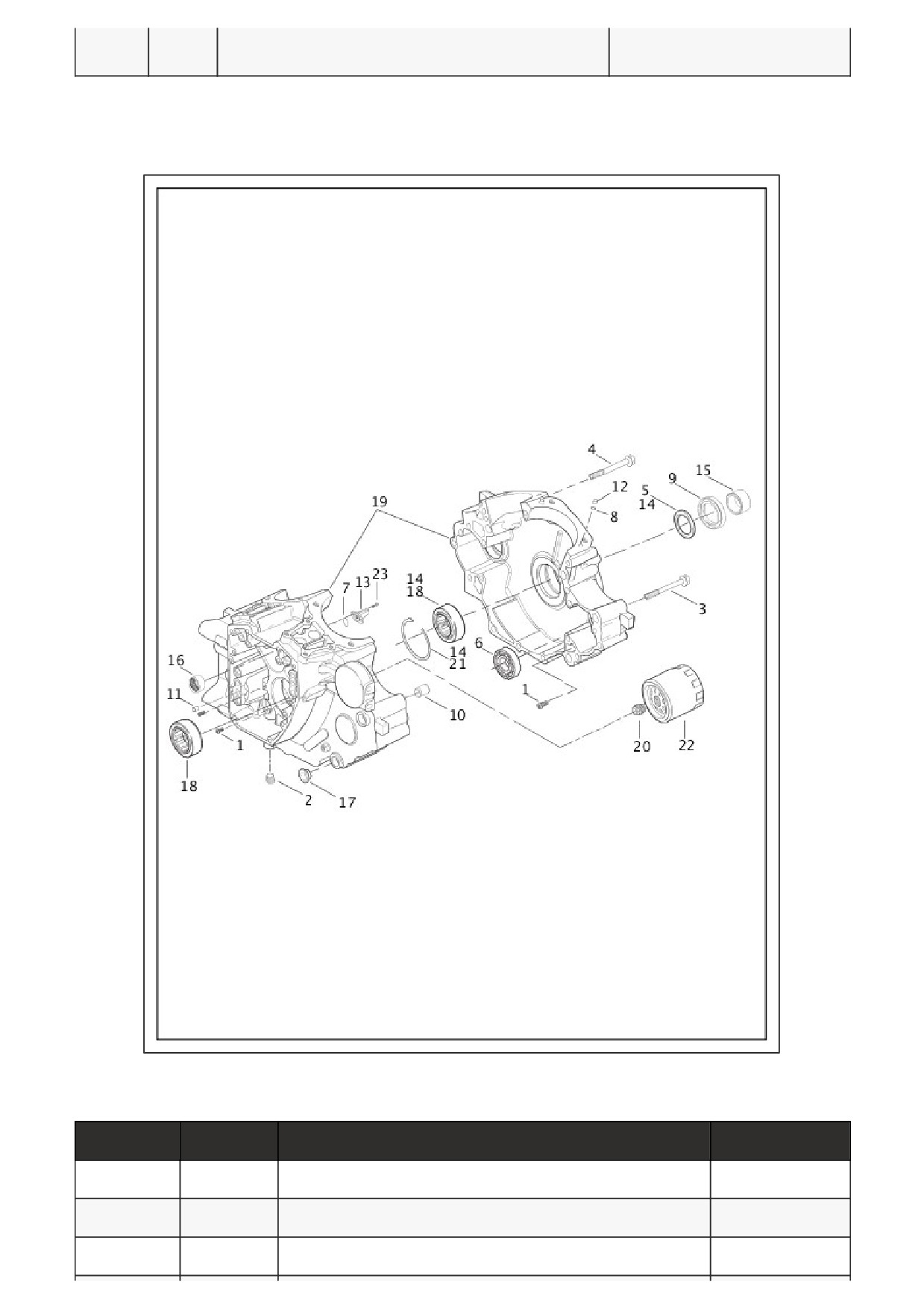

CRANKCASE AND ENGINE OIL FILTER - TWIN CAM 103™

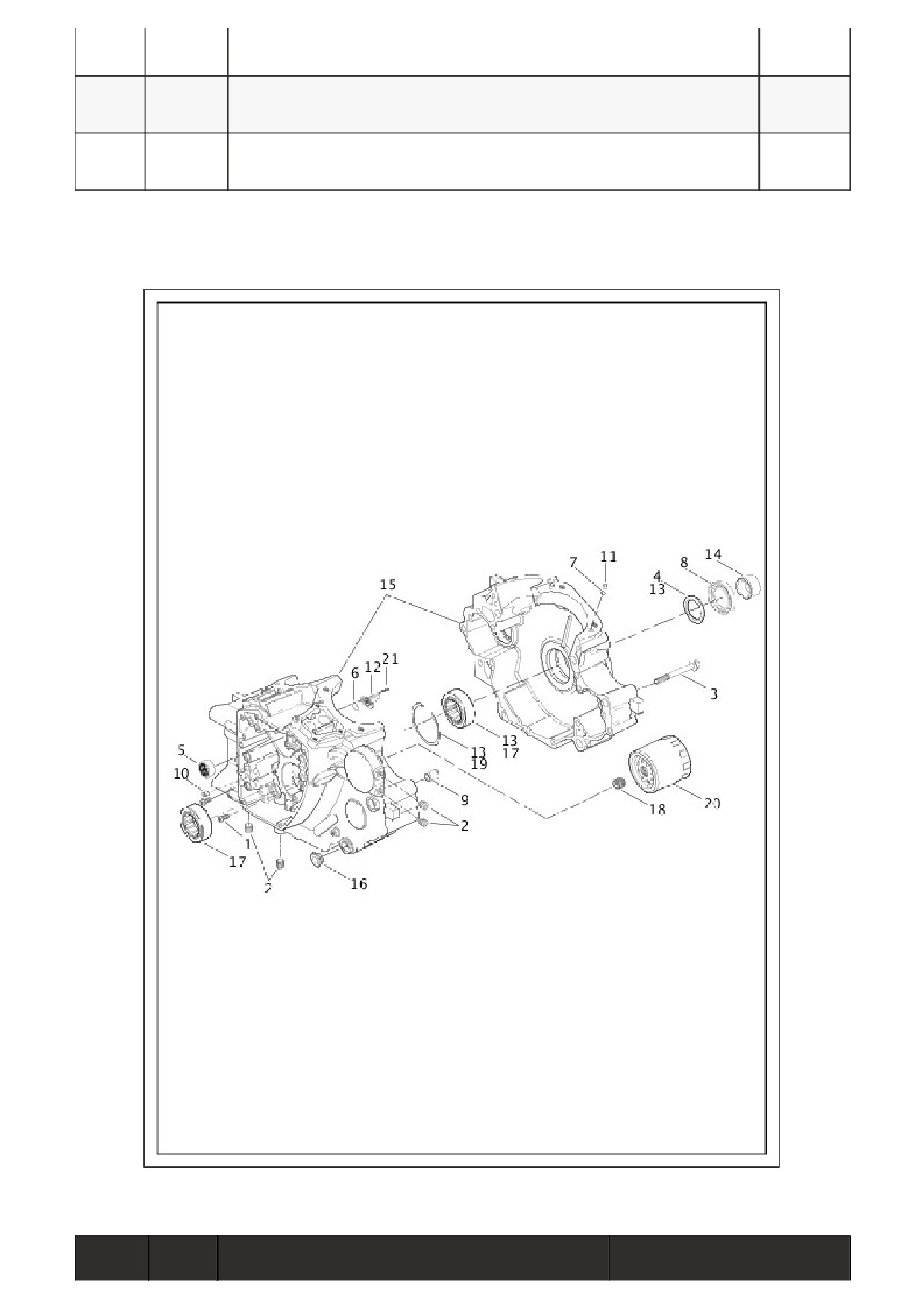

CRANKCASE AND ENGINE OIL FILTER - TWIN CAM 110™
CYLINDERS, HEADS AND VALVES - TWIN CAM 110™
CYLINDERS, HEADS, VALVES - TWIN CAM 103™

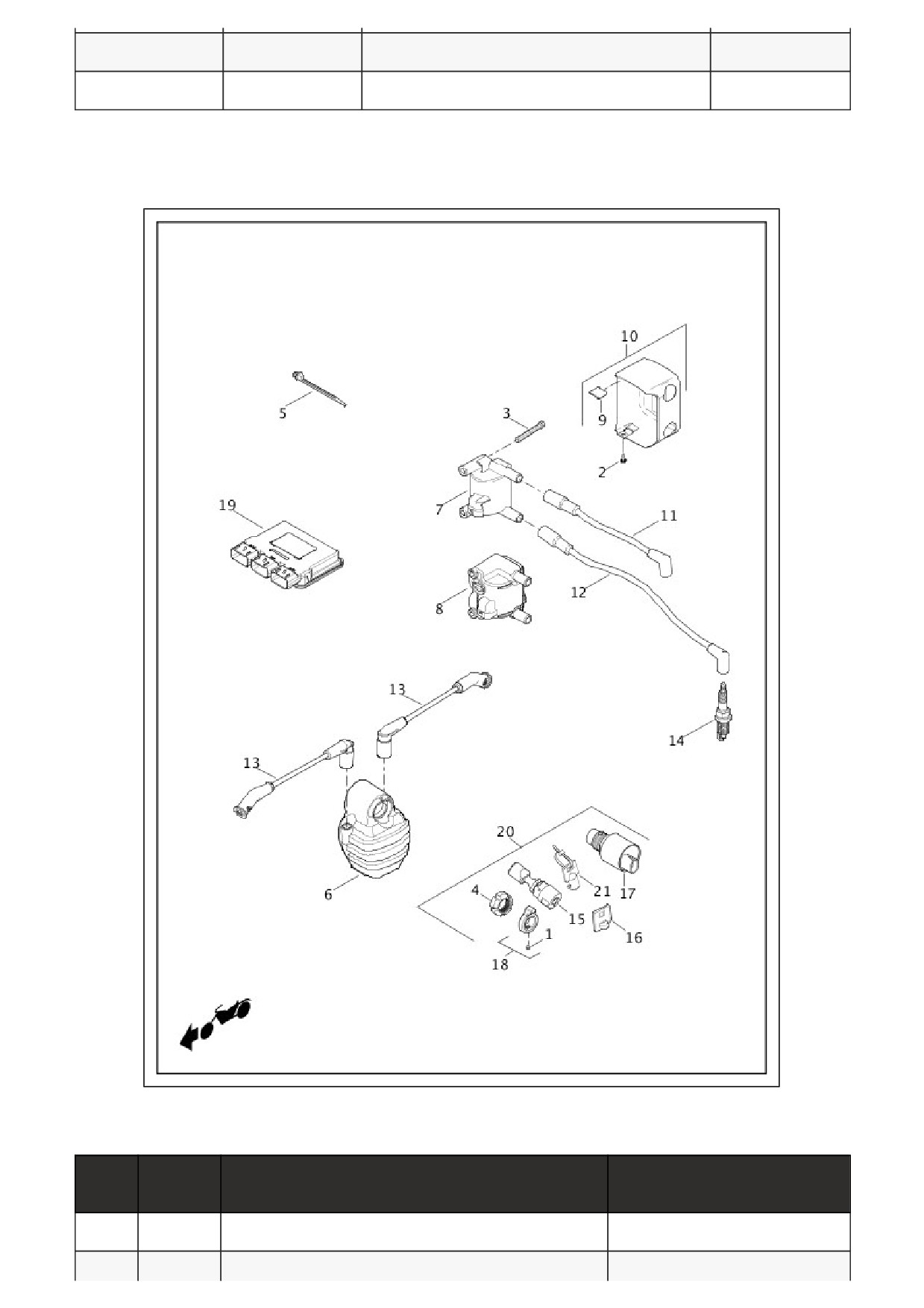

ELECTRONIC CONTROL MODULE (ECM) AND COIL
ENGINE ASSEMBLY - TWIN CAM 103™
ENGINE ASSEMBLY - TWIN CAM 110™

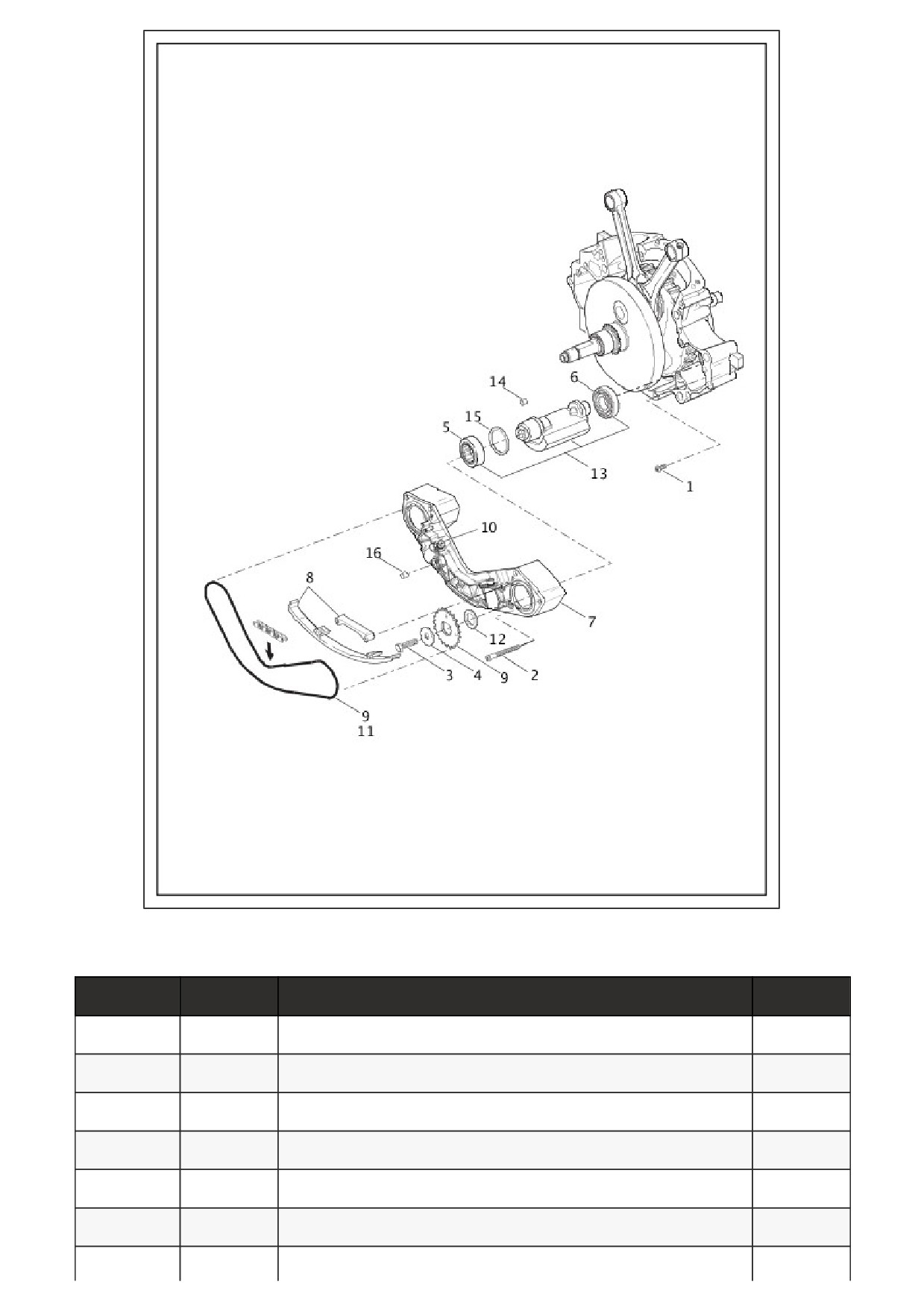

ENGINE BALANCER

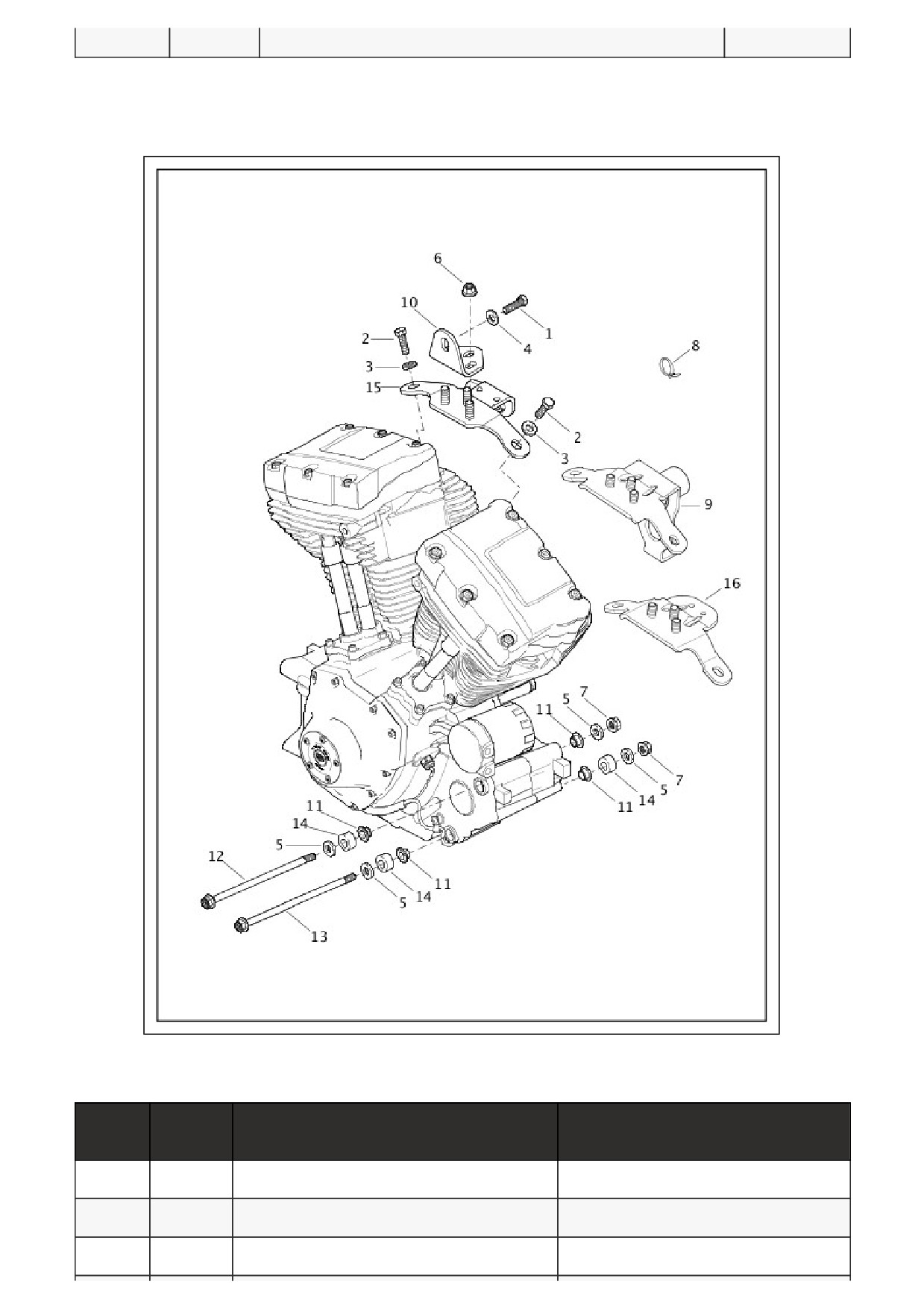

ENGINE MOUNTS
EVAPORATIVE EMISSIONS COMPONENTS
EXHAUST SYSTEM - FLS, FLSS, FLSTF, FLSTFB, FLSTFBS AND FLSTN (1 OF 2)
EXHAUST SYSTEM - FLS, FLSS, FLSTF, FLSTFB, FLSTFBS AND FLSTN (2 OF 2)
EXHAUST SYSTEM - FLSTC
EXHAUST SYSTEM - FXSB
FENDER, FRONT
FENDERS AND SUPPORTS, REAR - FLSTN
FENDERS AND SUPPORTS, REAR - FLS AND FLSS
FENDERS AND SUPPORTS, REAR - FLSTC
FENDERS AND SUPPORTS, REAR - FLSTF, FLSTFB AND FLSTFBS
FENDERS AND SUPPORTS, REAR - FXSB
FOOTRESTS AND FOOTBOARDS
FORK BRACKETS, FRONT - FLS, FLSS, FLSTC, FLSTF, FLSTFB, FLSTFBS AND FLSTN
FORK BRACKETS, FRONT - FXSB
FORK, FRONT - FXSB
FORK, FRONT-FLS,FLSS,FLSTC,FLSTF,FLSTFB,FLSTFBS AND FLSTN (1 OF 2)
FORK, FRONT-FLS,FLSS,FLSTC,FLSTF,FLSTFB,FLSTFBS AND FLSTN (2 OF 2)
FORK, REAR AND SHOCK ABSORBERS
FRAME AND JIFFY STAND
FUEL PUMP
FUEL TANK
FUEL TANK TRIM
GUARDS, SAREE
HANDLEBAR
HEADLAMP (1 OF 2)
HEADLAMP (2 OF 2)
HORN

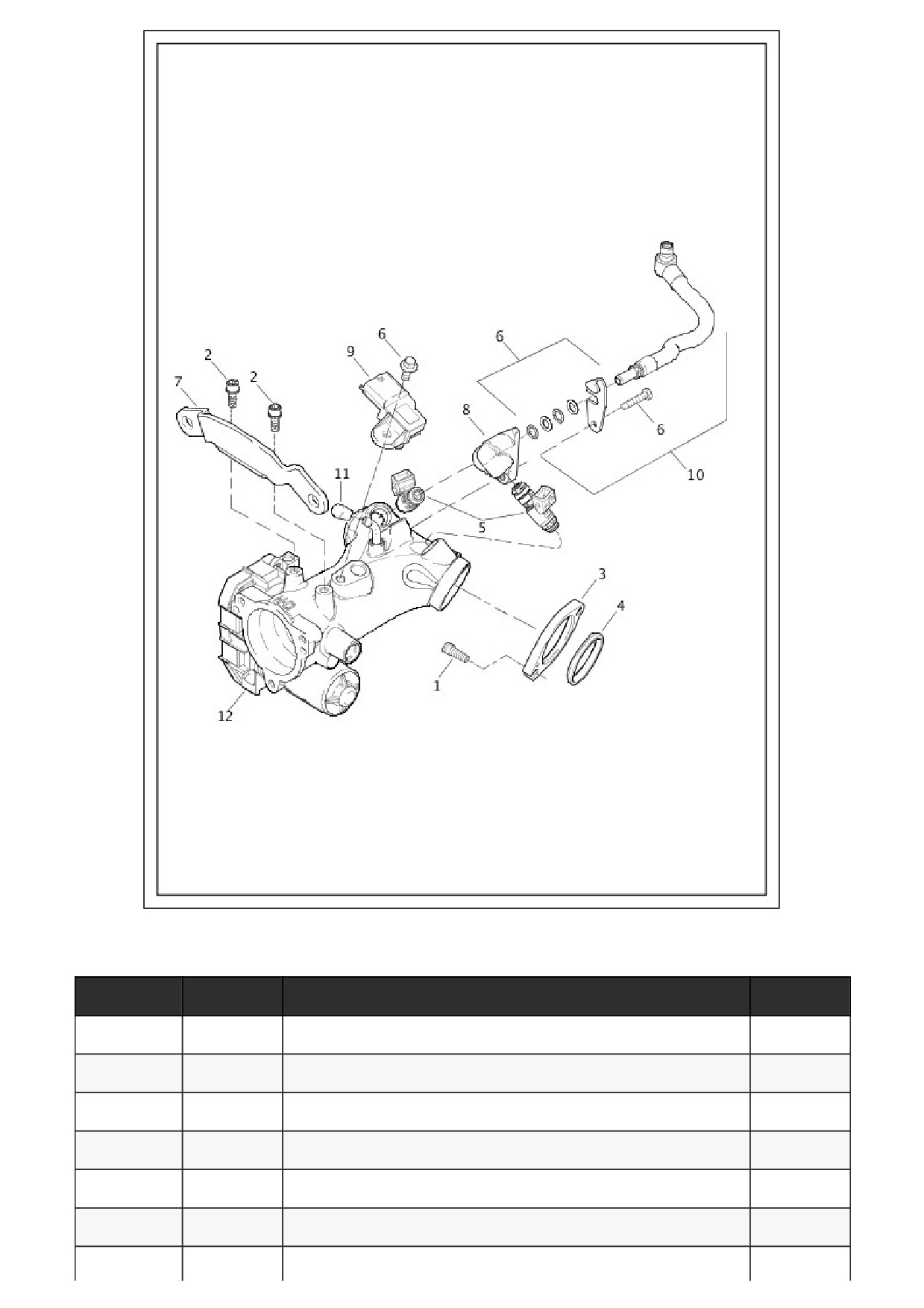

INDUCTION MODULE, FUEL
INSTRUMENTS - FLS, FLSS AND FLSTC
INSTRUMENTS - FLSTF, FLSTFB, FLSTFBS AND FLSTN
INSTRUMENTS - FXSB
LABELS
LICENSE PLATE BRACKETS - FLS AND FLSS
LICENSE PLATE BRACKETS - FLSTC, FLSTF, FLSTN, FLSTFB AND FLSTFBS
LICENSE PLATE BRACKETS - FXSB
LOOSE PARTS
MIRRORS
OIL TANK AND LINES - EXCEPT FXSB
OIL TANK AND LINES - FXSB

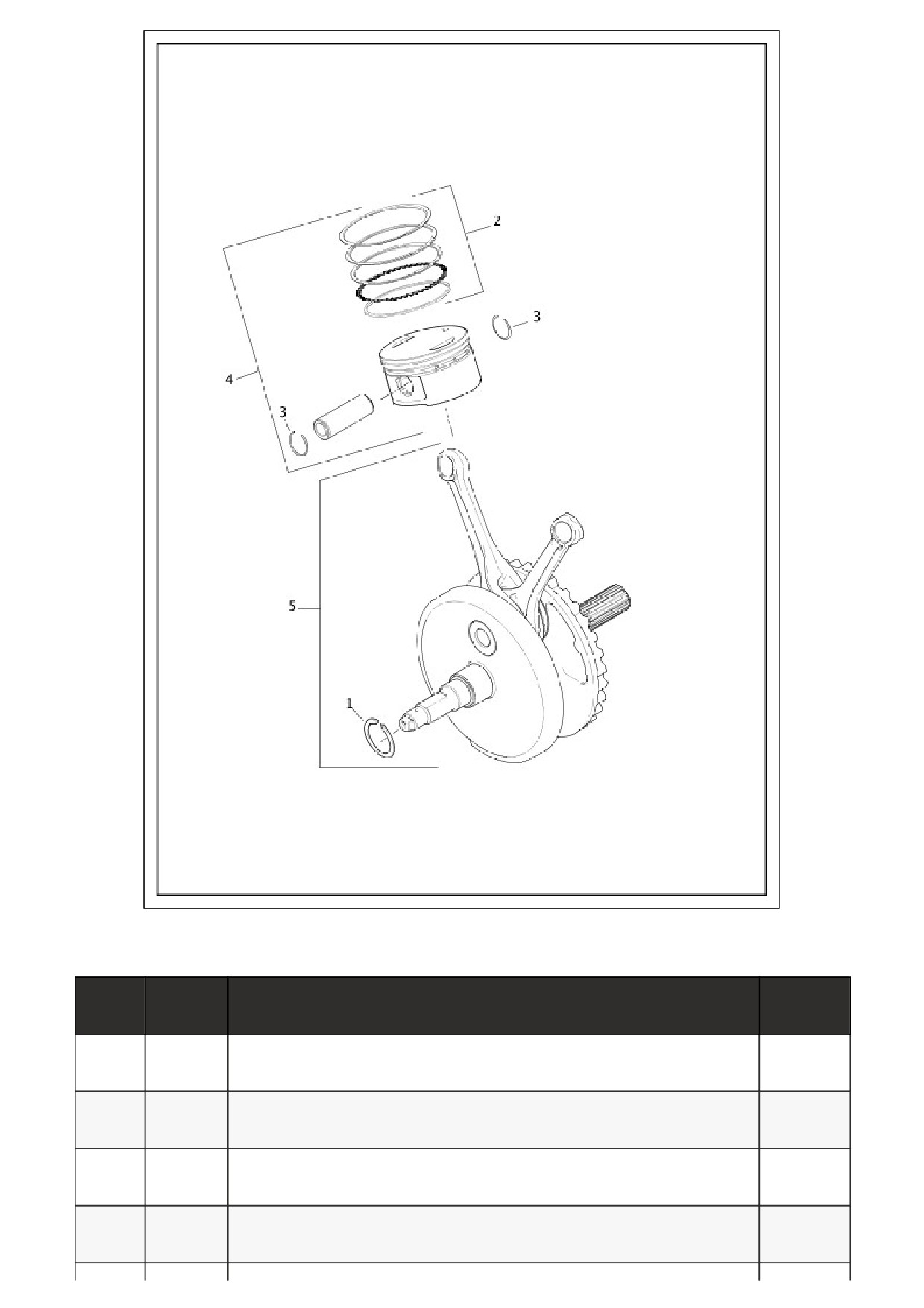

PISTONS AND FLYWHEEL ASSEMBLY - TWIN CAM 103™

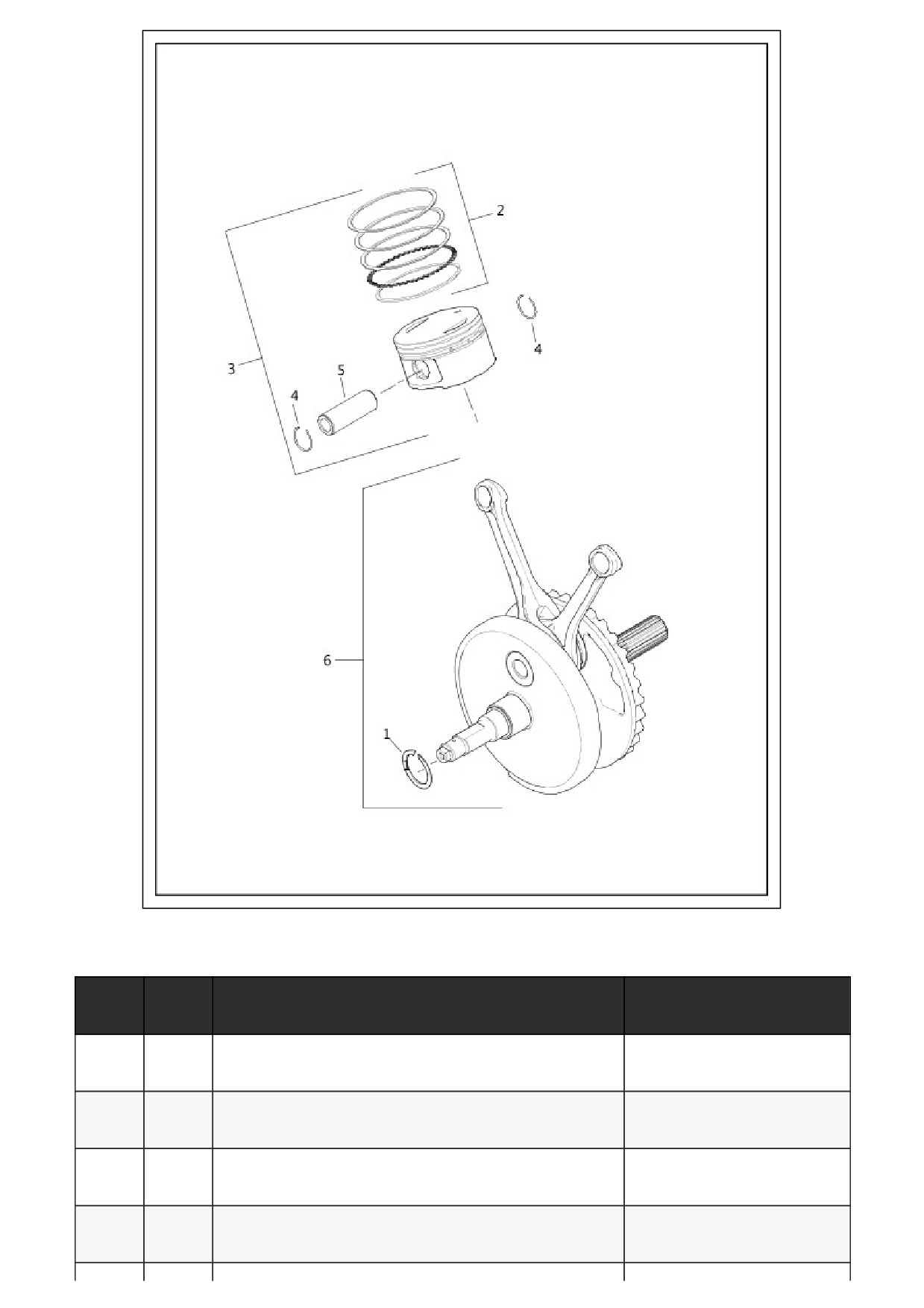

PISTONS AND FLYWHEEL ASSEMBLY - TWIN CAM 110™
PRIMARY HOUSING
REAR BELT GUARD
ROCKER ARM ASSEMBLY AND PUSH RODS - TWIN CAM 110™
ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 103™
SADDLEBAGS - FLSTC
SEATS
SENSORS AND SWITCHES, ENGINE - TWIN CAM 103™
SENSORS AND SWITCHES, ENGINE - TWIN CAM 110™
SHIFTER, GEAR
STARTER MOTOR
SWITCHES
SWITCHES, HANDLEBAR LEFT, FRONT
SWITCHES, HANDLEBAR RIGHT, FRONT
TAIL LAMP - FLSTC, FLSTF, FLSTFB AND FLSTFBS
TAIL LAMP - FLSTN
THROTTLE CONTROL
TRANSMISSION GEARS
TRANSMISSION HOUSING - FLSS AND FLSTFBS
TRANSMISSION HOUSING - FXSB, FLSTC, FLSTF, FLSTN, FLSTFB AND FLS
TURN SIGNALS, FRONT - FLS, FLSS, FLSTF, FLSTFB, FLSTFBS, FXSB
TURN SIGNALS, REAR (1 OF 2)
TURN SIGNALS, REAR (2 OF 2)
WHEELS, FRONT (1 OF 2)
WHEELS, FRONT (2 OF 2)
WHEELS, REAR (1 OF 2)
WHEELS, REAR (2 OF 2)
WINDSHIELD - FLSTC
WIRING HARNESS, MAIN, ABS - FLSTC AND FLSTN (5 OF 5)
WIRING HARNESS, MAIN, ABS - FLS AND FLSS (1 OF 5)
WIRING HARNESS, MAIN, ABS - FLS AND FLSS (2 OF 5)
WIRING HARNESS, MAIN, ABS - FLS AND FLSS (3 OF 5)
WIRING HARNESS, MAIN, ABS - FLS AND FLSS (4 OF 5)
WIRING HARNESS, MAIN, ABS - FLS AND FLSS (5 OF 5)
WIRING HARNESS, MAIN, ABS - FLSTC AND FLSTN (1 OF 5)
WIRING HARNESS, MAIN, ABS - FLSTC AND FLSTN (2 OF 5)
WIRING HARNESS, MAIN, ABS - FLSTC AND FLSTN (3 OF 5)
WIRING HARNESS, MAIN, ABS - FLSTC AND FLSTN (4 OF 5)
WIRING HARNESS, MAIN, ABS - FLSTF, FLSTFB AND FLSTFBS (1 OF 5)
WIRING HARNESS, MAIN, ABS - FLSTF, FLSTFB AND FLSTFBS (2 OF 5)
WIRING HARNESS, MAIN, ABS - FLSTF, FLSTFB AND FLSTFBS (3 OF 5)
WIRING HARNESS, MAIN, ABS - FLSTF, FLSTFB AND FLSTFBS (4 OF 5)
WIRING HARNESS, MAIN, ABS - FLSTF, FLSTFB AND FLSTFBS (5 OF 5)
WIRING HARNESS, MAIN, ABS - FXSB (1 OF 5)
WIRING HARNESS, MAIN, ABS - FXSB (2 OF 5)
WIRING HARNESS, MAIN, ABS - FXSB (3 OF 5)
WIRING HARNESS, MAIN, ABS - FXSB (4 OF 5)
WIRING HARNESS, MAIN, ABS - FXSB (5 OF 5)
WIRING HARNESS, MAIN, NON-ABS - FLS (1 OF 5)
WIRING HARNESS, MAIN, NON-ABS - FLS (2 OF 5)
WIRING HARNESS, MAIN, NON-ABS - FLS (3 OF 5)
WIRING HARNESS, MAIN, NON-ABS - FLS (4 OF 5)
WIRING HARNESS, MAIN, NON-ABS - FLS (5 OF 5)
Parts

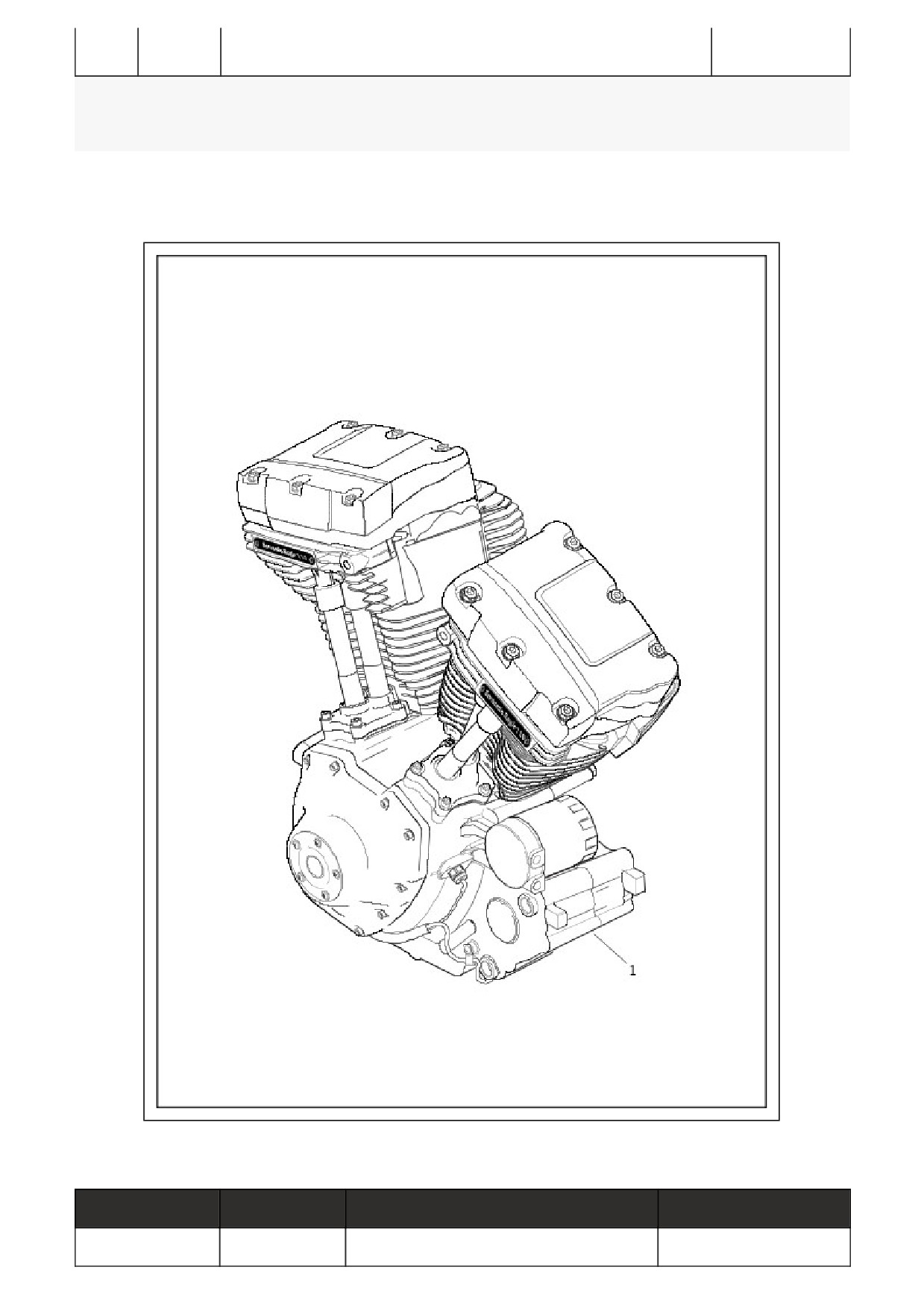

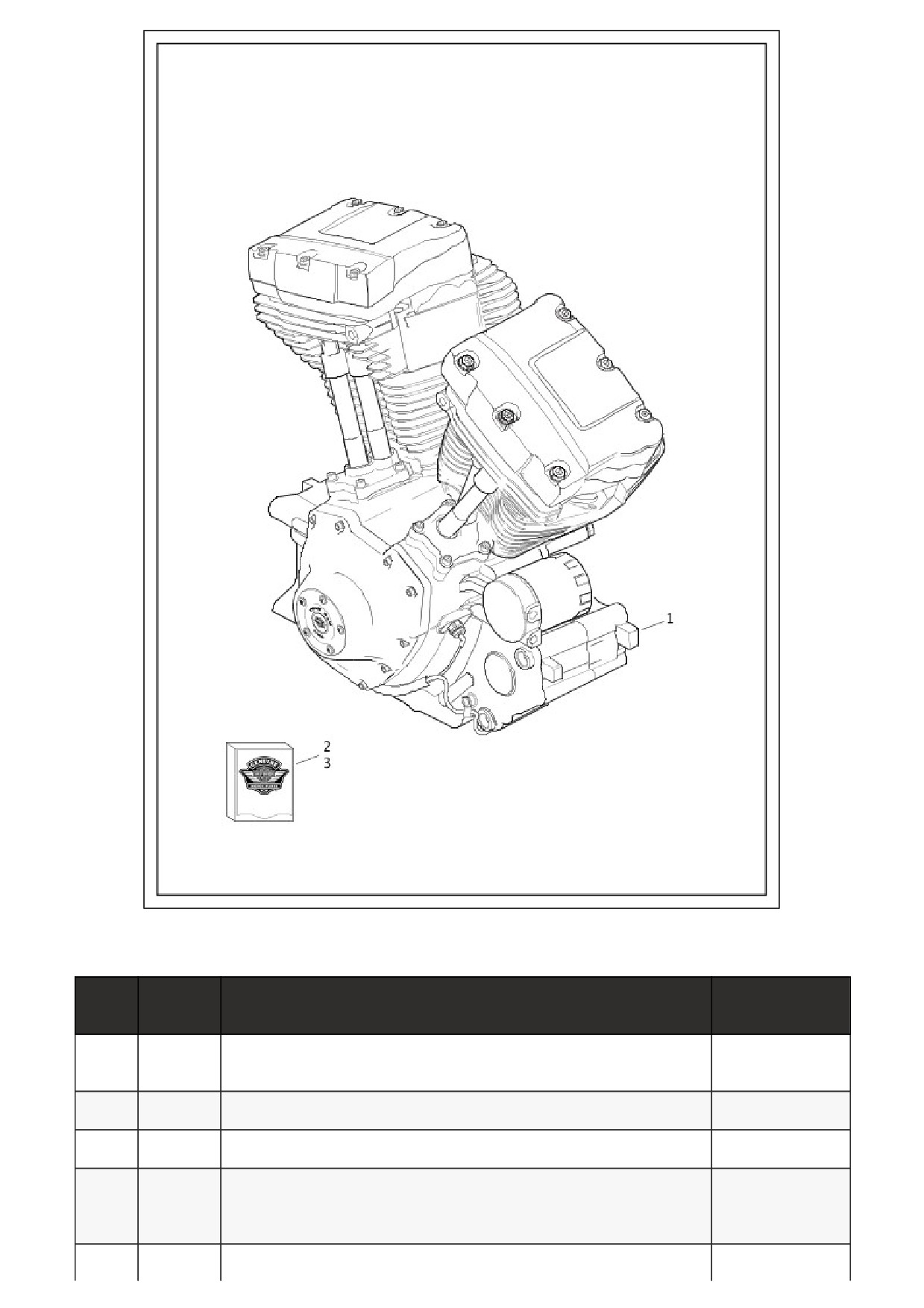

ENGINE ASSEMBLY - TWIN CAM 103™
Index
Part No.
Description
Model(s)
No.
1
19811-16
ENGINE ASSEMBLY
FLSTC, FLSTF,
FLSTN, FXSB
19816-16
ENGINE ASSEMBLY
FLSTFB
19818-16
ENGINE ASSEMBLY
FLS
2
16200069
ENGINE ASSEMBLY, shortblock, with 91800042, crankcase, flywheel
FXSB, FLSTC,
assembly, camshaft support plate assembly, oil pump, engine balancer and
FLSTF, FLSTN,
cylinder studs (See Note)
FLSTFB, FLS
3
91800042
KIT, shortblock installation, with 17052-99C upper end gasket kit, 25700226
FXSB, FLSTC,
inner primary gasket kit, camshaft sprockets, camshaft drive chains and
FLSTF, FLSTN,
camshaft tensioners
FLSTFB, FLS
Note: Cylinders, cylinder heads, rocker arms, pushrods, pushrod covers, camshafts, piston assemblies, tappets, oil filter
and cosmetic covers are not included with the shortblock assembly. These parts must be removed from the original
engine and installed on the replacement shortblock assembly.
ENGINE ASSEMBLY - TWIN CAM 110™
Index No.
Part No.
Description
Model(s)
1
16200175
ENGINE ASSEMBLY, (black)
FLSS, FLSTFBS

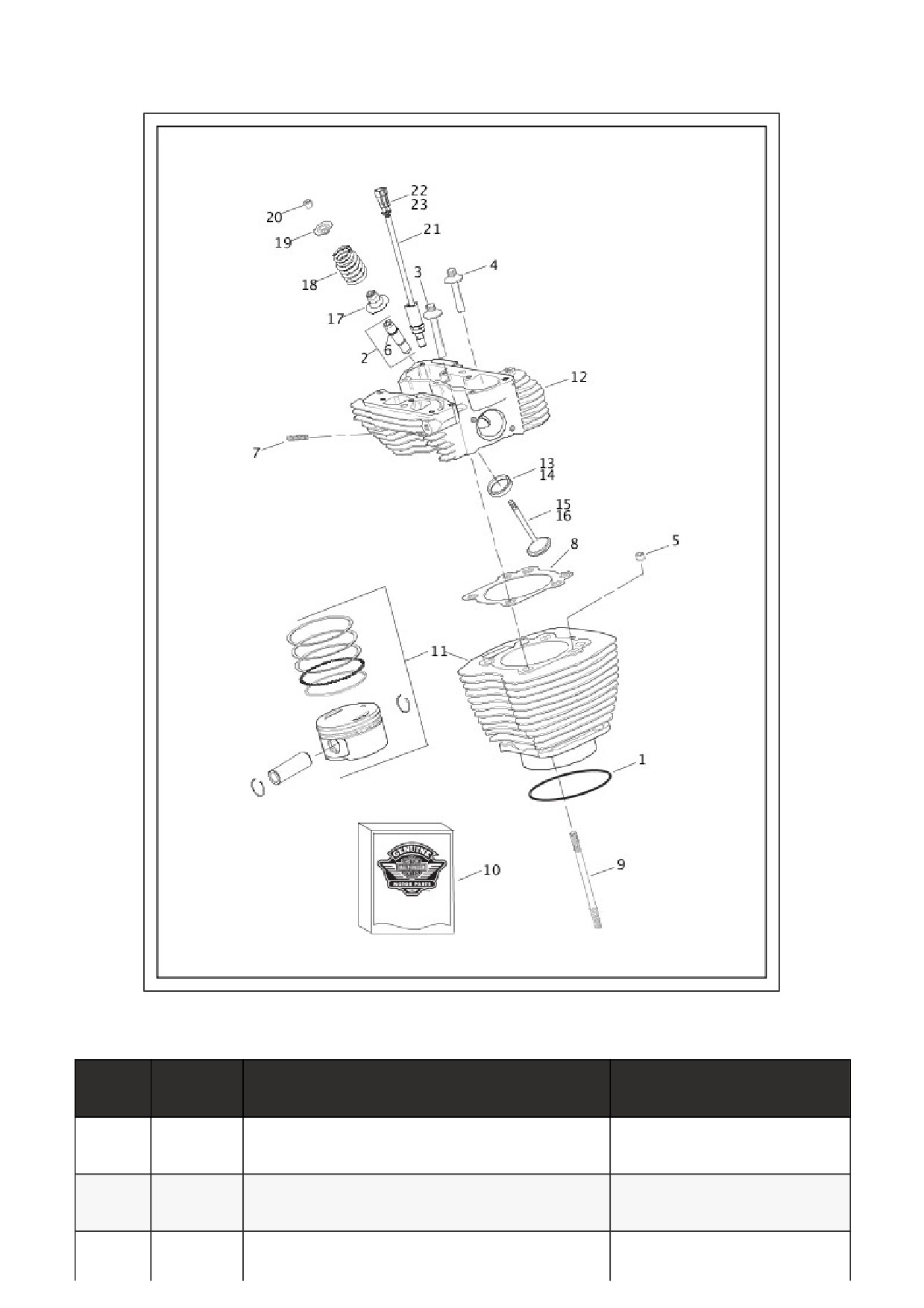

CYLINDERS, HEADS, VALVES - TWIN CAM 103™
Index
Part No.
Description
Model(s)
No.
1
11256
O-RING, cylinder base (2)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
2
16465-06
VALVE GUIDE, intake and exhaust, with retaining ring
FLSTC, FLSTF, FLSTN, FLSTFB,
(4)
FLS, FXSB
3
16478-85A
SCREW, internal thread 3-3/16 in long (4)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
4
16480-92A
SCREW, internal thread 1-7/8 in long (4)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
5
16595-99A
DOWEL PIN, cylinder-to-head (4)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
6
16699-06
SNAP RING (2)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
7
16715-83
STUD, exhaust port (4)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
8
16787-99A
GASKET, cylinder head (2)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
9
16834-99A
STUD, cylinder (8)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
10
17052-99C
GASKET KIT, top end
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
17053-99C
GASKET KIT, engine overhaul
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
11
17460-07A
CYLINDER/PISTON ASSEMBLY KIT, (black
FLSTC, FLSTF, FLSTFB, FLSTN,
highlighted) (2)
FXSB
16800003A
CYLINDER/PISTON ASSEMBLY KIT, (black non-
FLS
highlighted) (2)
12
17729-08
CYLINDER HEAD, rear, with guides and seats (black)
FLSTC, FLSTF, FLSTN, FLSTFB,
FXSB
16500023
CYLINDER HEAD, front, with guides and seats (black)
FLSTC, FLSTF, FLSTN, FLSTFB,
FXSB
16500026
CYLINDER HEAD, front, with guides and seats (black)
FLS
16500027
CYLINDER HEAD, rear, with guides and seats (black)
FLS
13
18011-86
INSERT, exhaust valve seat (2)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
14
18020-83
INSERT, intake valve seat (2)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
15
18074-05A
INTAKE VALVE (2)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
16
18085-05B
EXHAUST VALVE (2)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
17
18094-02A
SEAL KIT, valve
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
18
18245-02
VALVE SPRING (4)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
19
18258-02
COLLAR, valve spring (4)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
20
18260-02
RETAINER, valve collar (8)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
21
28861-07A
SOLENOID, auto compression release, with 72009-05
FLSTC, FLSTF, FLSTN, FLSTFB,
and 72011-05 (2)
FLS, FXSB
22
72009-05
HOUSING, two-way, pin (2)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB
23
72011-05
WIRE SEAL, 16-20 AWG (yellow) (4)
FLSTC, FLSTF, FLSTN, FLSTFB,
FLS, FXSB

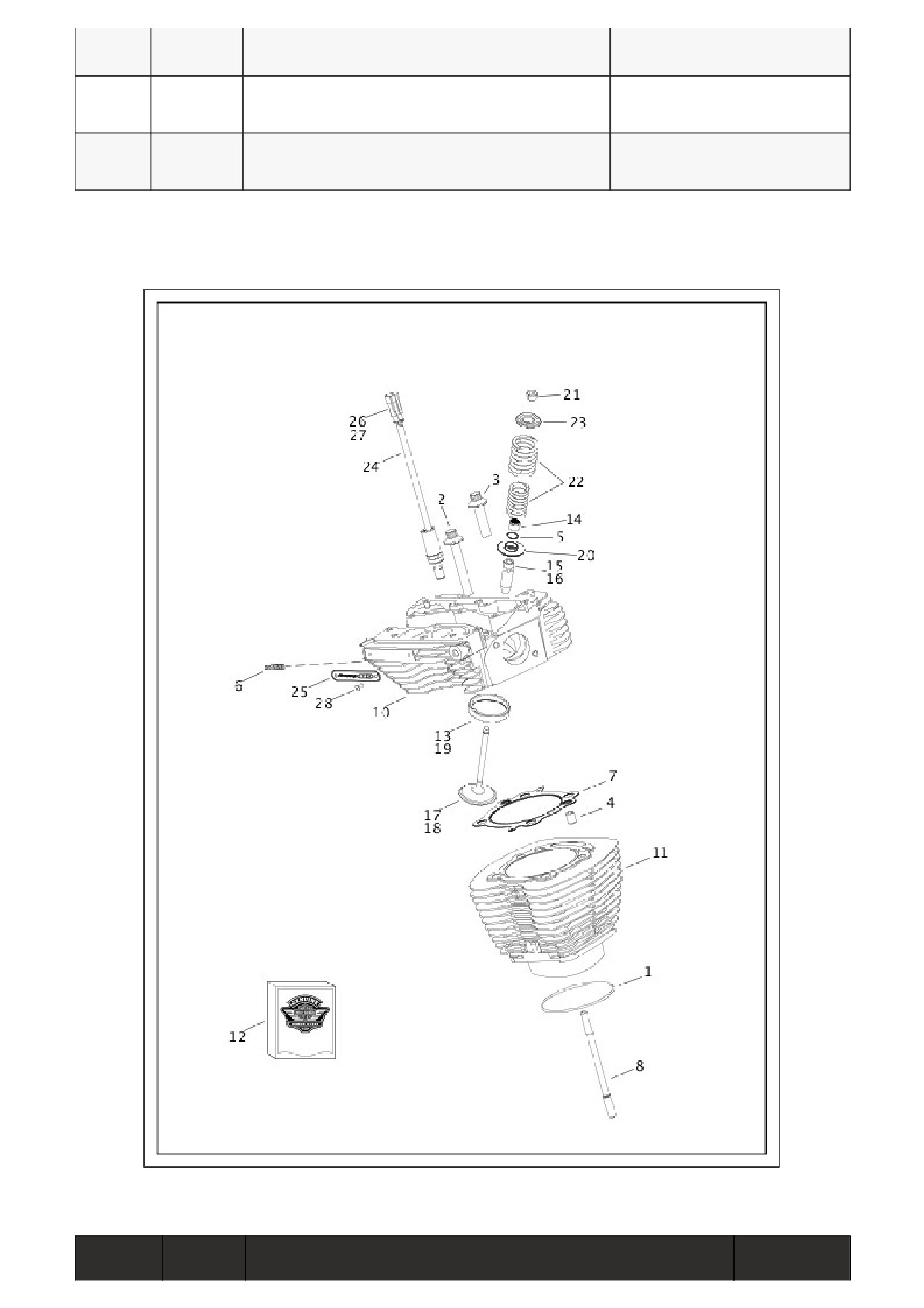

CYLINDERS, HEADS AND VALVES - TWIN CAM 110™
Index
Part No.
Description
Model(s)
No.
1
11907
O-RING KIT, cylinder-base (set of 2)
FLSS,
FLSTFBS
2
16478-
SCREW, internal-thread, 3-3/16 in long (4)
FLSS,
85A
FLSTFBS
3
16480-
SCREW, internal-thread, 1-7/8 in long (4)
FLSS,
92A
FLSTFBS
4
16595-
DOWEL, pin (4)
FLSS,
99A
FLSTFBS
5
16699-06
RETAINING RING (4)
FLSS,
FLSTFBS
6
16715-83
STUD, exhaust-port (4)
FLSS,
FLSTFBS
7
16801-
GASKET, cylinder-head (2)
FLSS,
07B
FLSTFBS
8
16834-
STUD, cylinder (8)
FLSS,
99A
FLSTFBS
9
17251-
HEAD ASSEMBLY, cylinder, front, with 5, 6, 10, 14, 17, 18, 20, 21 and 22
FLSS,
07B
(black)
FLSTFBS
17252-
HEAD ASSEMBLY, cylinder, rear, with 5, 6, 10, 14, 17, 18, 20, 21 and 22
FLSS,
07A
(black)
FLSTFBS
10
17253-
HEAD, cylinder, front, with 18048-98A, 18161-08, 18168-08 and 18189-07
FLSS,
07B
(black)
FLSTFBS
17257-
HEAD, cylinder, rear, with 18048-98A, 18161-08, 18168-08 and 18189-07
FLSS,
07A
(black)
FLSTFBS
11
17285-
CYLINDER ASSEMBLY, with 16595-99A (black) (2)
FLSS,
07A
FLSTFBS
12
17349-
GASKET KIT, top-end
FLSS,
07B
FLSTFBS
17350-
GASKET KIT, engine overhaul
FLSS,
07B
FLSTFBS
13
18048-
SEAT, exhaust-valve (2)
FLSS,
98A
FLSTFBS
14
18067-09
SEAL, valve (4)
FLSS,
FLSTFBS
15
18161-08
GUIDE, intake-valve (2)
FLSS,
FLSTFBS
16
18168-08
GUIDE, exhaust-valve (2)
FLSS,
FLSTFBS
17
18183-03
VALVE, exhaust (2)
FLSS,
FLSTFBS
18
18187-07
VALVE, intake (2)
FLSS,
FLSTFBS
19
18189-07
SEAT, intake-valve (2)
FLSS,
FLSTFBS
20
18270-
COLLAR, lower, valve-spring (4)
FLSS,
00A
FLSTFBS
21
18271-00
KEY, collar, valve-spring (8)
FLSS,
FLSTFBS
22
18272-00
SPRING SET, inner and outer, valve (4)
FLSS,
FLSTFBS
23
18280-07
COLLAR, upper, valve-spring (4)
FLSS,
FLSTFBS
24
28861-
SOLENOID, auto compression release, with 72009-05 and 72011-05 (2)
FLSS,
07A
FLSTFBS
25
29517-
MEDALLION KIT
FLSS,
07A
FLSTFBS
26
72009-05
HOUSING, two-way pin (2)
FLSS,
FLSTFBS
27
72011-05
WIRE SEAL, 16-20 AWG (yellow) (4)
FLSS,
FLSTFBS
28
25800017
SCREW, medallion (4)
FLSS,
FLSTFBS

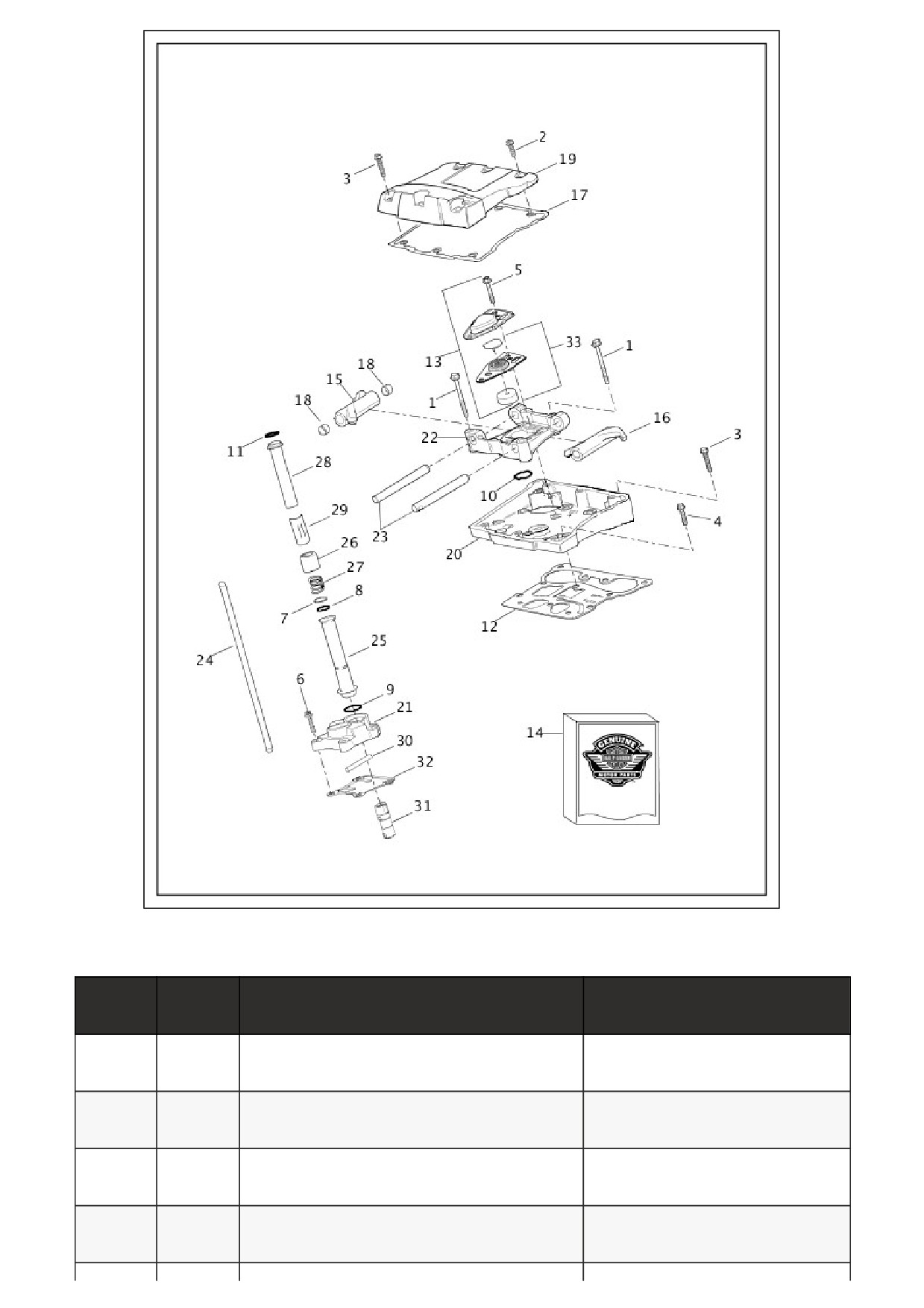

ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 103™
Index
Part No.
Description
Model(s)
No.
1
1039
SCREW (8)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
2
3692A
SCREW (6)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
3
3693A
SCREW (10)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
4
3736B
SCREW (8)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
5
4400
BOLT (4)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
6
4741A
SCREW (8)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
7
6762B
WASHER (4)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
8
11132A
O-RING, pushrod cover (4)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
9
11145A
O-RING, pushrod cover (4)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
10
11270
O-RING (2)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
11
11293
O-RING (4)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
12
16719-
GASKET, rocker housing (2)
FXSB, FLSTC, FLSTF, FLSTN,
99B
FLSTFB, FLS
13
17025-
BREATHER ASSEMBLY (2)
FXSB, FLSTC, FLSTF, FLSTN,
03A
FLSTFB, FLS
14
17045-
GASKET KIT, camshaft service
FXSB, FLSTC, FLSTF, FLSTN,
99D
FLSTFB, FLS
15
17360-
ROCKER ARM, front intake, rear exhaust, with
FXSB, FLSTC, FLSTF, FLSTN,
83A
17429-91 (2)
FLSTFB, FLS
16
17375-
ROCKER ARM, rear intake, front exhaust, with
FXSB, FLSTC, FLSTF, FLSTN,
83A
17429-91 (2)
FLSTFB, FLS
17
17386-
GASKET, rocker cover (2)
FXSB, FLSTC, FLSTF, FLSTN,
99A
FLSTFB, FLS
18
17429-91
BEARING, rocker arm (8)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
19
17572-99
ROCKER COVER, (chrome) (2)
FLSTC, FLSTF, FLSTN, FXSB
17575-99
ROCKER COVER, (polished) (2)
FLS
17595-10
ROCKER COVER, (satin chrome) (2)
FLSTFB
20
17573-
ROCKER HOUSING, (chrome) (2)
FLSTC, FLSTF, FLSTN, FXSB
99A
17574-
ROCKER HOUSING, (polished) (2)
FLS
99A
17587-10
ROCKER HOUSING, (satin chrome) (2)
FLSTFB
21
17576-99
LIFTER COVER, front (polished)
FLS
17577-99
LIFTER COVER, rear (polished)
FLS
17596-10
LIFTER COVER, front (satin chrome)
FLSTFB
17654-10
LIFTER COVER, rear (satin chrome)
FLSTFB
17964-99
LIFTER COVER, front (chrome)
FLSTC, FLSTF, FLSTN, FXSB
17966-99
LIFTER COVER, rear (chrome)
FLSTC, FLSTF, FLSTN, FXSB
22
17594-99
SUPPORT, rocker arm (2)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
23
17611-83
SHAFT, rocker arm (4)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
24
17922-99
PUSHROD, exhaust, 10.536 in length (black oxide
FXSB, FLSTC, FLSTF, FLSTN,
finish) (2)
FLSTFB, FLS
17923-99
PUSHROD, intake, 10.418 in length (plain finish) (2)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
25
17939-99
COVER, pushrod (lower) (4)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
26
17945-
CAP, cover spring (4)
FXSB, FLSTC, FLSTF, FLSTN,
36B
FLSTFB, FLS
27
17947-36
SPRING, pushrod cover (4)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
28
17948-99
COVER, pushrod (upper) (4)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
29
17968-99
RETAINER, spring cap (4)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
30
18535-99
PIN, anti-rotation (2)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
31
18538-
HYDRAULIC LIFTER (4)
FXSB, FLSTC, FLSTF, FLSTN,
99C
FLSTFB, FLS
32
18635-
GASKET, lifter cover (2)
FXSB, FLSTC, FLSTF, FLSTN,
99B
FLSTFB, FLS
33
26500002
BREATHER, baffle assembly, with gaskets (2)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
ROCKER ARM ASSEMBLY AND PUSH RODS - TWIN CAM 110™
Index No.
Part No.
Description
Model(s)
1
1039
SCREW (8)
FLSS, FLSTFBS
2
3692A
SCREW (6)
FLSS, FLSTFBS
3
3693A
SCREW (10)
FLSS, FLSTFBS
4
3736B
SCREW (8)
FLSS, FLSTFBS
5
4400
BOLT (4)
FLSS, FLSTFBS
6
4741A
SCREW (8)
FLSS, FLSTFBS
7
6762B
WASHER (4)
FLSS, FLSTFBS
8
11132A
O-RING, push rod cover (4)
FLSS, FLSTFBS
9
11145A
O-RING, push rod cover (4)
FLSS, FLSTFBS
10
11270
O-RING (2)
FLSS, FLSTFBS
11
11293
O-RING (4)
FLSS, FLSTFBS
12
16719-99B
GASKET, rocker housing (2)
FLSS, FLSTFBS
13
17025-03A
BREATHER ASSEMBLY (2)
FLSS, FLSTFBS
14
17045-99D
GASKET KIT, cam service
FLSS, FLSTFBS
15
17360-83A
ROCKER ARM, front intake, rear exhaust, with bushings (2)
FLSS, FLSTFBS
16
17375-83A
ROCKER ARM, rear intake, front exhaust, with bushings (2)
FLSS, FLSTFBS
17
17386-99A
GASKET, rocker cover (2)
FLSS, FLSTFBS
18
17429-91
BEARING, rocker arm (8)
FLSS, FLSTFBS
19
17594-99
SUPPORT, rocker arm (2)
FLSS, FLSTFBS
20
17611-83
SHAFT, rocker arm (4)
FLSS, FLSTFBS
21
17707-11
ROCKER COVER, (black) (2)
FLSS, FLSTFBS
22
17709-11
ROCKER HOUSING, (black) (2)
FLSS, FLSTFBS
23
17922-99
PUSH ROD, exhaust, 10.536 in long (black oxide finish) (2)
FLSS, FLSTFBS
17923-99
PUSH ROD, intake, 10.418 in long (plain finish) (2)
FLSS, FLSTFBS
24
17939-99
COVER, push rod, lower (4)
FLSS, FLSTFBS
25
17945-36B
CAP, cover spring (4)
FLSS, FLSTFBS
26
17947-36
SPRING, push rod cover (4)
FLSS, FLSTFBS
27
17948-99
COVER, push rod, upper (4)
FLSS, FLSTFBS
28
17964-99
LIFTER COVER, front (chrome)
FLSS, FLSTFBS
17966-99
LIFTER COVER, rear (chrome)
FLSS, FLSTFBS
29
17968-99
RETAINER, spring cap (4)
FLSS, FLSTFBS
30
18535-99
PIN, anti-rotation (2)
FLSS, FLSTFBS
31
18572-13
KIT-TAPPET
FLSS, FLSTFBS
32
18635-99B
GASKET, lifter cover (2)
FLSS, FLSTFBS
33
26500002
BREATHER, baffle assembly, with gaskets (2)
FLSS, FLSTFBS
PISTONS AND FLYWHEEL ASSEMBLY - TWIN CAM 103™
Index
Part
Description
Model(s)
No.
No.
1
11177A
RETAINING RING
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
2
21918-
PISTON RING SET, standard (2)
FXSB, FLSTC, FLSTF, FLSTN,
99
FLSTFB, FLS
21919-
PISTON RING SET, 0.005 in over-size (2)
FXSB, FLSTC, FLSTF, FLSTN,
99
FLSTFB, FLS
21945-
PISTON RING SET, 0.010 in over-size (2)
FXSB, FLSTC, FLSTF, FLSTN,
99
FLSTFB, FLS
3
21962-
PISTON AND RINGS ASSEMBLY, with piston pin and lock
FXSB, FLSTC, FLSTF, FLSTN,
07
rings, standard (2)
FLSTFB, FLS
21963-
PISTON AND RINGS ASSEMBLY, with piston pin and lock
FXSB, FLSTC, FLSTF, FLSTN,
07
rings, 0.005 in over-size (2)
FLSTFB, FLS
21964-
PISTON AND RINGS ASSEMBLY, with piston pin and lock
FXSB, FLSTC, FLSTF, FLSTN,
07
rings, 0.010 in over-size (2)
FLSTFB, FLS
4
22097-
LOCK RING, piston pin (4)
FXSB, FLSTC, FLSTF, FLSTN,
99
FLSTFB, FLS
5
22131-
PISTON PIN (2)
FXSB, FLSTC, FLSTF, FLSTN,
05
FLSTFB, FLS
6
23912-
FLYWHEEL ASSEMBLY KIT
FXSB, FLSTC, FLSTF, FLSTN,
07B
FLSTFB, FLS
PISTONS AND FLYWHEEL ASSEMBLY - TWIN CAM 110™
Index
Part No.
Description
Model(s)
No.
1
11177A
RETAINING RING
FLSS,
FLSTFBS
2
21951-11
KIT PISTON RING SET, standard (2)
FLSS,
FLSTFBS
21953-11
KIT PISTON RING SET, 0.010 in OS (2)
FLSS,
FLSTFBS
3
22097-99
LOCK RING, piston pin (4)
FLSS,
FLSTFBS
4
22000001
KIT PISTON AND RINGS ASSEMBLY, with piston pin and lock rings - standard
FLSS,
(2)
FLSTFBS
22000003
KIT PISTON AND RINGS ASSEMBLY, with piston pin and lock rings - 0.010 in
FLSS,
over-size (2)
FLSTFBS
5
24100022
FLYWHEEL, with 11177A, thrust washer, plugs, inner race, connecting rods,
FLSS,
flywheels, bearings, crankpin and ring
FLSTFBS
CRANKCASE AND ENGINE OIL FILTER - TWIN CAM 103™
Index
Part
Description
Model(s)
No.
No.
1
703B
SCREW (2)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
2
765
PLUG (4)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
3
895
SCREW (12)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
4
8972
WASHER (2)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
5
9215
NEEDLE BEARING, left side of camshafts (2)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
6
11140
O-RING (2)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
7
11273
O-RING (2)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
8
12068
OIL SEAL
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
9
16574-
DOWEL PIN (2)
FXSB, FLSTC, FLSTF, FLSTN,
99A
FLSTFB, FLS
10
16589-
DOWEL PIN (2)
FXSB, FLSTC, FLSTF, FLSTN,
99A
FLSTFB, FLS
11
16595-
DOWEL PIN (4)
FXSB, FLSTC, FLSTF, FLSTN,
99A
FLSTFB, FLS
12
22307-
PISTON COOLING JET, with 11140 (2)
FXSB, FLSTC, FLSTF, FLSTN,
99
FLSTFB, FLS
13
24004-
BEARING KIT, left side with 8972, 24605-07 and 35114-02
FXSB, FLSTC, FLSTF, FLSTN,
03B
FLSTFB, FLS
14
24009-
SPACER, sprocket shaft
FXSB, FLSTC, FLSTF, FLSTN,
06
FLSTFB, FLS
15
24722-
SET OF CRANKCASES, with bearings, cooling jets and
FXSB, FLSTC, FLSTF, FLSTN,
07B
through bolts (black)
FLSTFB, FLS
16
24603-
SPACER (4)
FXSB, FLSTC, FLSTF, FLSTN,
00
FLSTFB, FLS
17
24605-
BEARING, main (2)
FXSB, FLSTC, FLSTF, FLSTN,
07
FLSTFB, FLS
18
26352-
ADAPTER, oil filter
FXSB, FLSTC, FLSTF, FLSTN,
95A
FLSTFB, FLS
19
35114-
RETAINING RING
FXSB, FLSTC, FLSTF, FLSTN,
02
FLSTFB, FLS
20
63798-
OIL FILTER, (chrome)
FLSTC, FLSTF, FLSTN, FXSB
99A
63731-
OIL FILTER, (black)
FLSTFB, FLS
99A
21
68042-
SCREW (4)
FXSB, FLSTC, FLSTF, FLSTN,
99
FLSTFB, FLS
CRANKCASE AND ENGINE OIL FILTER - TWIN CAM 110™
Index No.
Part No.
Description
Model(s)
1
703B
SCREW (2)
FLSS, FLSTFBS
2
765
PLUG (4)
FLSS, FLSTFBS
3
895
SCREW (11)
FLSS, FLSTFBS
4
1090A
SCREW
FLSS, FLSTFBS
5
8972
WASHER (2)
FLSS, FLSTFBS
6
8992A
BEARING (2)
FLSS, FLSTFBS
7
11140
O-RING (2)
FLSS, FLSTFBS
8
11907
O-RING KIT, with cylinder base O-ring
FLSS, FLSTFBS
9
12068
OIL SEAL
FLSS, FLSTFBS
10
16574-99A
DOWEL RING (2)
FLSS, FLSTFBS
11
16589-99A
DOWEL RING (2)
FLSS, FLSTFBS
12
16595-99A
DOWEL, pin (4)
FLSS, FLSTFBS
13
22307-99
PISTON COOLING JET, with 11140 (2)
FLSS, FLSTFBS
14
24004-03B
BEARING ASSEMBLY, with 8972, 24605-07 and 35114-02
FLSS, FLSTFBS
15
24009-06
SPACER, sprocket shaft
FLSS, FLSTFBS
16
24018-10
NEEDLE BEARING, left side of camshafts (2)
FLSS, FLSTFBS
17
24603-00
SPACER (4)
FLSS, FLSTFBS
18
24605-07
BEARING (2)
FLSS, FLSTFBS
19
24722-07B
SET OF CRANKCASES, (black)
FLSS, FLSTFBS
20
26352-95A
ADAPTER, oil filter
FLSS, FLSTFBS
21
35114-02
RETAINING RING
FLSS, FLSTFBS
22
63731-99A
OIL FILTER, (black)
FLSS, FLSTFBS
23
68042-99
SCREW (4)
FLSS, FLSTFBS
ENGINE BALANCER
Index No.
Part No.
Description
Model(s)
1
703B
SCREW (2)
2
956
SCREW (6)
3
3110
BOLT, balancer shift bolt (2)
4
6456
WASHER, balancer shift bolt (2)
5
8959
BEARING, shell (2)
6
8992A
BEARING (2)
7
14728-07
SUPPORT ASSEMBLY, chain guide, includes tensioner pistons
8
14761-00
GUIDE KIT, chain tensioner, includes lower, front and rear guides
9
14762-00
CHAIN DRIVE KIT, with 14769-00, front and rear sprockets
10
14764-00
PISTON ASSEMBLY KIT, chain tensioner (2)
11
14769-00
CHAIN, balancer drive
12
14784-07
SPACER, .039 in thick (2)
13
14789-07
BALANCE SHAFT KIT, with 8959, 8992A and balance shaft (2)
14
16583-00A
BUSHING, dowel (2)
15
35240-07
RETAINING RING, balancer shift bearing (2)
16
45359-00
SEAL, oil interconnect
CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 103™
Index
Part No.
Description
Model(s)
No.
1
601
ROLL PIN
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
2
942
SCREW, primary camshaft chain tensioner (2)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
3
4740A
SCREW, camshaft cover (10)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
3
4740A
SCREW, secondary camshaft tensioner (2)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
4
4741A
SCREW (10)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
5
6294
WASHER
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
6
8873
BALL (14)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
7
9215
NEEDLE BEARING, camshaft (2)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
8
11293
O-RING
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
9
11301
O-RING (2)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
10
11461
RETAINING RING
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
11
17045-
GASKET KIT, camshaft service
FXSB, FLSTC, FLSTF, FLSTN,
99D
FLSTFB, FLS
12
24983-00
SCREEN, oil
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
13
25244-
GASKET, camshaft cover
FXSB, FLSTC, FLSTF, FLSTN,
99A
FLSTFB, FLS
14
25355-
CAMSHAFT SUPPORT PLATE, with bypass valve
FXSB, FLSTC, FLSTF, FLSTN,
06A
FLSTFB, FLS
15
25363-
CAMSHAFT COVER, (polished)
FLS
01B
25369-
CAMSHAFT COVER, (chrome)
FLSTC, FLSTF, FLSTN, FXSB
01B
25395-10
CAMSHAFT COVER, (satin chrome)
FLSTFB
16
25566-06
CAMSHAFT DRIVE SPROCKET RETENTION KIT, with
FXSB, FLSTC, FLSTF, FLSTN,
screws and washers
FLSTFB, FLS
17
25585-06
CAMSHAFT CHAIN AND FASTENER KIT
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
18
25729-06
SPACER, camshaft drive sprocket alignment 0.100 in
FXSB, FLSTC, FLSTF, FLSTN,
thick
FLSTFB, FLS
19
25729-06
SPACER, camshaft drive sprocket alignment 0.100 in
FXSB, FLSTC, FLSTF, FLSTN,
thick (use as required)
FLSTFB, FLS
25731-06
SPACER, camshaft drive sprocket alignment 0.110 in
FXSB, FLSTC, FLSTF, FLSTN,
thick (use as required)
FLSTFB, FLS
25734-06
SPACER, camshaft drive sprocket alignment 0.120 in
FXSB, FLSTC, FLSTF, FLSTN,
thick (use as required)
FLSTFB, FLS
25736-06
SPACER, camshaft drive sprocket alignment 0.130 in
FXSB, FLSTC, FLSTF, FLSTN,
thick (use as required)
FLSTFB, FLS
25737-06
SPACER, camshaft drive sprocket alignment 0.140 in
FXSB, FLSTC, FLSTF, FLSTN,
thick (use as required)
FLSTFB, FLS
25738-06
SPACER, camshaft drive sprocket alignment 0.150 in
FXSB, FLSTC, FLSTF, FLSTN,
thick (use as required)
FLSTFB, FLS
20
25673-06
SPROCKET, camshaft drive on crankshaft, 17 teeth
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
21
25683-06
CHAIN, secondary camshaft drive
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
22
25675-06
CHAIN, primary camshaft drive
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
23
25728-06
SPROCKET, camshaft drive, 34 teeth
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
24
26037-06
OIL PUMP ASSEMBLY, with body and internal parts
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
25
26210-99
SPRING, relief valve
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
26
26278-06
GEROTOR ASSEMBLY, scavenge
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
27
26281-06
GEROTOR ASSEMBLY, pressure
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
28
26282-06
SEPARATOR PLATE, gerotor (2)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
29
26400-
RELIEF VALVE, oil pump
FXSB, FLSTC, FLSTF, FLSTN,
82B
FLSTFB, FLS
30
32727-00
TIMER COVER, (chrome)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB
32543-07
TIMER COVER, (denim black)
FLS
31
39968-06
CHAIN TENSIONER, primary camshaft drive chain
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
32
39969-06
CHAIN TENSIONER, secondary camshaft drive chain
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
33
40323-00
SPRING, separator
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
34
68120-00
SCREW (5)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
35
25400002
CAMSHAFT, front
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
36
25400003
CAMSHAFT, rear
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
CAMSHAFTS and CAMSHAFT COVER - TWIN CAM 110™
Index No.
Part No.
Description
Model(s)
1
601
ROLL PIN
FLSS, FLSTFBS
2
942
SCREW (2)
FLSS, FLSTFBS
3
4740A
SCREW (12)
FLSS, FLSTFBS
4
4741A
SCREW (10)
FLSS, FLSTFBS
5
6294
WASHER
FLSS, FLSTFBS
6
8873
BALL (12)
FLSS, FLSTFBS
7
11293
O-RING
FLSS, FLSTFBS
8
11301
O-RING (2)
FLSS, FLSTFBS
9
11461
RETAINING RING
FLSS, FLSTFBS
10
17045-99D
GASKET KIT, cam service
FLSS, FLSTFBS
11
24018-10
NEEDLE BEARING, camshaft
FLSS, FLSTFBS
12
24983-00
SCREEN, oil
FLSS, FLSTFBS
13
25244-99A
GASKET, cam cover
FLSS, FLSTFBS
14
25355-06A
CAM SUPPORT PLATE, with bypass valve
FLSS, FLSTFBS
15
25566-06
CAM DRIVE SPROCKET RETENTION KIT, with screws and washers
FLSS, FLSTFBS
16
25585-06
CAMSHAFT CHAIN AND FASTENER KIT
FLSS, FLSTFBS
17
25638-07
CAMSHAFT KIT
FLSS, FLSTFBS
18
25673-06
SPROCKET, cam drive on crankshaft, 17 T
FLSS, FLSTFBS
19
25675-06
CHAIN, primary cam drive
FLSS, FLSTFBS
20
25683-06
CHAIN, secondary cam drive
FLSS, FLSTFBS
21
25728-06
SPROCKET, cam drive, 34 T
FLSS, FLSTFBS
22
25729-06
SPACER, cam drive sprocket alignment 0.100 in thick
FLSS, FLSTFBS
23
25729-06
SPACER, cam drive sprocket alignment 0.100 in thick (use as required)
FLSS, FLSTFBS
25731-06
SPACER, cam drive sprocket alignment 0.110 in thick (use as required)
FLSS, FLSTFBS
25734-06
SPACER, cam drive sprocket alignment 0.120 in thick (use as required)
FLSS, FLSTFBS
25736-06
SPACER, cam drive sprocket alignment 0.130 in thick (use as required)
FLSS, FLSTFBS
25737-06
SPACER, cam drive sprocket alignment 0.140 in thick (use as required)
FLSS, FLSTFBS
25738-06
SPACER, cam drive sprocket alignment 0.150 in thick (use as required)
FLSS, FLSTFBS
24
26037-06
OIL PUMP, with body and internal parts
FLSS, FLSTFBS
25
26210-99
SPRING, relief valve
FLSS, FLSTFBS
26
26278-06
GEROTOR ASSEMBLY, scavenge
FLSS, FLSTFBS
27
26281-06
GEROTOR ASSEMBLY, pressure
FLSS, FLSTFBS
28
26282-06
SEPARATOR PLATE, gerotor (2)
FLSS, FLSTFBS
29
26400-82B
RELIEF VALVE, oil pump
FLSS, FLSTFBS
30
37198-11
CAM COVER, (gloss black)
FLSS, FLSTFBS
31
39968-06
CHAIN TENSIONER, primary cam drive chain
FLSS, FLSTFBS
32
39969-06
CHAIN TENSIONER, secondary cam drive chain
FLSS, FLSTFBS
33
40323-00
SPRING, separator
FLSS, FLSTFBS
34
68120-00
SCREW (5)
FLSS, FLSTFBS
35
25600012
TIMER COVER, (black)
FLSS, FLSTFBS
ENGINE MOUNTS
Index
Part No.
Description
Model(s)
No.
1
4729
BOLT
2
4775
SCREW (2)
3
6019
WASHER (2)
4
6516HW
WASHER
5
6530
WASHER (4)
6
7601
LOCKNUT (3)
7
7879
NUT, flange (2)
8
10177
CABLE STRAP (2)
9
16236-
BRACKET ASSEMBLY, engine mount
FXSB
08A
10
16247-06
BRACKET, engine mount
11
24603-00
SPACER (4)
12
48054-00
BOLT
13
48093-00
BOLT
14
48094-00
SPACER, engine mount (3)
15
69046-
BRACKET ASSEMBLY, engine mount
FLSTC, FLSTF, FLSTN, FLSTFB, FLS,
06A
FLSS, FLSTFBS
16
16400017
BRACKET ASSEMBLY, engine mount, without
FLSTC, FLSTF, FLSTFB, FXSB
horn (India only)
INDUCTION MODULE, FUEL
Index No.
Part No.
Description
Model(s)
1
3275
SCREW (4)
2
4705
SCREW (2)
3
26993-06
FLANGE, mounting (2)
4
26995-86B
SEAL, intake manifold (2)
5
27609-01B
FUEL INJECTOR ASSEMBLY, with O-ring (2)
6
27711-08
INDUCTION MODULE SERVICE KIT
7
27712-08
BRACKET, induction module
8
27721-08
FUEL RAIL
9
32319-07A
SENSOR, temperature manifold absolute pressure, with O-ring
10
61208-10
FUEL LINE KIT
11
90383-98
CAP, purge tube
12
27200002
INDUCTION MODULE KIT, with 27711-08 and 90383-98
AIR CLEANER - FXSB, FLSTC, FLSTF, FLSTN, FLSTFB, FLS
Index
Part No.
Description
Model(s)
No.
1
946
SCREW (3)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
2
29269-
SCREW
FXSB, FLSTC, FLSTF, FLSTN,
83A
FLSTFB, FLS
3
29465-
BREATHER BOLT (2)
FXSB, FLSTC, FLSTF, FLSTN,
08A
FLSTFB, FLS
4
14000347
WARNING LABEL, air cleaner (chrome) (Domestic,
FXSB, FLSTC, FLSTF, FLSTN,
California)
FLSTFB, FLS
5
29000026
SEAL, air cleaner cover
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
6
29000033
BACKPLATE ASSEMBLY
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
7
29200014
SCREEN, air cleaner
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
8
29200015
SNORKEL, air cleaner cover (Domestic, California,
FXSB, FLSTC, FLSTF, FLSTN,
Canada)
FLSTFB, FLS
29200018
SNORKEL, air cleaner cover (HDI)
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
9
29200017
BEZEL, air cleaner
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
10
29400043
BREATHER HOSE
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
11
29400045
FILTER ELEMENT
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
12
29400046
GASKET, induction module to backplate
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
13
60900005
BRACKET ASSEMBLY, air cleaner cover
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
14
61300063
INSERT, air cleaner cover
FLSTC, FLSTF, FLSTN, FLSTFB
61300526
INSERT, air cleaner cover
FLS
15
61300064
INSERT, air cleaner cover
FXSB
16
61300273
COVER KIT, air cleaner, with 14000347
FXSB, FLSTC, FLSTF, FLSTN,
FLSTFB, FLS
61300535
COVER KIT, air cleaner, with 14000347
FLSTFB
61300536
COVER KIT, air cleaner, with 14000347
FLS
AIR CLEANER - TWIN CAM 110™ - FLSTFBS
Index No.
Part No.
Description
Model(s)
1
3048
SCREW (2)
FLSTFBS
2
8250
STUD, air cleaner (3)
FLSTFBS
3
11292
O-RING (4)
FLSTFBS
4
29241-08
GASKET
FLSTFBS
5
29267-08A
BOLT, breather (2)
FLSTFBS
6
29269-83A
SCREW, air cleaner
FLSTFBS
7
29670-09
ELEMENT, air filter
FLSTFBS
8
29762-09
RAINSOCK
FLSTFBS
9
29763-09
BACKPLATE ASSEMBLY, air cleaner (black)
FLSTFBS
10
10500053
SCREW (3)
FLSTFBS
11
14000377
LABEL, air cleaner warning (Domestic, California)
FLSTFBS
12
14100699
INSERT, air cleaner cover
FLSTFBS
13
61300365
COVER, air cleaner, with 14000377 (black)
FLSTFBS
AIR CLEANER - TWIN CAM 110™ - FLSS
Index No.
Part No.
Description
Model(s)
1
869
SCREW (3)
FLSS
2
3563
SCREW (3)
FLSS
3
8250
STUD, mounting (3)
FLSS
4
11292
O-RING (4)
FLSS
5
29241-08
GASKET, throttle body
FLSS
6
29244-08
ELEMENT
FLSS
7
29267-08A
BREATHER BOLT
FLSS
8
29327-94
SCREW
FLSS
9
14000347
WARNING LABEL, air cleaner (chrome) (Domestic, California)
FLSS
10
29200014
SCREEN, air cleaner
FLSS
11
29200015
SNORKEL, air cleaner cover (Domestic, California, Canada)
FLSS
29200018
SNORKEL, air cleaner cover (HDI)
FLSS
12
29200017
BEZEL, air cleaner
FLSS
13
29000123
BACKPLATE
FLSS
14
29400159
ADAPTER, air cleaner cover
FLSS
15
29400161
SPACER, air cleaner cover adapter
FLSS
16
61300536
COVER KIT, air cleaner, with 14000347
FLSS
ALTERNATOR AND REGULATOR
Index No.
Part No.
Description
Model(s)
1
2941
SCREW (2)
2
3050
SCREW, stator to crankcase (4)
3
4814A
SCREW (2)
4
10102
CLIP
5
30017-08
STATOR
6
30041-08A
ROTOR ASSEMBLY
7
46668-11
BRACKET, front HCU
8
74540-11
VOLTAGE REGULATOR
9
69200052
BRACKET, regulator mounting
ELECTRONIC CONTROL MODULE (ECM) AND COIL
Index
Part No.
Description
Model(s)
No.
1
1565
LOCK PIN
FXSB
2
3144
SCREW
FLSTC, FLSTF, FLSTFB, FLSTN,
///////////////////////////////////////
