Harley Davidson Softail Delux FLSTN BIKE 2011-2015. Service Manual - page 27

sm07527

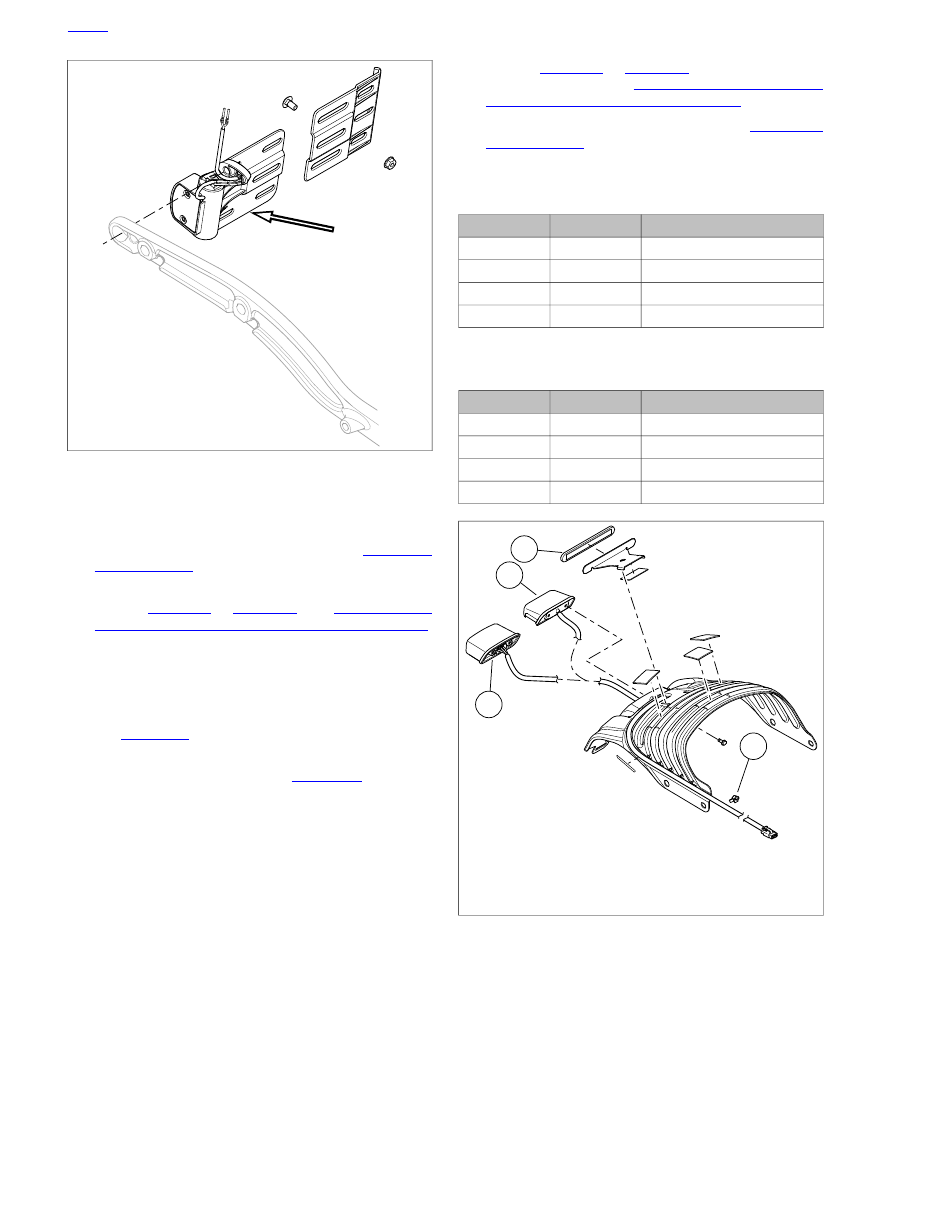

Figure 7-60. License Plate Bracket (Domestic and California

Models)

Rear Turn Signals: FXSB

Remove and disassemble rear fender. See

2.32 REAR

FENDER: FXSB

Disconnect pins from 4-Pin connector [18, 19] as needed.
Refer to

Table 7-11

Table 7-12

. See

A.16 DEUTSCH

DTM SEALED SOLID BARREL MINI TERMINAL REPAIR

Carefully remove wire from retainer clips along fender
support.

Remove fastener and washer securing lamp assembly to
fender support.

See

Figure 7-62

. If equipped with side mount license plate

bracket, separate turn signal from license plate bracket.

Canada and HDI models:

See

Figure 7-61

. If needed,

remove harness retainer (4) and tail lamp (1) or license
plate lamp (2).

Canada and HDI models:

If installing tail lamp (1) or

license plate lamp (2), secure harness with a

new

harness

retainer (4).

When installing new turn signal lamp assembly, install
side mount license plate bracket if equipped.

Install fastener and washer securing lamp assembly to
fender support. Tighten to 12-16 ft-lbs (16.3-21.7 Nm).

NOTE

Make sure retainer clips are securely fastened to fender. if
installing new retainer clips, clean affected surface with isop-
ropyl alcohol. Remove protective paper and press on surface
for 1-3 minutes.

10. Route wires of lamp along fender support. Make sure wires

are properly positioned in the retaining clips.

11. Refer to

Table 7-11

Table 7-12

. Attach wires to 4-pin

connector [18, 19]. See

A.16 DEUTSCH DTM SEALED

SOLID BARREL MINI TERMINAL REPAIR

12. Assemble and install rear fender. See

2.32 REAR

FENDER: FXSB

Table 7-11. Turn Signal Lighting Connector Pin Location

(Domestic and Canada)

FUNCTION

COLOR

PIN

Tail

Brake/Turn

Not used

Ground

Table 7-12. Turn Signal Lighting Connectors Pin Location

(HDI)

FUNCTION

COLOR

PIN

Tail

Turn

Brake

Ground

sm07692

1. Tail lamp (Canada)
2. License plate lamp (HDI)
3. Reflector (U.S.)
4. Harness retainer (Canada, HDI)

Figure 7-61. Rear Lighting

HOME

7-44 2013 Softail Service: Electrical

sm07527

Figure 7-62. License Plate Bracket (Domestic and California

Models)

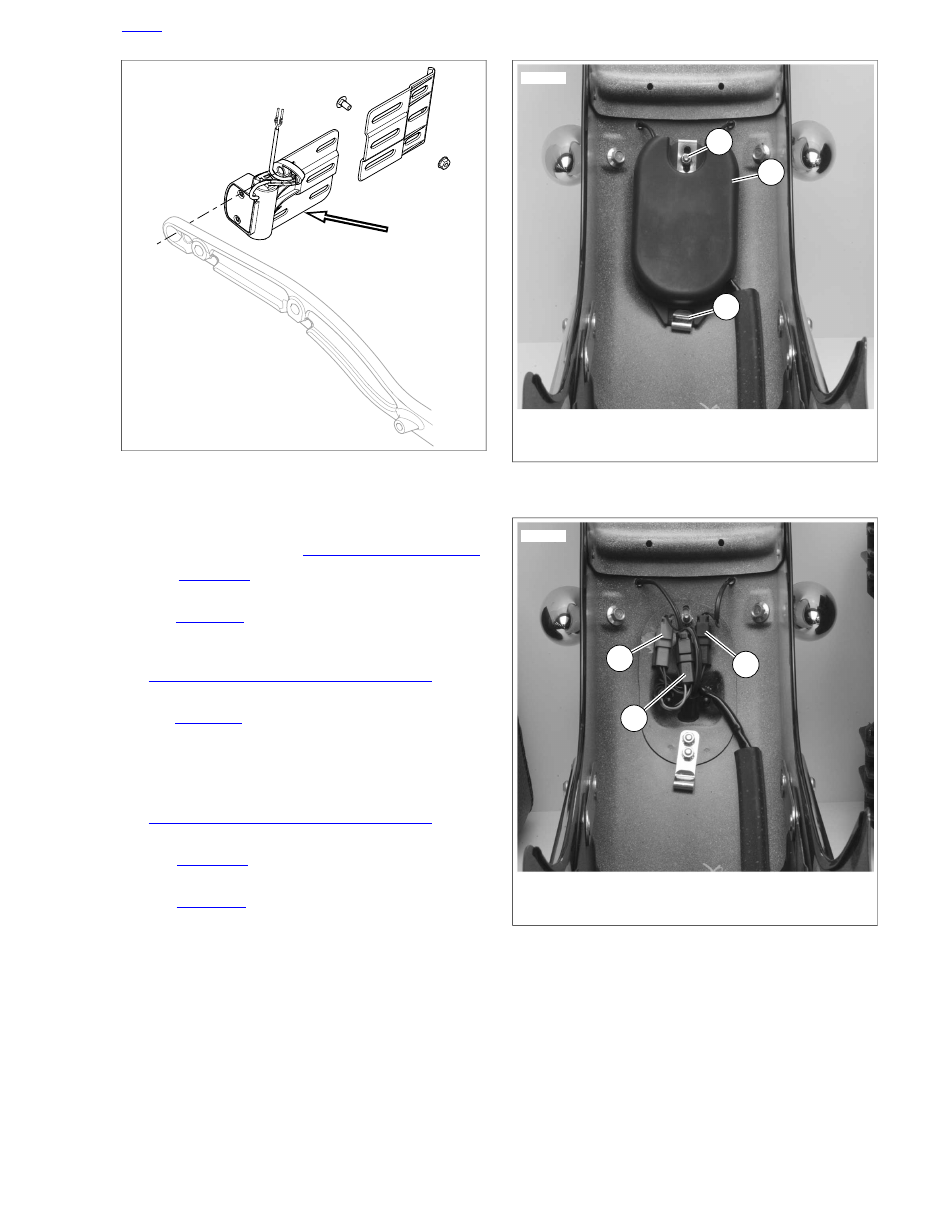

Rear Turn Signals: FLSTN

Remove rear fender. See

2.33 REAR FENDER: FLSTN

See

Figure 7-63

. Remove fastener (1). Disengage tail

lamp connector cover (2) from clip (3).

See

Figure 7-64

. Disconnect left [19] (1) and right [18] (3)

turn signal connectors.

Remove wire terminals from turn signal connectors. See

A.13 DEUTSCH DT SEALED CONNECTORS

for con-

nector disassembly.

See

Figure 7-65

. Remove screws (1) to release turn signal

bar (2) from fender.

Install

new

turn signal bar. Tighten screws (1) to 15-19 ft-

lbs (20.4-25.8 Nm).

Install wire terminals into turn signal connectors. See

A.13 DEUTSCH DT SEALED CONNECTORS

for con-

nector assembly.

See

Figure 7-64

. Connect left [19] (1) and right [18] (3)

turn signal connectors.

See

Figure 7-63

. Slide tail lamp connector cover (2) into

clip (3). Install fastener (1) and tighten to 8-30

in-lbs

(0.9-

3.4 Nm).

sm02689

1. Fastener
2. Tail lamp connector cover
3. Clip

Figure 7-63. Tail Lamp Connector Cover

sm02690

1. Left turn signal connector [19]
2. Tail lamp connector [93]
3. Right turn signal connector [18]

Figure 7-64. Turn Signal Connectors

HOME

2013 Softail Service: Electrical 7-45

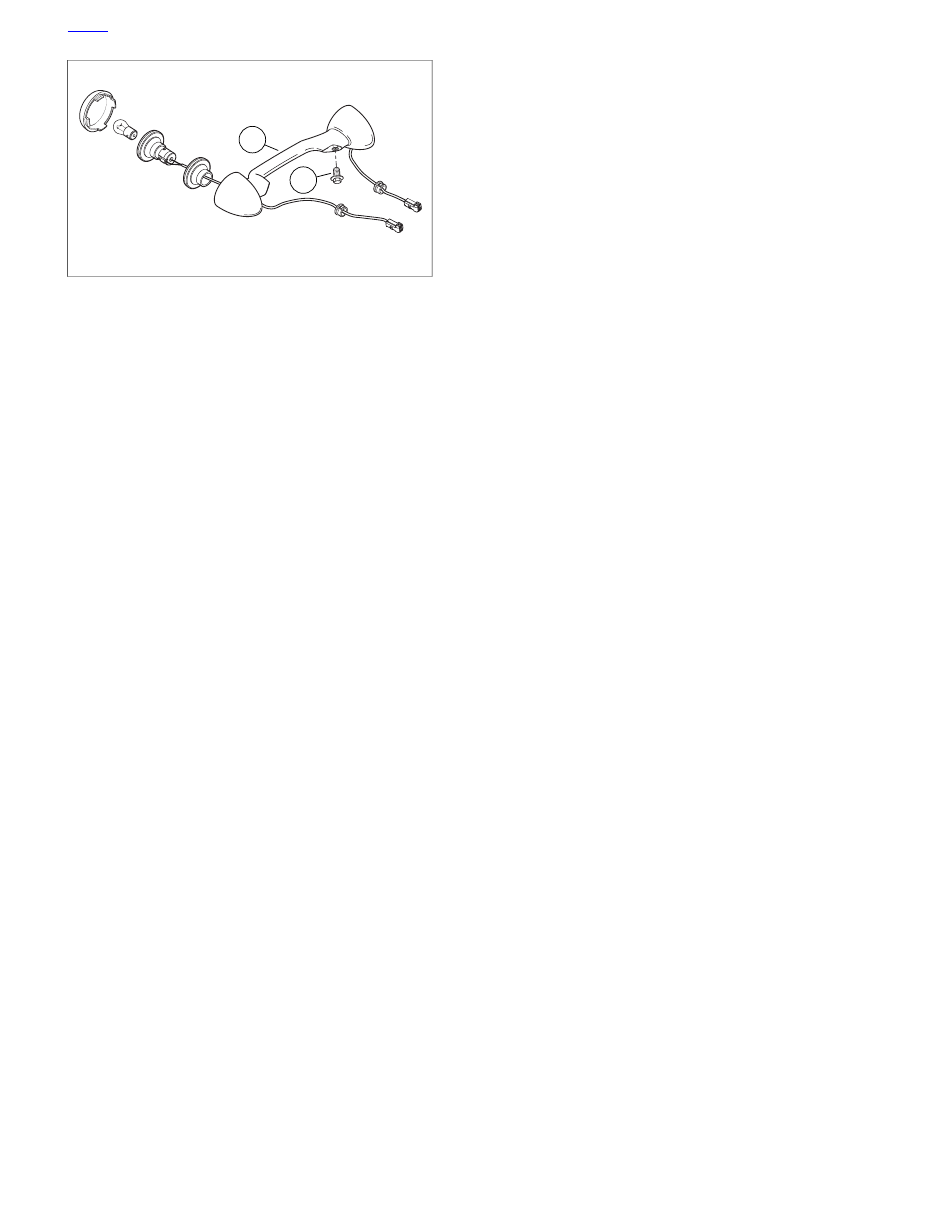

sm02725

1. Screw
2. Turn signal bar

Figure 7-65. Rear Turn Signals: FLSTN

HOME

7-46 2013 Softail Service: Electrical

7.19

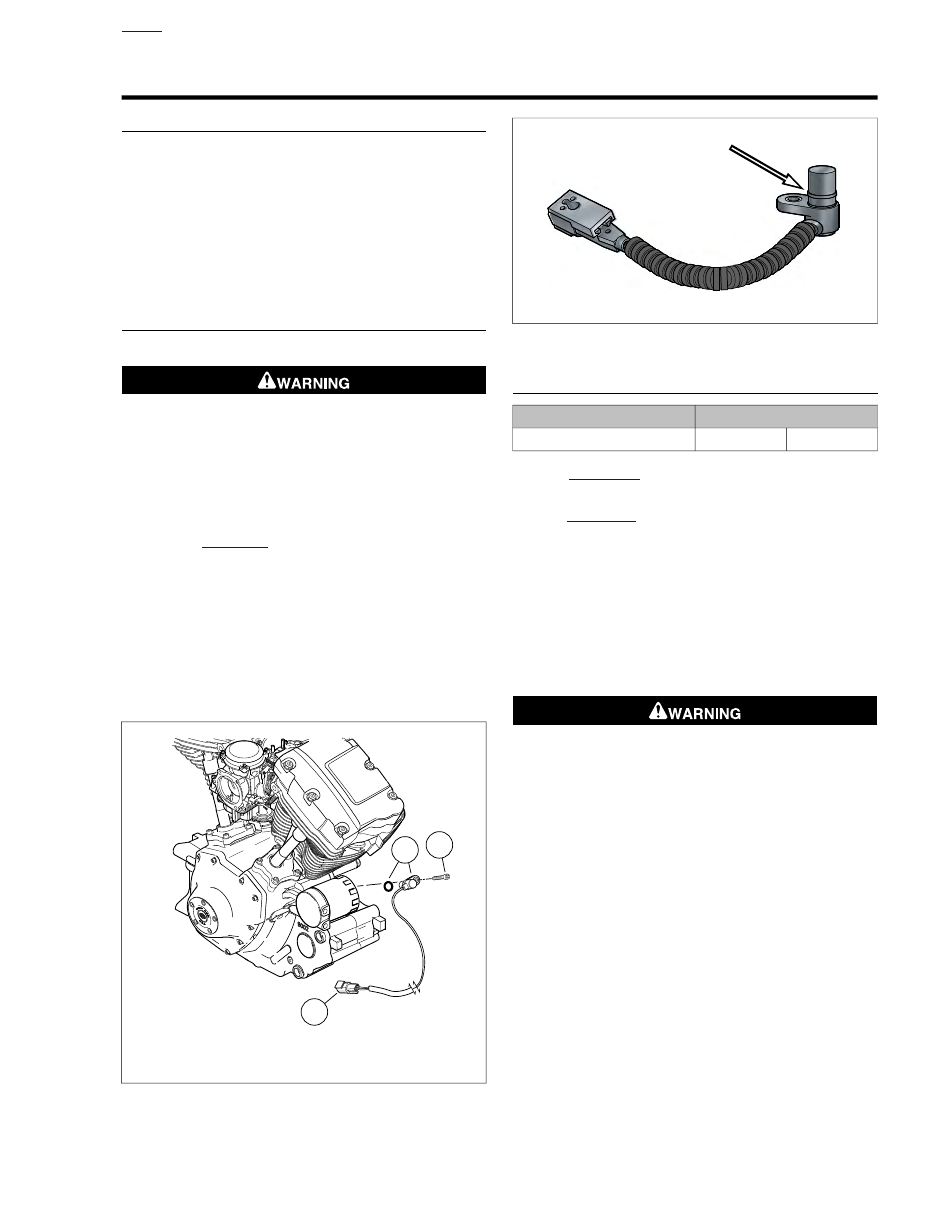

CRANK POSITION SENSOR (CKP)

GENERAL

The crank position sensor (CKP) is a variable reluctance (VR)
sensor. It generates an AC signal by sensing the passing of
the 30 teeth machined in the left side flywheel. Two consecutive
teeth are missing in the flywheel to establish a reference point.
The CKP sends a signal to the electronic control module which
references engine position (TDC) and engine speed.

NOTE

CKP sensor connector is not serviceable. Replace the entire
assembly if it fails.

REMOVAL

Remove seat.

To prevent accidental vehicle start-up, which could cause
death or serious injury, remove main fuse before pro-
ceeding. (00251b)

Remove main fuse.

Detach wiring behind regulator bracket.

Disengage connector from bracket.

See

Figure 7-66

. Disconnect the 2-place Mini-Deutsch

CKP connector [79A] (3).

Remove screw and captive washer (2) to detach CKP
sensor and O-ring (1) from crankcase. Carefully remove
crank position sensor.

NOTE

Before removing wiring, carefully note wire routing. In particular,
pay close attention to the locations of cable straps which must
be replaced.

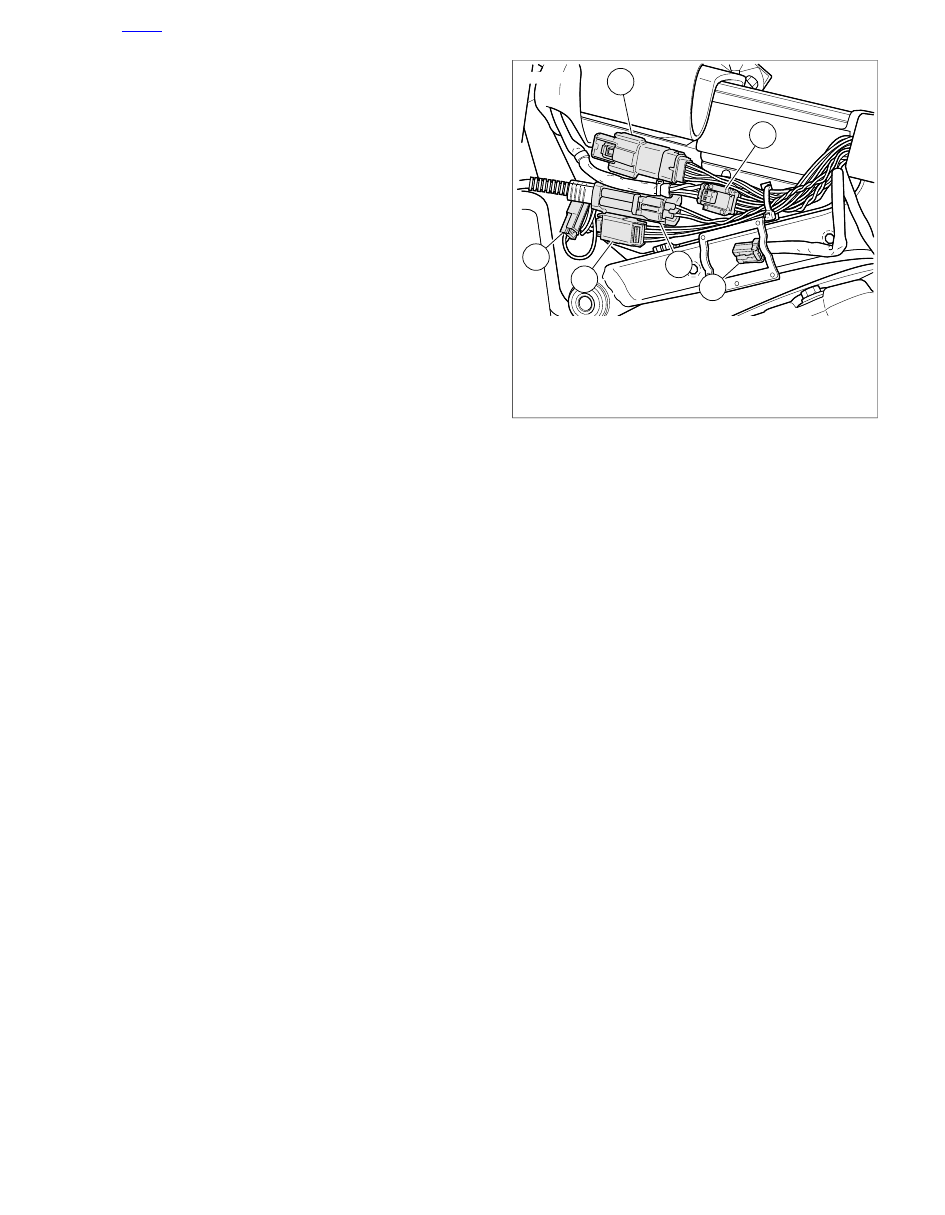

sm02656

1. CKP sensor and O-ring
2. Screw and captive washer
3. CKP connector [79A]

Figure 7-66. CKP Sensor Assembly

sm02543

Figure 7-67. CKP Sensor O-Ring

INSTALLATION

TORQUE VALUE

FASTENER

10.2-13.6 Nm

90-120

in-lbs

Crank Position Sensor (CKP)

See

Figure 7-66

. Lubricate CKP sensor O-ring (1) with

clean engine oil.

See

Figure 7-68

. Install

new

CKP sensor with screw and

captive washer. Tighten screw to 90-120

in-lbs

(10.2-13.6

Nm).

Route wiring to connector behind regulator bracket.

Attach wiring.

Mate connector [79].

Attach connector to bracket.

Install main fuse.

After installing seat, pull upward on seat to be sure it is
locked in position. While riding, a loose seat can shift
causing loss of control, which could result in death or
serious injury. (00070b)

Install seat.

HOME

2013 Softail Service: Electrical 7-47

sm02657

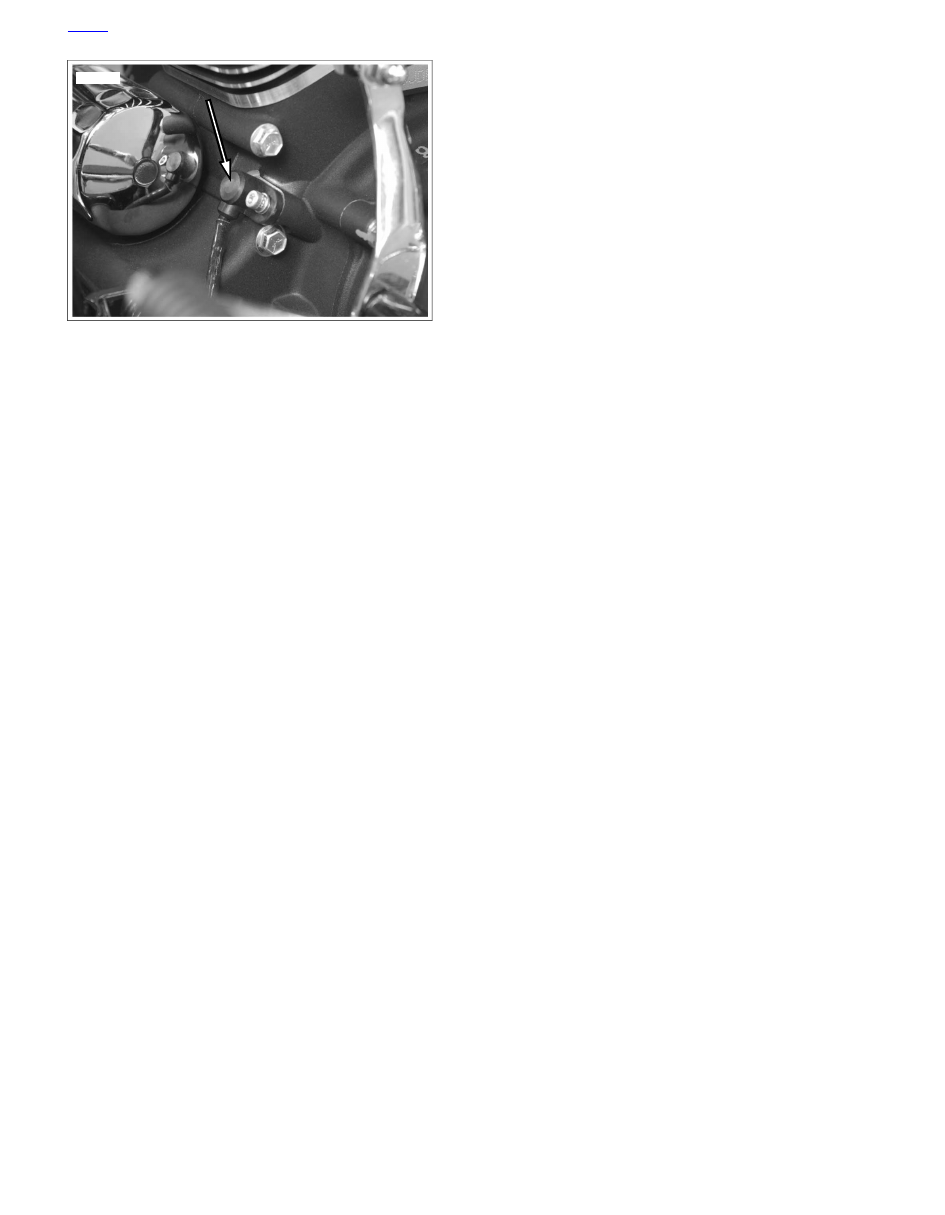

Figure 7-68. Installed CKP Sensor

HOME

7-48 2013 Softail Service: Electrical

7.20

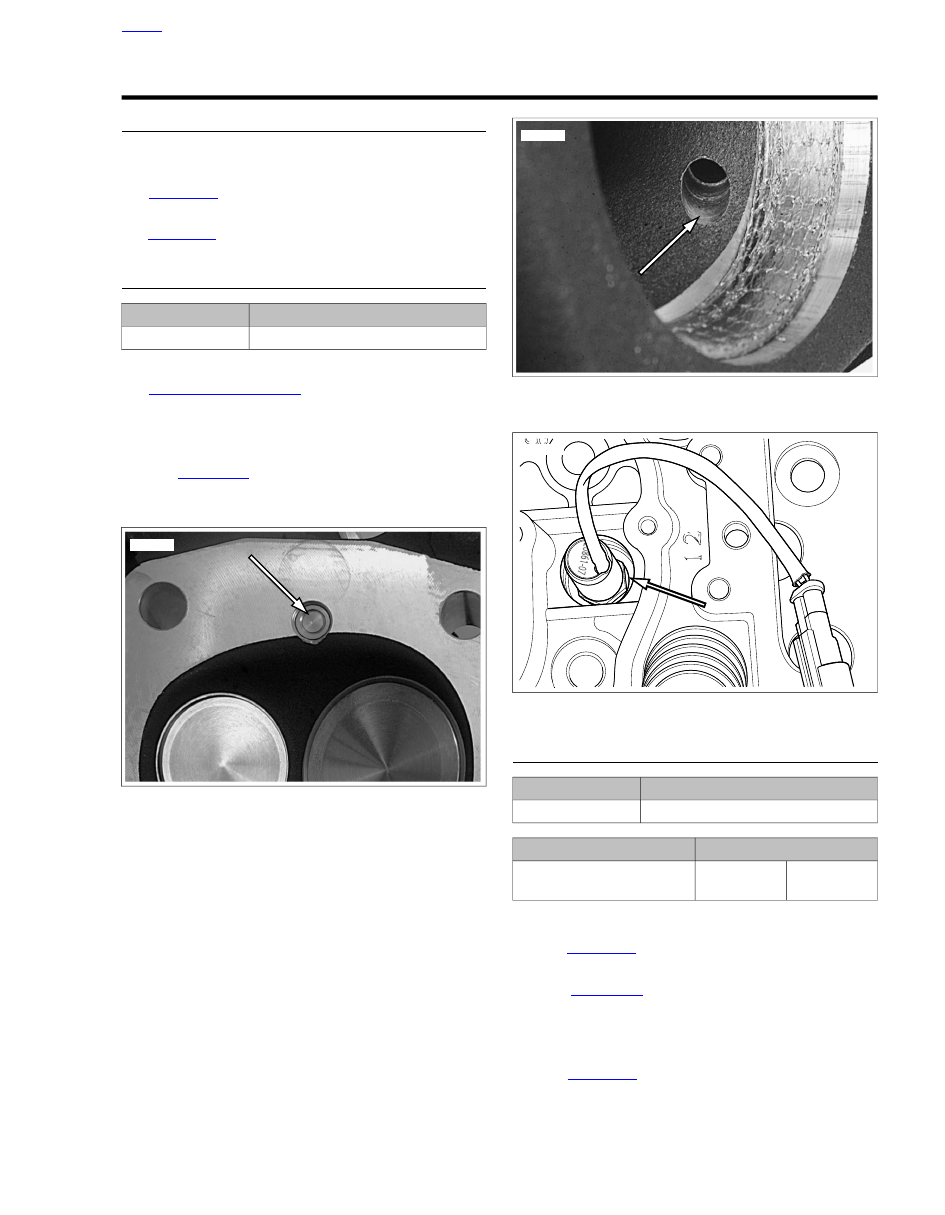

AUTOMATIC COMPRESSION RELEASE (ACR)

GENERAL

NOTE

ACR is used only on 103 cu. in. and larger engines.

See

Figure 7-69

. The ACR is opened and closed by the ECM

to assist starting.

See

Figure 7-70

. When open, compressed gases are released

through the exhaust port.

REMOVAL

TOOL NAME

PART NUMBER

ACR SOLENOID SOCKET

HD-48498-A

Remove the rocker cover and the rocker box. See

3.10 TOP END SERVICE

Separate the ACR rear [203R] or front [203F] connector
from the main wiring harness and remove connectors from
retainer clip.

See

Figure 7-74

. Use ACR SOLENOID SOCKET (Part

No. HD-48498-A) to remove the ACR from the cylinder
head.

ed01623

Figure 7-69. ACR Valve in Combustion Chamber

ed01624

Figure 7-70. ACR Exhaust Port Release

sm06230

Figure 7-71. ACR in Head

INSTALLATION

TOOL NAME

PART NUMBER

ACR SOLENOID SOCKET

HD-48498-A

TORQUE VALUE

FASTENER

14.9-20.3 Nm

132-180

in-lbs

ACR

Verify that the copper seal washer is in place on the ACR.

See

Figure 7-72

. Identify a location around the threads of

the ACR approximately 1/3 of the way up from the end.

See

Figure 7-73

. Apply three equally spaced dots of

LOCTITE 246 MEDIUM STRENGTH/HIGH TEMPER-
ATURE THREADLOCKER (blue) on threads.

To prevent cross threading, install and finger tighten.

See

Figure 7-74

. Using ACR SOLENOID SOCKET (Part

No. HD-48498-A), tighten to 132-180

in-lbs

(14.9-20.3

Nm).

HOME

2013 Softail Service: Electrical 7-49

Route the wire harness between the cylinders.

Install rocker box and rocker cover. See

3.10 TOP END

SERVICE

Mate the ACR connectors [203R] and [203F] to the main
wiring harness. Secure connectors to retaining clip.

ed01626

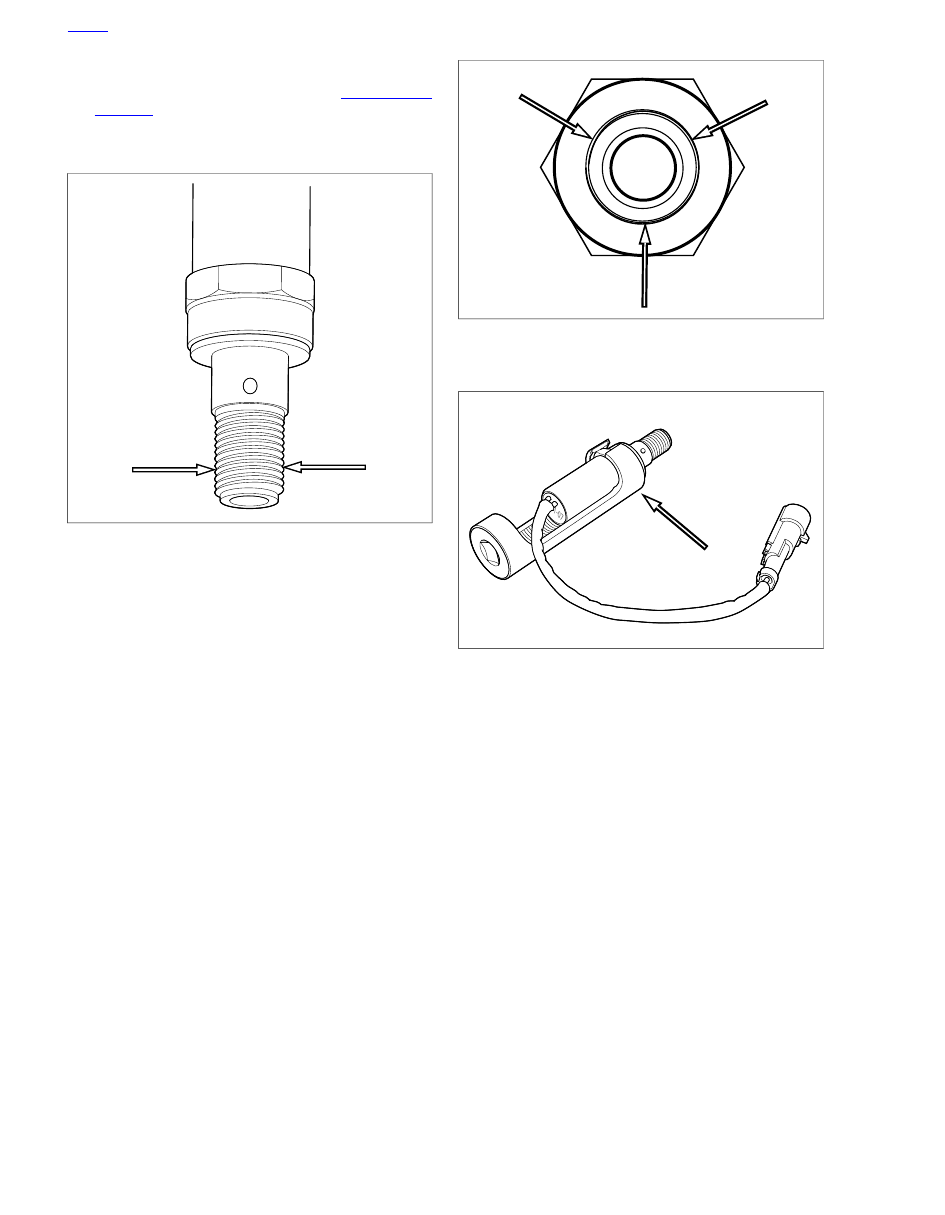

Figure 7-72. Bottom Third

ed01627

Figure 7-73. Three Dots of LOCTITE 246 MEDIUM

STRENGTH/HIGH TEMPERATURE THREADLOCKER (blue)

sm06232

Figure 7-74. ACR Solenoid Socket and ACR

HOME

7-50 2013 Softail Service: Electrical

7.21

IGNITION COIL

REMOVAL

TOOL NAME

PART NUMBER

IGNITION SWITCH SPANNER
WRENCH

HD-48904

All Except FXS/B

Remove seat.

To prevent accidental vehicle start-up, which could cause
death or serious injury, remove main fuse before pro-
ceeding. (00251b)

Remove main fuse.

NOTE

Remove spark plug cable by pulling on rubber boot at end of
cable. Do not pull on cable or damage may result.

See

Figure 7-75

. Remove spark plug cables from coil.

Remove screw (4) to detach cover (5) from coil (1).

Remove two mounting screws (2) to detach coil from seat
post.

Detach connector [83] from backside of coil.

FXS/B

Remove seat.

To prevent accidental vehicle start-up, which could cause
death or serious injury, remove main fuse before pro-
ceeding. (00251b)

Remove main fuse.

See

Figure 7-76

. Remove spark plug cables (3, 8) from

coil.

Loosen set screw (6) and remove knob (5).

Remove nut (4) using IGNITION SWITCH SPANNER
WRENCH (Part No. HD-48904).

Remove screw (9).

Detach connector [83] from backside of coil.

INSTALLATION

TOOL NAME

PART NUMBER

IGNITION SWITCH SPANNER
WRENCH

HD-48904

TORQUE VALUE

FASTENER

13.6-20.3 Nm

120-180

in-lbs

Ignition coil screws, all except
FXS

3.4-4.5 Nm

30-40

in-lbs

Coil cover screw, all but FXS

10.9-13.6 Nm

96-120

in-lbs

Coil mounting screw

15.8-18.1 Nm

140-160

in-lbs

Ignition switch nut, FXS

All Except FXS/B

See

Figure 7-75

. Attach connector [83] to backside of coil.

Position coil on seat post. Install two screws (2) and tighten
to 120-180

in-lbs

(13.6-20.3 Nm).

Fasten cover (5) to coil with screw (4). Tighten to 30-40

in-lbs

(3.4-4.5 Nm).

Attach spark plug cables to coil. Rear cylinder spark plug
cable attaches to upper coil tower.

Install main fuse.

After installing seat, pull upward on seat to be sure it is
locked in position. While riding, a loose seat can shift
causing loss of control, which could result in death or
serious injury. (00070b)

Install seat.

FXS/B

See

Figure 7-76

. Attach connector [83] to backside of coil.

Position coil on bracket and install screw (9). Tighten screw
to 96-120

in-lbs

(10.9-13.6 Nm).

Clean threads of nut (4). Install LOCTITE 243 MEDIUM
STRENGTH THREADLOCKER AND SEALANT (blue).

Install nut (4) using IGNITION SWITCH SPANNER
WRENCH (Part No. HD-48904). Tighten nut to 140-160

in-lbs

(15.8-18.1 Nm).

Install knob (5) and tighten set screw (6).

Attach spark plug cables to coil.

Install main fuse.

After installing seat, pull upward on seat to be sure it is
locked in position. While riding, a loose seat can shift
causing loss of control, which could result in death or
serious injury. (00070b)

HOME

2013 Softail Service: Electrical 7-51

Install seat.

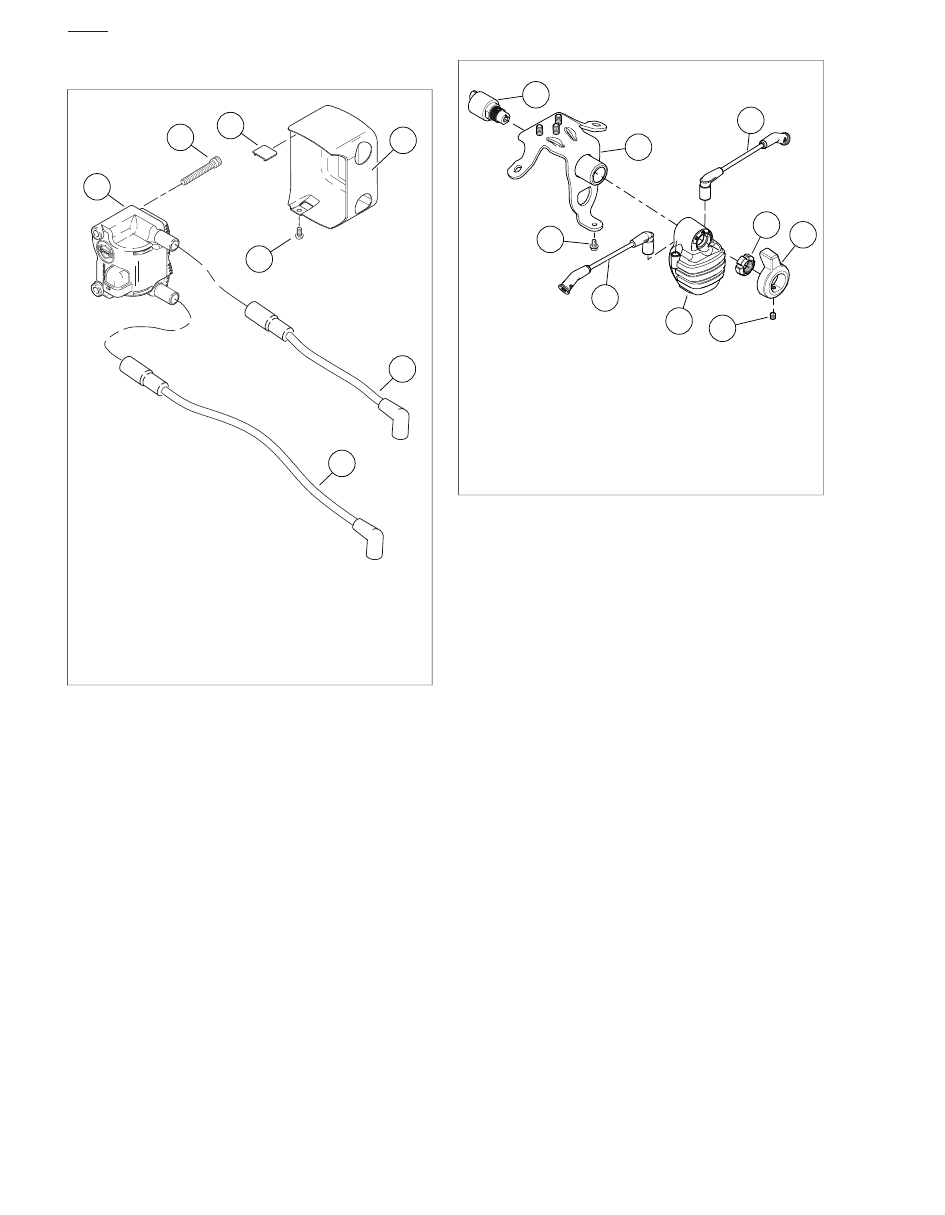

sm02660

1. Coil
2. Screw
3. Pad (2)
4. Screw with washer
5. Coil cover (all except FLS)
6. Rear cylinder spark plug cable
7. Front cylinder spark plug cable

Figure 7-75. Coil (All Except FXS/B)

sm03874b

1. Ignition/light switch
2. Bracket
3. Rear cylinder spark plug cable
4. Nut
5. Knob
6. Set screw
7. Coil
8. Front cylinder spark plug cable
9. Screw

Figure 7-76. Ignition/Light Switch: FXS/B

HOME

7-52 2013 Softail Service: Electrical

7.22

SPARK PLUG CABLES

GENERAL

Resistor-type high-tension spark plug cables have a carbon-
impregnated fabric core, instead of solid wire, for radio noise
suppression and improved reliability of electronic components.
Use the exact replacement cable for best results.

NOTE

See

1.17 SPARK PLUGS

for spark plug information.

REMOVAL

Disconnecting spark plug cable with engine running can
result in electric shock and death or serious injury.
(00464b)

NOTE

Remove spark plug cable by pulling on rubber boot at end of
cable. Do not pull on cable or damage may result.

Disconnect spark plug cables from ignition coil and spark
plug terminals. Inspect all removed cables for damage.

All but FXS/B:

see

Figure 7-77

. Remove cable straps on

horn bracket for front spark plug cable.

INSTALLATION

See

Figure 7-77

(all but FXS) or

Figure 7-78

(FXS). Con-

nect spark plug cables to ignition coil and spark plugs.
Fasten boots/caps securely. Tight connections provide
the necessary moisture-proof environment for the ignition
coil and spark plug terminals.

All but FXS/B:

rear cylinder plug cable connects to

top coil terminal.

FXS/B:

front cylinder plug cable connects to front coil

terminal.

All but FXS/B:

secure front spark plug cable to horn

bracket with

new

cable straps.

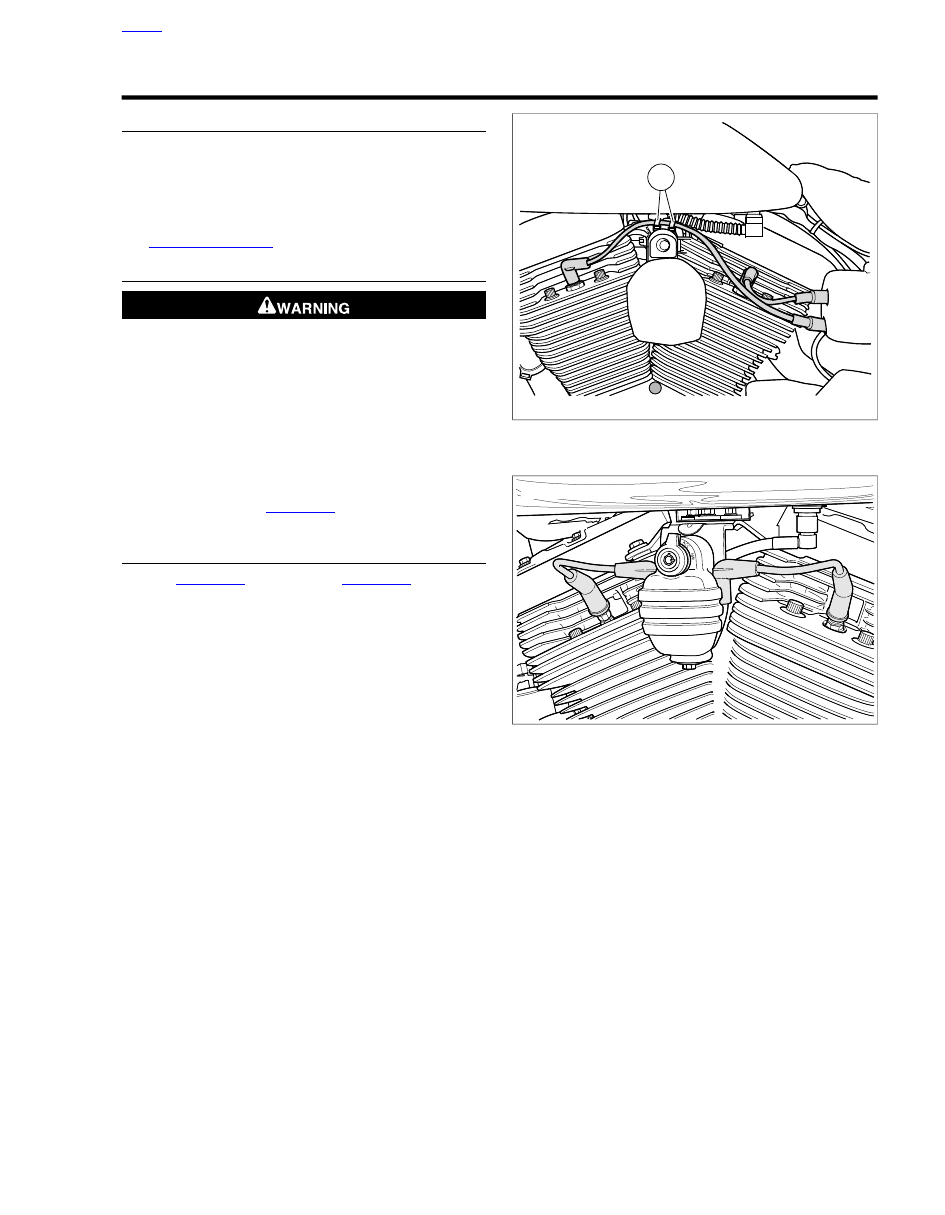

sm02658

1. Cable straps

Figure 7-77. Spark Plug Cable Routing (All Except FXS/B)

sm03859a

Figure 7-78. Spark Plug Cable Routing (FXS/B)

HOME

2013 Softail Service: Electrical 7-53

7.23

VOLTAGE REGULATOR

DISASSEMBLY

Remove seat.

To prevent accidental vehicle start-up, which could cause
death or serious injury, remove main fuse before pro-
ceeding. (00251b)

Disconnect main fuse. See

7.10 FUSES

See

Figure 7-79

. Loosen fasteners (1) securing voltage

regulator.

Remove fasteners (2) securing voltage regulator bracket
to crankcase.

See

Figure 7-80

. Rotate connector locks (3, 5) out of the

way and disconnect voltage regulator connectors.

Remove voltage regulator.

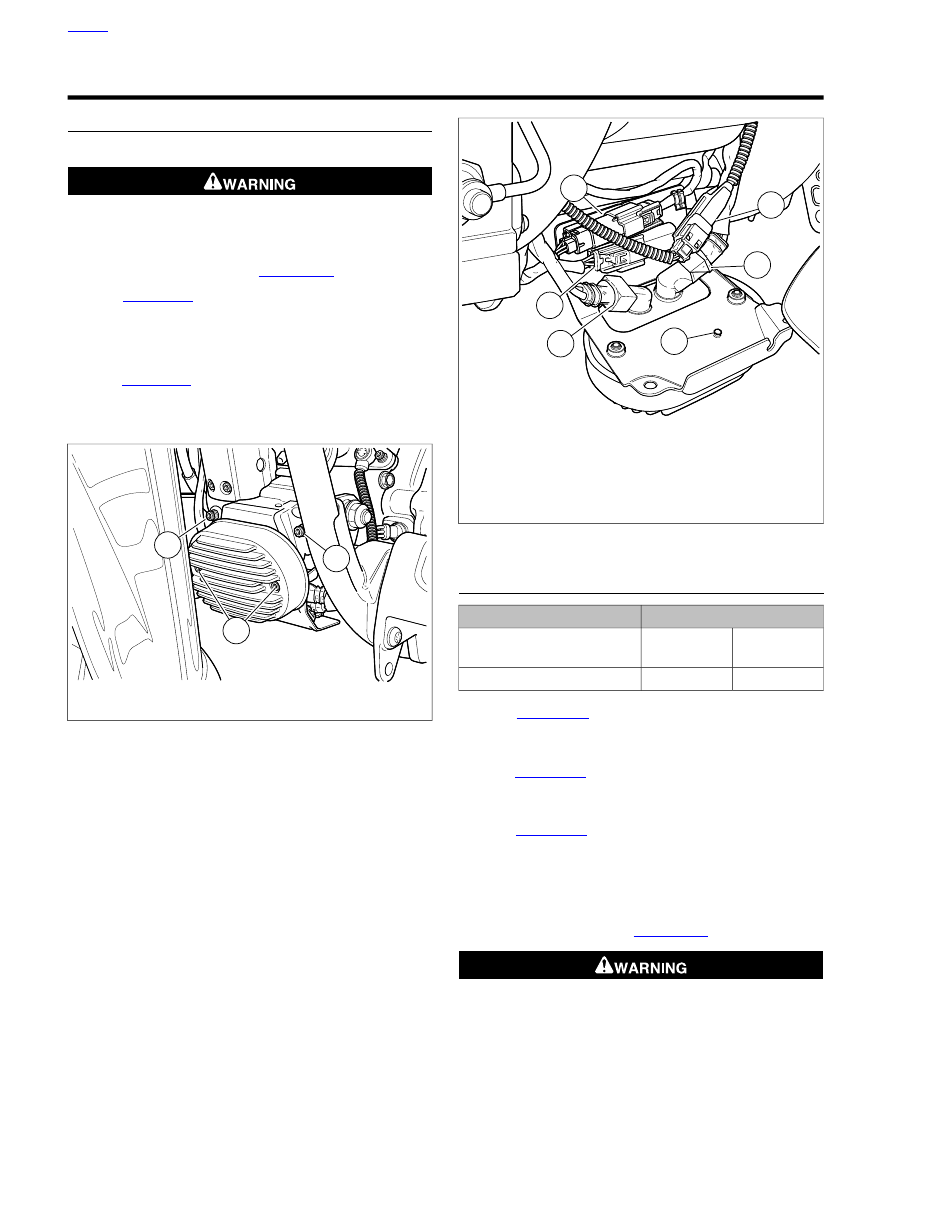

sm03781a

1. Voltage regulator fasteners
2. Bracket fasteners

Figure 7-79. Voltage Regulator

sm03782b

1. Front oxygen sensor connector
2. Crank position sensor connector
3. Stator connector lock
4. Crank position sensor connector stud
5. Voltage regulator connector lock
6. Jiffy stand interlock connector

Figure 7-80. Voltage Regulator Connectors

INSTALLATION

TORQUE VALUE

FASTENER

7.9-11.3 Nm

70-100

in-lbs

Voltage regulator bracket to
crankcase fasteners

5.7-9.0 Nm

50-80

in-lbs

Voltage regulator

See

Figure 7-79

. Install voltage regulator to regulator

bracket with fasteners (1). Do not tighten fasteners at this
time.

See

Figure 7-80

. Connect voltage regulator connectors

and rotate connector locks (3, 5) down into position to
secure connections.

See

Figure 7-79

. Install fasteners (2) securing voltage

regulator bracket to crankcase. Tighten fasteners to 70-
100

in-lbs

(7.9-11.3 Nm).

Tighten fasteners (1) securing voltage regulator to regu-
lator bracket to 50-80

in-lbs

(5.7-9.0 Nm).

Connect main fuse. See

7.10 FUSES

After installing seat, pull upward on seat to be sure it is
locked in position. While riding, a loose seat can shift
causing loss of control, which could result in death or
serious injury. (00070b)

Install seat.

HOME

7-54 2013 Softail Service: Electrical

7.24

ALTERNATOR

REMOVAL

To prevent accidental vehicle start-up, which could cause
death or serious injury, disconnect negative (-) battery
cable before proceeding. (00048a)

Disconnect negative battery cable.

Remove primary chaincase housing. See

5.5 PRIMARY

CHAINCASE HOUSING

Disconnect stator connector from voltage regulator. See

7.23 VOLTAGE REGULATOR

See

Figure 7-81

. Remove alternator rotor (4). Two bolts

can be inserted through the holes in the rotor face to aid
during removal.

NOTE

See

Figure 7-81

. Use contact cleaner, alcohol or glass cleaner

in the next step as a lubricant.

Move grommet (3) to one side and spray lubricant into
gap to lubricate grommet and ease removal. Repeat for
other side.

Remove TORX screws (2) and discard.

Remove stator (1) while pulling rubber grommet (3) and
wires through crankcase hole.

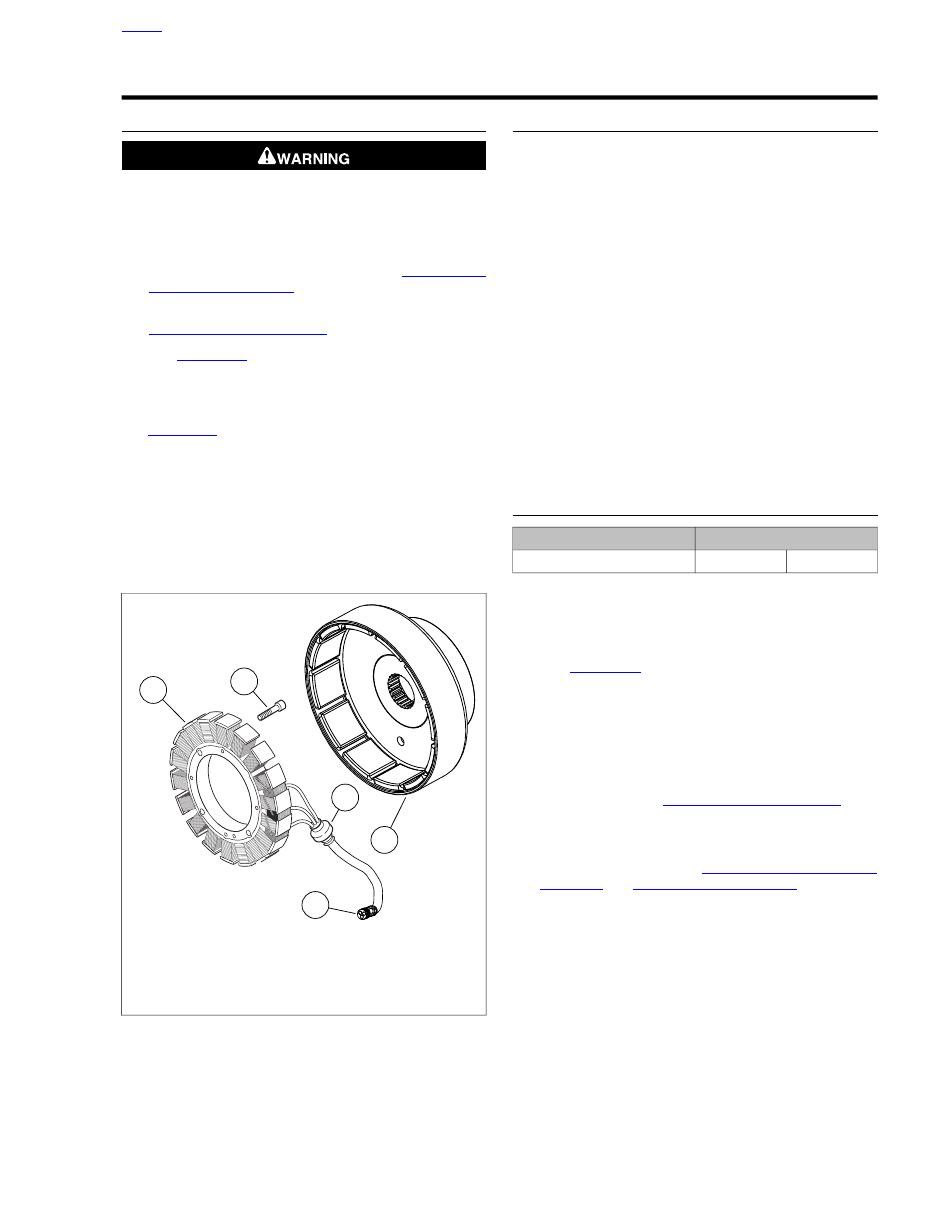

sm02552

1. Stator
2. TORX screw (4)
3. Grommet
4. Rotor
5. Connector [47B]

Figure 7-81. Rotor and Stator (Typical)

CLEANING AND INSPECTION

Remove debris from rotor magnets. Clean rotor by wiping
thoroughly with a clean cloth.

Check rotor for:

Loose or cracked magnets.

Stator bolt contact with rotor.

Spline damage to rotor center mounting bolt hole.

Clean stator, stator leads and grommet thoroughly with a
clean cloth.

Check stator for:

Contact with rotor.

Damaged or cracked insulation.

Electrical failures. See the electrical diagnostic
manual.

NOTE

Replace parts as necessary.

INSTALLATION

TORQUE VALUE

FASTENER

6.2-8.4 Nm

55-75

in-lbs

Stator screws

NOTE

Discard and replace stator Torx screws after each removal.

Insert wires through crankcase hole.

See

Figure 7-81

. Push rubber grommet (3) with wires

through crankcase hole. If necessary, apply the same
lubricant used during removal.

Install the stator (1) on the crankcase and fasten in place
using

new

TORX screws. Tighten to 55-75

in-lbs

(6.2-8.4

Nm).

Mate connector [47] (5) onto voltage regulator and engage
latch to secure. See

7.23 VOLTAGE REGULATOR

Install rotor (4) on the sprocket shaft.

Install primary chaincase housing, clutch, primary drive
and primary cover. See

5.5 PRIMARY CHAINCASE

HOUSING

and

5.4 DRIVE COMPONENTS

Connect negative battery cable.

HOME

2013 Softail Service: Electrical 7-55

7.25

FUEL GAUGE

GENERAL

•

See

Figure 7-82

. The fuel gauge is mounted in the left fuel

tank cap. Remove by gently pulling upward. Do not twist.

•

Three wires attach to the bottom of the gauge (1).

•

The fuel gauge sending unit is under the console in the
middle of the tank.

REMOVAL

Remove seat.

To prevent accidental vehicle start-up, which could cause
death or serious injury, remove main fuse before pro-
ceeding. (00251b)

Remove main fuse.

NOTE

The gauge wires are routed through a tube in the tank and are
secured at the bottom of the tank.

Stop the engine when refueling or servicing the fuel
system. Do not smoke or allow open flame or sparks near
gasoline. Gasoline is extremely flammable and highly
explosive, which could result in death or serious injury.
(00002a)

Remove fuel tank fasteners and slide tank back to reveal
fuel gauge connector [117]. See

4.6 FUEL TANK

See

Figure 7-83

. Disconnect fuel gauge connector [117]

(3) and remove terminals. See

B.1 CONNECTORS

Remove fuel gauge wiring from clamp at bottom of fuel
tank.

NOTE

Do not twist gauge and wiring during removal.

See

Figure 7-82

. Pull up on gauge (1). Remove gauge,

gasket (2) and wiring from fuel tank. Discard gasket.

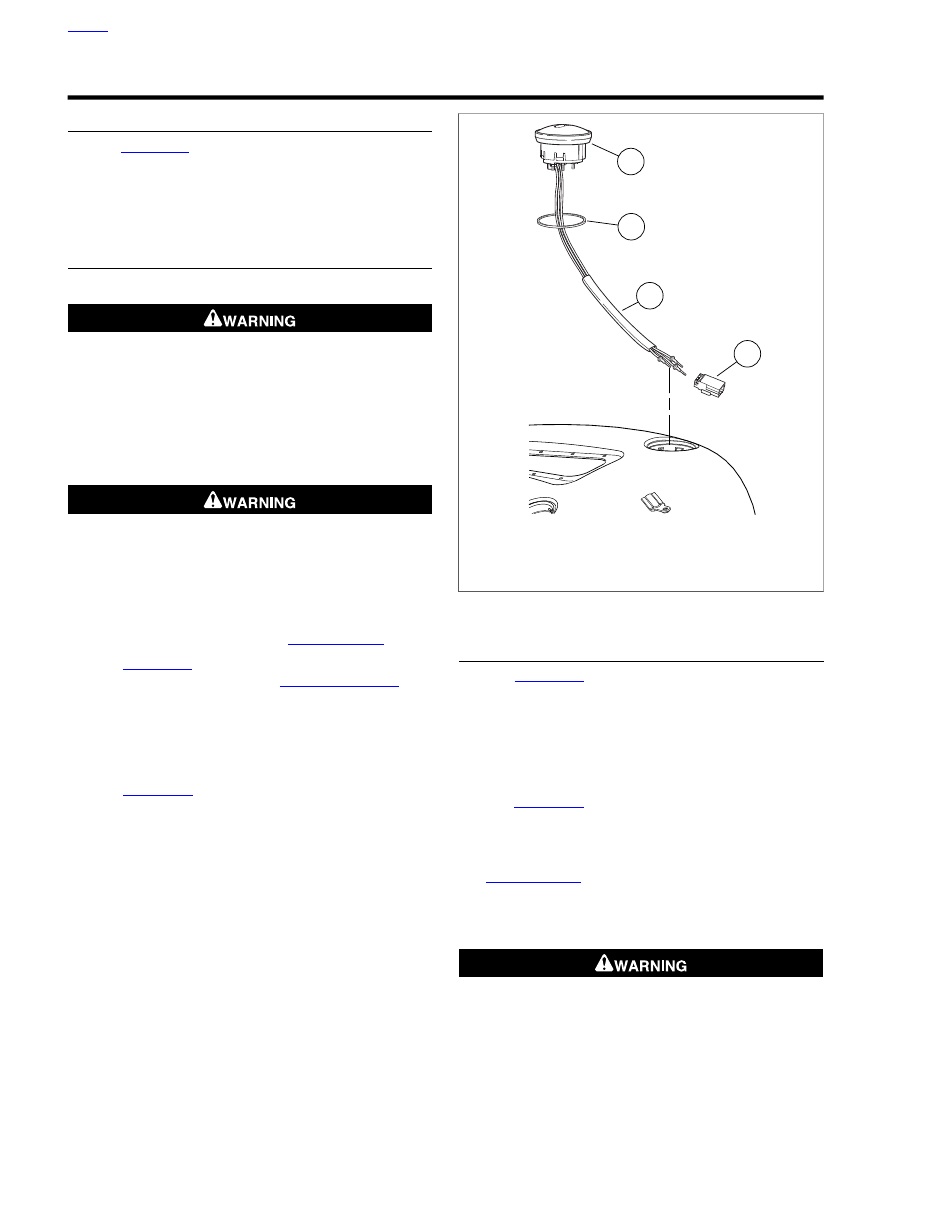

sm02726a

1. Gauge
2. Gasket
3. Wiring harness
4. Connector [117]

Figure 7-82. Fuel Gauge

INSTALLATION

See

Figure 7-82

. Install wiring harness (3) through

new

gasket (2).

Push wiring harness through tube in fuel tank.

While gently pulling on wiring harness, install gauge (1)
and gasket by carefully moving gauge back and forth while
pushing down at the same time.

See

Figure 7-83

. Install wiring into fuel gauge connector

[117] (3). Mate connector halves and secure connector
into clip as shown.

Slide fuel tank into position and install fasteners. See

4.6 FUEL TANK

Secure wire to clip at bottom of fuel tank.

Install main fuse.

After installing seat, pull upward on seat to be sure it is
locked in position. While riding, a loose seat can shift
causing loss of control, which could result in death or
serious injury. (00070b)

Install seat.

HOME

7-56 2013 Softail Service: Electrical

NOTE

The low fuel lamp will not turn off until there is sufficient fuel in
the tank, the ignition switch has been turned off and back on,
and the vehicle has begun forward speed.

sm07179a

1. Instruments [20]
2. Left hand control [24]
3. Fuel gauge [117]
4. Front wheel speed sensor [167]
5. Headlamp [38]
6. Front fender tip lamp [32]: FLSTC

Figure 7-83. Under Fuel Tank Left Side

HOME

2013 Softail Service: Electrical 7-57

7.26

SPEEDOMETER

GENERAL

•

Both the ECM and the speedometer retain the odometer
value. If the speedometer is replaced, the new speedo-
meter will display the odometer value stored in the ECM.
The new speedometer will lock to the mileage stored in
the ECM after 31.1 mi (50 km) have been accumulated.
The trip B odometer will display the countdown mileage.

•

If the speedometer is installed on another vehicle after it
has locked to the ECM, the odometer will display "VIN
ERR" on the new vehicle. If the speedometer is removed
from the vehicle before the countdown reaches zero, it
will reset the mileage countdown to 31.1 mi (50 km). This
mileage countdown allows for a road test to verify that
speedometer replacement was the proper repair.

REMOVAL: ALL BUT FXS/B

See

Figure 7-84

. Remove nut and washer (4) and lift

console (5) from fuel tank.

Position clean shop rags on fuel tank and flip console over
to expose underside.

Press on connector tab and disconnect connector [39] (2)
from speedometer under console.

See

Figure 7-85

. Pry between three tabs and speedometer

with a screwdriver to raise and release back clamp from
speedometer. Remove back clamp from speedometer.

See

Figure 7-84

. Remove speedometer from console.

Remove gasket (3) from speedometer.

INSTALLATION: ALL BUT FXS/B

TORQUE VALUE

FASTENER

9.5-14.9 Nm

84-132

in-lbs

Speedometer console nut: all
but FXS/B

See

Figure 7-84

. Install gasket (3) to speedometer.

Position speedometer in console (5).

See

Figure 7-85

. Press on back clamp (3) until three tabs

engage on back of speedometer.

See

Figure 7-84

. Connect connector [39] (2) to speedo-

meter under console.

Remove shop rags. Attach console to fuel tank with nut
and washer (4). Tighten to 84-132

in-lbs

(9.5-14.9 Nm).

Test speedometer for proper operation.

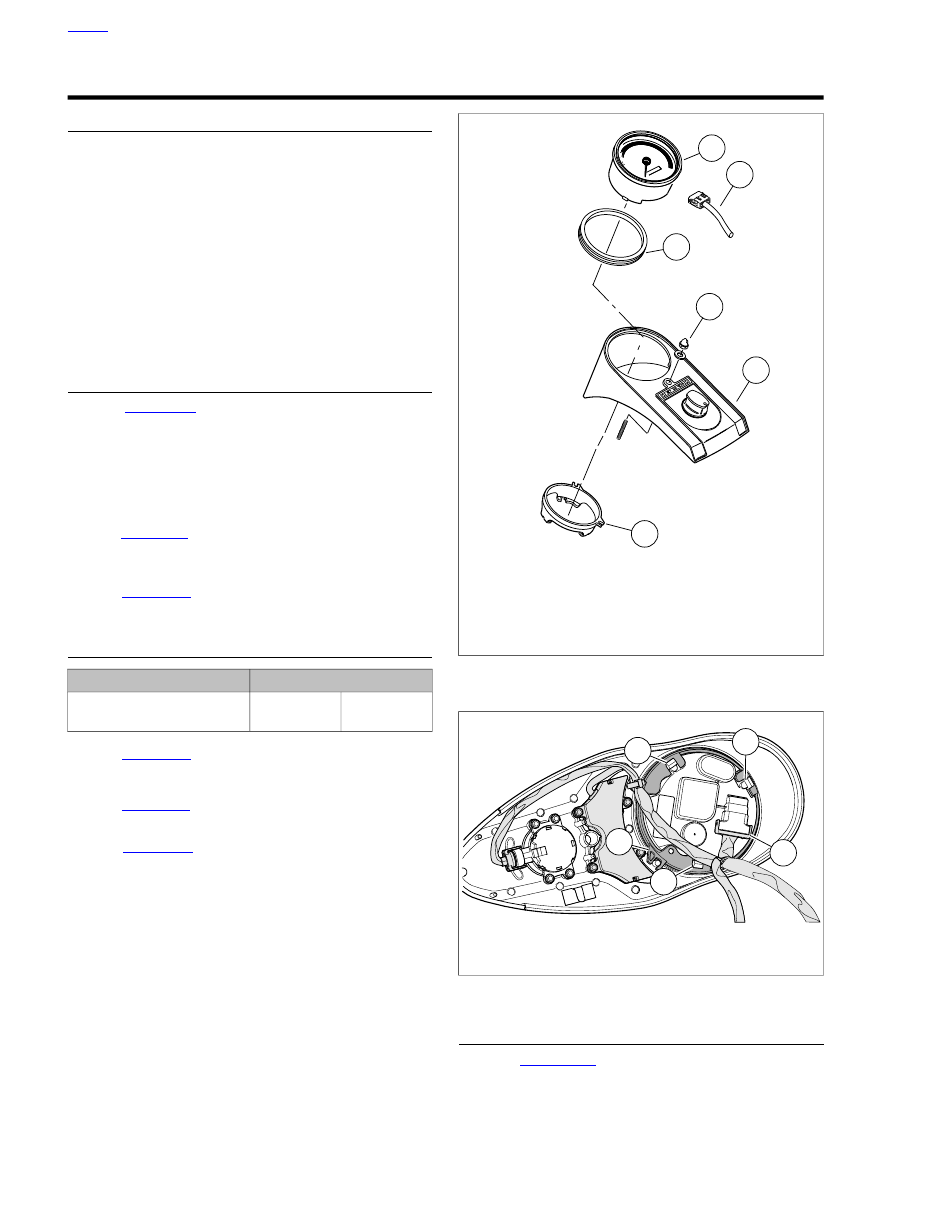

sm02729a

1. Speedometer
2. Connector [39]
3. Gasket
4. Nut and washer
5. Console
6. Back clamp

Figure 7-84. Speedometer: All But FXS/B (Typical)

sm02730b

1. Tabs (3)
2. Connector [39]
3. Back clamp

Figure 7-85. Connector [39] (Typical)

REMOVAL: FXS

See

Figure 7-86

. Remove fasteners (12) securing

speedometer housing (5) to upper fork bracket (9).

HOME

7-58 2013 Softail Service: Electrical

Remove speedometer fasteners (7). Remove speedometer
from housing (5).

Disconnect speedometer connector [39] (6).

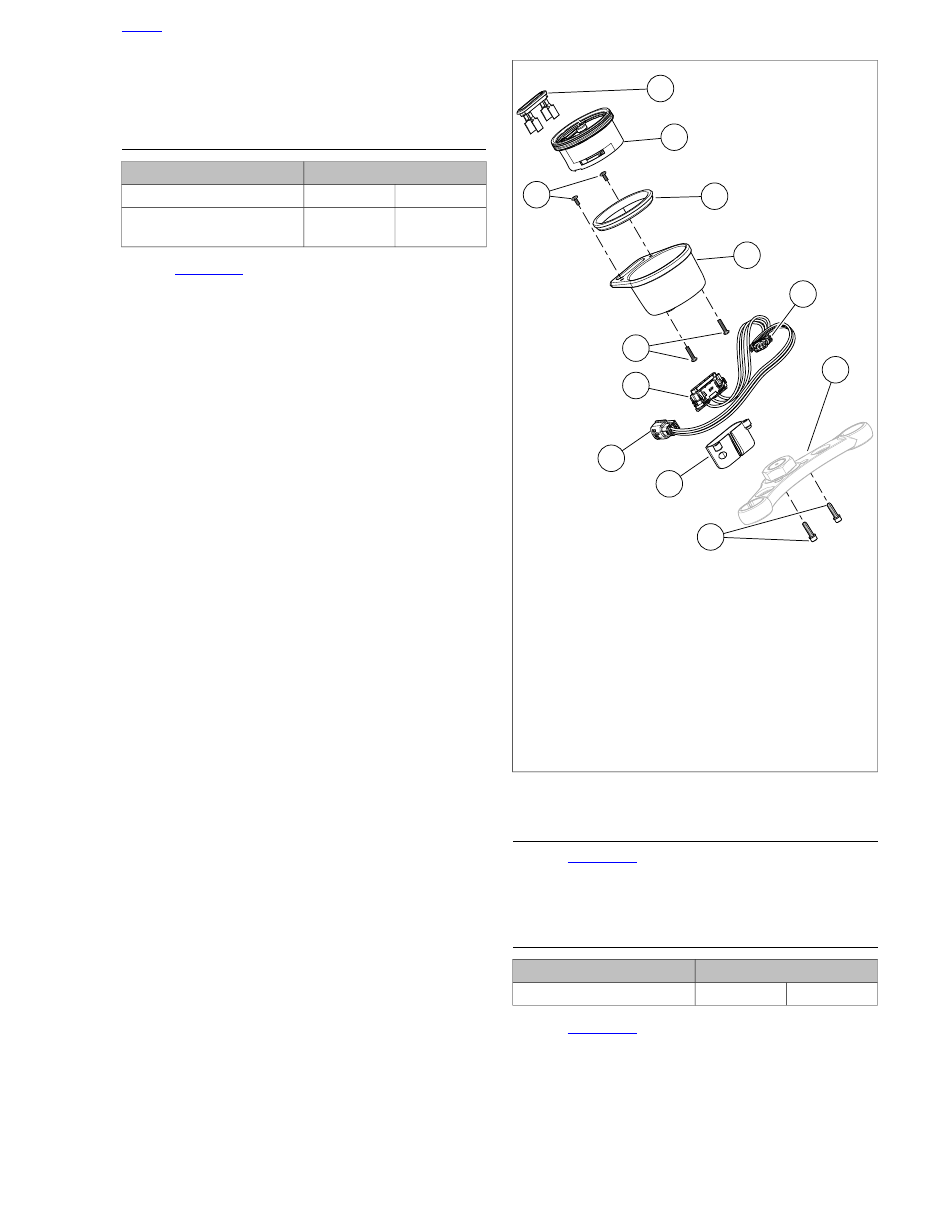

INSTALLATION: FXS

TORQUE VALUE

FASTENER

1.4-2.0 Nm

12-18

in-lbs

Speedometer fasteners, FXS

8.1-13.6 Nm

72-120

in-lbs

Speedometer housing
fasteners, FXS

See

Figure 7-86

. Inspect gasket (4). Replace if necessary.

Install gasket to speedometer (2).

Connect speedometer connector [39] (6).

Position speedometer in housing (5).

Install speedometer fasteners and tighten to 12-18

in-lbs

(1.4-2.0 Nm).

Place housing in position over upper fork bracket (9).

Install housing fasteners (12). Tighten fasteners to 72-120

in-lbs

(8.1-13.6 Nm).

Test speedometer for proper operation.

sm07180

1. Indicator lamp bezel
2. Speedometer
3. Indicator lamp cover fasteners
4. Gasket
5. Housing
6. Speedometer connector [39]
7. Speedometer fasteners
8. Indicator lamps
9. Upper fork bracket
10. Instrument connector [20]
11. Indicator lamp cover
12. Housing fasteners

Figure 7-86. Speedometer: FXS

REMOVAL: FXSB

See

Figure 7-87

. Remove fasteners (3).

Disconnect speedometer wire connector.

Remove speedometer.

INSTALLATION: FXSB

TORQUE VALUE

FASTENER

1.4-1.9 Nm

12-17
