Spray all machined surfaces with clean engine oil.

10. Inspect crankshaft/flywheel assembly. See

3.27 FLY-

WHEEL AND CONNECTING RODS

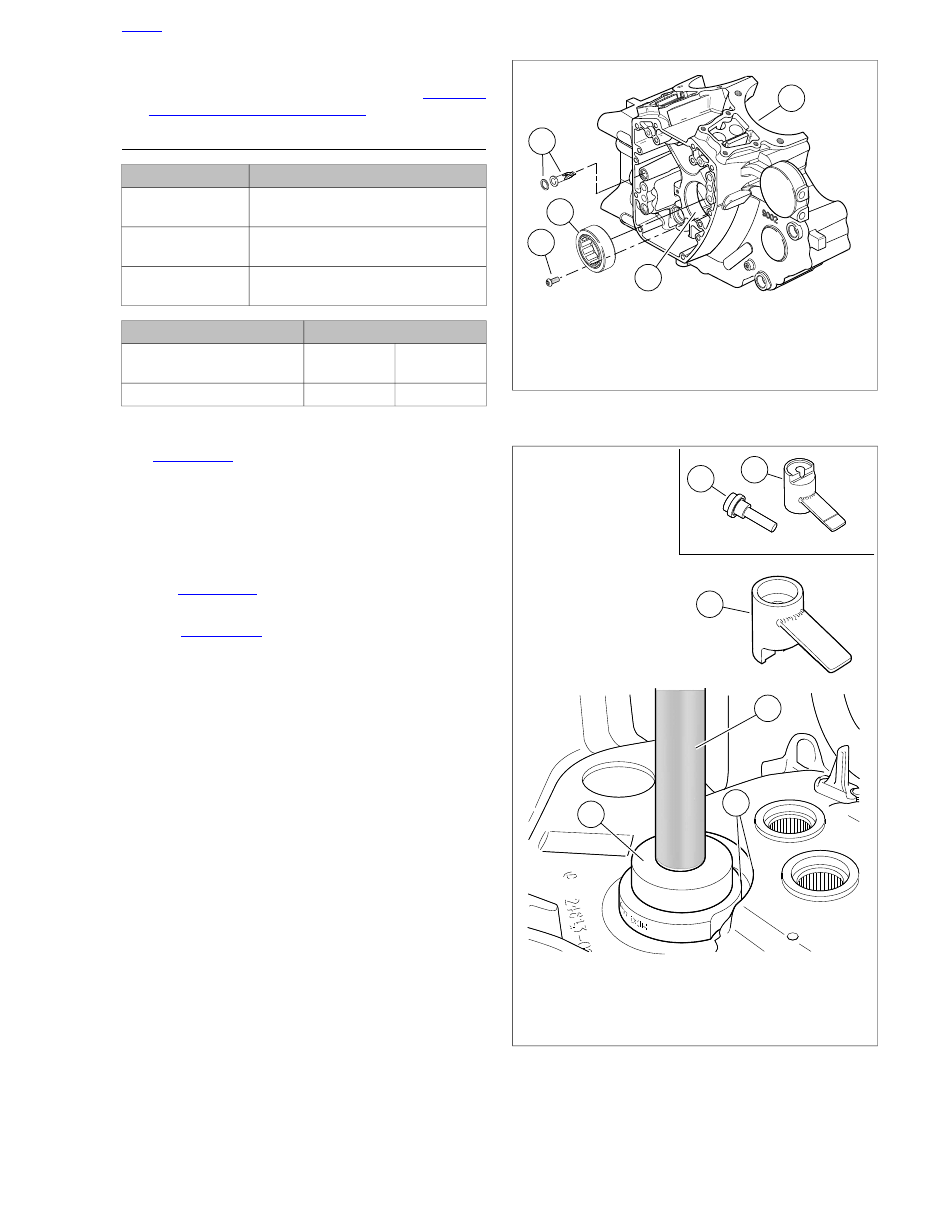

RIGHT CRANKCASE HALF

TOOL NAME

PART NUMBER

CRANKSHAFT (ROLLER) BEARING
DRIVER SHIM

HD-42720-4

CRANKSHAFT (ROLLER) BEARING
REMOVAL/INSTALL PILOT/DRIVER

HD-44065-1

CRANKSHAFT (ROLLER) BEARING
REMOVAL/INSTALL SUPPORT TUBE

HD-44065-4

TORQUE VALUE

FASTENER

4.5-7.9 Nm

40-70

in-lbs

Right main bearing retaining
screws

2.8-3.9 Nm

25-35

in-lbs

Piston jet screw

Chain Guide Screen

See

Figure 3-131

. Remove, clean and install screen (3).

Replace screen O-ring with each removal.

Main Bearing Removal

NOTE

Never move or lift the crankcase by grasping the cylinder studs.
The crankcase is too heavy to be carried in this manner.

See

Figure 3-131

. Remove two main bearing retaining

screws (5) from the cam compartment side.

See

Figure 3-132

. Obtain CRANKSHAFT (ROLLER)

BEARING REMOVAL/INSTALL PILOT/DRIVER (Part
No.

HD-44065-1)

and

CRANKSHAFT

(ROLLER)

BEARING REMOVAL/INSTALL SUPPORT TUBE (Part
No. HD-44065-4).

Place support tube (2) on press table with the REMOVAL
end up. Note that the support tube is stamped to provide
proper orientation.

With the cam compartment facing downward, position
crankshaft bearing bore over support tube. Verify the
curved edges on pilot/driver (1) match the curved edges
of crankcase (4) or damage will result.

Slide pilot/driver (1) through bearing into support tube.

Center pilot/driver under ram (3) of press. Apply pressure
to pilot/driver until bearing is free.

Remove crankcase, pilot/driver and bearing from support
tube. Discard bearing.

sm02815

1. Crankshaft (roller) bearing
2. Right crankcase half
3. Chain guide screen and O-ring
4. Crankshaft bearing bore
5. Screw (2)

Figure 3-131. Right Main Bearing

sm02816

1. Pilot/driver
2. Support tube
3. Ram
4. Curved edges
5. Support tube REMOVAL end up

Figure 3-132. Right Main Bearing Removal

HOME

2013 Softail Service: Engine 3-87

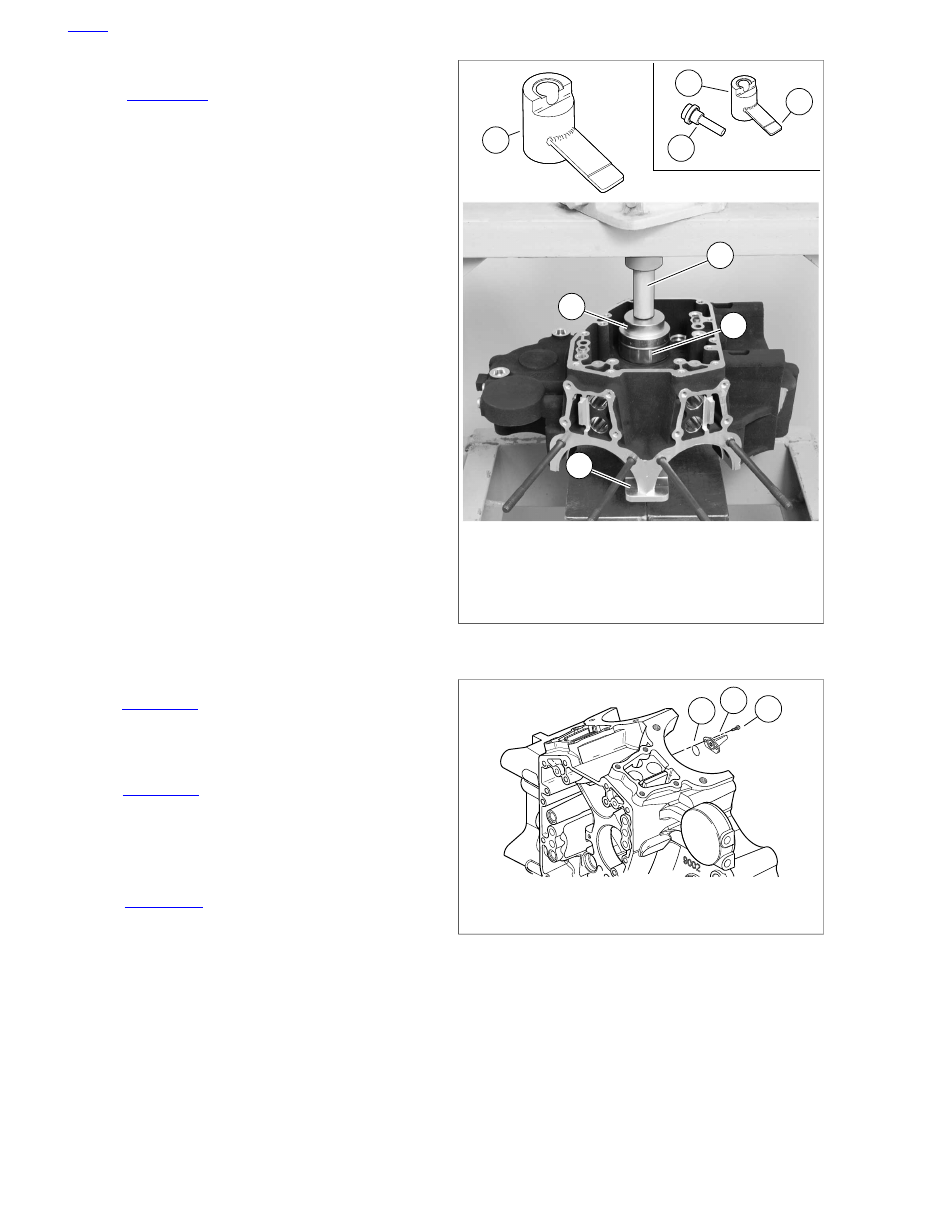

Main Bearing Installation

See

Figure 3-133

. Obtain CRANKSHAFT (ROLLER)

BEARING REMOVAL/INSTALL PILOT/DRIVER (Part
No. HD-44065-1), CRANKSHAFT (ROLLER) BEARING
DRIVER SHIM (Part No. HD-42720-4) and CRANKSHAFT
(ROLLER) BEARING REMOVAL/INSTALL SUPPORT
TUBE (Part No. HD-44065-4).

Spread a thin film of clean H-D 20W50 engine oil on O.D.
of

new

bearing (4).

Place support tube (2) on press table with the INSTALL
end up. The support tube is stamped to provide proper
orientation.

Place SHIM (Part No. HD-42720-4) on support tube (2).

With cam compartment side facing upward, position
crankshaft bearing bore over support tube. Lip on support
tube (5) must contact edge of crankcase as shown. This
allows curved portion of inboard crankcase to contact top
curved portion of support tube (2).

Start the

new

bearing in bearing bore with the lettering

facing into the cam compartment (up).

Slide pilot/driver (1) through bearing into support tube.

Center pilot/driver under ram (3) of press. Apply pressure
to pilot/driver until resistance is felt and bearing is bot-
tomed on the support tube.

Remove pilot/driver and crankcase half from support tube.

NOTES

•

Verify that the bearing is flush or slightly below the surface
of the crankcase. Never "pull" the bearing into position
using the retaining screws.

•

If new bearing fastener is not available, apply LOCTITE
243 MEDIUM STRENGTH THREADLOCKER AND
SEALANT (blue) before installation.

10. See

Figure 3-131

. Install two

new

main bearing retaining

screws (5) from the cam compartment side. Tighten screws
to 40-70

in-lbs

(4.5-7.9 Nm).

Piston Jets Removal

See

Figure 3-134

. Remove two screws (1) to free piston

jet (2) from crankcase.

Remove O-ring (3) from groove in mounting flange of jet.
Discard O-ring.

Piston Jets Installation

See

Figure 3-134

. Apply a very thin film of clean H-D

20W50 engine oil to

new

O-ring (3) for piston jet. Install

new

O-ring in groove of jet mounting flange.

With jet pointed upward, start two screws (1) to secure
piston jet (2) to crankcase. Tighten to 25-35

in-lbs

(2.8-

3.9 Nm).

NOTE

If piston jet is being reused, apply LOCTITE 222 LOW
STRENGTH THREADLOCKER AND SEALANT (purple) to
threads of screws before installation.

sm02817

1. Pilot/driver
2. Support tube
3. Ram
4. Crankshaft (roller) bearing
5. Support tube lip
6. Support tube INSTALL end up

Figure 3-133. Right Crankshaft (Roller) Bearing Installation

sm02818

1. Screw (4)
2. Piston jet (2)
3. O-ring (2)

Figure 3-134. Piston Jets

HOME

3-88 2013 Softail Service: Engine

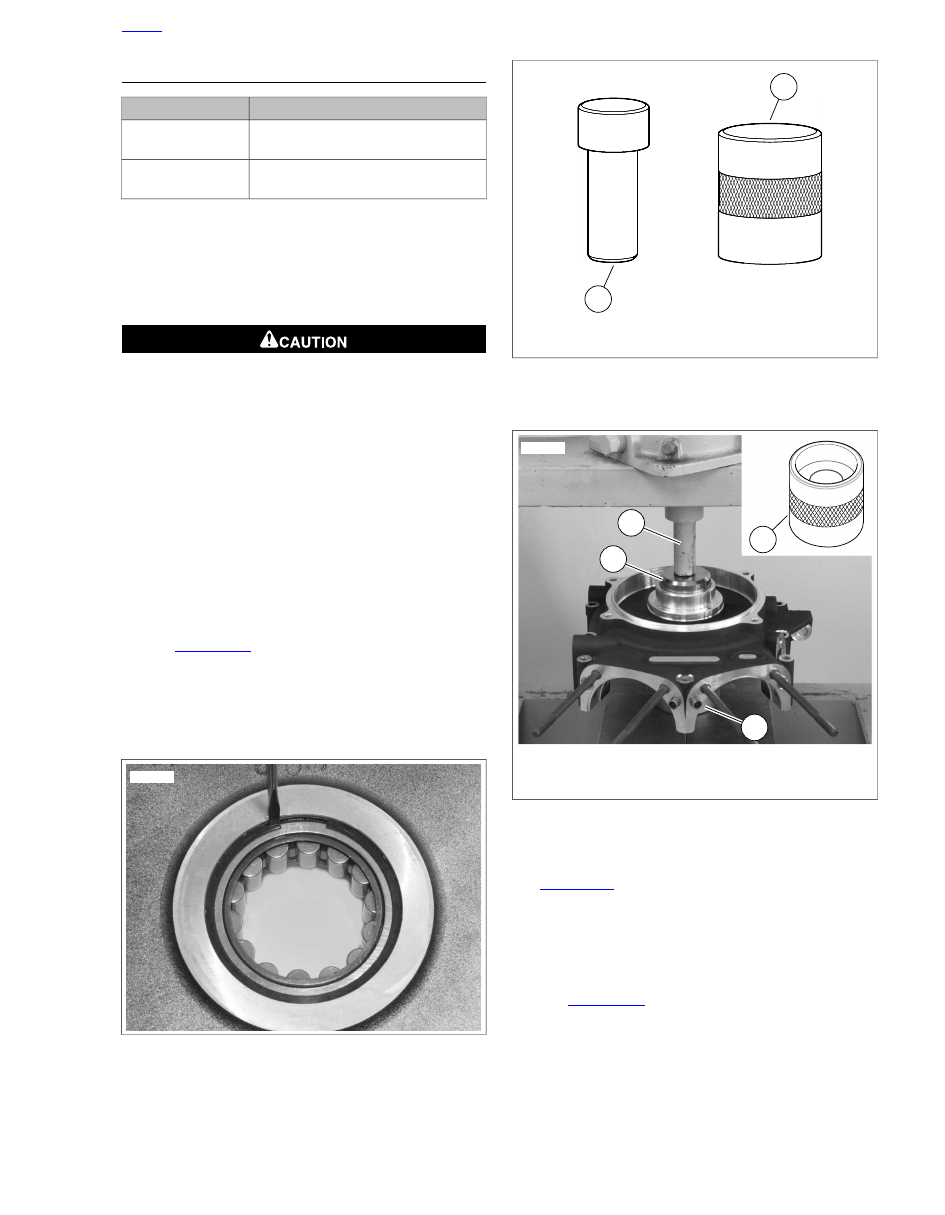

LEFT CRANKCASE HALF

TOOL NAME

PART NUMBER

CRANKCASE BEARING
REMOVER/INSTALLER

B-45655

CRANKCASE BEARING
REMOVER/INSTALLER BASE

HD-42720-5

Main Bearing Removal

NOTE

Never move or lift the crankcase by grasping the cylinder studs.
The crankcase is too heavy to be carried in this manner and
may be dropped.

Do not rotate left crankcase half in engine stand such that
flywheel sprocket shaft is facing up. The flywheel assembly
can fall out, resulting in parts damage or moderate injury.
(00552b)

Hold flywheel assembly to prevent it from falling out of left
crankcase half. Rotate bottom end assembly in engine
stand so assembly is upright and flywheel shafts are
horizontal.

Carefully slide flywheel assembly out of left crankcase and
place it in a clean safe place.

Remove thrust washer from outboard side of crankcase
half by pulling it past oil seal. Set thrust washer aside for
inspection or reuse.

Remove oil seal from crankcase bore. Discard oil seal.

See

Figure 3-135

. Using a flat blade screwdriver, carefully

lift edge of bearing retaining ring up out of its groove in
crankcase.

Slide screwdriver tip around edge of bearing, lifting
retaining ring up and out of groove. Do not damage lip of
groove in crankcase.

sm02523

Figure 3-135. Removing Retaining Ring

sm02307

1. Support tube
2. Pilot/driver

Figure 3-136. Left Main Bearing Remover and Installer

Tools

sm02524

1. Ram
2. Pilot/driver
3. Support tube ("A" end up)

Figure 3-137. Left Main Bearing Removal

NOTE

See

Figure 3-136

. If the ram of the press is wider than the head

of pilot/driver (2), a suitable press plug will be needed in order
to remove the main bearing.

Obtain CRANKCASE BEARING REMOVER/INSTALLER
(Part

No.

B-45655)

and

CRANKCASE

BEARING

REMOVER/INSTALLER BASE (Part No. HD-42720-5).

See

Figure 3-137

. Place support tube (3) on press table

with "A" end up. Note that support tube is stamped "A"
and "B" to provide proper orientation.

With the outboard side of the left crankcase half facing
upward, position main bearing bore over support tube.

HOME

2013 Softail Service: Engine 3-89

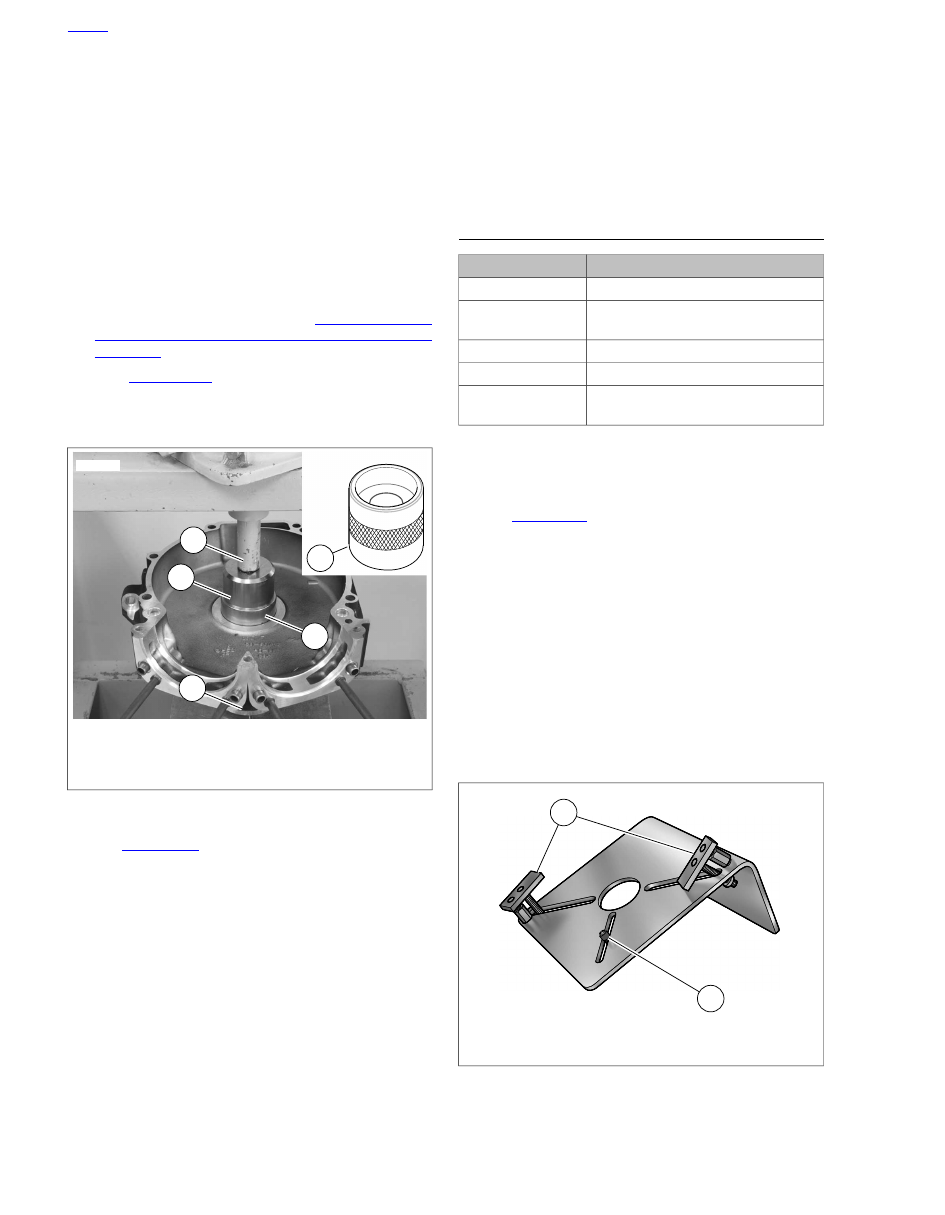

10. Slide pilot/driver (2) through the main bearing into support

tube (3).

11. Center pilot/driver under ram (1) of press. Apply pressure

to pilot/driver until bearing is free.

12. Remove crankcase half, pilot/driver and bearing from

support tube. Discard bearing.

Main Bearing Installation

NOTES

•

Never move or lift the crankcase by grasping the cylinder
studs. The crankcase is too heavy to be carried in this
manner and may be dropped.

•

Always replace sprocket shaft bearing inner race whenever
left main bearing is replaced. See

3.26 CRANKCASE

DISASSEMBLY AND REPAIR, Sprocket Shaft Bearing
Inner Race

See

Figure 3-136

. Obtain CRANKCASE BEARING

REMOVER/INSTALLER

(Part

No.

B-45655)

and

CRANKCASE BEARING REMOVER/INSTALLER BASE
(Part No. HD-42720-5).

sm02525

1. Ram
2. Pilot/driver
3. Support tube ("A" end up)
4. Main bearing

Figure 3-138. Left Main Bearing Installation

See

Figure 3-138

. Place a thin film of clean engine oil on

outer diameter of

new

main bearing (4).

Place support tube (3) on hydraulic press table with the
"A" end up.

With the inboard side of the left crankcase half facing
upward, position main bearing bore over support tube.

Start

new

main bearing in bearing bore, letter side down.

Slide pilot/driver (2) through bearing into support tube.

Apply pressure to pilot/driver until bearing is lightly bot-
tomed in main bearing bore.

Remove crankcase half and pilot/driver from support tube.

Install

new

retaining ring in bearing bore groove, being

careful not to damage edges of groove. Make sure
retaining ring is fully seated in groove.

NOTE

If retaining ring will not fit into groove, the bearing may not be
fully seated in the bore. Inspect bearing and bore. If necessary,
remove bearing, clean bore and install bearing. Then install
retaining ring.

SPROCKET SHAFT BEARING INNER RACE

TOOL NAME

PART NUMBER

ROBINAIR HEAT GUN

HD-25070

MAINSHAFT BEARING INNER RACE
PULLER/INSTALLER

HD-34902-B

FLYWHEEL SUPPORT FIXTURE

HD-44358

WEDGE ATTACHMENT

HD-95637-46B

SPROCKET SHAFT BEARING
INSTALLER

HD-97225-55C

Removal

If reusing flywheel, remove bearing inner race and thrust
washer as follows:

See

Figure 3-139

. Install brass jaws or shop towels around

teeth of vise to prevent damage to tool. Obtain FLYWHEEL
SUPPORT FIXTURE (Part No. HD-44358). Clamp tool in
vise with the round hole topside.

Insert crankshaft end through hole resting flywheel
assembly on fixture. Slide knurled locating pin down slot
in tool to engage crank pin hole. Hand tighten locating pin.

Slide hold-down clamp down slot to engage inboard side
of right flywheel half, and then hand tighten knurled nut at
bottom to secure. Repeat step to secure hold-down clamp
on opposite side of flywheel.

NOTE

For proper clamping force, hold-down clamp must not be tilted.
Rotate hex on outboard stud until clamp is level.

sm03852

1. Locating pin
2. Hold-down clamp

Figure 3-139. Flywheel Holding Fixture

HOME

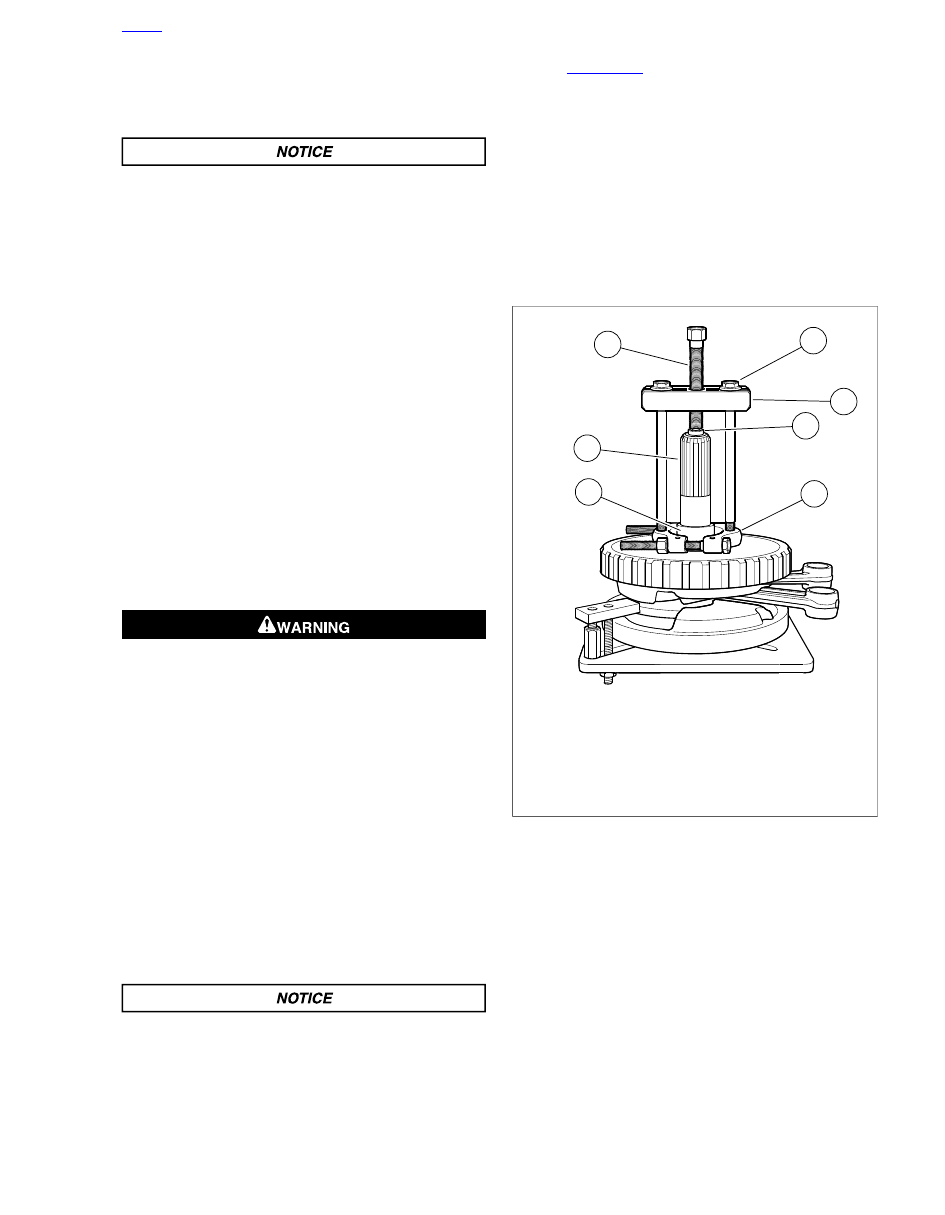

3-90 2013 Softail Service: Engine

Position WEDGE ATTACHMENT (Part No. HD-95637-
46B) on inboard side of thrust washer and turn hex nuts
an equal number of turns to draw halves of wedge
together.

Install wedge attachment only so far as necessary to
ensure positive contact with bearing inner race. Installing
tool with more contact than necessary will result in damage
to the flywheel (00500b)

Obtain two 3/8-16 inch bolts 7-1/2 inches long (with flat
washers). Install flat washers on bolts. Obtain bridge and
forcing screw from MAINSHAFT BEARING INNER RACE
PULLER/INSTALLER (Part No. HD-34902-B). Also obtain
a suitable hardened washer to use between the puller
screw and the end of the shaft.

Slide one bolt into channel on each side of bridge so that
flat washer is between bridge and bolt head. Thread bolts
into wedge attachment an equal number of turns.

Sparingly apply graphite lubricant to threads of forcing
screw to prolong service life and verify smooth operation.
Start forcing screw into center hole of bridge.

NOTE

Failure to use hardened washer may result in damage to forcing
screw and/or sprocket shaft.

Place hardened washer against end of sprocket shaft.
Thread forcing screw into bridge until the steel ball at the
end of the screw makes firm contact with hardened
washer.

Do not use heating devices with penetrating oil. Penet-
rating oil is flammable which could result in death or ser-
ious injury. (00375a)

Using the ROBINAIR HEAT GUN (Part No. HD-25070),
uniformly heat the bearing inner race for about 30 seconds
using a circular motion.

NOTE

To assist removal without heat, apply a light penetrating oil to
shaft and leading edge of bearing inner race.

10. Turn forcing screw until thrust washer and bearing inner

race move approximately 1/8 in. (3.2 mm).

11. Turn hex nuts an equal number of turns to separate halves

of WEDGE ATTACHMENT (Part No. HD-95637-46B).

12. After bottoming thrust washer on shaft, reposition WEDGE

ATTACHMENT (Part No. HD-95637-46B) on inboard side
of bearing inner race. Turn hex nuts an equal number of
turns to draw halves of wedge together.

Install wedge attachment only so far as necessary to
ensure positive contact with bearing inner race. Installing
tool with more contact than necessary will result in damage
to the flywheel (00500b)

13. See

Figure 3-140

. Verify that the tool assembly is square,

so that the bearing inner race is not cocked during
removal.

14. Using the ROBINAIR HEAT GUN (Part No. HD-25070),

uniformly heat the bearing inner race for about 30 seconds
using a circular motion.

NOTE

To assist removal without heat, apply a light penetrating oil to
shaft and leading edge of bearing inner race.

15. Turn forcing screw until bearing inner race is pulled free

of sprocket shaft.

16. Remove thrust washer from sprocket shaft.

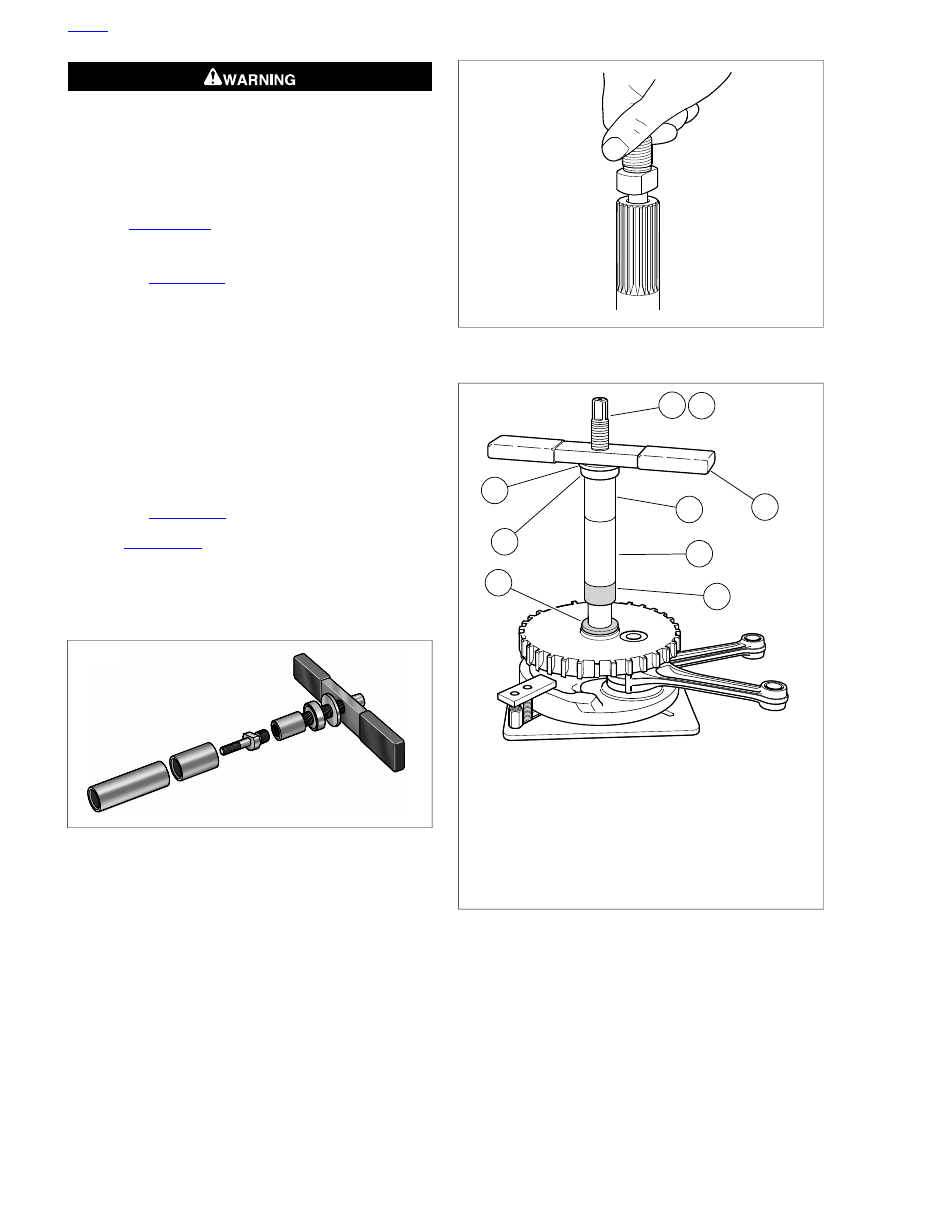

sm03853

1. Forcing screw
2. 3/8-16 in. bolt with flat washer
3. Bridge
4. Hardened washer
5. Wedge attachment
6. Bearing inner race
7. Sprocket shaft

Figure 3-140. Remove Inner Race from Sprocket Shaft

Installation

Place

new

thrust washer over sprocket shaft.

Place

new

bearing inner race on bench top. Using the

ROBINAIR HEAT GUN (Part No. HD-25070), uniformly
heat bearing inner race for about 60 seconds using a cir-
cular motion.

Wearing suitable gloves to protect hands from burns, place
heated bearing inner race over sprocket shaft.

HOME

2013 Softail Service: Engine 3-91

Do not use heating devices with penetrating oil. Penet-
rating oil is flammable which could result in death or ser-
ious injury. (00375a)

NOTE

To assist installation without heat, apply a light penetrating oil
to shaft and leading edge of bearing inner race.

See

Figure 3-141

. Obtain the SPROCKET SHAFT

BEARING

INSTALLER

(Part

No.

HD-97225-55C).

Assemble tool as described below.

See

Figure 3-142

. Thread pilot adapter into sprocket

shaft.

Thread pilot shaft onto pilot adapter.

Slide long collar over pilot shaft until it contacts
bearing inner race.

Slide short collar over pilot shaft until it contacts long
collar.

Slide bearing and large flat washer over pilot shaft.

Sparingly apply graphite lubricant to threads of pilot
shaft to prolong service life and verify smooth opera-
tion.

See

Figure 3-143

. Thread handle onto pilot shaft.

See

Figure 3-144

. Rotate handle of tool clockwise until

bearing inner race makes firm contact with thrust washer.
Verify that thrust washer cannot be rotated by hand.

Remove handle, flat washer, bearing, short collar, long
collar, pilot shaft and pilot adapter from sprocket shaft.

sm03854

Figure 3-141. Sprocket Shaft Bearing Installer

sm03855

Figure 3-142. Thread Pilot Adapter into Sprocket Shaft

sm03856

1. Pilot adapter
2. Pilot shaft
3. Handle
4. Flat washer
5. Bearing
6. Short collar
7. Long collar
8. Inner race
9. Thrust washer

Figure 3-143. Press Inner Race onto Sprocket Shaft: Setup

HOME

3-92 2013 Softail Service: Engine

sm03857

Figure 3-144. Press Inner Race onto Sprocket Shaft:

Operation

CYLINDER STUDS

TORQUE VALUE

FASTENER

13.6-27.1 Nm

120-240

in-lbs

Cylinder stud

Removal

Thread a nut onto cylinder stud.

Thread a second nut onto stud until it contacts the first.

Placing wrench on first nut installed, remove stud.

Installation

Place a steel ball inside a head screw. Put the head screw
on the end of the cylinder stud without the collar.

Start the stud in the cylinder deck with the collar side down.
Tighten using air gun until collar reaches crankcase.

Hand tighten stud to 120-240

in-lbs

(13.6-27.1 Nm).

PIPE PLUGS AND OIL FITTINGS

TORQUE VALUE

FASTENER

13.6-19.0 Nm

120-168

in-lbs

Crankcase oil fittings

13.6-16.3 Nm

120-144

in-lbs

Crankcase pipe plugs

Removal/Installation

NOTE

See

3.30 OIL TANK: ALL BUT FXSB

for information on repla-

cing O-rings and retainers within oil tank fittings.

See

Figure 3-146

. Remove parts.

Turn hex on oil fittings (1, 2, 3) counterclockwise until
free.

Turn pipe plugs (4, 5) counterclockwise until free.

Apply LOCTITE 565 THREAD SEALANT to fitting threads.

See

Figure 3-146

. Install parts.

Turn hex on oil fittings (1, 2, 3) clockwise until snug.
Tighten to oil fittings to 120-168

in-lbs

(13.6-19.0

Nm).

Install pipe plugs (4, 5). Tighten to 120-144

in-lbs

(13.6-16.3 Nm).

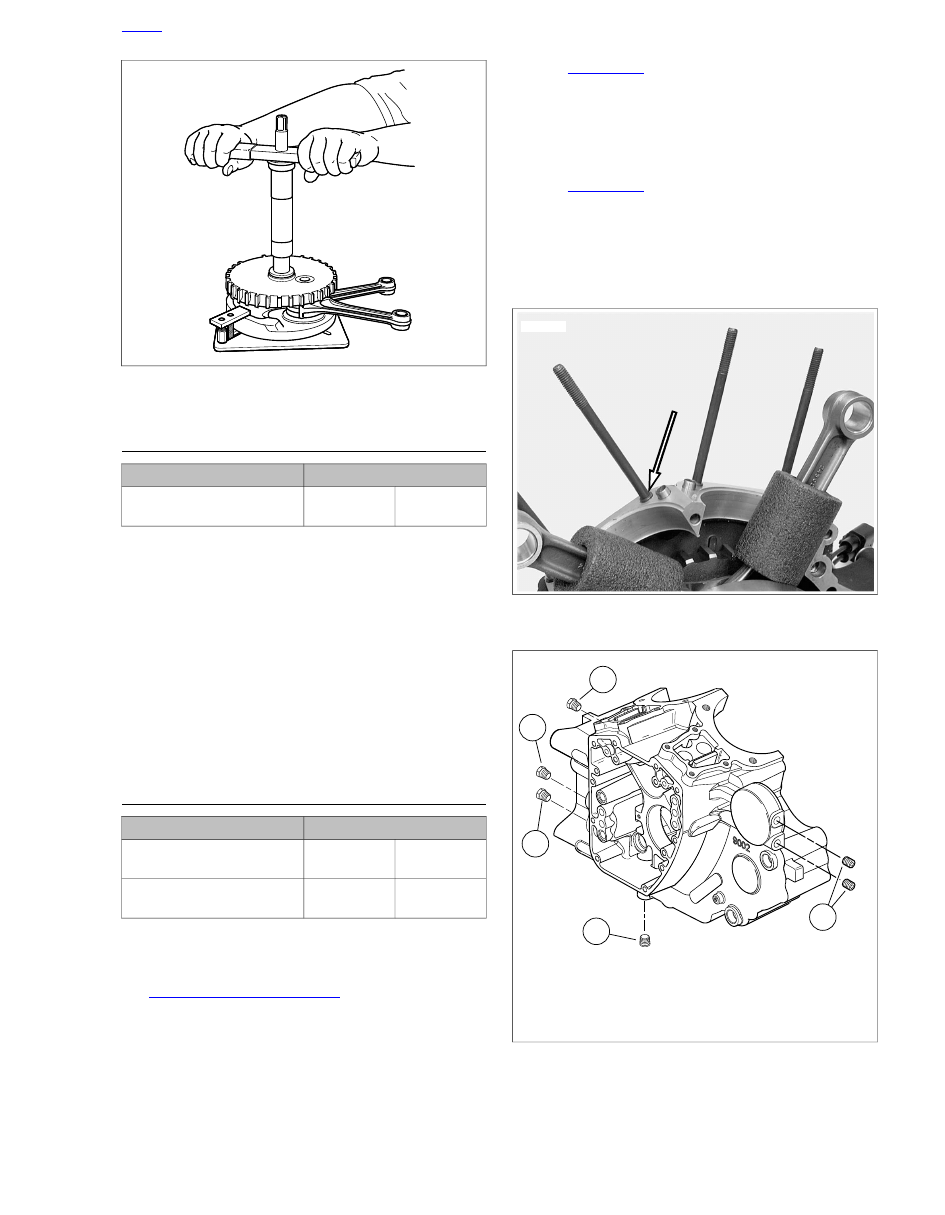

sm02823

Figure 3-145. Collar Side Down

sm02824

1. Oil return fitting
2. Oil feed fitting
3. Oil vent fitting
4. Pipe plug
5. Pipe plugs (2)

Figure 3-146. Oil Fittings and Pipe Plugs

HOME

2013 Softail Service: Engine 3-93

3.27

FLYWHEEL AND CONNECTING RODS

GENERAL

Symptoms

Flywheels that shift out of true at the crank pin generally exhibit
one of two symptoms: no oil pressure or vibration. This condi-
tion is also known as scissored flywheels.

No Oil Pressure

When the right side crankshaft shifts more than 0.015 in (0.381
mm), it can break the oil pump gerotors, resulting in a loss of
oil pressure.

If a very low or no oil pressure condition is confirmed, inspect
the oil pump and cam support plate. If the oil pump gerotors
are bound or damaged, the cause is likely from a contaminant
running through the pump or a shifted crankshaft. If this type
of damage is found, always replace the oil lines and clean all
debris

from

the

oil

pan

oil

tank.

See

1.24 TROUBLESHOOTING

for general diagnostics of low oil

pressure.

Vibration

Generally, left crankshaft runout must exceed 0.020 in. (0.508
mm) to be noticeable to the rider. It is much more likely that
vibration issues will be resolved by following the checklist in

1.24 TROUBLESHOOTING

If correct chassis set-up has been verified and other items in

1.24 TROUBLESHOOTING

have been eliminated, checking

left crankshaft runout is appropriate.

INSPECTION

NOTE

Do not attempt to straighten connecting rods. Straightening
rods will damage both the upper bushing and lower bearing.

Replace the flywheel/connecting rod assembly if any of
the following conditions are noted:

Connecting rods are bent or twisted.

Connecting rods do not fall under their own weight or
are in a bind.

Sprocket teeth are worn in an irregular pattern or
chipped.

The crankshaft (roller) bearing inner races are
brinelled, burnt, scored, blued or damaged.

The crankshaft runout exceeds specification.

NOTE

Bluing on connecting rods is part of the hardening process and
is considered a normal condition.

Check connecting rod bearing clearance. Orient the
assembly as shown in

Figure 3-147

Holding the shank of each rod just above the bearing
bore, pull up and down on the connecting rods.

Any discernible up and down movement indicates
excessive lower bearing clearance. Replace the fly-
wheel/connecting rod assembly.

Measure crankshaft runout if the crankshaft is suspected
of being out-of-true.

NOTE

If the flywheel, connecting rods or right side bearing inner race
need to be replaced, then replace the entire flywheel assembly.

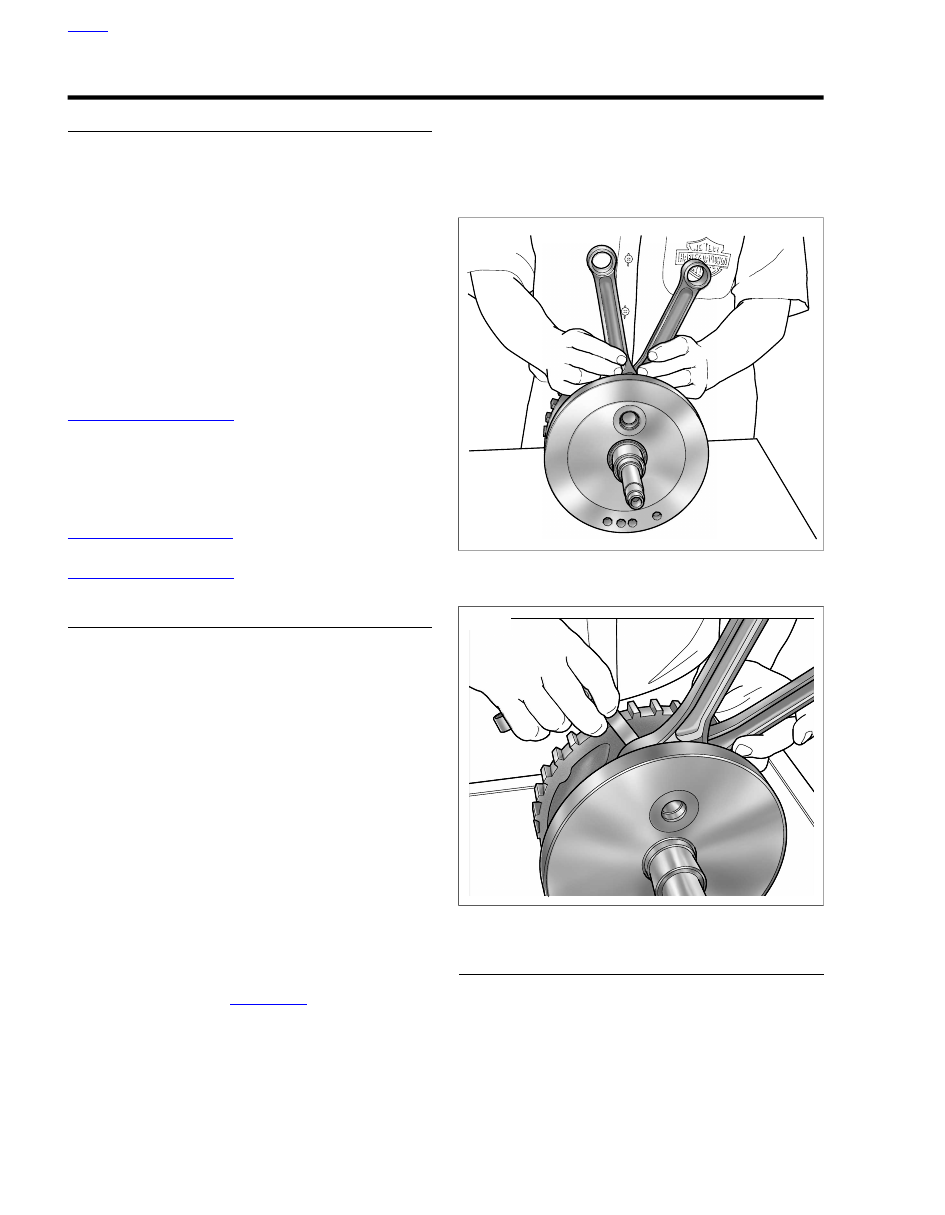

sm02310

Figure 3-147. Connecting Rod Bearing Clearance

sm02311

Figure 3-148. Connecting Rod Side Play

MEASURING CRANKSHAFT RUNOUT

Crankshaft Installed

NOTES

•

Perform the following checks during engine disassembly
as a method to determine condition of crankshaft and
whether crankshaft is suitable for reuse. The checks can

HOME

3-94 2013 Softail Service: Engine

sm03029a

1. Long shift shaft
2. 5th and 6th gear shifter fork
3. 5th gear
4. Short shift shaft
5. 5th gear
6. 3rd and 4th gear shifter fork
7. 3rd gear
8. 2nd gear
9. 1st and 2nd gear shifter fork
10. 1st gear

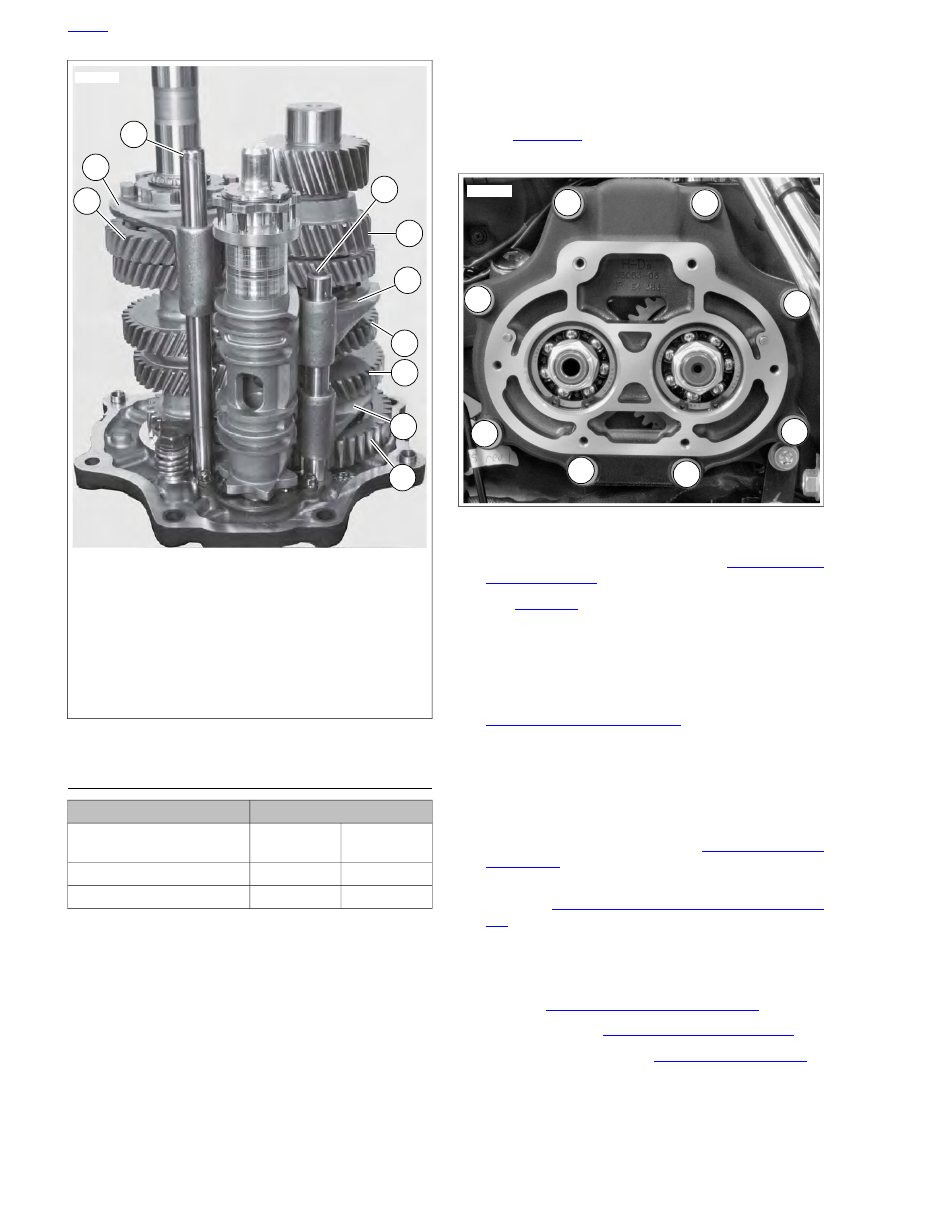

Figure 6-32. Transmission Gears and Shifter Forks

INSTALLATION

TORQUE VALUE

FASTENER

31.2-33.9 Nm

23-25 ft-lbs

Transmission bearing housing
screw

10.2-13.6 Nm

90-120

in-lbs

Transmission top cover

19.0-28.5 Nm

14-21 ft-lbs

Transmission drain plug

Cover mainshaft clutch hub splines with tape to prevent
the splines damaging the main drive gear oil seal.

Verify that two ring dowels are in place on bearing housing
flange. Place a

new

gasket on the ring dowels.

Apply clean transmission lubricant to the main drive gear
bearings.

NOTE

Be sure the transmission filler plug/dipstick is removed before
installing transmission assembly. Contact with the filler
plug/dipstick will prevent installation of transmission assembly.

Install the transmission assembly in the transmission case.

If equipped, place exhaust bracket into position. Install
bearing housing fasteners.

See

Figure 6-33

. Tighten all bearing housing hardware in

the sequence shown to 23-25 ft-lbs (31.2-33.9 Nm).

sm03926

Figure 6-33. Bearing Housing Hardware Torque Sequence

Install mainshaft bearing inner race. See

5.7 TRANSMIS-

SION SPROCKET

See

Figure 6-8

. Install pushrod assembly (items 2-5) in

mainshaft hole. Secure with

new

retaining ring (1) if

removed.

NOTE

The two top side cover fasteners are shorter than the others.

Install the clutch release cover, using a

new

gasket. See

6.5 CLUTCH RELEASE COVER

10. Remove shifter cam pawl from top cover gasket surface

and place on shift cam. Install

new

transmission top cover

gasket. Install transmission top cover. Install top cover
fasteners and tighten to 90-120

in-lbs

(10.2-13.6 Nm).

11. Install vent hose to top cover fitting, if removed.

12. Install transmission sprocket nut. See

5.7 TRANSMISSION

SPROCKET

13. Install primary chaincase, clutch assembly and primary

cover. See

5.3 PRIMARY CHAINCASE COVER, Installa-

tion

14. Replace O-ring on plug. Clean and install transmission

drain plug. Tighten to 14-21 ft-lbs (19.0-28.5 Nm).

15. Fill transmission to proper level with fresh transmission

fluid. See

1.10 TRANSMISSION LUBRICANT

16. Install oil tank. See

3.30 OIL TANK: ALL BUT FXSB

17. Install exhaust system. See

4.17 EXHAUST SYSTEM

HOME

6-22 2013 Softail Service: Transmission

6.7

MAIN DRIVE GEAR AND BEARING

REMOVAL

TOOL NAME

PART NUMBER

PILOT

HD-35316-10

RECEIVER CUP

HD-35316-11

CROSS PLATE

HD-35316-3A

8 IN. BOLT

HD-35316-4A

12 IN. BOLT

HD-35316-5

WASHER

HD-35316-7

BEARING DRIVER

HD-35316-9

MAIN DRIVE GEAR/BEARING
REMOVER AND INSTALLER

HD-35316-C

LONG BOLTS

HD-95637-10

WEDGE ATTACHMENT

HD-95637-46B

BEARING

RS-25100-200

NOTE

Leave the transmission case in the frame unless the case itself
must be replaced. For illustration purposes, some photographs
may show the case removed.

Remove the exhaust system. See

4.17 EXHAUST

SYSTEM

Remove the primary chaincase cover, clutch assembly,
primary chain, compensating sprocket and primary
chaincase. See

5.5 PRIMARY CHAINCASE HOUSING

Remove the bearing inner race from the transmission
mainshaft. See

5.5 PRIMARY CHAINCASE HOUSING,

Mainshaft Bearing Inner Race

Remove

the

transmission

bearing

housing.

See

6.6 TRANSMISSION ASSEMBLY

Failure to use Main Drive Gear Remover and Installer can
cause premature failure of bearing and related parts.
(00540b)

NOTE

Main drive gear and bearing can be removed with the transmis-
sion case in the frame after removing bearing housing
assembly. Use MAIN DRIVE GEAR/BEARING REMOVER
AND INSTALLER (Part No. HD-35316-C).

Remove retaining ring.

NOTES

•

The main drive gear bearing and retaining ring must be
replaced if the main drive gear is removed. The bearing
will be damaged during the removal procedure.

•

The CROSS PLATE (Part No. HD-35316-3A) is stamped,
"UP 6 SPEED". Mount cross plate with this end pointing
up.

See

Figure 6-34

. Place CROSS PLATE (Part No. HD-

35316-3A) (1) on right side of transmission case as shown,

and secure with two screws (2). Position cross plate so
that large bolt hole in cross plate is lined up with center of
main drive gear (4).

Apply a light coat of graphite lubricant to the threads of
the 12 IN. BOLT (Part No. HD-35316-5) (3) and insert
through cross plate and main drive gear.

At left side of transmission case, place WASHER (Part
No. HD-35316-7), BEARING (Part No. RS-25100-200)
(6), flat washer (7) and nut (8) over end of bolt. Tighten
nut until main drive gear is free.

NOTES

•

When removing the main drive gear, the gear is pressed
out against the resistance of the bearing inner race.
Without any support at the inner race, the bearing is des-
troyed. Whenever the main drive gear is removed the main
drive gear bearing must also be replaced.

•

See

Figure 6-35

. When the main drive gear is removed,

a portion of the bearing inner race remains attached to
the main drive gear. If the main drive gear is to be re-used,
this inner race must be removed first.

Remove tool and remove gear from gearcase.

10. See

Figure 6-35

. Use WEDGE ATTACHMENT (Part

No. HD-95637-46B) and LONG BOLTS (Part No. HD-
95637-10) to remove inner race from main drive gear.

11. Remove large main drive gear oil seal.

12. Remove retaining ring from bearing bore.

13. See

Figure 6-36

. Slide PILOT (Part No. HD-35316-10) (3)

over small end of BEARING DRIVER (Part No. HD-35316-
9) (2).

14. Apply a light coat of graphite lubricant to the threads of

the 8 IN. BOLT (Part No. HD-35316-4A) (1) and insert
through bearing driver and pilot.

15. Insert bolt with bearing driver and pilot into right side of

transmission case, through main drive gear bearing (4).
Make sure bearing driver fits up against main drive gear
bearing and pilot is centered in bearing bore.

16. At left side of case, slide RECEIVER CUP (Part No. HD-

35316-11) (5) onto bolt and over main drive gear bearing.
Install BEARING (Part No. RS-25100-200) (6), flat washer
(7) and nut (8) over end of bolt.

NOTE

Support bearing remover assembly as you remove bearing in
the following step. Entire assembly will fall out of transmission
case when bearing comes free.

17. Tighten nut until main drive gear bearing is free.

18. Discard main drive gear bearing.

HOME

2013 Softail Service: Transmission 6-23

sm03033

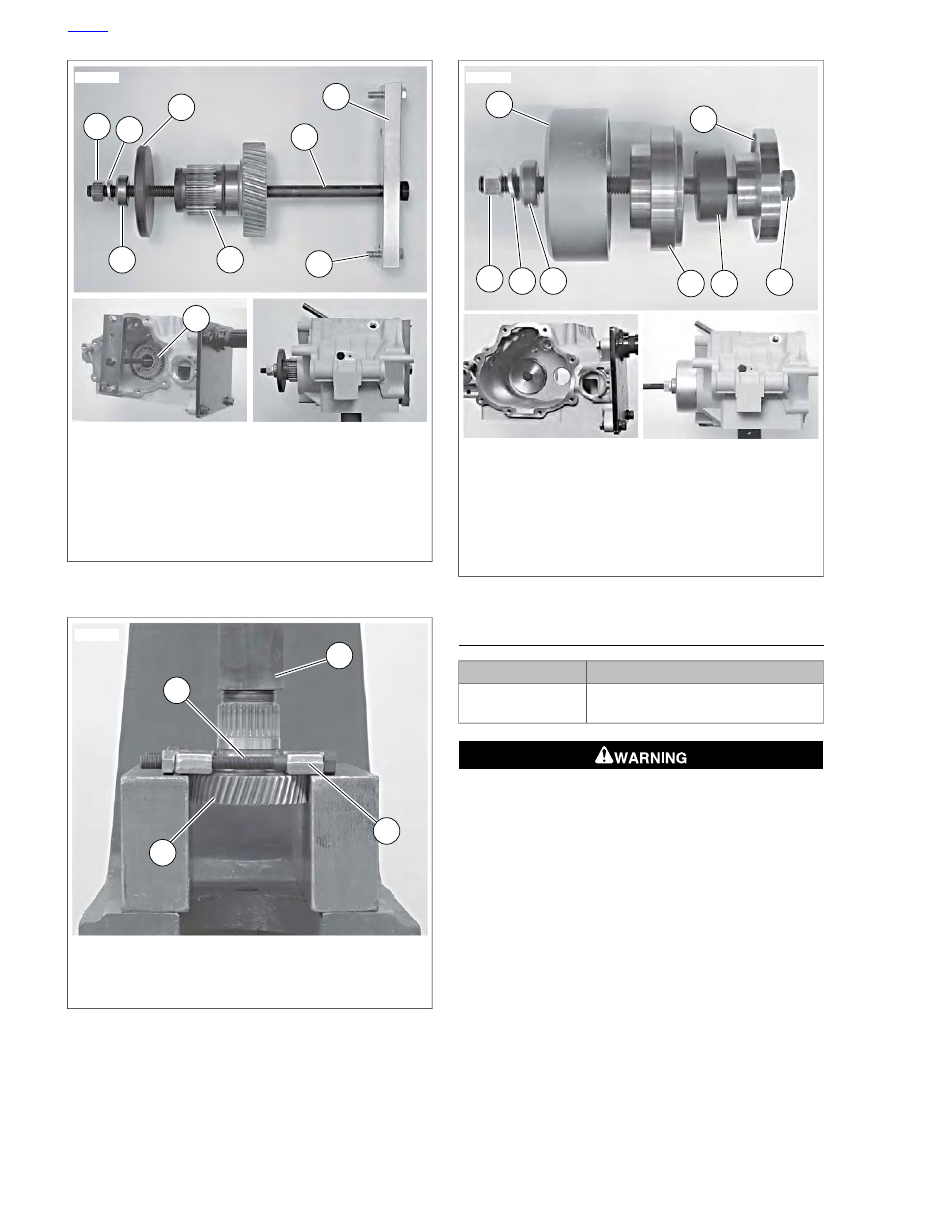

1. Cross plate
2. Screw (2)
3. 12 in. bolt
4. Main drive gear
5. Washer
6. Bearing
7. Flat washer
8. Nut

Figure 6-34. Removing Main Drive Gear

sm03034

1. Main drive gear
2. Long bolt (2)
3. Wedge attachment
4. Press ram

Figure 6-35. Removing Inner Bearing Race From Main Drive

Gear

sm03035

1. 8 in. Bolt
2. Bearing driver
3. Pilot
4. Main drive gear bearing
5. Receiver cup
6. Bearing
7. Flat washer
8. Nut

Figure 6-36. Removing Main Drive Gear Bearing

CLEANING AND INSPECTION

TOOL NAME

PART NUMBER

MAIN DRIVE GEAR BEARING AND
SEAL INSTALLATION TOOL

HD-47932

Compressed air can pierce the skin and flying debris from
compressed air could cause serious eye injury. Wear
safety glasses when working with compressed air. Never
use your hand to check for air leaks or to determine air
flow rates. (00061a)

Clean all parts in solvent except the transmission case
and needle bearings. Dry with compressed air.

NOTE

Never wash the transmission case and needle bearings with
solvent unless replacing the needle bearings. Normal cleaning
methods will wash dirt or other contaminants into the bearing
case (behind the needles) and will lead to bearing failure.

Inspect the main drive gear for pitting and wear. Replace
if necessary.

Inspect the needle bearings inside the main drive gear.
Replace the needle bearings if the mainshaft race is pitted
or grooved.

HOME

6-24 2013 Softail Service: Transmission

Replace the sprocket if teeth are cracked or worn. See

5.7 TRANSMISSION SPROCKET, Cleaning and Inspec-
tion

for more information.

Inspect the needle bearings on the inside of the main drive
gear. If mainshaft race surface appears pitted or grooved,
replace these bearings.

NOTE

If replacing the main drive gear needle bearings and/or seal,
continue as follows. Otherwise, proceed to

6.8 TRANSMISSION

CASE, Assembly

Needle Bearing Replacement

Wear safety glasses or goggles when removing or
installing retaining rings. Retaining rings can slip from the
pliers and could be propelled with enough force to cause
serious eye injury. (00312a)

NOTES

•

See

Figure 6-38

. When replacing needle bearings, discard

original retaining rings (1) and install replacement retaining
rings (2).

•

To install the inner main drive gear needle bearings and
mainshaft seal, use MAIN DRIVE GEAR BEARING AND
SEAL INSTALLATION TOOL (Part No. HD-47932).

See

Figure 6-37

. Remove mainshaft seal (6). Remove

retaining rings (1), needle bearings (2) and spacer (5) from
main drive gear (3). Discard retaining rings.

Remove and discard O-ring (4).

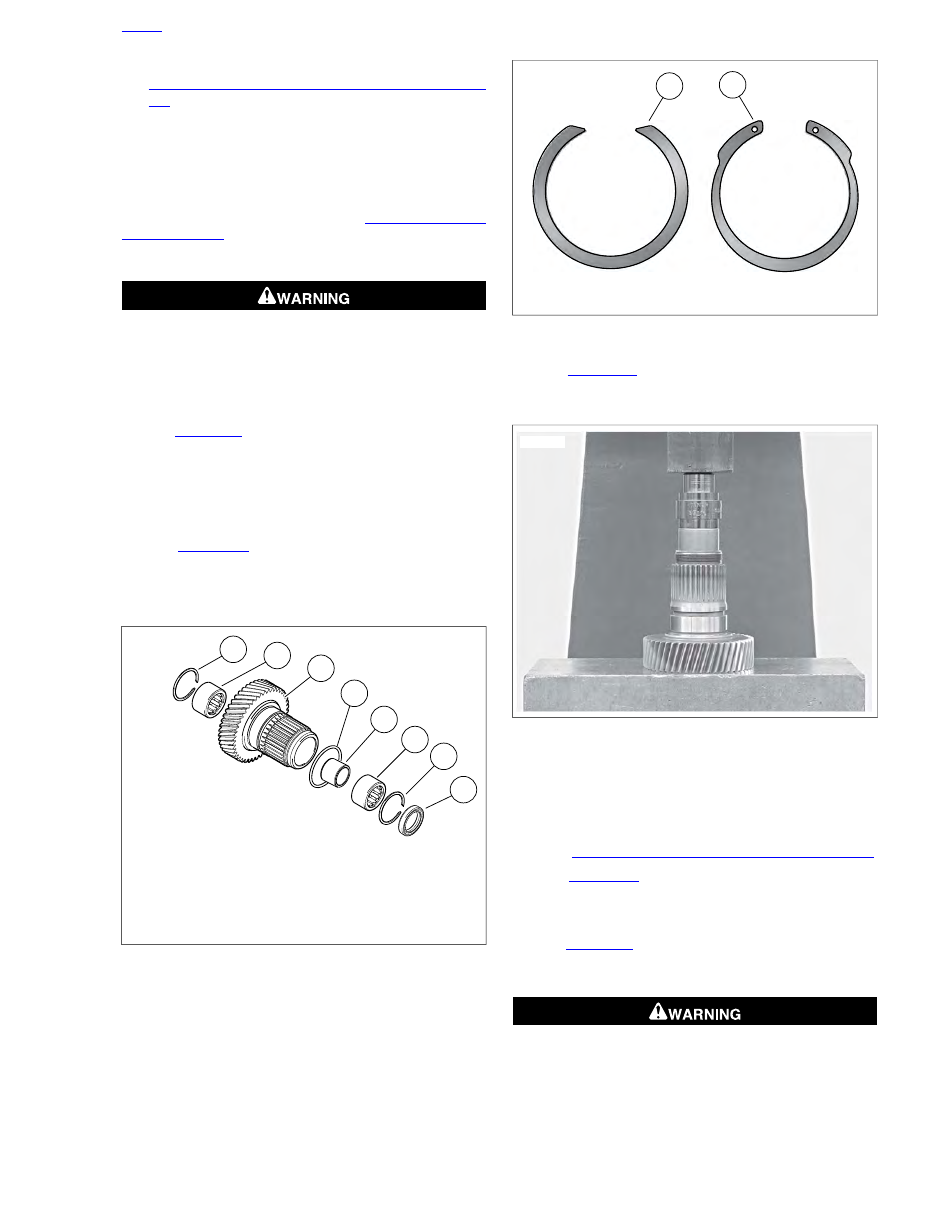

sm03036

1. Retaining ring (2)
2. Needle bearing (2)
3. Main drive gear
4. O-ring
5. Spacer
6. Mainshaft seal

Figure 6-37. Main Drive Gear Assembly

sm03038

1. Original retaining ring
2. Replacement retaining ring

Figure 6-38. Main Drive Gear Retaining Rings

See

Figure 6-39

. Install clutch side needle bearing using

an arbor press and the 0.400 in. step end of tool as shown.
Press until tool contacts gear.

sm03040

Figure 6-39. Installing Clutch Side Needle Bearing in Main

Drive Gear

NOTE

An alternative method is provided which allows the mainshaft
seal to be pressed into place after installation of the main drive
gear. See

6.7 MAIN DRIVE GEAR AND BEARING, Installation

See

Figure 6-40

. Turn over tool and press in mainshaft

seal using the 0.090 in. step with garter spring side down.

Install spacer.

See

Figure 6-41

. Turn over the main drive gear in the arbor

press. With the tool at the 0.188 in. step, press inner
bearing until tool contacts gear.

Wear safety glasses or goggles when removing or
installing retaining rings. Retaining rings can slip from the
pliers and could be propelled with enough force to cause
serious eye injury. (00312a)

HOME

2013 Softail Service: Transmission 6-25

See

Figure 6-37

. Install

new

retaining rings (1).

Install

new

O-ring (4) into groove in main drive gear.

sm03044

Figure 6-40. Pressing in Seal

sm02302

Figure 6-41. Installing Transmission Side Needle Bearing

in Main Driver Gear

INSTALLATION

TOOL NAME

PART NUMBER

INSTALLER CUP

HD-35316-12

CROSS PLATE

HD-35316-3A

8 IN. BOLT

HD-35316-4A

12 IN. BOLT

HD-35316-5

WASHER

HD-35316-7

BEARING DRIVER

HD-35316-8

INSTALLER

HD-47856-1

PILOT

HD-47856-2

ADAPTER

HD-47856-3

NUT

HD-47856-6

CROW'S FOOT WRENCH

HD-47856-7

Improper tightening of sprocket nut can cause drive
component damage. (00541b)

Installing Main Drive Gear Bearing

NOTE

CROSS PLATE (Part No. HD-35316-3A) will retrofit to earlier
transmissions. Note that one end of cross plate is stamped,
"UP 6 SPEED". Mount cross plate with this end pointing up for
6 speed transmissions.

See

Figure 6-42

. Place CROSS PLATE (Part No. HD-

35316-3A) (2) on right side of transmission case as shown,
and secure with two screws (3). Position cross plate with
large bolt hole in cross plate aligned with main drive gear
bearing bore.

Apply a light coat of graphite lubricant to the threads of 12
IN. BOLT (Part No. HD-35316-5) (1) and install through
cross plate and main drive gear bearing bore.

At left side of case, place main drive gear bearing (4),
BEARING DRIVER (Part No. HD-35316-8) (5), BEARING
(6), FLAT WASHER (7) and NUT (8) over end of bolt.

Tighten nut until main drive gear bearing bottoms against
lip cast into transmission case bearing bore.

HOME

6-26 2013 Softail Service: Transmission

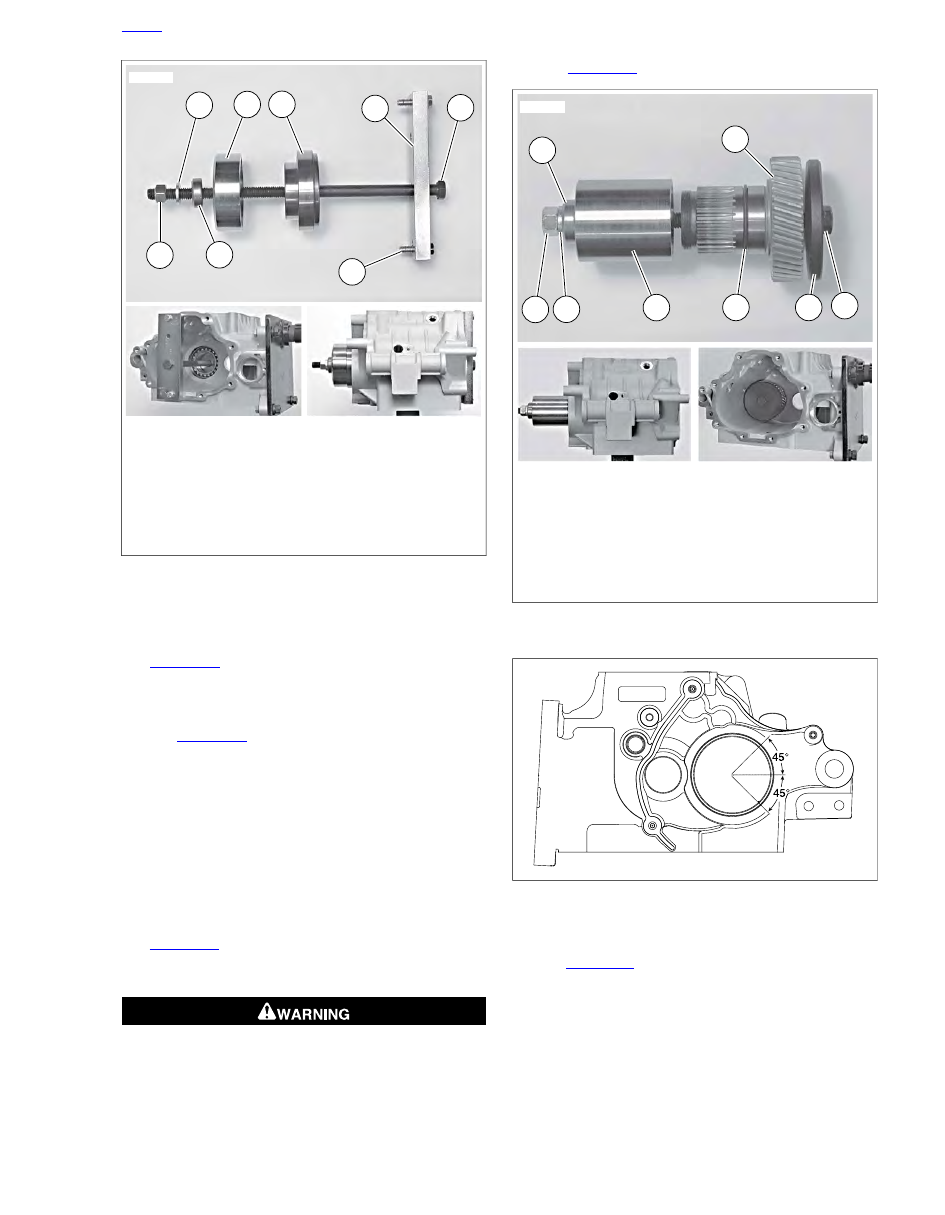

sm03051

1. 12 in. bolt
2. Cross plate
3. Screw (2)
4. Main drive gear bearing
5. Bearing driver
6. Bearing
7. Flat washer
8. Nut

Figure 6-42. Installing Main Drive Gear Bearing (Typical)

Installing Main Drive Gear

NOTE

See

Figure 6-43

. Make sure new O-ring (4) is installed onto

main drive gear (3). Lubricate O-ring with SCREAMIN' EAGLE
ASSEMBLY LUBE before installing drive gear into transmission
case.

See

Figure 6-43

. Apply a light coat of graphite lubricant

to the threads of 8 IN. BOLT (Part No. HD-35316-4A) (1)
and insert through WASHER (Part No. HD-35316-7) (2)
and main drive gear (3). Insert assembly into transmission
case, through main drive gear bearing.

At outside of case, place INSTALLER CUP (Part No. HD-
35316-12) (5), BEARING (6), FLAT WASHER (7) and NUT
(8) over end of bolt.

Tighten nut until main drive gear contacts main drive gear
bearing.

NOTE

See

Figure 6-44

. In next step, bearing retaining ring must be

installed with the flat side facing the bearing and the opening
in the ninety degree range shown.

Wear safety glasses or goggles when removing or
installing retaining rings. Retaining rings can slip from the
pliers and could be propelled with enough force to cause
serious eye injury. (00312a)

See

Figure 6-45

. Install

new

retaining ring (2).

sm03052

1. 8 in. bolt
2. Washer
3. Main drive gear
4. O-ring
5. Installer cup
6. Bearing
7. Flat washer
8. Nut

Figure 6-43. Installing Main Drive Gear (Typical)

sm03053

Figure 6-44. Retaining Ring Opening

Installing Main Drive Gear Large Seal

See

Figure 6-45

. From outside of crankcase, install PILOT

(Part No. HD-47856-2) over end of main drive gear bearing
inner race.

Coat lips of

new

main drive gear seal with FORMULA+

TRANSMISSION AND PRIMARY CHAINCASE LUB-
RICANT.

HOME

2013 Softail Service: Transmission 6-27

See

Figure 6-46

. Place seal over pilot with garter spring

facing bearing, and position seal squarely in end of
crankcase bore.

NOTE

ADAPTER (Part No. HD-47856-3) and main drive gear have
right-hand threads.

See

Figure 6-47

. Thread ADAPTER (Part No. HD-47856-

3) onto end of main drive gear until it contacts main drive
gear.

sm03057

1. Pilot
2. Retaining ring

Figure 6-45. Install Pilot

sm03058

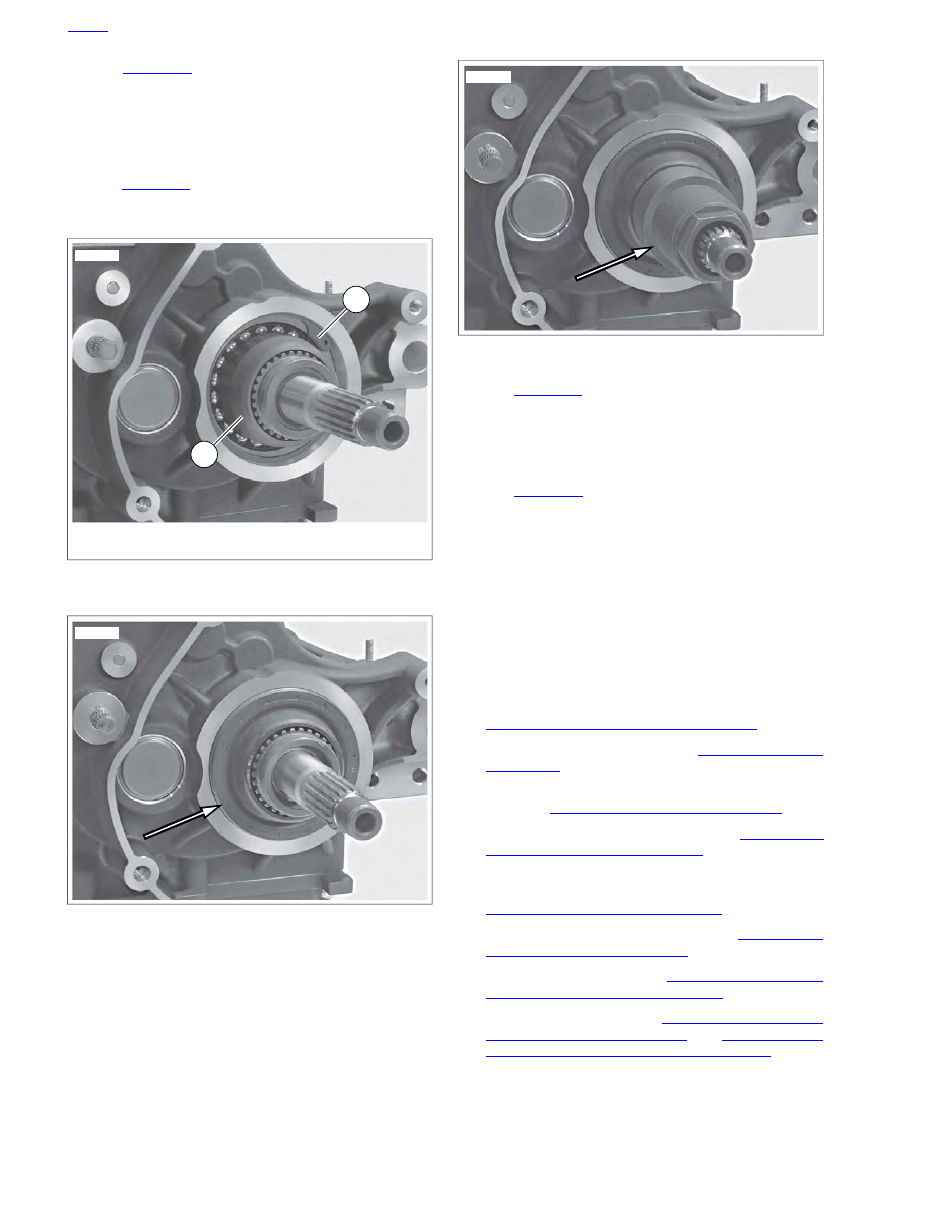

Figure 6-46. Place Main Drive Gear Seal Over Pilot

sm03059

Figure 6-47. Install Adapter

See

Figure 6-48

. Slide INSTALLER (Part No. HD-47856-

1) (1) over adapter until cupped end of installer is flat
against seal.

Thread NUT (Part No. HD-47856-6) (2) onto end of
adapter, until it tightens against installer.

See

Figure 6-49

. Place CROW'S FOOT WRENCH (Part

No. HD-47856-7) (1) with 1/2 inch drive breaker bar (2)
on large nut. Place an adjustable wrench (3) on flats of
hex head cast into end of adapter.

Holding adjustable wrench, tighten large nut with crow's
foot wrench until outer face of seal is flush with outer edge
of transmission bore.

NOTE

It is acceptable to recess seal as much as 0.030 in. (0.762 mm)
below outer edge of bore. Seal depth is controlled by tool.

Remove nut, installer, adapter and pilot.

10. Install bearing housing and transmission components. See

6.6 TRANSMISSION ASSEMBLY, Installation

11. Install sprocket and drive belt. See

5.7 TRANSMISSION

SPROCKET

. Do not adjust belt at this time.

12. Install the bearing inner race on the transmission main-

shaft. See

6.8 TRANSMISSION CASE, Assembly

13. Install the primary chaincase housing. See

5.5 PRIMARY

CHAINCASE HOUSING, Installation

14. Install the clutch assembly, primary chain, chain tensioner

assembly and compensating sprocket components See

5.4 DRIVE COMPONENTS, Installation

15. Install the primary chaincase cover. See

5.3 PRIMARY

CHAINCASE COVER, Installation

16. Adjust the drive belt. See

1.12 DRIVE BELT AND

SPROCKETS, Adjusting Belt Deflection

17. Install exhaust system. See

4.17 EXHAUST SYSTEM,

System: FLSTC, FXST, FXSB

4.17 EXHAUST

SYSTEM, System: FLSTN, FLSTF/B, FLS, FXS

HOME

6-28 2013 Softail Service: Transmission

sm03061

1. Installer
2. Nut

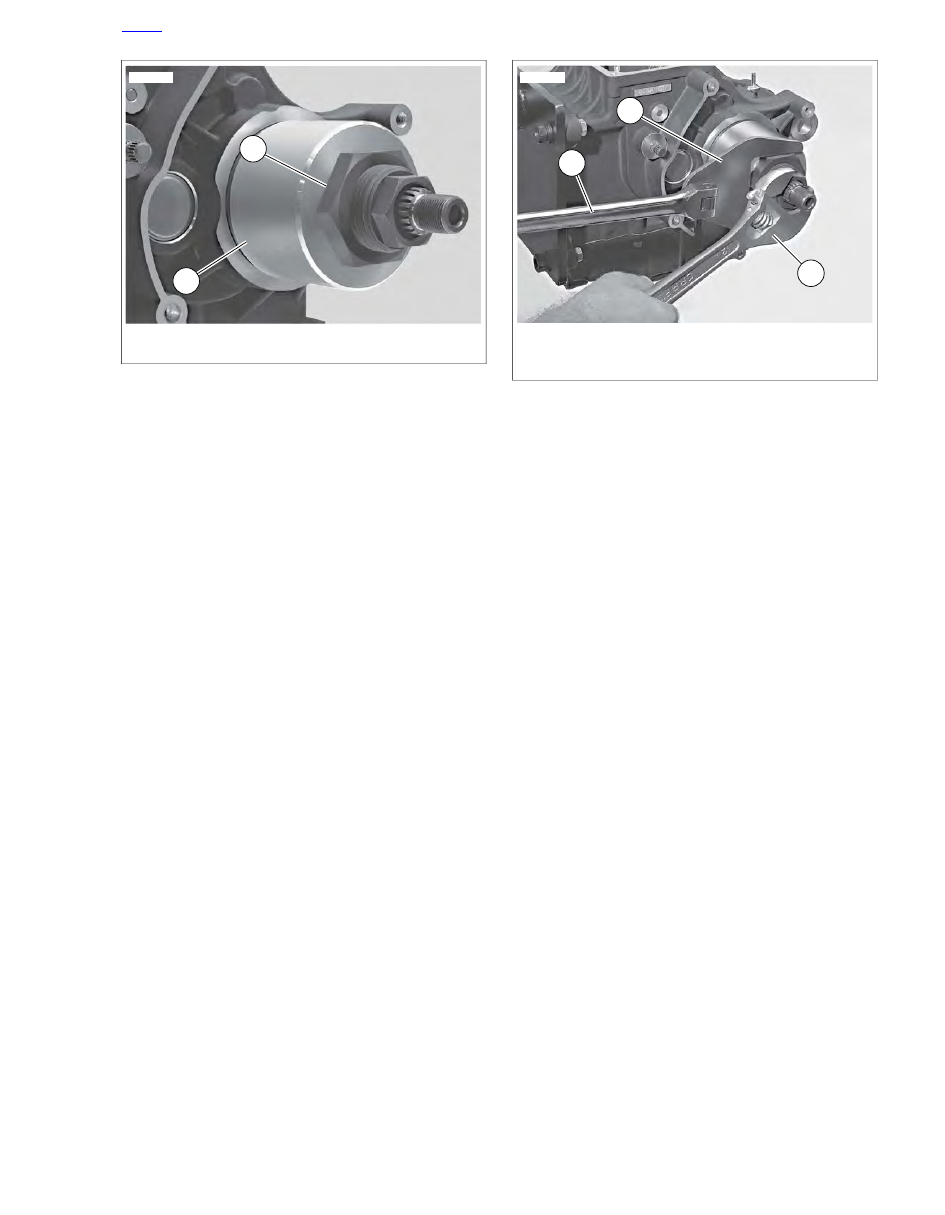

Figure 6-48. Installer and Nut

sm03062

1. Crow's foot wrench
2. 1/2 in breaker bar
3. Adjustable wrench

Figure 6-49. Press Seal Into Crankcase

HOME

2013 Softail Service: Transmission 6-29

Content .. 21 22 23 24 ..
